User Manual

User’s manualVersion 1.0 March 2005ULTRALINK ULM2000

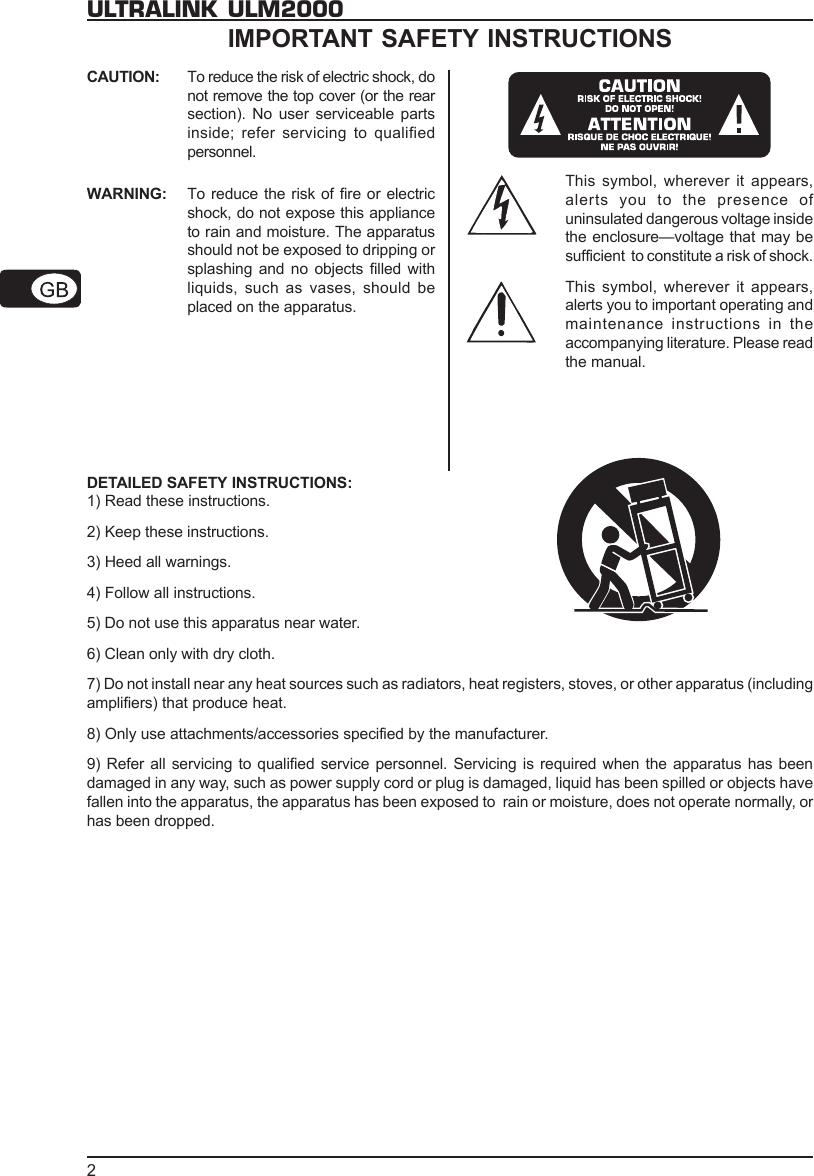

2ULTRALINK ULM2000CAUTION: To reduce the risk of electric shock, donot remove the top cover (or the rearsection). No user serviceable partsinside; refer servicing to qualifiedpersonnel.WARNING: To reduce the risk of fire or electricshock, do not expose this applianceto rain and moisture. The apparatusshould not be exposed to dripping orsplashing and no objects filled withliquids, such as vases, should beplaced on the apparatus.This symbol, wherever it appears,alerts you to the presence ofuninsulated dangerous voltage insidethe enclosure—voltage that may besufficient to constitute a risk of shock.This symbol, wherever it appears,alerts you to important operating andmaintenance instructions in theaccompanying literature. Please readthe manual.DETAILED SAFETY INSTRUCTIONS:1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includingamplifiers) that produce heat.8) Only use attachments/accessories specified by the manufacturer.9) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has beendamaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects havefallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, orhas been dropped.IMPORTANT SAFETY INSTRUCTIONS

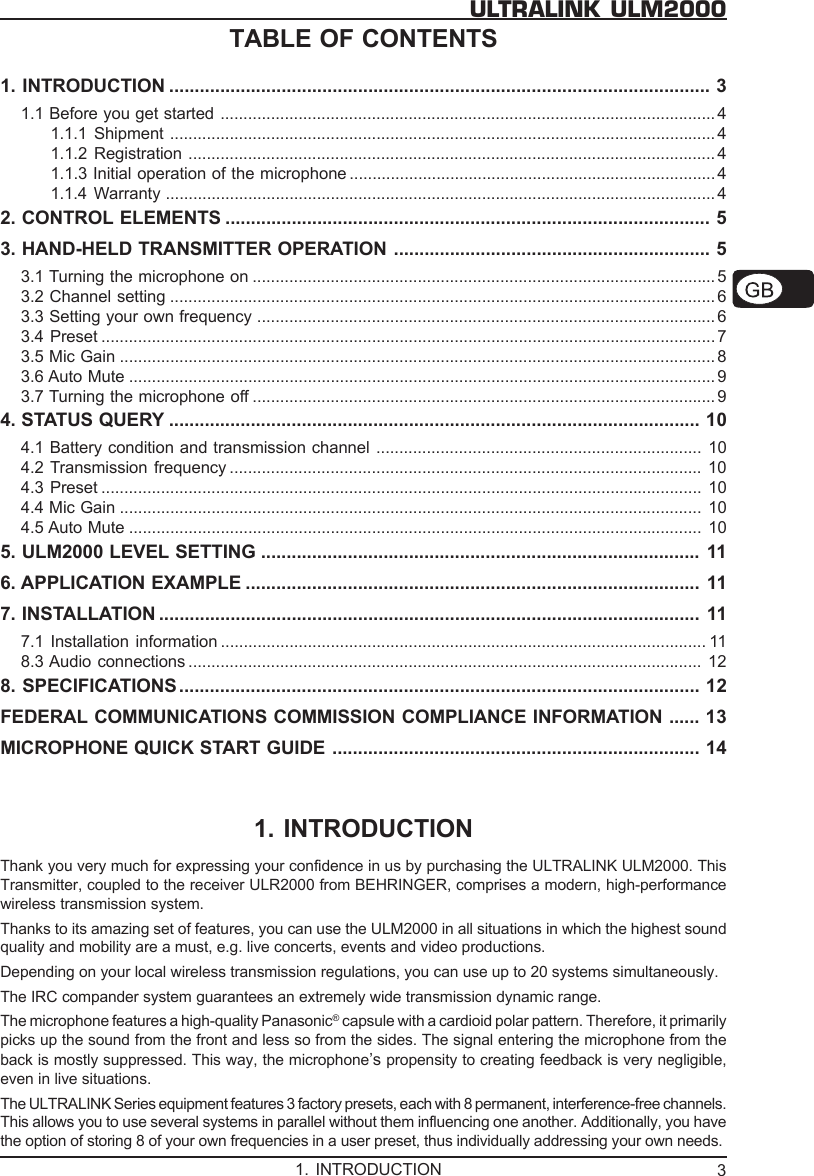

3ULTRALINK ULM2000TABLE OF CONTENTS1. INTRODUCTION .......................................................................................................... 31.1 Before you get started ............................................................................................................ 41.1.1 Shipment ....................................................................................................................... 41.1.2 Registration ................................................................................................................... 41.1.3 Initial operation of the microphone ................................................................................ 41.1.4 Warranty ........................................................................................................................ 42. CONTROL ELEMENTS ............................................................................................... 53. HAND-HELD TRANSMITTER OPERATION .............................................................. 53.1 Turning the microphone on ..................................................................................................... 53.2 Channel setting ....................................................................................................................... 63.3 Setting your own frequency .................................................................................................... 63.4 Preset ...................................................................................................................................... 73.5 Mic Gain .................................................................................................................................. 83.6 Auto Mute ................................................................................................................................ 93.7 Turning the microphone off ..................................................................................................... 94. STATUS QUERY ........................................................................................................ 104.1 Battery condition and transmission channel ....................................................................... 104.2 Transmission frequency ....................................................................................................... 104.3 Preset ................................................................................................................................... 104.4 Mic Gain ............................................................................................................................... 104.5 Auto Mute ............................................................................................................................. 105. ULM2000 LEVEL SETTING ...................................................................................... 116. APPLICATION EXAMPLE ......................................................................................... 117. INSTALLATION .......................................................................................................... 117.1 Installation information .......................................................................................................... 118.3 Audio connections ................................................................................................................ 128. SPECIFICATIONS ...................................................................................................... 12FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION ...... 13MICROPHONE QUICK START GUIDE ........................................................................ 141. INTRODUCTIONThank you very much for expressing your confidence in us by purchasing the ULTRALINK ULM2000. ThisTransmitter, coupled to the receiver ULR2000 from BEHRINGER, comprises a modern, high-performancewireless transmission system.Thanks to its amazing set of features, you can use the ULM2000 in all situations in which the highest soundquality and mobility are a must, e.g. live concerts, events and video productions.Depending on your local wireless transmission regulations, you can use up to 20 systems simultaneously.The IRC compander system guarantees an extremely wide transmission dynamic range.The microphone features a high-quality Panasonic® capsule with a cardioid polar pattern. Therefore, it primarilypicks up the sound from the front and less so from the sides. The signal entering the microphone from theback is mostly suppressed. This way, the microphone’s propensity to creating feedback is very negligible,even in live situations.The ULTRALINK Series equipment features 3 factory presets, each with 8 permanent, interference-free channels.This allows you to use several systems in parallel without them influencing one another. Additionally, you havethe option of storing 8 of your own frequencies in a user preset, thus individually addressing your own needs.1. INTRODUCTION

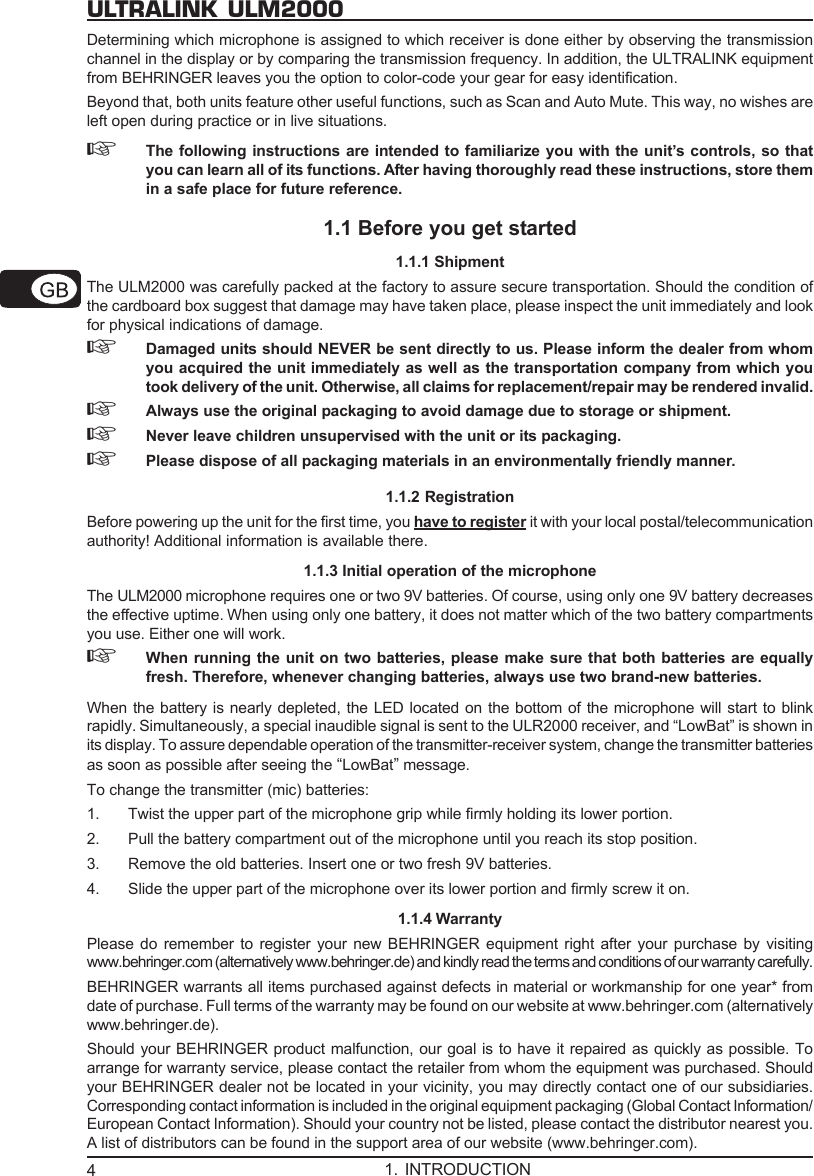

4ULTRALINK ULM2000Determining which microphone is assigned to which receiver is done either by observing the transmissionchannel in the display or by comparing the transmission frequency. In addition, the ULTRALINK equipmentfrom BEHRINGER leaves you the option to color-code your gear for easy identification.Beyond that, both units feature other useful functions, such as Scan and Auto Mute. This way, no wishes areleft open during practice or in live situations.☞The following instructions are intended to familiarize you with the unit’s controls, so thatyou can learn all of its functions. After having thoroughly read these instructions, store themin a safe place for future reference.1.1 Before you get started1.1.1 ShipmentThe ULM2000 was carefully packed at the factory to assure secure transportation. Should the condition ofthe cardboard box suggest that damage may have taken place, please inspect the unit immediately and lookfor physical indications of damage.☞Damaged units should NEVER be sent directly to us. Please inform the dealer from whomyou acquired the unit immediately as well as the transportation company from which youtook delivery of the unit. Otherwise, all claims for replacement/repair may be rendered invalid.☞Always use the original packaging to avoid damage due to storage or shipment.☞Never leave children unsupervised with the unit or its packaging.☞Please dispose of all packaging materials in an environmentally friendly manner.1.1.2 RegistrationBefore powering up the unit for the first time, you have to register it with your local postal/telecommunicationauthority! Additional information is available there.1.1.3 Initial operation of the microphoneThe ULM2000 microphone requires one or two 9V batteries. Of course, using only one 9V battery decreasesthe effective uptime. When using only one battery, it does not matter which of the two battery compartmentsyou use. Either one will work.☞When running the unit on two batteries, please make sure that both batteries are equallyfresh. Therefore, whenever changing batteries, always use two brand-new batteries.When the battery is nearly depleted, the LED located on the bottom of the microphone will start to blinkrapidly. Simultaneously, a special inaudible signal is sent to the ULR2000 receiver, and “LowBat” is shown inits display. To assure dependable operation of the transmitter-receiver system, change the transmitter batteriesas soon as possible after seeing the “LowBat” message.To change the transmitter (mic) batteries:1. Twist the upper part of the microphone grip while firmly holding its lower portion.2. Pull the battery compartment out of the microphone until you reach its stop position.3. Remove the old batteries. Insert one or two fresh 9V batteries.4. Slide the upper part of the microphone over its lower portion and firmly screw it on.1.1.4 WarrantyPlease do remember to register your new BEHRINGER equipment right after your purchase by visitingwww.behringer.com (alternatively www.behringer.de) and kindly read the terms and conditions of our warranty carefully.BEHRINGER warrants all items purchased against defects in material or workmanship for one year* fromdate of purchase. Full terms of the warranty may be found on our website at www.behringer.com (alternativelywww.behringer.de).Should your BEHRINGER product malfunction, our goal is to have it repaired as quickly as possible. Toarrange for warranty service, please contact the retailer from whom the equipment was purchased. Shouldyour BEHRINGER dealer not be located in your vicinity, you may directly contact one of our subsidiaries.Corresponding contact information is included in the original equipment packaging (Global Contact Information/European Contact Information). Should your country not be listed, please contact the distributor nearest you.A list of distributors can be found in the support area of our website (www.behringer.com).1. INTRODUCTION

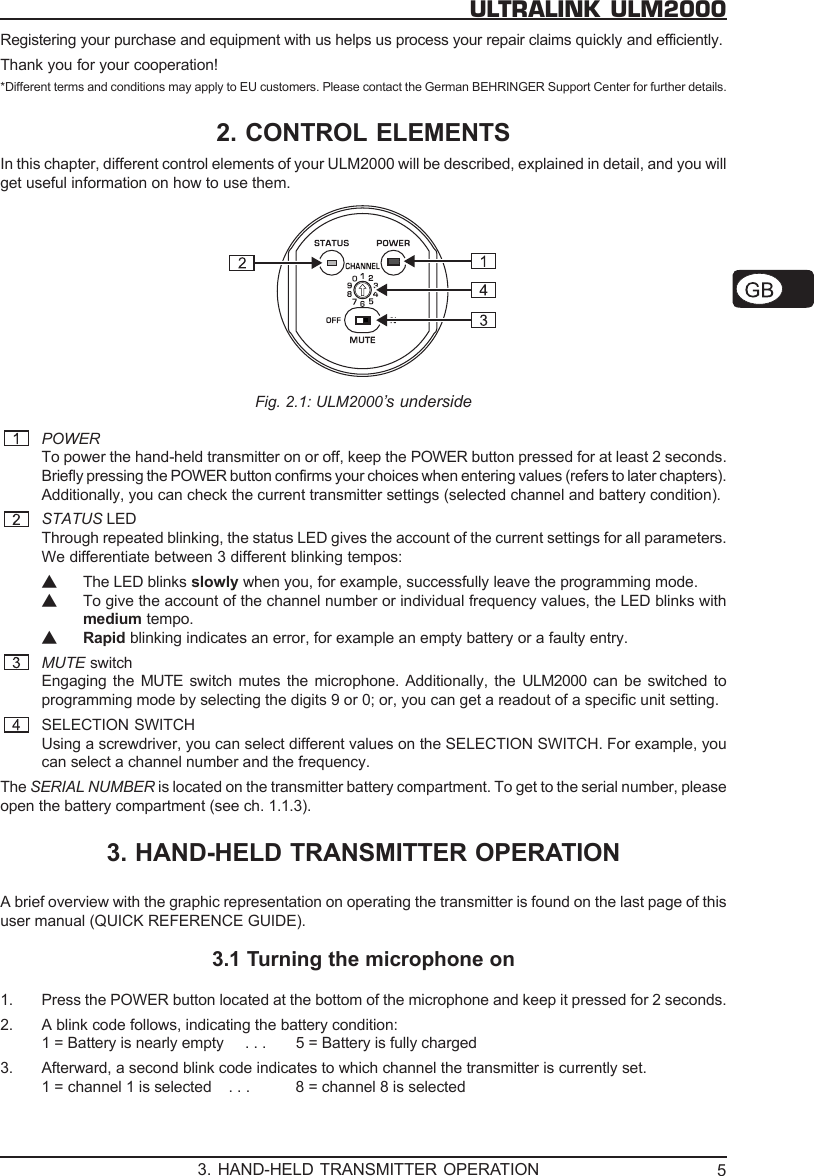

5ULTRALINK ULM2000Registering your purchase and equipment with us helps us process your repair claims quickly and efficiently.Thank you for your cooperation!*Different terms and conditions may apply to EU customers. Please contact the German BEHRINGER Support Center for further details.2. CONTROL ELEMENTSIn this chapter, different control elements of your ULM2000 will be described, explained in detail, and you willget useful information on how to use them.Fig. 2.1: ULM2000’s undersidePOWERTo power the hand-held transmitter on or off, keep the POWER button pressed for at least 2 seconds.Briefly pressing the POWER button confirms your choices when entering values (refers to later chapters).Additionally, you can check the current transmitter settings (selected channel and battery condition).STATUS LEDThrough repeated blinking, the status LED gives the account of the current settings for all parameters.We differentiate between 3 different blinking tempos:▲The LED blinks slowly when you, for example, successfully leave the programming mode.▲To give the account of the channel number or individual frequency values, the LED blinks withmedium tempo.▲Rapid blinking indicates an error, for example an empty battery or a faulty entry.MUTE switchEngaging the MUTE switch mutes the microphone. Additionally, the ULM2000 can be switched toprogramming mode by selecting the digits 9 or 0; or, you can get a readout of a specific unit setting.SELECTION SWITCHUsing a screwdriver, you can select different values on the SELECTION SWITCH. For example, youcan select a channel number and the frequency.The SERIAL NUMBER is located on the transmitter battery compartment. To get to the serial number, pleaseopen the battery compartment (see ch. 1.1.3).3. HAND-HELD TRANSMITTER OPERATIONA brief overview with the graphic representation on operating the transmitter is found on the last page of thisuser manual (QUICK REFERENCE GUIDE).3.1 Turning the microphone on1. Press the POWER button located at the bottom of the microphone and keep it pressed for 2 seconds.2. A blink code follows, indicating the battery condition:1 = Battery is nearly empty . . . 5 = Battery is fully charged3. Afterward, a second blink code indicates to which channel the transmitter is currently set.1 = channel 1 is selected . . . 8 = channel 8 is selected3. HAND-HELD TRANSMITTER OPERATION

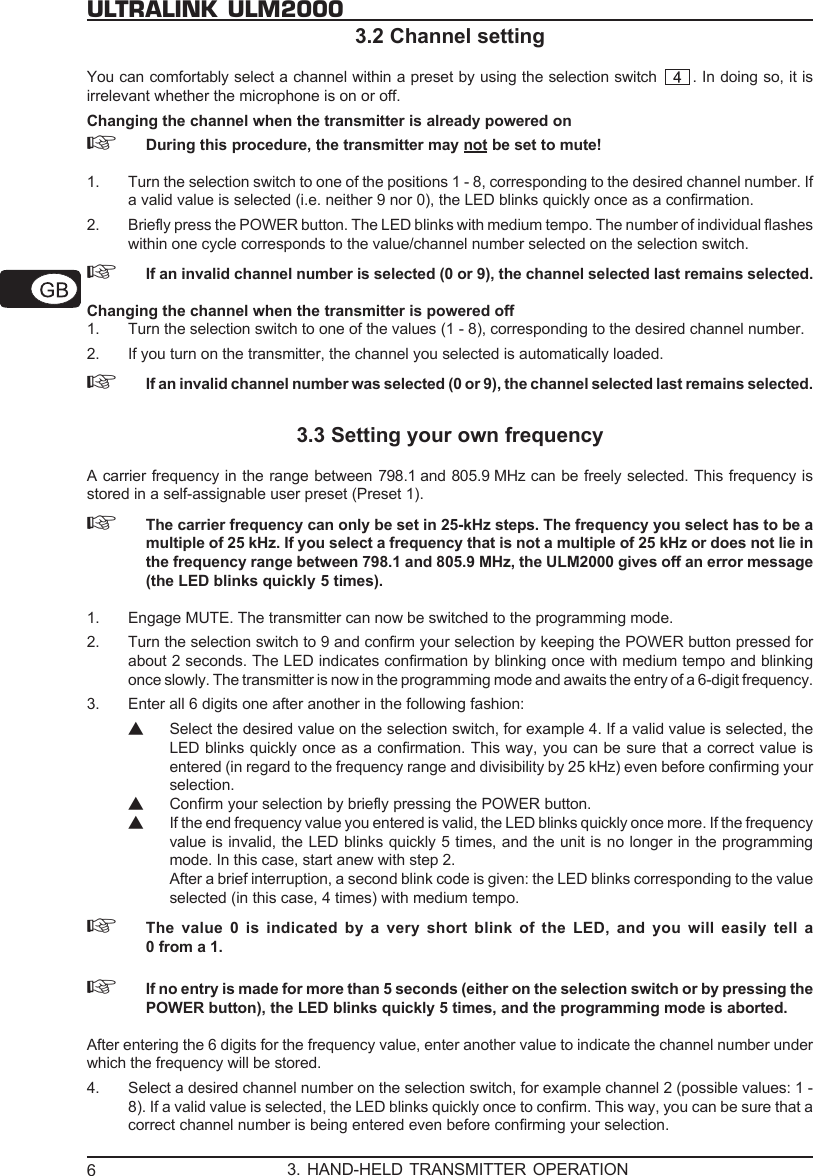

6ULTRALINK ULM20003.2 Channel settingYou can comfortably select a channel within a preset by using the selection switch . In doing so, it isirrelevant whether the microphone is on or off.Changing the channel when the transmitter is already powered on☞During this procedure, the transmitter may not be set to mute!1. Turn the selection switch to one of the positions 1 - 8, corresponding to the desired channel number. Ifa valid value is selected (i.e. neither 9 nor 0), the LED blinks quickly once as a confirmation.2. Briefly press the POWER button. The LED blinks with medium tempo. The number of individual flasheswithin one cycle corresponds to the value/channel number selected on the selection switch.☞If an invalid channel number is selected (0 or 9), the channel selected last remains selected.Changing the channel when the transmitter is powered off1. Turn the selection switch to one of the values (1 - 8), corresponding to the desired channel number.2. If you turn on the transmitter, the channel you selected is automatically loaded.☞If an invalid channel number was selected (0 or 9), the channel selected last remains selected.3.3 Setting your own frequencyA carrier frequency in the range between 798.1 and 805.9 MHz can be freely selected. This frequency isstored in a self-assignable user preset (Preset 1).☞The carrier frequency can only be set in 25-kHz steps. The frequency you select has to be amultiple of 25 kHz. If you select a frequency that is not a multiple of 25 kHz or does not lie inthe frequency range between 798.1 and 805.9 MHz, the ULM2000 gives off an error message(the LED blinks quickly 5 times).1. Engage MUTE. The transmitter can now be switched to the programming mode.2. Turn the selection switch to 9 and confirm your selection by keeping the POWER button pressed forabout 2 seconds. The LED indicates confirmation by blinking once with medium tempo and blinkingonce slowly. The transmitter is now in the programming mode and awaits the entry of a 6-digit frequency.3. Enter all 6 digits one after another in the following fashion:▲Select the desired value on the selection switch, for example 4. If a valid value is selected, theLED blinks quickly once as a confirmation. This way, you can be sure that a correct value isentered (in regard to the frequency range and divisibility by 25 kHz) even before confirming yourselection.▲Confirm your selection by briefly pressing the POWER button.▲If the end frequency value you entered is valid, the LED blinks quickly once more. If the frequencyvalue is invalid, the LED blinks quickly 5 times, and the unit is no longer in the programmingmode. In this case, start anew with step 2.After a brief interruption, a second blink code is given: the LED blinks corresponding to the valueselected (in this case, 4 times) with medium tempo.☞The value 0 is indicated by a very short blink of the LED, and you will easily tell a0 from a 1.☞If no entry is made for more than 5 seconds (either on the selection switch or by pressing thePOWER button), the LED blinks quickly 5 times, and the programming mode is aborted.After entering the 6 digits for the frequency value, enter another value to indicate the channel number underwhich the frequency will be stored.4. Select a desired channel number on the selection switch, for example channel 2 (possible values: 1 -8). If a valid value is selected, the LED blinks quickly once to confirm. This way, you can be sure that acorrect channel number is being entered even before confirming your selection.3. HAND-HELD TRANSMITTER OPERATION
7ULTRALINK ULM20005. Confirm your selection by briefly pressing the POWER button.6. When a valid value is selected, the LED blinks briefly again. When an invalid value is selected, theLED blinks quickly 5 times and the unit is no longer in the programming mode. In this case, start a newwith step 2.After a brief interruption, a second blink code is given: the LED blinks corresponding to the valueselected (in this case, 2 times) with medium tempo.7. After a second blink pause, an additional blink code is given as a confirmation:▲A successfully stored frequency is signaled with 2 slow blinks. The transmitter leaves theprogramming mode.▲If the LED blinks quickly 5 times, the frequency was not stored. In this case, start anew with step 2.☞If no entry is made for more than 5 seconds (either on the selection switch or by pressing thePOWER button), the LED blinks quickly 5 times, and the programming mode is aborted.8. Disengage the MUTE switch.☞A user-assigned frequency is automatically stored in the user preset (Preset 1)!3.4 PresetThe ULM2000 lets you work with 4 presets, each with 8 channels.Factory presets (Presets 2, 3 and 4)In the ULM2000, there are 3 factory presets (each with 8 interference-free channels). That means that all 8channels of one preset can run simultaneously with 8 different transmitters and receivers without causinginterference to one another.The channels in the 3 factory presets are all assigned to different frequencies. This way, you can alwaysselect a frequency range that assures the best signal transmission.The following table shows which frequencies are stored in the factory presets.CHANNEL PRESET 2 PRESET 3 PRESET 41798,1 MHz 799,4 MHz 800,7 MHz2798,5 MHz 799,8 MHz 801,1 MHz3799,3 MHz 800,6 MHz 801,9 MHz4799,7 MHz 801,0 MHz 802,3 MHz5801,7 MHz 803,0 MHz 804,3 MHz6802,1 MHz 803,4 MHz 804,7 MHz7802,9 MHz 804,2 MHz 805,5 MHz8803,3 MHz 804,6 MHz 805,9 MHzTable 3.1: Factory preset frequencies (presets 2,3 and 4)User preset (Preset 1)Preset 1 is meant for the user. Frequencies of your own choice can be stored in the 8 storage slots of thispreset.If you have not stored any of your own frequencies, the frequencies stored in the user preset (Preset 1) areidentical to the frequencies stored in Preset 3.Loading a preset1. Engage MUTE. The transmitter can now be switched into the programming mode.2. Turn the selection switch to 0 and confirm your selection by keeping the POWER button pressed for 2seconds. As a confirmation, the LED blinks slowly once and then once again with medium tempo. Thetransmitter is now in the programming mode and waits for you to enter a one-digit number.3. Select the desired preset number on the selection switch, e.g. 3 (possible choices: 1 - 4). If a validselection is made, the LED blinks once quickly to confirm your selection. This way, you can be sure thata correct value is entered (in regard to the selection of presets, Mic Gain and Auto Mute) even beforeconfirming your selection.3. HAND-HELD TRANSMITTER OPERATION

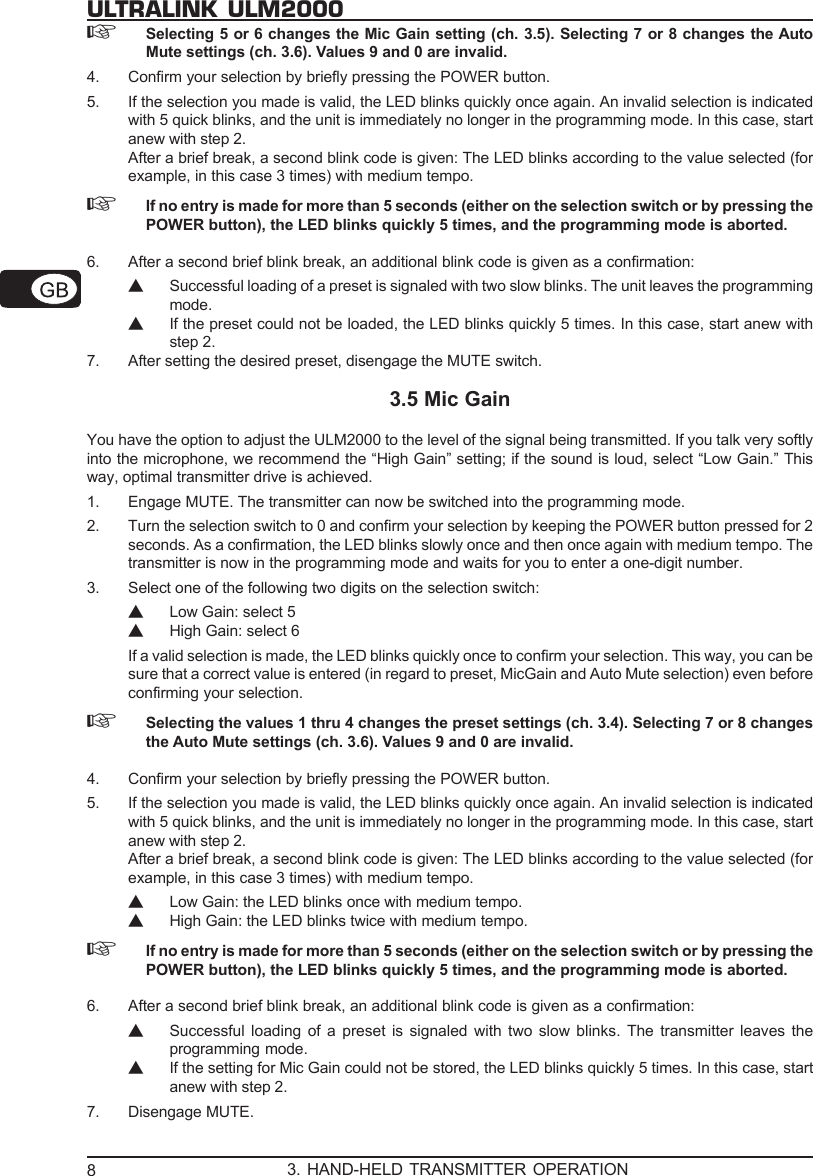

8ULTRALINK ULM2000☞Selecting 5 or 6 changes the Mic Gain setting (ch. 3.5). Selecting 7 or 8 changes the AutoMute settings (ch. 3.6). Values 9 and 0 are invalid.4. Confirm your selection by briefly pressing the POWER button.5. If the selection you made is valid, the LED blinks quickly once again. An invalid selection is indicatedwith 5 quick blinks, and the unit is immediately no longer in the programming mode. In this case, startanew with step 2.After a brief break, a second blink code is given: The LED blinks according to the value selected (forexample, in this case 3 times) with medium tempo.☞If no entry is made for more than 5 seconds (either on the selection switch or by pressing thePOWER button), the LED blinks quickly 5 times, and the programming mode is aborted.6. After a second brief blink break, an additional blink code is given as a confirmation:▲Successful loading of a preset is signaled with two slow blinks. The unit leaves the programmingmode.▲If the preset could not be loaded, the LED blinks quickly 5 times. In this case, start anew withstep 2.7. After setting the desired preset, disengage the MUTE switch.3.5 Mic GainYou have the option to adjust the ULM2000 to the level of the signal being transmitted. If you talk very softlyinto the microphone, we recommend the “High Gain” setting; if the sound is loud, select “Low Gain.” Thisway, optimal transmitter drive is achieved.1. Engage MUTE. The transmitter can now be switched into the programming mode.2. Turn the selection switch to 0 and confirm your selection by keeping the POWER button pressed for 2seconds. As a confirmation, the LED blinks slowly once and then once again with medium tempo. Thetransmitter is now in the programming mode and waits for you to enter a one-digit number.3. Select one of the following two digits on the selection switch:▲Low Gain: select 5▲High Gain: select 6If a valid selection is made, the LED blinks quickly once to confirm your selection. This way, you can besure that a correct value is entered (in regard to preset, MicGain and Auto Mute selection) even beforeconfirming your selection.☞Selecting the values 1 thru 4 changes the preset settings (ch. 3.4). Selecting 7 or 8 changesthe Auto Mute settings (ch. 3.6). Values 9 and 0 are invalid.4. Confirm your selection by briefly pressing the POWER button.5. If the selection you made is valid, the LED blinks quickly once again. An invalid selection is indicatedwith 5 quick blinks, and the unit is immediately no longer in the programming mode. In this case, startanew with step 2.After a brief break, a second blink code is given: The LED blinks according to the value selected (forexample, in this case 3 times) with medium tempo.▲Low Gain: the LED blinks once with medium tempo.▲High Gain: the LED blinks twice with medium tempo.☞If no entry is made for more than 5 seconds (either on the selection switch or by pressing thePOWER button), the LED blinks quickly 5 times, and the programming mode is aborted.6. After a second brief blink break, an additional blink code is given as a confirmation:▲Successful loading of a preset is signaled with two slow blinks. The transmitter leaves theprogramming mode.▲If the setting for Mic Gain could not be stored, the LED blinks quickly 5 times. In this case, startanew with step 2.7. Disengage MUTE.3. HAND-HELD TRANSMITTER OPERATION

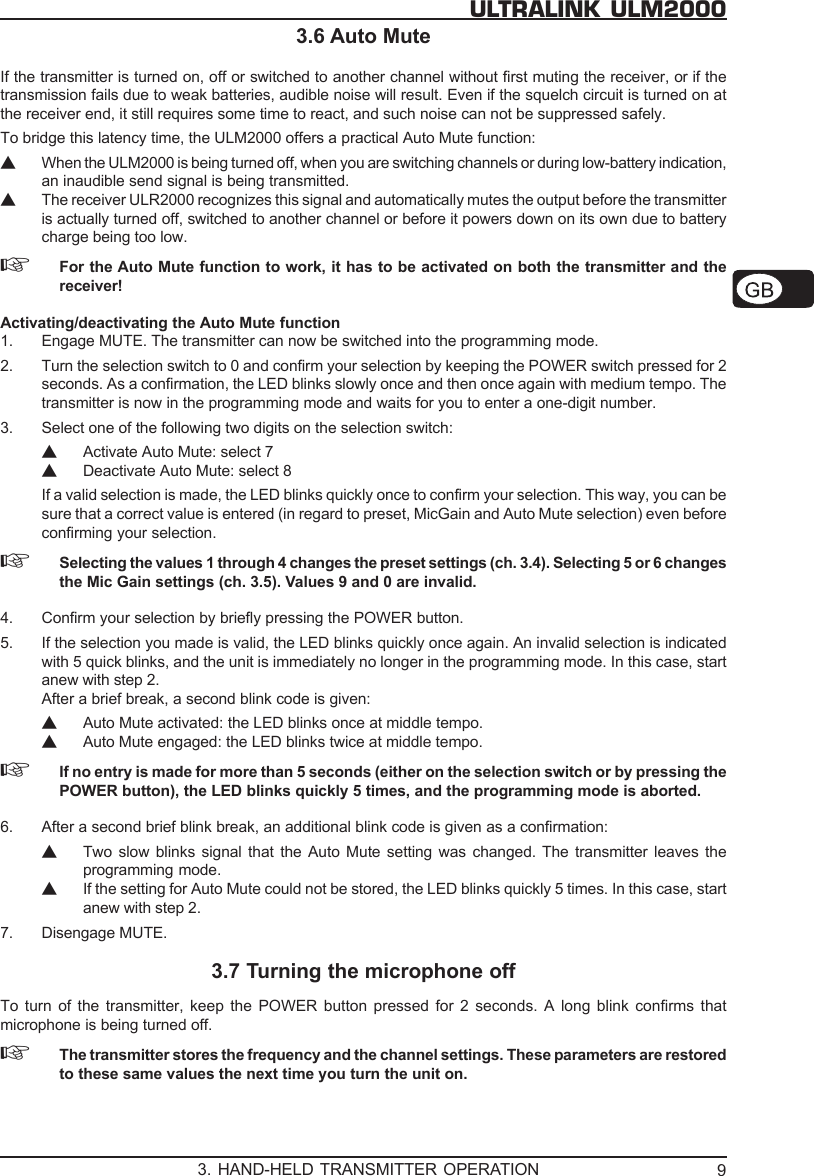

9ULTRALINK ULM20003.6 Auto MuteIf the transmitter is turned on, off or switched to another channel without first muting the receiver, or if thetransmission fails due to weak batteries, audible noise will result. Even if the squelch circuit is turned on atthe receiver end, it still requires some time to react, and such noise can not be suppressed safely.To bridge this latency time, the ULM2000 offers a practical Auto Mute function:▲When the ULM2000 is being turned off, when you are switching channels or during low-battery indication,an inaudible send signal is being transmitted.▲The receiver ULR2000 recognizes this signal and automatically mutes the output before the transmitteris actually turned off, switched to another channel or before it powers down on its own due to batterycharge being too low.☞For the Auto Mute function to work, it has to be activated on both the transmitter and thereceiver!Activating/deactivating the Auto Mute function1. Engage MUTE. The transmitter can now be switched into the programming mode.2. Turn the selection switch to 0 and confirm your selection by keeping the POWER switch pressed for 2seconds. As a confirmation, the LED blinks slowly once and then once again with medium tempo. Thetransmitter is now in the programming mode and waits for you to enter a one-digit number.3. Select one of the following two digits on the selection switch:▲Activate Auto Mute: select 7▲Deactivate Auto Mute: select 8If a valid selection is made, the LED blinks quickly once to confirm your selection. This way, you can besure that a correct value is entered (in regard to preset, MicGain and Auto Mute selection) even beforeconfirming your selection.☞Selecting the values 1 through 4 changes the preset settings (ch. 3.4). Selecting 5 or 6 changesthe Mic Gain settings (ch. 3.5). Values 9 and 0 are invalid.4. Confirm your selection by briefly pressing the POWER button.5. If the selection you made is valid, the LED blinks quickly once again. An invalid selection is indicatedwith 5 quick blinks, and the unit is immediately no longer in the programming mode. In this case, startanew with step 2.After a brief break, a second blink code is given:▲Auto Mute activated: the LED blinks once at middle tempo.▲Auto Mute engaged: the LED blinks twice at middle tempo.☞If no entry is made for more than 5 seconds (either on the selection switch or by pressing thePOWER button), the LED blinks quickly 5 times, and the programming mode is aborted.6. After a second brief blink break, an additional blink code is given as a confirmation:▲Two slow blinks signal that the Auto Mute setting was changed. The transmitter leaves theprogramming mode.▲If the setting for Auto Mute could not be stored, the LED blinks quickly 5 times. In this case, startanew with step 2.7. Disengage MUTE.3.7 Turning the microphone offTo turn of the transmitter, keep the POWER button pressed for 2 seconds. A long blink confirms thatmicrophone is being turned off.☞The transmitter stores the frequency and the channel settings. These parameters are restoredto these same values the next time you turn the unit on.3. HAND-HELD TRANSMITTER OPERATION

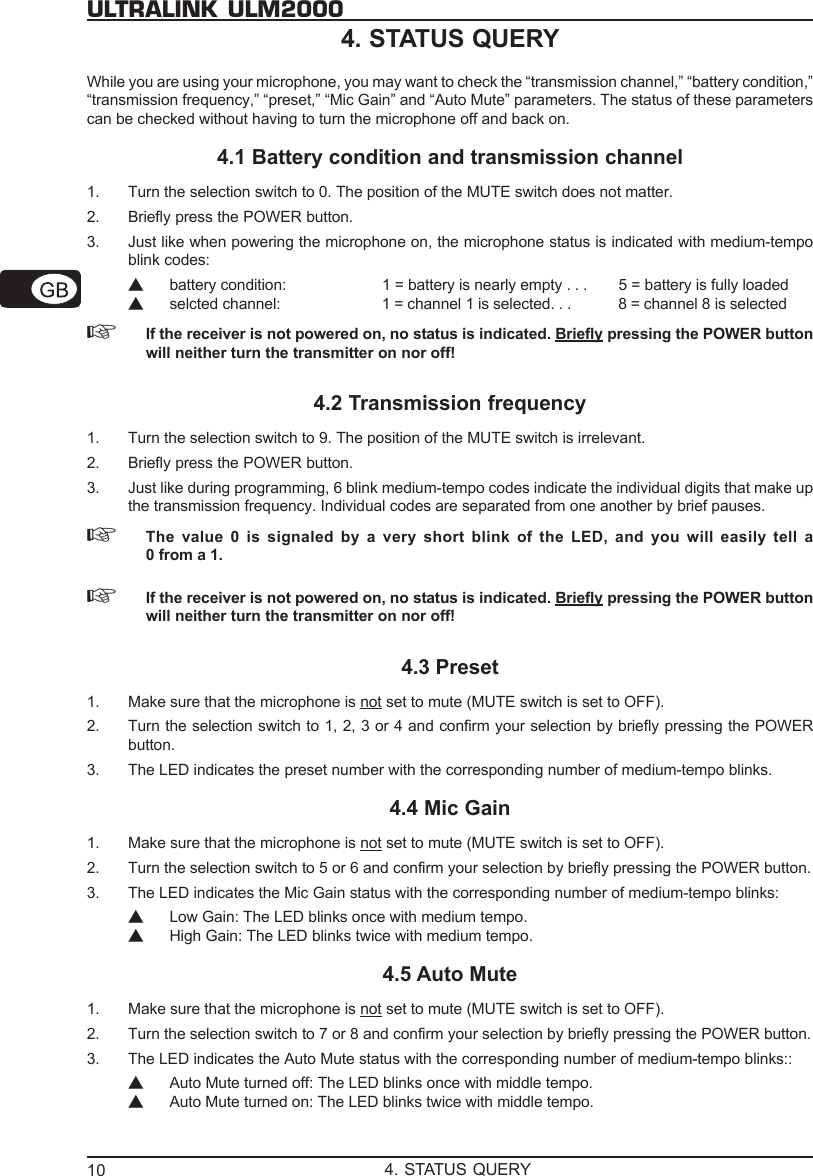

10ULTRALINK ULM20004. STATUS QUERYWhile you are using your microphone, you may want to check the “transmission channel,” “battery condition,”“transmission frequency,” “preset,” “Mic Gain” and “Auto Mute” parameters. The status of these parameterscan be checked without having to turn the microphone off and back on.4.1 Battery condition and transmission channel1. Turn the selection switch to 0. The position of the MUTE switch does not matter.2. Briefly press the POWER button.3. Just like when powering the microphone on, the microphone status is indicated with medium-tempoblink codes:▲battery condition: 1 = battery is nearly empty . . . 5 = battery is fully loaded▲selcted channel: 1 = channel 1 is selected. . . 8 = channel 8 is selected☞If the receiver is not powered on, no status is indicated. Briefly pressing the POWER buttonwill neither turn the transmitter on nor off!4.2 Transmission frequency1. Turn the selection switch to 9. The position of the MUTE switch is irrelevant.2. Briefly press the POWER button.3. Just like during programming, 6 blink medium-tempo codes indicate the individual digits that make upthe transmission frequency. Individual codes are separated from one another by brief pauses.☞The value 0 is signaled by a very short blink of the LED, and you will easily tell a0 from a 1.☞If the receiver is not powered on, no status is indicated. Briefly pressing the POWER buttonwill neither turn the transmitter on nor off!4.3 Preset1. Make sure that the microphone is not set to mute (MUTE switch is set to OFF).2. Turn the selection switch to 1, 2, 3 or 4 and confirm your selection by briefly pressing the POWERbutton.3. The LED indicates the preset number with the corresponding number of medium-tempo blinks.4.4 Mic Gain1. Make sure that the microphone is not set to mute (MUTE switch is set to OFF).2. Turn the selection switch to 5 or 6 and confirm your selection by briefly pressing the POWER button.3. The LED indicates the Mic Gain status with the corresponding number of medium-tempo blinks:▲Low Gain: The LED blinks once with medium tempo.▲High Gain: The LED blinks twice with medium tempo.4.5 Auto Mute1. Make sure that the microphone is not set to mute (MUTE switch is set to OFF).2. Turn the selection switch to 7 or 8 and confirm your selection by briefly pressing the POWER button.3. The LED indicates the Auto Mute status with the corresponding number of medium-tempo blinks::▲Auto Mute turned off: The LED blinks once with middle tempo.▲Auto Mute turned on: The LED blinks twice with middle tempo.4. STATUS QUERY

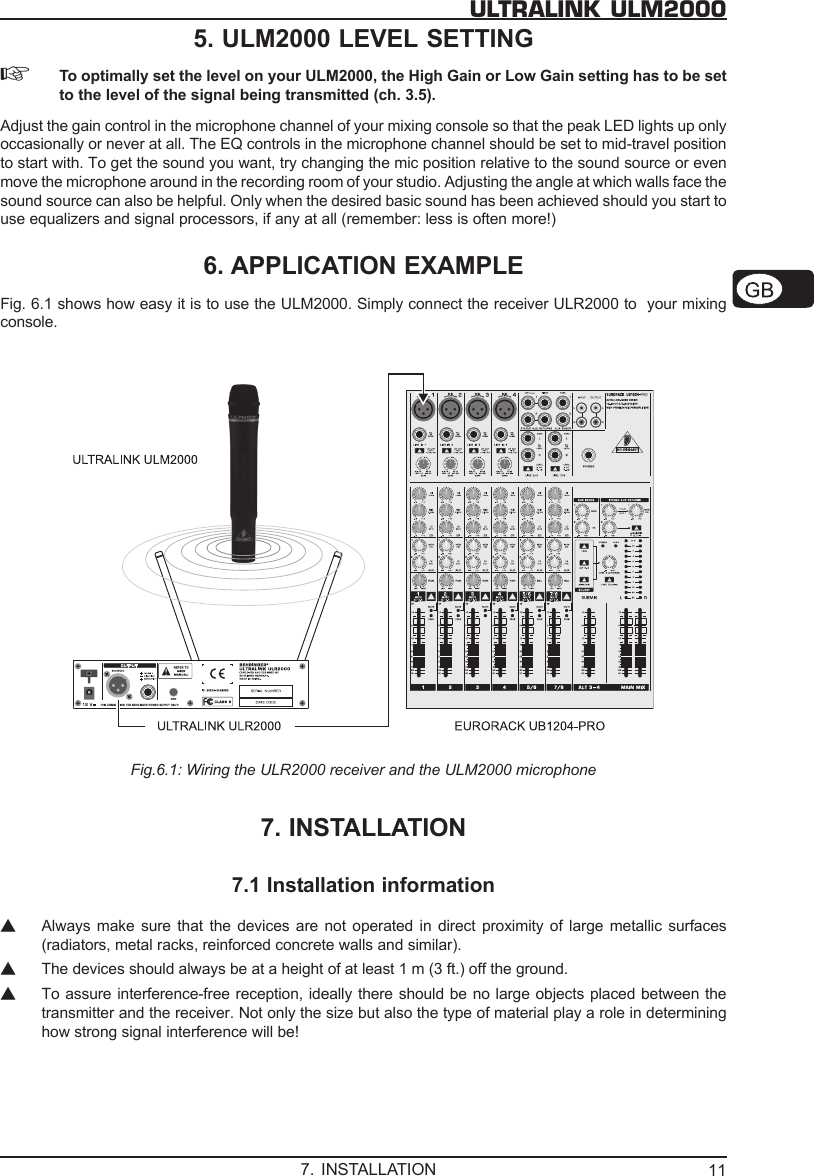

11ULTRALINK ULM20005. ULM2000 LEVEL SETTING☞To optimally set the level on your ULM2000, the High Gain or Low Gain setting has to be setto the level of the signal being transmitted (ch. 3.5).Adjust the gain control in the microphone channel of your mixing console so that the peak LED lights up onlyoccasionally or never at all. The EQ controls in the microphone channel should be set to mid-travel positionto start with. To get the sound you want, try changing the mic position relative to the sound source or evenmove the microphone around in the recording room of your studio. Adjusting the angle at which walls face thesound source can also be helpful. Only when the desired basic sound has been achieved should you start touse equalizers and signal processors, if any at all (remember: less is often more!)6. APPLICATION EXAMPLEFig. 6.1 shows how easy it is to use the ULM2000. Simply connect the receiver ULR2000 to your mixingconsole.Fig.6.1: Wiring the ULR2000 receiver and the ULM2000 microphone7. INSTALLATION7.1 Installation information▲Always make sure that the devices are not operated in direct proximity of large metallic surfaces(radiators, metal racks, reinforced concrete walls and similar).▲The devices should always be at a height of at least 1 m (3 ft.) off the ground.▲To assure interference-free reception, ideally there should be no large objects placed between thetransmitter and the receiver. Not only the size but also the type of material play a role in determininghow strong signal interference will be!7. INSTALLATION

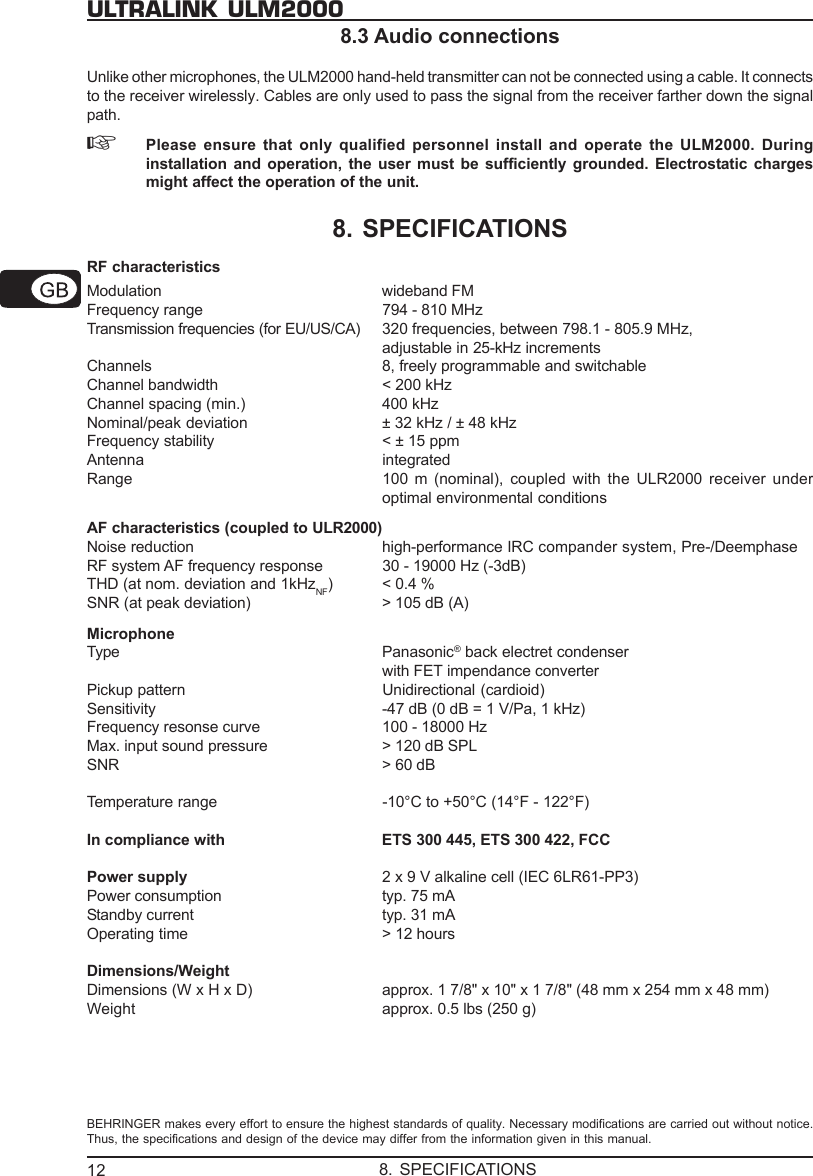

12ULTRALINK ULM20008.3 Audio connectionsUnlike other microphones, the ULM2000 hand-held transmitter can not be connected using a cable. It connectsto the receiver wirelessly. Cables are only used to pass the signal from the receiver farther down the signalpath.☞Please ensure that only qualified personnel install and operate the ULM2000. Duringinstallation and operation, the user must be sufficiently grounded. Electrostatic chargesmight affect the operation of the unit.8. SPECIFICATIONSRF characteristicsModulation wideband FMFrequency range 794 - 810 MHzTransmission frequencies (for EU/US/CA) 320 frequencies, between 798.1 - 805.9 MHz,adjustable in 25-kHz incrementsChannels 8, freely programmable and switchableChannel bandwidth < 200 kHzChannel spacing (min.) 400 kHzNominal/peak deviation ± 32 kHz / ± 48 kHzFrequency stability < ± 15 ppmAntenna integratedRange 100 m (nominal), coupled with the ULR2000 receiver underoptimal environmental conditionsAF characteristics (coupled to ULR2000)Noise reduction high-performance IRC compander system, Pre-/DeemphaseRF system AF frequency response 30 - 19000 Hz (-3dB)THD (at nom. deviation and 1kHzNF) < 0.4 %SNR (at peak deviation) > 105 dB (A)MicrophoneType Panasonic® back electret condenserwith FET impendance converterPickup pattern Unidirectional (cardioid)Sensitivity -47 dB (0 dB = 1 V/Pa, 1 kHz)Frequency resonse curve 100 - 18000 HzMax. input sound pressure > 120 dB SPLSNR > 60 dBTemperature range -10°C to +50°C (14°F - 122°F)In compliance with ETS 300 445, ETS 300 422, FCCPower supply 2 x 9 V alkaline cell (IEC 6LR61-PP3)Power consumption typ. 75 mAStandby current typ. 31 mAOperating time > 12 hoursDimensions/WeightDimensions (W x H x D) approx. 1 7/8" x 10" x 1 7/8" (48 mm x 254 mm x 48 mm)Weight approx. 0.5 lbs (250 g)BEHRINGER makes every effort to ensure the highest standards of quality. Necessary modifications are carried out without notice.Thus, the specifications and design of the device may differ from the information given in this manual.8. SPECIFICATIONS

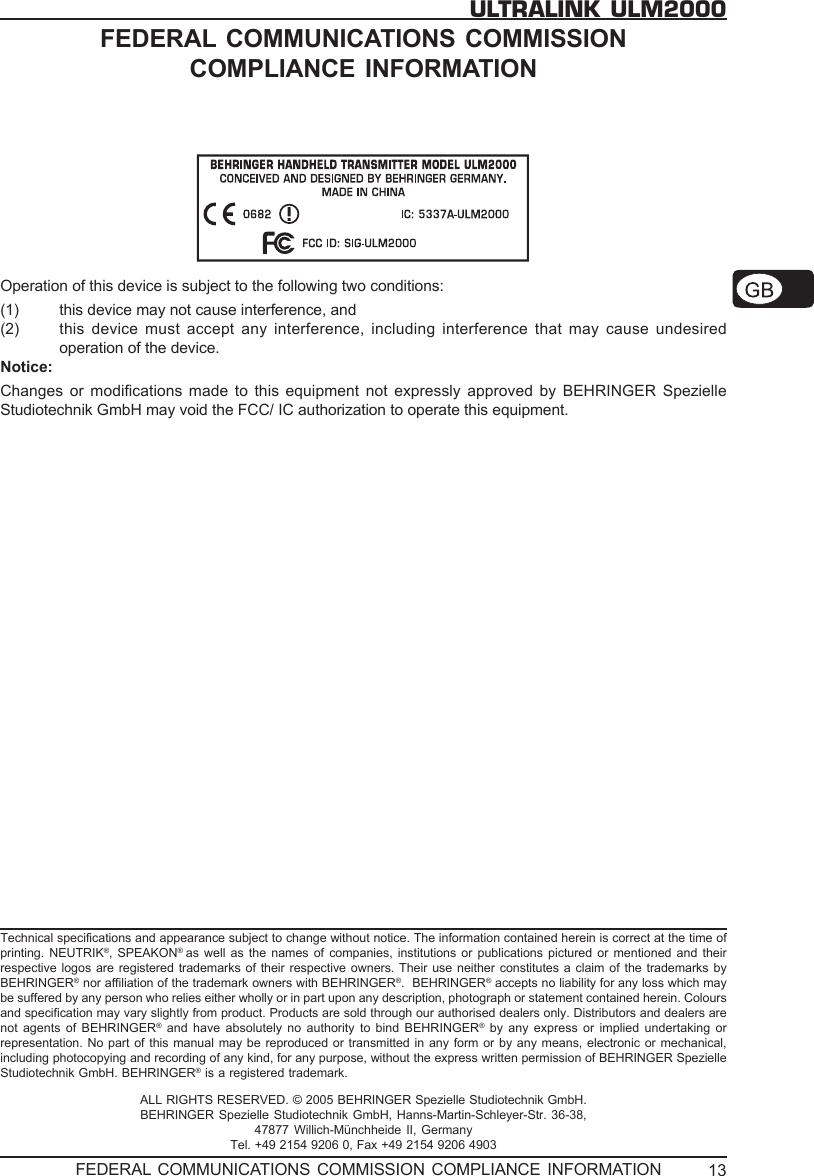

13ULTRALINK ULM2000FEDERAL COMMUNICATIONS COMMISSIONCOMPLIANCE INFORMATIONOperation of this device is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesiredoperation of the device.Notice:Changes or modifications made to this equipment not expressly approved by BEHRINGER SpezielleStudiotechnik GmbH may void the FCC/ IC authorization to operate this equipment.Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time ofprinting. NEUTRIK®, SPEAKON® as well as the names of companies, institutions or publications pictured or mentioned and theirrespective logos are registered trademarks of their respective owners. Their use neither constitutes a claim of the trademarks byBEHRINGER® nor affiliation of the trademark owners with BEHRINGER®. BEHRINGER® accepts no liability for any loss which maybe suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. Coloursand specification may vary slightly from product. Products are sold through our authorised dealers only. Distributors and dealers arenot agents of BEHRINGER® and have absolutely no authority to bind BEHRINGER® by any express or implied undertaking orrepresentation. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical,including photocopying and recording of any kind, for any purpose, without the express written permission of BEHRINGER SpezielleStudiotechnik GmbH. BEHRINGER® is a registered trademark.ALL RIGHTS RESERVED. © 2005 BEHRINGER Spezielle Studiotechnik GmbH.BEHRINGER Spezielle Studiotechnik GmbH, Hanns-Martin-Schleyer-Str. 36-38,47877 Willich-Münchheide II, GermanyTel. +49 2154 9206 0, Fax +49 2154 9206 4903FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

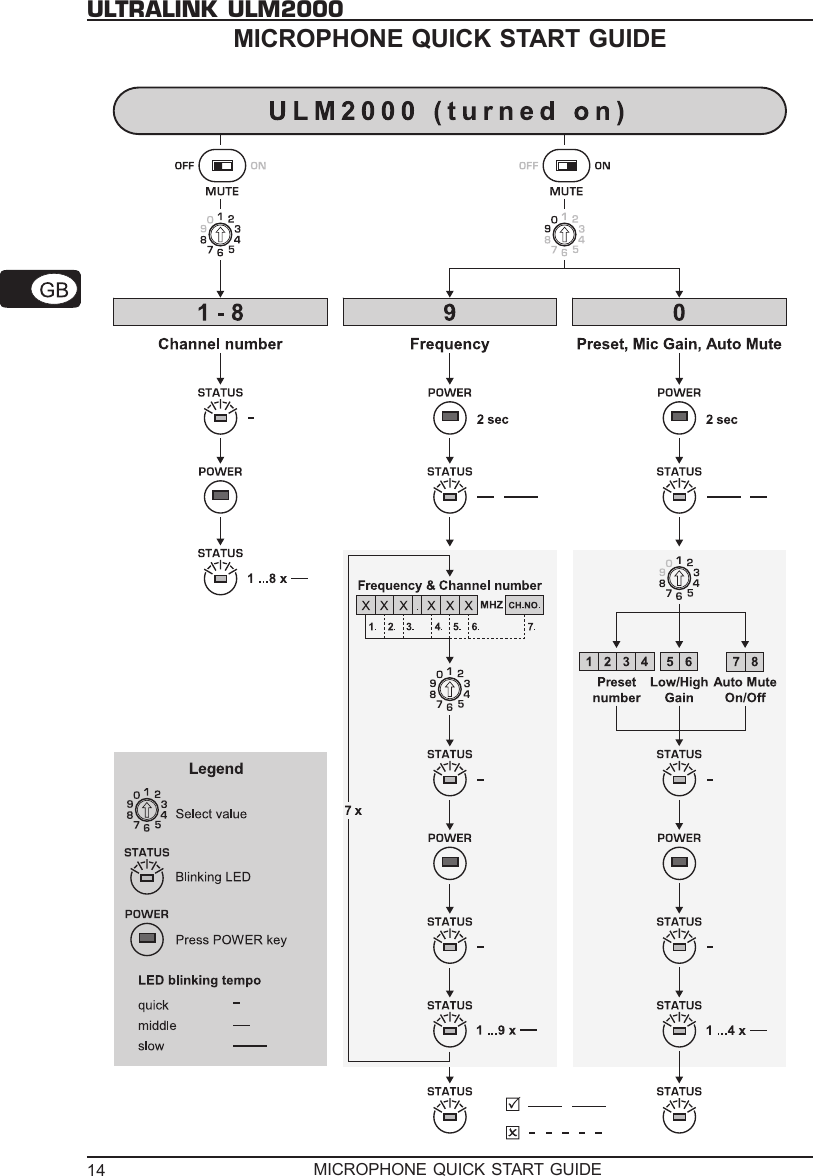

14ULTRALINK ULM2000MICROPHONE QUICK START GUIDEMICROPHONE QUICK START GUIDE
