Beijing Jia An Electronic Technology Co AN2640SA-B BLE module User Manual

Beijing Jia An Electronic Technology Co,. Ltd BLE module

User manual

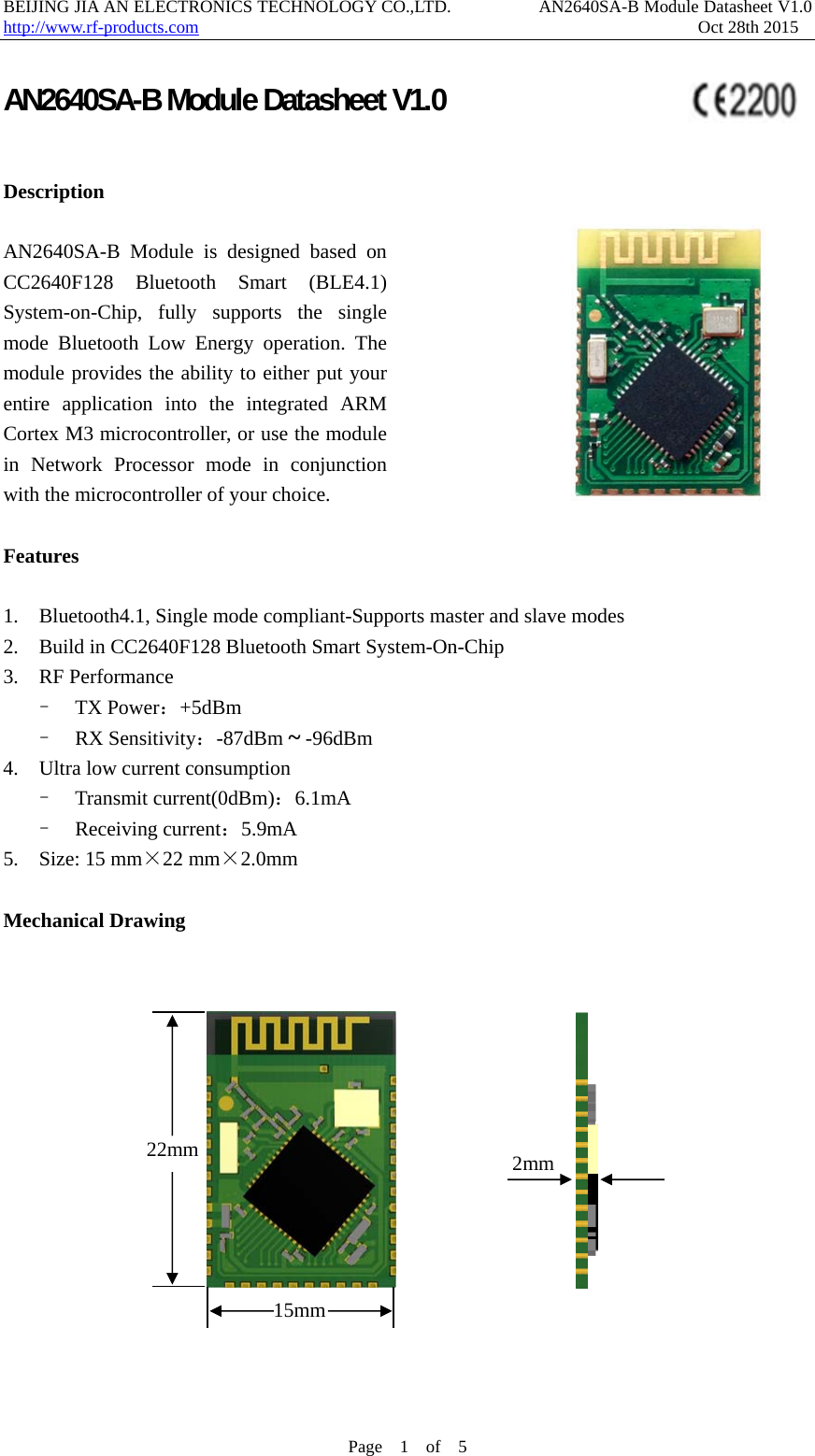

BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 1 of 5 AN2640SA-B Module Datasheet V1.0 Description AN2640SA-B Module is designed based on CC2640F128 Bluetooth Smart (BLE4.1) System-on-Chip, fully supports the single mode Bluetooth Low Energy operation. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller, or use the module in Network Processor mode in conjunction with the microcontroller of your choice. Features 1. Bluetooth4.1, Single mode compliant-Supports master and slave modes 2. Build in CC2640F128 Bluetooth Smart System-On-Chip 3. RF Performance – TX Power：+5dBm – RX Sensitivity：-87dBm ~ -96dBm 4. Ultra low current consumption – Transmit current(0dBm)：6.1mA – Receiving current：5.9mA 5. Size: 15 mm×22 mm×2.0mm Mechanical Drawing 15mm22mm 2mm

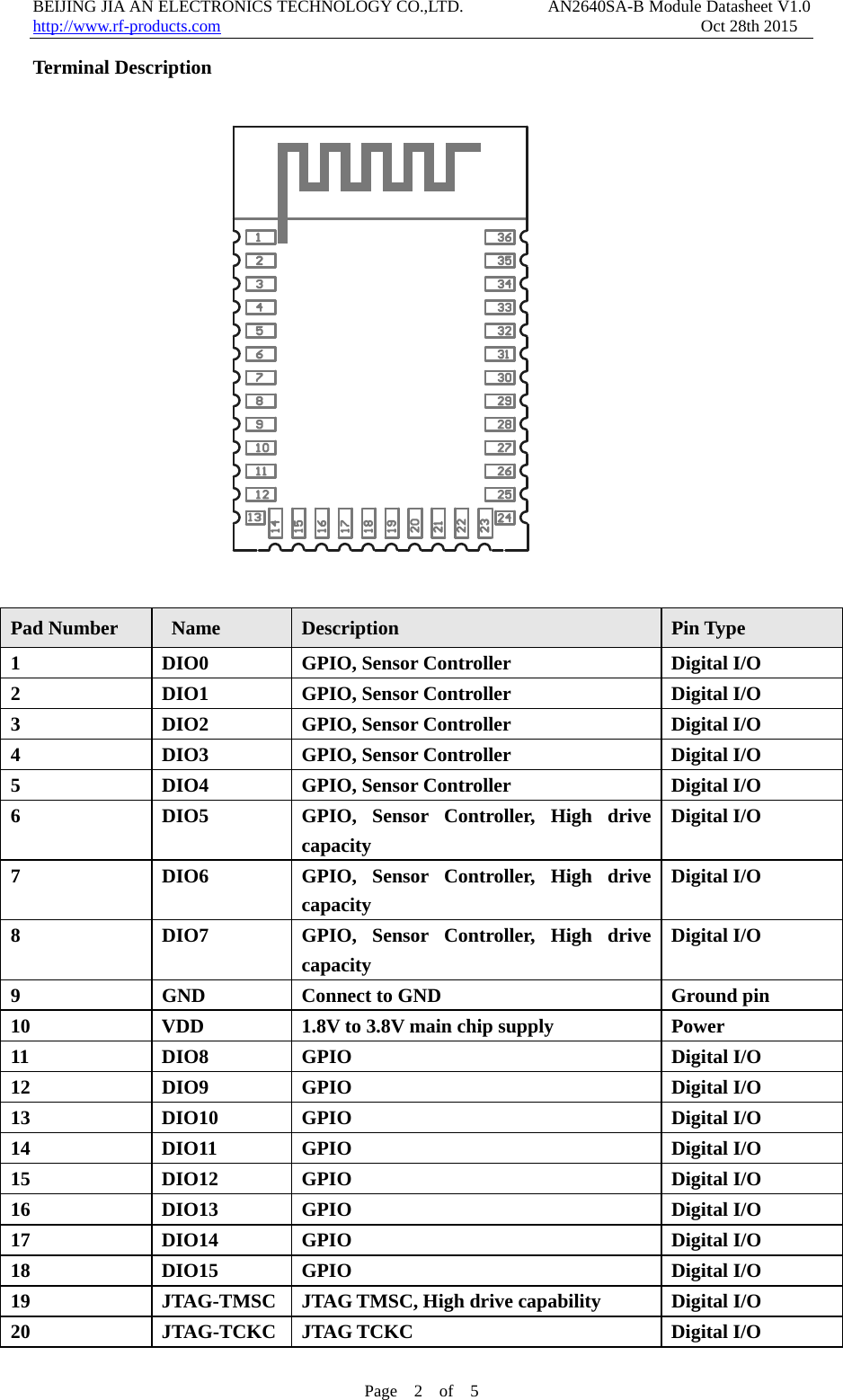

BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 2 of 5 Terminal Description Pad Number Name Description Pin Type 1 DIO0 GPIO, Sensor Controller Digital I/O 2 DIO1 GPIO, Sensor Controller Digital I/O 3 DIO2 GPIO, Sensor Controller Digital I/O 4 DIO3 GPIO, Sensor Controller Digital I/O 5 DIO4 GPIO, Sensor Controller Digital I/O 6 DIO5 GPIO, Sensor Controller, High drive capacity Digital I/O 7 DIO6 GPIO, Sensor Controller, High drive capacity Digital I/O 8 DIO7 GPIO, Sensor Controller, High drive capacity Digital I/O 9 GND Connect to GND Ground pin 10 VDD 1.8V to 3.8V main chip supply Power 11 DIO8 GPIO Digital I/O 12 DIO9 GPIO Digital I/O 13 DIO10 GPIO Digital I/O 14 DIO11 GPIO Digital I/O 15 DIO12 GPIO Digital I/O 16 DIO13 GPIO Digital I/O 17 DIO14 GPIO Digital I/O 18 DIO15 GPIO Digital I/O 19 JTAG-TMSC JTAG TMSC, High drive capability Digital I/O 20 JTAG-TCKC JTAG TCKC Digital I/O

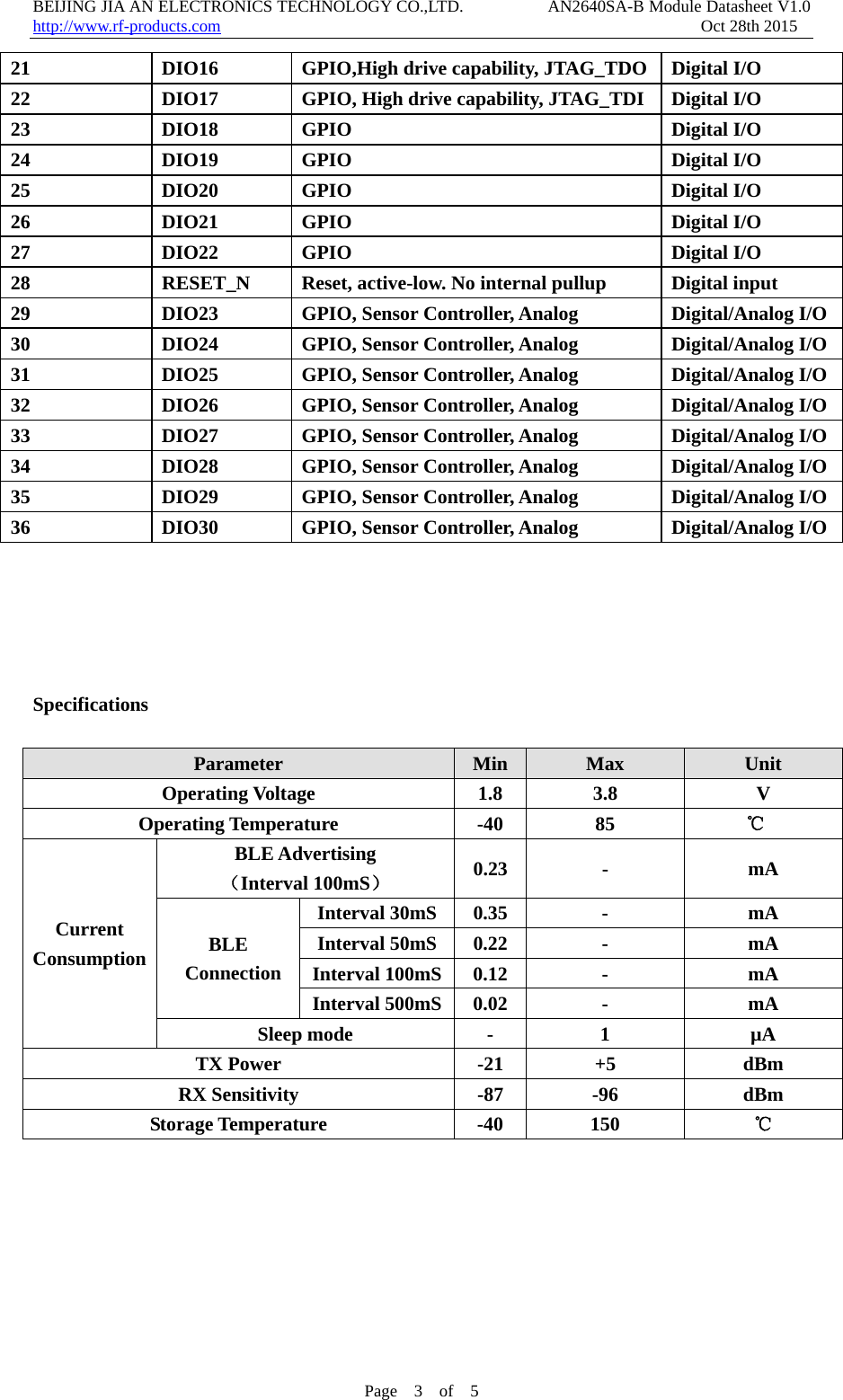

BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 3 of 5 21 DIO16 GPIO,High drive capability, JTAG_TDO Digital I/O 22 DIO17 GPIO, High drive capability, JTAG_TDI Digital I/O 23 DIO18 GPIO Digital I/O 24 DIO19 GPIO Digital I/O 25 DIO20 GPIO Digital I/O 26 DIO21 GPIO Digital I/O 27 DIO22 GPIO Digital I/O 28 RESET_N Reset, active-low. No internal pullup Digital input 29 DIO23 GPIO, Sensor Controller, Analog Digital/Analog I/O30 DIO24 GPIO, Sensor Controller, Analog Digital/Analog I/O31 DIO25 GPIO, Sensor Controller, Analog Digital/Analog I/O32 DIO26 GPIO, Sensor Controller, Analog Digital/Analog I/O33 DIO27 GPIO, Sensor Controller, Analog Digital/Analog I/O34 DIO28 GPIO, Sensor Controller, Analog Digital/Analog I/O35 DIO29 GPIO, Sensor Controller, Analog Digital/Analog I/O36 DIO30 GPIO, Sensor Controller, Analog Digital/Analog I/O Specifications Parameter Min Max Unit Operating Voltage 1.8 3.8 V Operating Temperature -40 85 ℃ Current Consumption BLE Advertising （Interval 100mS） 0.23 - mA BLE Connection Interval 30mS 0.35 - mA Interval 50mS 0.22 - mA Interval 100mS 0.12 - mA Interval 500mS 0.02 - mA Sleep mode - 1 µA TX Power -21 +5 dBm RX Sensitivity -87 -96 dBm Storage Temperature -40 150 ℃

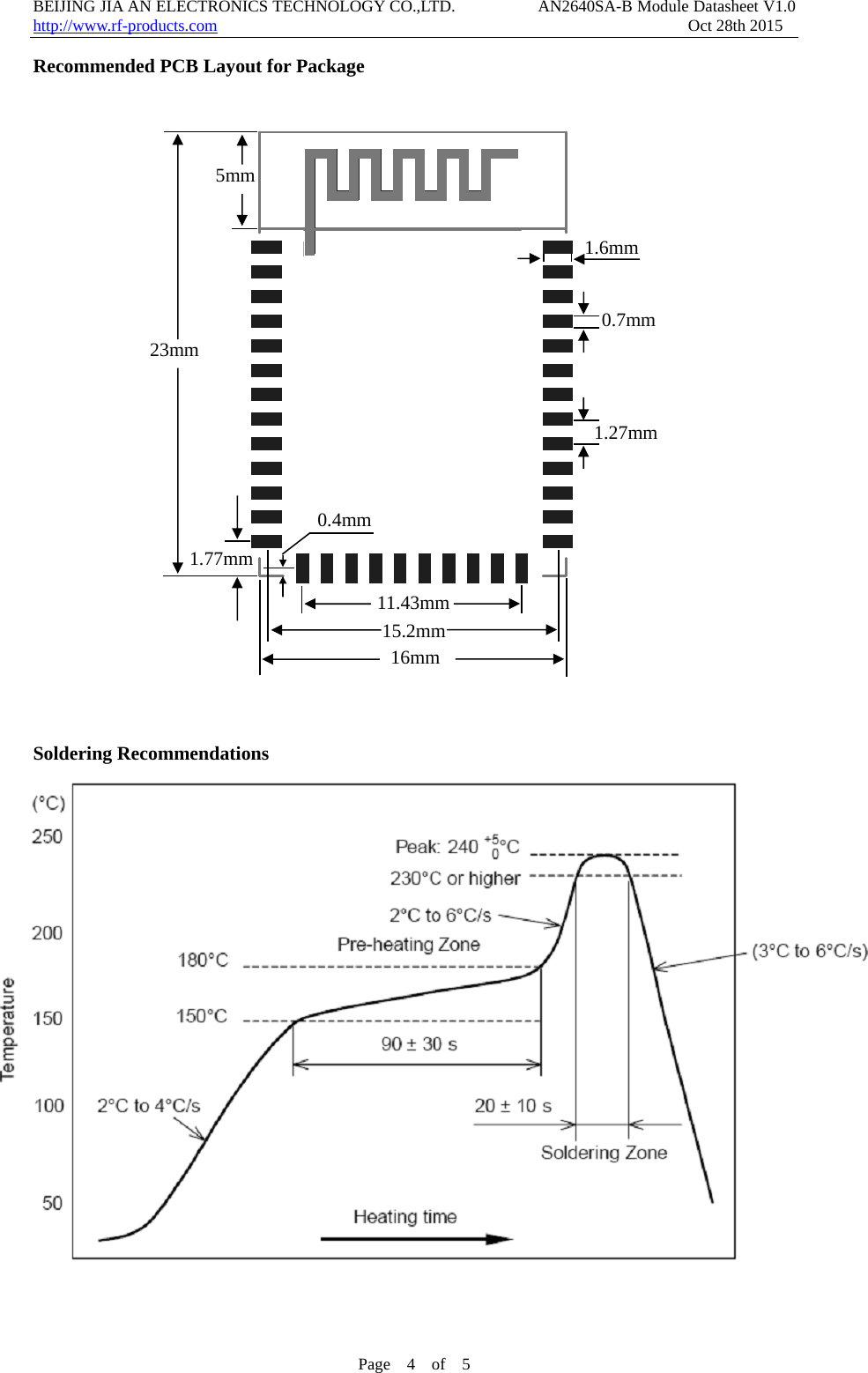

BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 4 of 5 Recommended PCB Layout for Package Soldering Recommendations 11.43mm16mm23mm5mm 1.77mm 0.4mm1.27mm 0.7mm 1.6mm15.2mm

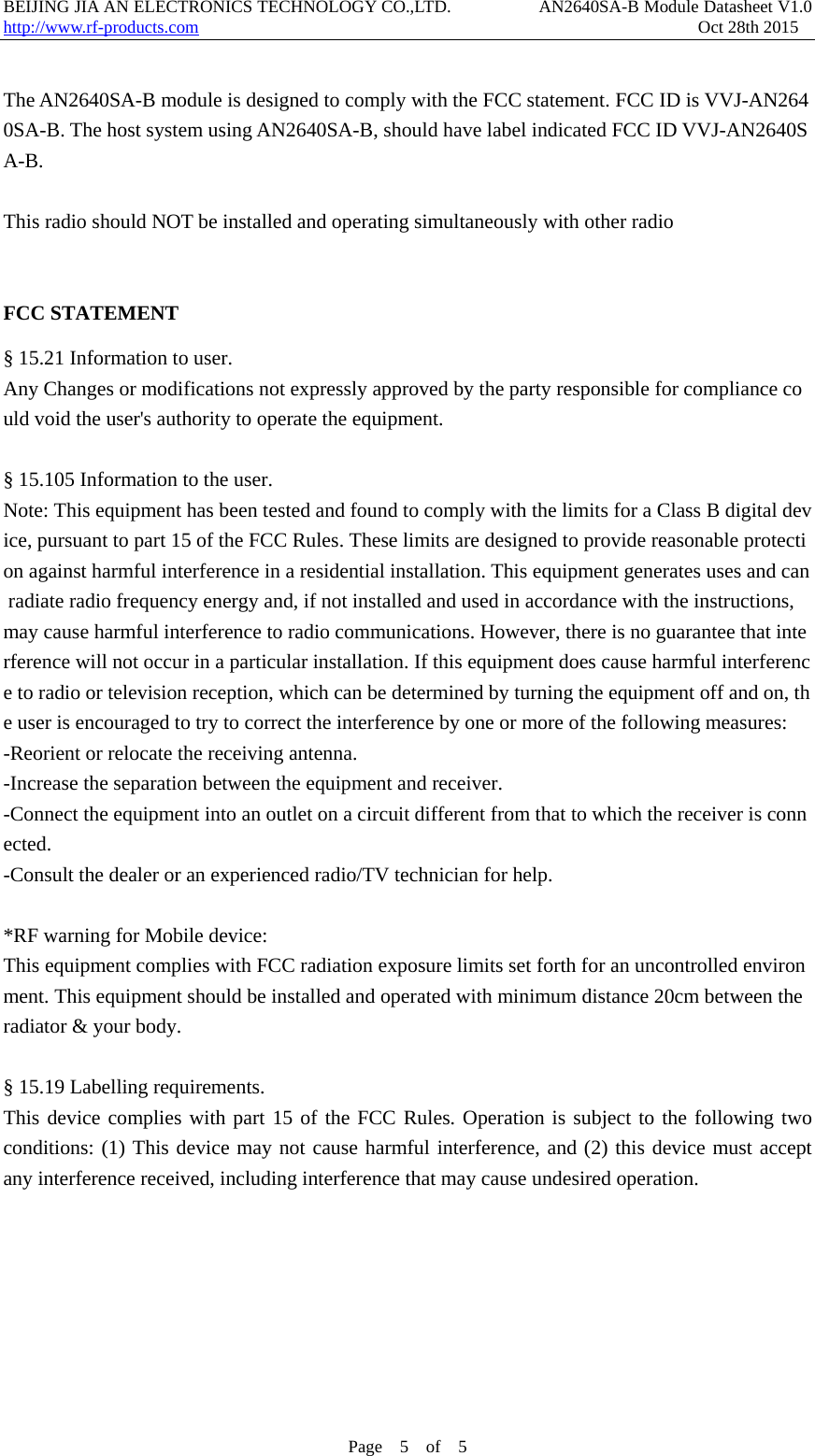

BEIJING JIA AN ELECTRONICS TECHNOLOGY CO.,LTD. AN2640SA-B Module Datasheet V1.0 http://www.rf-products.com Oct 28th 2015 Page 5 of 5 The AN2640SA-B module is designed to comply with the FCC statement. FCC ID is VVJ-AN2640SA-B. The host system using AN2640SA-B, should have label indicated FCC ID VVJ-AN2640SA-B. This radio should NOT be installed and operating simultaneously with other radio FCC STATEMENT § 15.21 Information to user. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. § 15.105 Information to the user. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. *RF warning for Mobile device: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
