Beijing Jia An Electronic Technology Co T306R340 Remote Controller User Manual

Beijing Jia An Electronic Technology Co,. Ltd Remote Controller

Manual

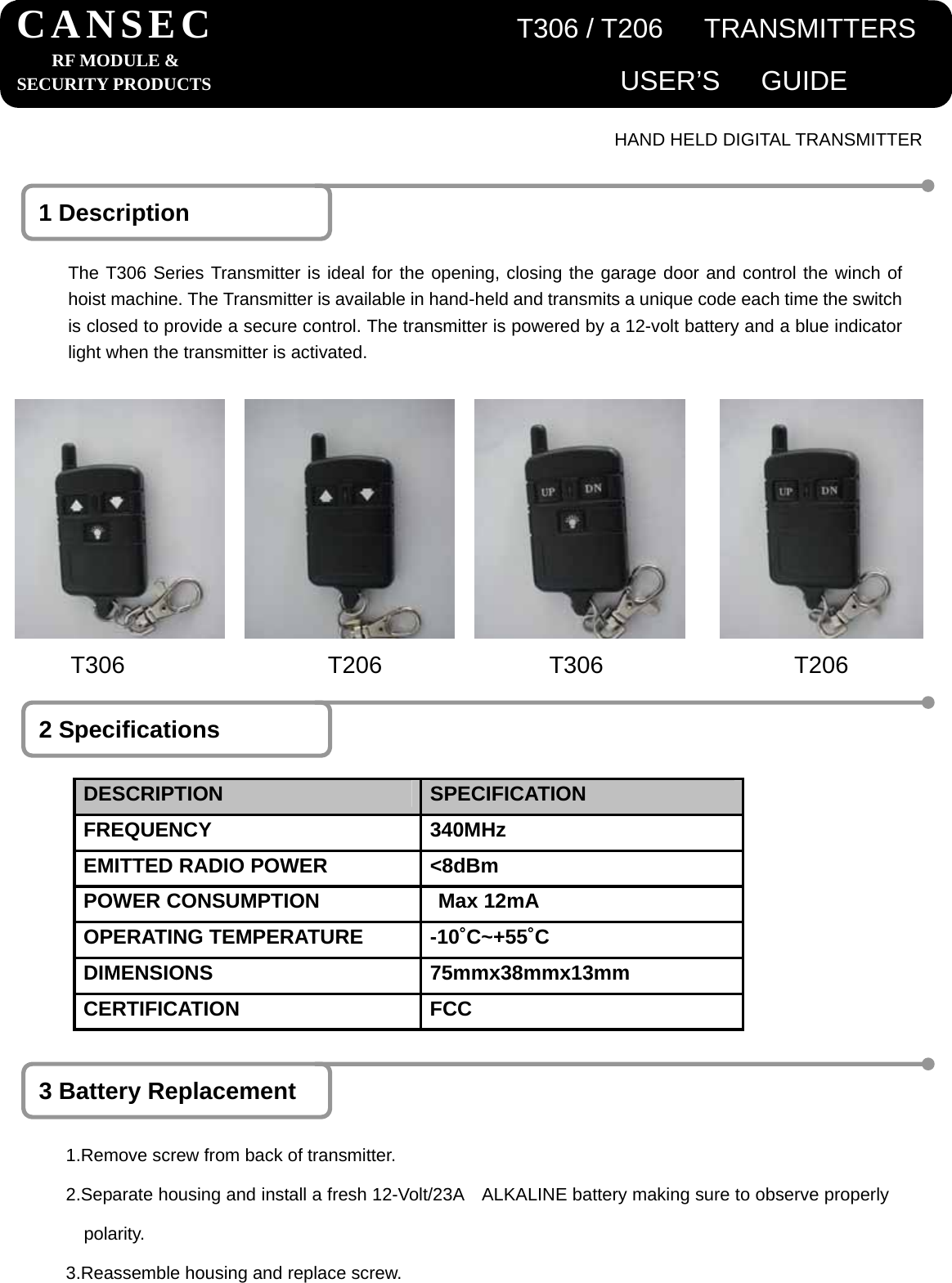

                                     HAND HELD DIGITAL TRANSMITTER 1 Description The T306 Series Transmitter is ideal for the opening, closing the garage door and control the winch of hoist machine. The Transmitter is available in hand-held and transmits a unique code each time the switch is closed to provide a secure control. The transmitter is powered by a 12-volt battery and a blue indicator light when the transmitter is activated. 2 Specifications DESCRIPTION  SPECIFICATION FREQUENCY 340MHz EMITTED RADIO POWER  <8dBm POWER CONSUMPTION  Max 12mA   OPERATING TEMPERATURE  -10˚C~+55˚C DIMENSIONS 75mmx38mmx13mm CERTIFICATION FCC 3 Battery Replacement 1.Remove screw from back of transmitter. 2.Separate housing and install a fresh 12-Volt/23A    ALKALINE battery making sure to observe properly polarity. 3.Reassemble housing and replace screw. CANSEC                      T306 / T206   TRANSMITTERSRF MODULE & SECURITY PRODUCTS                              USER’S   GUIDET306                 T206              T306                T206
   1                                 4 FCC Compliance The Digital Transmitter complies with part 15 of the FCC rules. Operation is subject to the following two condition: (1)  This device may not cause harmful interference. (2)  This device must accept any interference received, including interference that may cause undesired operation.  This equipment has been tested and found to comply with the limits for a class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inference in a residential installation.This equipment generates, use and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures:  --Reorient or relocate the receiving antenna --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.--Consult the dealer or an experienced radio/TV technician for help. --The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  This device is tested and found compliance with the FCC Part 15.231 for the periodic operation.             In order to maintain the compliance, and under the definition of periodic operation, NO continuous operation     is allowed. User MUST take caution of the operation NOT MORE THAN 5 SECOND, otherwise could void the user's authority to operate this product and must take responsible for this violation. changes or modifications not expressly approved by Beijing Jia An Electronic Technology Co,.Ltd. for compliance could void the user's authority to operate the equipment. 5 Company ContactBeijing Jia An Electronic Technology Co,.Ltd. Add: No.19 Gu Cheng west street, Shi Jing Shan District, Beijing 100043, CHINA TEL: +86-10-6888 9971 / 6888 9972 / 6888 9973       FAX: +86-10-6888 9905
