Beijing Jia An Electronic Technology Co T306R434 Transmitter User Manual

Beijing Jia An Electronic Technology Co,. Ltd Transmitter

User Manual

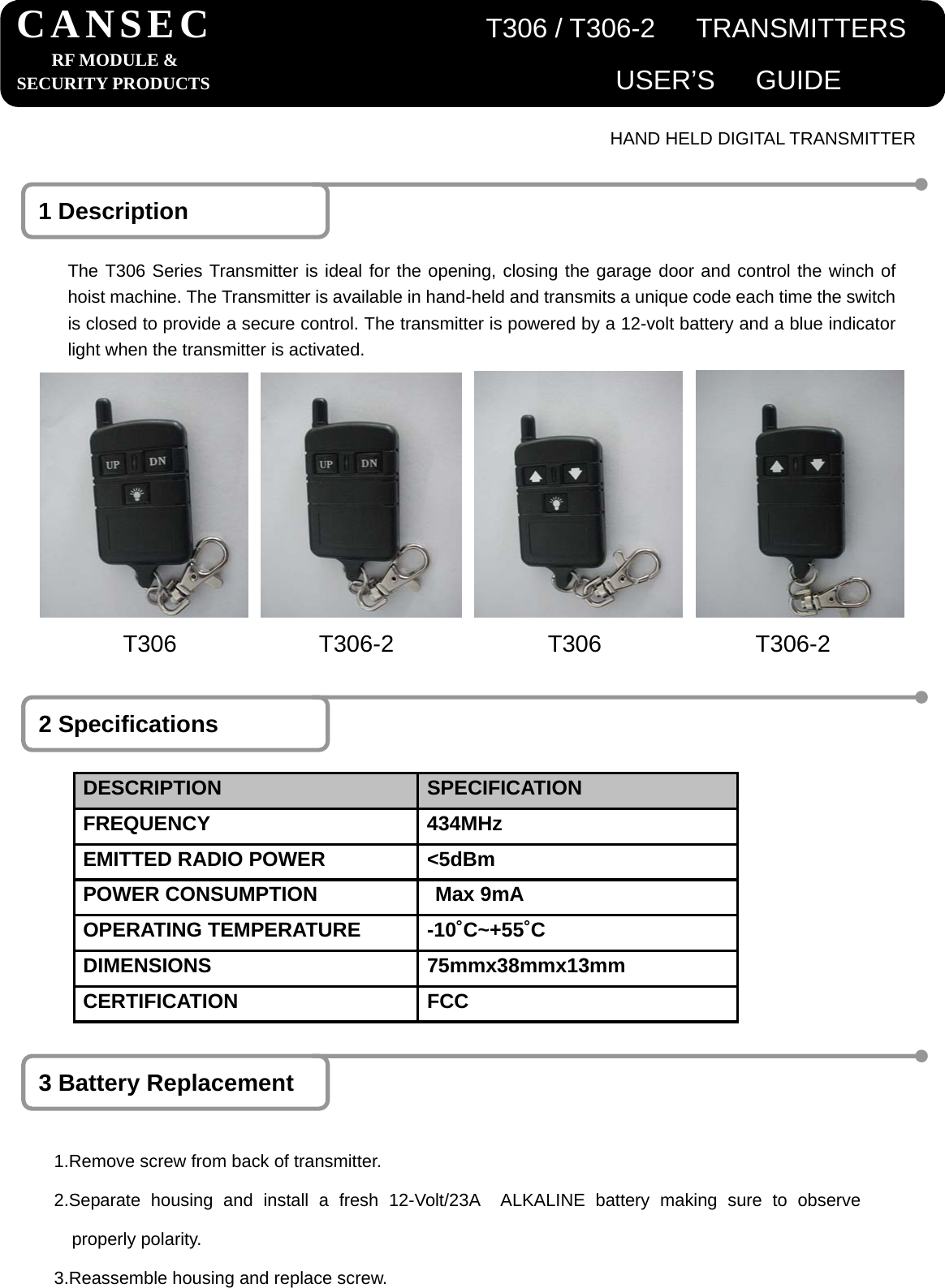

HAND HELD DIGITAL TRANSMITTER 1 Description The T306 Series Transmitter is ideal for the opening, closing the garage door and control the winch of hoist machine. The Transmitter is available in hand-held and transmits a unique code each time the switch is closed to provide a secure control. The transmitter is powered by a 12-volt battery and a blue indicator light when the transmitter is activated. 2 Specifications DESCRIPTION SPECIFICATION FREQUENCY 434MHz EMITTED RADIO POWER <5dBm POWER CONSUMPTION Max 9mA OPERATING TEMPERATURE -10˚C~+55˚C DIMENSIONS 75mmx38mmx13mm CERTIFICATION FCC 3 Battery Replacement 1.Remove screw from back of transmitter. 2.Separate housing and install a fresh 12-Volt/23A ALKALINE battery making sure to observeproperly polarity. 3.Reassemble housing and replace screw. CANSEC T306 / T306-2 TRANSMITTERSRF MODULE & SECURITY PRODUCTS USER’S GUIDE T306 T306-2 T306 T306-2

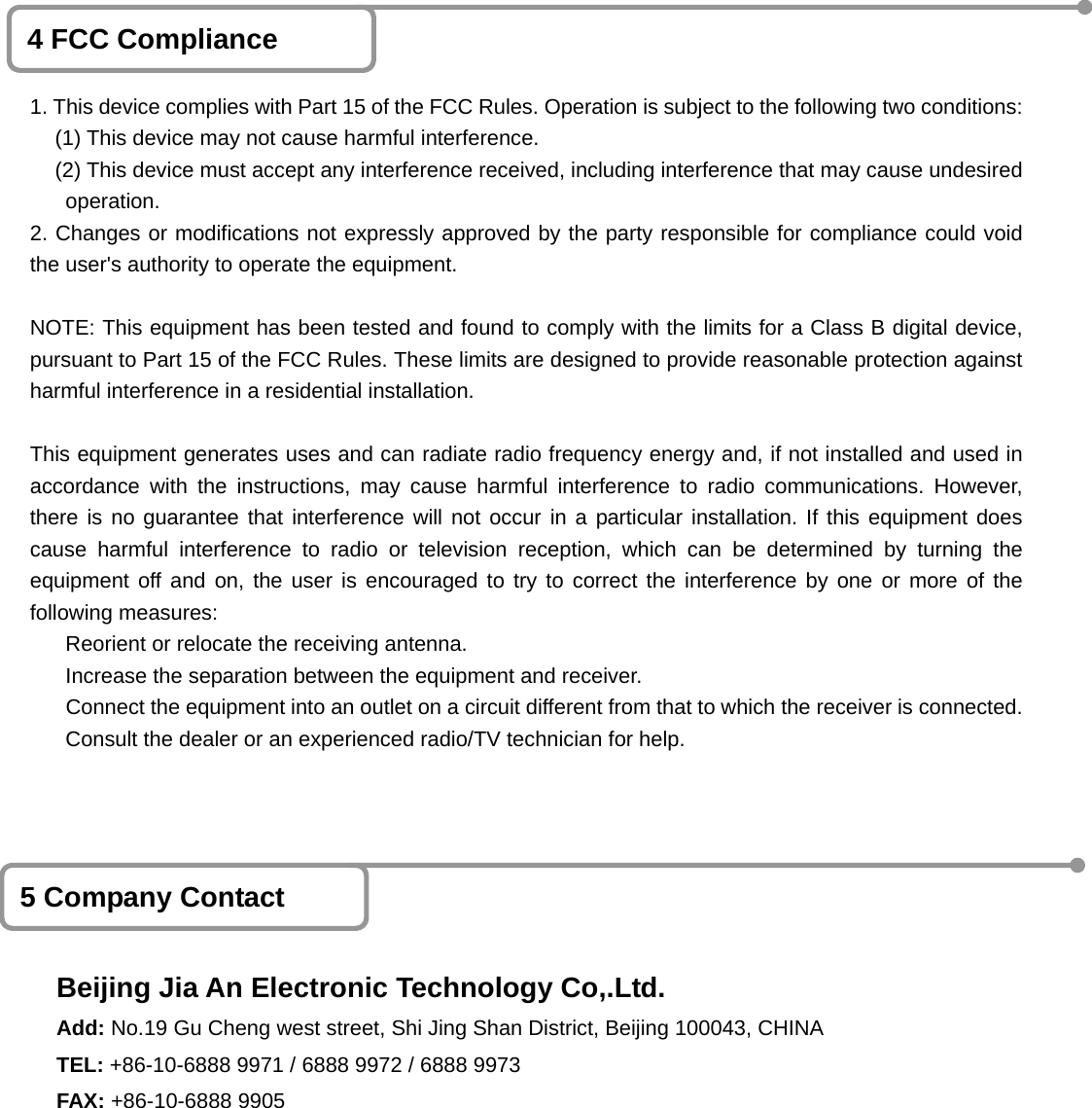

1 4 FCC Compliance 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could voidthe user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 5 Company Contact Beijing Jia An Electronic Technology Co,.Ltd. Add: No.19 Gu Cheng west street, Shi Jing Shan District, Beijing 100043, CHINA TEL: +86-10-6888 9971 / 6888 9972 / 6888 9973 FAX: +86-10-6888 9905
