Beijing Jia An Electronic Technology Co ZB2530UPA-A Zigbee Module User Manual

Beijing Jia An Electronic Technology Co,. Ltd Zigbee Module

User Manual

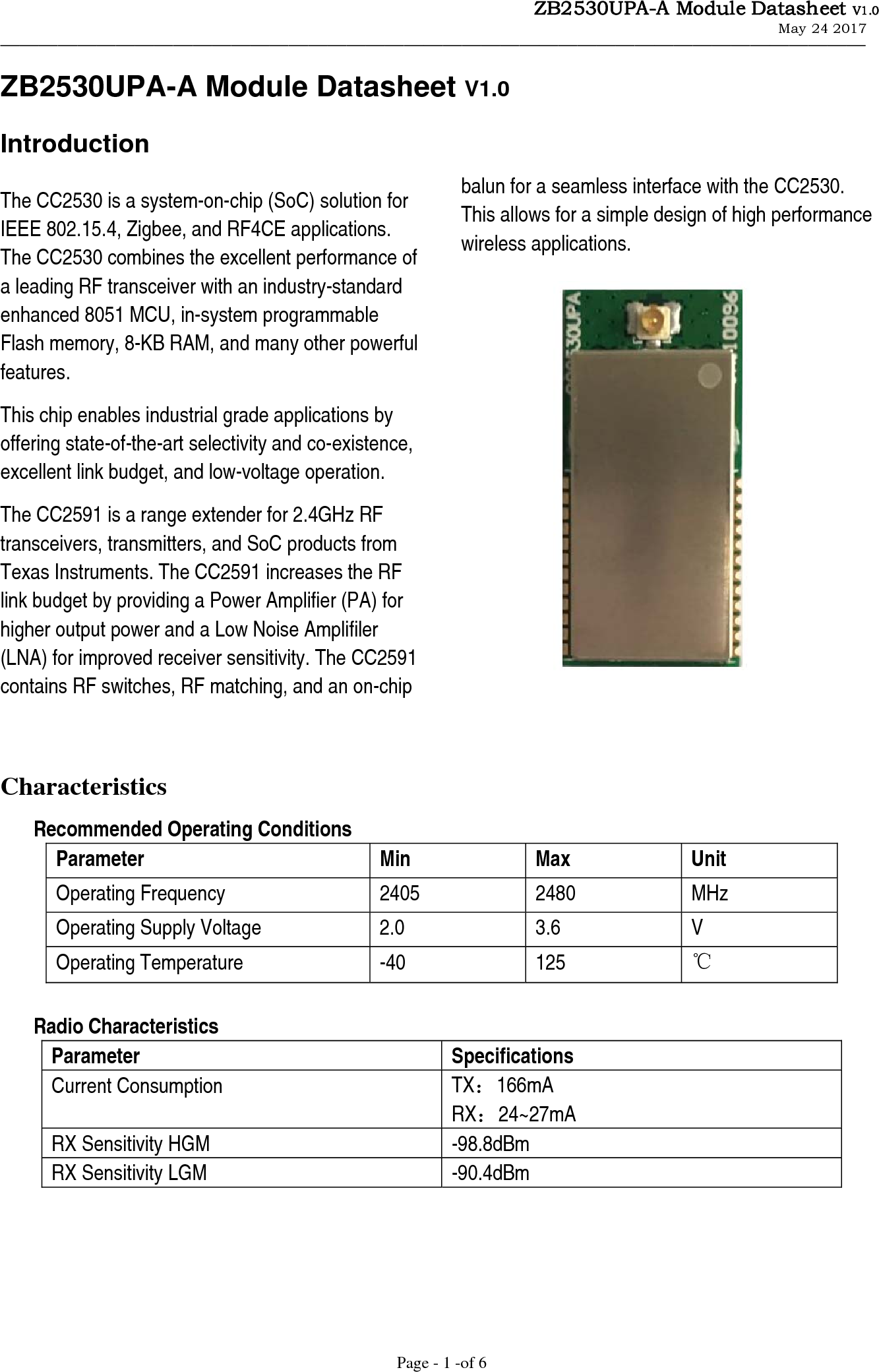

                  ZB2530UPA-A Module Datasheet V1.0                                                             May 24 2017                  ————————————————————————————————————————————— Page - 1 -of 6 ZB2530UPA-A Module Datasheet V1.0 Introduction The CC2530 is a system-on-chip (SoC) solution for IEEE 802.15.4, Zigbee, and RF4CE applications. The CC2530 combines the excellent performance of a leading RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable Flash memory, 8-KB RAM, and many other powerful features. This chip enables industrial grade applications by offering state-of-the-art selectivity and co-existence, excellent link budget, and low-voltage operation. The CC2591 is a range extender for 2.4GHz RF transceivers, transmitters, and SoC products from   Texas Instruments. The CC2591 increases the RF   link budget by providing a Power Amplifier (PA) for higher output power and a Low Noise Amplifiler (LNA) for improved receiver sensitivity. The CC2591 contains RF switches, RF matching, and an on-chip      balun for a seamless interface with the CC2530.   This allows for a simple design of high performance wireless applications.                  Characteristics Recommended Operating Conditions Parameter Min Max Unit Operating Frequency  2405  2480  MHz Operating Supply Voltage  2.0  3.6  V Operating Temperature -40 125 ℃  Radio Characteristics Parameter Specifications Current Consumption  TX:166mA RX:24~27mA RX Sensitivity HGM  -98.8dBm RX Sensitivity LGM  -90.4dBm
