Contents

User Manual.pdf

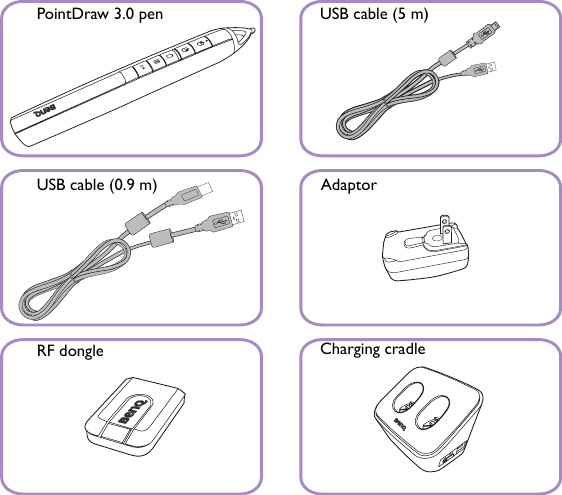

PointDraw 3.0 pen USB cable (5 m)USB cable (0.9 m) AdaptorCharging cradleRF dongle

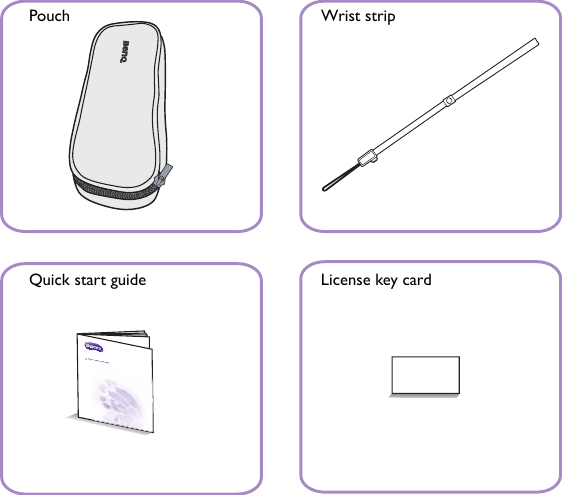

Quick Start GuidePouch Wrist stripLicense key cardQuick start guide

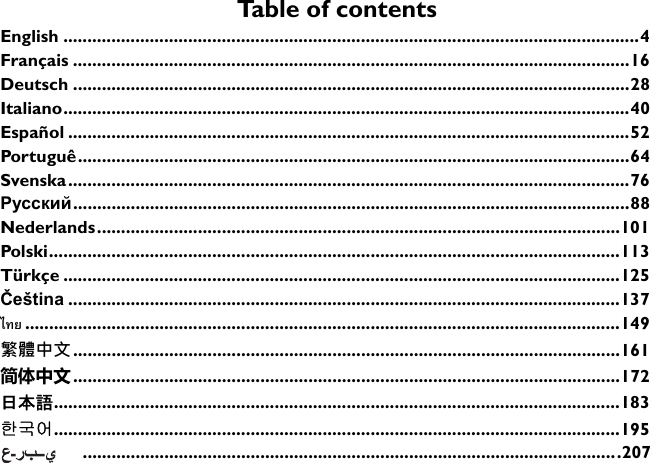

Table of contentsEnglish ........................................................................................................................4Français ....................................................................................................................16Deutsch ....................................................................................................................28Italiano......................................................................................................................40Español .....................................................................................................................52Portuguê...................................................................................................................64Svenska.....................................................................................................................76Русский....................................................................................................................88Nederlands.............................................................................................................101Polski.......................................................................................................................113Türkçe ....................................................................................................................125Čeština ...................................................................................................................137ไทย ............................................................................................................................149繁體中文..................................................................................................................161简体中文..................................................................................................................172日本語......................................................................................................................183한국어......................................................................................................................195................................................................................................................207

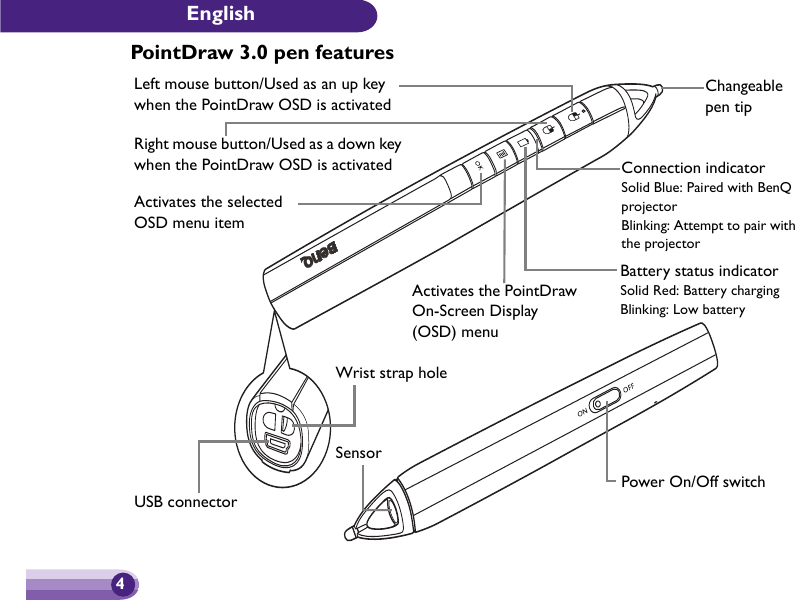

English4PointDraw 3.0 pen featuresPower On/Off switchChangeable pen tipWrist strap holeRight mouse button/Used as a down key when the PointDraw OSD is activatedBattery status indicatorSolid Red: Battery chargingBlinking: Low batteryUSB connectorSensorConnection indicatorSolid Blue: Paired with BenQ projectorBlinking: Attempt to pair with the projectorLeft mouse button/Used as an up key when the PointDraw OSD is activatedActivates the PointDraw On-Screen Display (OSD) menuActivates the selected OSD menu item

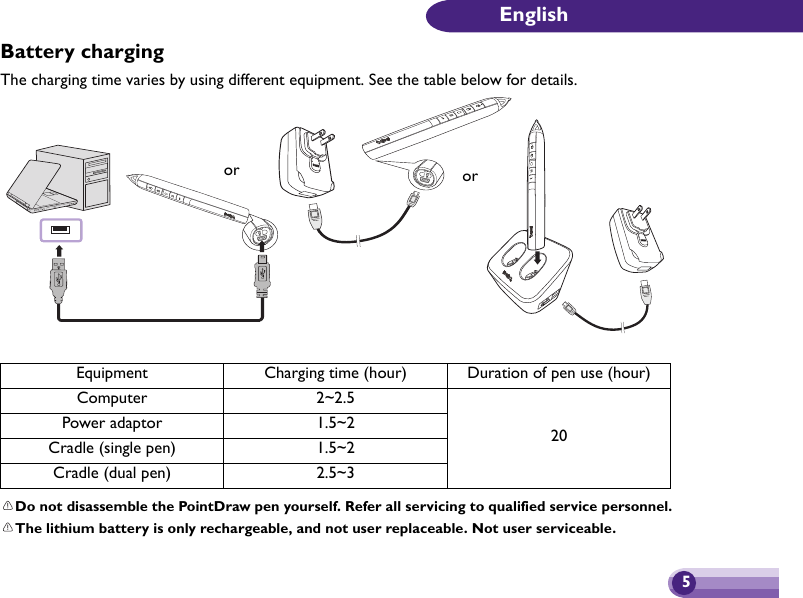

5EnglishBattery chargingThe charging time varies by using different equipment. See the table below for details.Do not disassemble the PointDraw pen yourself. Refer all servicing to qualified service personnel.The lithium battery is only rechargeable, and not user replaceable. Not user serviceable.Equipment Charging time (hour) Duration of pen use (hour)Computer 2~2.520Power adaptor 1.5~2Cradle (single pen) 1.5~2Cradle (dual pen) 2.5~3PUSHPUSHor orPUSHPUSH
English6Operation2131245oror

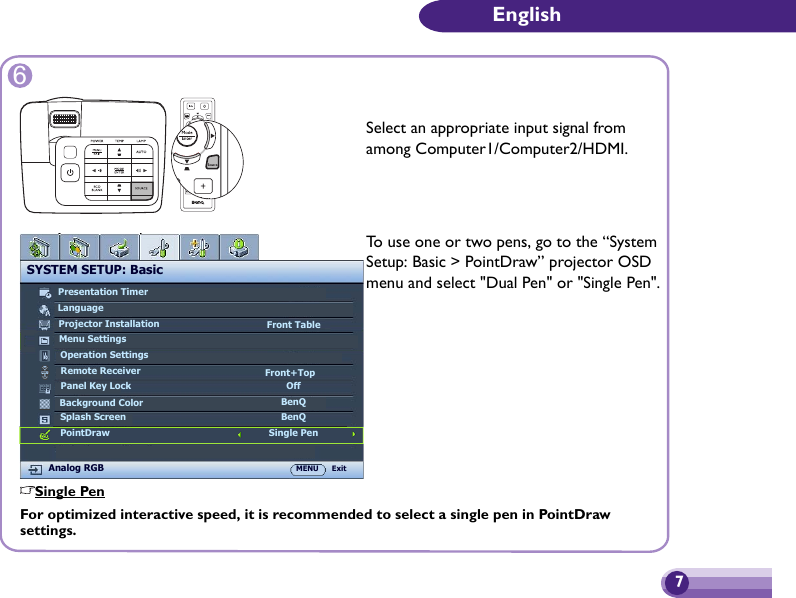

7English6Select an appropriate input signal from among Computer1/Computer2/HDMI.SYSTEM SETUP: BasicPresentation TimerLanguageProjector InstallationOperation SettingsPanel Key LockSplash ScreenBackground ColorAnalog RGB MENU ExitFront TableOffBenQBenQMenu SettingsRemote Receiver Front+TopPointDrawTo use one or two pens, go to the “System Setup: Basic > PointDraw” projector OSD menu and select "Dual Pen" or "Single Pen".Single PenSingle PenFor optimized interactive speed, it is recommended to select a single pen in PointDraw settings.

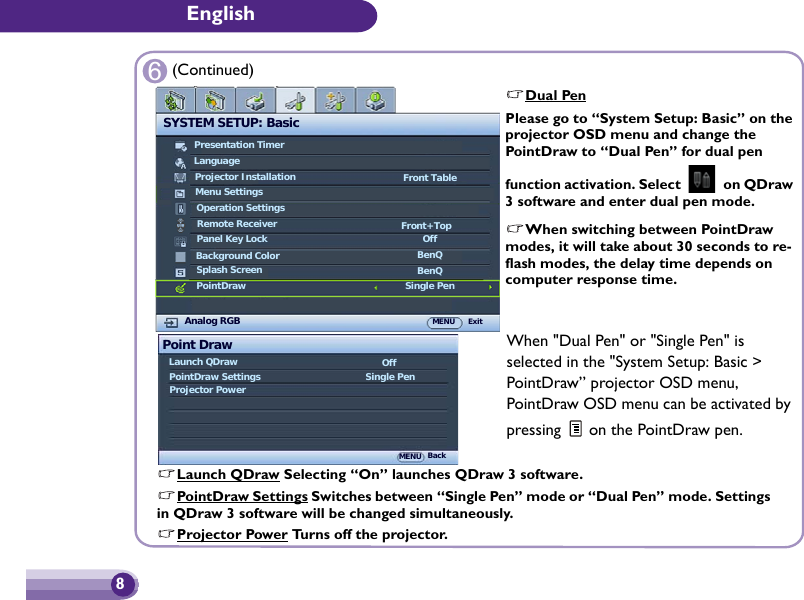

English86Dual PenPlease go to “System Setup: Basic” on the projector OSD menu and change the PointDraw to “Dual Pen” for dual pen function activation. Select on QDraw 3 software and enter dual pen mode.When switching between PointDraw modes, it will take about 30 seconds to re-flash modes, the delay time depends on computer response time.(Continued)Point DrawLaunch QDrawPointDraw SettingsProjector PowerOffSingle PenMENU BackWhen "Dual Pen" or "Single Pen" is selected in the "System Setup: Basic > PointDraw” projector OSD menu, PointDraw OSD menu can be activated by pressing on the PointDraw pen.Launch QDraw Selecting “On” launches QDraw 3 software.PointDraw Settings Switches between “Single Pen” mode or “Dual Pen” mode. Settings in QDraw 3 software will be changed simultaneously.Projector Power Turns off the projector.SYSTEM SETUP: BasicPresentation TimerLanguageProjector InstallationOperation SettingsPanel Key LockSplash ScreenBackground ColorAnalog RGB MENU ExitFront TableOffBenQBenQMenu SettingsRemote Receiver Front+TopPointDraw Single Pen

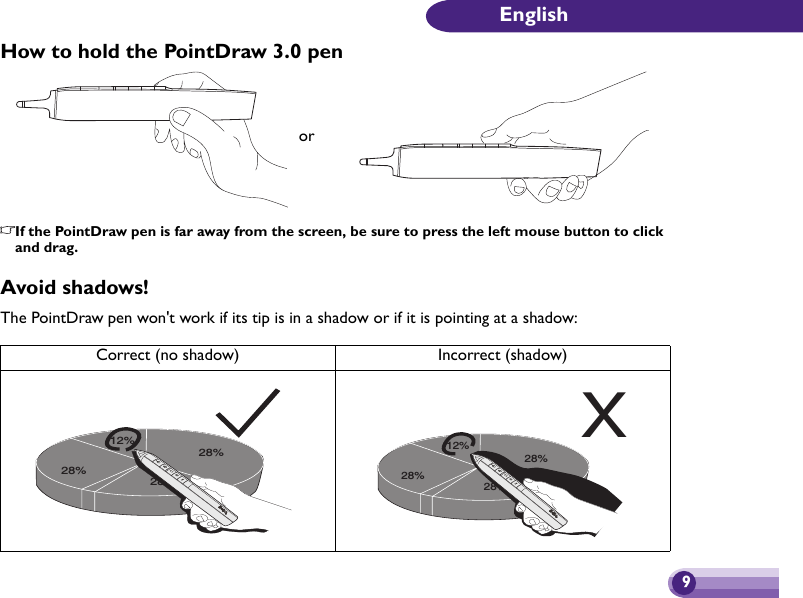

9EnglishHow to hold the PointDraw 3.0 penIf the PointDraw pen is far away from the screen, be sure to press the left mouse button to click and drag.Avoid shadows!The PointDraw pen won't work if its tip is in a shadow or if it is pointing at a shadow:Correct (no shadow) Incorrect (shadow)or28%12%28%28%28%12%28%X28%
English10The pen can be used either touching on the screen or away from the screen.71994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011Revenue$330 $912 $1,763 $2,763 $4,079 $4,418 $5,508 $5, 630 $5,675 $5,702 $6,523 $6,584 $6,915 $7,051 $7,013 $8,130 $9,830 $11,605$0$2,000$4,000$6,000$8,000$10,000$12,000“FirstWave”“SecondWave”Troughof commoditizationandrecessionIndustryRev enu es (0 00’s )1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011Revenue$330 $912 $1,763 $2,763 $4,079 $4,418 $5,508 $5, 630 $5,675 $5,702 $6,523 $6,584 $6,915 $7,051 $7,013 $8,130 $9,830 $11,605$0$2,000$4,000$6,000$8,000$10,000$12,000“FirstWave ”“SecondWave”Troughof commoditizationandrecessionIndustryRevenues (000’s)

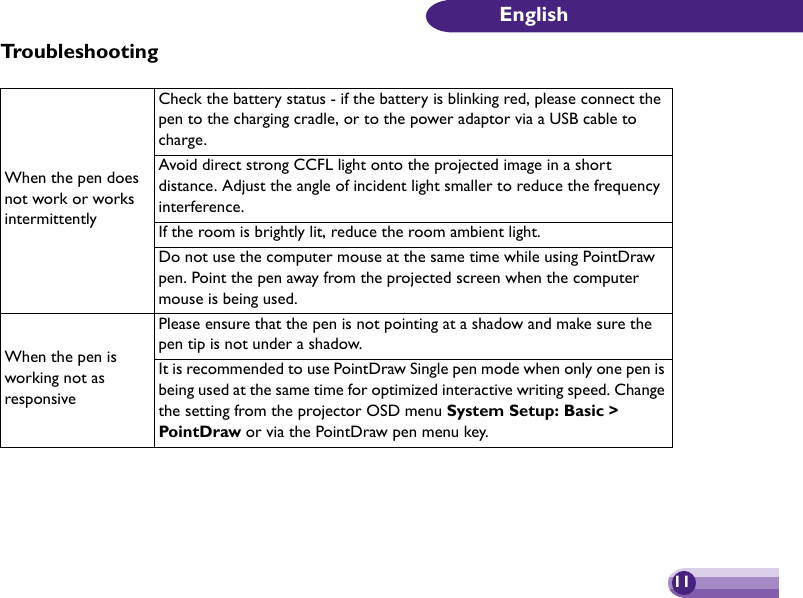

11EnglishTroubleshootingWhen the pen does not work or works intermittentlyCheck the battery status - if the battery is blinking red, please connect the pen to the charging cradle, or to the power adaptor via a USB cable to charge.Avoid direct strong CCFL light onto the projected image in a short distance. Adjust the angle of incident light smaller to reduce the frequency interference.If the room is brightly lit, reduce the room ambient light.Do not use the computer mouse at the same time while using PointDraw pen. Point the pen away from the projected screen when the computer mouse is being used.When the pen is working not as responsivePlease ensure that the pen is not pointing at a shadow and make sure the pen tip is not under a shadow.It is recommended to use PointDraw Single pen mode when only one pen is being used at the same time for optimized interactive writing speed. Change the setting from the projector OSD menu System Setup: Basic > PointDraw or via the PointDraw pen menu key.

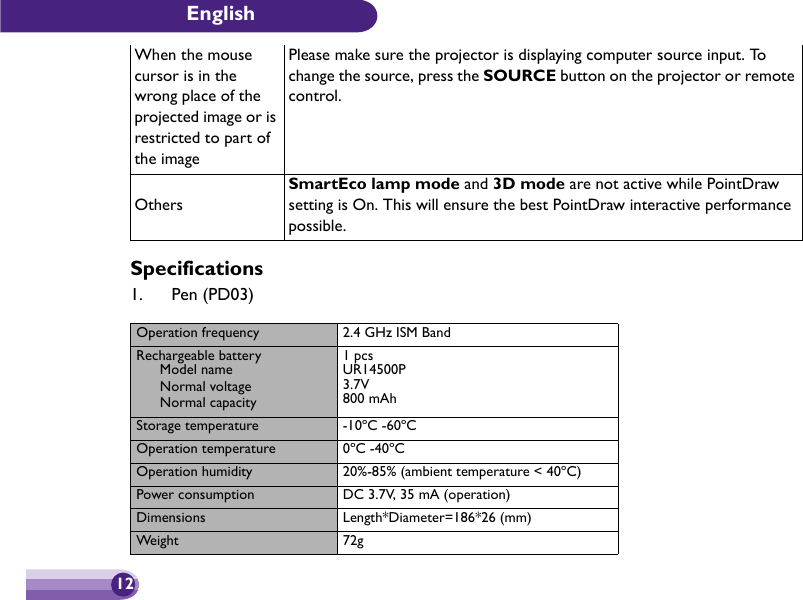

English12Specifications1. Pen (PD03)When the mouse cursor is in the wrong place of the projected image or is restricted to part of the imagePlease make sure the projector is displaying computer source input. To change the source, press the SOURCE button on the projector or remote control.OthersSmartEco lamp mode and 3D mode are not active while PointDraw setting is On. This will ensure the best PointDraw interactive performance possible.Operation frequency 2.4 GHz ISM BandRechargeable batteryModel nameNormal voltageNormal capacity1 pcsUR14500P3.7V800 mAhStorage temperature -10ºC -60ºC Operation temperature 0ºC -40ºC Operation humidity 20%-85% (ambient temperature < 40ºC)Power consumption DC 3.7V, 35 mA (operation)Dimensions Length*Diameter=186*26 (mm)Weight 72g

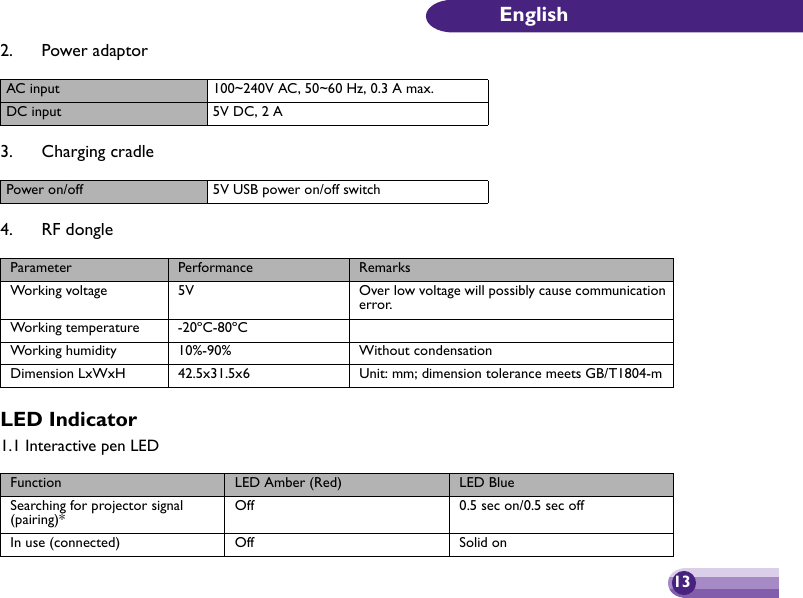

13English2. Power adaptor3. Charging cradle4. RF dongleLED Indicator1.1 Interactive pen LEDAC input 100~240V AC, 50~60 Hz, 0.3 A max.DC input 5V DC, 2 APower on/off 5V USB power on/off switchParameter Performance RemarksWorking voltage 5V Over low voltage will possibly cause communication error. Working temperature -20ºC-80ºCWorking humidity 10%-90% Without condensationDimension LxWxH 42.5x31.5x6 Unit: mm; dimension tolerance meets GB/T1804-mFunction LED Amber (Red) LED BlueSearching for projector signal (pairing)*Off 0.5 sec on/0.5 sec offIn use (connected) Off Solid on

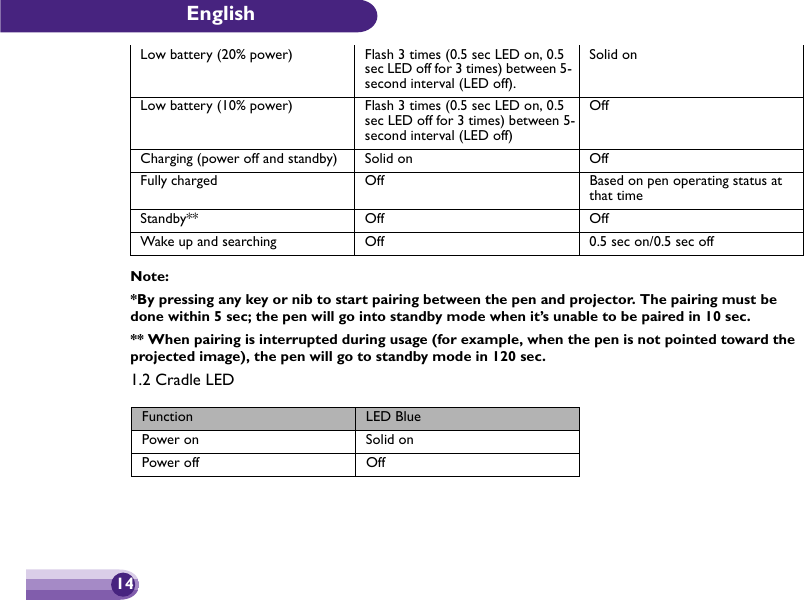

English14Note: *By pressing any key or nib to start pairing between the pen and projector. The pairing must be done within 5 sec; the pen will go into standby mode when it’s unable to be paired in 10 sec. ** When pairing is interrupted during usage (for example, when the pen is not pointed toward the projected image), the pen will go to standby mode in 120 sec. 1.2 Cradle LEDLow battery (20% power) Flash 3 times (0.5 sec LED on, 0.5 sec LED off for 3 times) between 5- second interval (LED off).Solid onLow battery (10% power) Flash 3 times (0.5 sec LED on, 0.5 sec LED off for 3 times) between 5-second interval (LED off)OffCharging (power off and standby) Solid on OffFully charged Off Based on pen operating status at that timeStandby** Off OffWake up and searching Off 0.5 sec on/0.5 sec offFunction LED BluePower on Solid onPower off Off

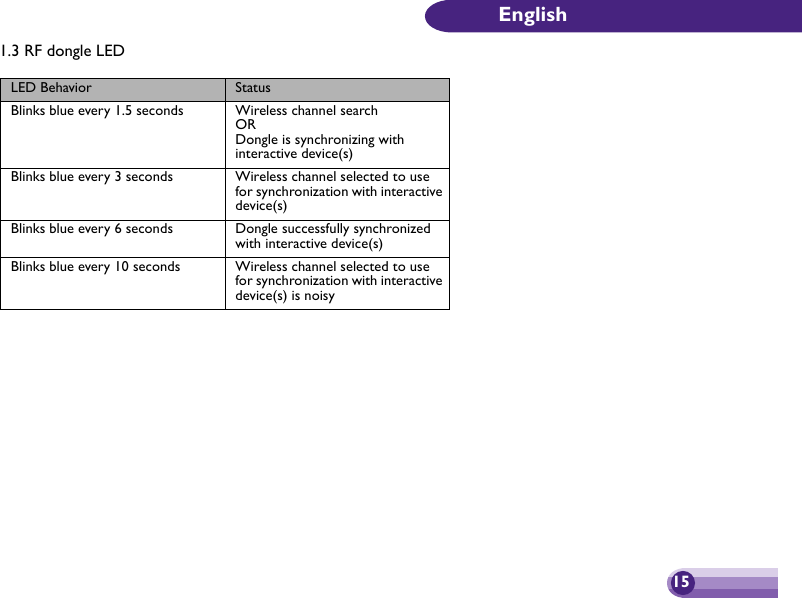

15English1.3 RF dongle LEDLED Behavior StatusBlinks blue every 1.5 seconds Wireless channel searchORDongle is synchronizing with interactive device(s)Blinks blue every 3 seconds Wireless channel selected to use for synchronization with interactive device(s)Blinks blue every 6 seconds Dongle successfully synchronized with interactive device(s)Blinks blue every 10 seconds Wireless channel selected to use for synchronization with interactive device(s) is noisy
