Benton Technology RNBV1 Tablet pc User Manual

Shenzhen Benton Technology Co., LTD Tablet pc Users Manual

User Manual

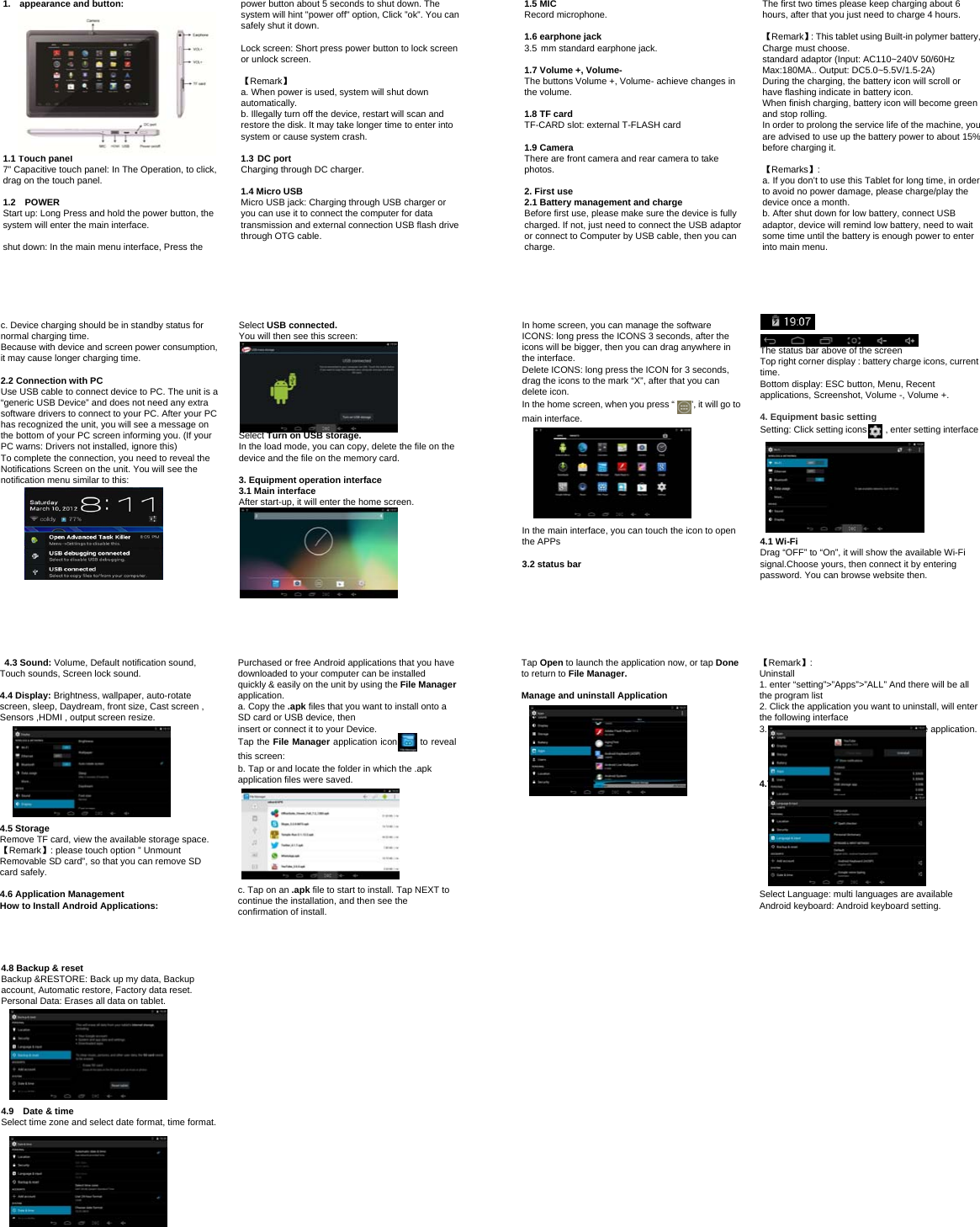

1. appearance and button:1.1 Touch panel 7” Capacitive touch panel: In The Operation, to click, drag on the touch panel. 1.2 POWER Start up: Long Press and hold the power button, the system will enter the main interface. shut down: In the main menu interface, Press the power button about 5 seconds to shut down. The system will hint "power off" option, Click ”ok”. You can safely shut it down. Lock screen: Short press power button to lock screen or unlock screen. 【Remark】 a. When power is used, system will shut downautomatically. b. Illegally turn off the device, restart will scan andrestore the disk. It may take longer time to enter into system or cause system crash. 1.3 DC port Charging through DC charger. 1.4 Micro USB Micro USB jack: Charging through USB charger or you can use it to connect the computer for data transmission and external connection USB flash drive through OTG cable. 1.5 MIC Record microphone. 1.6 earphone jack 3.5 mm standard earphone jack. 1.7 Volume +, Volume- The buttons Volume +, Volume- achieve changes in the volume. 1.8 TF card TF-CARD slot: external T-FLASH card 1.9 Camera There are front camera and rear camera to take photos. 2. First use 2.1 Battery management and charge Before first use, please make sure the device is fully charged. If not, just need to connect the USB adaptor or connect to Computer by USB cable, then you can charge. The first two times please keep charging about 6 hours, after that you just need to charge 4 hours. 【Remark】: This tablet using Built-in polymer battery, Charge must choose. standard adaptor (Input: AC110~240V 50/60Hz Max:180MA.. Output: DC5.0~5.5V/1.5-2A) During the charging, the battery icon will scroll or have flashing indicate in battery icon. When finish charging, battery icon will become green and stop rolling. In order to prolong the service life of the machine, you are advised to use up the battery power to about 15% before charging it. 【Remarks】: a. If you don’t to use this Tablet for long time, in orderto avoid no power damage, please charge/play the device once a month. b. After shut down for low battery, connect USBadaptor, device will remind low battery, need to wait some time until the battery is enough power to enter into main menu. c. Device charging should be in standby status for normal charging time. Because with device and screen power consumption, it may cause longer charging time. 2.2 Connection with PC Use USB cable to connect device to PC. The unit is a “generic USB Device” and does not need any extra software drivers to connect to your PC. After your PC has recognized the unit, you will see a message on the bottom of your PC screen informing you. (If your PC warns: Drivers not installed, ignore this) To complete the connection, you need to reveal the Notifications Screen on the unit. You will see the notification menu similar to this: Select USB connected. You will then see this screen: Select Turn on USB storage. In the load mode, you can copy, delete the file on the device and the file on the memory card. 3. Equipment operation interface 3.1 Main interface After start-up, it will enter the home screen. In home screen, you can manage the software ICONS: long press the ICONS 3 seconds, after the icons will be bigger, then you can drag anywhere in the interface. Delete ICONS: long press the ICON for 3 seconds, drag the icons to the mark “X”, after that you can delete icon. In the home screen, when you press “ ”, it will go to main interface. In the main interface, you can touch the icon to open the APPs 3.2 status bar The status bar above of the screen Top right corner display : battery charge icons, current time. Bottom display: ESC button, Menu, Recent applications, Screenshot, Volume -, Volume +. 4. Equipment basic setting Setting: Click setting icons , enter setting interface 4.1 Wi-Fi Drag “OFF” to “On”, it will show the available Wi-Fi signal.Choose yours, then connect it by entering password. You can browse website then. 4.3 Sound: Volume, Default notification sound, Touch sounds, Screen lock sound. 4.4 Display: Brightness, wallpaper, auto-rotate screen, sleep, Daydream, front size, Cast screen , Sensors ,HDMI , output screen resize. 4.5 Storage Remove TF card, view the available storage space. 【Remark】: please touch option ” Unmount Removable SD card”, so that you can remove SD card safely. 4.6 Application Management How to Install Android Applications: Purchased or free Android applications that you have downloaded to your computer can be installed quickly & easily on the unit by using the File Manager application. a. Copy the .apk files that you want to install onto a to reveal SD card or USB device, then insert or connect it to your Device. Tap the File Manager application icon this screen: b. Tap or and locate the folder in which the .apk application files were saved. c. Tap on an .apk file to start to install. Tap NEXT tocontinue the installation, and then see the confirmation of install. Tap Open to launch the application now, or tap Done to return to File Manager. Manage and uninstall Application 【Remark】: Uninstall 1. enter “setting”>”Apps”>”ALL” And there will be all the program list 2. Click the application you want to uninstall, will enterthe following interface 3. Click Uninstall, then you can delete the application. 4.7 Language & input Select Language: multi languages are available Android keyboard: Android keyboard setting. 4.8 Backup & reset Backup &RESTORE: Back up my data, Backup account, Automatic restore, Factory data reset. Personal Data: Erases all data on tablet. 4.9 Date & time Select time zone and select date format, time format.
