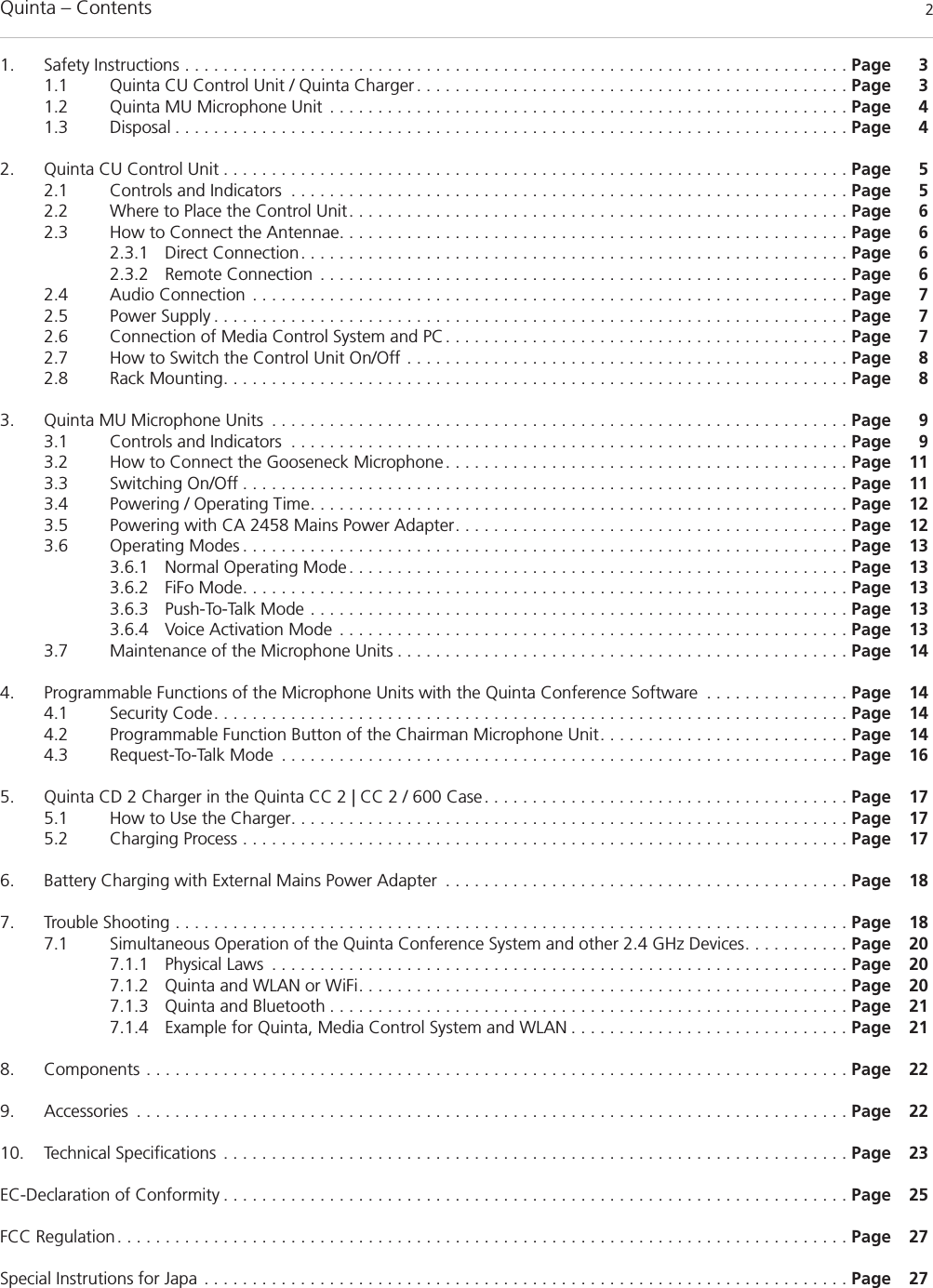

Quinta – Contents 21. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 31.1 Quinta CU Control Unit / Quinta Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 31.2 Quinta MU Microphone Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 41.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 42. Quinta CU Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 52.1 Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 52.2 Where to Place the Control Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62.3 How to Connect the Antennae. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62.3.1 Direct Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62.3.2 Remote Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62.4 Audio Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72.5 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72.6 Connection of Media Control System and PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72.7 How to Switch the Control Unit On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 82.8 Rack Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 83. Quinta MU Microphone Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 93.1 Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 93.2 How to Connect the Gooseneck Microphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 113.3 Switching On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 113.4 Powering / Operating Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 123.5 Powering with CA 2458 Mains Power Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 123.6 Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 133.6.1 Normal Operating Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 133.6.2 FiFo Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 133.6.3 Push-To-Talk Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 133.6.4 Voice Activation Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 133.7 Maintenance of the Microphone Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 144. Programmable Functions of the Microphone Units with the Quinta Conference Software . . . . . . . . . . . . . . . Page 144.1 Security Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 144.2 Programmable Function Button of the Chairman Microphone Unit. . . . . . . . . . . . . . . . . . . . . . . . . . Page 144.3 Request-To-Talk Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 165. Quinta CD 2 Charger in the Quinta CC 2 | CC 2 / 600 Case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 175.1 How to Use the Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 175.2 Charging Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 176. Battery Charging with External Mains Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 187. Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 187.1 Simultaneous Operation of the Quinta Conference System and other 2.4 GHz Devices. . . . . . . . . . . Page 207.1.1 Physical Laws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 207.1.2 Quinta and WLAN or WiFi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 207.1.3 Quinta and Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 217.1.4 Example for Quinta, Media Control System and WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 218. Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 229. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2210. Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 23EC-Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 25FCC Regulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27Special Instrutions for Japa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 27

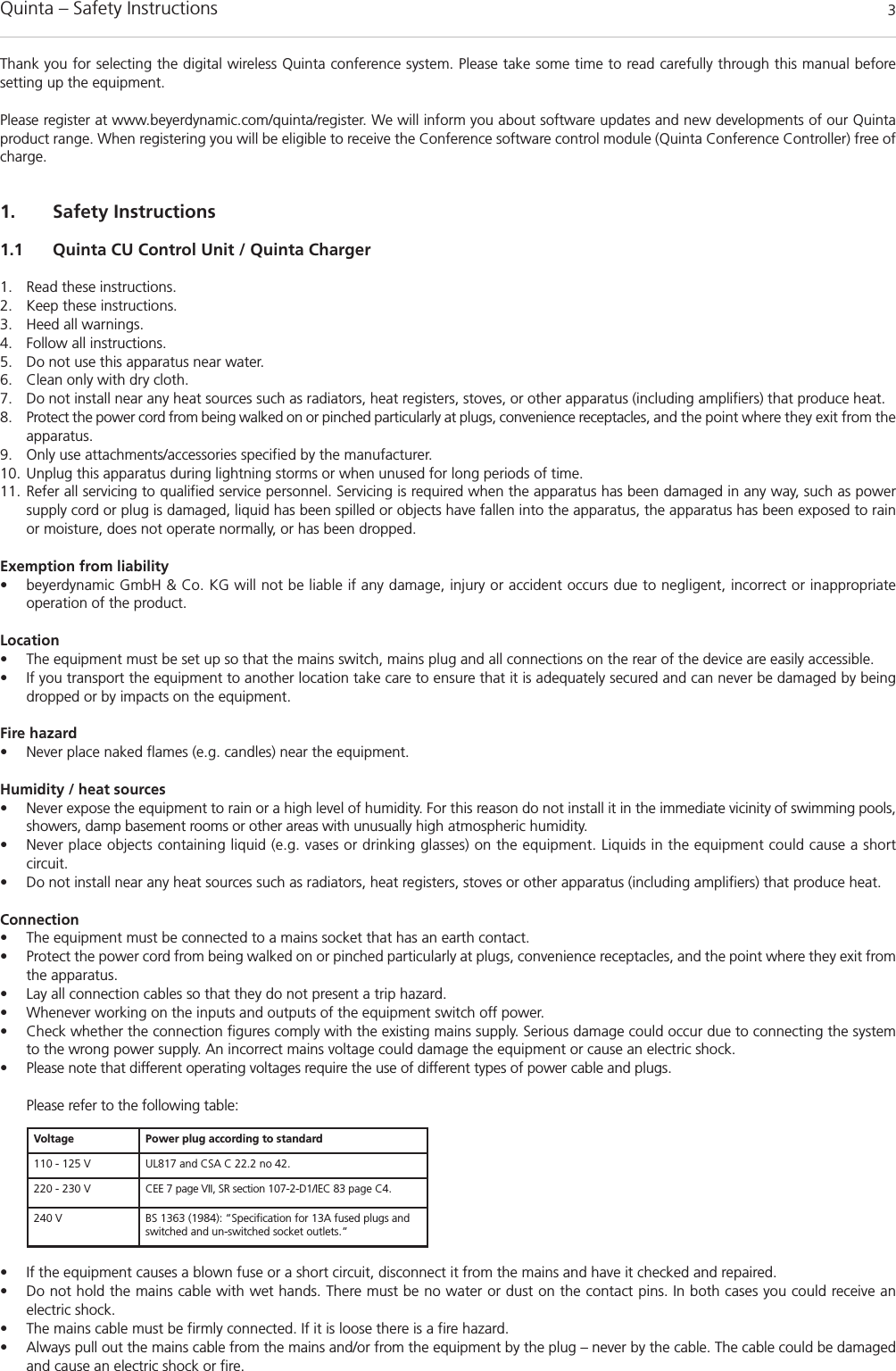

Quinta – Safety Instructions 3Thank you for selecting the digital wireless Quinta conference system. Please take some time to read carefully through this manual before setting up the equipment.Please register at www.beyerdynamic.com/quinta/register. We will inform you about software updates and new developments of our Quintaproduct range. When registering you will be eligible to receive the Conference software control module (Quinta Conference Controller) free ofcharge. 1. Safety Instructions1.1 Quinta CU Control Unit / Quinta Charger1. Read these instructions.2. Keep these instructions. 3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from theapparatus.9. Only use attachments/accessories specified by the manufacturer. 10. Unplug this apparatus during lightning storms or when unused for long periods of time. 11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rainor moisture, does not operate normally, or has been dropped.Exemption from liability• beyerdynamic GmbH & Co. KG will not be liable if any damage, injury or accident occurs due to negligent, incorrect or inappropriate operation of the product.Location• The equipment must be set up so that the mains switch, mains plug and all connections on the rear of the device are easily accessible. • If you transport the equipment to another location take care to ensure that it is adequately secured and can never be damaged by beingdropped or by impacts on the equipment. Fire hazard• Never place naked flames (e.g. candles) near the equipment.Humidity / heat sources• Never expose the equipment to rain or a high level of humidity. For this reason do not install it in the immediate vicinity of swimming pools,showers, damp basement rooms or other areas with unusually high atmospheric humidity. • Never place objects containing liquid (e.g. vases or drinking glasses) on the equipment. Liquids in the equipment could cause a short circuit. • Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.Connection• The equipment must be connected to a mains socket that has an earth contact. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit fromthe apparatus.• Lay all connection cables so that they do not present a trip hazard. • Whenever working on the inputs and outputs of the equipment switch off power. • Check whether the connection figures comply with the existing mains supply. Serious damage could occur due to connecting the systemto the wrong power supply. An incorrect mains voltage could damage the equipment or cause an electric shock.• Please note that different operating voltages require the use of different types of power cable and plugs.Please refer to the following table:• If the equipment causes a blown fuse or a short circuit, disconnect it from the mains and have it checked and repaired. • Do not hold the mains cable with wet hands. There must be no water or dust on the contact pins. In both cases you could receive an electric shock. • The mains cable must be firmly connected. If it is loose there is a fire hazard. • Always pull out the mains cable from the mains and/or from the equipment by the plug – never by the cable. The cable could be damagedand cause an electric shock or fire. Voltage Power plug according to standard110 - 125 V UL817 and CSA C 22.2 no 42.220 - 230 V CEE 7 page VII, SR section 107-2-D1/IEC 83 page C4.240 V BS 1363 (1984): “Specification for 13A fused plugs andswitched and un-switched socket outlets.”
Quinta – Safety Instructions 4• Do not use the equipment if the mains plug is damaged. • If you connect defective or unsuitable accessories, the equipment could be damaged. Only use connection cables available from or recommended by beyerdynamic. If you use cables you have made up yourself, all claim to warranty is null and void. Switching off • In order to switch off the device disconnect the power plug from the power socket.Disconnect • For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.Maintenance• Only clean the equipment with a slightly damp or dry cloth. Never use solvents as these damage the surface.Troube shooting and servicing• Do not open the equipment without authorisation. You could receive an electric shock. There are no user-serviceable parts inside.• Leave all service work to authorised expert personnel. Charger• Use only the CD2 charger or Quinta SC power supply unit to charge the rechargeable batteries integrated in the microphone units.• Never remove the base foam section from the CD2 charger. There are no parts that can be serviced in the interior of the charger. • The charger has been designed for charging the rechargeable batteries in the Quinta microphone stations. Only charge Quinta microphone units and no other battery operated equipment. The batteries could explode and injure you or damage the equipment. • If you use the charger with accessories which have not been developed for it, this could result in a fire, an electric shock or physical injury. • Never try to repair the charger yourself. There is a risk of an electric shock or causing a fire. • Never use the charger as a mains power supply unit for electrical equipment. 1.2 Quinta MU Microphone UnitSet up• Always position the microphone units on a secure surface. If the microphone unit falls down, you can hurt yourself or others or damagethe microphone unit.• To align the gooseneck microphone on the microphone unit and to avoid twisting it too far and causing premature wear,please note that the gooseneck must be bent no further than an angle of 90° maximum. Risk of injury• If the microphone stations have a gooseneck microphone take care that you do not injure yourself on this e.g. poke it into your eye. • The charging contacts of the microphone units can cause damage to property, injuries or fire damage if they come into contact with conductive material such as jewellery, keys or chains. This closes the circuit and can thus cause the material to heat up. To avoid this sort ofunwanted circuit, the charging contacts must be handled with caution. This applies particularly if the microphone units are transported ina bag or some other container together with metal objects. Charging / rechargeable batteries• When charging the microphone unit in the charger, take care to ensure that you do not injure yourself when putting the station in or taking it out. • Only switch on the charger when you have inserted all microphone units. Empty charging compartments should never be touched duringthe charging process. You could receive an electric shock. • Avoid letting the rechargeable batteries in the microphone unit become too deeply discharged. The rechargeable batteries could be damaged and the life of them could be reduced. • If battery operated equipment is not used for a lengthy period (e.g. 1 year) the self-discharge of the battery could be accelerated. The temperature for long-term storage should be between +10° C and +30° C. • If the microphone units are not used for several months, the rechargeable batteries in the microphone units should be charged up at leasttwice a year in order to avoid them running out and deterioration in the performance due to self discharge. Volume•If the participants of a meeting use a headphone with the Quinta microphone stations, please make sure that the volume isnot set too high via the Quinta Conference software or the microphone unit itself. Otherwise, the hearing of the participantscould permanently be damaged.1.3 Disposal• Old batteries may contain substances that are harmful to your health and environment. • The device provides built-in rechargeable batteries, which you cannot remove yourself, therefore, return the device to your dealer for recycling when the batteries are exhausted. • All batteries are recycled to reclaim valuable material such as iron, zinc or nickel.• This symbol on the product, in the instructions or on the packaging means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.For more information, please contact the local authority or your retailer where you purchased the product.

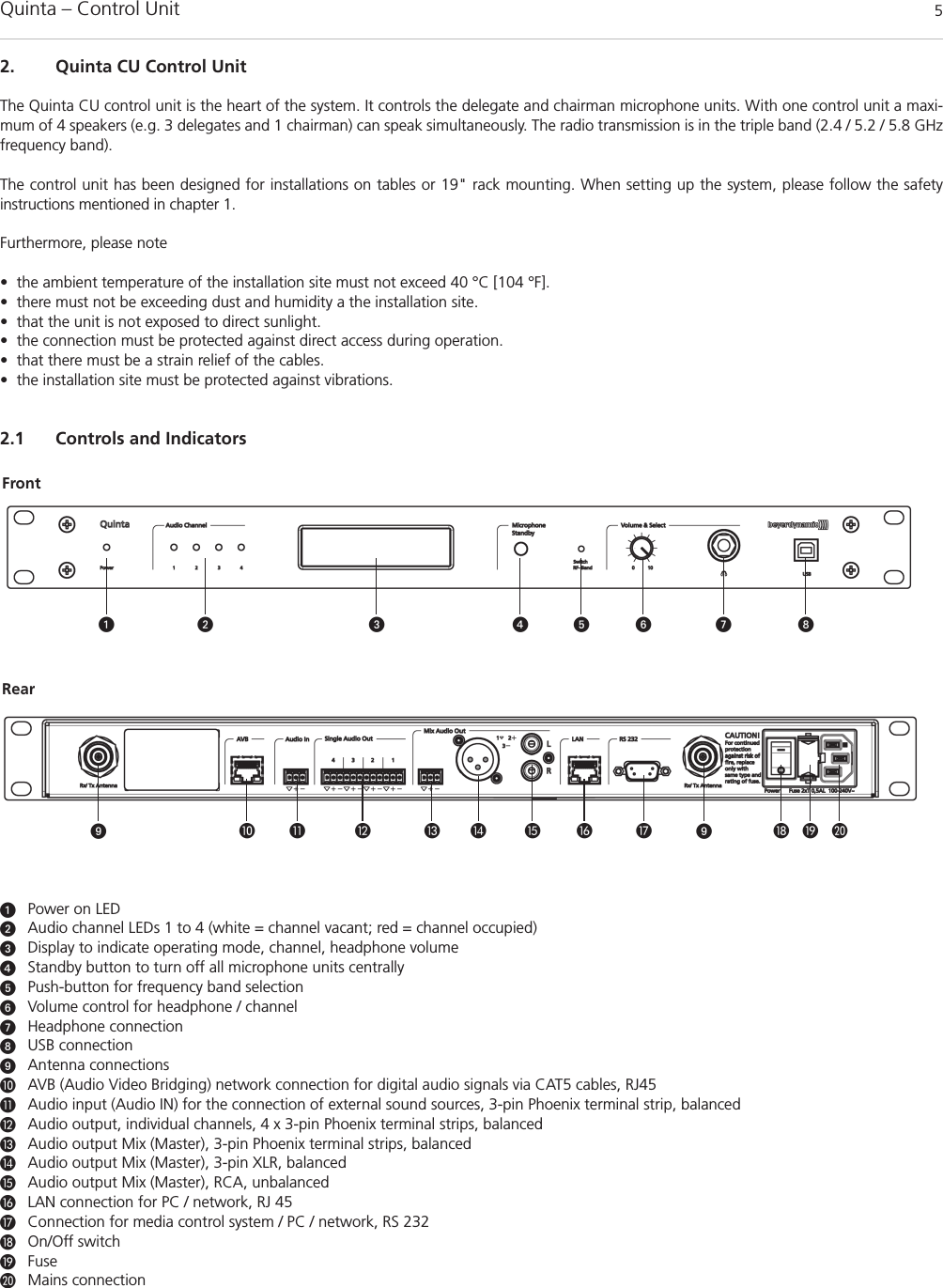

2. Quinta CU Control UnitThe Quinta CU control unit is the heart of the system. It controls the delegate and chairman microphone units. With one control unit a maxi-mum of 4 speakers (e.g. 3 delegates and 1 chairman) can speak simultaneously. The radio transmission is in the triple band (2.4 / 5.2 / 5.8 GHzfrequency band).The control unit has been designed for installations on tables or 19" rack mounting. When setting up the system, please follow the safety instructions mentioned in chapter 1. Furthermore, please note• the ambient temperature of the installation site must not exceed 40 °C [104 °F]. • there must not be exceeding dust and humidity a the installation site.• that the unit is not exposed to direct sunlight.• the connection must be protected against direct access during operation.• that there must be a strain relief of the cables.• the installation site must be protected against vibrations.2.1 Controls and IndicatorsPower on LEDAudio channel LEDs 1 to 4 (white = channel vacant; red = channel occupied)Display to indicate operating mode, channel, headphone volumeStandby button to turn off all microphone units centrallyPush-button for frequency band selection Volume control for headphone / channelHeadphone connectionUSB connectionAntenna connectionsAVB (Audio Video Bridging) network connection for digital audio signals via CAT5 cables, RJ45Audio input (Audio IN) for the connection of external sound sources, 3-pin Phoenix terminal strip, balancedAudio output, individual channels, 4 x 3-pin Phoenix terminal strips, balancedAudio output Mix (Master), 3-pin Phoenix terminal strips, balancedAudio output Mix (Master), 3-pin XLR, balanced Audio output Mix (Master), RCA, unbalanced LAN connection for PC / network, RJ 45Connection for media control system / PC / network, RS 232On/Off switchFuseMains connectionQuinta – Control Unit 5FrontRear                  

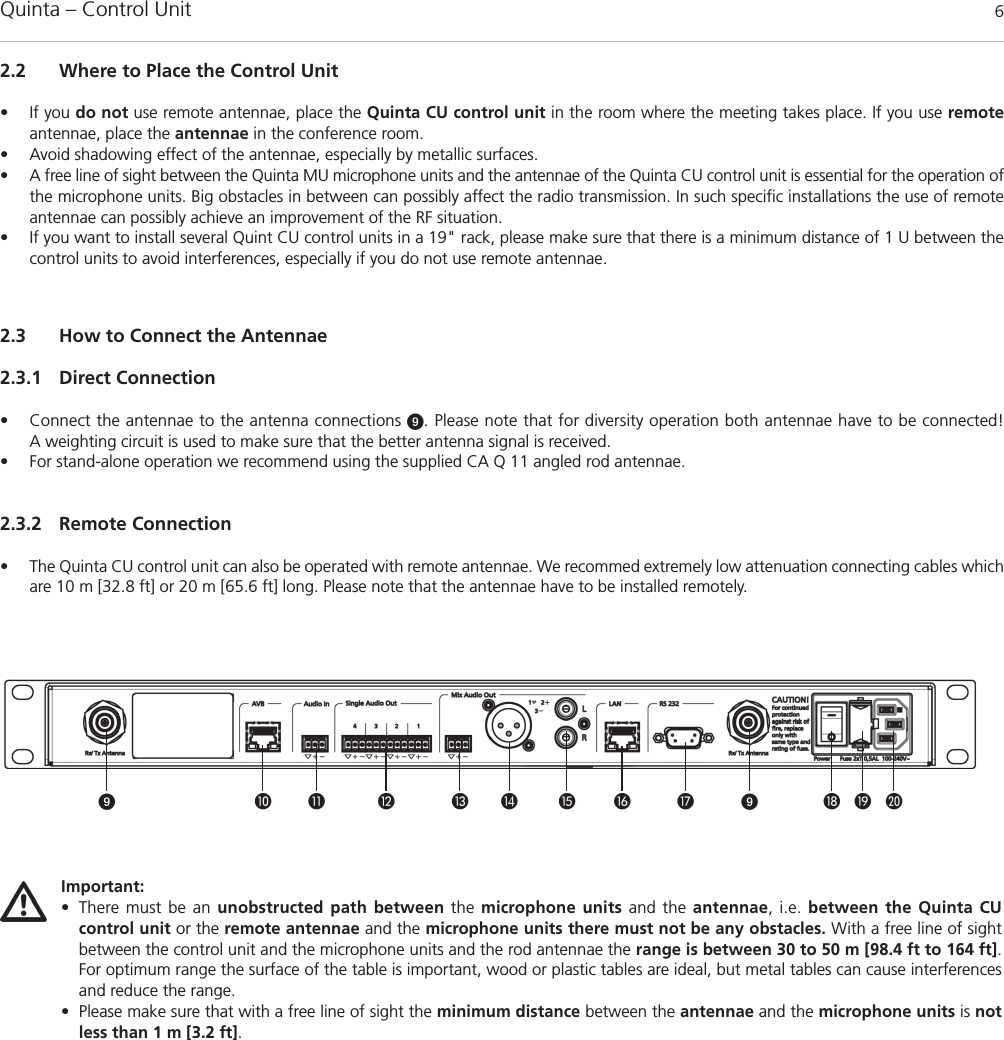

Quinta – Control Unit 6            Important:• There must be an unobstructed path between the microphone units and the antennae, i.e. between the Quinta CU control unit or the remote antennae and the microphone units there must not be any obstacles. With a free line of sightbetween the control unit and the microphone units and the rod antennae the range is between 30 to 50 m [98.4 ft to 164 ft].For optimum range the surface of the table is important, wood or plastic tables are ideal, but metal tables can cause interferencesand reduce the range. • Please make sure that with a free line of sight the minimum distance between the antennae and the microphone units is notless than 1 m [3.2 ft]. 2.3 How to Connect the Antennae2.3.1 Direct Connection• Connect the antennae to the antenna connections . Please note that for diversity operation both antennae have to be connected! A weighting circuit is used to make sure that the better antenna signal is received. • For stand-alone operation we recommend using the supplied CA Q 11 angled rod antennae.2.3.2 Remote Connection• The Quinta CU control unit can also be operated with remote antennae. We recommed extremely low attenuation connecting cables whichare 10 m [32.8 ft] or 20 m [65.6 ft] long. Please note that the antennae have to be installed remotely. 2.2 Where to Place the Control Unit• If you do not use remote antennae, place the Quinta CU control unit in the room where the meeting takes place. If you use remoteantennae, place the antennae in the conference room.• Avoid shadowing effect of the antennae, especially by metallic surfaces.• A free line of sight between the Quinta MU microphone units and the antennae of the Quinta CU control unit is essential for the operation ofthe microphone units. Big obstacles in between can possibly affect the radio transmission. In such specific installations the use of remoteantennae can possibly achieve an improvement of the RF situation.• If you want to install several Quint CU control units in a 19" rack, please make sure that there is a minimum distance of 1 U between thecontrol units to avoid interferences, especially if you do not use remote antennae.

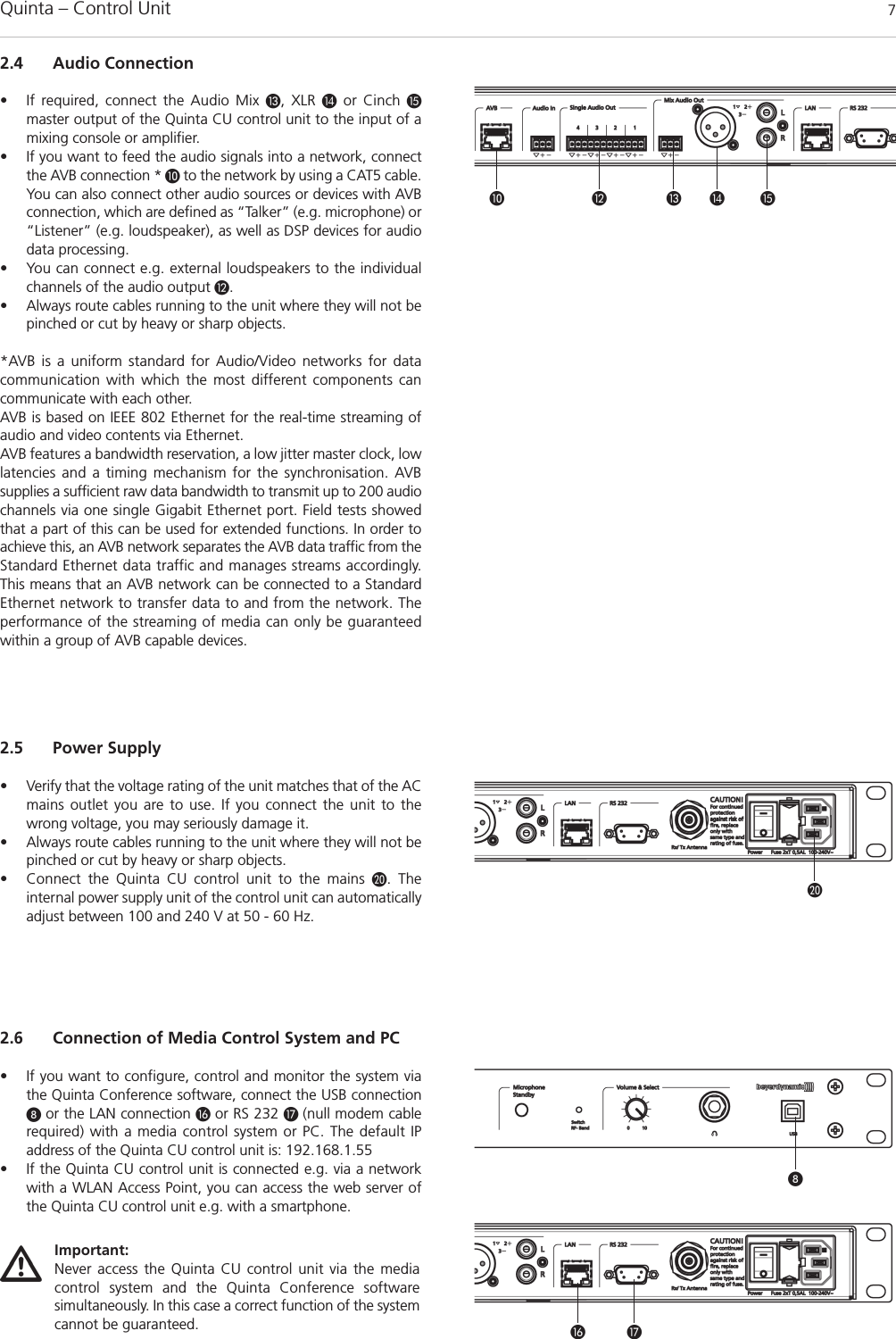

Quinta – Control Unit 72.4 Audio Connection• If required, connect the Audio Mix , XLR or Cinch master output of the Quinta CU control unit to the input of amixing console or amplifier.• If you want to feed the audio signals into a network, connectthe AVB connection * to the network by using a CAT5 cable.You can also connect other audio sources or devices with AVBconnection, which are defined as “Talker” (e.g. microphone) or“Listener” (e.g. loudspeaker), as well as DSP devices for audiodata processing. • You can connect e.g. external loudspeakers to the individualchannels of the audio output .• Always route cables running to the unit where they will not bepinched or cut by heavy or sharp objects. *AVB is a uniform standard for Audio/Video networks for data communication with which the most different components cancommunicate with each other. AVB is based on IEEE 802 Ethernet for the real-time streaming ofaudio and video contents via Ethernet. AVB features a bandwidth reservation, a low jitter master clock, lowlatencies and a timing mechanism for the synchronisation. AVB supplies a sufficient raw data bandwidth to transmit up to 200 audiochannels via one single Gigabit Ethernet port. Field tests showedthat a part of this can be used for extended functions. In order toachieve this, an AVB network separates the AVB data traffic from theStandard Ethernet data traffic and manages streams accordingly.This means that an AVB network can be connected to a StandardEthernet network to transfer data to and from the network. Theperformance of the streaming of media can only be guaranteed within a group of AVB capable devices.     2.5 Power Supply• Verify that the voltage rating of the unit matches that of the ACmains outlet you are to use. If you connect the unit to thewrong voltage, you may seriously damage it. • Always route cables running to the unit where they will not bepinched or cut by heavy or sharp objects.• Connect the Quinta CU control unit to the mains . The internal power supply unit of the control unit can automaticallyadjust between 100 and 240 V at 50 - 60 Hz. 2.6 Connection of Media Control System and PC• If you want to configure, control and monitor the system viathe Quinta Conference software, connect the USB connection or the LAN connection  or RS 232  (null modem cable required) with a media control system or PC. The default IP address of the Quinta CU control unit is: 192.168.1.55• If the Quinta CU control unit is connected e.g. via a networkwith a WLAN Access Point, you can access the web server ofthe Quinta CU control unit e.g. with a smartphone.Important:Never access the Quinta CU control unit via the media control system and the Quinta Conference software simultaneously. In this case a correct function of the systemcannot be guaranteed.  

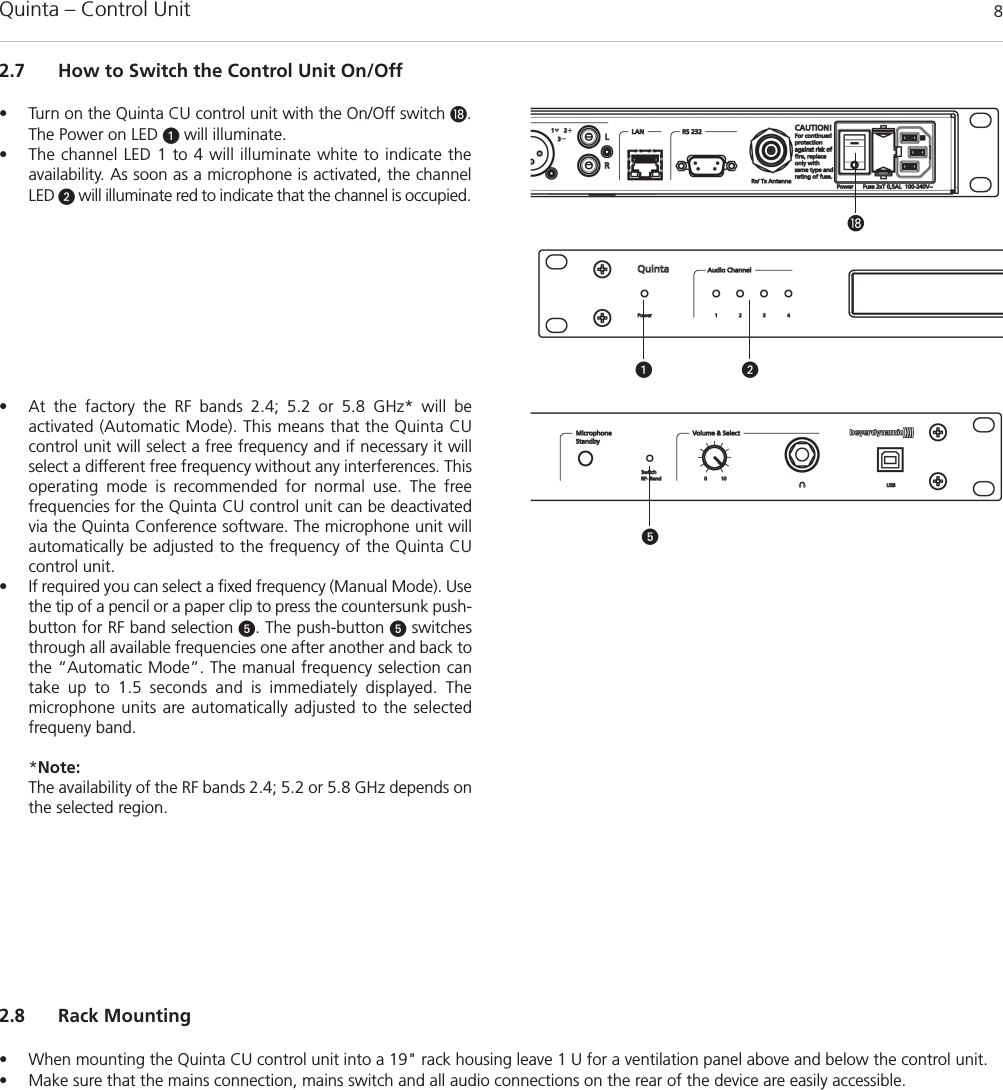

Quinta – Control Unit 82.7 How to Switch the Control Unit On/Off• Turn on the Quinta CU control unit with the On/Off switch .The Power on LED will illuminate.• The channel LED 1 to 4 will illuminate white to indicate the availability. As soon as a microphone is activated, the channelLED will illuminate red to indicate that the channel is occupied. • At the factory the RF bands 2.4; 5.2 or 5.8 GHz* will be activated (Automatic Mode). This means that the Quinta CUcontrol unit will select a free frequency and if necessary it will select a different free frequency without any interferences. Thisoperating mode is recommended for normal use. The free frequencies for the Quinta CU control unit can be deactivatedvia the Quinta Conference software. The microphone unit willautomatically be adjusted to the frequency of the Quinta CUcontrol unit. • If required you can select a fixed frequency (Manual Mode). Usethe tip of a pencil or a paper clip to press the countersunk push-button for RF band selection . The push-button switchesthrough all available frequencies one after another and back tothe “Automatic Mode”. The manual frequency selection cantake up to 1.5 seconds and is immediately displayed. The microphone units are automatically adjusted to the selected frequeny band. *Note:The availability of the RF bands 2.4; 5.2 or 5.8 GHz depends onthe selected region.2.8 Rack Mounting• When mounting the Quinta CU control unit into a 19" rack housing leave 1 U for a ventilation panel above and below the control unit. • Make sure that the mains connection, mains switch and all audio connections on the rear of the device are easily accessible.

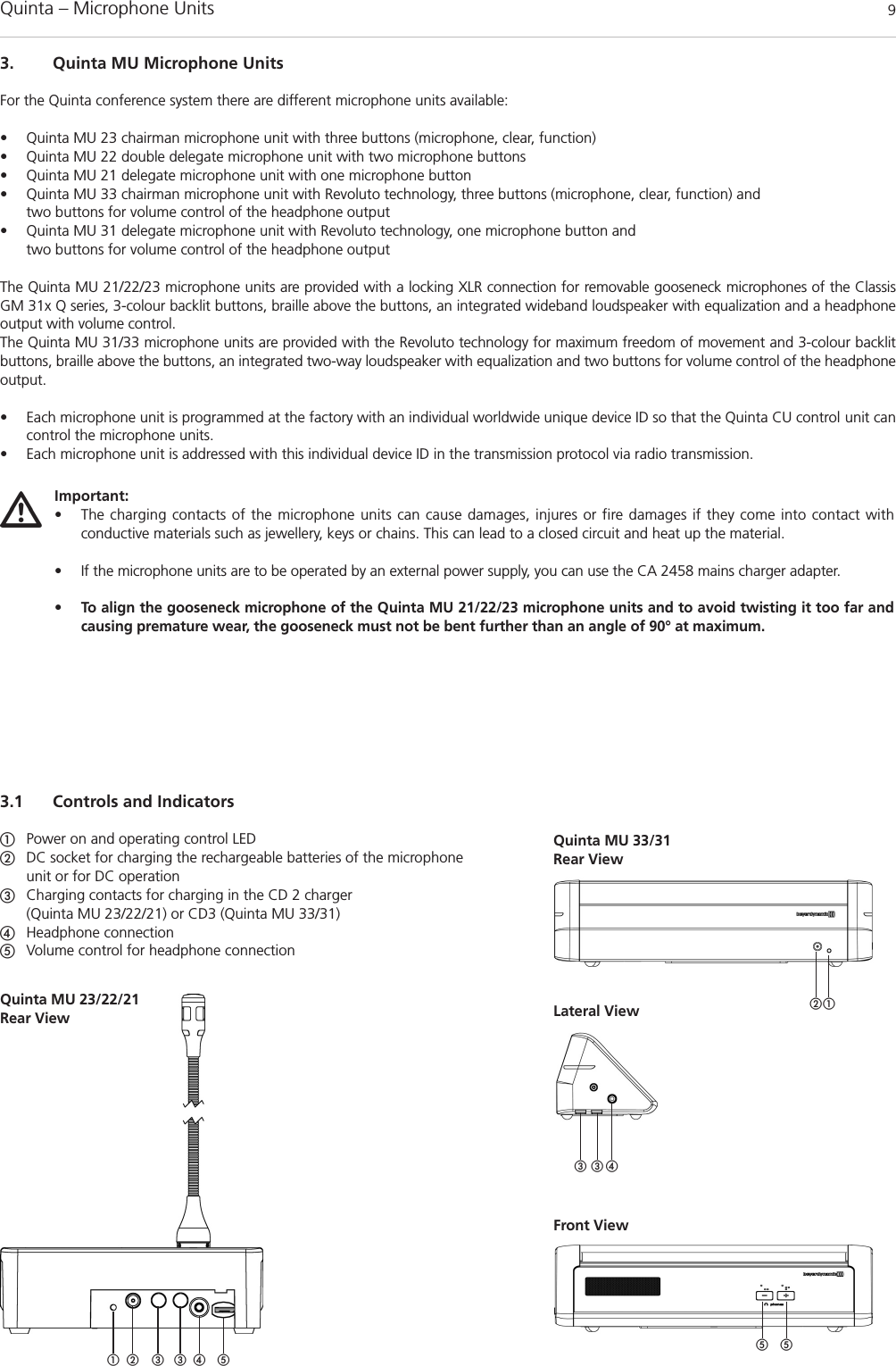

Quinta – Microphone Units 93. Quinta MU Microphone UnitsFor the Quinta conference system there are different microphone units available:• Quinta MU 23 chairman microphone unit with three buttons (microphone, clear, function) • Quinta MU 22 double delegate microphone unit with two microphone buttons• Quinta MU 21 delegate microphone unit with one microphone button • Quinta MU 33 chairman microphone unit with Revoluto technology, three buttons (microphone, clear, function) andtwo buttons for volume control of the headphone output• Quinta MU 31 delegate microphone unit with Revoluto technology, one microphone button and two buttons for volume control of the headphone outputThe Quinta MU 21/22/23 microphone units are provided with a locking XLR connection for removable gooseneck microphones of the Classis GM 31x Q series, 3-colour backlit buttons, braille above the buttons, an integrated wideband loudspeaker with equalization and a headphoneoutput with volume control. The Quinta MU 31/33 microphone units are provided with the Revoluto technology for maximum freedom of movement and 3-colour backlit buttons, braille above the buttons, an integrated two-way loudspeaker with equalization and two buttons for volume control of the headphoneoutput. • Each microphone unit is programmed at the factory with an individual worldwide unique device ID so that the Quinta CU control unit cancontrol the microphone units.• Each microphone unit is addressed with this individual device ID in the transmission protocol via radio transmission.Important:• The charging contacts of the microphone units can cause damages, injures or fire damages if they come into contact with conductive materials such as jewellery, keys or chains. This can lead to a closed circuit and heat up the material.• If the microphone units are to be operated by an external power supply, you can use the CA 2458 mains charger adapter. •To align the gooseneck microphone of the Quinta MU 21/22/23 microphone units and to avoid twisting it too far and causing premature wear, the gooseneck must not be bent further than an angle of 90° at maximum.     3.1 Controls and IndicatorsPower on and operating control LEDDC socket for charging the rechargeable batteries of the microphoneunit or for DC operationCharging contacts for charging in the CD 2 charger (Quinta MU 23/22/21) or CD3 (Quinta MU 33/31)Headphone connectionVolume control for headphone connectionQuinta MU 23/22/21Rear ViewQuinta MU 33/31Rear ViewLateral ViewFront View   
Quinta – Microphone Units 10Opening for unlocking the gooseneck microphoneConnection for gooseneck microphoneLoudspeaker“Clear” button to clear all delegate microphone unitsMicrophone button!Programmable function button"Reset button to restart the integrated microcontroller (referalso the item “Microphone unit cannot be switched off” inchapter 7. “Trouble Shooting”)#LED stripsQuinta MU 23 Chairman Microphone Unit Quinta MU 33 Chairman Microphone UnitQuinta MU 22 Double Delegate Microphone Unit Quinta MU 31 Delegate Microphone UnitQuinta MU 21 Delegate Microphone Unit Bottom of Microphone Unit Quinta MU 33/31!Bottom of Microphone Unit Quinta MU 23/22/21"  !"Lateral View# #

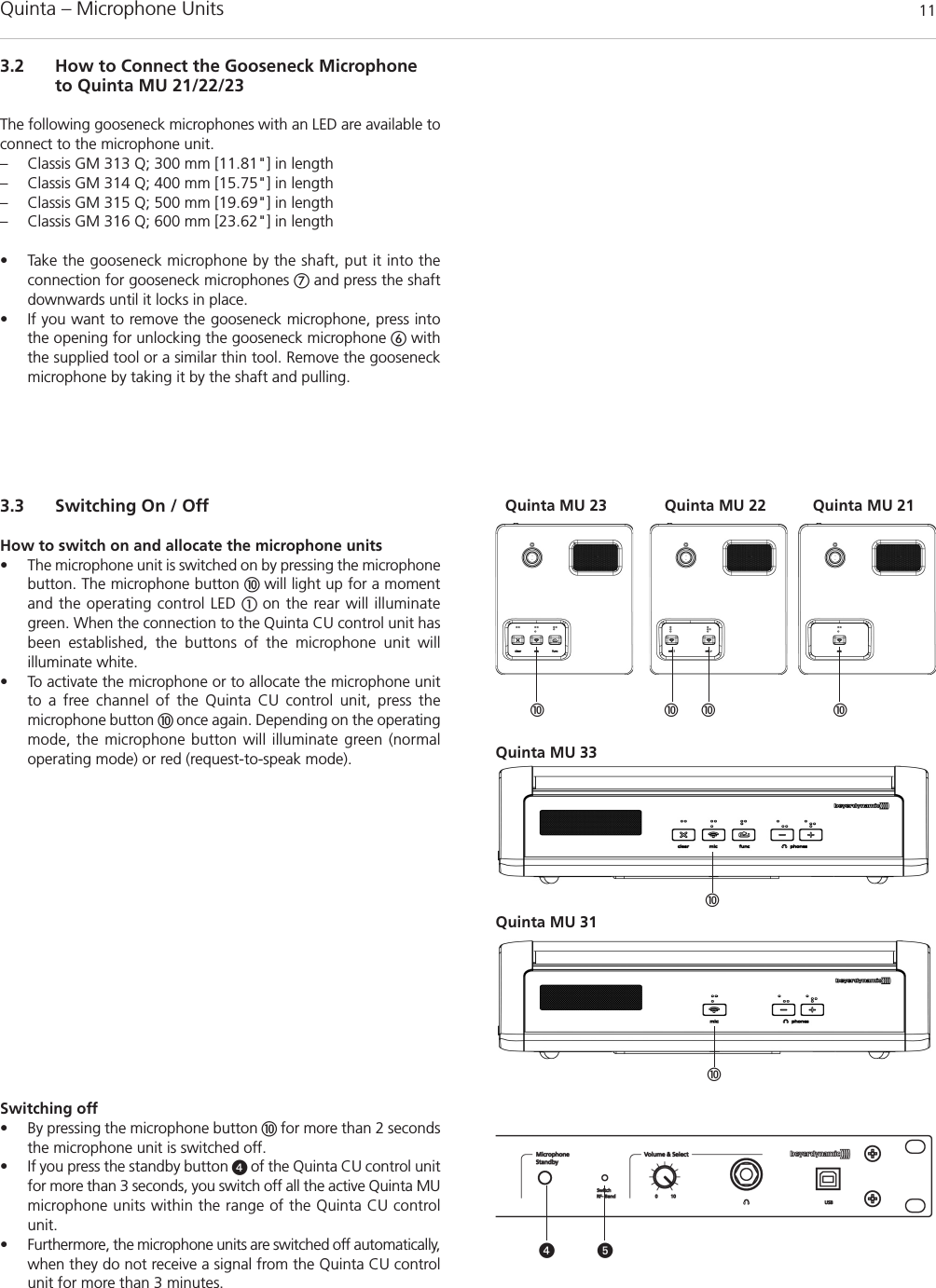

Quinta – Microphone Units 113.2 How to Connect the Gooseneck Microphoneto Quinta MU 21/22/23The following gooseneck microphones with an LED are available toconnect to the microphone unit.– Classis GM 313 Q; 300 mm [11.81"] in length– Classis GM 314 Q; 400 mm [15.75"] in length– Classis GM 315 Q; 500 mm [19.69"] in length– Classis GM 316 Q; 600 mm [23.62"] in length• Take the gooseneck microphone by the shaft, put it into theconnection for gooseneck microphones and press the shaftdownwards until it locks in place. • If you want to remove the gooseneck microphone, press intothe opening for unlocking the gooseneck microphone withthe supplied tool or a similar thin tool. Remove the gooseneckmicrophone by taking it by the shaft and pulling. 3.3 Switching On / OffHow to switch on and allocate the microphone units• The microphone unit is switched on by pressing the microphonebutton. The microphone button  will light up for a momentand the operating control LED  on the rear will illuminategreen. When the connection to the Quinta CU control unit hasbeen established, the buttons of the microphone unit will illuminate white. • To activate the microphone or to allocate the microphone unitto a free channel of the Quinta CU control unit, press the microphone button  once again. Depending on the operatingmode, the microphone button will illuminate green (normaloperating mode) or red (request-to-speak mode).Switching off• By pressing the microphone button  for more than 2 secondsthe microphone unit is switched off.• If you press the standby button  of the Quinta CU control unitfor more than 3 seconds, you switch off all the active Quinta MUmicrophone units within the range of the Quinta CU controlunit. • Furthermore, the microphone units are switched off automatically,when they do not receive a signal from the Quinta CU controlunit for more than 3 minutes.    Quinta MU 23 Quinta MU 21Quinta MU 22Quinta MU 33Quinta MU 31
Quinta – Microphone Units 12Function TestYou can test if the microphone units are operating:• Connect a headphone to the Quinta CU control unit .• Turn the control to set the volume and press the control several times until you have listened to all channels (i.e. 4 channels). Important:• With the Quinta Conference software you can deactivatethe manual switching off of the microphone unit.• If the microphone unit is out of range of the controlunit or does not have the correct PIN code, the micro-phone button  will flash red. After approx. 3 minutesthe microphone unit will switch off automatically. • Should the system fail to operate, i.e. the microphoneunit is switched on, but no sound is heard, check theaudio settings with the Quinta Conference software. IfRF problems occur the microphone button  will flashred. Should the system still fail to operate, please contact your beyerdynamic representative.3.5 Powering with CA 2458 Mains Power Adapter• The Quinta MU microphone units can also be powered via theexternal CA 2458 mains charger adapter, which is connectedto the DC socket  on the rear of the microphone unit. • While the CA 2458 mains charger adapter is connected, the rechargeable battery of the microphone unit is charged. Referalso to chapter 6. “Battery Charging with External Mains Power Adapter”.3.4 Powering / Operating Time• The microphone units have an integrated rechargeable batteryallowing a minimum operating time of 20 hours when fullycharged. • When the battery charge is too low for a satisfactory operation,the operating control LED  on the rear of the microphone unitwill flash. The remaining time of operation will be around 60minutes.• The charging state of the microphone units can be displayedwith the Quinta Conference software on a PC connected to theQuinta CU control unit or via the integrated web server. Furthermore, it can be displayed on an external media controlsystem connected to the Quinta CU control unit. Quinta MU 33/31 – Rear ViewQuinta MU 23/22/21Rear View
Quinta – Microphone Units 133.6.1 Normal Operating Mode• Press the microphone button to switch on the microphone.• The red LED of the gooseneck microphone will illuminate andthe microphone button will illuminate green: The micro-phone is ready to speak into it.• Using the Quinta CU control unit, up to 4 participants (e.g. 3 delegates and 1 chairman) can speak simultaneously dependingon the setting.3.6.2 FiFo Mode• If the microphone units operate in the FiFo mode (first in - firstout), the microphone unit that was switched on first, will beswitched off, when another microphone unit is switched on andthe number of open microphones (NOM) will be exceeded.3.6.3 Push-To-Talk Mode• If the microphone units operate in the Push-To-Talk mode (PTT),the microphone button must be pressed as long as someonespeaks into the microphone. This configuration is recommendedfor short interruptions during the meeting.3.6 Operating ModesThe different operating modes such as “Normal”, “Push-To-Talk” or “Voice Activation” are adjusted with the Quinta Conference software forall microphone units. The standard operating mode is “Normal”. Please refer also to the appropriate “Quinta Conference Software” or “QuintaWeb Server”manual.Important:If the number of open microphones is exceeded, a microphone can only be switched on manually whenanother microphone unit has been switched off.    Quinta MU 23 Quinta MU 21Quinta MU 22Quinta MU 33Quinta MU 313.6.4 Voice Activation Mode• If the microphone units operate in the Voice Activation mode,the microphone units are switched on via voice control. That isthe microphone unit is switched on as soon as someone speaksinto the microphone. In this case it is not necessary to press themicrophone button.Important:The threshold and the hold time can be configured withthe “Quinta Conference” software for all microphoneunits.

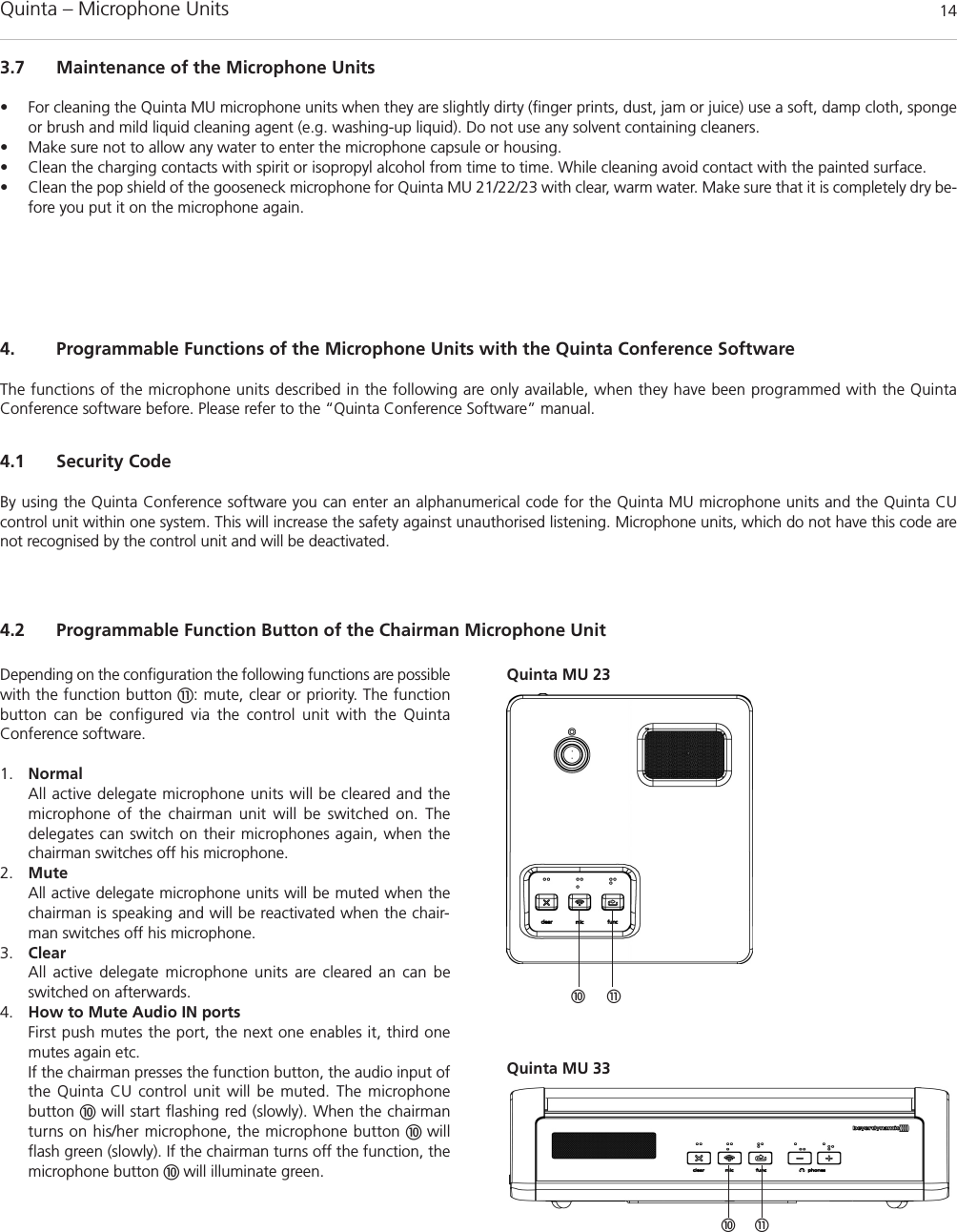

Quinta – Microphone Units 143.7 Maintenance of the Microphone Units• For cleaning the Quinta MU microphone units when they are slightly dirty (finger prints, dust, jam or juice) use a soft, damp cloth, spongeor brush and mild liquid cleaning agent (e.g. washing-up liquid). Do not use any solvent containing cleaners.• Make sure not to allow any water to enter the microphone capsule or housing.• Clean the charging contacts with spirit or isopropyl alcohol from time to time. While cleaning avoid contact with the painted surface.• Clean the pop shield of the gooseneck microphone for Quinta MU 21/22/23 with clear, warm water. Make sure that it is completely dry be-fore you put it on the microphone again.4. Programmable Functions of the Microphone Units with the Quinta Conference SoftwareThe functions of the microphone units described in the following are only available, when they have been programmed with the Quinta Conference software before. Please refer to the “Quinta Conference Software” manual.4.1 Security CodeBy using the Quinta Conference software you can enter an alphanumerical code for the Quinta MU microphone units and the Quinta CU control unit within one system. This will increase the safety against unauthorised listening. Microphone units, which do not have this code arenot recognised by the control unit and will be deactivated. Depending on the configuration the following functions are possiblewith the function button !: mute, clear or priority. The functionbutton can be configured via the control unit with the Quinta Conference software. 1. NormalAll active delegate microphone units will be cleared and the microphone of the chairman unit will be switched on. The delegates can switch on their microphones again, when thechairman switches off his microphone.2. MuteAll active delegate microphone units will be muted when thechairman is speaking and will be reactivated when the chair-man switches off his microphone. 3. ClearAll active delegate microphone units are cleared an can be switched on afterwards. 4. How to Mute Audio IN portsFirst push mutes the port, the next one enables it, third onemutes again etc. If the chairman presses the function button, the audio input ofthe Quinta CU control unit will be muted. The microphone button will start flashing red (slowly). When the chairmanturns on his/her microphone, the microphone button  willflash green (slowly). If the chairman turns off the function, the microphone button  will illuminate green. 4.2 Programmable Function Button of the Chairman Microphone Unit!Quinta MU 23Quinta MU 33 !

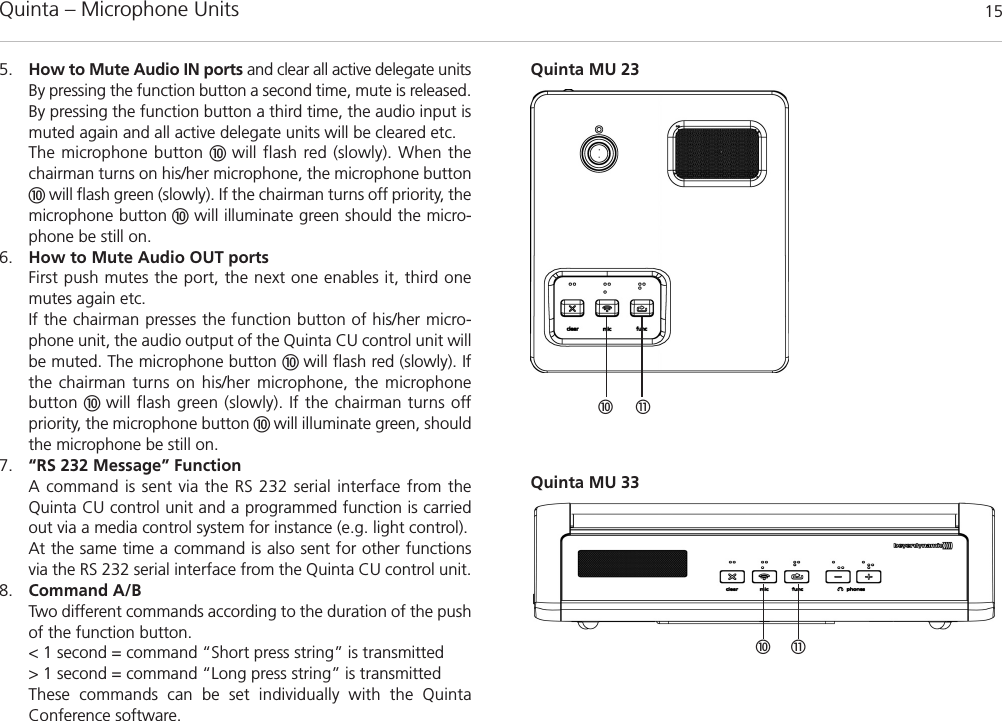

Quinta – Microphone Units 155. How to Mute Audio IN ports and clear all active delegate unitsBy pressing the function button a second time, mute is released.By pressing the function button a third time, the audio input ismuted again and all active delegate units will be cleared etc. The microphone button  will flash red (slowly). When thechairman turns on his/her microphone, the microphone buttonwill flash green (slowly). If the chairman turns off priority, themicrophone button will illuminate green should the micro-phone be still on. 6. How to Mute Audio OUT portsFirst push mutes the port, the next one enables it, third onemutes again etc. If the chairman presses the function button of his/her micro-phone unit, the audio output of the Quinta CU control unit willbe muted. The microphone button  will flash red (slowly). Ifthe chairman turns on his/her microphone, the microphone button  will flash green (slowly). If the chairman turns off priority, the microphone button  will illuminate green, shouldthe microphone be still on. 7. “RS 232 Message” FunctionA command is sent via the RS 232 serial interface from theQuinta CU control unit and a programmed function is carriedout via a media control system for instance (e.g. light control). At the same time a command is also sent for other functionsvia the RS 232 serial interface from the Quinta CU control unit.8. Command A/BTwo different commands according to the duration of the pushof the function button. < 1 second = command “Short press string” is transmitted > 1 second = command “Long press string” is transmittedThese commands can be set individually with the Quinta Conference software.!Quinta MU 23Quinta MU 33 !

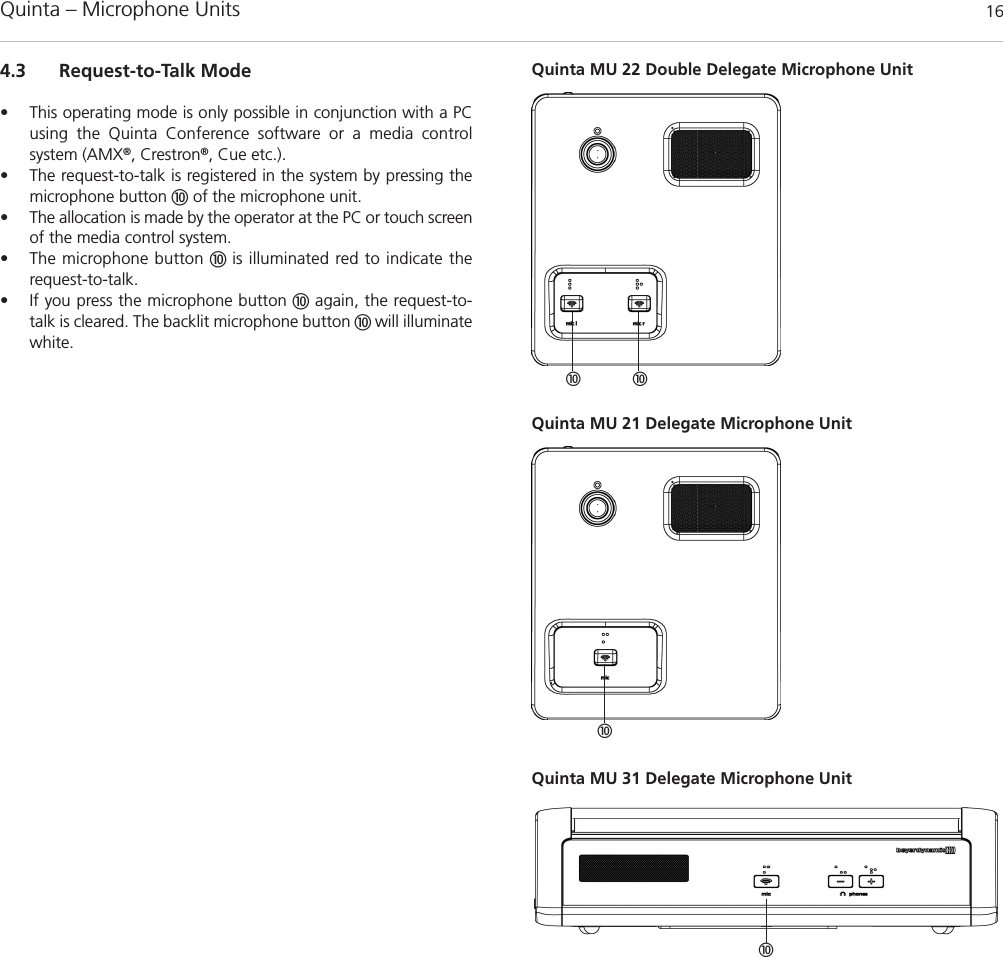

Quinta – Microphone Units 164.3 Request-to-Talk Mode• This operating mode is only possible in conjunction with a PCusing the Quinta Conference software or a media control system (AMX®, Crestron®, Cue etc.).• The request-to-talk is registered in the system by pressing themicrophone button of the microphone unit.• The allocation is made by the operator at the PC or touch screenof the media control system.• The microphone button  is illuminated red to indicate the request-to-talk. • If you press the microphone button again, the request-to-talk is cleared. The backlit microphone button  will illuminatewhite.Quinta MU 22 Double Delegate Microphone UnitQuinta MU 21 Delegate Microphone UnitQuinta MU 31 Delegate Microphone Unit

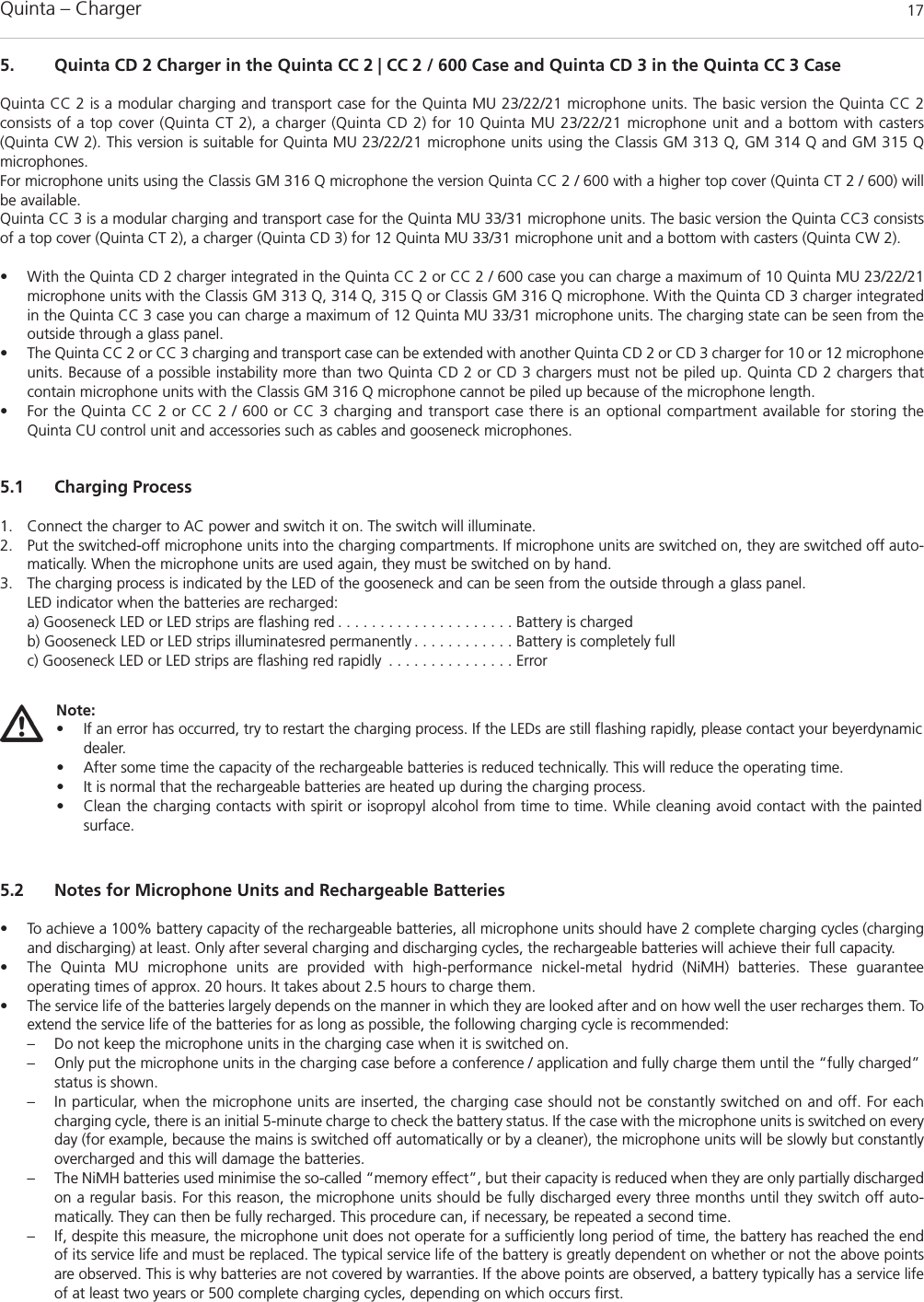

Quinta – Charger 175. Quinta CD 2 Charger in the Quinta CC 2 | CC 2 / 600 Case and Quinta CD 3 in the Quinta CC 3 CaseQuinta CC 2 is a modular charging and transport case for the Quinta MU 23/22/21 microphone units. The basic version the Quinta CC 2 consists of a top cover (Quinta CT 2), a charger (Quinta CD 2) for 10 Quinta MU 23/22/21 microphone unit and a bottom with casters (Quinta CW 2). This version is suitable for Quinta MU 23/22/21 microphone units using the Classis GM 313 Q, GM 314 Q and GM 315 Q microphones.For microphone units using the Classis GM 316 Q microphone the version Quinta CC 2 / 600 with a higher top cover (Quinta CT 2 / 600) willbe available.Quinta CC 3 is a modular charging and transport case for the Quinta MU 33/31 microphone units. The basic version the Quinta CC3 consistsof a top cover (Quinta CT 2), a charger (Quinta CD 3) for 12 Quinta MU 33/31 microphone unit and a bottom with casters (Quinta CW 2). • With the Quinta CD 2 charger integrated in the Quinta CC 2 or CC 2 / 600 case you can charge a maximum of 10 Quinta MU 23/22/21microphone units with the Classis GM 313 Q, 314 Q, 315 Q or Classis GM 316 Q microphone. With the Quinta CD 3 charger integratedin the Quinta CC 3 case you can charge a maximum of 12 Quinta MU 33/31 microphone units. The charging state can be seen from theoutside through a glass panel.• The Quinta CC 2 or CC 3 charging and transport case can be extended with another Quinta CD 2 or CD 3 charger for 10 or 12 microphoneunits. Because of a possible instability more than two Quinta CD 2 or CD 3 chargers must not be piled up. Quinta CD 2 chargers that contain microphone units with the Classis GM 316 Q microphone cannot be piled up because of the microphone length.• For the Quinta CC 2 or CC 2 / 600 or CC 3 charging and transport case there is an optional compartment available for storing the Quinta CU control unit and accessories such as cables and gooseneck microphones.5.1 Charging Process1. Connect the charger to AC power and switch it on. The switch will illuminate.2. Put the switched-off microphone units into the charging compartments. If microphone units are switched on, they are switched off auto-matically. When the microphone units are used again, they must be switched on by hand.3. The charging process is indicated by the LED of the gooseneck and can be seen from the outside through a glass panel.LED indicator when the batteries are recharged:a) Gooseneck LED or LED strips are flashing red . . . . . . . . . . . . . . . . . . . . . Battery is chargedb) Gooseneck LED or LED strips illuminatesred permanently . . . . . . . . . . . . Battery is completely fullc) Gooseneck LED or LED strips are flashing red rapidly . . . . . . . . . . . . . . . Error5.2 Notes for Microphone Units and Rechargeable Batteries• To achieve a 100% battery capacity of the rechargeable batteries, all microphone units should have 2 complete charging cycles (chargingand discharging) at least. Only after several charging and discharging cycles, the rechargeable batteries will achieve their full capacity.• The Quinta MU microphone units are provided with high-performance nickel-metal hydrid (NiMH) batteries. These guarantee operating times of approx. 20 hours. It takes about 2.5 hours to charge them. • The service life of the batteries largely depends on the manner in which they are looked after and on how well the user recharges them. Toextend the service life of the batteries for as long as possible, the following charging cycle is recommended: – Do not keep the microphone units in the charging case when it is switched on. – Only put the microphone units in the charging case before a conference / application and fully charge them until the “fully charged”status is shown. – In particular, when the microphone units are inserted, the charging case should not be constantly switched on and off. For each charging cycle, there is an initial 5-minute charge to check the battery status. If the case with the microphone units is switched on every day (for example, because the mains is switched off automatically or by a cleaner), the microphone units will be slowly but constantlyovercharged and this will damage the batteries.– The NiMH batteries used minimise the so-called “memory effect”, but their capacity is reduced when they are only partially dischargedon a regular basis. For this reason, the microphone units should be fully discharged every three months until they switch off auto-matically. They can then be fully recharged. This procedure can, if necessary, be repeated a second time.– If, despite this measure, the microphone unit does not operate for a sufficiently long period of time, the battery has reached the endof its service life and must be replaced. The typical service life of the battery is greatly dependent on whether or not the above points are observed. This is why batteries are not covered by warranties. If the above points are observed, a battery typically has a service lifeof at least two years or 500 complete charging cycles, depending on which occurs first.Note:• If an error has occurred, try to restart the charging process. If the LEDs are still flashing rapidly, please contact your beyerdynamicdealer.• After some time the capacity of the rechargeable batteries is reduced technically. This will reduce the operating time.• It is normal that the rechargeable batteries are heated up during the charging process.• Clean the charging contacts with spirit or isopropyl alcohol from time to time. While cleaning avoid contact with the painted surface.

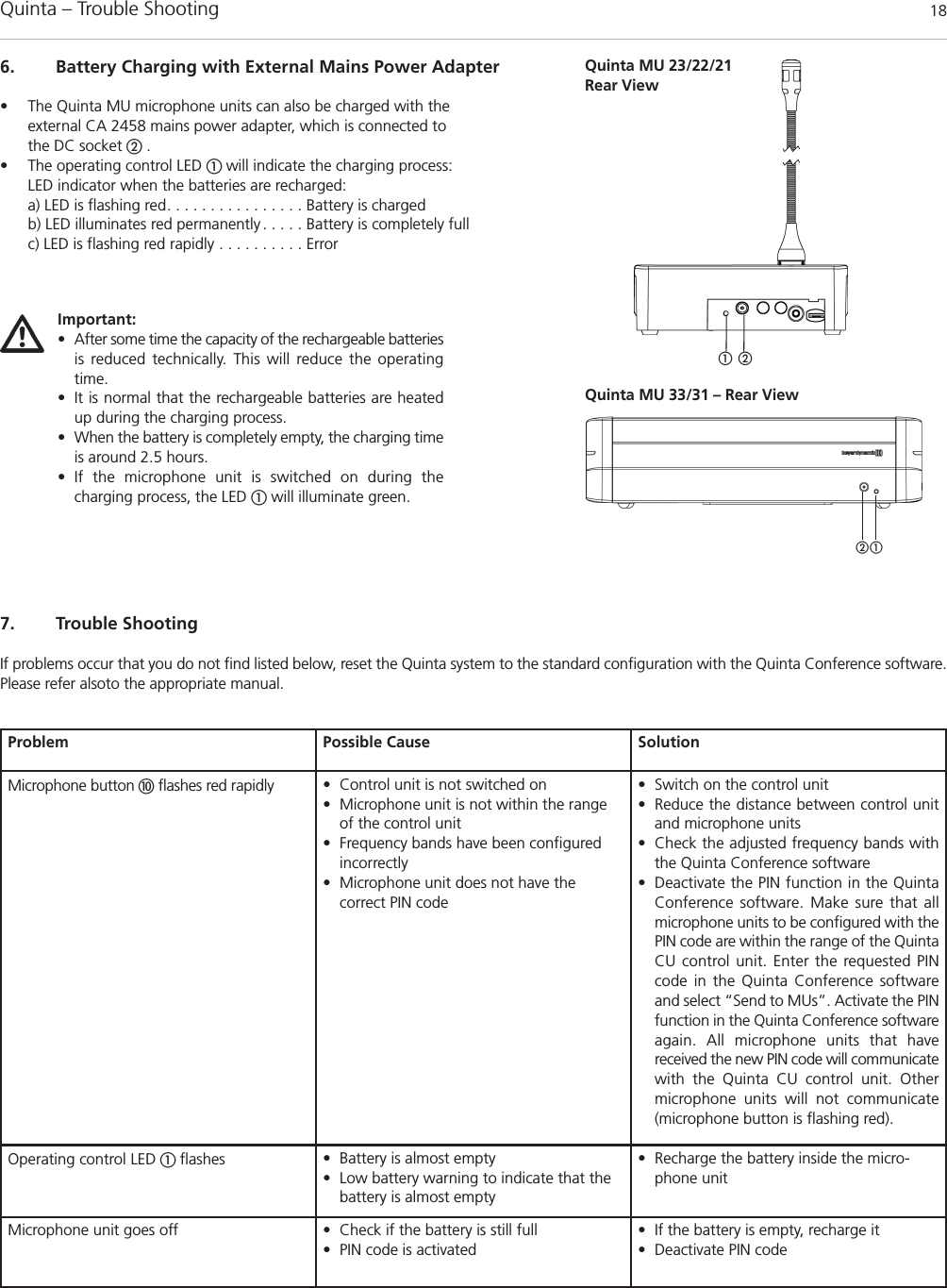

Quinta – Trouble Shooting 186. Battery Charging with External Mains Power Adapter• The Quinta MU microphone units can also be charged with the external CA 2458 mains power adapter, which is connected to the DC socket .• The operating control LED  will indicate the charging process: LED indicator when the batteries are recharged:a) LED is flashing red. . . . . . . . . . . . . . . . Battery is chargedb) LED illuminates red permanently . . . . . Battery is completely fullc) LED is flashing red rapidly . . . . . . . . . . ErrorImportant:• After some time the capacity of the rechargeable batteriesis reduced technically. This will reduce the operatingtime.• It is normal that the rechargeable batteries are heatedup during the charging process.• When the battery is completely empty, the charging timeis around 2.5 hours. • If the microphone unit is switched on during the charging process, the LED will illuminate green.7. Trouble ShootingIf problems occur that you do not find listed below, reset the Quinta system to the standard configuration with the Quinta Conference software.Please refer alsoto the appropriate manual.Problem Possible Cause SolutionMicrophone button  flashes red rapidly • Control unit is not switched on• Microphone unit is not within the rangeof the control unit• Frequency bands have been configured incorrectly• Microphone unit does not have the correct PIN code• Switch on the control unit• Reduce the distance between control unitand microphone units • Check the adjusted frequency bands withthe Quinta Conference software• Deactivate the PIN function in the QuintaConference software. Make sure that allmicrophone units to be configured with thePIN code are within the range of the QuintaCU control unit. Enter the requested PINcode in the Quinta Conference softwareand select “Send to MUs”. Activate the PINfunction in the Quinta Conference softwareagain. All microphone units that have received the new PIN code will communicatewith the Quinta CU control unit. Other microphone units will not communicate(microphone button is flashing red). Operating control LED  flashes • Battery is almost empty• Low battery warning to indicate that thebattery is almost empty• Recharge the battery inside the micro-phone unitMicrophone unit goes off • Check if the battery is still full• PIN code is activated• If the battery is empty, recharge it• Deactivate PIN code Quinta MU 33/31 – Rear ViewQuinta MU 23/22/21Rear View

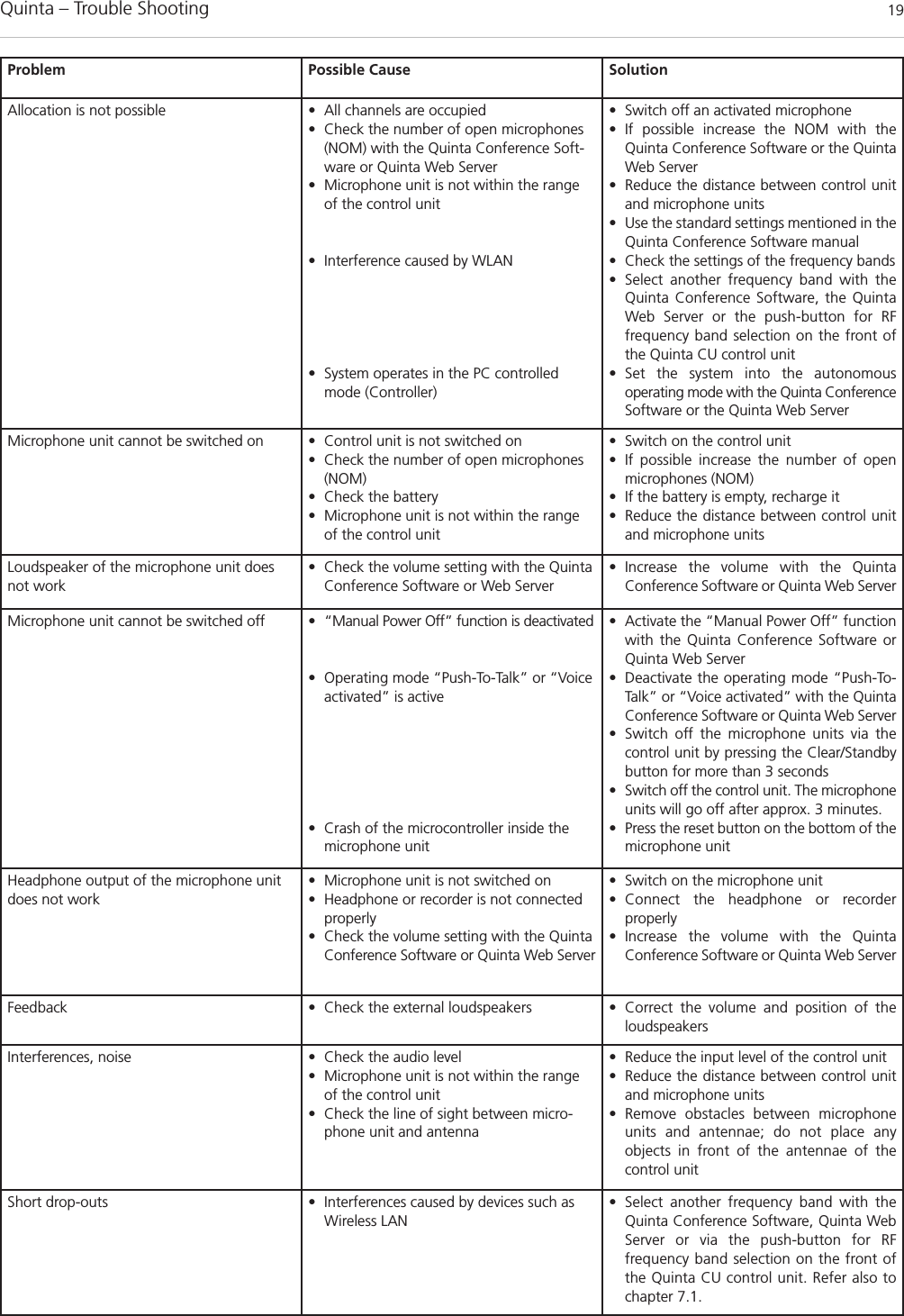

Quinta – Trouble Shooting 19Problem Possible Cause SolutionAllocation is not possible • All channels are occupied• Check the number of open microphones(NOM) with the Quinta Conference Soft-ware or Quinta Web Server• Microphone unit is not within the rangeof the control unit• Interference caused by WLAN• System operates in the PC controlledmode (Controller)• Switch off an activated microphone• If possible increase the NOM with theQuinta Conference Software or the QuintaWeb Server • Reduce the distance between control unitand microphone units• Use the standard settings mentioned in theQuinta Conference Software manual• Check the settings of the frequency bands • Select another frequency band with theQuinta Conference Software, the QuintaWeb Server or the push-button for RF frequency band selection on the front ofthe Quinta CU control unit• Set the system into the autonomous operating mode with the Quinta ConferenceSoftware or the Quinta Web ServerMicrophone unit cannot be switched on • Control unit is not switched on• Check the number of open microphones(NOM)• Check the battery• Microphone unit is not within the rangeof the control unit• Switch on the control unit• If possible increase the number of open microphones (NOM)• If the battery is empty, recharge it• Reduce the distance between control unitand microphone unitsLoudspeaker of the microphone unit doesnot work• Check the volume setting with the QuintaConference Software or Web Server• Increase the volume with the Quinta Conference Software or Quinta Web ServerMicrophone unit cannot be switched off • “Manual Power Off” function is deactivated• Operating mode “Push-To-Talk” or “Voiceactivated” is active• Crash of the microcontroller inside the microphone unit• Activate the “Manual Power Off” functionwith the Quinta Conference Software orQuinta Web Server • Deactivate the operating mode “Push-To-Talk” or “Voice activated” with the QuintaConference Software or Quinta Web Server • Switch off the microphone units via thecontrol unit by pressing the Clear/Standbybutton for more than 3 seconds • Switch off the control unit. The microphoneunits will go off after approx. 3 minutes. • Press the reset button on the bottom of themicrophone unitHeadphone output of the microphone unitdoes not work• Microphone unit is not switched on• Headphone or recorder is not connectedproperly • Check the volume setting with the QuintaConference Software or Quinta Web Server• Switch on the microphone unit• Connect the headphone or recorder properly• Increase the volume with the Quinta Conference Software or Quinta Web ServerFeedback • Check the external loudspeakers • Correct the volume and position of theloudspeakersInterferences, noise • Check the audio level• Microphone unit is not within the rangeof the control unit• Check the line of sight between micro-phone unit and antenna• Reduce the input level of the control unit• Reduce the distance between control unitand microphone units• Remove obstacles between microphoneunits and antennae; do not place any objects in front of the antennae of the control unitShort drop-outs • Interferences caused by devices such asWireless LAN• Select another frequency band with theQuinta Conference Software, Quinta WebServer or via the push-button for RF frequency band selection on the front ofthe Quinta CU control unit. Refer also tochapter 7.1.

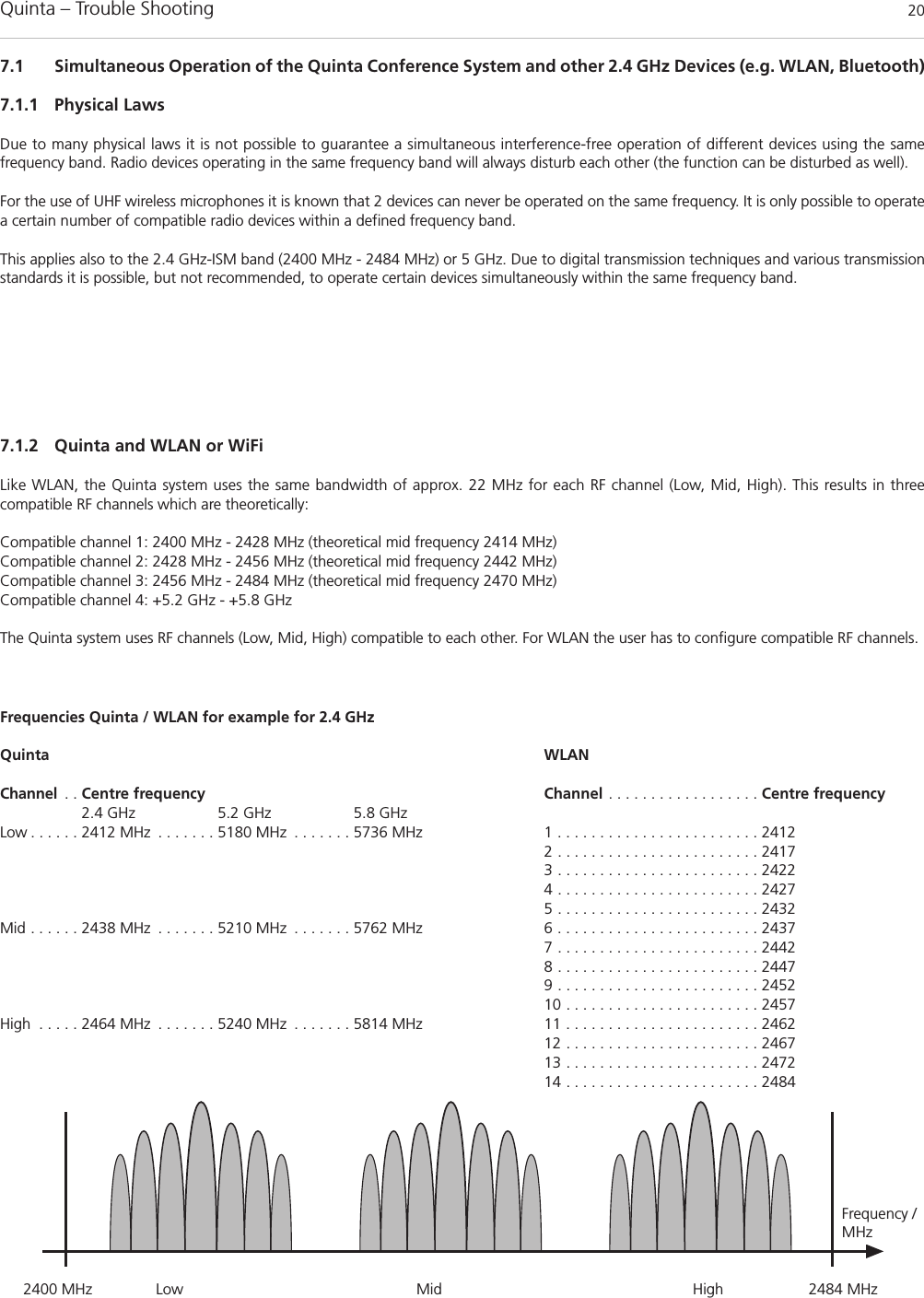

Quinta – Trouble Shooting 207.1.2 Quinta and WLAN or WiFiLike WLAN, the Quinta system uses the same bandwidth of approx. 22 MHz for each RF channel (Low, Mid, High). This results in three compatible RF channels which are theoretically:Compatible channel 1: 2400 MHz - 2428 MHz (theoretical mid frequency 2414 MHz)Compatible channel 2: 2428 MHz - 2456 MHz (theoretical mid frequency 2442 MHz)Compatible channel 3: 2456 MHz - 2484 MHz (theoretical mid frequency 2470 MHz)Compatible channel 4: +5.2 GHz - +5.8 GHz The Quinta system uses RF channels (Low, Mid, High) compatible to each other. For WLAN the user has to configure compatible RF channels.Frequencies Quinta / WLAN for example for 2.4 GHzQuinta WLANChannel . . Centre frequency Channel . . . . . . . . . . . . . . . . . . Centre frequency2.4 GHz 5.2 GHz 5.8 GHzLow . . . . . . 2412 MHz . . . . . . . 5180 MHz . . . . . . . 5736 MHz 1 . . . . . . . . . . . . . . . . . . . . . . . . 24122 . . . . . . . . . . . . . . . . . . . . . . . . 24173 . . . . . . . . . . . . . . . . . . . . . . . . 24224 . . . . . . . . . . . . . . . . . . . . . . . . 24275 . . . . . . . . . . . . . . . . . . . . . . . . 2432Mid . . . . . . 2438 MHz . . . . . . . 5210 MHz . . . . . . . 5762 MHz 6 . . . . . . . . . . . . . . . . . . . . . . . . 24377 . . . . . . . . . . . . . . . . . . . . . . . . 24428 . . . . . . . . . . . . . . . . . . . . . . . . 24479 . . . . . . . . . . . . . . . . . . . . . . . . 245210 . . . . . . . . . . . . . . . . . . . . . . . 2457High . . . . . 2464 MHz . . . . . . . 5240 MHz . . . . . . . 5814 MHz 11 . . . . . . . . . . . . . . . . . . . . . . . 246212 . . . . . . . . . . . . . . . . . . . . . . . 246713 . . . . . . . . . . . . . . . . . . . . . . . 247214 . . . . . . . . . . . . . . . . . . . . . . . 24842400 MHz Low Mid High 2484 MHzFrequency /MHz7.1 Simultaneous Operation of the Quinta Conference System and other 2.4 GHz Devices (e.g. WLAN, Bluetooth)7.1.1 Physical LawsDue to many physical laws it is not possible to guarantee a simultaneous interference-free operation of different devices using the same frequency band. Radio devices operating in the same frequency band will always disturb each other (the function can be disturbed as well).For the use of UHF wireless microphones it is known that 2 devices can never be operated on the same frequency. It is only possible to operatea certain number of compatible radio devices within a defined frequency band.This applies also to the 2.4 GHz-ISM band (2400 MHz - 2484 MHz) or 5 GHz. Due to digital transmission techniques and various transmission standards it is possible, but not recommended, to operate certain devices simultaneously within the same frequency band.
Quinta – Trouble Shooting 21You can easily recognise that the individual WLAN channels overlap considerably due to their bandwidth. All neighbouring channels (e.g. channel 1 & 2 or channel 7 & 8) cannot be used simultaneously, because they would disturb each other. Furthermore, channel 12 and 13are not approved for the use in the USA. In general, these channels are not used either. Within the remaining frequency bands only the WLANchannels 1, 6 and 11 can be used simultaneously.For this reason the WLAN channels 1, 6 and 11 were selected for the RF channels Low, Mid and High used for the Quinta conference system.Due to this frequency compatibility the Quinta system is operated WLAN-friendly.More tips for installation• Keep a minimum distance of approx. 5 m between WLAN devices (e.g. Router, Repeater) and the transmitting and receiving antennae ofthe Quinta CU control unit. • The distance between laptops with activated WLAN interface does not influence the audio transmission of the microphone units as long asthere is no active data traffic. • We recommend using different RF channels for WLAN or WiFi and Quinta channels. The distance between the WLAN and Quinta channelsshould be as large as possible.• The channels of the Quinta conference system can be selected with the supplied Quinta Conference Software.7.1.3 Quinta and Bluetooth• Bluetooth devices make use of the whole 2.4 GHz range with changing carrier frequencies (frequency hopping). • Interferences caused by Bluetooth devices (including microwave ovens) in normal operation can be excluded due to different measures inside the Quinta conference system and an advanced transmission protocol.• It cannot be excluded, however, that an exisisting Bluetooth data traffic will be intefered by Quinta.7.1.4 Example for Quinta, Media Control System and WLANThe 2.4 GHz technology is used for many applications in discussions and meetings. In addition to a wireless discussion system other functions (light or volume control etc.) are operated via a wireless 2.4 GHz touch screen of a media control system. Furthermore, the participants of a meeting often have direct internet access via a WLAN access point.The Quinta conference system and WLAN make use of compatible transmission standards. This should be considered when also using a mediacontrol system with a touch screen. State-of the-art devices correspond to the WLAN standard.1. Configure the Quinta conference system to the RF channel “Low”. The Quinta system then makes use of the frequency range of 2401 to2423 MHz. This frequency range must be reserved for Quinta exclusively.2. Configure the touch screen of the media control system to the frequency range of 2426 to 2448 MHz. This corresponds to the WLAN channel 6. This frequency range must be reserved for the use of the touch screen exclusively.3. Configure the WLAN access point to WLAN channel 11 making use of the frequency range 2451 to 2473 MHz. This frequency range mustbe reserved for the use by WLAN exclusively.4. As an alternative you can operate Quinta in the 5.2 or 5.8 GHz band.

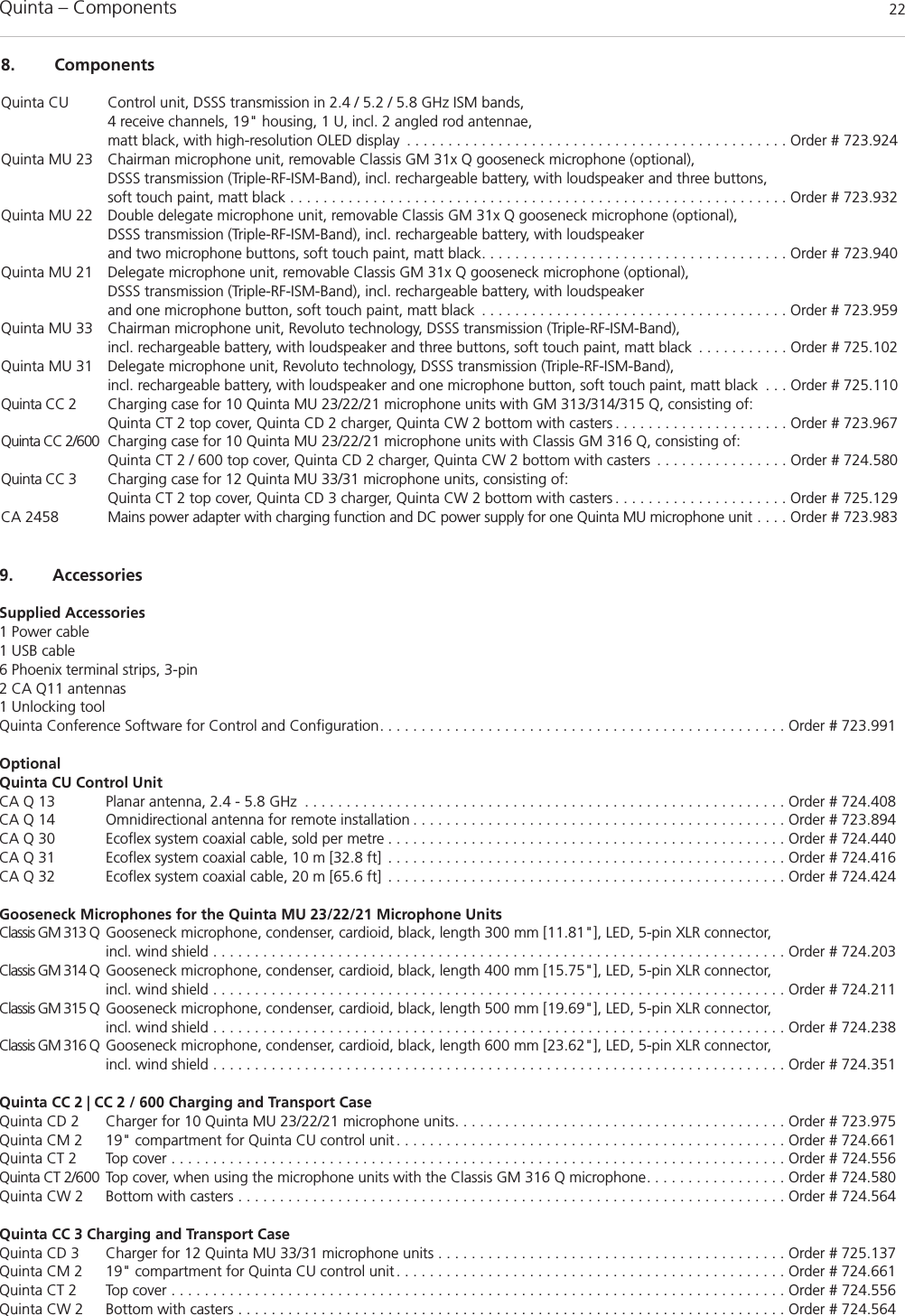

Quinta – Components 229. AccessoriesSupplied Accessories1 Power cable1 USB cable6 Phoenix terminal strips, 3-pin2 CA Q11 antennas1 Unlocking toolQuinta Conference Software for Control and Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 723.991OptionalQuinta CU Control UnitCA Q 13 Planar antenna, 2.4 - 5.8 GHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.408CA Q 14 Omnidirectional antenna for remote installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 723.894CA Q 30 Ecoflex system coaxial cable, sold per metre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.440CA Q 31 Ecoflex system coaxial cable, 10 m [32.8 ft] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.416CA Q 32 Ecoflex system coaxial cable, 20 m [65.6 ft] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.424Gooseneck Microphones for the Quinta MU 23/22/21 Microphone UnitsClassis GM 313 Q Gooseneck microphone, condenser, cardioid, black, length 300 mm [11.81"], LED, 5-pin XLR connector,incl. wind shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.203Classis GM 314 Q Gooseneck microphone, condenser, cardioid, black, length 400 mm [15.75"], LED, 5-pin XLR connector,incl. wind shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.211Classis GM 315 Q Gooseneck microphone, condenser, cardioid, black, length 500 mm [19.69"], LED, 5-pin XLR connector,incl. wind shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.238Classis GM 316 Q Gooseneck microphone, condenser, cardioid, black, length 600 mm [23.62"], LED, 5-pin XLR connector,incl. wind shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.351Quinta CC 2 | CC 2 / 600 Charging and Transport CaseQuinta CD 2 Charger for 10 Quinta MU 23/22/21 microphone units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 723.975Quinta CM 2 19" compartment for Quinta CU control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.661Quinta CT 2 Top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.556Quinta CT 2/600 Top cover, when using the microphone units with the Classis GM 316 Q microphone. . . . . . . . . . . . . . . . . Order # 724.580Quinta CW 2 Bottom with casters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.564Quinta CC 3 Charging and Transport CaseQuinta CD 3 Charger for 12 Quinta MU 33/31 microphone units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 725.137Quinta CM 2 19" compartment for Quinta CU control unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.661Quinta CT 2 Top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.556Quinta CW 2 Bottom with casters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 724.5648. ComponentsQuinta CU Control unit, DSSS transmission in 2.4 / 5.2 / 5.8 GHz ISM bands,4 receive channels, 19" housing, 1 U, incl. 2 angled rod antennae,matt black, with high-resolution OLED display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 723.924Quinta MU 23 Chairman microphone unit, removable Classis GM 31x Q gooseneck microphone (optional),DSSS transmission (Triple-RF-ISM-Band), incl. rechargeable battery, with loudspeaker and three buttons, soft touch paint, matt black . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 723.932Quinta MU 22 Double delegate microphone unit, removable Classis GM 31x Q gooseneck microphone (optional),DSSS transmission (Triple-RF-ISM-Band), incl. rechargeable battery, with loudspeaker and two microphone buttons, soft touch paint, matt black. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 723.940Quinta MU 21 Delegate microphone unit, removable Classis GM 31x Q gooseneck microphone (optional),DSSS transmission (Triple-RF-ISM-Band), incl. rechargeable battery, with loudspeaker and one microphone button, soft touch paint, matt black . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Order # 723.959Quinta MU 33 Chairman microphone unit, Revoluto technology, DSSS transmission (Triple-RF-ISM-Band),incl. rechargeable battery, with loudspeaker and three buttons, soft touch paint, matt black . . . . . . . . . . . Order # 725.102Quinta MU 31 Delegate microphone unit, Revoluto technology, DSSS transmission (Triple-RF-ISM-Band), incl. rechargeable battery, with loudspeaker and one microphone button, soft touch paint, matt black . . . Order # 725.110Quinta CC 2 Charging case for 10 Quinta MU 23/22/21 microphone units with GM 313/314/315 Q, consisting of: Quinta CT 2 top cover, Quinta CD 2 charger, Quinta CW 2 bottom with casters . . . . . . . . . . . . . . . . . . . . . Order # 723.967Quinta CC 2/600 Charging case for 10 Quinta MU 23/22/21 microphone units with Classis GM 316 Q, consisting of: Quinta CT 2 / 600 top cover, Quinta CD 2 charger, Quinta CW 2 bottom with casters . . . . . . . . . . . . . . . . Order # 724.580Quinta CC 3 Charging case for 12 Quinta MU 33/31 microphone units, consisting of: Quinta CT 2 top cover, Quinta CD 3 charger, Quinta CW 2 bottom with casters . . . . . . . . . . . . . . . . . . . . . Order # 725.129CA 2458 Mains power adapter with charging function and DC power supply for one Quinta MU microphone unit . . . . Order # 723.983

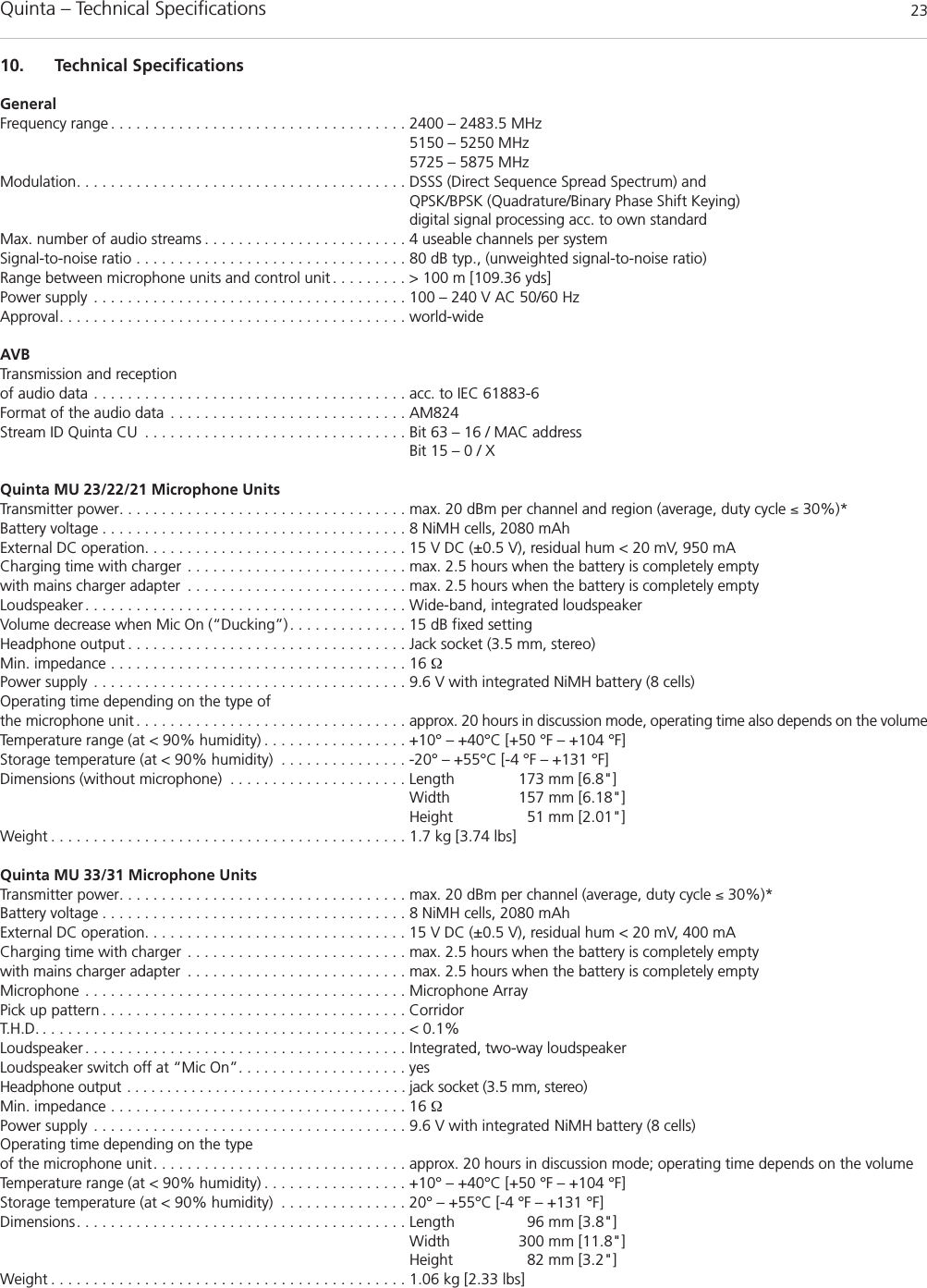

Quinta – Technical Specifications 2310. Technical SpecificationsGeneralFrequency range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2400 – 2483.5 MHz 5150 – 5250 MHz5725 – 5875 MHzModulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DSSS (Direct Sequence Spread Spectrum) andQPSK/BPSK (Quadrature/Binary Phase Shift Keying)digital signal processing acc. to own standardMax. number of audio streams . . . . . . . . . . . . . . . . . . . . . . . . 4 useable channels per system Signal-to-noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 dB typ., (unweighted signal-to-noise ratio)Range between microphone units and control unit . . . . . . . . . > 100 m [109.36 yds]Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 – 240 V AC 50/60 HzApproval. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . world-wideAVBTransmission and reception of audio data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . acc. to IEC 61883-6Format of the audio data . . . . . . . . . . . . . . . . . . . . . . . . . . . . AM824Stream ID Quinta CU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bit 63 – 16 / MAC address Bit 15 – 0 / X Quinta MU 23/22/21 Microphone UnitsTransmitter power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 20 dBm per channel and region (average, duty cycle ≤ 30%)*Battery voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 NiMH cells, 2080 mAhExternal DC operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V DC (±0.5 V), residual hum < 20 mV, 950 mA Charging time with charger . . . . . . . . . . . . . . . . . . . . . . . . . . max. 2.5 hours when the battery is completely emptywith mains charger adapter . . . . . . . . . . . . . . . . . . . . . . . . . . max. 2.5 hours when the battery is completely emptyLoudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wide-band, integrated loudspeakerVolume decrease when Mic On (“Ducking”) . . . . . . . . . . . . . . 15 dB fixed settingHeadphone output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Jack socket (3.5 mm, stereo)Min. impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 ΩPower supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.6 V with integrated NiMH battery (8 cells) Operating time depending on the type ofthe microphone unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 20 hours in discussion mode, operating time also depends on the volume Temperature range (at < 90% humidity) . . . . . . . . . . . . . . . . . +10° – +40°C [+50 °F – +104 °F] Storage temperature (at < 90% humidity) . . . . . . . . . . . . . . . -20° – +55°C [-4 °F – +131 °F] Dimensions (without microphone) . . . . . . . . . . . . . . . . . . . . . Length 173 mm [6.8"]Width 157 mm [6.18"]Height 51 mm [2.01"]Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7 kg [3.74 lbs]Quinta MU 33/31 Microphone UnitsTransmitter power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 20 dBm per channel (average, duty cycle ≤ 30%)*Battery voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 NiMH cells, 2080 mAh External DC operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V DC (±0.5 V), residual hum < 20 mV, 400 mACharging time with charger . . . . . . . . . . . . . . . . . . . . . . . . . . max. 2.5 hours when the battery is completely emptywith mains charger adapter . . . . . . . . . . . . . . . . . . . . . . . . . . max. 2.5 hours when the battery is completely emptyMicrophone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Microphone ArrayPick up pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CorridorT.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.1%Loudspeaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Integrated, two-way loudspeaker Loudspeaker switch off at “Mic On”. . . . . . . . . . . . . . . . . . . . yesHeadphone output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . jack socket (3.5 mm, stereo) Min. impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 ΩPower supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.6 V with integrated NiMH battery (8 cells)Operating time depending on the type of the microphone unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 20 hours in discussion mode; operating time depends on the volume Temperature range (at < 90% humidity) . . . . . . . . . . . . . . . . . +10° – +40°C [+50 °F – +104 °F]Storage temperature (at < 90% humidity) . . . . . . . . . . . . . . . 20° – +55°C [-4 °F – +131 °F] Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Length 96 mm [3.8"]Width 300 mm [11.8"]Height 82 mm [3.2"]Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.06 kg [2.33 lbs]

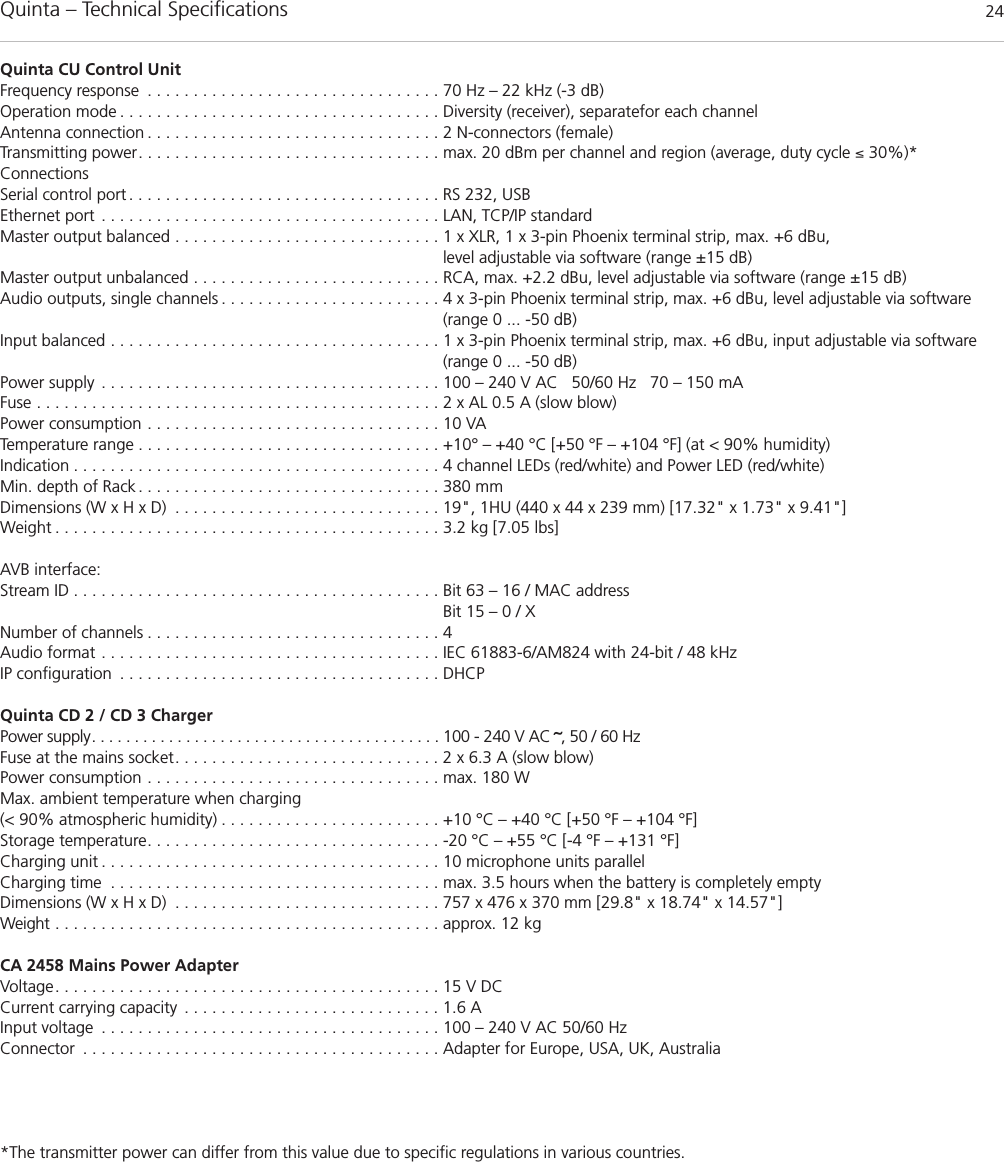

Quinta – Technical Specifications 24Quinta CU Control UnitFrequency response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Hz – 22 kHz (-3 dB)Operation mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Diversity (receiver), separatefor each channelAntenna connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 N-connectors (female)Transmitting power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 20 dBm per channel and region (average, duty cycle ≤ 30%)*ConnectionsSerial control port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RS 232, USBEthernet port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LAN, TCP/IP standardMaster output balanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 x XLR, 1 x 3-pin Phoenix terminal strip, max. +6 dBu,level adjustable via software (range ±15 dB)Master output unbalanced . . . . . . . . . . . . . . . . . . . . . . . . . . . RCA, max. +2.2 dBu, level adjustable via software (range ±15 dB)Audio outputs, single channels . . . . . . . . . . . . . . . . . . . . . . . . 4 x 3-pin Phoenix terminal strip, max. +6 dBu, level adjustable via software (range 0 ... -50 dB)Input balanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 x 3-pin Phoenix terminal strip, max. +6 dBu, input adjustable via software(range 0 ... -50 dB)Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 – 240 V AC 50/60 Hz 70 – 150 mAFuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x AL 0.5 A (slow blow)Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 VA Temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +10° – +40 °C [+50 °F – +104 °F] (at < 90% humidity)Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 channel LEDs (red/white) and Power LED (red/white)Min. depth of Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 380 mmDimensions (W x H x D) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19", 1HU (440 x 44 x 239 mm) [17.32" x 1.73" x 9.41"]Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2 kg [7.05 lbs]AVB interface:Stream ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bit 63 – 16 / MAC address Bit 15 – 0 / X Number of channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Audio format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IEC 61883-6/AM824 with 24-bit / 48 kHzIP configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DHCPQuinta CD 2 / CD 3 Charger Power supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240 V AC ˜, 50 / 60 HzFuse at the mains socket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x 6.3 A (slow blow)Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 180 WMax. ambient temperature when charging (< 90% atmospheric humidity) . . . . . . . . . . . . . . . . . . . . . . . . +10 °C – +40 °C [+50 °F – +104 °F]Storage temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20 °C – +55 °C [-4 °F – +131 °F]Charging unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 microphone units parallelCharging time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max. 3.5 hours when the battery is completely emptyDimensions (W x H x D) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 757 x 476 x 370 mm [29.8" x 18.74" x 14.57"]Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . approx. 12 kgCA 2458 Mains Power Adapter Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 V DCCurrent carrying capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6 AInput voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 – 240 V AC 50/60 HzConnector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Adapter for Europe, USA, UK, Australia*The transmitter power can differ from this value due to specific regulations in various countries.

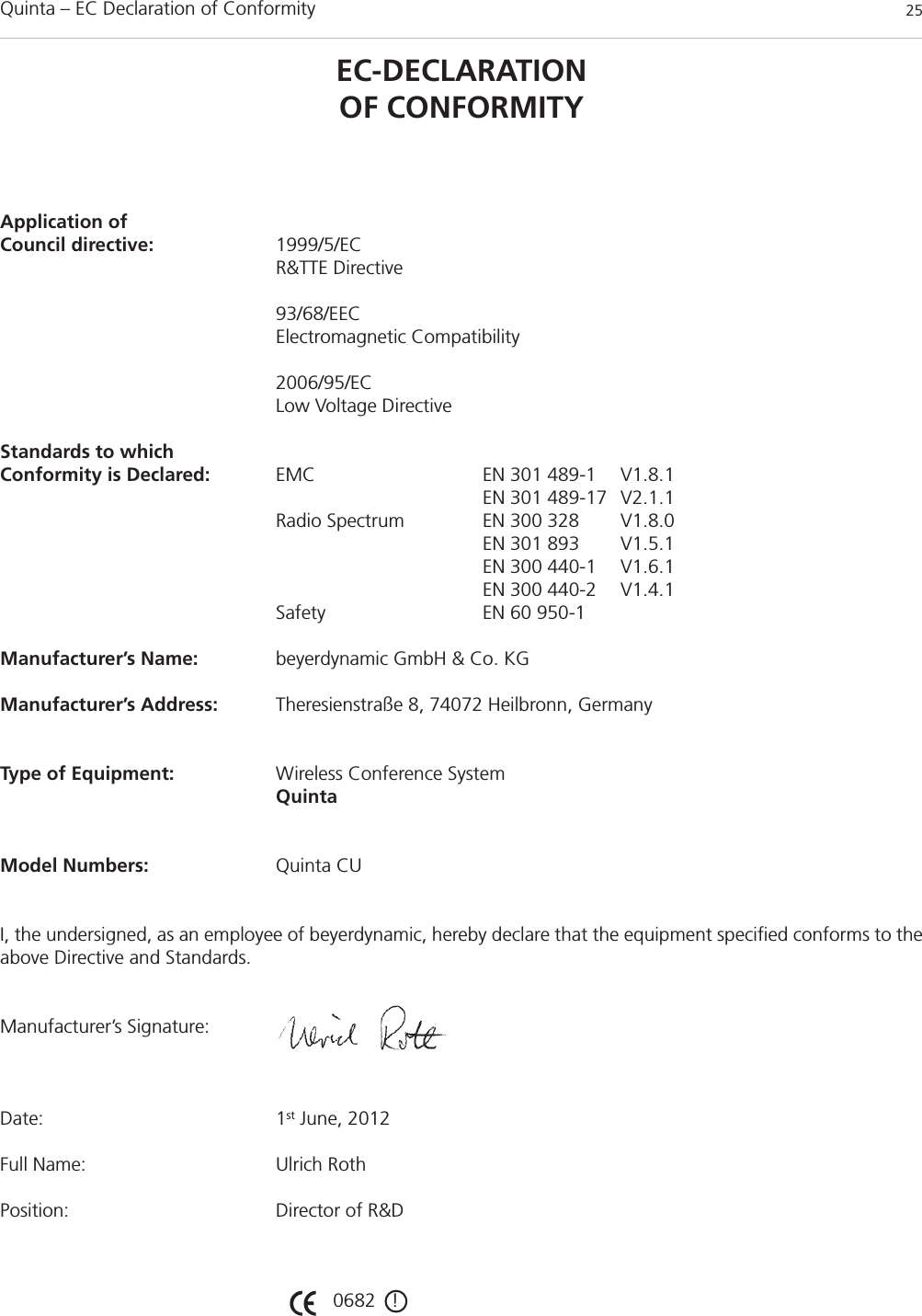

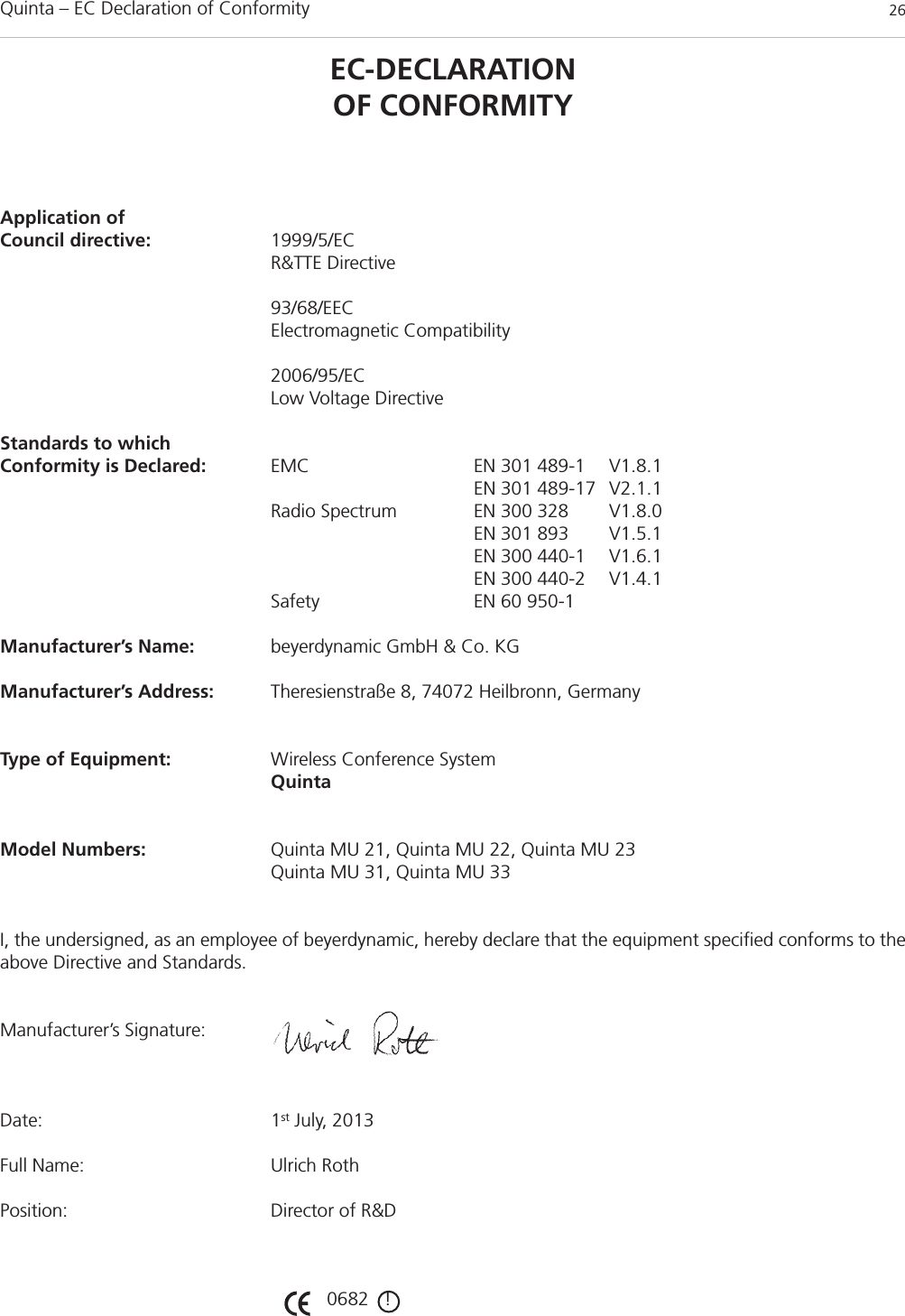

Quinta – EC Declaration of Conformity 25EC-DECLARATIONOF CONFORMITYApplication ofCouncil directive: 1999/5/EC R&TTE Directive93/68/EECElectromagnetic Compatibility2006/95/ECLow Voltage DirectiveStandards to which Conformity is Declared: EMC EN 301 489-1 V1.8.1EN 301 489-17 V2.1.1Radio Spectrum EN 300 328 V1.8.0EN 301 893 V1.5.1EN 300 440-1 V1.6.1EN 300 440-2 V1.4.1Safety EN 60 950-1Manufacturer’s Name: beyerdynamic GmbH & Co. KGManufacturer’s Address: Theresienstraße 8, 74072 Heilbronn, GermanyType of Equipment: Wireless Conference SystemQuintaModel Numbers: Quinta CUI, the undersigned, as an employee of beyerdynamic, hereby declare that the equipment specified conforms to theabove Directive and Standards.Manufacturer’s Signature:Date: 1st June, 2012Full Name: Ulrich RothPosition: Director of R&D0682 !
Quinta – EC Declaration of Conformity 26EC-DECLARATIONOF CONFORMITYApplication ofCouncil directive: 1999/5/EC R&TTE Directive93/68/EECElectromagnetic Compatibility2006/95/ECLow Voltage DirectiveStandards to which Conformity is Declared: EMC EN 301 489-1 V1.8.1EN 301 489-17 V2.1.1Radio Spectrum EN 300 328 V1.8.0EN 301 893 V1.5.1EN 300 440-1 V1.6.1EN 300 440-2 V1.4.1Safety EN 60 950-1Manufacturer’s Name: beyerdynamic GmbH & Co. KGManufacturer’s Address: Theresienstraße 8, 74072 Heilbronn, GermanyType of Equipment: Wireless Conference SystemQuintaModel Numbers: Quinta MU 21, Quinta MU 22, Quinta MU 23Quinta MU 31, Quinta MU 33I, the undersigned, as an employee of beyerdynamic, hereby declare that the equipment specified conforms to theabove Directive and Standards.Manufacturer’s Signature:Date: 1st July, 2013Full Name: Ulrich RothPosition: Director of R&D0682 !

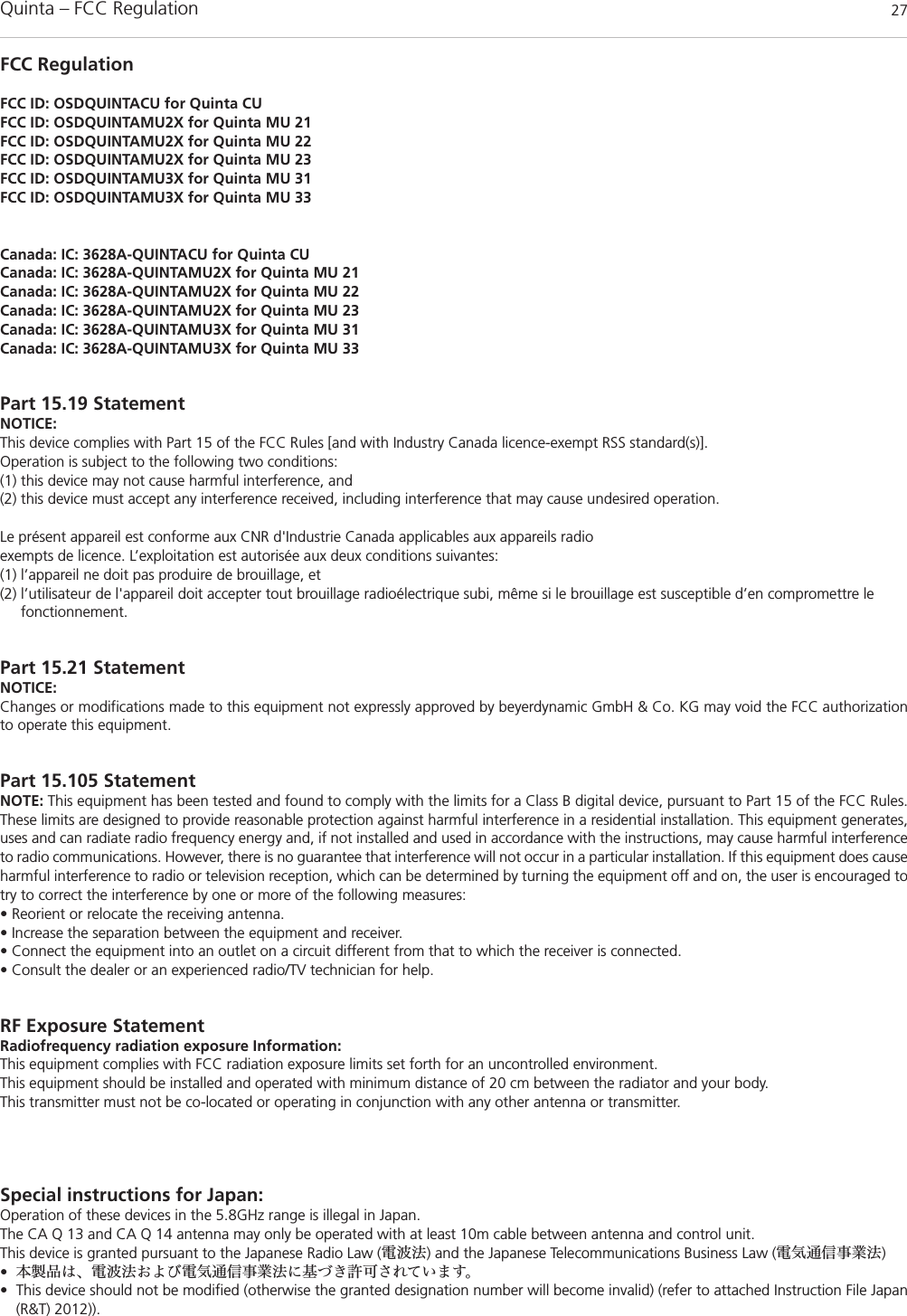

Quinta – FCC Regulation 27FCC RegulationFCC ID: OSDQUINTACU for Quinta CUFCC ID: OSDQUINTAMU2X for Quinta MU 21FCC ID: OSDQUINTAMU2X for Quinta MU 22FCC ID: OSDQUINTAMU2X for Quinta MU 23FCC ID: OSDQUINTAMU3X for Quinta MU 31FCC ID: OSDQUINTAMU3X for Quinta MU 33Canada: IC: 3628A-QUINTACU for Quinta CUCanada: IC: 3628A-QUINTAMU2X for Quinta MU 21Canada: IC: 3628A-QUINTAMU2X for Quinta MU 22Canada: IC: 3628A-QUINTAMU2X for Quinta MU 23Canada: IC: 3628A-QUINTAMU3X for Quinta MU 31Canada: IC: 3628A-QUINTAMU3X for Quinta MU 33Part 15.19 StatementNOTICE:This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt RSS standard(s)].Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L’exploitation est autorisée aux deux conditions suivantes:(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.Part 15.21 StatementNOTICE:Changes or modifications made to this equipment not expressly approved by beyerdynamic GmbH & Co. KG may void the FCC authorizationto operate this equipment.Part 15.105 StatementNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interferenceto radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.RF Exposure StatementRadiofrequency radiation exposure Information:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.Special instructions for Japan:Operation of these devices in the 5.8GHz range is illegal in Japan.The CA Q 13 and CA Q 14 antenna may only be operated with at least 10m cable between antenna and control unit.This device is granted pursuant to the Japanese Radio Law (電波法) and the Japanese Telecommunications Business Law (電気通信事業法)•本製品は、電波法および電気通信事業法に基づき許可されています。• This device should not be modified (otherwise the granted designation number will become invalid) (refer to attached Instruction File Japan(R&T) 2012)).
