BONTEC Co., Ltd.#27-31, HANCHUN-RI, DUCK-SAN -MYUN,, JINCHUN-GUN,CHUNG-BUK,KOREARemote Keyless Entry(BONTEC-T016,BONTEC-E016)

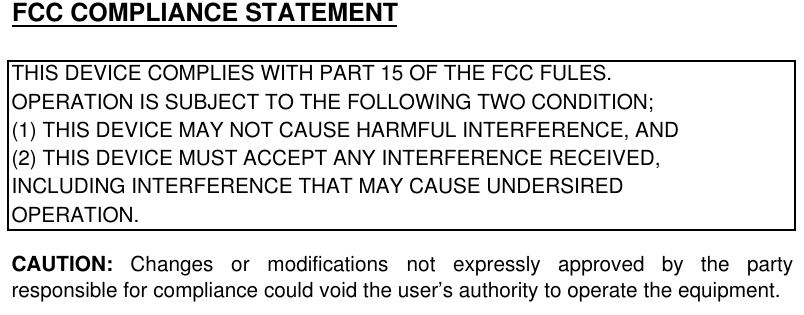

FCC COMPLIANCE STATEMENTTHIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION;(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIREDOPERATION.CAUTION: Changes or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operate the equipment.

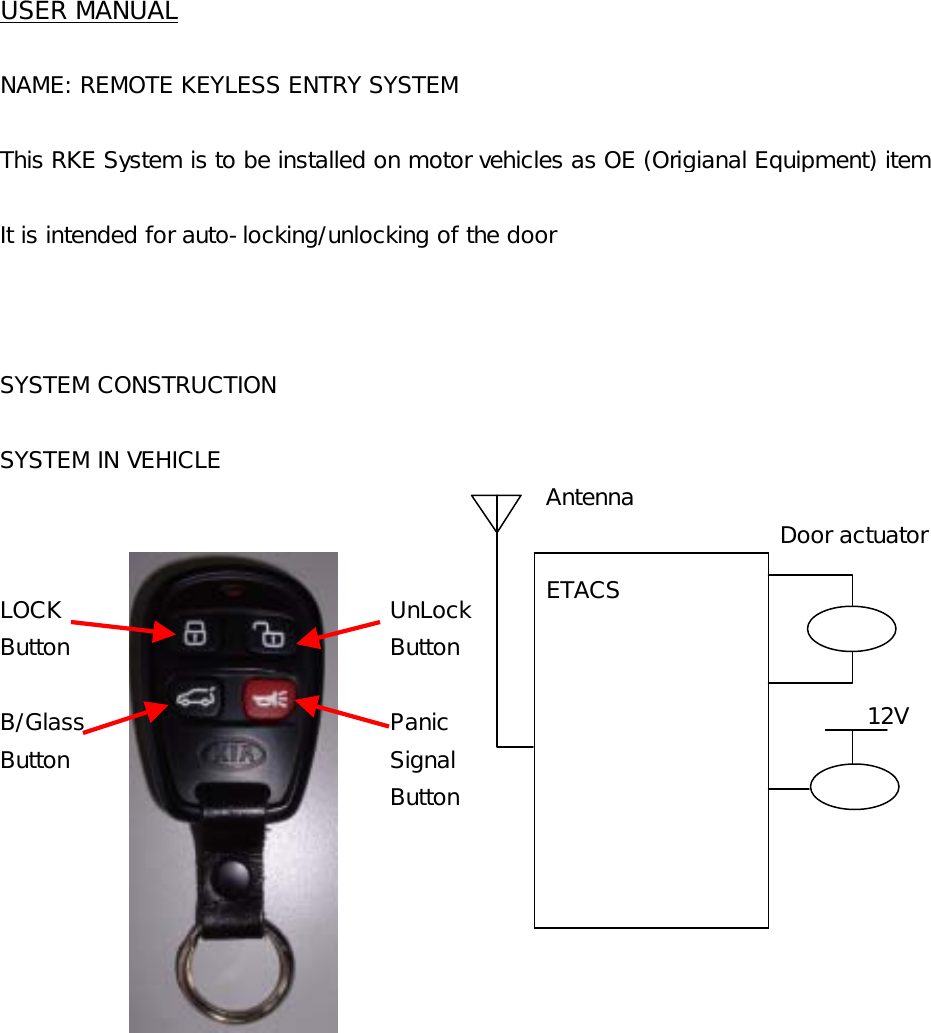

USER MANUALNAME: REMOTE KEYLESS ENTRY SYSTEMThis RKE System is to be installed on motor vehicles as OE (Origianal Equipment) itemIt is intended for auto-locking/unlocking of the doorSYSTEM CONSTRUCTIONSYSTEM IN VEHICLE Antenna Door actuatorLOCK UnLockButton ButtonB/Glass PanicButton SignalButton12VETACS

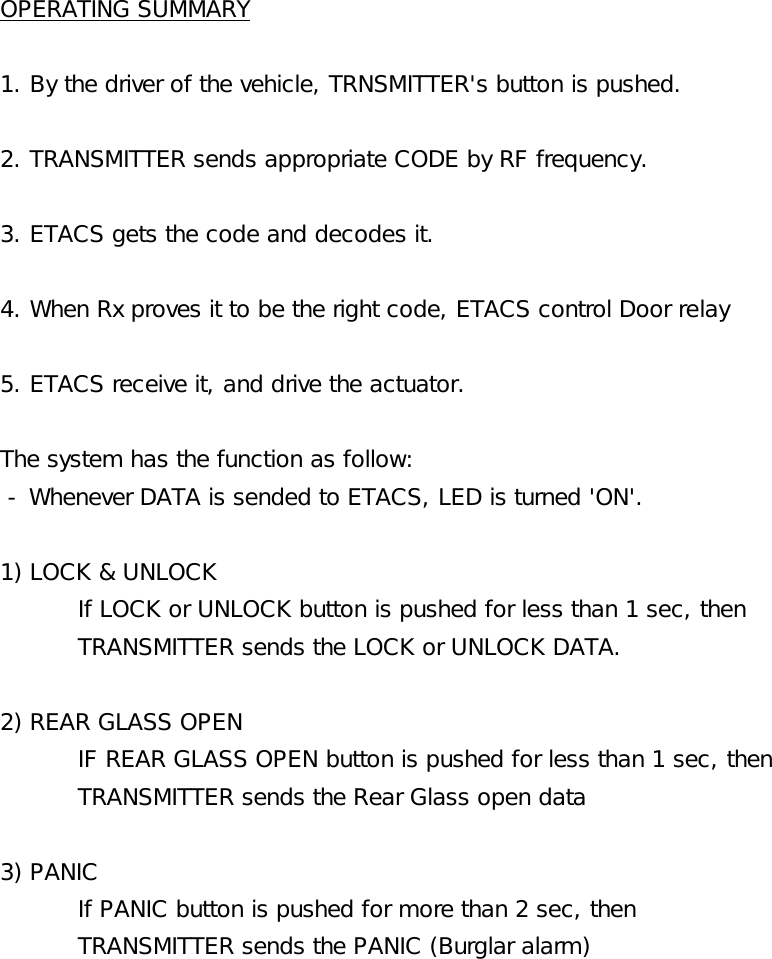

OPERATING SUMMARY1. By the driver of the vehicle, TRNSMITTER's button is pushed.2. TRANSMITTER sends appropriate CODE by RF frequency.3. ETACS gets the code and decodes it.4. When Rx proves it to be the right code, ETACS control Door relay5. ETACS receive it, and drive the actuator.The system has the function as follow: - Whenever DATA is sended to ETACS, LED is turned 'ON'.1) LOCK & UNLOCKIf LOCK or UNLOCK button is pushed for less than 1 sec, then TRANSMITTER sends the LOCK or UNLOCK DATA.2) REAR GLASS OPENIF REAR GLASS OPEN button is pushed for less than 1 sec, then TRANSMITTER sends the Rear Glass open data3) PANICIf PANIC button is pushed for more than 2 sec, then TRANSMITTER sends the PANIC (Burglar alarm)

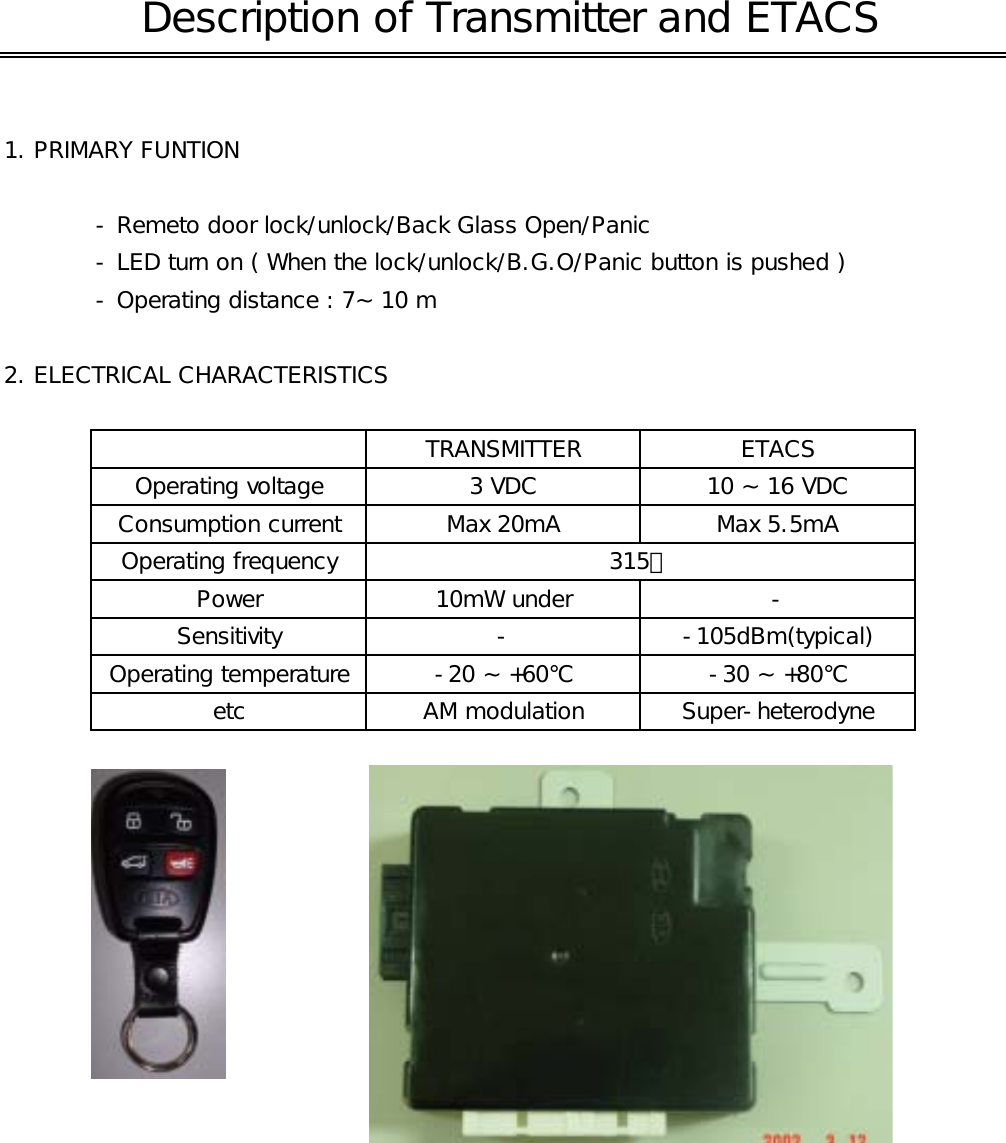

1. PRIMARY FUNTION - Remeto door lock/unlock/Back Glass Open/Panic- LED turn on ( When the lock/unlock/B.G.O/Panic button is pushed )- Operating distance : 7~ 10 m2. ELECTRICAL CHARACTERISTICSSensitivity - -105dBm(typical)TRANSMITTER ETACSConsumption current Max 20mA Max 5.5mAOperating frequencyPower 10mW under -315㎒etc AM modulation Super-heterodyne Description of Transmitter and ETACSOperating voltage 3 VDC 10 ~ 16 VDCOperating temperature -20 ~ +60℃ -30 ~ +80℃

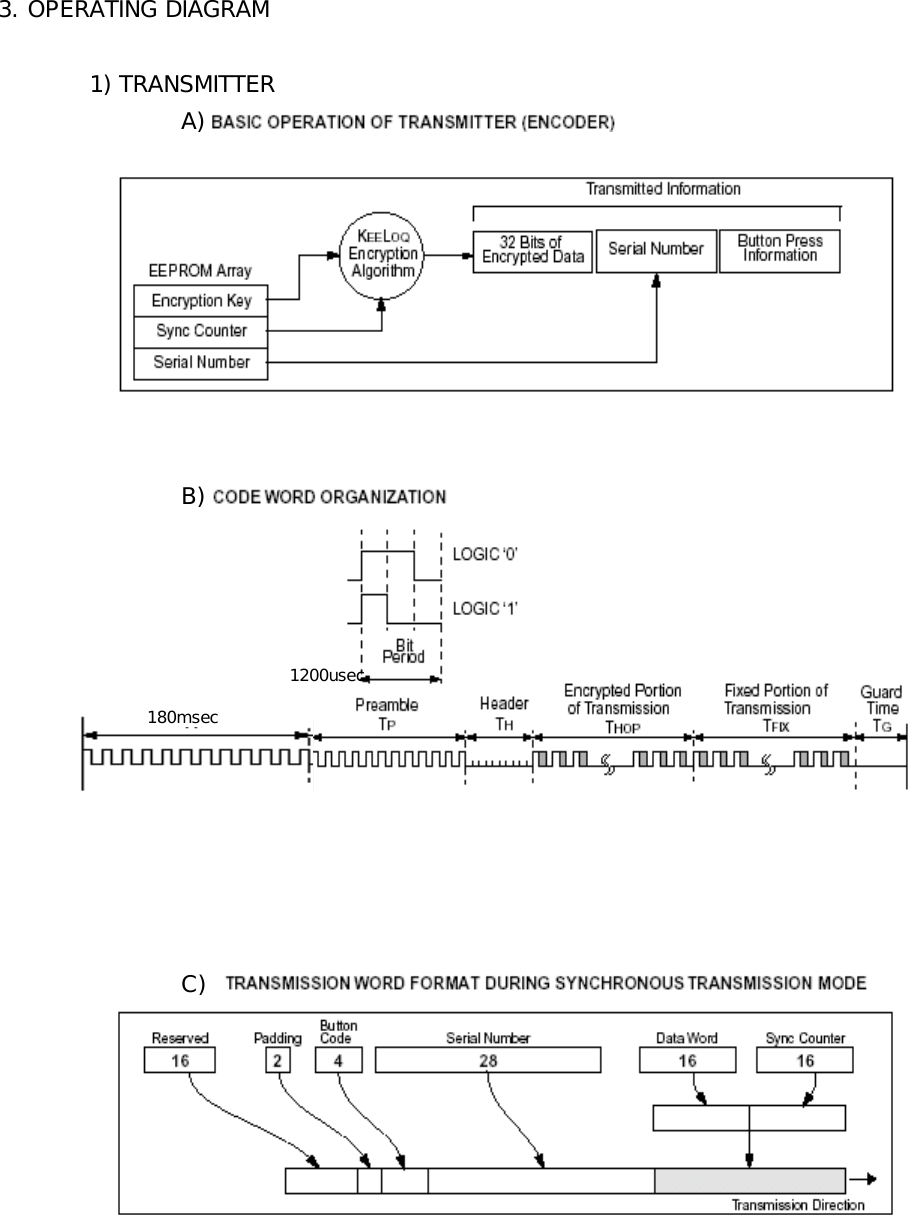

3. OPERATING DIAGRAM1) TRANSMITTERA) B)C) 1200usec180msec

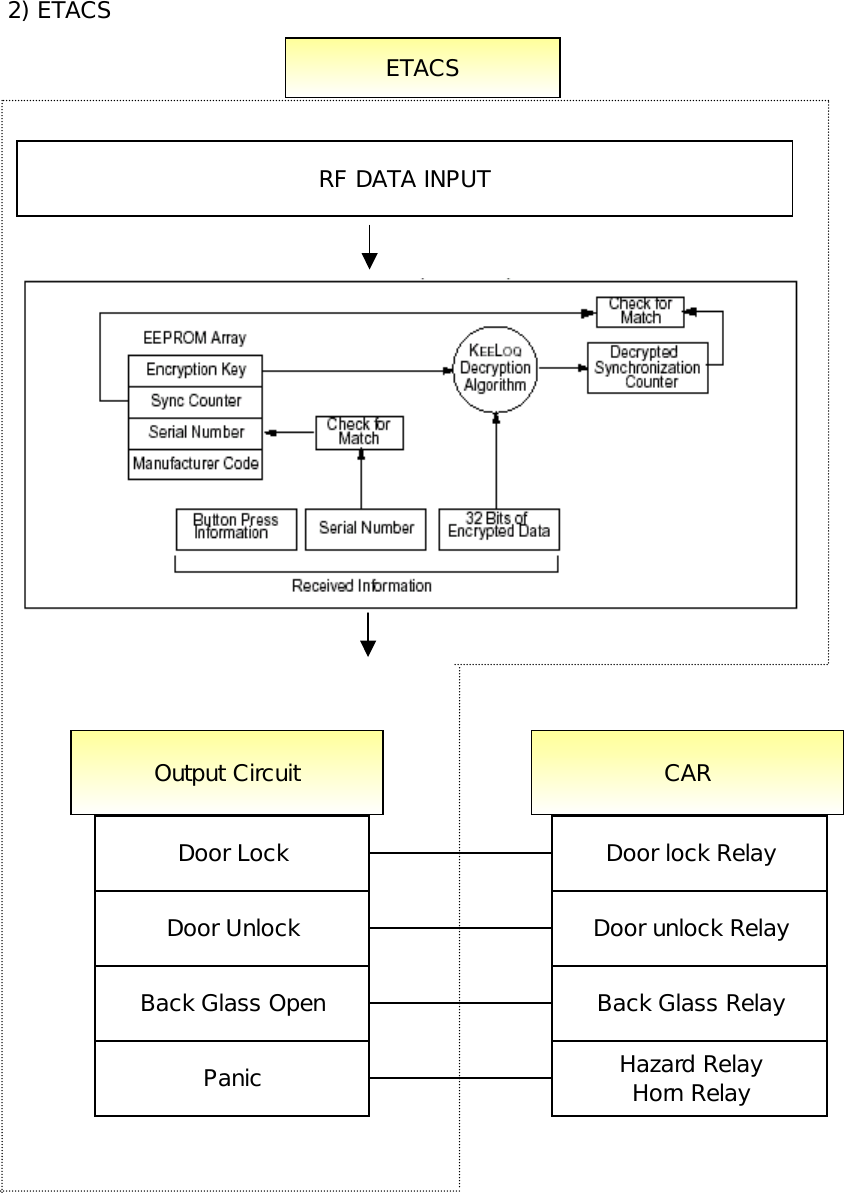

2) ETACSDoor LockDoor UnlockBack Glass OpenPanicDoor lock RelayDoor unlock RelayBack Glass RelayHazard RelayHorn RelayRF DATA INPUTETACSOutput Circuit CAR
