Bontec HM-T012 Remote Keyless Entry System User Manual HM T012 FCC

Bontec Co., Ltd. Remote Keyless Entry System HM T012 FCC

Users Manual

MOBIS Co., Ltd.#80-9,MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI,449-910,KOREARemote Keyless Entry(HM-T012)

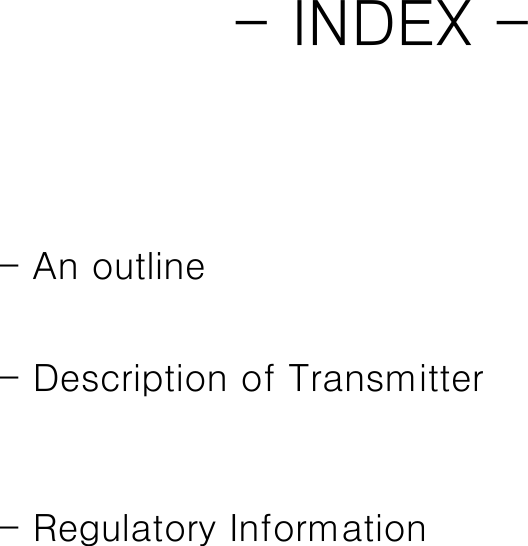

- INDEX -- Description of Transmitter- Regulatory Information- An outline

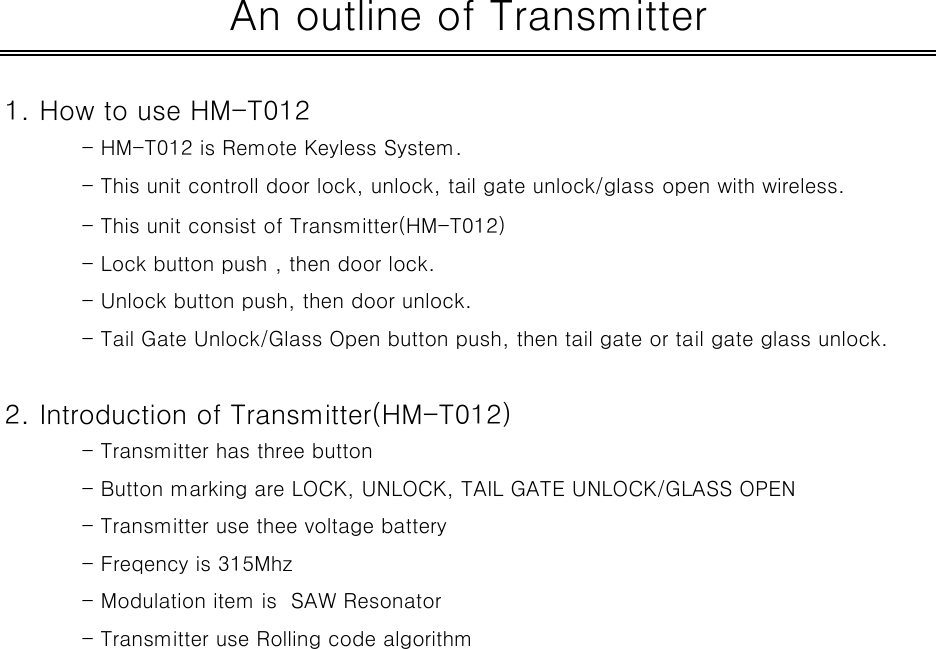

1. How to use HM-T012- HM-T012 is Remote Keyless System.- This unit controll door lock, unlock, tail gate unlock/glass open with wireless.- This unit consist of Transmitter(HM-T012)- Lock button push , then door lock.- Unlock button push, then door unlock.- Tail Gate Unlock/Glass Open button push, then tail gate or tail gate glass unlock.2. Introduction of Transmitter(HM-T012)- Transmitter has three button - Button marking are LOCK, UNLOCK, TAIL GATE UNLOCK/GLASS OPEN- Transmitter use thee voltage battery- Freqency is 315Mhz- Modulation item is SAW Resonator- Transmitter use Rolling code algorithmAn outline of Transmitter

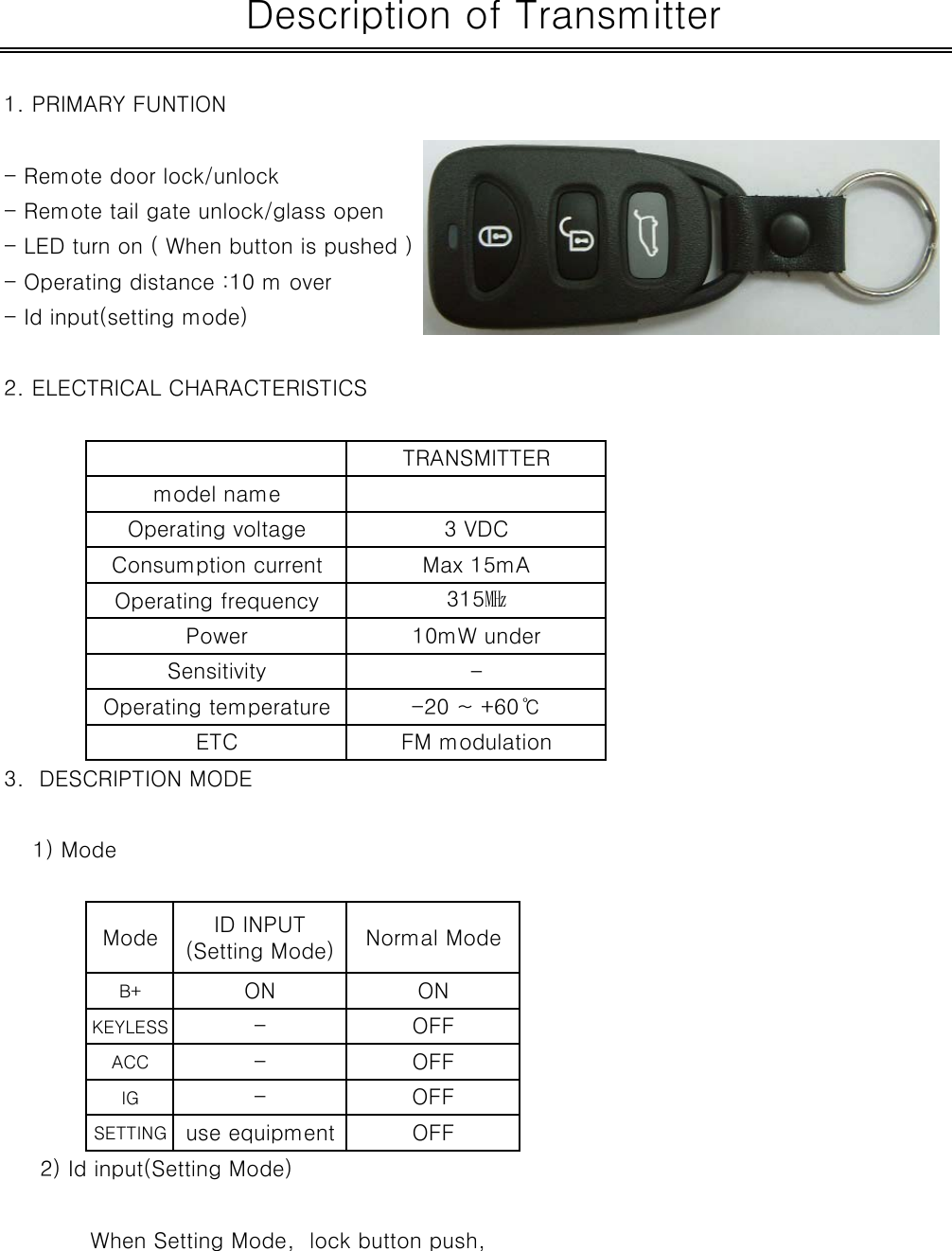

1. PRIMARY FUNTION - Remote door lock/unlock- Remote tail gate unlock/glass open- LED turn on ( When button is pushed )- Operating distance :10 m over- Id input(setting mode)2. ELECTRICAL CHARACTERISTICS3. DESCRIPTION MODE 1) ModeB+KEYLESSACCIGSETTING 2) Id input(Setting Mode) When Setting Mode, lock button push,ONOFFOFFMode- OFFuse equipmentID INPUT(Setting Mode)ON--OFFNormal Mode Description of TransmitterOperating voltage 3 VDCTRANSMITTERmodel nameETC FM modulationOperating temperature -20 ~ +60℃-315㎒Operating frequencyPower 10mW underConsumption current Max 15mASensitivity

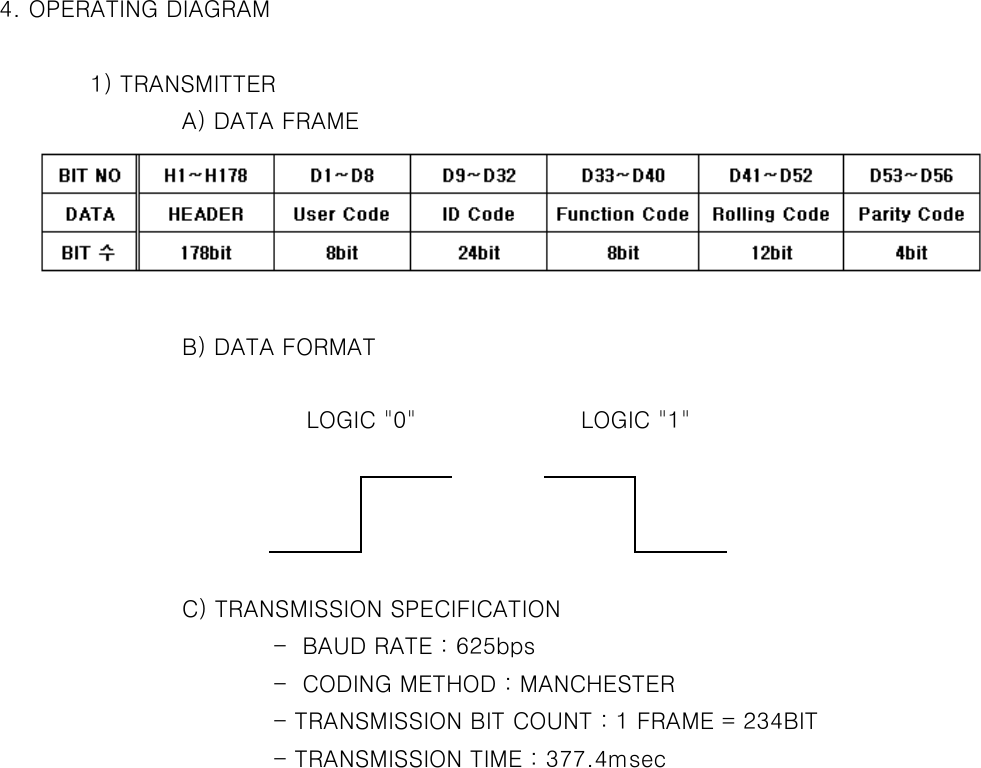

4. OPERATING DIAGRAM1) TRANSMITTERA) DATA FRAMEB) DATA FORMAT C) TRANSMISSION SPECIFICATION- BAUD RATE : 625bps - CODING METHOD : MANCHESTER - TRANSMISSION BIT COUNT : 1 FRAME = 234BIT- TRANSMISSION TIME : 377.4msecLOGIC "0" LOGIC "1"

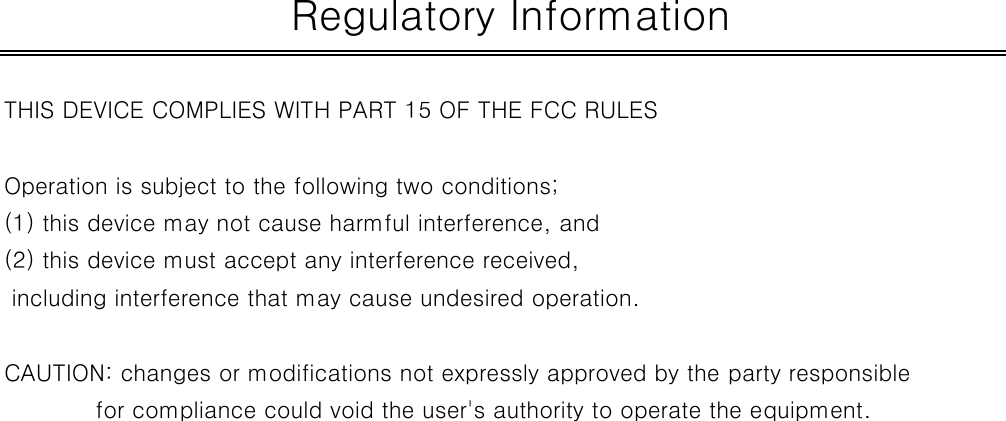

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULESOperation is subject to the following two conditions;(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAUTION: changes or modifications not expressly approved by the party responsiblefor compliance could void the user's authority to operate the equipment. Regulatory Information
