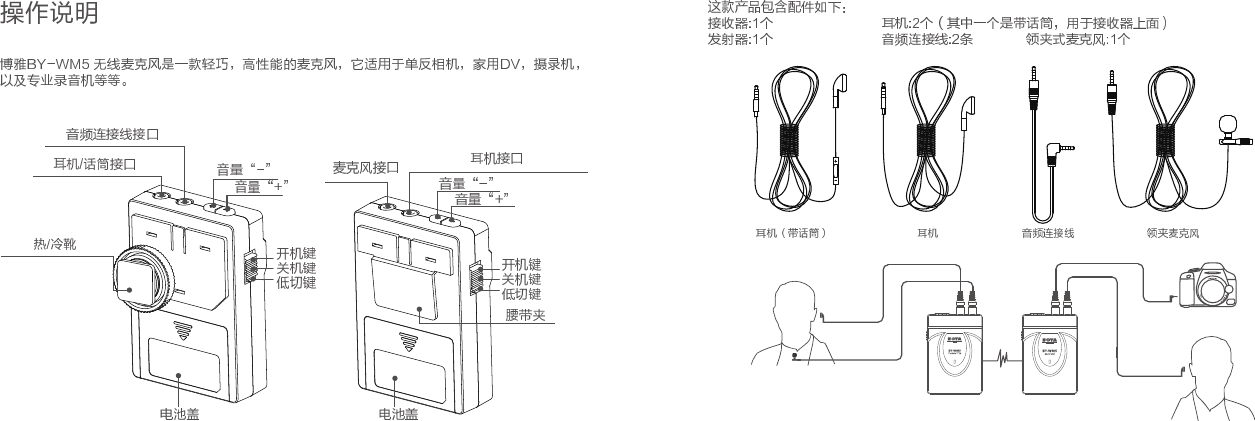

Instruction ManualThe BOYA BY-WM5 Wireless microphone is Compact, high performance, lightweight and compatible with DSLR cameras, Camcorders, Audio recorder etc.Battery Compartment Cover Battery Compartment CoverHot/cold Shoe MountSwitch OFFSwitch ONLow-cut FilterVolume “-”Volume “-”Volume “+”Volume “+”Audio Signal Cable JackEarphone/Speaker Jack Mic Jack Earphone Jack (without speaker)Belt ClipEarphoneEarphone with speaker Audio Signal Cable Lavalier/lapel microphoneIt consists of a transmitter, receiver, two piece of earphone(one is with speaker), an audiosignal cable, a lavalier/lapel microphone.Switch OFFSwitch ONLow-cut Filter
How to use itInsert batteries in the transmitter and receiver units1.Both transmitter and receiver requires two LR03/AAA size batteries.2.Slide and remove the transmitter’s battery compartment cover.3.Insert two batteries.4.Close the battery compartment cover.5.Do the same ways as step 2 to 4 to insert battery into receiver.Precautionary measures when using batteriesBatteries/power packs, if inappropriately handled, can run out or explode.Please observe the following notes on safety when handling batteries to be used in this device: Use only batteries mentiond in these operating instructions. Do not  lay the batteries in a fire and do not expose them to direct heat. In order to avoid damage to the product you must make sure that you remove the     batteries,if you do not use the product over a longer pe-riod of time or if the batteries     have been discharged. If battery fluid cones into contact with skin or clothes, rinse it off imme-diately with     fresh water. Please read these istructions for use thoroughly before you use this new equipment     for the first time.It contains everything you need to know in order to avoid damage to     persons or property. Strictly follow all notes on safety in these instructions for use. Keep these instructions for use in a safe place,If you sell you equip-ment or pass    it on to someone else, you should also pass on these instructions for use.Connecting the transmitter and receiverReceiver1.Mount receiver to camera.2.Insert the straight plug of the connecting cable into the receiver “LINE OUT” jack.3.Insert the other plug of the connecting cable into camera “MIC” socket.4.Insert earphone ( the one with speaker) into receiver “         ”.5.Slider the power ON/OFF switch to ON position ( the LED indicator will light in green)Transmitter1.Insert the earphone ( the one without speaker) into transmitter “     ”.2.Insert the lavalier/lapel microphone into transmitter “   ”.3.Slider the power ON/OFF switch to ON position ( the LED indicator will light in green).4.The belt clip on the back of the unit clips the transmitter onto a belt, or the transmitter   simply can be put into a pocket.

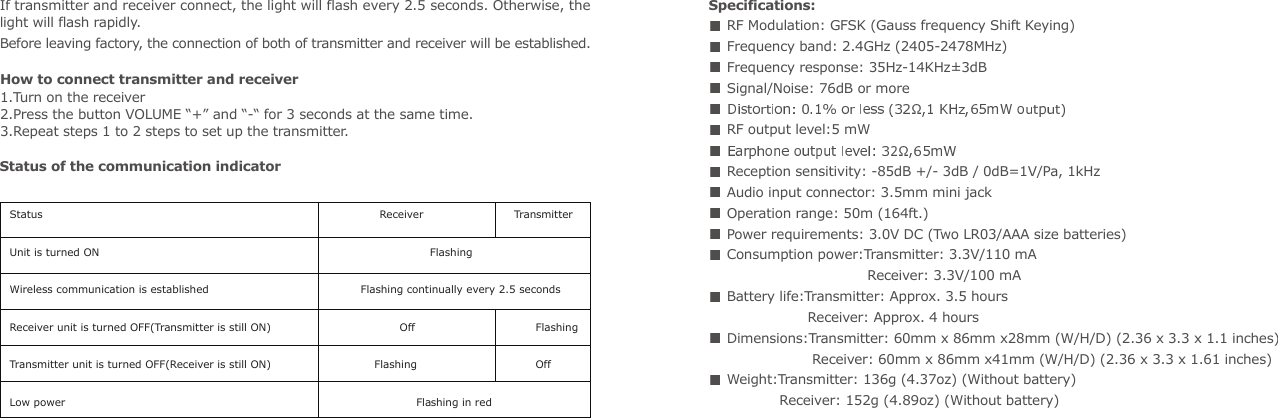

Specifications: RF Modulation: GFSK (Gauss frequency Shift Keying) Frequency band: 2.4GHz (2405-2478MHz) Frequency response: 35Hz-14KHz±3dB Signal/Noise: 76dB or more  RF output level:5 mW  Reception sensitivity: -85dB +/- 3dB / 0dB=1V/Pa, 1kHz Audio input connector: 3.5mm mini jack Operation range: 50m (164ft.) Power requirements: 3.0V DC (Two LR03/AAA size batteries) Consumption power:Transmitter: 3.3V/110 mA                                        Receiver: 3.3V/100 mA   Battery life:Transmitter: Approx. 3.5 hours                         Receiver: Approx. 4 hours  Dimensions:Transmitter: 60mm x 86mm x28mm (W/H/D) (2.36 x 3.3 x 1.1 inches)                       Receiver: 60mm x 86mm x41mm (W/H/D) (2.36 x 3.3 x 1.61 inches) Weight:Transmitter: 136g (4.37oz) (Without battery)                 Receiver: 152g (4.89oz) (Without battery)If transmitter and receiver connect, the light will flash every 2.5 seconds. Otherwise, the light will flash rapidly.Before leaving factory, the connection of both of transmitter and receiver will be established.How to connect transmitter and receiver1.Turn on the receiver 2.Press the button VOLUME “+” and “-“ for 3 seconds at the same time.3.Repeat steps 1 to 2 steps to set up the transmitter.                                   Status                                                                          Receiver                 TransmitterUnit is turned ON                                                                             FlashingWireless communication is established                                     Flashing continually every 2.5 seconds Receiver unit is turned OFF(Transmitter is still ON)                           Off                       FlashingTransmitter unit is turned OFF(Receiver is still ON)                    Flashing                       OffLow power                                                                                              Flashing in redStatus of the communication indicator

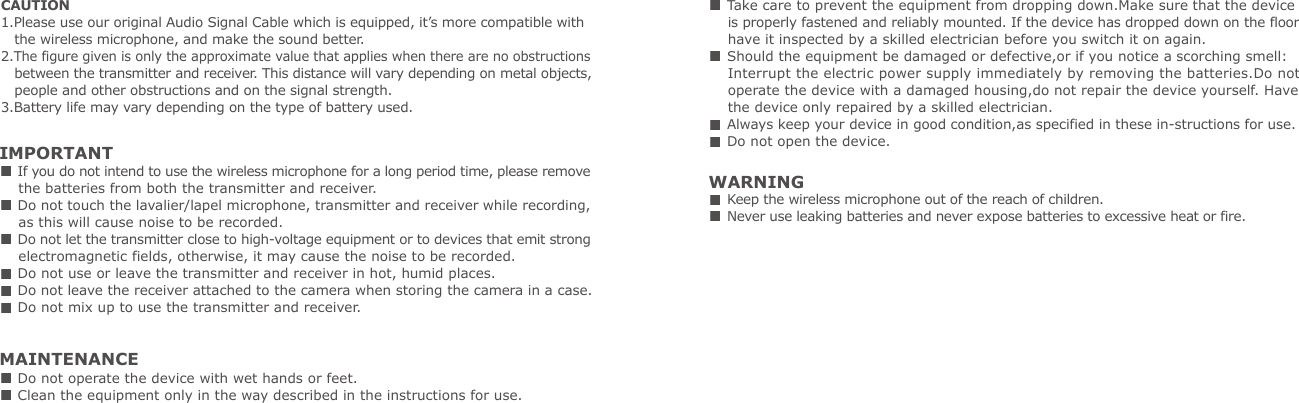

CAUTION1.Please use our original Audio Signal Cable which is equipped, it’s more compatible with    the wireless microphone, and make the sound better.2.The figure given is only the approximate value that applies when there are no obstructions    between the transmitter and receiver. This distance will vary depending on metal objects,    people and other obstructions and on the signal strength.3.Battery life may vary depending on the type of battery used.IMPORTANT If you do not intend to use the wireless microphone for a long period time, please remove     the batteries from both the transmitter and receiver. Do not touch the lavalier/lapel microphone, transmitter and receiver while recording,     as this will cause noise to be recorded. Do not let the transmitter close to high-voltage equipment or to devices that emit strong     electromagnetic fields, otherwise, it may cause the noise to be recorded. Do not use or leave the transmitter and receiver in hot, humid places. Do not leave the receiver attached to the camera when storing the camera in a case. Do not mix up to use the transmitter and receiver.WARNING Keep the wireless microphone out of the reach of children. Never use leaking batteries and never expose batteries to excessive heat or fire.MAINTENANCE Do not operate the device with wet hands or feet. Clean the equipment only in the way described in the instructions for use. Take care to prevent the equipment from dropping down.Make sure that the device     is properly fastened and reliably mounted. If the device has dropped down on the floor     have it inspected by a skilled electrician before you switch it on again. Should the equipment be damaged or defective,or if you notice a scorching smell:    Interrupt the electric power supply immediately by removing the batteries.Do not     operate the device with a damaged housing,do not repair the device yourself. Have     the device only repaired by a skilled electrician. Always keep your device in good condition,as specified in these in-structions for use. Do not open the device.
WARNINGFCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Warning: Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmful interference toradio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposure requirement. The devicecan be used in portable exposure condition without restriction.
