Budderfly S0711011 Dual Band Switch User Manual Switch manual Draft FCCx

Budderfly LLC Dual Band Switch Switch manual Draft FCCx

Users Manual

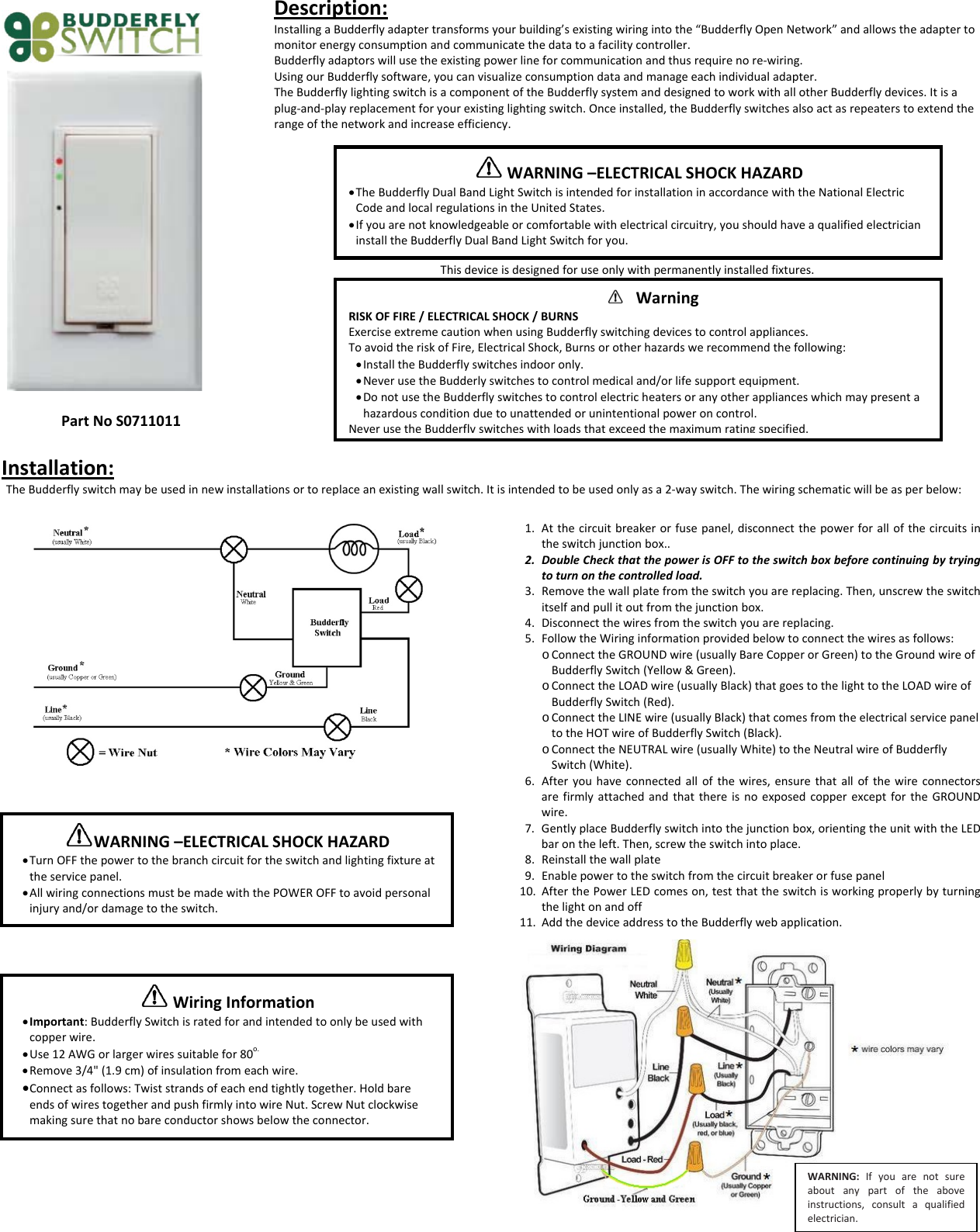

PartNoS0711011Description:InstallingaBudderflyadaptertransformsyourbuilding’sexistingwiringintothe“BudderflyOpenNetwork”andallowstheadaptertomonitorenergyconsumptionandcommunicatethedatatoafacilitycontroller.Budderflyadaptorswillusetheexistingpowerlineforcommunicationandthusrequirenore‐wiring.UsingourBudderflysoftware,youcanvisualizeconsumptiondataandmanageeachindividualadapter.TheBudderflylightingswitchisacomponentoftheBudderflysystemanddesignedtoworkwithallotherBudderflydevices.Itisaplug‐and‐playreplacementforyourexistinglightingswitch.Onceinstalled,theBudderflyswitchesalsoactasrepeaterstoextendtherangeofthenetworkandincreaseefficiency.Thisdeviceisdesignedforuseonlywithpermanentlyinstalledfixtures.Installation:TheBudderflyswitchmaybeusedinnewinstallationsortoreplaceanexistingwallswitch.Itisintendedtobeusedonlyasa2‐wayswitch.Thewiringschematicwillbeasperbelow:1. Atthecircuitbreakerorfusepanel,disconnectthepowerforallofthecircuitsintheswitchjunctionbox..2. DoubleCheckthatthepowerisOFFtotheswitchboxbeforecontinuingbytryingtoturnonthecontrolledload.3. Removethewallplatefromtheswitchyouarereplacing.Then,unscrewtheswitchitselfandpullitoutfromthejunctionbox.4. Disconnectthewiresfromtheswitchyouarereplacing.5. FollowtheWiringinformationprovidedbelowtoconnectthewiresasfollows:o ConnecttheGROUNDwire(usuallyBareCopperorGreen)totheGroundwireofBudderflySwitch(Yellow&Green).o ConnecttheLOADwire(usuallyBlack)thatgoestothelighttotheLOADwireofBudderflySwitch(Red).o ConnecttheLINEwire(usuallyBlack)thatcomesfromtheelectricalservicepaneltotheHOTwireofBudderflySwitch(Black).o ConnecttheNEUTRALwire(usuallyWhite)totheNeutralwireofBudderflySwitch(White).6. Afteryouhaveconnectedallofthewires,ensurethatallofthewireconnectorsarefirmlyattachedandthatthereisnoexposedcopperexceptfortheGROUNDwire.7. GentlyplaceBudderflyswitchintothejunctionbox,orientingtheunitwiththeLEDbarontheleft.Then,screwtheswitchintoplace.8. Reinstallthewallplate9. Enablepowertotheswitchfromthecircuitbreakerorfusepanel10. AfterthePowerLEDcomeson,testthattheswitchisworkingproperlybyturningthelightonandoff11. AddthedeviceaddresstotheBudderflywebapplication.WARNING–ELECTRICALSHOCKHAZARD• TheBudderflyDualBandLightSwitchisintendedforinstallationinaccordancewiththeNationalElectricCodeandlocalregulationsintheUnitedStates.• Ifyouarenotknowledgeableorcomfortablewithelectricalcircuitry,youshouldhaveaqualifiedelectricianinstalltheBudderflyDualBandLightSwitchforyou. WarningRISKOFFIRE/ELECTRICALSHOCK/BURNSExerciseextremecautionwhenusingBudderflyswitchingdevicestocontrolappliances.ToavoidtheriskofFire,ElectricalShock,Burnsorotherhazardswerecommendthefollowing:• InstalltheBudderflyswitchesindooronly.• NeverusetheBudderlyswitchestocontrolmedicaland/orlifesupportequipment.• DonotusetheBudderflyswitchestocontrolelectricheatersoranyotherapplianceswhichmaypresentahazardousconditionduetounattendedorunintentionalpoweroncontrol.Never use the Budderfly switches with loads that exceed the maximum rating specified.WARNING–ELECTRICALSHOCKHAZARD• TurnOFFthepowertothebranchcircuitfortheswitchandlightingfixtureattheservicepanel.• AllwiringconnectionsmustbemadewiththePOWEROFFtoavoidpersonalinjuryand/ordamagetotheswitch.WiringInformation• Important:BudderflySwitchisratedforandintendedtoonlybeusedwithcopperwire.• Use12AWGorlargerwiressuitablefor80o.• Remove3/4"(1.9cm)ofinsulationfromeachwire.• Connectasfollows:Twiststrandsofeachendtightlytogether.HoldbareendsofwirestogetherandpushfirmlyintowireNut.ScrewNutclockwisemakingsurethatnobareconductorshowsbelowtheconnector.WARNING:Ifyouarenotsureaboutanypartoftheaboveinstructions,consultaqualifiedelectrician.

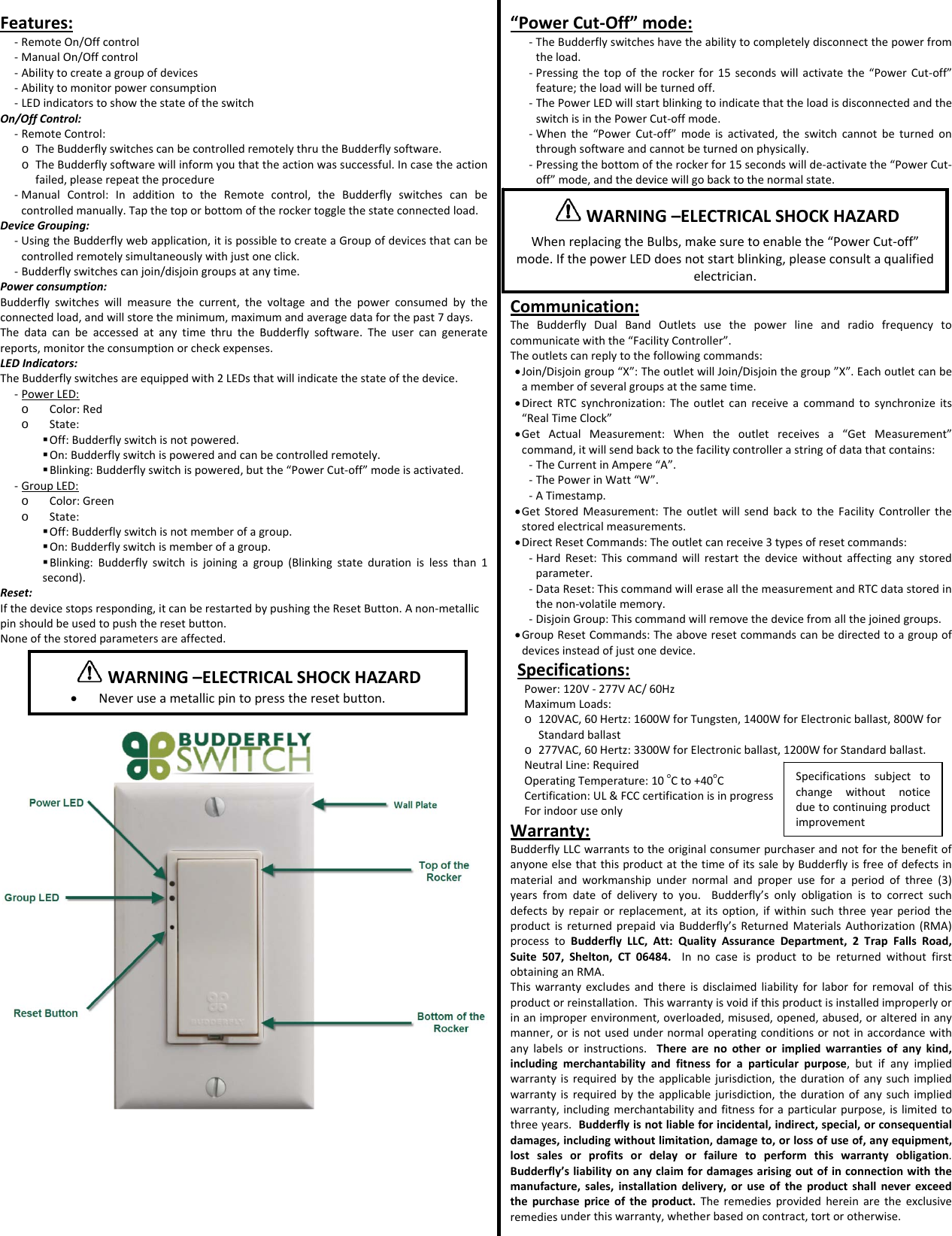

Features:‐ RemoteOn/Offcontrol‐ ManualOn/Offcontrol‐ Abilitytocreateagroupofdevices‐ Abilitytomonitorpowerconsumption‐ LEDindicatorstoshowthestateoftheswitchOn/OffControl:‐ RemoteControl:o TheBudderflyswitchescanbecontrolledremotelythrutheBudderflysoftware.o TheBudderflysoftwarewillinformyouthattheactionwassuccessful.Incasetheactionfailed,pleaserepeattheprocedure‐ ManualControl:InadditiontotheRemotecontrol,theBudderflyswitchescanbecontrolledmanually.Tapthetoporbottomoftherockertogglethestateconnectedload.DeviceGrouping:‐ UsingtheBudderflywebapplication,itispossibletocreateaGroupofdevicesthatcanbecontrolledremotelysimultaneouslywithjustoneclick.‐ Budderflyswitchescanjoin/disjoingroupsatanytime.Powerconsumption:Budderflyswitcheswillmeasurethecurrent,thevoltageandthepowerconsumedbytheconnectedload,andwillstoretheminimum,maximumandaveragedataforthepast7days.ThedatacanbeaccessedatanytimethrutheBudderflysoftware.Theusercangeneratereports,monitortheconsumptionorcheckexpenses.LEDIndicators:TheBudderflyswitchesareequippedwith2LEDsthatwillindicatethestateofthedevice.‐ PowerLED:o Color:Redo State: Off:Budderflyswitchisnotpowered. On:Budderflyswitchispoweredandcanbecontrolledremotely. Blinking:Budderflyswitchispowered,butthe“PowerCut‐off”modeisactivated.‐ GroupLED:o Color:Greeno State: Off:Budderflyswitchisnotmemberofagroup. On:Budderflyswitchismemberofagroup. Blinking:Budderflyswitchisjoiningagroup(Blinkingstatedurationislessthan1second).Reset:Ifthedevicestopsresponding,itcanberestartedbypushingtheResetButton.Anon‐metallicpinshouldbeusedtopushtheresetbutton.Noneofthestoredparametersareaffected.“PowerCut‐Off”mode:‐ TheBudderflyswitcheshavetheabilitytocompletelydisconnectthepowerfromtheload.‐ Pressingthetopoftherockerfor15secondswillactivatethe“PowerCut‐off”feature;theloadwillbeturnedoff.‐ ThePowerLEDwillstartblinkingtoindicatethattheloadisdisconnectedandtheswitchisinthePowerCut‐offmode.‐ Whenthe“PowerCut‐off”modeisactivated,theswitchcannotbeturnedonthroughsoftwareandcannotbeturnedonphysically.‐ Pressingthebottomoftherockerfor15secondswillde‐activatethe“PowerCut‐off”mode,andthedevicewillgobacktothenormalstate.Communication:TheBudderflyDualBandOutletsusethepowerlineandradiofrequencytocommunicatewiththe“FacilityController”.Theoutletscanreplytothefollowingcommands:• Join/Disjoingroup“X”:TheoutletwillJoin/Disjointhegroup”X”.Eachoutletcanbeamemberofseveralgroupsatthesametime.• DirectRTCsynchronization:Theoutletcanreceiveacommandtosynchronizeits“RealTimeClock”• GetActualMeasurement:Whentheoutletreceivesa“GetMeasurement”command,itwillsendbacktothefacilitycontrollerastringofdatathatcontains:‐ TheCurrentinAmpere“A”.‐ ThePowerinWatt“W”.‐ ATimestamp.• GetStoredMeasurement:TheoutletwillsendbacktotheFacilityControllerthestoredelectricalmeasurements.• DirectResetCommands:Theoutletcanreceive3typesofresetcommands:‐ HardReset:Thiscommandwillrestartthedevicewithoutaffectinganystoredparameter.‐ DataReset:ThiscommandwilleraseallthemeasurementandRTCdatastoredinthenon‐volatilememory.‐ DisjoinGroup:Thiscommandwillremovethedevicefromallthejoinedgroups.• GroupResetCommands:Theaboveresetcommandscanbedirectedtoagroupofdevicesinsteadofjustonedevice.Specifications:Power:120V‐277VAC/60HzMaximumLoads:o 120VAC,60Hertz:1600WforTungsten,1400WforElectronicballast,800WforStandardballasto 277VAC,60Hertz:3300WforElectronicballast,1200WforStandardballast.NeutralLine:RequiredOperatingTemperature:10oCto+40oCCertification:UL&FCCcertificationisinprogressForindooruseonlyWarranty:BudderflyLLCwarrantstotheoriginalconsumerpurchaserandnotforthebenefitofanyoneelsethatthisproductatthetimeofitssalebyBudderflyisfreeofdefectsinmaterialandworkmanshipundernormalandproperuseforaperiodofthree(3)yearsfromdateofdeliverytoyou.Budderfly’sonlyobligationistocorrectsuchdefectsbyrepairorreplacement,atitsoption,ifwithinsuchthreeyearperiodtheproductisreturnedprepaidviaBudderfly’sReturnedMaterialsAuthorization(RMA)processtoBudderflyLLC,Att:QualityAssuranceDepartment,2TrapFallsRoad,Suite507,Shelton,CT06484.InnocaseisproducttobereturnedwithoutfirstobtaininganRMA.Thiswarrantyexcludesandthereisdisclaimedliabilityforlaborforremovalofthisproductorreinstallation.Thiswarrantyisvoidifthisproductisinstalledimproperlyorinanimproperenvironment,overloaded,misused,opened,abused,oralteredinanymanner,orisnotusedundernormaloperatingconditionsornotinaccordancewithanylabelsorinstructions.Therearenootherorimpliedwarrantiesofanykind,includingmerchantabilityandfitnessforaparticularpurpose,butifanyimpliedwarrantyisrequiredbytheapplicablejurisdiction,thedurationofanysuchimpliedwarrantyisrequiredbytheapplicablejurisdiction,thedurationofanysuchimpliedwarranty,includingmerchantabilityandfitnessforaparticularpurpose,islimitedtothreeyears.Budderflyisnotliableforincidental,indirect,special,orconsequentialdamages,includingwithoutlimitation,damageto,orlossofuseof,anyequipment,lostsalesorprofitsordelayorfailuretoperformthiswarrantyobligation.Budderfly’sliabilityonanyclaimfordamagesarisingoutofinconnectionwiththemanufacture,sales,installationdelivery,oruseoftheproductshallneverexceedthepurchasepriceoftheproduct.Theremediesprovidedhereinaretheexclusiveremediesunderthiswarranty,whetherbasedoncontract,tortorotherwise.WARNING–ELECTRICALSHOCKHAZARD• Neveruseametallicpintopresstheresetbutton.WARNING–ELECTRICALSHOCKHAZARDWhenreplacingtheBulbs,makesuretoenablethe“PowerCut‐off”mode.IfthepowerLEDdoesnotstartblinking,pleaseconsultaqualifiedelectrician.Specificationssubjecttochangewithoutnoticeduetocontinuingproductimprovement

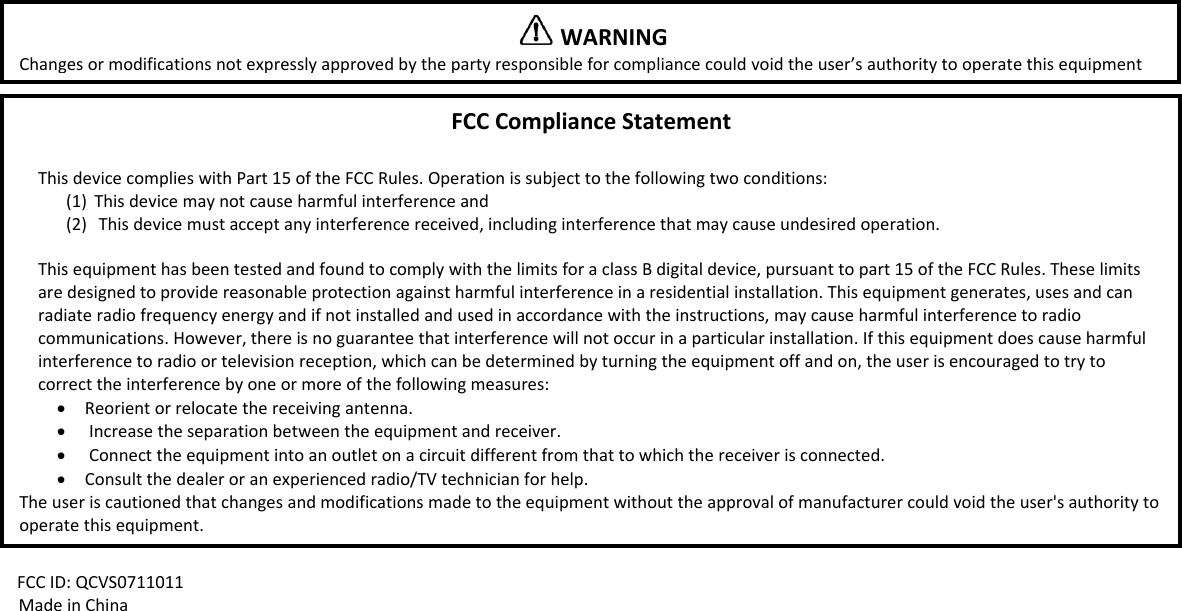

FCCID:QCVS0711011MadeinChinaWARNINGChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipmentFCCComplianceStatementThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterferenceand(2) Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaclassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyandifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:• Reorientorrelocatethereceivingantenna.• Increasetheseparationbetweentheequipmentandreceiver.• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.Theuseriscautionedthatchangesandmodificationsmadetotheequipmentwithouttheapprovalofmanufacturercouldvoidtheuser'sauthoritytooperatethisequipment.
