CDVI WIRELESS S P A DS433 TRANSMITTER ERONE MOD. DS433 User Manual istruzioni FCC

CDVI WIRELESS S.P.A. TRANSMITTER ERONE MOD. DS433 istruzioni FCC

Users Manual

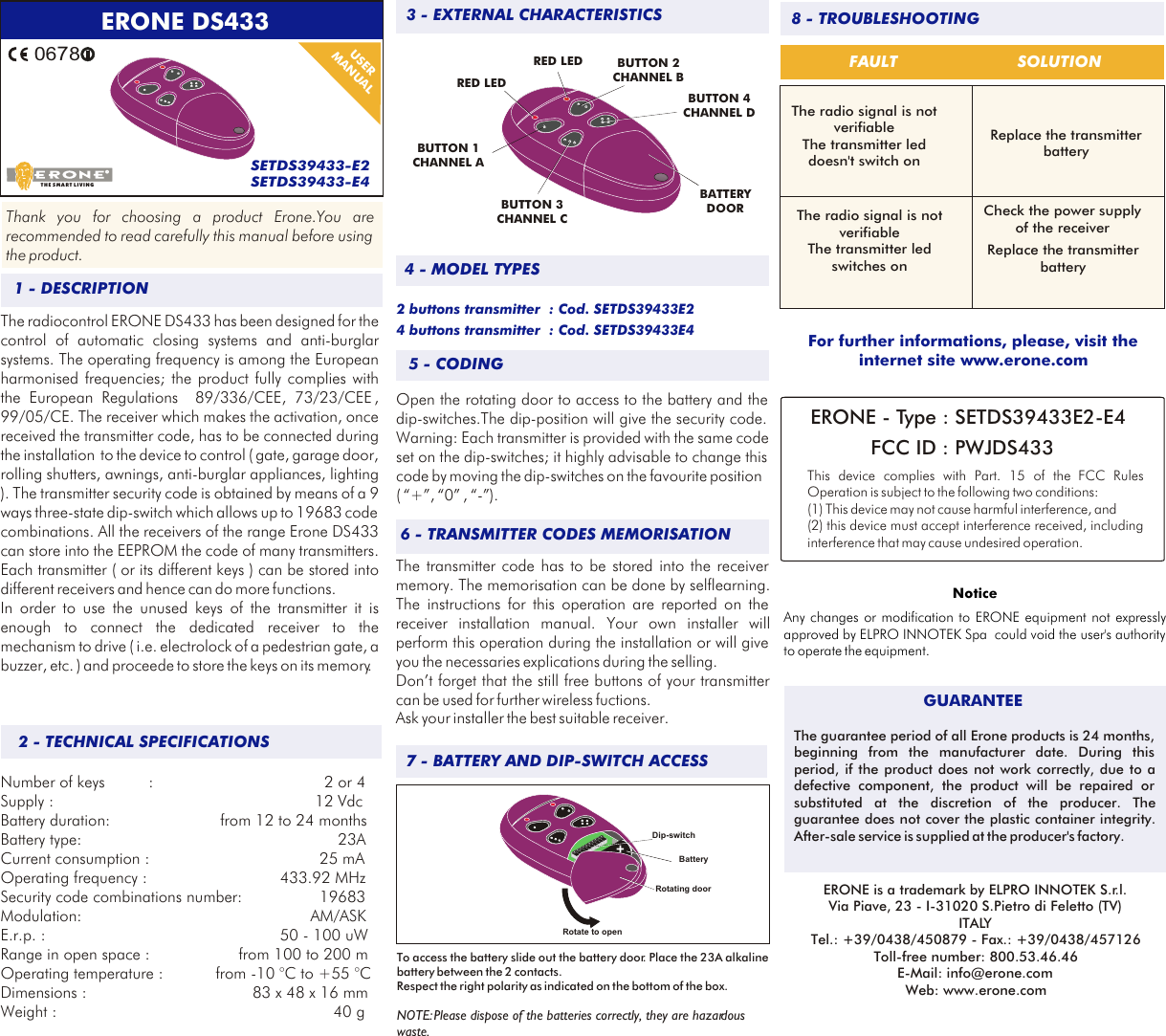

ERONE DS433SETDS39433-E2SETDS39433-E40678USER MANUALThank you for choosing a product Erone.You are recommended to read carefully this manual before using the product.The radiocontrol ERONE DS433 has been designed for the control of automatic closing systems and anti-burglar systems. The operating frequency is among the European harmonised frequencies; the product fully complies with the European Regulations 89/336/CEE, 73/23/CEE , 99/05/CE. The receiver which makes the activation, once received the transmitter code, has to be connected during the installation to the device to control ( gate, garage door, rolling shutters, awnings, anti-burglar appliances, lighting ). The transmitter security code is obtained by means of a 9 ways three-state dip-switch which allows up to 19683 code combinations. All the receivers of the range Erone DS433 can store into the EEPROM the code of many transmitters. Each transmitter ( or its different keys ) can be stored into different receivers and hence can do more functions. In order to use the unused keys of the transmitter it is enough to connect the dedicated receiver to the mechanism to drive ( i.e. electrolock of a pedestrian gate, a buzzer, etc. ) and proceede to store the keys on its memory. Number of keys : 2 or 4Supply : 12 VdcBattery duration: from 12 to 24 monthsBattery type: 23ACurrent consumption : 25 mAOperating frequency : 433.92 MHzSecurity code combinations number: 19683Modulation: AM/ASKE.r.p. : 50 - 100 uWRange in open space : from 100 to 200 mOperating temperature : from -10 °C to +55 °CDimensions : 83 x 48 x 16 mmWeight : 40 gBUTTON 1 CHANNEL ARED LEDRED LEDBATTERYDOORBUTTON 2 CHANNEL BBUTTON 4 CHANNEL DBUTTON 3 CHANNEL C5 - CODING2 buttons transmitter : Cod. SETDS39433E2 4 buttons transmitter : Cod. SETDS39433E4Open the rotating door to access to the battery and the dip-switches.The dip-position will give the security code. Warning: Each transmitter is provided with the same code set on the dip-switches; it highly advisable to change this code by moving the dip-switches on the favourite position ( “+”, “0” , “-”).The transmitter code has to be stored into the receiver memory. The memorisation can be done by selflearning. The instructions for this operation are reported on the receiver installation manual. Your own installer will perform this operation during the installation or will give you the necessaries explications during the selling.Don’t forget that the still free buttons of your transmitter can be used for further wireless fuctions.Ask your installer the best suitable receiver.6 - TRANSMITTER CODES MEMORISATION7 - BATTERY AND DIP-SWITCH ACCESS8 - TROUBLESHOOTINGFAULTThe radio signal is notverifiableThe transmitter led doesn't switch on The radio signal is notverifiableThe transmitter led switches on For further informations, please, visit the internet site www.erone.comThe guarantee period of all Erone products is 24 months, beginning from the manufacturer date. During this period, if the product does not work correctly, due to a defective component, the product will be repaired or substituted at the discretion of the producer. The guarantee does not cover the plastic container integrity. After-sale service is supplied at the producer's factory.GUARANTEEERONE is a trademark by ELPRO INNOTEK S.r.l.Via Piave, 23 - I-31020 S.Pietro di Feletto (TV)ITALYTel.: +39/0438/450879 - Fax.: +39/0438/457126Toll-free number: 800.53.46.46E-Mail: info@erone.comWeb: www.erone.comSOLUTIONReplace the transmitter batteryCheck the power supply of the receiver Replace the transmitter battery3 - EXTERNAL CHARACTERISTICS1 - DESCRIPTION2 - TECHNICAL SPECIFICATIONS4 - MODEL TYPESERONE - Type : SETDS39433E2-E4 FCC ID : PWJDS433This device complies with FCC Rules Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.Part. 15 of the THE SMART LIVINGNoticeAny changes or modification to ERONE equipment not expressly approved by ELPRO INNOTEK Spa could void the user's authority to operate the equipment.To access the battery slide out the battery door. Place the 23A alkaline battery between the 2 contacts.Respect the right polarity as indicated on the bottom of the box.NOTE: Please dispose of the batteries correctly, they are hazardous waste.BatteryRotating doorDip-switchRotate to open
