CONTINENTAL AUTOMOTIVE RAMBOUILLET FRANCES NACEUR3 Multimedia System User Manual

CONTINENTAL AUTOMOTIVE RAMBOUILLET FRANCE SAS Multimedia System

User Manual

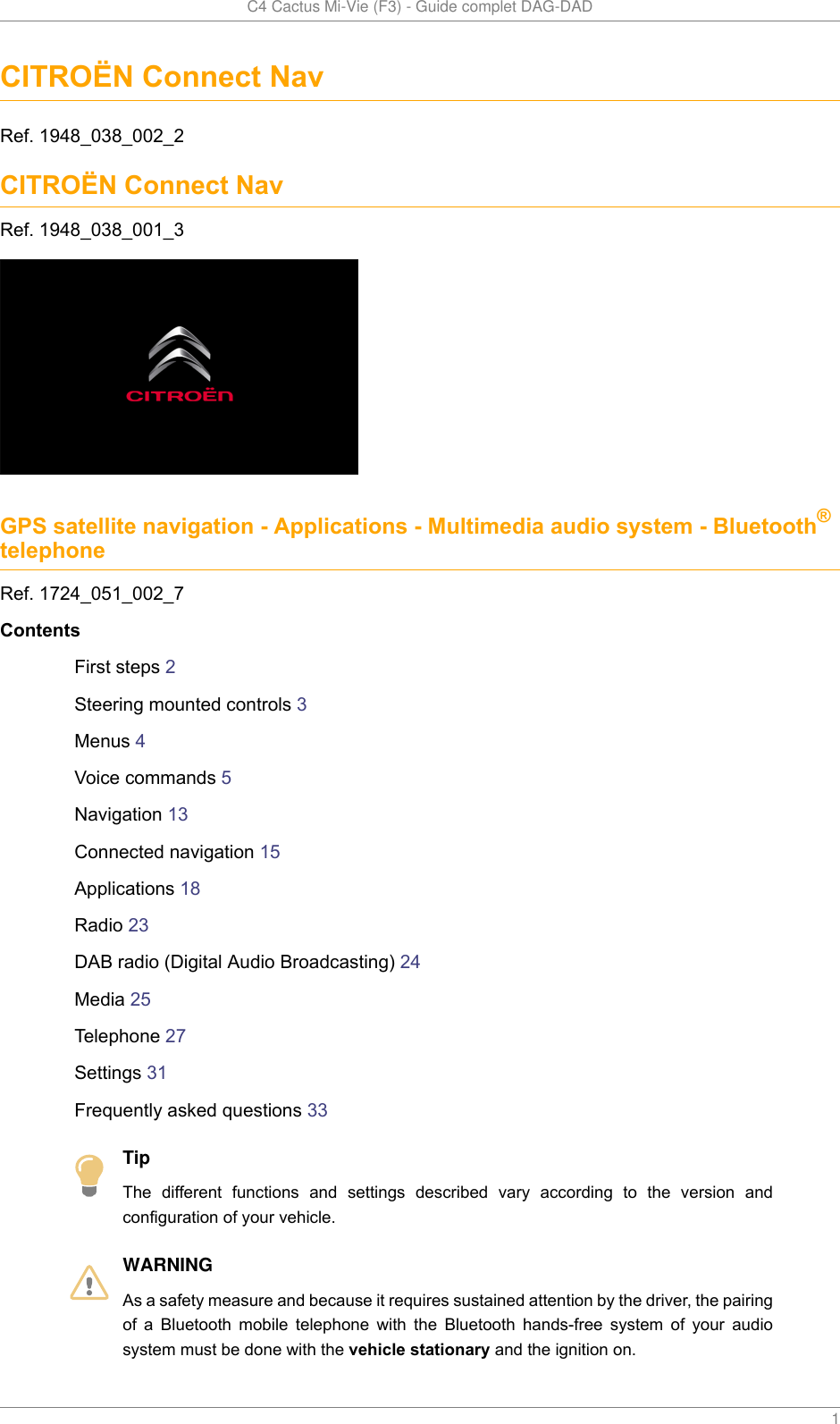

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 1CITROËN Connect NavRef. 1948_038_002_2CITROËN Connect NavRef. 1948_038_001_3GPS satellite navigation - Applications - Multimedia audio system - Bluetooth®telephoneRef. 1724_051_002_7ContentsFirst steps 2Steering mounted controls 3Menus 4Voice commands 5Navigation 13Connected navigation 15Applications 18Radio 23DAB radio (Digital Audio Broadcasting) 24Media 25Telephone 27Settings 31Frequently asked questions 33TipThe different functions and settings described vary according to the version andconfiguration of your vehicle.WARNINGAs a safety measure and because it requires sustained attention by the driver, the pairingof a Bluetooth mobile telephone with the Bluetooth hands-free system of your audiosystem must be done with the vehicle stationary and the ignition on.

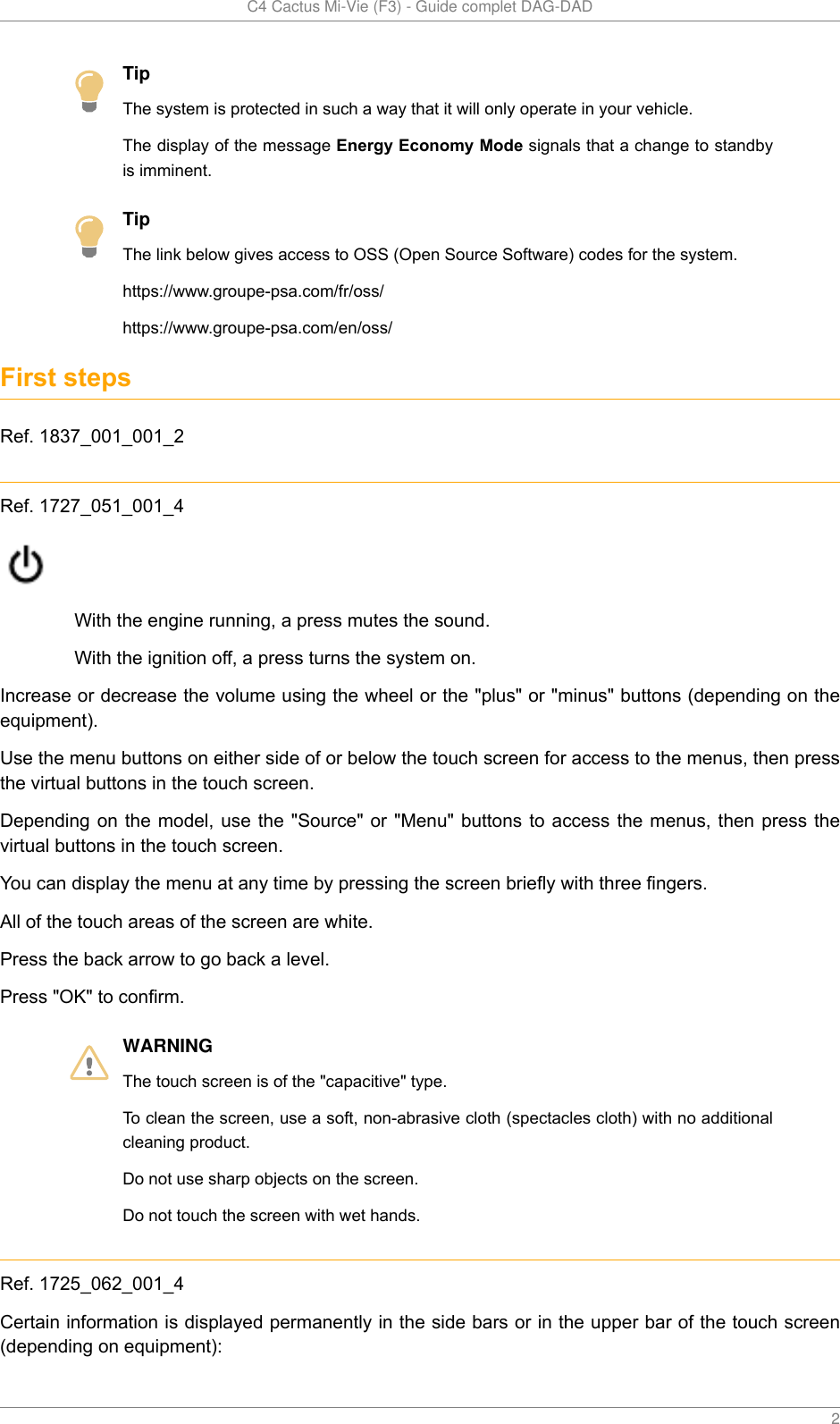

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 2TipThe system is protected in such a way that it will only operate in your vehicle.The display of the message Energy Economy Mode signals that a change to standbyis imminent.TipThe link below gives access to OSS (Open Source Software) codes for the system.https://www.groupe-psa.com/fr/oss/https://www.groupe-psa.com/en/oss/First stepsRef. 1837_001_001_2Ref. 1727_051_001_4With the engine running, a press mutes the sound.With the ignition off, a press turns the system on.Increase or decrease the volume using the wheel or the "plus" or "minus" buttons (depending on theequipment).Use the menu buttons on either side of or below the touch screen for access to the menus, then pressthe virtual buttons in the touch screen.Depending on the model, use the "Source" or "Menu" buttons to access the menus, then press thevirtual buttons in the touch screen.You can display the menu at any time by pressing the screen briefly with three fingers.All of the touch areas of the screen are white.Press the back arrow to go back a level.Press "OK" to confirm.WARNINGThe touch screen is of the "capacitive" type.To clean the screen, use a soft, non-abrasive cloth (spectacles cloth) with no additionalcleaning product.Do not use sharp objects on the screen.Do not touch the screen with wet hands.Ref. 1725_062_001_4Certain information is displayed permanently in the side bars or in the upper bar of the touch screen(depending on equipment):
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 3- Reminder of the air conditioning information (depending on version), and direct access to thecorresponding menu.- Go directly to the selection of the audio source, to the list of radio stations (or list of titles dependingon the source).- Go to the "Notifications" of messages, emails, map updates and, depending on the services, thenavigation notifications.- Go to the settings for the touch screen and the digital instrument panel.Selecting the sound source (depending on equipment):- FM / DAB / AM radio stations (depending on equipment).- Telephone connected via Bluetooth and multimedia broadcast Bluetooth (streaming).- USB memory stick.- Media player connected via the auxiliary socket (depending on equipment).- CD Player (depending on equipment).- Video (depending on equipment).TipIn the "Settings" menu you can create a profile for just one person or a group of peoplewith shared interests, with the possibility of entering multiple settings (radio presets, audiosettings, navigation history, contact favourites, etc.); these settings are taken into accountautomatically.TipIn very hot conditions, the volume may be limited to protect the system. It may go intostandby (screen and sound off) for at least 5 minutesThe return to normal takes place when the temperature in the passenger compartmenthas dropped.

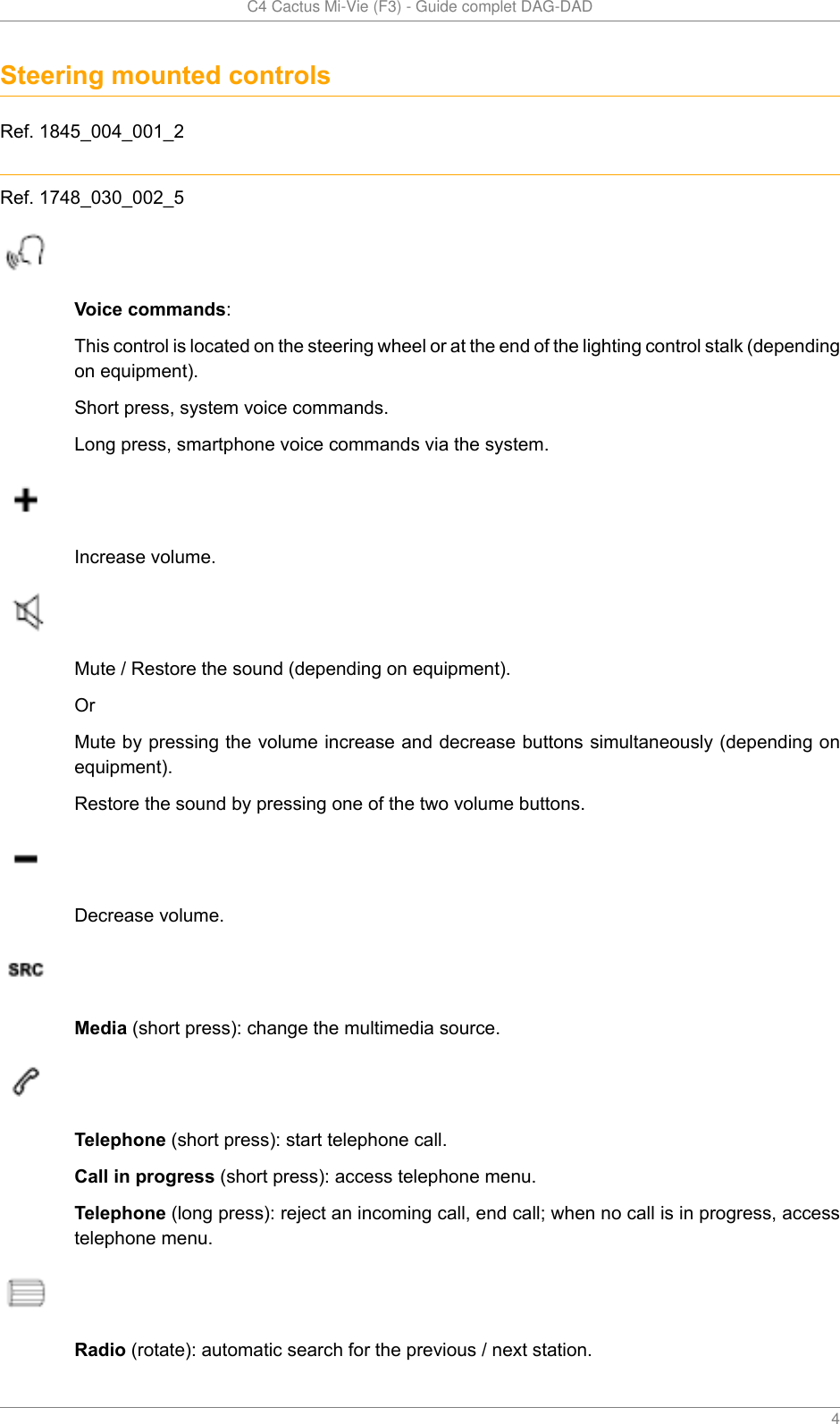

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 4Steering mounted controlsRef. 1845_004_001_2Ref. 1748_030_002_5Voice commands:This control is located on the steering wheel or at the end of the lighting control stalk (dependingon equipment).Short press, system voice commands.Long press, smartphone voice commands via the system.Increase volume.Mute / Restore the sound (depending on equipment).OrMute by pressing the volume increase and decrease buttons simultaneously (depending onequipment).Restore the sound by pressing one of the two volume buttons.Decrease volume.Media (short press): change the multimedia source.Telephone (short press): start telephone call.Call in progress (short press): access telephone menu.Telephone (long press): reject an incoming call, end call; when no call is in progress, accesstelephone menu.Radio (rotate): automatic search for the previous / next station.

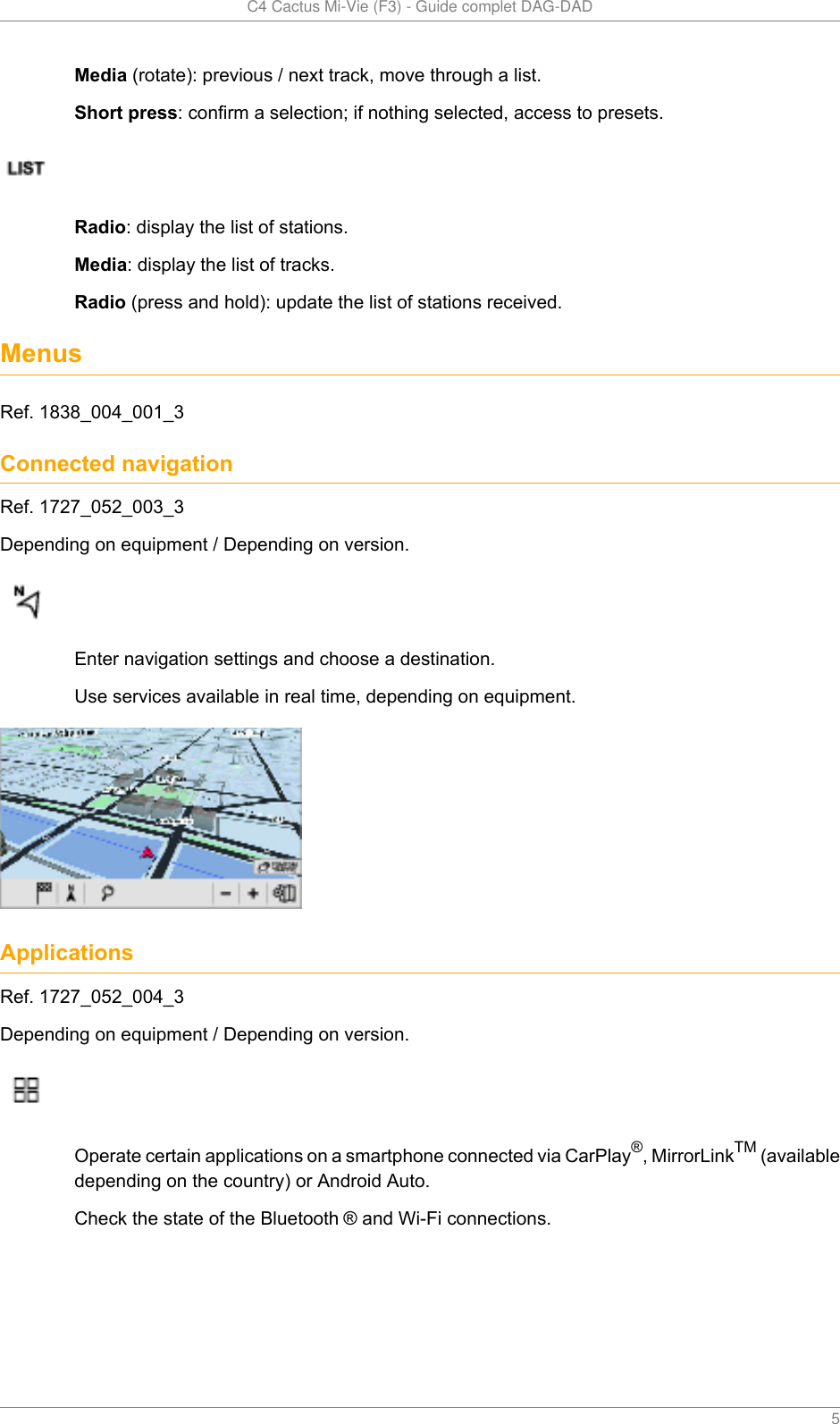

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 5Media (rotate): previous / next track, move through a list.Short press: confirm a selection; if nothing selected, access to presets.Radio: display the list of stations.Media: display the list of tracks.Radio (press and hold): update the list of stations received.MenusRef. 1838_004_001_3Connected navigationRef. 1727_052_003_3Depending on equipment / Depending on version.Enter navigation settings and choose a destination.Use services available in real time, depending on equipment.ApplicationsRef. 1727_052_004_3Depending on equipment / Depending on version.Operate certain applications on a smartphone connected via CarPlay®, MirrorLinkTM (availabledepending on the country) or Android Auto.Check the state of the Bluetooth ® and Wi-Fi connections.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 6Radio MediaRef. 1727_052_005_3Depending on equipment / Depending on version.Select an audio source, a radio station, display photographs.TelephoneRef. 1727_052_006_3Depending on equipment / Depending on version.Connect a telephone via Bluetooth®, read messages and emails and send quick messages.SettingsRef. 1727_052_007_3Depending on equipment / Depending on version.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 7Configure a personal profile and/or configure the sound (balance, ambience, etc.) and thedisplay (language, units, date, time, etc.).VehicleRef. 1727_052_008_3Depending on equipment / Depending on version.Activate, deactivate or configure certain vehicle functions.Air conditioningRef. 1727_052_002_2Depending on equipment / Depending on version.Manage the different temperature and air flow settings.Voice commands

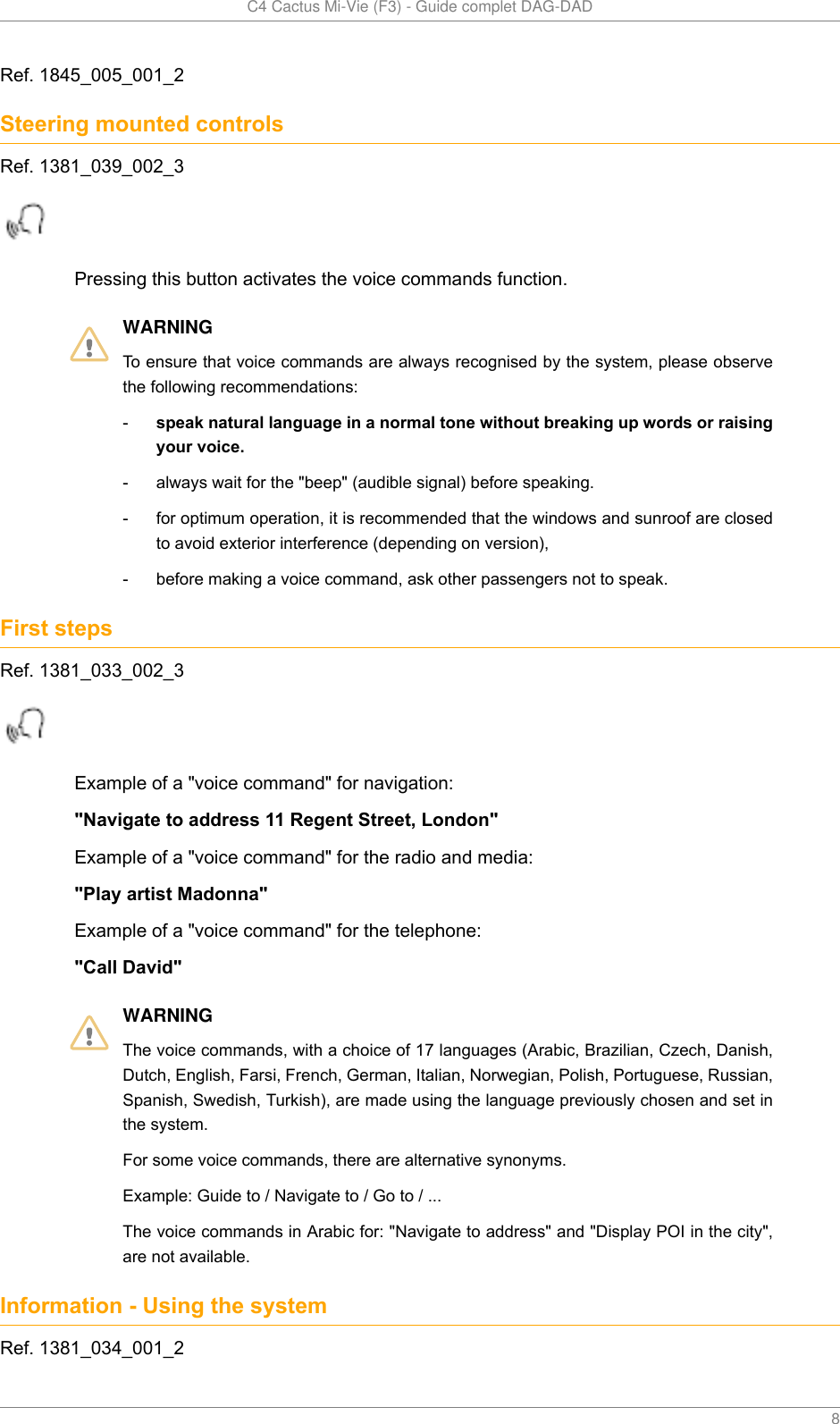

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 8Ref. 1845_005_001_2Steering mounted controlsRef. 1381_039_002_3Pressing this button activates the voice commands function.WARNINGTo ensure that voice commands are always recognised by the system, please observethe following recommendations:-speak natural language in a normal tone without breaking up words or raisingyour voice.- always wait for the "beep" (audible signal) before speaking.- for optimum operation, it is recommended that the windows and sunroof are closedto avoid exterior interference (depending on version),- before making a voice command, ask other passengers not to speak.First stepsRef. 1381_033_002_3Example of a "voice command" for navigation:"Navigate to address 11 Regent Street, London"Example of a "voice command" for the radio and media:"Play artist Madonna"Example of a "voice command" for the telephone:"Call David"WARNINGThe voice commands, with a choice of 17 languages (Arabic, Brazilian, Czech, Danish,Dutch, English, Farsi, French, German, Italian, Norwegian, Polish, Portuguese, Russian,Spanish, Swedish, Turkish), are made using the language previously chosen and set inthe system.For some voice commands, there are alternative synonyms.Example: Guide to / Navigate to / Go to / ...The voice commands in Arabic for: "Navigate to address" and "Display POI in the city",are not available.Information - Using the systemRef. 1381_034_001_2

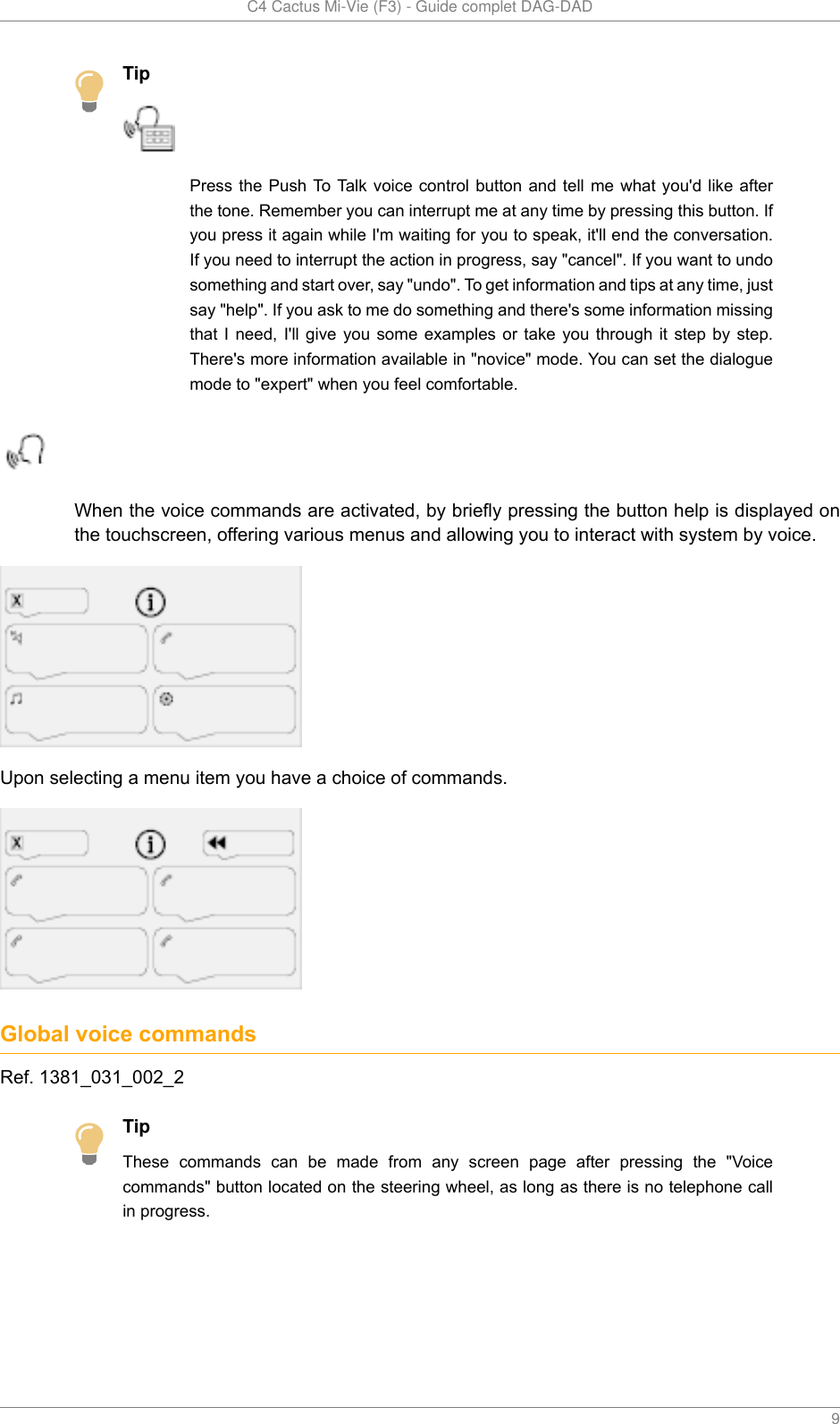

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 9TipPress the Push To Talk voice control button and tell me what you'd like afterthe tone. Remember you can interrupt me at any time by pressing this button. Ifyou press it again while I'm waiting for you to speak, it'll end the conversation.If you need to interrupt the action in progress, say "cancel". If you want to undosomething and start over, say "undo". To get information and tips at any time, justsay "help". If you ask to me do something and there's some information missingthat I need, I'll give you some examples or take you through it step by step.There's more information available in "novice" mode. You can set the dialoguemode to "expert" when you feel comfortable.When the voice commands are activated, by briefly pressing the button help is displayed onthe touchscreen, offering various menus and allowing you to interact with system by voice.Upon selecting a menu item you have a choice of commands.Global voice commandsRef. 1381_031_002_2TipThese commands can be made from any screen page after pressing the "Voicecommands" button located on the steering wheel, as long as there is no telephone callin progress.

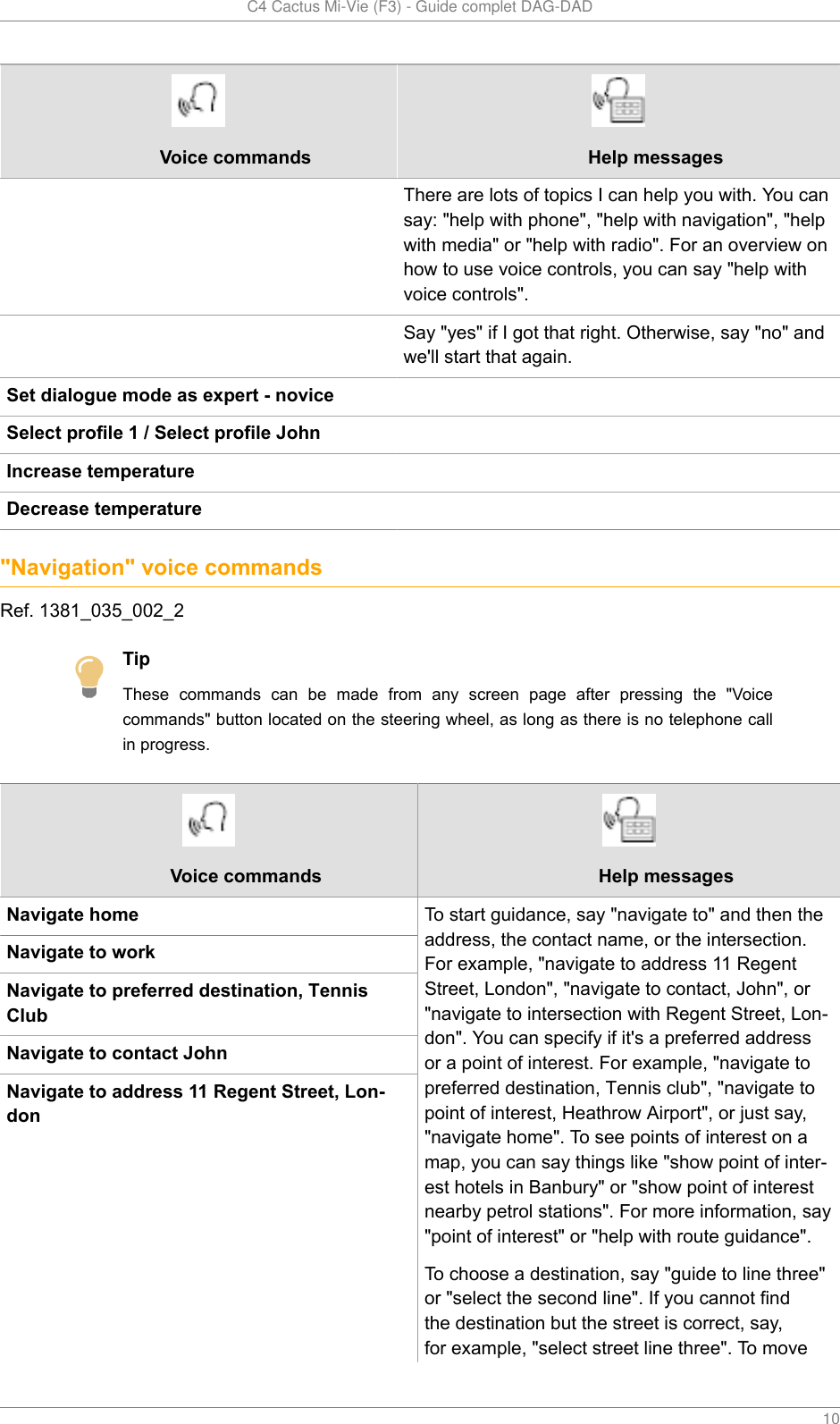

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 10Voice commands Help messages There are lots of topics I can help you with. You cansay: "help with phone", "help with navigation", "helpwith media" or "help with radio". For an overview onhow to use voice controls, you can say "help withvoice controls". Say "yes" if I got that right. Otherwise, say "no" andwe'll start that again.Set dialogue mode as expert - novice Select profile 1 / Select profile John Increase temperature Decrease temperature "Navigation" voice commandsRef. 1381_035_002_2TipThese commands can be made from any screen page after pressing the "Voicecommands" button located on the steering wheel, as long as there is no telephone callin progress.Voice commands Help messagesNavigate homeNavigate to workNavigate to preferred destination, TennisClubNavigate to contact JohnNavigate to address 11 Regent Street, Lon-donTo start guidance, say "navigate to" and then theaddress, the contact name, or the intersection.For example, "navigate to address 11 RegentStreet, London", "navigate to contact, John", or"navigate to intersection with Regent Street, Lon-don". You can specify if it's a preferred addressor a point of interest. For example, "navigate topreferred destination, Tennis club", "navigate topoint of interest, Heathrow Airport", or just say,"navigate home". To see points of interest on amap, you can say things like "show point of inter-est hotels in Banbury" or "show point of interestnearby petrol stations". For more information, say"point of interest" or "help with route guidance".To choose a destination, say "guide to line three"or "select the second line". If you cannot findthe destination but the street is correct, say,for example, "select street line three". To move

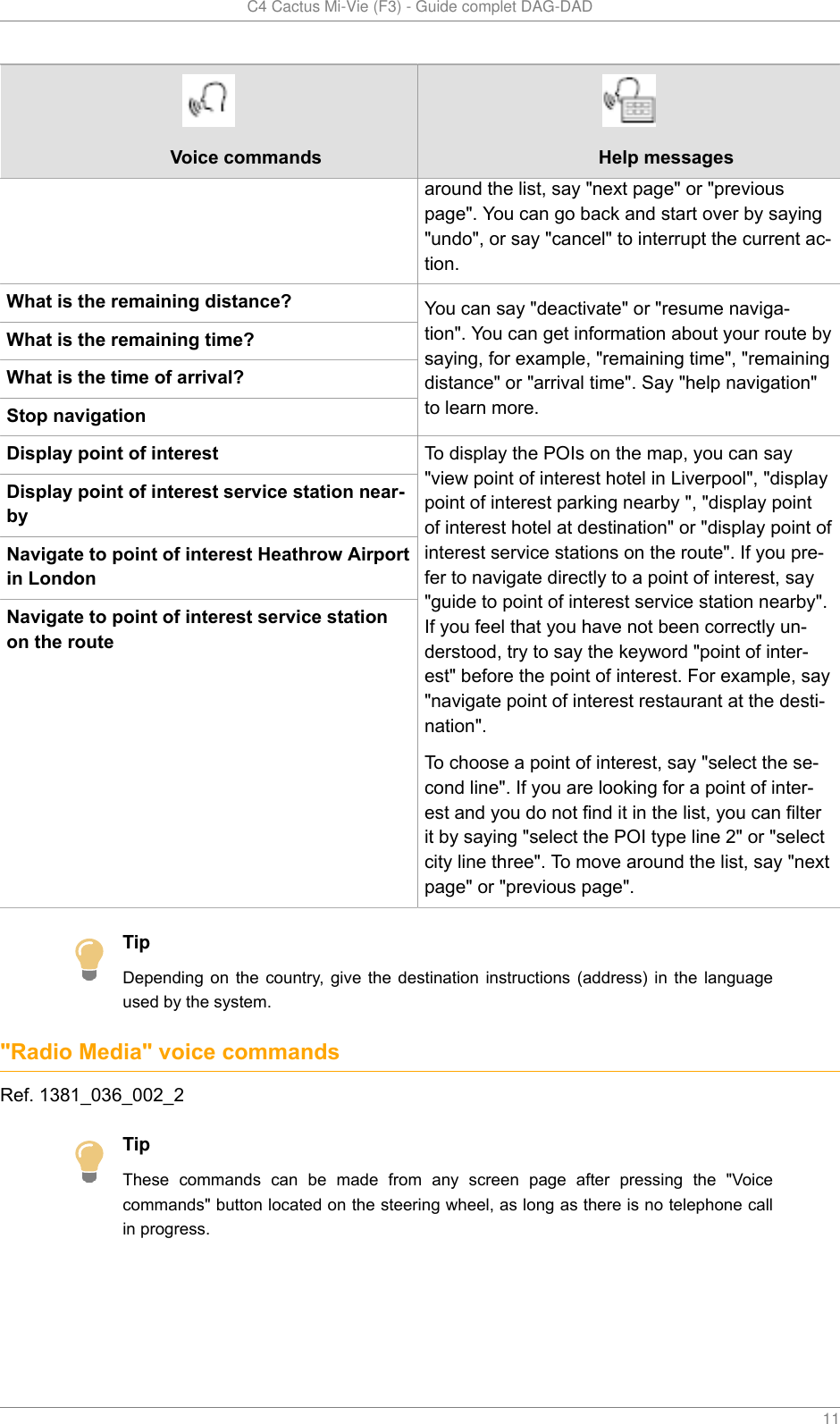

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 11Voice commands Help messagesaround the list, say "next page" or "previouspage". You can go back and start over by saying"undo", or say "cancel" to interrupt the current ac-tion.What is the remaining distance?What is the remaining time?What is the time of arrival?Stop navigationYou can say "deactivate" or "resume naviga-tion". You can get information about your route bysaying, for example, "remaining time", "remainingdistance" or "arrival time". Say "help navigation"to learn more.Display point of interestDisplay point of interest service station near-byNavigate to point of interest Heathrow Airportin LondonNavigate to point of interest service stationon the routeTo display the POIs on the map, you can say"view point of interest hotel in Liverpool", "displaypoint of interest parking nearby ", "display pointof interest hotel at destination" or "display point ofinterest service stations on the route". If you pre-fer to navigate directly to a point of interest, say"guide to point of interest service station nearby".If you feel that you have not been correctly un-derstood, try to say the keyword "point of inter-est" before the point of interest. For example, say"navigate point of interest restaurant at the desti-nation".To choose a point of interest, say "select the se-cond line". If you are looking for a point of inter-est and you do not find it in the list, you can filterit by saying "select the POI type line 2" or "selectcity line three". To move around the list, say "nextpage" or "previous page".TipDepending on the country, give the destination instructions (address) in the languageused by the system."Radio Media" voice commandsRef. 1381_036_002_2TipThese commands can be made from any screen page after pressing the "Voicecommands" button located on the steering wheel, as long as there is no telephone callin progress.

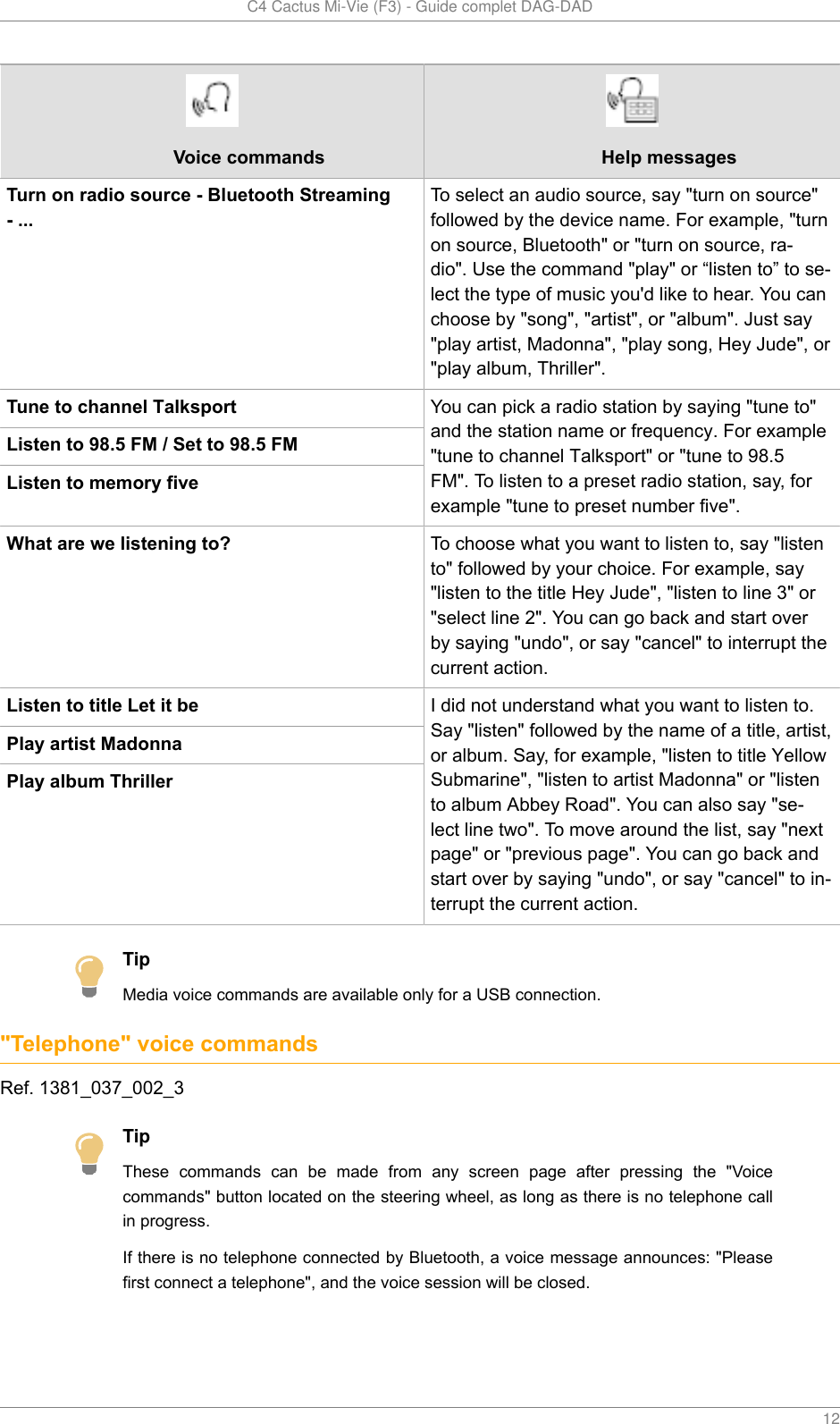

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 12Voice commands Help messagesTurn on radio source - Bluetooth Streaming- ...To select an audio source, say "turn on source"followed by the device name. For example, "turnon source, Bluetooth" or "turn on source, ra-dio". Use the command "play" or “listen to” to se-lect the type of music you'd like to hear. You canchoose by "song", "artist", or "album". Just say"play artist, Madonna", "play song, Hey Jude", or"play album, Thriller".Tune to channel TalksportListen to 98.5 FM / Set to 98.5 FMListen to memory fiveYou can pick a radio station by saying "tune to"and the station name or frequency. For example"tune to channel Talksport" or "tune to 98.5FM". To listen to a preset radio station, say, forexample "tune to preset number five".What are we listening to? To choose what you want to listen to, say "listento" followed by your choice. For example, say"listen to the title Hey Jude", "listen to line 3" or"select line 2". You can go back and start overby saying "undo", or say "cancel" to interrupt thecurrent action.Listen to title Let it bePlay artist MadonnaPlay album ThrillerI did not understand what you want to listen to.Say "listen" followed by the name of a title, artist,or album. Say, for example, "listen to title YellowSubmarine", "listen to artist Madonna" or "listento album Abbey Road". You can also say "se-lect line two". To move around the list, say "nextpage" or "previous page". You can go back andstart over by saying "undo", or say "cancel" to in-terrupt the current action.TipMedia voice commands are available only for a USB connection."Telephone" voice commandsRef. 1381_037_002_3TipThese commands can be made from any screen page after pressing the "Voicecommands" button located on the steering wheel, as long as there is no telephone callin progress.If there is no telephone connected by Bluetooth, a voice message announces: "Pleasefirst connect a telephone", and the voice session will be closed.

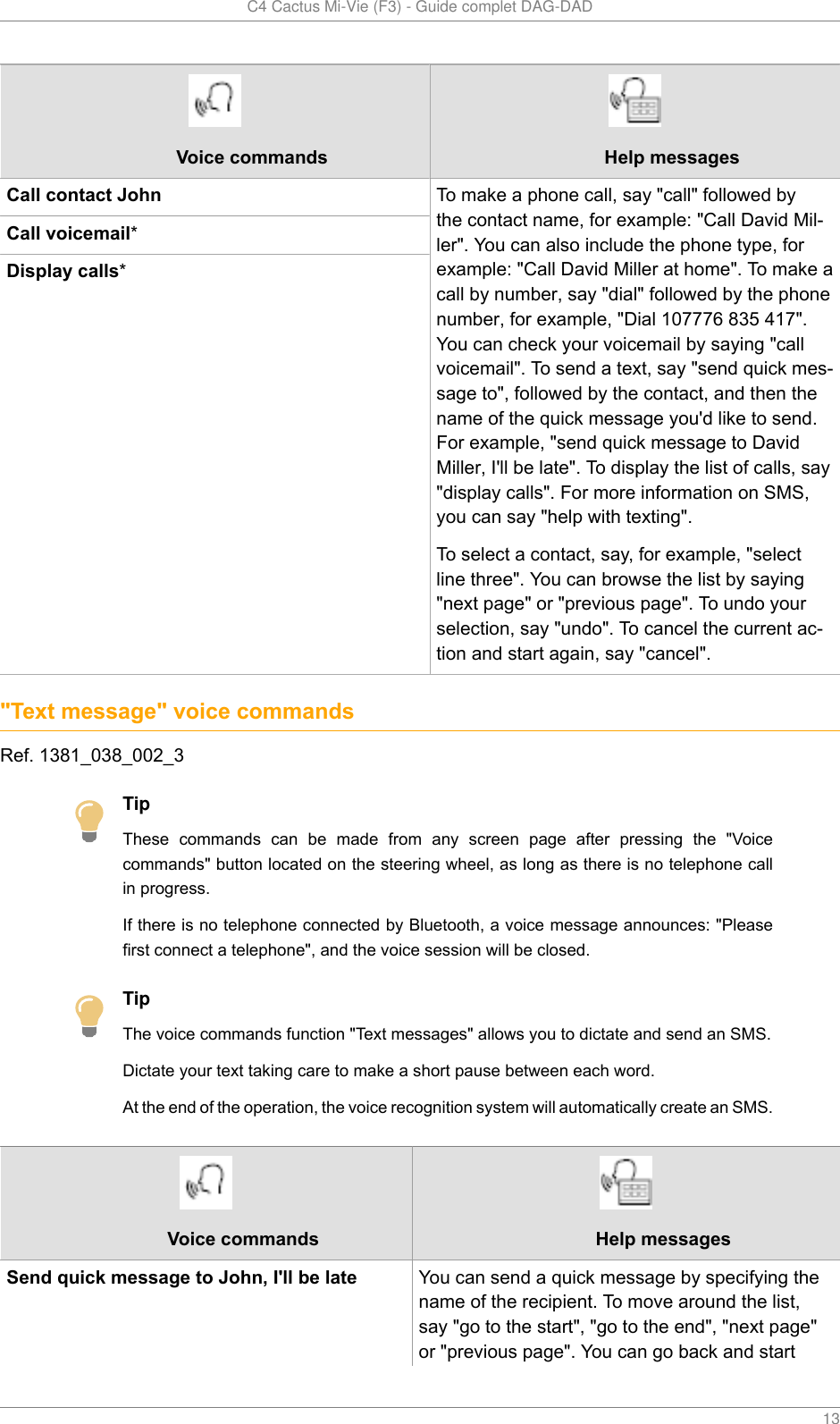

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 13Voice commands Help messagesCall contact JohnCall voicemail*Display calls*To make a phone call, say "call" followed bythe contact name, for example: "Call David Mil-ler". You can also include the phone type, forexample: "Call David Miller at home". To make acall by number, say "dial" followed by the phonenumber, for example, "Dial 107776 835 417".You can check your voicemail by saying "callvoicemail". To send a text, say "send quick mes-sage to", followed by the contact, and then thename of the quick message you'd like to send.For example, "send quick message to DavidMiller, I'll be late". To display the list of calls, say"display calls". For more information on SMS,you can say "help with texting".To select a contact, say, for example, "selectline three". You can browse the list by saying"next page" or "previous page". To undo yourselection, say "undo". To cancel the current ac-tion and start again, say "cancel"."Text message" voice commandsRef. 1381_038_002_3TipThese commands can be made from any screen page after pressing the "Voicecommands" button located on the steering wheel, as long as there is no telephone callin progress.If there is no telephone connected by Bluetooth, a voice message announces: "Pleasefirst connect a telephone", and the voice session will be closed.TipThe voice commands function "Text messages" allows you to dictate and send an SMS.Dictate your text taking care to make a short pause between each word.At the end of the operation, the voice recognition system will automatically create an SMS.Voice commands Help messagesSend quick message to John, I'll be late You can send a quick message by specifying thename of the recipient. To move around the list,say "go to the start", "go to the end", "next page"or "previous page". You can go back and start

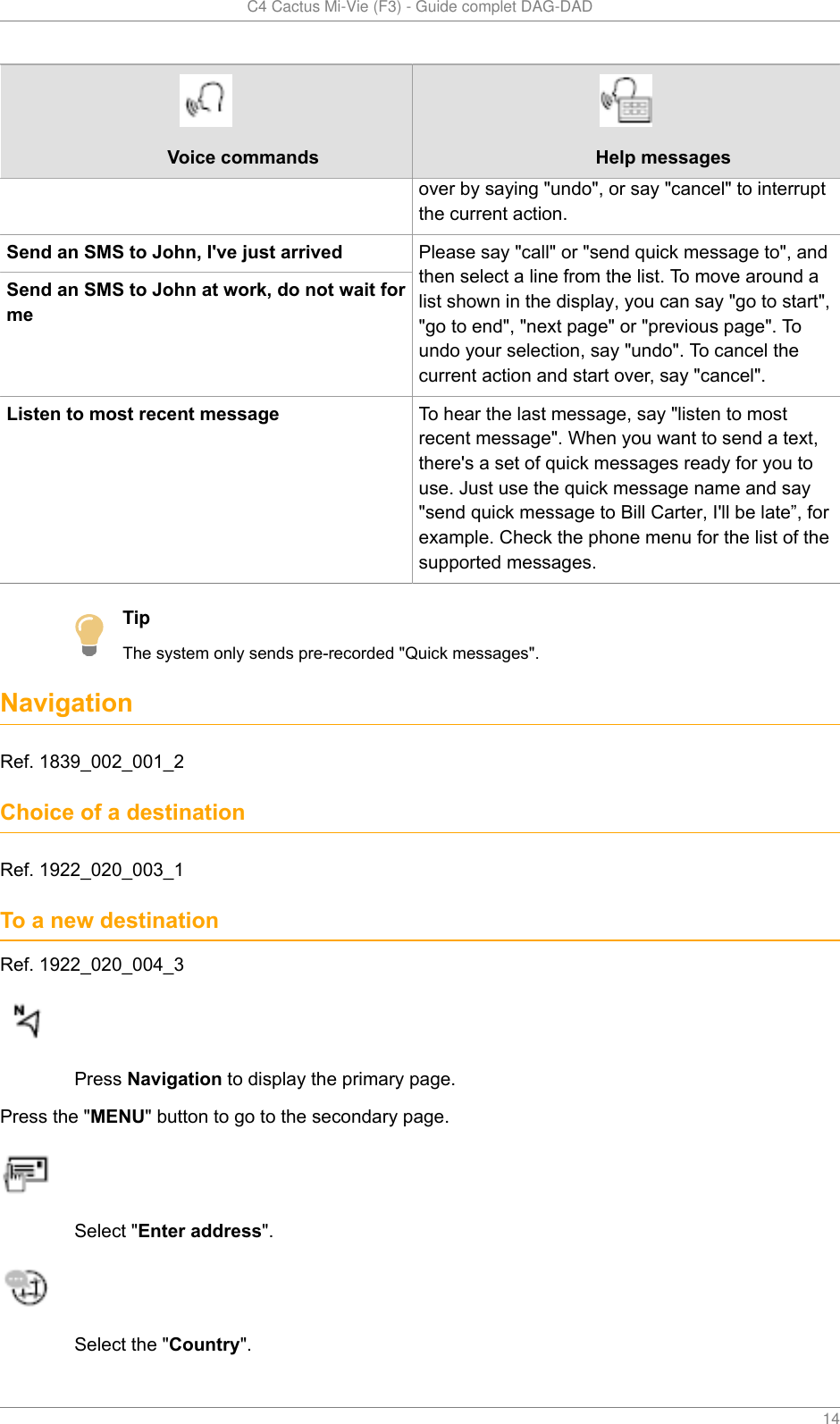

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 14Voice commands Help messagesover by saying "undo", or say "cancel" to interruptthe current action.Send an SMS to John, I've just arrivedSend an SMS to John at work, do not wait formePlease say "call" or "send quick message to", andthen select a line from the list. To move around alist shown in the display, you can say "go to start","go to end", "next page" or "previous page". Toundo your selection, say "undo". To cancel thecurrent action and start over, say "cancel".Listen to most recent message To hear the last message, say "listen to mostrecent message". When you want to send a text,there's a set of quick messages ready for you touse. Just use the quick message name and say"send quick message to Bill Carter, I'll be late”, forexample. Check the phone menu for the list of thesupported messages.TipThe system only sends pre-recorded "Quick messages".NavigationRef. 1839_002_001_2Choice of a destinationRef. 1922_020_003_1To a new destinationRef. 1922_020_004_3Press Navigation to display the primary page.Press the "MENU" button to go to the secondary page.Select "Enter address".Select the "Country".
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 15Enter the "City", the "Street" and the "Number" and confirm by pressing on the suggestionsdisplayed.Press "OK" to select the "Guidance criteria".And / OrSelect "See on map" to select the "Guidance criteria".Press "OK" to start navigation.TipZoom out / zoom in using the touch buttons or with two fingers on the screen.TipIn order to be able to use the navigation, it is necessary to fill in the "City", the "Street"and the "Number" on the virtual keyboard or take it from the list in "Contact" or in the"History" of addresses.TipWithout confirmation of the street number, you will be guided to one end of the street.To a recent destinationRef. 1922_021_002_3Press Navigation to display the primary page.Press the "MENU" button to go to the secondary page.Select "My destinations".Select the "Recent" tab.Select the address chosen in the list to display the "Guidance criteria.

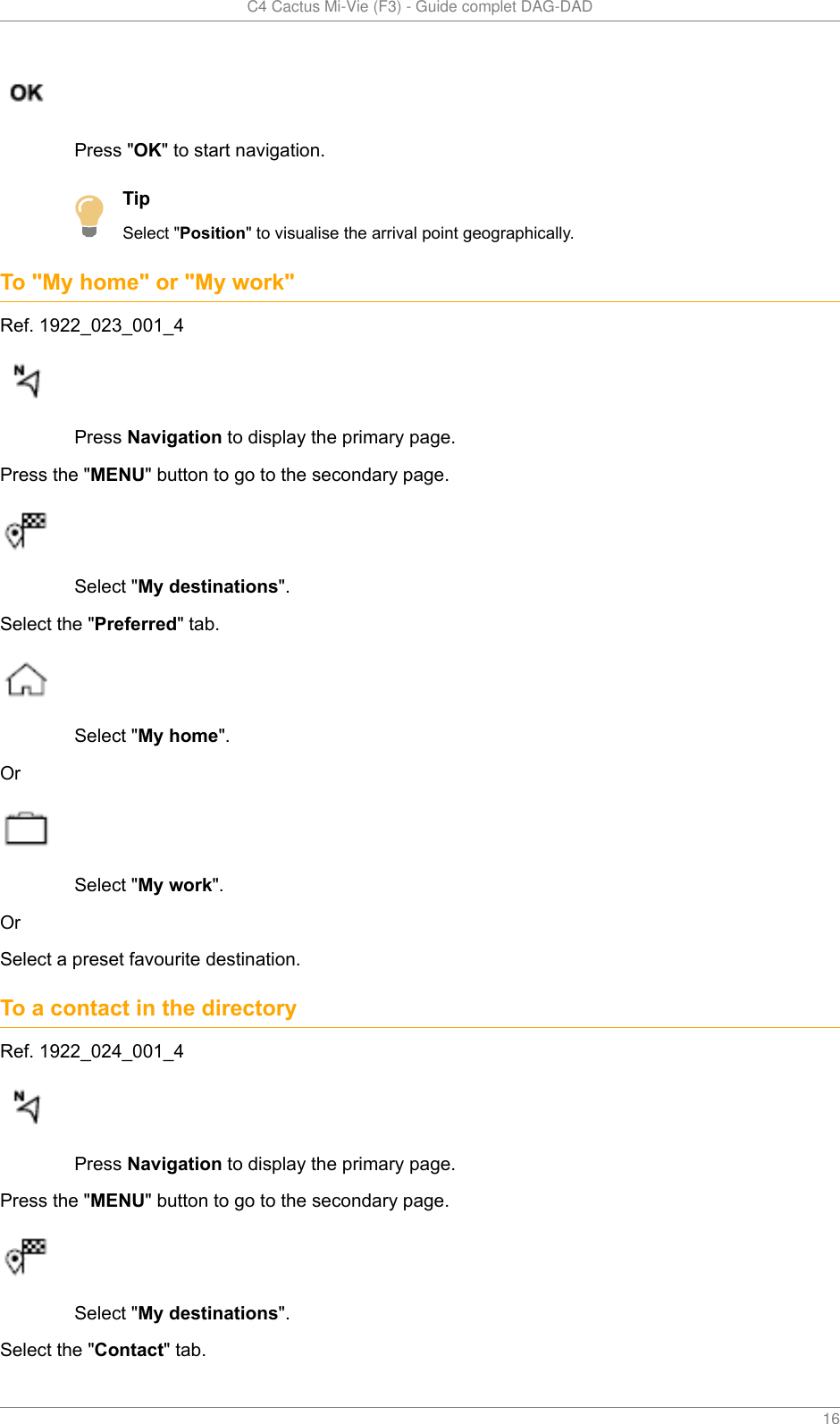

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 16Press "OK" to start navigation.TipSelect "Position" to visualise the arrival point geographically.To "My home" or "My work"Ref. 1922_023_001_4Press Navigation to display the primary page.Press the "MENU" button to go to the secondary page.Select "My destinations".Select the "Preferred" tab.Select "My home".OrSelect "My work".OrSelect a preset favourite destination.To a contact in the directoryRef. 1922_024_001_4Press Navigation to display the primary page.Press the "MENU" button to go to the secondary page.Select "My destinations".Select the "Contact" tab.

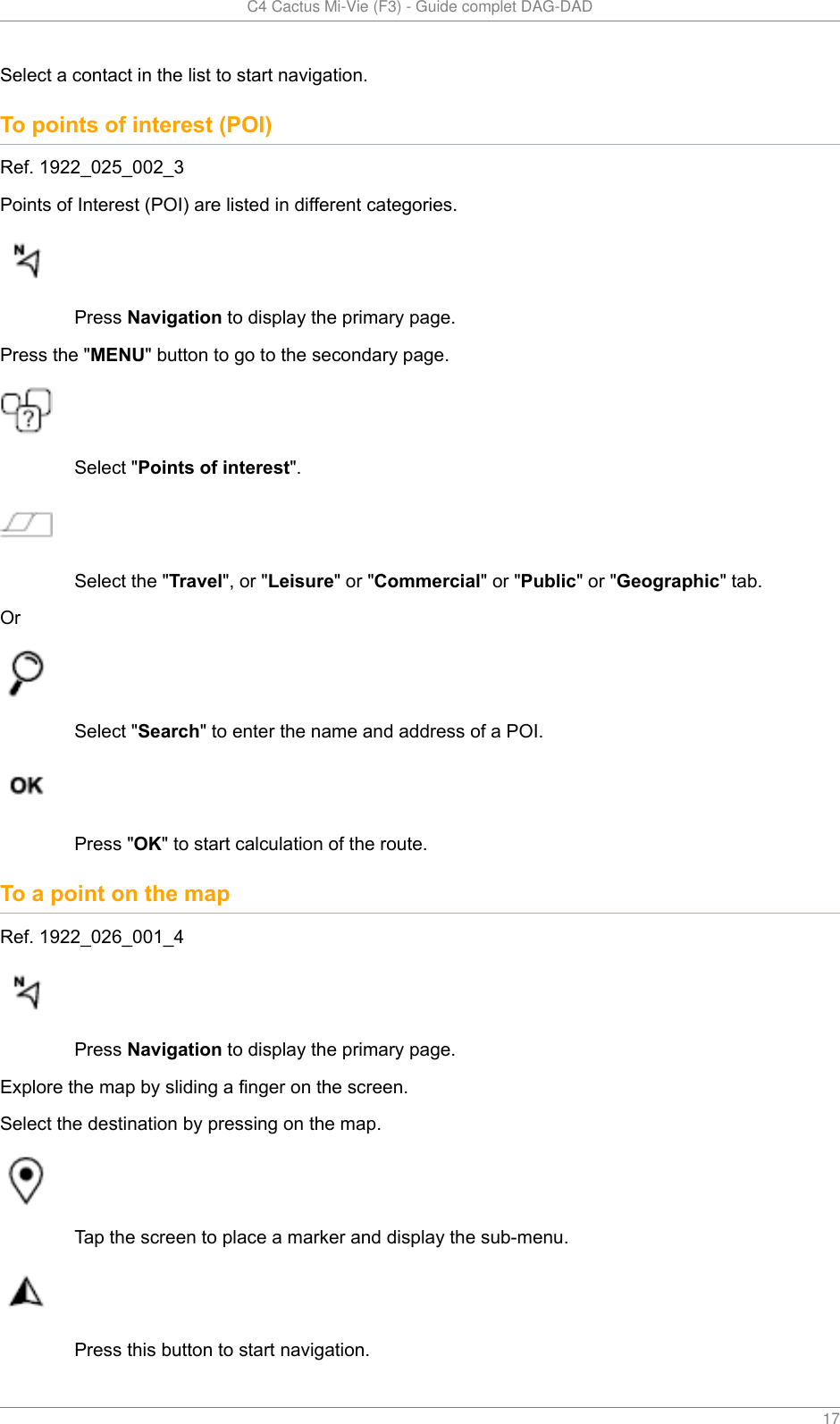

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 17Select a contact in the list to start navigation.To points of interest (POI)Ref. 1922_025_002_3Points of Interest (POI) are listed in different categories.Press Navigation to display the primary page.Press the "MENU" button to go to the secondary page.Select "Points of interest".Select the "Travel", or "Leisure" or "Commercial" or "Public" or "Geographic" tab.OrSelect "Search" to enter the name and address of a POI.Press "OK" to start calculation of the route.To a point on the mapRef. 1922_026_001_4Press Navigation to display the primary page.Explore the map by sliding a finger on the screen.Select the destination by pressing on the map.Tap the screen to place a marker and display the sub-menu.Press this button to start navigation.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 18OrPress this button to save the address displayed.TipA long press on an item opens a list of POIs nearby.To GPS coordinatesRef. 1922_027_002_3Press Navigation to display the primary page.Explore the map by sliding a finger on the screen.Touch the screen with a finger to go to the next image.Press this button to display the world map.Using the grid, select by zoom the desired country or region.Press this button to display or enter the GPS coordinates.A marker is displayed in the middle of the screen, with the "Latitude" and "Longitude"coordinates.Choose the type of coordinates:DMS for: Degrees, Minutes, Seconds.DD for: Degrees, Decimals.Press this button to start navigation.OrPress this button to save the address displayed.OR

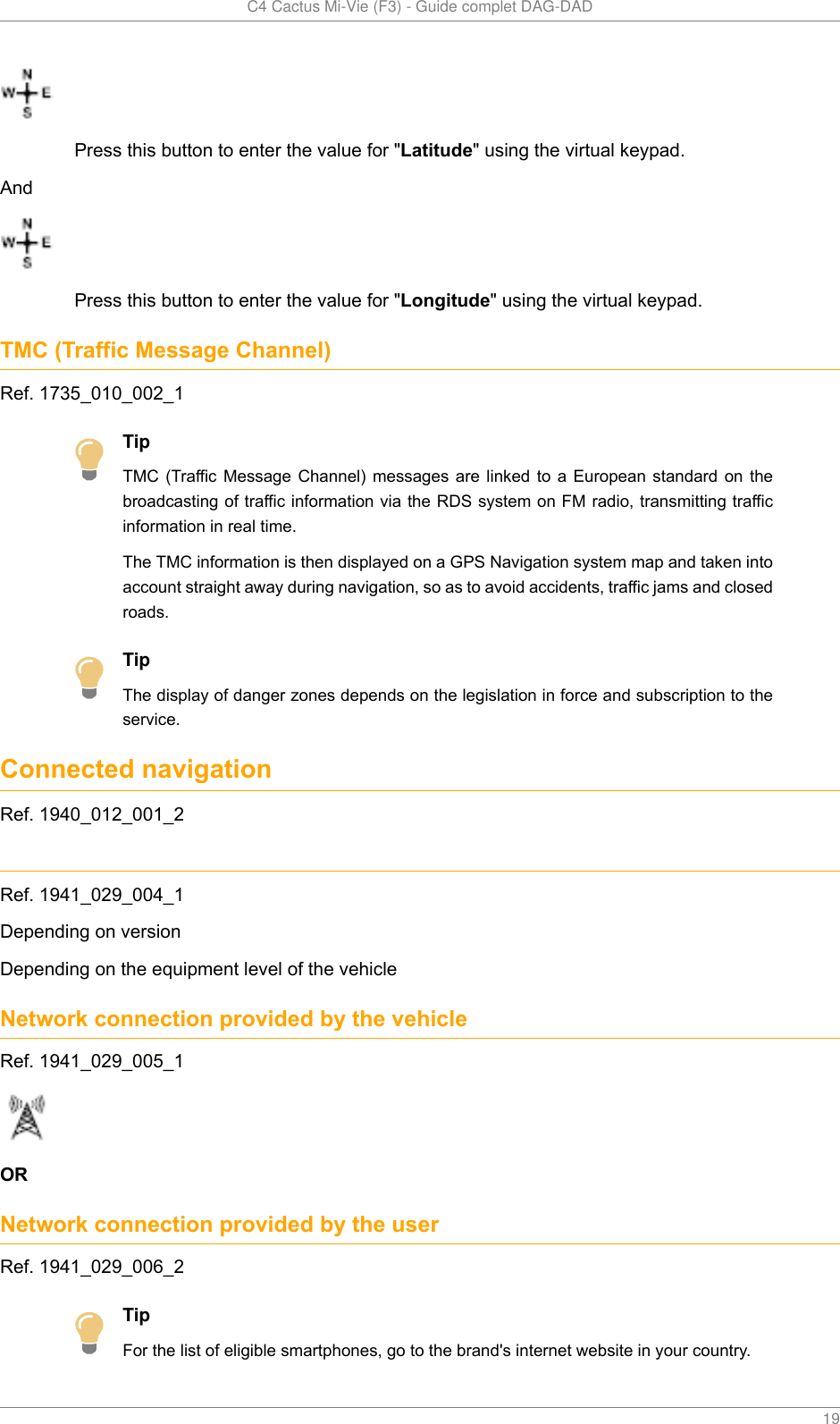

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 19Press this button to enter the value for "Latitude" using the virtual keypad.AndPress this button to enter the value for "Longitude" using the virtual keypad.TMC (Traffic Message Channel)Ref. 1735_010_002_1TipTMC (Traffic Message Channel) messages are linked to a European standard on thebroadcasting of traffic information via the RDS system on FM radio, transmitting trafficinformation in real time.The TMC information is then displayed on a GPS Navigation system map and taken intoaccount straight away during navigation, so as to avoid accidents, traffic jams and closedroads.TipThe display of danger zones depends on the legislation in force and subscription to theservice.Connected navigationRef. 1940_012_001_2Ref. 1941_029_004_1Depending on versionDepending on the equipment level of the vehicleNetwork connection provided by the vehicleRef. 1941_029_005_1ORNetwork connection provided by the userRef. 1941_029_006_2TipFor the list of eligible smartphones, go to the brand's internet website in your country.

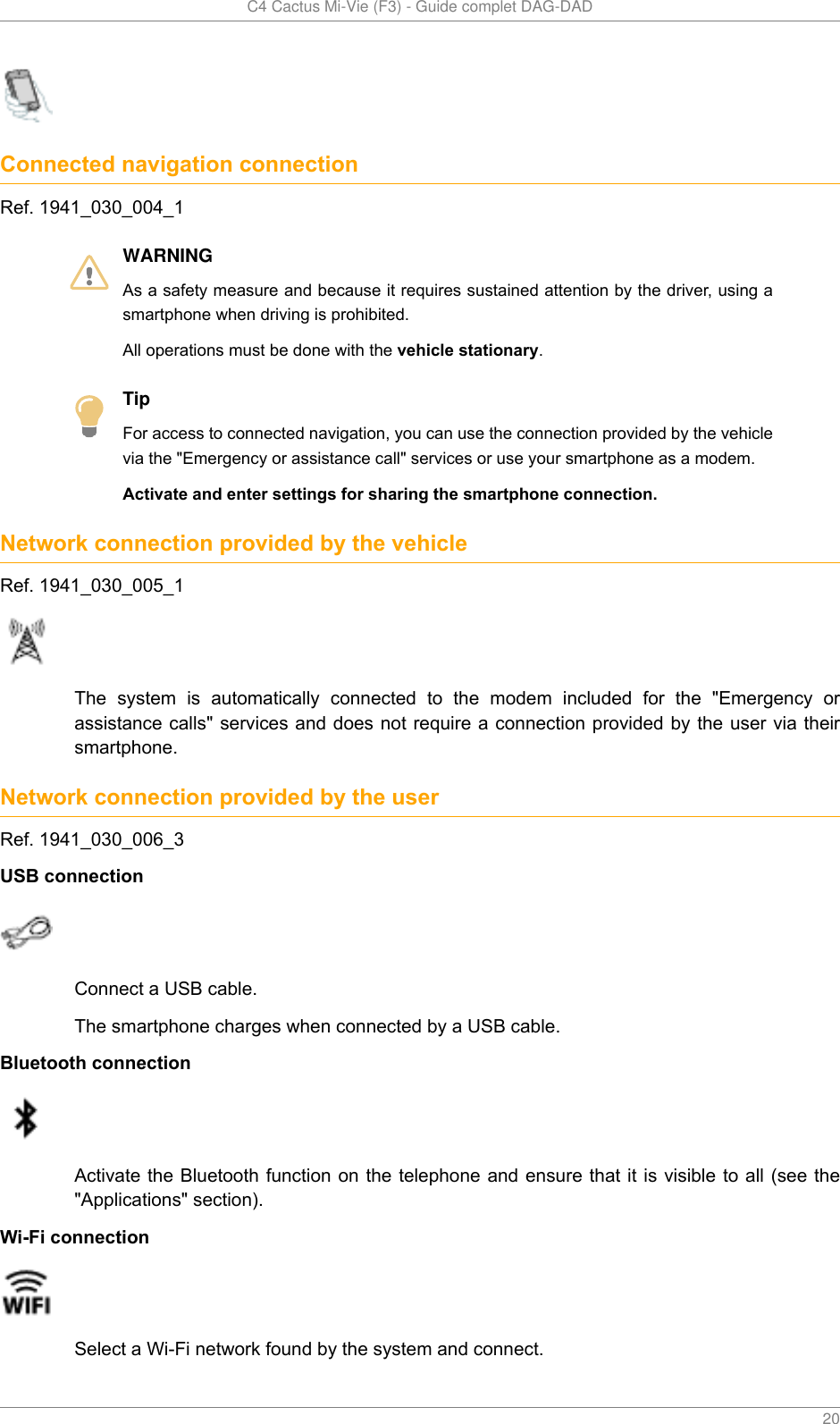

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 20Connected navigation connectionRef. 1941_030_004_1WARNINGAs a safety measure and because it requires sustained attention by the driver, using asmartphone when driving is prohibited.All operations must be done with the vehicle stationary.TipFor access to connected navigation, you can use the connection provided by the vehiclevia the "Emergency or assistance call" services or use your smartphone as a modem.Activate and enter settings for sharing the smartphone connection.Network connection provided by the vehicleRef. 1941_030_005_1The system is automatically connected to the modem included for the "Emergency orassistance calls" services and does not require a connection provided by the user via theirsmartphone.Network connection provided by the userRef. 1941_030_006_3USB connectionConnect a USB cable.The smartphone charges when connected by a USB cable.Bluetooth connectionActivate the Bluetooth function on the telephone and ensure that it is visible to all (see the"Applications" section).Wi-Fi connectionSelect a Wi-Fi network found by the system and connect.

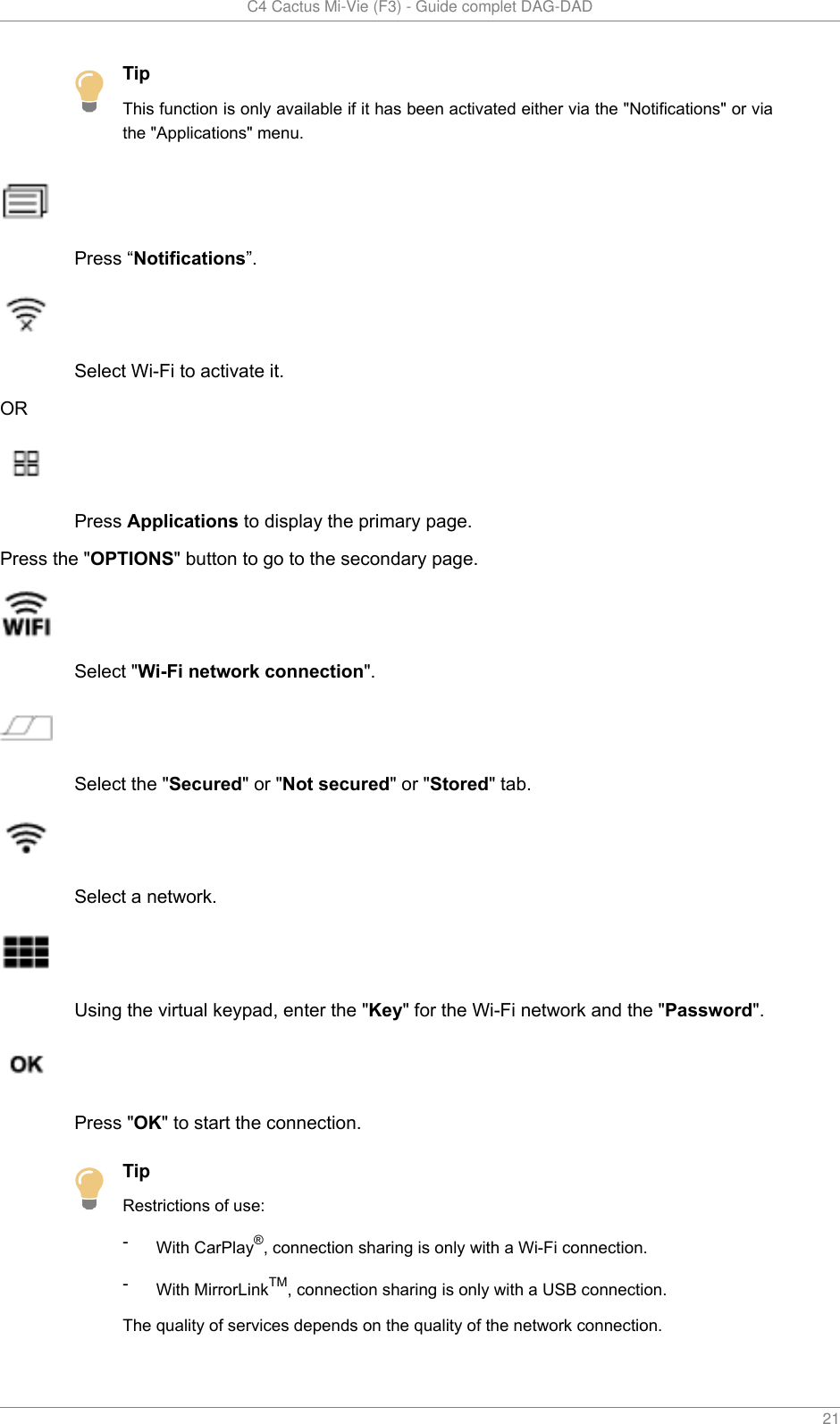

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 21TipThis function is only available if it has been activated either via the "Notifications" or viathe "Applications" menu.Press “Notifications”.Select Wi-Fi to activate it.ORPress Applications to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Wi-Fi network connection".Select the "Secured" or "Not secured" or "Stored" tab.Select a network.Using the virtual keypad, enter the "Key" for the Wi-Fi network and the "Password".Press "OK" to start the connection.TipRestrictions of use:-With CarPlay®, connection sharing is only with a Wi-Fi connection.-With MirrorLinkTM, connection sharing is only with a USB connection.The quality of services depends on the quality of the network connection.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 22With the arrival of "TOMTOM TRAFFIC", the services are available.TipThe services offered with connected navigation are as follows.A Connected Services pack:- Weather,- Filling stations,- Car park,- Traffic,- POI local search.A Danger zone pack (option).TipThe principles and standards are constantly changing; for the communication processbetween the smartphone and the system to work correctly, we recommend that youupdate the operating system of the smartphone as well as the date and time of thesmartphone and the system.Settings specific to connected navigationRef. 1880_021_001_4TipIn the "Settings" menu you can create a profile for just one person or a group of peoplewith shared interests, with the possibility of entering multiple settings (radio presets, audiosettings, navigation history, contact favourites, etc.); these settings are taken into accountautomatically.Press Navigation to display the primary page.Press the "MENU" button to go to the secondary page.Select "Settings".Select "Map".Activate or deactivate:- "Allow declaration of danger zones".

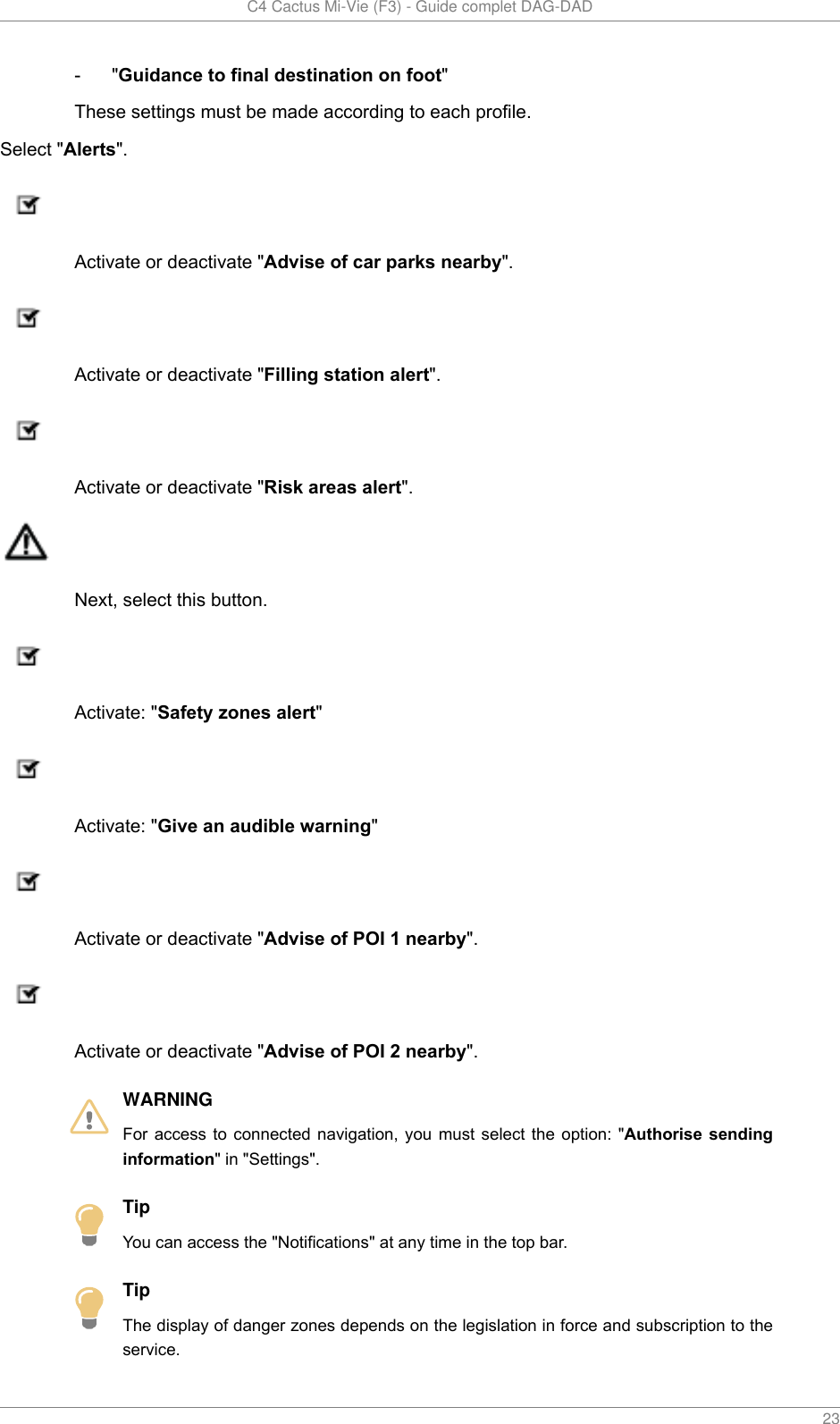

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 23- "Guidance to final destination on foot"These settings must be made according to each profile.Select "Alerts".Activate or deactivate "Advise of car parks nearby".Activate or deactivate "Filling station alert".Activate or deactivate "Risk areas alert".Next, select this button.Activate: "Safety zones alert"Activate: "Give an audible warning"Activate or deactivate "Advise of POI 1 nearby".Activate or deactivate "Advise of POI 2 nearby".WARNINGFor access to connected navigation, you must select the option: "Authorise sendinginformation" in "Settings".TipYou can access the "Notifications" at any time in the top bar.TipThe display of danger zones depends on the legislation in force and subscription to theservice.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 24Declaration of "Danger zones"Ref. 1880_026_002_3WARNINGTo distribute information on the declaration of danger zones, you should check the option:"Allow declaration of danger zones".Press Navigation to display the primary page.Press the "Declare a new danger zone" button located in the side bars or the upper bar ofthe touch screen (depending on equipment).Select the option "Type" to choose the type of "danger zone".Select the "Speed" option and enter it using the virtual keypad.Press "OK" to save and distribute the information.Authorize sending informationRef. 1880_022_002_1Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "System settings".Select the "Privacy mode" tab.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 25Activate or deactivate:- "Activating privacy mode".- "Deactivating geolocation data"- "Deactivating privacy mode""Danger zones" pack updatesRef. 1880_022_001_3Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "System settings".Select the "System info" tab.Select "View" to display the versions of the different modules installed in the system.Select "Update(s) due".TipYou can download the system and map updates from the Brand's website.The update procedure can also be found on the website.TipOnce you have downloaded the updates, the installation on the vehicle must be donewith the engine running and vehicle stationary.Display the weatherRef. 1880_020_001_4

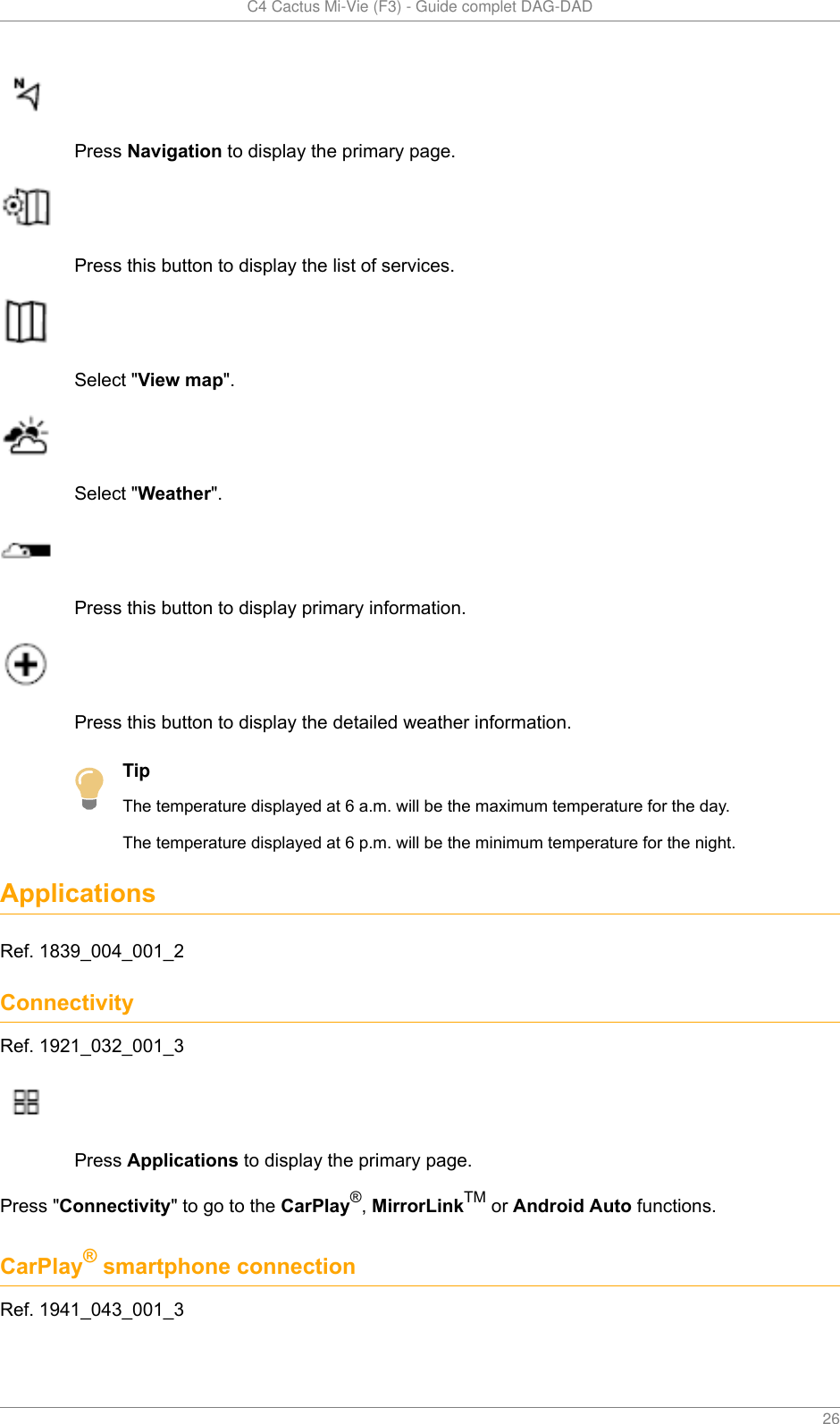

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 26Press Navigation to display the primary page.Press this button to display the list of services.Select "View map".Select "Weather".Press this button to display primary information.Press this button to display the detailed weather information.TipThe temperature displayed at 6 a.m. will be the maximum temperature for the day.The temperature displayed at 6 p.m. will be the minimum temperature for the night.ApplicationsRef. 1839_004_001_2ConnectivityRef. 1921_032_001_3Press Applications to display the primary page.Press "Connectivity" to go to the CarPlay®, MirrorLinkTM or Android Auto functions.CarPlay® smartphone connectionRef. 1941_043_001_3
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 27WARNINGAs a safety measure and because it requires sustained attention by the driver, using asmartphone when driving is prohibited.All operations must be done with the vehicle stationary.TipThe synchronisation of a personal smartphone allows users to display applicationscompatible with the smartphone's CarPlay® technology on the vehicle screen when thesmartphone's CarPlay® function has been previously activated.As the principles and standards are constantly changing, it is recommended that youkeep your smartphone's operating system updated.For the list of eligible smartphones, go to the brand's internet website in your country.Connect a USB cable. The smartphone charges when connected by a USB cable.Press on "Telephone" to display the CarPlay® interface.OrConnect a USB cable. The smartphone charges when connected by a USB cable.From the system, press "Applications" to display the primary page.Press "Connectivity" to go to the CarPlay® function.Press "CarPlay" to display the CarPlay® interface.TipOn connecting the USB cable, the CarPlay® function deactivates the system's Bluetooth® mode.MirrorLinkTM smartphone connectionRef. 1941_044_001_3Available depending on the country of sale.

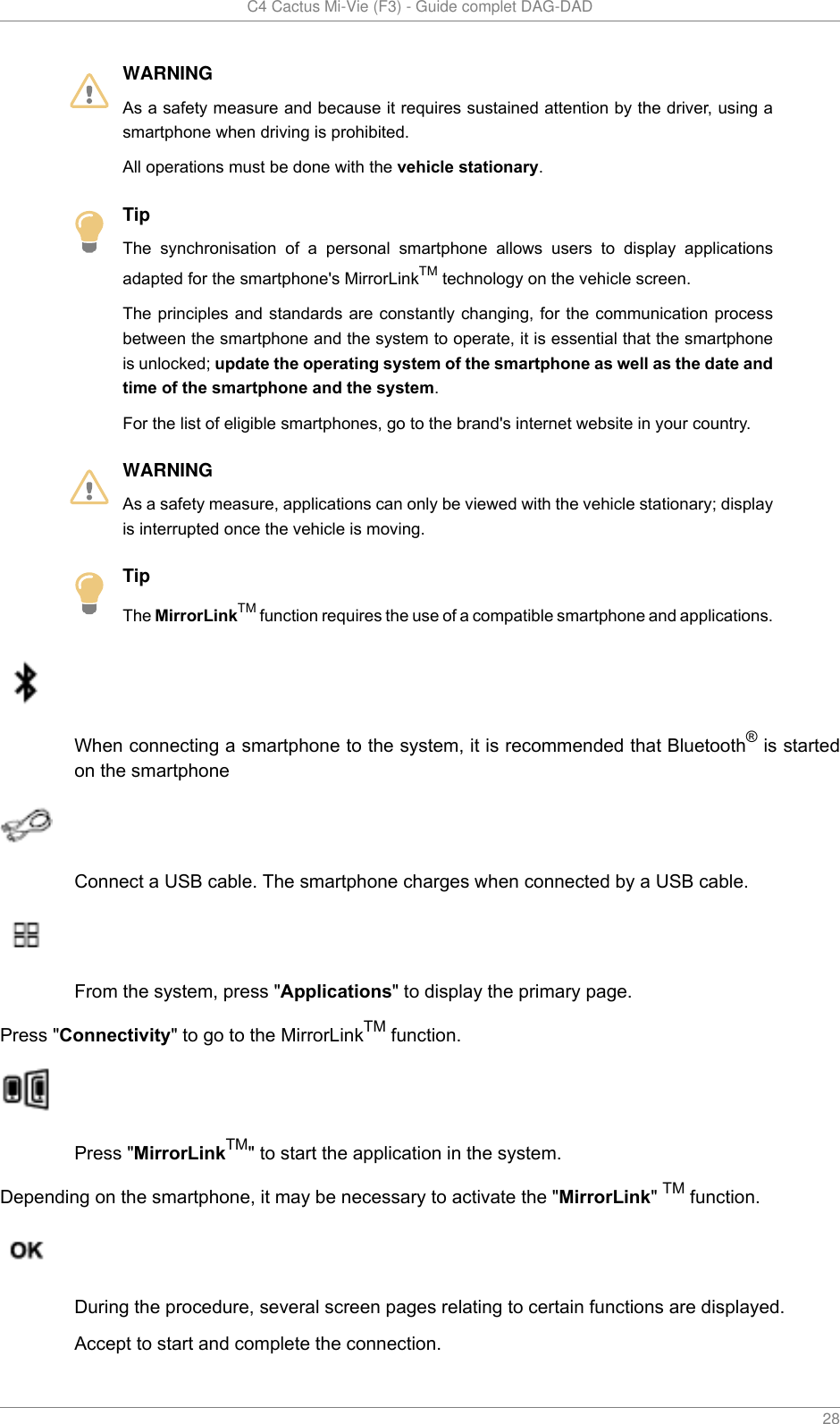

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 28WARNINGAs a safety measure and because it requires sustained attention by the driver, using asmartphone when driving is prohibited.All operations must be done with the vehicle stationary.TipThe synchronisation of a personal smartphone allows users to display applicationsadapted for the smartphone's MirrorLinkTM technology on the vehicle screen.The principles and standards are constantly changing, for the communication processbetween the smartphone and the system to operate, it is essential that the smartphoneis unlocked; update the operating system of the smartphone as well as the date andtime of the smartphone and the system.For the list of eligible smartphones, go to the brand's internet website in your country.WARNINGAs a safety measure, applications can only be viewed with the vehicle stationary; displayis interrupted once the vehicle is moving.TipThe MirrorLinkTM function requires the use of a compatible smartphone and applications.When connecting a smartphone to the system, it is recommended that Bluetooth® is startedon the smartphoneConnect a USB cable. The smartphone charges when connected by a USB cable.From the system, press "Applications" to display the primary page.Press "Connectivity" to go to the MirrorLinkTM function.Press "MirrorLinkTM" to start the application in the system.Depending on the smartphone, it may be necessary to activate the "MirrorLink" TM function.During the procedure, several screen pages relating to certain functions are displayed.Accept to start and complete the connection.

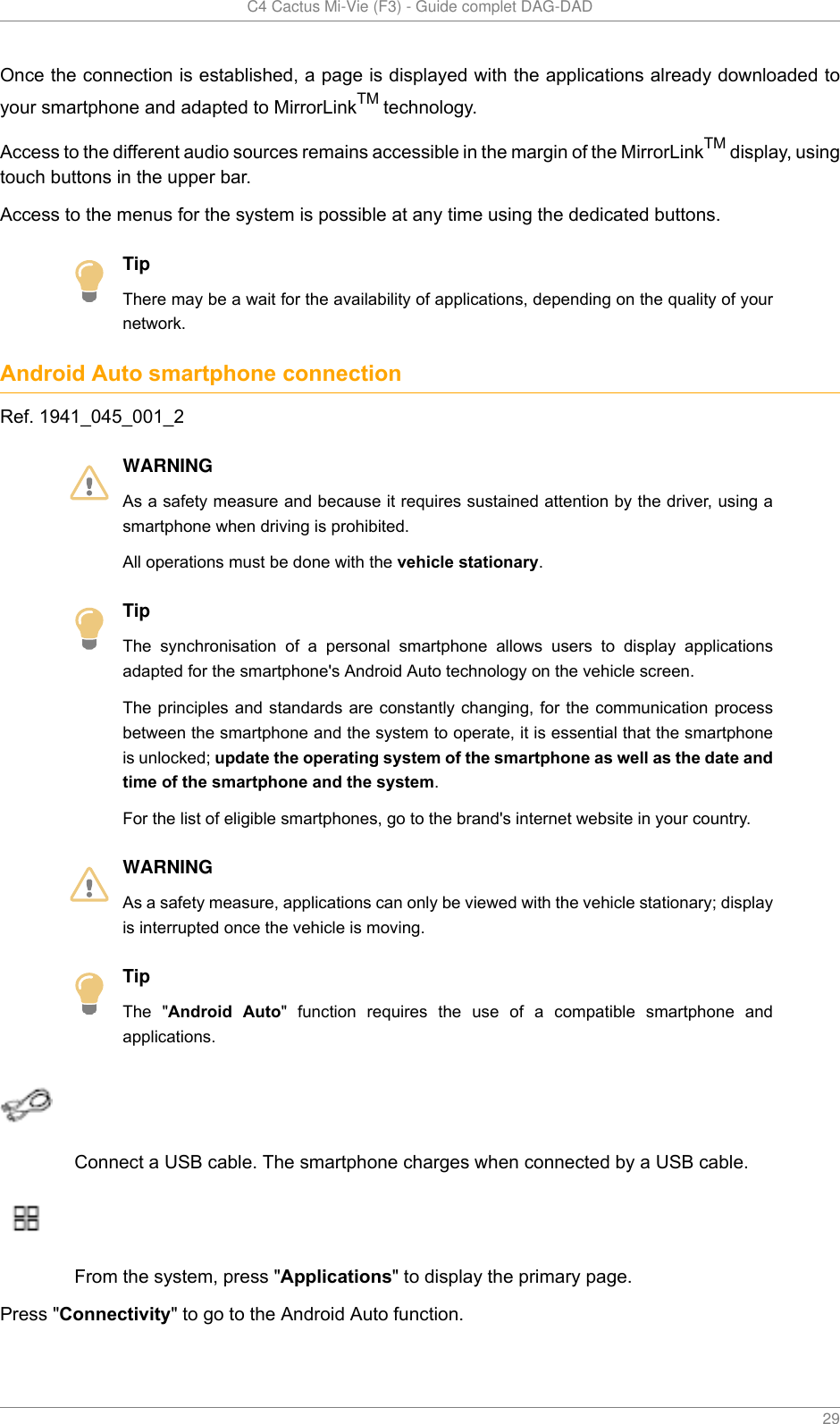

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 29Once the connection is established, a page is displayed with the applications already downloaded toyour smartphone and adapted to MirrorLinkTM technology.Access to the different audio sources remains accessible in the margin of the MirrorLinkTM display, usingtouch buttons in the upper bar.Access to the menus for the system is possible at any time using the dedicated buttons.TipThere may be a wait for the availability of applications, depending on the quality of yournetwork.Android Auto smartphone connectionRef. 1941_045_001_2WARNINGAs a safety measure and because it requires sustained attention by the driver, using asmartphone when driving is prohibited.All operations must be done with the vehicle stationary.TipThe synchronisation of a personal smartphone allows users to display applicationsadapted for the smartphone's Android Auto technology on the vehicle screen.The principles and standards are constantly changing, for the communication processbetween the smartphone and the system to operate, it is essential that the smartphoneis unlocked; update the operating system of the smartphone as well as the date andtime of the smartphone and the system.For the list of eligible smartphones, go to the brand's internet website in your country.WARNINGAs a safety measure, applications can only be viewed with the vehicle stationary; displayis interrupted once the vehicle is moving.TipThe "Android Auto" function requires the use of a compatible smartphone andapplications.Connect a USB cable. The smartphone charges when connected by a USB cable.From the system, press "Applications" to display the primary page.Press "Connectivity" to go to the Android Auto function.

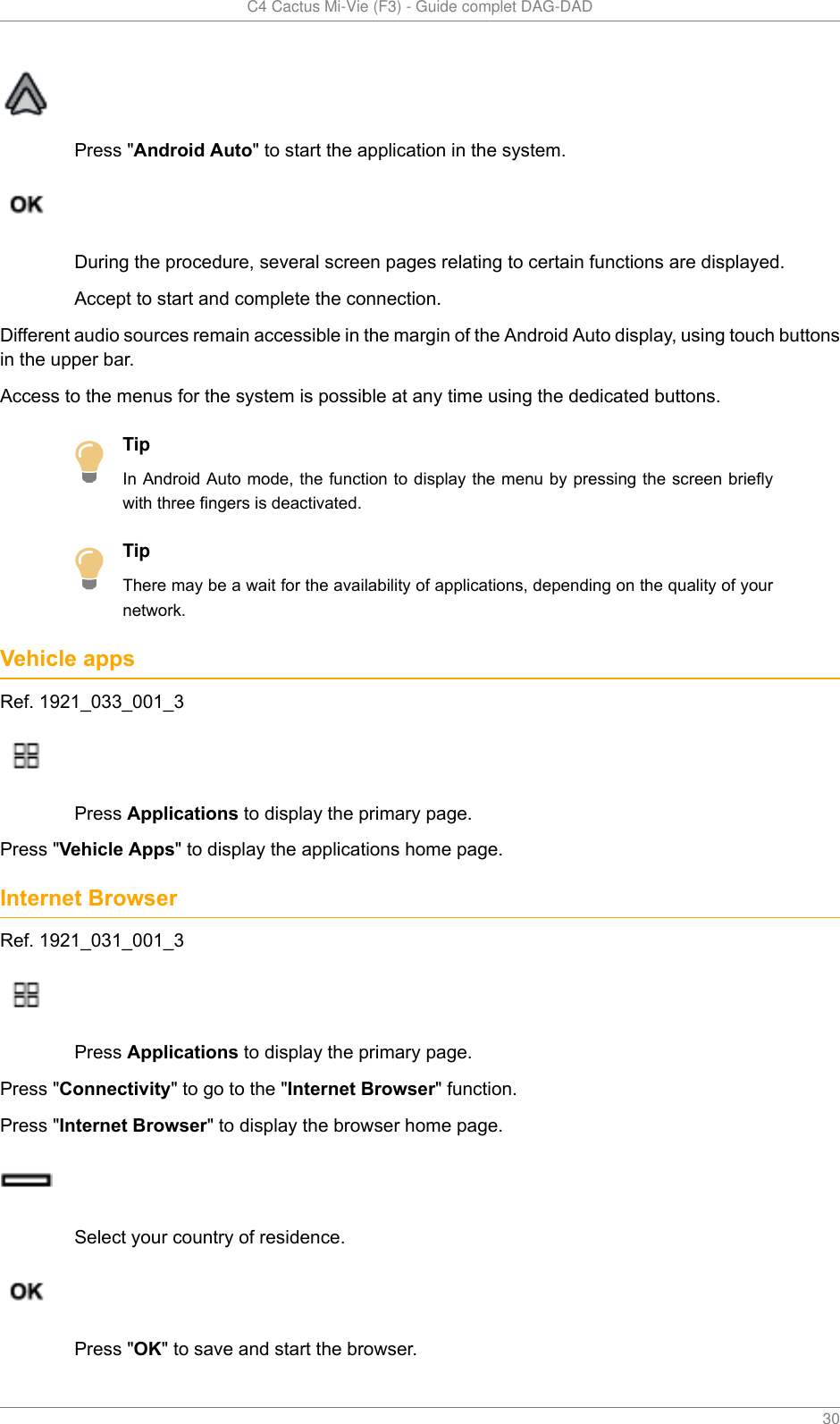

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 30Press "Android Auto" to start the application in the system.During the procedure, several screen pages relating to certain functions are displayed.Accept to start and complete the connection.Different audio sources remain accessible in the margin of the Android Auto display, using touch buttonsin the upper bar.Access to the menus for the system is possible at any time using the dedicated buttons.TipIn Android Auto mode, the function to display the menu by pressing the screen brieflywith three fingers is deactivated.TipThere may be a wait for the availability of applications, depending on the quality of yournetwork.Vehicle appsRef. 1921_033_001_3Press Applications to display the primary page.Press "Vehicle Apps" to display the applications home page.Internet BrowserRef. 1921_031_001_3Press Applications to display the primary page.Press "Connectivity" to go to the "Internet Browser" function.Press "Internet Browser" to display the browser home page.Select your country of residence.Press "OK" to save and start the browser.

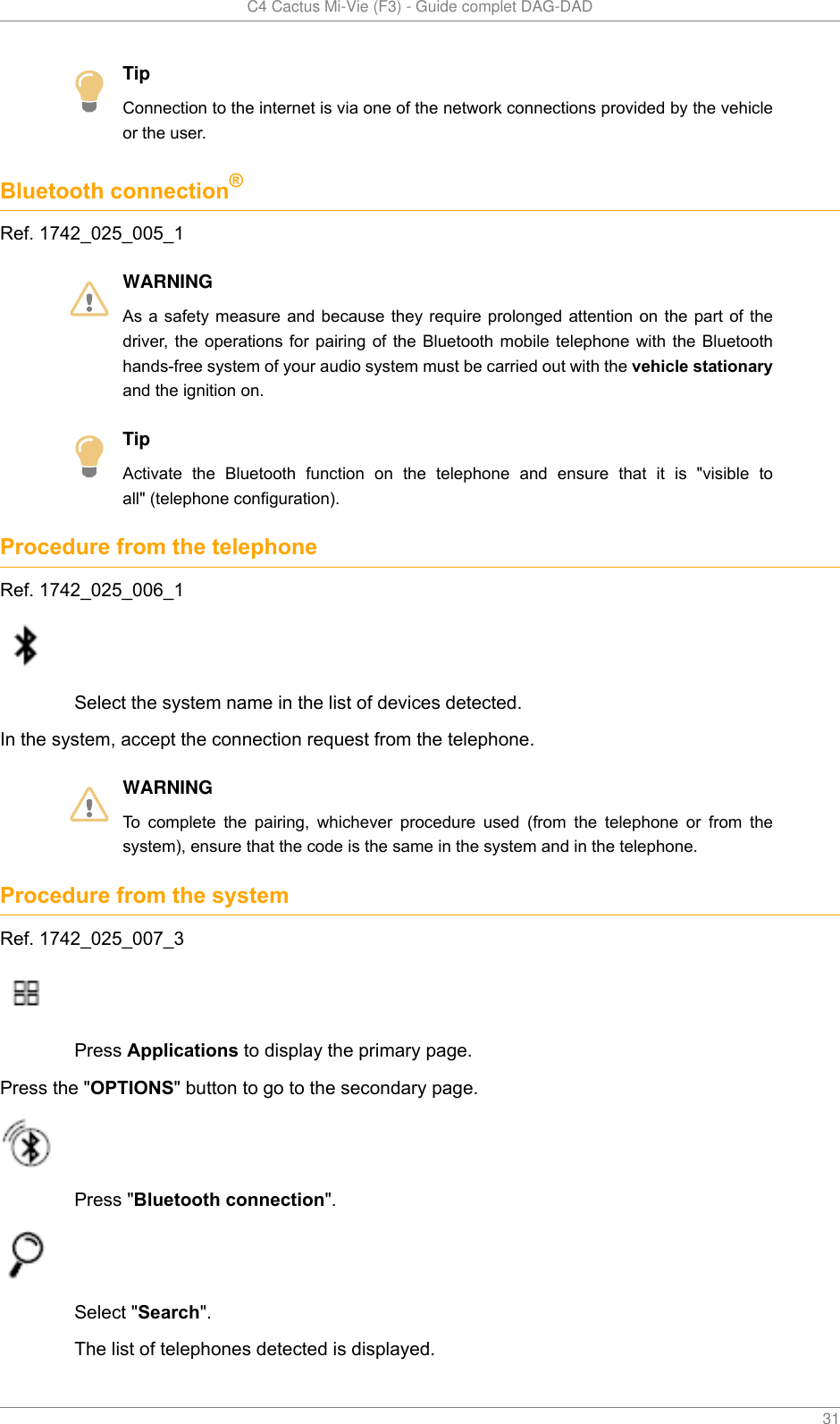

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 31TipConnection to the internet is via one of the network connections provided by the vehicleor the user.Bluetooth connection®Ref. 1742_025_005_1WARNINGAs a safety measure and because they require prolonged attention on the part of thedriver, the operations for pairing of the Bluetooth mobile telephone with the Bluetoothhands-free system of your audio system must be carried out with the vehicle stationaryand the ignition on.TipActivate the Bluetooth function on the telephone and ensure that it is "visible toall" (telephone configuration).Procedure from the telephoneRef. 1742_025_006_1Select the system name in the list of devices detected.In the system, accept the connection request from the telephone.WARNINGTo complete the pairing, whichever procedure used (from the telephone or from thesystem), ensure that the code is the same in the system and in the telephone.Procedure from the systemRef. 1742_025_007_3Press Applications to display the primary page.Press the "OPTIONS" button to go to the secondary page.Press "Bluetooth connection".Select "Search".The list of telephones detected is displayed.

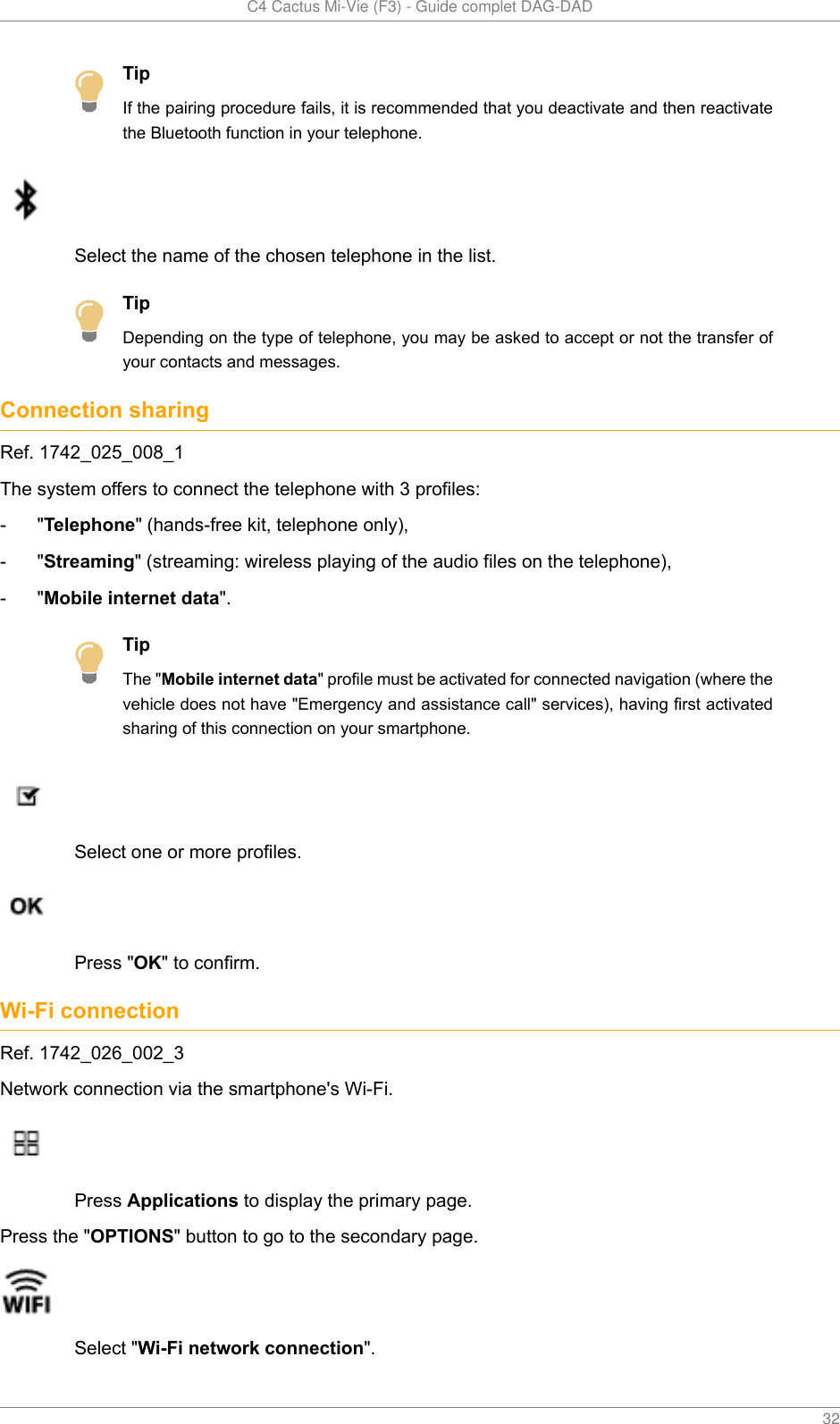

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 32TipIf the pairing procedure fails, it is recommended that you deactivate and then reactivatethe Bluetooth function in your telephone.Select the name of the chosen telephone in the list.TipDepending on the type of telephone, you may be asked to accept or not the transfer ofyour contacts and messages.Connection sharingRef. 1742_025_008_1The system offers to connect the telephone with 3 profiles:- "Telephone" (hands-free kit, telephone only),- "Streaming" (streaming: wireless playing of the audio files on the telephone),- "Mobile internet data".TipThe "Mobile internet data" profile must be activated for connected navigation (where thevehicle does not have "Emergency and assistance call" services), having first activatedsharing of this connection on your smartphone.Select one or more profiles.Press "OK" to confirm.Wi-Fi connectionRef. 1742_026_002_3Network connection via the smartphone's Wi-Fi.Press Applications to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Wi-Fi network connection".

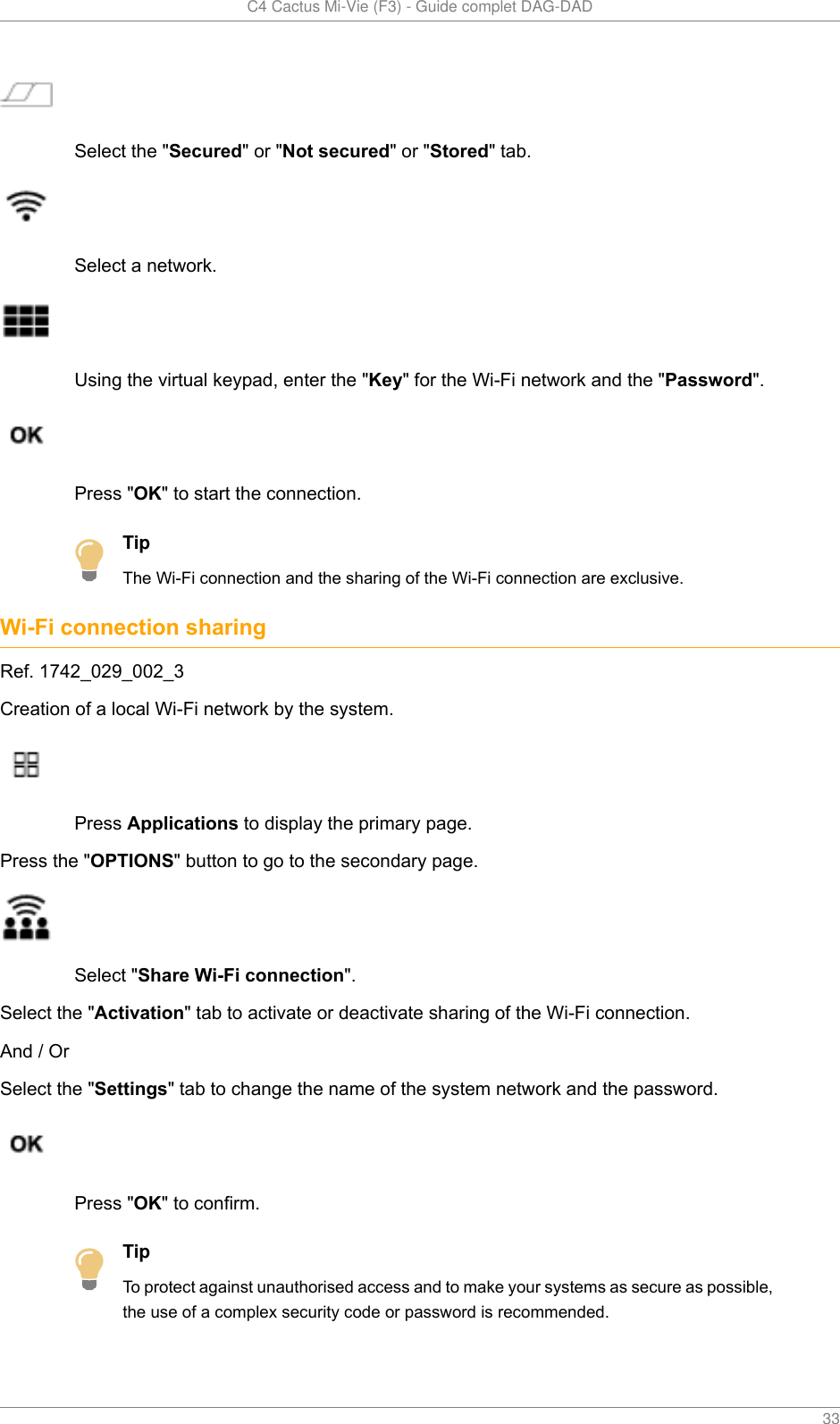

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 33Select the "Secured" or "Not secured" or "Stored" tab.Select a network.Using the virtual keypad, enter the "Key" for the Wi-Fi network and the "Password".Press "OK" to start the connection.TipThe Wi-Fi connection and the sharing of the Wi-Fi connection are exclusive.Wi-Fi connection sharingRef. 1742_029_002_3Creation of a local Wi-Fi network by the system.Press Applications to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Share Wi-Fi connection".Select the "Activation" tab to activate or deactivate sharing of the Wi-Fi connection.And / OrSelect the "Settings" tab to change the name of the system network and the password.Press "OK" to confirm.TipTo protect against unauthorised access and to make your systems as secure as possible,the use of a complex security code or password is recommended.

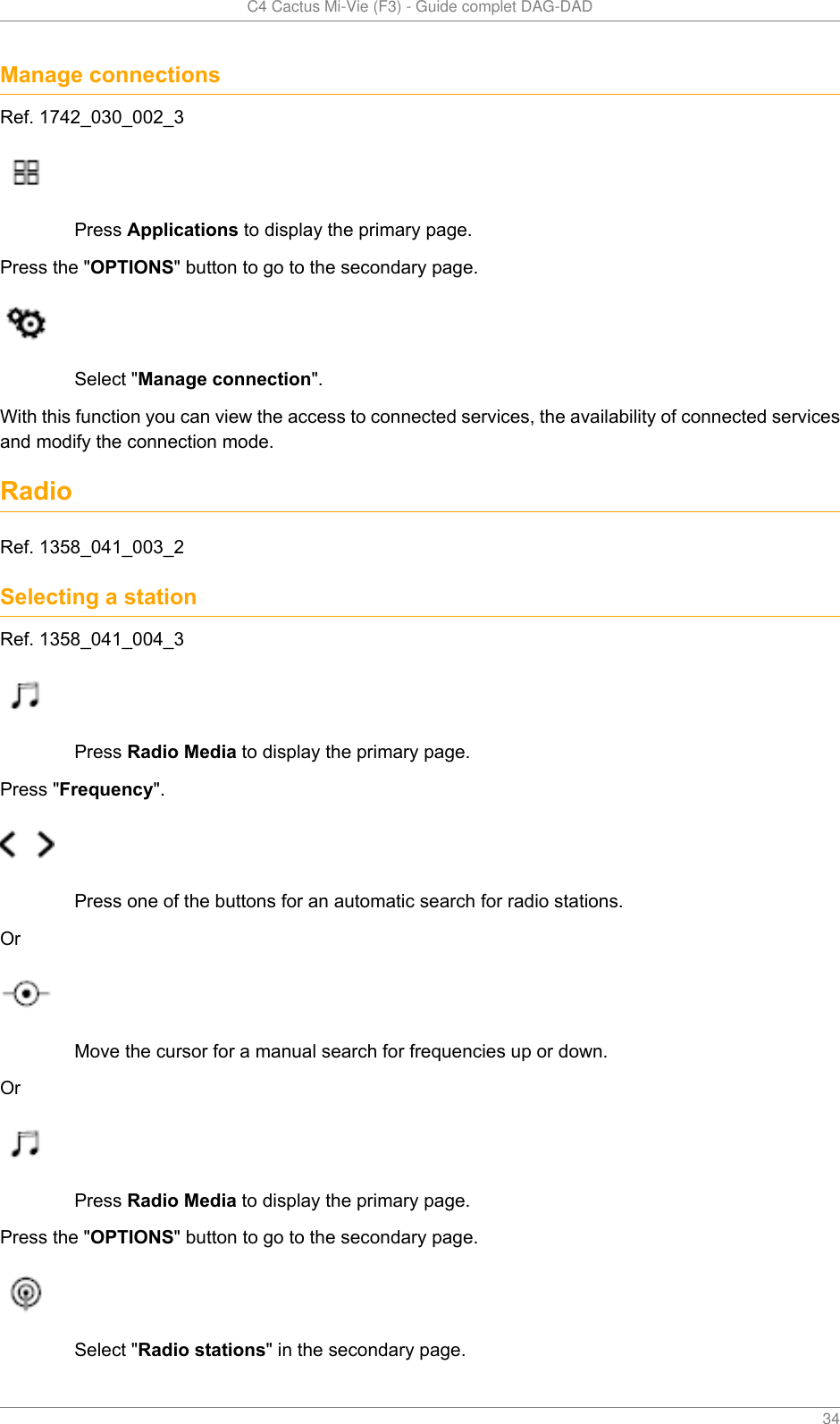

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 34Manage connectionsRef. 1742_030_002_3Press Applications to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Manage connection".With this function you can view the access to connected services, the availability of connected servicesand modify the connection mode.RadioRef. 1358_041_003_2Selecting a stationRef. 1358_041_004_3Press Radio Media to display the primary page.Press "Frequency".Press one of the buttons for an automatic search for radio stations.OrMove the cursor for a manual search for frequencies up or down.OrPress Radio Media to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Radio stations" in the secondary page.

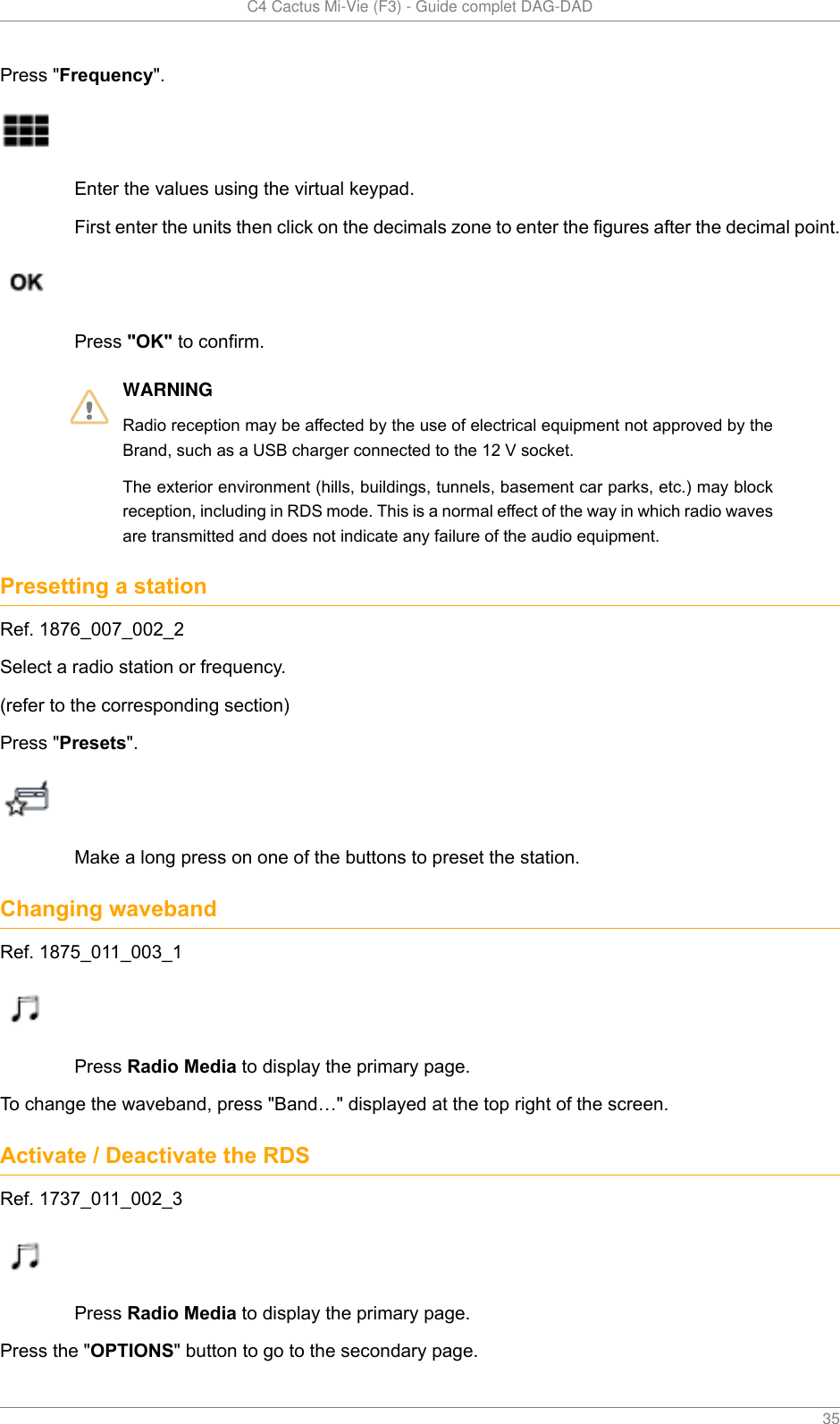

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 35Press "Frequency".Enter the values using the virtual keypad.First enter the units then click on the decimals zone to enter the figures after the decimal point.Press "OK" to confirm.WARNINGRadio reception may be affected by the use of electrical equipment not approved by theBrand, such as a USB charger connected to the 12 V socket.The exterior environment (hills, buildings, tunnels, basement car parks, etc.) may blockreception, including in RDS mode. This is a normal effect of the way in which radio wavesare transmitted and does not indicate any failure of the audio equipment.Presetting a stationRef. 1876_007_002_2Select a radio station or frequency.(refer to the corresponding section)Press "Presets".Make a long press on one of the buttons to preset the station.Changing wavebandRef. 1875_011_003_1Press Radio Media to display the primary page.To change the waveband, press "Band…" displayed at the top right of the screen.Activate / Deactivate the RDSRef. 1737_011_002_3Press Radio Media to display the primary page.Press the "OPTIONS" button to go to the secondary page.

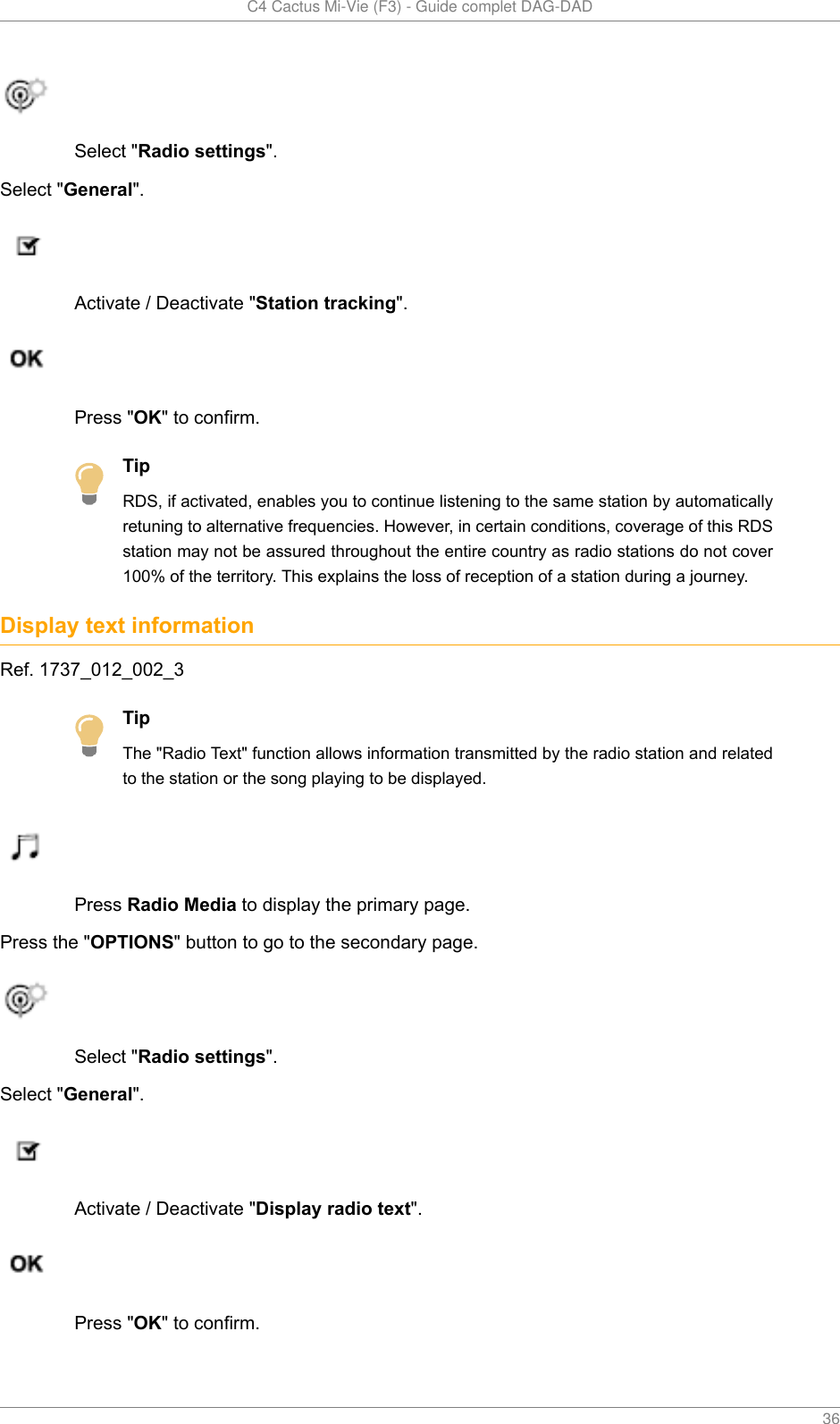

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 36Select "Radio settings".Select "General".Activate / Deactivate "Station tracking".Press "OK" to confirm.TipRDS, if activated, enables you to continue listening to the same station by automaticallyretuning to alternative frequencies. However, in certain conditions, coverage of this RDSstation may not be assured throughout the entire country as radio stations do not cover100% of the territory. This explains the loss of reception of a station during a journey.Display text informationRef. 1737_012_002_3TipThe "Radio Text" function allows information transmitted by the radio station and relatedto the station or the song playing to be displayed.Press Radio Media to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Radio settings".Select "General".Activate / Deactivate "Display radio text".Press "OK" to confirm.

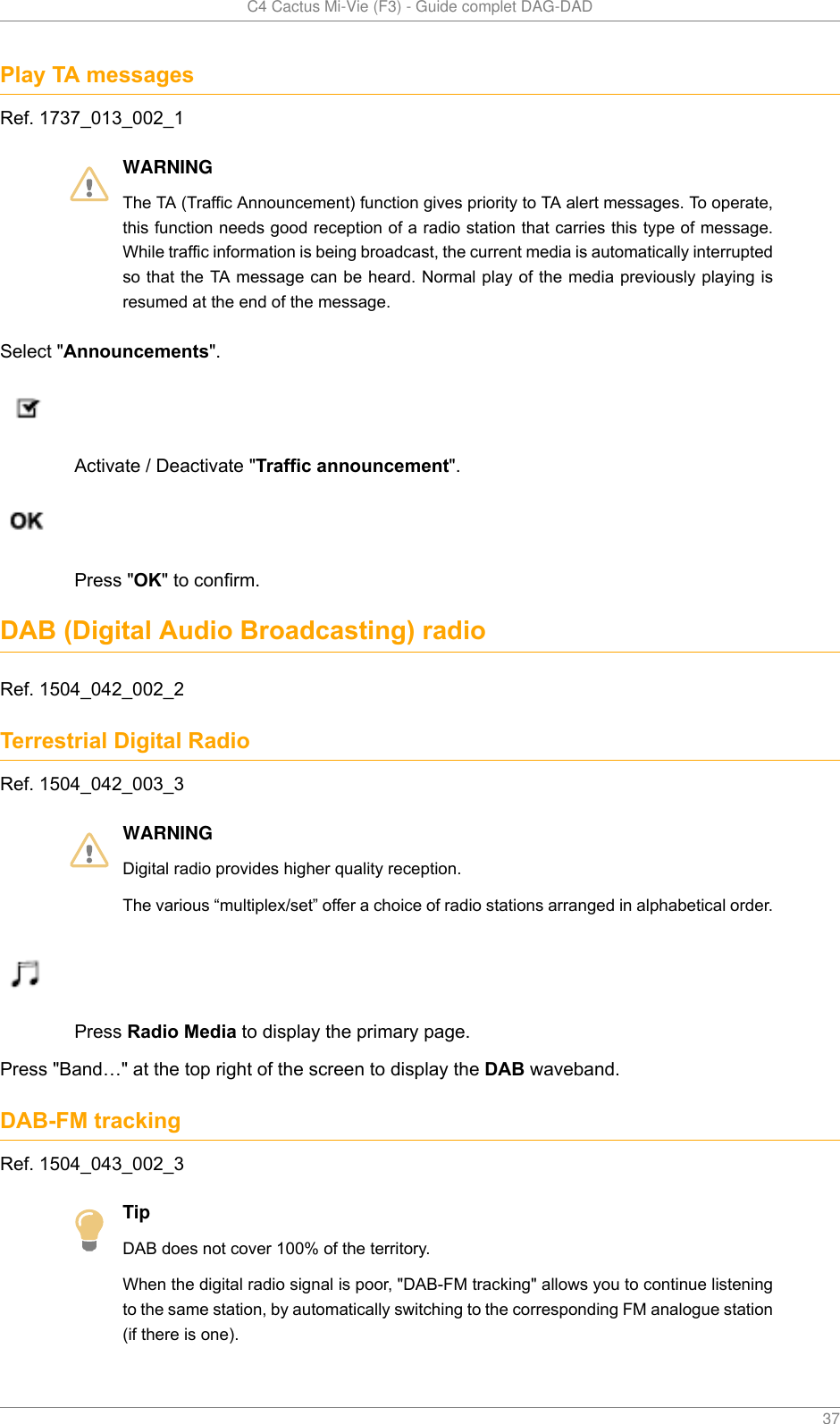

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 37Play TA messagesRef. 1737_013_002_1WARNINGThe TA (Traffic Announcement) function gives priority to TA alert messages. To operate,this function needs good reception of a radio station that carries this type of message.While traffic information is being broadcast, the current media is automatically interruptedso that the TA message can be heard. Normal play of the media previously playing isresumed at the end of the message.Select "Announcements".Activate / Deactivate "Traffic announcement".Press "OK" to confirm.DAB (Digital Audio Broadcasting) radioRef. 1504_042_002_2Terrestrial Digital RadioRef. 1504_042_003_3WARNINGDigital radio provides higher quality reception.The various “multiplex/set” offer a choice of radio stations arranged in alphabetical order.Press Radio Media to display the primary page.Press "Band…" at the top right of the screen to display the DAB waveband.DAB-FM trackingRef. 1504_043_002_3TipDAB does not cover 100% of the territory.When the digital radio signal is poor, "DAB-FM tracking" allows you to continue listeningto the same station, by automatically switching to the corresponding FM analogue station(if there is one).

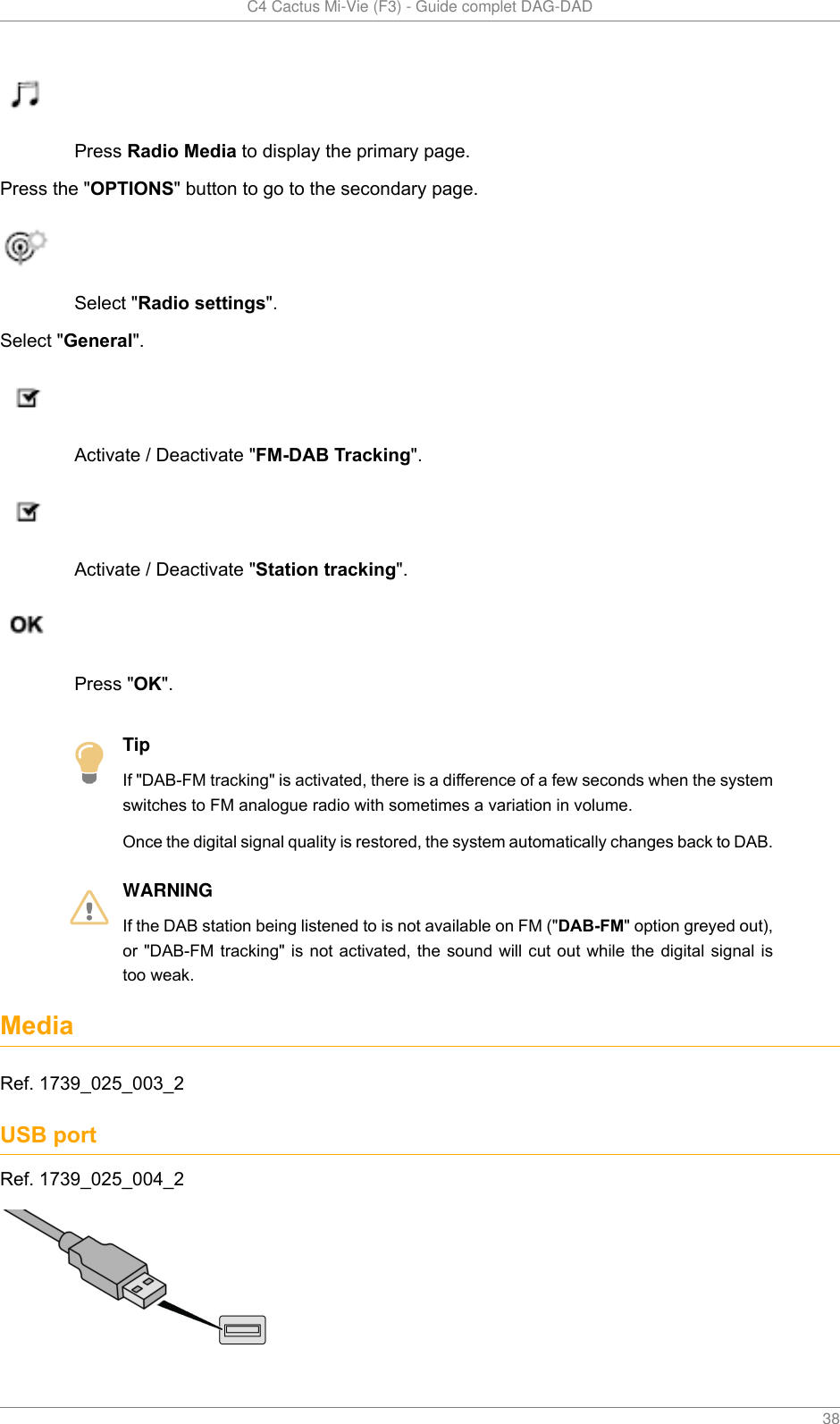

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 38Press Radio Media to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Radio settings".Select "General".Activate / Deactivate "FM-DAB Tracking".Activate / Deactivate "Station tracking".Press "OK".TipIf "DAB-FM tracking" is activated, there is a difference of a few seconds when the systemswitches to FM analogue radio with sometimes a variation in volume.Once the digital signal quality is restored, the system automatically changes back to DAB.WARNINGIf the DAB station being listened to is not available on FM ("DAB-FM" option greyed out),or "DAB-FM tracking" is not activated, the sound will cut out while the digital signal istoo weak.MediaRef. 1739_025_003_2USB portRef. 1739_025_004_2

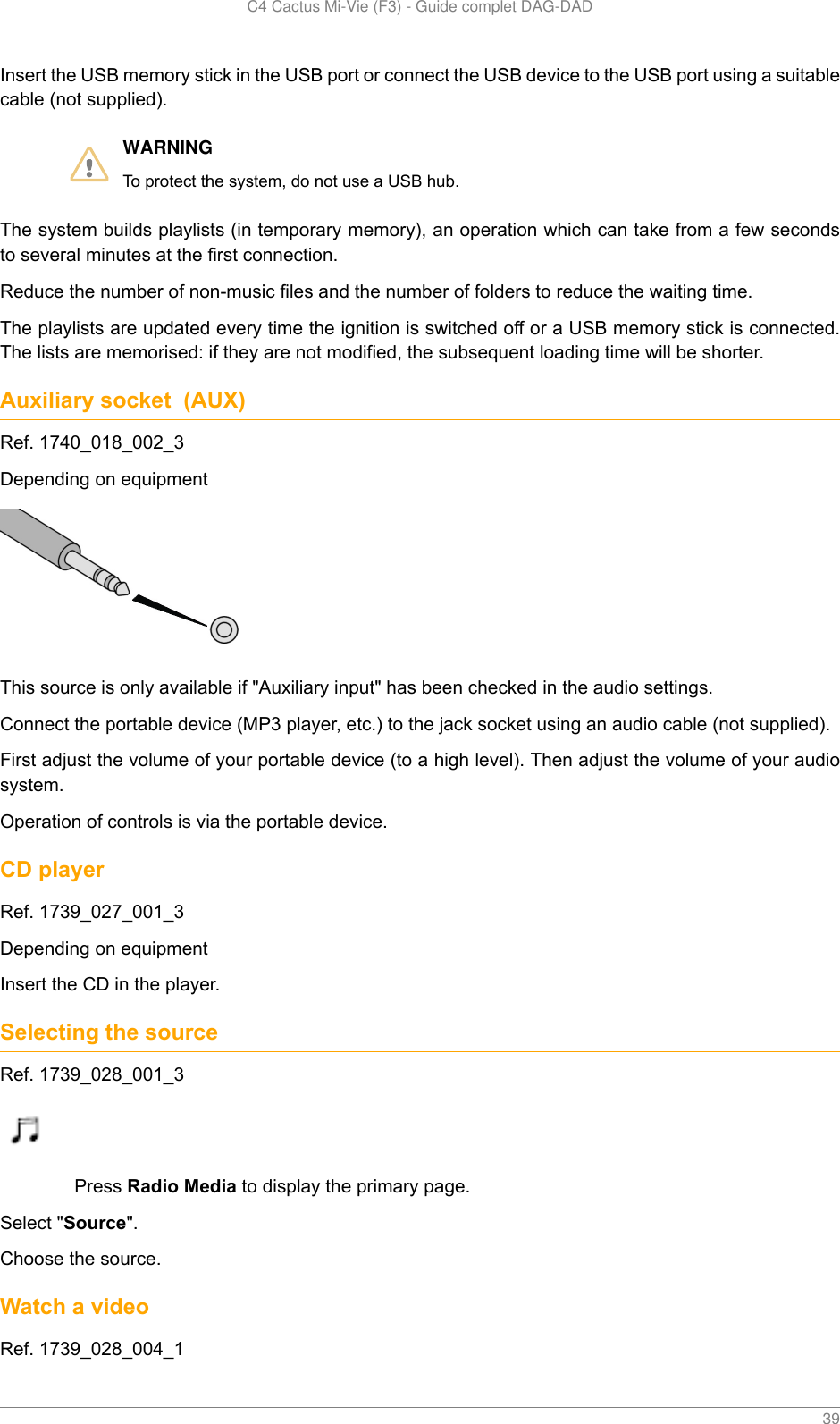

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 39Insert the USB memory stick in the USB port or connect the USB device to the USB port using a suitablecable (not supplied).WARNINGTo protect the system, do not use a USB hub.The system builds playlists (in temporary memory), an operation which can take from a few secondsto several minutes at the first connection.Reduce the number of non-music files and the number of folders to reduce the waiting time.The playlists are updated every time the ignition is switched off or a USB memory stick is connected.The lists are memorised: if they are not modified, the subsequent loading time will be shorter.Auxiliary socket (AUX)Ref. 1740_018_002_3Depending on equipmentThis source is only available if "Auxiliary input" has been checked in the audio settings.Connect the portable device (MP3 player, etc.) to the jack socket using an audio cable (not supplied).First adjust the volume of your portable device (to a high level). Then adjust the volume of your audiosystem.Operation of controls is via the portable device.CD playerRef. 1739_027_001_3Depending on equipmentInsert the CD in the player.Selecting the sourceRef. 1739_028_001_3Press Radio Media to display the primary page.Select "Source".Choose the source.Watch a videoRef. 1739_028_004_1

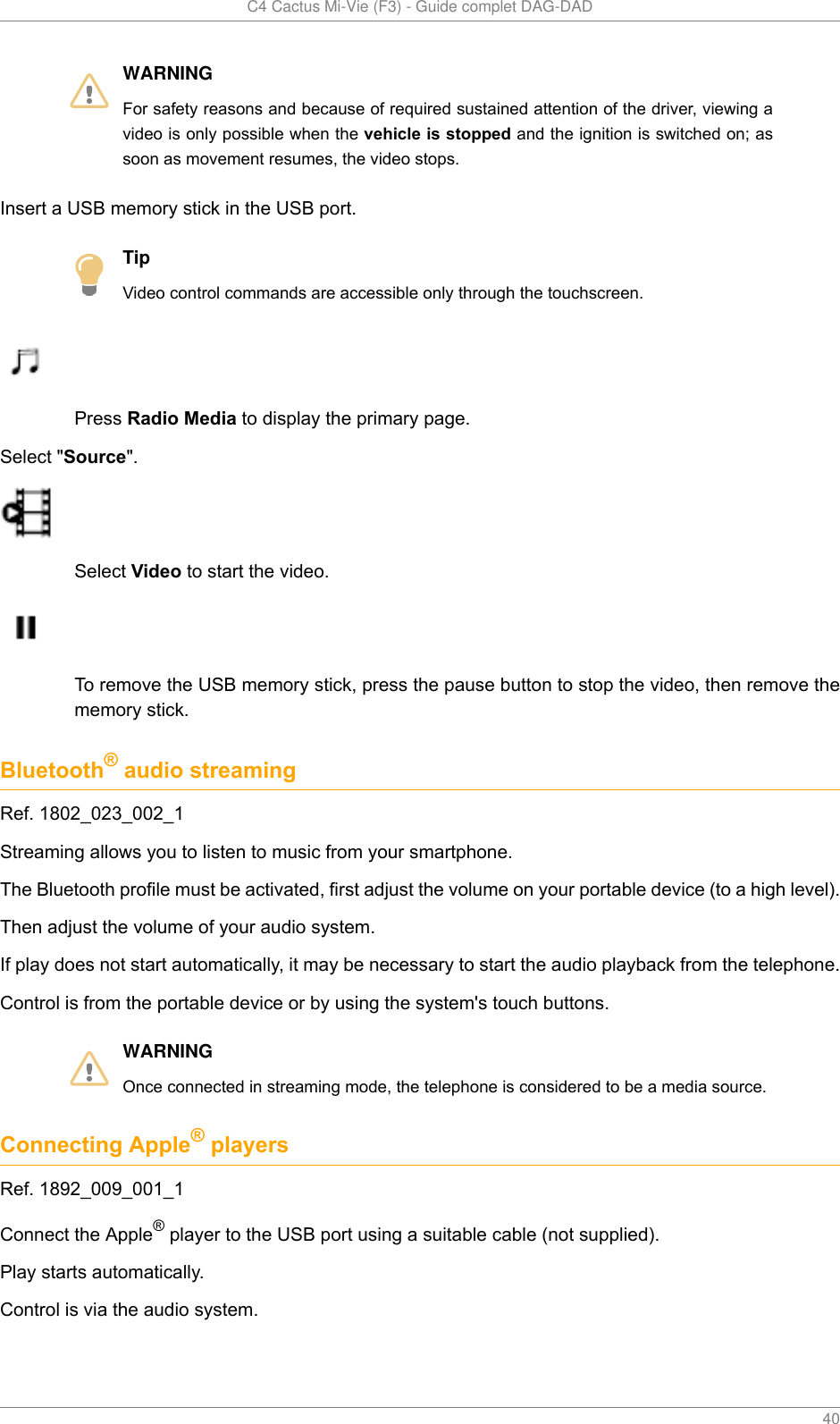

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 40WARNINGFor safety reasons and because of required sustained attention of the driver, viewing avideo is only possible when the vehicle is stopped and the ignition is switched on; assoon as movement resumes, the video stops.Insert a USB memory stick in the USB port.TipVideo control commands are accessible only through the touchscreen.Press Radio Media to display the primary page.Select "Source".Select Video to start the video.To remove the USB memory stick, press the pause button to stop the video, then remove thememory stick.Bluetooth® audio streamingRef. 1802_023_002_1Streaming allows you to listen to music from your smartphone.The Bluetooth profile must be activated, first adjust the volume on your portable device (to a high level).Then adjust the volume of your audio system.If play does not start automatically, it may be necessary to start the audio playback from the telephone.Control is from the portable device or by using the system's touch buttons.WARNINGOnce connected in streaming mode, the telephone is considered to be a media source.Connecting Apple® playersRef. 1892_009_001_1Connect the Apple® player to the USB port using a suitable cable (not supplied).Play starts automatically.Control is via the audio system.

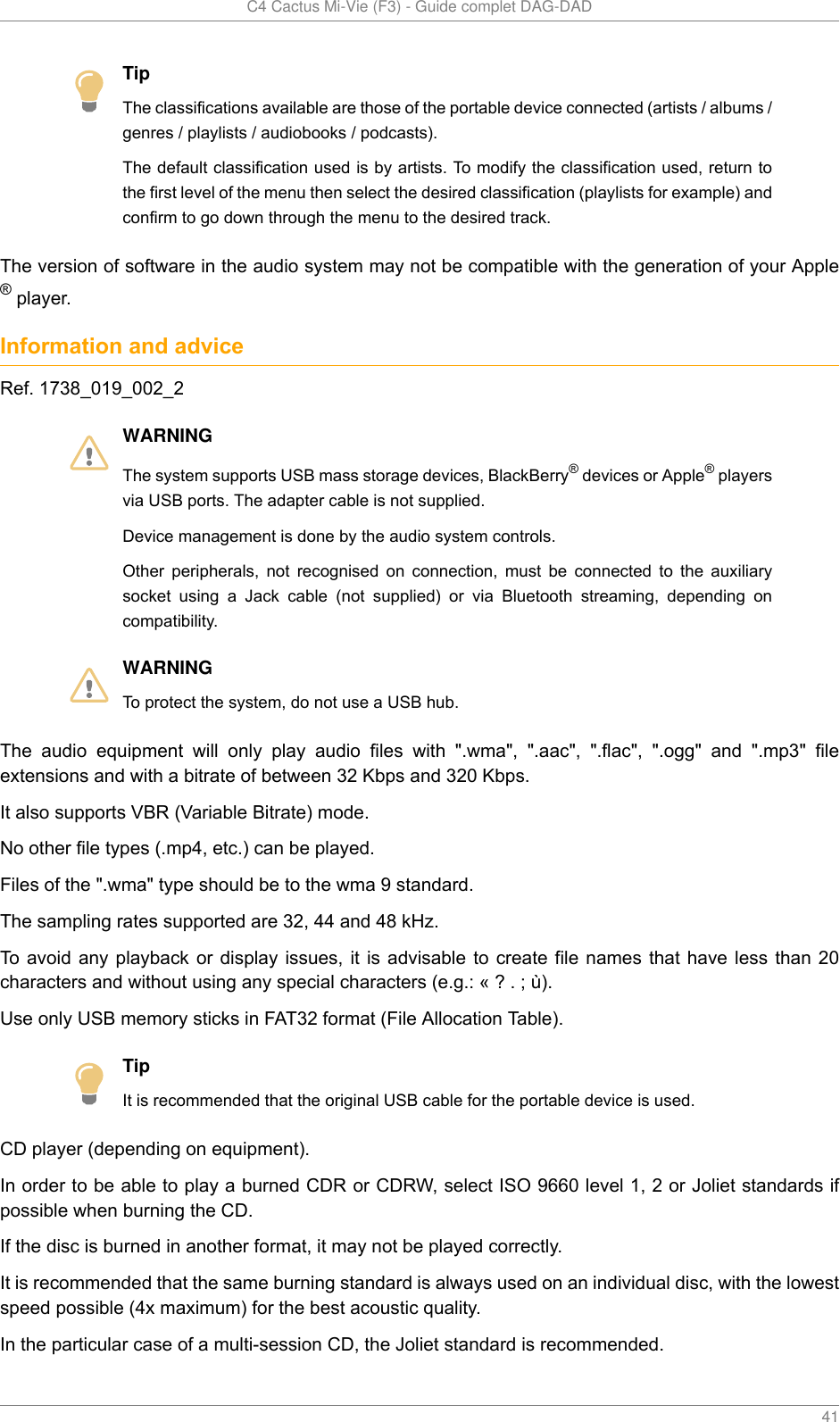

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 41TipThe classifications available are those of the portable device connected (artists / albums /genres / playlists / audiobooks / podcasts).The default classification used is by artists. To modify the classification used, return tothe first level of the menu then select the desired classification (playlists for example) andconfirm to go down through the menu to the desired track.The version of software in the audio system may not be compatible with the generation of your Apple® player.Information and adviceRef. 1738_019_002_2WARNINGThe system supports USB mass storage devices, BlackBerry® devices or Apple® playersvia USB ports. The adapter cable is not supplied.Device management is done by the audio system controls.Other peripherals, not recognised on connection, must be connected to the auxiliarysocket using a Jack cable (not supplied) or via Bluetooth streaming, depending oncompatibility.WARNINGTo protect the system, do not use a USB hub.The audio equipment will only play audio files with ".wma", ".aac", ".flac", ".ogg" and ".mp3" fileextensions and with a bitrate of between 32 Kbps and 320 Kbps.It also supports VBR (Variable Bitrate) mode.No other file types (.mp4, etc.) can be played.Files of the ".wma" type should be to the wma 9 standard.The sampling rates supported are 32, 44 and 48 kHz.To avoid any playback or display issues, it is advisable to create file names that have less than 20characters and without using any special characters (e.g.: « ? . ; ù).Use only USB memory sticks in FAT32 format (File Allocation Table).TipIt is recommended that the original USB cable for the portable device is used.CD player (depending on equipment).In order to be able to play a burned CDR or CDRW, select ISO 9660 level 1, 2 or Joliet standards ifpossible when burning the CD.If the disc is burned in another format, it may not be played correctly.It is recommended that the same burning standard is always used on an individual disc, with the lowestspeed possible (4x maximum) for the best acoustic quality.In the particular case of a multi-session CD, the Joliet standard is recommended.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 42TelephoneRef. 1843_009_001_2Pairing a Bluetooth® telephoneRef. 1742_027_005_1WARNINGAs a safety measure and because it requires sustained attention by the driver, the pairingof a Bluetooth mobile telephone with the Bluetooth hands-free system of your audiosystem must be done with the vehicle stationary and the ignition on.TipActivate the Bluetooth function on the telephone and ensure that it is "visible toall" (telephone configuration).Procedure from the telephoneRef. 1742_027_006_1Select the system name in the list of devices detected.In the system, accept the connection request from the telephone.WARNINGTo complete the pairing, whichever procedure used (from the telephone or from thesystem), ensure that the code is the same in the system and in the telephone.Procedure from the systemRef. 1742_027_007_4Press Telephone to display the primary page.Press "Bluetooth search".OrSelect "Search".The list of telephones detected is displayed.

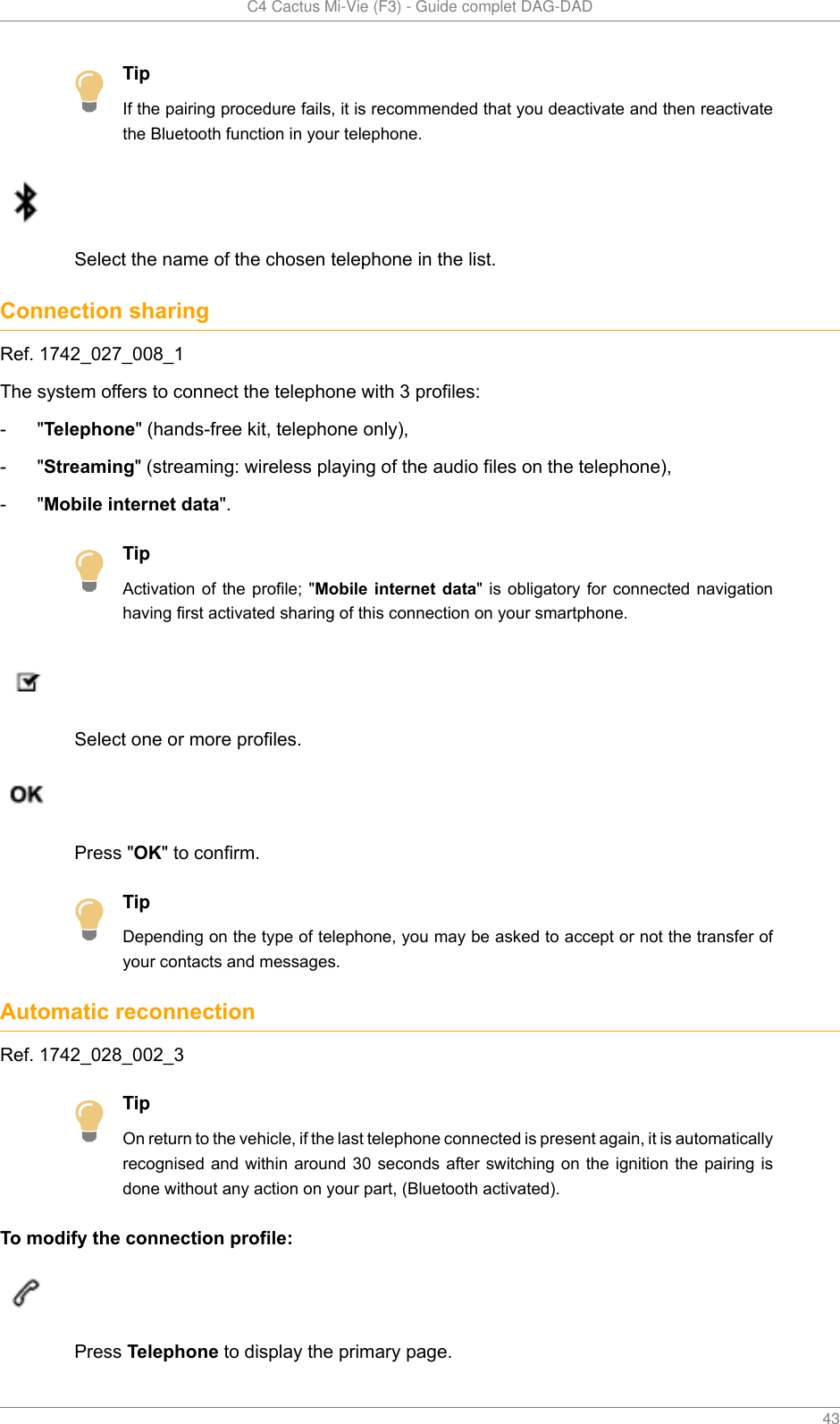

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 43TipIf the pairing procedure fails, it is recommended that you deactivate and then reactivatethe Bluetooth function in your telephone.Select the name of the chosen telephone in the list.Connection sharingRef. 1742_027_008_1The system offers to connect the telephone with 3 profiles:- "Telephone" (hands-free kit, telephone only),- "Streaming" (streaming: wireless playing of the audio files on the telephone),- "Mobile internet data".TipActivation of the profile; "Mobile internet data" is obligatory for connected navigationhaving first activated sharing of this connection on your smartphone.Select one or more profiles.Press "OK" to confirm.TipDepending on the type of telephone, you may be asked to accept or not the transfer ofyour contacts and messages.Automatic reconnectionRef. 1742_028_002_3TipOn return to the vehicle, if the last telephone connected is present again, it is automaticallyrecognised and within around 30 seconds after switching on the ignition the pairing isdone without any action on your part, (Bluetooth activated).To modify the connection profile:Press Telephone to display the primary page.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 44Press the "OPTIONS" button to go to the secondary page.Select "Bluetooth connection" to display the list of paired devices.Press the "details" button.Select one or more profiles.Press "OK" to confirm.WARNINGThe ability of the system to connect to just one profile depends on the telephone.All three profiles may connect by default.WARNINGThe available services depend on the network, SIM card, and the devices’ Bluetoothcompatibility. Consult your telephone's manual and your operator to find out whichservices are available to you.TipThe profiles compatible with the system are: HFP, OPP, PBAP, A2DP, AVRCP, MAP andPAN.Go to the Brand's website for more information (compatibility, additional help, etc.).Managing paired telephonesRef. 1361_032_001_4TipThis function allows the connection or disconnection of a peripheral device as well as thedeletion of a pairing.Press Telephone to display the primary page.Press the "OPTIONS" button to go to the secondary page.

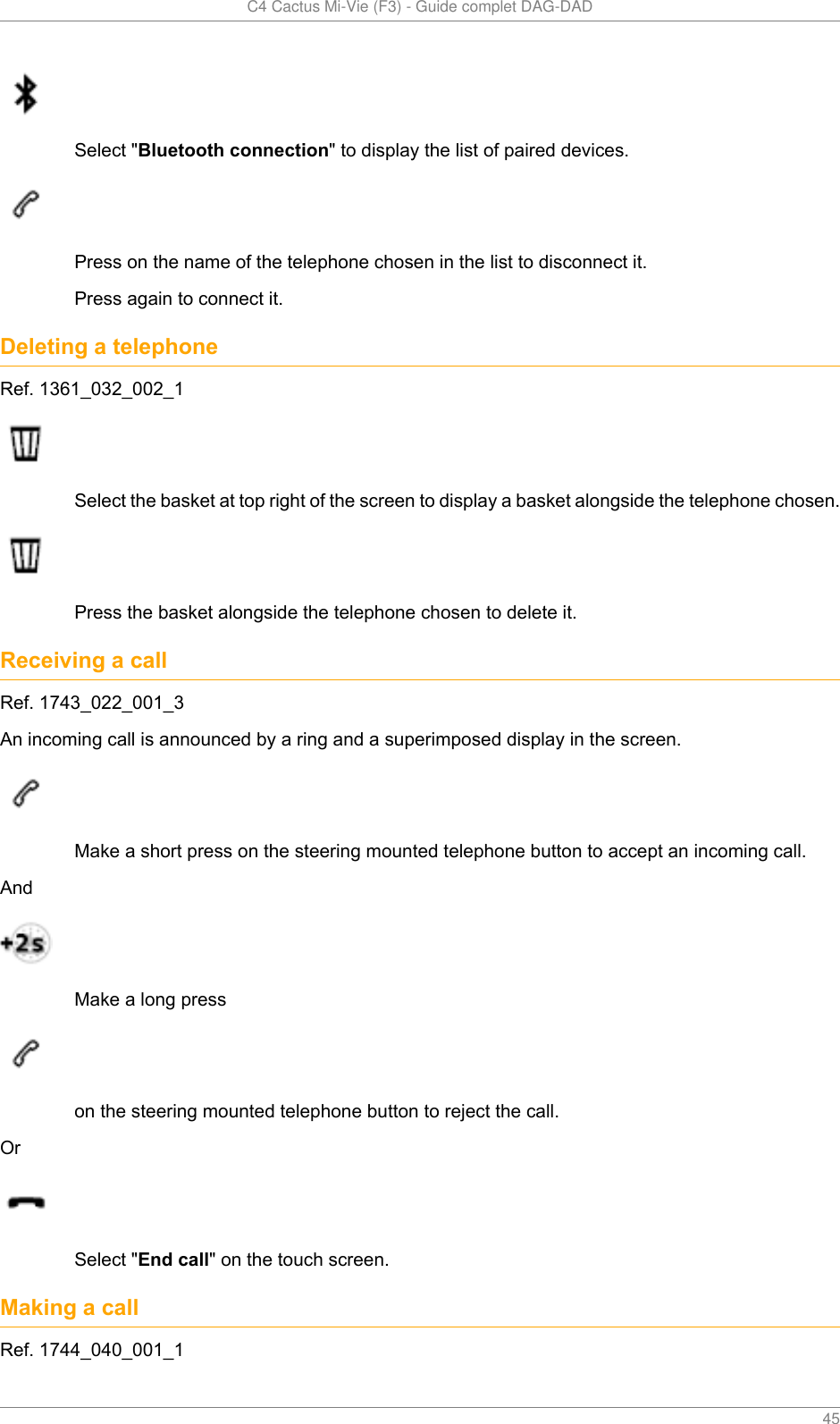

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 45Select "Bluetooth connection" to display the list of paired devices.Press on the name of the telephone chosen in the list to disconnect it.Press again to connect it.Deleting a telephoneRef. 1361_032_002_1Select the basket at top right of the screen to display a basket alongside the telephone chosen.Press the basket alongside the telephone chosen to delete it.Receiving a callRef. 1743_022_001_3An incoming call is announced by a ring and a superimposed display in the screen.Make a short press on the steering mounted telephone button to accept an incoming call.AndMake a long presson the steering mounted telephone button to reject the call.OrSelect "End call" on the touch screen.Making a callRef. 1744_040_001_1

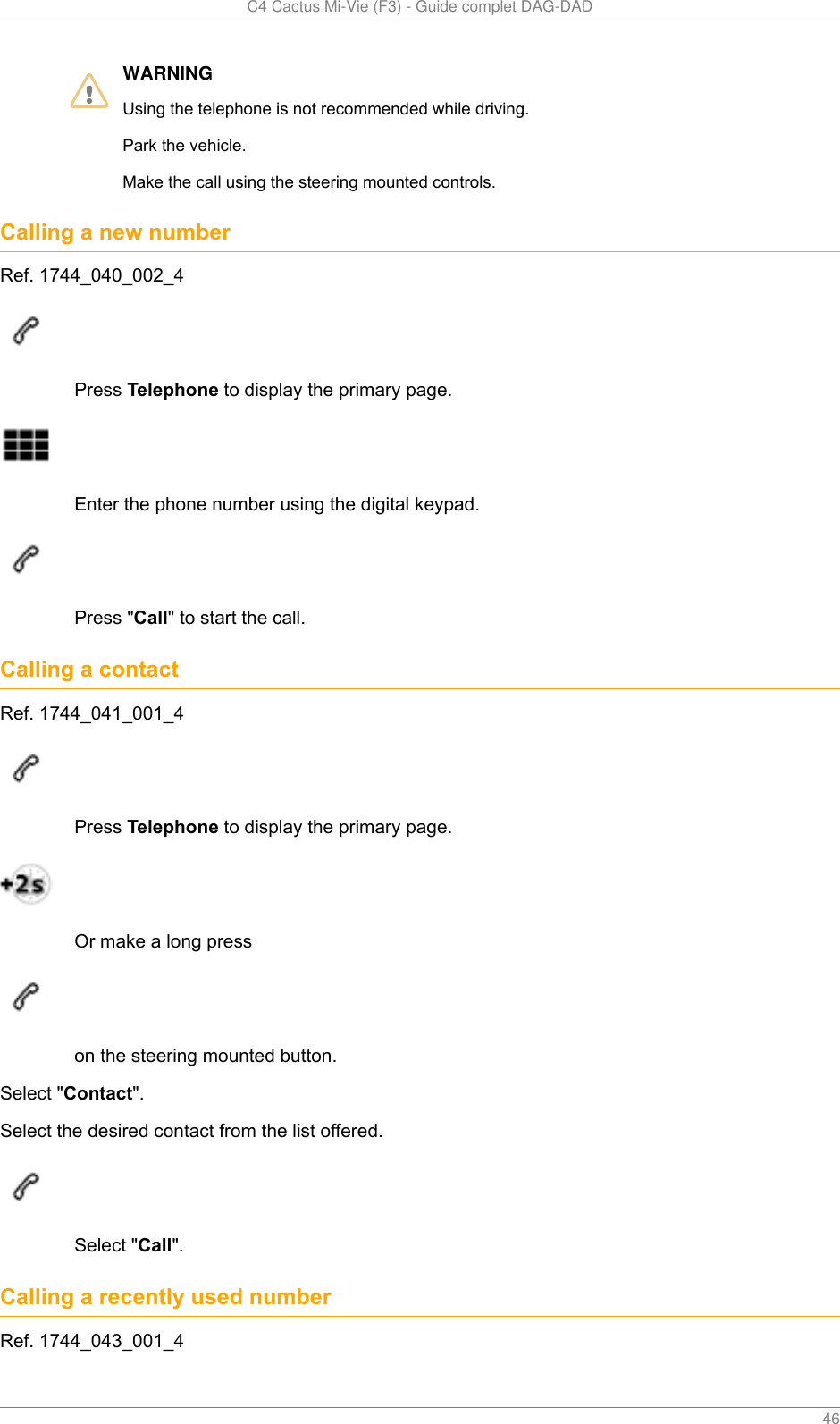

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 46WARNINGUsing the telephone is not recommended while driving.Park the vehicle.Make the call using the steering mounted controls.Calling a new numberRef. 1744_040_002_4Press Telephone to display the primary page.Enter the phone number using the digital keypad.Press "Call" to start the call.Calling a contactRef. 1744_041_001_4Press Telephone to display the primary page.Or make a long presson the steering mounted button.Select "Contact".Select the desired contact from the list offered.Select "Call".Calling a recently used numberRef. 1744_043_001_4
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 47Press Telephone to display the primary page.OrMake a long presson the steering mounted button.Select "Calls".Select the desired contact from the list offered.TipIt is always possible to make a call directly from the telephone; as a safety measure, firstpark the vehicle.Managing contacts / entriesRef. 1865_014_002_3Press Telephone to display the primary page.Select "Contact".Select "Create" to add a new contact.In the "Telephone" tab, enter the telephone numbers for the contact.In the "Address" tab, enter the addresses for the contact.In the "Email" tab, enter the email addresses for the contact.TipThe "Email" function allows email addresses to be entered for a contact, but the systemis not able to send emails.Managing messagesRef. 1865_015_002_3Press Telephone to display the primary page.

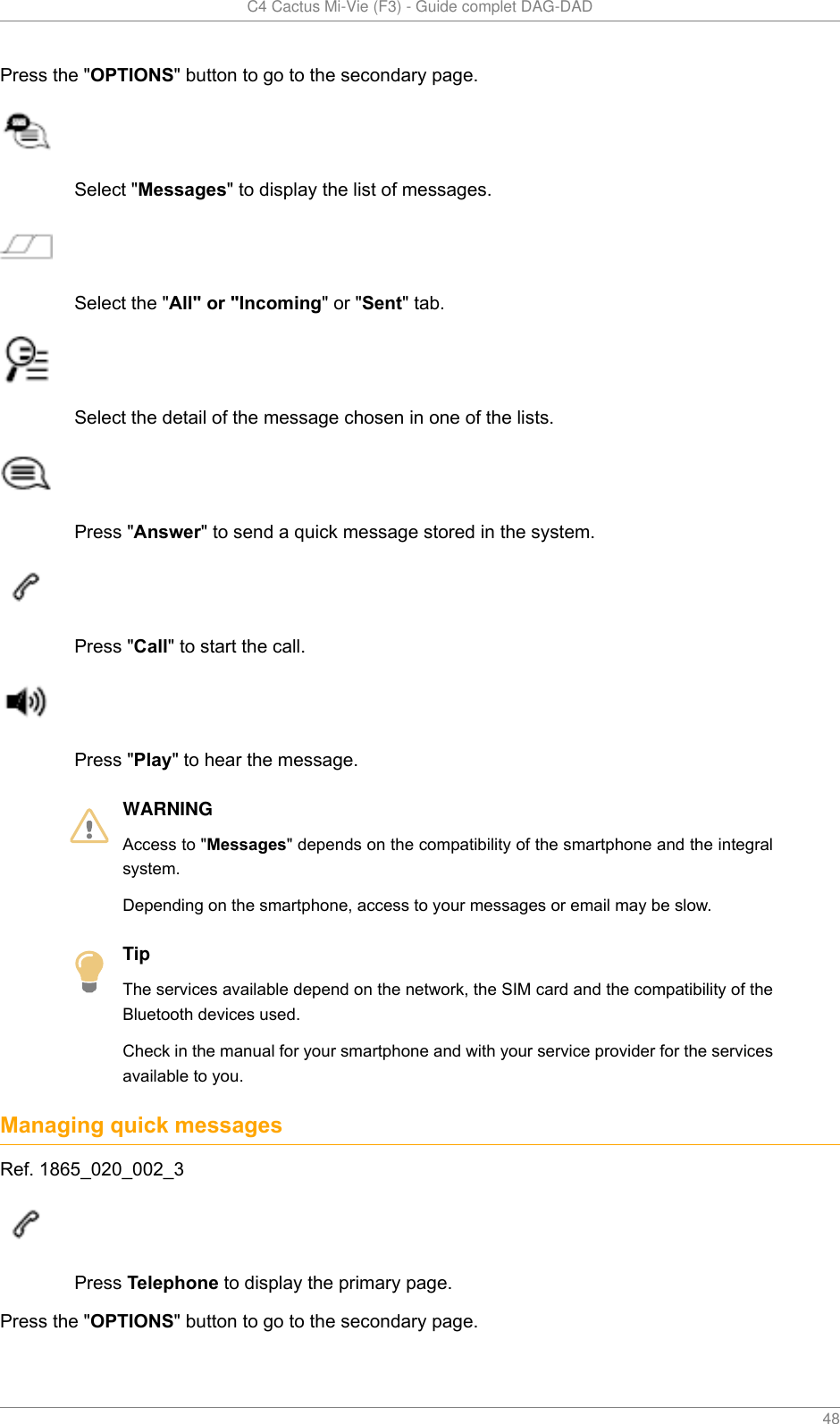

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 48Press the "OPTIONS" button to go to the secondary page.Select "Messages" to display the list of messages.Select the "All" or "Incoming" or "Sent" tab.Select the detail of the message chosen in one of the lists.Press "Answer" to send a quick message stored in the system.Press "Call" to start the call.Press "Play" to hear the message.WARNINGAccess to "Messages" depends on the compatibility of the smartphone and the integralsystem.Depending on the smartphone, access to your messages or email may be slow.TipThe services available depend on the network, the SIM card and the compatibility of theBluetooth devices used.Check in the manual for your smartphone and with your service provider for the servicesavailable to you.Managing quick messagesRef. 1865_020_002_3Press Telephone to display the primary page.Press the "OPTIONS" button to go to the secondary page.

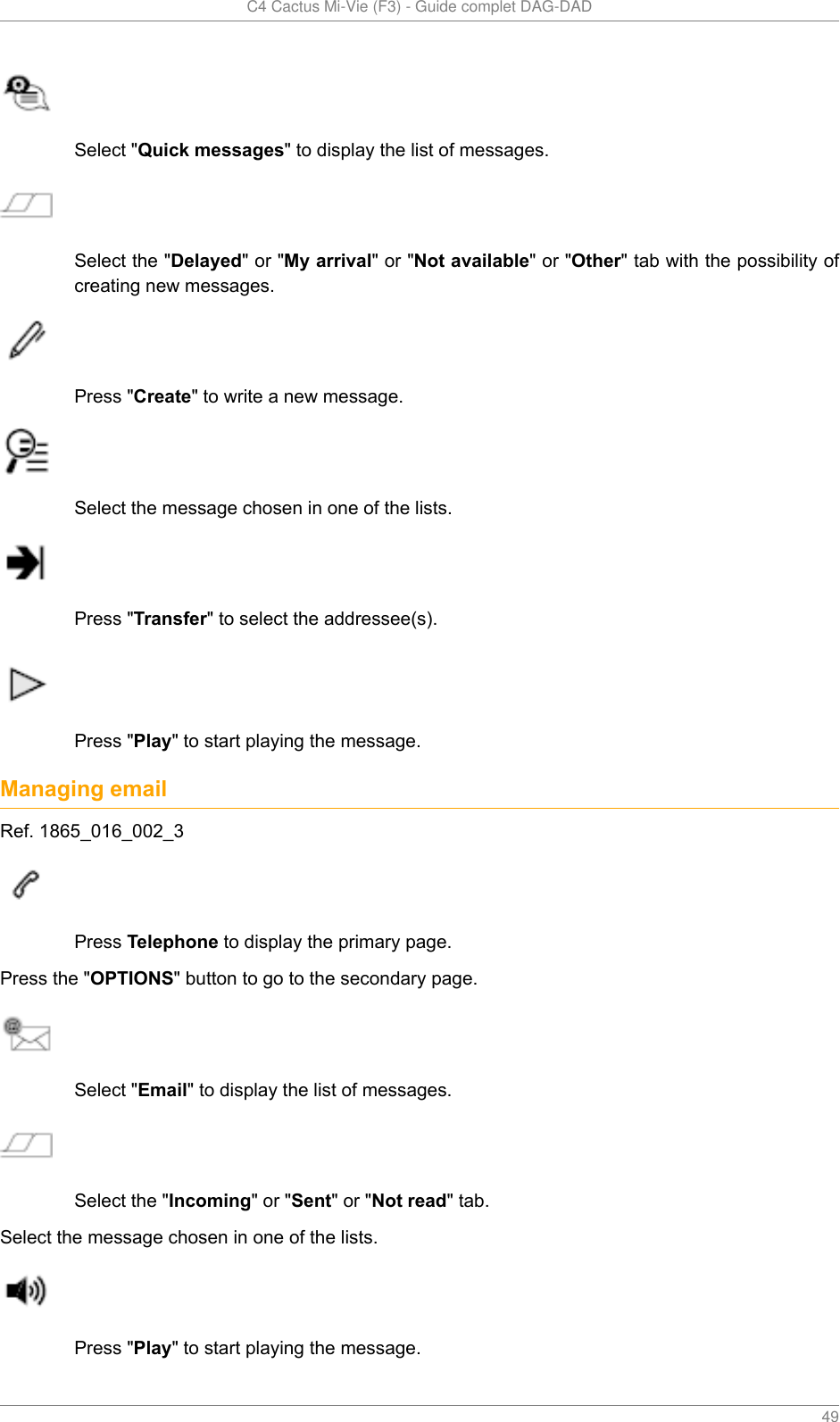

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 49Select "Quick messages" to display the list of messages.Select the "Delayed" or "My arrival" or "Not available" or "Other" tab with the possibility ofcreating new messages.Press "Create" to write a new message.Select the message chosen in one of the lists.Press "Transfer" to select the addressee(s).Press "Play" to start playing the message.Managing emailRef. 1865_016_002_3Press Telephone to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Email" to display the list of messages.Select the "Incoming" or "Sent" or "Not read" tab.Select the message chosen in one of the lists.Press "Play" to start playing the message.

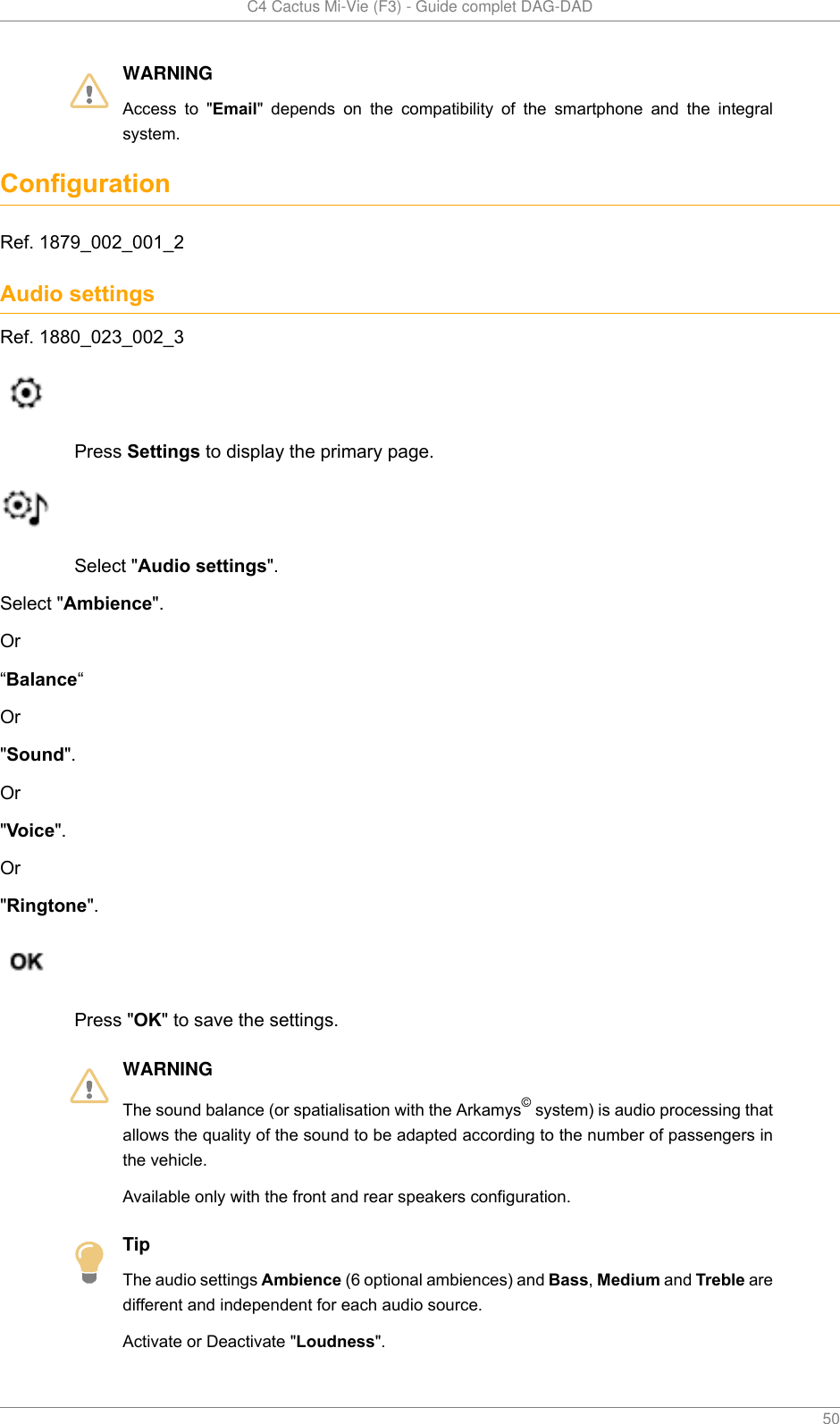

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 50WARNINGAccess to "Email" depends on the compatibility of the smartphone and the integralsystem.ConfigurationRef. 1879_002_001_2Audio settingsRef. 1880_023_002_3Press Settings to display the primary page.Select "Audio settings".Select "Ambience".Or“Balance“Or"Sound".Or"Voice".Or"Ringtone".Press "OK" to save the settings.WARNINGThe sound balance (or spatialisation with the Arkamys© system) is audio processing thatallows the quality of the sound to be adapted according to the number of passengers inthe vehicle.Available only with the front and rear speakers configuration.TipThe audio settings Ambience (6 optional ambiences) and Bass, Medium and Treble aredifferent and independent for each audio source.Activate or Deactivate "Loudness".

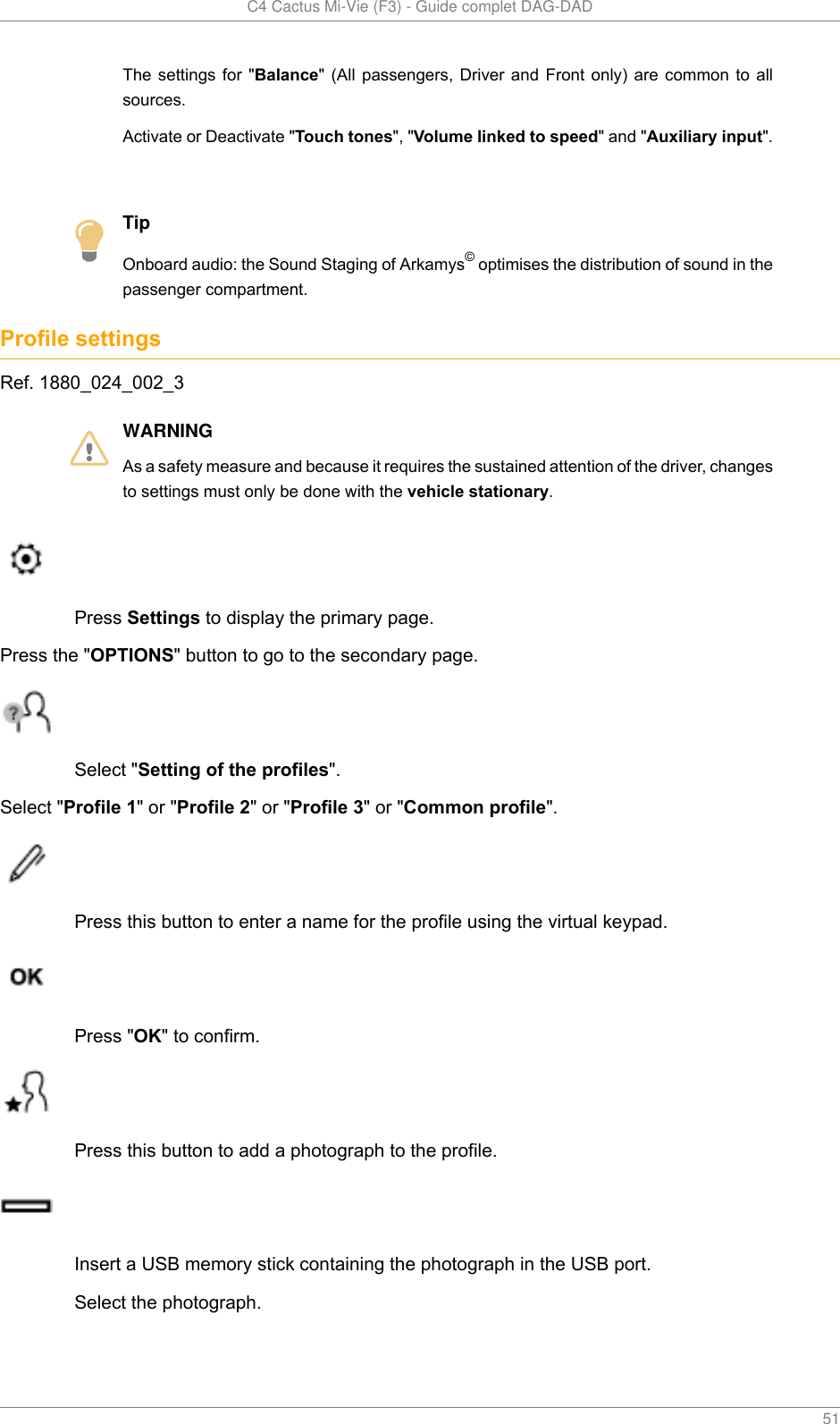

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 51The settings for "Balance" (All passengers, Driver and Front only) are common to allsources.Activate or Deactivate "Touch tones", "Volume linked to speed" and "Auxiliary input".TipOnboard audio: the Sound Staging of Arkamys© optimises the distribution of sound in thepassenger compartment.Profile settingsRef. 1880_024_002_3WARNINGAs a safety measure and because it requires the sustained attention of the driver, changesto settings must only be done with the vehicle stationary.Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Setting of the profiles".Select "Profile 1" or "Profile 2" or "Profile 3" or "Common profile".Press this button to enter a name for the profile using the virtual keypad.Press "OK" to confirm.Press this button to add a photograph to the profile.Insert a USB memory stick containing the photograph in the USB port.Select the photograph.

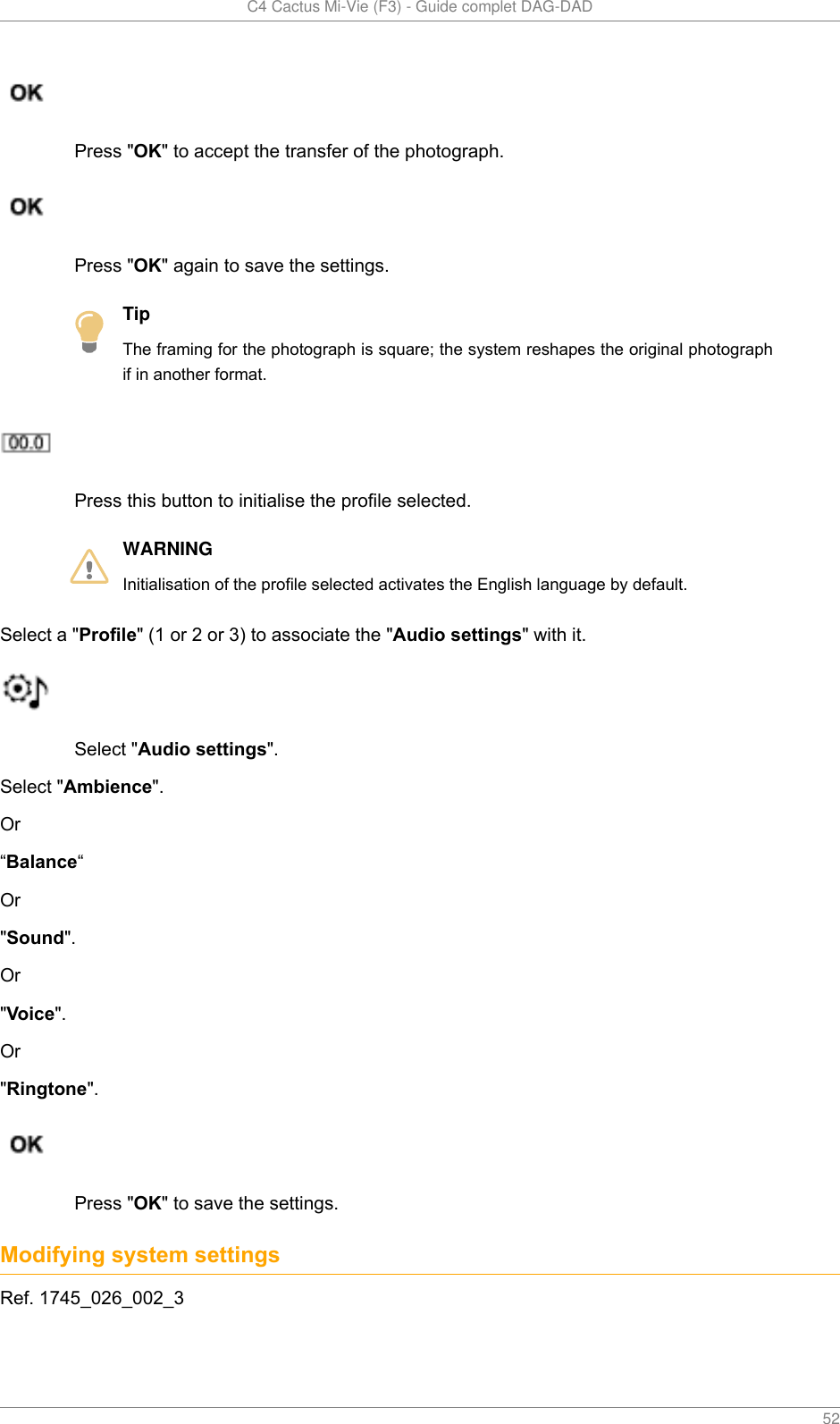

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 52Press "OK" to accept the transfer of the photograph.Press "OK" again to save the settings.TipThe framing for the photograph is square; the system reshapes the original photographif in another format.Press this button to initialise the profile selected.WARNINGInitialisation of the profile selected activates the English language by default.Select a "Profile" (1 or 2 or 3) to associate the "Audio settings" with it.Select "Audio settings".Select "Ambience".Or“Balance“Or"Sound".Or"Voice".Or"Ringtone".Press "OK" to save the settings.Modifying system settingsRef. 1745_026_002_3

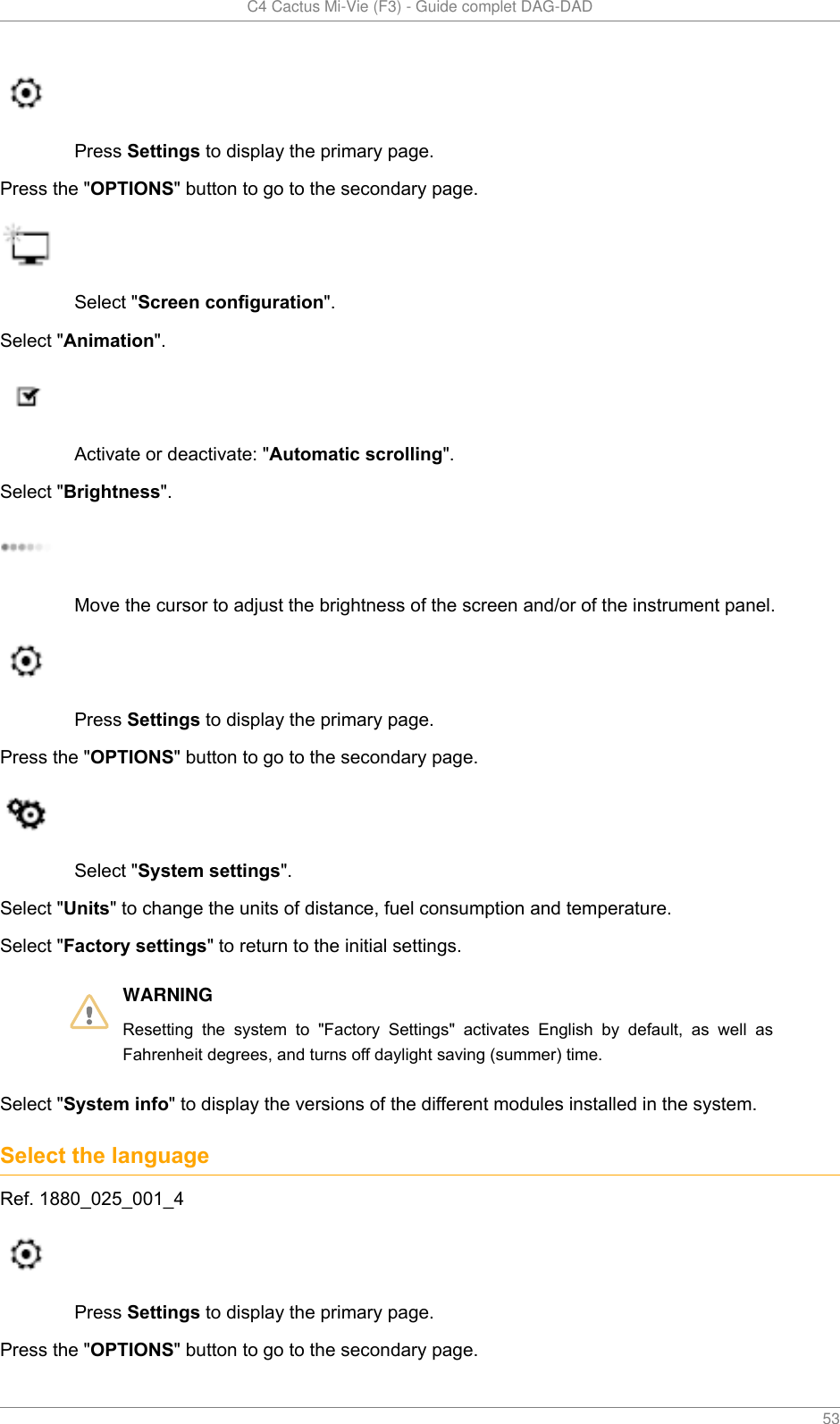

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 53Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Screen configuration".Select "Animation".Activate or deactivate: "Automatic scrolling".Select "Brightness".Move the cursor to adjust the brightness of the screen and/or of the instrument panel.Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "System settings".Select "Units" to change the units of distance, fuel consumption and temperature.Select "Factory settings" to return to the initial settings.WARNINGResetting the system to "Factory Settings" activates English by default, as well asFahrenheit degrees, and turns off daylight saving (summer) time.Select "System info" to display the versions of the different modules installed in the system.Select the languageRef. 1880_025_001_4Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.

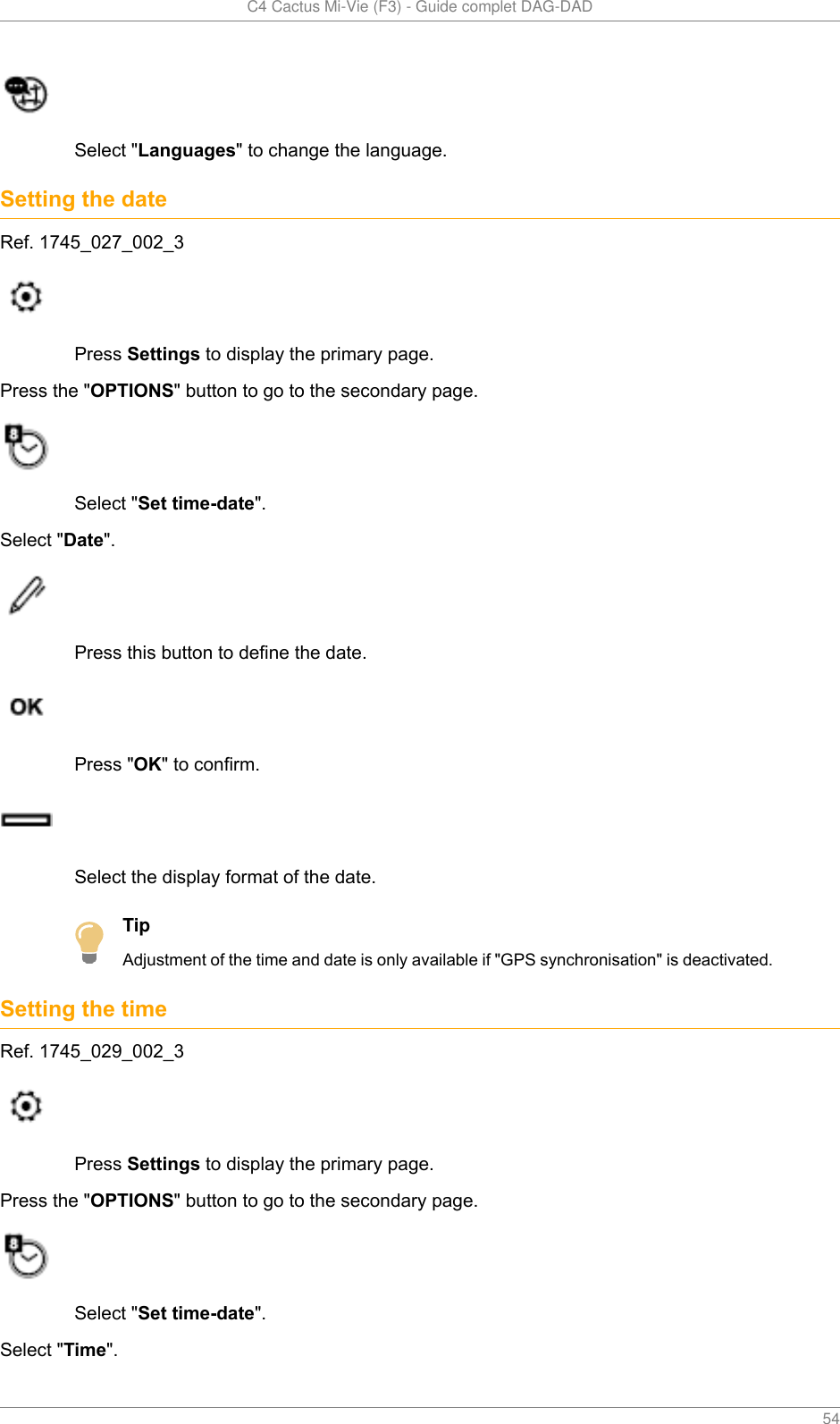

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 54Select "Languages" to change the language.Setting the dateRef. 1745_027_002_3Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Set time-date".Select "Date".Press this button to define the date.Press "OK" to confirm.Select the display format of the date.TipAdjustment of the time and date is only available if "GPS synchronisation" is deactivated.Setting the timeRef. 1745_029_002_3Press Settings to display the primary page.Press the "OPTIONS" button to go to the secondary page.Select "Set time-date".Select "Time".
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 55Press this button to adjust the time using the virtual keypad.Press "OK" to confirm.Press this button to define the time zone.Select the display format for the time (12h / 24h).Activate or deactivate summer time (+1 hour).Activate or deactivate synchronisation with GPS (UTC).Press "OK" to confirm.TipThe system does not automatically manage the change between winter and summer time(depending on the country of sale).Colour schemesRef. 1745_028_001_3Depending on equipment / Depending on version.WARNINGAs a safety measure, the procedure for changing the colour scheme is only possible whenthe vehicle is stationary.Press Settings to display the primary page.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 56Select "Colour schemes".Select a colour scheme in the list then press "OK" to confirm.TipEvery time the colour scheme is changed, the system restarts, temporarily displaying ablack screen.Frequently asked questionsRef. 1847_001_001_2Ref. 1507_051_001_3The following information groups together the answers to the most frequently asked questionsconcerning your system.NavigationRef. 1507_051_002_2QUESTION RESPONSE SOLUTIONThe route calculation is notsuccessful.The guidance criteria may be inconflict with the current location(exclusion of toll roads on a tollroad).Check the route settings in the"Navigation" menu.The POIs do not appear. The POIs have not been selec-ted.Select the POIs in the list ofPOIs.The audible warning of "Dan-ger zones" does not work.The audible warning is not activeor the volume is too low.Activate the audible warningin the "Navigation" menu andcheck the voice volume in theaudio settings.The system does not suggesta detour around an incident onthe route.The guidance criteria do not takeaccount of TMC messages.Select setting for the "Traffic info" function in the list of route set-tings (Without, Manual or Auto-matic).I receive a "Danger zone" alertwhich is not on my route.Other than guidance, the systemannounces all "Danger zones"positioned in a cone located infront of the vehicle. It may pro-vide an alert for "Danger zones"located on nearby or parallelroads.Zoom in on the map to see theexact position of the "Dangerzone". Select "On the route" tono longer receive alerts otherthan navigation instructions or toreduce the time for the announ-cement.

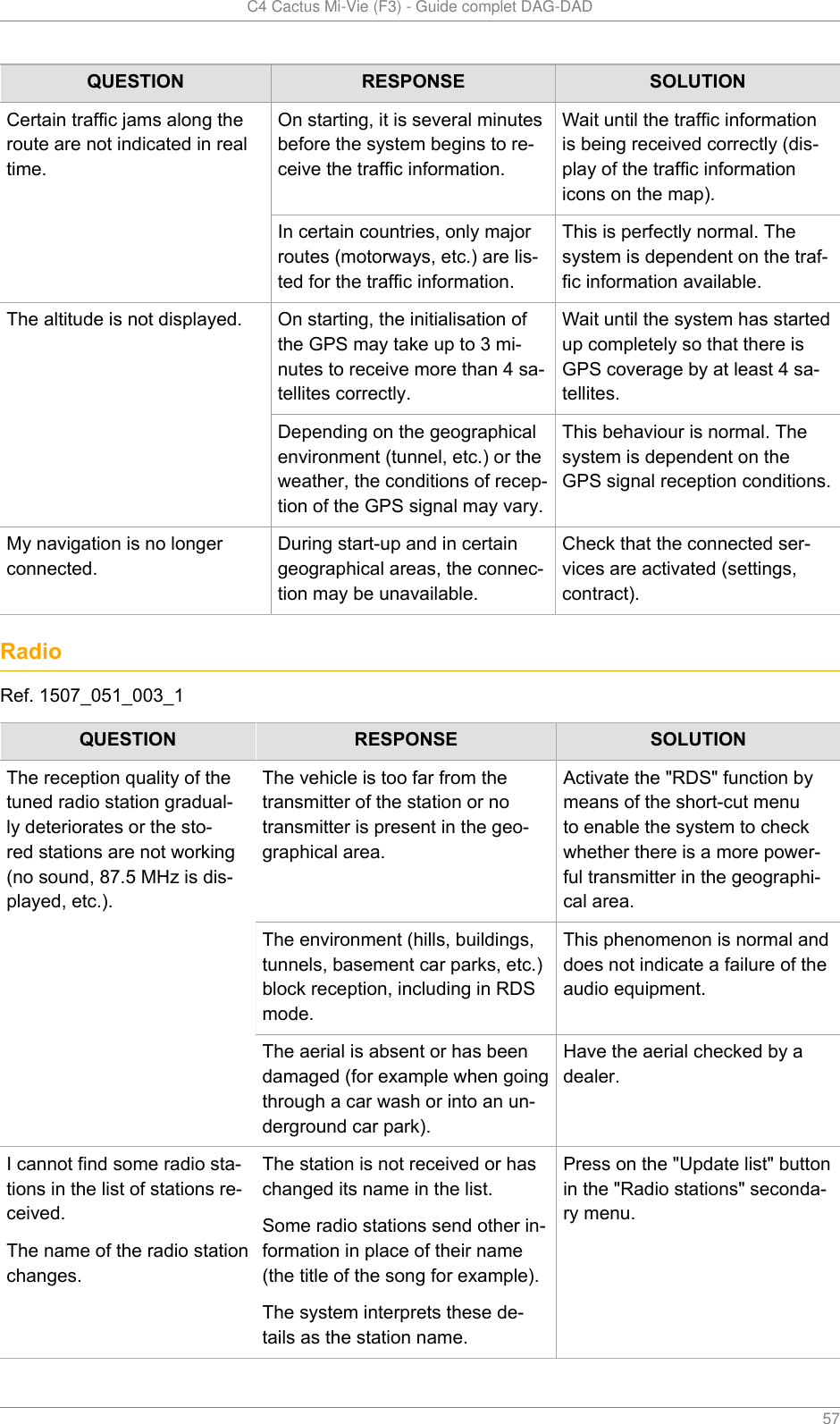

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 57QUESTION RESPONSE SOLUTIONOn starting, it is several minutesbefore the system begins to re-ceive the traffic information.Wait until the traffic informationis being received correctly (dis-play of the traffic informationicons on the map).Certain traffic jams along theroute are not indicated in realtime.In certain countries, only majorroutes (motorways, etc.) are lis-ted for the traffic information.This is perfectly normal. Thesystem is dependent on the traf-fic information available.On starting, the initialisation ofthe GPS may take up to 3 mi-nutes to receive more than 4 sa-tellites correctly.Wait until the system has startedup completely so that there isGPS coverage by at least 4 sa-tellites.The altitude is not displayed.Depending on the geographicalenvironment (tunnel, etc.) or theweather, the conditions of recep-tion of the GPS signal may vary.This behaviour is normal. Thesystem is dependent on theGPS signal reception conditions.My navigation is no longerconnected.During start-up and in certaingeographical areas, the connec-tion may be unavailable.Check that the connected ser-vices are activated (settings,contract).RadioRef. 1507_051_003_1QUESTION RESPONSE SOLUTIONThe vehicle is too far from thetransmitter of the station or notransmitter is present in the geo-graphical area.Activate the "RDS" function bymeans of the short-cut menuto enable the system to checkwhether there is a more power-ful transmitter in the geographi-cal area.The environment (hills, buildings,tunnels, basement car parks, etc.)block reception, including in RDSmode.This phenomenon is normal anddoes not indicate a failure of theaudio equipment.The reception quality of thetuned radio station gradual-ly deteriorates or the sto-red stations are not working(no sound, 87.5 MHz is dis-played, etc.).The aerial is absent or has beendamaged (for example when goingthrough a car wash or into an un-derground car park).Have the aerial checked by adealer.I cannot find some radio sta-tions in the list of stations re-ceived.The name of the radio stationchanges.The station is not received or haschanged its name in the list.Some radio stations send other in-formation in place of their name(the title of the song for example).The system interprets these de-tails as the station name.Press on the "Update list" buttonin the "Radio stations" seconda-ry menu.
C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 58MediaRef. 1507_051_004_1QUESTION RESPONSE SOLUTIONPlayback of my USB memo-ry stick starts only after a ve-ry long wait (around 2 to 3 mi-nutes).Some files supplied with thememory stick may greatly slowdown access to reading the me-mory stick (multiplication by 10of the catalogue time).Delete the files supplied withthe memory stick and limit thenumber of sub-folders in the filestructure on the memory stick.The CD is ejected every timeor is not played.The CD is upside down, cannotbe read, does not contain audiofiles or contains audio files of aformat not recognised by the au-dio system.The CD has been recorded in aformat that is not compatible withthe player (udf, etc.).The CD is protected by an an-ti-pirating system not recognisedby the audio system.Check that the CD is inserted inthe player the right way up.Check the condition of the CD:the CD cannot be played if it istoo badly damaged.Check the content in the case ofa recorded CD: consult the ad-vice in the "AUDIO" section.The audio system CD does notread DVDs.Due to poor quality, certain bur-ned CDs will not be read by theaudio system.There is a long waiting periodfollowing the insertion of a CDor connection of a USB memo-ry stick.Upon insertion of a new key, thesystem reads a certain amountof data (directory, title, artist,etc.). This may take from a fewseconds to a few minutes.This is perfectly normal.The CD used in scratched or ofpoor quality.Insert good quality CDs andstore them in suitable conditions.The CD sound is of poor quali-ty.The audio settings (bass, treble,ambience) are unsuitable.Return bass and treble settingsto 0, without selecting an am-bience.Some information charactersin the currently playing mediaare not displayed correctly.The audio system does not dis-play some types of characters.Use standard characters toname tracks and folders.Playback of streaming filesdoes not start.The connected device does notautomatically launch playback.Start playback from the device.Names of tracks and playingtime are not displayed on theaudio streaming screen.The Bluetooth profile does notallow the transfer of this informa-tion. TelephoneRef. 1507_051_005_1

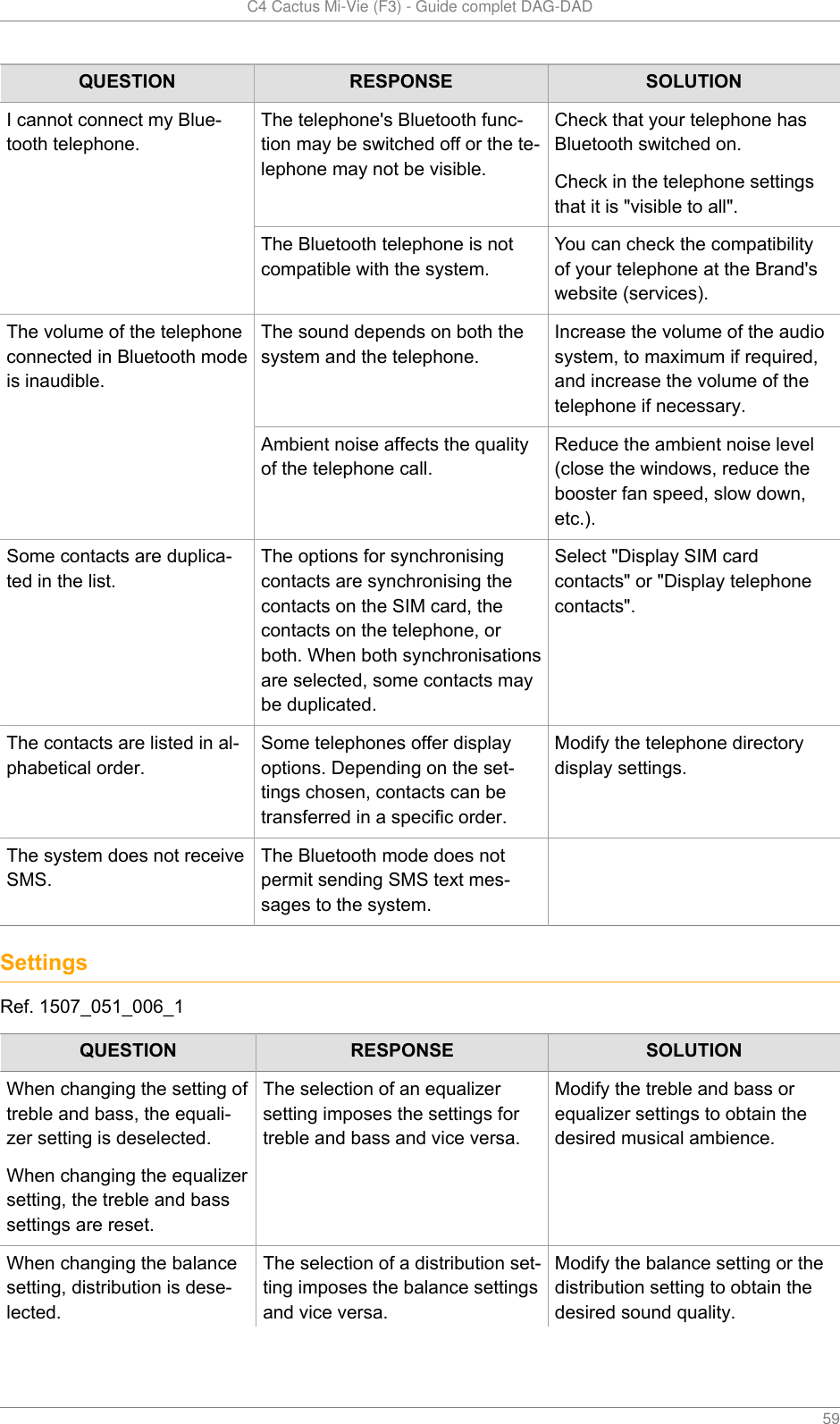

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 59QUESTION RESPONSE SOLUTIONThe telephone's Bluetooth func-tion may be switched off or the te-lephone may not be visible.Check that your telephone hasBluetooth switched on.Check in the telephone settingsthat it is "visible to all".I cannot connect my Blue-tooth telephone.The Bluetooth telephone is notcompatible with the system.You can check the compatibilityof your telephone at the Brand'swebsite (services).The sound depends on both thesystem and the telephone.Increase the volume of the audiosystem, to maximum if required,and increase the volume of thetelephone if necessary.The volume of the telephoneconnected in Bluetooth modeis inaudible.Ambient noise affects the qualityof the telephone call.Reduce the ambient noise level(close the windows, reduce thebooster fan speed, slow down,etc.).Some contacts are duplica-ted in the list.The options for synchronisingcontacts are synchronising thecontacts on the SIM card, thecontacts on the telephone, orboth. When both synchronisationsare selected, some contacts maybe duplicated.Select "Display SIM cardcontacts" or "Display telephonecontacts".The contacts are listed in al-phabetical order.Some telephones offer displayoptions. Depending on the set-tings chosen, contacts can betransferred in a specific order.Modify the telephone directorydisplay settings.The system does not receiveSMS.The Bluetooth mode does notpermit sending SMS text mes-sages to the system. SettingsRef. 1507_051_006_1QUESTION RESPONSE SOLUTIONWhen changing the setting oftreble and bass, the equali-zer setting is deselected.When changing the equalizersetting, the treble and basssettings are reset.The selection of an equalizersetting imposes the settings fortreble and bass and vice versa.Modify the treble and bass orequalizer settings to obtain thedesired musical ambience.When changing the balancesetting, distribution is dese-lected.The selection of a distribution set-ting imposes the balance settingsand vice versa.Modify the balance setting or thedistribution setting to obtain thedesired sound quality.

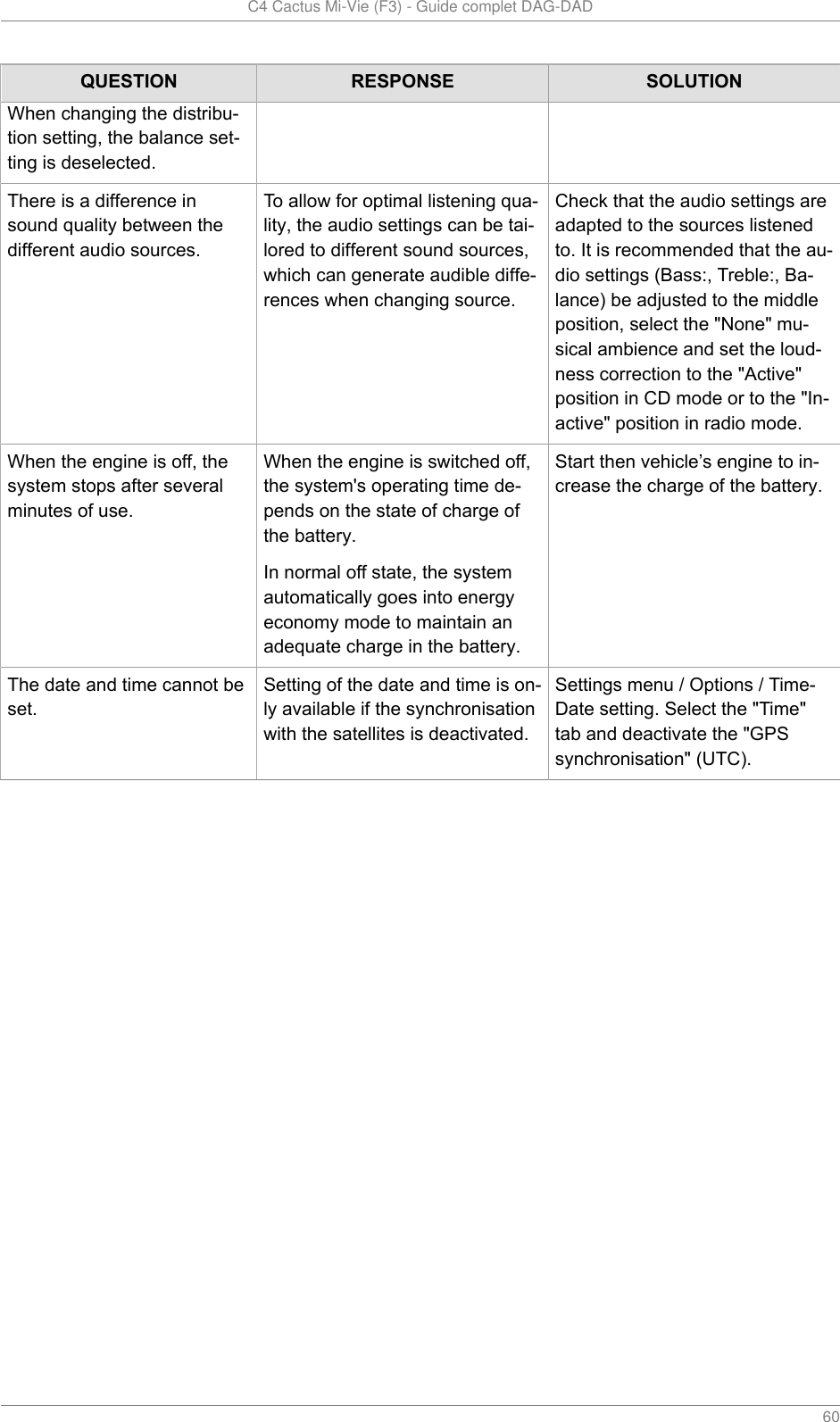

C4 Cactus Mi-Vie (F3) - Guide complet DAG-DAD 60QUESTION RESPONSE SOLUTIONWhen changing the distribu-tion setting, the balance set-ting is deselected.There is a difference insound quality between thedifferent audio sources.To allow for optimal listening qua-lity, the audio settings can be tai-lored to different sound sources,which can generate audible diffe-rences when changing source.Check that the audio settings areadapted to the sources listenedto. It is recommended that the au-dio settings (Bass:, Treble:, Ba-lance) be adjusted to the middleposition, select the "None" mu-sical ambience and set the loud-ness correction to the "Active"position in CD mode or to the "In-active" position in radio mode.When the engine is off, thesystem stops after severalminutes of use.When the engine is switched off,the system's operating time de-pends on the state of charge ofthe battery.In normal off state, the systemautomatically goes into energyeconomy mode to maintain anadequate charge in the battery.Start then vehicle’s engine to in-crease the charge of the battery.The date and time cannot beset.Setting of the date and time is on-ly available if the synchronisationwith the satellites is deactivated.Settings menu / Options / Time-Date setting. Select the "Time"tab and deactivate the "GPSsynchronisation" (UTC).

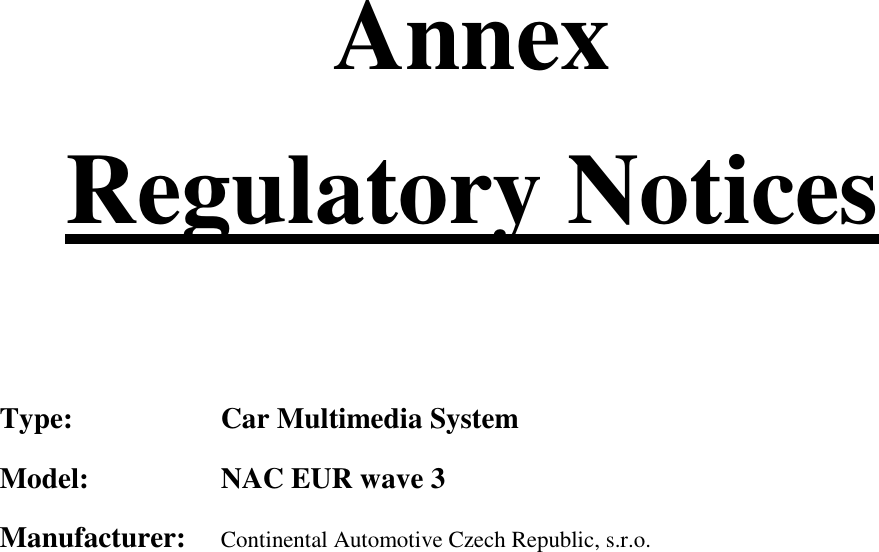

Annex Regulatory Notices Type: Car Multimedia System Model: NAC EUR wave 3 Manufacturer: Continental Automotive Czech Republic, s.r.o.

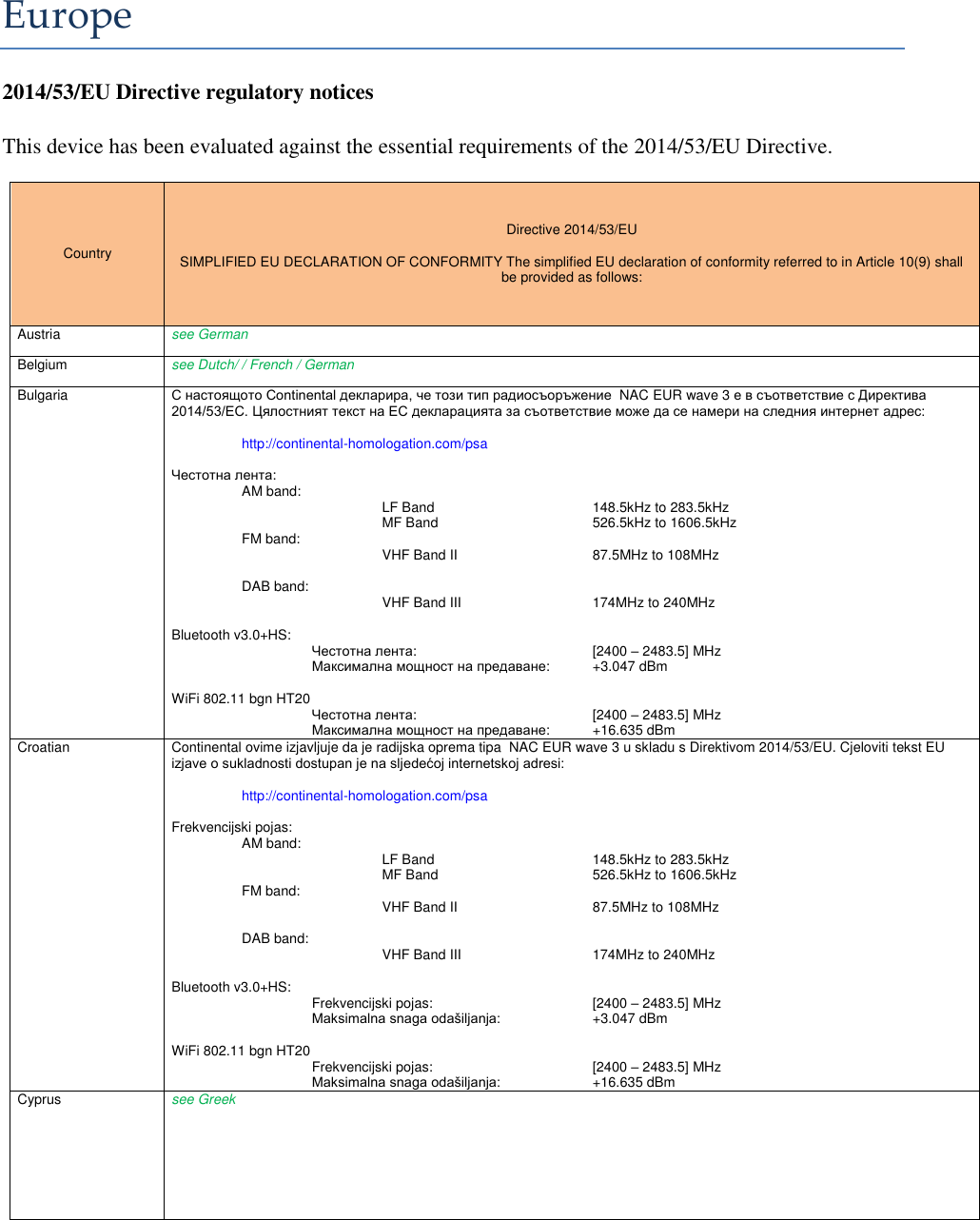

Europe 2014/53/EU Directive regulatory notices This device has been evaluated against the essential requirements of the 2014/53/EU Directive. Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Austria see German Belgium see Dutch/ / French / German Bulgaria С настоящото Continental декларира, че този тип радиосъоръжение NAC EUR wave 3 е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: http://continental-homologation.com/psa Честотна лента: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Честотна лента: [2400 – 2483.5] MHz Максимална мощност на предаване: +3.047 dBm WiFi 802.11 bgn HT20 Честотна лента: [2400 – 2483.5] MHz Максимална мощност на предаване: +16.635 dBm Croatian Continental ovime izjavljuje da je radijska oprema tipa NAC EUR wave 3 u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: http://continental-homologation.com/psa Frekvencijski pojas: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frekvencijski pojas: [2400 – 2483.5] MHz Maksimalna snaga odašiljanja: +3.047 dBm WiFi 802.11 bgn HT20 Frekvencijski pojas: [2400 – 2483.5] MHz Maksimalna snaga odašiljanja: +16.635 dBm Cyprus see Greek

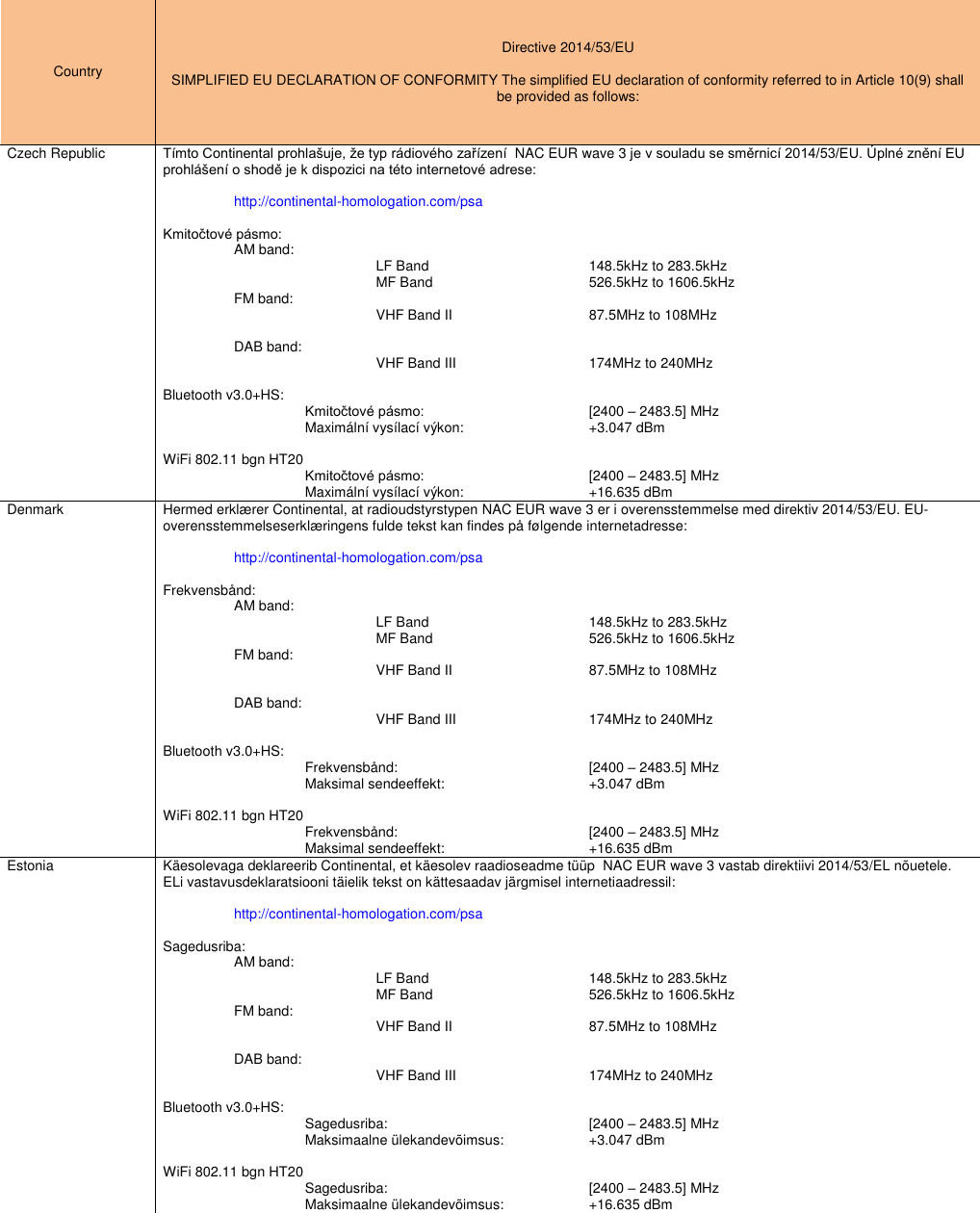

Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Czech Republic Tímto Continental prohlašuje, že typ rádiového zařízení NAC EUR wave 3 je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: http://continental-homologation.com/psa Kmitočtové pásmo: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Kmitočtové pásmo: [2400 – 2483.5] MHz Maximální vysílací výkon: +3.047 dBm WiFi 802.11 bgn HT20 Kmitočtové pásmo: [2400 – 2483.5] MHz Maximální vysílací výkon: +16.635 dBm Denmark Hermed erklærer Continental, at radioudstyrstypen NAC EUR wave 3 er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: http://continental-homologation.com/psa Frekvensbånd: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frekvensbånd: [2400 – 2483.5] MHz Maksimal sendeeffekt: +3.047 dBm WiFi 802.11 bgn HT20 Frekvensbånd: [2400 – 2483.5] MHz Maksimal sendeeffekt: +16.635 dBm Estonia Käesolevaga deklareerib Continental, et käesolev raadioseadme tüüp NAC EUR wave 3 vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: http://continental-homologation.com/psa Sagedusriba: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Sagedusriba: [2400 – 2483.5] MHz Maksimaalne ülekandevõimsus: +3.047 dBm WiFi 802.11 bgn HT20 Sagedusriba: [2400 – 2483.5] MHz Maksimaalne ülekandevõimsus: +16.635 dBm
Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Finland Continental vakuuttaa, että radiolaitetyyppi NAC EUR wave 3 on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: http://continental-homologation.com/psa Taajuusalue: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Taajuusalue: [2400 – 2483.5] MHz Maksimaalinen lähetysteho: +3.047 dBm WiFi 802.11 bgn HT20 Taajuusalue: [2400 – 2483.5] MHz Maksimaalinen lähetysteho: +16.635 dBm France Le soussigné, Continental, déclare que l'équipement radioélectrique du type NAC EUR wave 3 est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: http://continental-homologation.com/psa Bande de fréquences: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Bande de fréquences: [2400 – 2483.5] MHz Puissance d’émission maximale: +3.047 dBm WiFi 802.11 bgn HT20 Bande de fréquences: [2400 – 2483.5] MHz Puissance d’émission maximale: +16.635 dBm Germany Hiermit erklärt Continental, dass der Funkanlagentyp NAC EUR wave 3 der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: http://continental-homologation.com/psa Frequenzband: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frequenzband: [2400 – 2483.5] MHz Maximale Sendeleistung: +3.047 dBm WiFi 802.11 bgn HT20 Frequenzband: [2400 – 2483.5] MHz Maximale Sendeleistung: +16.635 dBm
Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Greece Με την παρούσα ο/η Continental, δηλώνει ότι ο ραδιοεξοπλισμός NAC EUR wave 3 πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: http://continental-homologation.com/psa Ζώνη συχνοτήτων: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Ζώνη συχνοτήτων: [2400 – 2483.5] MHz Μέγιστη ισχύς εκπομπής: +3.047 dBm WiFi 802.11 bgn HT20 Ζώνη συχνοτήτων: [2400 – 2483.5] MHz Μέγιστη ισχύς εκπομπής: +16.635 dBm Hungary Continental igazolja, hogy a NAC EUR wave 3 típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: http://continental-homologation.com/psa Frekvencia-szalag: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frekvencia-szalag: [2400 – 2483.5] MHz Maximális jeladási teljesítmény: +3.047 dBm WiFi 802.11 bgn HT20 Frekvencia-szalag: [2400 – 2483.5] MHz Maximális jeladási teljesítmény: +16.635 dBm Ireland Hereby, Continental declares that the radio equipment type NAC EUR wave 3 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://continental-homologation.com/psa Frequency bands: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frequency band: [2400 – 2483.5] MHz Maximum transmitter power: +3.047 dBm WiFi 802.11 bgn HT20 Frequency band: [2400 – 2483.5] MHz Maximum transmitter power: +16.635 dBm

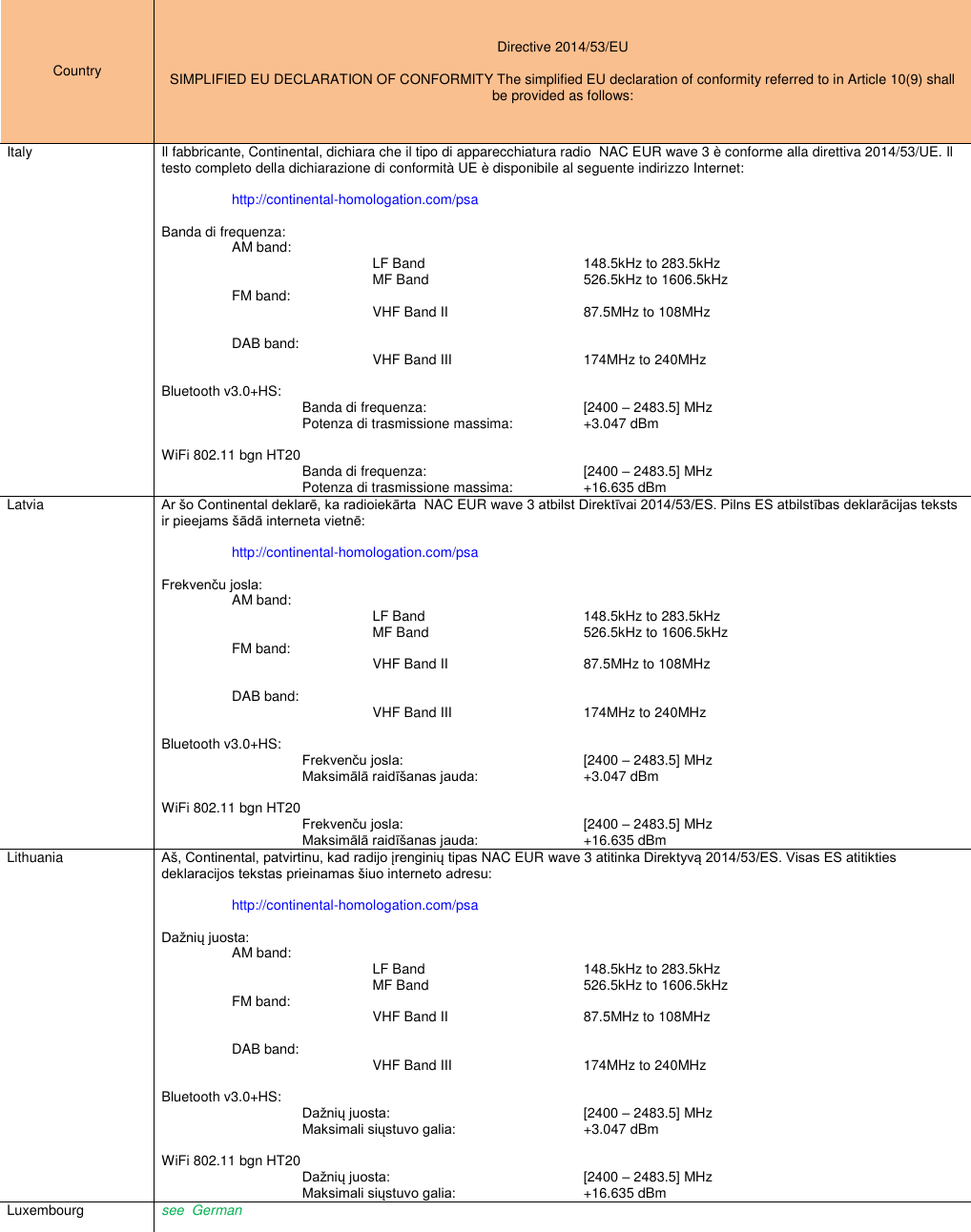

Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Italy Il fabbricante, Continental, dichiara che il tipo di apparecchiatura radio NAC EUR wave 3 è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: http://continental-homologation.com/psa Banda di frequenza: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Banda di frequenza: [2400 – 2483.5] MHz Potenza di trasmissione massima: +3.047 dBm WiFi 802.11 bgn HT20 Banda di frequenza: [2400 – 2483.5] MHz Potenza di trasmissione massima: +16.635 dBm Latvia Ar šo Continental deklarē, ka radioiekārta NAC EUR wave 3 atbilst Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: http://continental-homologation.com/psa Frekvenču josla: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frekvenču josla: [2400 – 2483.5] MHz Maksimālā raidīšanas jauda: +3.047 dBm WiFi 802.11 bgn HT20 Frekvenču josla: [2400 – 2483.5] MHz Maksimālā raidīšanas jauda: +16.635 dBm Lithuania Aš, Continental, patvirtinu, kad radijo įrenginių tipas NAC EUR wave 3 atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: http://continental-homologation.com/psa Dažnių juosta: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Dažnių juosta: [2400 – 2483.5] MHz Maksimali siųstuvo galia: +3.047 dBm WiFi 802.11 bgn HT20 Dažnių juosta: [2400 – 2483.5] MHz Maksimali siųstuvo galia: +16.635 dBm Luxembourg see German

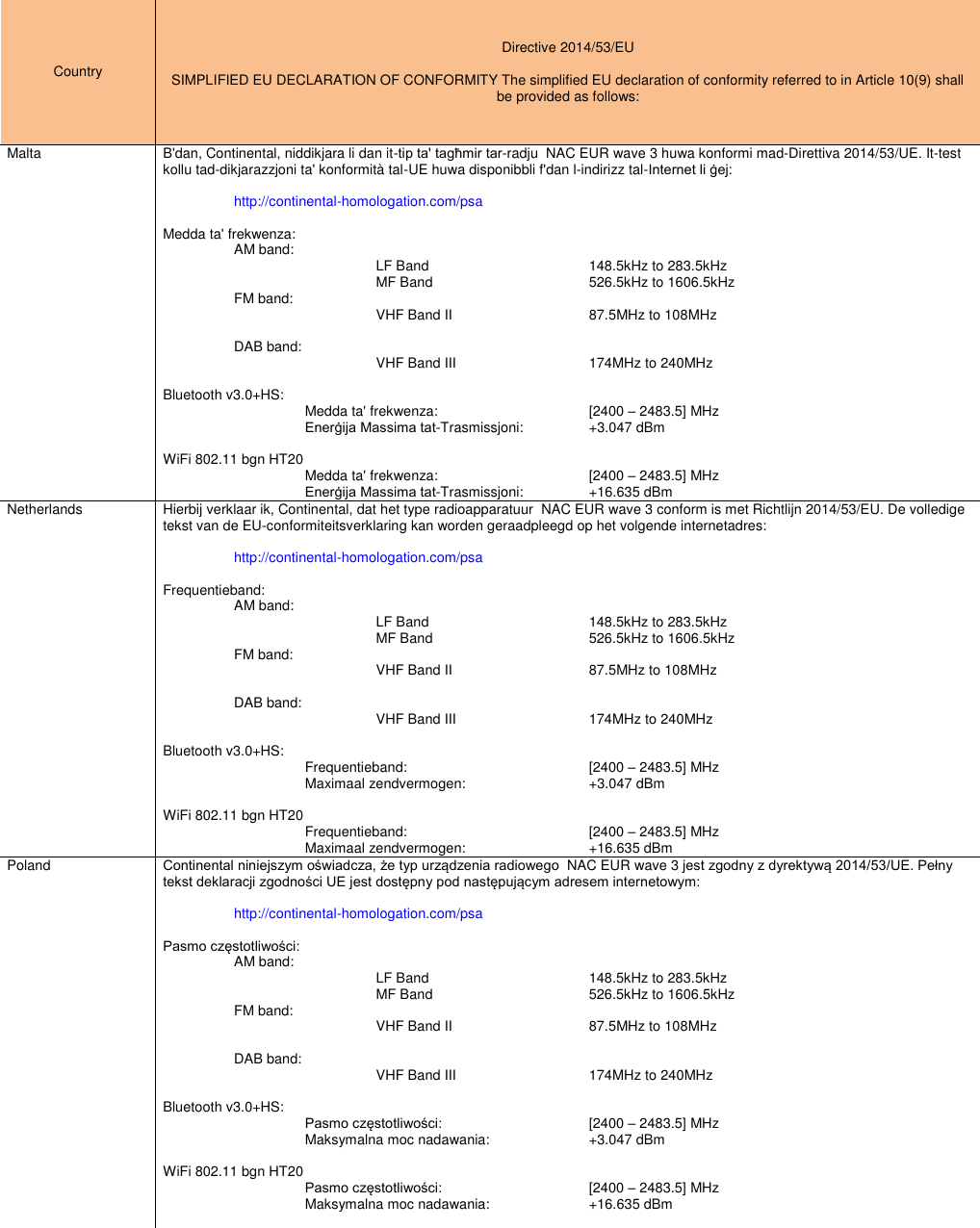

Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Malta B'dan, Continental, niddikjara li dan it-tip ta' tagħmir tar-radju NAC EUR wave 3 huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: http://continental-homologation.com/psa Medda ta' frekwenza: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Medda ta' frekwenza: [2400 – 2483.5] MHz Enerġija Massima tat-Trasmissjoni: +3.047 dBm WiFi 802.11 bgn HT20 Medda ta' frekwenza: [2400 – 2483.5] MHz Enerġija Massima tat-Trasmissjoni: +16.635 dBm Netherlands Hierbij verklaar ik, Continental, dat het type radioapparatuur NAC EUR wave 3 conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: http://continental-homologation.com/psa Frequentieband: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frequentieband: [2400 – 2483.5] MHz Maximaal zendvermogen: +3.047 dBm WiFi 802.11 bgn HT20 Frequentieband: [2400 – 2483.5] MHz Maximaal zendvermogen: +16.635 dBm Poland Continental niniejszym oświadcza, że typ urządzenia radiowego NAC EUR wave 3 jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: http://continental-homologation.com/psa Pasmo częstotliwości: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Pasmo częstotliwości: [2400 – 2483.5] MHz Maksymalna moc nadawania: +3.047 dBm WiFi 802.11 bgn HT20 Pasmo częstotliwości: [2400 – 2483.5] MHz Maksymalna moc nadawania: +16.635 dBm
Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Portugal O(a) abaixo assinado(a) Continental declara que o presente tipo de equipamento de rádio NAC EUR wave 3 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: http://continental-homologation.com/psa Faixa de frequência: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Faixa de frequência: [2400 – 2483.5] MHz Potência máxima de transmissão: +3.047 dBm WiFi 802.11 bgn HT20 Faixa de frequência: [2400 – 2483.5] MHz Potência máxima de transmissão: +16.635 dBm Romania Prin prezenta, Continental declară că tipul de echipamente radio NAC EUR wave 3 este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: http://continental-homologation.com/psa Bandă de frecvențe: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Bandă de frecvențe: [2400 – 2483.5] MHz Putere maximă de emisie: +3.047 dBm WiFi 802.11 bgn HT20 Bandă de frecvențe: [2400 – 2483.5] MHz Putere maximă de emisie: +16.635 dBm Slovak Republic Continental týmto vyhlasuje, že rádiové zariadenie typu NAC EUR wave 3 je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: http://continental-homologation.com/psa Frekvenčné pásmo: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frekvenčné pásmo: [2400 – 2483.5] MHz Maximálny vysielací výkon: +3.047 dBm WiFi 802.11 bgn HT20 Frekvenčné pásmo: [2400 – 2483.5] MHz Maximálny vysielací výkon: +16.635 dBm

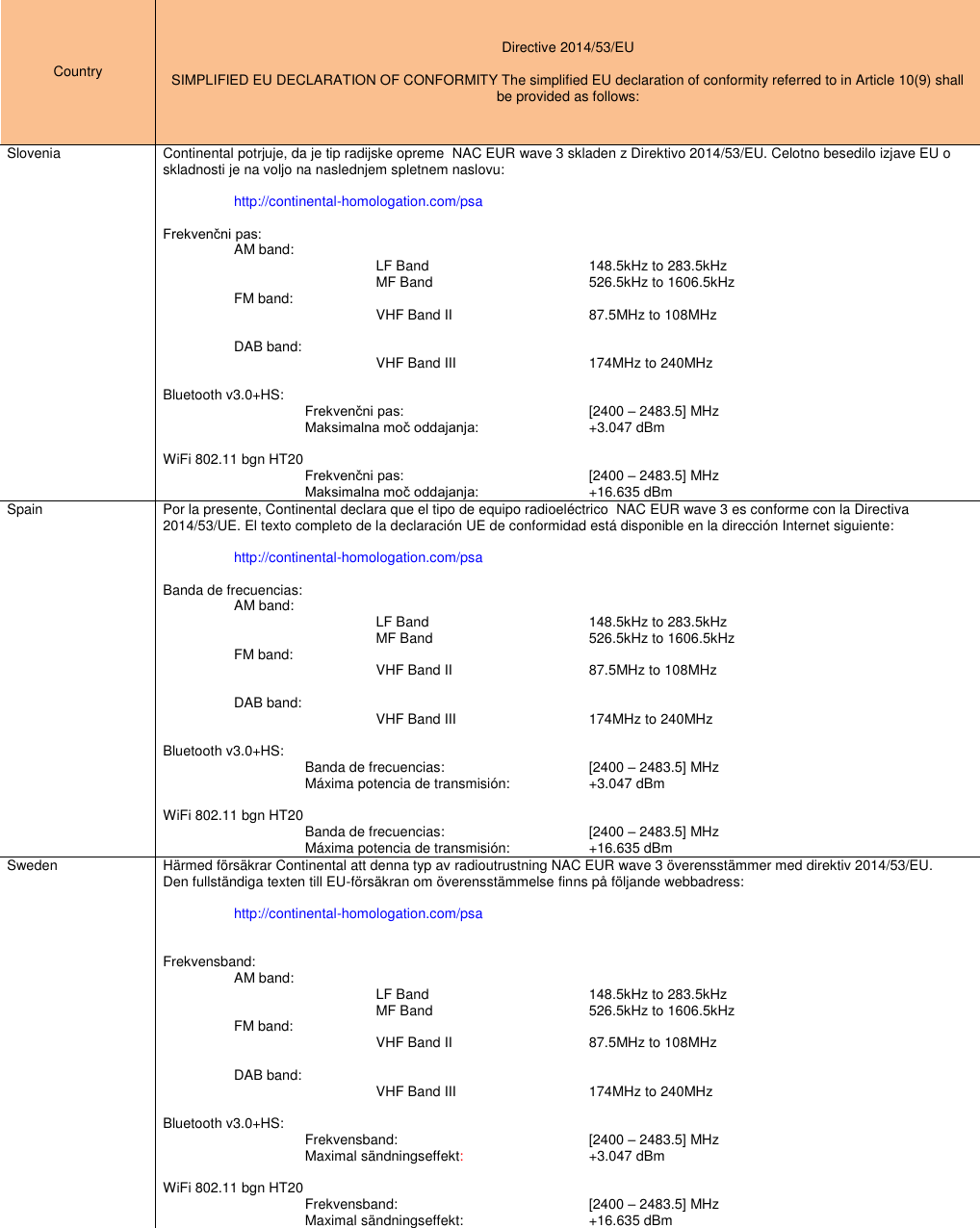

Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Slovenia Continental potrjuje, da je tip radijske opreme NAC EUR wave 3 skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: http://continental-homologation.com/psa Frekvenčni pas: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frekvenčni pas: [2400 – 2483.5] MHz Maksimalna moč oddajanja: +3.047 dBm WiFi 802.11 bgn HT20 Frekvenčni pas: [2400 – 2483.5] MHz Maksimalna moč oddajanja: +16.635 dBm Spain Por la presente, Continental declara que el tipo de equipo radioeléctrico NAC EUR wave 3 es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: http://continental-homologation.com/psa Banda de frecuencias: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Banda de frecuencias: [2400 – 2483.5] MHz Máxima potencia de transmisión: +3.047 dBm WiFi 802.11 bgn HT20 Banda de frecuencias: [2400 – 2483.5] MHz Máxima potencia de transmisión: +16.635 dBm Sweden Härmed försäkrar Continental att denna typ av radioutrustning NAC EUR wave 3 överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-försäkran om överensstämmelse finns på följande webbadress: http://continental-homologation.com/psa Frekvensband: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frekvensband: [2400 – 2483.5] MHz Maximal sändningseffekt: +3.047 dBm WiFi 802.11 bgn HT20 Frekvensband: [2400 – 2483.5] MHz Maximal sändningseffekt: +16.635 dBm
Country Directive 2014/53/EU SIMPLIFIED EU DECLARATION OF CONFORMITY The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: United Kingdom Hereby, Continental declares that the radio equipment type NAC EUR wave 3 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://continental-homologation.com/psa Frequency bands: AM band: LF Band 148.5kHz to 283.5kHz MF Band 526.5kHz to 1606.5kHz FM band: VHF Band II 87.5MHz to 108MHz DAB band: VHF Band III 174MHz to 240MHz Bluetooth v3.0+HS: Frequency band: [2400 – 2483.5] MHz Maximum transmitter power: +3.047 dBm WiFi 802.11 bgn HT20 Frequency band: [2400 – 2483.5] MHz Maximum transmitter power: +16.635 dBm

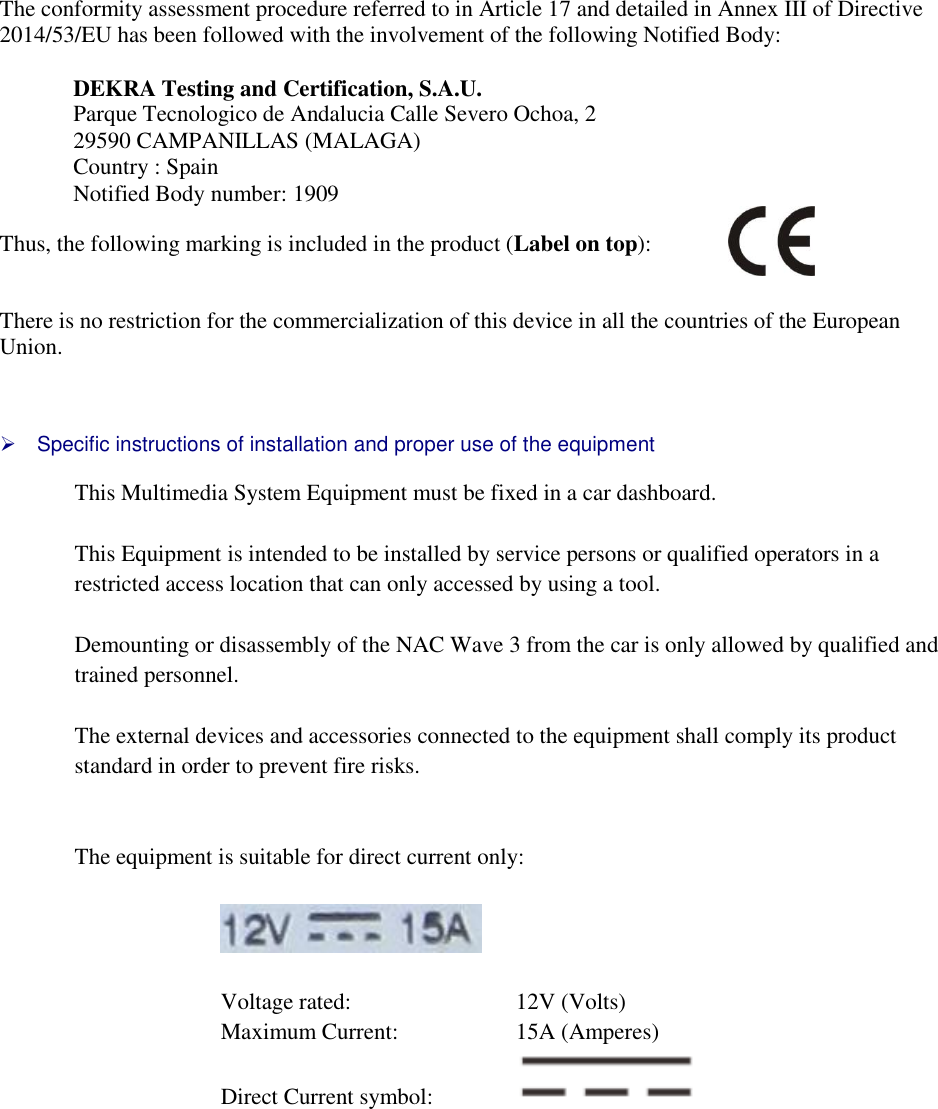

The conformity assessment procedure referred to in Article 17 and detailed in Annex III of Directive 2014/53/EU has been followed with the involvement of the following Notified Body: DEKRA Testing and Certification, S.A.U. Parque Tecnologico de Andalucia Calle Severo Ochoa, 2 29590 CAMPANILLAS (MALAGA) Country : Spain Notified Body number: 1909 Thus, the following marking is included in the product (Label on top): There is no restriction for the commercialization of this device in all the countries of the European Union.  Specific instructions of installation and proper use of the equipment This Multimedia System Equipment must be fixed in a car dashboard. This Equipment is intended to be installed by service persons or qualified operators in a restricted access location that can only accessed by using a tool. Demounting or disassembly of the NAC Wave 3 from the car is only allowed by qualified and trained personnel. The external devices and accessories connected to the equipment shall comply its product standard in order to prevent fire risks. The equipment is suitable for direct current only: Voltage rated: 12V (Volts) Maximum Current: 15A (Amperes) Direct Current symbol:

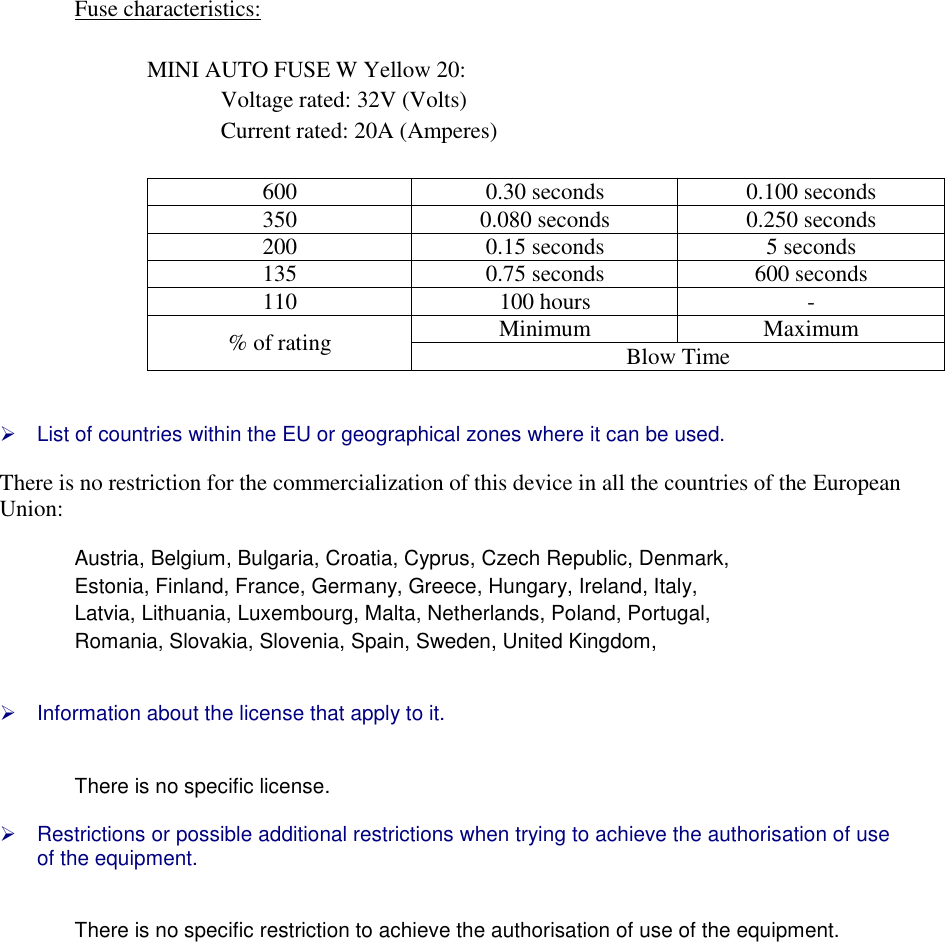

Fuse characteristics: MINI AUTO FUSE W Yellow 20: Voltage rated: 32V (Volts) Current rated: 20A (Amperes) 600 0.30 seconds 0.100 seconds 350 0.080 seconds 0.250 seconds 200 0.15 seconds 5 seconds 135 0.75 seconds 600 seconds 110 100 hours - % of rating Minimum Maximum Blow Time  List of countries within the EU or geographical zones where it can be used. There is no restriction for the commercialization of this device in all the countries of the European Union: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom,  Information about the license that apply to it. There is no specific license.  Restrictions or possible additional restrictions when trying to achieve the authorisation of use of the equipment. There is no specific restriction to achieve the authorisation of use of the equipment.

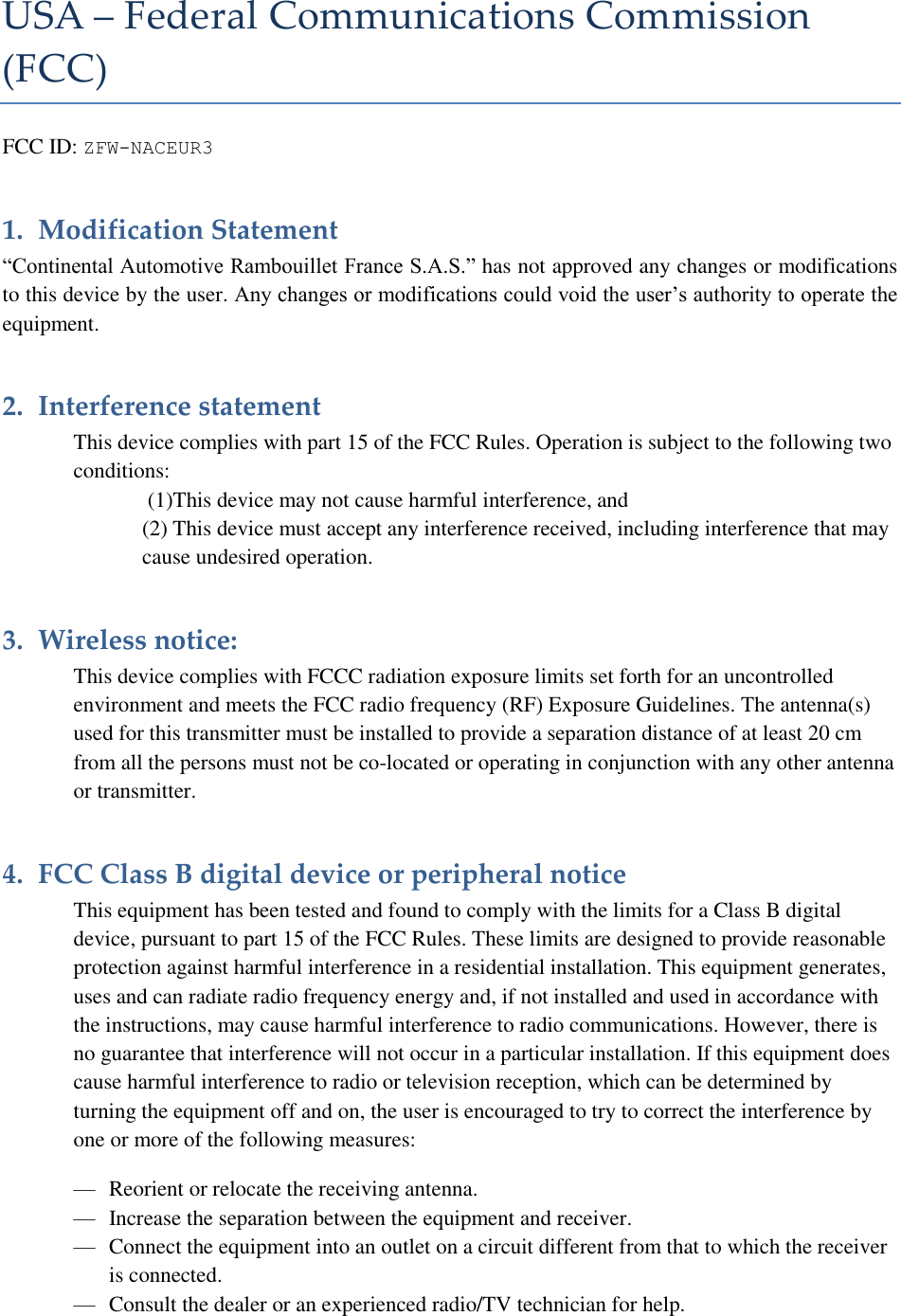

USA – Federal Communications Commission (FCC) FCC ID: ZFW-NACEUR3 1. Modification Statement “Continental Automotive Rambouillet France S.A.S.” has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. 2. Interference statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 3. Wireless notice: This device complies with FCCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons must not be co-located or operating in conjunction with any other antenna or transmitter. 4. FCC Class B digital device or peripheral notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.
