CONTROL TECHNOLOGY BRANCH 3838 OTC and MAC OBDII TPMS TOOL User Manual 3838TPMS OTC QSG C

CONTROL TECHNOLOGY CO. TAIWAN BRANCH OTC and MAC OBDII TPMS TOOL 3838TPMS OTC QSG C

Contents

User manual_Quick Start Guide

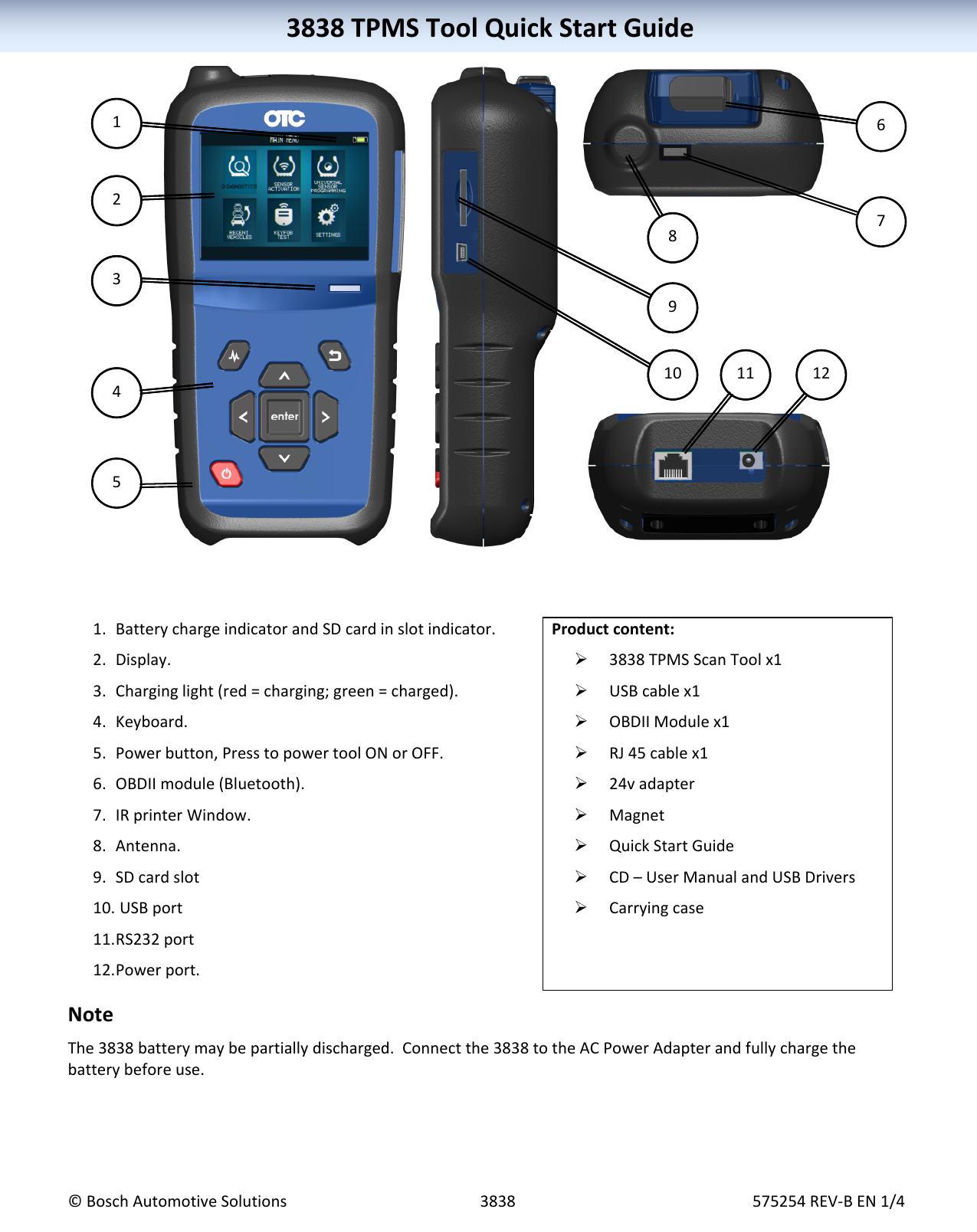

3838TPMSToolQuickStartGuide©BoschAutomotiveSolutions3838575254REV‐BEN1/43838TPMSToolQuickStartGuide 1. BatterychargeindicatorandSDcardinslotindicator.2. Display.3. Charginglight(red=charging;green=charged).4. Keyboard.5. Powerbutton,PresstopowertoolONorOFF.6. OBDIImodule(Bluetooth).7. IRprinterWindow.8. Antenna.9. SDcardslot10. USBport11. RS232port12. Powerport.Productcontent: 3838TPMSScanToolx1 USBcablex1 OBDIIModulex1 RJ45cablex1 24vadapter Magnet QuickStartGuide CD–UserManualandUSBDrivers CarryingcaseNoteThe3838batterymaybepartiallydischarged.Connectthe3838totheACPowerAdapterandfullychargethebatterybeforeuse.1437891011214378910 1112256

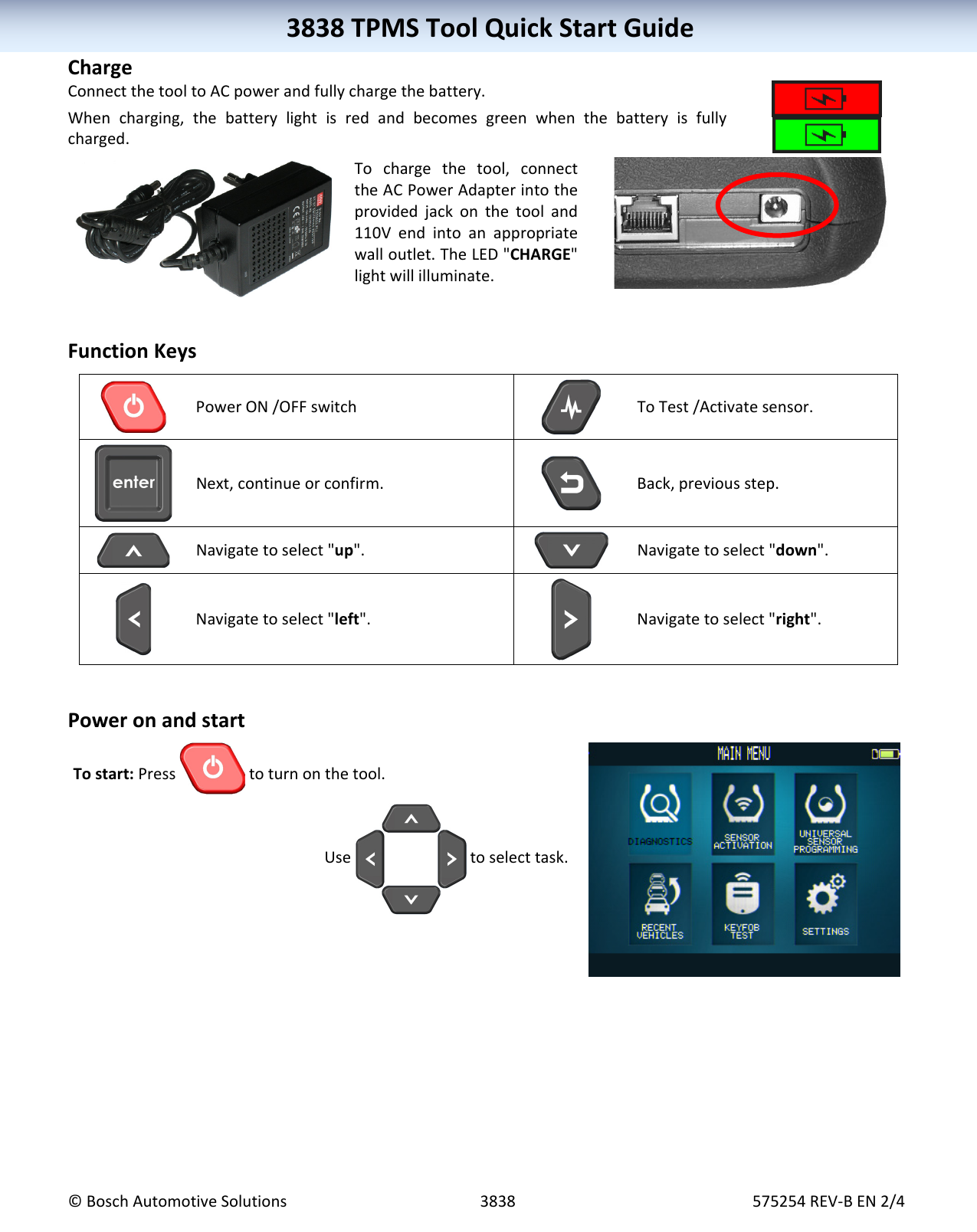

3838TPMSToolQuickStartGuide©BoschAutomotiveSolutions3838575254REV‐BEN2/43838TPMSToolQuickStartGuideChargeConnectthetooltoACpowerandfullychargethebattery.Whencharging,thebatterylightisredandbecomesgreenwhenthebatteryisfullycharged.Tochargethetool,connecttheACPowerAdapterintotheprovidedjackonthetooland110Vendintoanappropriatewalloutlet.TheLED"CHARGE"lightwillilluminate.FunctionKeysPowerON/OFFswitchToTest/Activatesensor.Next,continueorconfirm.Back,previousstep.Navigatetoselect"up".Navigatetoselect"down".Navigatetoselect"left".Navigatetoselect"right".PoweronandstartTostart:Press toturnonthetool.Usetoselecttask.

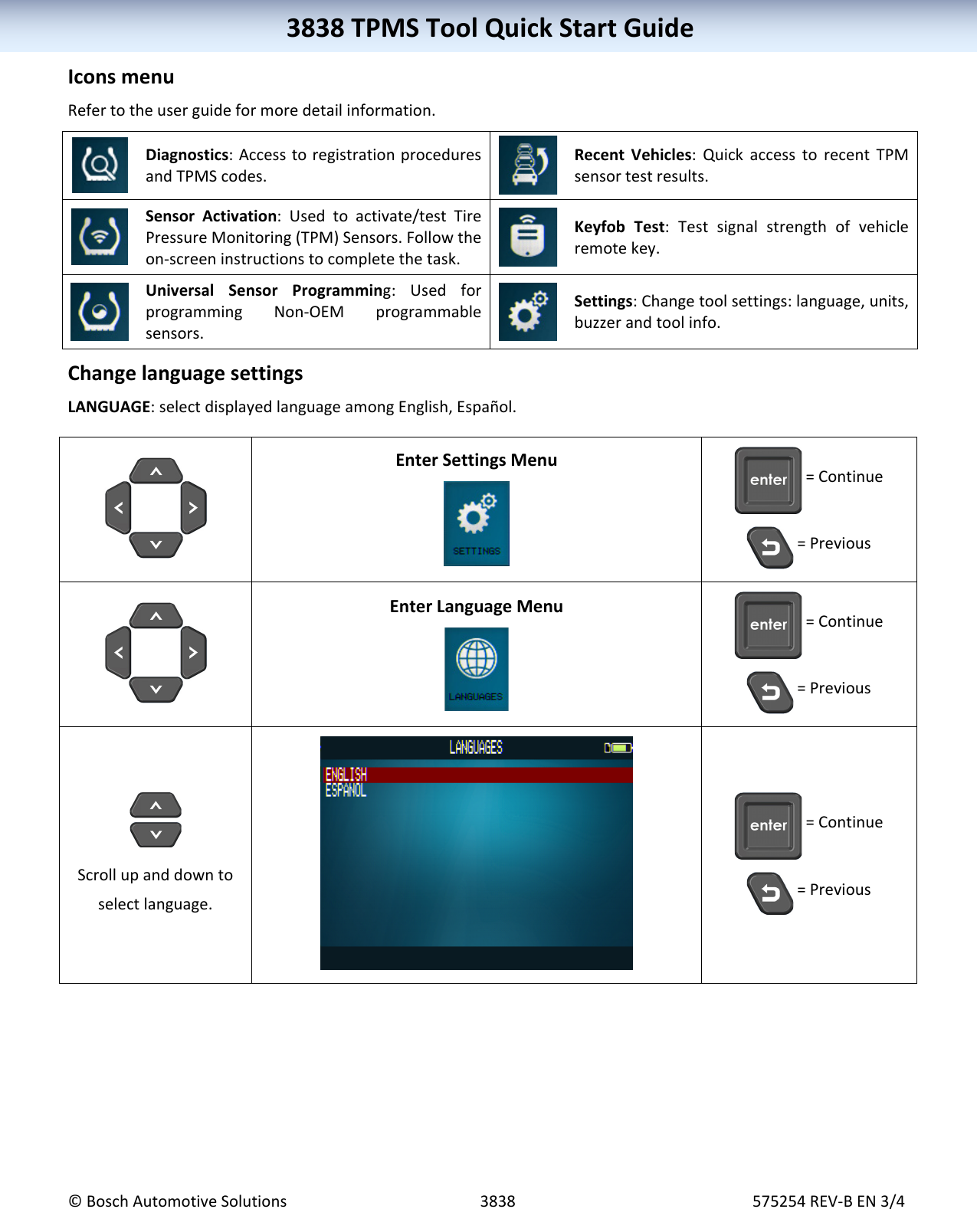

3838TPMSToolQuickStartGuide©BoschAutomotiveSolutions3838575254REV‐BEN3/43838TPMSToolQuickStartGuideIconsmenuRefertotheuserguideformoredetailinformation. Diagnostics:AccesstoregistrationproceduresandTPMScodes. RecentVehicles:QuickaccesstorecentTPMsensortestresults. SensorActivation:Usedtoactivate/testTirePressureMonitoring(TPM)Sensors.Followtheon‐screeninstructionstocompletethetask. KeyfobTest:Testsignalstrengthofvehicleremotekey. UniversalSensorProgramming:UsedforprogrammingNon‐OEMprogrammablesensors. Settings:Changetoolsettings:language,units,buzzerandtoolinfo. ChangelanguagesettingsLANGUAGE:selectdisplayedlanguageamongEnglish,Español.EnterSettingsMenu=Continue=PreviousEnterLanguageMenu=Continue=PreviousScrollupanddowntoselectlanguage.=Continue=Previous

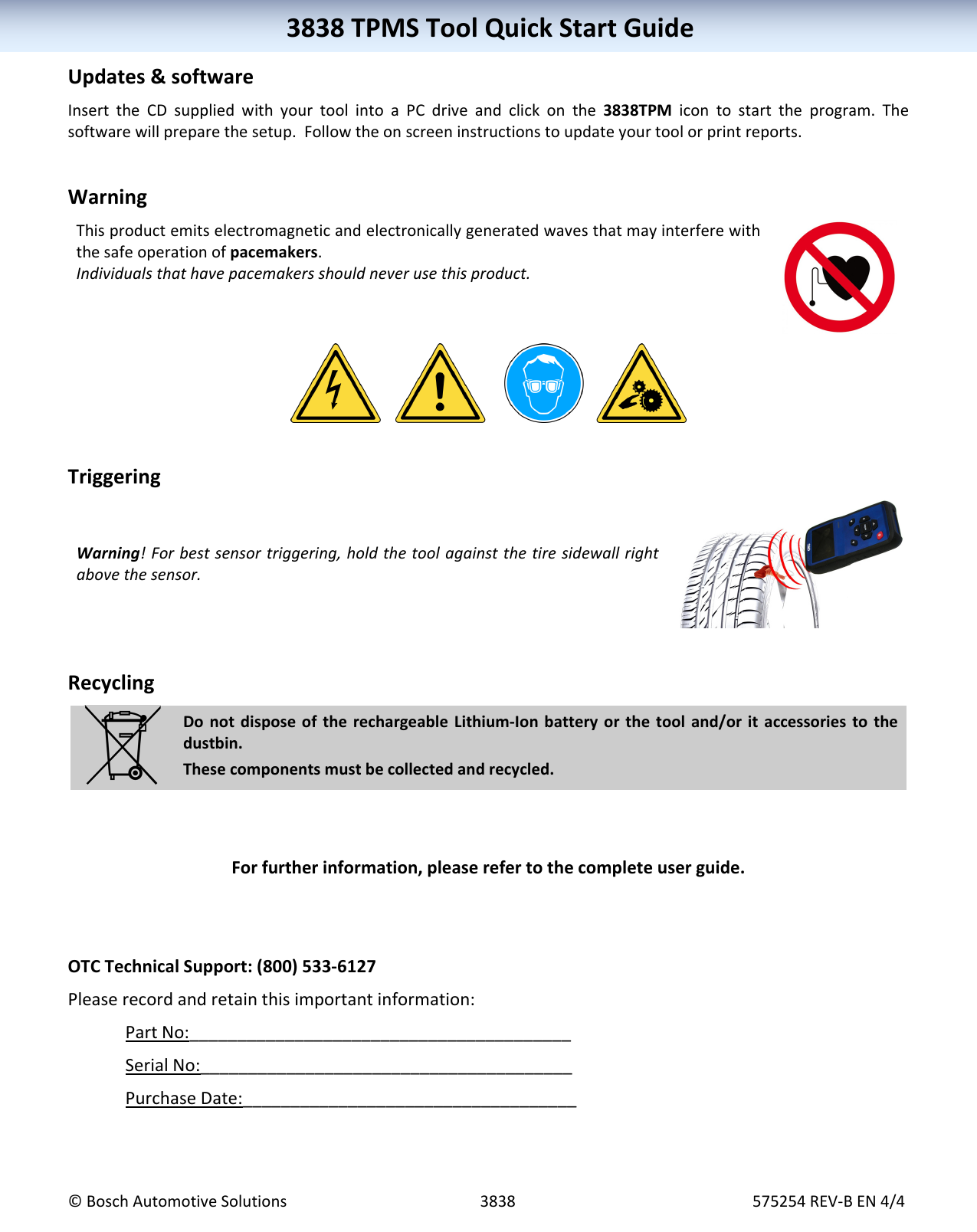

3838TPMSToolQuickStartGuide©BoschAutomotiveSolutions3838575254REV‐BEN4/43838TPMSToolQuickStartGuideUpdates&softwareInserttheCDsuppliedwithyourtoolintoaPCdriveandclickonthe3838TPMicontostarttheprogram.Thesoftwarewillpreparethesetup.Followtheonscreeninstructionstoupdateyourtoolorprintreports.WarningThisproductemitselectromagneticandelectronicallygeneratedwavesthatmayinterferewiththesafeoperationofpacemakers.Individualsthathavepacemakersshouldneverusethisproduct.TriggeringWarning!Forbestsensortriggering,holdthetoolagainstthetiresidewallrightabovethesensor.RecyclingDonotdisposeoftherechargeableLithium‐Ionbatteryorthetooland/oritaccessoriestothedustbin.Thesecomponentsmustbecollectedandrecycled.Forfurtherinformation,pleaserefertothecompleteuserguide.OTCTechnicalSupport:(800)533‐6127Pleaserecordandretainthisimportantinformation:PartNo:________________________________________SerialNo:_______________________________________PurchaseDate:___________________________________
