CPAC Systems EKSP Panel with RFID Reader for Pleasure Boats User Manual Installation Instructions

CPAC Systems AB Panel with RFID Reader for Pleasure Boats Installation Instructions

Installation Instructions

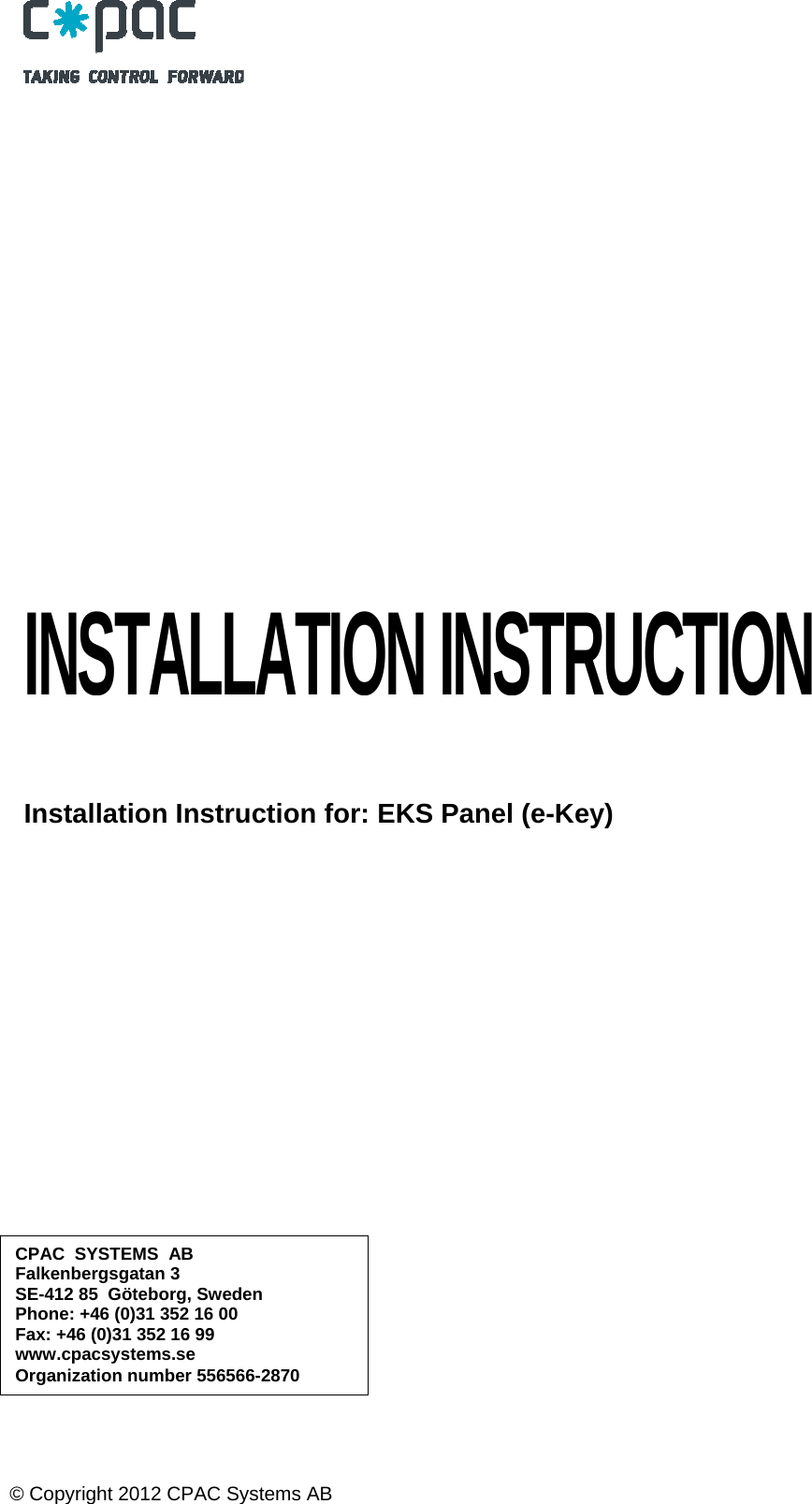

© Copyright 2012 CPAC Systems AB INSTALLATION INSTRUCTION Installation Instruction for: EKS Panel (e-Key) CPAC SYSTEMS AB Falkenbergsgatan 3 SE-412 85 Göteborg, Sweden Phone: +46 (0)31 352 16 00 Fax: +46 (0)31 352 16 99 www.cpacsystems.se Organization number 556566-2870
© Copyright 2012 CPAC Systems AB IMPORTANT! This kit with its accompanying instructions is produced for service workshops, boat-builders, machine manufacturers and other authorized workshops which have personnel with qualified professional training. The installation instructions are only produced for professional use and are not intended for non-professional use. CPAC Systemswill not assume any liability whatsoever for damage incurred, either damage to materials or personal injury, which may result if the installation instructions are not followed or if the work is carried out by non-professional personnel. WICHTIG! Dieser Satz mit vorliegender Einbauanleitung ist für Kundendienst -werkstätten, Werften, Maschinenbauer und für andere ermächtigte Werkstätten mit beruflich geschultem Personal vorgesehen. Die Einbauanleitung ist nur fur den berufsmäßigen Gebrauch vorgesehen und nicht für unprofessionelle Anwendung gedacht. CPAC Systems übernimmt nicht die geringste Haftung für irgendwelchen Schaden an Personen oder Sachen, die als Folge einer Nichtbefolgung der Einbauanleitung oder wegen Ausführung der darin beschriebenen Arbeiten durch nicht beruflich geschulte Personen entstehen. IMPORTANT! Ce kit, avec instructions de montage, est destiné aux ateliers de service, aux constructeurs de bateaux et autres ateliers de construction agréés avec un personnel qualifié. Les instructions de montage sont exclusivement conçues pour une utilisation professionnelle. CPAC Systems se dégage de toute responsabilité pour d'éventuels endommagements, corporels ou matériels, résultant du non respect des instructions ou d'un travail effectué par un personnel non compétent. IMPORTANTE! El presente juego con las instrucciones de montaje se destina a los talleres de servicio, constructores de embarcaciones y máquinas y a otros talleres autorizados que cuentan con personal capacitado. Las instrucciones de montaje están destinadas únicamente para uso profesional, por lo que CPAC Systems no aceptará responsabilidad alguna por cualquier daño, tanto personal como material, resultado de no haber seguido las instrucciones de montaje o de haber sido efectuado el trabajo por personal que no está debida mente capacitado. IMPORTANTE! Questo kit e le relative istruzioni di montaggio sono stati realiz- zati per le officine di servizio, i cantieri, i fabbricanti di macchine e tutte le altre officine autorizzate il cui personale ha ricevuto un addestramento qualificato e specializzato. Le istruzioni di montaggio sono state redatte esclusivamente per uso professionale e non sono adatte all'uso non professionale. La CPAC Systems non si assume alcuna responsabilità per eventuali danni alle cose o alle persone, derivanti da trascuratezza nel seguire le istruzioni di montaggio oppure dall'esecuzione dei lavori da parte di personale non qualificato. VIKTIGT! Denna sats med föreliggande monteringsanvisning är framtagen för serviceverkstäder, båtbyggare, maskintillverkare och övriga auktoriserade verkstäder som har personal med kvalificerad fackutbildning. Monteringsanvisningen är enbart framtagen for yrkesbruk och ar inte avsedd for icke yrkesmässig användning. CPAC Systems påtager sig inget som helst ansvar for eventuella skador, såväl materiella som personskador, som kan bli följden om monteringsanvisningen ej följs, eller om arbetet utförs av icke yrkeskunnig personal. VIGTIGT! Dette sæt med tilhørende monteringsvejledning er blevet udvikletfor serviceværksteder, bådebyggere, maskinproducenter og andre autoriserede værksteder, som har medarbejdere med kvalificeret, faglig uddannelse. Monteringsvejledningen er udelukkende beregnet til professio- nel anvendelse og ikke til hobby- eller fritidsbrug. CPAC Systems påtager sig intet som helst ansvar for eventuelle skader på såvel materiel som personer, som kan være en følge af at monterings vejledningens anvisninger ikke blev overholdt, eller hvis arbejdet blev udført af ikke-professionelt personale. TARKEAA! Tämä sarja ja asennusohje on tarkoitettu huoltokorjaamoille, veneenrakentajille, konevalmistajille ja muille valtuutetuille korjaamoille, joiden henkilökunta on saanut pätevän ammattikoulutuksen. Asennusohje on tarkoitettu ainoastaan ammattikäyttöön. CPAC Systems ei vastaa mahdollisista materiaali- tai henkilövahingoista, joita asennusohjeen laiminlyöminen tai ammattitaidottoman hen kilökunnan suorittama asennustyö voi aiheuttaa. BELANGRIJK! Deze set met de bijgevoegde montage-aanwijzing is ontwik- keld voor de werkplaatsen van otenbouwers,machinefabrikanten en overige bevoegde werkplaatsen, die personeel hebben met een gekwalificeerde vakopleiding. De montage-aanwijzing is alleen ontwikkeld voor professioneel gebruik en is niet bedoeld voor niet-professioneel gebruik. CPAC Systems neemt geen enkele verantwoordelijkheid op zich voor eventuele schade, zowel materiële schade als persoonlijk letsel, die het gevolg kan zijn als de montage-aanwijzing niet wordt gevolgd, of als het werk wordt uitgevoerd door niet-vakkundig personeel. IMPORTANTE! Este jogo, juntamente com as respectivas instruções de montagem, foi concebido para as oficinas de serviço da, construtores navais, construtores de máquinas e outras oficinas autorizadas, com pessoal devidamente formado. As instruções de montagem foram concebidas unicamente para utilização profissional e não se destinam a utilização não profissional. A CPAC Systems não se responsabiliza por quaisquer danos eventuais, tanto materiais como pessoais, que possam resultar no caso de as instruções de montagem não serem seguidas, ou se os trabalhos forem executados por pessoal não profissional.

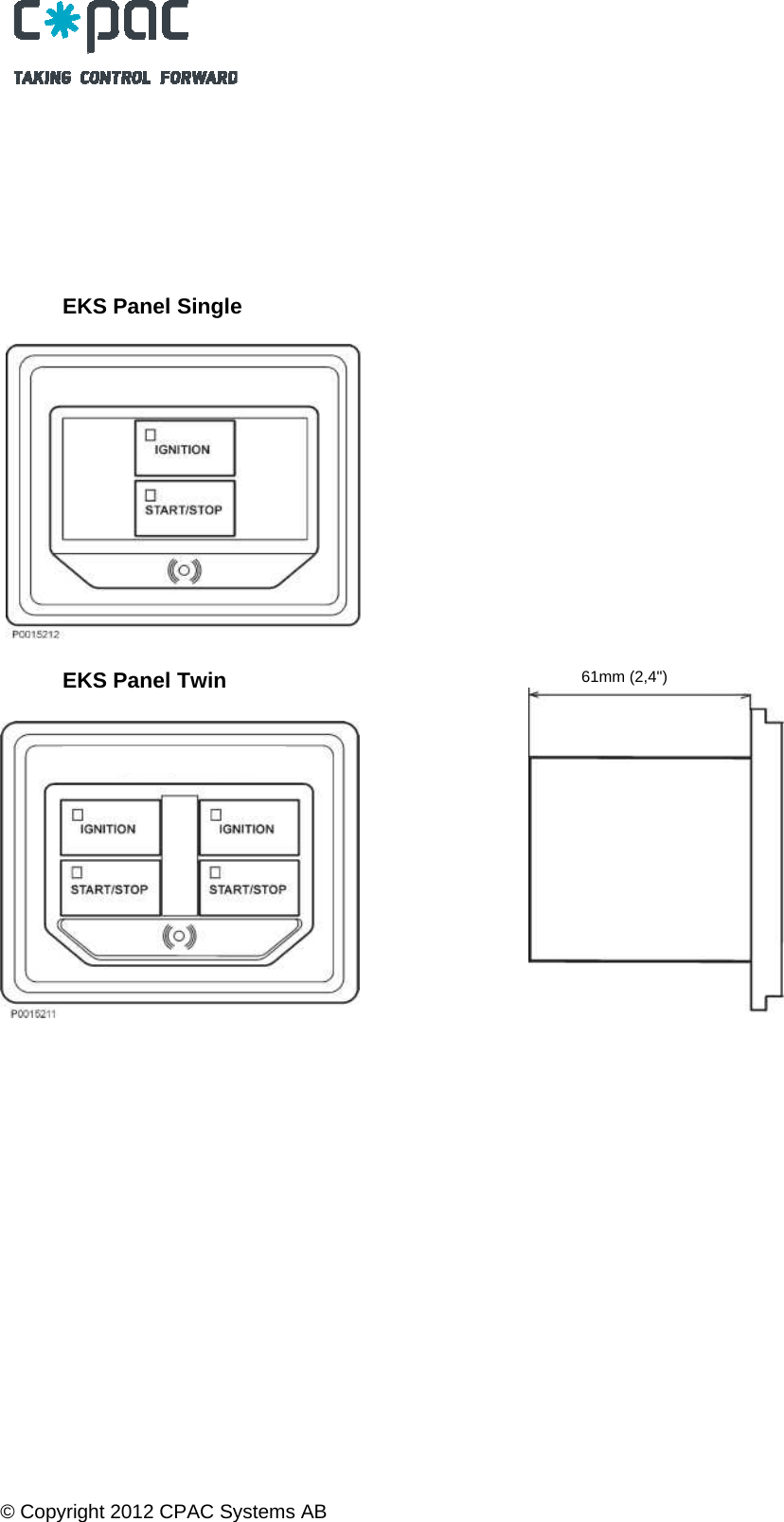

© Copyright 2012 CPAC Systems AB EKS Panel Single EKS Panel Twin 61mm (2,4")

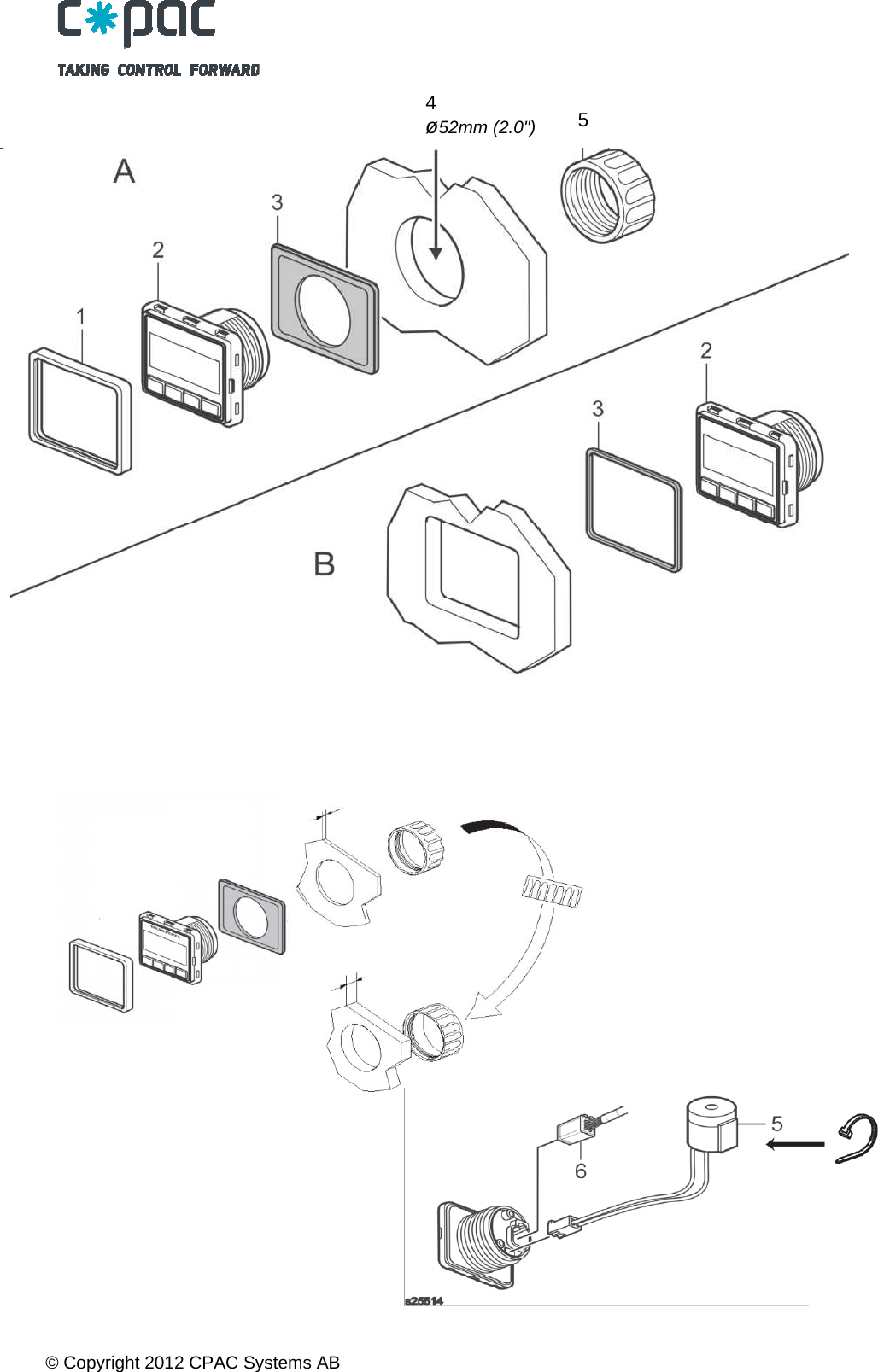

© Copyright 2012 CPAC Systems AB 4 ø52mm (2.0") 5

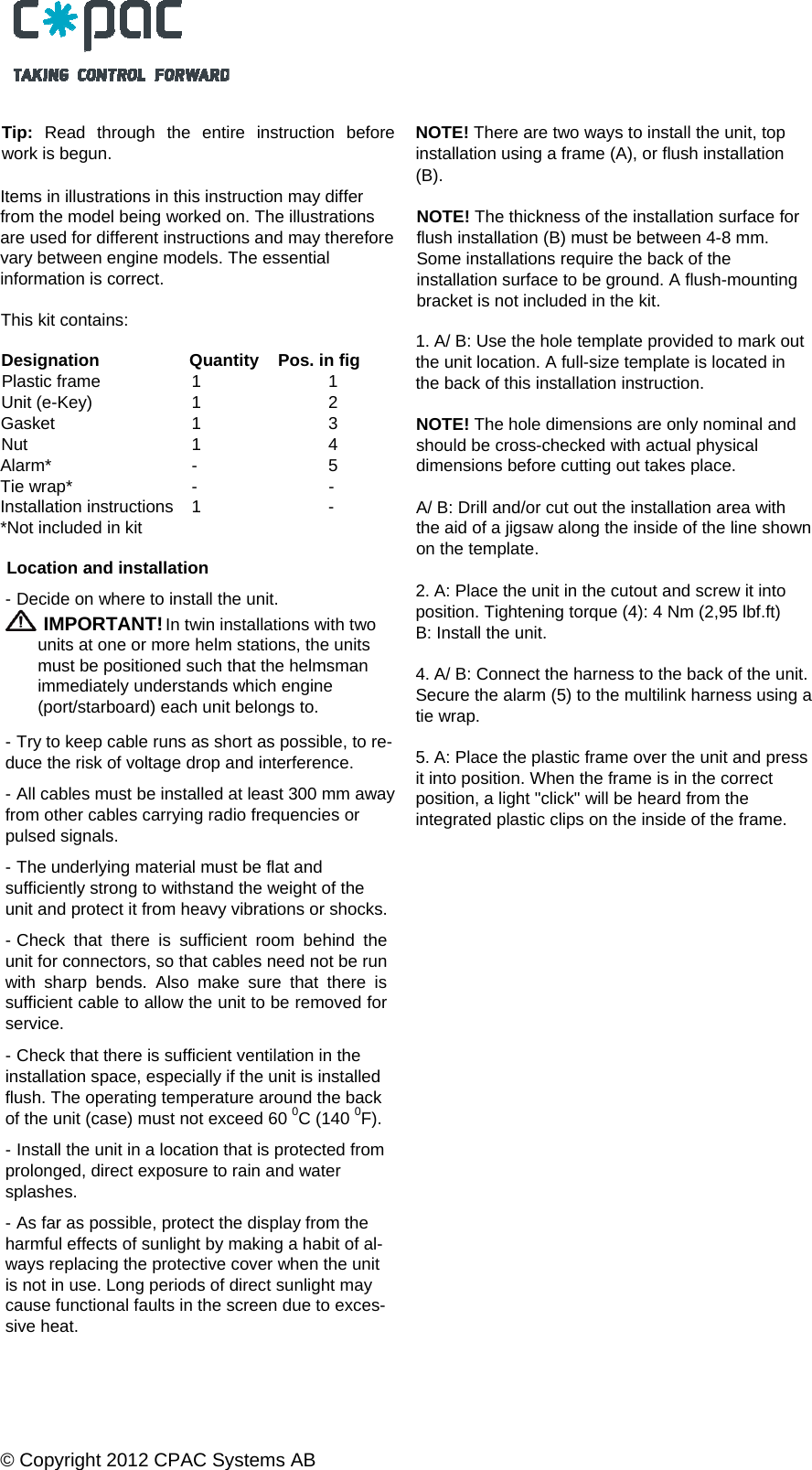

© Copyright 2012 CPAC Systems AB Tip: Read through the entire instruction before work is begun. Items in illustrations in this instruction may differ from the model being worked on. The illustrations are used for different instructions and may thereforevary between engine models. The essential information is correct. This kit contains: Designation Quantity Pos. in fig Plastic frame 1 1 Unit (e-Key) 1 2 Gasket 1 3 Nut 1 4 Alarm* - 5 Tie wrap* - - Installation instructions 1 - *Not included in kit Location and installation - Decide on where to install the unit. IMPORTANT! In twin installations with two units at one or more helm stations, the units must be positioned such that the helmsman immediately understands which engine (port/starboard) each unit belongs to. - Try to keep cable runs as short as possible, to re-duce the risk of voltage drop and interference. - All cables must be installed at least 300 mm awayfrom other cables carrying radio frequencies or pulsed signals. - The underlying material must be flat and sufficiently strong to withstand the weight of the unit and protect it from heavy vibrations or shocks. - Check that there is sufficient room behind the unit for connectors, so that cables need not be run with sharp bends. Also make sure that there is sufficient cable to allow the unit to be removed for service. - Check that there is sufficient ventilation in the installation space, especially if the unit is installed flush. The operating temperature around the back of the unit (case) must not exceed 60 0C (140 0F). - Install the unit in a location that is protected from prolonged, direct exposure to rain and water splashes. - As far as possible, protect the display from the harmful effects of sunlight by making a habit of al- ways replacing the protective cover when the unit is not in use. Long periods of direct sunlight may cause functional faults in the screen due to exces- sive heat. NOTE! There are two ways to install the unit, top installation using a frame (A), or flush installation (B). NOTE! The thickness of the installation surface for flush installation (B) must be between 4-8 mm. Some installations require the back of the installation surface to be ground. A flush-mounting bracket is not included in the kit. 1. A/ B: Use the hole template provided to mark out the unit location. A full-size template is located in the back of this installation instruction. NOTE! The hole dimensions are only nominal and should be cross-checked with actual physical dimensions before cutting out takes place. A/ B: Drill and/or cut out the installation area with the aid of a jigsaw along the inside of the line shown on the template. 2. A: Place the unit in the cutout and screw it into position. Tightening torque (4): 4 Nm (2,95 lbf.ft) B: Install the unit. 4. A/ B: Connect the harness to the back of the unit.Secure the alarm (5) to the multilink harness using a tie wrap. 5. A: Place the plastic frame over the unit and press it into position. When the frame is in the correct position, a light "click" will be heard from the integrated plastic clips on the inside of the frame.

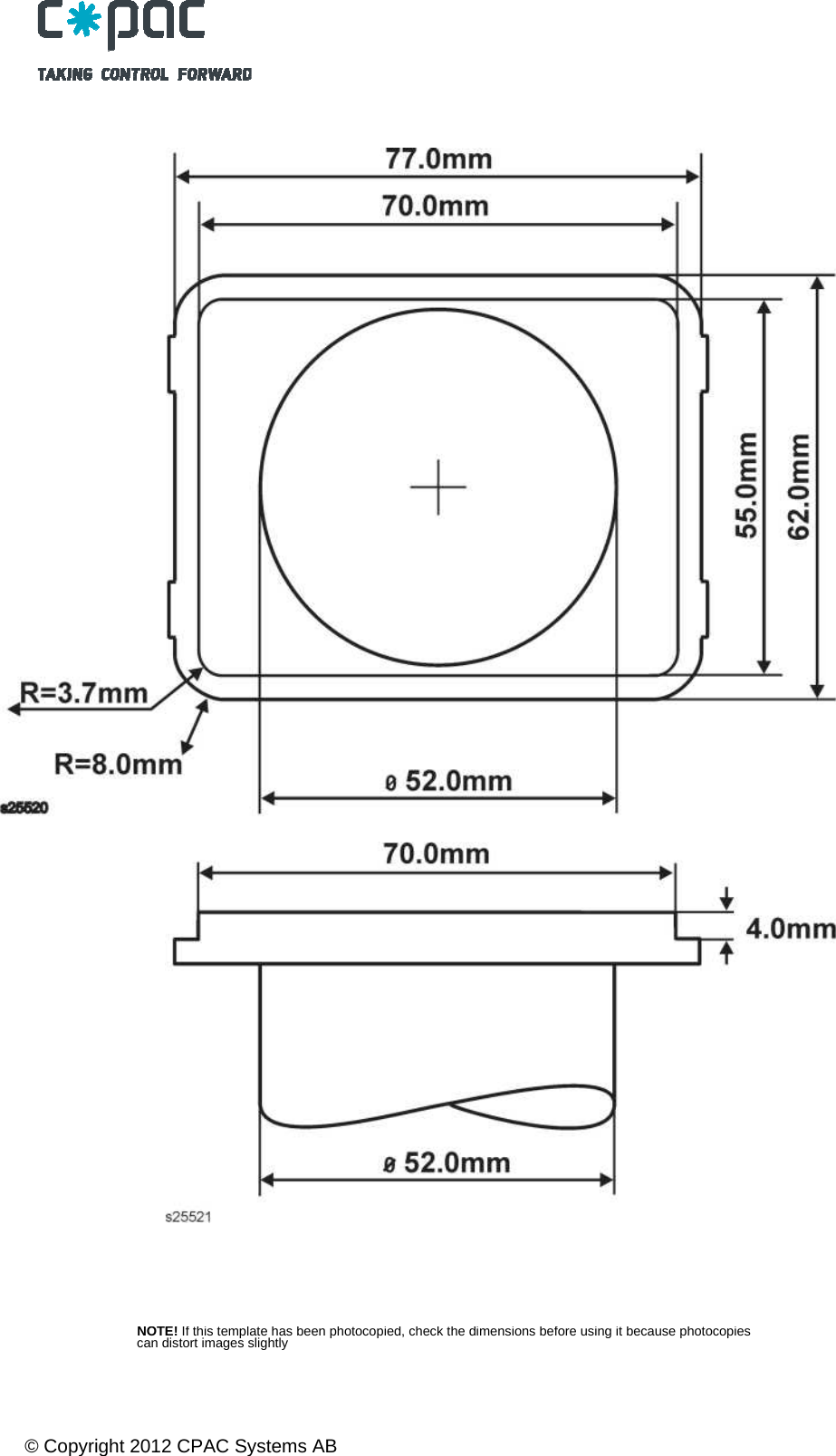

© Copyright 2012 CPAC Systems AB NOTE! If this template has been photocopied, check the dimensions before using it because photocopies can distort images slightly

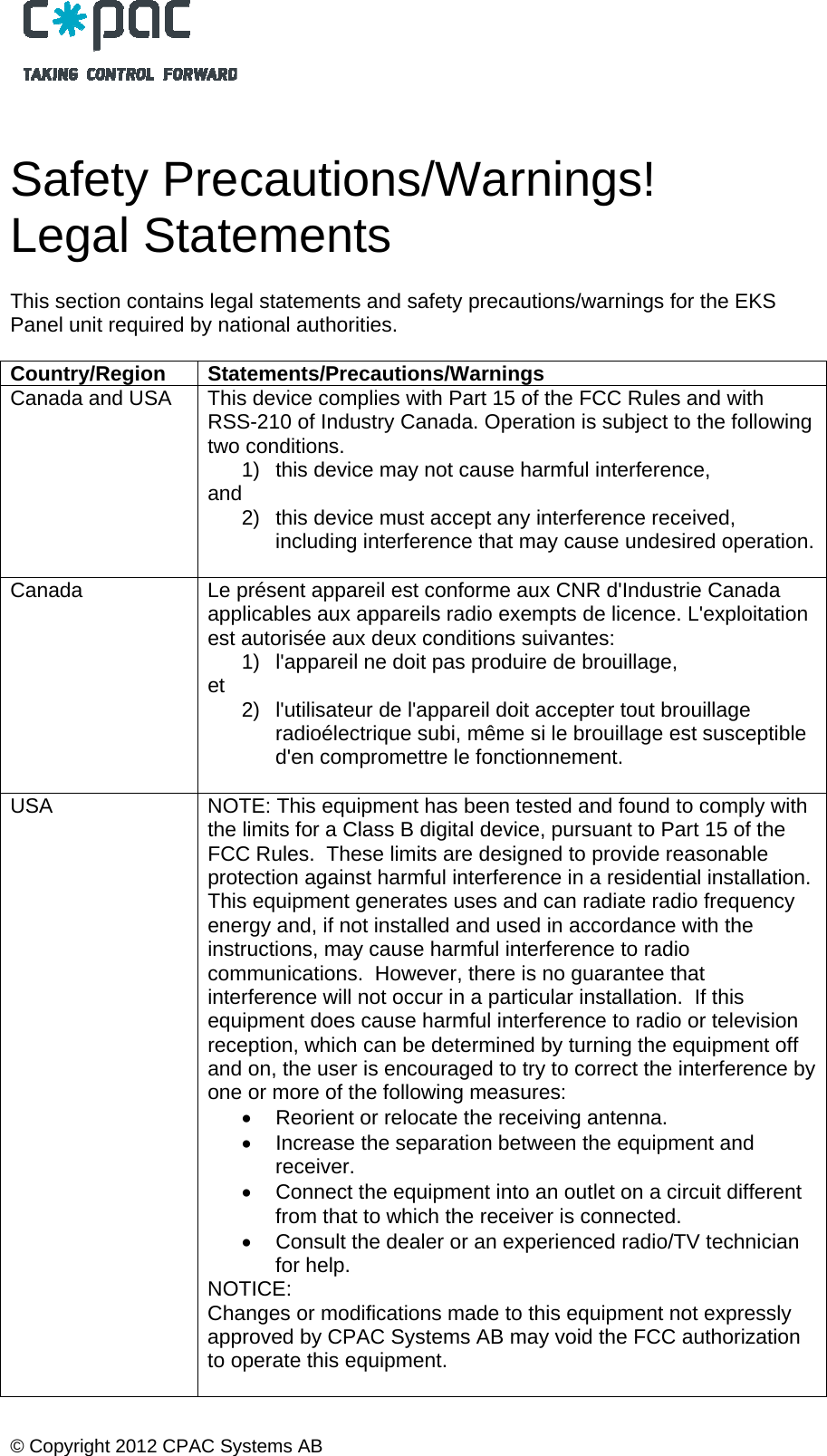

© Copyright 2012 CPAC Systems AB Safety Precautions/Warnings! Legal Statements This section contains legal statements and safety precautions/warnings for the EKS Panel unit required by national authorities. Country/Region Statements/Precautions/Warnings Canada and USA This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions. 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Canada Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: 1) l'appareil ne doit pas produire de brouillage, et 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. USA NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. NOTICE: Changes or modifications made to this equipment not expressly approved by CPAC Systems AB may void the FCC authorization to operate this equipment.

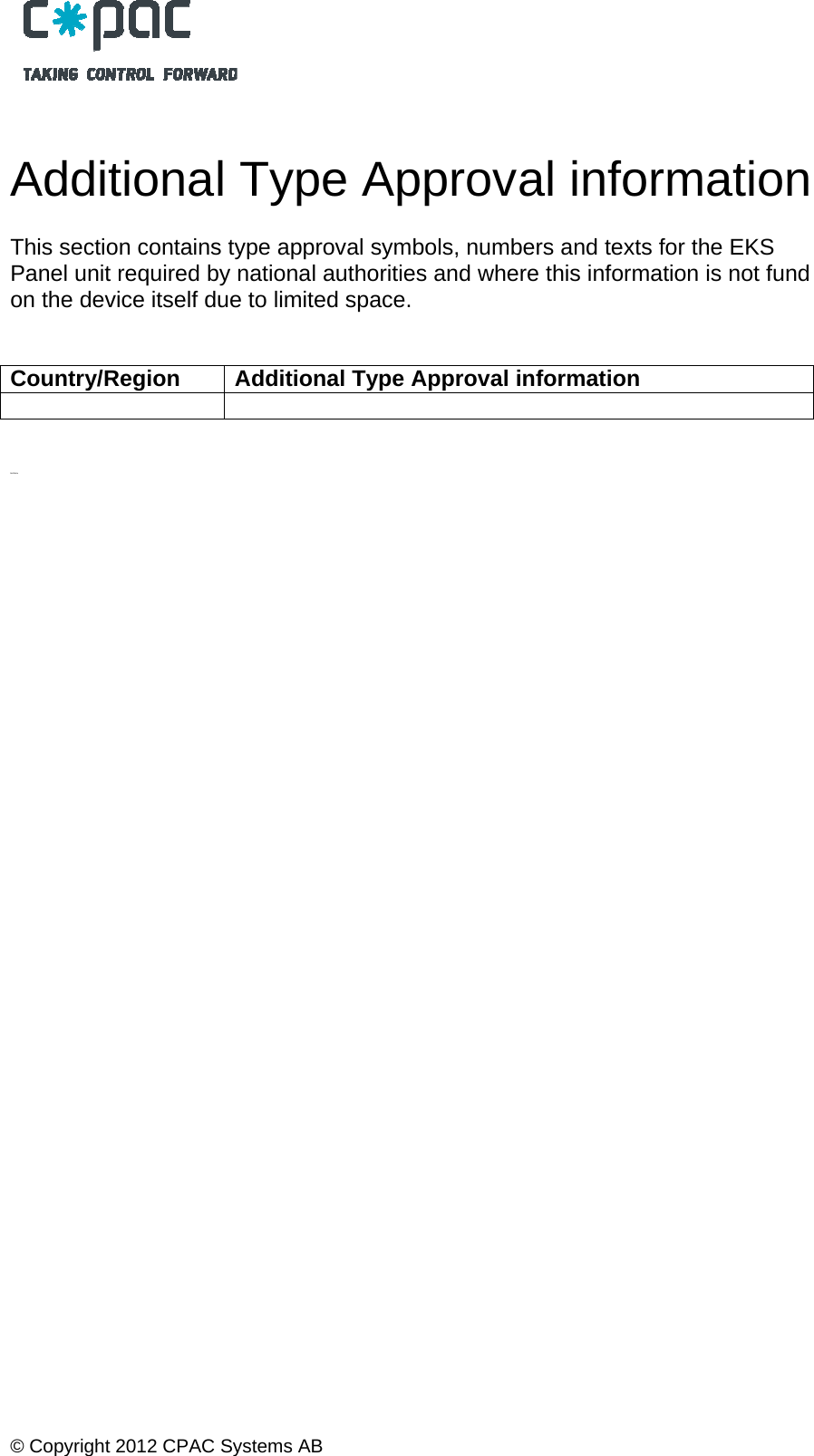

© Copyright 2012 CPAC Systems AB Additional Type Approval information This section contains type approval symbols, numbers and texts for the EKS Panel unit required by national authorities and where this information is not fund on the device itself due to limited space. Country/Region Additional Type Approval information DettDetta
