Cardin Elettronica T-S435 Automatic alarm opening system User Manual 2

Cardin Elettronica spa Automatic alarm opening system 2

Contents

User Manual 2

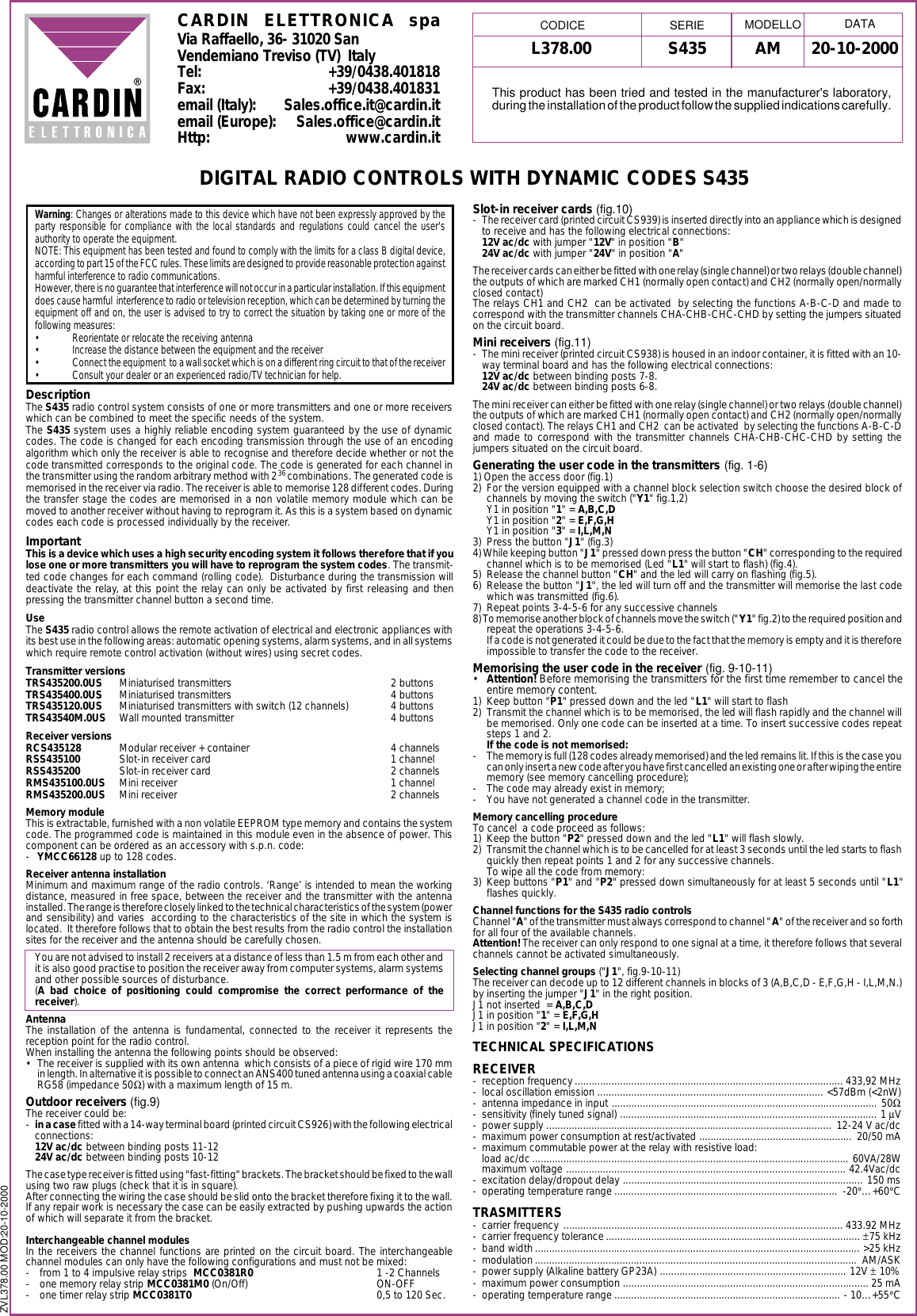

ZVL378.00 MOD:20-10-2000L378.00 S435 20-10-2000AMCARDIN ELETTRONICA spaVia Raffaello, 36- 31020 SanVendemiano Treviso (TV) ItalyTel: +39/0438.401818Fax: +39/0438.401831email (Italy): Sales.office.it@cardin.itemail (Europe): Sales.office@cardin.itHttp: www.cardin.itWarning: Changes or alterations made to this device which have not been expressly approved by theparty responsible for compliance with the local standards and regulations could cancel the user'sauthority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a class B digital device,according to part 15 of the FCC rules. These limits are designed to provide reasonable protection againstharmful interference to radio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is advised to try to correct the situation by taking one or more of thefollowing measures:• Reorientate or relocate the receiving antenna• Increase the distance between the equipment and the receiver• Connect the equipment to a wall socket which is on a different ring circuit to that of the receiver• Consult your dealer or an experienced radio/TV technician for help.DescriptionThe S435 radio control system consists of one or more transmitters and one or more receiverswhich can be combined to meet the specific needs of the system.The S435 system uses a highly reliable encoding system guaranteed by the use of dynamiccodes. The code is changed for each encoding transmission through the use of an encodingalgorithm which only the receiver is able to recognise and therefore decide whether or not thecode transmitted corresponds to the original code. The code is generated for each channel inthe transmitter using the random arbitrary method with 236 combinations. The generated code ismemorised in the receiver via radio. The receiver is able to memorise 128 different codes. Duringthe transfer stage the codes are memorised in a non volatile memory module which can bemoved to another receiver without having to reprogram it. As this is a system based on dynamiccodes each code is processed individually by the receiver.ImportantThis is a device which uses a high security encoding system it follows therefore that if youlose one or more transmitters you will have to reprogram the system codes. The transmit-ted code changes for each command (rolling code). Disturbance during the transmission willdeactivate the relay, at this point the relay can only be activated by first releasing and thenpressing the transmitter channel button a second time.UseThe S435 radio control allows the remote activation of electrical and electronic appliances withits best use in the following areas: automatic opening systems, alarm systems, and in all systemswhich require remote control activation (without wires) using secret codes.Transmitter versionsTRS435200.0US Miniaturised transmitters 2 buttonsTRS435400.0US Miniaturised transmitters 4 buttonsTRS435120.0US Miniaturised transmitters with switch (12 channels) 4 buttonsTRS43540M.0US Wall mounted transmitter 4 buttonsReceiver versionsRCS435128 Modular receiver + container 4 channelsRSS435100 Slot-in receiver card 1 channelRSS435200 Slot-in receiver card 2 channelsRMS435100.0US Mini receiver 1 channelRMS435200.0US Mini receiver 2 channelsMemory moduleThis is extractable, furnished with a non volatile EEPROM type memory and contains the systemcode. The programmed code is maintained in this module even in the absence of power. Thiscomponent can be ordered as an accessory with s.p.n. code:-YMCC66128 up to 128 codes.Receiver antenna installationMinimum and maximum range of the radio controls. ‘Range’ is intended to mean the workingdistance, measured in free space, between the receiver and the transmitter with the antennainstalled. The range is therefore closely linked to the technical characteristics of the system (powerand sensibility) and varies according to the characteristics of the site in which the system islocated. It therefore follows that to obtain the best results from the radio control the installationsites for the receiver and the antenna should be carefully chosen.You are not advised to install 2 receivers at a distance of less than 1.5 m from each other andit is also good practise to position the receiver away from computer systems, alarm systemsand other possible sources of disturbance.(A bad choice of positioning could compromise the correct performance of thereceiver).AntennaThe installation of the antenna is fundamental, connected to the receiver it represents thereception point for the radio control.When installing the antenna the following points should be observed:• The receiver is supplied with its own antenna which consists of a piece of rigid wire 170 mmin length. In alternative it is possible to connect an ANS400 tuned antenna using a coaxial cableRG58 (impedance 50Ω) with a maximum length of 15 m.Outdoor receivers (fig.9)The receiver could be:-in a case fitted with a 14-way terminal board (printed circuit CS926) with the following electricalconnections:12V ac/dc between binding posts 11-1224V ac/dc between binding posts 10-12The case type receiver is fitted using "fast-fitting" brackets. The bracket should be fixed to the wallusing two raw plugs (check that it is in square).After connecting the wiring the case should be slid onto the bracket therefore fixing it to the wall.If any repair work is necessary the case can be easily extracted by pushing upwards the actionof which will separate it from the bracket.Interchangeable channel modulesIn the receivers the channel functions are printed on the circuit board. The interchangeablechannel modules can only have the following configurations and must not be mixed:- from 1 to 4 impulsive relay strips MCC0381R0 1 -2 Channels- one memory relay strip MCC0381M0 (On/Off) ON-OFF- one timer relay strip MCC0381T0 0,5 to 120 Sec.DIGITAL RADIO CONTROLS WITH DYNAMIC CODES S435Slot-in receiver cards (fig.10)- The receiver card (printed circuit CS939) is inserted directly into an appliance which is designedto receive and has the following electrical connections:12V ac/dc with jumper "12V" in position "B"24V ac/dc with jumper "24V" in position "A"The receiver cards can either be fitted with one relay (single channel) or two relays (double channel)the outputs of which are marked CH1 (normally open contact) and CH2 (normally open/normallyclosed contact)The relays CH1 and CH2 can be activated by selecting the functions A-B-C-D and made tocorrespond with the transmitter channels CHA-CHB-CHC-CHD by setting the jumpers situatedon the circuit board.Mini receivers (fig.11)- The mini receiver (printed circuit CS938) is housed in an indoor container, it is fitted with an 10-way terminal board and has the following electrical connections:12V ac/dc between binding posts 7-8.24V ac/dc between binding posts 6-8.The mini receiver can either be fitted with one relay (single channel) or two relays (double channel)the outputs of which are marked CH1 (normally open contact) and CH2 (normally open/normallyclosed contact). The relays CH1 and CH2 can be activated by selecting the functions A-B-C-Dand made to correspond with the transmitter channels CHA-CHB-CHC-CHD by setting thejumpers situated on the circuit board.Generating the user code in the transmitters (fig. 1-6)1) Open the access door (fig.1)2) For the version equipped with a channel block selection switch choose the desired block ofchannels by moving the switch ("Y1" fig.1,2)Y1 in position "1" = A,B,C,DY1 in position "2" = E,F,G,HY1 in position "3" = I,L,M,N3) Press the button "J1" (fig.3)4) While keeping button "J1" pressed down press the button "CH" corresponding to the requiredchannel which is to be memorised (Led "L1" will start to flash) (fig.4).5) Release the channel button "CH" and the led will carry on flashing (fig.5).6) Release the button "J1", the led will turn off and the transmitter will memorise the last codewhich was transmitted (fig.6).7) Repeat points 3-4-5-6 for any successive channels8) To memorise another block of channels move the switch ("Y1" fig.2) to the required position andrepeat the operations 3-4-5-6.If a code is not generated it could be due to the fact that the memory is empty and it is thereforeimpossible to transfer the code to the receiver.Memorising the user code in the receiver (fig. 9-10-11)•Attention! Before memorising the transmitters for the first time remember to cancel theentire memory content.1) Keep button "P1" pressed down and the led "L1" will start to flash2) Transmit the channel which is to be memorised, the led will flash rapidly and the channel willbe memorised. Only one code can be inserted at a time. To insert successive codes repeatsteps 1 and 2.If the code is not memorised:- The memory is full (128 codes already memorised) and the led remains lit. If this is the case youcan only insert a new code after you have first cancelled an existing one or after wiping the entirememory (see memory cancelling procedure);- The code may already exist in memory;- You have not generated a channel code in the transmitter.Memory cancelling procedureTo cancel a code proceed as follows:1) Keep the button "P2" pressed down and the led "L1" will flash slowly.2) Transmit the channel which is to be cancelled for at least 3 seconds until the led starts to flashquickly then repeat points 1 and 2 for any successive channels.To wipe all the code from memory:3) Keep buttons "P1" and "P2" pressed down simultaneously for at least 5 seconds until "L1"flashes quickly.Channel functions for the S435 radio controlsChannel "A" of the transmitter must always correspond to channel "A" of the receiver and so forthfor all four of the available channels.Attention! The receiver can only respond to one signal at a time, it therefore follows that severalchannels cannot be activated simultaneously.Selecting channel groups ("J1", fig.9-10-11)The receiver can decode up to 12 different channels in blocks of 3 (A,B,C,D - E,F,G,H - I,L,M,N.)by inserting the jumper "J1" in the right position.J1 not inserted = A,B,C,DJ1 in position "1" = E,F,G,HJ1 in position "2" = I,L,M,NTECHNICAL SPECIFICATIONSRECEIVER- reception frequency ............................................................................................... 433,92 MHz- local oscillation emission ................................................................................ <57dBm (<2nW)- antenna impedance in input .............................................................................................. 50Ω- sensitivity (finely tuned signal) ........................................................................................... 1 µV- power supply ..................................................................................................... 12-24 V ac/dc- maximum power consumption at rest/activated ...................................................... 20/50 mA- maximum commutable power at the relay with resistive load:load ac/dc ................................................................................................................ 60VA/28Wmaximum voltage ................................................................................................... 42.4Vac/dc- excitation delay/dropout delay ..................................................................................... 150 ms- operating temperature range ............................................................................... -20°…+60°CTRASMITTERS- carrier frequency ................................................................................................... 433.92 MHz- carrier frequency tolerance .......................................................................................... ±75 kHz- band width ................................................................................................................... >25 kHz- modulation .................................................................................................................. AM/ASK- power supply (Alkaline battery GP23A) .................................................................. 12V ± 10%- maximum power consumption ....................................................................................... 25 mA- operating temperature range ................................................................................ - 10…+55°CMODELLO DATACODICE SERIEThis product has been tried and tested in the manufacturer's laboratory,during the installation of the product follow the supplied indications carefully.

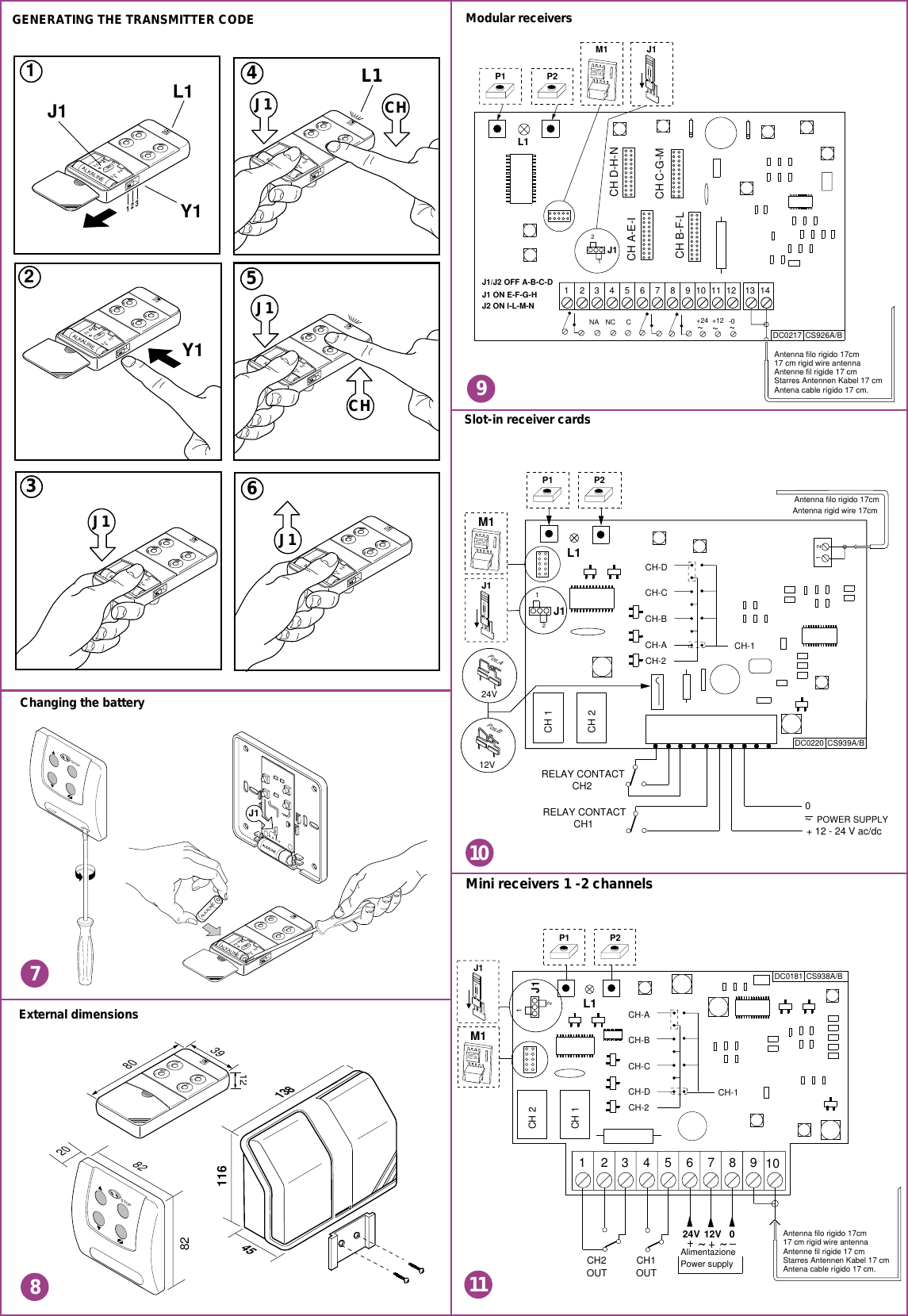

Modular receiversSlot-in receiver cardsMini receivers 1 -2 channelsGENERATING THE TRANSMITTER CODEALKALINE3J1ALKALINE123J1Y11L14ALKALINEJ1 CHL1ALKALINE6J1ALKALINE2Y1ALKALINE5J1CH123980ALKALINEALKALINEExternal dimensionsChanging the battery 116 138451178910CH D-H-NCH C-G-MCH A-E-ICH B-F-L+24NA NC C~+12 ~-0 ~1 2 3 4 5 6 7 8 9 10 11 12 13 14M1P1 P2 12J1J1L1J1/J2 OFF A-B-C-DJ1 ON E-F-G-HJ2 ON I-L-M-NASAGSH QDFER 139KJHG 1254DC0217 CS926A/BAntenna filo rigido 17cm17 cm rigid wire antennaAntenne fil rigide 17 cmStarres Antennen Kabel 17 cmAntena cable rígido 17 cm.P1 P2 21J1J1ASAGSH QDFER 139KJHG 1254CH 1CH-D CH-C CH-B CH-A CH-2CH-1CH 2RELAY CONTACTCH2RELAY CONTACTCH1 POWER SUPPLY+ 12 - 24 V ac/dc120~Antenna filo rigido 17cmAntenna rigid wire 17cmM1L124V12VPos.APos.BDC0220 CS939A/BP1 P2 21J1J1ASAGSH QDFER 139KJHG 1254CH 2CH-ACH-B CH-C CH-D CH-2CH-1CH 1CH2M1L112345678910OUTCH1OUTDC0181 CS938A/B24V 012VAlimentazionePower supplyAntenna filo rigido 17cm17 cm rigid wire antennaAntenne fil rigide 17 cmStarres Antennen Kabel 17 cmAntena cable rígido 17 cm.ALKALINESTOPJ1 82 2082STOP
