Celadon RCV3000RF01 Tessonics RF Receiver User Manual

Celadon, Inc. Tessonics RF Receiver Users Manual

Users Manual

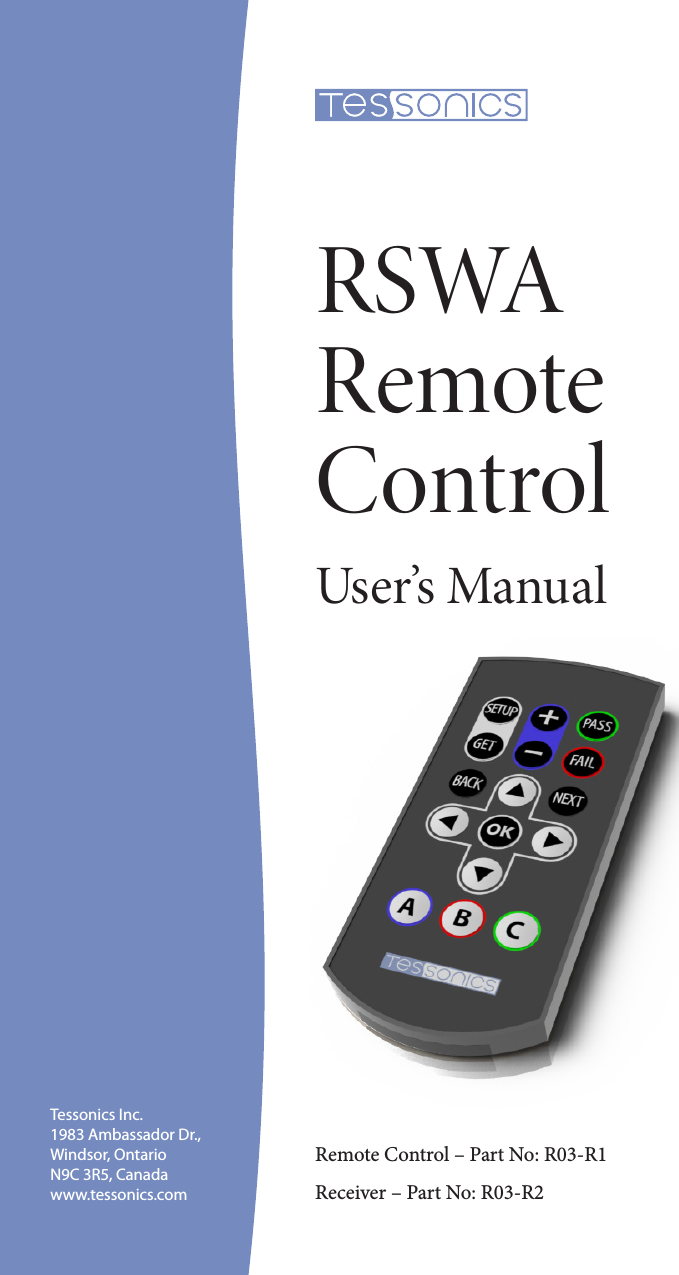

RSWA Remote ControlUser’s ManualRemote Control – Part No: R03-R1Receiver – Part No: R03-R2Tessonics Inc. 1983 Ambassador Dr., Windsor, Ontario N9C 3R5, Canada www.tessonics.com

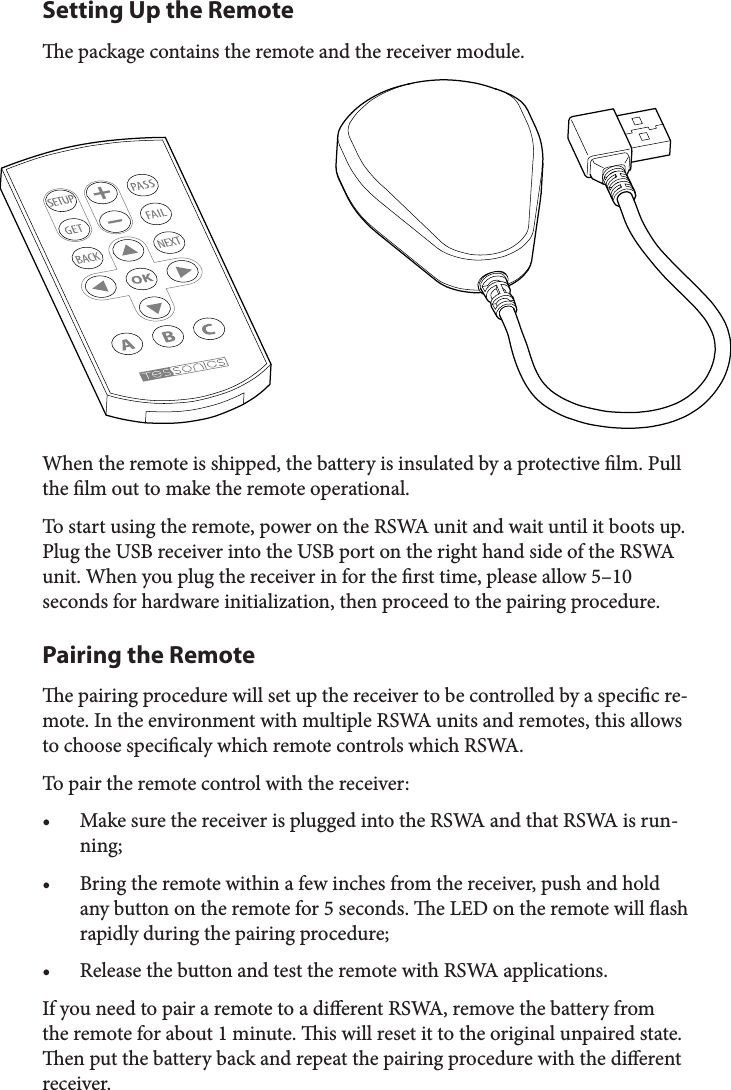

Setting Up the Remotee package contains the remote and the receiver module. When the remote is shipped, the battery is insulated by a protective lm. Pull the lm out to make the remote operational.To start using the remote, power on the RSWA unit and wait until it boots up. Plug the USB receiver into the USB port on the right hand side of the RSWA unit. When you plug the receiver in for the rst time, please allow 5–10 seconds for hardware initialization, then proceed to the pairing procedure.Pairing the Remotee pairing procedure will set up the receiver to be controlled by a specic re-mote. In the environment with multiple RSWA units and remotes, this allows to choose specicaly which remote controls which RSWA.To pair the remote control with the receiver:• Make sure the receiver is plugged into the RSWA and that RSWA is run-ning;• Bring the remote within a few inches from the receiver, push and hold any button on the remote for 5 seconds. e LED on the remote will ash rapidly during the pairing procedure;• Release the button and test the remote with RSWA applications.If you need to pair a remote to a dierent RSWA, remove the battery from the remote for about 1 minute. is will reset it to the original unpaired state. en put the battery back and repeat the pairing procedure with the dierent receiver.

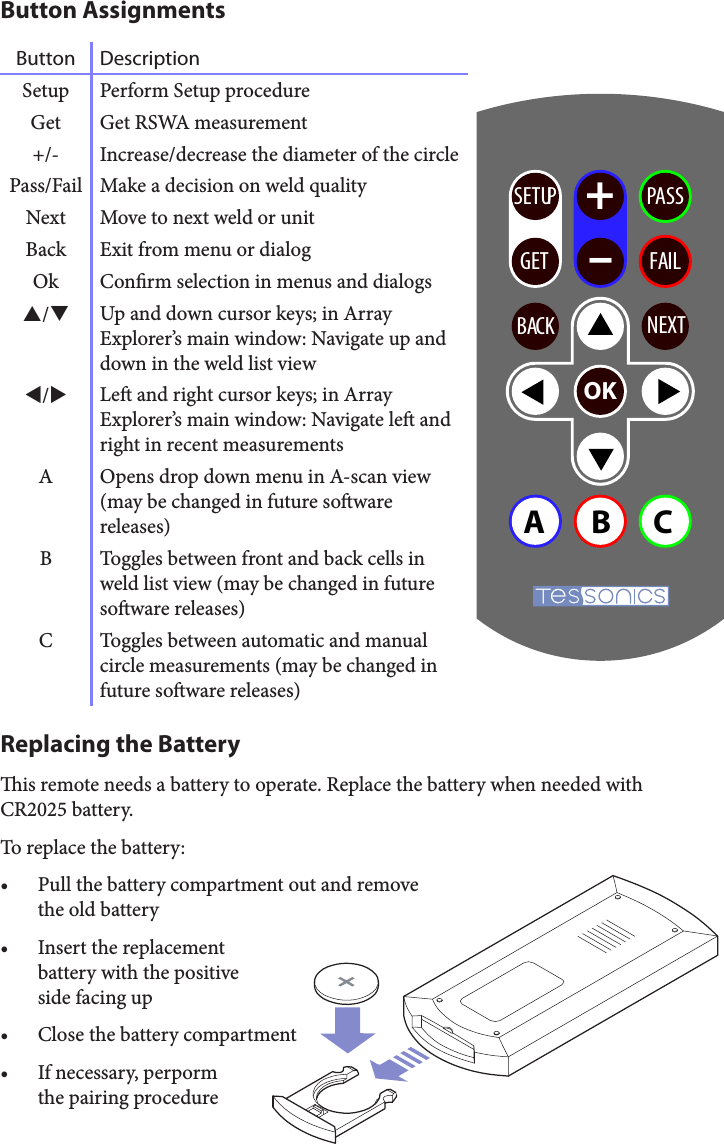

Button AssignmentsButton DescriptionSetup Perform Setup procedureGet Get RSWA measurement+/- Increase/decrease the diameter of the circlePass/Fail Make a decision on weld qualityNext Move to next weld or unitBack Exit from menu or dialogOk Conrm selection in menus and dialogs/Up and down cursor keys; in Array Explorer’s main window: Navigate up and down in the weld list view/Le and right cursor keys; in Array Explorer’s main window: Navigate le and right in recent measurementsA Opens drop down menu in A-scan view (may be changed in future soware releases)B Toggles between front and back cells in weld list view (may be changed in future soware releases)C Toggles between automatic and manual circle measurements (may be changed in future soware releases)Replacing the Batteryis remote needs a battery to operate. Replace the battery when needed with CR2025 battery.To replace the battery:• Pull the battery compartment out and remove the old battery• Insert the replacement battery with the positive side facing up• Close the battery compartment• If necessary, perporm the pairing procedureSETUP +–GET FAILPASSOKABCBACK NEXT

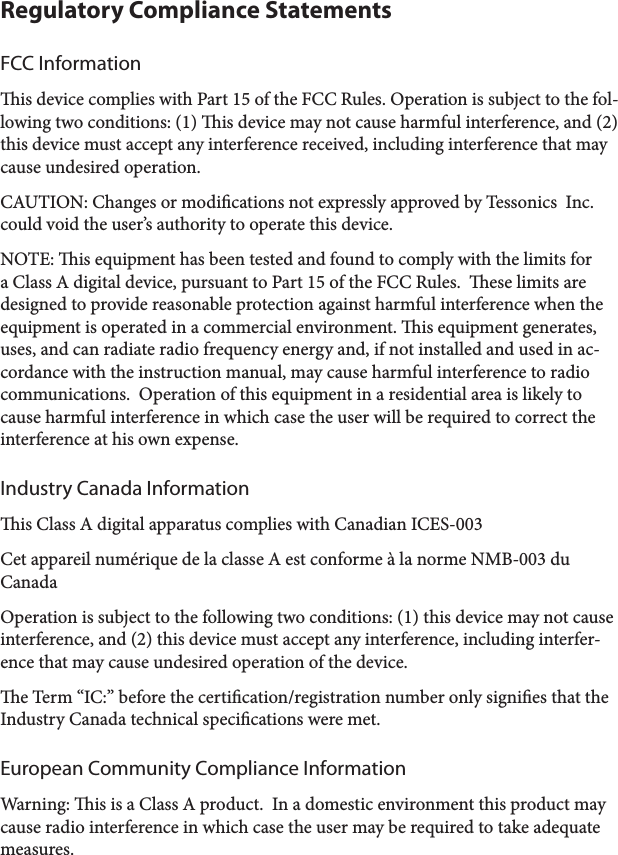

Regulatory Compliance StatementsFCC Informationis device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.CAUTION: Changes or modications not expressly approved by Tessonics Inc. could void the user’s authority to operate this device.NOTE: is equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. ese limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. is equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in ac-cordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.Industry Canada Informationis Class A digital apparatus complies with Canadian ICES-003Cet appareil numérique de la classe A est conforme à la norme NMB-003 du CanadaOperation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer-ence that may cause undesired operation of the device.e Term “IC:” before the certication/registration number only signies that the Industry Canada technical specications were met.European Community Compliance InformationWarning: is is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
