Centronix Electronics Co. Ltd. FM Modulator Manual

Manual

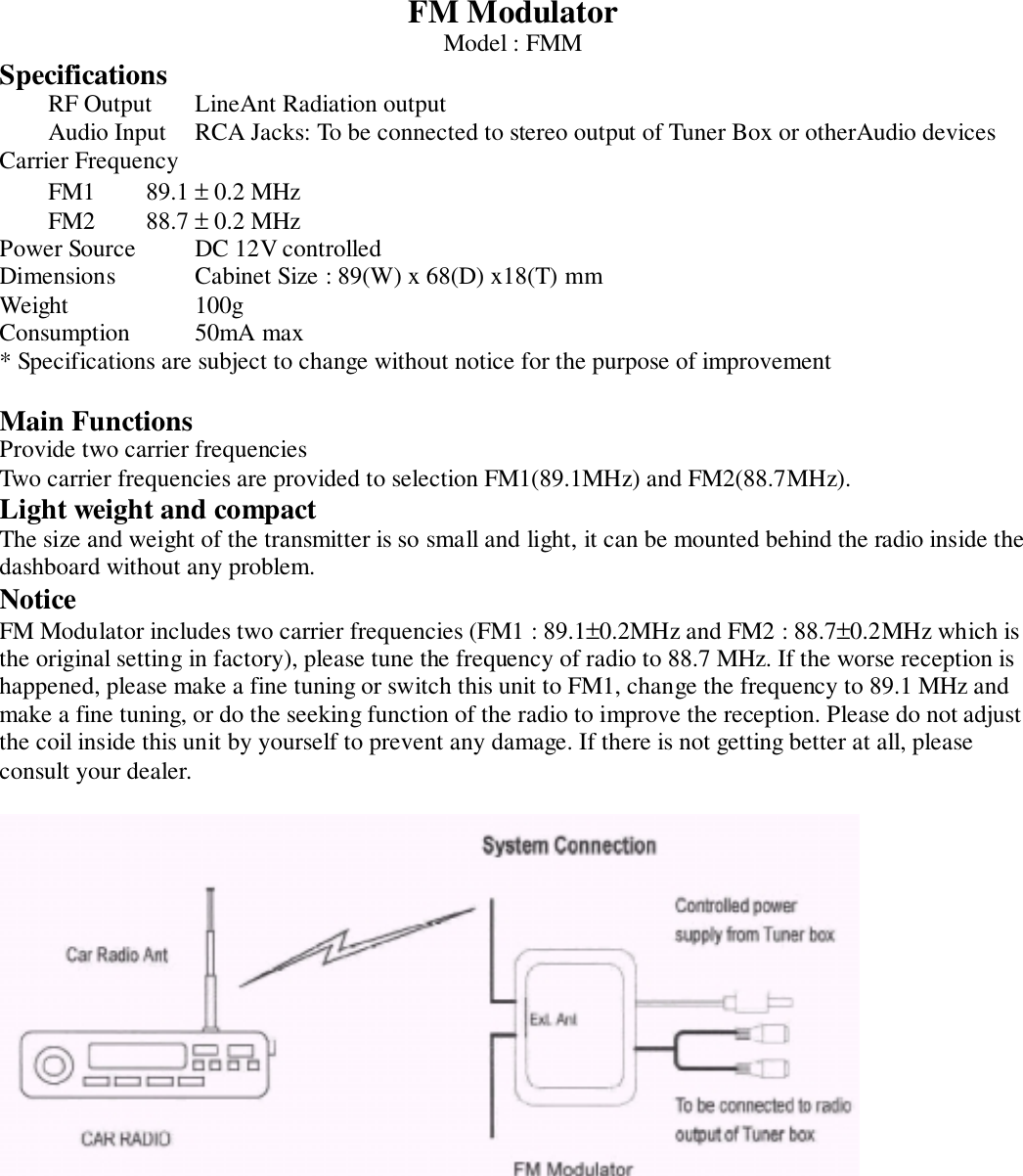

FM ModulatorModel : FMMSpecificationsRF Output LineAnt Radiation outputAudio Input RCA Jacks: To be connected to stereo output of Tuner Box or otherAudio devicesCarrier FrequencyFM1 89.1 ± 0.2 MHzFM2 88.7 ± 0.2 MHzPower Source DC 12V controlledDimensions Cabinet Size : 89(W) x 68(D) x18(T) mmWeight 100gConsumption 50mA max* Specifications are subject to change without notice for the purpose of improvementMain FunctionsProvide two carrier frequenciesTwo carrier frequencies are provided to selection FM1(89.1MHz) and FM2(88.7MHz).Light weight and compactThe size and weight of the transmitter is so small and light, it can be mounted behind the radio inside thedashboard without any problem.NoticeFM Modulator includes two carrier frequencies (FM1 : 89.1±0.2MHz and FM2 : 88.7±0.2MHz which isthe original setting in factory), please tune the frequency of radio to 88.7 MHz. If the worse reception ishappened, please make a fine tuning or switch this unit to FM1, change the frequency to 89.1 MHz andmake a fine tuning, or do the seeking function of the radio to improve the reception. Please do not adjustthe coil inside this unit by yourself to prevent any damage. If there is not getting better at all, pleaseconsult your dealer.
