User ManualU36WAltitude Hold ModeAerial Photography / Real-time FPV / WiFi ControlHeading Hold Mode / Low Battery AlarmOut of Range Alarm / One Button Take Off/Landing High/Low Speed Mode / Custom Route ModePiglet

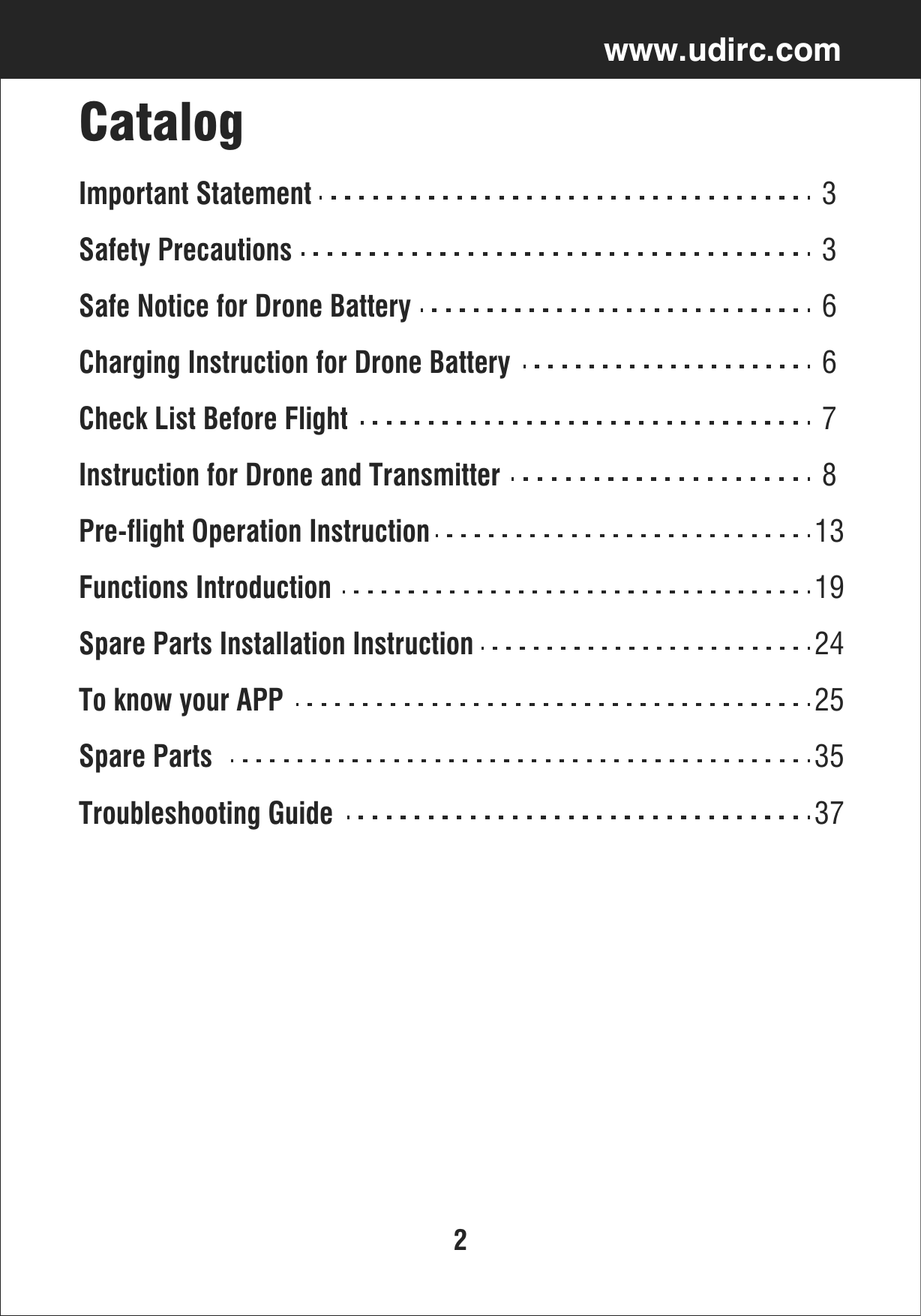

2www.udirc.comCatalogImportant Statement3Safety Precautions3Safe Notice for Drone Battery6Charging Instruction for Drone Battery6Check List Before Flight7Instruction for Drone and Transmitter8Pre-flight Operation Instruction13Functions Introduction19Spare Parts Installation Instruction24To know your APP25Spare Parts35Troubleshooting Guide37

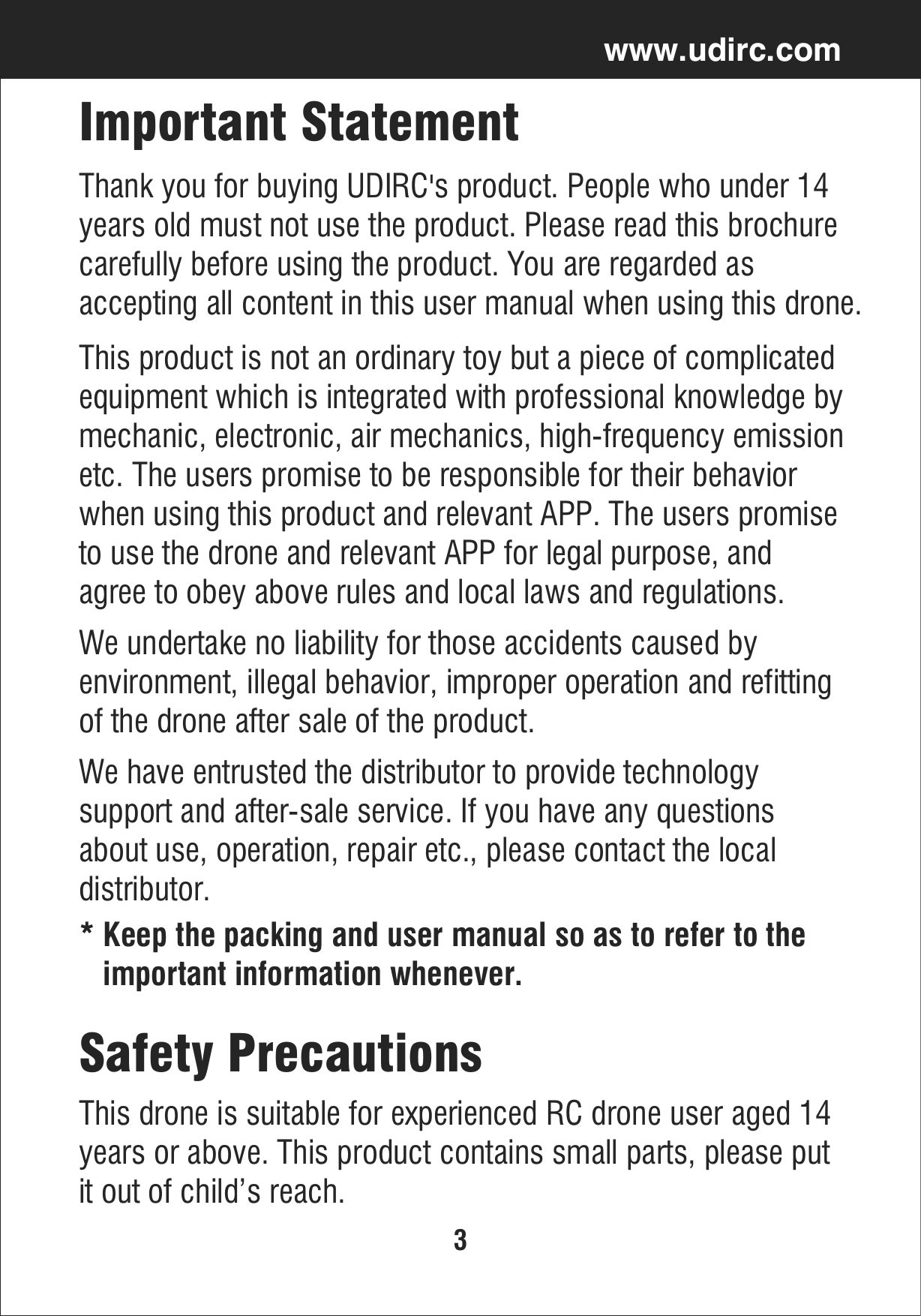

3www.udirc.comImportant StatementThank you for buying UDIRC's product. People who under 14 years old must not use the product. Please read this brochure carefully before using the product. You are regarded as accepting all content in this user manual when using this drone.This product is not an ordinary toy but a piece of complicated equipment which is integrated with professional knowledge by mechanic, electronic, air mechanics, high-frequency emissionetc. The users promise to be responsible for their behavior when using this product and relevant APP. The users promiseto use the drone and relevant APP for legal purpose, and agree to obey above rules and local laws and regulations.We undertake no liability for those accidents caused by environment, illegal behavior, improper operation and refitting of the drone after sale of the product.We have entrusted the distributor to provide technology support and after-sale service. If you have any questions about use, operation, repair etc., please contact the local distributor.* Keep the packing and user manual so as to refer to the important information whenever.This drone is suitable for experienced RC drone user aged 14years or above. This product contains small parts, please put it out of child’s reach.Safety Precautions

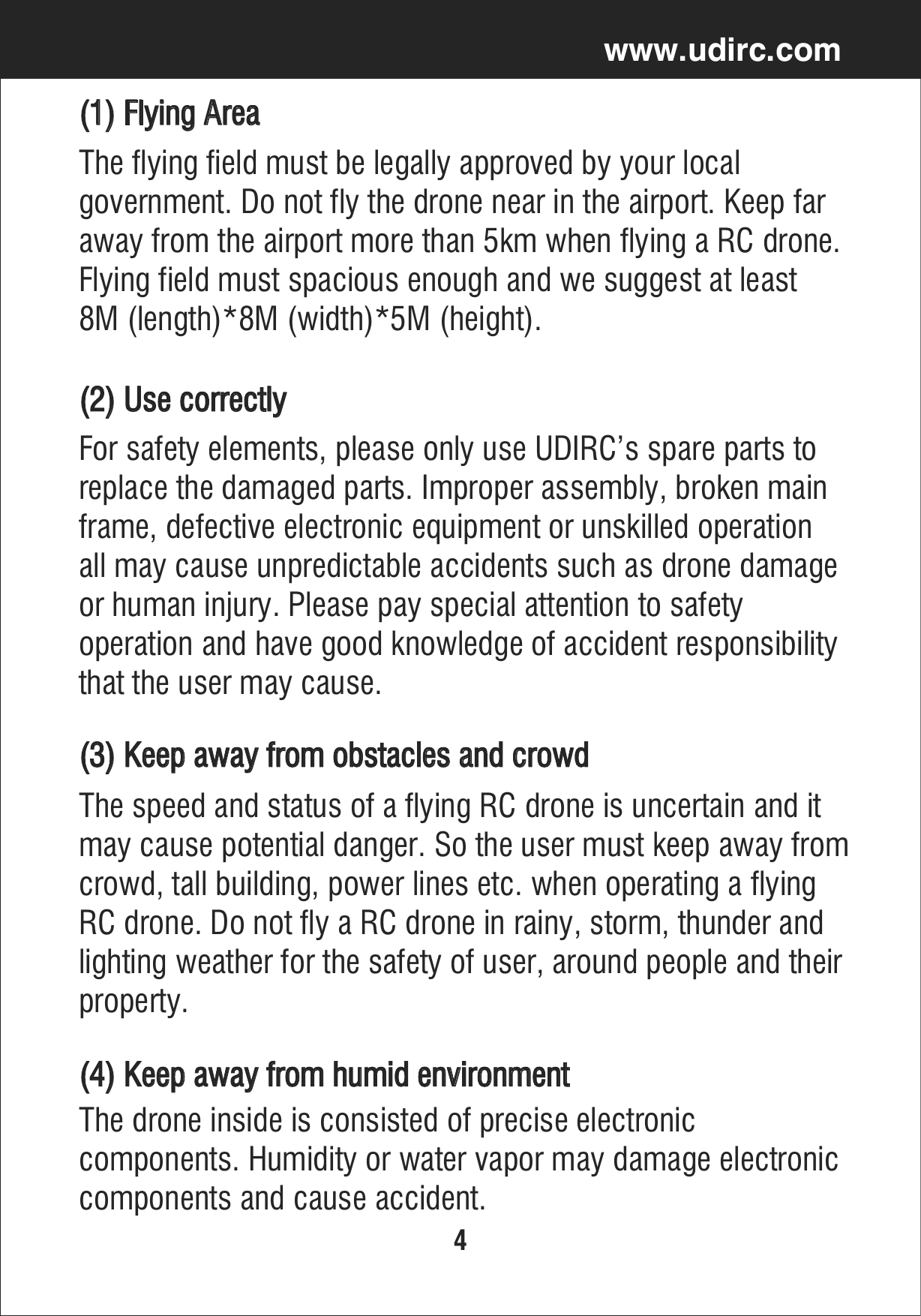

4www.udirc.comThe flying field must be legally approved by your local government. Do not fly the drone near in the airport. Keep far away from the airport more than 5km when flying a RC drone.Flying field must spacious enough and we suggest at least 8M (length)*8M (width)*5M (height).(1) Flying Area(3) Keep away from obstacles and crowdThe speed and status of a flying RC drone is uncertain and it may cause potential danger. So the user must keep away from crowd, tall building, power lines etc. when operating a flying RC drone. Do not fly a RC drone in rainy, storm, thunder and lighting weather for the safety of user, around people and their property.(2) Use correctly For safety elements, please only use UDIRC’s spare parts to replace the damaged parts. Improper assembly, broken main frame, defective electronic equipment or unskilled operation all may cause unpredictable accidents such as drone damageor human injury. Please pay special attention to safety operation and have good knowledge of accident responsibilitythat the user may cause.(4) Keep away from humid environmentThe drone inside is consisted of precise electronic components. Humidity or water vapor may damage electronic components and cause accident.

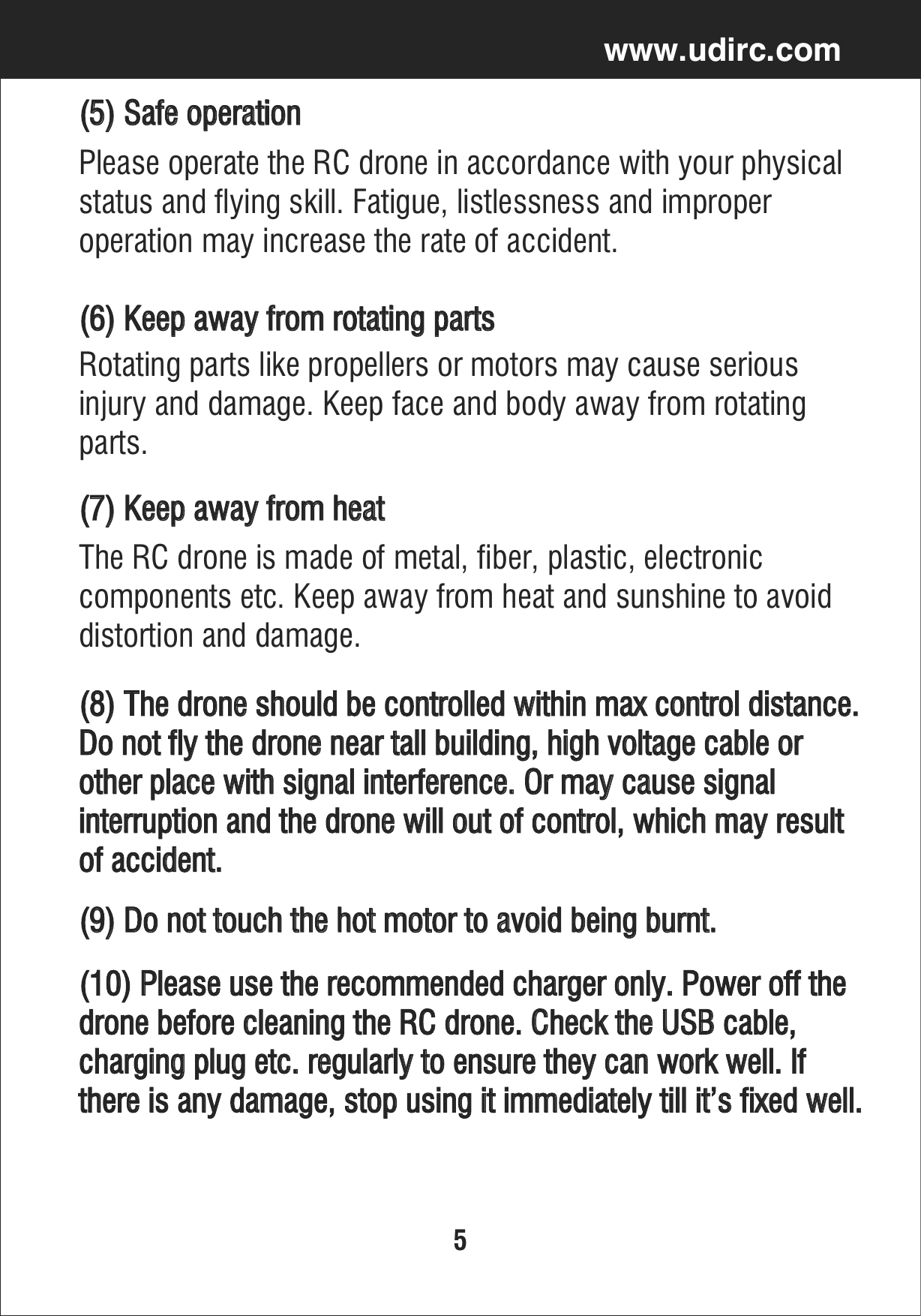

5www.udirc.com(5) Safe operationPlease operate the RC drone in accordance with your physicalstatus and flying skill. Fatigue, listlessness and improper operation may increase the rate of accident.(6) Keep away from rotating partsRotating parts like propellers or motors may cause serious injury and damage. Keep face and body away from rotating parts.(7) Keep away from heat(8) The drone should be controlled within max control distance. Do not fly the drone near tall building, high voltage cable or other place with signal interference. Or may cause signal interruption and the drone will out of control, which may resultof accident.(9) Do not touch the hot motor to avoid being burnt.(10) Please use the recommended charger only. Power off the drone before cleaning the RC drone. Check the USB cable, charging plug etc. regularly to ensure they can work well. If there is any damage, stop using it immediately till it’s fixed well.The RC drone is made of metal, fiber, plastic, electronic components etc. Keep away from heat and sunshine to avoiddistortion and damage.

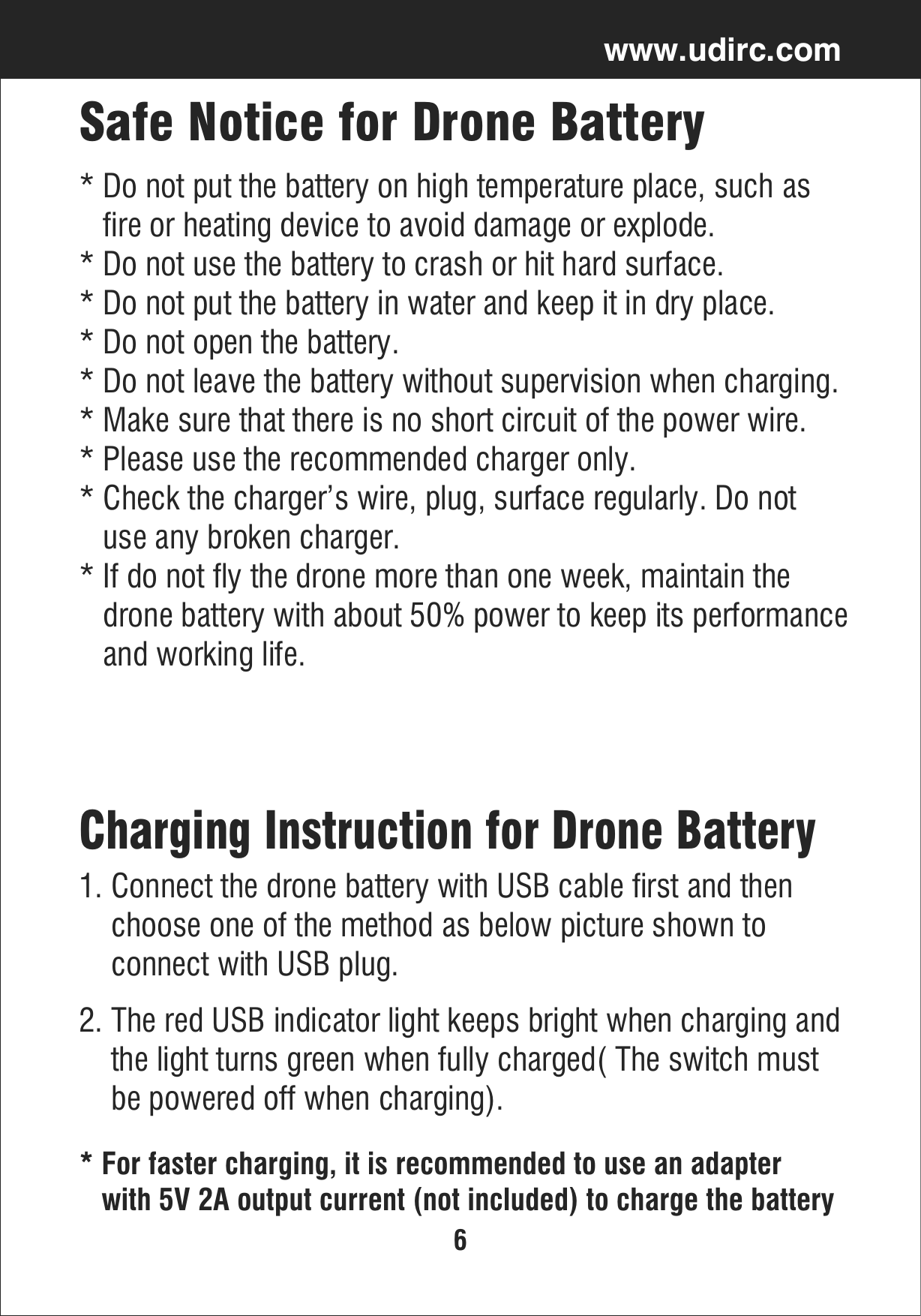

6www.udirc.comSafe Notice for Drone Battery* Do not put the battery on high temperature place, such as fire or heating device to avoid damage or explode.* Do not use the battery to crash or hit hard surface.* Do not put the battery in water and keep it in dry place.* Do not open the battery.* Do not leave the battery without supervision when charging.* Make sure that there is no short circuit of the power wire.* Please use the recommended charger only.* Check the charger’s wire, plug, surface regularly. Do not use any broken charger.* If do not fly the drone more than one week, maintain the drone battery with about 50% power to keep its performance and working life.* For faster charging, it is recommended to use an adapter with 5V 2A output current (not included) to charge the batteryCharging Instruction for Drone Battery1. Connect the drone battery with USB cable first and then choose one of the method as below picture shown to connect with USB plug. 2. The red USB indicator light keeps bright when charging and the light turns green when fully charged( The switch must be powered off when charging).

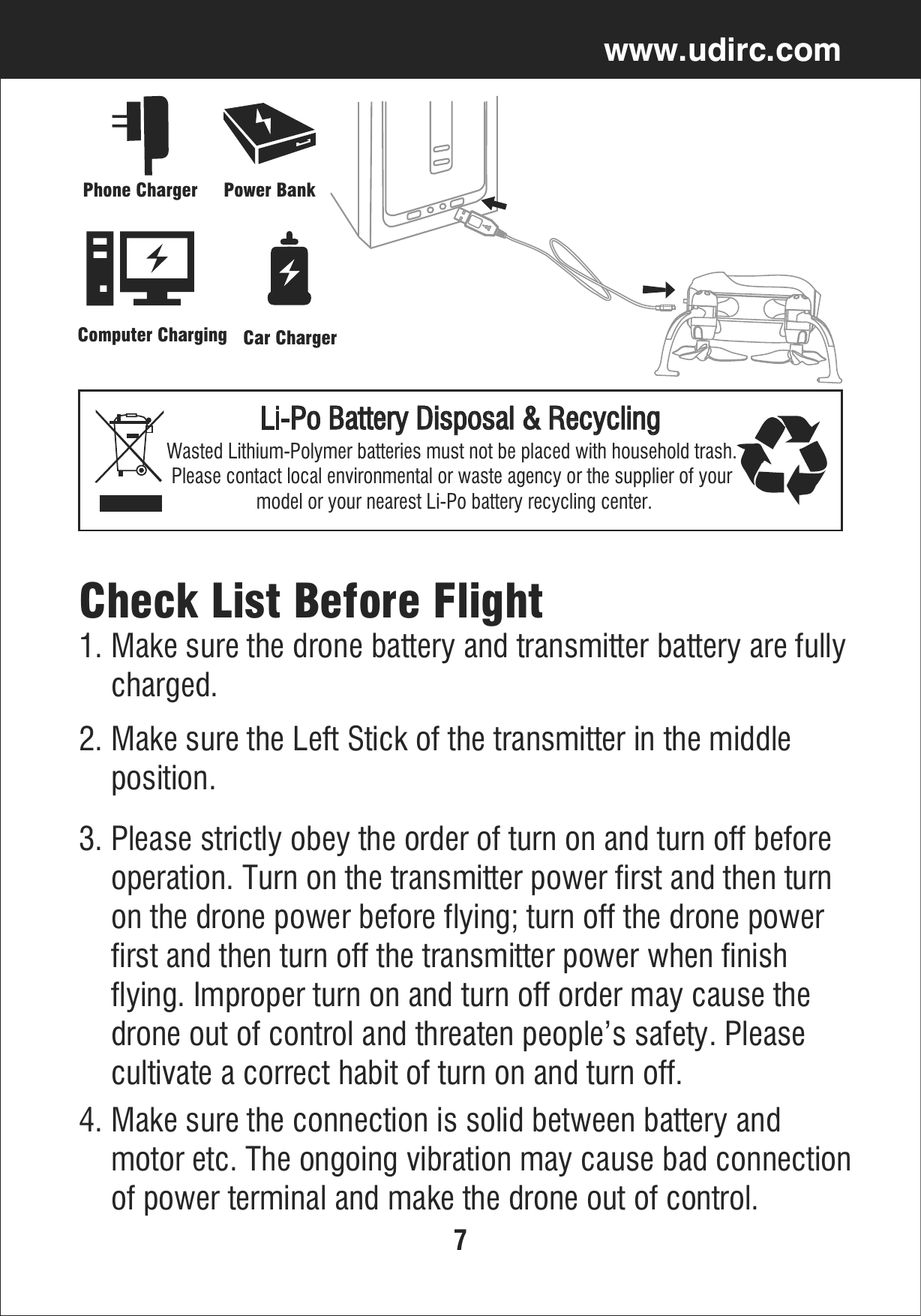

7www.udirc.comLi-Po Battery Disposal & RecyclingWasted Lithium-Polymer batteries must not be placed with household trash. Please contact local environmental or waste agency or the supplier of your model or your nearest Li-Po battery recycling center.Power BankPhone ChargerComputer Charging Car ChargerCheck List Before Flight1. Make sure the drone battery and transmitter battery are fully charged.2. Make sure the Left Stick of the transmitter in the middle position.3. Please strictly obey the order of turn on and turn off before operation. Turn on the transmitter power first and then turn on the drone power before flying; turn off the drone power first and then turn off the transmitter power when finish flying. Improper turn on and turn off order may cause the drone out of control and threaten people’s safety. Please cultivate a correct habit of turn on and turn off.4. Make sure the connection is solid between battery and motor etc. The ongoing vibration may cause bad connection of power terminal and make the drone out of control.

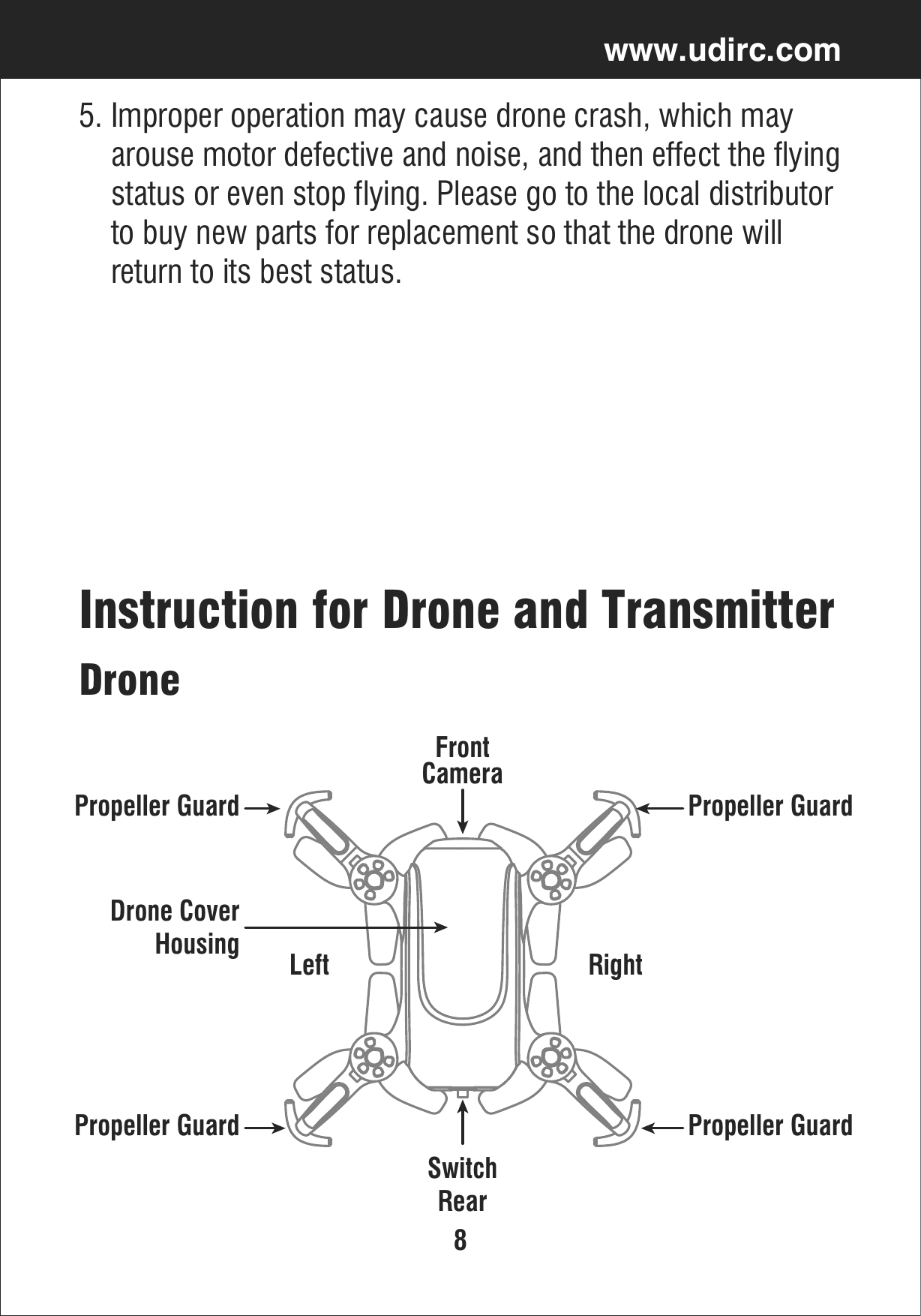

8www.udirc.com5. Improper operation may cause drone crash, which may arouse motor defective and noise, and then effect the flying status or even stop flying. Please go to the local distributor to buy new parts for replacement so that the drone will return to its best status.Instruction for Drone and TransmitterDronePropeller GuardPropeller GuardPropeller GuardPropeller GuardSwitchRearRightLeftCameraFrontDrone CoverHousing

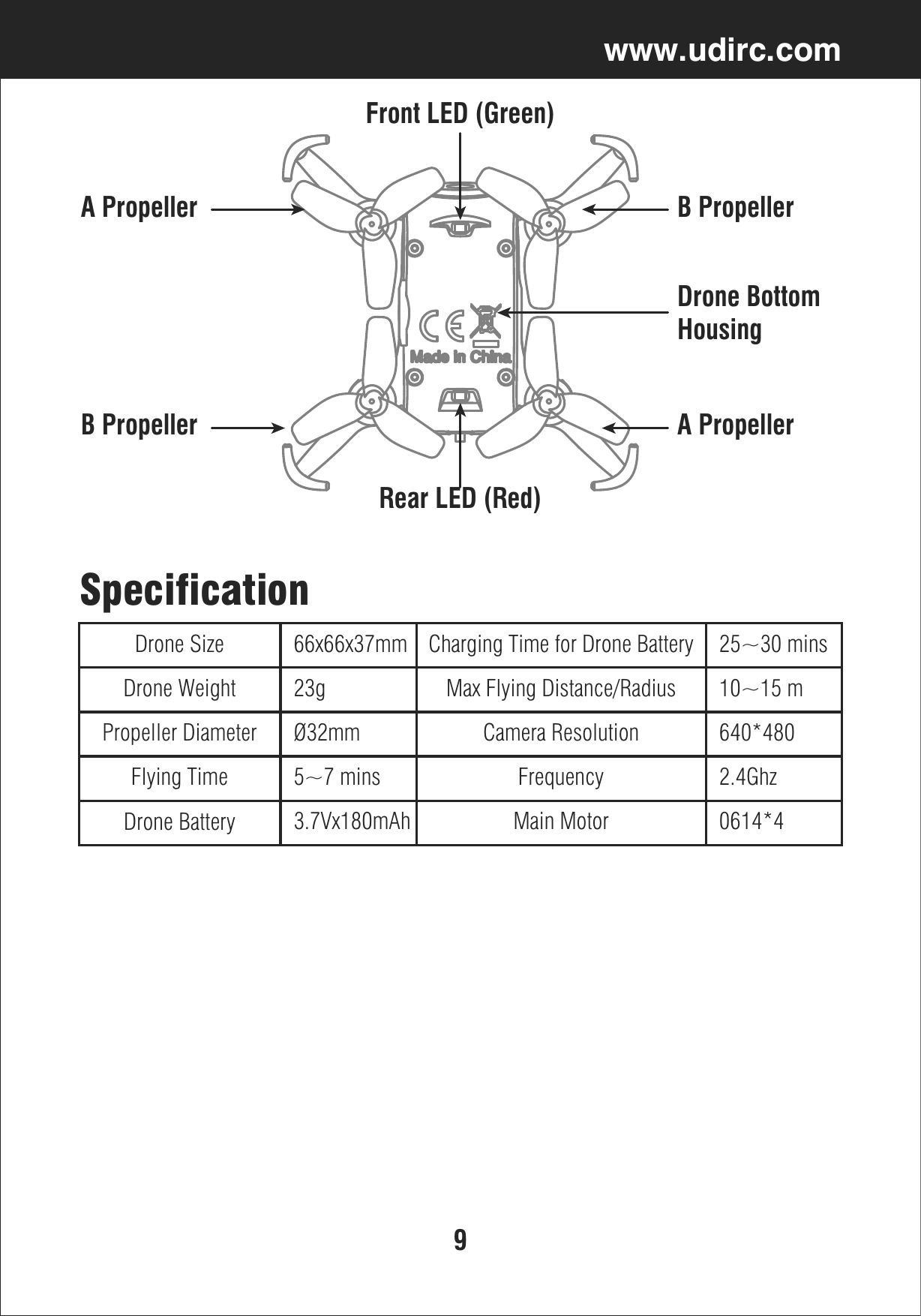

9www.udirc.comSpecificationDrone SizeDrone WeightPropeller DiameterDrone BatteryFlying Time66x66x37mm23gØ32mm3.7Vx180mAh25~30 minsCharging Time for Drone Battery640*4800614*45~7 mins 2.4Ghz10~15 mCamera ResolutionFrequencyMax Flying Distance/RadiusMain MotorB PropellerA PropellerDrone BottomHousingA PropellerB PropellerRear LED (Red)Front LED (Green)

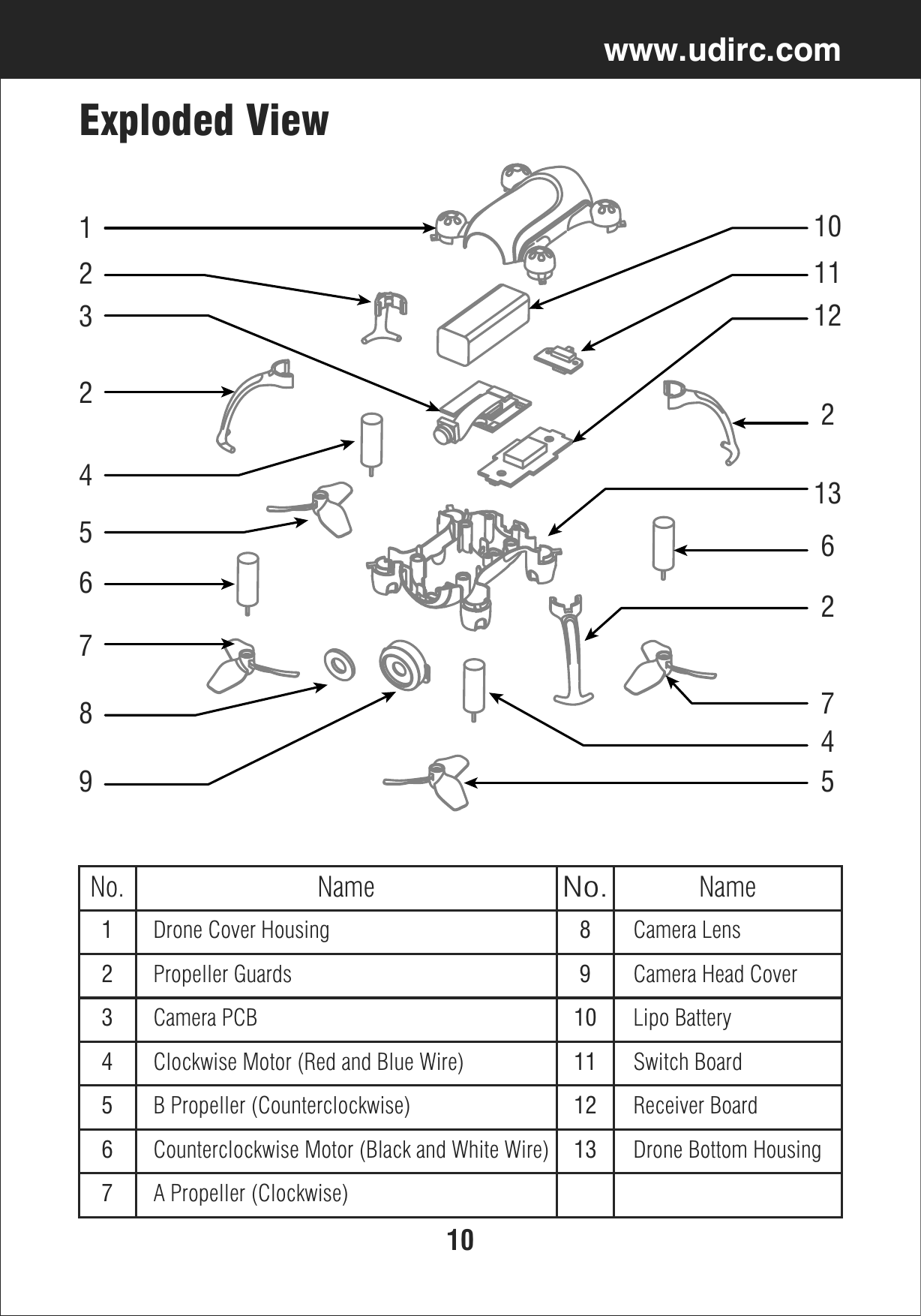

10www.udirc.comNo.1NameDrone Cover Housing 2Propeller Guards3Camera PCB4Clockwise Motor (Red and Blue Wire) 5B Propeller (Counterclockwise)6Counterclockwise Motor (Black and White Wire)7A Propeller (Clockwise)Camera Lens Camera Head CoverLipo BatterySwitch BoardReceiver BoardDrone Bottom HousingName8910111213No.Exploded View123245678954726132121110

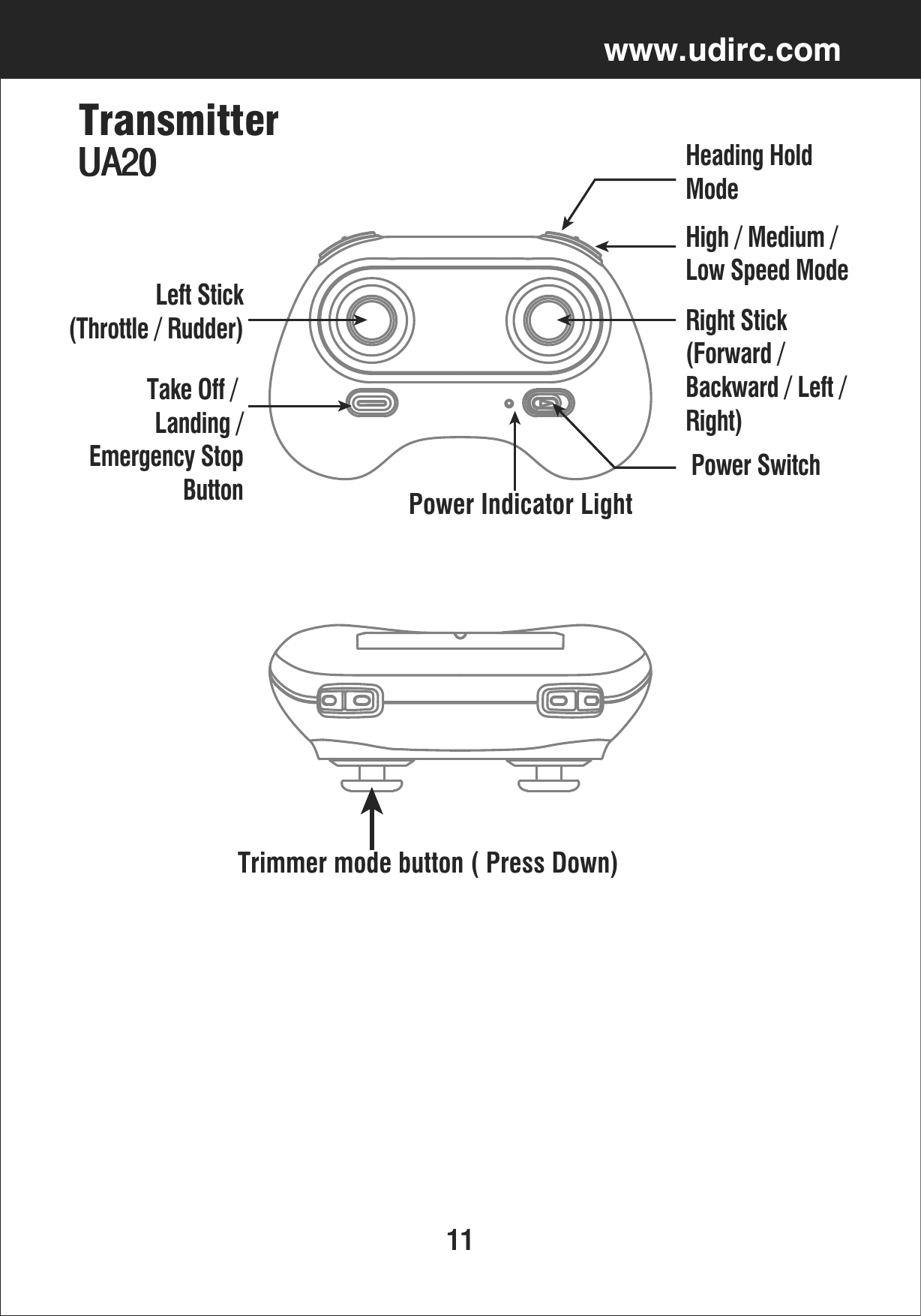

11www.udirc.comTrimmer mode button ( Press Down)TransmitterLeft Stick(Throttle / Rudder) Right Stick(Forward / Backward / Left / Right)High / Medium /Low Speed ModeHeading Hold ModeTake Off / Landing /Emergency StopButton Power SwitchPower Indicator LightUA20UA20UA20

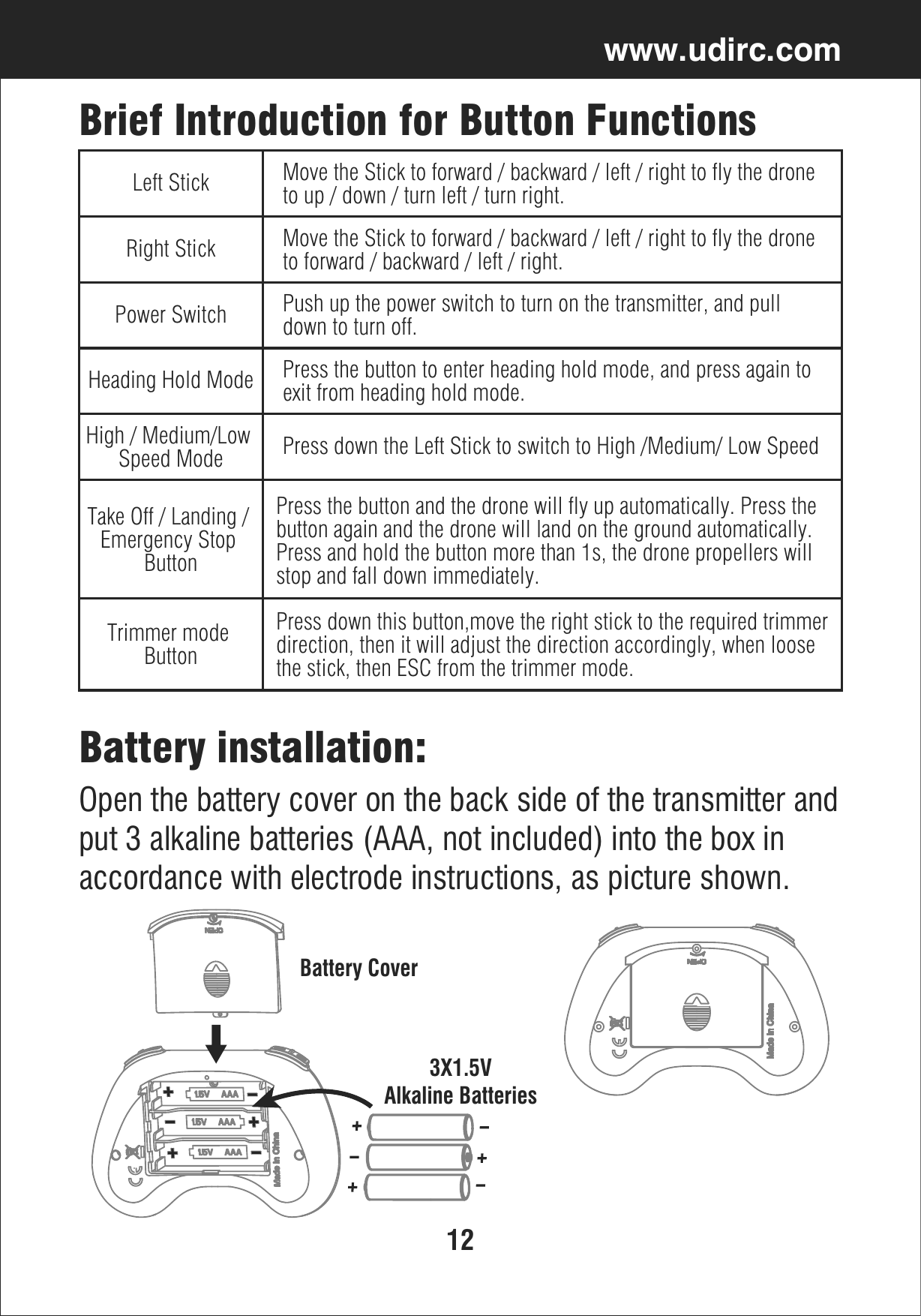

12www.udirc.comBrief Introduction for Button FunctionsHigh / Medium/Low Speed ModeLeft StickRight StickPower SwitchPress down the Left Stick to switch to High /Medium/ Low SpeedMove the Stick to forward / backward / left / right to fly the drone to up / down / turn left / turn right.Move the Stick to forward / backward / left / right to fly the drone to forward / backward / left / right.Push up the power switch to turn on the transmitter, and pull down to turn off.Heading Hold Mode Press the button to enter heading hold mode, and press again to exit from heading hold mode.Trimmer mode ButtonPress down this button,move the right stick to the required trimmer direction, then it will adjust the direction accordingly, when loose the stick, then ESC from the trimmer mode.Take Off / Landing / Emergency Stop ButtonPress the button and the drone will fly up automatically. Press thebutton again and the drone will land on the ground automatically. Press and hold the button more than 1s, the drone propellers will stop and fall down immediately.Open the battery cover on the back side of the transmitter andput 3 alkaline batteries (AAA, not included) into the box in accordance with electrode instructions, as picture shown.Battery installation: 3X1.5VAlkaline BatteriesBattery Cover
13www.udirc.com1. Make sure the electrodes are correct.2. Do not mix new with old batteries.3. Do not mix different kinds of batteries.4. Do not charge the non rechargeable battery.Notice:Pre-flight Operation InstructionFrequency Pairing1. Turn on the transmitter switch (Picture 1) and the power indicator light flashes rapidly. Push the Left Stick all the way down to the lowest position and then release. The Left Stick will back to the middle position automatically. (Picture 2 / 3) The power indicator light flashes slowly, which indicates the transmitter is ready for frequency pairing.2. Power on the drone. (Picture 4）3. Put the drone on the flat surface, the drone body lights turn from flashing to solid bright, which indicates successful frequency pairing.Picture 2Picture 1 Picture 3Picture 4

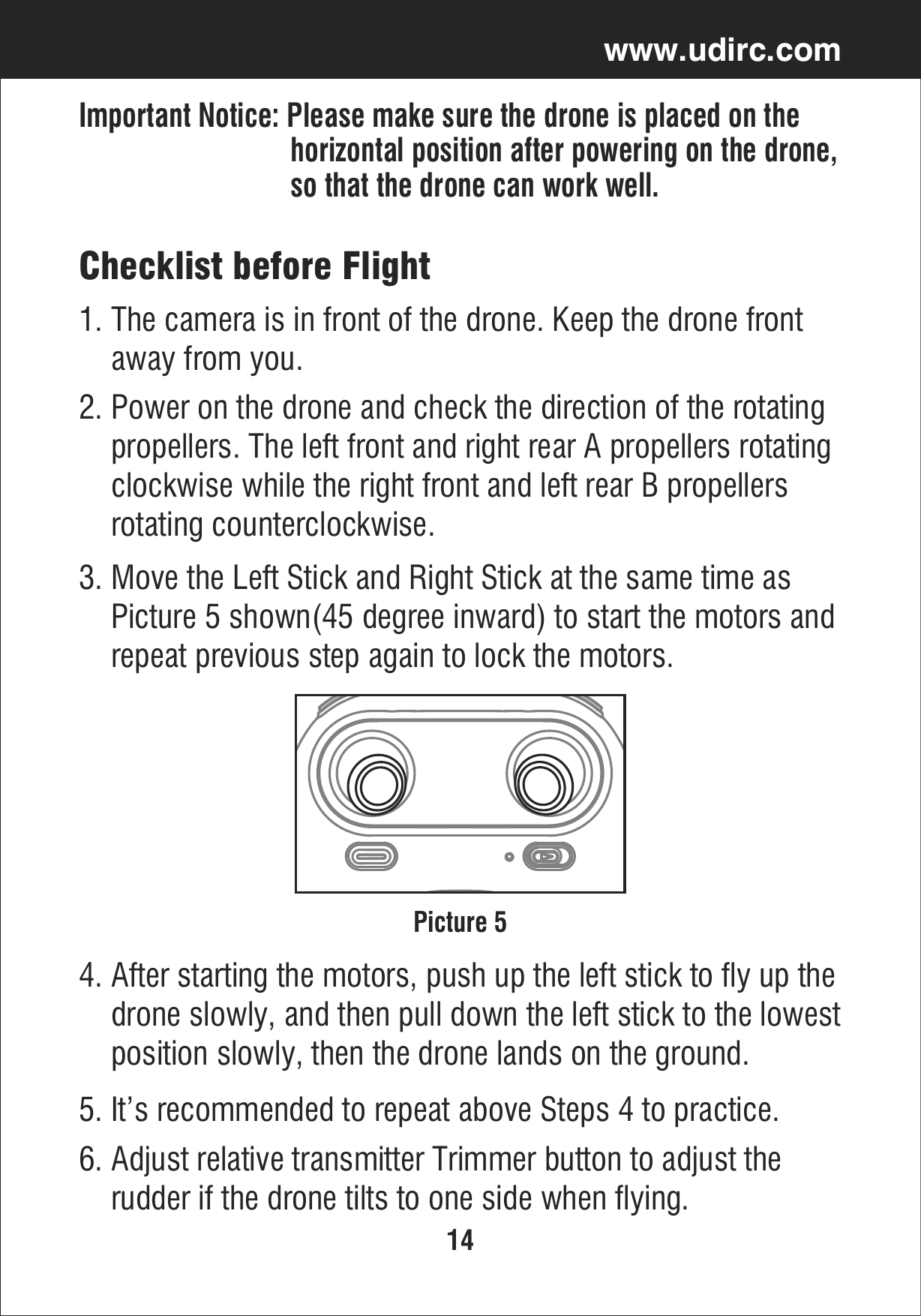

14www.udirc.comImportant Notice: Please make sure the drone is placed on the horizontal position after powering on the drone, so that the drone can work well.Checklist before Flight1. The camera is in front of the drone. Keep the drone front away from you.2. Power on the drone and check the direction of the rotating propellers. The left front and right rear A propellers rotating clockwise while the right front and left rear B propellers rotating counterclockwise.5. It’s recommended to repeat above Steps 4 to practice.6. Adjust relative transmitter Trimmer button to adjust the rudder if the drone tilts to one side when flying. 4. After starting the motors, push up the left stick to fly up the drone slowly, and then pull down the left stick to the lowest position slowly, then the drone lands on the ground. 3. Move the Left Stick and Right Stick at the same time as Picture 5 shown(45 degree inward) to start the motors and repeat previous step again to lock the motors. Picture 5

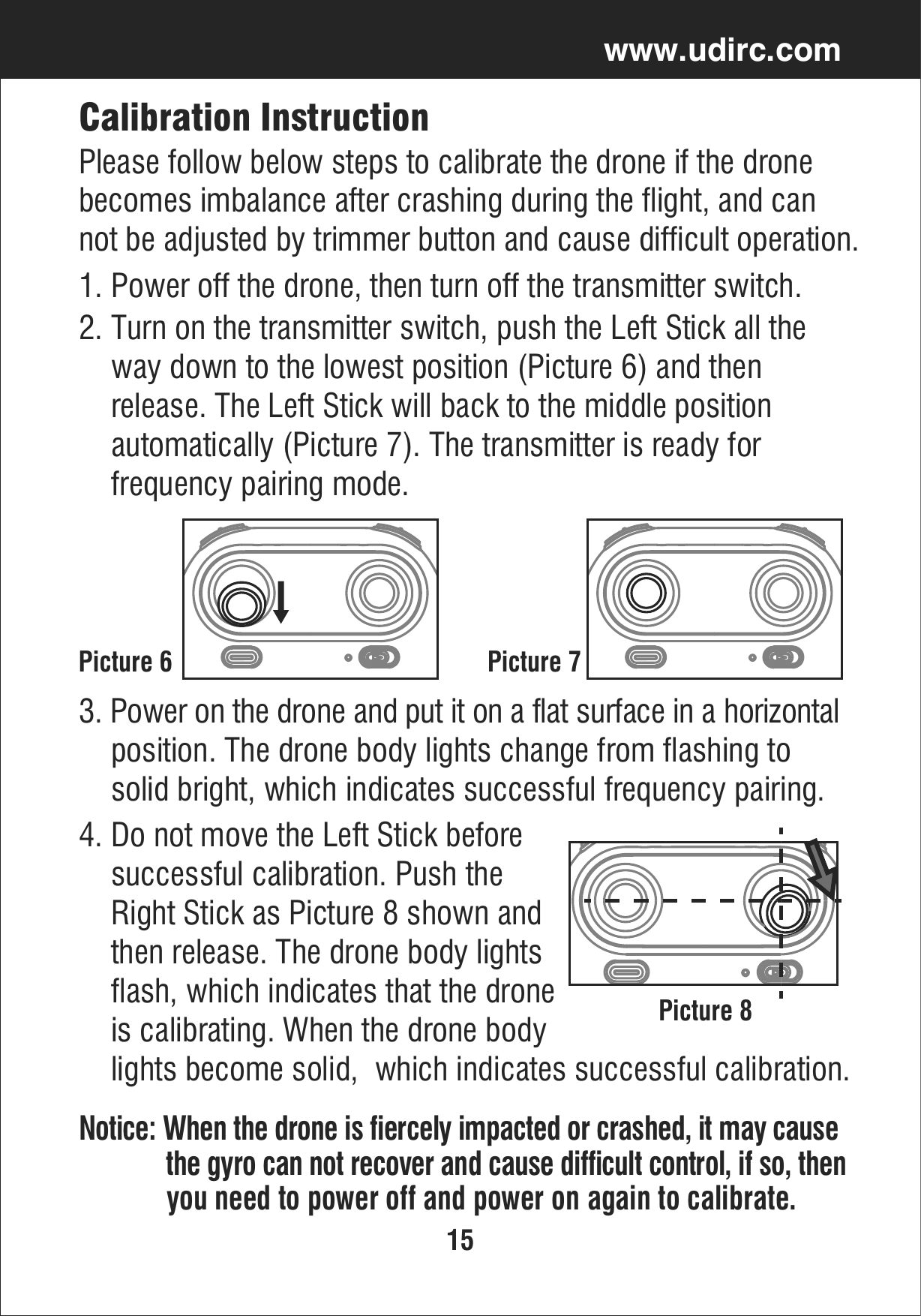

15www.udirc.comCalibration InstructionPlease follow below steps to calibrate the drone if the drone becomes imbalance after crashing during the flight, and can not be adjusted by trimmer button and cause difficult operation.1. Power off the drone, then turn off the transmitter switch.2. Turn on the transmitter switch, push the Left Stick all the way down to the lowest position (Picture 6) and then release. The Left Stick will back to the middle position automatically (Picture 7). The transmitter is ready for frequency pairing mode.Picture 6 Picture 73. Power on the drone and put it on a flat surface in a horizontal position. The drone body lights change from flashing to solid bright, which indicates successful frequency pairing.4. Do not move the Left Stick before successful calibration. Push the Right Stick as Picture 8 shown and then release. The drone body lights flash, which indicates that the drone is calibrating. When the drone body lights become solid, which indicates successful calibration.Notice: When the drone is fiercely impacted or crashed, it may cause the gyro can not recover and cause difficult control, if so, then you need to power off and power on again to calibrate.Picture 8

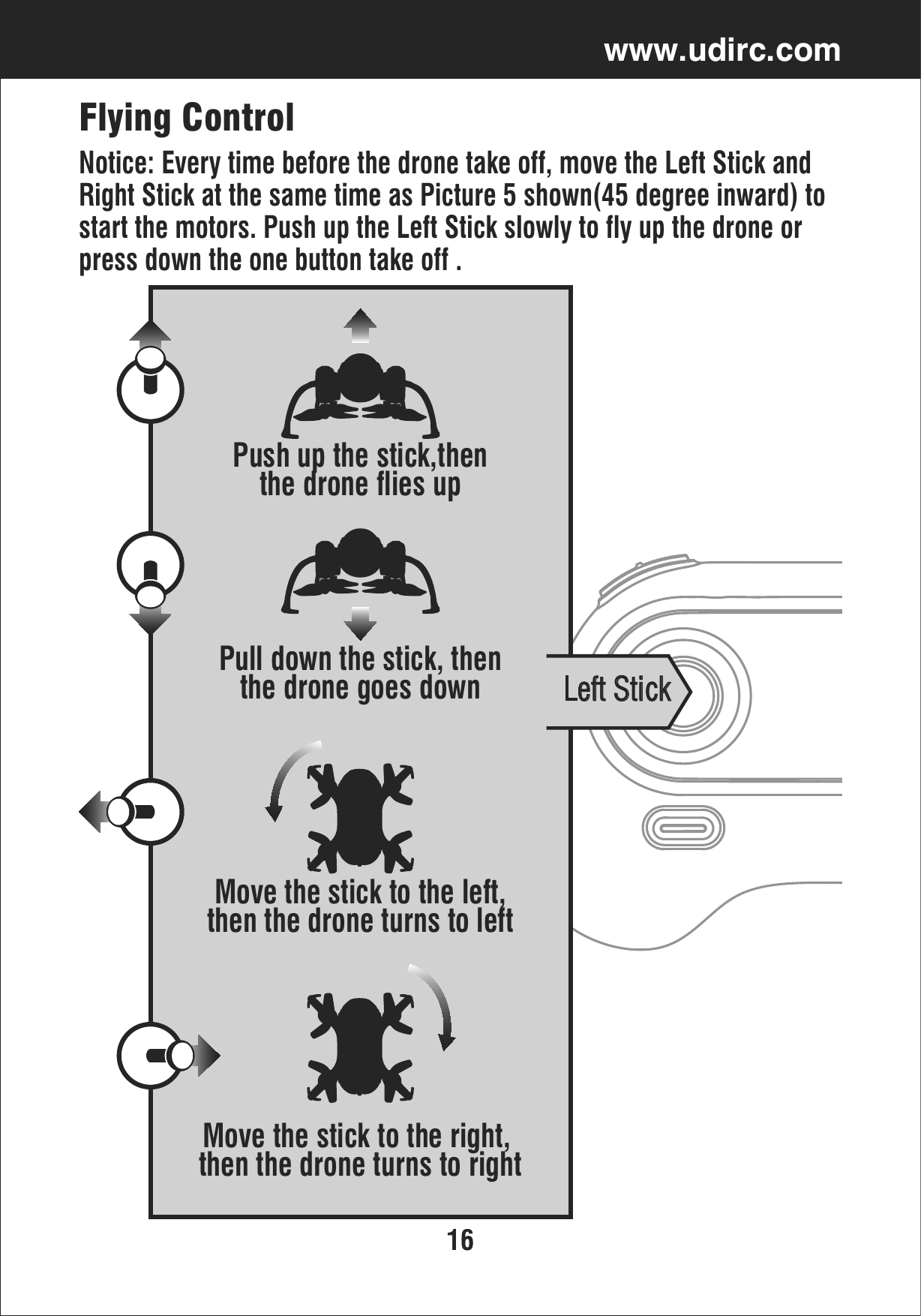

16www.udirc.comFlying ControlNotice: Every time before the drone take off, move the Left Stick and Right Stick at the same time as Picture 5 shown(45 degree inward) to start the motors. Push up the Left Stick slowly to fly up the drone or press down the one button take off .Left StickMove the stick to the left,then the drone turns to leftMove the stick to the right, then the drone turns to rightPush up the stick,thenthe drone flies upPull down the stick, thenthe drone goes down

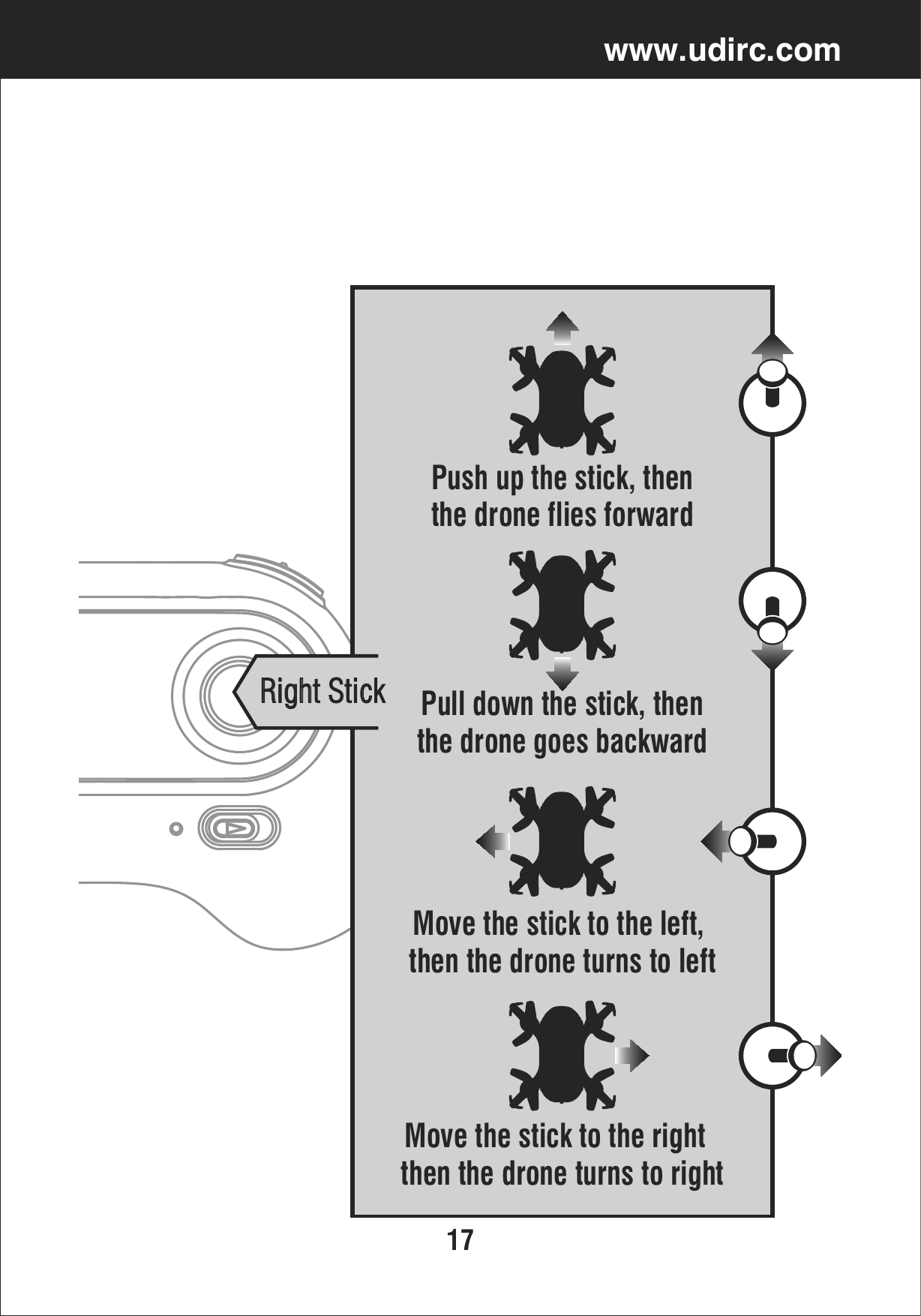

17www.udirc.comRight StickPush up the stick, thenthe drone flies forwardPull down the stick, thenthe drone goes backwardMove the stick to the left, then the drone turns to leftMove the stick to the right then the drone turns to right

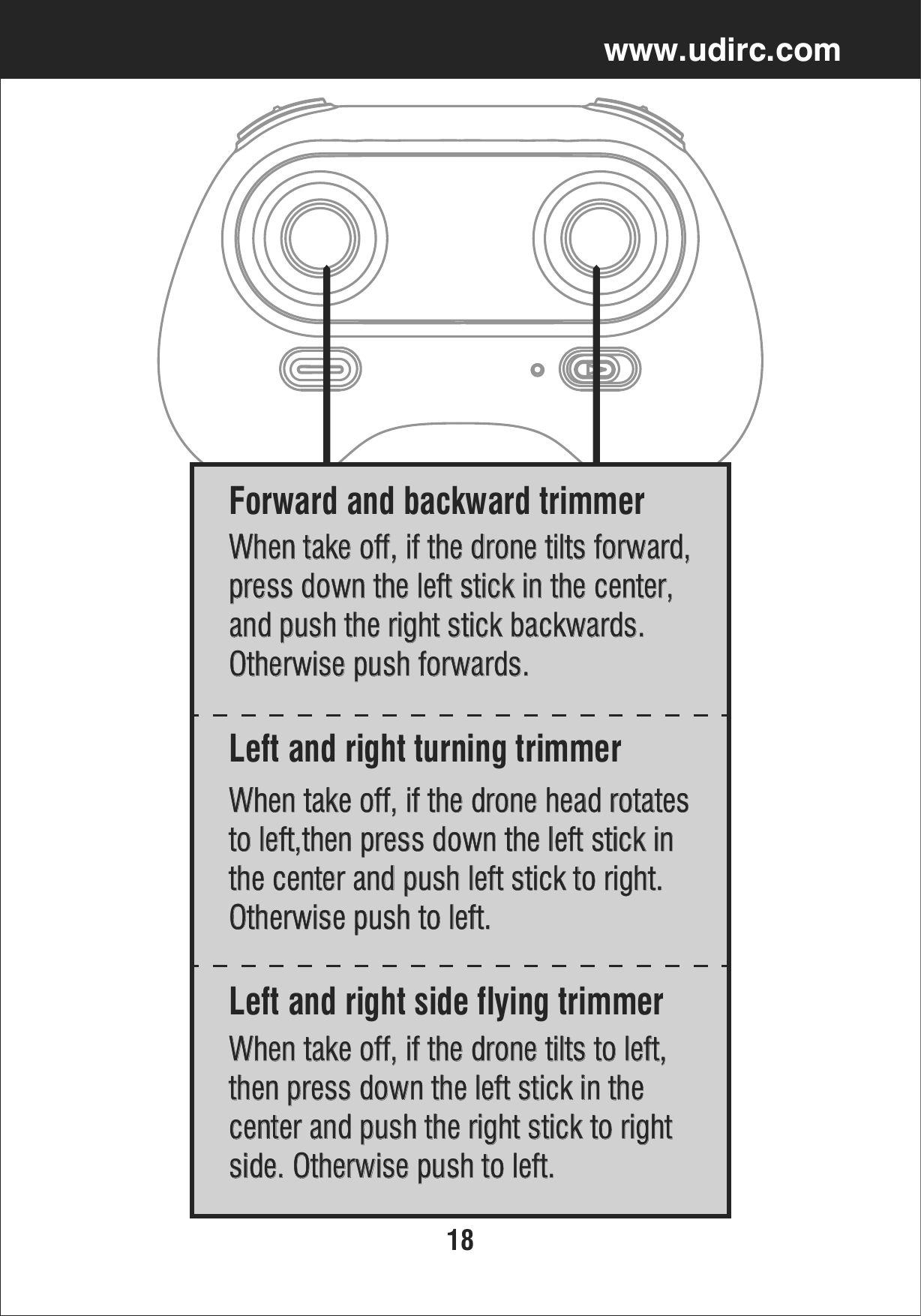

18www.udirc.comForward and backward trimmerWhen take off, if the drone tilts forward,press down the left stick in the center, and push the right stick backwards. Otherwise push forwards.Left and right turning trimmerWhen take off, if the drone head rotatesto left,then press down the left stick inthe center and push left stick to right.Otherwise push to left.Left and right side flying trimmerWhen take off, if the drone tilts to left, then press down the left stick in thecenter and push the right stick to rightside. Otherwise push to left.

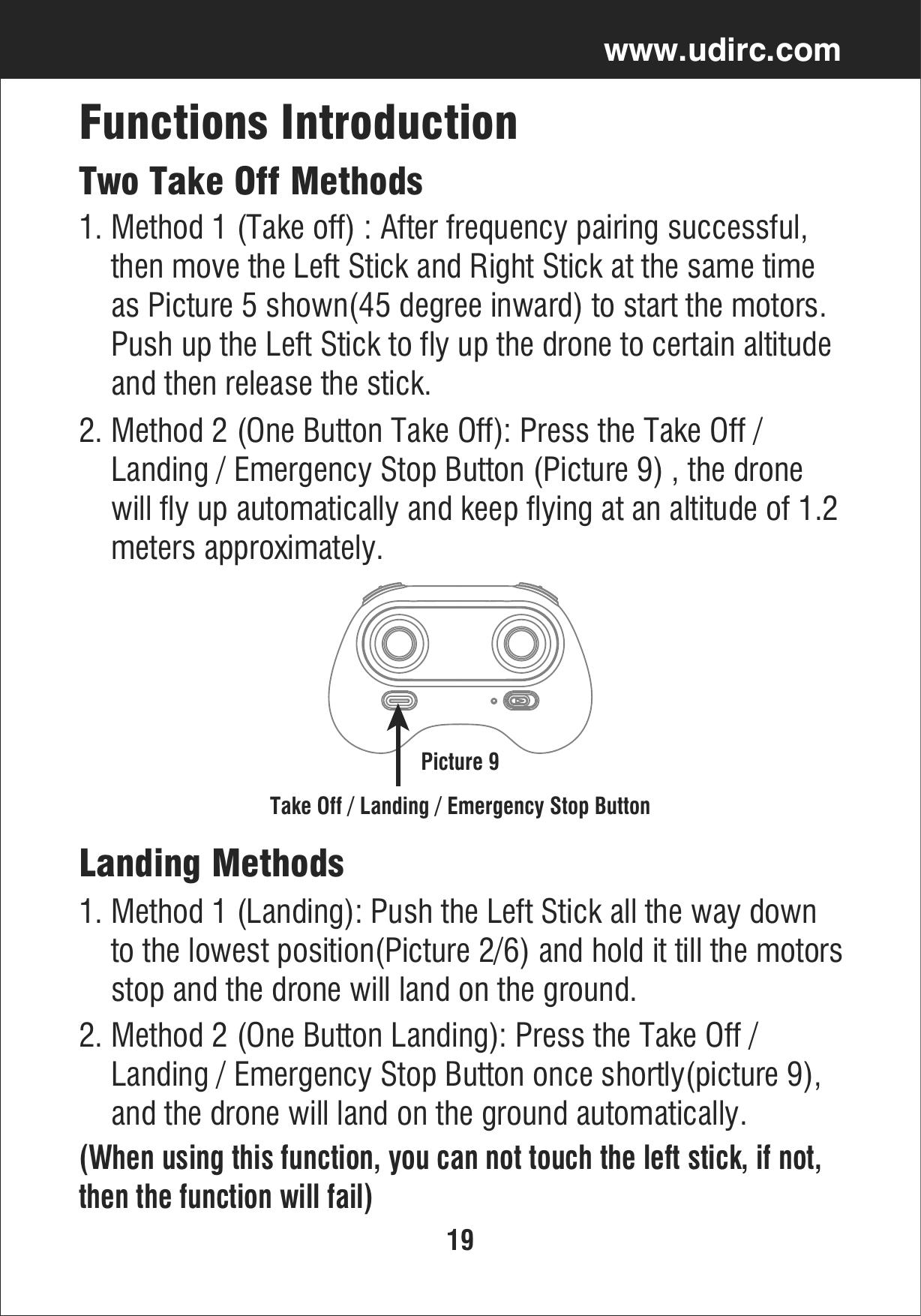

19www.udirc.comTake Off / Landing / Emergency Stop ButtonTwo Take Off MethodsFunctions Introduction2. Method 2 (One Button Take Off): Press the Take Off / Landing / Emergency Stop Button (Picture 9) , the drone will fly up automatically and keep flying at an altitude of 1.2 meters approximately.1. Method 1 (Take off) : After frequency pairing successful, then move the Left Stick and Right Stick at the same time as Picture 5 shown(45 degree inward) to start the motors. Push up the Left Stick to fly up the drone to certain altitude and then release the stick.Picture 92. Method 2 (One Button Landing): Press the Take Off / Landing / Emergency Stop Button once shortly(picture 9), and the drone will land on the ground automatically.(When using this function, you can not touch the left stick, if not, then the function will fail)Landing Methods1. Method 1 (Landing): Push the Left Stick all the way down to the lowest position(Picture 2/6) and hold it till the motors stop and the drone will land on the ground.

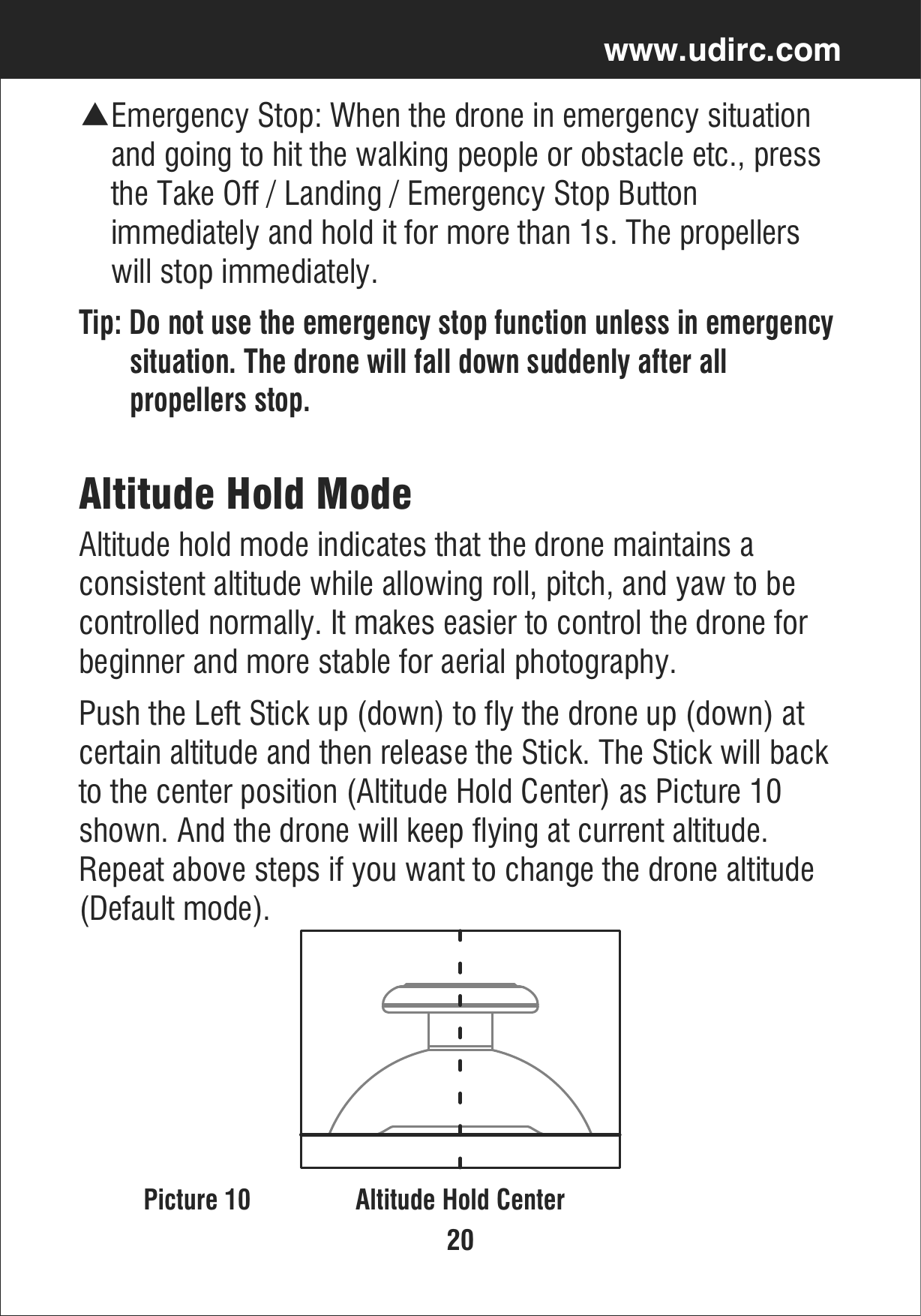

20www.udirc.com▲Emergency Stop: When the drone in emergency situation and going to hit the walking people or obstacle etc., press the Take Off / Landing / Emergency Stop Button immediately and hold it for more than 1s. The propellers will stop immediately. Tip: Do not use the emergency stop function unless in emergency situation. The drone will fall down suddenly after all propellers stop.Altitude Hold ModeAltitude hold mode indicates that the drone maintains a consistent altitude while allowing roll, pitch, and yaw to be controlled normally. It makes easier to control the drone for beginner and more stable for aerial photography.Push the Left Stick up (down) to fly the drone up (down) at certain altitude and then release the Stick. The Stick will back to the center position (Altitude Hold Center) as Picture 10 shown. And the drone will keep flying at current altitude. Repeat above steps if you want to change the drone altitude(Default mode).Altitude Hold CenterPicture 10

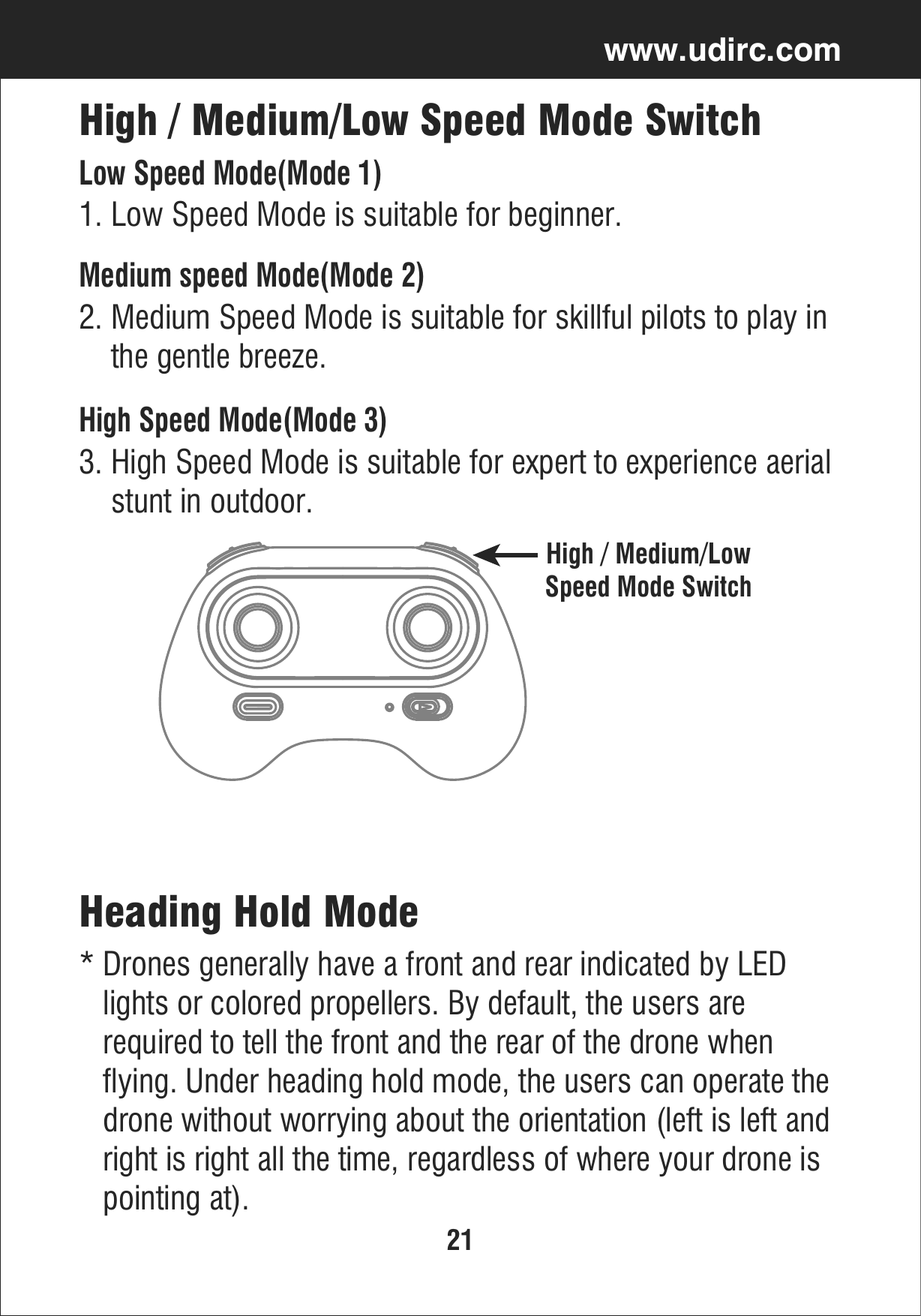

21www.udirc.com* Drones generally have a front and rear indicated by LED lights or colored propellers. By default, the users are required to tell the front and the rear of the drone when flying. Under heading hold mode, the users can operate the drone without worrying about the orientation (left is left and right is right all the time, regardless of where your drone is pointing at).Heading Hold Mode High / Medium/LowSpeed Mode SwitchHigh / Medium/Low Speed Mode Switch2. Medium Speed Mode is suitable for skillful pilots to play in the gentle breeze. Medium speed Mode(Mode 2)1. Low Speed Mode is suitable for beginner.Low Speed Mode(Mode 1)3. High Speed Mode is suitable for expert to experience aerial stunt in outdoor.High Speed Mode(Mode 3)

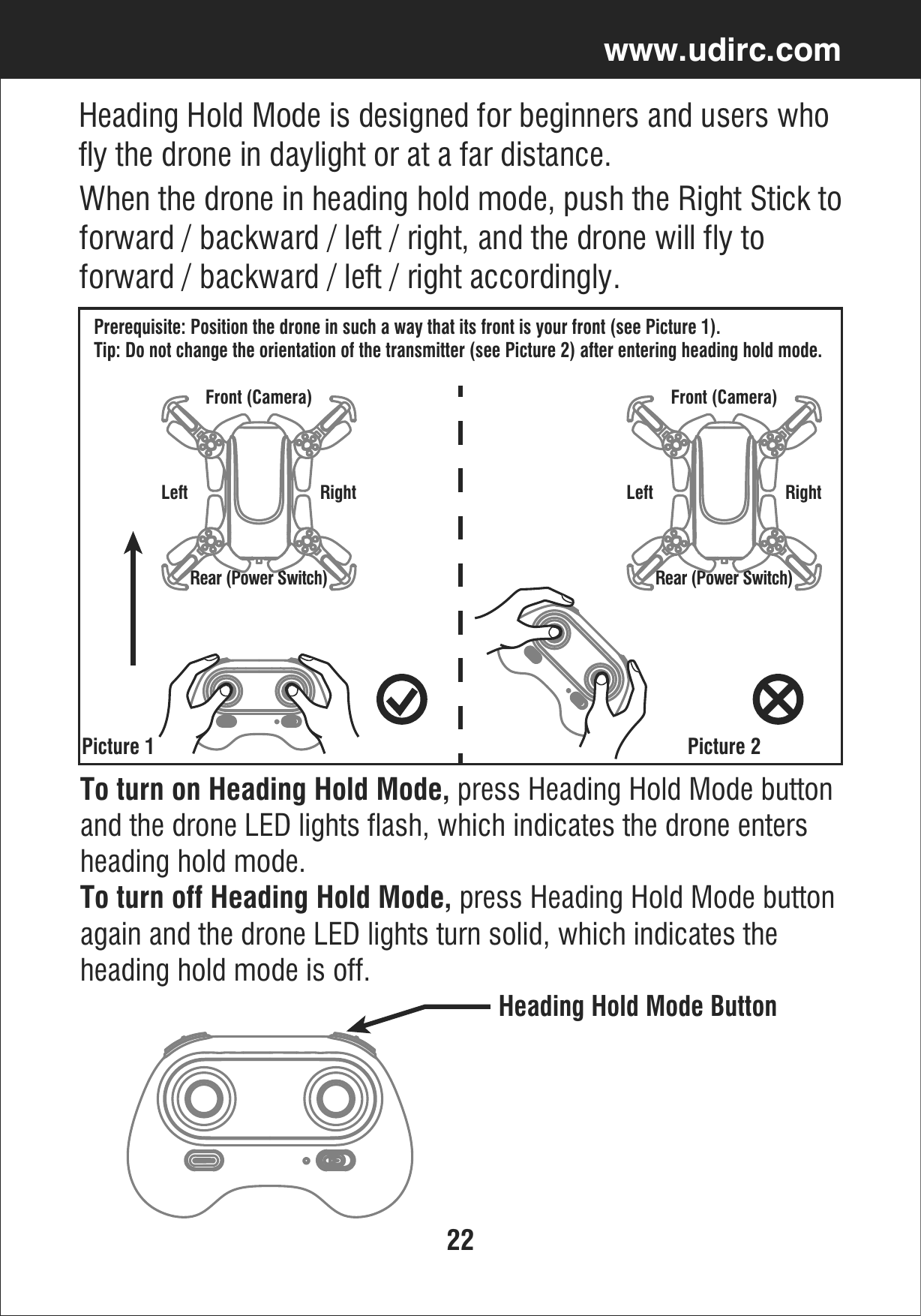

22www.udirc.comTo turn on Heading Hold Mode, press Heading Hold Mode buttonand the drone LED lights flash, which indicates the drone enters heading hold mode. To turn off Heading Hold Mode, press Heading Hold Mode buttonagain and the drone LED lights turn solid, which indicates the heading hold mode is off.Heading Hold Mode ButtonHeading Hold Mode is designed for beginners and users who fly the drone in daylight or at a far distance.When the drone in heading hold mode, push the Right Stick toforward / backward / left / right, and the drone will fly to forward / backward / left / right accordingly. Prerequisite: Position the drone in such a way that its front is your front (see Picture 1). Tip: Do not change the orientation of the transmitter (see Picture 2) after entering heading hold mode. Picture 1 Picture 2Front (Camera)Rear (Power Switch)Left RightFront (Camera)Rear (Power Switch)Left Right

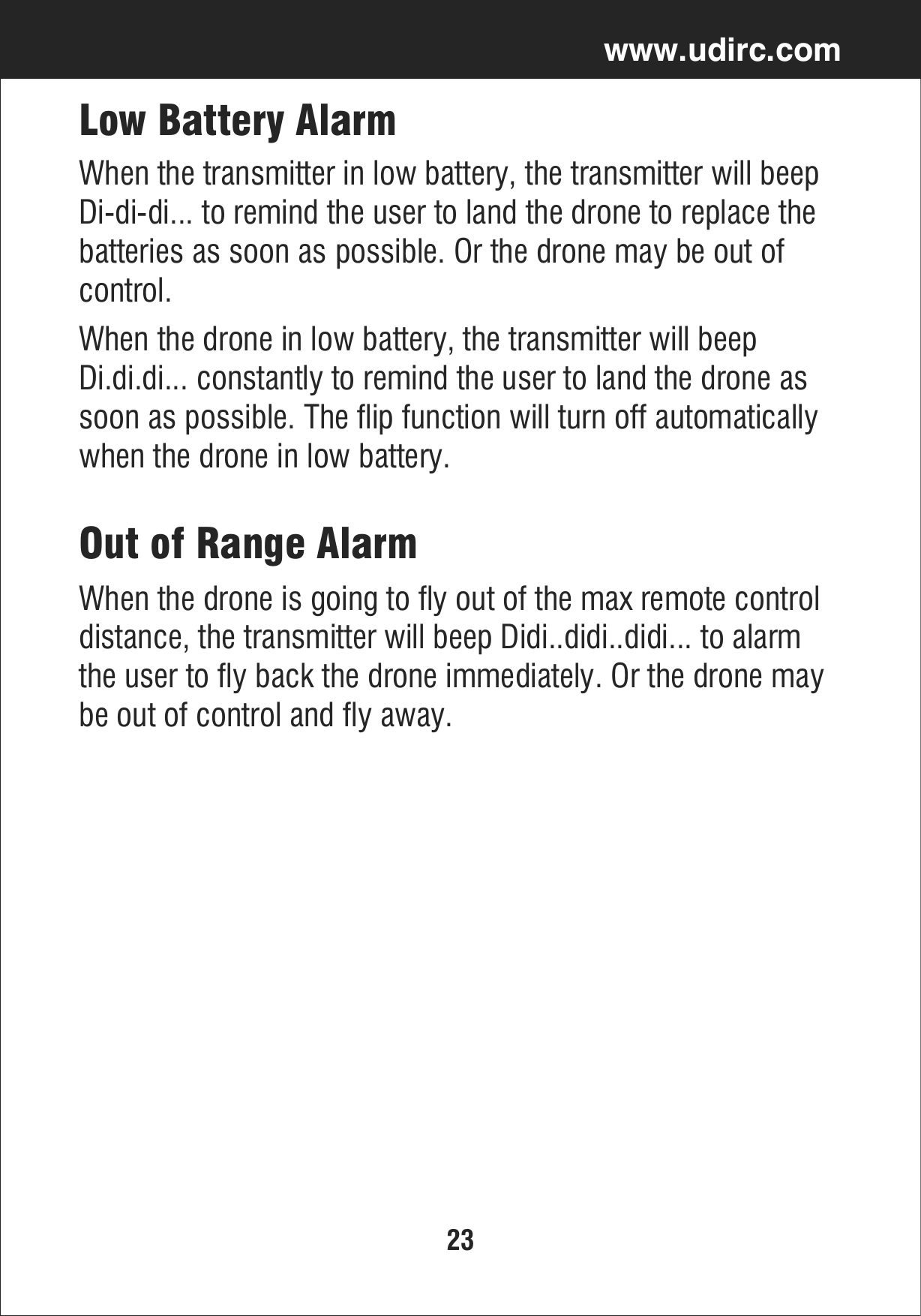

23www.udirc.comLow Battery AlarmWhen the drone in low battery, the transmitter will beep Di.di.di... constantly to remind the user to land the drone as soon as possible. The flip function will turn off automatically when the drone in low battery.When the transmitter in low battery, the transmitter will beep Di-di-di... to remind the user to land the drone to replace the batteries as soon as possible. Or the drone may be out of control.Out of Range AlarmWhen the drone is going to fly out of the max remote control distance, the transmitter will beep Didi..didi..didi... to alarm the user to fly back the drone immediately. Or the drone may be out of control and fly away.

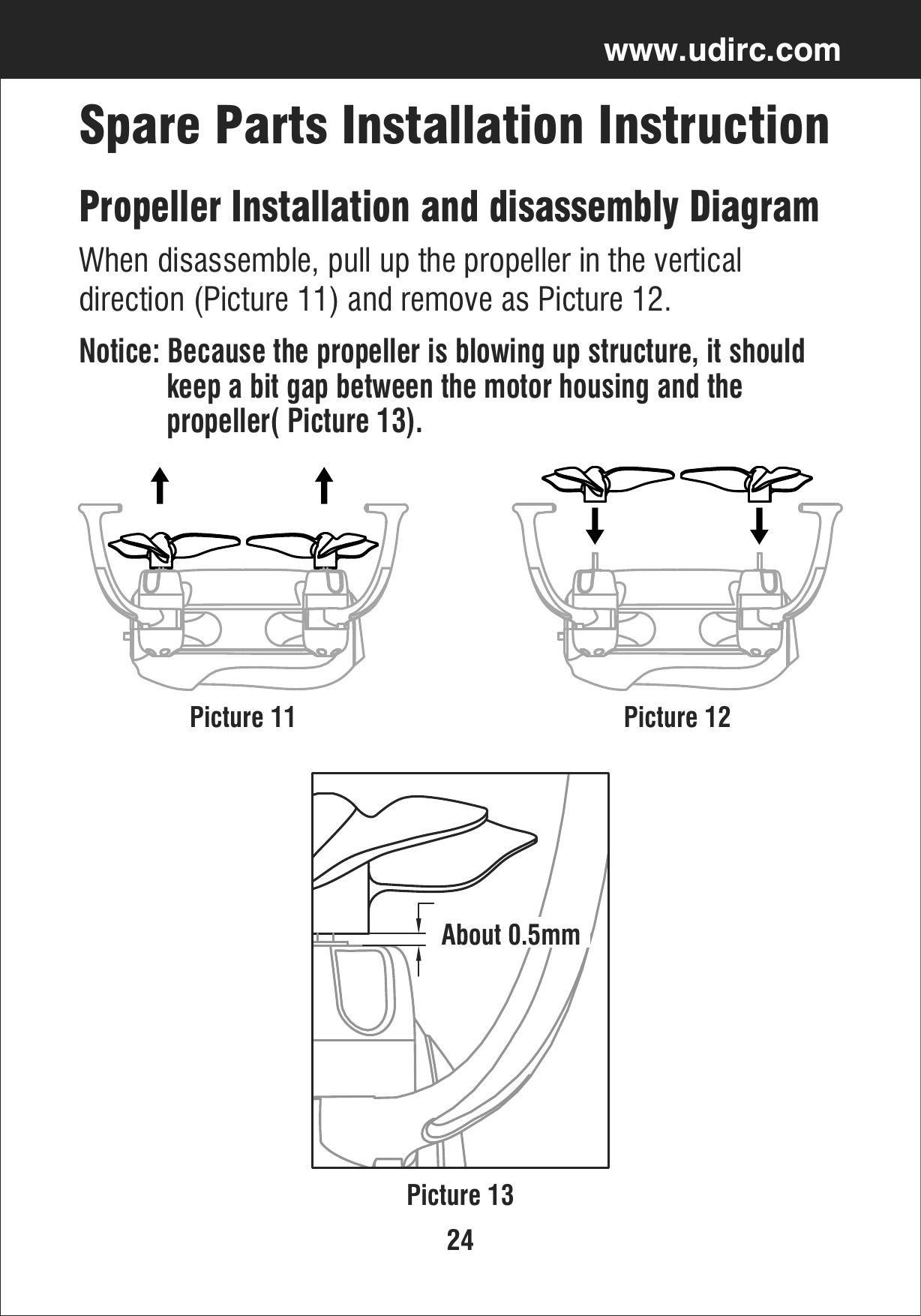

24www.udirc.comPicture 11Picture 13Picture 12Propeller Installation and disassembly DiagramWhen disassemble, pull up the propeller in the vertical direction (Picture 11) and remove as Picture 12.Notice: Because the propeller is blowing up structure, it should keep a bit gap between the motor housing and the propeller( Picture 13).Spare Parts Installation InstructionAbout 0.5mm

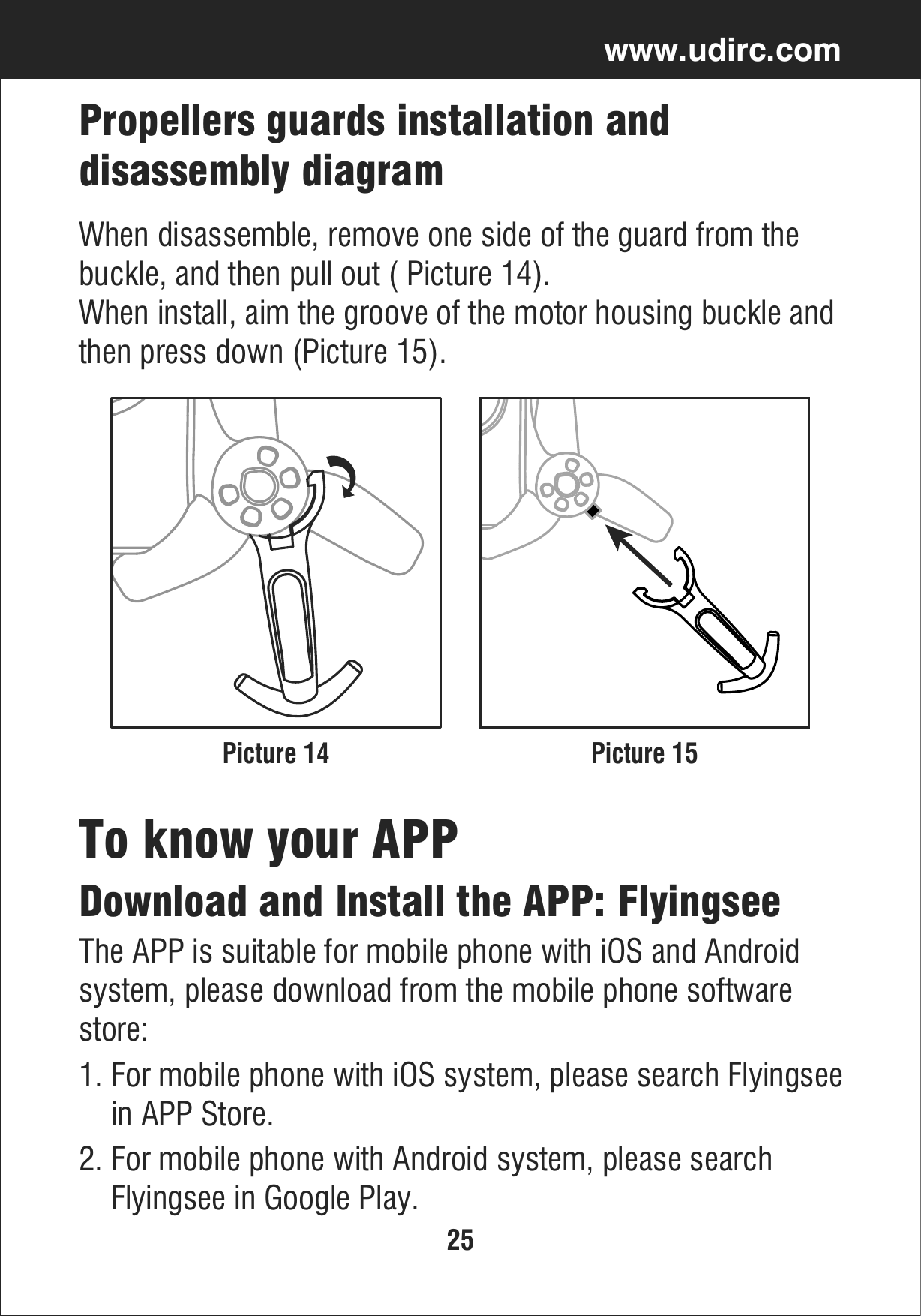

25www.udirc.comPicture 14 Picture 15Propellers guards installation and disassembly diagramWhen disassemble, remove one side of the guard from the buckle, and then pull out ( Picture 14).When install, aim the groove of the motor housing buckle andthen press down (Picture 15).2. For mobile phone with Android system, please search Flyingsee in Google Play.Download and Install the APP: FlyingseeThe APP is suitable for mobile phone with iOS and Android system, please download from the mobile phone software store:1. For mobile phone with iOS system, please search Flyingsee in APP Store.To know your APP

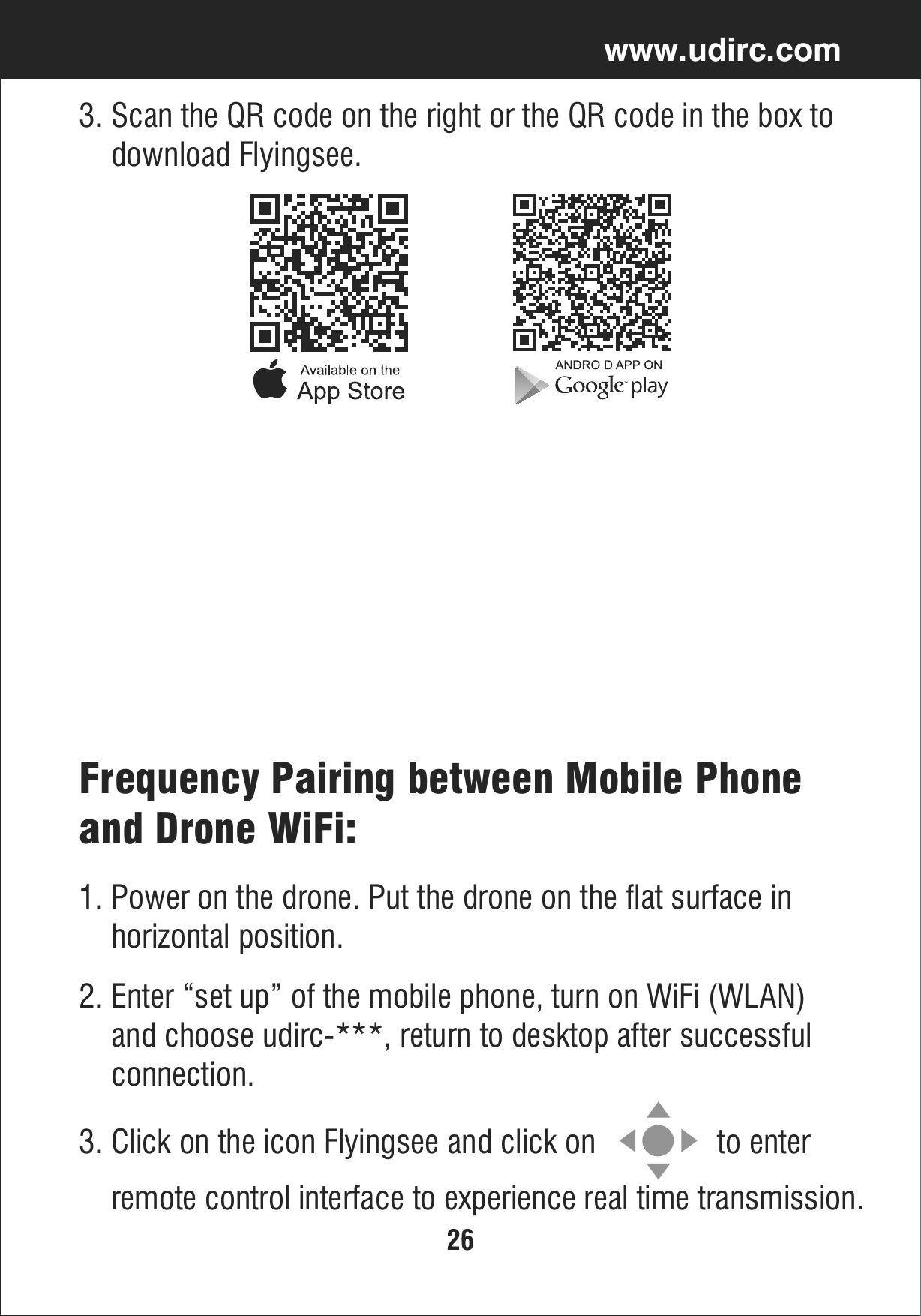

26www.udirc.comFrequency Pairing between Mobile Phone and Drone WiFi:2. Enter “set up” of the mobile phone, turn on WiFi (WLAN) and choose udirc-***, return to desktop after successful connection.1. Power on the drone. Put the drone on the flat surface in horizontal position.3. Click on the icon Flyingsee and click on to enter remote control interface to experience real time transmission.3. Scan the QR code on the right or the QR code in the box to download Flyingsee.

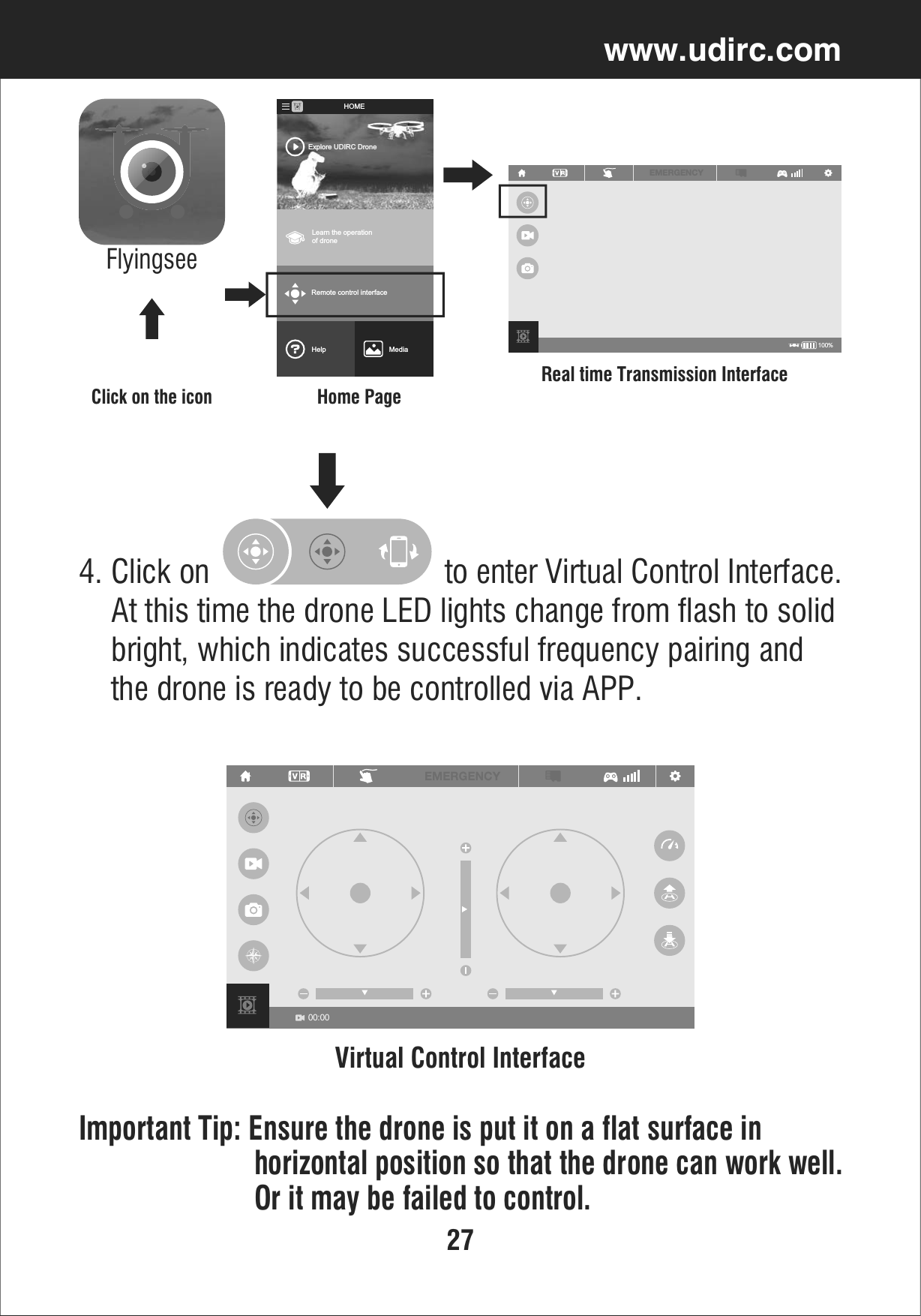

27www.udirc.com100%EMERGENCYReal time Transmission InterfaceClick on the iconFlyingseeHome PageLearn the operationof droneRemote control interfaceMediaHelpExplore UDIRC DroneHOME4. Click on to enter Virtual Control Interface. At this time the drone LED lights change from flash to solid bright, which indicates successful frequency pairing and the drone is ready to be controlled via APP.Important Tip: Ensure the drone is put it on a flat surface in horizontal position so that the drone can work well. Or it may be failed to control.Virtual Control Interface00:00EMERGENCY

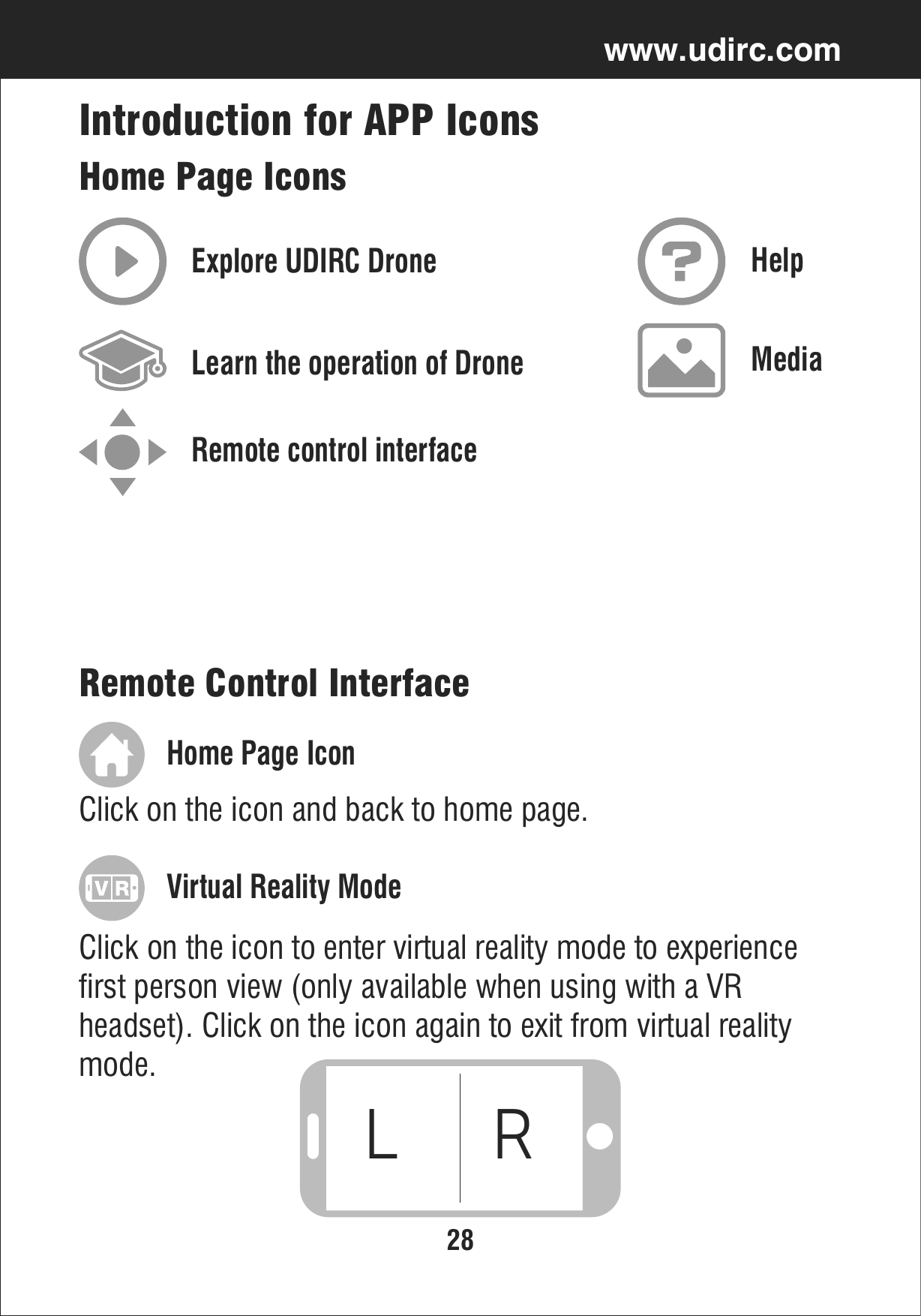

28www.udirc.comRemote control interfaceIntroduction for APP IconsHome Page IconsExplore UDIRC DroneLearn the operation of DroneHelpMediaRemote Control Interface-3Home Page Icon Click on the icon and back to home page.Click on the icon to enter virtual reality mode to experience first person view (only available when using with a VR headset). Click on the icon again to exit from virtual reality mode. Virtual Reality Mode

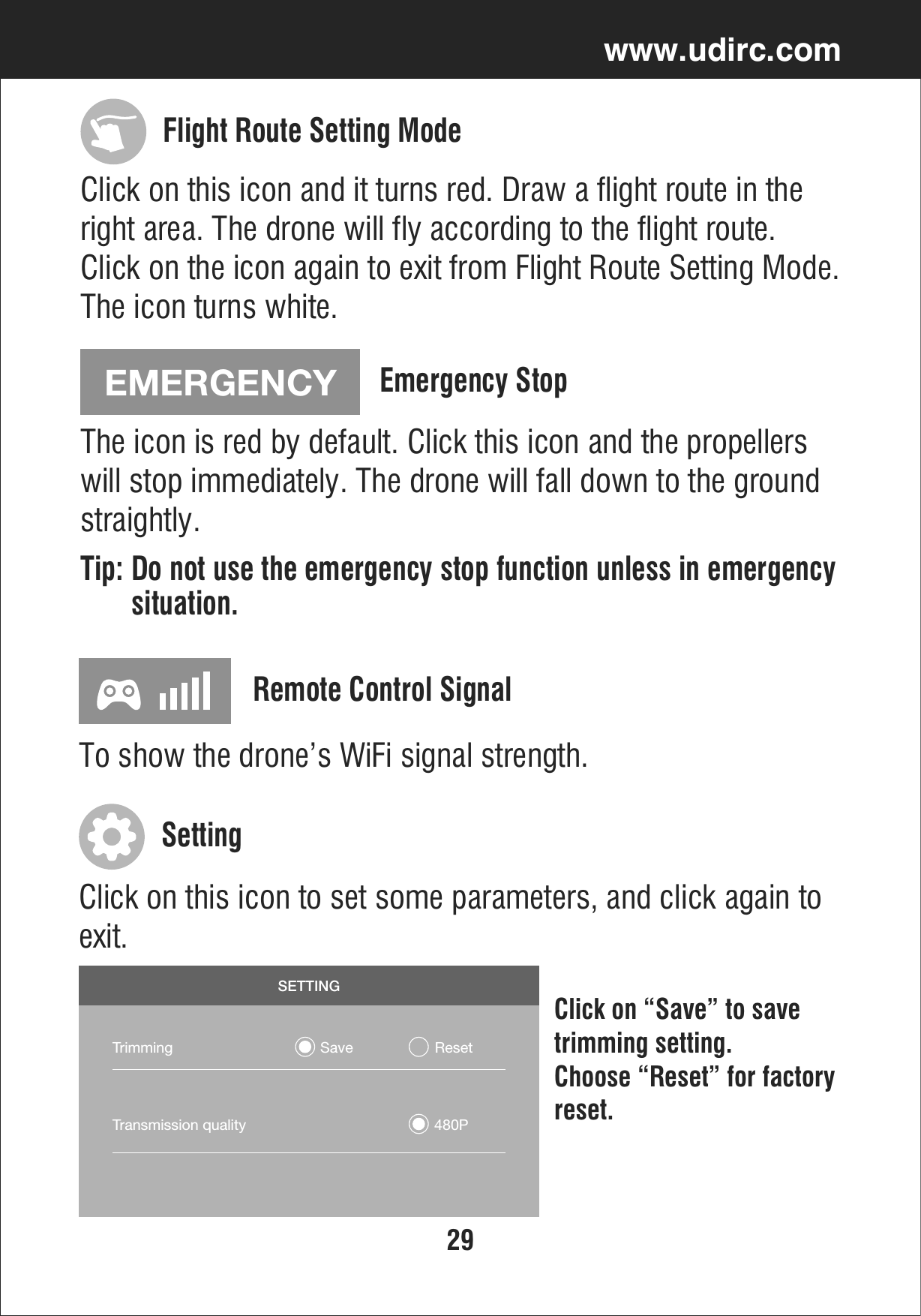

29www.udirc.comEMERGENCYClick on this icon and it turns red. Draw a flight route in the right area. The drone will fly according to the flight route. Click on the icon again to exit from Flight Route Setting Mode. The icon turns white.The icon is red by default. Click this icon and the propellers will stop immediately. The drone will fall down to the ground straightly.Tip: Do not use the emergency stop function unless in emergency situation.Flight Route Setting ModeEmergency Stop SETTINGTrimming Save ResetTransmission quality 480PTo show the drone’s WiFi signal strength.Remote Control SignalClick on this icon to set some parameters, and click again to exit.Click on “Save” to save trimming setting. Choose “Reset” for factoryreset.Setting

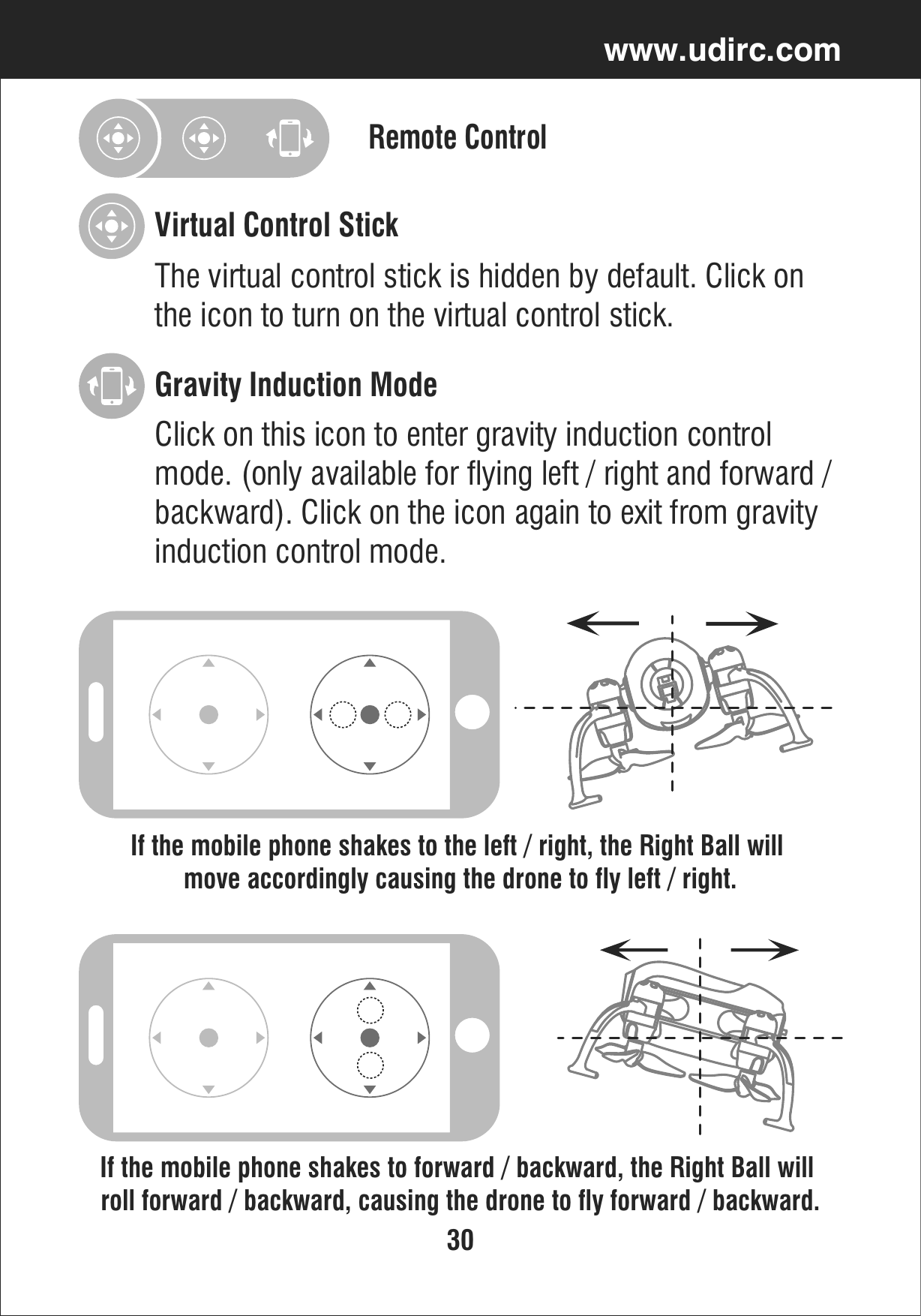

30www.udirc.comRemote Control The virtual control stick is hidden by default. Click on the icon to turn on the virtual control stick.Click on this icon to enter gravity induction control mode. (only available for flying left / right and forward /backward). Click on the icon again to exit from gravity induction control mode.Virtual Control StickGravity Induction ModeIf the mobile phone shakes to the left / right, the Right Ball will move accordingly causing the drone to fly left / right.If the mobile phone shakes to forward / backward, the Right Ball will roll forward / backward, causing the drone to fly forward / backward.

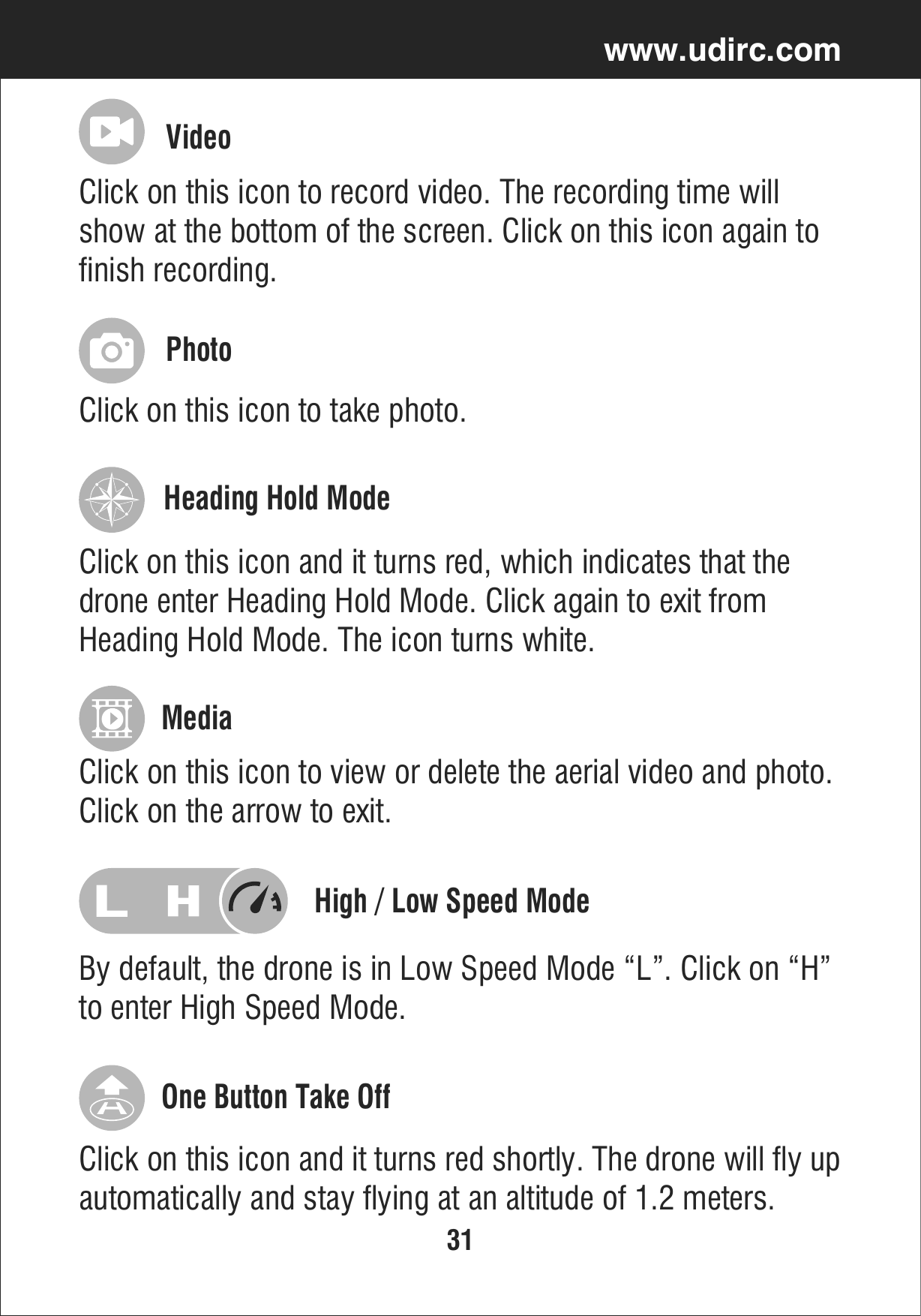

31www.udirc.comClick on this icon to record video. The recording time will show at the bottom of the screen. Click on this icon again to finish recording.Video Click on this icon to take photo.PhotoClick on this icon and it turns red, which indicates that the drone enter Heading Hold Mode. Click again to exit from Heading Hold Mode. The icon turns white.Heading Hold ModeClick on this icon to view or delete the aerial video and photo. Click on the arrow to exit. Media By default, the drone is in Low Speed Mode “L”. Click on “H” to enter High Speed Mode.High / Low Speed ModeClick on this icon and it turns red shortly. The drone will fly upautomatically and stay flying at an altitude of 1.2 meters.One Button Take Off

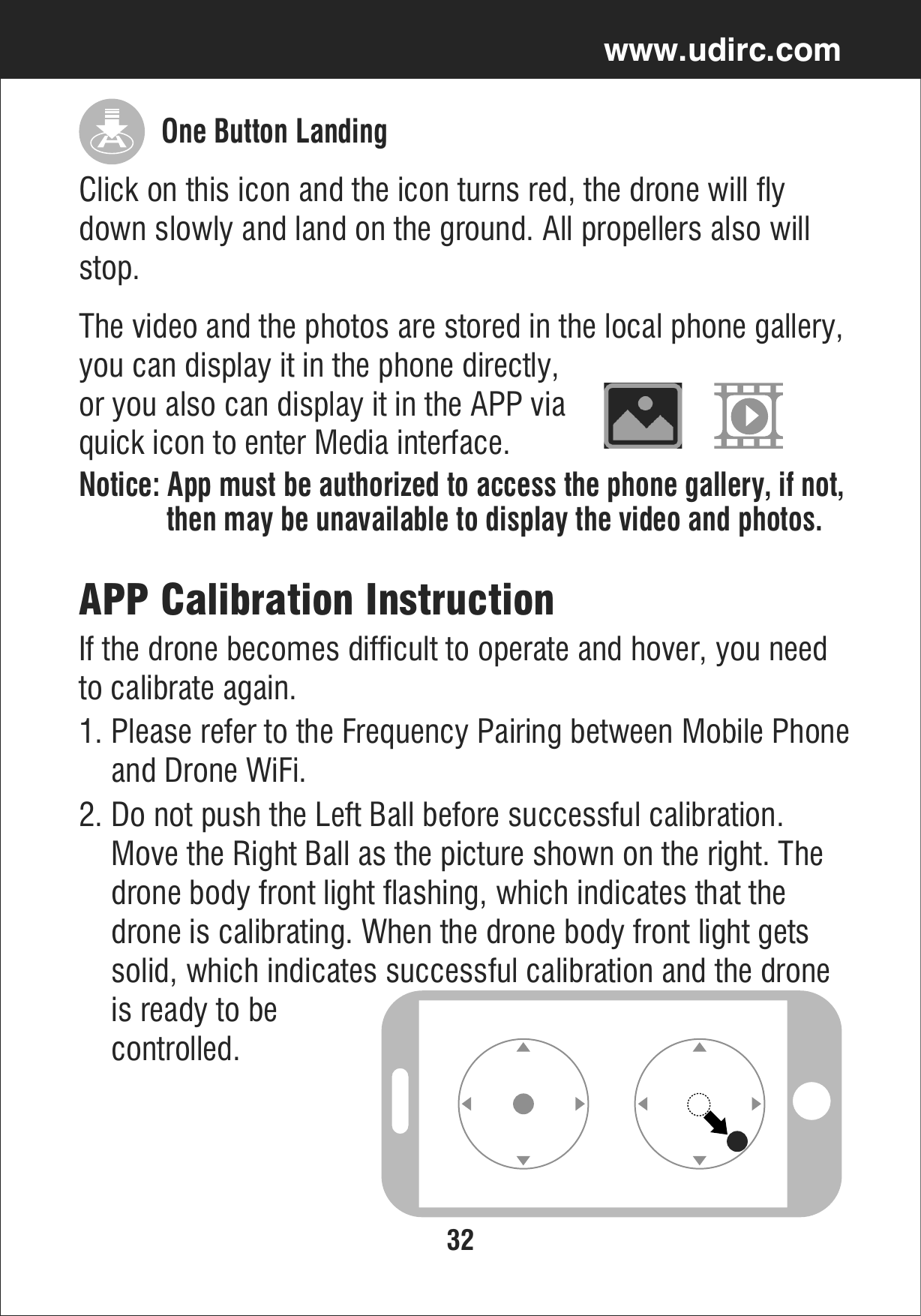

32www.udirc.comAPP Calibration InstructionIf the drone becomes difficult to operate and hover, you needto calibrate again.2. Do not push the Left Ball before successful calibration. Move the Right Ball as the picture shown on the right. The drone body front light flashing, which indicates that the drone is calibrating. When the drone body front light gets solid, which indicates successful calibration and the drone is ready to be controlled.1. Please refer to the Frequency Pairing between Mobile Phone and Drone WiFi.The video and the photos are stored in the local phone gallery, you can display it in the phone directly, or you also can display it in the APP via quick icon to enter Media interface.Notice: App must be authorized to access the phone gallery, if not, then may be unavailable to display the video and photos.Click on this icon and the icon turns red, the drone will fly down slowly and land on the ground. All propellers also will stop.One Button Landing

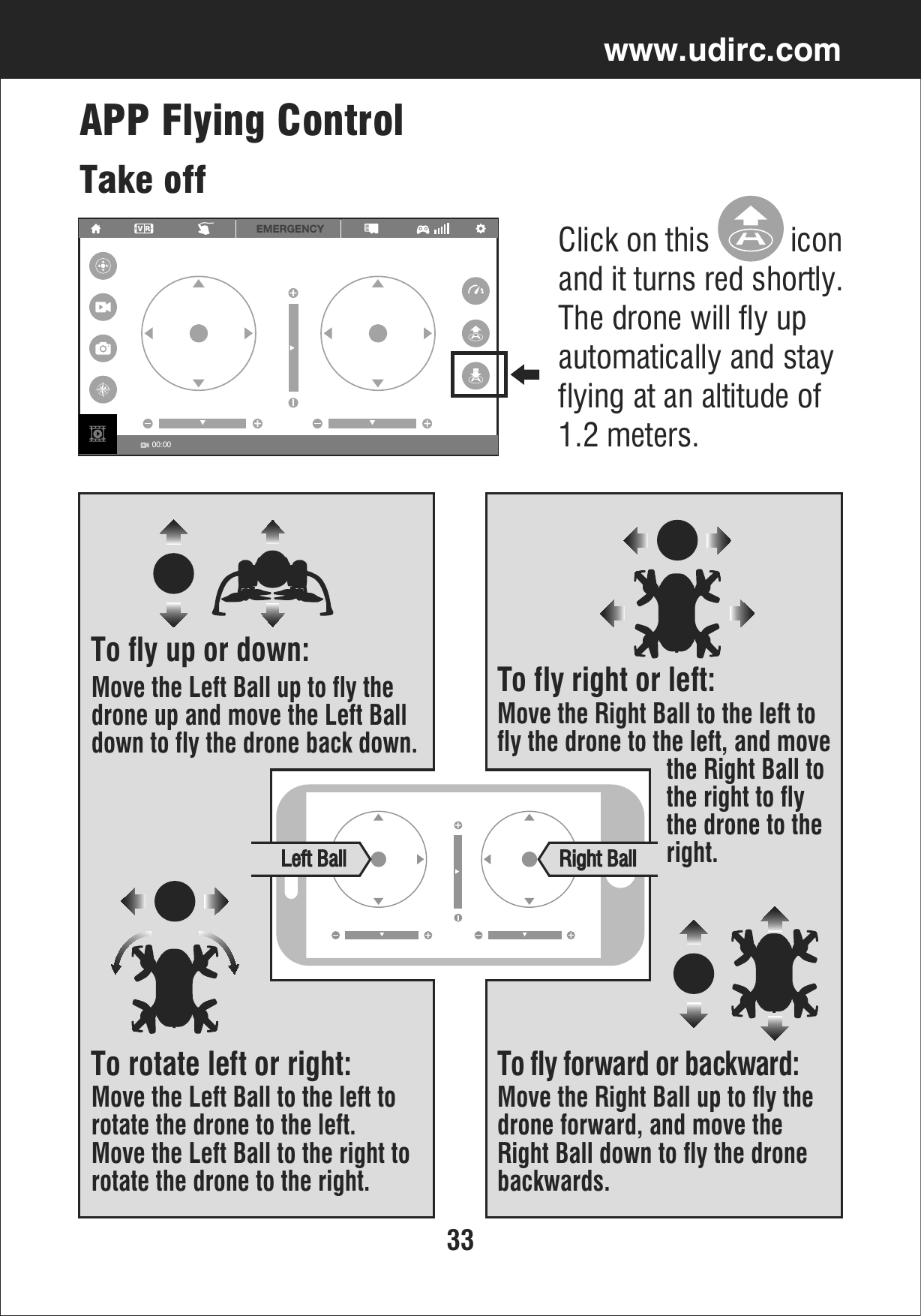

33www.udirc.comAPP Flying ControlTake offClick on this icon and it turns red shortly. The drone will fly up automatically and stay flying at an altitude of 1.2 meters.00:00EMERGENCYMove the Right Ball to the left tofly the drone to the left, and move the Right Ball to the right to fly the drone to the right.Left Ball Right BallTo fly up or down: Move the Left Ball up to fly thedrone up and move the Left Balldown to fly the drone back down. To fly right or left:To fly forward or backward: Move the Right Ball up to fly thedrone forward, and move the Right Ball down to fly the drone backwards.To rotate left or right: Move the Left Ball to the left to rotate the drone to the left. Move the Left Ball to the right torotate the drone to the right.

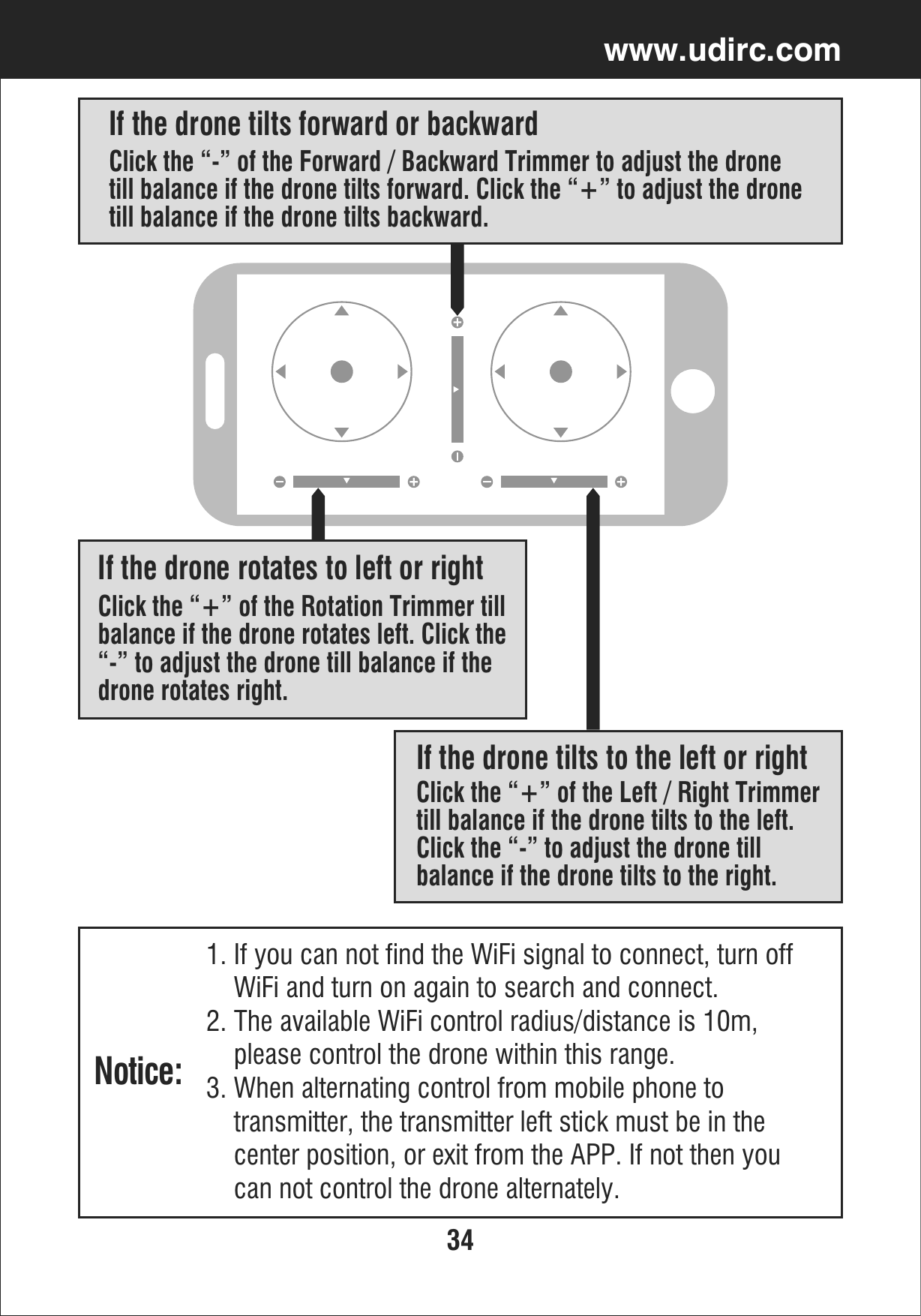

34www.udirc.comNotice:1. If you can not find the WiFi signal to connect, turn off WiFi and turn on again to search and connect. 2. The available WiFi control radius/distance is 10m, please control the drone within this range.3. When alternating control from mobile phone to transmitter, the transmitter left stick must be in the center position, or exit from the APP. If not then you can not control the drone alternately.If the drone tilts forward or backward Click the “-” of the Forward / Backward Trimmer to adjust the dronetill balance if the drone tilts forward. Click the “+” to adjust the dronetill balance if the drone tilts backward. If the drone rotates to left or rightClick the “+” of the Rotation Trimmer tillbalance if the drone rotates left. Click the“-” to adjust the drone till balance if thedrone rotates right.If the drone tilts to the left or rightClick the “+” of the Left / Right Trimmertill balance if the drone tilts to the left. Click the “-” to adjust the drone till balance if the drone tilts to the right.

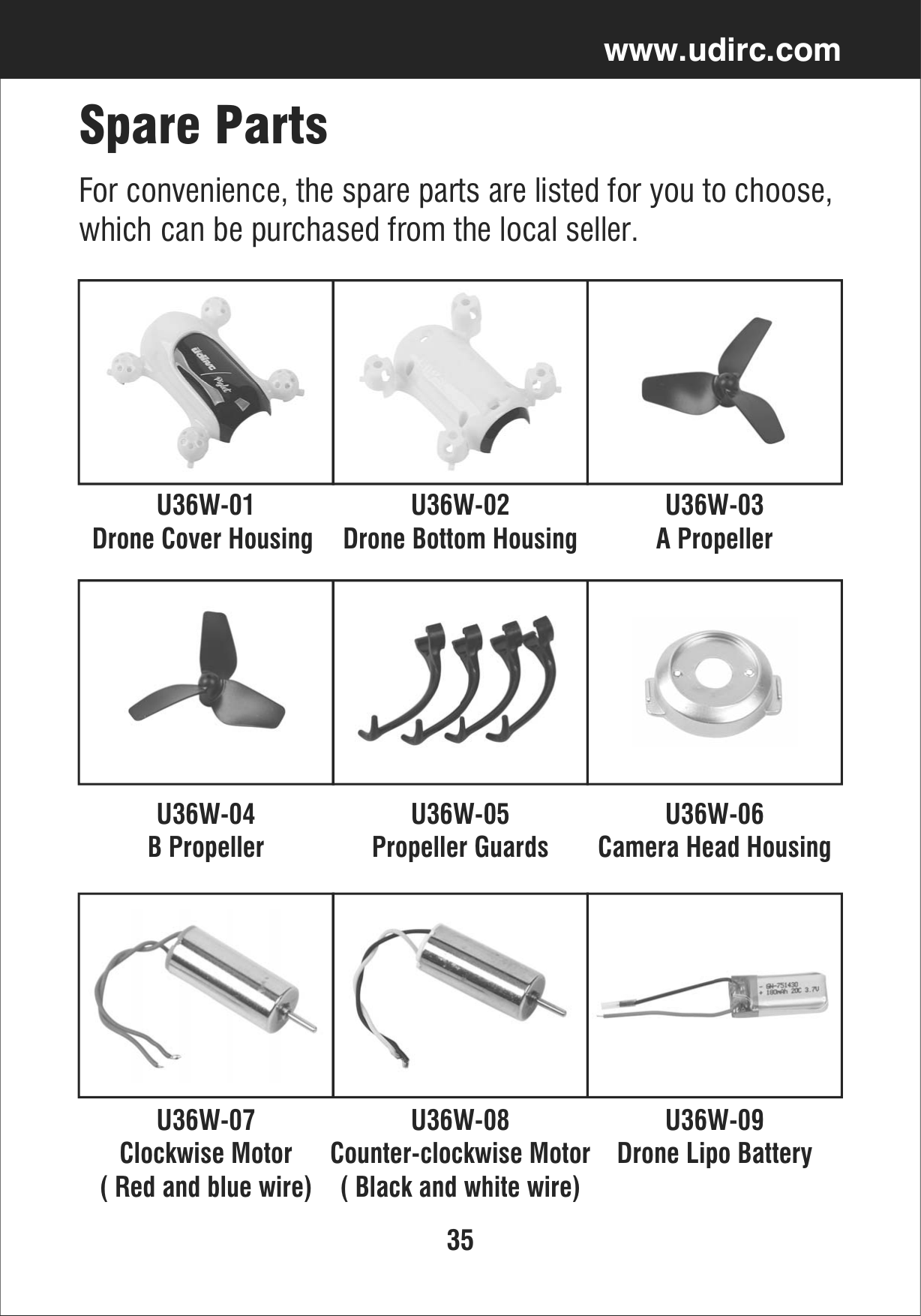

35www.udirc.comSpare Parts For convenience, the spare parts are listed for you to choose,which can be purchased from the local seller. U36W-09Drone Lipo BatteryU36W-05Propeller GuardsU36W-06Camera Head HousingU36W-07Clockwise Motor( Red and blue wire)U36W-08Counter-clockwise Motor( Black and white wire)U36W-04B PropellerU36W-01Drone Cover Housing U36W-02Drone Bottom HousingU36W-03A Propeller

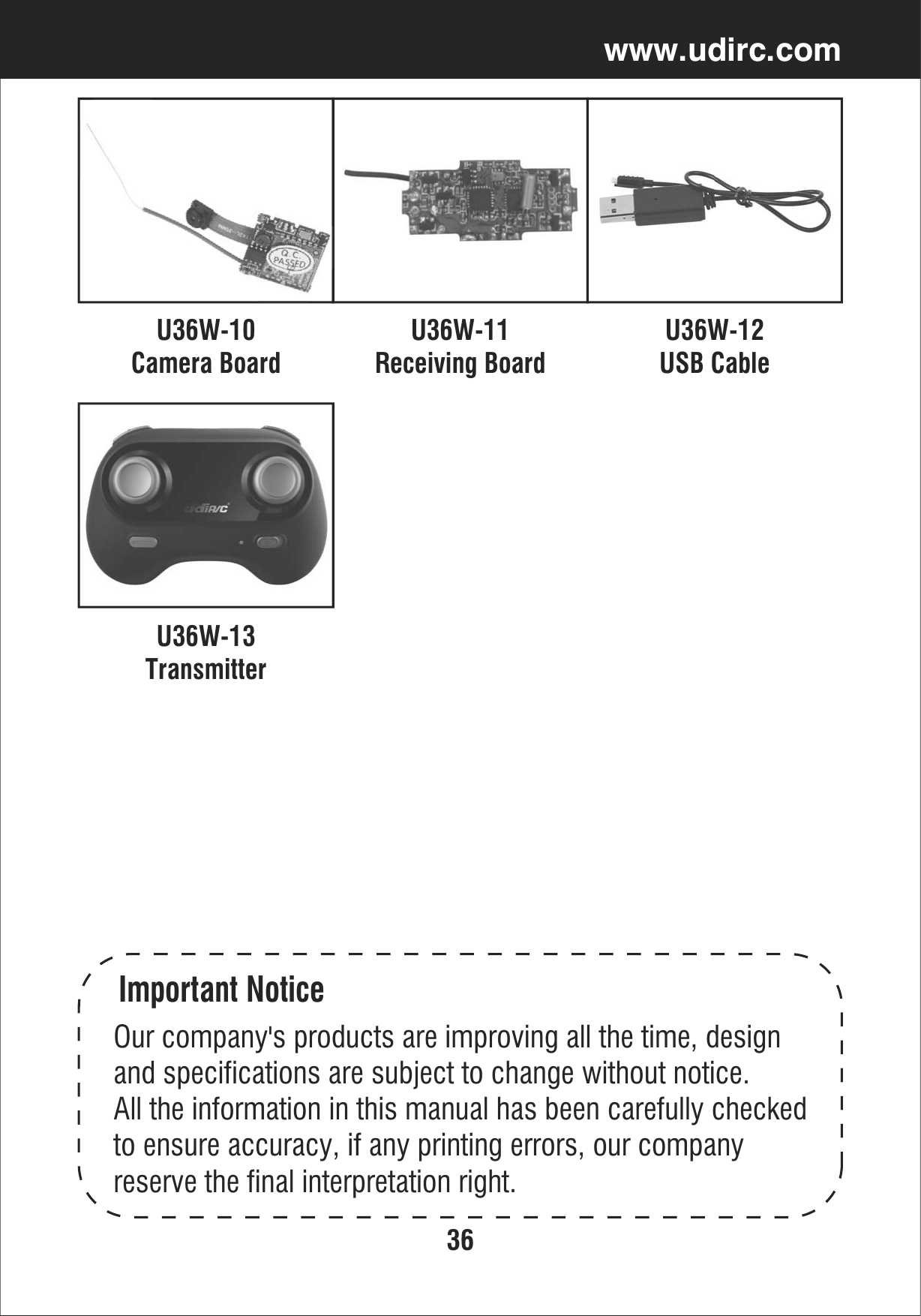

36www.udirc.comU36W-10Camera BoardU36W-11Receiving BoardU36W-12USB CableImportant NoticeOur company's products are improving all the time, designand specifications are subject to change without notice.All the information in this manual has been carefully checkedto ensure accuracy, if any printing errors, our company reserve the final interpretation right.U36W-13Transmitter

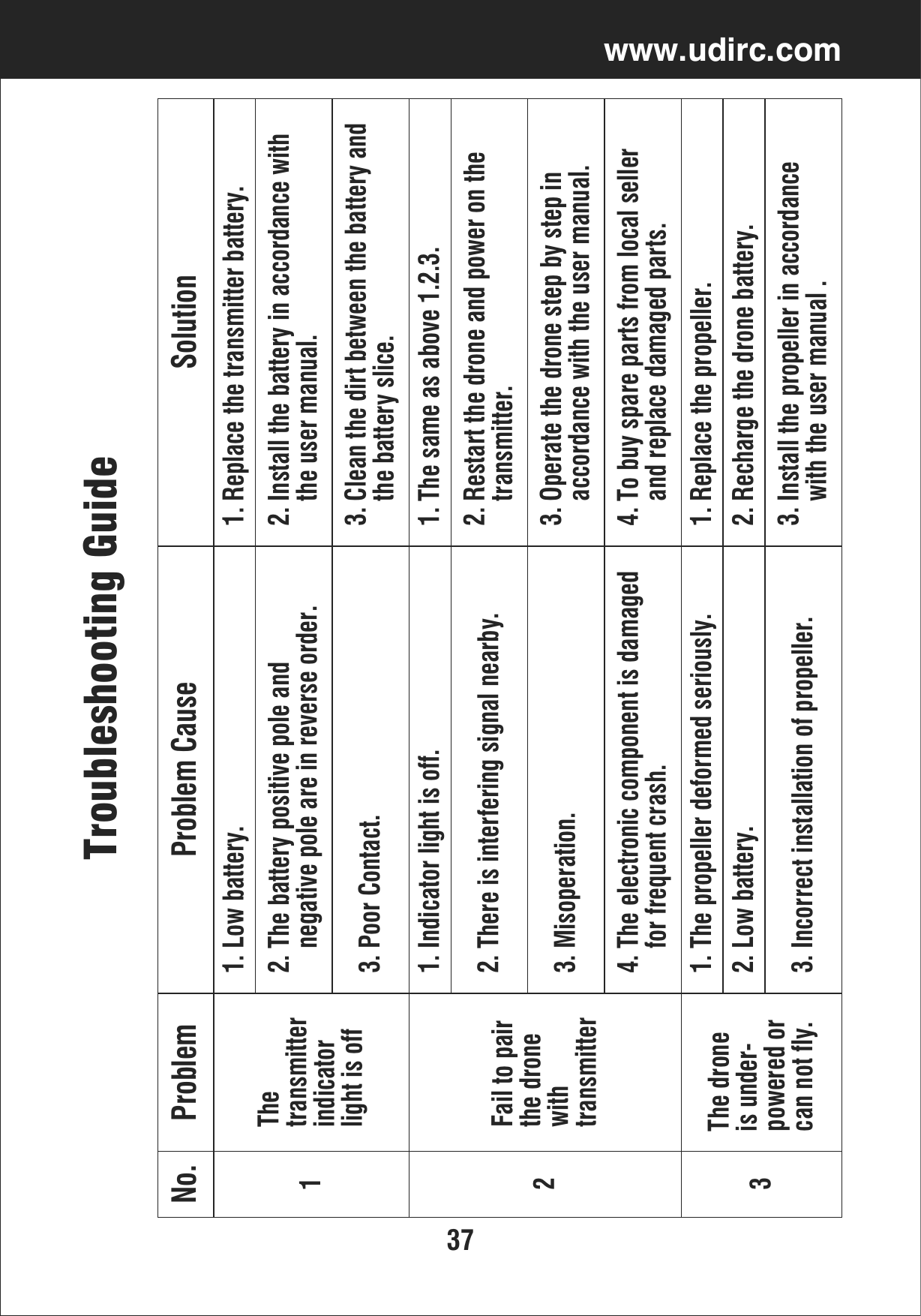

37www.udirc.comTroubleshooting GuideProblem Problem Cause SolutionNo.Thetransmitterindicator light is off11. Low battery. 1. Replace the transmitter battery.2. The battery positive pole and negative pole are in reverse order.2. Install the battery in accordance with the user manual.3. Poor Contact. 3. Clean the dirt between the battery and the battery slice.Fail to pairthe dronewithtransmitter21. Indicator light is off. 1. The same as above 1.2.3.2. There is interfering signal nearby. 2. Restart the drone and power on the transmitter.3. Misoperation. 3. Operate the drone step by step in accordance with the user manual.4. The electronic component is damaged for frequent crash.4. To buy spare parts from local seller and replace damaged parts.The droneis under-powered or can not fly.31. The propeller deformed seriously. 1. Replace the propeller.2. Low battery. 2. Recharge the drone battery.3. Incorrect installation of propeller. 3. Install the propeller in accordance with the user manual .

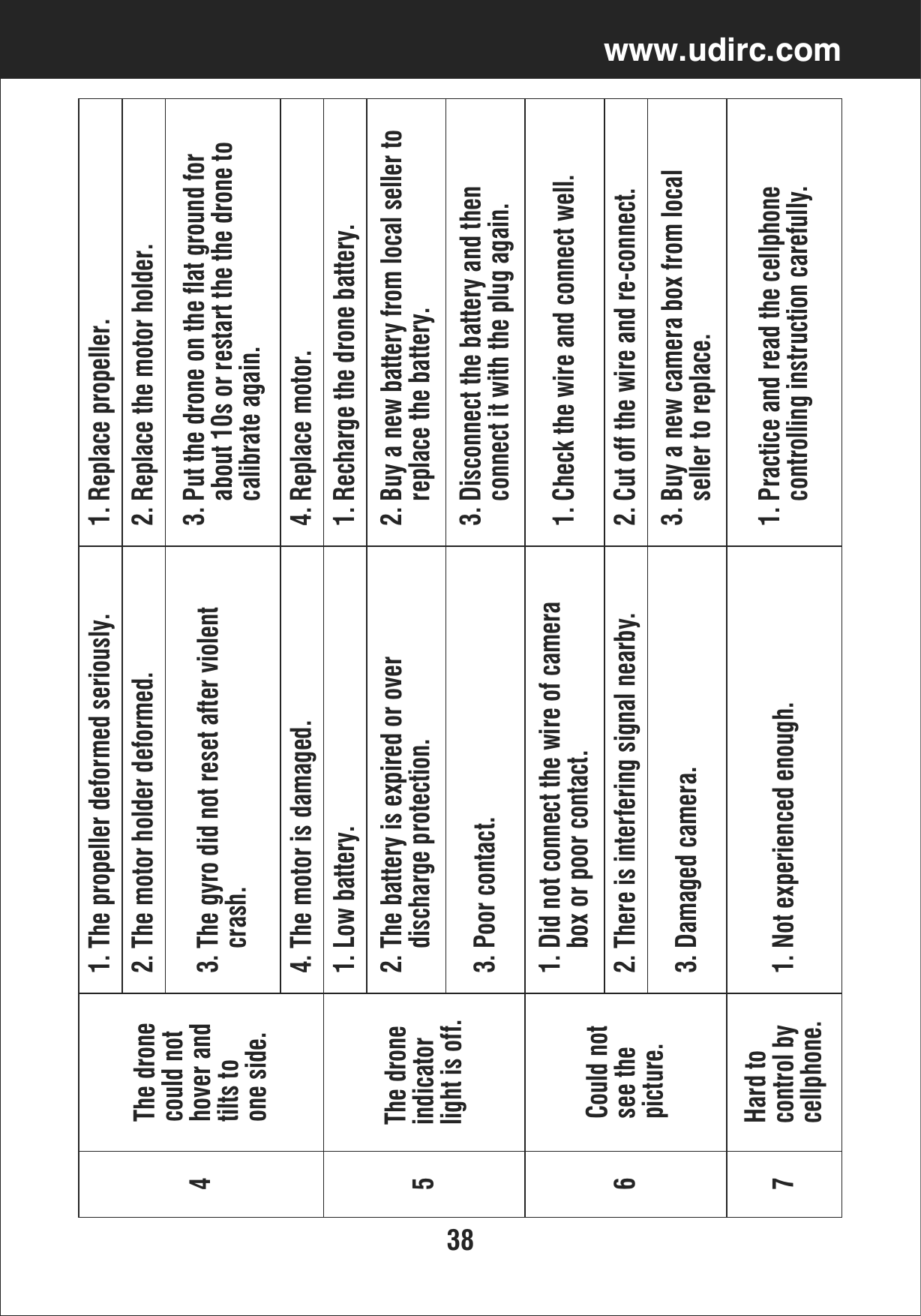

38www.udirc.comThe dronecould nothover andtilts toone side.41. The propeller deformed seriously. 1. Replace propeller.2. The motor holder deformed. 2. Replace the motor holder.3. The gyro did not reset after violent crash.3. Put the drone on the flat ground for about 10s or restart the the drone to calibrate again.4. The motor is damaged. 4. Replace motor.The droneindicatorlight is off.51. Low battery. 1. Recharge the drone battery.2. The battery is expired or over discharge protection.2. Buy a new battery from local seller to replace the battery.3. Poor contact. 3. Disconnect the battery and then connect it with the plug again.Could notsee thepicture.61. Did not connect the wire of camera box or poor contact. 1. Check the wire and connect well.2. There is interfering signal nearby. 2. Cut off the wire and re-connect.3. Damaged camera. 3. Buy a new camera box from local seller to replace.Hard tocontrol bycellphone.7 1. Not experienced enough. 1. Practice and read the cellphone controlling instruction carefully.

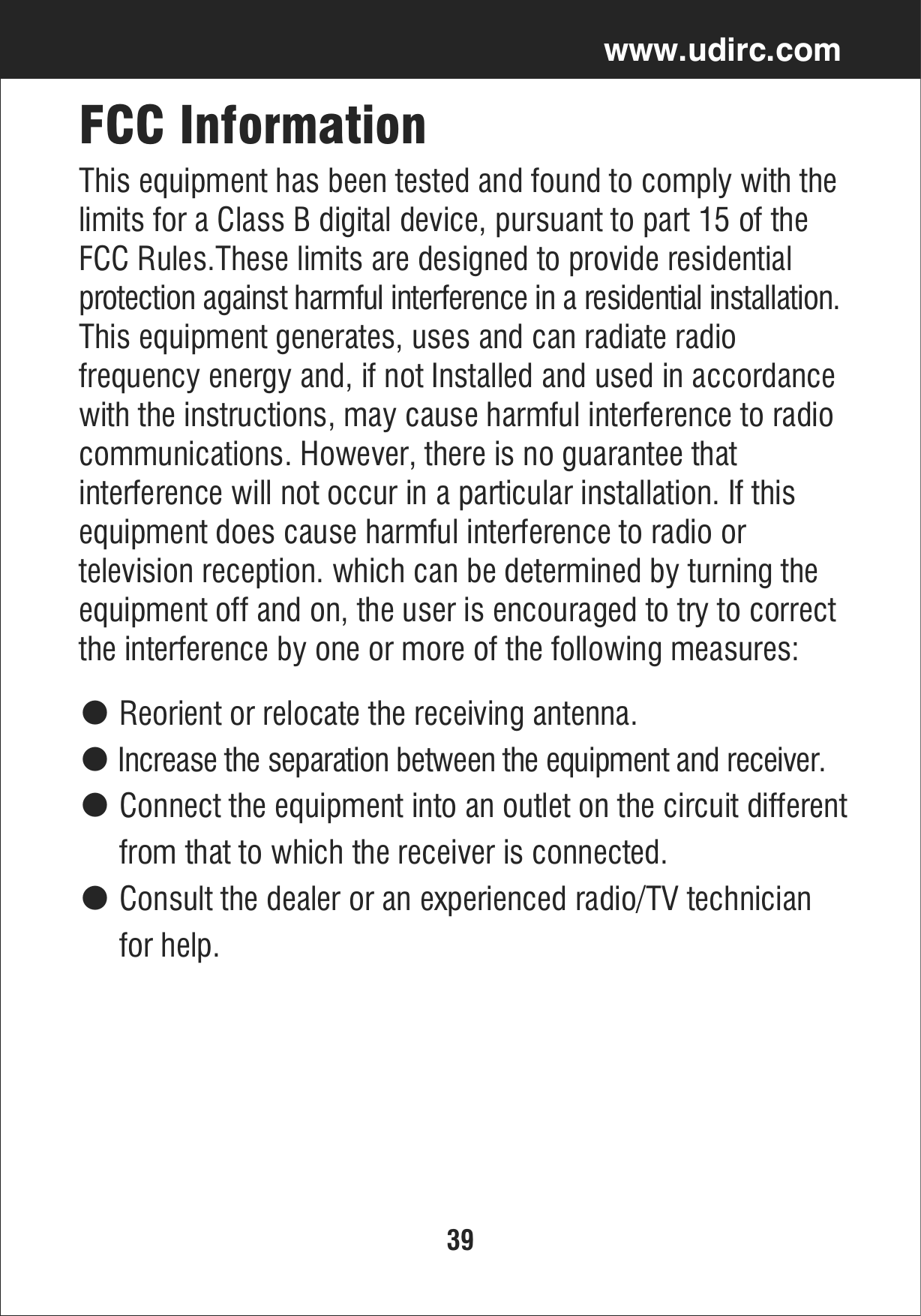

39www.udirc.comFCC InformationThis equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide residential protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not Installed and used in accordancewith the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception. which can be determined by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures:● Reorient or relocate the receiving antenna.● Increase the separation between the equipment and receiver.● Connect the equipment into an outlet on the circuit different from that to which the receiver is connected.● Consult the dealer or an experienced radio/TV technician for help.

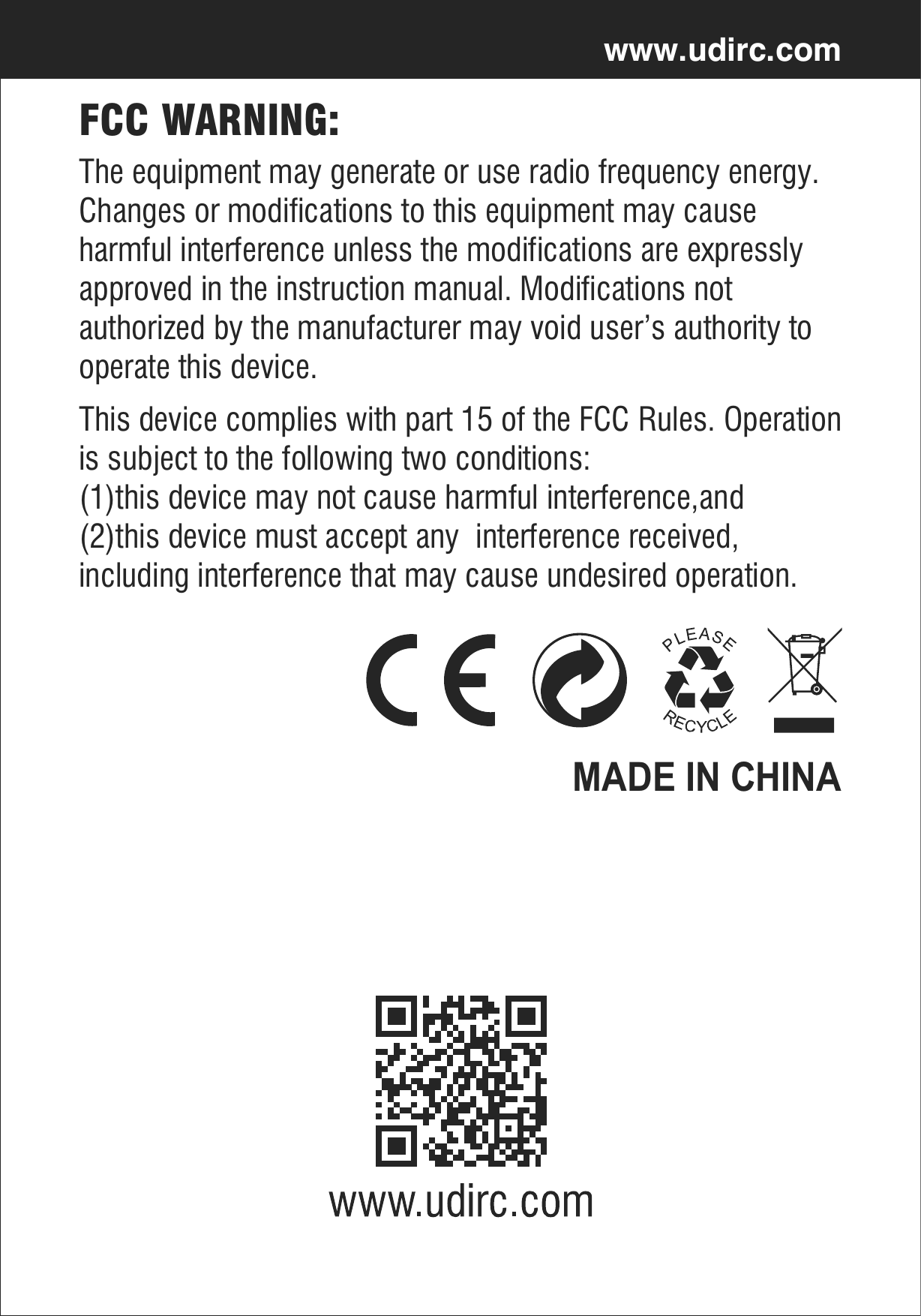

www.udirc.comThe equipment may generate or use radio frequency energy.Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device.This device complies with part 15 of the FCC Rules. Operationis subject to the following two conditions:(1)this device may not cause harmful interference,and(2)this device must accept any interference received, including interference that may cause undesired operation.FCC WARNING:MADE IN CHINA
