Operations GuideU47NOVAEquipped with WIFI Camera

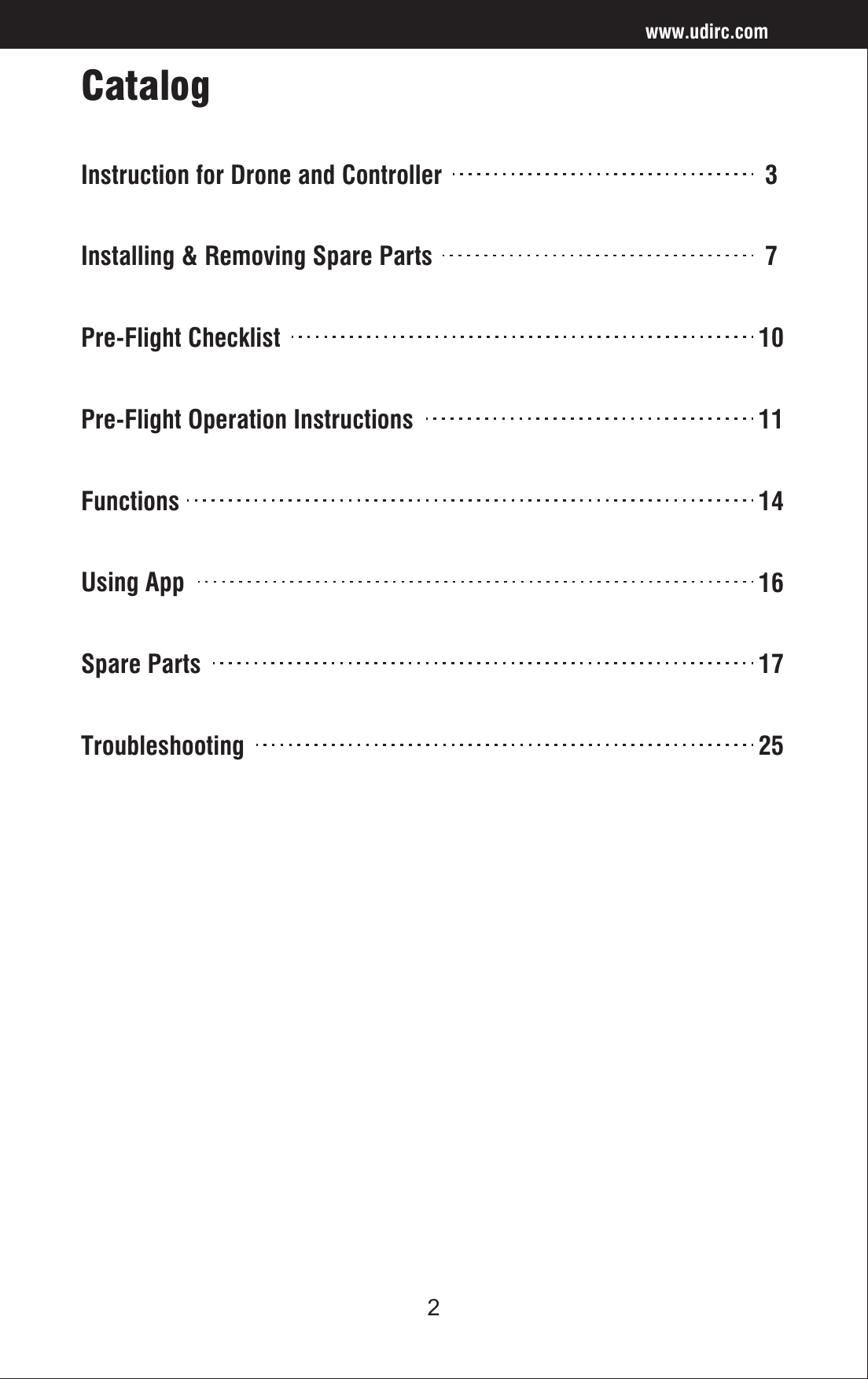

2CatalogInstruction for Drone and Controller 3Installing & Removing Spare Parts 7Pre-Flight Checklist 10Pre-Flight Operation Instructions 11Functions 14Using App 16Spare Parts 17Troubleshooting 25www.udirc.com

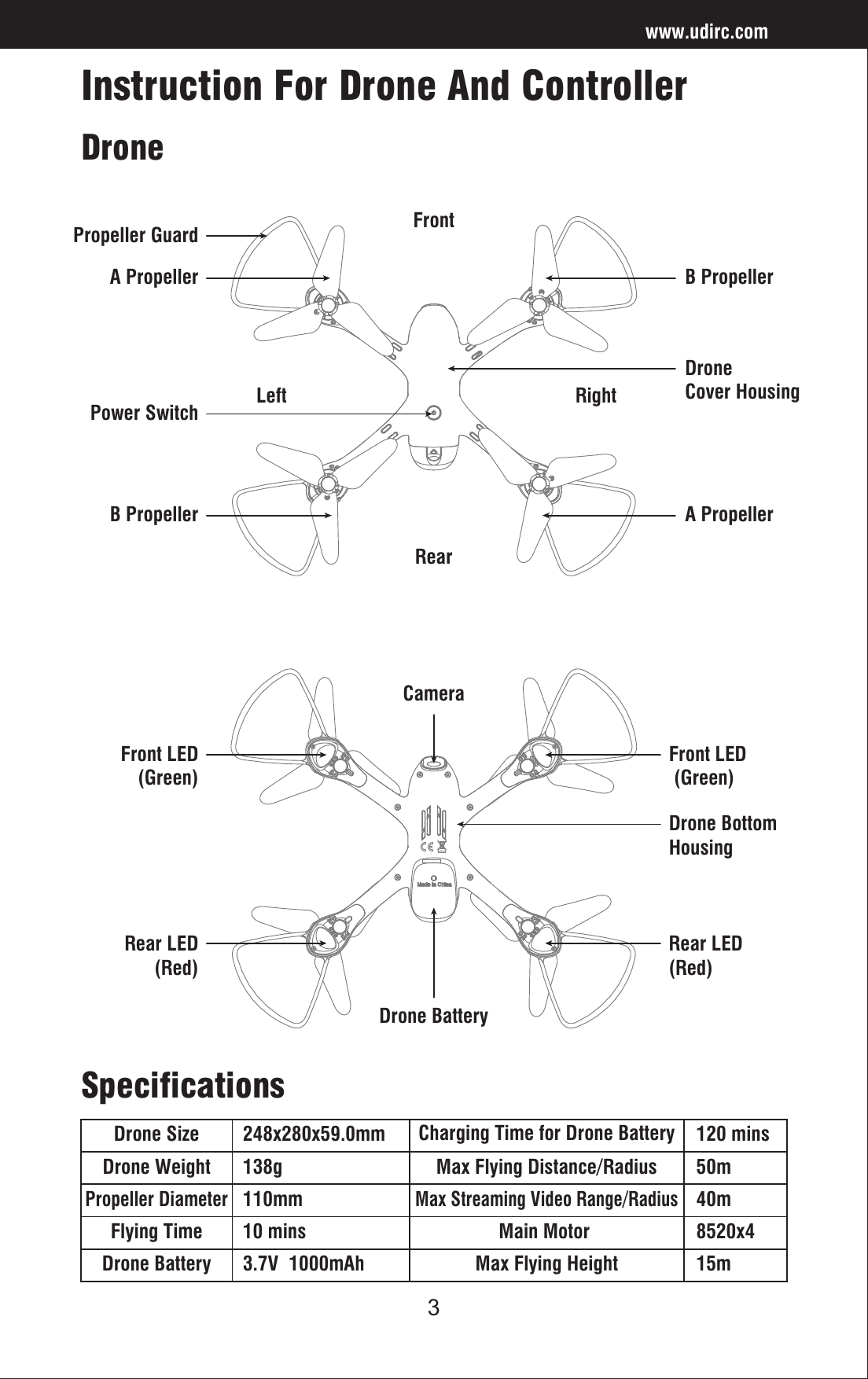

3Instruction For Drone And ControllerDroneA PropellerLeft RightFrontRearPower SwitchB PropellerPropeller GuardB PropellerA PropellerCameraDrone BatteryFront LED (Green)Front LED (Green)Drone BottomHousingRear LED(Red)Rear LED(Red)Drone Cover HousingSpecificationsDrone SizeDrone WeightPropeller Diameter248x280x59.0mm138g110mmMax Streaming Video Range/Radius40m50m120 minsFlying Time 10 minsDrone Battery 3.7V 1000mAhMain Motor 8520x4Max Flying Height 15mCharging Time for Drone BatteryMax Flying Distance/Radiuswww.udirc.com

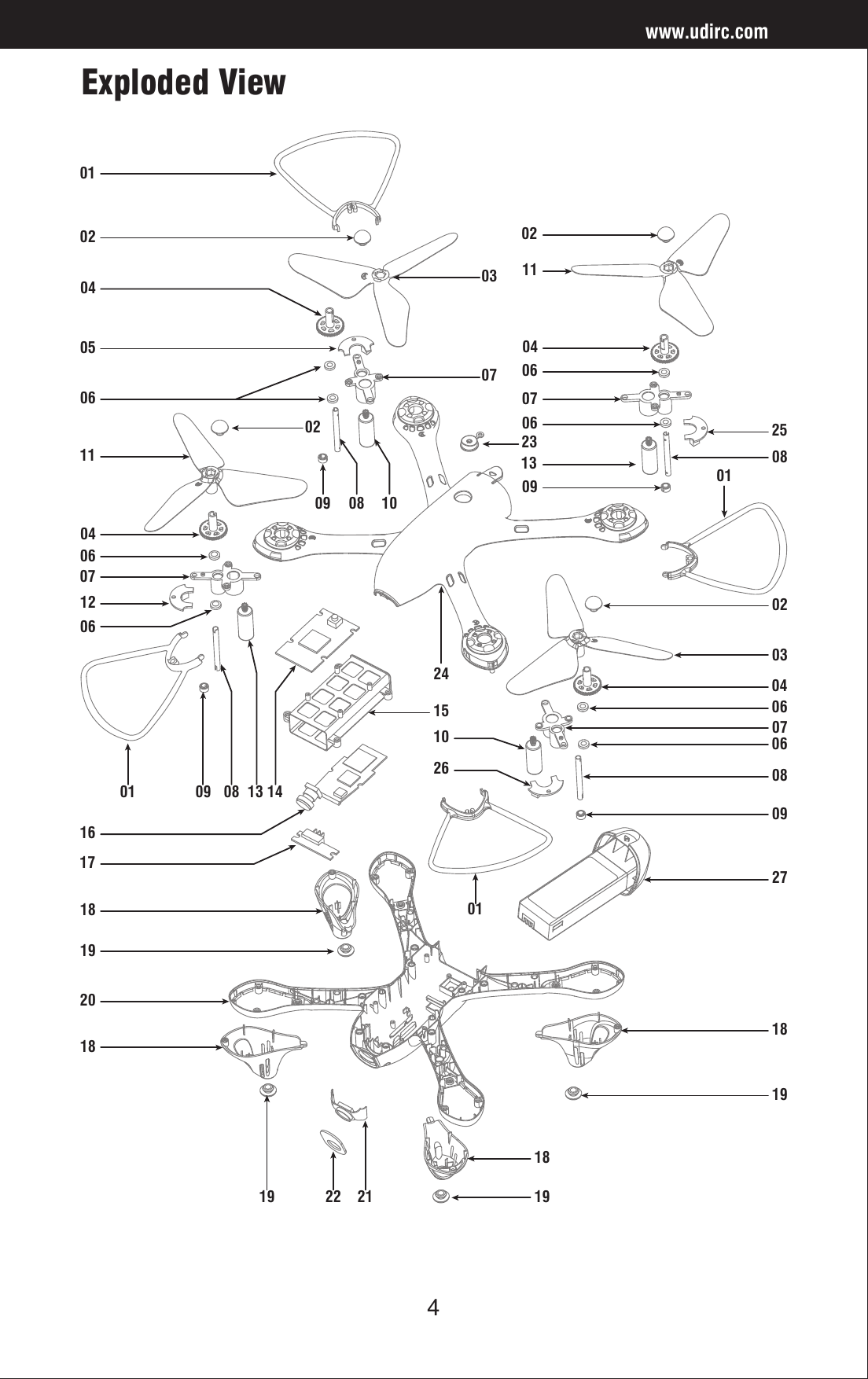

4Exploded Viewwww.udirc.com0102030704050611040607120601 08 13 1409151617181920182219 21021104060706231309242508010209 100802030406070608092710260118191819

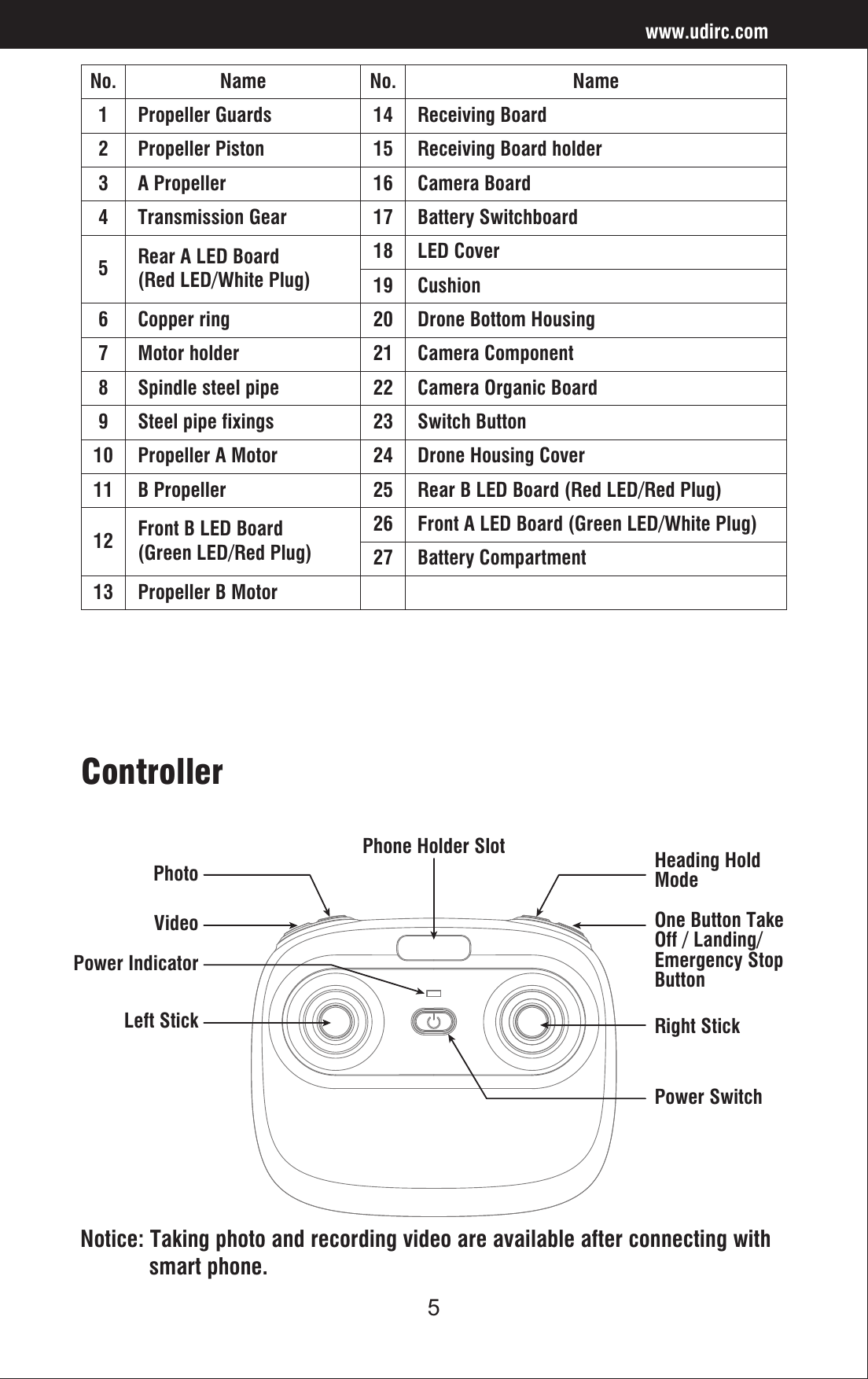

516 Camera Board15No. Name NameNo.1 Propeller Guards17 Battery Switchboard2 Propeller Piston18 LED Cover3 A Propeller19 Cushion4 Transmission Gear20 Drone Bottom Housing5Rear A LED Board(Red LED/White Plug)21 Camera Component6 Copper ring22 Camera Organic Board7 Motor holder23 Switch Button8 Spindle steel pipe 24 Drone Housing Cover9 Steel pipe fixings25 Rear B LED Board (Red LED/Red Plug)10 Propeller A MotorB Propeller26 Front A LED Board (Green LED/White Plug)11Front B LED Board(Green LED/Red Plug) 27 Battery Compartment12Propeller B Motor13Receiving Board14Receiving Board holderControllerwww.udirc.comPower IndicatorPhone Holder SlotLeft Stick Right StickHeading HoldModeOne Button TakeOff / Landing/ Emergency StopButtonPower SwitchPhotoVideoNotice: Taking photo and recording video are available after connecting with smart phone.
6Controller Button FunctionsBattery InstallationOpen the battery cover on the back side of the controller, insert 4 AA batteries following the polarity indicators. ( Picture 1/2, battery is not included)1.Make sure the electrodes are correct. 3.Do not mix different kinds of batteries.2.Do not mix new with old batteries. 4.Do not charge the non rechargeable battery.Notice:www.udirc.comHigh/Medium/Low SpeedMode (Press Down)Trimmer Mode Button(Press Down)Alkaline BatteryPicture 1 Picture 2Battery CoverHigh / Medium / Low Speed button:Left Stick: Right Stick: Power Switch:Press to right switch to High /Medium/ Low Speed.Move the Stick to forward / backward / left / right to fly the drone up / down / turn left / turn right.Move the Stick to forward / backward / left / right to fly the drone forward / backward / left / right.Trimmer Mode Button: Press down the left stick and turn to the required trimmer direction, then it will adjust the direction accordingly. Release the stick to exit trimmer mode.Push up the power switch to turn on the controller, and pull down to turn off.Heading Hold Mode: Press to enter Heading Hold Mode. Press again to exit Heading Hold Mode.Take Off / Landing / Emergency Stop Button:automatically. Press again and the drone will land automatically. Press and hold the button for more than 1 second for an emergency landing, the drone propellers will stop and it will land immediately.Press once and the drone will take off Video:Press down the button, start to record video.Photo:Press down the button, start to photograph.

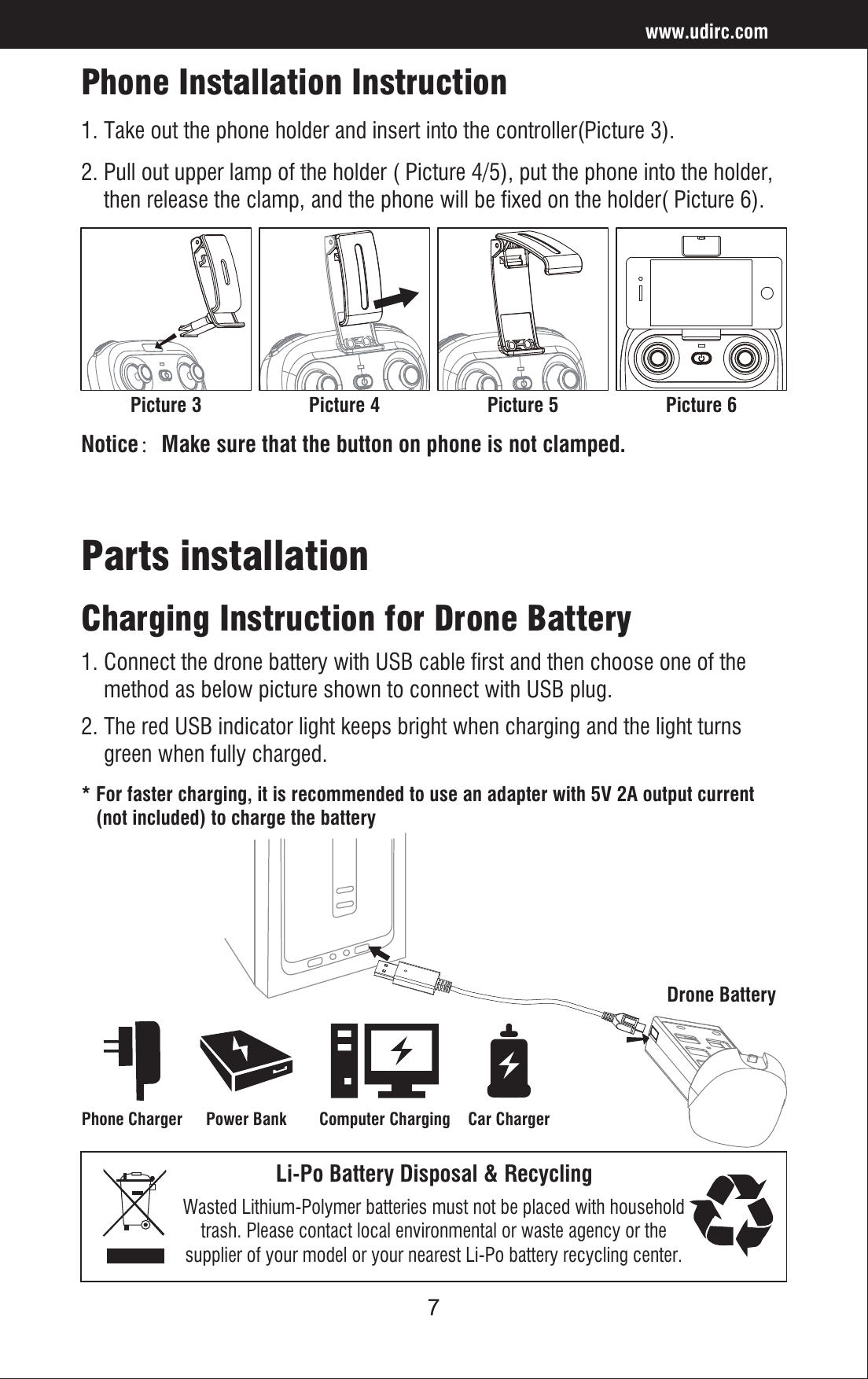

7Drone BatteryPhone Installation InstructionLi-Po Battery Disposal & RecyclingWasted Lithium-Polymer batteries must not be placed with householdtrash. Please contact local environmental or waste agency or thesupplier of your model or your nearest Li-Po battery recycling center.Charging Instruction for Drone Battery Parts installation* For faster charging, it is recommended to use an adapter with 5V 2A output current (not included) to charge the batteryNotice：Make sure that the button on phone is not clamped.Power BankPhone Charger Computer Charging Car Charger1. Connect the drone battery with USB cable first and then choose one of the method as below picture shown to connect with USB plug. 2. The red USB indicator light keeps bright when charging and the light turns green when fully charged.www.udirc.comPicture 3 Picture 4 Picture 5 Picture 61. Take out the phone holder and insert into the controller(Picture 3).2. Pull out upper lamp of the holder ( Picture 4/5), put the phone into the holder, then release the clamp, and the phone will be fixed on the holder( Picture 6).

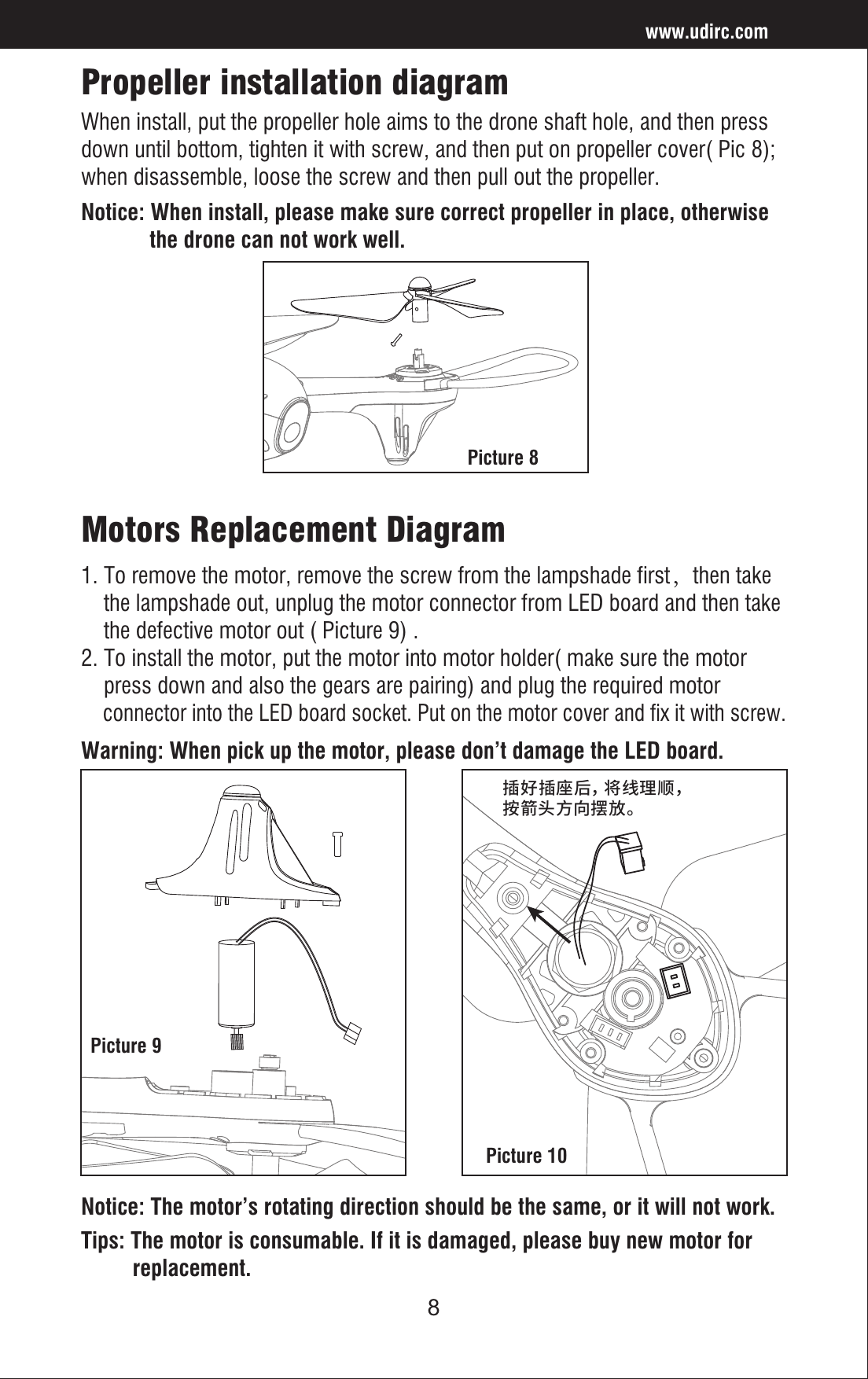

8Propeller installation diagramWhen install, put the propeller hole aims to the drone shaft hole, and then press down until bottom, tighten it with screw, and then put on propeller cover( Pic 8); when disassemble, loose the screw and then pull out the propeller.Notice: When install, please make sure correct propeller in place, otherwise the drone can not work well.Picture 9Picture 10Picture 8Warning: When pick up the motor, please don’t damage the LED board.Motors Replacement Diagram1. To remove the motor, remove the screw from the lampshade first，then take the lampshade out, unplug the motor connector from LED board and then take the defective motor out ( Picture 9) . 2. To install the motor, put the motor into motor holder( make sure the motor press down and also the gears are pairing) and plug the required motor connector into the LED board socket. Put on the motor cover and fix it with screw. Notice: The motor’s rotating direction should be the same, or it will not work.Tips: The motor is consumable. If it is damaged, please buy new motor for replacement.www.udirc.com䳃㥩䳃䏠た㼜絁椚곡䭽盪㣢倰ぢ䶓佞կ

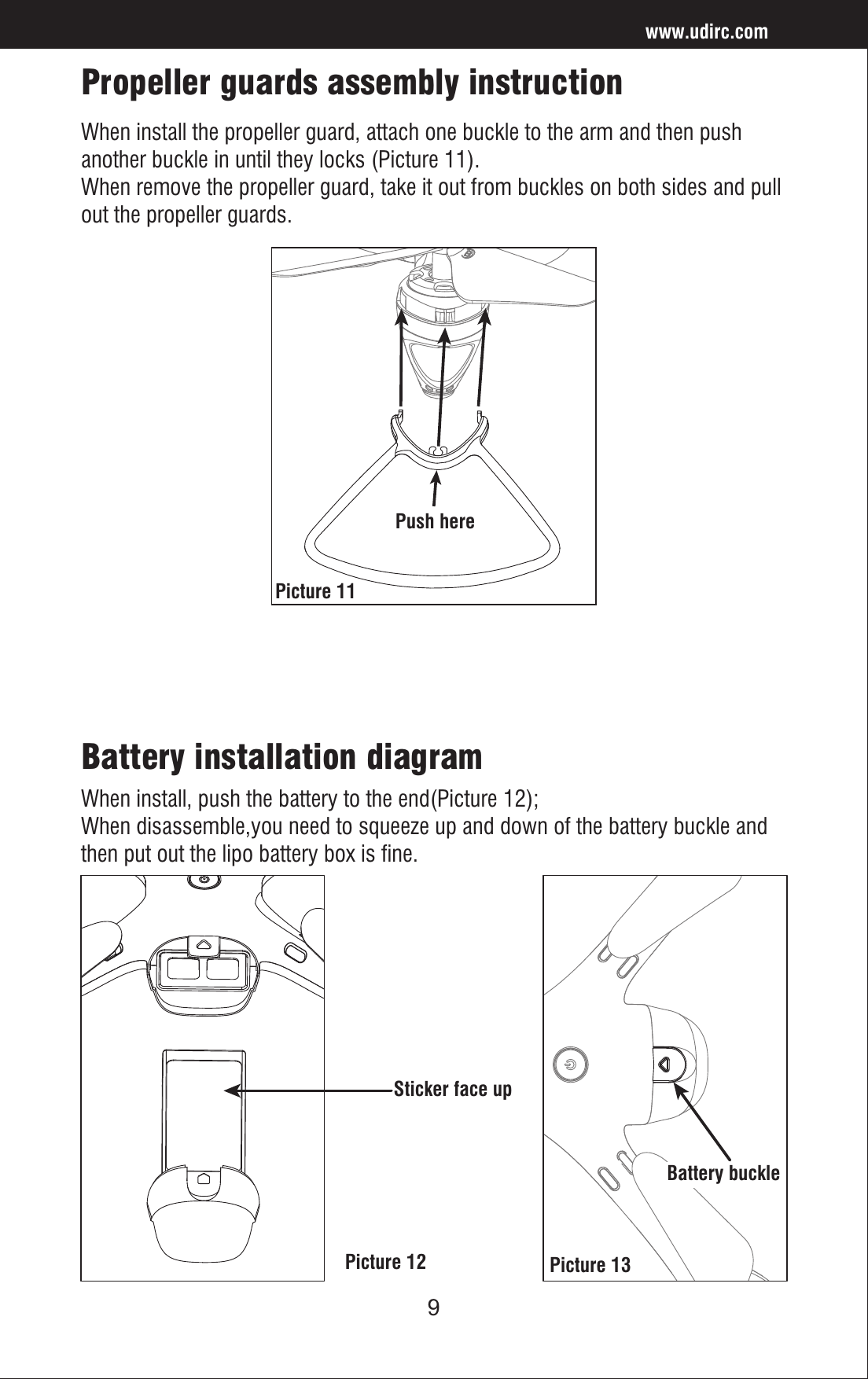

9When install the propeller guard, attach one buckle to the arm and then push another buckle in until they locks (Picture 11).When remove the propeller guard, take it out from buckles on both sides and pullout the propeller guards.Propeller guards assembly instructionWhen install, push the battery to the end(Picture 12);When disassemble,you need to squeeze up and down of the battery buckle and then put out the lipo battery box is fine.Battery installation diagramwww.udirc.comPicture 12 Picture 13Sticker face upPicture 11Push hereBattery buckle

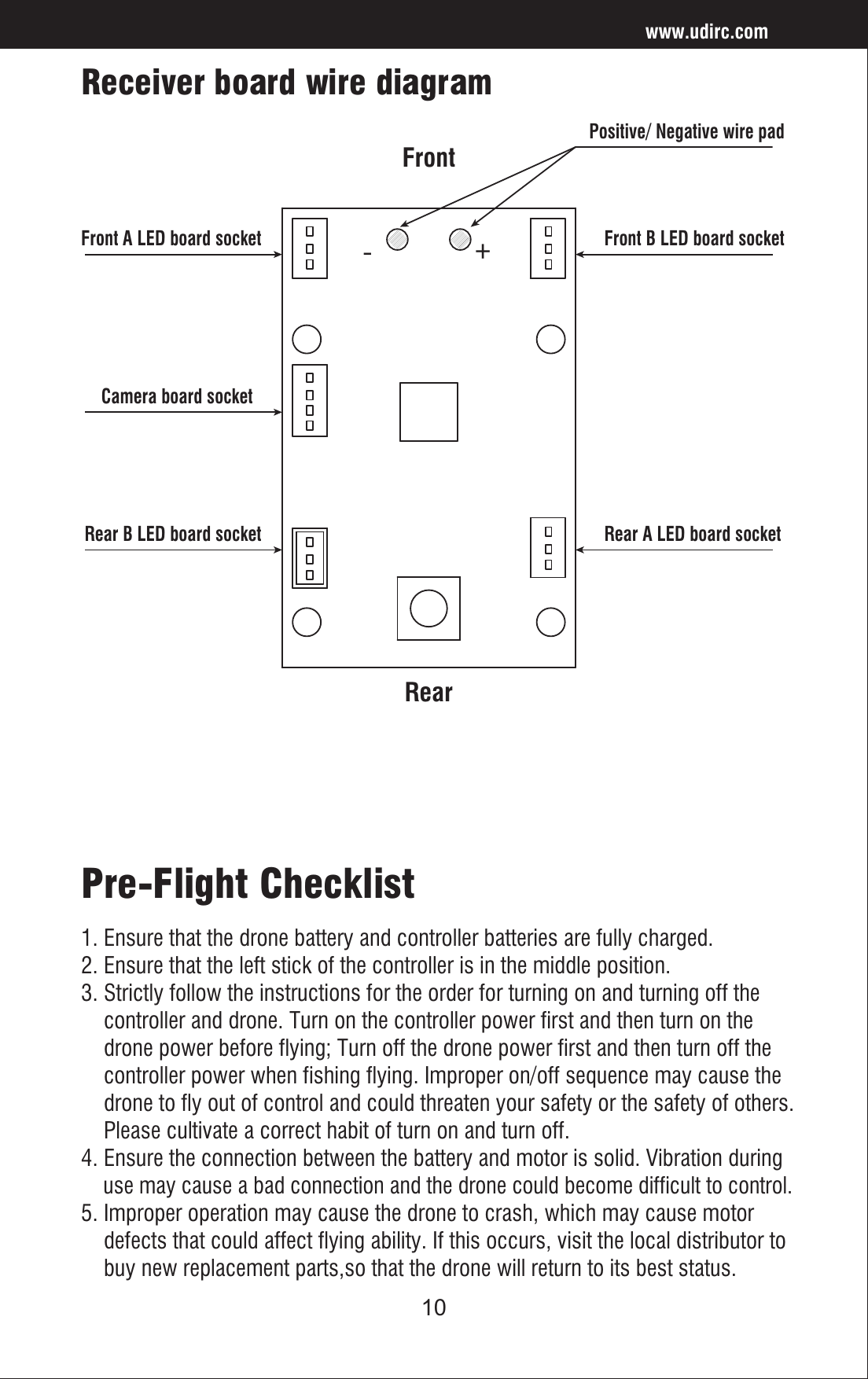

10Pre-Flight Checklist 1. Ensure that the drone battery and controller batteries are fully charged. 2. Ensure that the left stick of the controller is in the middle position.3. Strictly follow the instructions for the order for turning on and turning off the controller and drone. Turn on the controller power first and then turn on the drone power before flying; Turn off the drone power first and then turn off the controller power when fishing flying. Improper on/off sequence may cause the drone to fly out of control and could threaten your safety or the safety of others. Please cultivate a correct habit of turn on and turn off.4. Ensure the connection between the battery and motor is solid. Vibration during use may cause a bad connection and the drone could become difficult to control.5. Improper operation may cause the drone to crash, which may cause motor defects that could affect flying ability. If this occurs, visit the local distributor to buy new replacement parts,so that the drone will return to its best status.Receiver board wire diagramwww.udirc.comFrontRearPositive/ Negative wire padFront B LED board socketRear A LED board socketFront A LED board socketCamera board socketRear B LED board socket

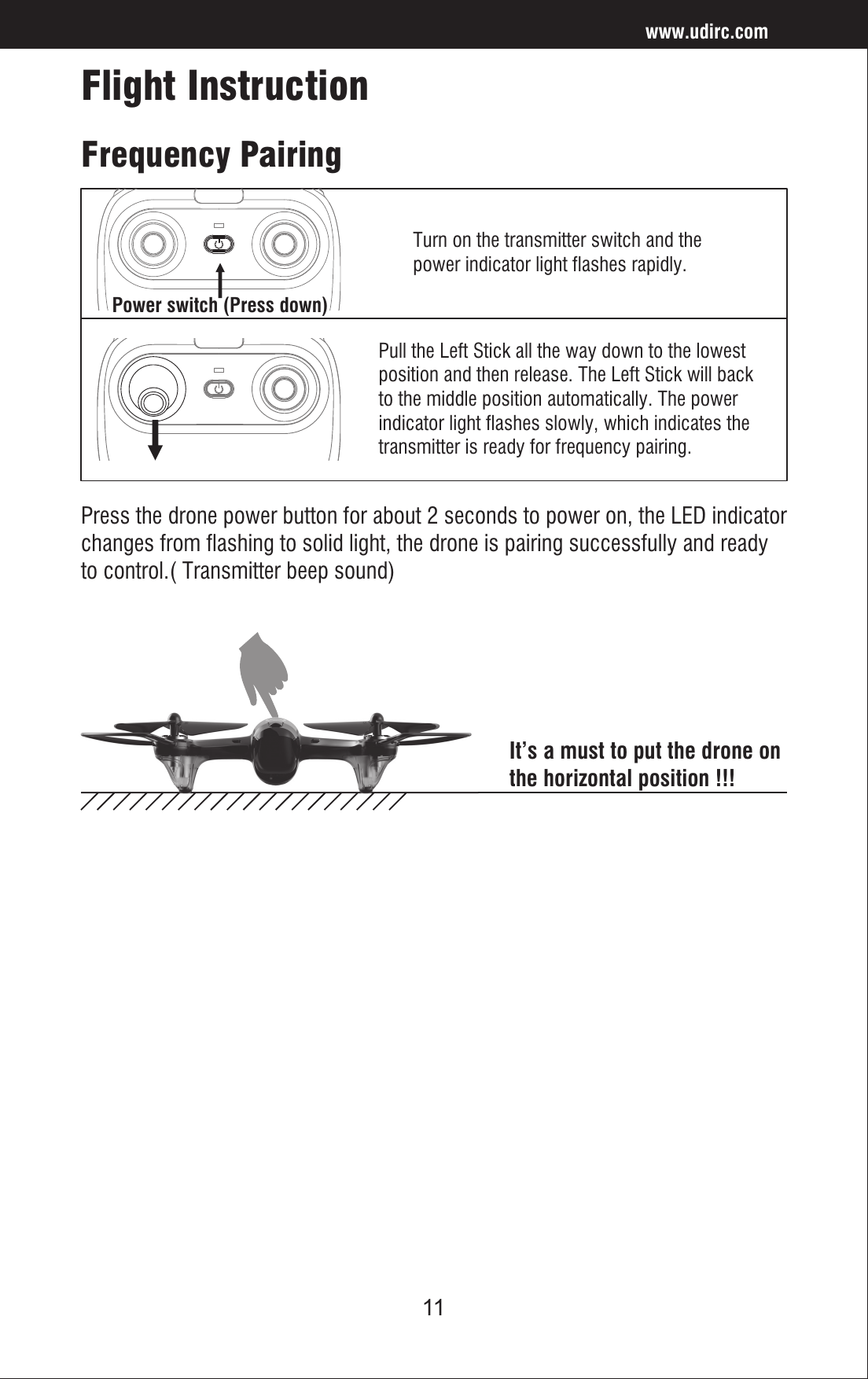

11Flight InstructionFrequency PairingTurn on the transmitter switch and thepower indicator light flashes rapidly. Pull the Left Stick all the way down to the lowestposition and then release. The Left Stick will backto the middle position automatically. The powerindicator light flashes slowly, which indicates thetransmitter is ready for frequency pairing.Press the drone power button for about 2 seconds to power on, the LED indicator changes from flashing to solid light, the drone is pairing successfully and ready to control.( Transmitter beep sound)It’s a must to put the drone on the horizontal position !!!www.udirc.comPower switch (Press down)

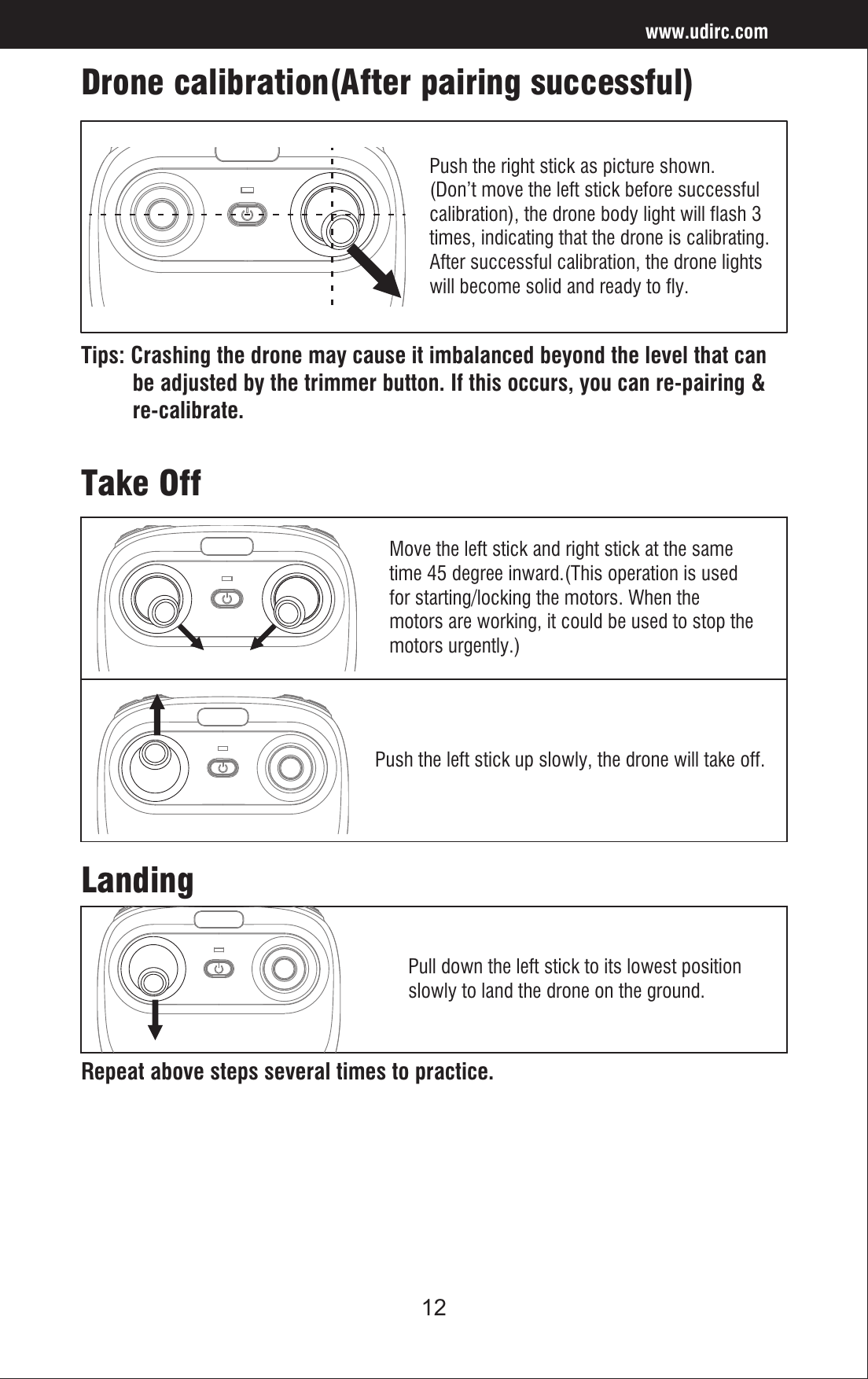

12Drone calibration(After pairing successful)Push the right stick as picture shown.(Don’t move the left stick before successfulcalibration), the drone body light will flash 3times, indicating that the drone is calibrating.After successful calibration, the drone lightswill become solid and ready to fly.Tips: Crashing the drone may cause it imbalanced beyond the level that can be adjusted by the trimmer button. If this occurs, you can re-pairing & re-calibrate.Repeat above steps several times to practice.Push the left stick up slowly, the drone will take off.Move the left stick and right stick at the same time 45 degree inward.(This operation is used for starting/locking the motors. When the motors are working, it could be used to stop themotors urgently.)Take OffLandingPull down the left stick to its lowest position slowly to land the drone on the ground.www.udirc.com
13Flying ControlLeft and right turning trimmerWhen take off, if the drone head rotates to left,then press down the trimmer button and push the leftstick to right. Otherwise push to left.Forward and backward trimmerWhen take off, if the drone tilts forward, pressdown the trimmer button, and push the rightstick backwards. Otherwise push forwards.Left and right side flying trimmerWhen take off, if the drone tilts to left, then pressdown the trimmer button and push the right stick backwards to adjust. Otherwise push forwards.Trimmer modeLeft StickMove the stick to the left, then the drone turns to left.Move the stick to the right,then the drone turns to right.Push up the stick, thenthe drone flies up.Pull down the stick, thenthe drone goes down.Right StickPush up the stick, thenthe drone flies forward.Pull down the stick, then the drone goes backward.Move the stick to the left, then the drone turns to left.Move the stick to the right, then the drone turns to right.www.udirc.com
14One button take off/Landing、Emergency stopFunctions IntroductionOne Button Take OffAfter frequency pairing successful or motors activated, press the Take Off / Landing / Emergency Stop Button, the drone will fly up automatically and keep flying at an altitude of 1.2 meters approximately.One Button LandingWhen flying, press the Take Off / Landing / Emergency Stop Button once shortly, and the drone will land on the ground automatically.(When using this function, you can not touch the left stick, if not, then the function will fail)Emergency StopWhen the drone in emergency situation and going to hit the walking people or obstacle etc., press the Take Off / Landing / Emergency Stop Button immediately and hold it for more than 1s,the propellers will stop immediately. Tip: Do not use the emergency stop function unless in emergency situation. The drone will fall down suddenly after all propellers stop.www.udirc.comAltitude Hold ModeNote: If the propeller is deformed or damaged, Altitude Hold Mode will fail. If the atmospheric pressure is instability or typhoon weather, Altitude Hold Mode will not work well.Intelligent flight control system calculates the hovering position, more stable control feature, makes it easier for beginners to control. Release the stick, the drone will keep hovering automatically to enable single hand operation and more clearly aerial photography.
15www.udirc.comPress down this button,then it will sound “ di”, it means low speed mode “L”; when it sounds “ di.di”,means medium speed “M”; and sounds “ di.di.di” means high speed mode “H”.(Low speed default)High / Medium/Low Speed Mode Switch1. Low Speed Mode(Mode 1)Low Speed Mode is suitable for beginner.2. Medium speed Mode(Mode 2)Medium Speed Mode is suitable for skillful pilots to play in the gentle breeze. 3. High Speed Mode(Mode 3)High Speed Mode is suitable for expert to experience aerial stunt outdoor.The default setting is NOT Heading hold Mode.Drones generally have a front and rear indicated by LED lights or colored propellers. By default, the users are required to tell the front and the rear of the drone when flying. Under heading hold mode, the users can operate the drone without worrying about the orientation (left is left and right is right all the time, regardless of where your drone is pointing at).Heading Hold Mode is designed forbeginners and the users who fly the drone in daylight or at a far distance or difficult to identify the drone orientation.Heading Hold Mode You are allowed to activate the heading hold mode function before taking off or in flight. Fly under heading hold mode, you’re required to ensure the drone front direction aligned with your front direction, DO NOT change your direction of your transmitter and keep it fly in front of you all the time.(See below picture)WARNING: DO NOT USE HEADING HOLD MODE BEFORE YOU ARE SURE THAT THE DRONE'S FRONT IS YOUR FRONT. OTHERWISE, IT MIGHT BE OUT OF CONTROL OR FLY AWAY.High / Medium/Low Speed button（press down）
16www.udirc.com*Press the Heading Hold Mode button. The drone’s LED lights will flash alternatively, indicating that the drone has entered Heading Hold Mode. To turn off Heading Hold Mode, press the Heading Hold Mode button again. The drone’s LED lights turn solid, indicating that Heading Hold Mode is off. Low Battery AlarmWhen the transmitter in low battery, the transmitter will beep “di...di...di...” to remind the user to land the drone to replace the batteries as soon as possible. Or the drone may be out of control.When the drone in low battery, the transmitter will beep” di.di.di...” constantly to remind the user to land the drone as soon as possible. Out of Range AlarmWhen the drone is going to fly out of the max remote control distance, the transmitter will beep “didi...didi...didi...” to alarm the user to fly back the drone immediately. Or the drone may be out of control and fly away.Heading Hold ModeFrontRearLeft RightFrontRearLeft Right

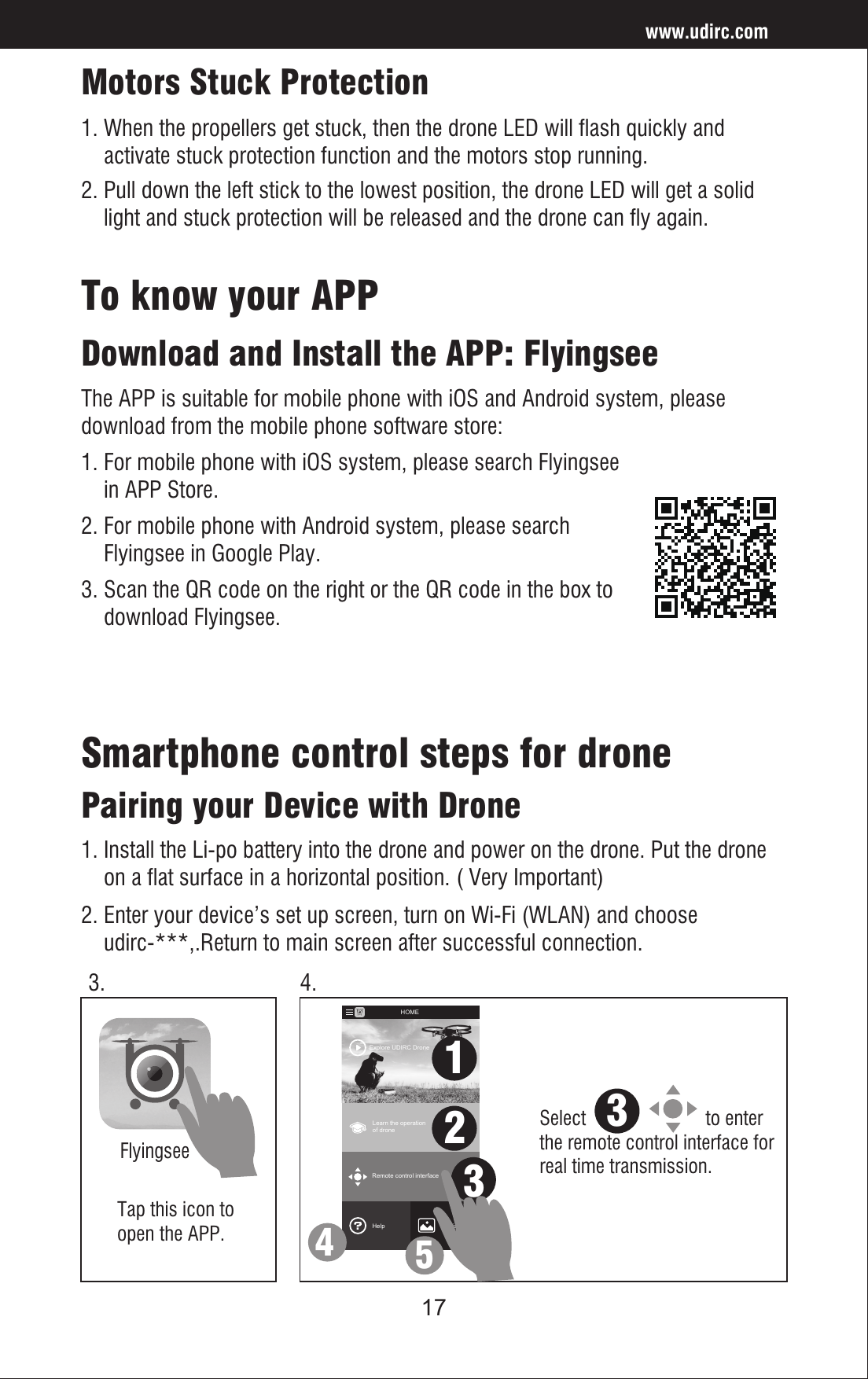

17www.udirc.comDownload and Install the APP: FlyingseeThe APP is suitable for mobile phone with iOS and Android system, please download from the mobile phone software store:1. For mobile phone with iOS system, please search Flyingsee in APP Store.2. For mobile phone with Android system, please search Flyingsee in Google Play.3. Scan the QR code on the right or the QR code in the box to download Flyingsee.To know your APPMotors Stuck Protection1. When the propellers get stuck, then the drone LED will flash quickly and activate stuck protection function and the motors stop running.2. Pull down the left stick to the lowest position, the drone LED will get a solid light and stuck protection will be released and the drone can fly again.Smartphone control steps for dronePairing your Device with Drone2. Enter your device’s set up screen, turn on Wi-Fi (WLAN) and choose udirc-***,.Return to main screen after successful connection.1. Install the Li-po battery into the drone and power on the drone. Put the drone on a flat surface in a horizontal position. ( Very Important)3. 4. Tap this icon to open the APP. Flyingsee3Learn the operationof droneRemote control interfaceMediaHelpExplore UDIRC DroneHOME12345Select to enterthe remote control interface forreal time transmission.
18www.udirc.comLearn all the APP icons firstVirtual Control InterfaceSelect to enter the remote control interface for real time transmission.Go to UDIRC official website for more information about our products.Download the manual and learn how to fly the drone properly.Help & Tips.View your photos or videos.12345pop-up window. Enter to the virtual remote interface , the drone body LED lights change from flashing to solid, indicating that the paring is successful and the drone is ready for fly.Tap the icon in Real time Transmission InterfacePairing
19www.udirc.comIntroduction Of The APP IconsHome Page IconTap to go back to the Home Page.Tap to enter virtual reality mode to experience first person view(only available when using a VR headset). Tap red icon “EXIT” to exit from virtual reality mode. Virtual Reality Mode Tap this icon to go to the drawing interface, draw a flight route on the right area. The drone will fly according to the flight route. Tap again to exit from Flight Route Setting Mode. Flight Route Setting ModeEMERGENCYThis icon is red by default. Tap and the propellers will stop immediately . The drone will fall straight to the ground. EMERGENCY STOPTo show the drone’s wifi signal strength.Remote Control Signalimage image
20www.udirc.comTap to take a photo.Take PhotoTap to record video. The recording time will display at the bottom of the screen. Tap again to stop recording.Record VideoTap this icon to set parameters. Tap again to exit. Tap “Save” to save trimmer setting.Tap”Reset” to factory reset.Pictures transmission resolutionSettingSETTINGTrimming Save ResetTransmission quality 480PIf the mobile phone tilts to forward / backward, the Right Ball will roll forward / backward enabling the drone to fly forward / backward.Remote Control mode selectionVirtual control stickThe virtual remote controller is hidden by default. Tap the icon to display the virtual remote controller.Tap this icon to enter Gravity Induction Mode. Tilt the phone to fly left / rightand forward / backward. Tap again to exit from Gravity Induction Mode.Gravity Induction Mode If the mobile phone tilts to the left / right, the Right Ball will move accordingly enabling the drone to fly left / right.

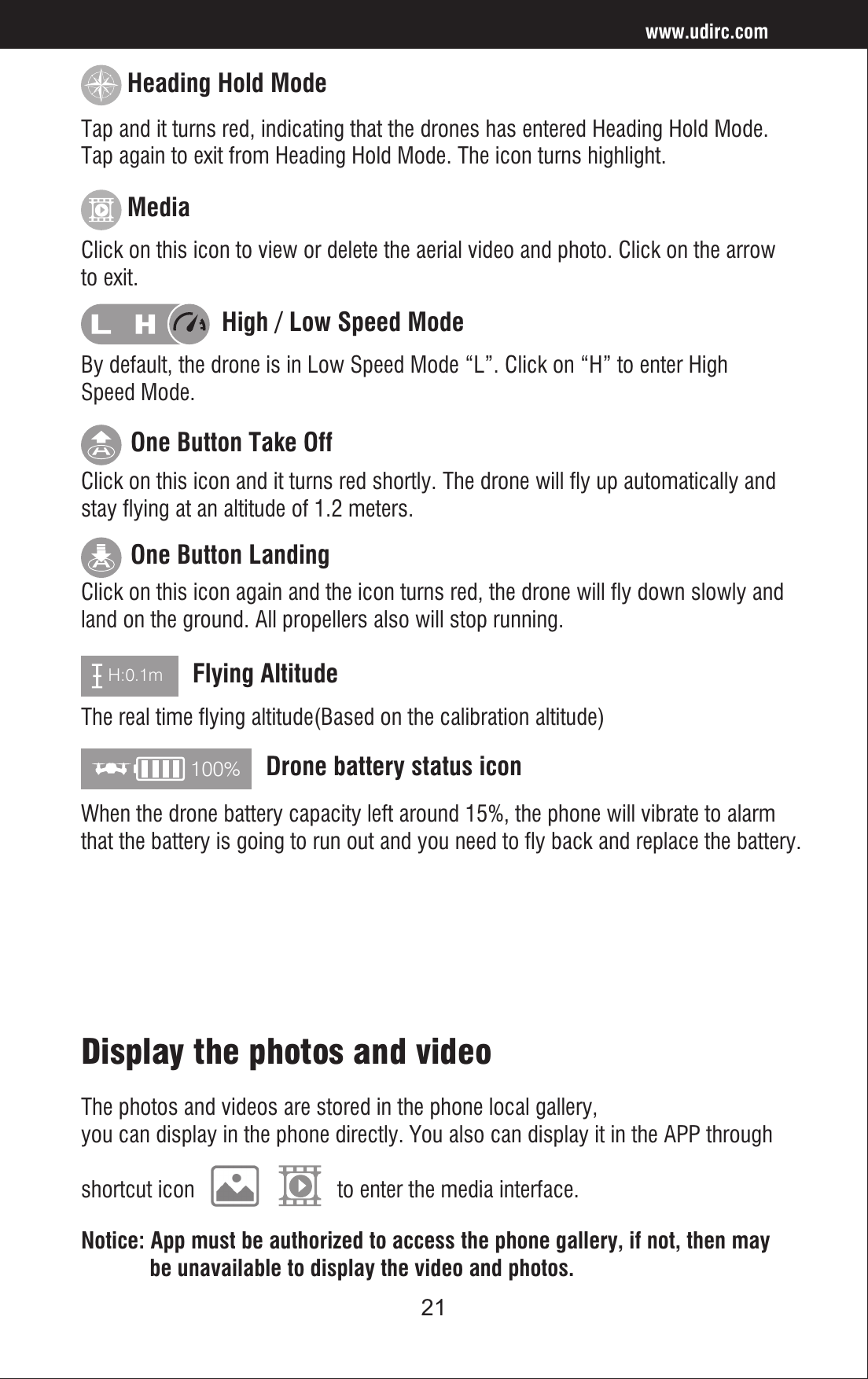

21www.udirc.comH:0.1m100%Click on this icon again and the icon turns red, the drone will fly down slowly and land on the ground. All propellers also will stop running.The real time flying altitude(Based on the calibration altitude)When the drone battery capacity left around 15%, the phone will vibrate to alarm that the battery is going to run out and you need to fly back and replace the battery.One Button LandingFlying AltitudeDrone battery status iconClick on this icon and it turns red shortly. The drone will fly up automatically and stay flying at an altitude of 1.2 meters. One Button Take OffClick on this icon to view or delete the aerial video and photo. Click on the arrow to exit.Media By default, the drone is in Low Speed Mode “L”. Click on “H” to enter High Speed Mode.High / Low Speed ModeTap and it turns red, indicating that the drones has entered Heading Hold Mode. Tap again to exit from Heading Hold Mode. The icon turns highlight. Heading Hold ModeDisplay the photos and videoNotice: App must be authorized to access the phone gallery, if not, then may be unavailable to display the video and photos.The photos and videos are stored in the phone local gallery, you can display in the phone directly. You also can display it in the APP through shortcut icon to enter the media interface.

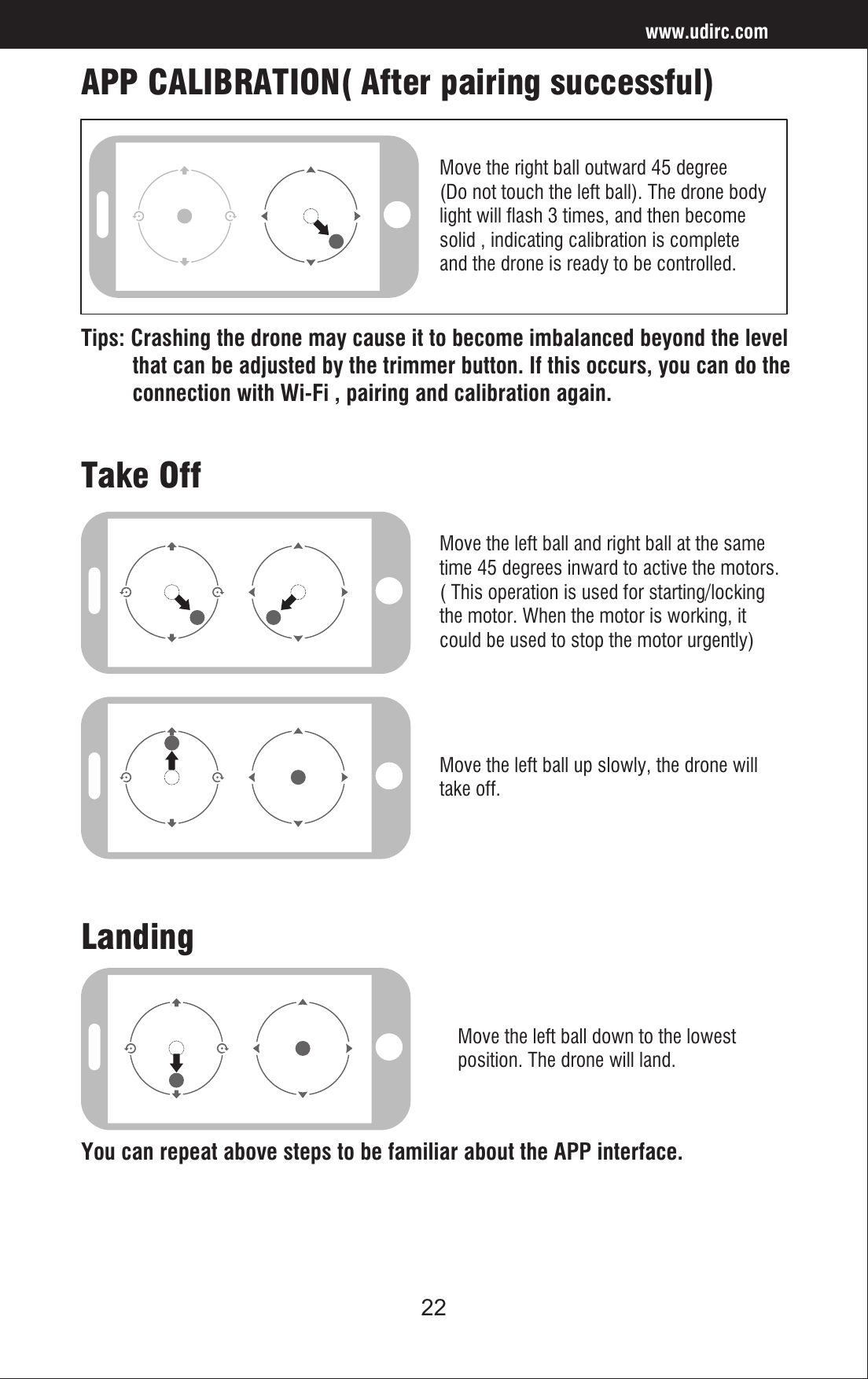

22www.udirc.comAPP CALIBRATION( After pairing successful)Take Off Move the right ball outward 45 degree (Do not touch the left ball). The drone bodylight will flash 3 times, and then becomesolid , indicating calibration is complete and the drone is ready to be controlled.Tips: Crashing the drone may cause it to become imbalanced beyond the level that can be adjusted by the trimmer button. If this occurs, you can do the connection with Wi-Fi , pairing and calibration again.Move the left ball up slowly, the drone will take off. Move the left ball and right ball at the same time 45 degrees inward to active the motors.( This operation is used for starting/locking the motor. When the motor is working, it could be used to stop the motor urgently)Landing You can repeat above steps to be familiar about the APP interface.Move the left ball down to the lowest position. The drone will land.
23www.udirc.comNotice:1. If you can not find the Wi-Fi signal to connect, turn off Wi-Fi and turn on again to search and connect. 2. The available Wi-Fi control radius/distance is 40m, please control the drone within this range.3. When alternating control from mobile phone to transmitter, the transmitter left stick must be in the center position, or exit from the APP. If not then you can not control the drone alternately.Left Stick Right StickTo fly up or down: Move the Left Ball up to flyup and move the Left Ball down to fly back down. The drone will continue flying at appointed altitude after release the ball.To fly right side or left side:Move the Right Ball to theleft to fly the drone to theleft side, and move the Right Ball to the right to fly the drone to the right side.If the drone tilts forward or backwardClick the “-”of the Forward /Backward Trim to adjust the drone. If the drone tilts forward. Click the “+” to adjust the drone if the dronetilts backward.If the drone rotates to left or rightClick the ”+” of the Left/Right Rudder Trim If the drone rotates left. Click the “-”if the drone rotates right.If the drone tilts to the left or rightClick the “+” of the left /Right Flying Trim if the drone tilts to the left Click the “-”to adjust the drone if the drones tilts to the right.To fly forward or backward: Move the Right Ball up tofly the drone forward, andmove the Right Ball downto fly the drone backwards.To rotate left or right: Move the Left Ball to the left to rotate the drone to the left. Move the Left Ballto the right to rotate the drone to the right.Flying Control

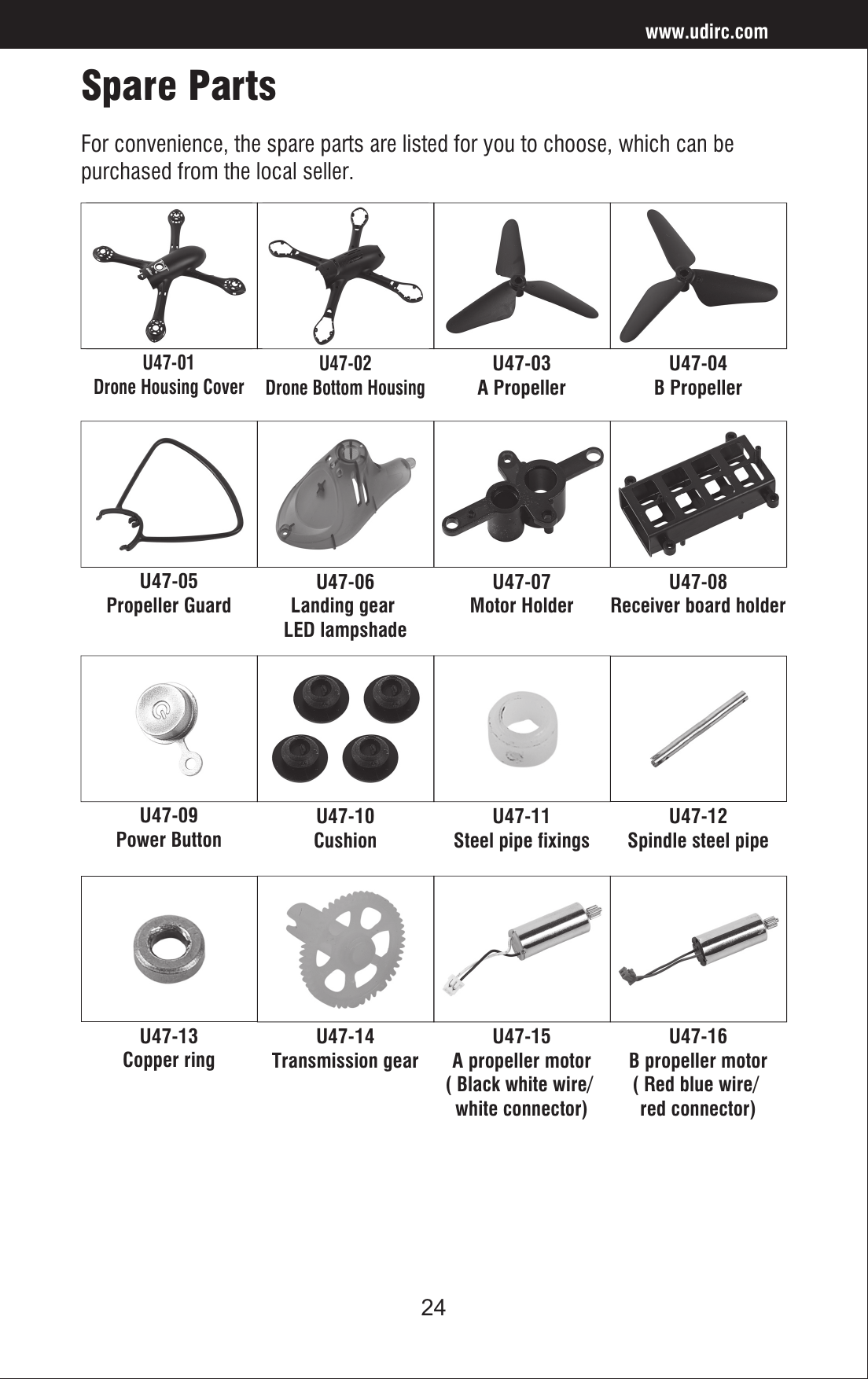

24www.udirc.comU47-13Copper ringU47-14Transmission gearU47-15A propeller motor( Black white wire/ white connector)U47-16B propeller motor( Red blue wire/ red connector)Spare Parts For convenience, the spare parts are listed for you to choose, which can be purchased from the local seller. U47-01Drone Housing CoverU47-02Drone Bottom HousingU47-03A PropellerU47-04B PropellerU47-05Propeller GuardU47-06Landing gear LED lampshadeU47-07Motor HolderU47-08Receiver board holderU47-09Power ButtonU47-10CushionU47-11Steel pipe fixingsU47-12Spindle steel pipe
25www.udirc.comU47-17Front A LED board(Green LED/white connector)U47-18Front B LED board(Green LED/ red connector)U47-19Rear A LED board(Red LED/ white connector)U47-20Rear B LED board(Red LED/ red connector)U47-21Receiver boardU47-22Camera boardU47-23Drone batteryU47-24USB cableU47-25Screw driverU47-26smart phone holderU47-27Transmitter Important NoticeOur company's products are improving all the time, design and specifications are subject to change without notice.All the information in this manual has been carefully checked to ensure accuracy, if any printing errors, our company reserve the final interpretation right.
26www.udirc.comThe controller indicatorlight is off.The droneis under-poweredor can notfly.The dronecould nothover andtilts to oneside.134Problem Problem Cause SolutionNo.1. Low battery. 1. Replace the controller battery.2. The batteries are incorrectly positioned. 2. Install the batteries following the polarity indicators.3. Poor Contact. 3. Clean between the battery and the battery contacts.1. Indicator light is off. 1. The same as above.2. There is an interfering signal nearby.2. Restart the drone and power on the controller.3. Improper operation. 3. Operate the drone step by step in accordance with the user manual.4. The electronic component is damaged for fiercely crash.4. To buy spare parts from local seller and replace damaged parts.1. The propeller is seriously deformed. 1. Replace the propeller.2. Low battery. 2. Recharge the drone battery.3. Incorrect installation of propeller. 3. Install the propeller in accordance with the user manual. 2. The propeller is seriously deformed. 2. Replace the propeller.3. The motor holder is deformed after violent crash. 3. Replace the motor holder parts.1. Improper Calibration. 1. Please refer to the Calibration Instruction.4. The gyroscope did not reset after a serious crash.4. Put the drone on the flat ground for about 10s or restart the drone to calibrate again.Failed to pair the drone withthe controller.2The droneindicatorlight is off.Could notsee thepicture.561. Low battery. 1. Recharge the drone battery.5. Motor is damaged. 5. Replace the motor. 2. The battery is expired or over discharge protection.2. Buy a new battery from local seller to replace the battery or charge the battery in accordance with the use manual.3. Poor contact. 3. Connect and disconnect the battery.1. There is an interfering signal nearby. 1. Practice and read the cellphone controlling instruction carefully.2. Camera is damaged. 2. Replace Camera. Hard to control bycellphone.7Not experienced enough. Practice and read the cellphone controlling instruction carefully.Can’t altitudehold.81. The propeller deformed seriously. 1. Replace propeller.2. The motor is damaged. 2. Replace the motor.3. Atmospheric pressure is not stable.3. Refer the altitude hold mode of use manual .Troubleshooting

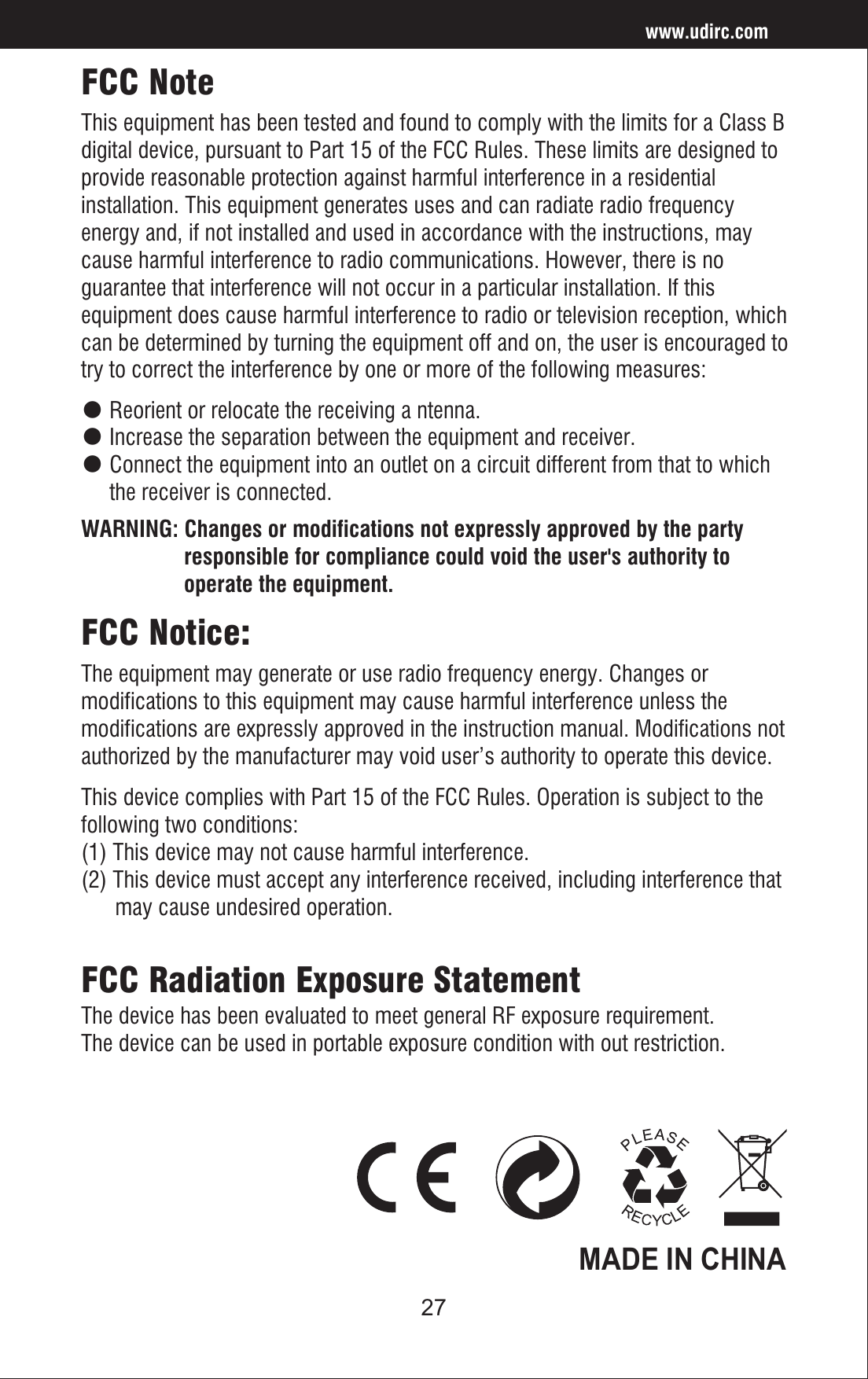

27www.udirc.comMADE IN CHINAFCC NoteThis equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:● Reorient or relocate the receiving a ntenna.● Increase the separation between the equipment and receiver.● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.The equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. Modifications not authorized by the manufacturer may void user’s authority to operate this device.FCC Notice:The device has been evaluated to meet general RF exposure requirement.The device can be used in portable exposure condition with out restriction.FCC Radiation Exposure Statement
