Chuangwei RGB Electronics NTUDB10 WIFI USB DONGLE User Manual manual1

Shenzhen Chuangwei-RGB Electronics Co., Ltd. WIFI USB DONGLE manual1

User Manual

       Shenzhen skyworth RGB electronic co., LTD.                                                                            Model: NTUD - B10                                                       Operation Instruction Respect  of  customer,  sincerely  thank  you  for  purchasing SKYWORTH equipped with wireless  WIFI  NTUD -  B10  -  type USB peripheral products. This  product  can  support  USB2.0  protocol,  based  on  the IEEE802.11  a/b/g/n/ac  standard  design.  With  all  the  way  to send  and  receive  all  the  way  (2T2R)  dual  channel  work, maximum  transmission  rate  of  up  to  866  Mbps.Ensure  that users browse and download data flow, security and stability. NTUD  -  B10  wireless  WIFI  USB  peripheral  product  support Windows XP/Vista / 7 / Linux operating system.In SKYWORTH TV,  have  complete  embedded  in  the  product  and  the  driver, without user to install, and at the same time support Linux and Android. Used in TV production operation is as follows: 1. Turn on the TV, switch to the "home page" interface. 2. Select "Settings" feature. "OK" to enter 3. Select "network setup" function. "OK" to enter; 4. Choose the "wireless network", "OK" to enter;

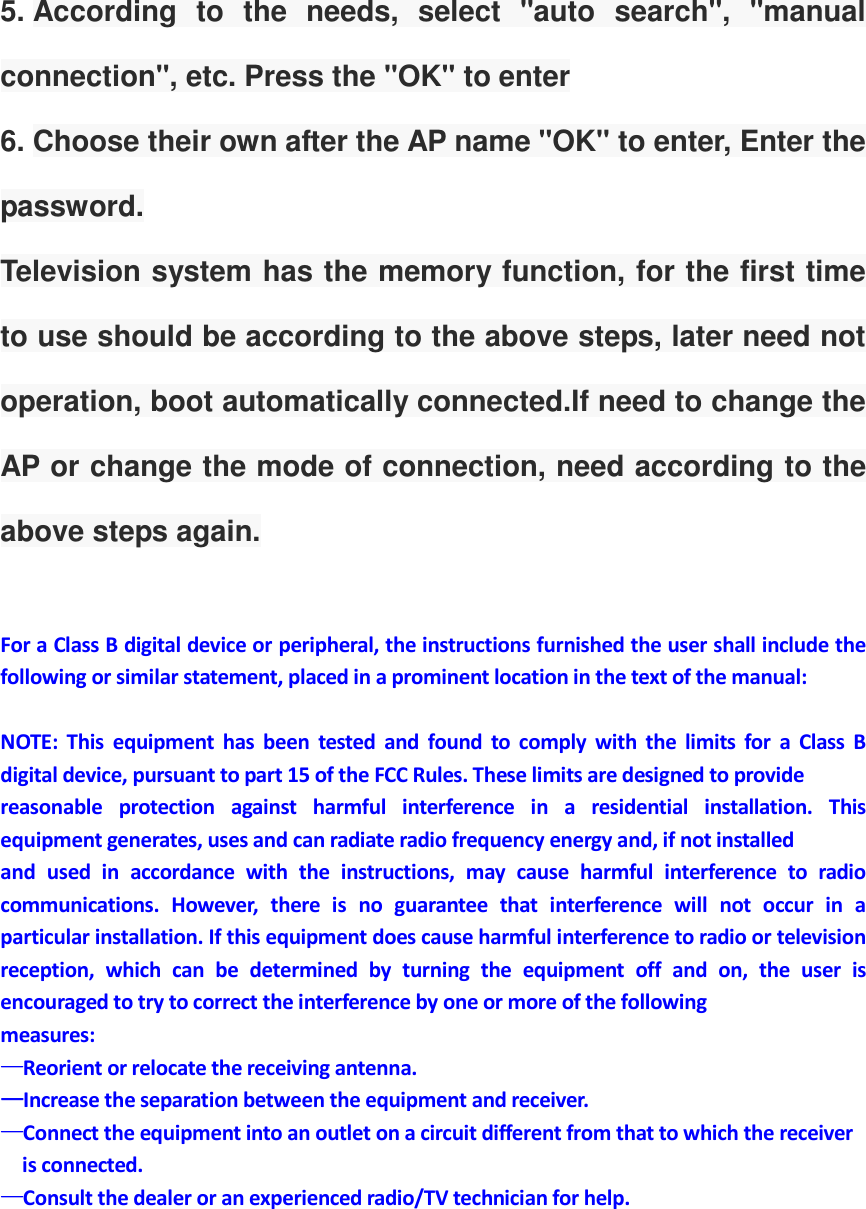

5. According  to  the  needs,  select  "auto  search",  "manual connection", etc. Press the "OK" to enter 6. Choose their own after the AP name "OK" to enter, Enter the password. Television system has the memory function, for the first time to use should be according to the above steps, later need not operation, boot automatically connected.If need to change the AP or change the mode of connection, need according to the above steps again.  For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual:  NOTE:  This  equipment  has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable  protection  against  harmful  interference  in  a  residential  installation.  This equipment generates, uses and can radiate radio frequency energy and, if not installed and  used  in  accordance  with  the  instructions,  may  cause  harmful  interference  to  radio communications.  However,  there  is  no  guarantee  that  interference  will  not  occur  in  a particular installation. If this equipment does cause harmful interference to radio or television reception,  which  can  be  determined  by  turning  the  equipment  off  and  on,  the  user  is encouraged to try to correct the interference by one or more of the following measures: ————Reorient or relocate the receiving antenna. ————Increase the separation between the equipment and receiver. ————Connect the equipment into an outlet on a circuit different from that to which the receiver       is connected. ————Consult the dealer or an experienced radio/TV technician for help.

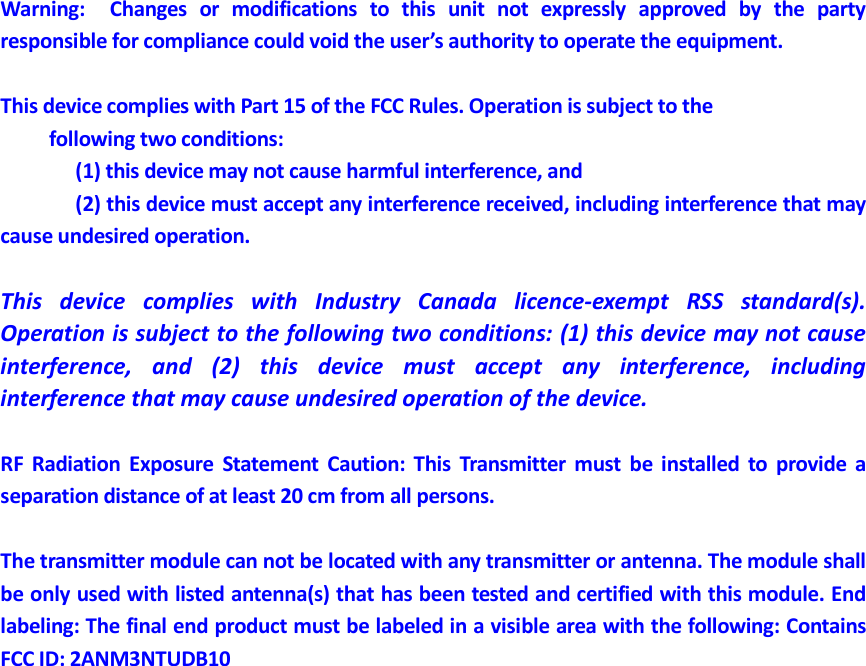

Warning:    Changes  or  modifications  to  this  unit  not  expressly  approved  by  the  party responsible for compliance could void the user’s authority to operate the equipment.  This device complies with Part 15 of the FCC Rules. Operation is subject to the       following two conditions:         (1) this device may not cause harmful interference, and       (2) this device must accept any interference received, including interference that may cause undesired operation.  This  device  complies  with  Industry  Canada  licence-exempt  RSS  standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference,  and  (2)  this  device  must  accept  any  interference,  including interference that may cause undesired operation of the device.  RF  Radiation  Exposure  Statement  Caution:  This  Transmitter  must  be  installed  to  provide  a separation distance of at least 20 cm from all persons.  The transmitter module can not be located with any transmitter or antenna. The module shall be only used with listed antenna(s) that has been tested and certified with this module. End labeling: The final end product must be labeled in a visible area with the following: Contains FCC ID: 2ANM3NTUDB10
