Preliminary User manual FCC ID: OSZ38000C Page 1 of 10 Intersil ISL38000C PRISM GT IEEE802.11g Cardbus WLAN Card User Manual Version 0.1
Preliminary User manual FCC ID: OSZ38000C Page 2 of 10 Table of Contents 0-INTRODUCTION ....................................................................................................3 1-CARDBUS INSTALLATION PROCEDURE.......................................................3 1.1 INSTALLING THE CARDBUS CARD INTO THE HOST PC NOTEBOOK ...................3 1.2 INSTALLING THE SOFTWARE DRIVERS ................................................................3 1.3 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE .7 2-REGULATORY INFORMATION.........................................................................7 2.1 FCC INFORMATION TO USER .............................................................................7 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE ........................................................7 2.3 FCC ELECTRONIC EMISSION NOTICES..............................................................7 2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT.....................................8 2.5 EXPORT RESTRICTIONS .......................................................................................8 2.6 EUROPE - EU DECLARATION OF CONFORMITY.................................................9 3-TECHNICAL SPECIFICATIONS.......................................................................10

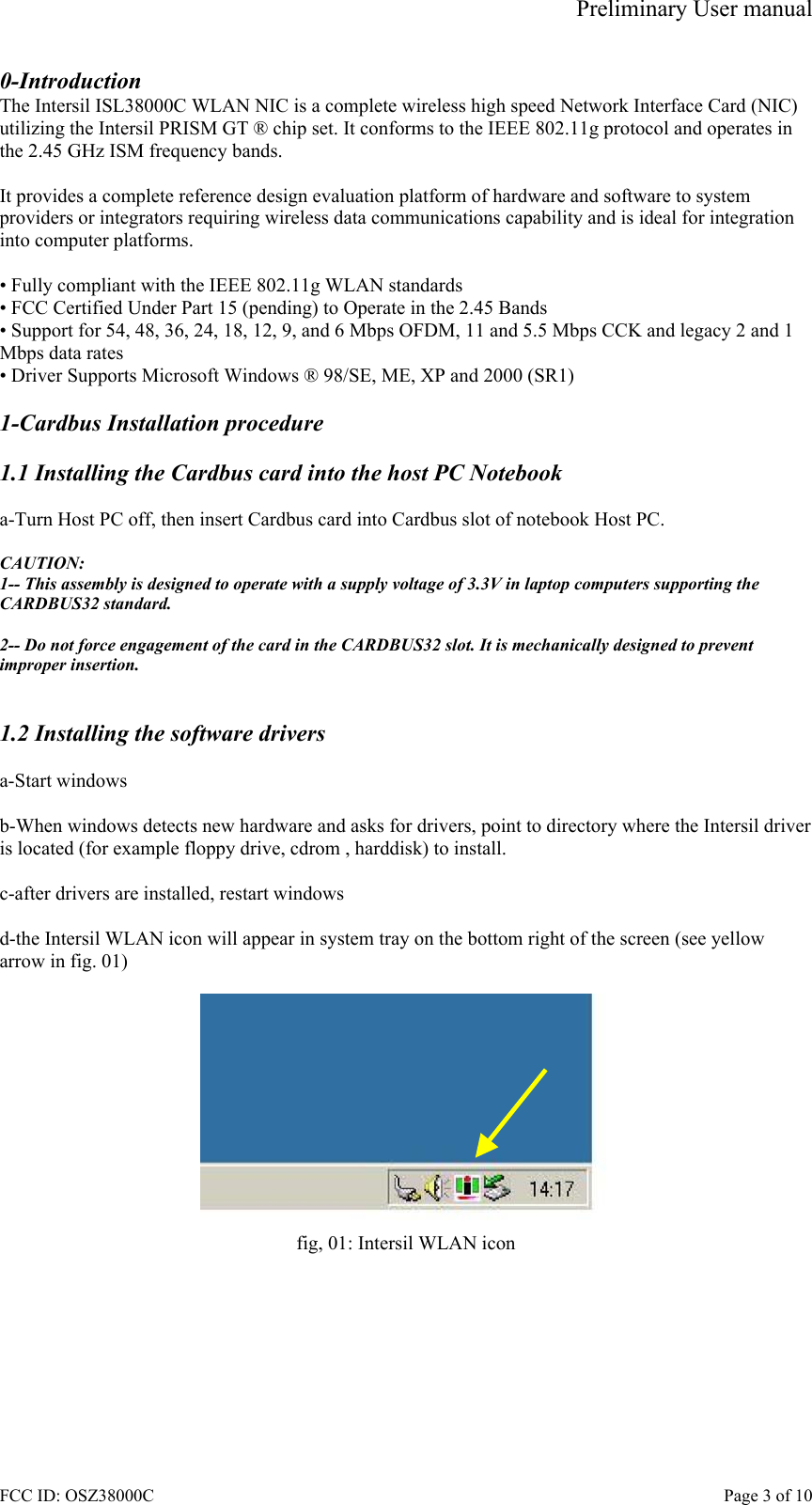

Preliminary User manual FCC ID: OSZ38000C Page 3 of 10 0-Introduction The Intersil ISL38000C WLAN NIC is a complete wireless high speed Network Interface Card (NIC) utilizing the Intersil PRISM GT ® chip set. It conforms to the IEEE 802.11g protocol and operates in the 2.45 GHz ISM frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into computer platforms. • Fully compliant with the IEEE 802.11g WLAN standards • FCC Certified Under Part 15 (pending) to Operate in the 2.45 Bands • Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates • Driver Supports Microsoft Windows ® 98/SE, ME, XP and 2000 (SR1) 1-Cardbus Installation procedure 1.1 Installing the Cardbus card into the host PC Notebook a-Turn Host PC off, then insert Cardbus card into Cardbus slot of notebook Host PC. CAUTION: 1-- This assembly is designed to operate with a supply voltage of 3.3V in laptop computers supporting the CARDBUS32 standard. 2-- Do not force engagement of the card in the CARDBUS32 slot. It is mechanically designed to prevent improper insertion. 1.2 Installing the software drivers a-Start windows b-When windows detects new hardware and asks for drivers, point to directory where the Intersil driver is located (for example floppy drive, cdrom , harddisk) to install. c-after drivers are installed, restart windows d-the Intersil WLAN icon will appear in system tray on the bottom right of the screen (see yellow arrow in fig. 01) fig, 01: Intersil WLAN icon

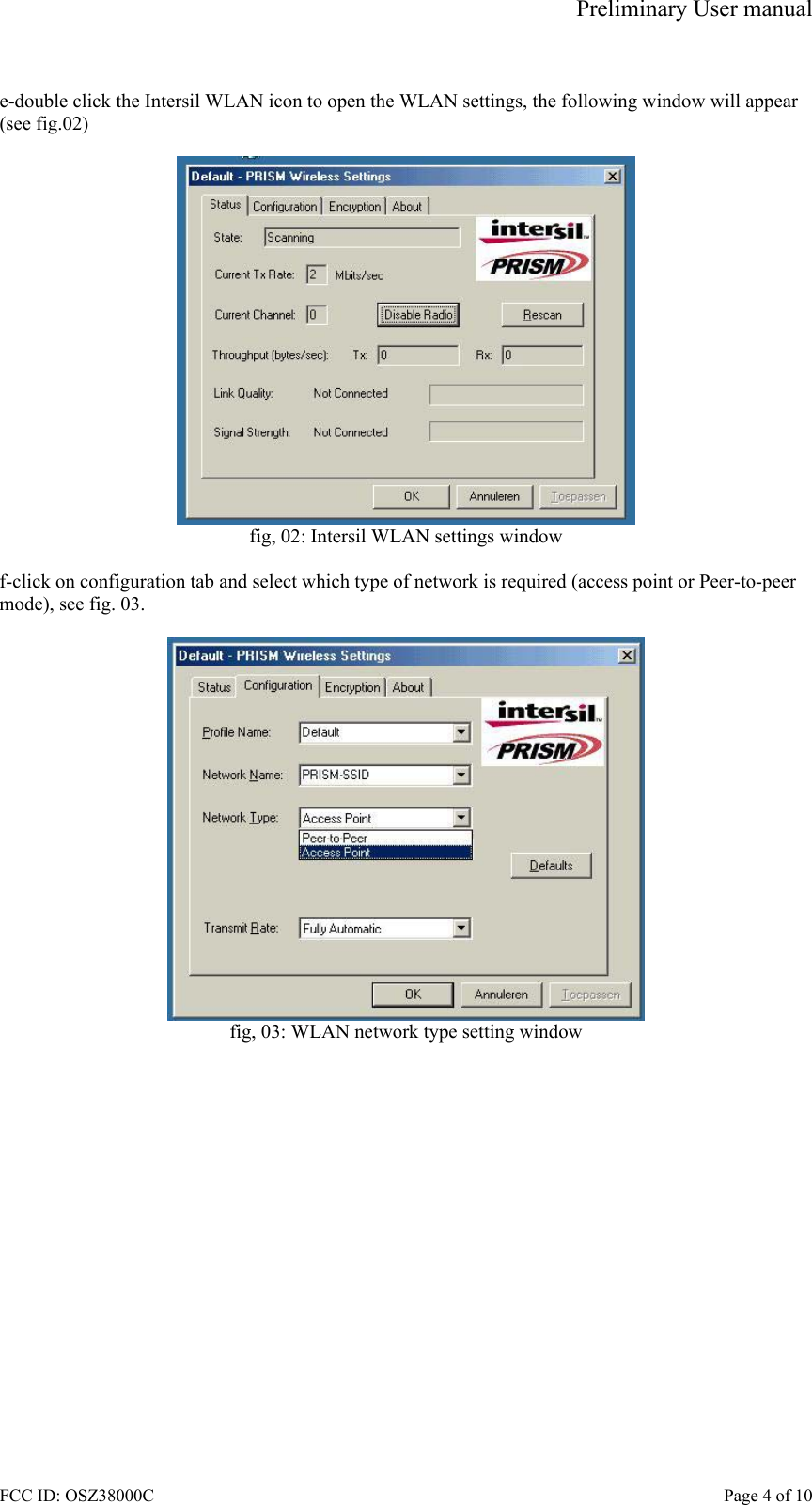

Preliminary User manual FCC ID: OSZ38000C Page 4 of 10 e-double click the Intersil WLAN icon to open the WLAN settings, the following window will appear (see fig.02) fig, 02: Intersil WLAN settings window f-click on configuration tab and select which type of network is required (access point or Peer-to-peer mode), see fig. 03. fig, 03: WLAN network type setting window

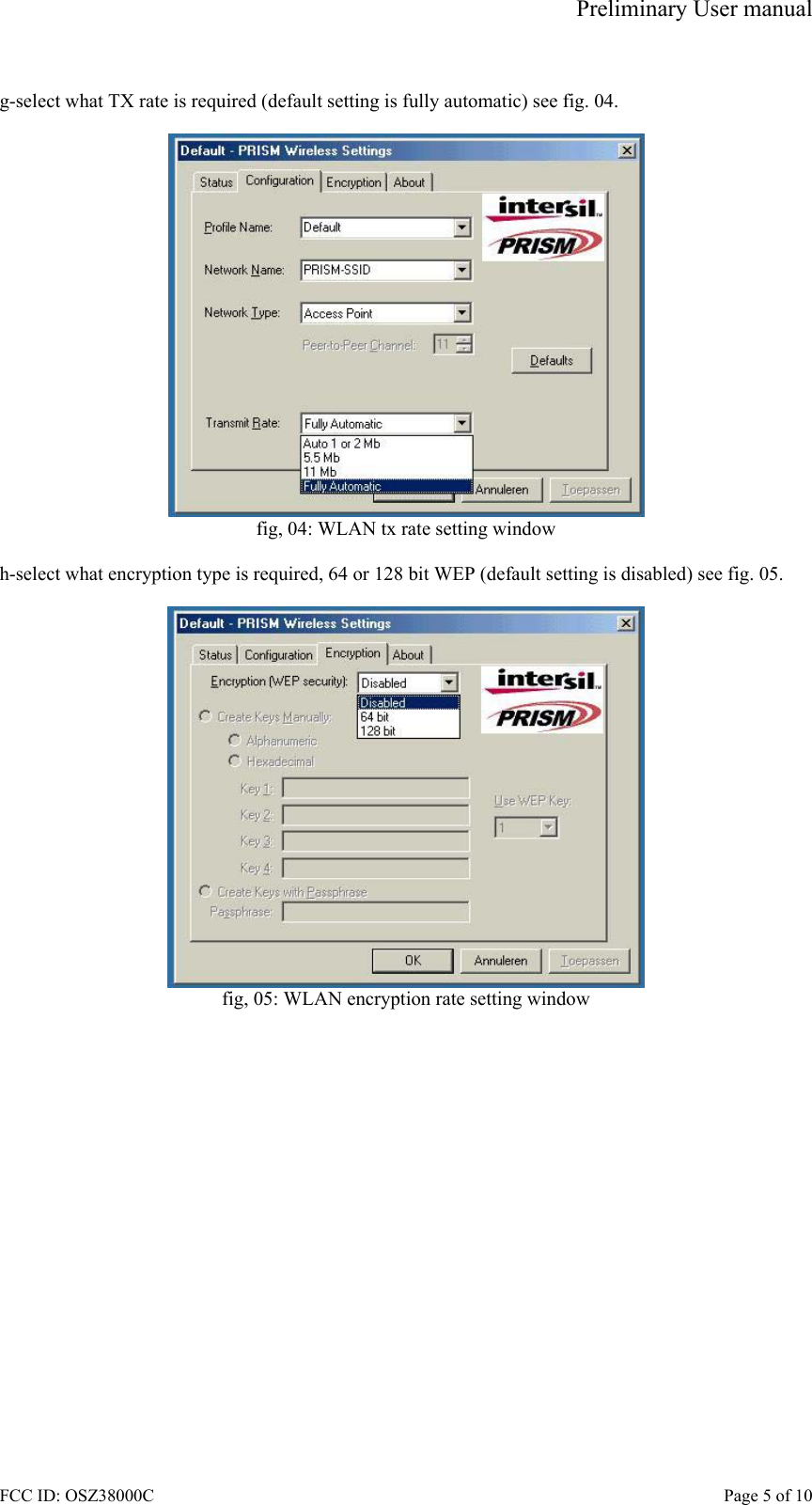

Preliminary User manual FCC ID: OSZ38000C Page 5 of 10 g-select what TX rate is required (default setting is fully automatic) see fig. 04. fig, 04: WLAN tx rate setting window h-select what encryption type is required, 64 or 128 bit WEP (default setting is disabled) see fig. 05. fig, 05: WLAN encryption rate setting window

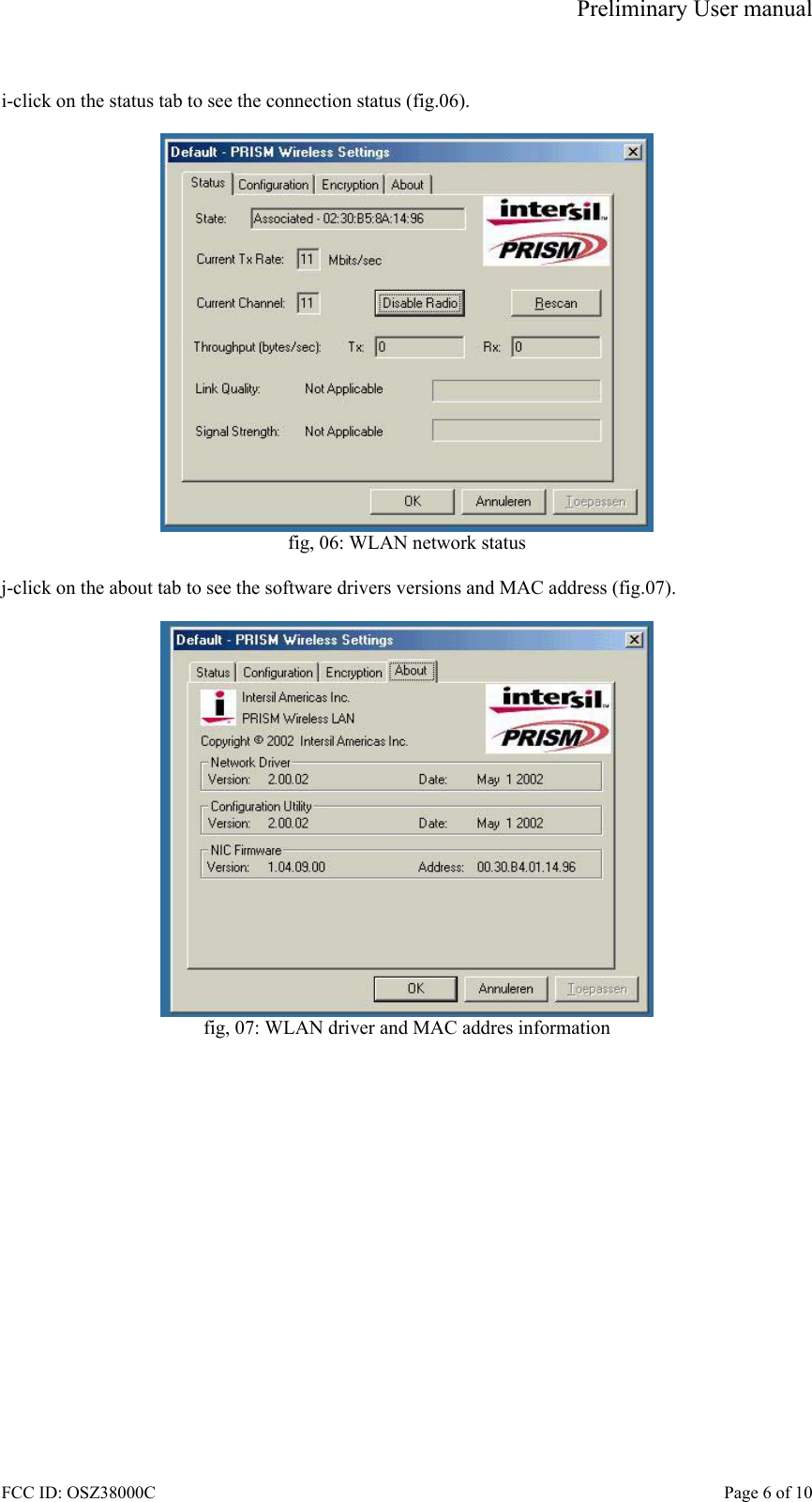

Preliminary User manual FCC ID: OSZ38000C Page 6 of 10 i-click on the status tab to see the connection status (fig.06). fig, 06: WLAN network status j-click on the about tab to see the software drivers versions and MAC address (fig.07). fig, 07: WLAN driver and MAC addres information

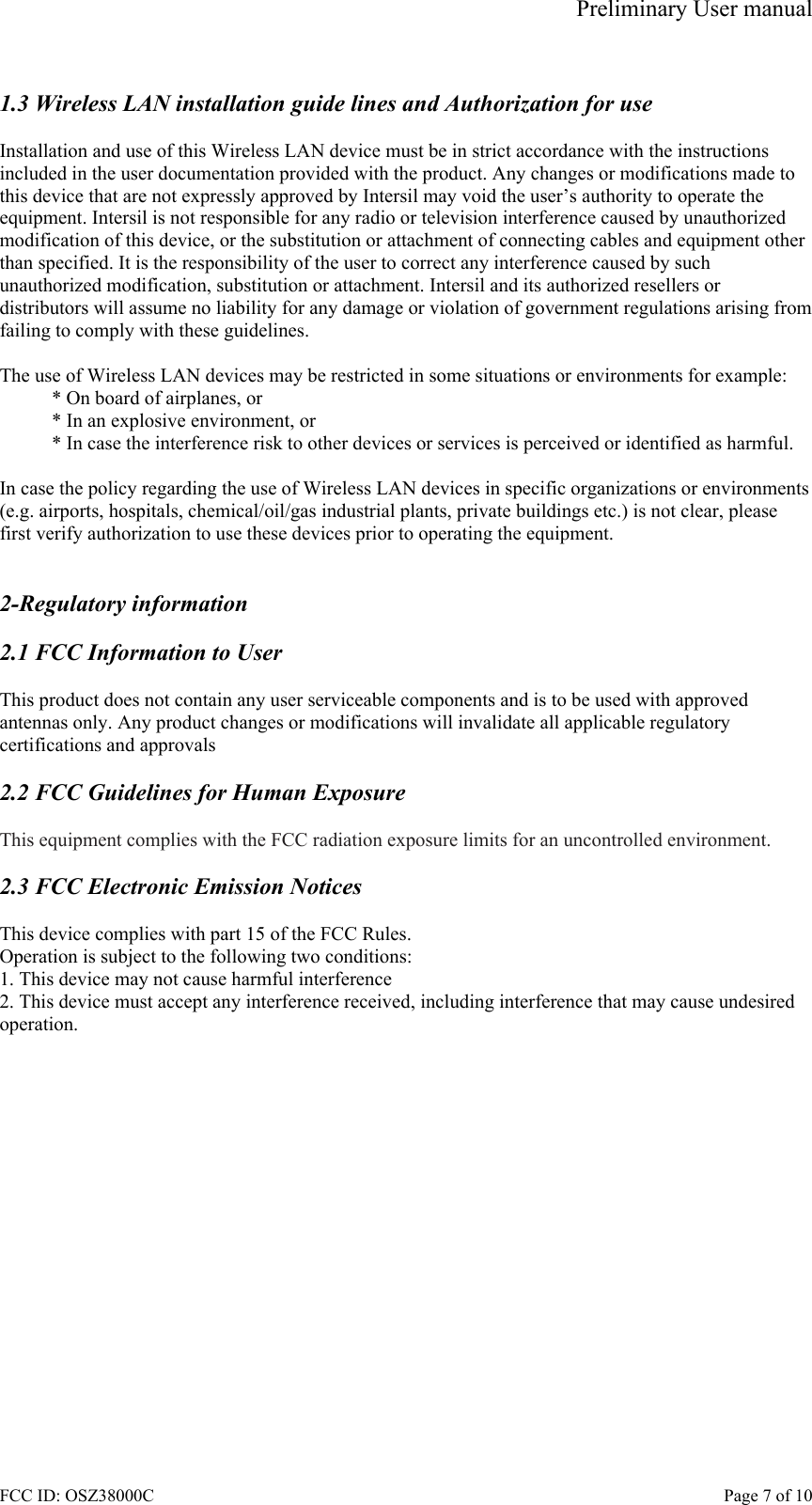

Preliminary User manual FCC ID: OSZ38000C Page 7 of 10 1.3 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by Intersil may void the user’s authority to operate the equipment. Intersil is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Intersil and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please first verify authorization to use these devices prior to operating the equipment. 2-Regulatory information 2.1 FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals 2.2 FCC Guidelines for Human Exposure This equipment complies with the FCC radiation exposure limits for an uncontrolled environment. 2.3 FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation.

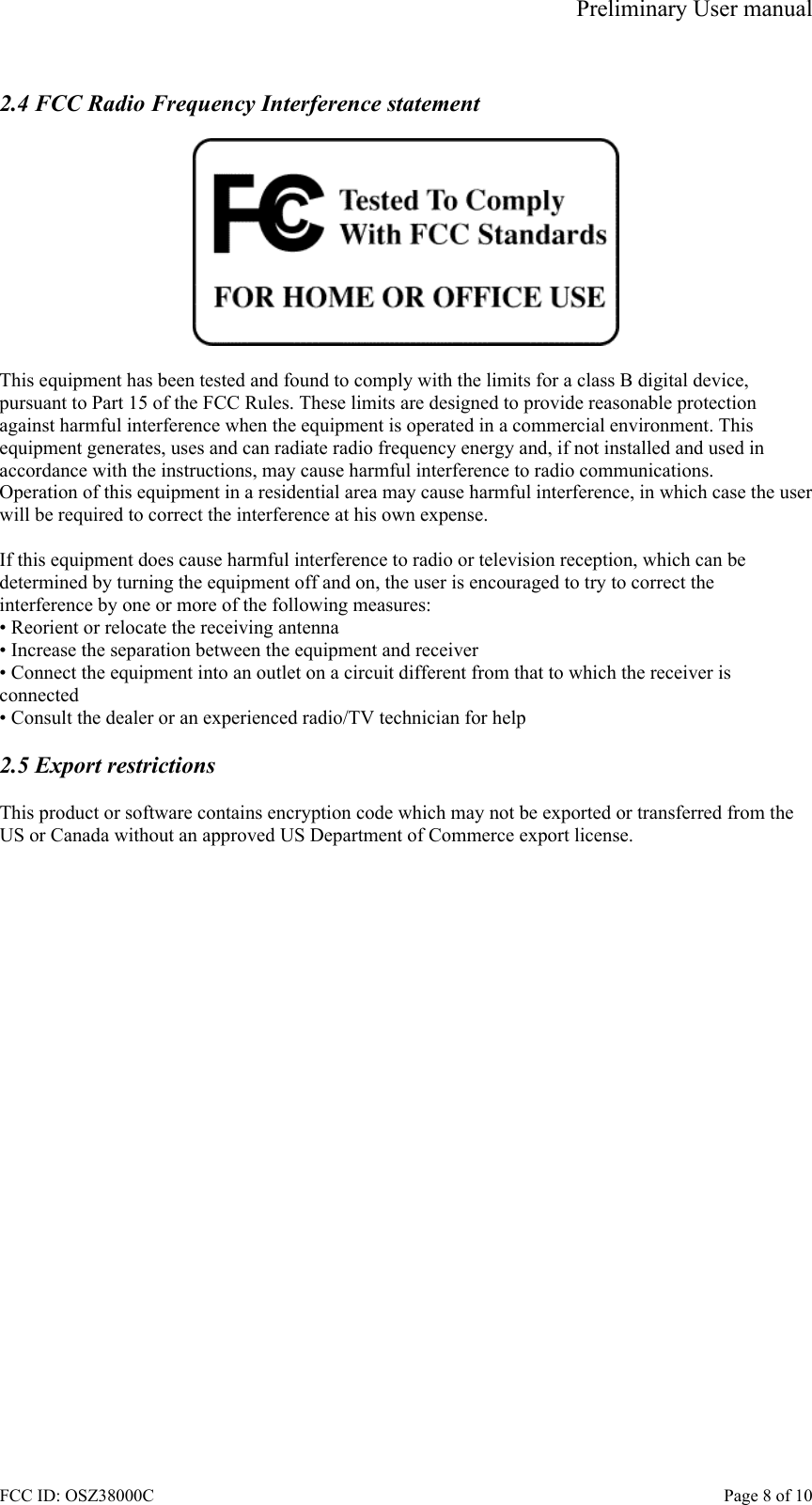

Preliminary User manual FCC ID: OSZ38000C Page 8 of 10 2.4 FCC Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help 2.5 Export restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license.

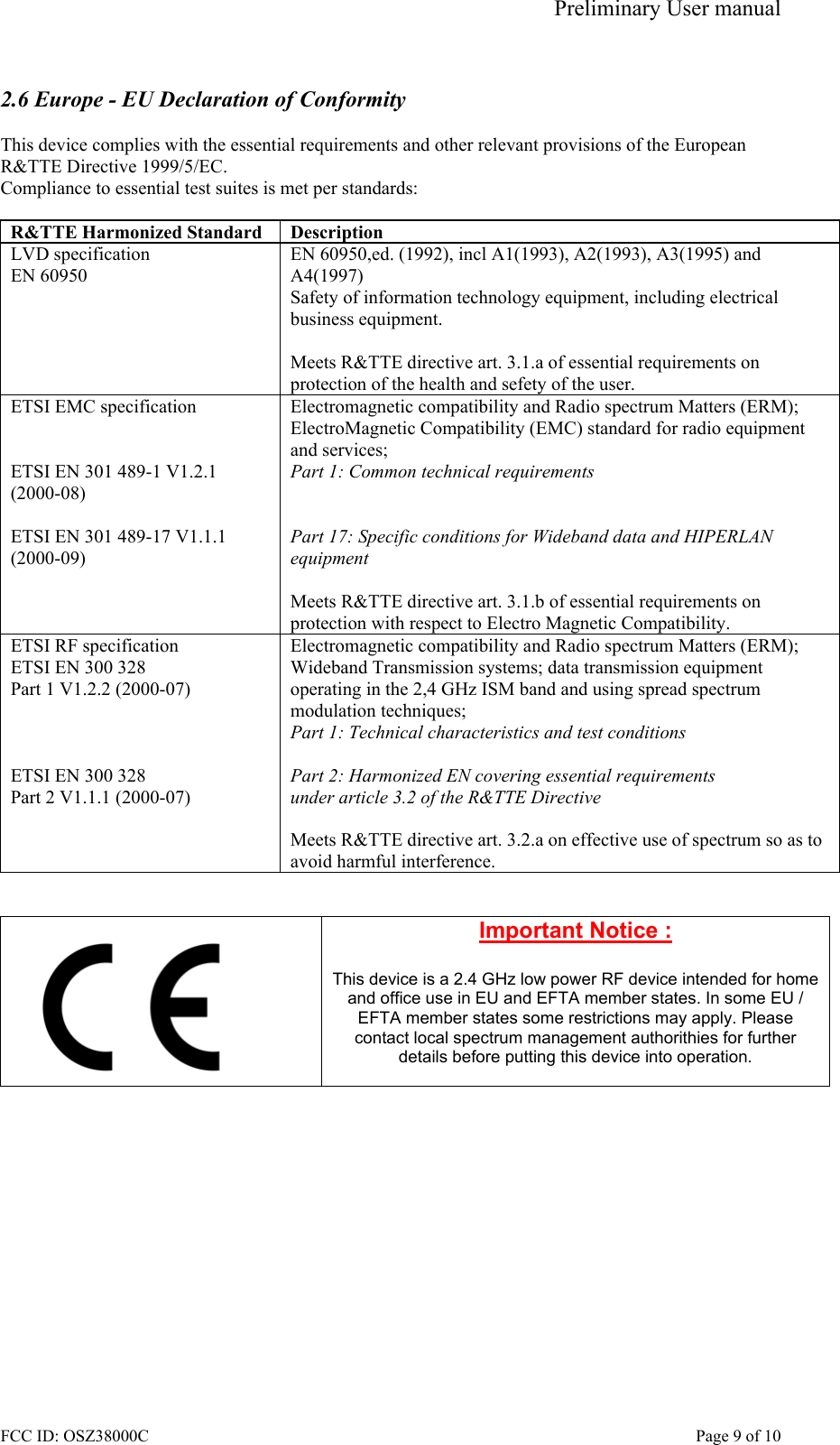

Preliminary User manual FCC ID: OSZ38000C Page 9 of 10 2.6 Europe - EU Declaration of Conformity This device complies with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC. Compliance to essential test suites is met per standards: R&TTE Harmonized Standard Description LVD specification EN 60950 EN 60950,ed. (1992), incl A1(1993), A2(1993), A3(1995) and A4(1997) Safety of information technology equipment, including electrical business equipment. Meets R&TTE directive art. 3.1.a of essential requirements on protection of the health and sefety of the user. ETSI EMC specification ETSI EN 301 489-1 V1.2.1 (2000-08) ETSI EN 301 489-17 V1.1.1 (2000-09) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements Part 17: Specific conditions for Wideband data and HIPERLAN equipment Meets R&TTE directive art. 3.1.b of essential requirements on protection with respect to Electro Magnetic Compatibility. ETSI RF specification ETSI EN 300 328 Part 1 V1.2.2 (2000-07) ETSI EN 300 328 Part 2 V1.1.1 (2000-07) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Part 1: Technical characteristics and test conditions Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive Meets R&TTE directive art. 3.2.a on effective use of spectrum so as to avoid harmful interference. Important Notice : This device is a 2.4 GHz low power RF device intended for home and office use in EU and EFTA member states. In some EU / EFTA member states some restrictions may apply. Please contact local spectrum management authorithies for further details before putting this device into operation.

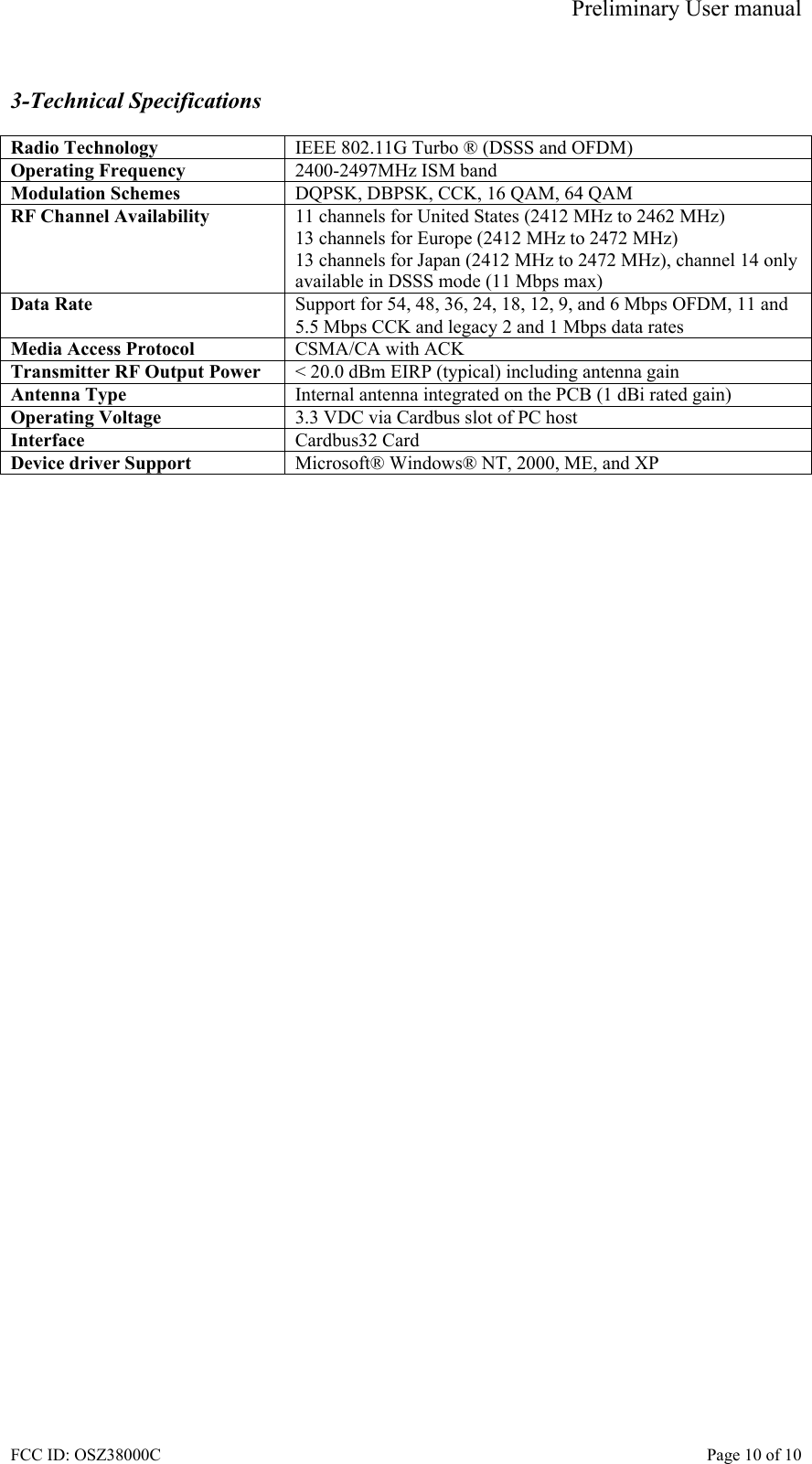

Preliminary User manual FCC ID: OSZ38000C Page 10 of 10 3-Technical Specifications Radio Technology IEEE 802.11G Turbo ® (DSSS and OFDM) Operating Frequency 2400-2497MHz ISM band Modulation Schemes DQPSK, DBPSK, CCK, 16 QAM, 64 QAM RF Channel Availability 11 channels for United States (2412 MHz to 2462 MHz) 13 channels for Europe (2412 MHz to 2472 MHz) 13 channels for Japan (2412 MHz to 2472 MHz), channel 14 only available in DSSS mode (11 Mbps max) Data Rate Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates Media Access Protocol CSMA/CA with ACK Transmitter RF Output Power < 20.0 dBm EIRP (typical) including antenna gain Antenna Type Internal antenna integrated on the PCB (1 dBi rated gain) Operating Voltage 3.3 VDC via Cardbus slot of PC host Interface Cardbus32 Card Device driver Support Microsoft® Windows® NT, 2000, ME, and XP
