VBR220_User Manual_rev1

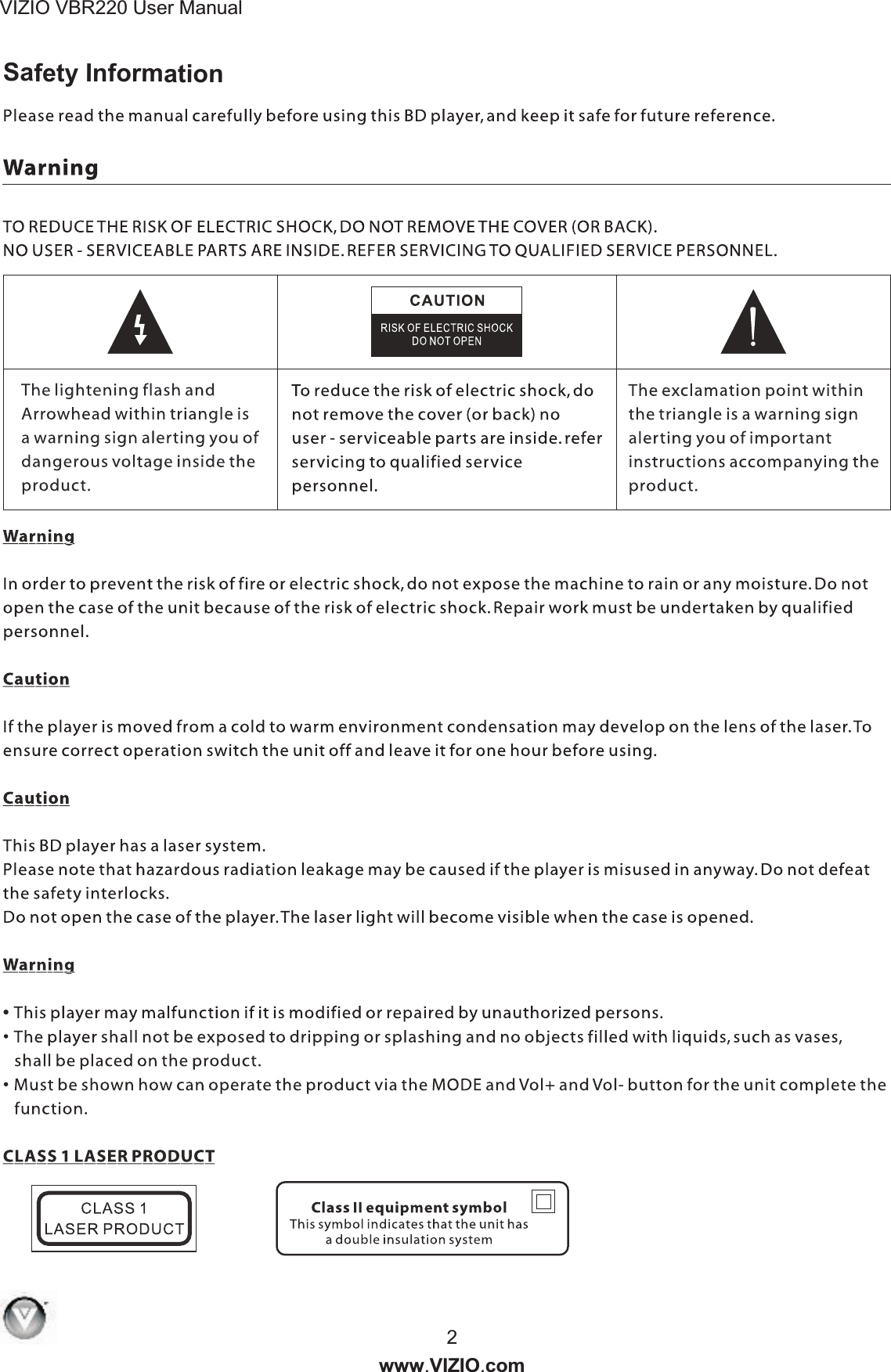

VIZIO BR220 User ManualV2www VIZIO com. .Safety Information

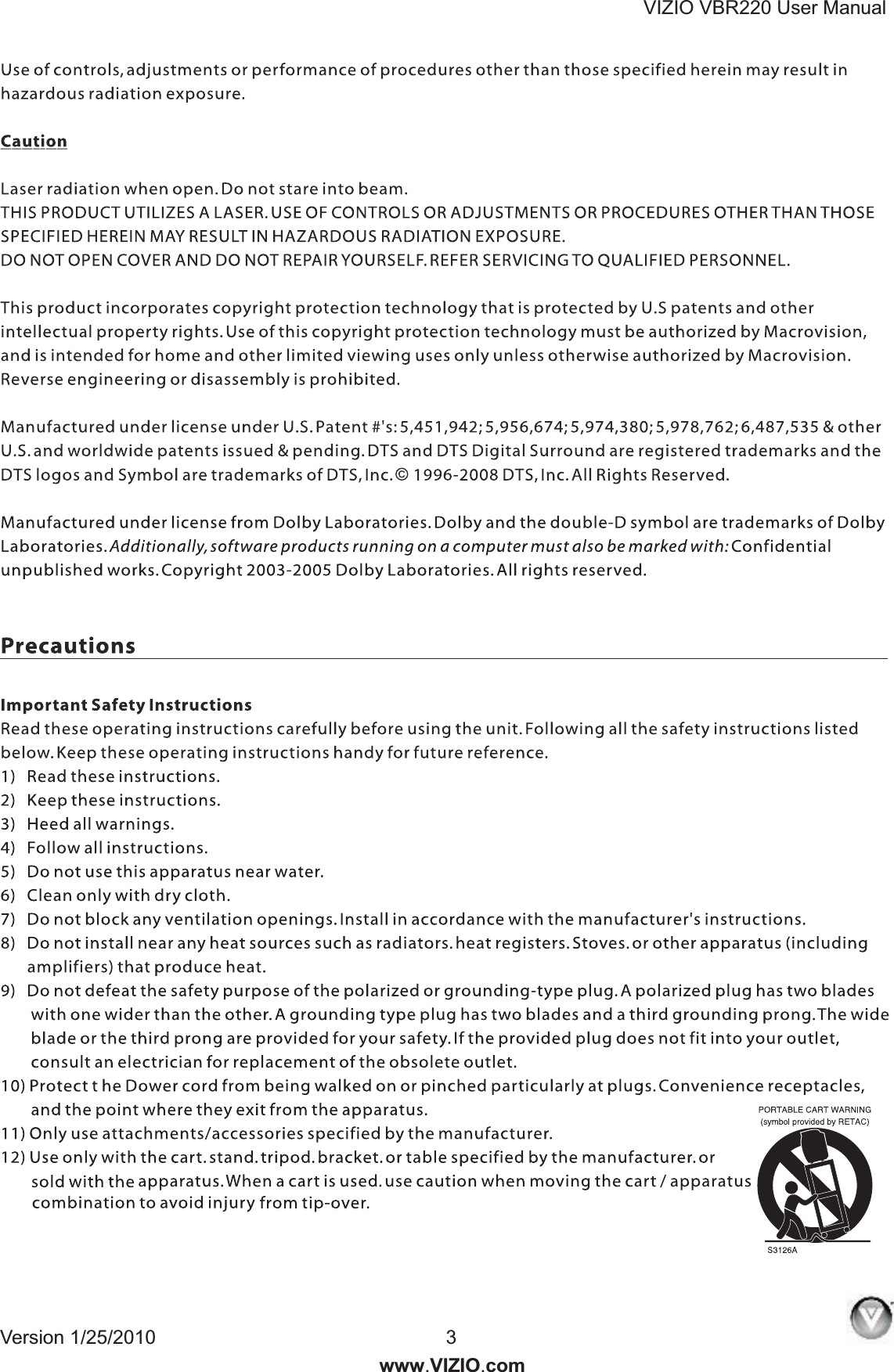

VIZIO BR220 User ManualVVersion 1/25/2010 3www VIZIO com. .

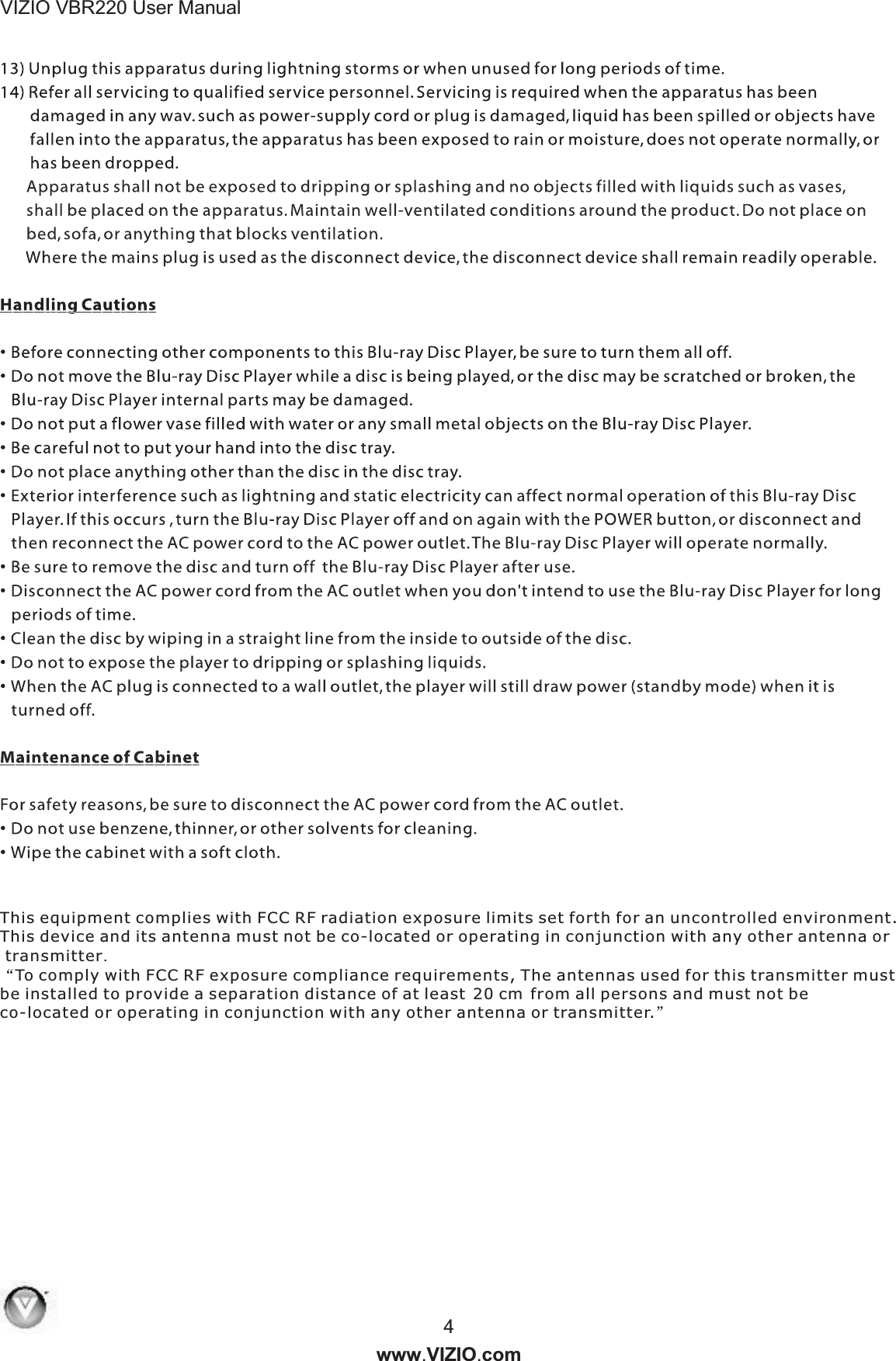

VIZIO BR220 User ManualV4www VIZIO com. .ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment.Thisdeviceanditsantennamustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaortransmitterTocomplywithFCCRFexposurecompliancerequirements,Theantennasusedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast 20cm fromallpersonsandmustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaortransmitter..“”

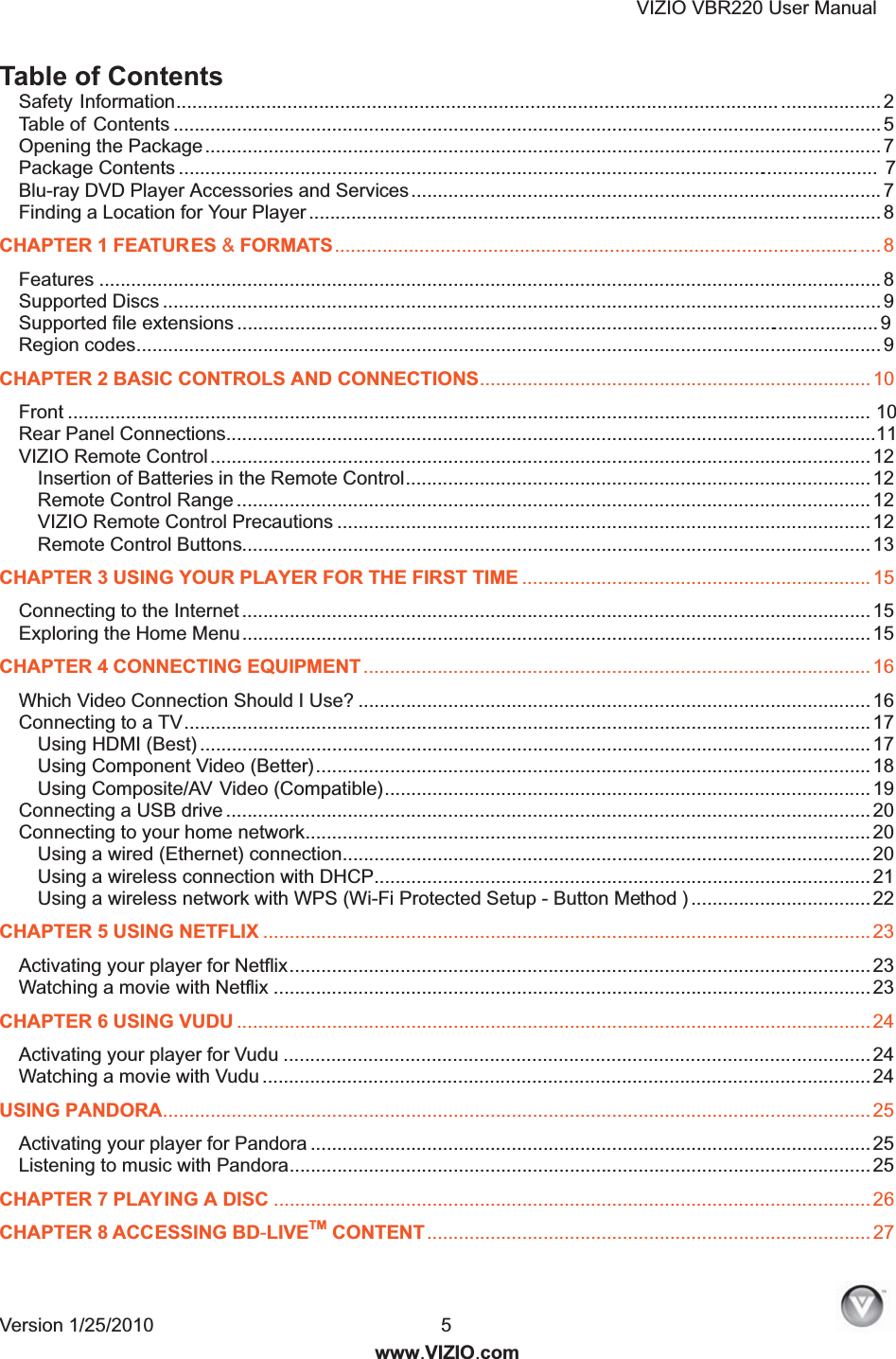

VIZIO VBR220 User Manual Version 1/25/2010 5 www.VIZIO.com Table of Contents Safety Information................... .............................................................................................. . ................... 2 Table of Contents ...................................................................................................................................... 5 Opening the Package................................................................................................................................ 7 Package Contents ..................................................................................................................................... 7 Blu-ray DVD Player Accessories and Services......................................................................................... 7 Finding a Location for Your Player ............................................................................................................ 8 CHAPTER 1 FEATURES & FORMATS................................................................................................... .... 8 Features .................................................................................................................................................... 8 Supported Discs ........................................................................................................................................ 9 Supported file extensions .......................................................................................................................... 9 Region codes............................................................................................................................................. 9 CHAPTER 2 BASIC CONTROLS AND CONNECTIONS.......................................................................... 10 Front ........................................................................................................................................................ 10 Rear Panel Connections...........................................................................................................................11 VIZIO Remote Control.............................................................................................................................12 Insertion of Batteries in the Remote Control........................................................................................ 12 Remote Control Range ........................................................................................................................ 12 VIZIO Remote Control Precautions .....................................................................................................12 Remote Control Buttons.......................................................................................................................13 CHAPTER 3 USING YOUR PLAYER FOR THE FIRST TIME .................................................................. 15 Connecting to the Internet .......................................................................................................................15 Exploring the Home Menu.......................................................................................................................15 CHAPTER 4 CONNECTING EQUIPMENT ................................................................................................ 16 Which Video Connection Should I Use? .................................................................................................16 Connecting to a TV.................................................................................................................................. 17 Using HDMI (Best) ............................................................................................................................... 17 Using Component Video (Better).........................................................................................................18 Using Composite/AV Video (Compatible)............................................................................................ 19 Connecting a USB drive .......................................................................................................................... 20 Connecting to your home network........................................................................................................... 20 Using a wired (Ethernet) connection....................................................................................................20 Using a wireless connection with DHCP..............................................................................................21 Using a wireless network with WPS (Wi-Fi Protected Setup - Button Method ) .................................. 22 CHAPTER 5 USING NETFLIX ................................................................................................................... 23 Activating your player for Netflix..............................................................................................................23 Watching a movie with Netflix ................................................................................................................. 23 CHAPTER 6 USING VUDU ........................................................................................................................24 Activating your player for Vudu ...............................................................................................................24 Watching a movie with Vudu ...................................................................................................................24 USING PANDORA......................................................................................................................................25 Activating your player for Pandora .......................................................................................................... 25 Listening to music with Pandora..............................................................................................................25 CHAPTER 7 PLAYING A DISC .................................................................................................................26 CHAPTER 8 ACCESSING BD-LIVETM CONTENT....................................................................................27

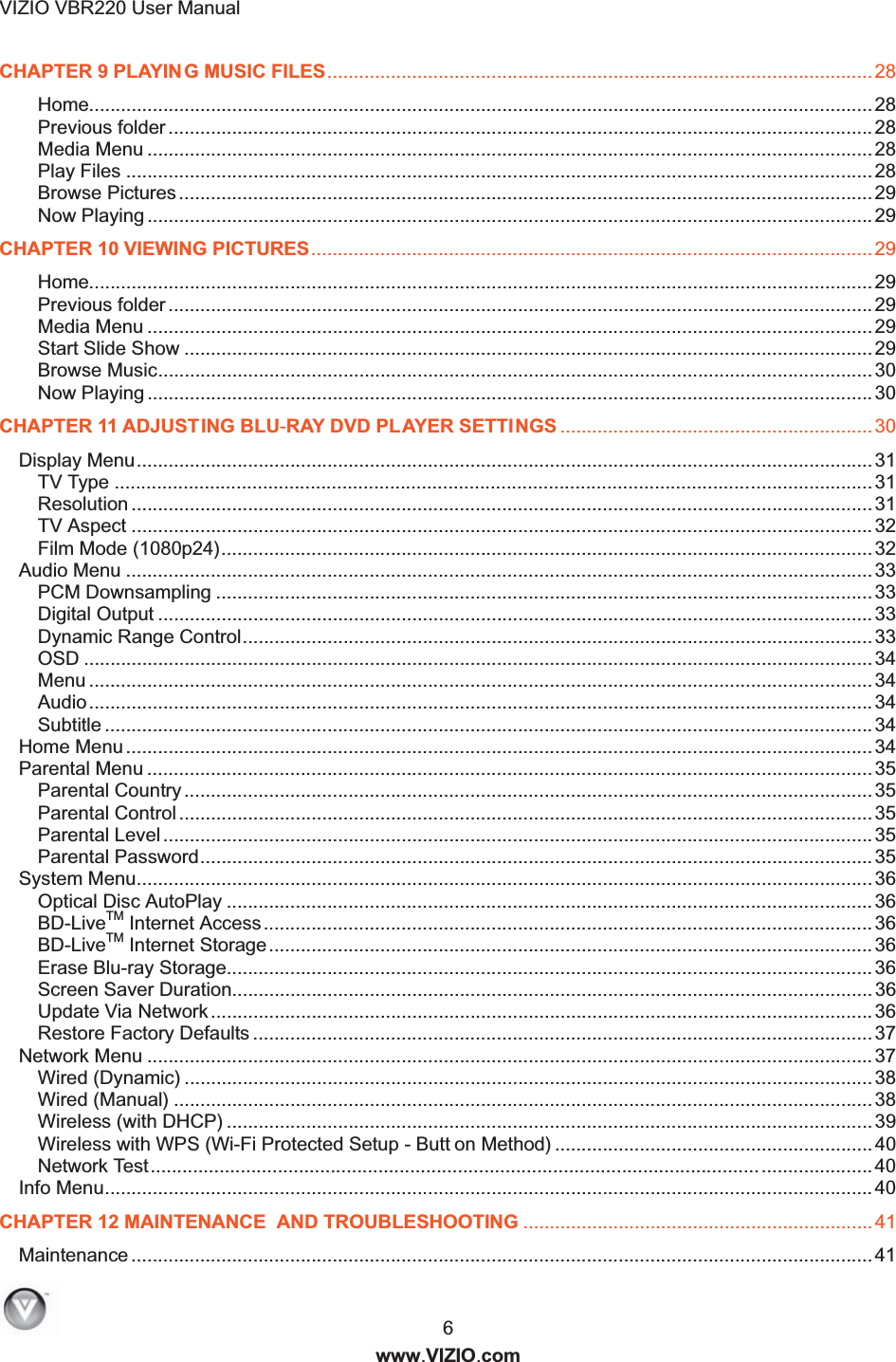

VIZIO VBR220 User Manual 6 www.VIZIO.com CHAPTER 9 PLAYING MUSIC FILES....................................................................................................... 28 Home....................................................................................................................................................28 Previous folder ..................................................................................................................................... 28 Media Menu .........................................................................................................................................28 Play Files .............................................................................................................................................28 Browse Pictures ...................................................................................................................................29 Now Playing ......................................................................................................................................... 29 CHAPTER 10 VIEWING PICTURES..........................................................................................................29 Home....................................................................................................................................................29 Previous folder ..................................................................................................................................... 29 Media Menu .........................................................................................................................................29 Start Slide Show .................................................................................................................................. 29 Browse Music.......................................................................................................................................30 Now Playing ......................................................................................................................................... 30 CHAPTER 11 ADJUSTING BLU-RAY DVD PLAYER SETTINGS ...........................................................30 Display Menu...........................................................................................................................................31 TV Type ...............................................................................................................................................31 Resolution ............................................................................................................................................31 TV Aspect ............................................................................................................................................32 Film Mode (1080p24)...........................................................................................................................32 Audio Menu ............................................................................................................................................. 33 PCM Downsampling ............................................................................................................................33 Digital Output ....................................................................................................................................... 33 Dynamic Range Control.......................................................................................................................33 OSD .....................................................................................................................................................34 Menu ....................................................................................................................................................34 Audio.................................................................................................................................................... 34 Subtitle ................................................................................................................................................. 34 Home Menu .............................................................................................................................................34 Parental Menu ......................................................................................................................................... 35Country ..................................................................................................................................35Control ................................................................................................................................... 35 Parental Level ...................................................................................................................................... 35 Parental Password...............................................................................................................................35 System Menu...........................................................................................................................................36 Optical Disc AutoPlay .......................................................................................................................... 36 BD-LiveTM Internet Access...................................................................................................................36 BD-LiveTM Internet Storage.................................................................................................................. 36 Erase Blu-ray Storage.......................................................................................................................... 36 Screen Saver Duration.........................................................................................................................36 Update Via Network ............................................................................................................................. 36 Restore Factory Defaults .....................................................................................................................37 Network Menu ......................................................................................................................................... 37 Wired (Dynamic) .................................................................................................................................. 38 Wired (Manual) .................................................................................................................................... 38 Wireless (with DHCP) ..........................................................................................................................39 Wireless with WPS (Wi-Fi Protected Setup - Butt on Method) ............................................................40 Network Test................................................................................................................... ..................... 40 Info Menu.................................................................................................................................................40 CHAPTER 12 MAINTENANCE AND TROUBLESHOOTING .................................................................. 41 Maintenance ............................................................................................................................................41 Parental Parental

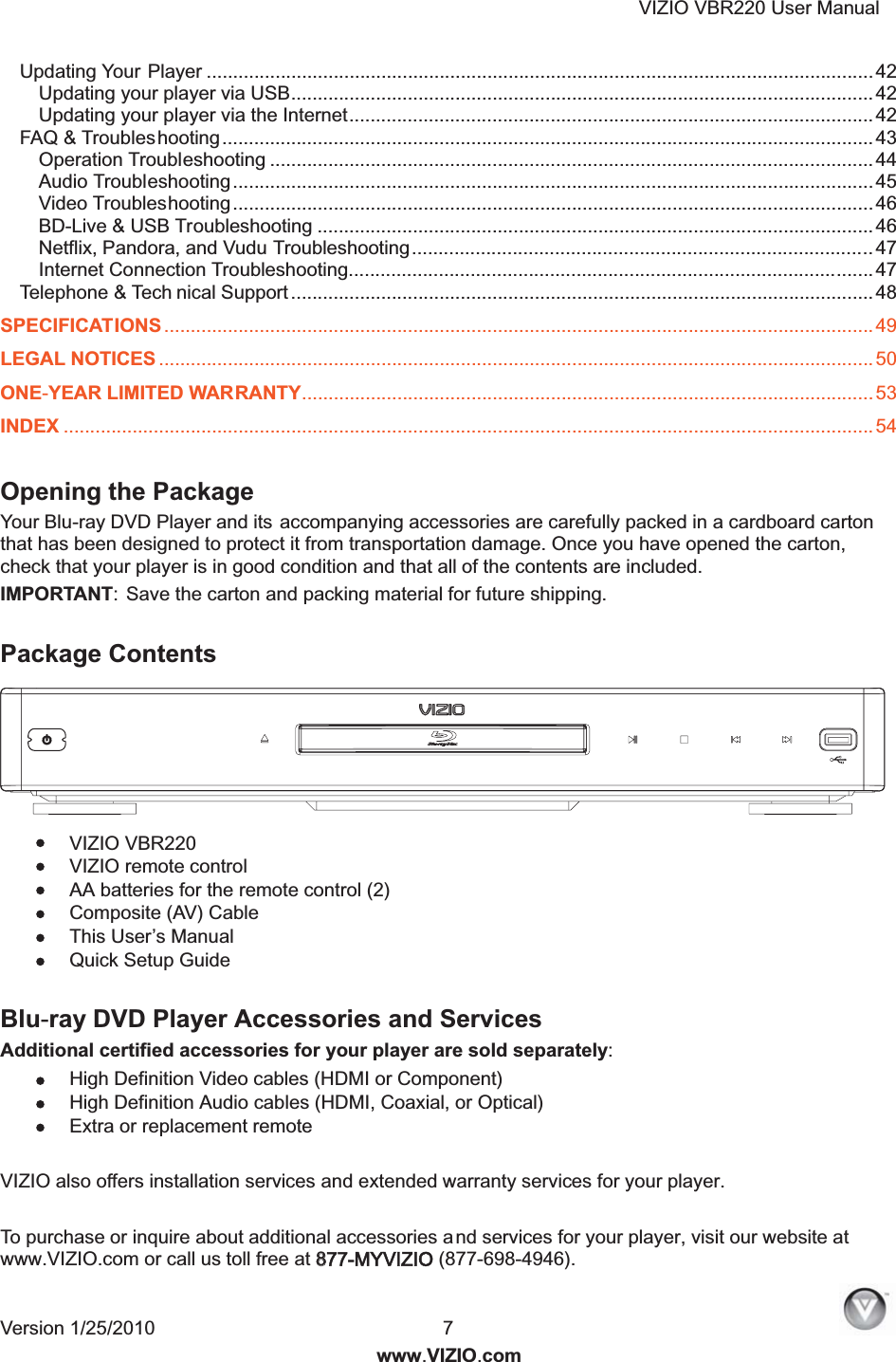

VIZIO VBR220 User Manual Version 1/25/2010 7 www.VIZIO.com Updating Your Player .............................................................................................................................. 42 Updating your player via USB.............................................................................................................. 42 Updating your player via the Internet...................................................................................................42 FAQ & Troubleshooting...........................................................................................................................43 Operation Troubleshooting .................................................................................................................. 44 Audio Troubleshooting......................................................................................................................... 45 Video Troubleshooting.........................................................................................................................46 BD-Live & USB Troubleshooting ......................................................................................................... 46 Netflix, Pandora, and Vudu Troubleshooting....................................................................................... 47 Internet Connection Troubleshooting................................................................................................... 47 Telephone & Tech nical Support .............................................................................................................. 48 SPECIFICATIONS ...................................................................................................................................... 49 LEGAL NOTICES ....................................................................................................................................... 50 ONE-YEAR LIMITED WARRANTY............................................................................................................53 INDEX ......................................................................................................................................................... 54 Opening the Package Your Blu-ray DVD Player and its accompanying accessories are carefully packed in a cardboard carton that has been designed to protect it from transportation damage. Once you have opened the carton, check that your player is in good condition and that all of the contents are included. IMPORTANT: Save the carton and packing material for future shipping. Package Contents VIZIO VBR220 VIZIO remote control AA batteries for the remote control (2) Composite (AV) Cable This User’s Manual Quick Setup Guide Blu-ray DVD Player Accessories and Services Additional certified accessories for your player are sold separately: High Definition Video cables (HDMI or Component) High Definition Audio cables (HDMI, Coaxial, or Optical) Extra or replacement remote VIZIO also offers installation services and extended warranty services for your player. To purchase or inquire about additional accessories and services for your player, visit our website at www.VIZIO.com or call us toll free at 8877-MYVIZIO (877-698-4946).

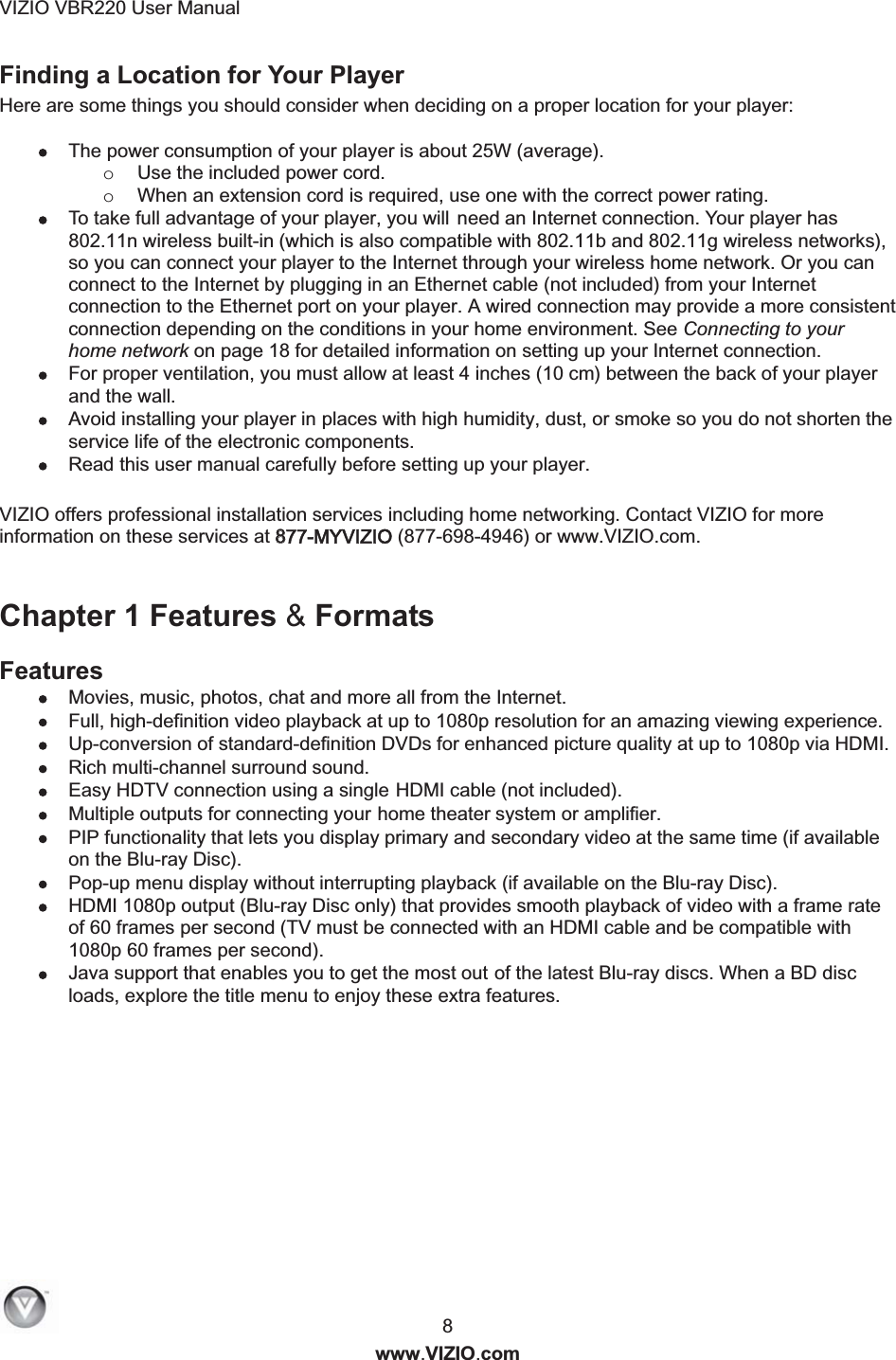

VIZIO VBR220 User Manual 8 www.VIZIO.com Finding a Location for Your Player Here are some things you should consider when deciding on a proper location for your player: The power consumption of your player is about 25W (average). o Use the included power cord. o When an extension cord is required, use one with the correct power rating. To take full advantage of your player, you will need an Internet connection. Your player has 802.11n wireless built-in (which is also compatible with 802.11b and 802.11g wireless networks), so you can connect your player to the Internet through your wireless home network. Or you can connect to the Internet by plugging in an Ethernet cable (not included) from your Internet connection to the Ethernet port on your player. A wired connection may provide a more consistent connection depending on the conditions in your home environment. See Connecting to your home network on page 18 for detailed information on setting up your Internet connection. For proper ventilation, you must allow at least 4 inches (10 cm) between the back of your player and the wall. Avoid installing your player in places with high humidity, dust, or smoke so you do not shorten the service life of the electronic components. Read this user manual carefully before setting up your player. VIZIO offers professional installation services including home networking. Contact VIZIO for more information on these services at 8877-MYVIZIO (877-698-4946) or www.VIZIO.com. Chapter 1 Features & Formats Features Movies, music, photos, chat and more all from the Internet. Full, high-definition video playback at up to 1080p resolution for an amazing viewing experience. Up-conversion of standard-definition DVDs for enhanced picture quality at up to 1080p via HDMI. Rich multi-channel surround sound. Easy HDTV connection using a single H D MI cable (not included). Multiple outputs for connecting yo u r home theater system or amplifier. PIP functionality that lets you display primary and secondary video at the same time (if available on the Blu-ray Disc). Pop-up menu display without interrupting playback (if available on the Blu-ray Disc). HDMI 1080p output (Blu-ray Disc only) that provides smooth playback of video with a frame rate of 60 frames per second (TV must be connected with an HDMI cable and be compatible with 1080p 60 frames per second). Java support that enables you to get the most o u t of the latest Blu-ray discs. When a BD disc loads, explore the title menu to enjoy these extra features.

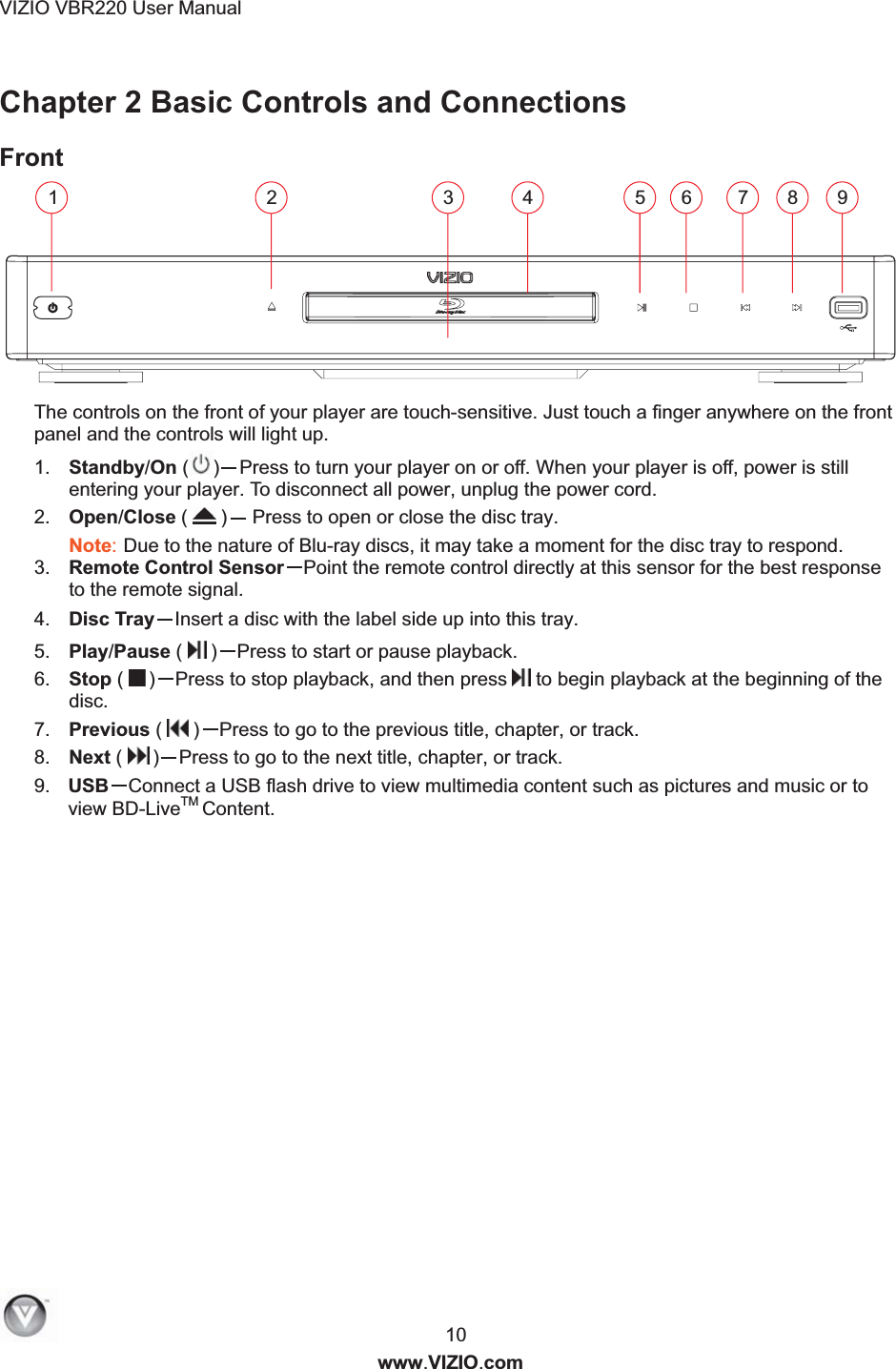

VIZIO VBR220 User Manual 10 www.VIZIO.com Chapter 2 Basic Controls and Connections Front The controls on the front of your player are touch-sensitive. Just touch a finger anywhere on the front panel and the controls will light up. 1. Standby/On ( )Press to turn your player on or off. When your player is off, power is still entering your player. To disconnect all power, unplug the power cord. 4. Disc Tray Insert a disc with the label side up into this tray. 2. Open/Close ( ) Press to open or close the disc tray. Note: Due to the nature of Blu-ray discs, it may take a moment for the disc tray to respond. 5. Play/Pause ( ) Press to start or pause playback. 6. Stop ( )Press to stop playback, and then press to begin playback at the beginning of the disc. 7. Previous ( ) Press to go to the previous title, chapter, or track. 8. Next ( ) Press to go to the next title, chapter, or track. USB Connect a USB flash drive to view multimedia content such as pictures and music or to view BD-LiveTM Content. 9. 1234567893. Remote Control Sensor Point the remote control directly at this sensor for the best response to the remote signal.

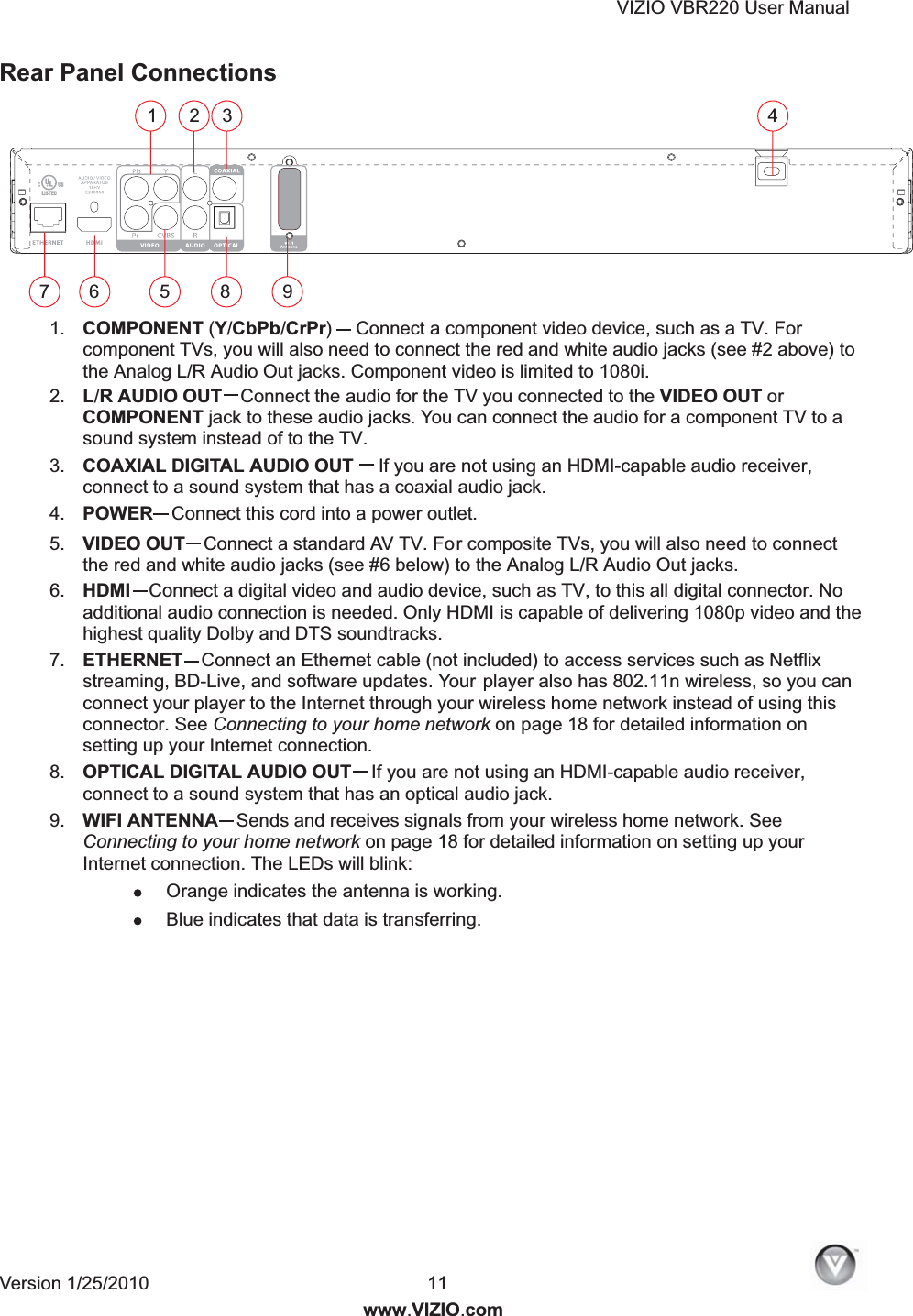

VIZIO VBR220 User Manual Version 1/25/2010 11 www.VIZIO.com Rear Panel Connections 5. VIDEO OUT Connect a standard AV TV. For composite TVs, you will also need to connect the red and white audio jacks (see #6 below) to the Analog L/R Audio Out jacks. 2. L/R AUDIO OUT Connect the audio for the TV you connected to the VIDEO OUT or COMPONENT jack to these audio jacks. You can connect the audio for a component TV to a sound system instead of to the TV. 3. COAXIAL DIGITAL AUDIO OUT If you are not using an HDMI-capable audio receiver, connect to a sound system that has a coaxial audio jack. 4. POWER Connect this cord into a power outlet. 1. COMPONENT (Y/CbPb/CrPr) Connect a component video device, such as a TV. For component TVs, you will also need to connect the red and white audio jacks (see #2 above) to the Analog L/R Audio Out jacks. Component video is limited to 1080i. 6. HDMI Connect a digital video and audio device, such as TV, to this all digital connector. No additional audio connection is needed. Only HDMI is capable of delivering 1080p video and the highest quality Dolby and DTS soundtracks. 7. ETHERNET Connect an Ethernet cable (not included) to access services such as Netflix streaming, BD-Live, and software updates. Your player also has 802.11n wireless, so you can connect your player to the Internet through your wireless home network instead of using this connector. See Connecting to your home network on page 18 for detailed information on setting up your Internet connection. 8. OPTICAL DIGITAL AUDIO OUT If you are not using an HDMI-capable audio receiver, connect to a sound system that has an optical audio jack. 9. WIFI ANTENNA Sends and receives signals from your wireless home network. See Connecting to your home network on page 18 for detailed information on setting up your Internet connection. The LEDs will blink: Orange indicates the antenna is working. Blue indicates that data is transferring. 198762345

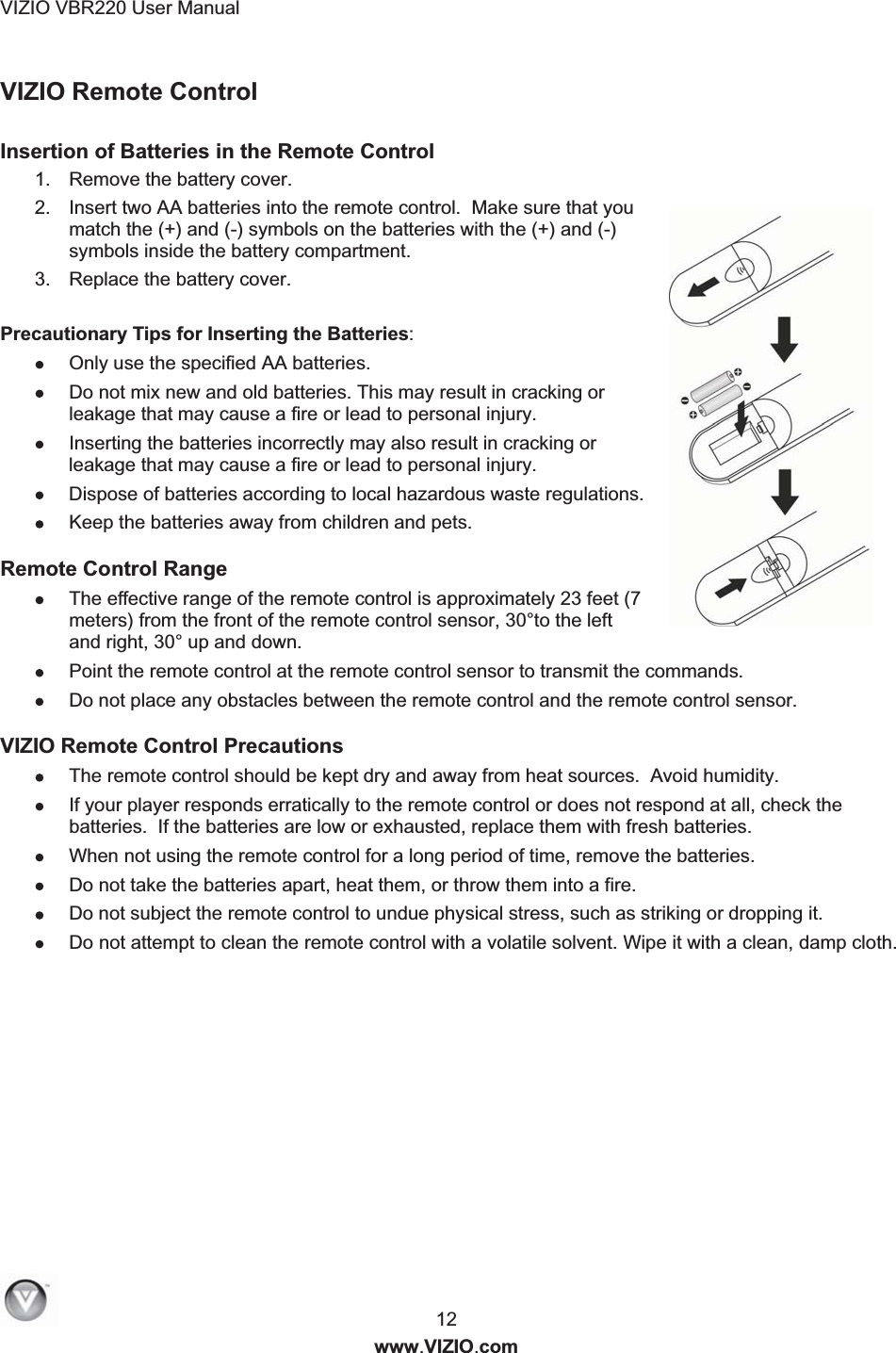

VIZIO VBR220 User Manual 12 www.VIZIO.com VIZIO Remote Control Insertion of Batteries in the Remote Control 1. Remove the battery cover. 2. Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment. 3. Replace the battery cover. Precautionary Tips for Inserting the Batteries: Only use the specified AA batteries. Do not mix new and old batteries. This may result in cracking or leakage that may cause a fire or lead to personal injury. Inserting the batteries incorrectly may also result in cracking or leakage that may cause a fire or lead to personal injury. Dispose of batteries according to local hazardous waste regulations. Keep the batteries away from children and pets. Remote Control Range The effective range of the remote control is approximately 23 feet (7 meters) from the front of the remote control sensor, 30°to the left and right, 30° up and down. Point the remote control at the remote control sensor to transmit the commands. Do not place any obstacles between the remote control and the remote control sensor. VIZIO Remote Control Precautions The remote control should be kept dry and away from heat sources. Avoid humidity. If your player responds erratically to the remote control or does not respond at all, check the batteries. If the batteries are low or exhausted, replace them with fresh batteries. When not using the remote control for a long period of time, remove the batteries. Do not take the batteries apart, heat them, or throw them into a fire. Do not subject the remote control to undue physical stress, such as striking or dropping it. Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.

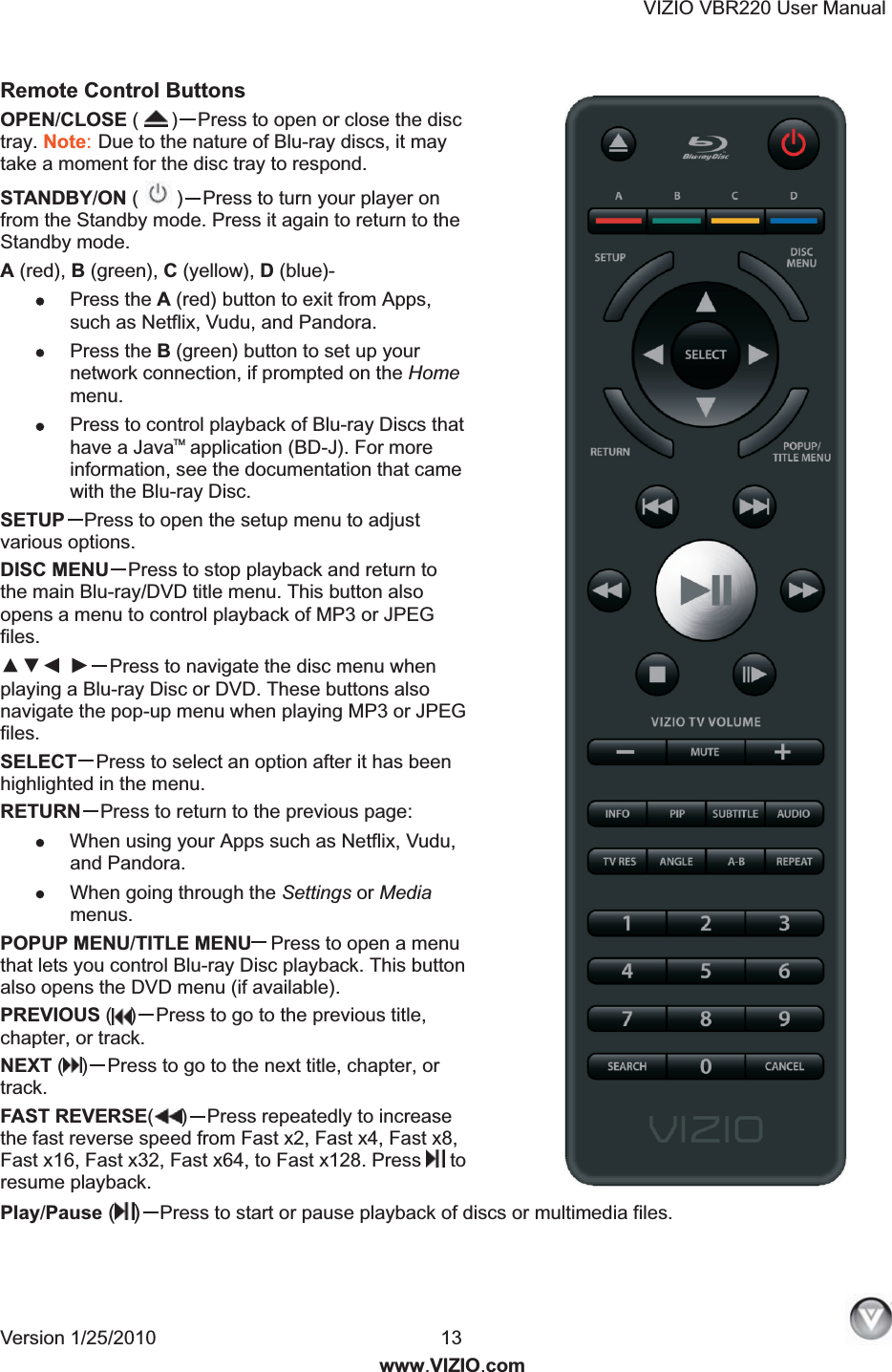

VIZIO VBR220 User Manual Version 1/25/2010 13 www.VIZIO.com Remote Control Buttons OPEN/CLOSE ( )Press to open or close the disc tray. Note: Due to the nature of Blu-ray discs, it may take a moment for the disc tray to respond. STANDBY/ON ( ) Press to turn your player on from the Standby mode. Press it again to return to the Standby mode. A (red), B (green), C (yellow), D (blue)- Press the A (red) button to exit from Apps, such as Netflix, Vudu, and Pandora. Press the B (green) button to set up your network connection, if prompted on the Home menu. Press to control playback of Blu-ray Discs that have a Java application (BD-J). For more information, see the documentation that came with the Blu-ray Disc. SETUP Press to open the setup menu to adjust various options. DISC MENU Press to stop playback and return to the main Blu-ray/DVD title menu. This button also opens a menu to control playback of MP3 or JPEG files. ▲▼◄ ►Press to navigate the disc menu when playing a Blu-ray Disc or DVD. These buttons also navigate the pop-up menu when playing MP3 or JPEG files. SELECT Press to select an option after it has been highlighted in the menu. RETURN Press to return to the previous page: When using your Apps such as Netflix, Vudu, and Pandora. When going through the Settings or Media menus. POPUP MENU/TITLE MENU Press to open a menu that lets you control Blu-ray Disc playback. This button also opens the DVD menu (if available). PREVIOUS ( )Press to go to the previous title, chapter, or track. NEXT ( )Press to go to the next title, chapter, or track. FAST REVERSE()Press repeatedly to increase the fast reverse speed from Fast x2, Fast x4, Fast x8, Fast x16, Fast x32, Fast x64, to Fast x128. Press to resume playback. Play/Pause ( ) Press to start or pause playback of discs or multimedia files. TM

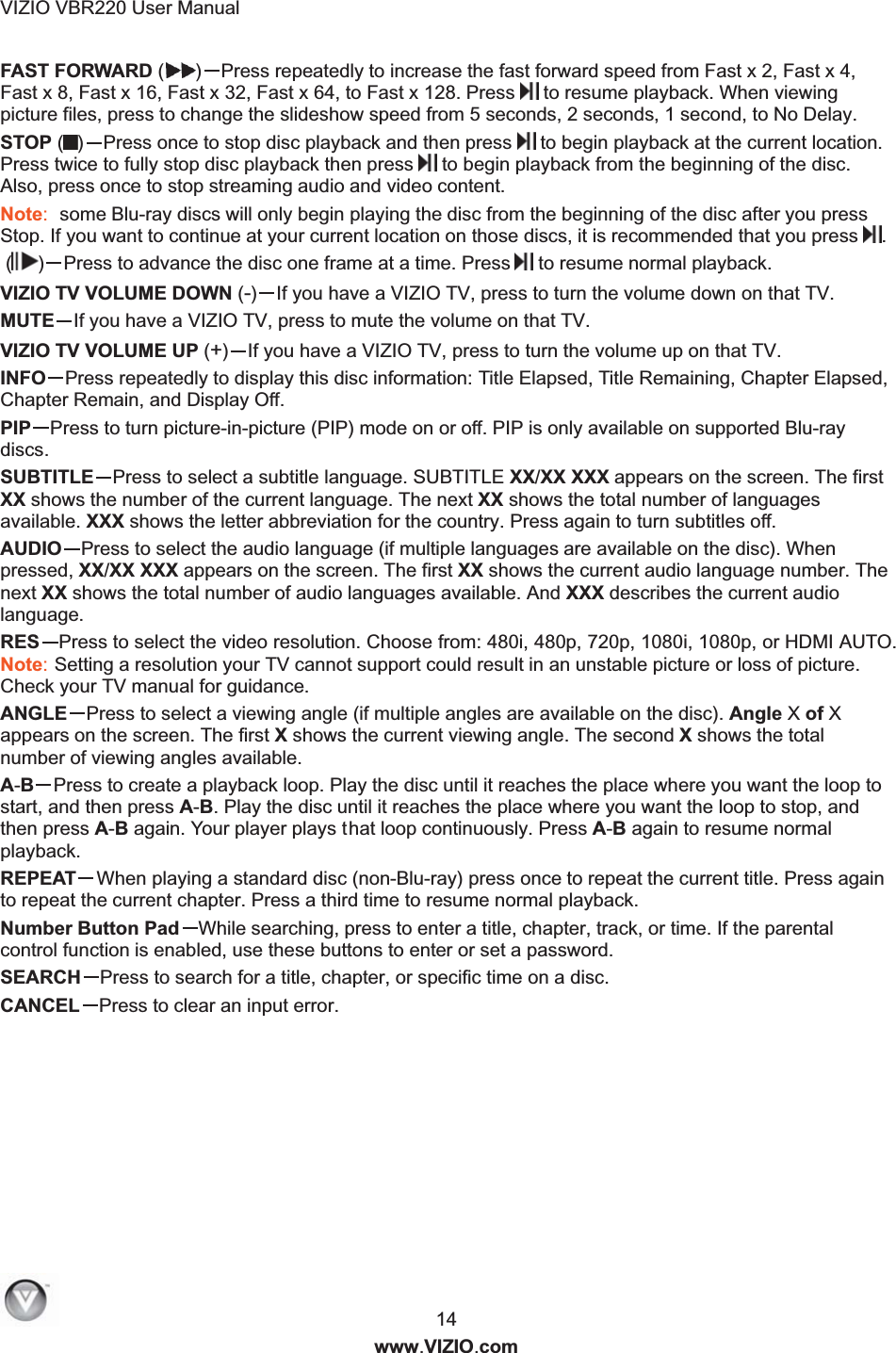

VIZIO VBR220 User Manual 14 www.VIZIO.com FAST FORWARD ( )Press repeatedly to increase the fast forward speed from Fast x 2, Fast x 4, Fast x 8, Fast x 16, Fast x 32, Fast x 64, to Fast x 128. Press to resume playback. When viewing picture files, press to change the slideshow speed from 5 seconds, 2 seconds, 1 second, to No Delay. STOP ( )Press once to stop disc playback and then press to begin playback at the current location. Press twice to fully stop disc playback then press to begin playback from the beginning of the disc. Also, press once to stop streaming audio and video content. Note: some Blu-ray discs will only begin playing the disc from the beginning of the disc after you press Stop. If you want to continue at your current location on those discs, it is recommended that you press . ( )Press to advance the disc one frame at a time. Press to resume normal playback. VIZIO TV VOLUME DOWN (-)If you have a VIZIO TV, press to turn the volume down on that TV. MUTE If you have a VIZIO TV, press to mute the volume on that TV. VIZIO TV VOLUME UP (+)If you have a VIZIO TV, press to turn the volume up on that TV. INFO Press repeatedly to display this disc information: Title Elapsed, Title Remaining, Chapter Elapsed, Chapter Remain, and Display Off. PIP Press to turn picture-in-picture (PIP) mode on or off. PIP is only available on supported Blu-ray discs. SUBTITLE Press to select a subtitle language. SUBTITLE XX/XX XXX appears on the screen. The first XX shows the number of the current language. The next XX shows the total number of languages available. XXX shows the letter abbreviation for the country. Press again to turn subtitles off. AUDIO Press to select the audio language (if multiple languages are available on the disc). When pressed, XX/XX XXX appears on the screen. The first XX shows the current audio language number. The next XX shows the total number of audio languages available. And XXX describes the current audio language. RES Press to select the video resolution. Choose from: 480i, 480p, 720p, 1080i, 1080p, or HDMI AUTO. Note: Setting a resolution your TV cannot support could result in an unstable picture or loss of picture. Check your TV manual for guidance. ANGLE Press to select a viewing angle (if multiple angles are available on the disc). Angle X of X appears on the screen. The first X shows the current viewing angle. The second X shows the total number of viewing angles available. A-BPress to create a playback loop. Play the disc until it reaches the place where you want the loop to start, and then press A-B. Play the disc until it reaches the place where you want the loop to stop, and then press A-B again. Your player plays that loop continuously. Press A-B again to resume normal playback. REPEAT When playing a standard disc (non-Blu-ray) press once to repeat the current title. Press again to repeat the current chapter. Press a third time to resume normal playback. Number Button Pad While searching, press to enter a title, chapter, track, or time. If the parental control function is enabled, use these buttons to enter or set a password. SEARCH Press to search for a title, chapter, or specific time on a disc. CANCEL Press to clear an input error.

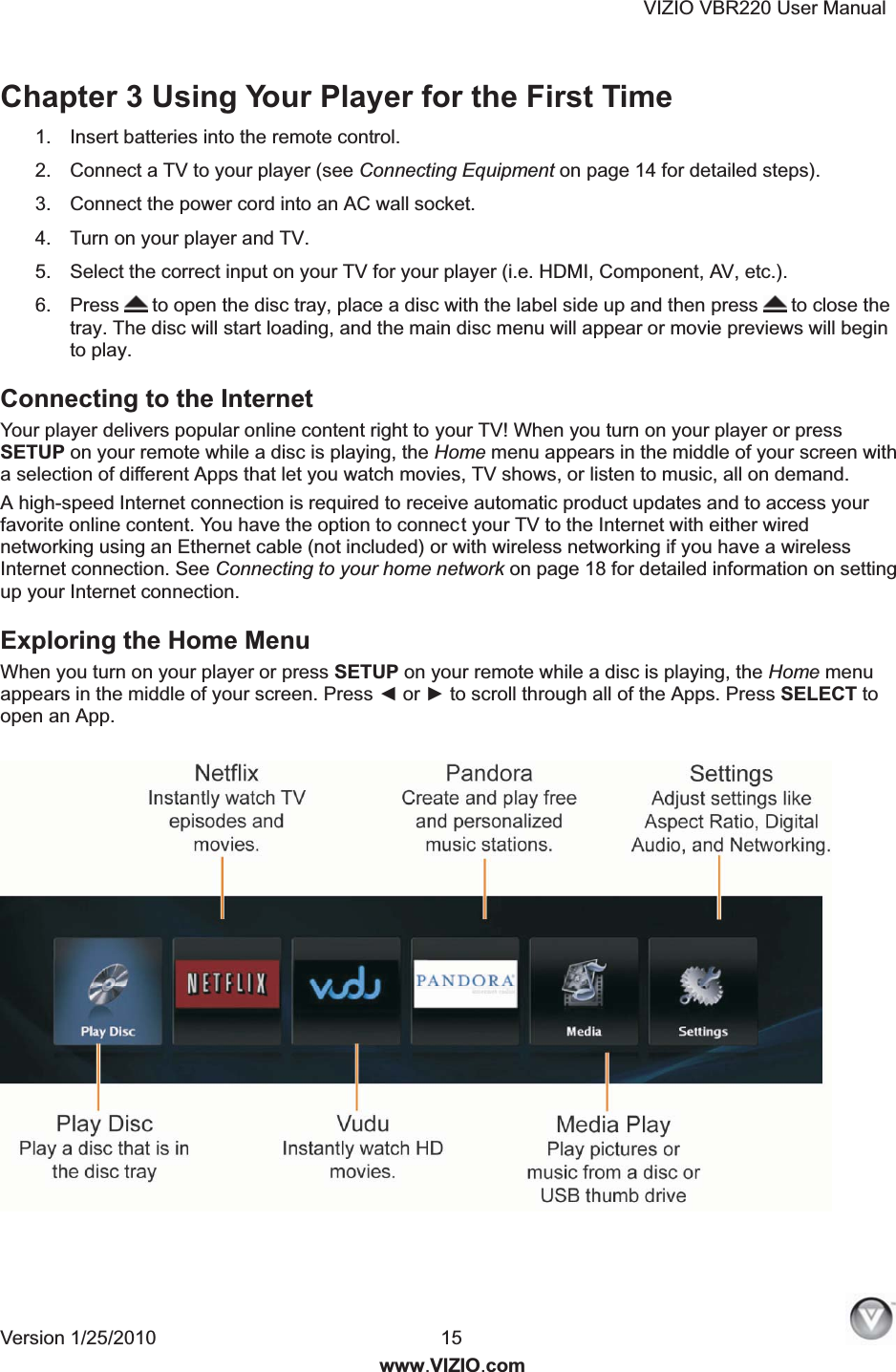

VIZIO VBR220 User Manual Version 1/25/2010 15 www.VIZIO.com Chapter 3 Using Your Player for the First Time 1. Insert batteries into the remote control. 2. Connect a TV to your player (see Connecting Equipment on page 14 for detailed steps). 3. Connect the power cord into an AC wall socket. 4. Turn on your player and TV. 5. Select the correct input on your TV for your player (i.e. HDMI, Component, AV, etc.). 6. Press to open the disc tray, place a disc with the label side up and then press to close the tray. The disc will start loading, and the main disc menu will appear or movie previews will begin to play. Connecting to the Internet Your player delivers popular online content right to your TV! When you turn on your player or press SETUP on your remote while a disc is playing, the Home menu appears in the middle of your screen with a selection of different Apps that let you watch movies, TV shows, or listen to music, all on demand. A high-speed Internet connection is required to receive automatic product updates and to access your favorite online content. You have the option to connect your TV to the Internet with either wired networking using an Ethernet cable (not included) or with wireless networking if you have a wireless Internet connection. See Connecting to your home network on page 18 for detailed information on setting up your Internet connection. Exploring the Home Menu When you turn on your player or press SETUP on your remote while a disc is playing, the Home menu appears in the middle of your screen. Press ◄ or ► to scroll through all of the Apps. Press SELECT to open an App.

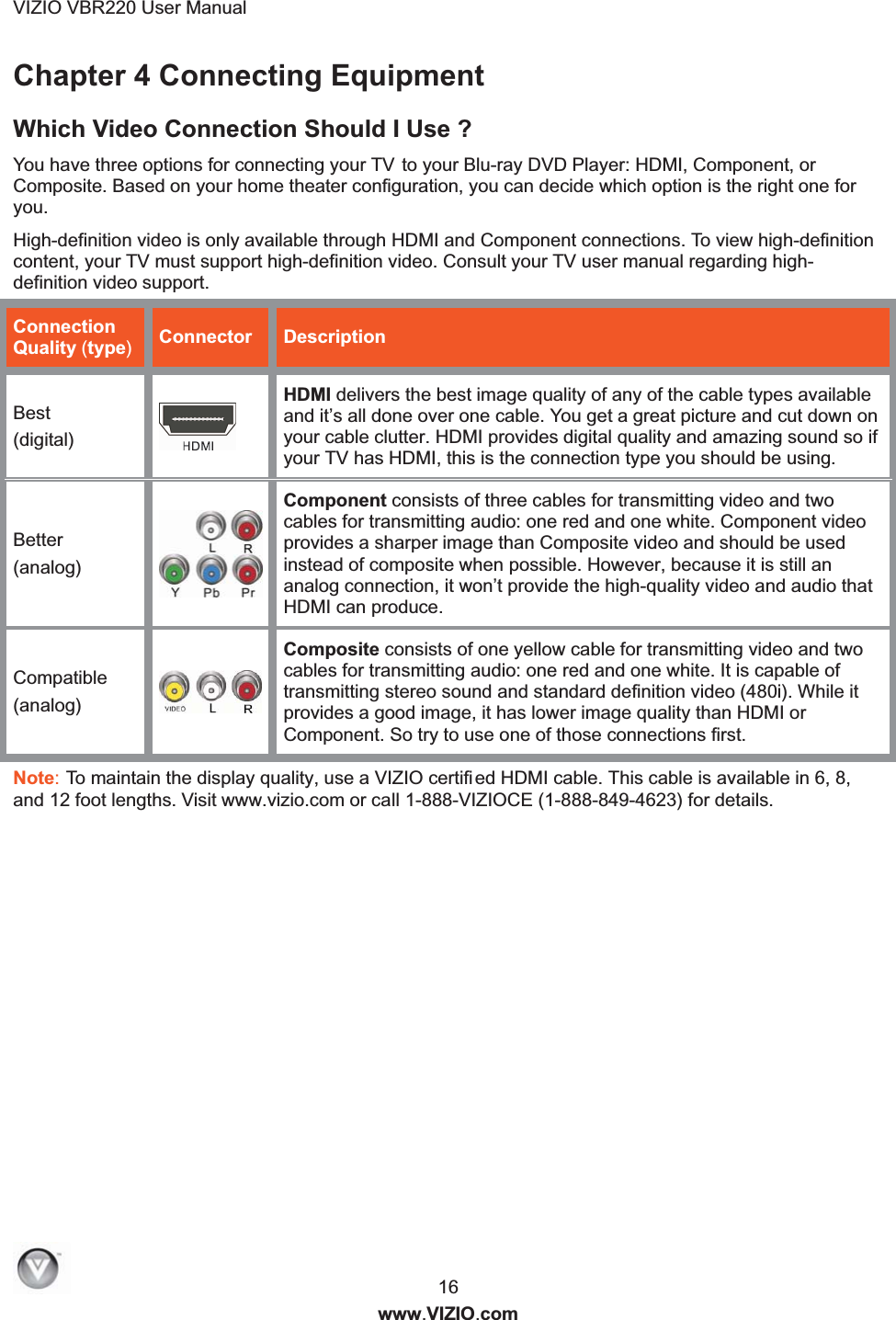

VIZIO VBR220 User Manual 16 www.VIZIO.com Chapter 4 Connecting Equipment Which Video Connection Should I Use ? You have three options for connecting your TV to your Blu-ray DVD Player: HDMI, Component, or Composite. Based on your home theater configuration, you can decide which option is the right one for you. High-definition video is only available through HDMI and Component connections. To view high-definition content, your TV must support high-definition video. Consult your TV user manual regarding high-definition video support. Connection Quality (type) Connector Description Best (digital) HDMI delivers the best image quality of any of the cable types available and it’s all done over one cable. You get a great picture and cut down on your cable clutter. HDMI provides digital quality and amazing sound so if your TV has HDMI, this is the connection type you should be using. Better (analog) Component consists of three cables for transmitting video and two cables for transmitting audio: one red and one white. Component video provides a sharper image than Composite video and should be used instead of composite when possible. However, because it is still an analog connection, it won’t provide the high-quality video and audio that HDMI can produce. Compatible (analog) Composite consists of one yellow cable for transmitting video and two cables for transmitting audio: one red and one white. It is capable of transmitting stereo sound and standard definition video (480i). While it provides a good image, it has lower image quality than HDMI or Component. So try to use one of those connections first. Note: To maintain the display quality, use a VIZIO certified HDMI cable. This cable is available in 6, 8, and 12 foot lengths. Visit www.vizio.com or call 1-888-VIZIOCE (1-888-849-4623) for details.

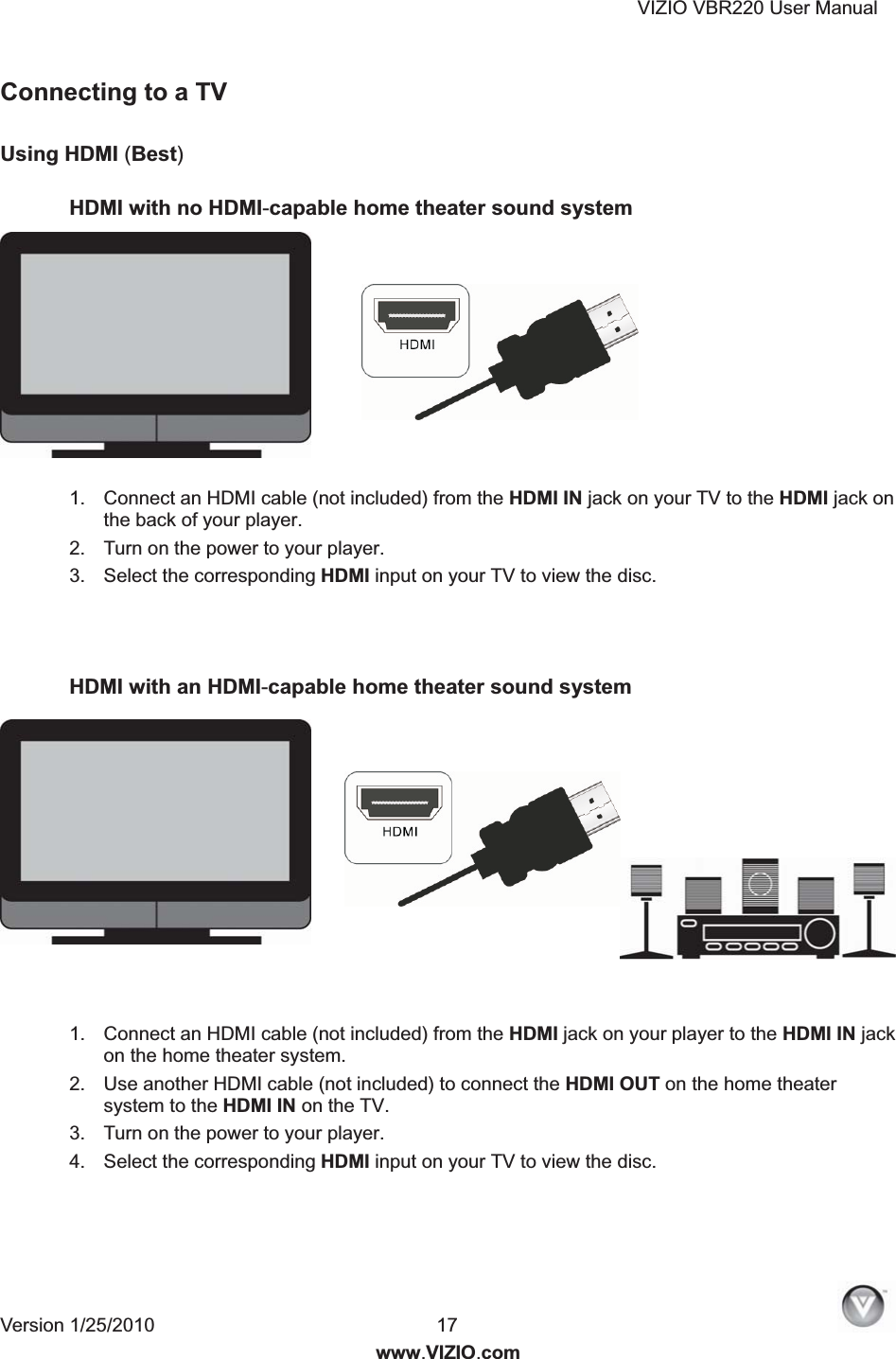

VIZIO VBR220 User Manual Version 1/25/2010 17 www.VIZIO.com Connecting to a TV Using HDMI (Best) HDMI with no HDMI-capable home theater sound system 1. Connect an HDMI cable (not included) from the HDMI IN jack on your TV to the HDMI jack on the back of your player. 2. Turn on the power to your player. 3. Select the corresponding HDMI input on your TV to view the disc. HDMI with an HDMI-capable home theater sound system 1. Connect an HDMI cable (not included) from the HDMI jack on your player to the HDMI IN jack on the home theater system. 2. Use another HDMI cable (not included) to connect the HDMI OUT on the home theater system to the HDMI IN on the TV. 3. Turn on the power to your player. 4. Select the corresponding HDMI input on your TV to view the disc.

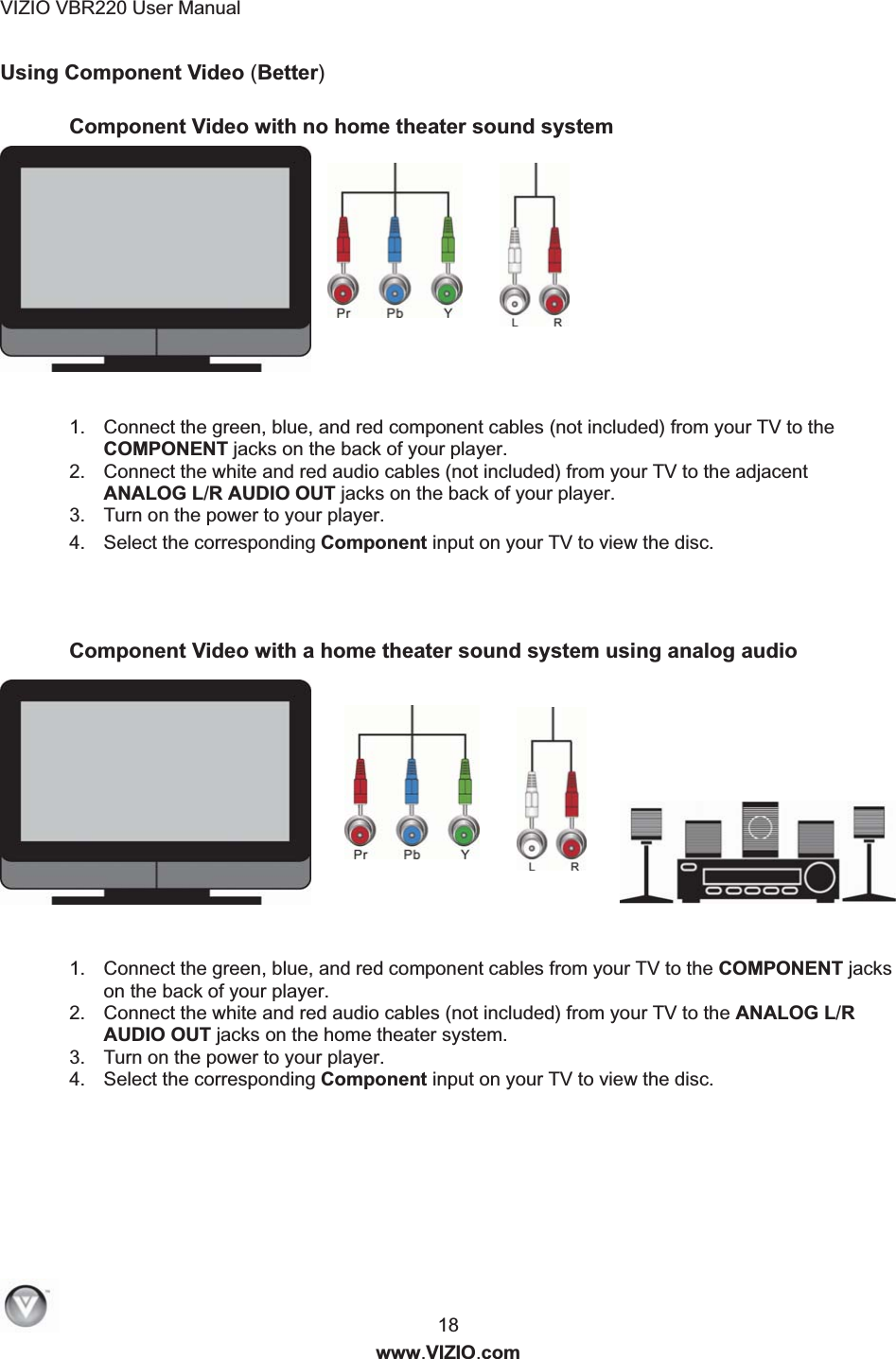

VIZIO VBR220 User Manual 18 www.VIZIO.com Using Component Video (Better) Component Video with no home theater sound system 1. Connect the green, blue, and red component cables (not included) from your TV to the COMPONENT jacks on the back of your player. 2. Connect the white and red audio cables (not included) from your TV to the adjacent ANALOG L/R AUDIO OUT jacks on the back of your player. 3. Turn on the power to your player. 4. Select the corresponding Component input on your TV to view the disc. Component Video with a home theater sound system using analog audio 1. Connect the green, blue, and red component cables from your TV to the COMPONENT jacks on the back of your player. 2. Connect the white and red audio cables (not included) from your TV to the ANALOG L/R AUDIO OUT jacks on the home theater system. 3. Turn on the power to your player. 4. Select the corresponding Component input on your TV to view the disc.

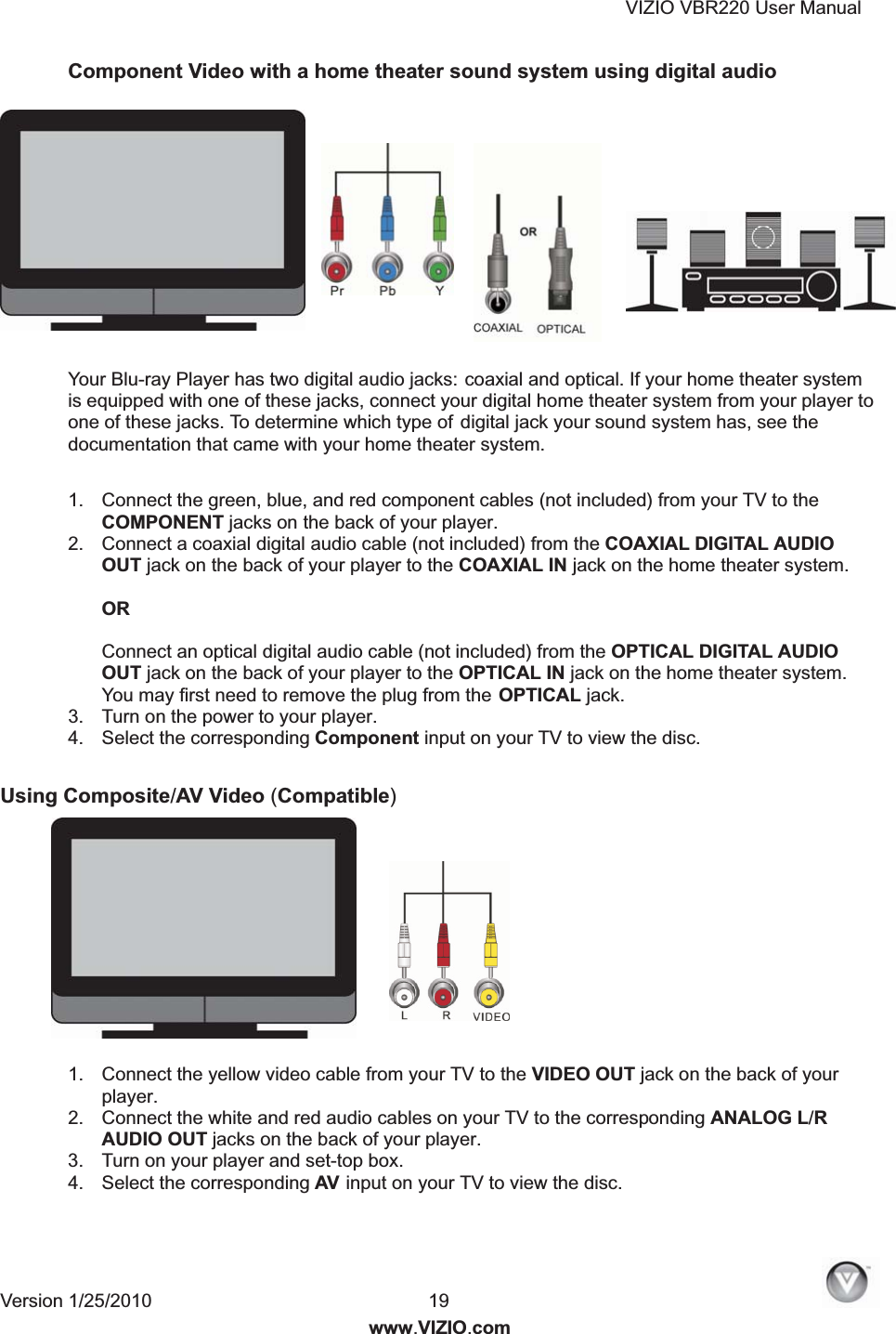

VIZIO VBR220 User Manual Version 1/25/2010 19www.VIZIO.com Component Video with a home theater sound system using digital audio Your Blu-ray Player has two digital audio jacks: coaxial and optical. If your home theater system is equipped with one of these jacks, connect your digital home theater system from your player to one of these jacks. To determine which type of digital jack your sound system has, see the documentation that came with your home theater system. 1. Connect the green, blue, and red component cables (not included) from your TV to the COMPONENT jacks on the back of your player. 2. Connect a coaxial digital audio cable (not included) from the COAXIAL DIGITAL AUDIO OUT jack on the back of your player to the COAXIAL IN jack on the home theater system. OR Connect an optical digital audio cable (not included) from the OPTICAL DIGITAL AUDIO OUT jack on the back of your player to the OPTICAL IN jack on the home theater system. You may first need to remove the plug from the OPTICAL jack. 3. Turn on the power to your player. 4. Select the corresponding Component input on your TV to view the disc. Using Composite/AV Video (Compatible) 1. Connect the yellow video cable from your TV to the VIDEO OUT jack on the back of your player. 2. Connect the white and red audio cables on your TV to the corresponding ANALOG L/R AUDIO OUT jacks on the back of your player. 3. Turn on your player and set-top box. 4. Select the corresponding AV input on your TV to view the disc.

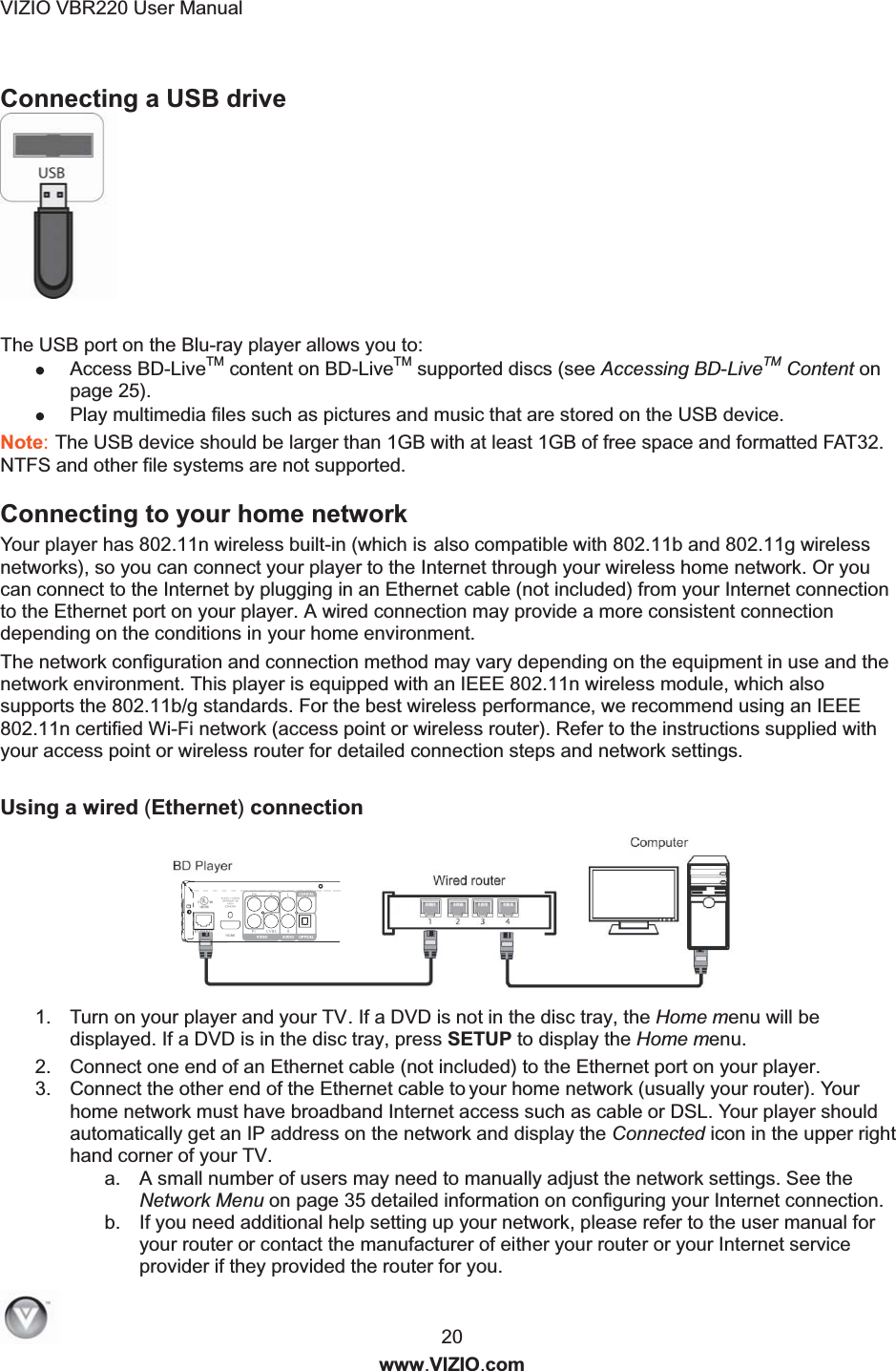

VIZIO VBR220 User Manual 20 www.VIZIO.com Connecting a USB drive The USB port on the Blu-ray player allows you to: Access BD-LiveTM content on BD-LiveTM supported discs (see Accessing BD-LiveTM Content on page 25). Play multimedia files such as pictures and music that are stored on the USB device. Note: The USB device should be larger than 1GB with at least 1GB of free space and formatted FAT32. NTFS and other file systems are not supported. Connecting to your home network Your player has 802.11n wireless built-in (which is also compatible with 802.11b and 802.11g wireless networks), so you can connect your player to the Internet through your wireless home network. Or you can connect to the Internet by plugging in an Ethernet cable (not included) from your Internet connection to the Ethernet port on your player. A wired connection may provide a more consistent connection depending on the conditions in your home environment. The network configuration and connection method may vary depending on the equipment in use and the network environment. This player is equipped with an IEEE 802.11n wireless module, which also supports the 802.11b/g standards. For the best wireless performance, we recommend using an IEEE 802.11n certified Wi-Fi network (access point or wireless router). Refer to the instructions supplied with your access point or wireless router for detailed connection steps and network settings. Using a wired (Ethernet) connection 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Connect one end of an Ethernet cable (not included) to the Ethernet port on your player. 3. Connect the other end of the Ethernet cable to y our home network (usually your router). Your home network must have broadband Internet access such as cable or DSL. Your player should automatically get an IP address on the network and display the Connected icon in the upper right hand corner of your TV. a. A small number of users may need to manually adjust the network settings. See the Network Menu on page 35 detailed information on configuring your Internet connection. b. If you need additional help setting up your network, please refer to the user manual for your router or contact the manufacturer of either your router or your Internet service provider if they provided the router for you.

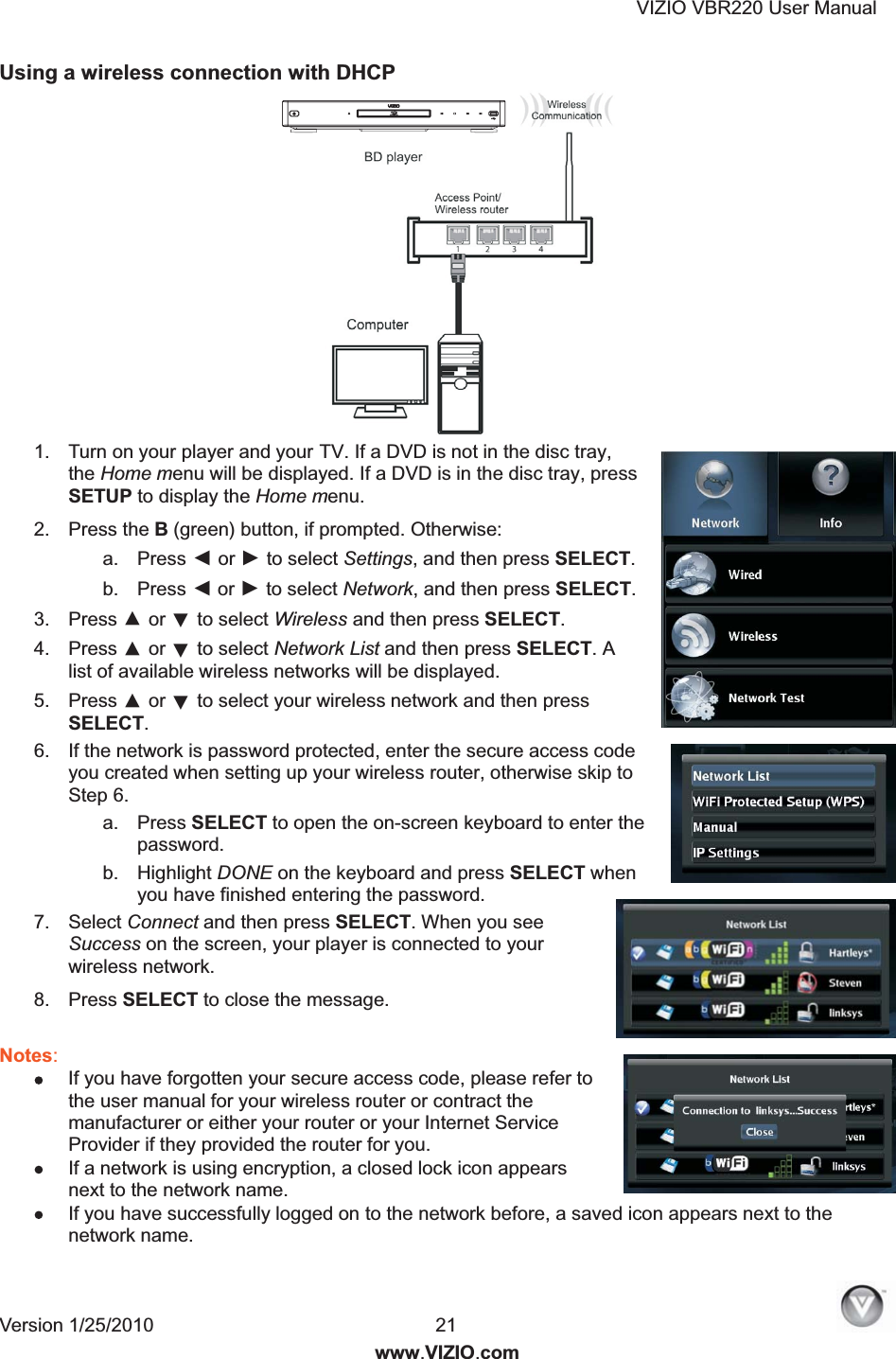

VIZIO VBR220 User Manual Version 1/25/2010 21 www.VIZIO.com Using a wireless connection with DHCP 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press the B (green) button, if prompted. Otherwise: a. Press ◄ or ► to select Settings, and then press SELECT. b. Press ◄ or ► to select Network, and then press SELECT. 3. Press ▲ or ▼ to select Wireless and then press SELECT. 4. Press ▲ or ▼ to select Network List and then press SELECT. A list of available wireless networks will be displayed. 5. Press ▲ or ▼ to select your wireless network and then press SELECT. 6. If the network is password protected, enter the secure access code you created when setting up your wireless router, otherwise skip to Step 6. a. Press SELECT to open the on-screen keyboard to enter the password. b. Highlight DONE on the keyboard and press SELECT when you have finished entering the password. 7. Select Connect and then press SELECT. When you see Success on the screen, your player is connected to your wireless network. 8. Press SELECT to close the message. Notes: If you have forgotten your secure access code, please refer to the user manual for your wireless router or contract the manufacturer or either your router or your Internet Service Provider if they provided the router for you. If a network is using encryption, a closed lock icon appears next to the network name. If you have successfully logged on to the network before, a saved icon appears next to the network name.

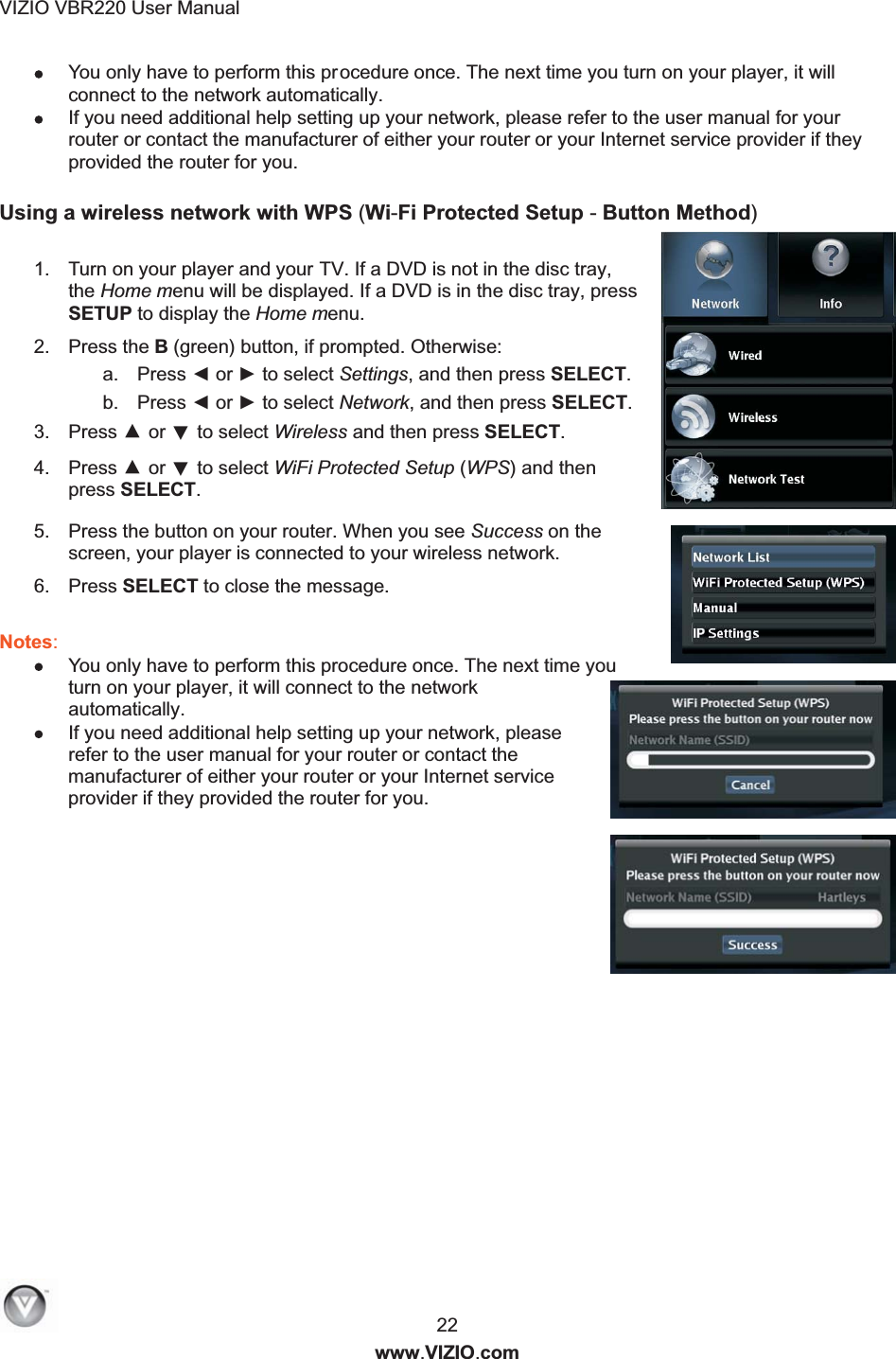

VIZIO VBR220 User Manual 22 www.VIZIO.com You only have to perform this procedure once. The next time you turn on your player, it will connect to the network automatically. If you need additional help setting up your network, please refer to the user manual for your router or contact the manufacturer of either your router or your Internet service provider if they provided the router for you. Using a wireless network with WPS (Wi-Fi Protected Setup - Button Method) 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press the B (green) button, if prompted. Otherwise: a. Press ◄ or ► to select Settings, and then press SELECT. b. Press ◄ or ► to select Network, and then press SELECT. 3. Press ▲ or ▼ to select Wireless and then press SELECT. 4. Press ▲ or ▼ to select WiFi Protected Setup (WPS) and then press SELECT. 5. Press the button on your router. When you see Success on the screen, your player is connected to your wireless network. 6. Press SELECT to close the message. Notes: You only have to perform this procedure once. The next time you turn on your player, it will connect to the network automatically. If you need additional help setting up your network, please refer to the user manual for your router or contact the manufacturer of either your router or your Internet service provider if they provided the router for you.

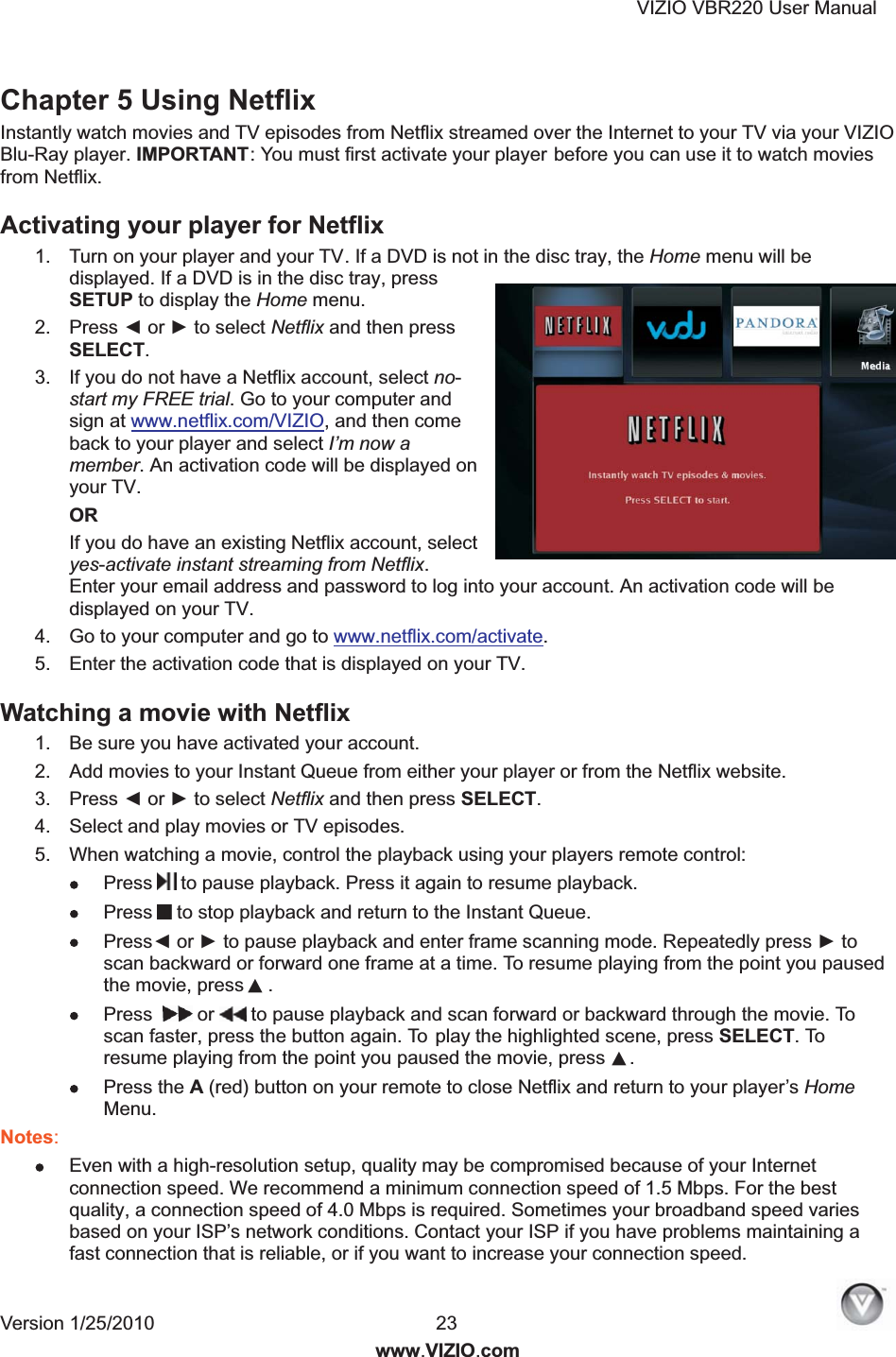

VIZIO VBR220 User Manual Version 1/25/2010 23 www.VIZIO.com Chapter 5 Using Netflix Instantly watch movies and TV episodes from Netflix streamed over the Internet to your TV via your VIZIO Blu-Ray player. IMPORTANT: You must first activate your player before you can use it to watch movies from Netflix. Activating your player for Netflix 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Netflix and then press SELECT. 3. If you do not have a Netflix account, select no-start my FREE trial. Go to your computer and sign at www.netflix.com/VIZIO, and then come back to your player and select I’m now a member. An activation code will be displayed on your TV. OR If you do have an existing Netflix account, select yes-activate instant streaming from Netflix. Enter your email address and password to log into your account. An activation code will be displayed on your TV. 4. Go to your computer and go to www.netflix.com/activate. 5. Enter the activation code that is displayed on your TV. Watching a movie with Netflix 1. Be sure you have activated your account. 2. Add movies to your Instant Queue from either your player or from the Netflix website. 3. Press ◄ or ► to select Netflix and then press SELECT. 4. Select and play movies or TV episodes. 5. When watching a movie, control the playback using your players remote control: Press to pause playback. Press it again to resume playback. Press to stop playback and return to the Instant Queue. Press◄ or ► to pause playback and enter frame scanning mode. Repeatedly press ► to scan backward or forward one frame at a time. To resume playing from the point you paused the movie, press ▲. Pres s or to pause playback and scan forward or backward through the movie. To scan faster, press the button again. To play the highlighted scene, press SELECT. To resume playing from the point you paused the movie, press ▲. Press the A (red) button on your remote to close Netflix and return to your player’s Home Menu. Notes: Even with a high-resolution setup, quality may be compromised because of your Internet connection speed. We recommend a minimum connection speed of 1.5 Mbps. For the best quality, a connection speed of 4.0 Mbps is required. Sometimes your broadband speed varies based on your ISP’s network conditions. Contact your ISP if you have problems maintaining a fast connection that is reliable, or if you want to increase your connection speed.

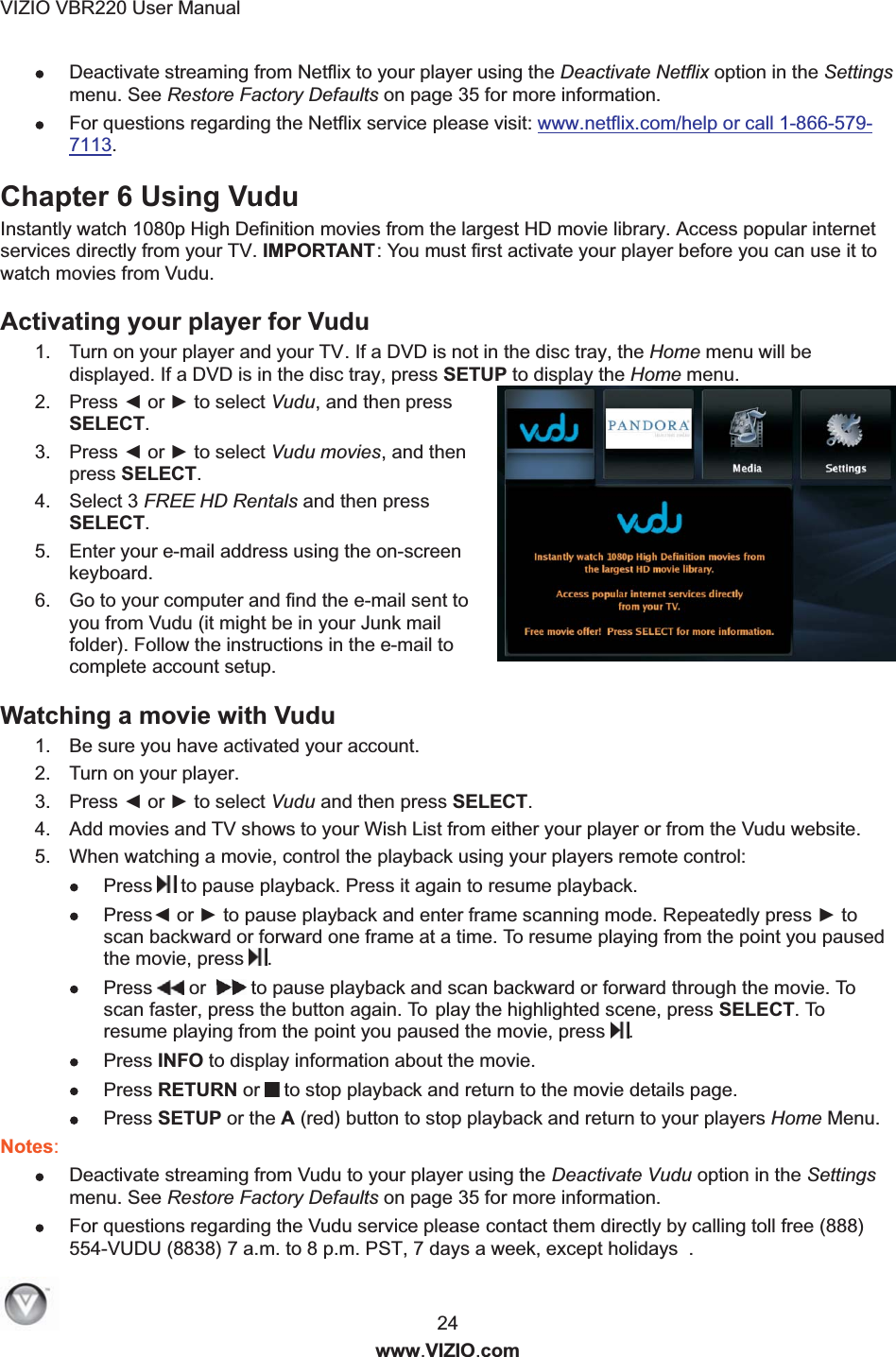

VIZIO VBR220 User Manual 24 www.VIZIO.com Deactivate streaming from Netflix to your player using the Deactivate Netflix option in the Settings menu. See Restore Factory Defaults on page 35 for more information. For questions regarding the Netflix service please visit: www.netflix.com/help or call 1-866-579-7113. Chapter 6 Using Vudu Instantly watch 1080p High Definition movies from the largest HD movie library. Access popular internet services directly from your TV. IMPORTANT: You must first activate your player before you can use it to watch movies from Vudu. Activating your player for Vudu 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Vudu, and then press SELECT. 3. Press ◄ or ► to select Vudu movies, and then press SELECT. 4. Select 3 FREE HD Rentals and then press SELECT. 5. Enter your e-mail address using the on-screen keyboard. 6. Go to your computer and find the e-mail sent to you from Vudu (it might be in your Junk mail folder). Follow the instructions in the e-mail to complete account setup. Watching a movie with Vudu 1. Be sure you have activated your account. 2. Turn on your player. 3. Press ◄ or ► to select Vudu and then press SELECT. 4. Add movies and TV shows to your Wish List from either your player or from the Vudu website. 5. When watching a movie, control the playback using your players remote control: Press to pause playback. Press it again to resume playback. Press◄ or ► to pause playback and enter frame scanning mode. Repeatedly press ► to scan backward or forward one frame at a time. To resume playing from the point you paused the movie, press . Press or to pause playback and scan backward or forward through the movie. To scan faster, press the button again. To play the highlighted scene, press SELECT. To resume playing from the point you paused the movie, press . Press INFO to display information about the movie. Press RETURN or to stop playback and return to the movie details page. Press SETUP or the A (red) button to stop playback and return to your players Home Menu. Notes: Deactivate streaming from Vudu to your player using the Deactivate Vudu option in the Settings menu. See Restore Factory Defaults on page 35 for more information. For questions regarding the Vudu service please contact them directly by calling toll free (888) 554-VUDU (8838) 7 a.m. to 8 p.m. PST, 7 days a week, except holidays .

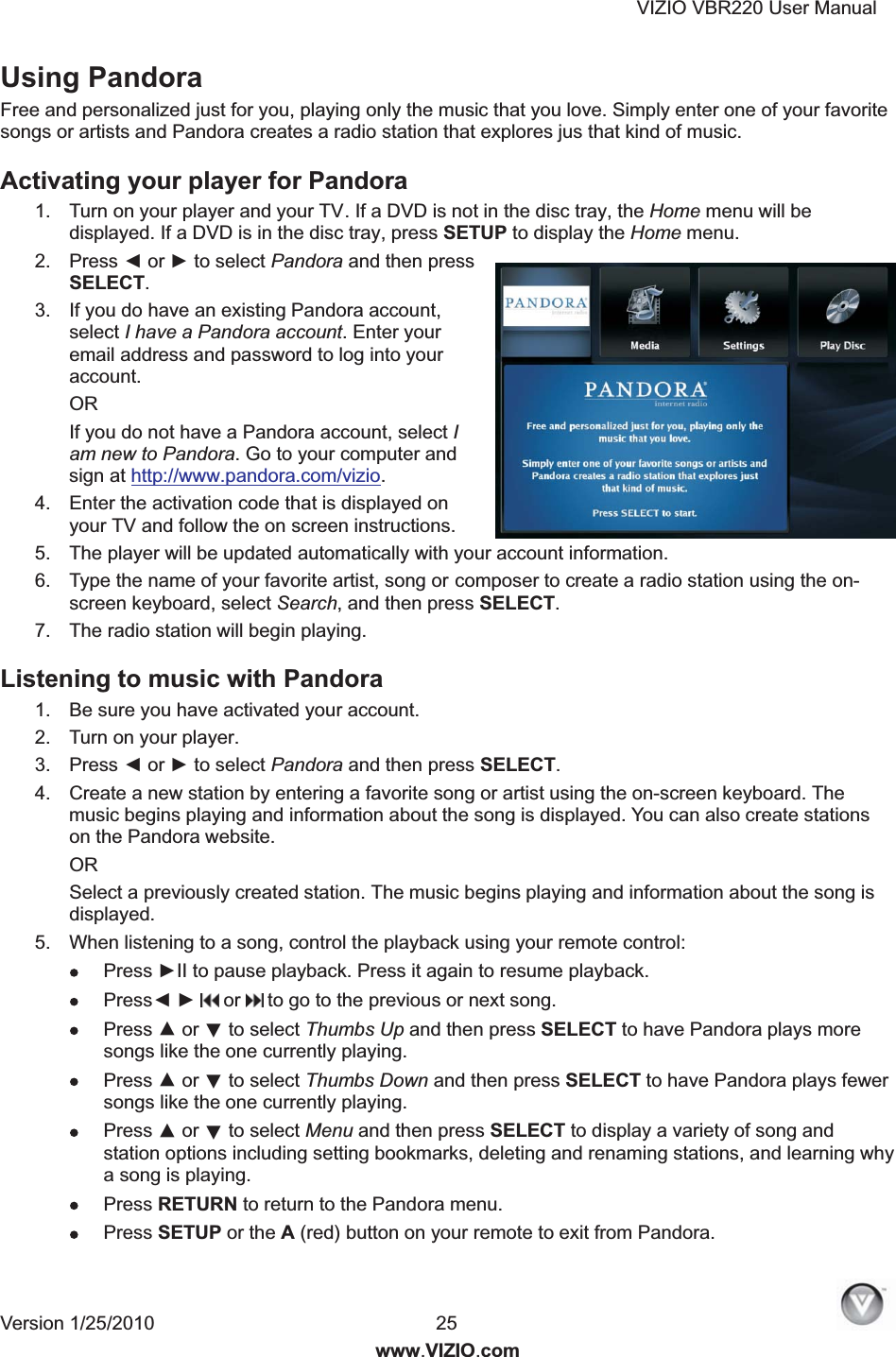

VIZIO VBR220 User Manual Version 1/25/2010 25 www.VIZIO.com Using Pandora Free and personalized just for you, playing only the music that you love. Simply enter one of your favorite songs or artists and Pandora creates a radio station that explores jus that kind of music. Activating your player for Pandora 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Pandora and then press SELECT. 3. If you do have an existing Pandora account, select I have a Pandora account. Enter your email address and password to log into your account. OR If you do not have a Pandora account, select I am new to Pandora. Go to your computer and sign at http://www.pandora.com/vizio. 4. Enter the activation code that is displayed on your TV and follow the on screen instructions. 5. The player will be updated automatically with your account information. 6. Type the name of your favorite artist, song or composer to create a radio station using the on-screen keyboard, select Search, and then press SELECT. 7. The radio station will begin playing. Listening to music with Pandora 1. Be sure you have activated your account. 2. Turn on your player. 3. Press ◄ or ► to select Pandora and then press SELECT. 4. Create a new station by entering a favorite song or artist using the on-screen keyboard. The music begins playing and information about the song is displayed. You can also create stations on the Pandora website. OR Select a previously created station. The music begins playing and information about the song is displayed. 5. When listening to a song, control the playback using your remote control: Press ►II to pause playback. Press it again to resume playback. Press◄ ► or to go to the previous or next song. Press ▲ or ▼ to select Thumbs Up and then press SELECT to have Pandora plays more songs like the one currently playing. Press ▲ or ▼ to select Thumbs Down and then press SELECT to have Pandora plays fewer songs like the one currently playing. Press ▲ or ▼ to select Menu and then press SELECT to display a variety of song and station options including setting bookmarks, deleting and renaming stations, and learning why a song is playing. Press RETURN to return to the Pandora menu. Press SETUP or the A (red) button on your remote to exit from Pandora.

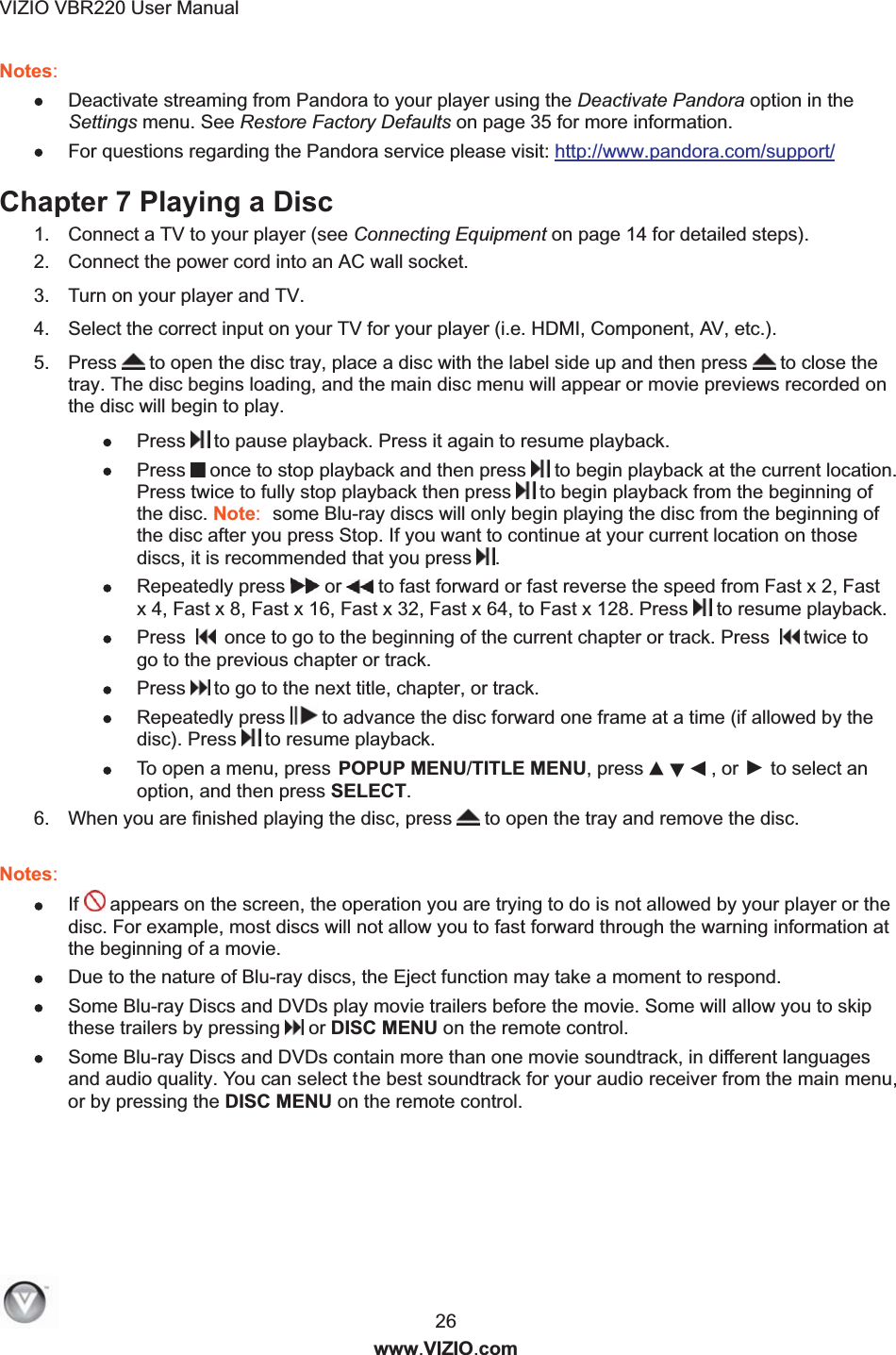

VIZIO VBR220 User Manual 26 www.VIZIO.com Notes: Deactivate streaming from Pandora to your player using the Deactivate Pandora option in the Settings menu. See Restore Factory Defaults on page 35 for more information. For questions regarding the Pandora service please visit: http://www.pandora.com/support/ Chapter 7 Playing a Disc 1. Connect a TV to your player (see Connecting Equipment on page 14 for detailed steps). 2. Connect the power cord into an AC wall socket. 3. Turn on your player and TV. 4. Select the correct input on your TV for your player (i.e. HDMI, Component, AV, etc.). 5. Press to open the disc tray, place a disc with the label side up and then press to close the tray. The disc begins loading, and the main disc menu will appear or movie previews recorded on the disc will begin to play. Press to pause playback. Press it again to resume playback. Press once to stop playback and then press to begin playback at the current location. Press twice to fully stop playback then press to begin playback from the beginning of the disc. Note: some Blu-ray discs will only begin playing the disc from the beginning of the disc after you press Stop. If you want to continue at your current location on those discs, it is recommended that you press . Repeatedly press or to fast forward or fast reverse the speed from Fast x 2, Fast x 4, Fast x 8, Fast x 16, Fast x 32, Fast x 64, to Fast x 128. Press to resume playback. Press once to go to the beginning of the current chapter or track. Press twice to go to the previous chapter or track. Press to go to the next title, chapter, or track. Repeatedly press to advance the disc forward one frame at a time (if allowed by the disc). Press to resume playback. To open a menu, press POPUP MENU/TITLE MENU, press ▲▼ , or ► to select an option, and then press SELECT. 6. When you are finished playing the disc, press to open the tray and remove the disc. Notes: If appears on the screen, the operation you are trying to do is not allowed by your player or the disc. For example, most discs will not allow you to fast forward through the warning information at the beginning of a movie. Due to the nature of Blu-ray discs, the Eject function may take a moment to respond. Some Blu-ray Discs and DVDs play movie trailers before the movie. Some will allow you to skip these trailers by pressing or DISC MENU on the remote control. Some Blu-ray Discs and DVDs contain more than one movie soundtrack, in different languages and audio quality. You can select the best soundtrack for your audio receiver from the main menu, or by pressing the DISC MENU on the remote control. ◄

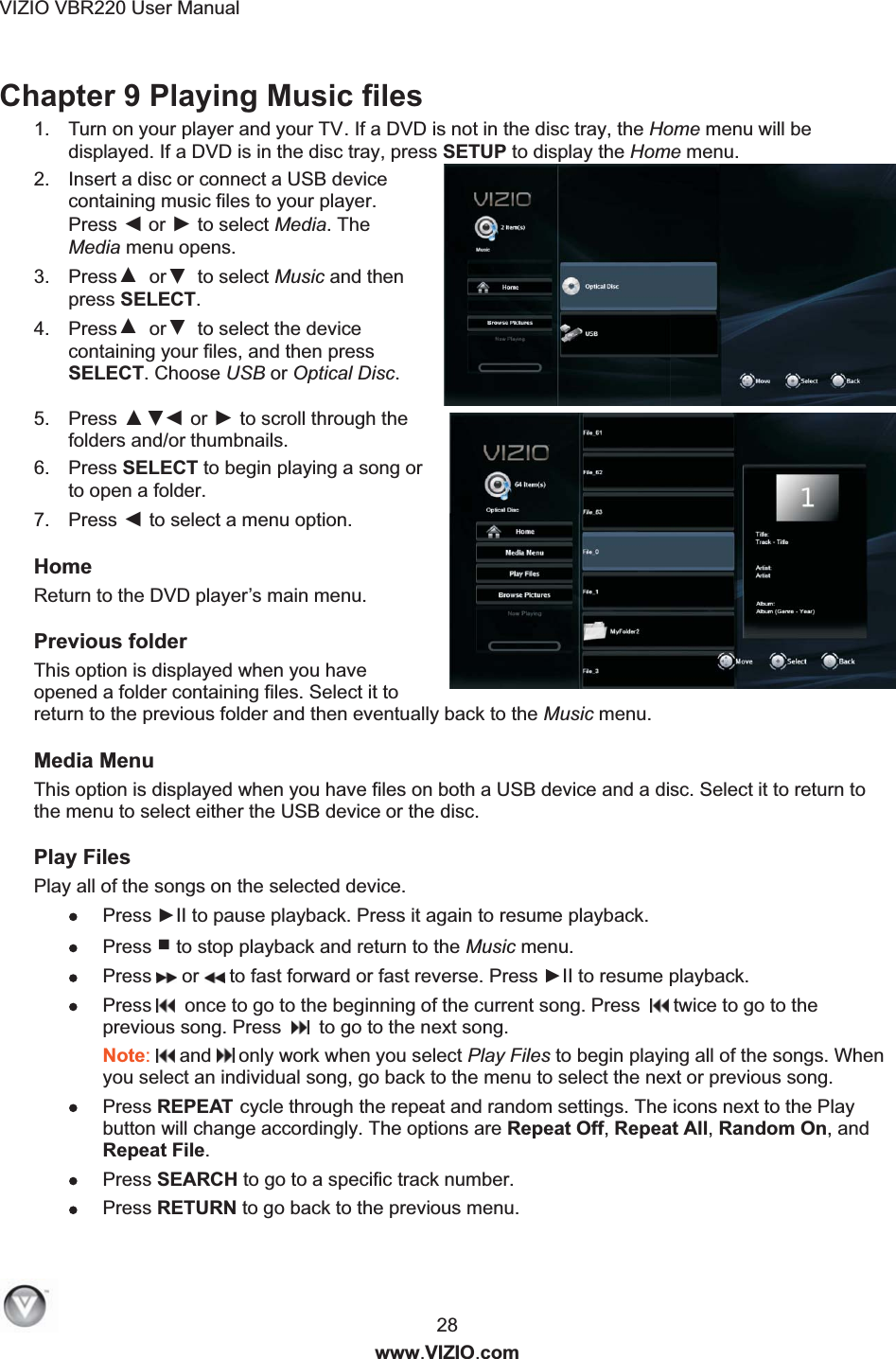

VIZIO VBR220 User Manual 28 www.VIZIO.com Chapter 9 Playing Music files 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Insert a disc or connect a USB device containing music files to your player. Press ◄ or ► to select Media. The Media menu opens. 3. Press ▲ or ▼ to select Music and then press SELECT. 4. Press ▲ or ▼ to select the device containing your files, and then press SELECT. Choose USB or Optical Disc. 5. Press ◄ or ► to scroll through the folders and/or thumbnails. 6. Press SELECT to begin playing a song or to open a folder. 7. Press ◄ to select a menu option. Home Return to the DVD player’s main menu. Previous folder This option is displayed when you have opened a folder containing files. Select it to return to the previous folder and then eventually back to the Music menu. Media Menu This option is displayed when you have files on both a USB device and a disc. Select it to return to the menu to select either the USB device or the disc. Play Files Play all of the songs on the selected device. Press ►II to pause playback. Press it again to resume playback. Press ■ to stop playback and return to the Music menu. Press or to fast forward or fast reverse. Press ►II to resume playback. Press once to go to the beginning of the current song. Press twice to go to the previous song. Press to go to the next song. Note: and only work when you select Play Files to begin playing all of the songs. When you select an individual song, go back to the menu to select the next or previous song. Press REPEAT cycle through the repeat and random settings. The icons next to the Play button will change accordingly. The options are Repeat Off, Repeat All, Random On, and Repeat File. Press SEARCH to go to a specific track number. Press RETURN to go back to the previous menu. ◄◄◄◄◄◄

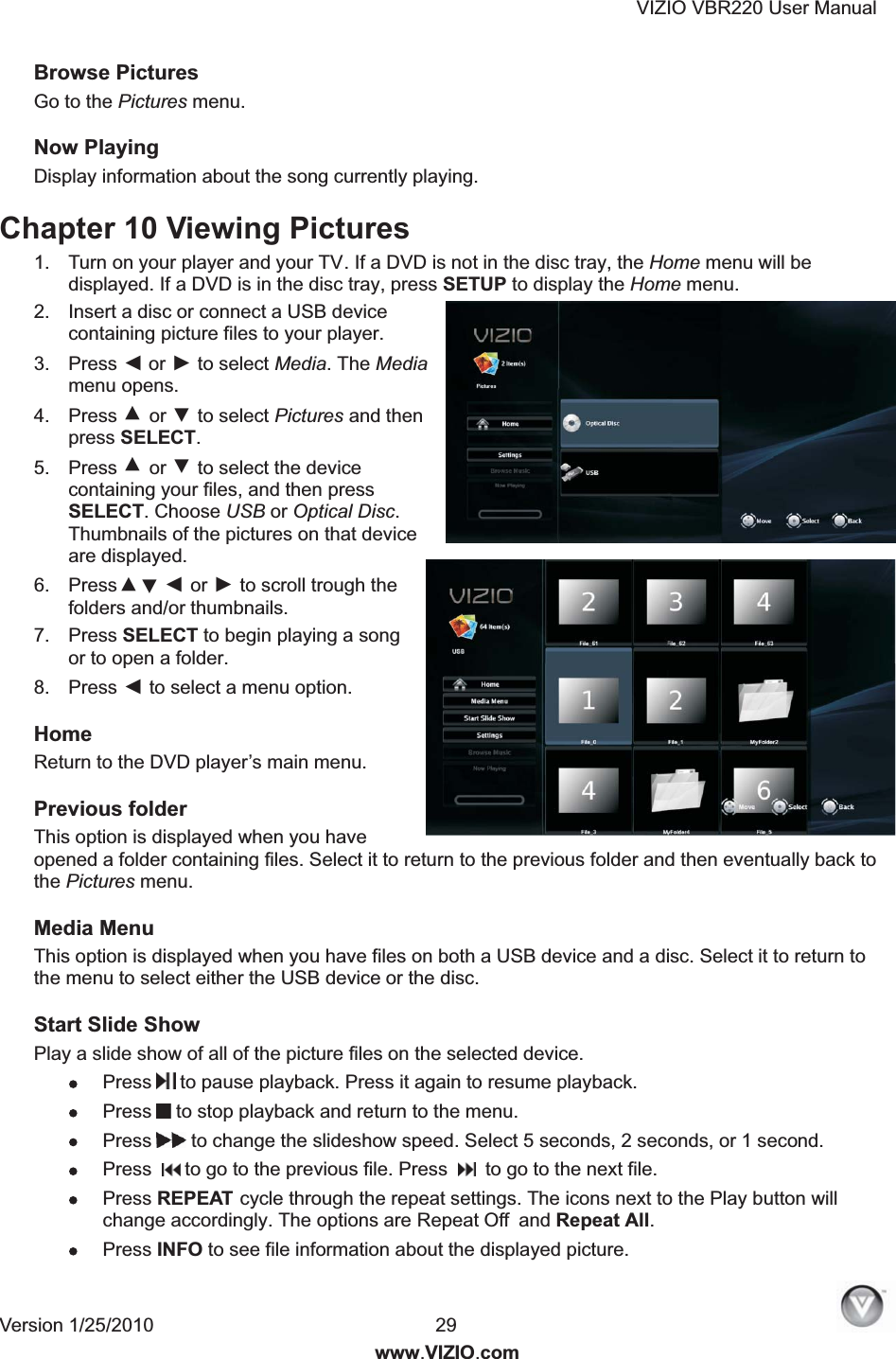

VIZIO VBR220 User Manual Version 1/25/2010 29 www.VIZIO.com Browse Pictures Go to the Pictures menu. Now Playing Display information about the song currently playing. Chapter 10 Viewing Pictures 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Insert a disc or connect a USB device containing picture files to your player. 3. Press ◄ or ► to select Media. The Media menu opens. 4. Press ▲ or ▼ to select Pictures and then press SELECT. 5. Press or to select the device containing your files, and then press SELECT. Choose USB or Optical Disc. Thumbnails of the pictures on that device are displayed. 6. Press ◄ or ► to scroll trough the folders and/or thumbnails. 7. Press SELECT to begin playing a song or to open a folder. 8. Press ◄ to select a menu option. Home Return to the DVD player’s main menu. Previous folder This option is displayed when you have opened a folder containing files. Select it to return to the previous folder and then eventually back to the Pictures menu. Media Menu This option is displayed when you have files on both a USB device and a disc. Select it to return to the menu to select either the USB device or the disc. Start Slide Show Play a slide show of all of the picture files on the selected device. Press to pause playback. Press it again to resume playback. Press to stop playback and return to the menu. Press to change the slideshow speed. Select 5 seconds, 2 seconds, or 1 second. Press to go to the previous file. Press to go to the next file. Press REPEAT cycle through the repeat settings. The icons next to the Play button will change accordingly. The options are Repeat Off and Repeat All. Press INFO to see file information about the displayed picture. ▲ ▼▲▼

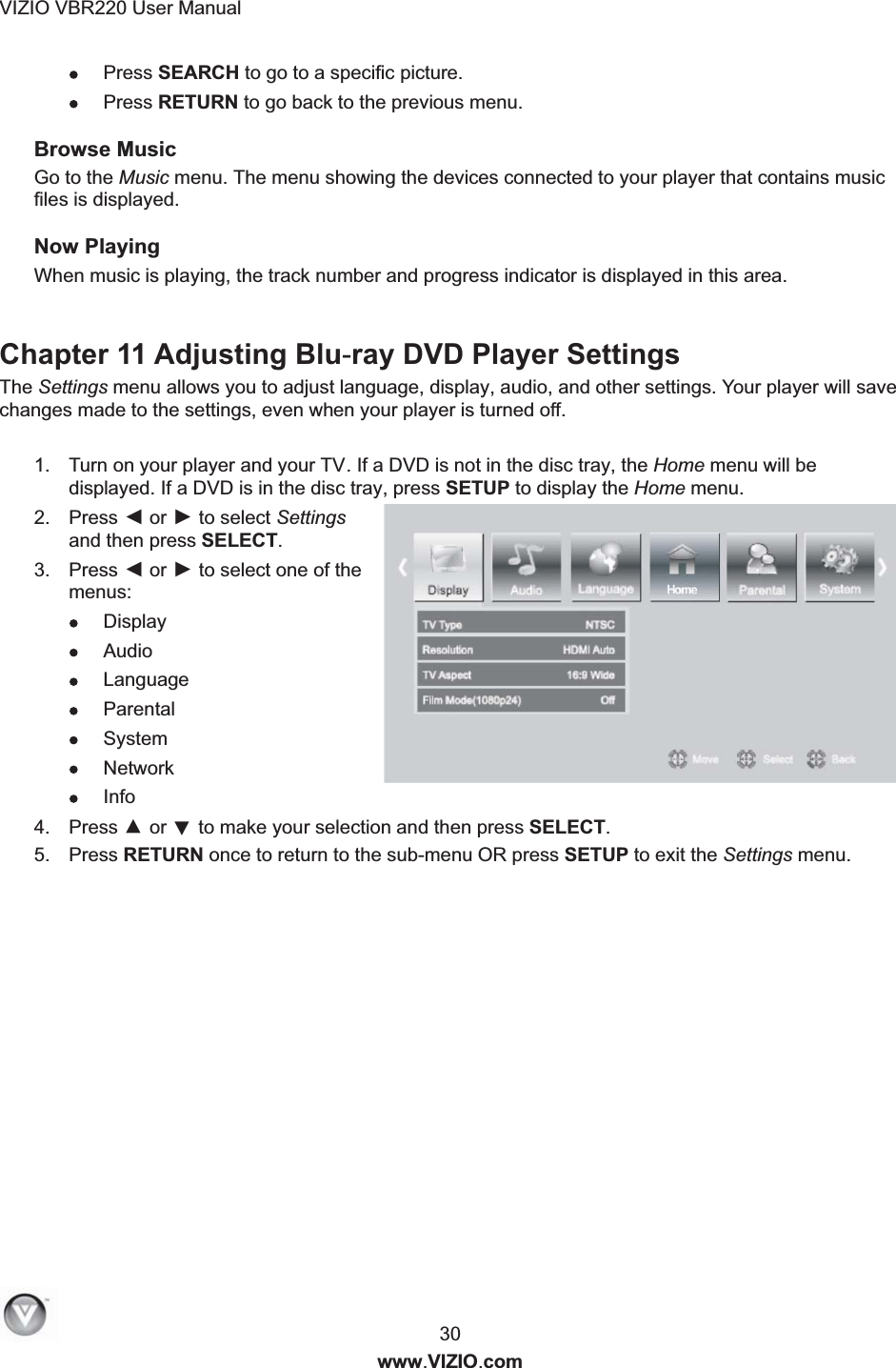

VIZIO VBR220 User Manual 30 www.VIZIO.com Press SEARCH to go to a specific picture. Press RETURN to go back to the previous menu. Browse Music Go to the Music menu. The menu showing the devices connected to your player that contains music files is displayed. Now Playing When music is playing, the track number and progress indicator is displayed in this area. Chapter 11 Adjusting Blu-ray DVD Player Settings The Settings menu allows you to adjust language, display, audio, and other settings. Your player will save changes made to the settings, even when your player is turned off. 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Settings and then press SELECT. 3. Press ◄ or ► to select one of the menus: Display Audio Languag e Parental System Network Info 4. Press ▲ or ▼ to make your selection and then press SELECT. 5. Press RETURN once to return to the sub-menu OR press SETUP to exit the Settings menu.

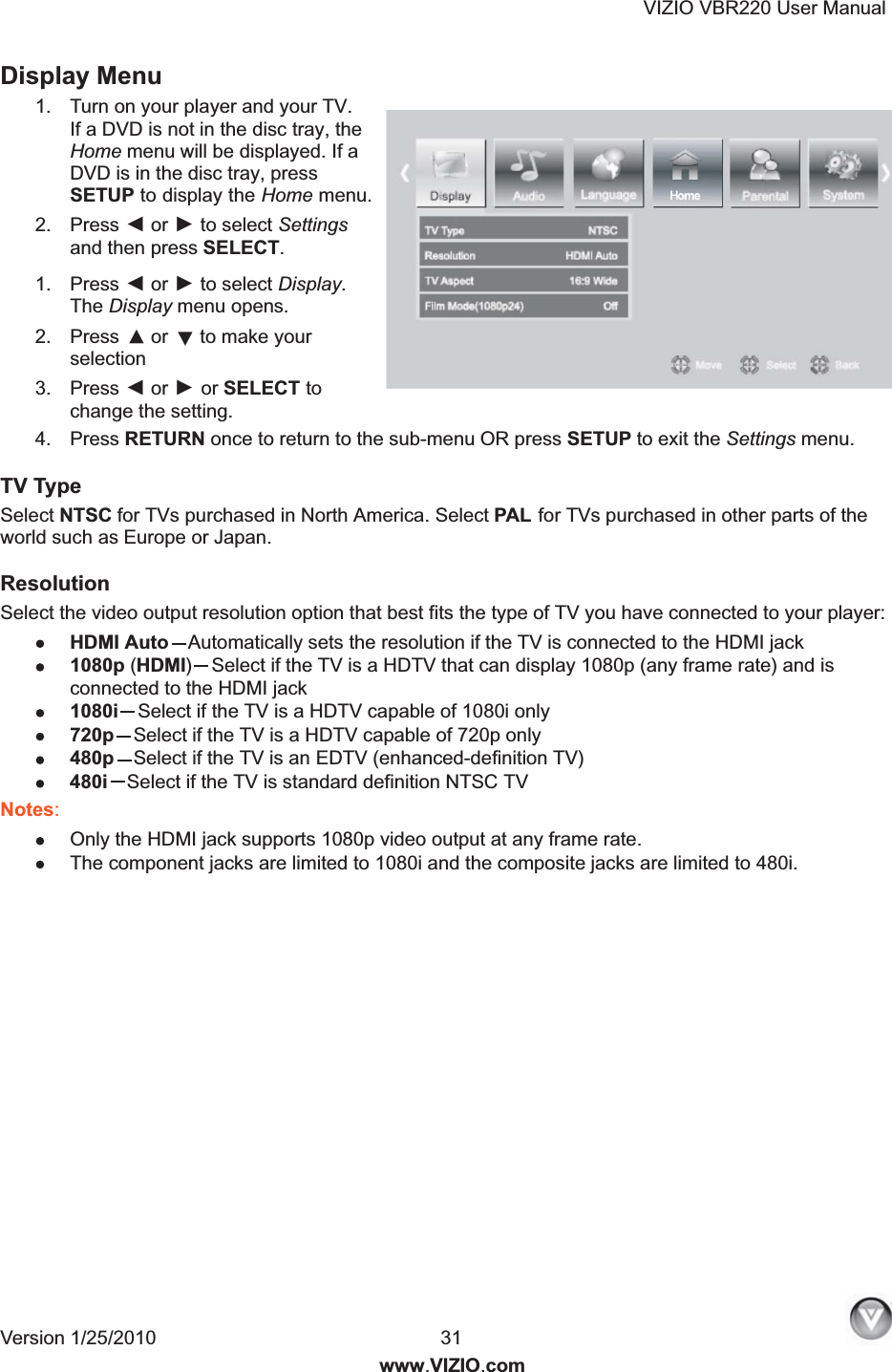

VIZIO VBR220 User Manual Version 1/25/2010 31 www.VIZIO.com Display Menu 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Settings and then press SELECT. 1. Press ◄ or ► to select Display. The Display menu opens. 2. Press ▲ or ▼ to make your selection 3. Press ◄ or ► or SELECT to change the setting. 4. Press RETURN once to return to the sub-menu OR press SETUP to exit the Settings menu. TV Type Select NTSC for TVs purchased in North America. Select PAL for TVs purchased in other parts of the world such as Europe or Japan. Resolution Select the video output resolution option that best fits the type of TV you have connected to your player: HDMI Auto Automatically sets the resolution if the TV is connected to the HDMI jack 1080p (HDMI)Select if the TV is a HDTV that can display 1080p (any frame rate) and is connected to the HDMI jack 1080i Select if the TV is a HDTV capable of 1080i only 720p Select if the TV is a HDTV capable of 720p only 480p Select if the TV is an EDTV (enhanced-definition TV) 480i Select if the TV is standard definition NTSC TV Notes: Only the HDMI jack supports 1080p video output at any frame rate. The component jacks are limited to 1080i and the composite jacks are limited to 480i.

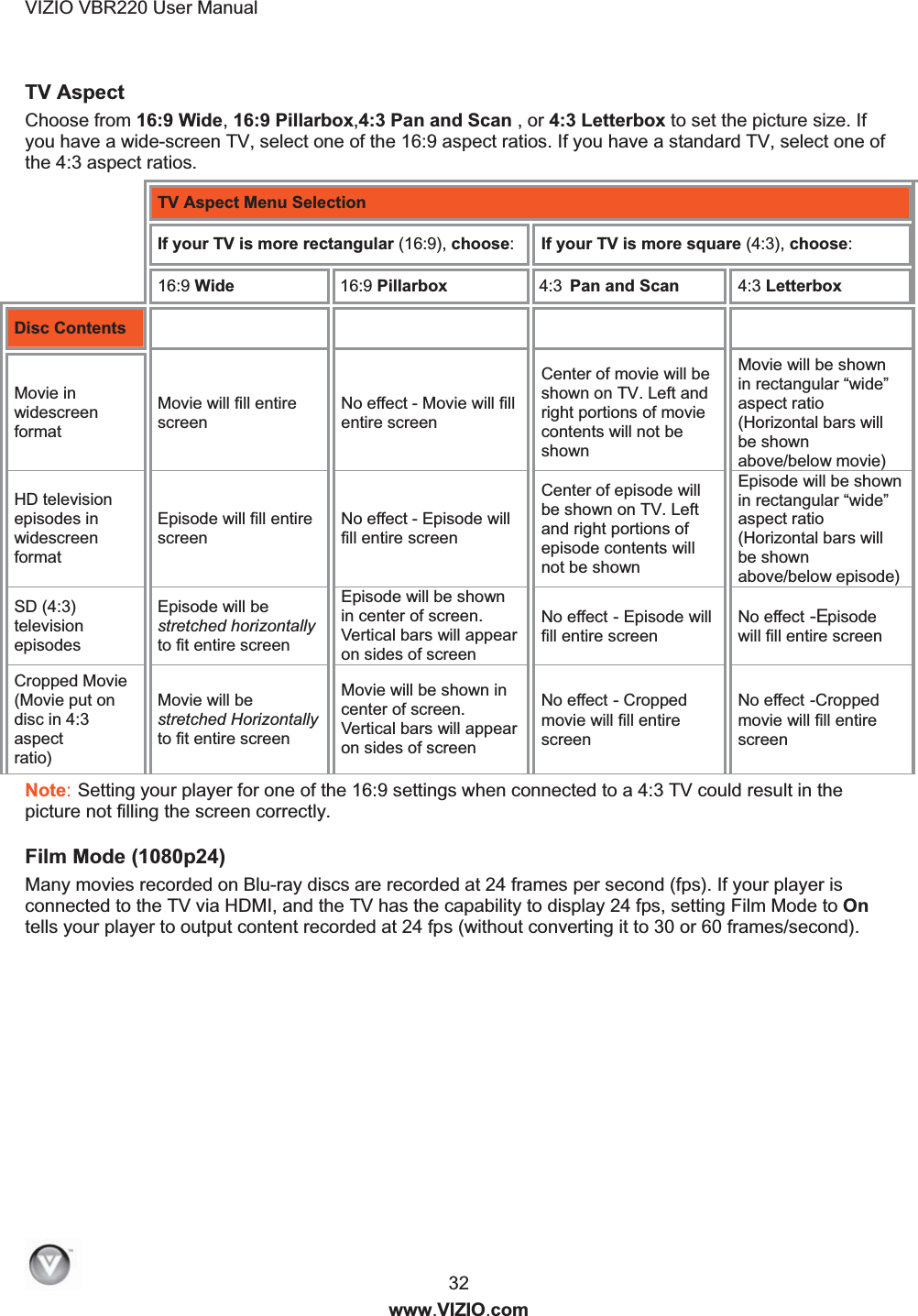

VIZIO VBR220 User Manual 32 www.VIZIO.com TV Aspect Choose from 16:9 Wide, 16:9 Pillarbox,4:3 Pan and Scan , or Letterbox4:3 to set the picture size. If you have a wide-screen TV, select one of the 16:9 aspect ratios. If you have a standard TV, select one of the 4:3 aspect ratios. Note: Setting your player for one of the 16:9 settings when connected to a 4:3 TV could result in the picture not filling the screen correctly. Film Mode (1080p24)Many movies recorded on Blu-ray discs are recorded at 24 frames per second (fps). If your player is connected to the TV via HDMI, and the TV has the capability to display 24 fps, setting Film Mode to On tells your player to output content recorded at 24 fps (without converting it to 30 or 60 frames/second). TV Aspect Menu Selection If your TV is more rectangular (16:9), choose: If your TV is more square (4:3), choose: 16:9 Wide 16:9 Pillarbox 4:3 Pan and Scan 4:3 Letterbox Disc Contents Movie in widescreen format Movie will fill entire screen No effect - Movie will fill entire screen Center of movie will be shown on TV. Left and right portions of movie contents will not be shown Movie will be shown in rectangular “wide”aspect ratio (Horizontal bars will be shown above/below movie) HD television episodes in widescreen format Episode will fill entire screen No effect - Episode will fill entire screen Center of episode will be shown on TV. Left and right portions of episode contents will not be shown Episode will be shown in rectangular “wide”aspect ratio (Horizontal bars will be shown above/below episode) SD (4:3) television episodes Episode will be stretched horizontally to fit entire screen Episode will be shown in center of screen. Vertical bars will appear on sides of screen No effect - Episode will fill entire screen No effect -Episode will fill entire screen Cropped Movie (Movie put on disc in 4:3 aspect ratio) Movie will be stretched Horizontally to fit entire screen Movie will be shown in center of screen. Vertical bars will appear on sides of screen No effect - Cropped movie will fill entire screen No effect -Cropped movie will fill entire screen

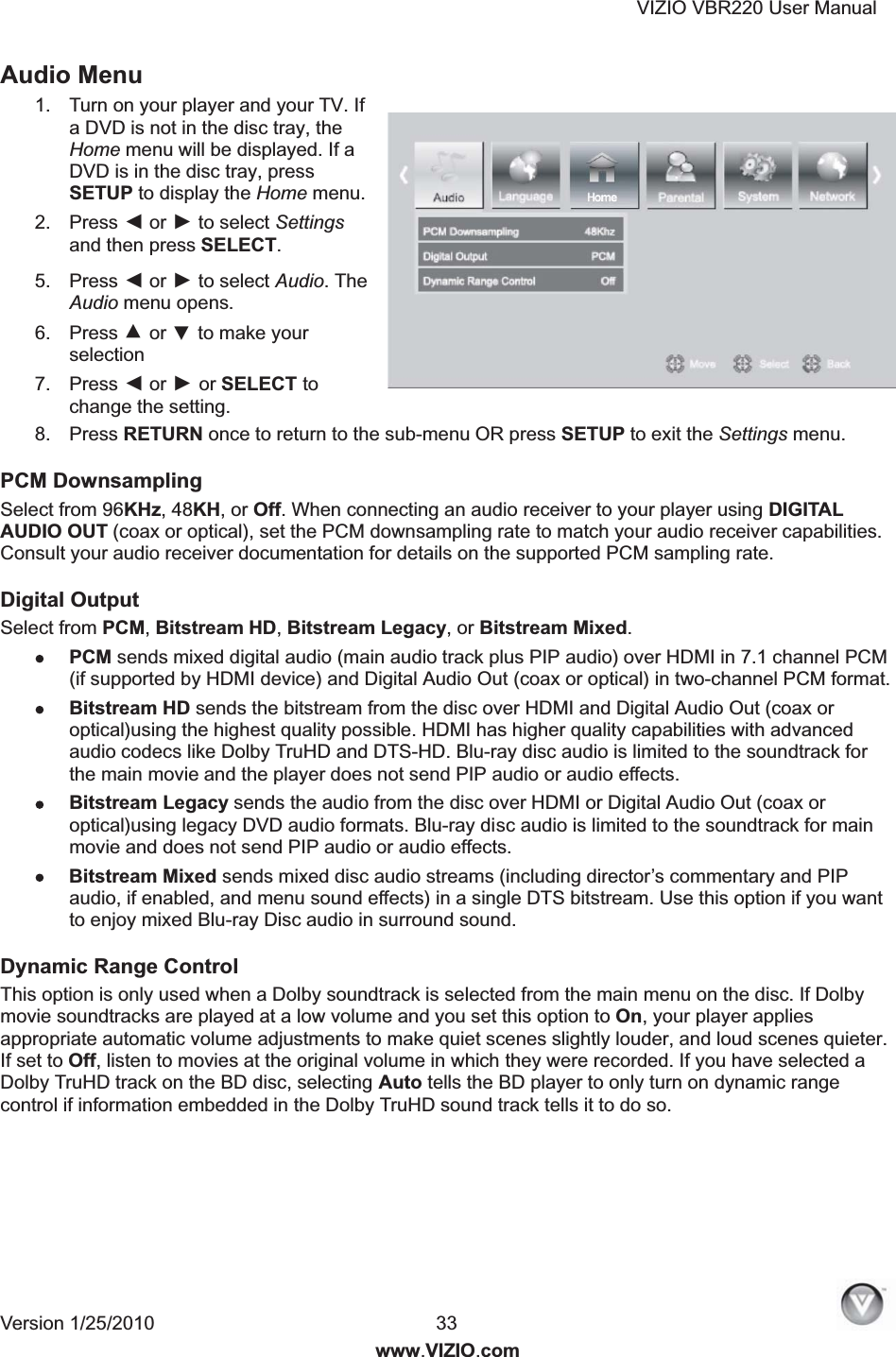

VIZIO VBR220 User Manual Version 1/25/2010 33 www.VIZIO.com Audio Menu 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Settings and then press SELECT. 5. Press ◄ or ► to select Audio. The Audio menu opens. 6. Press ▲ or ▼ to make your selection 7. Press ◄ or ► or SELECT to change the setting. 8. Press RETURN once to return to the sub-menu OR press SETUP to exit the Settings menu. PCM Downsampling Select from 96KHz, 48KH, or Off. When connecting an audio receiver to your player using DIGITAL AUDIO OUT (coax or optical), set the PCM downsampling rate to match your audio receiver capabilities. Consult your audio receiver documentation for details on the supported PCM sampling rate. Digital Output Select from PCM, Bitstream HD, Bitstream Legacy, or Bitstream Mixed. PCM sends mixed digital audio (main audio track plus PIP audio) over HDMI in 7.1 channel PCM (if supported by HDMI device) and Digital Audio Out (coax or optical) in two-channel PCM format. Bitstream HD sends the bitstream from the disc over HDMI and Digital Audio Out (coax or optical)using the highest quality possible. HDMI has higher quality capabilities with advanced audio codecs like Dolby TruHD and DTS-HD. Blu-ray disc audio is limited to the soundtrack for the main movie and the player does not send PIP audio or audio effects. Bitstream Legacy sends the audio from the disc over HDMI or Digital Audio Out (coax or optical)using legacy DVD audio formats. Blu-ray disc audio is limited to the soundtrack for main movie and does not send PIP audio or audio effects. Bitstream Mixed sends mixed disc audio streams (including director’s commentary and PIP audio, if enabled, and menu sound effects) in a single DTS bitstream. Use this option if you want to enjoy mixed Blu-ray Disc audio in surround sound. Dynamic Range Control This option is only used when a Dolby soundtrack is selected from the main menu on the disc. If Dolby movie soundtracks are played at a low volume and you set this option to On, your player applies appropriate automatic volume adjustments to make quiet scenes slightly louder, and loud scenes quieter. If set to Off, listen to movies at the original volume in which they were recorded. If you have selected a Dolby TruHD track on the BD disc, selecting Auto tells the BD player to only turn on dynamic range control if information embedded in the Dolby TruHD sound track tells it to do so.

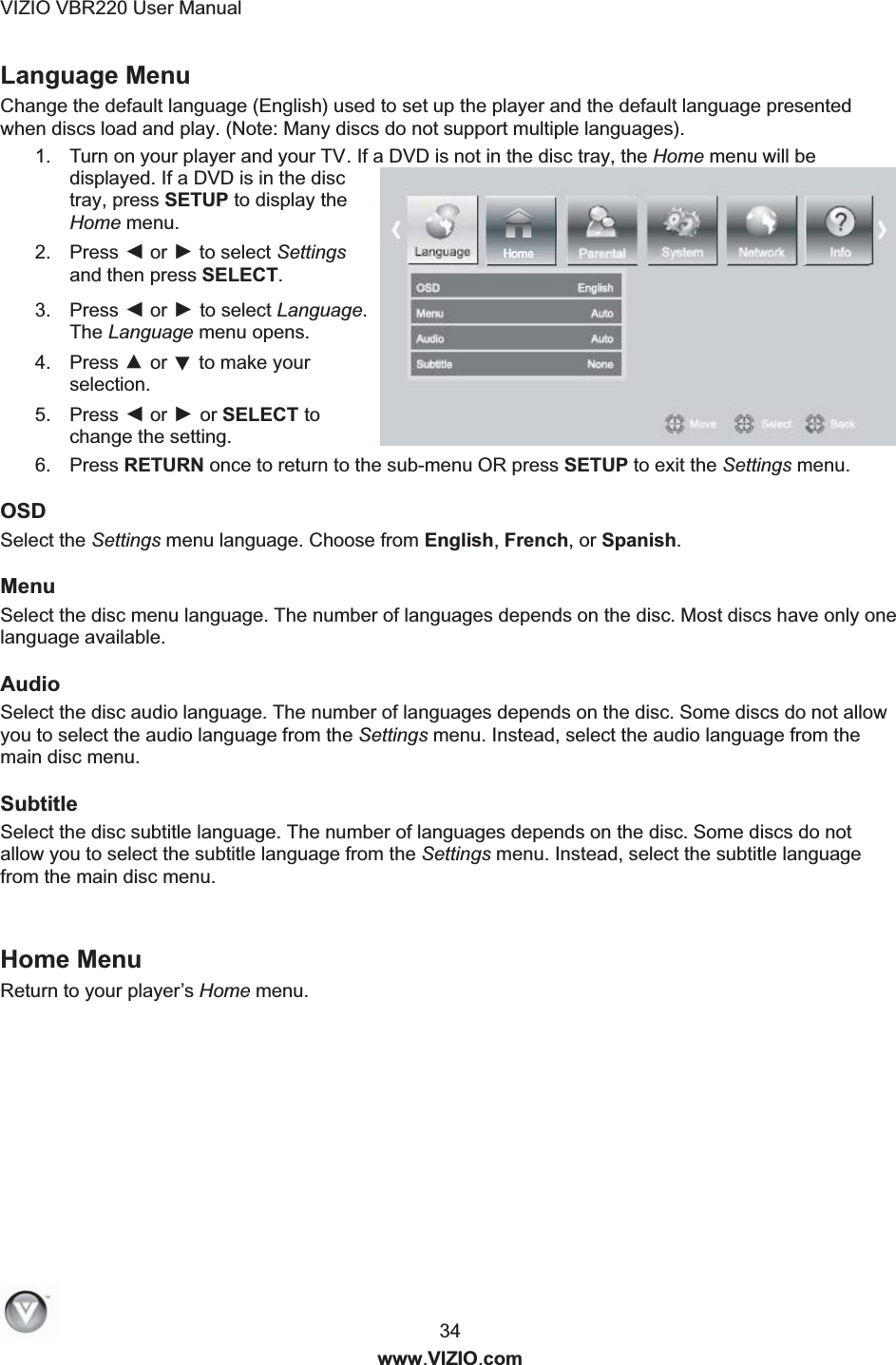

VIZIO VBR220 User Manual 34 www.VIZIO.com Language Menu Change the default language (English) used to set up the player and the default language presented when discs load and play. (Note: Many discs do not support multiple languages). 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Settings and then press SELECT. 3. Press ◄ or ► to select Language. The Language menu opens. 4. Press ▲ or ▼ to make your selection. 5. Press ◄ or ► or SELECT to change the setting. 6. Press RETURN once to return to the sub-menu OR press SETUP to exit the Settings menu. OSD Select the Settings menu language. Choose from English, French, or Spanish. Menu Select the disc menu language. The number of languages depends on the disc. Most discs have only one language available. Audio Select the disc audio language. The number of languages depends on the disc. Some discs do not allow you to select the audio language from the Settings menu. Instead, select the audio language from the main disc menu. Subtitle Select the disc subtitle language. The number of languages depends on the disc. Some discs do not allow you to select the subtitle language from the Settings menu. Instead, select the subtitle language from the main disc menu. Home Menu Return to your player’s Home menu.

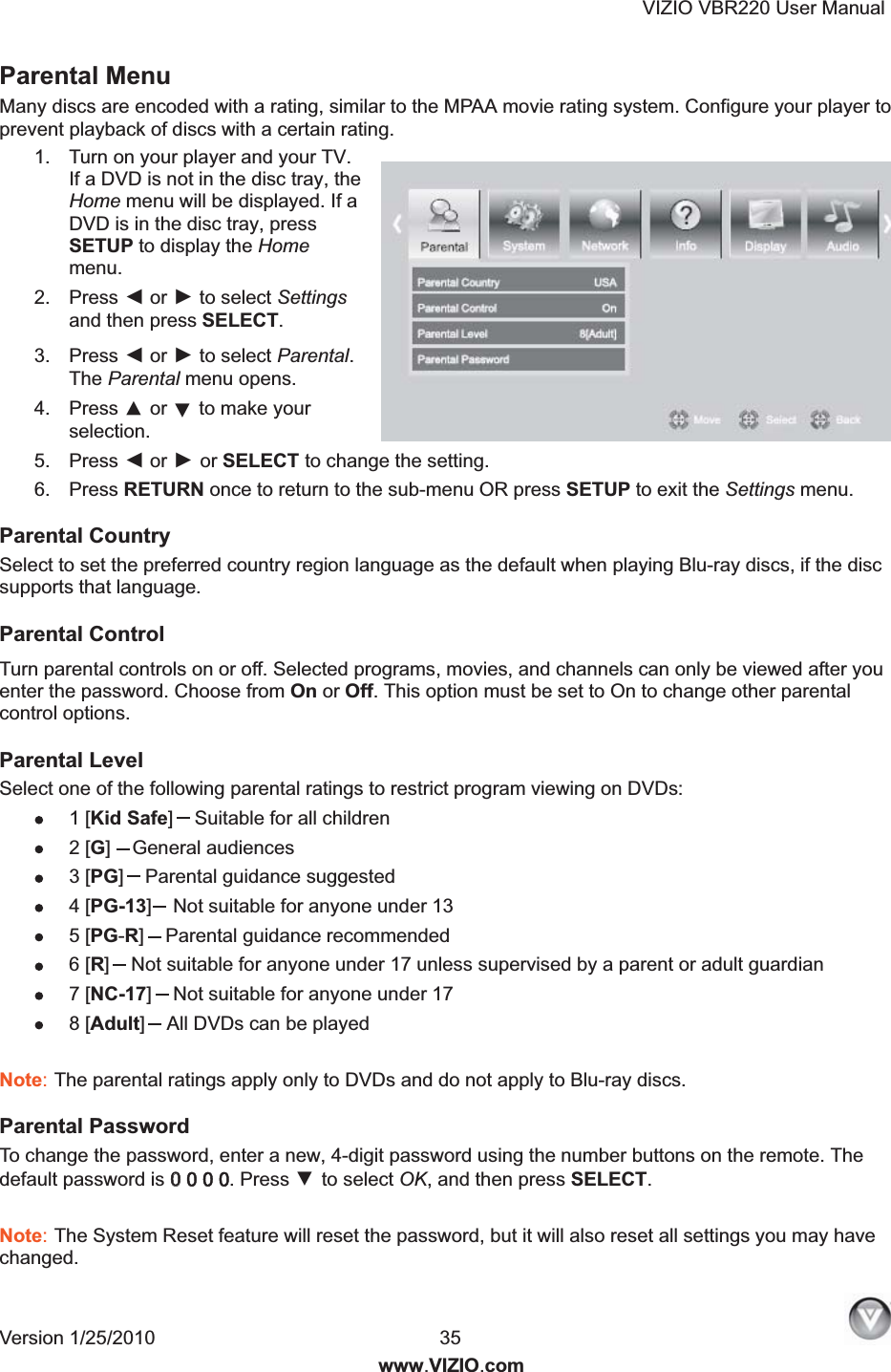

VIZIO VBR220 User Manual Version 1/25/2010 35 www.VIZIO.com Parental Menu Many discs are encoded with a rating, similar to the MPAA movie rating system. Configure your player to prevent playback of discs with a certain rating. 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Settings and then press SELECT. 3. Press ◄ or ► to select Parental. The Parental menu opens. 4. Press ▲ or ▼ to make your selection. 5. Press ◄ or ► or SELECT to change the setting. 6. Press RETURN once to return to the sub-menu OR press SETUP to exit the Settings menu. Parental Country Select to set the preferred country region language as the default when playing Blu-ray discs, if the disc supports that language. Parental Control Turn parental controls on or off. Selected programs, movies, and channels can only be viewed after you enter the password. Choose from On or Off. This option must be set to On to change other parental control options. Parental Level Select one of the following parental ratings to restrict program viewing on DVDs: 1 [Kid Safe]Suitable for all children 2 [G]General audiences 3 [PG]Parental guidance suggested 4 [PG-13]Not suitable for anyone under 13 5 [PG-R]Parental guidance recommended 6 [R]Not suitable for anyone under 17 unless supervised by a parent or adult guardian 7 [NC-17]Not suitable for anyone under 17 8 [Adult]All DVDs can be played Note: The parental ratings apply only to DVDs and do not apply to Blu-ray discs. Parental Password To change the password, enter a new, 4-digit password using the number buttons on the remote. The default password is 00 0 0 0. Press ▼ to select OK, and then press SELECT. Note: The System Reset feature will reset the password, but it will also reset all settings you may have changed.

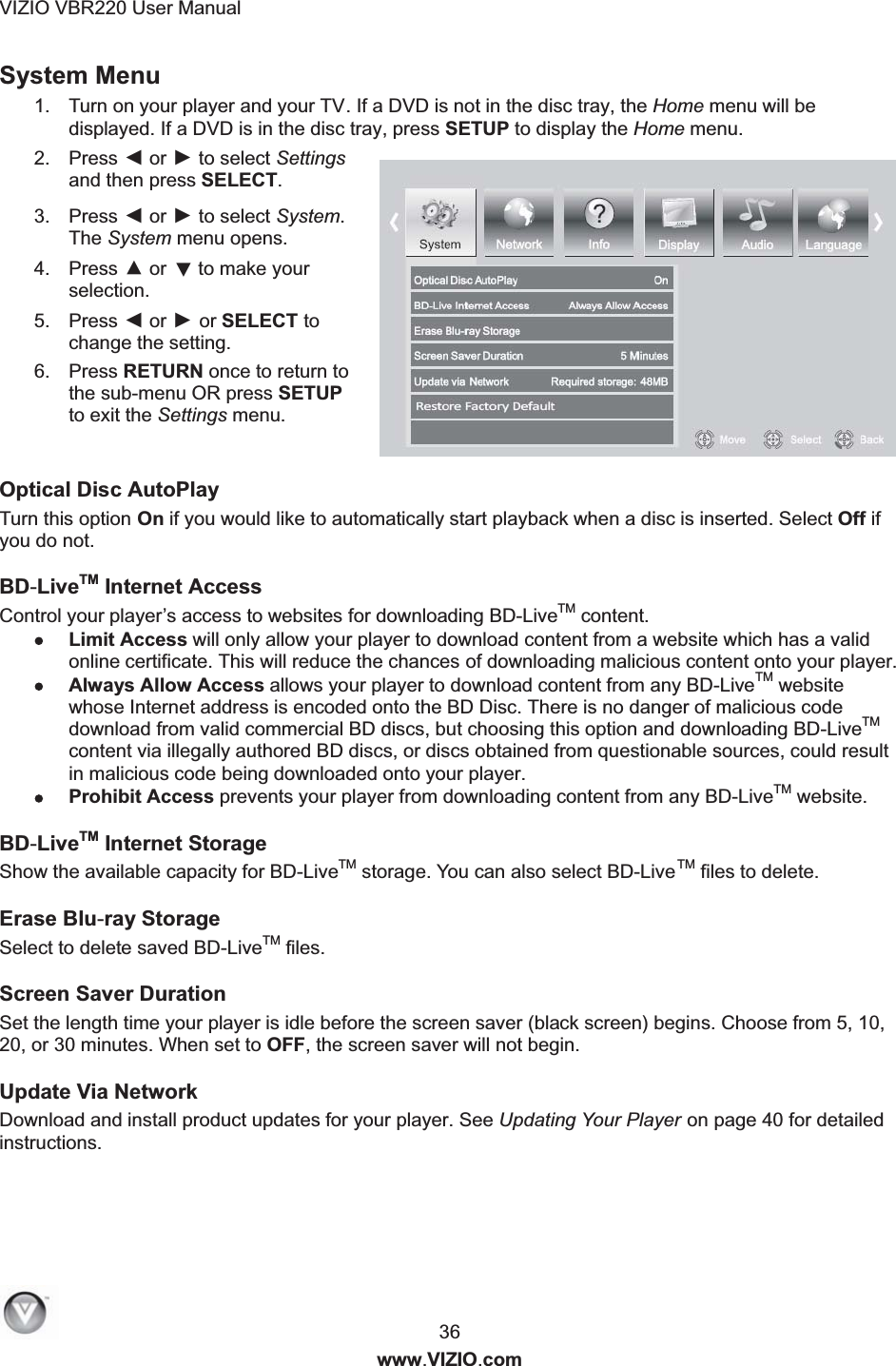

VIZIO VBR220 User Manual 36 www.VIZIO.com System Menu 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Settings and then press SELECT. 3. Press ◄ or ► to select System. The System menu opens. 4. Press ▲ or ▼ to make your selection. 5. Press ◄ or ► or SELECT to change the setting. 6. Press RETURN once to return to the sub-menu OR press SETUP to exit the Settings menu. Optical Disc AutoPlay Turn this option On if you would like to automatically start playback when a disc is inserted. Select Off if you do not. BD-LiveTM Internet Access Control your player’s access to websites for downloading BD-LiveTM content. Limit Access will only allow your player to download content from a website which has a valid online certificate. This will reduce the chances of downloading malicious content onto your player. Always Allow Access allows your player to download content from any BD-LiveTM website whose Internet address is encoded onto the BD Disc. There is no danger of malicious code download from valid commercial BD discs, but choosing this option and downloading BD-LiveTM content via illegally authored BD discs, or discs obtained from questionable sources, could result in malicious code being downloaded onto your player. Prohibit Access prevents your player from downloading content from any BD-LiveTM website. BD-LiveTM Internet Storage Show the available capacity for BD-LiveTM storage. Yo u can also select BD-LiveTM files to delete. Erase Blu-ray Storage Select to delete saved BD-LiveTM files. Screen Saver Duration Set the length time your player is idle before the screen saver (black screen) begins. Choose from 5, 10, 20, or 30 minutes. When set to OFF, the screen saver will not begin. Update Via Network Download and install product updates for your player. See Updating Your Player on page 40 for detailed instructions.

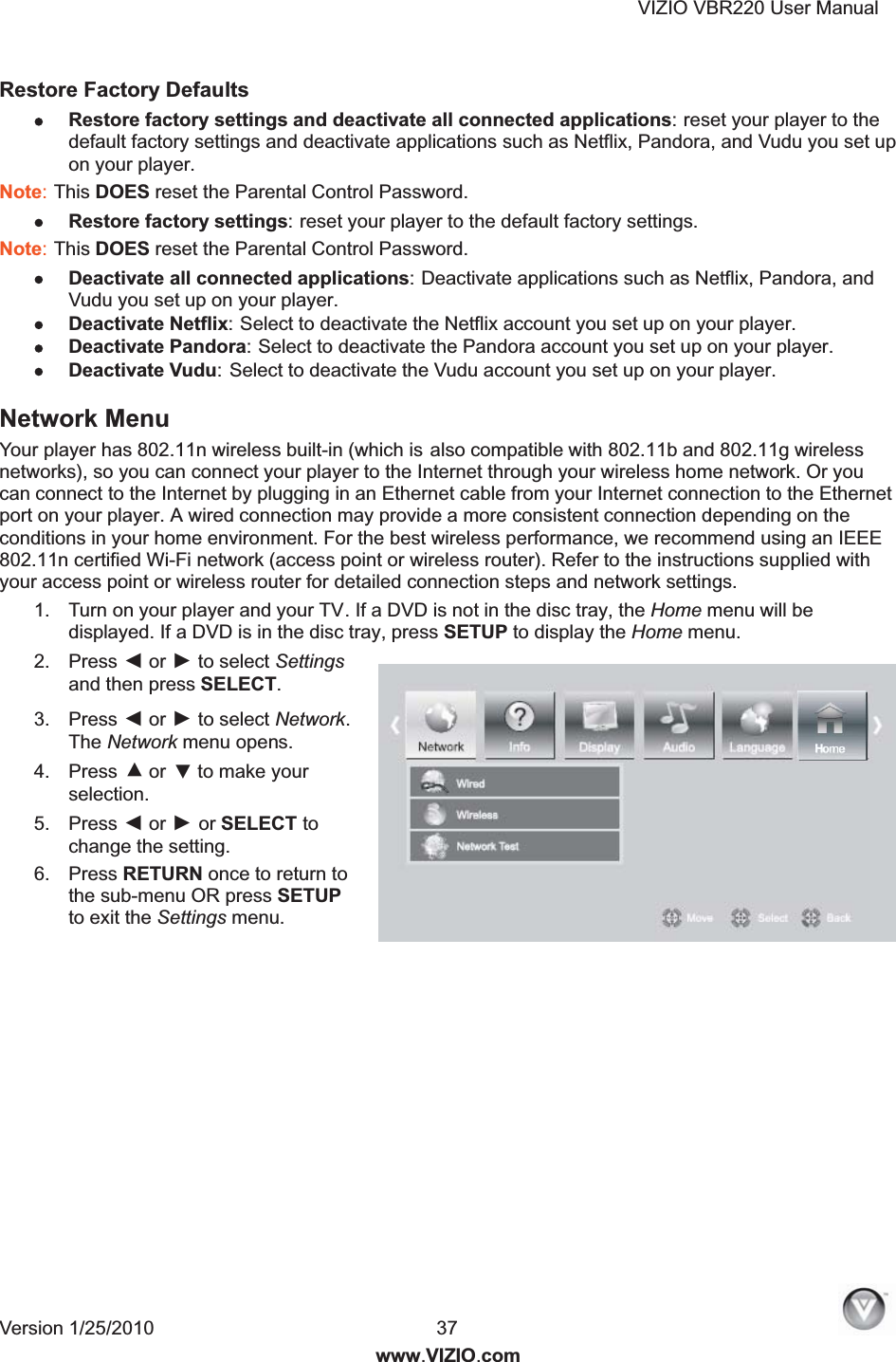

VIZIO VBR220 User Manual Version 1/25/2010 37 www.VIZIO.com Restore Factory Defaults Restore factory settings and deactivate all connected applications: reset your player to the default factory settings and deactivate applications such as Netflix, Pandora, and Vudu you set up on your player. Note: This DOES reset the Parental Control Password. Restore factory settings: reset your player to the default factory settings. Note: This DOES reset the Parental Control Password. Deactivate all connected applications: Deactivate applications such as Netflix, Pandora, and Vudu you set up on your player. Deactivate Netflix: Select to deactivate the Netflix account you set up on your player. Deactivate Pandora: Select to deactivate the Pandora account you set up on your player. Deactivate Vudu: Select to deactivate the Vudu account you set up on your player. Network Menu Your player has 802.11n wireless built-in (which is also compatible with 802.11b and 802.11g wireless networks), so you can connect your player to the Internet through your wireless home network. Or you can connect to the Internet by plugging in an Ethernet cable from your Internet connection to the Ethernet port on your player. A wired connection may provide a more consistent connection depending on the conditions in your home environment. For the best wireless performance, we recommend using an IEEE 802.11n certified Wi-Fi network (access point or wireless router). Refer to the instructions supplied with your access point or wireless router for detailed connection steps and network settings. 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press ◄ or ► to select Settings and then press SELECT. 3. Press ◄ or ► to select Network. The Network menu opens. 4. Press ▲ or ▼ to make your selection. 5. Press ◄ or ► or SELECT to change the setting. 6. Press RETURN once to return to the sub-menu OR press SETUP to exit the Settings menu.

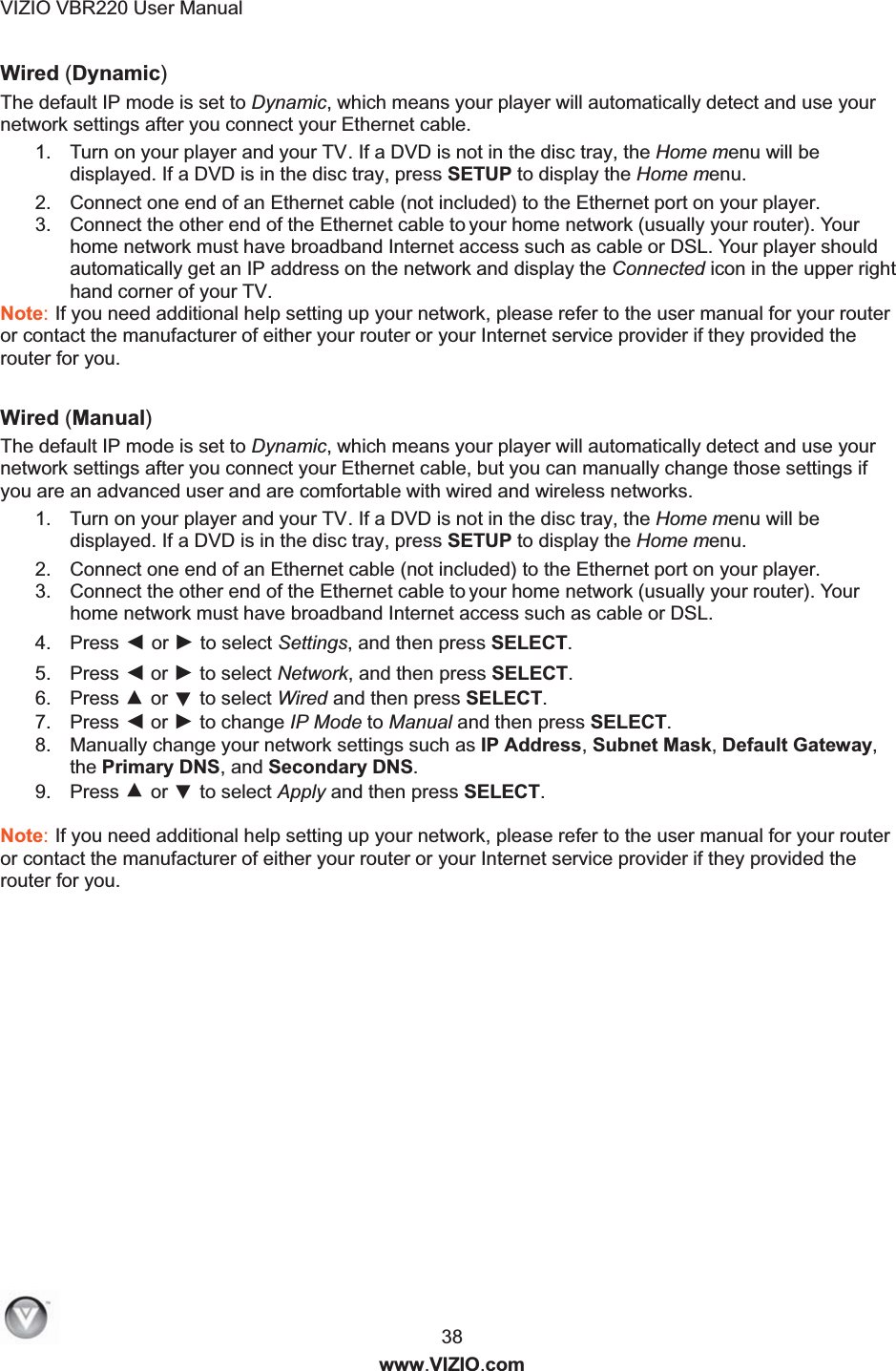

VIZIO VBR220 User Manual 38 www.VIZIO.com Wired (Dynamic) The default IP mode is set to Dynamic, which means your player will automatically detect and use your network settings after you connect your Ethernet cable. 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Connect one end of an Ethernet cable (not included) to the Ethernet port on your player. 3. Connect the other end of the Ethernet cable to y our home network (usually your router). Your home network must have broadband Internet access such as cable or DSL. Your player should automatically get an IP address on the network and display the Connected icon in the upper right hand corner of your TV. Note: If you need additional help setting up your network, please refer to the user manual for your router or contact the manufacturer of either your router or your Internet service provider if they provided the router for you. Wired (Manual) The default IP mode is set to Dynamic, which means your player will automatically detect and use your network settings after you connect your Ethernet cable, but you can manually change those settings if you are an advanced user and are comfortable with wired and wireless networks. 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Connect one end of an Ethernet cable (not included) to the Ethernet port on your player. 3. Connect the other end of the Ethernet cable to y our home network (usually your router). Your home network must have broadband Internet access such as cable or DSL. 4. Press ◄ or ► to select Settings, and then press SELECT. 5. Press ◄ or ► to select Network, and then press SELECT. 6. Press ▲ or ▼ to select Wired and then press SELECT. 7. Press ◄ or ► to change IP Mode to Manual and then press SELECT. 8. Manually change your network settings such as IP Address, Subnet Mask, Default Gateway, the Primary DNS, and Secondary DNS. 9. Press ▲ or ▼ to select Apply and then press SELECT. Note: If you need additional help setting up your network, please refer to the user manual for your router or contact the manufacturer of either your router or your Internet service provider if they provided the router for you.

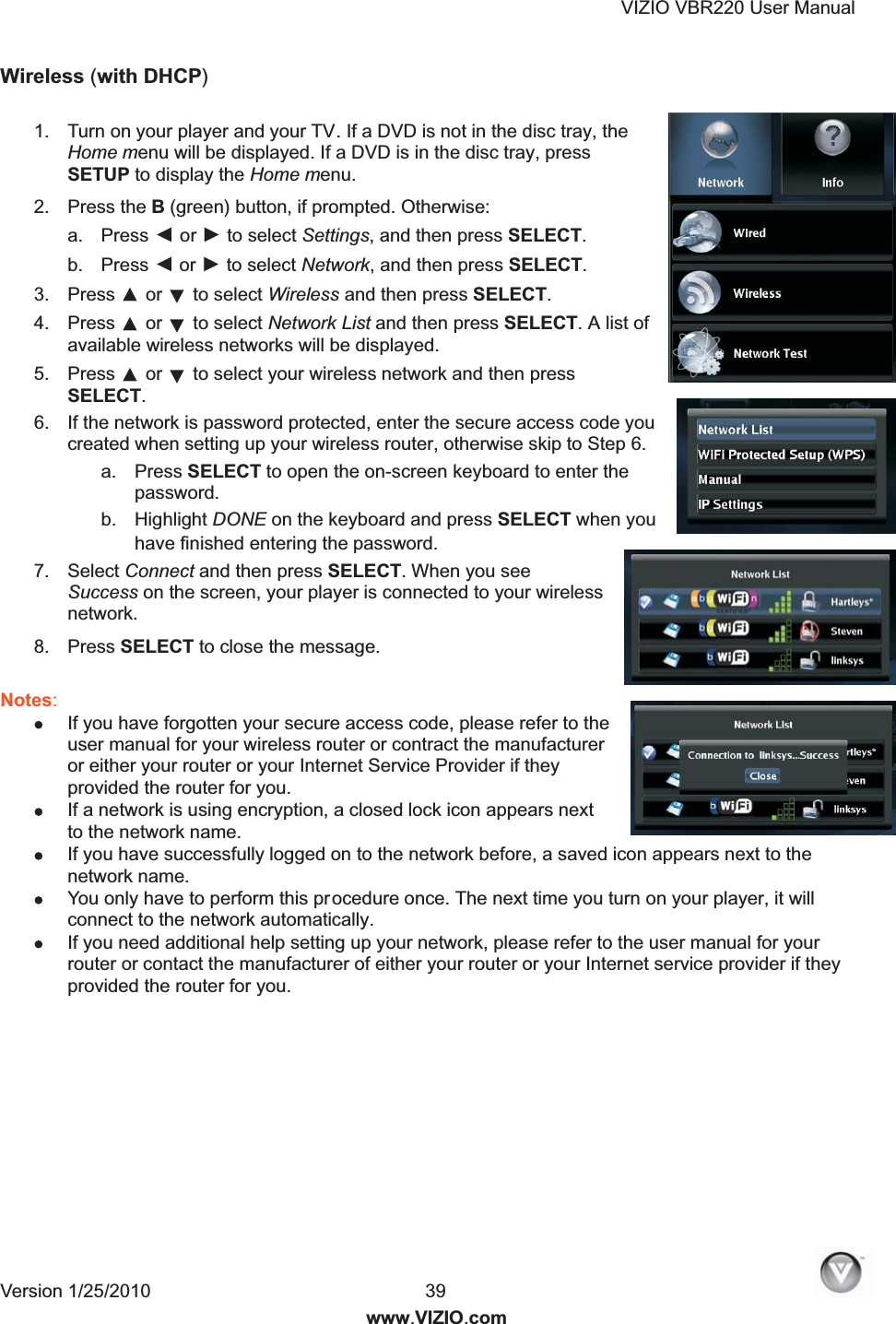

VIZIO VBR220 User Manual Version 1/25/2010 39 www.VIZIO.com Wireless (with DHCP) 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press the B (green) button, if prompted. Otherwise: a. Press ◄ or ► to select Settings, and then press SELECT. b. Press ◄ or ► to select Network, and then press SELECT. 3. Press ▲ or ▼ to select Wireless and then press SELECT. 4. Press ▲ or ▼ to select Network List and then press SELECT. A list of available wireless networks will be displayed. 5. Press ▲ or ▼ to select your wireless network and then press SELECT. 6. If the network is password protected, enter the secure access code you created when setting up your wireless router, otherwise skip to Step 6. a. Press SELECT to open the on-screen keyboard to enter the password. b. Highlight DONE on the keyboard and press SELECT when you have finished entering the password. 7. Select Connect and then press SELECT. When you see Success on the screen, your player is connected to your wireless network. 8. Press SELECT to close the message. Notes: If you have forgotten your secure access code, please refer to the user manual for your wireless router or contract the manufacturer or either your router or your Internet Service Provider if they provided the router for you. If a network is using encryption, a closed lock icon appears next to the network name. If you have successfully logged on to the network before, a saved icon appears next to the network name. You only have to perform this procedure once. The next time you turn on your player, it will connect to the network automatically. If you need additional help setting up your network, please refer to the user manual for your router or contact the manufacturer of either your router or your Internet service provider if they provided the router for you.

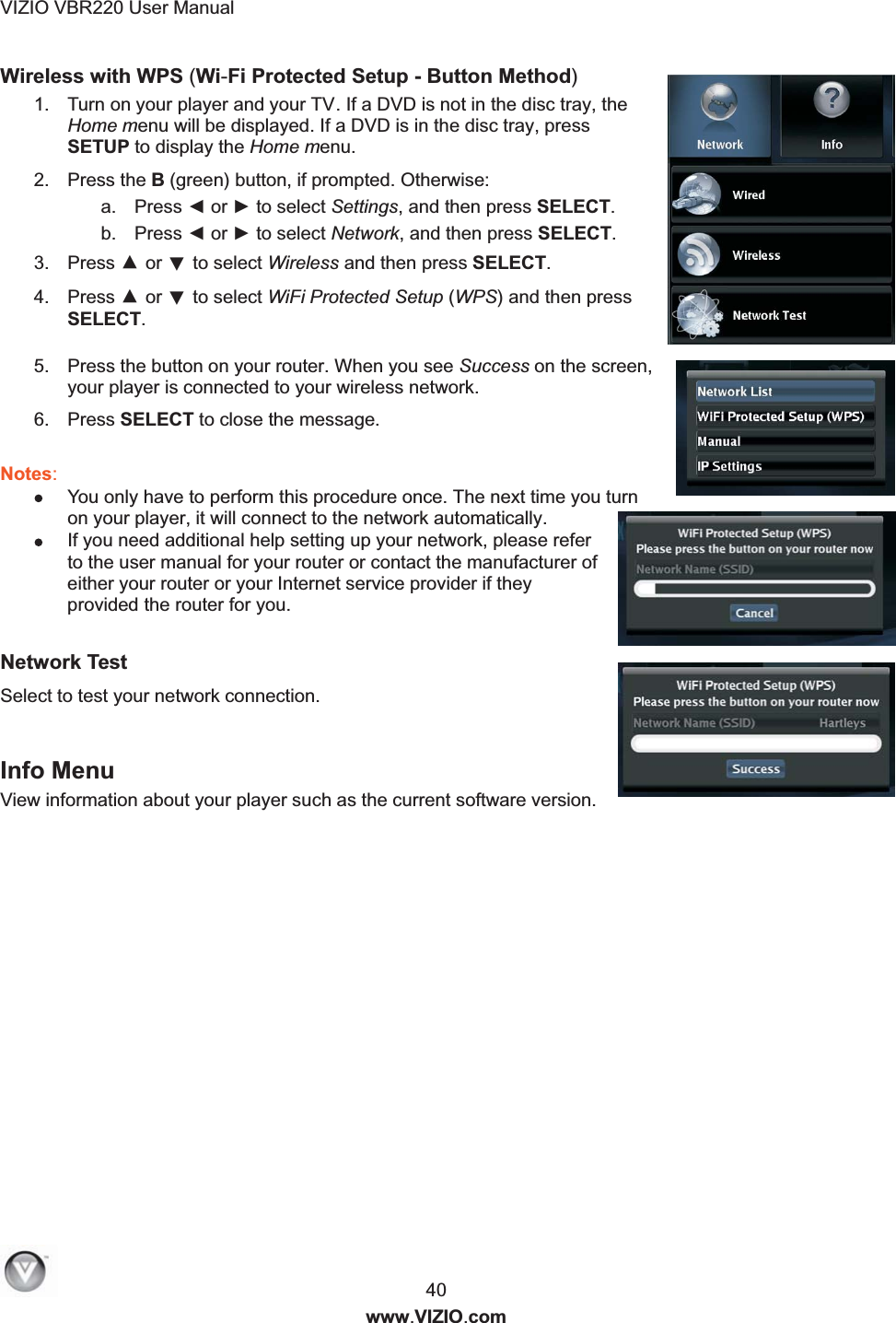

VIZIO VBR220 User Manual 40 www.VIZIO.com Wireless with WPS (Wi-Fi Protected Setup - Button Method) 1. Turn on your player and your TV. If a DVD is not in the disc tray, the Home menu will be displayed. If a DVD is in the disc tray, press SETUP to display the Home menu. 2. Press the B (green) button, if prompted. Otherwise: a. Press ◄ or ► to select Settings, and then press SELECT. b. Press ◄ or ► to select Network, and then press SELECT. 3. Press ▲ or ▼ to select Wireless and then press SELECT. 4. Press ▲ or ▼ to select WiFi Protected Setup (WPS) and then press SELECT. 5. Press the button on your router. When you see Success on the screen, your player is connected to your wireless network. 6. Press SELECT to close the message. Notes: You only have to perform this procedure once. The next time you turn on your player, it will connect to the network automatically. If you need additional help setting up your network, please refer to the user manual for your router or contact the manufacturer of either your router or your Internet service provider if they provided the router for you. Network Test Select to test your network connection. Info Menu View information about your player such as the current software version.

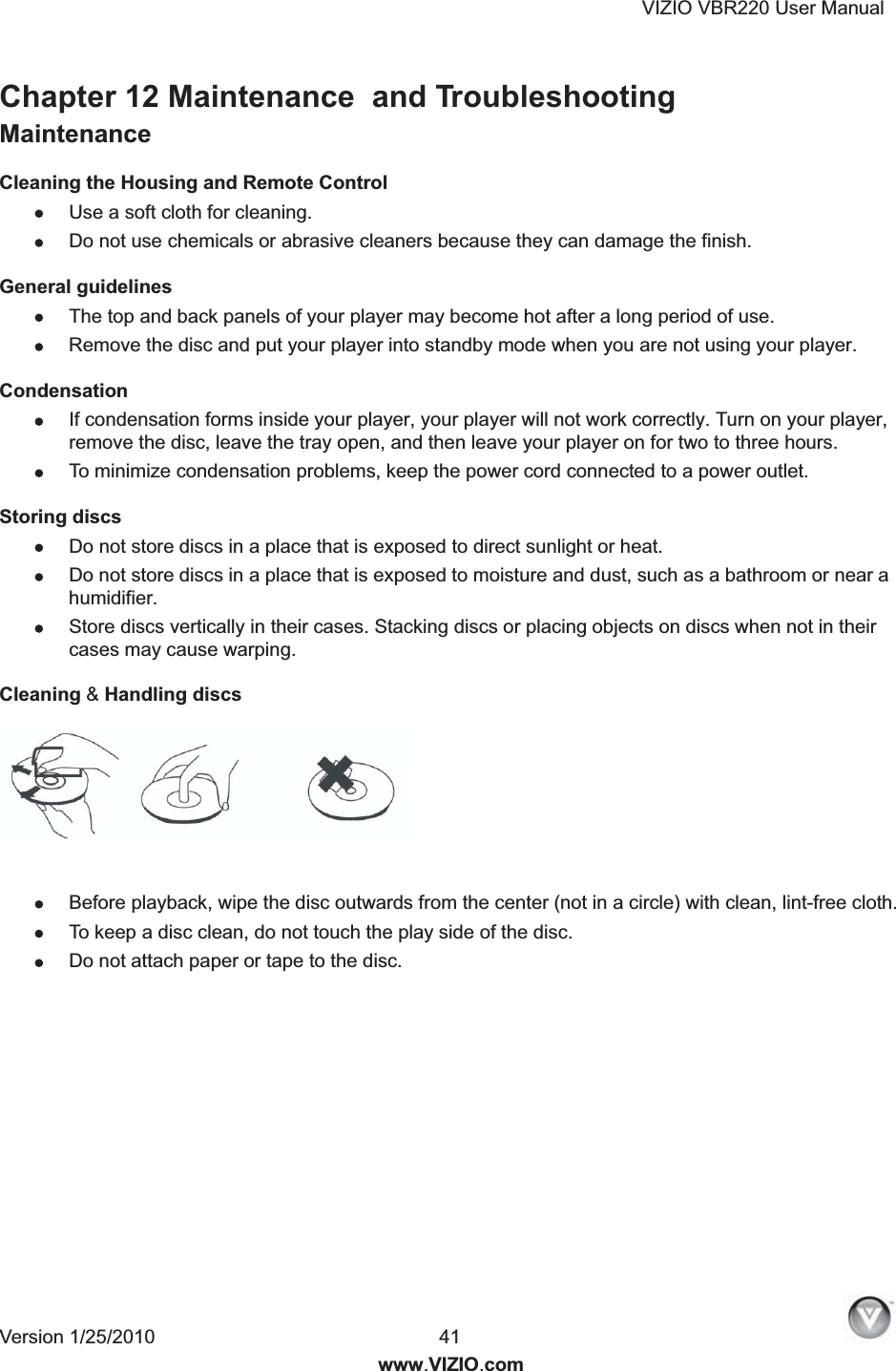

VIZIO VBR220 User Manual Version 1/25/2010 41 www.VIZIO.com Chapter 12 Maintenance and Troubleshooting Maintenance Cleaning the Housing and Remote Control Use a soft cloth for cleaning. Do not use chemicals or abrasive cleaners because they can damage the finish. General guidelines The top and back panels of your player may become hot after a long period of use. Remove the disc and put your player into standby mode when you are not using your player. Condensation If condensation forms inside your player, your player will not work correctly. Turn on your player, remove the disc, leave the tray open, and then leave your player on for two to three hours. To minimize condensation problems, keep the power cord connected to a power outlet. Storing discs Do not store discs in a place that is exposed to direct sunlight or heat. Do not store discs in a place that is exposed to moisture and dust, such as a bathroom or near a humidifier. Store discs vertically in their cases. Stacking discs or placing objects on discs when not in their cases may cause warping. Cleaning & Handling discs Before playback, wipe the disc outwards from the center (not in a circle) with clean, lint-free cloth. To keep a disc clean, do not touch the play side of the disc. Do not attach paper or tape to the disc.

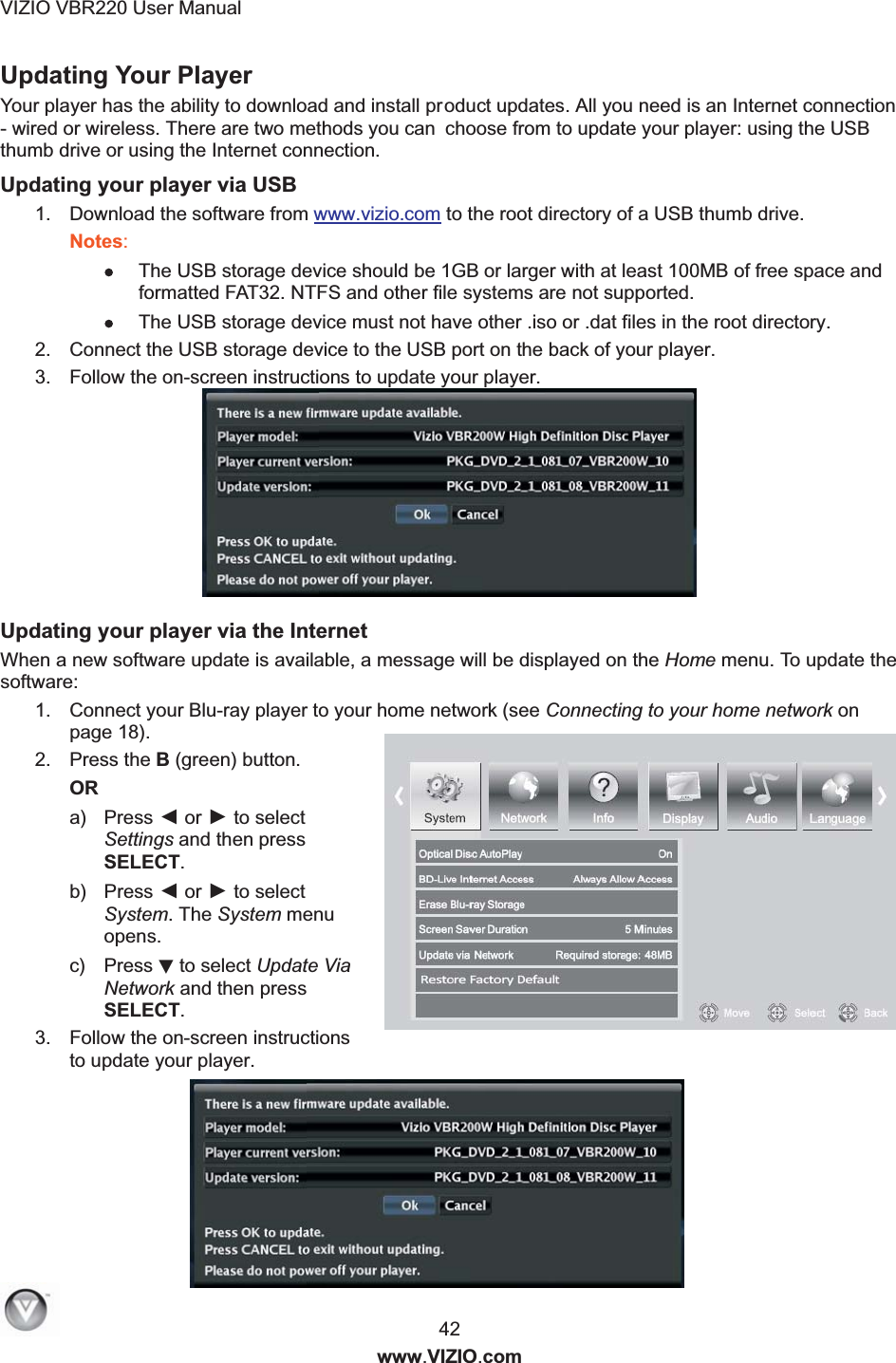

VIZIO VBR220 User Manual 42 www.VIZIO.com Updating Your Player Your player has the ability to download and install product updates. All you need is an Internet connection - wired or wireless. There are two methods you can choose from to update your player: using the USB thumb drive or using the Internet connection. Updating your player via USB 1. Download the software from www.vizio.com to the root directory of a USB thumb drive. Notes: The USB storage device should be 1GB or larger with at least 100MB of free space and formatted FAT32. NTFS and other file systems are not supported. The USB storage device must not have other .iso or .dat files in the root directory. 2. Connect the USB storage device to the USB port on the back of your player. 3. Follow the on-screen instructions to update your player. Updating your player via the Internet When a new software update is available, a message will be displayed on the Home menu. To update the software: 1. Connect your Blu-ray player to your home network (see Connecting to your home network on page 18). 2. Press the B (green) button. OR a) Press ◄ or ► to select Settings and then press SELECT. b) Press ◄ or ► to select System. The System menu opens. c) Press ▼ to select Update Via Network and then press SELECT. 3. Follow the on-screen instructions to update your player.

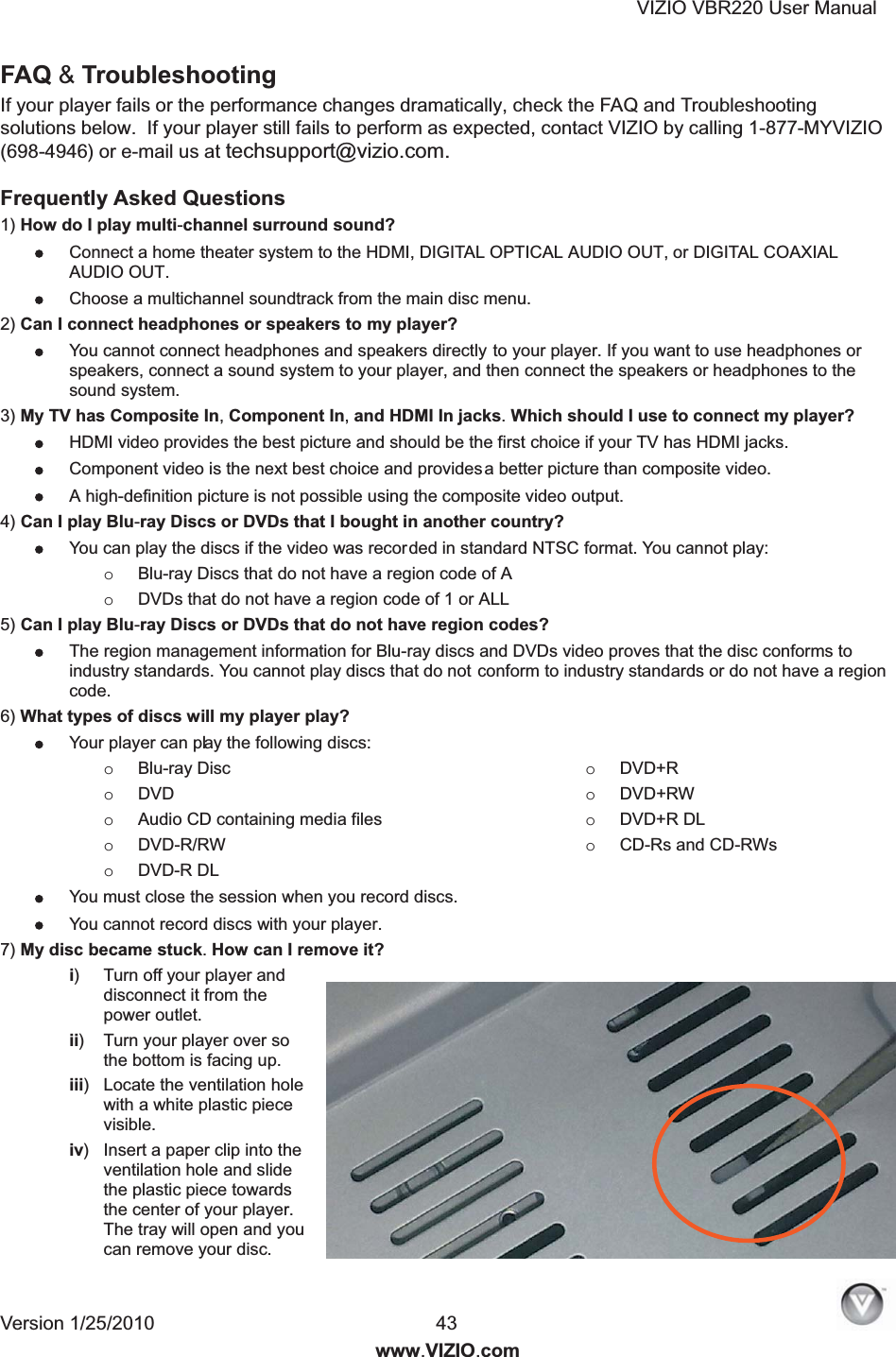

VIZIO VBR220 User Manual Version 1/25/2010 43 www.VIZIO.com FAQ & Troubleshooting If your player fails or the performance changes dramatically, check the FAQ and Troubleshooting solutions below. If your player still fails to perform as expected, contact VIZIO by calling 1-877-MYVIZIO (698-4946) or e-mail us at techsupport@vizio.com. Frequently Asked Questions 1) How do I play multi-channel surround sound? Connect a home theater system to the HDMI, DIGITAL OPTICAL AUDIO OUT, or DIGITAL COAXIAL AUDIO OUT. Choose a multichannel soundtrack from the main disc menu. 2) Can I connect headphones or speakers to my player? You cannot connect headphones and speakers directly to your player. If you want to use headphones or speakers, connect a sound system to your player, and then connect the speakers or headphones to the sound system. 3) My TV has Composite In, Component In, and HDMI In jacks. Which should I use to connect my player? HDMI video provides the best picture and should be the first choice if your TV has HDMI jacks. Component video is the next best choice and provides a better picture than composite video. A high-definition picture is not possible using the composite video output. 4) Can I play Blu-ray Discs or DVDs that I bought in another country? You can play the discs if the video was recorded in standard NTSC format. You cannot play: o Blu-ray Discs that do not have a region code of A o DVDs that do not have a region code of 1 or ALL 5) Can I play Blu-ray Discs or DVDs that do not have region codes? The region management information for Blu-ray discs and DVDs video proves that the disc conforms to industry standards. You cannot play discs that do not conform to industry standards or do not have a region code. 6) What types of discs will my player play? Your player can pla y the following discs: o Blu-ray Disc o DVD o Audio CD containing media files o DVD-R/RW o DVD-R DL o DVD+R o DVD+RW o DVD+R DL o CD-Rs and CD-RWs You must close the session when you record discs. You cannot record discs with your player. 7) My disc became stuck. How can I remove it? i) Turn off your player and disconnect it from the power outlet. ii) Turn your player over so the bottom is facing up. iii) Locate the ventilation hole with a white plastic piece visible. iv) Insert a paper clip into the ventilation hole and slide the plastic piece towards the center of your player. The tray will open and you can remove your disc.

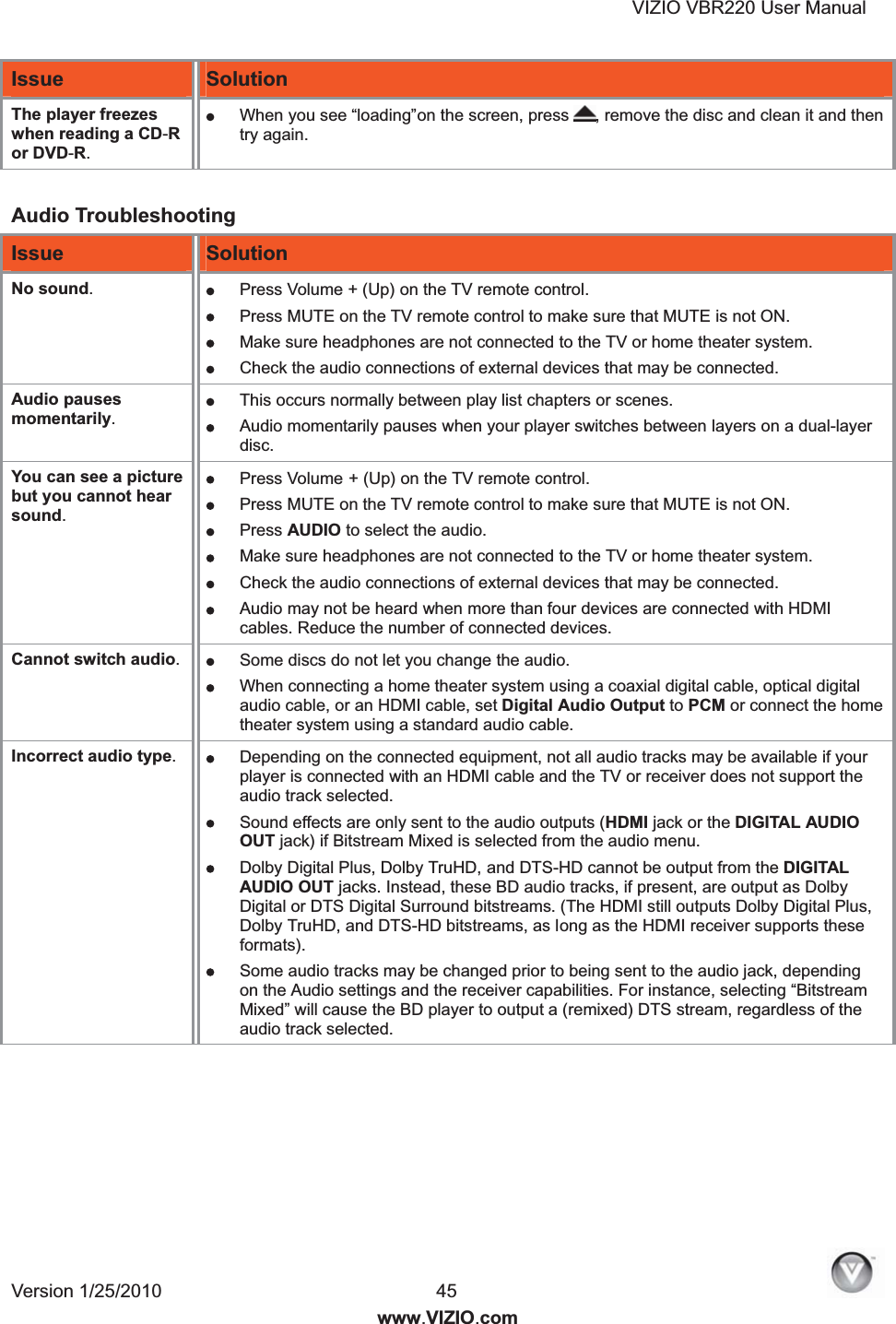

VIZIO VBR220 User Manual Version 1/25/2010 45 www.VIZIO.com Issue Solution The player freezes when reading a CD-R or DVD-R. When you see on the screen, press“loading”, remove the disc and clean it and then try again. Audio Troubleshooting Issue Solution No sound. Press Volume + (Up) on the TV remote control. Press MUTE on the TV remote control to make sure that MUTE is not ON. Make sure headphones are not connected to the TV or home theater system. Check the audio connections of external devices that may be connected. Audio pauses momentarily. This occurs normally between play list chapters or scenes. Audio momentarily pauses when your player switches between layers on a dual-layer disc. You can see a picture but you cannot hear sound. Press Volume + (Up) on the TV remote control. Press MUTE on the TV remote control to make sure that MUTE is not ON. Press AUDIO to select the audio. Make sure headphones are not connected to the TV or home theater system. Check the audio connections of external devices that may be connected. Audio may not be heard when more than four devices are connected with HDMI cables. Reduce the number of connected devices. Cannot switch audio. Some discs do not let you change the audio. When connecting a home theater system using a coaxial digital cable, optical digital audio cable, or an HDMI cable, set Digital Audio Output to PCM or connect the home theater system using a standard audio cable. Incorrect audio type. Depending on the connected equipment, not all audio tracks may be available if your player is connected with an HDMI cable and the TV or receiver does not support the audio track selected. Sound effects are only sent to the audio outputs (HDMI jack or the DIGITAL AUDIO OUT jack) if Bitstream Mixed is selected from the audio menu. Dolby Digital Plus, Dolby TruHD, and DTS-HD cannot be output from the DIGITAL AUDIO OUT jacks. Instead, these BD audio tracks, if present, are output as Dolby Digital or DTS Digital Surround bitstreams. (The HDMI still outputs Dolby Digital Plus, Dolby TruHD, and DTS-HD bitstreams, as long as the HDMI receiver supports these formats). Some audio tracks may be changed prior to being sent to the audio jack, depending on the Audio settings and the receiver capabilities. For instance, selecting “Bitstream Mixed” will cause the BD player to output a (remixed) DTS stream, regardless of the audio track selected.

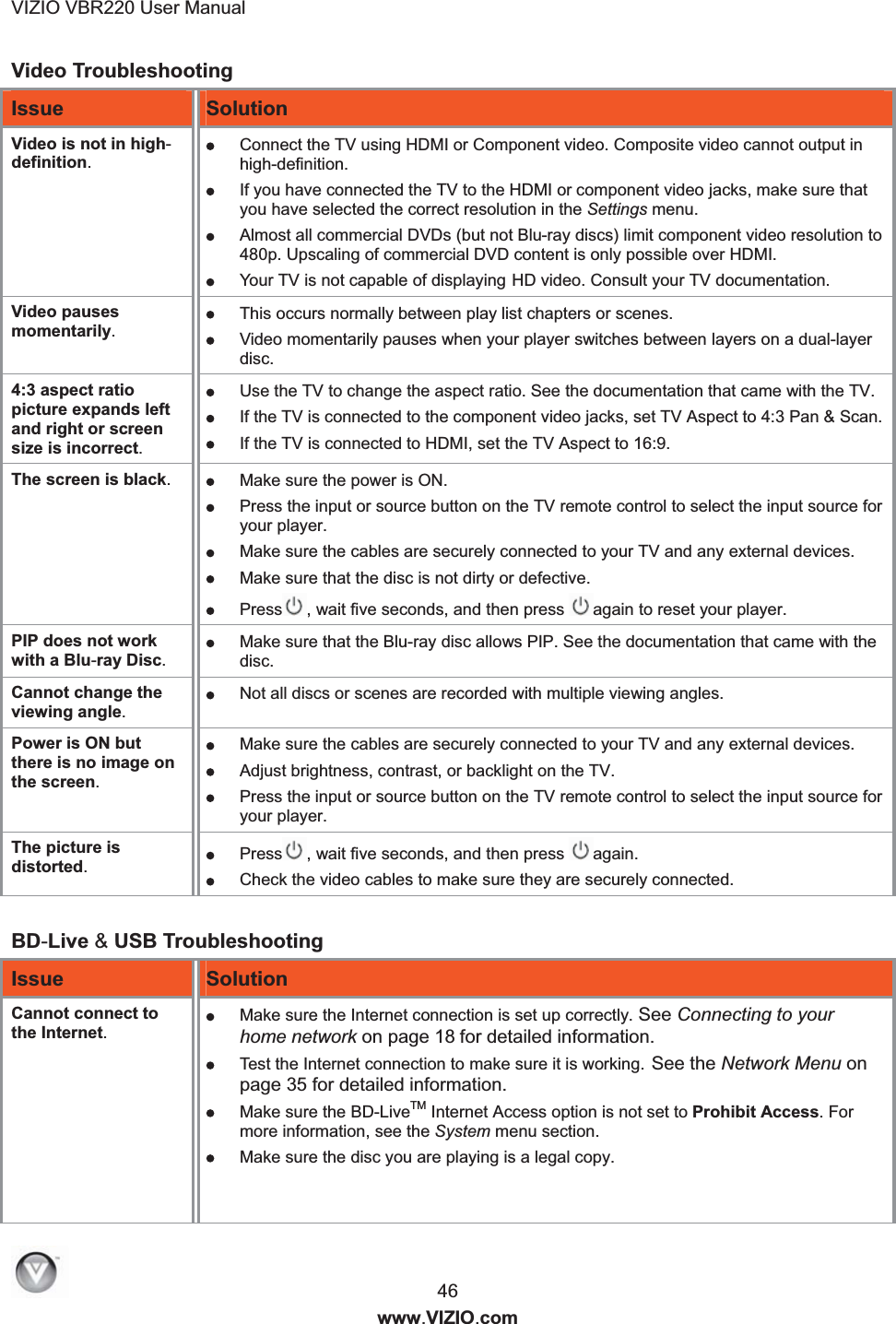

VIZIO VBR220 User Manual 46 www.VIZIO.com Video Troubleshooting Issue Solution Video is not in high-definition. Connect the TV using HDMI or Component video. Composite video cannot output in high-definition. If you have connected the TV to the HDMI or component video jacks, make sure that you have selected the correct resolution in the Settings menu. Almost all commercial DVDs (but not Blu-ray discs) limit component video resolution to 480p. Upscaling of commercial DVD content is only possible over HDMI. Your TV is not capable of displaying HD video. Consult your TV documentation. Video pauses momentarily. This occurs normally between play list chapters or scenes. Video momentarily pauses when your player switches between layers on a dual-layer disc. 4:3 aspect ratio picture expands left and right or screen size is incorrect. Use the TV to change the aspect ratio. See the documentation that came with the TV. If the TV is connected to the component video jacks, set TV Aspect to 4:3 Pan & Scan. If the TV is connected to HDMI, set the TV Aspect to 16:9. The screen is black. Make sure the power is ON. Press the input or source button on the TV remote control to select the input source for your player. Make sure the cables are securely connected to your TV and any external devices. Make sure that the disc is not dirty or defective. Press , wait five seconds, and then press again to reset your player. PIP does not work with a Blu-ray Disc. Make sure that the Blu-ray disc allows PIP. See the documentation that came with the disc. Cannot change the viewing angle. Not all discs or scenes are recorded with multiple viewing angles. Power is ON but there is no image on the screen. Make sure the cables are securely connected to your TV and any external devices. Adjust brightness, contrast, or backlight on the TV. Press the input or source button on the TV remote control to select the input source for your player. The picture is distorted. Press , wait five seconds, and then press again. Check the video cables to make sure they are securely connected. BD-Live & USB Troubleshooting Issue Solution Cannot connect to the Internet. Make sure the Internet connection is set up correctly. See Connecting to your home network on page 18 for detailed information. Test the Internet connection to make sure it is working. See the Network Menu on page 35 for detailed information. Make sure the BD-LiveTM Internet Access option is not set to Prohibit Access. For more information, see the System menu section. Make sure the disc you are playing is a legal copy.

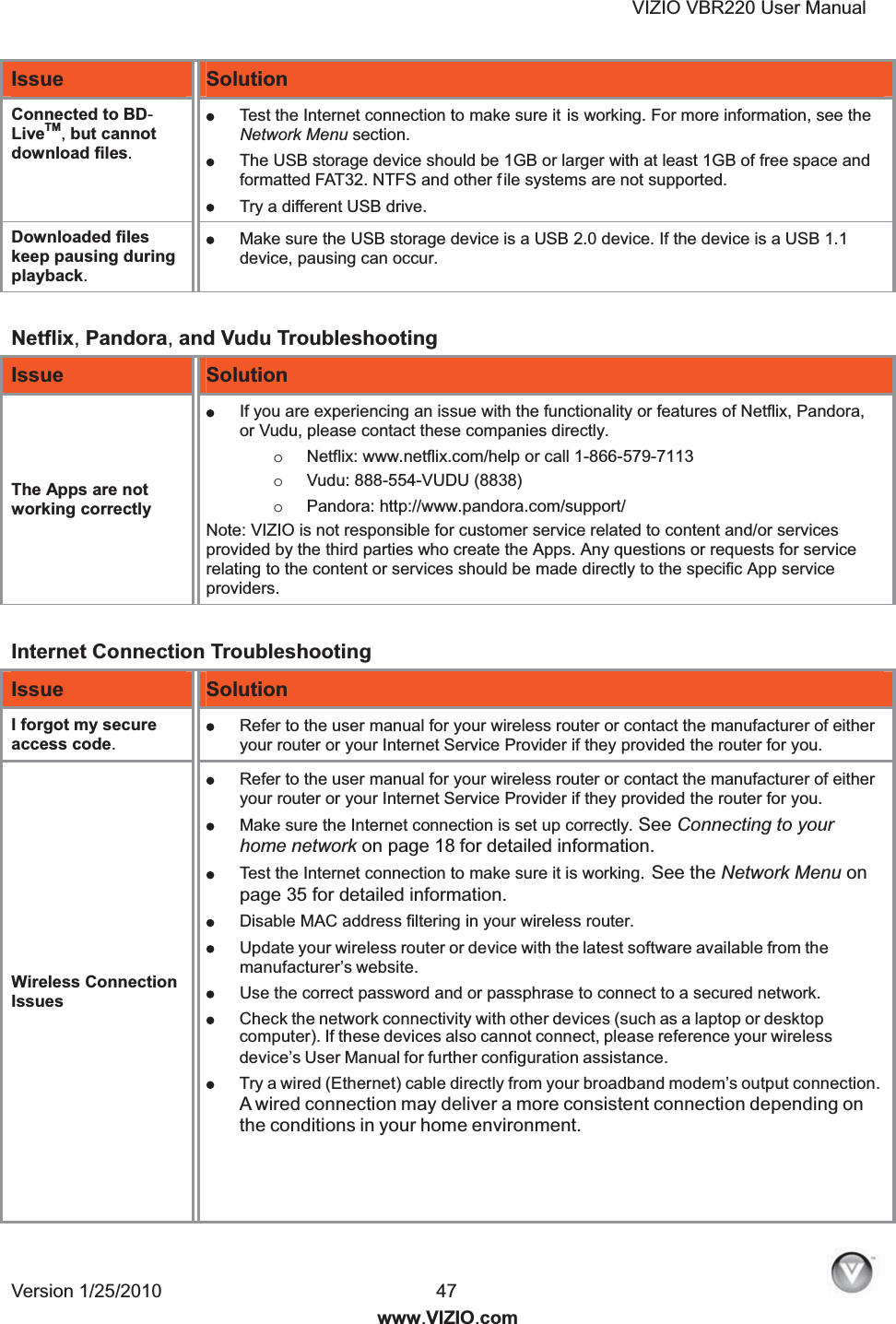

VIZIO VBR220 User Manual Version 1/25/2010 47 www.VIZIO.com Issue Solution Connected to BD-LiveTM, but cannot download files. Test the Internet connection to make sure it is working. For more information, see the Network Menu section. The USB storage device should be 1GB or larger with at least 1GB of free space and formatted FAT32. NTFS and other f ile systems are not supported. Try a different USB drive. Downloaded files keep pausing during playback. Make sure the USB storage device is a USB 2.0 device. If the device is a USB 1.1 device, pausing can occur. Netflix, Pandora, and Vudu Troubleshooting Issue Solution The Apps are not working correctly If you are experiencing an issue with the functionality or features of Netflix, Pandora, or Vudu, please contact these companies directly. o Netflix: www.netflix.com/help or call 1-866-579-7113 o Vudu: 888-554-VUDU (8838) o Pandora: http://www.pandora.com/support/ Note: VIZIO is not responsible for customer service related to content and/or services provided by the third parties who create the Apps. Any questions or requests for service relating to the content or services should be made directly to the specific App service providers. Internet Connection Troubleshooting Issue Solution I forgot my secure access code. Refer to the user manual for your wireless router or contact the manufacturer of either your router or your Internet Service Provider if they provided the router for you. Wireless Connection Issues Refer to the user manual for your wireless router or contact the manufacturer of either your router or your Internet Service Provider if they provided the router for you. Make sure the Internet connection is set up correctly. See Connecting to your home network on page 18 for detailed information. Test the Internet connection to make sure it is working. See the Network Menu on page 35 for detailed information. Disable MAC address filtering in your wireless router. Use the correct password and or passphrase to connect to a secured network. Update your wireless router or device with the latest software available from themanufacturer’s website.Check the network connectivity with other devices (such as a laptop or desktopcomputer). If these devices also cannot connect, please reference your wirelessdevice’s User Manual for further configuration assistance.Try a wired (Ethernet) cable directly from your broadband modem’s output connection.A wired connection may deliver a more consistent connection depending onthe conditions in your home environment.

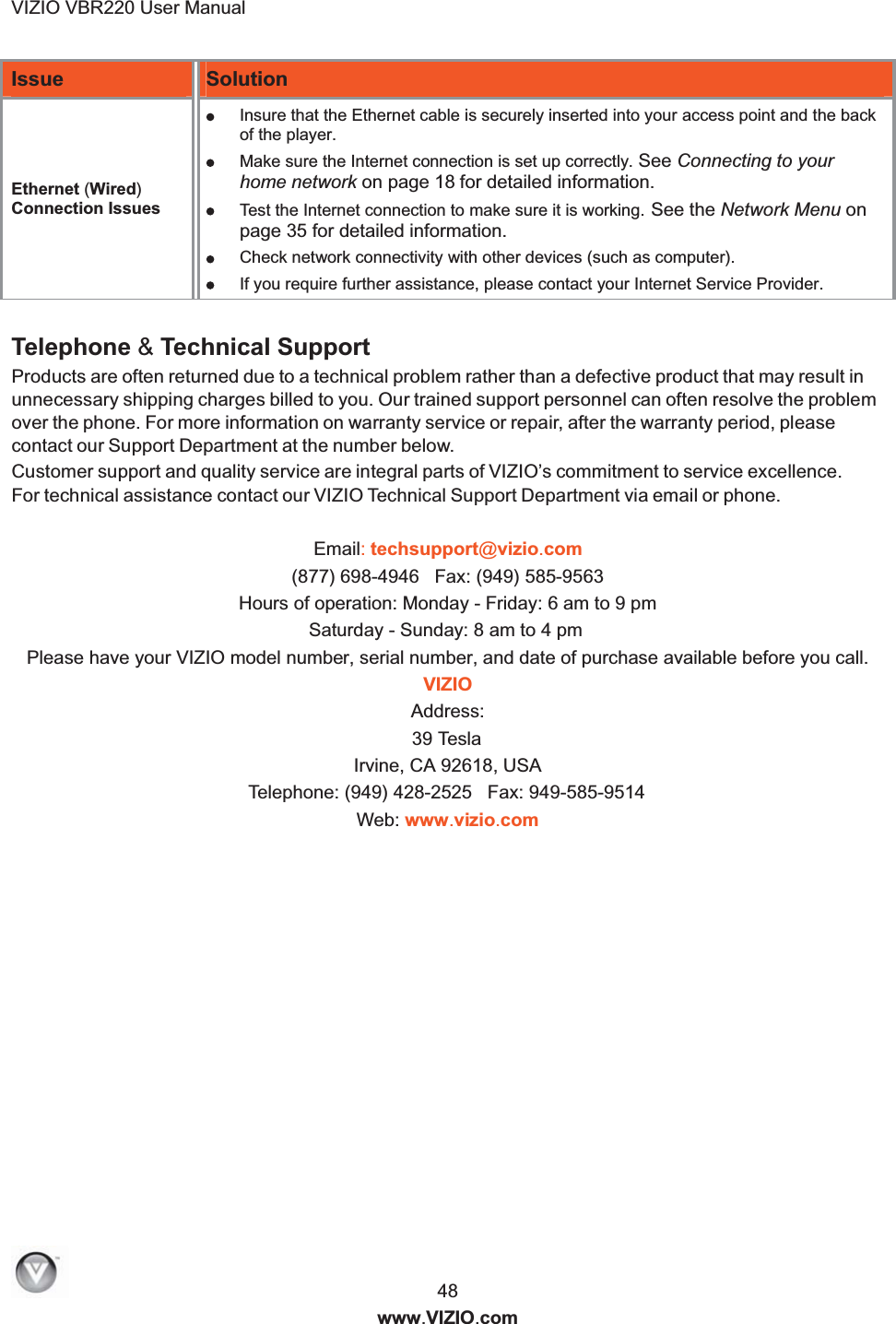

VIZIO VBR220 User Manual 48 www.VIZIO.com Issue Solution Ethernet (Wired) Connection Issues Insure that the Ethernet cable is securely inserted into your access point and the back of the player. Make sure the Internet connection is set up correctly. See Connecting to your home network on page 18 for detailed information. Test the Internet connection to make sure it is working. See the Network Menu on page 35 for detailed information. Check network connectivity with other devices (such as computer). If you require further assistance, please contact your Internet Service Provider. Telephone & Technical Support Email: techsupport@vizio.com (877) 698-4946 Fax: (949) 585-9563 Hours of operation: Monday - Friday: 6 am to 9 pm Saturday - Sunday: 8 am to 4 pm Please have your VIZIO model number, serial number, and date of purchase available before you call. VIZIO Address: 39 Tesla Irvine, CA 92618, USA Telephone: (949) 428-2525 Fax: 949-585-9514 Web: www.vizio.com Products are often returned due to a technical problem rather than a defective product that may result inunnecessary shipping charges billed to you. Our trained support personnel can often resolve the problemover the phone. For more information on warranty service or repair, after the warranty period, pleasecontact our Support Department at the number below.Customer support and quality service are integral parts of VIZIO’s commitment to service excellence.For technical assistance contact our VIZIO Technical Support Department via email or phone.

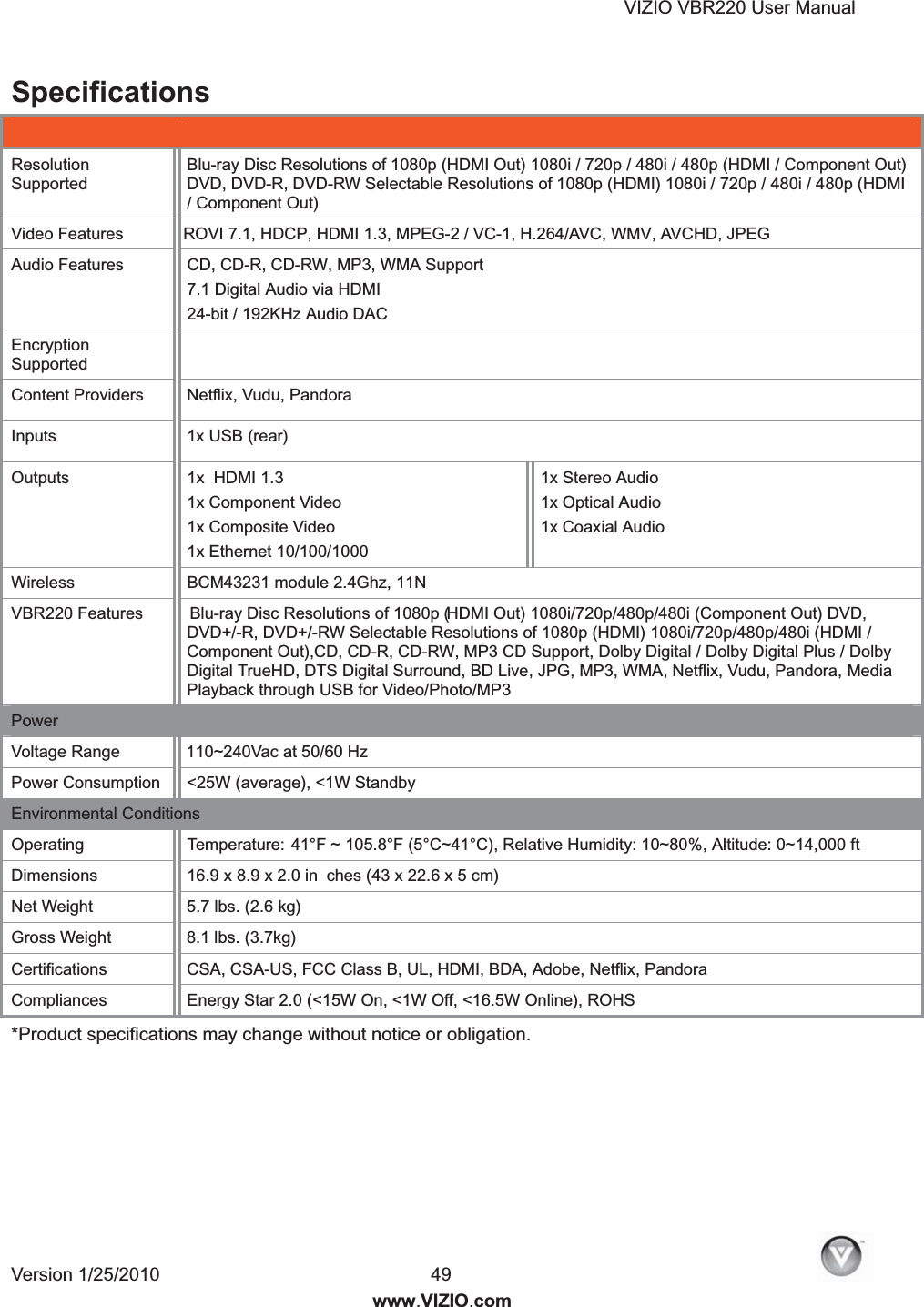

VIZIO VBR220 User Manual Version 1/25/2010 49 www.VIZIO.com Specifications Resolution Supported Blu-ray Disc Resolutions of 1080p (HDMI Out) 1080i / 720p / 480i / 480p (HDMI / Component Out) DVD, DVD-R, DVD-RW Selectable Resolutions of 1080p (HDMI) 1080i / 720p / 480i / 480p (HDMI / Component Out) Video Features ROVI 7.1, HDCP, HDMI 1.3, MPEG-2 / VC-1, H.264/AVC, WMV, AVCHD, JPEG Audio Features CD, CD-R, CD-RW, MP3, WMA Support 7.1 Digital Audio via HDMI 24-bit / 192KHz Audio DAC Encryption Supported Content Providers Netflix, Vudu, Pandora Inputs 1x USB (rear) Outputs 1x HDMI 1.3 1x Component Video 1x Composite Video 1x Ethernet 10/100/1000 1x Stereo Audio 1x Optical Audio 1x Coaxial Audio Wireless BCM43231 module 2.4Ghz, 11N VBR220 Features Blu-ray Disc Resolutions of 1080p (HDMI Out) 1080i/720p/480p/480i (Component Out) DVD, DVD+/-R, DVD+/-RW Selectable Resolutions of 1080p (HDMI) 1080i/720p/480p/480i (HDMI / Component Out),CD, CD-R, CD-RW, MP3 CD Support, Dolby Digital / Dolby Digital Plus / Dolby Digital TrueHD, DTS Digital Surround, BD Live, JPG, MP3, WMA, Netflix, Vudu, Pandora, Media Playback through USB for Video/Photo/MP3 Power Voltage Range 110~240Vac at 50/60 Hz Power Consumption <25W (average), <1W Standby Environmental Conditions Operating Temperature: 41°F ~ 105.8°F (5°C~41°C), Relative Humidity: 10~80%, Altitude: 0~14,000 ft Dimensions 16.9 x 8.9 x 2.0 in ches (43 x 22.6 x 5 cm) Net Weight 5.7 lbs. (2.6 kg) Gross Weight 8.1 lbs. (3.7kg) Certifications CSA, CSA-US, FCC Class B, UL, HDMI, BDA, Adobe, Netflix, Pandora Compliances Energy Star 2.0 (<15W On, <1W Off, <16.5W Online), ROHS *Product specifications may change without notice or obligation.

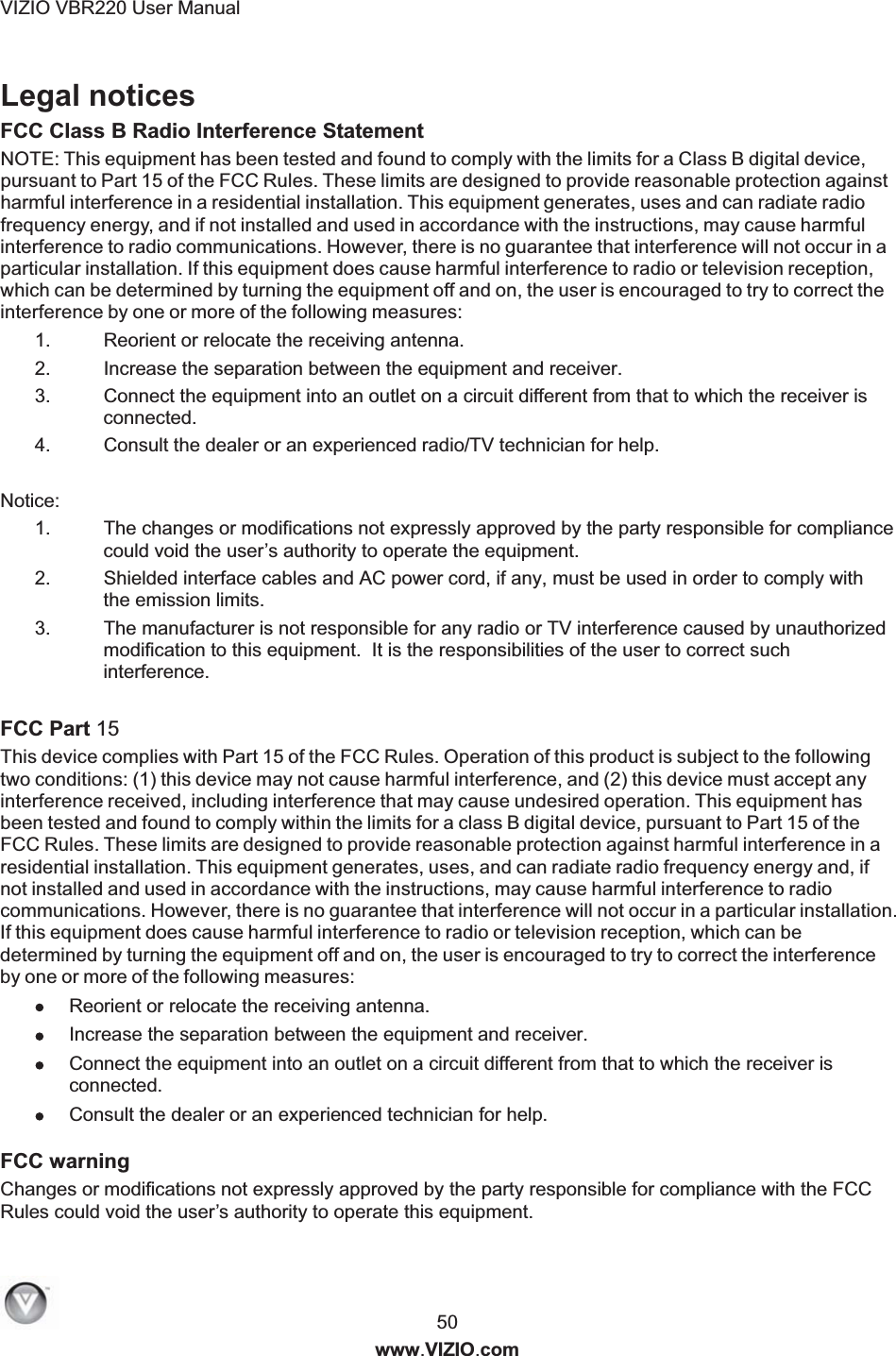

VIZIO VBR220 User Manual 50 www.VIZIO.com Legal notices FCC Class B Radio Interference Statement 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Notice: 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. 3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference. FCC Part 15 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced technician for help. FCC warning Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiate radiofrequency energy, and if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the followingtwo conditions: (1) this device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation. This equipment hasbeen tested and found to comply within the limits for a class B digital device, pursuant to Part 15 of theFCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses, and can radiate radio frequency energy and, ifnot installed and used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct the interferenceby one or more of the following measures:

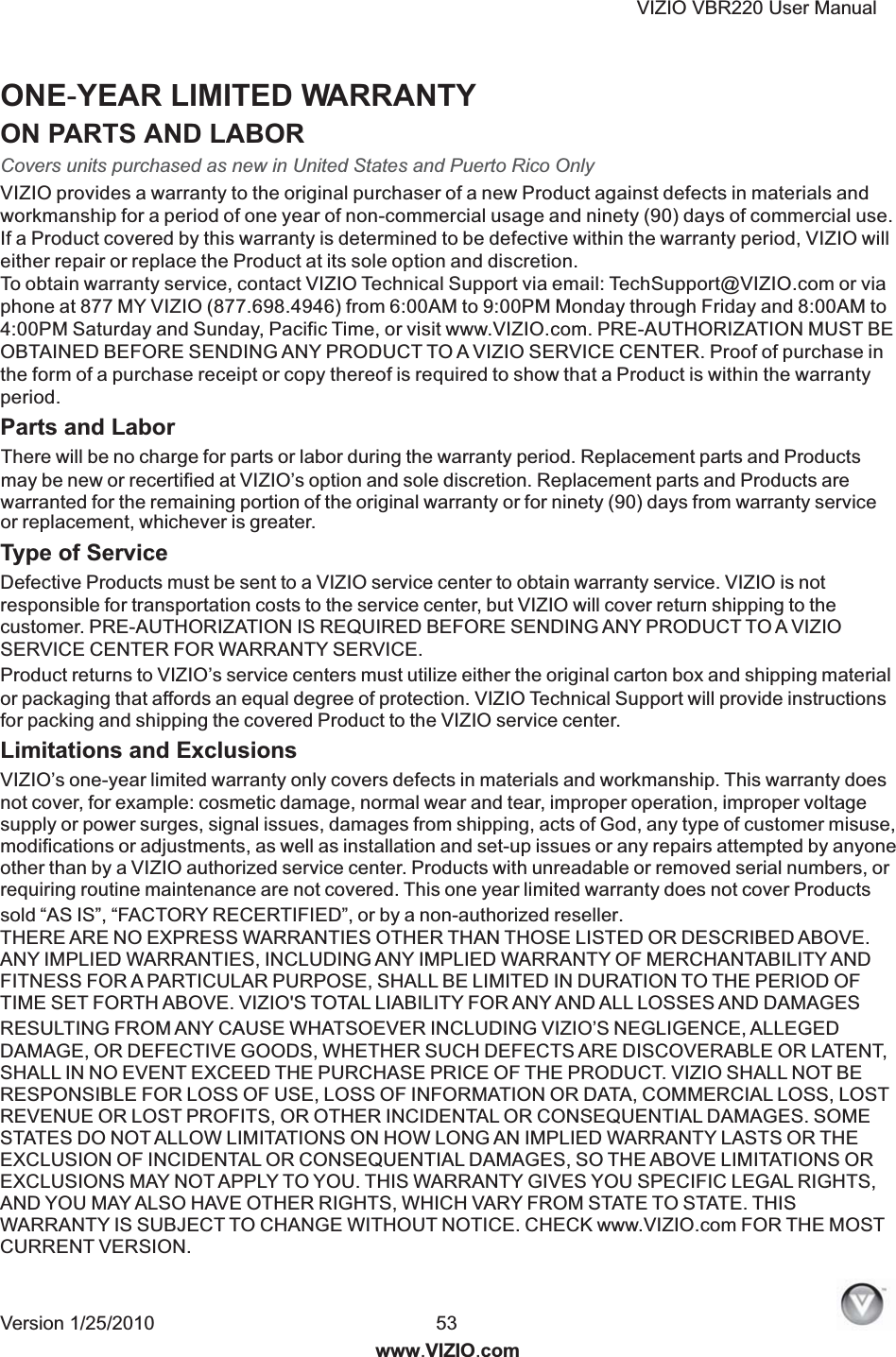

VIZIO VBR220 User Manual Version 1/25/2010 53 www.VIZIO.com ONE-YEAR LIMITED WARRANTY ON PARTS AND LABOR Covers units purchased as new in United States and Puerto Rico Only Parts and Labor Type of Service Limitations and Exclusions There will be no charge for parts or labor during the warranty period. Replacement parts and Productsmay be new or recertified at VIZIO’s option and sole discretion. Replacement parts and Products arewarranted for the remaining portion of the original warranty or for ninety (90) days from warranty serviceor replacement, whichever is greater.Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is notresponsible for transportation costs to the service center, but VIZIO will cover return shipping to thecustomer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIOSERVICE CENTER FOR WARRANTY SERVICE.Product returns to VIZIO’s service centers must utilize either the original carton box and shipping materialor packaging that affords an equal degree of protection. VIZIO Technical Support will provide instructionsfor packing and shipping the covered Product to the VIZIO service center.VIZIO’s one-year limited warranty only covers defects in materials and workmanship. This warranty doesnot cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltagesupply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse,modifications or adjustments, as well as installation and set-up issues or any repairs attempted by anyoneother than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, orrequiring routine maintenance are not covered. This one year limited warranty does not cover Productssold “AS IS”, “FACTORY RECERTIFIED”, or by a non-authorized reseller.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE.ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY ANDFITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OFTIME SET FORTH ABOVE. VIZIO'S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGESRESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO’S NEGLIGENCE, ALLEGEDDAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT,SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BERESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS, LOSTREVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOMESTATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THEEXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OREXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THISWARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOSTCURRENT VERSION.VIZIO provides a warranty to the original purchaser of a new Product against defects in materials andworkmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use.If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO willeither repair or replace the Product at its sole option and discretion.To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or viaphone at 877 MY VIZIO (877.698.4946) from 6:00AM to 9:00PM Monday through Friday and 8:00AM to4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BEOBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase inthe form of a purchase receipt or copy thereof is required to show that a Product is within the warrantyperiod.

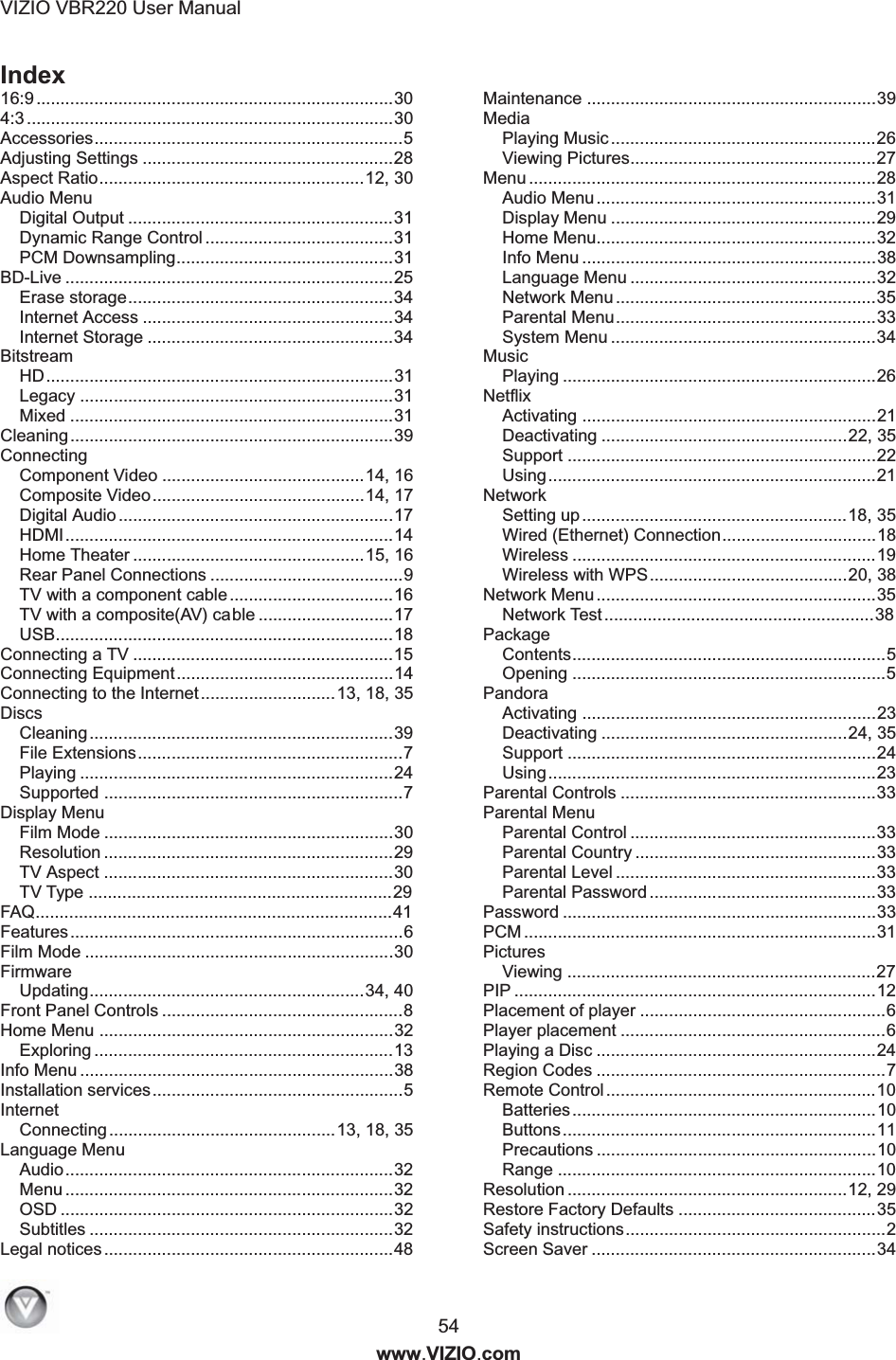

VIZIO VBR220 User Manual 54 www.VIZIO.com Index 16:9 ..........................................................................30 4:3 ............................................................................30 Accessories................................................................5 Adjusting Settings ....................................................28 Aspect Ratio.......................................................12, 30 Audio Menu Digital Output .......................................................31 Dynamic Range Control .......................................31 PCM Downsampling.............................................31 BD-Live ....................................................................25 Erase storage.......................................................34 Internet Access ....................................................34 Internet Storage ...................................................34 Bitstream HD........................................................................31 Legacy .................................................................31 Mixed ...................................................................31 Cleaning...................................................................39 Connecting Component Video ..........................................14, 16 Composite Video............................................14, 17 Digital Audio .........................................................17 HDMI....................................................................14 Home Theater ................................................15, 16 Rear Panel Connections ........................................9 TV with a component cable..................................16 TV with a composite(AV) cable ............................17 USB......................................................................18 Connecting a TV ......................................................15 Connecting Equipment.............................................14 Connecting to the Internet............................13, 18, 35 Discs Cleaning...............................................................39 File Extensions.......................................................7 Playing .................................................................24 Supported ..............................................................7 Display Menu Film Mode ............................................................30 Resolution ............................................................29 TV Aspect ............................................................30 TV Type ...............................................................29 FAQ..........................................................................41 Features.....................................................................6 Film Mode ................................................................30 Firmware Updating.........................................................34, 40 Front Panel Controls ..................................................8 Home Menu .............................................................32 Exploring ..............................................................13 Info Menu .................................................................38 Installation services....................................................5 Internet Connecting ...............................................13, 18, 35 Language Menu Audio....................................................................32 Menu ....................................................................32 OSD .....................................................................32 Subtitles ...............................................................32 Legal notices............................................................48 Maintenance ............................................................39 Media Playing Music .......................................................26 Viewing Pictures...................................................27 Menu ........................................................................28 Audio Menu..........................................................31 Display Menu .......................................................29 Home Menu..........................................................32 Info Menu .............................................................38 Language Menu ...................................................32 Network Menu ......................................................35 Parental Menu......................................................33 System Menu .......................................................34 Music Playing .................................................................26 Netflix Activating .............................................................21 Deactivating ...................................................22, 35 Support ................................................................22 Using....................................................................21 Network Setting up.......................................................18, 35 Wired (Ethernet) Connection................................18 Wireless ...............................................................19 Wireless with WPS.........................................20, 38 Network Menu ..........................................................35 Network Test........................................................38 Package Contents.................................................................5 Opening .................................................................5 Pandora Activating .............................................................23 Deactivating ...................................................24, 35 Support ................................................................24 Using....................................................................23 Parental Controls .....................................................33 Parental Menu Parental Control ...................................................33 Parental Country ..................................................33 Parental Level ......................................................33 Parental Password ...............................................33 Password .................................................................33 PCM .........................................................................31 Pictures Viewing ................................................................27 PIP ...........................................................................12 Placement of player ...................................................6 Player placement .......................................................6 Playing a Disc ..........................................................24 Region Codes ............................................................7 Remote Control ........................................................10 Batteries...............................................................10 Buttons.................................................................11 Precautions ..........................................................10 Range ..................................................................10 Resolution ..........................................................12, 29 Restore Factory Defaults .........................................35 Safety instructions......................................................2 Screen Saver ...........................................................34

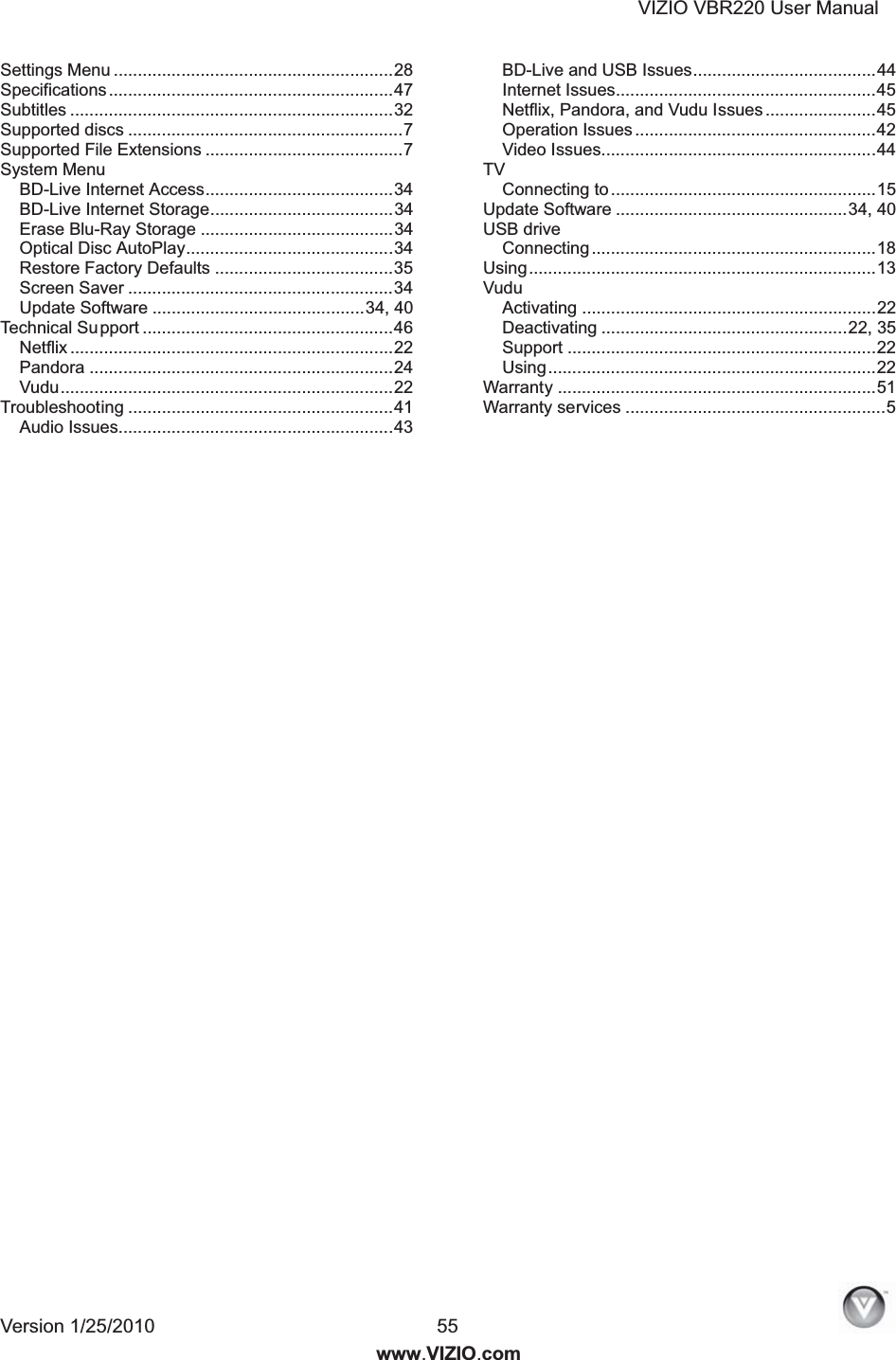

VIZIO VBR220 User Manual Version 1/25/2010 55 www.VIZIO.com Settings Menu ..........................................................28 Specifications...........................................................47 Subtitles ...................................................................32 Supported discs .........................................................7 Supported File Extensions .........................................7 System Menu BD-Live Internet Access.......................................34 BD-Live Internet Storage......................................34 Erase Blu-Ray Storage ........................................34 Optical Disc AutoPlay...........................................34 Restore Factory Defaults .....................................35 Screen Saver .......................................................34 Update Software ............................................34, 40 Technical Support ....................................................46 Netflix ...................................................................22 Pandora ...............................................................24 Vudu.....................................................................22 Troubleshooting .......................................................41 Audio Issues.........................................................43 BD-Live and USB Issues......................................44 Internet Issues......................................................45 Netflix, Pandora, and Vudu Issues .......................45 Operation Issues ..................................................42 Video Issues.........................................................44 TV Connecting to .......................................................15 Update Software ................................................34, 40 USB drive Connecting...........................................................18 Using........................................................................13 Vudu Activating .............................................................22 Deactivating ...................................................22, 35 Support ................................................................22 Using....................................................................22 Warranty ..................................................................51 Warranty services ......................................................5
