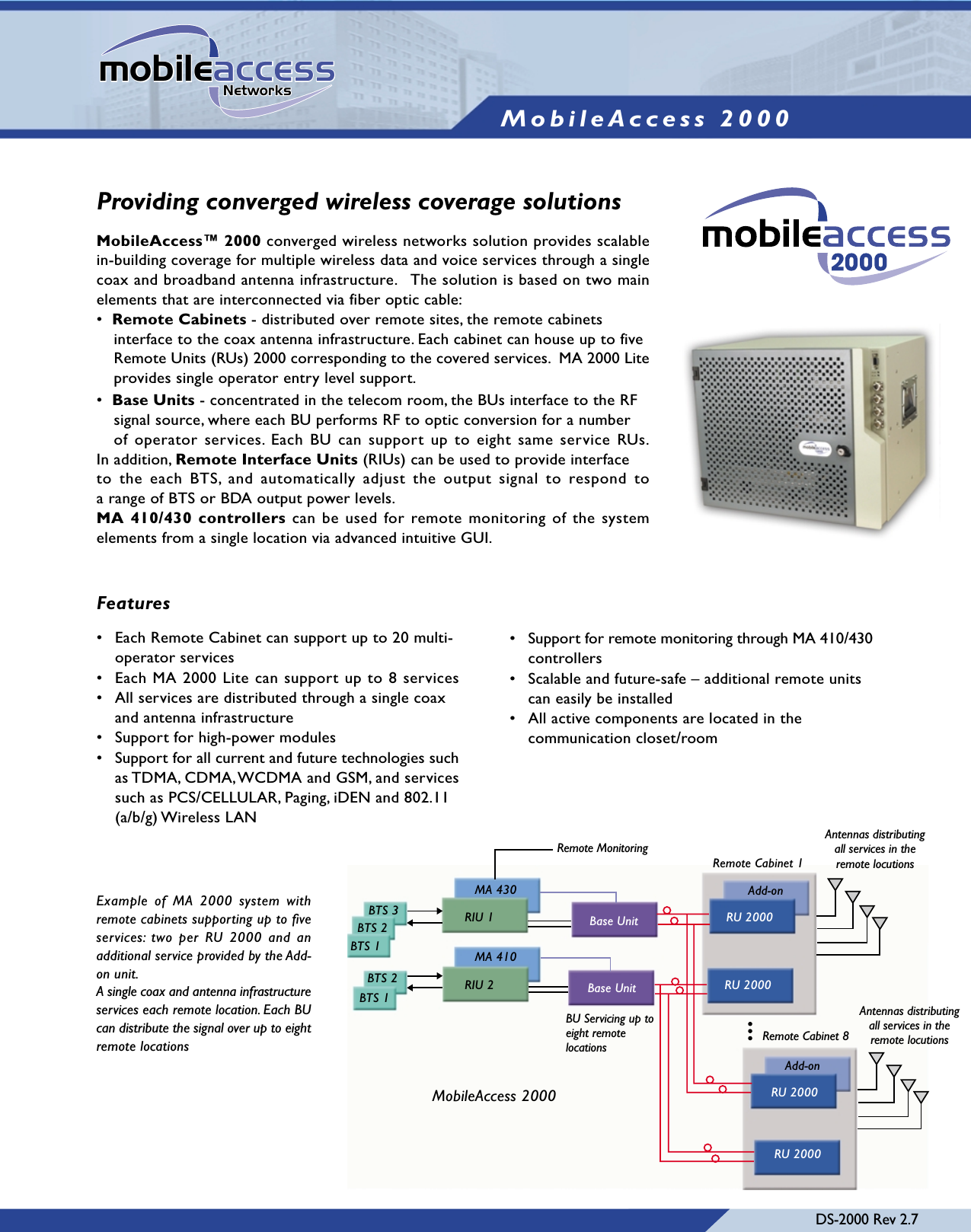

DS-2000 Rev 2.7Features• Support for remote monitoring through MA 410/430controllers• Scalable and future-safe – additional remote units can easily be installed• All active components are located in the communication closet/roomBTS 3BTS 2BTS 1BTS 2BTS 1RIU 2MA 410RIU 1MA 430Base UnitBase UnitRU 2000RU 2000Add-onRU 2000Add-onRU 2000Remote Cabinet 1Remote Cabinet 8Remote MonitoringBU Servicing up toeight remotelocationsAntennas distributingall services in theremote locutionsAntennas distributingall services in theremote locutionsMobileAccess 2000MobileAccess 2000mobileaccessNetworksProviding converged wireless coverage solutionsMobileAccess™ 2000 converged wireless networks solution provides scalablein-building coverage for multiple wireless data and voice services through a singlecoax and broadband antenna infrastructure. The solution is based on two mainelements that are interconnected via fiber optic cable:• Remote Cabinets - distributed over remote sites, the remote cabinets interface to the coax antenna infrastructure. Each cabinet can house up to fiveRemote Units (RUs) 2000 corresponding to the covered services. MA 2000 Liteprovides single operator entry level support.• Base Units - concentrated in the telecom room, the BUs interface to the RF signal source, where each BU performs RF to optic conversion for a number of operator services. Each BU can support up to eight same service RUs.In addition, Remote Interface Units (RIUs) can be used to provide interface to the each BTS, and automatically adjust the output signal to respond toa range of BTS or BDA output power levels.MA 410/430 controllers can be used for remote monitoring of the systemelements from a single location via advanced intuitive GUI.• Each Remote Cabinet can support up to 20 multi-operator services• Each MA 2000 Lite can support up to 8 services• All services are distributed through a single coax and antenna infrastructure• Support for high-power modules• Support for all current and future technologies suchas TDMA, CDMA, WCDMA and GSM, and servicessuch as PCS/CELLULAR, Paging, iDEN and 802.11 (a/b/g) Wireless LANExample of MA 2000 system withremote cabinets supporting up to fiveservices: two per RU 2000 and anadditional service provided by the Add-on unit.A single coax and antenna infrastructureservices each remote location. Each BUcan distribute the signal over up to eightremote locations

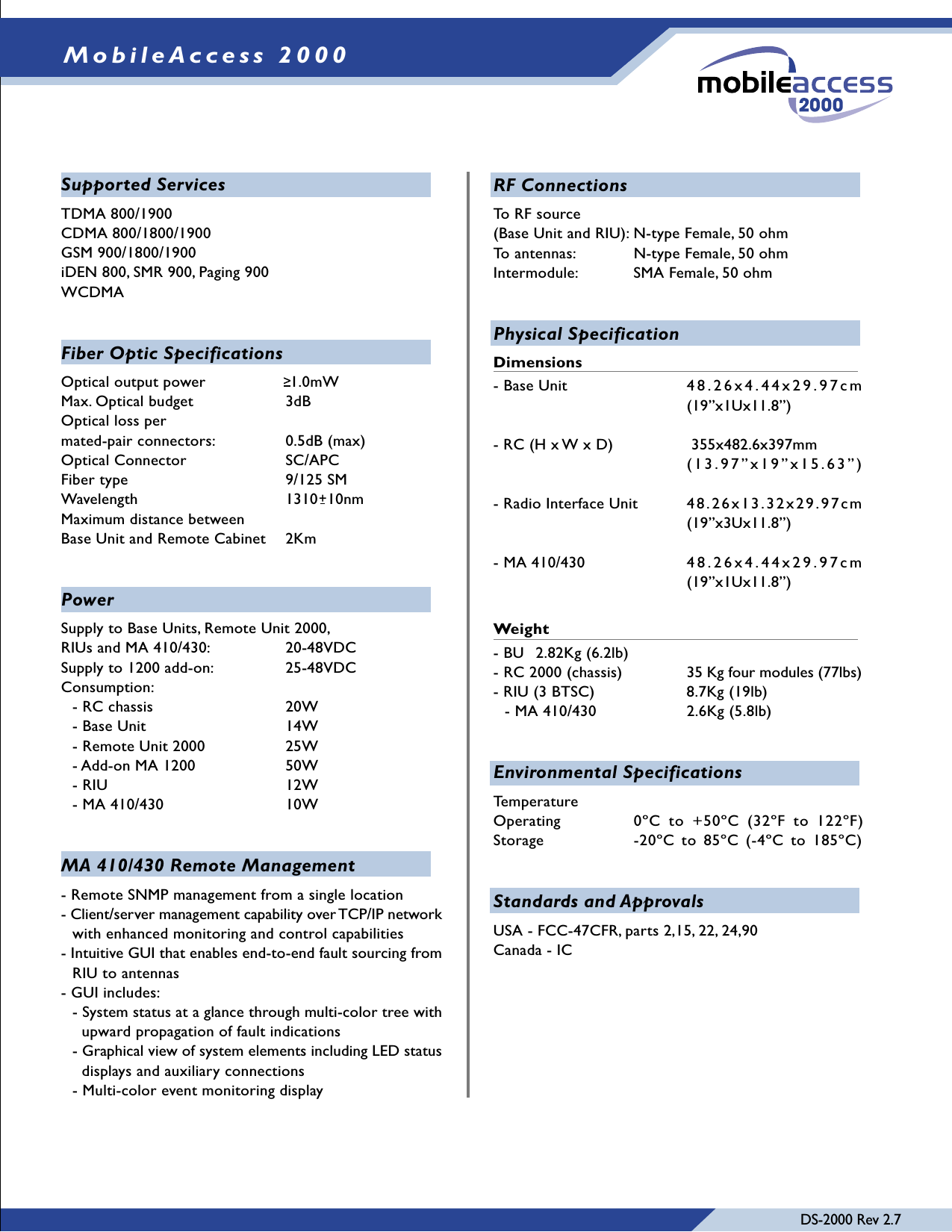

DS-2000 Rev 2.7MobileAccess 2000RF ConnectionsTo RF source(Base Unit and RIU): N-type Female, 50 ohmTo antennas: N-type Female, 50 ohmIntermodule: SMA Female, 50 ohmPhysical SpecificationDimensions- Base Unit 48.26x4.44x29.97cm(19”x1Ux11.8”)- RC (H x W x D) 355x482.6x397mm (13.97”x19”x15.63”)- Radio Interface Unit 48.26x13.32x29.97cm(19”x3Ux11.8”)- MA 410/430 48.26x4.44x29.97cm(19”x1Ux11.8”)Weight- BU 2.82Kg (6.2lb)- RC 2000 (chassis) 35 Kg four modules (77lbs)- RIU (3 BTSC) 8.7Kg (19lb)- MA 410/430 2.6Kg (5.8lb)Environmental SpecificationsTemperatureOperating 0ºC to +50ºC (32ºF to 122ºF)Storage -20ºC to 85ºC (-4ºC to 185ºC)Standards and ApprovalsUSA - FCC-47CFR, parts 2,15, 22, 24,90Canada - ICSupported ServicesTDMA 800/1900CDMA 800/1800/1900GSM 900/1800/1900iDEN 800, SMR 900, Paging 900WCDMAFiber Optic SpecificationsOptical output power 1.0mWMax. Optical budget 3dBOptical loss permated-pair connectors: 0.5dB (max)Optical Connector SC/APCFiber type 9/125 SMWavelength 1310 10nmMaximum distance betweenBase Unit and Remote Cabinet 2KmPowerSupply to Base Units, Remote Unit 2000,RIUs and MA 410/430: 20-48VDCSupply to 1200 add-on: 25-48VDCConsumption:- RC chassis 20W- Base Unit 14W- Remote Unit 2000 25W- Add-on MA 1200 50W- RIU 12W- MA 410/430 10WMA 410/430 Remote Management- Remote SNMP management from a single location- Client/server management capability over TCP/IP networkwith enhanced monitoring and control capabilities- Intuitive GUI that enables end-to-end fault sourcing fromRIU to antennas- GUI includes:- System status at a glance through multi-color tree with upward propagation of fault indications- Graphical view of system elements including LED status displays and auxiliary connections- Multi-color event monitoring display

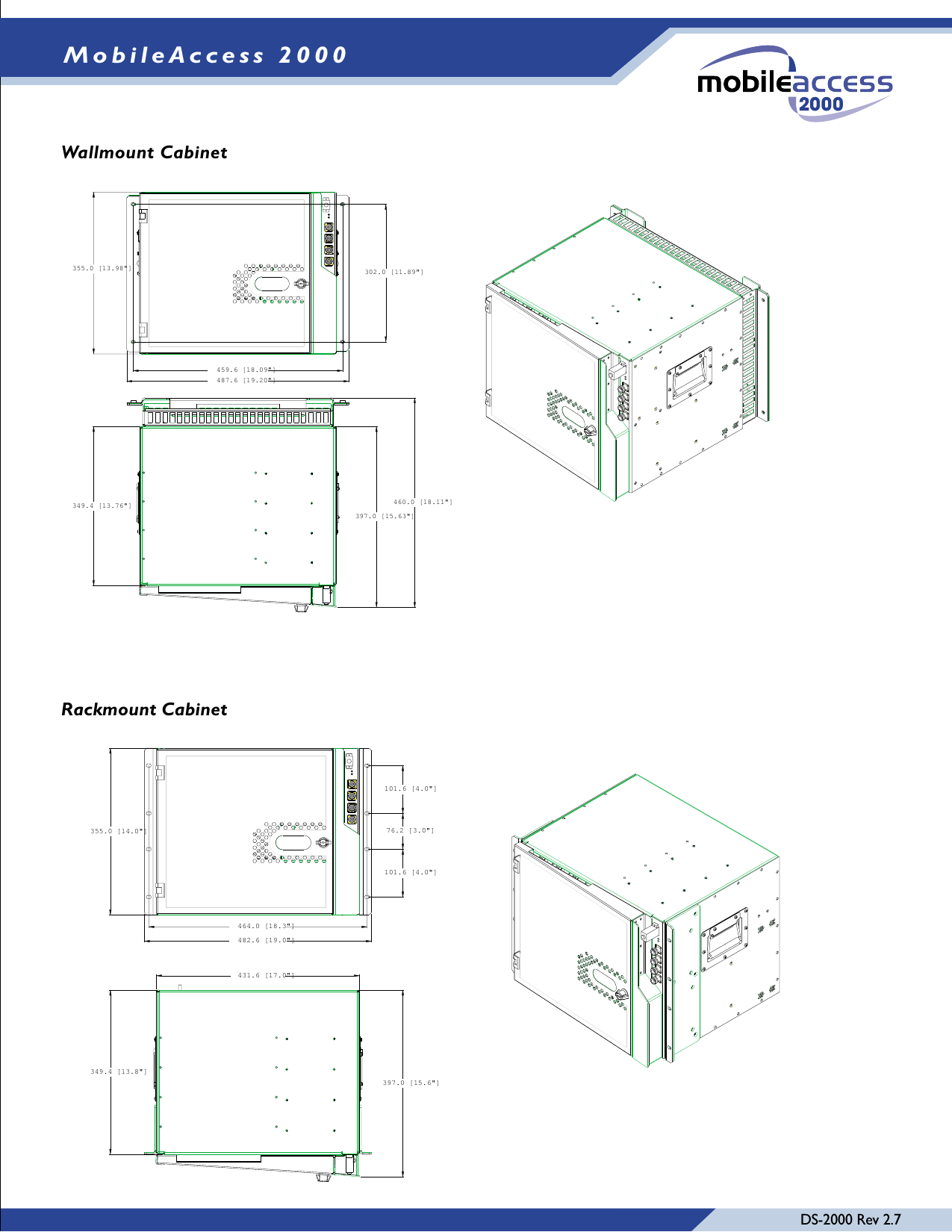

464.0 [18.3"]482.6 [19.0"]101.6 [4.0"]76.2 [3.0"]101.6 [4.0"]355.0 [14.0"]431.6 [17.0"]349.4 [13.8"]397.0 [15.6"]355.0 [13.98"] 302.0 [11.89"]459.6 [18.09"]487.6 [19.20"]349.4 [13.76"]397.0 [15.63"]460.0 [18.11"]DS-2000 Rev 2.7MobileAccess 2000Wallmount CabinetRackmount Cabinet
