Current CP16A0404 Remote User Manual Users manual

Current Products Corp. Remote Users manual

Users manual

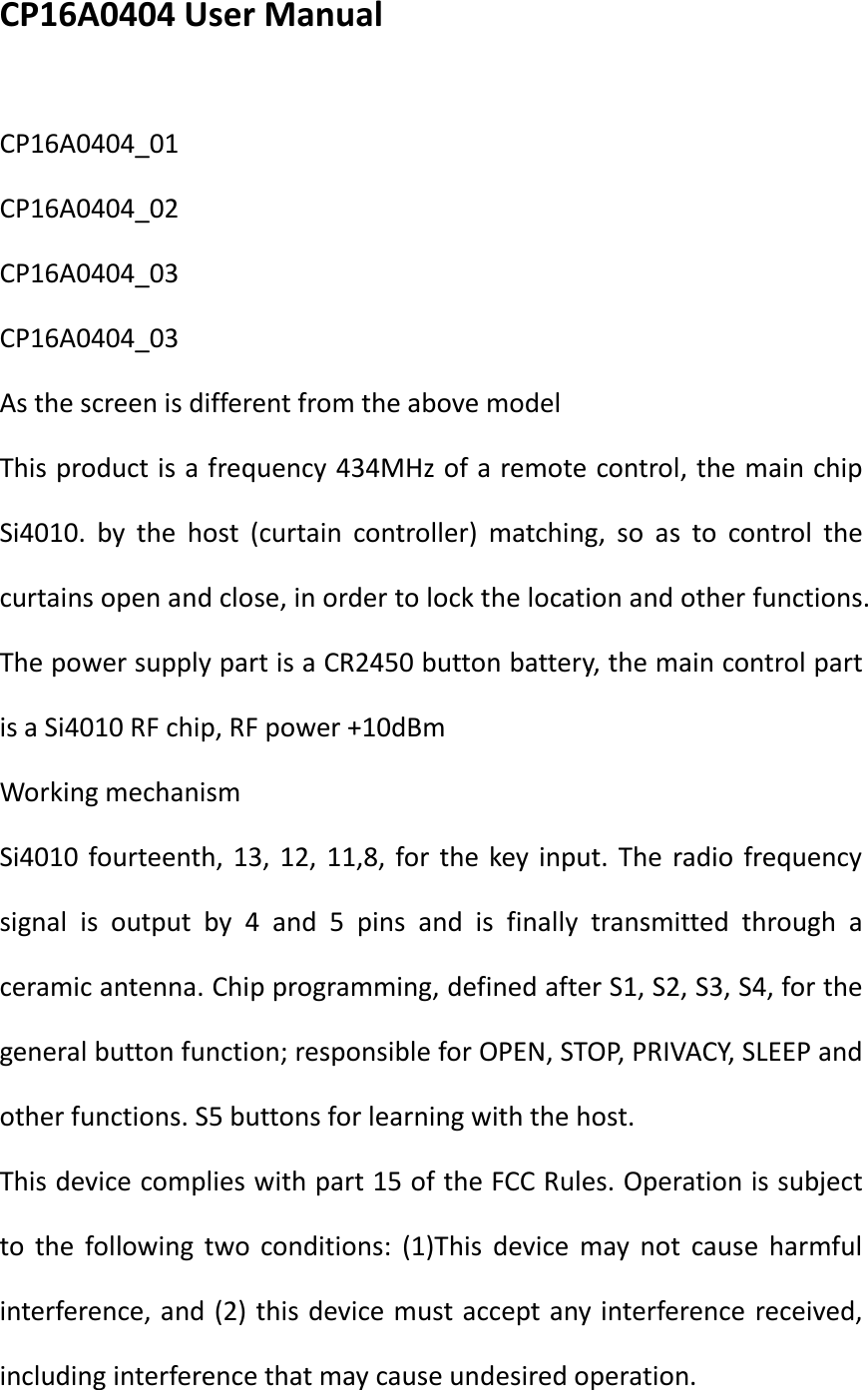

CP16A0404 User Manual CP16A0404_01 CP16A0404_02 CP16A0404_03 CP16A0404_03 As the screen is different from the above model This product is a frequency 434MHz of a remote control, the main chip Si4010. by the host (curtain controller) matching, so as to control the curtains open and close, in order to lock the location and other functions. The power supply part is a CR2450 button battery, the main control part is a Si4010 RF chip, RF power +10dBm Working mechanism Si4010 fourteenth, 13, 12, 11,8, for the key input. The radio frequency signal is output by 4 and 5 pins and is finally transmitted through a ceramic antenna. Chip programming, defined after S1, S2, S3, S4, for the general button function; responsible for OPEN, STOP, PRIVACY, SLEEP and other functions. S5 buttons for learning with the host. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
