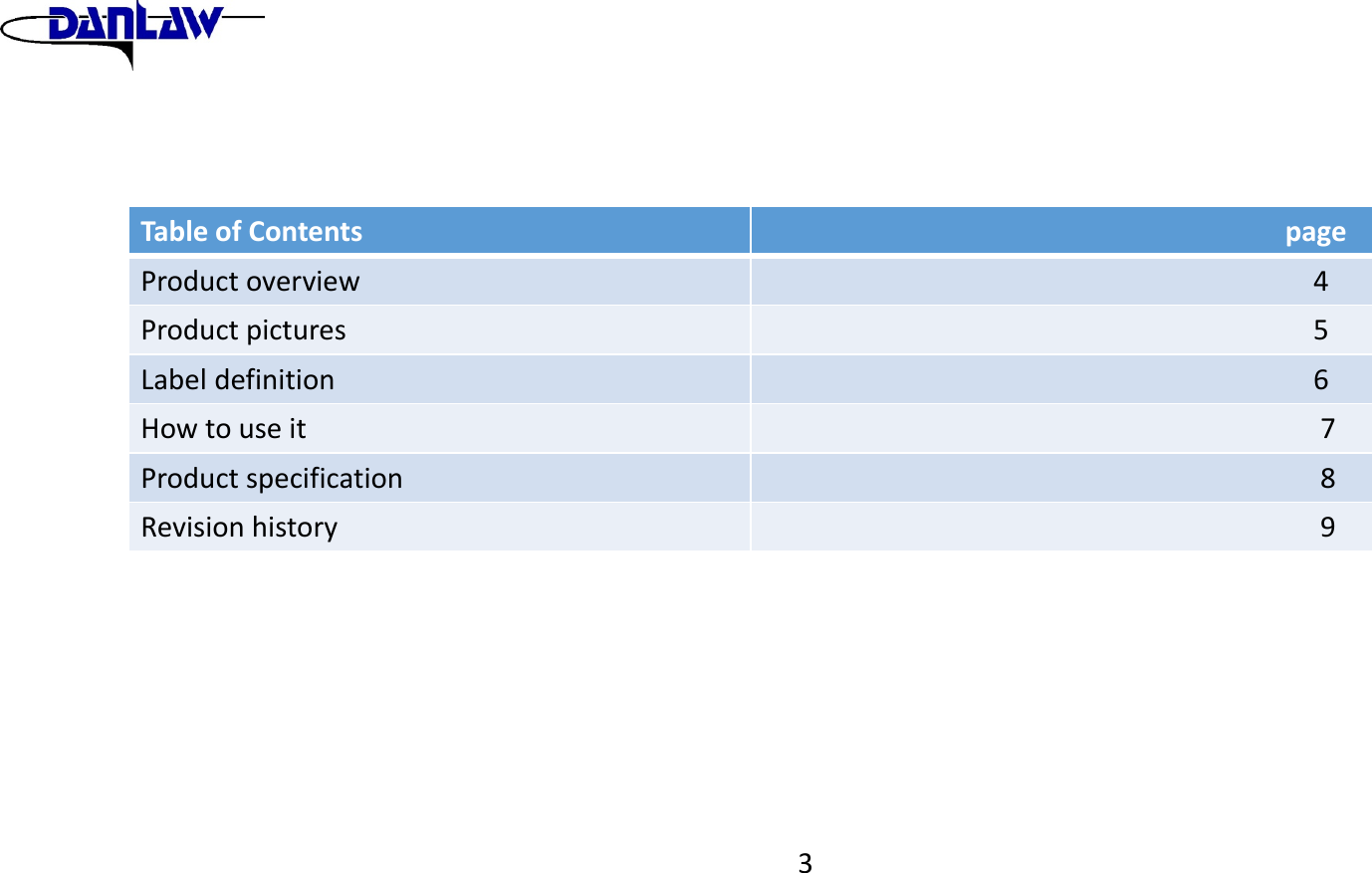

TableofContents pageProductoverview4Productpictures 5Labeldefinition 6Howtouseit7Productspecification 8Revisionhistory 93

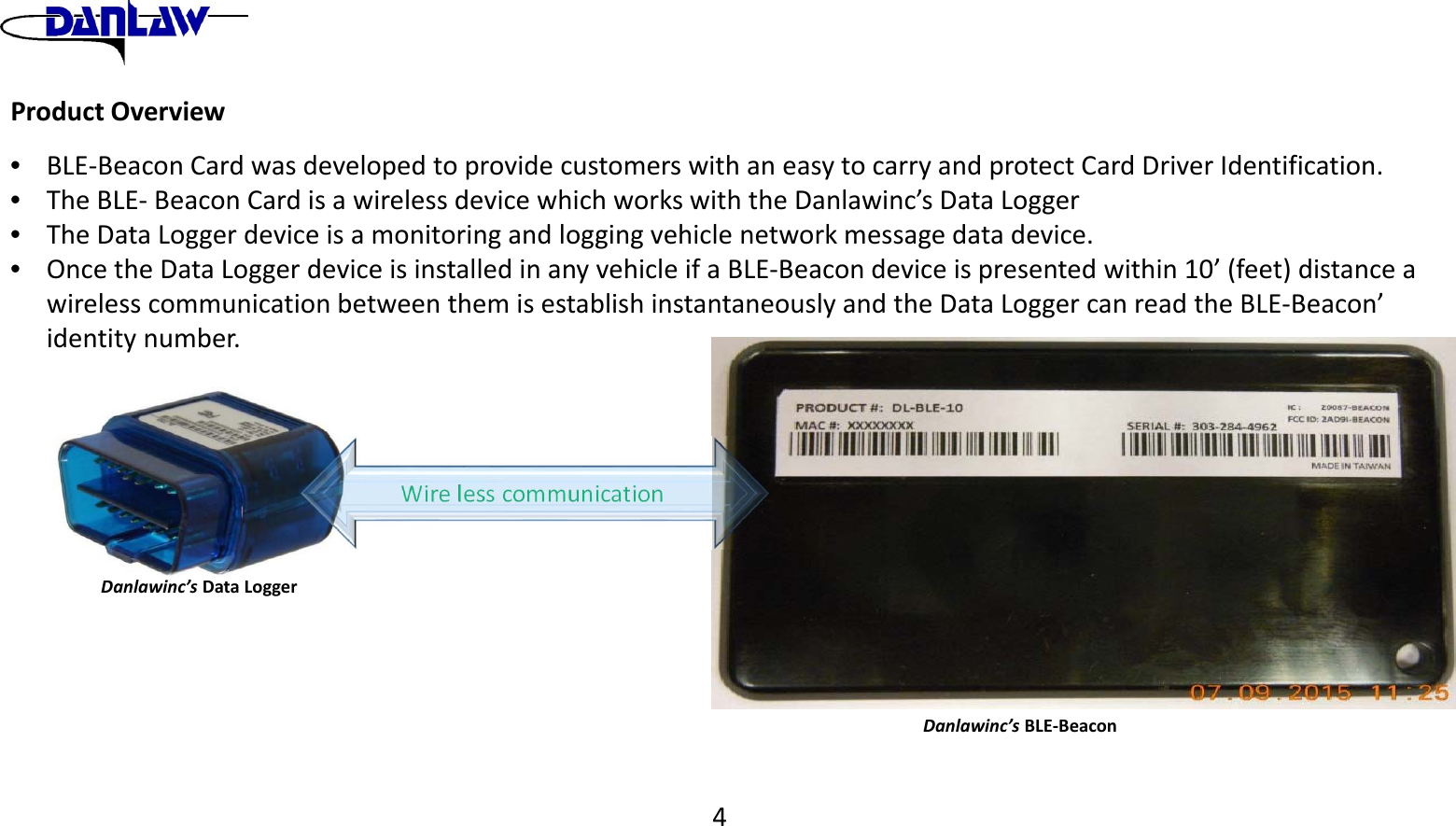

ProductOverview•BLE‐BeaconCardwasdevelopedtoprovidecustomerswithaneasytocarryandprotectCardDriverIdentification.•TheBLE‐BeaconCardisawirelessdevicewhichworkswiththeDanlawinc’sDataLogger•TheDataLoggerdeviceisamonitoringandloggingvehiclenetworkmessagedatadevice.•OncetheDataLoggerdeviceisinstalledinanyvehicleifaBLE‐Beacondeviceispresentedwithin10’(feet)distanceawirelesscommunicationbetweenthemisestablishinstantaneouslyandtheDataLoggercanreadtheBLE‐Beacon’identitynumber.Danlawinc’sBLE‐BeaconDanlawinc’sDataLoggerWirelesscommunication4

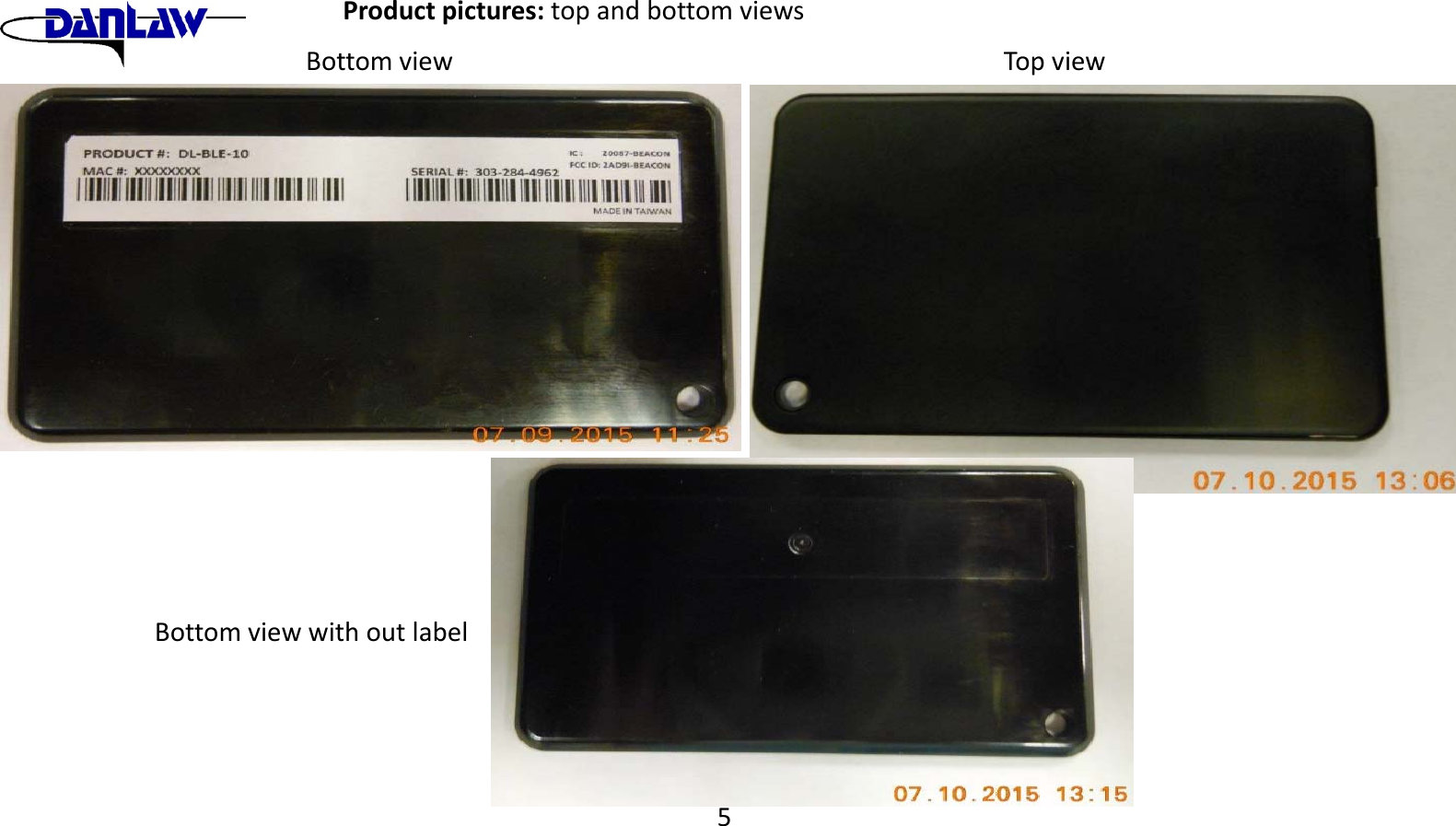

Productpictures:topandbottomviewsBottomviewTopviewBottomviewwithoutlabel5

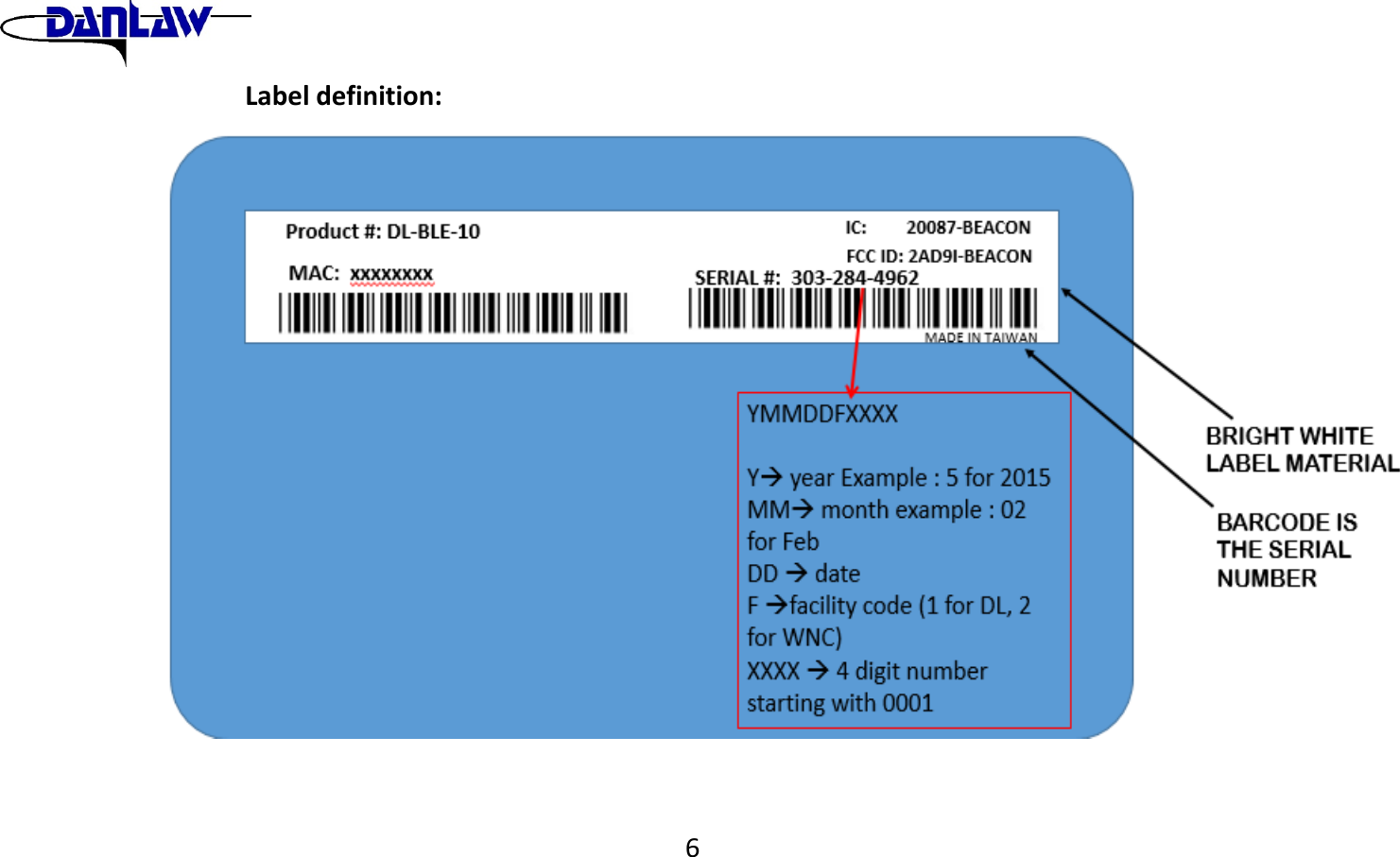

Labeldefinition:6

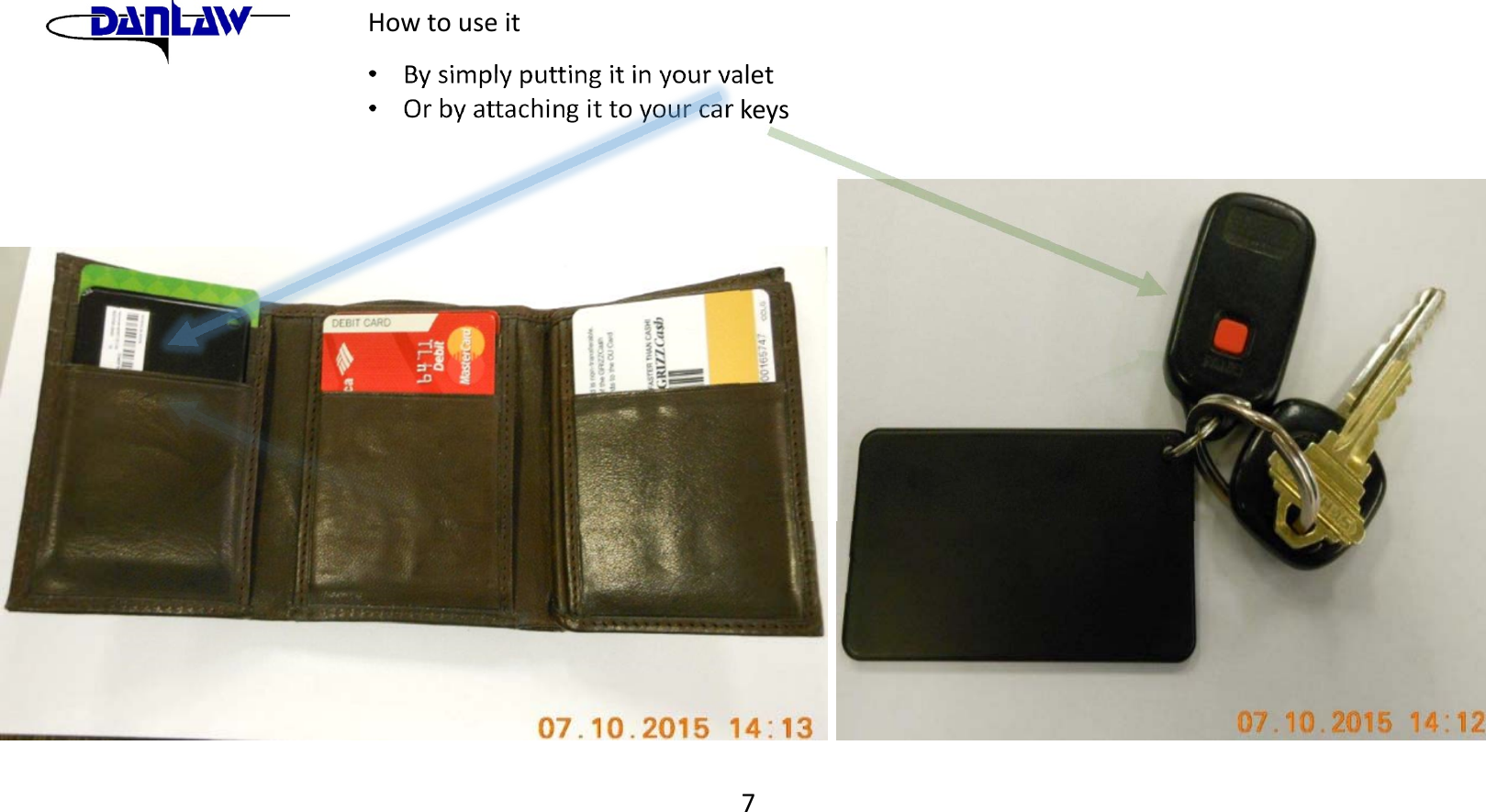

Howtouseit•Bysimplyputtingitinyourvalet•Orbyattachingittoyourcarkeys7

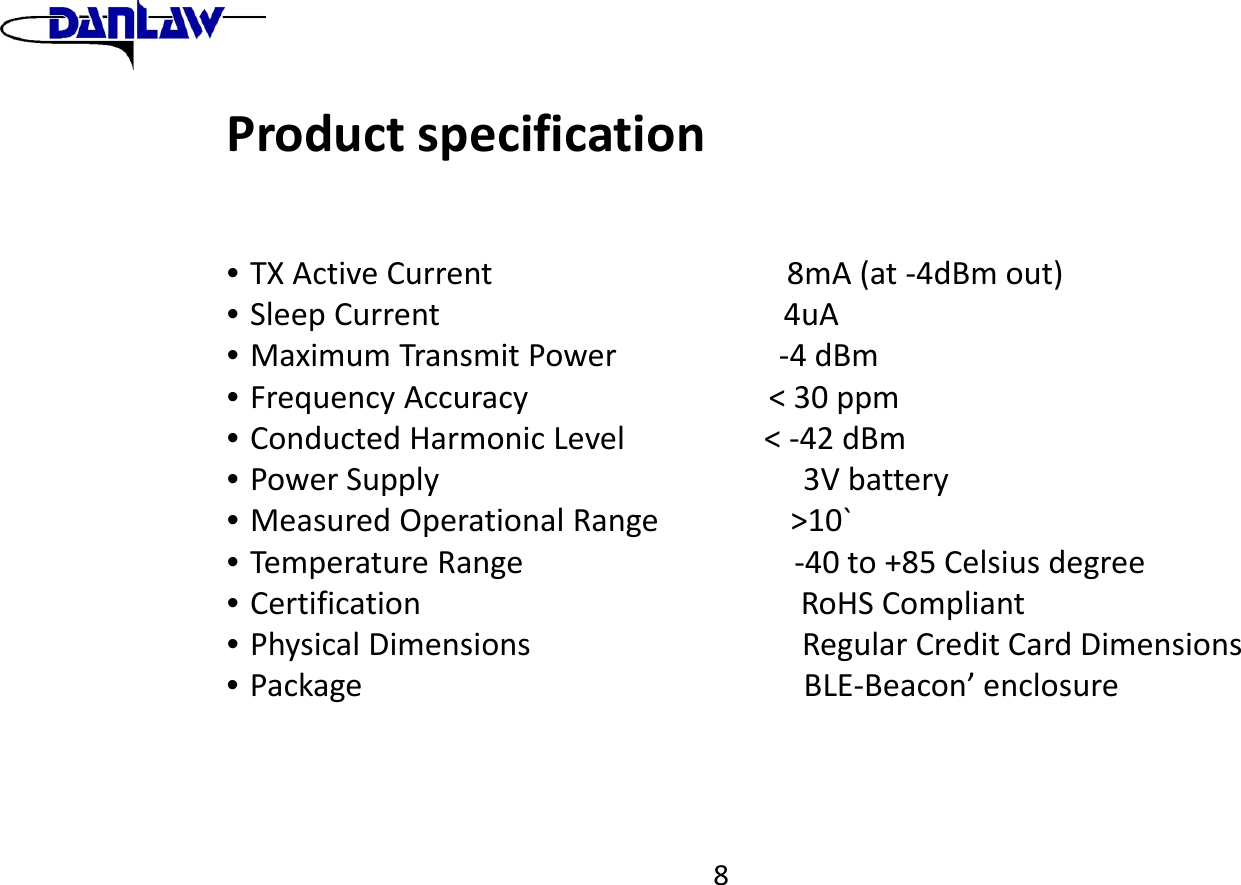

8Productspecification•TXActiveCurrent8mA(at‐4dBmout)•SleepCurrent4uA•MaximumTransmitPower‐4dBm•FrequencyAccuracy<30ppm•ConductedHarmonicLevel<‐42dBm•PowerSupply3Vbattery•MeasuredOperationalRange>10`•TemperatureRange‐40to+85Celsiusdegree•CertificationRoHSCompliant•PhysicalDimensionsRegularCreditCardDimensions•PackageBLE‐Beacon’enclosure

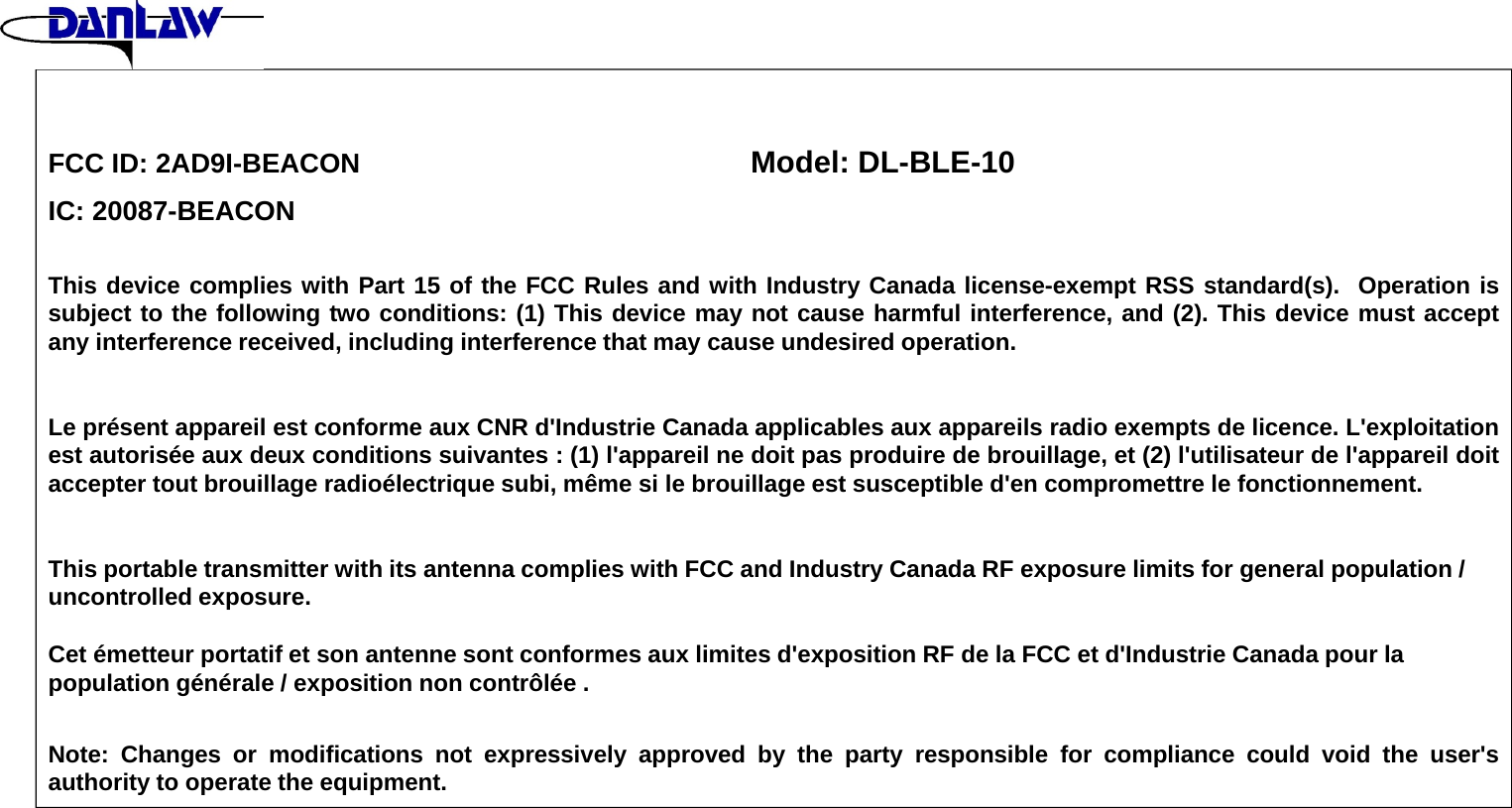

FCC ID: 2AD9I-BEACON Model: DL-BLE-10IC: 20087-BEACONThis device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation issubject to the following two conditions: (1) This device may not cause harmful interference, and (2). This device must acceptany interference received, including interference that may cause undesired operation.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationest autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doitaccepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.This portable transmitter with its antenna complies with FCC and Industry Canada RF exposure limits for general population / uncontrolled exposure.Cet émetteur portatif et son antenne sont conformes aux limites d'exposition RF de la FCC et d'Industrie Canada pour la population générale / exposition non contrôlée .Note: Changes or modifications not expressively approved by the party responsible for compliance could void the user'sauthority to operate the equipment.

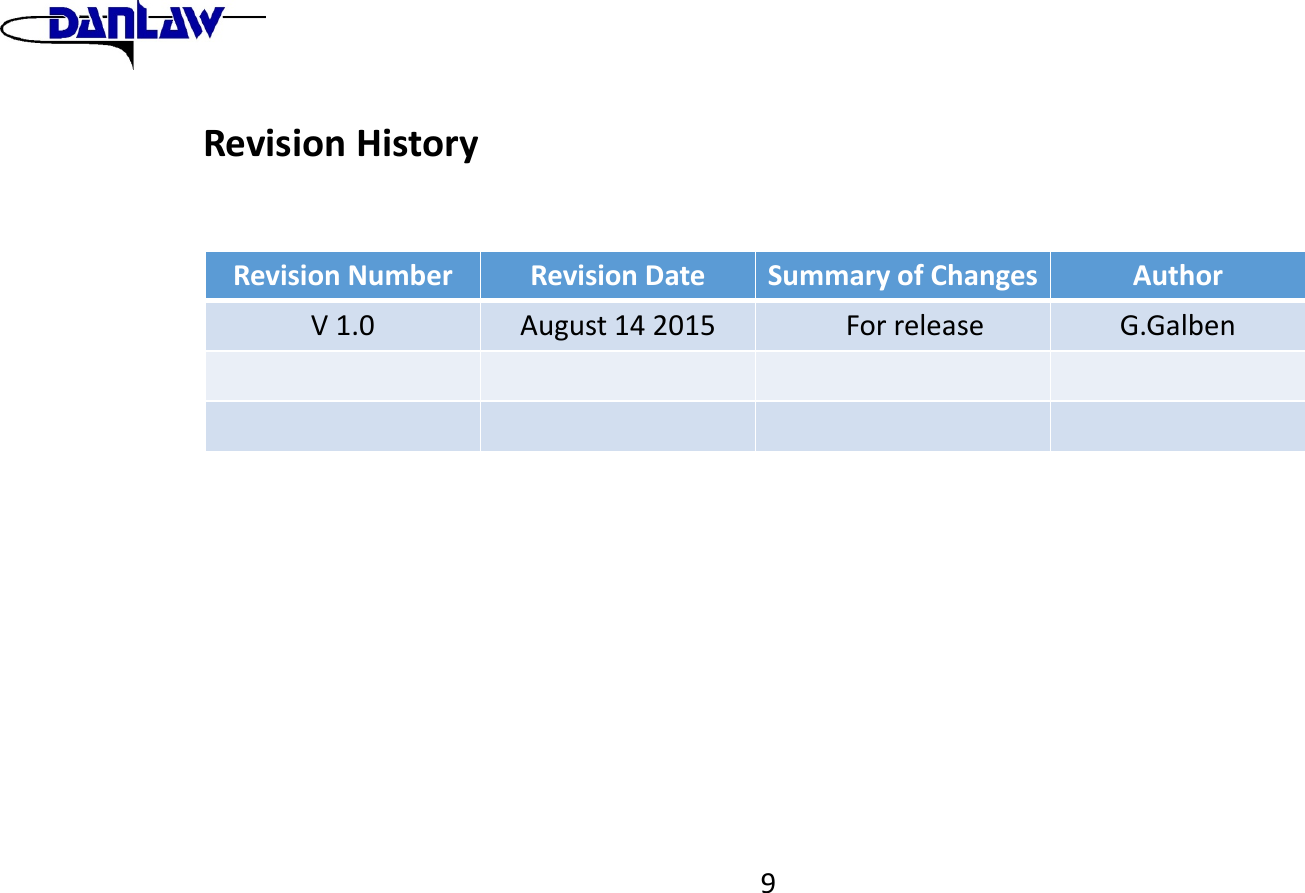

RevisionNumber RevisionDate SummaryofChanges AuthorV1.0 August 142015 Forrelease G.GalbenRevisionHistory9
