Daesung Eltec DA180 VEHICLE'S DVD PLAYER User Manual

Daesung Eltec Co., Ltd. VEHICLE'S DVD PLAYER Users Manual

USERS MANUAL

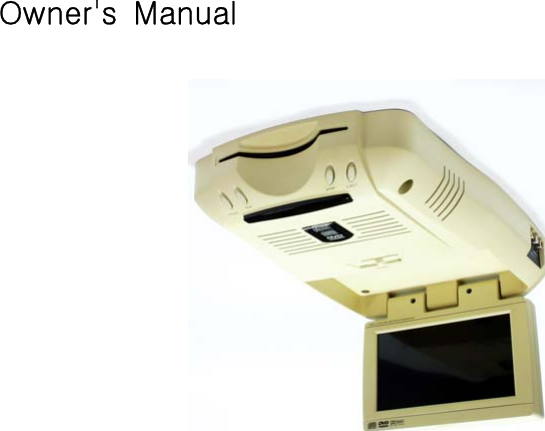

Owner's Manual

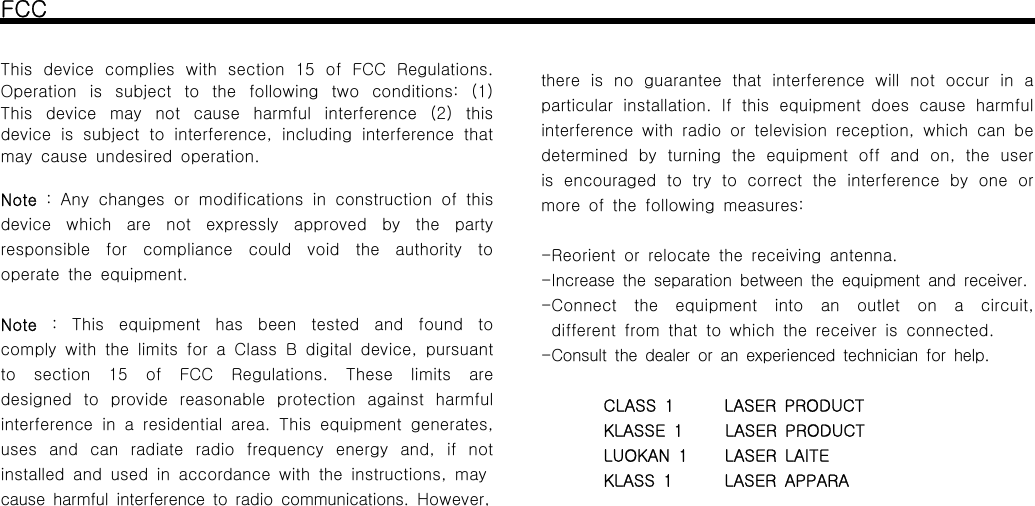

FCCThis device complies with section 15 of FCC Regulations.Operation is subject to the following two conditions: (1)This device may not cause harmful interference (2) thisdevice is subject to interference, including interference thatmay cause undesired operation.Note : Any changes or modifications in construction of thisdevice which are not expressly approved by the partyresponsible for compliance could void the authority tooperate the equipment.Note : This equipment has been tested and found tocomply with the limits for a Class B digital device, pursuantto section 15 of FCC Regulations. These limits aredesigned to provide reasonable protection against harmfulinterference in a residential area. This equipment generates,uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, maycause harmful interference to radio communications. However,there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmfulinterference with radio or television reception, which can bedetermined by turning the equipment off and on, the useris encouraged to try to correct the interference by one ormore of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit,different from that to which the receiver is connected.-Consultthedealeroranexperiencedtechnicianforhelp.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUCTLUOKAN 1 LASER LAITEKLASS 1 LASER APPARA

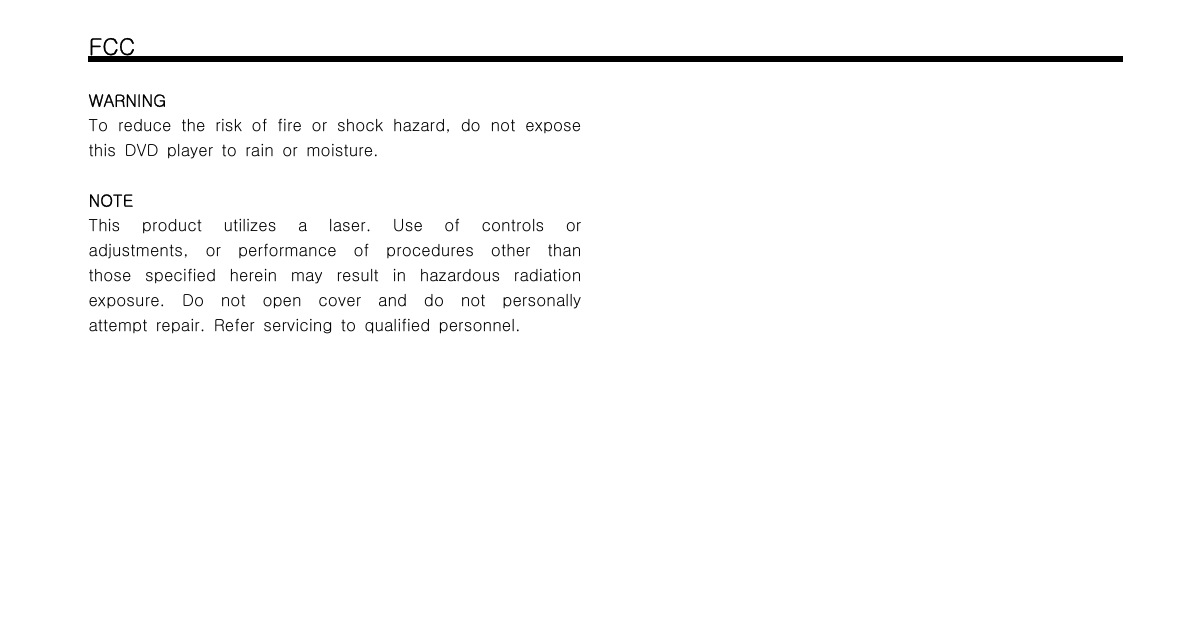

FCCWARNINGTo reduce the risk of fire or shock hazard, do not exposethis DVD player to rain or moisture.NOTEThis product utilizes a laser. Use of controls oradjustments, or performance of procedures other thanthose specified herein may result in hazardous radiationexposure. Do not open cover and do not personallyattempt repair. Refer servicing to qualified personnel.

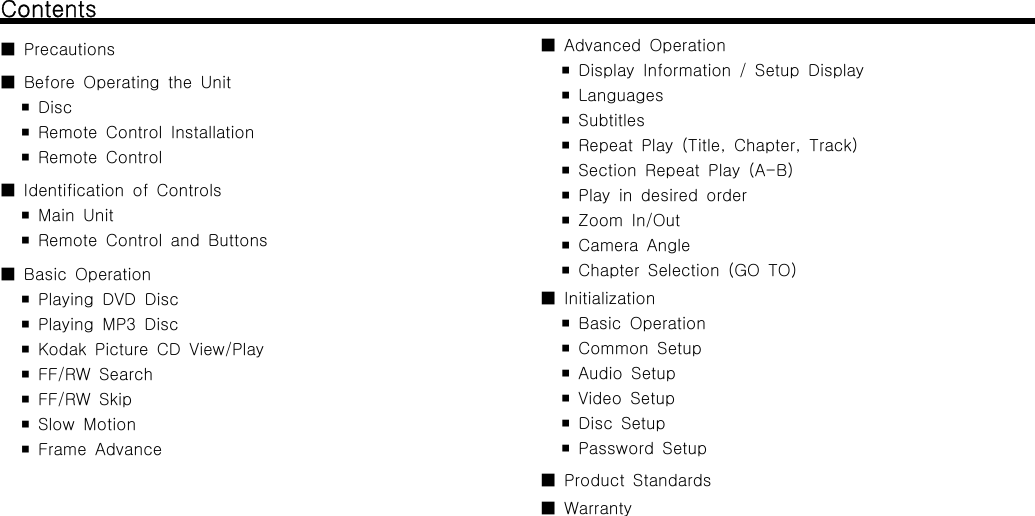

ContentsPrecautions■Before Operating the Unit■Disc■Remote Control Installation■Remote Control■Identification of Controls■Main Unit■Remote Control and Buttons■Basic Operation■Playing DVD Disc■Playing MP3 Disc■Kodak Picture CD View/Play■FF/RW Search■FF/RW Skip■Slow Motion■Frame Advance■Advanced Operation■Display Information / Setup Display■Languages■Subtitles■Repeat Play (Title, Chapter, Track)■Section Repeat Play (A-B)■Play in desired order■Zoom In/Out■Camera Angle■Chapter Selection (GO TO)■Initialization■Basic Operation■Common Setup■Audio Setup■Video Setup■Disc Setup■Password Setup■Product Standards■■Warranty

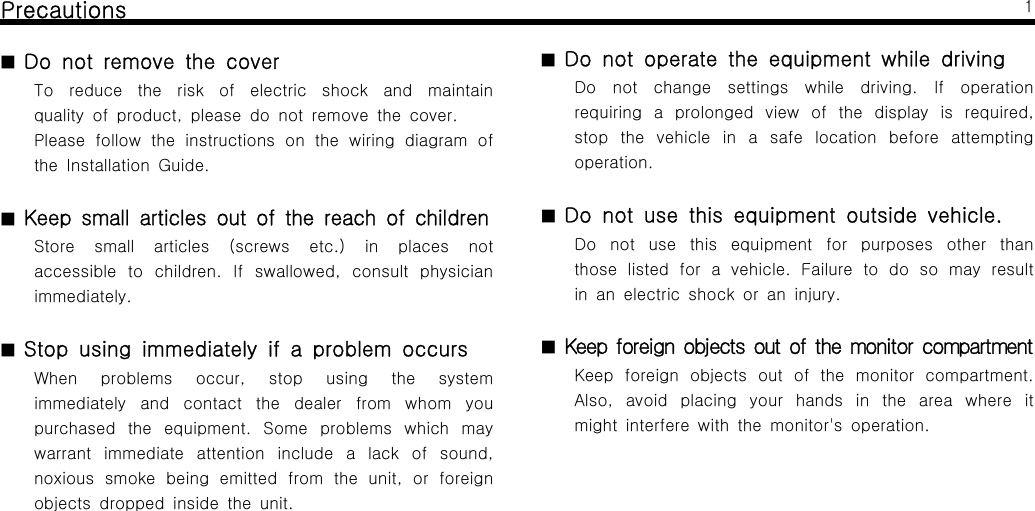

Precautions■Do not remove the coverTo reduce the risk of electric shock and maintainqualityofproduct,pleasedonotremovethecover.Please follow the instructions on the wiring diagram ofthe Installation Guide.■Keep small articles out of the reach of childrenStore small articles (screws etc.) in places notaccessible to children. If swallowed, consult physicianimmediately.■Stop using immediately if a problem occursWhen problems occur, stop using the systemimmediately and contact the dealer from whom youpurchased the equipment. Some problems which maywarrant immediate attention include a lack of sound,noxious smoke being emitted from the unit, or foreignobjects dropped inside the unit.1■Do not operate the equipment while drivingDo not change settings while driving. If operationrequiring a prolonged view of the display is required,stop the vehicle in a safe location before attemptingoperation.■Do not use this equipment outside vehicle.Do not use this equipment for purposes other thanthose listed for a vehicle. Failure to do so may resultin an electric shock or an injury.■Keep foreign objects out of the monitor compartmentKeep foreign objects out of the monitor compartment.Also, avoid placing your hands in the area where itmight interfere with the monitor's operation.

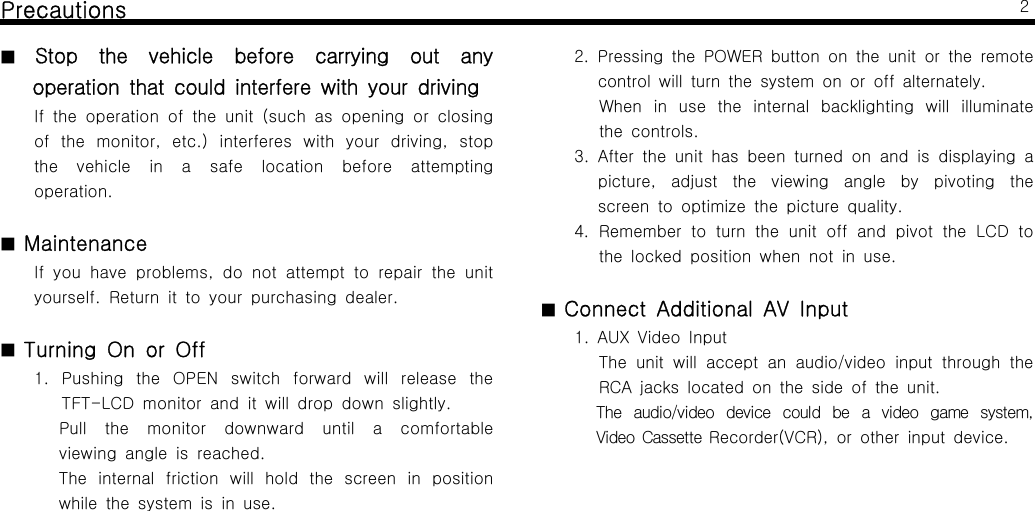

Precautions■Stop the vehicle before carrying out anyoperation that could interfere with your drivingIf the operation of the unit (such as opening or closingof the monitor, etc.) interferes with your driving, stopthe vehicle in a safe location before attemptingoperation.■MaintenanceIf you have problems, do not attempt to repair the unityourself. Return it to your purchasing dealer.■Turning On or Off1. Pushing the OPEN switch forward will release theTFT-LCD monitor and it will drop down slightly.Pull the monitor downward until a comfortableviewing angle is reached.The internal friction will hold the screen in positionwhile the system is in use.22. Pressing the POWER button on the unit or the remotecontrolwillturnthesystemonoroffalternately.When in use the internal backlighting will illuminatethe controls.3. After the unit has been turned on and is displaying apicture, adjust the viewing angle by pivoting thescreen to optimize the picture quality.4. Remember to turn the unit off and pivot the LCD tothe locked position when not in use.■Connect Additional AV Input1. AUX Video InputThe unit will accept an audio/video input through theRCA jacks located on the side of the unit.The audio/video device could be a video game system,Video Cassette Recorder(VCR), or other input device.

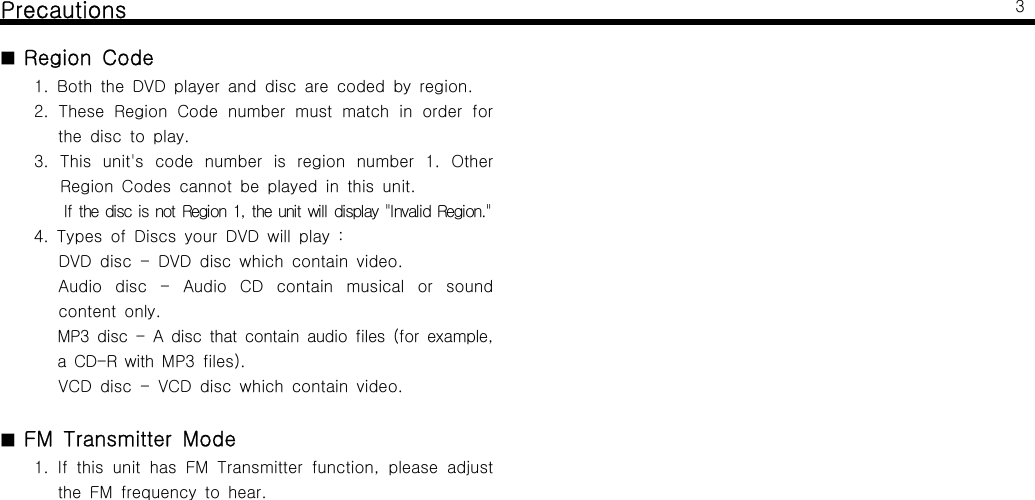

Precautions■Region Code1. Both the DVD player and disc are coded by region.2. These Region Code number must match in order forthe disc to play.3. This unit's code number is region number 1. OtherRegion Codes cannot be played in this unit.If the disc is not Region 1, the unit will display "Invalid Region."4. Types of Discs your DVD will play :DVD disc - DVD disc which contain video.Audio disc - Audio CD contain musical or soundcontent only.MP3 disc - A disc that contain audio files (for example,a CD-R with MP3 files).VCD disc - VCD disc which contain video.■FM Transmitter Mode1. If this unit has FM Transmitter function, please adjustthe FM frequency to hear.3

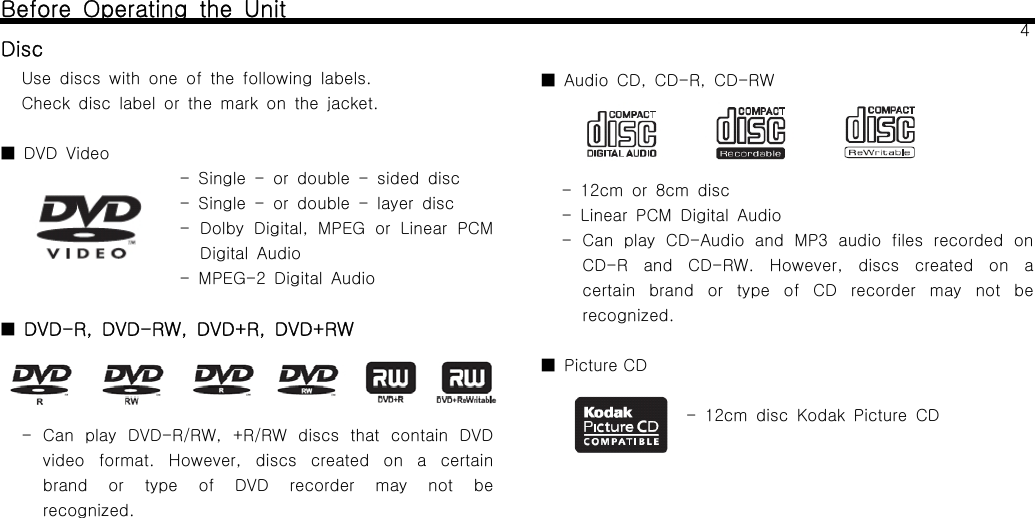

Before Operating the UnitDiscUsediscswithoneofthefollowinglabels.Check disc label or the mark on the jacket.DVD Video■- Single - or double - sided disc- Single - or double - layer disc- Dolby Digital, MPEG or Linear PCMDigital Audio- MPEG-2 Digital Audio■DVD-R, DVD-RW, DVD+R, DVD+RW- Can play DVD-R/RW, +R/RW discs that contain DVDvideo format. However, discs created on a certainbrand or type of DVD recorder may not berecognized.4Audio CD, CD-R, CD-RW■- 12cm or 8cm disc- Linear PCM Digital Audio- Can play CD-Audio and MP3 audio files recorded onCD-R and CD-RW. However, discs created on acertain brand or type of CD recorder may not berecognized.■PictureCD-12cmdiscKodakPictureCD

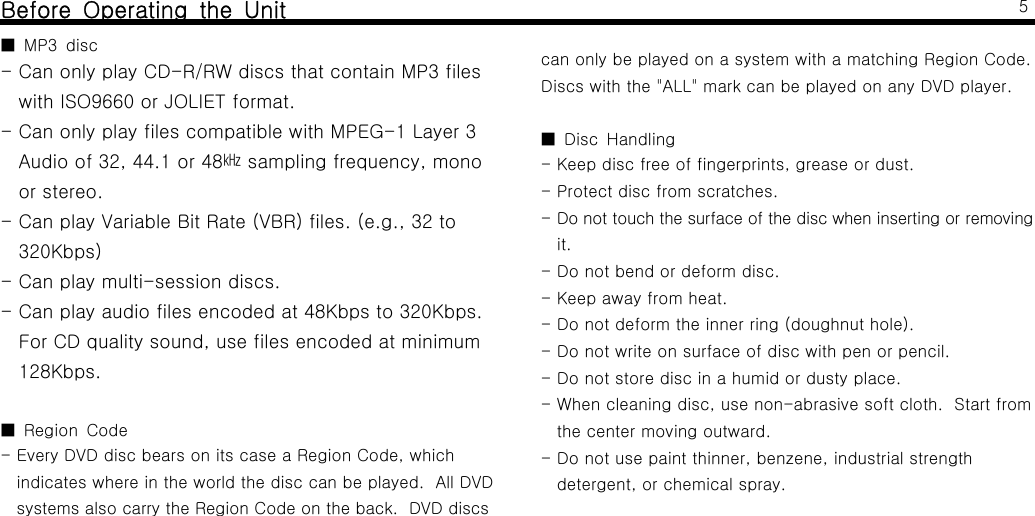

Before Operating the UnitMP3 disc■- Can only play CD-R/RW discs that contain MP3 fileswith ISO9660 or JOLIET format.- Can only play files compatible with MPEG-1 Layer 3Audio of 32, 44.1 or 48 sampling frequency, mono㎑or stereo.- Can play Variable Bit Rate (VBR) files. (e.g., 32 to320Kbps)- Can play multi-session discs.- Can play audio files encoded at 48Kbps to 320Kbps.For CD quality sound, use files encoded at minimum128Kbps.Region Code■- Every DVD disc bears on its case a Region Code, whichindicates where in the world the disc can be played. All DVDsystems also carry the Region Code on the back. DVD discs5canonlybeplayedonasystemwithamatchingRegionCode.Discs with the "ALL" mark can be played on any DVD player.Disc Handling■- Keep disc free of fingerprints, grease or dust.- Protect disc from scratches.- Do not touch the surface of the disc when inserting or removingit.- Do not bend or deform disc.- Keep away from heat.- Do not deform the inner ring (doughnut hole).- Do not write on surface of disc with pen or pencil.-Donotstorediscinahumidordustyplace.- When cleaning disc, use non-abrasive soft cloth. Start fromthe center moving outward.- Do not use paint thinner, benzene, industrial strengthdetergent, or chemical spray.

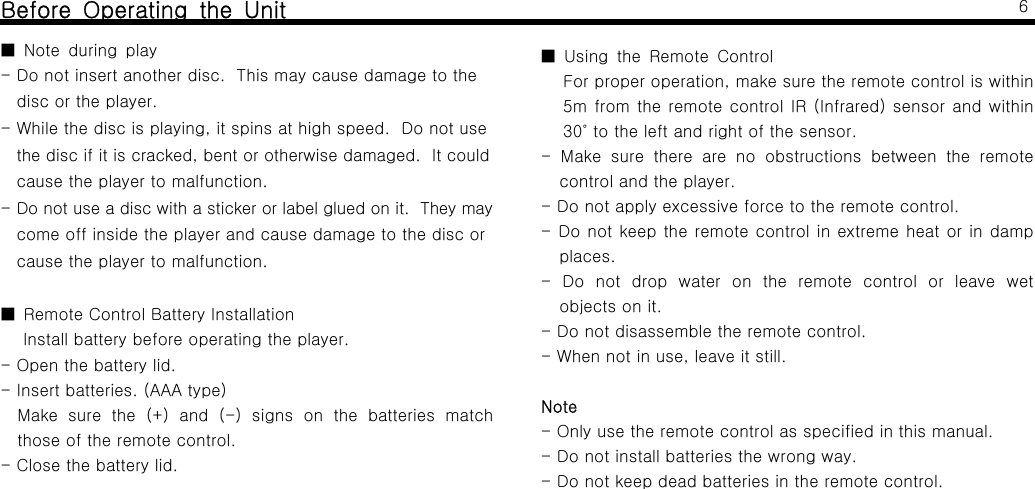

Before Operating the UnitNote during play■- Do not insert another disc. This may cause damage to thedisc or the player.- While the disc is playing, it spins at high speed. Do not usethe disc if it is cracked, bent or otherwise damaged. It couldcause the player to malfunction.- Do not use a disc with a sticker or label glued on it. They maycomeoffinsidetheplayerandcausedamagetothediscorcause the player to malfunction.■ Remote Control Battery InstallationInstall battery before operating the player.- Open the battery lid.- Insert batteries. (AAA type)Make sure the (+) and (-) signs on the batteries matchthoseoftheremotecontrol.- Close the battery lid.6Using the Remote Control■For proper operation, make sure the remote control is within5m from the remote control IR (Infrared) sensor and within30 to the left and right of the sensor.˚- Make sure there are no obstructions between the remotecontrol and the player.- Do not apply excessive force to the remote control.- Do not keep the remote control in extreme heat or in dampplaces.- Do not drop water on the remote control or leave wetobjects on it.- Do not disassemble the remote control.- When not in use, leave it still.Note-Onlyusetheremotecontrolasspecifiedinthismanual.- Do not install batteries the wrong way.- Do not keep dead batteries in the remote control.

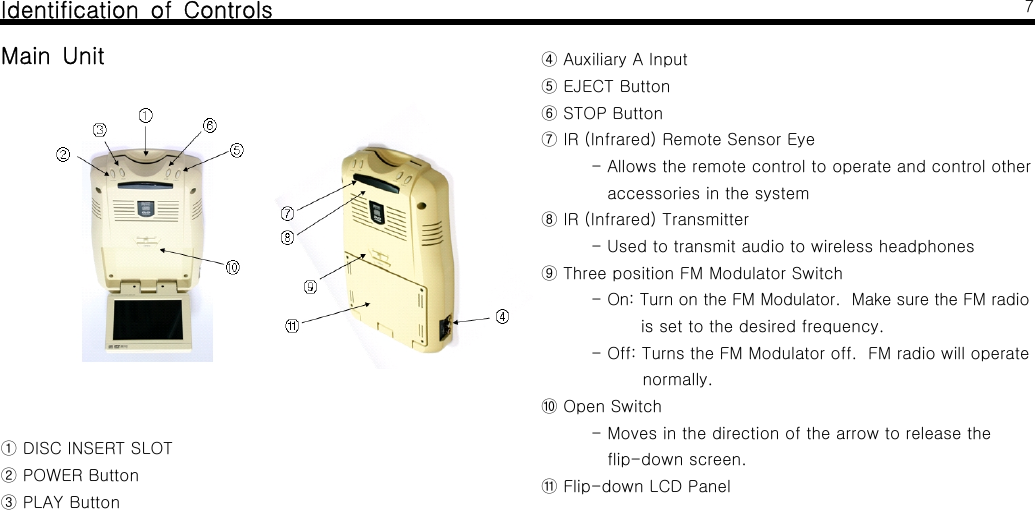

Identification of ControlsMain UnitDISC INSERT SLOT①POWER Button②PLAY Button③7Auxiliary A Input④EJECT Button⑤STOP Button⑥IR (Infrared) Remote Sensor Eye⑦- Allows the remote control to operate and control otheraccessories in the systemIR (Infrared) Transmitter⑧-UsedtotransmitaudiotowirelessheadphonesThree position FM Modulator Switch⑨- On: Turn on the FM Modulator. Make sure the FM radiois set to the desired frequency.- Off: Turns the FM Modulator off. FM radio will operatenormally.Open Switch⑩- Moves in the direction of the arrow to release theflip-down screen.Flip-down LCD Panel⑪

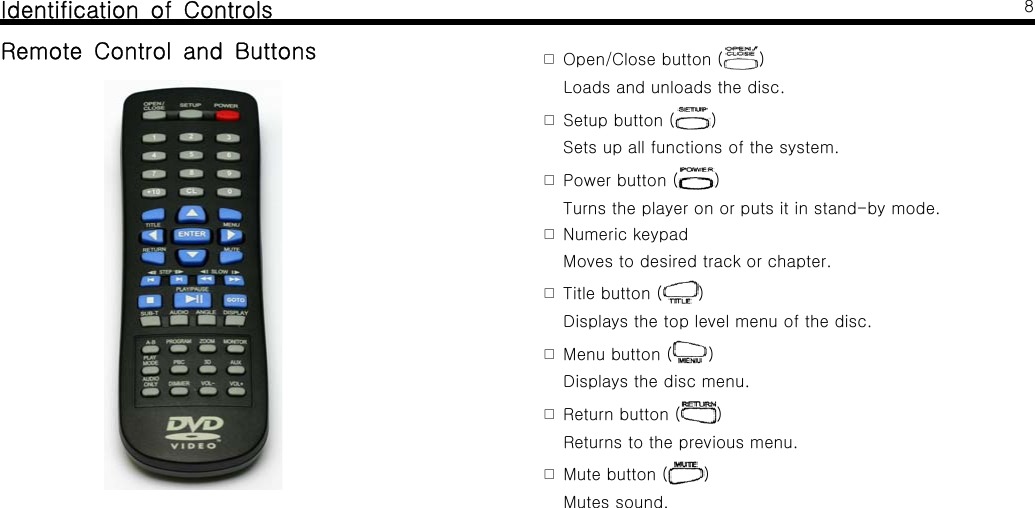

Identification of ControlsRemote Control and Buttons8Open/Close button (󰋪)Loads and unloads the disc.Setup button (󰋪)Sets up all functions of the system.Power button (󰋪)Turns the player on or puts it in stand-by mode.Numeric keypad󰋪Moves to desired track or chapter.Title button (󰋪)Displays the top level menu of the disc.Menu button (󰋪)Displays the disc menu.Return button (󰋪)Returns to the previous menu.Mute button (󰋪)Mutes sound.

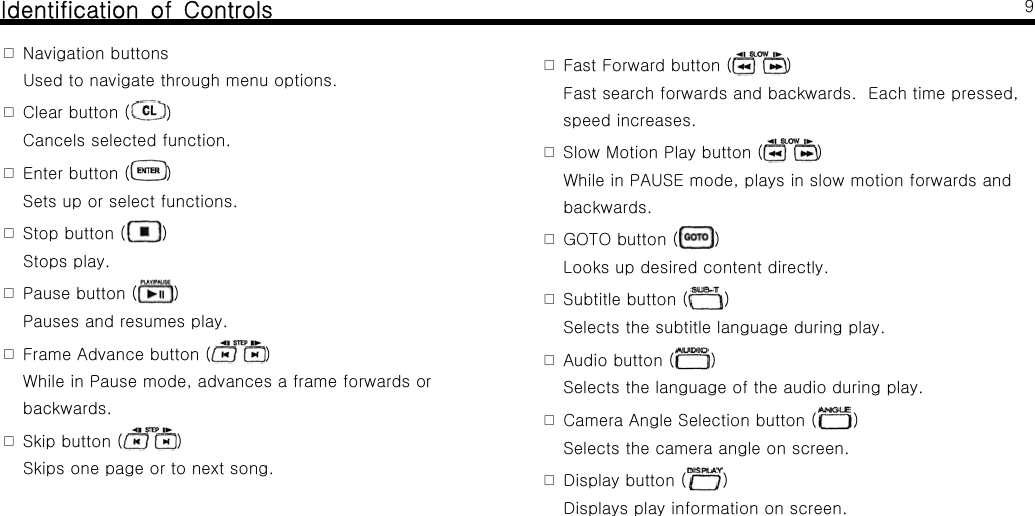

Identification of ControlsNavigation buttons󰋪Used to navigate through menu options.Clear button (󰋪)Cancels selected function.Enter button (󰋪)Sets up or select functions.Stop button (󰋪)Stops play.Pause button (󰋪)Pauses and resumes play.Frame Advance button (󰋪)While in Pause mode, advances a frame forwards orbackwards.Skip button (󰋪)Skips one page or to next song.9Fast Forward button (󰋪)Fast search forwards and backwards. Each time pressed,speed increases.Slow Motion Play button (󰋪)While in PAUSE mode, plays in slow motion forwards andbackwards.GOTO button (󰋪)Looks up desired content directly.Subtitle button (󰋪)Selects the subtitle language during play.Audio button (󰋪)Selects the language of the audio during play.Camera Angle Selection button (󰋪)Selects the camera angle on screen.Display button (󰋪)Displays play information on screen.

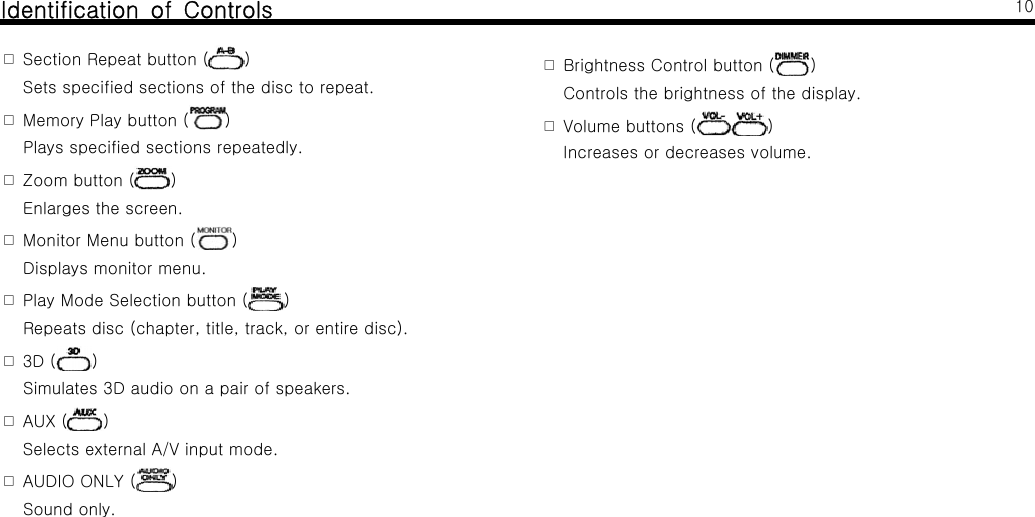

Identification of ControlsSection Repeat button (󰋪)Sets specified sections of the disc to repeat.Memory Play button (󰋪)Plays specified sections repeatedly.Zoom button (󰋪)Enlarges the screen.Monitor Menu button (󰋪)Displays monitor menu.PlayModeSelectionbutton(󰋪)Repeats disc (chapter, title, track, or entire disc).3D (󰋪)Simulates 3D audio on a pair of speakers.AUX (󰋪)Selects external A/V input mode.AUDIO ONLY (󰋪)Sound only.10Brightness Control button (󰋪)Controls the brightness of the display.Volume buttons (󰋪)Increases or decreases volume.

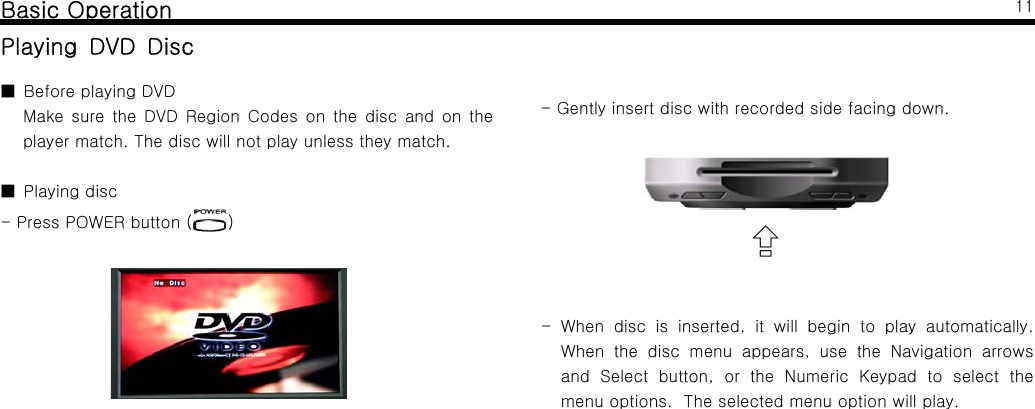

Basic OperationPlaying DVD Disc■BeforeplayingDVDMake sure the DVD Region Codes on the disc and on theplayer match. The disc will not play unless they match.■Playingdisc- Press POWER button ( )11- Gently insert disc with recorded side facing down.⇪- When disc is inserted, it will begin to play automatically.When the disc menu appears, use the Navigation arrowsand Select button, or the Numeric Keypad to select themenu options. The selected menu option will play.

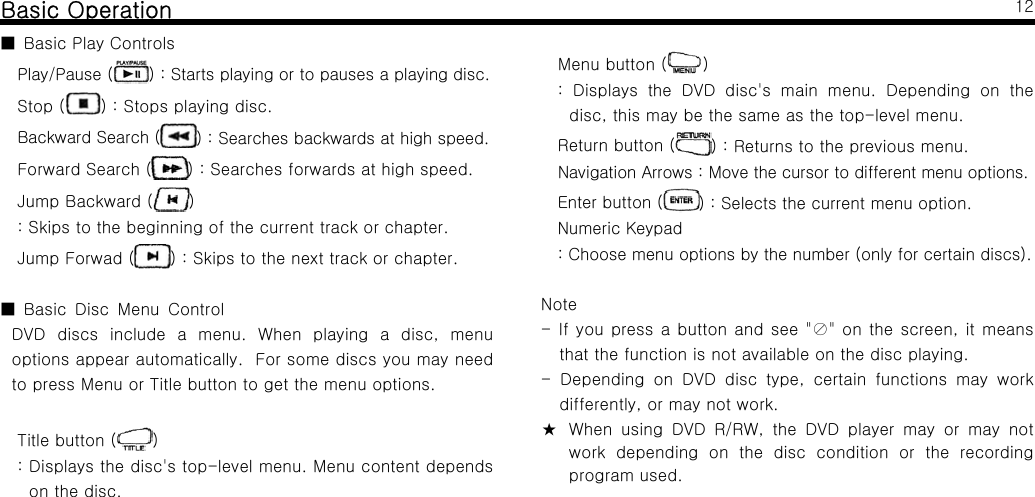

Basic Operation■BasicPlayControlsPlay/Pause ( ) : Starts playing or to pauses a playing disc.Stop ( ):Stopsplayingdisc.Backward Search ( ) : Searches backwards at high speed.Forward Search ( ) : Searches forwards at high speed.Jump Backward ( ): Skips to the beginning of the current track or chapter.Jump Forwad ( ):Skipstothenexttrackorchapter.Basic Disc Menu Control■DVD discs include a menu. When playing a disc, menuoptions appear automatically. For some discs you may needto press Menu or Title button to get the menu options.Title button ( ): Displays the disc's top-level menu. Menu content dependson the disc.12Menu button ( ): Displays the DVD disc's main menu. Depending on thedisc, this may be the same as the top-level menu.Return button ( ):Returnstothepreviousmenu.Navigation Arrows : Move the cursor to different menu options.Enter button ( ) : Selects the current menu option.Numeric Keypad: Choose menu options by the number (only for certain discs).Note- If you press a button and see "⊘"onthescreen,itmeansthat the function is not available on the disc playing.- Depending on DVD disc type, certain functions may workdifferently, or may not work.★ When using DVD R/RW, the DVD player may or may notwork depending on the disc condition or the recordingprogram used.

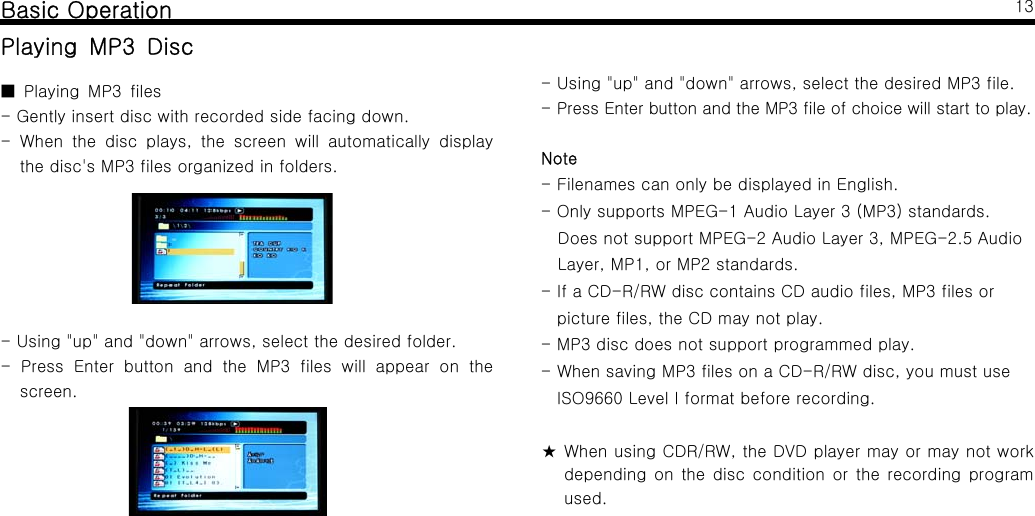

Basic OperationPlaying MP3 DiscPlaying MP3 files■- Gently insert disc with recorded side facing down.- When the disc plays, the screen will automatically displaythe disc's MP3 files organized in folders.- Using "up" and "down" arrows, select the desired folder.- Press Enter button and the MP3 files will appear on thescreen.13- Using "up" and "down" arrows, select the desired MP3 file.- Press Enter button and the MP3 file of choice will start to play.Note- Filenames can only be displayed in English.- Only supports MPEG-1 Audio Layer 3 (MP3) standards.Does not support MPEG-2 Audio Layer 3, MPEG-2.5 AudioLayer, MP1, or MP2 standards.- If a CD-R/RW disc contains CD audio files, MP3 files orpicture files, the CD may not play.- MP3 disc does not support programmed play.-WhensavingMP3filesonaCD-R/RWdisc,youmustuseISO9660 Level I format before recording.★ When using CDR/RW, the DVD player may or may not workdepending on the disc condition or the recording programused.

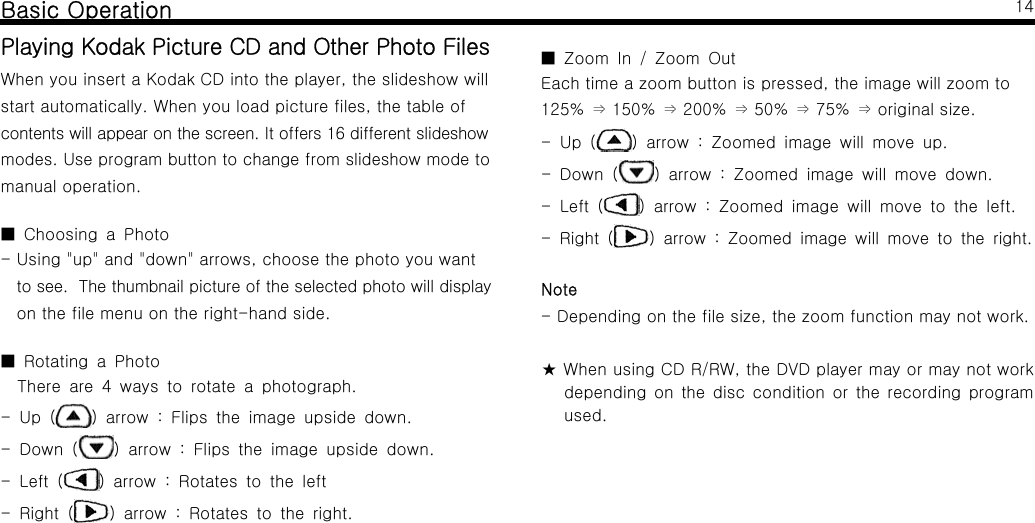

Basic OperationPlayingKodakPictureCDandOtherPhotoFilesWhen you insert a Kodak CD into the player, the slideshow willstart automatically. When you load picture files, the table ofcontents will appear on the screen. It offers 16 different slideshowmodes. Use program button to change from slideshow mode tomanual operation.Choosing a Photo■- Using "up" and "down" arrows, choose the photo you wantto see. The thumbnail picture of the selected photo will displayon the file menu on the right-hand side.Rotating a Photo■There are 4 ways to rotate a photograph.-Up( ) arrow : Flips the image upside down.-Down( ) arrow : Flips the image upside down.-Left( ) arrow : Rotates to the left-Right( ) arrow : Rotates to the right.14Zoom In / Zoom Out■Each time a zoom button is pressed, the image will zoom to125% 150% 200% 50% 75% original size.⇒⇒⇒⇒⇒-Up( ) arrow : Zoomed image will move up.-Down( ) arrow : Zoomed image will move down.-Left( ) arrow : Zoomed image will move to the left.-Right( ) arrow : Zoomed image will move to the right.Note- Depending on the file size, the zoom function may not work.★ When using CD R/RW, the DVD player may or may not workdepending on the disc condition or the recording programused.

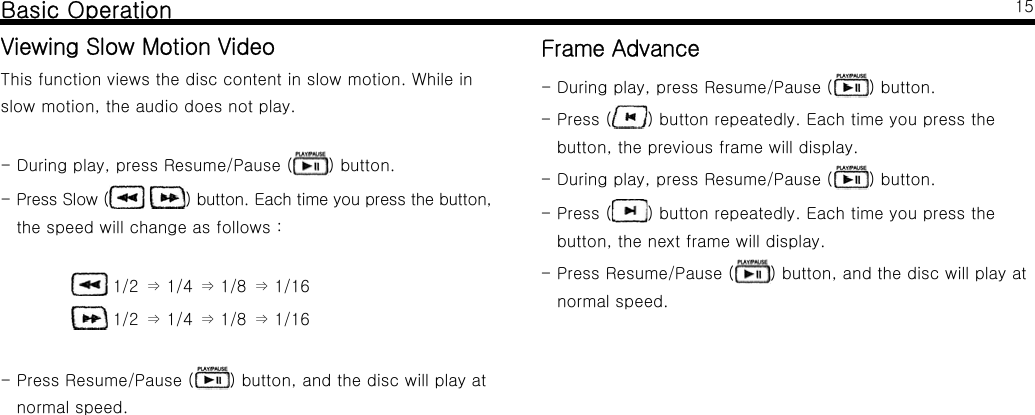

Basic OperationViewing Slow Motion VideoThis function views the disc content in slow motion. While inslow motion, the audio does not play.- During play, press Resume/Pause ( ) button.-PressSlow( ) button. Each time you press the button,the speed will change as follows :1/2 1/4 1/8 1/16⇒⇒⇒1/2 1/4 1/8 1/16⇒⇒⇒- Press Resume/Pause ( ) button, and the disc will play atnormal speed.15Frame Advance- During play, press Resume/Pause ( ) button.-Press( ) button repeatedly. Each time you press thebutton, the previous frame will display.- During play, press Resume/Pause ( ) button.-Press( ) button repeatedly. Each time you press thebutton, the next frame will display.- Press Resume/Pause ( ) button, and the disc will play atnormal speed.

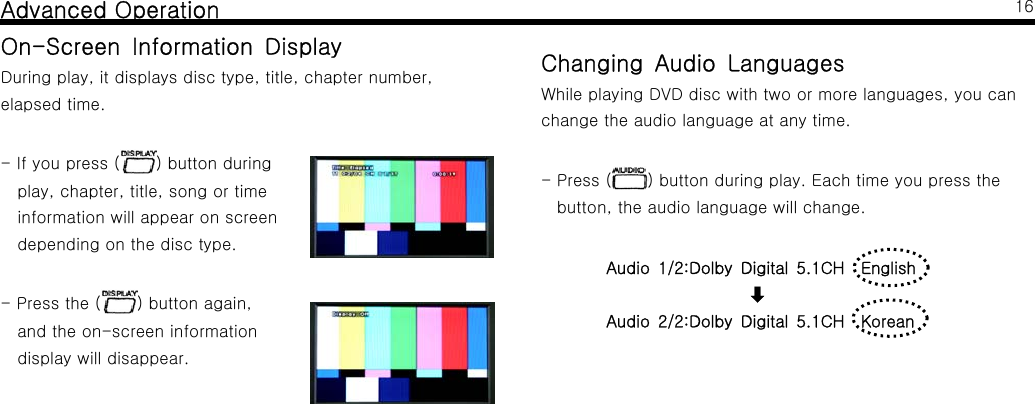

Advanced OperationOn-Screen Information DisplayDuring play, it displays disc type, title, chapter number,elapsed time.-Ifyoupress( ) button duringplay, chapter, title, song or timeinformation will appear on screendepending on the disc type.-Pressthe( ) button again,and the on-screen informationdisplay will disappear.16Changing Audio LanguagesWhile playing DVD disc with two or more languages, you canchange the audio language at any time.-Press( ) button during play. Each time you press thebutton, the audio language will change.Audio 1/2:Dolby Digital 5.1CH English󰀻Audio 2/2:Dolby Digital 5.1CH Korean

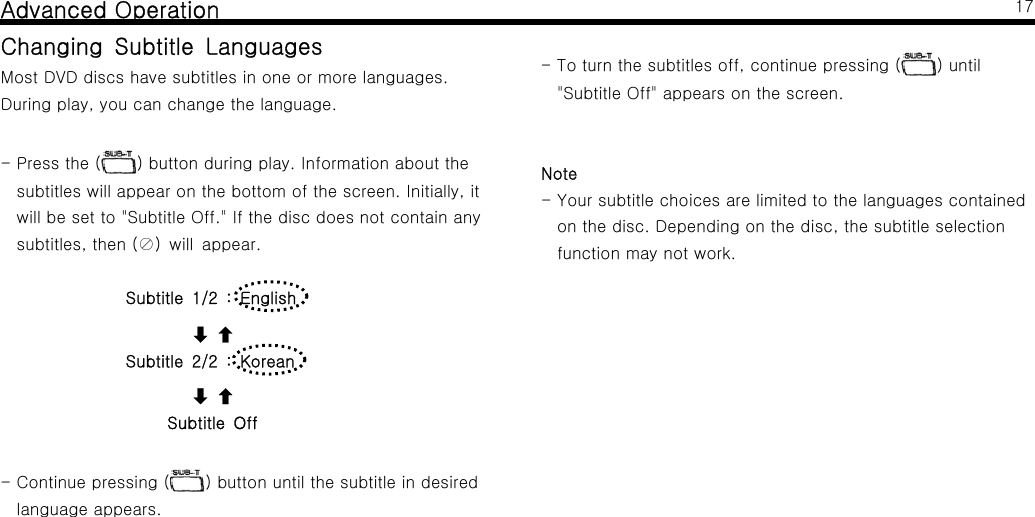

Advanced OperationChanging Subtitle LanguagesMost DVD discs have subtitles in one or more languages.During play, you can change the language.-Pressthe( ) button during play. Information about thesubtitles will appear on the bottom of the screen. Initially, itwill be set to "Subtitle Off." If the disc does not contain anysubtitles, then ( ) will appear.⊘Subtitle 1/2 : English󰀻󰀺Subtitle 2/2 : Korean󰀻󰀺Subtitle Off- Continue pressing ( ) button until the subtitle in desiredlanguage appears.17- To turn the subtitles off, continue pressing ( )until"Subtitle Off" appears on the screen.Note- Your subtitle choices are limited to the languages containedon the disc. Depending on the disc, the subtitle selectionfunction may not work.

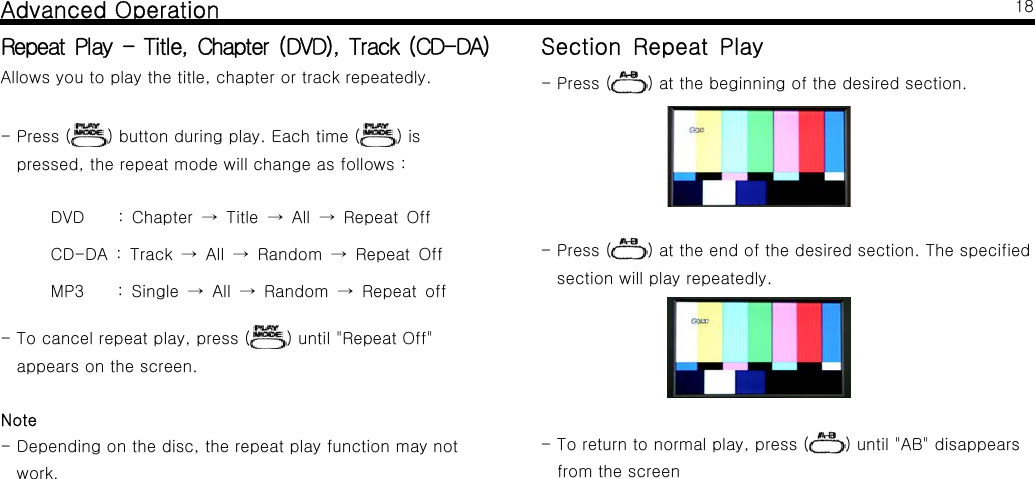

Advanced OperationRepeat Play - Title, Chapter (DVD), Track (CD-DA)Allows you to play the title, chapter or track repeatedly.-Press( ) button during play. Each time ( )ispressed,therepeatmodewillchangeasfollows:DVD : Chapter Title All Repeat Off→→→CD-DA : Track All Random Repeat Off→→ →MP3 : Single All Random Repeat off→→ →- To cancel repeat play, press ( ) until "Repeat Off"appears on the screen.Note- Depending on the disc, the repeat play function may notwork.18Section Repeat Play-Press( ) at the beginning of the desired section.-Press( ) at the end of the desired section. The specifiedsection will play repeatedly.-Toreturntonormalplay,press( ) until "AB" disappearsfrom the screen

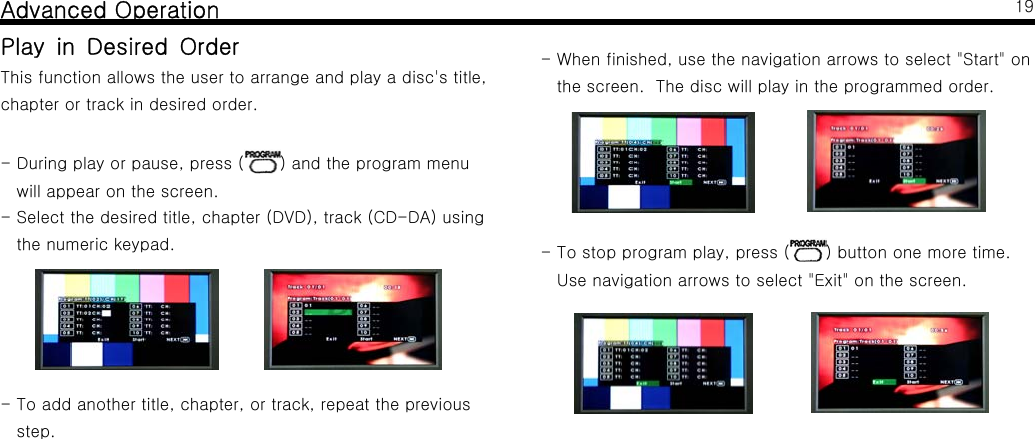

Advanced OperationPlay in Desired OrderThis function allows the user to arrange and play a disc's title,chapterortrackindesiredorder.- During play or pause, press ( )andtheprogrammenuwill appear on the screen.- Select the desired title, chapter (DVD), track (CD-DA) usingthe numeric keypad.- To add another title, chapter, or track, repeat the previousstep.19- When finished, use the navigation arrows to select "Start" onthe screen. The disc will play in the programmed order.-Tostopprogramplay,press( ) button one more time.Use navigation arrows to select "Exit" on the screen.

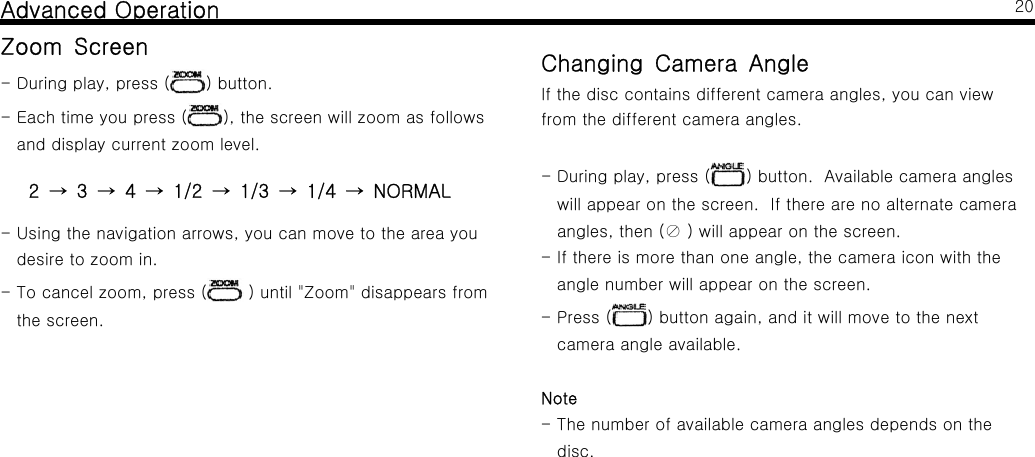

Advanced OperationZoom Screen-Duringplay,press( ) button.-Eachtimeyoupress( ), the screen will zoom as followsand display current zoom level.2341/21/31/4NORMAL→→→→→→- Using the navigation arrows, you can move to the area youdesire to zoom in.-Tocancelzoom,press( ) until "Zoom" disappears fromthe screen.20Changing Camera AngleIf the disc contains different camera angles, you can viewfrom the different camera angles.-Duringplay,press( ) button. Available camera angleswill appear on the screen. If there are no alternate cameraangles, then (⊘) will appear on the screen.- If there is more than one angle, the camera icon with theangle number will appear on the screen.-Press( ) button again, and it will move to the nextcamera angle available.Note- The number of available camera angles depends on thedisc.

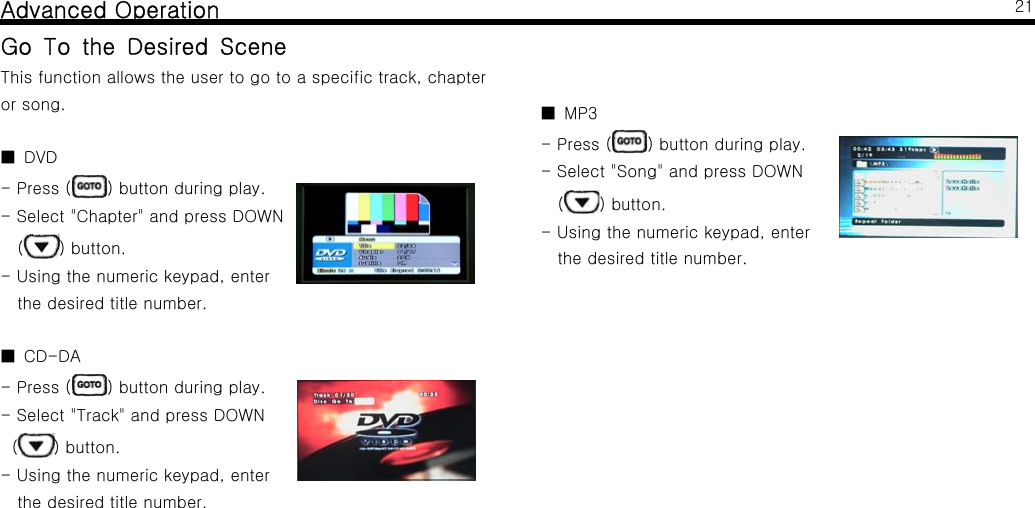

Advanced OperationGo To the Desired SceneThis function allows the user to go to a specific track, chapteror song.DVD■-Press( ) button during play.- Select "Chapter" and press DOWN() button.- Using the numeric keypad, enterthe desired title number.CD-DA■-Press( ) button during play.- Select "Track" and press DOWN() button.- Using the numeric keypad, enterthe desired title number.21MP3■-Press( ) button during play.- Select "Song" and press DOWN() button.- Using the numeric keypad, enterthe desired title number.

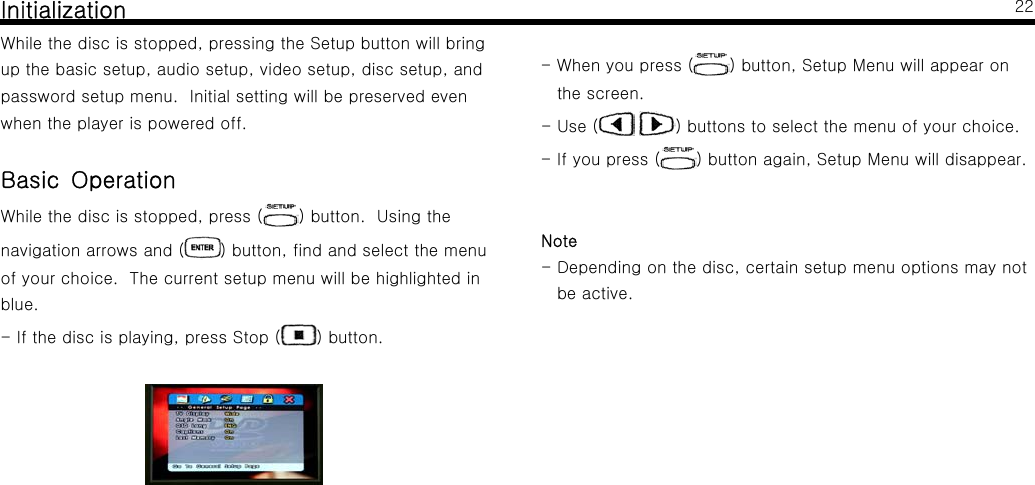

InitializationWhile the disc is stopped, pressing the Setup button will bringup the basic setup, audio setup, video setup, disc setup, andpassword setup menu. Initial setting will be preserved evenwhen the player is powered off.Basic OperationWhile the disc is stopped, press ( ) button. Using thenavigation arrows and ( ) button, find and select the menuof your choice. The current setup menu will be highlighted inblue.- If the disc is playing, press Stop ( ) button.22- When you press ( ) button, Setup Menu will appear onthe screen.-Use( ) buttons to select the menu of your choice.-Ifyoupress( ) button again, Setup Menu will disappear.Note- Depending on the disc, certain setup menu options may notbe active.

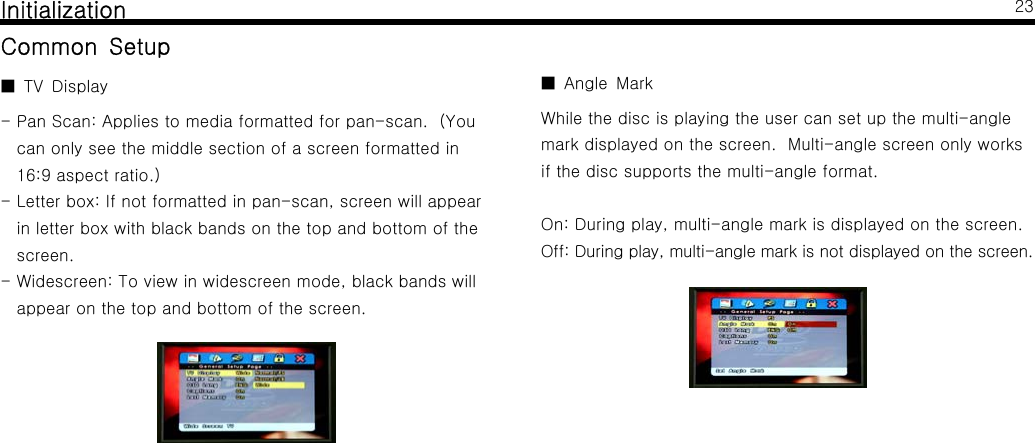

InitializationCommon SetupTV Display■- Pan Scan: Applies to media formatted for pan-scan. (Youcan only see the middle section of a screen formatted in16:9 aspect ratio.)- Letter box: If not formatted in pan-scan, screen will appearin letter box with black bands on the top and bottom of thescreen.- Widescreen: To view in widescreen mode, black bands willappear on the top and bottom of the screen.23Angle Mark■While the disc is playing the user can set up the multi-anglemark displayed on the screen. Multi-angle screen only worksif the disc supports the multi-angle format.On: During play, multi-angle mark is displayed on the screen.Off: During play, multi-angle mark is not displayed on the screen.

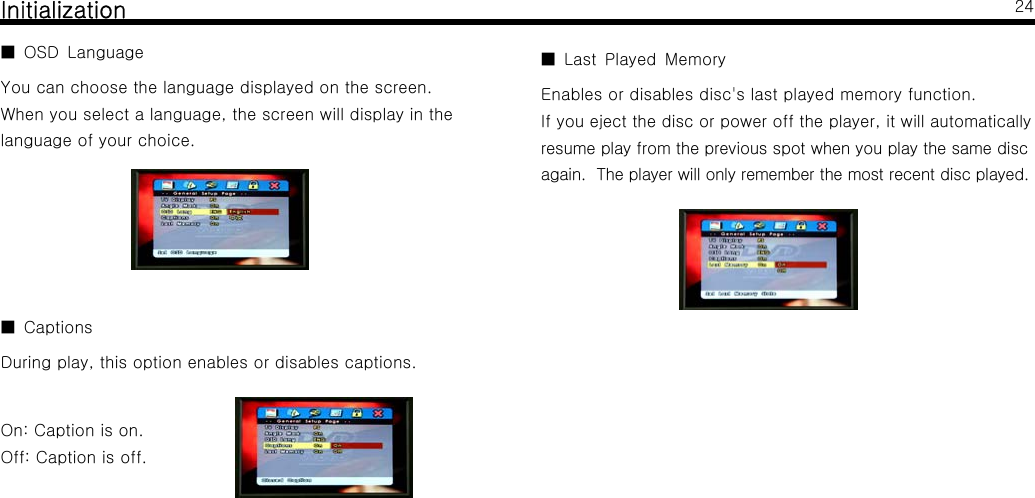

InitializationOSD Language■You can choose the language displayed on the screen.When you select a language, the screen will display in thelanguage of your choice.Captions■During play, this option enables or disables captions.On: Caption is on.Off: Caption is off.24Last Played Memory■Enables or disables disc's last played memory function.If you eject the disc or power off the player, it will automaticallyresume play from the previous spot when you play the same discagain. The player will only remember the most recent disc played.

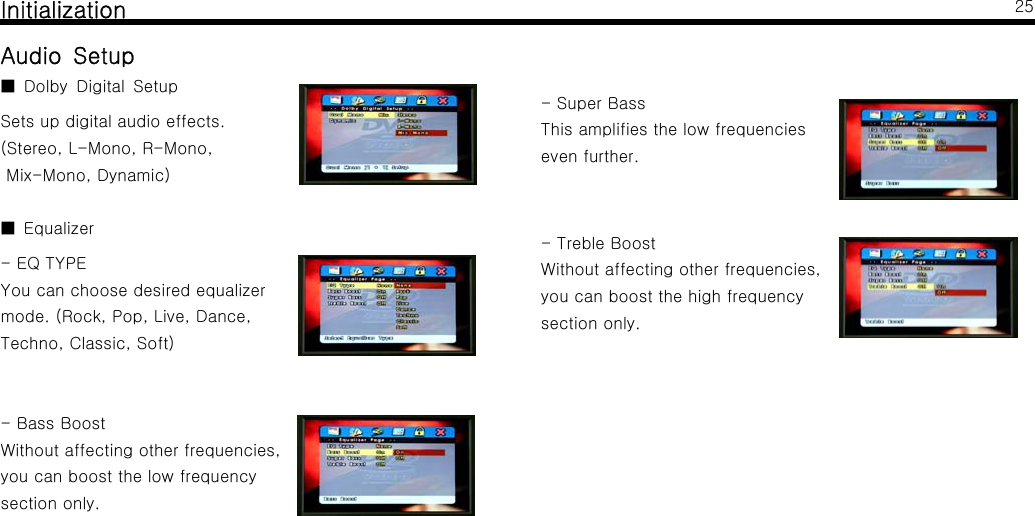

InitializationAudio SetupDolby Digital Setup■Sets up digital audio effects.(Stereo, L-Mono, R-Mono,Mix-Mono, Dynamic)Equalizer■-EQTYPEYou can choose desired equalizermode.(Rock,Pop,Live,Dance,Techno, Classic, Soft)-BassBoostWithout affecting other frequencies,you can boost the low frequencysection only.25-SuperBassThis amplifies the low frequencieseven further.- Treble BoostWithout affecting other frequencies,you can boost the high frequencysection only.

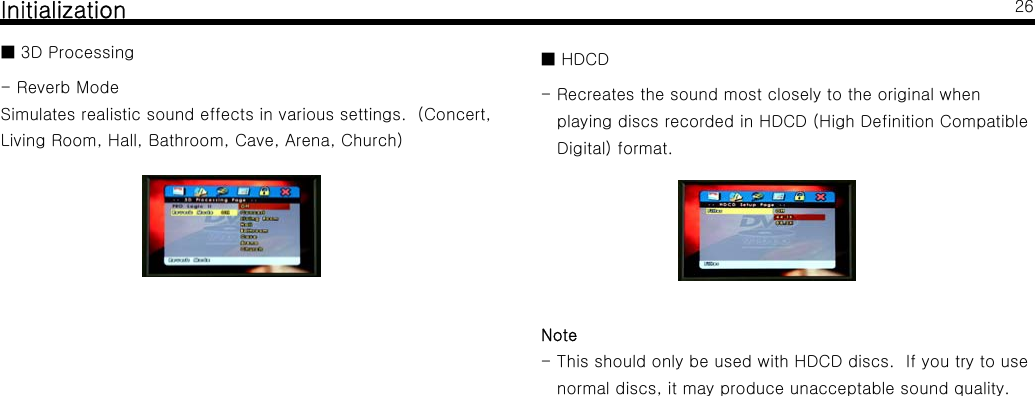

Initialization■ 3D Processing- Reverb ModeSimulates realistic sound effects in various settings. (Concert,Living Room, Hall, Bathroom, Cave, Arena, Church)26■HDCD- Recreates the sound most closely to the original whenplaying discs recorded in HDCD (High Definition CompatibleDigital) format.Note- This should only be used with HDCD discs. If you try to usenormal discs, it may produce unacceptable sound quality.

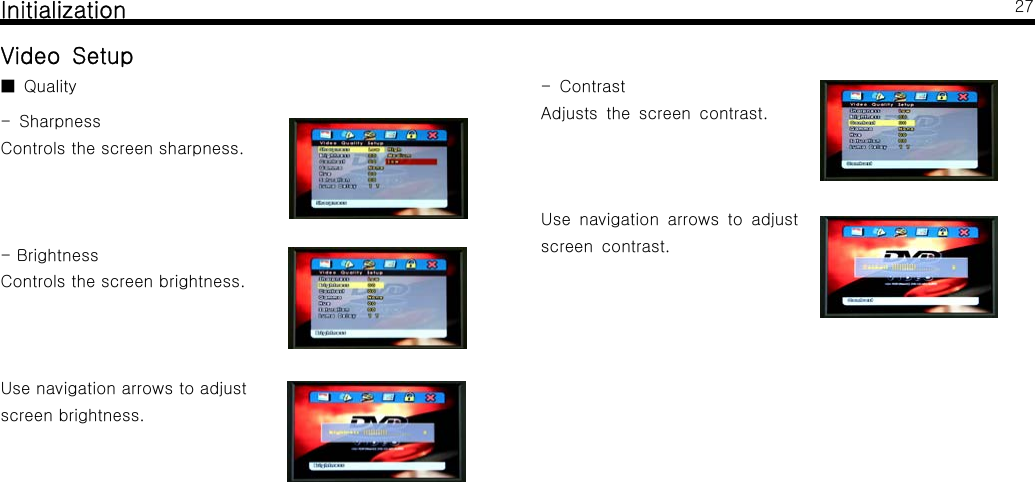

InitializationVideo SetupQuality■-SharpnessControls the screen sharpness.-BrightnessControls the screen brightness.Use navigation arrows to adjustscreen brightness.27-ContrastAdjusts the screen contrast.Use navigation arrows to adjustscreen contrast.

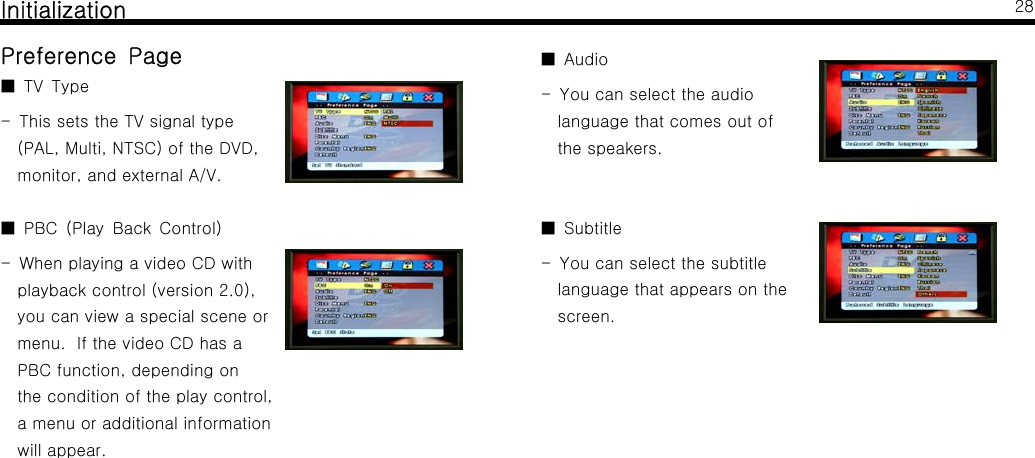

InitializationPreference PageTV Type■- ThissetstheTVsignaltype(PAL, Multi, NTSC) of the DVD,monitor, and external A/V.PBC (Play Back Control)■-WhenplayingavideoCDwithplayback control (version 2.0),you can view a special scene ormenu. If the video CD has aPBC function, depending onthe condition of the play control,a menu or additional informationwill appear.28Audio■- You can select the audiolanguage that comes out ofthe speakers.Subtitle■- You can select the subtitlelanguage that appears on thescreen.

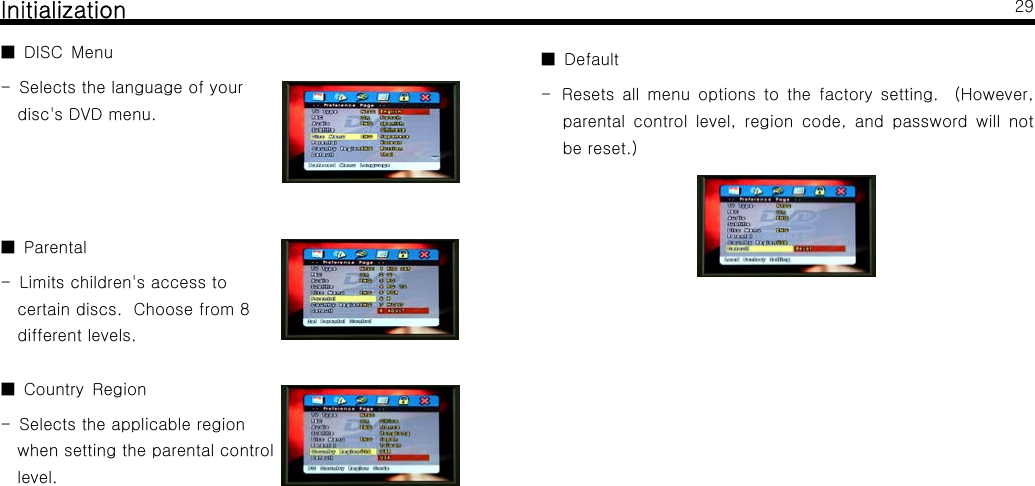

InitializationDISC Menu■- Selectsthelanguageofyourdisc's DVD menu.Parental■- Limits children's access tocertain discs. Choose from 8different levels.Country Region■- Selects the applicable regionwhen setting the parental controllevel.29Default■- Resets all menu options to the factory setting. (However,parental control level, region code, and password will notbe reset.)

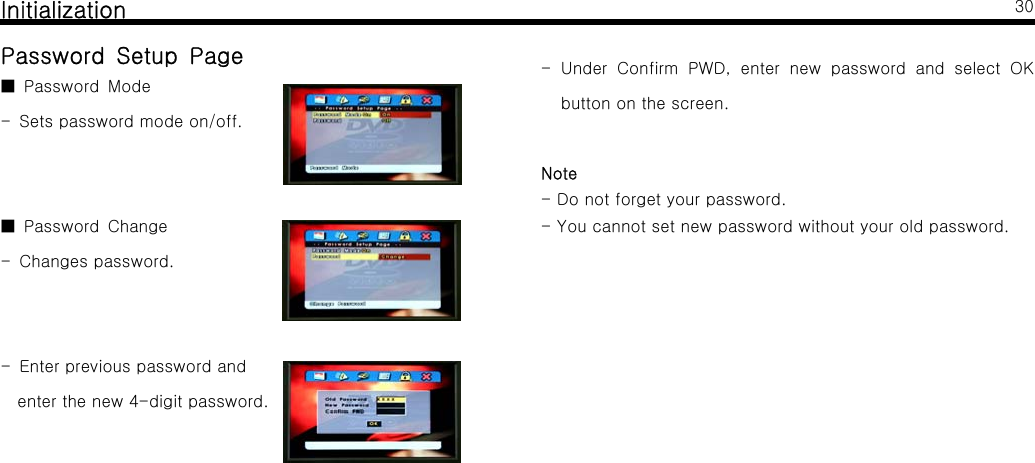

InitializationPassword Setup PagePassword Mode■- Sets password mode on/off.Password Change■- Changes password.- Enter previous password andenter the new 4-digit password.30- Under Confirm PWD, enter new password and select OKbuttononthescreen.Note- Do not forget your password.- You cannot set new password without your old password.

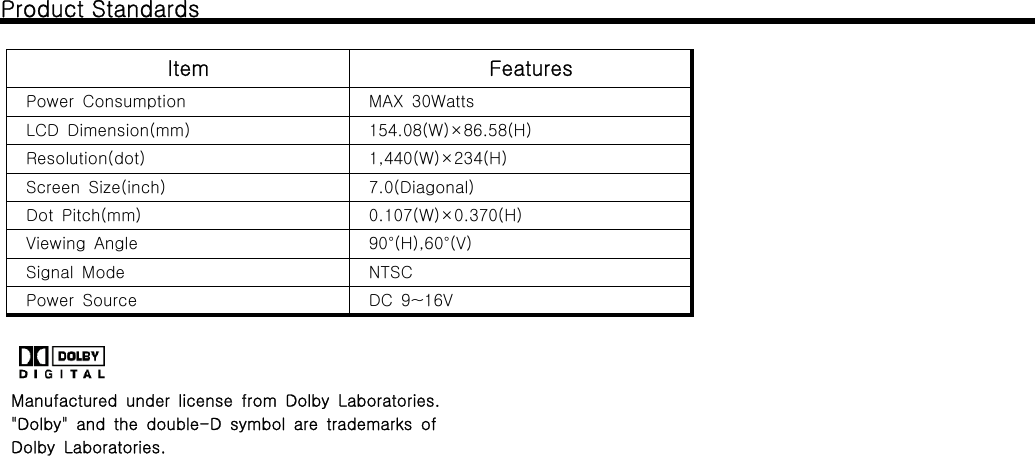

Product StandardsItem FeaturesPower Consumption MAX 30WattsLCD Dimension(mm) 154.08(W)×86.58(H)Resolution(dot) 1,440(W)×234(H)Screen Size(inch) 7.0(Diagonal)Dot Pitch(mm) 0.107(W)×0.370(H)Viewing Angle 90°(H),60°(V)Signal Mode NTSCPower Source DC 9~16VManufactured under license from Dolby Laboratories."Dolby" and the double-D symbol are trademarks ofDolby Laboratories.
WarrantyThis warranty covers repairs needed to correct defectsin materials or workmanship of the unit. The warrantycoverage is for 36 months or 36,000 miles, whichevercomes first. To obtain warranty service, contact theMopar dealer that installed the unit.This warranty does not cover damages or failuresresulting directly or indirectly from the following:Fire, accidents or theft•Abuse or negligence•Misuse•Improper Repairs•Alteration or Tampering, including installation of•non-Genuine Mopar AccessoriesAirborne chemicals, floods, lightning and other•environmental conditions
