Daimler Trucks North America CTP10777001 Telematics Control Unit User Manual Antenna information

Daimler Trucks North America, LLC Telematics Control Unit Antenna information

Antenna information

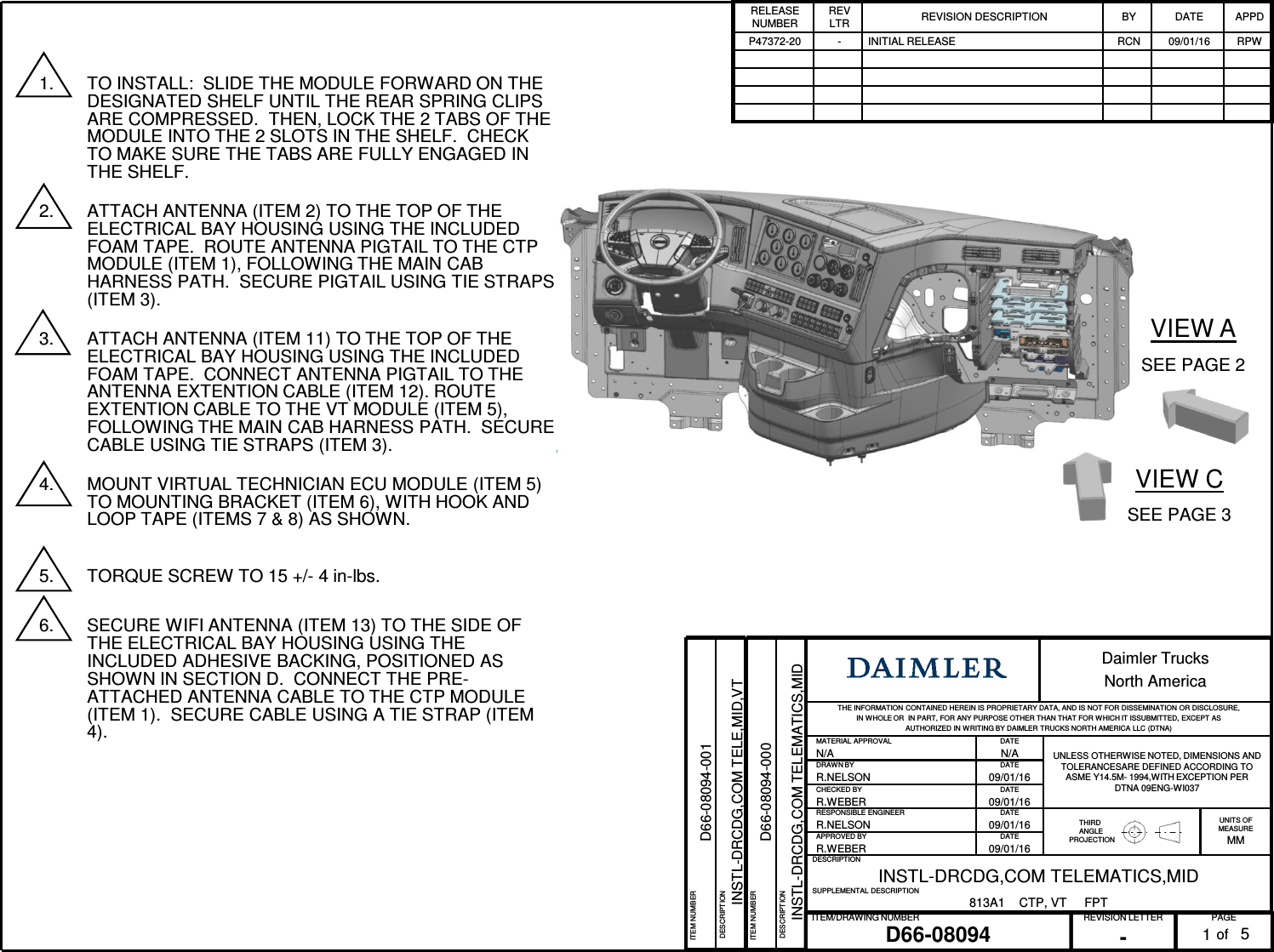

PAGEREVISION LETTERITEM/DRAWING NUMBERofD66-08094 -1Daimler TrucksNorth AmericaTHE INFORMATION CONTAINED HEREIN IS PROPRIETARY DATA, AND IS NOT FOR DISSEMINATION OR DISCLOSURE, IN WHOLE OR IN PART, FOR ANY PURPOSE OTHER THAN THAT FOR W HICH IT ISSUBMITTED, EXCEPT AS AUTHORIZED IN WRITING BY DAIMLER TRUCKS NORTH AMERICA LLC (DTNA) MATERIAL APPROVAL DATEUNLESS OTHERWISE NOTED, DIMENSIONS AND TOLERANCESARE DEFINED ACCORDING TO ASME Y14.5M- 1994,WITH EXCEPTION PERDTNA 09ENG-WI037N/A N/ADRAWN BY DATER.NELSON 09/01/16CHECKED BY DATER.WEBER 09/01/16RESPONSIBLE ENGINEER DATETHIRDANGLEPROJECTIONUNITS OFMEASUREMMR.NELSON 09/01/16APPROVED BY DATER.WEBER 09/01/16DESCRIPTIONINSTL-DRCDG,COM TELEMATICS,MIDSUPPLEMENTAL DESCRIPTION813A1 CTP, VT FPTRELEASE NUMBERREV LTR REVISION DESCRIPTION BY DATE APPDP47372-20 - INITIAL RELEASE RCN 09/01/16 RPW51. TO INSTALL: SLIDE THE MODULE FORWARD ON THE DESIGNATED SHELF UNTIL THE REAR SPRING CLIPS ARE COMPRESSED. THEN, LOCK THE 2 TABS OF THE MODULE INTO THE 2 SLOTS IN THE SHELF. CHECK TO MAKE SURE THE TABS ARE FULLY ENGAGED IN THE SHELF.2. ATTACH ANTENNA (ITEM 2) TO THE TOP OF THE ELECTRICAL BAY HOUSING USING THE INCLUDED FOAM TAPE. ROUTE ANTENNA PIGTAIL TO THE CTP MODULE (ITEM 1), FOLLOWING THE MAIN CAB HARNESS PATH. SECURE PIGTAIL USING TIE STRAPS (ITEM 3).3. ATTACH ANTENNA (ITEM 11) TO THE TOP OF THE ELECTRICAL BAY HOUSING USING THE INCLUDED FOAM TAPE. CONNECT ANTENNA PIGTAIL TO THE ANTENNA EXTENTION CABLE (ITEM 12). ROUTE EXTENTION CABLE TO THE VT MODULE (ITEM 5), FOLLOWING THE MAIN CAB HARNESS PATH. SECURE CABLE USING TIE STRAPS (ITEM 3).4. MOUNT VIRTUAL TECHNICIAN ECU MODULE (ITEM 5) TO MOUNTING BRACKET (ITEM 6), WITH HOOK AND LOOP TAPE (ITEMS 7 & 8) AS SHOWN.5. TORQUE SCREW TO 15 +/- 4 in-lbs.6. SECURE WIFI ANTENNA (ITEM 13) TO THE SIDE OF THE ELECTRICAL BAY HOUSING USING THE INCLUDED ADHESIVE BACKING, POSITIONED AS SHOWN IN SECTION D. CONNECT THE PRE-ATTACHED ANTENNA CABLE TO THE CTP MODULE (ITEM 1). SECURE CABLE USING A TIE STRAP (ITEM 4).ITEM NUMBERD66-08094-000DESCRIPTIONINSTL-DRCDG,COM TELEMATICS,MIDVIEW ASEE PAGE 2VIEW CSEE PAGE 3ITEM NUMBERD66-08094-001DESCRIPTIONINSTL-DRCDG,COM TELE,MID,VT

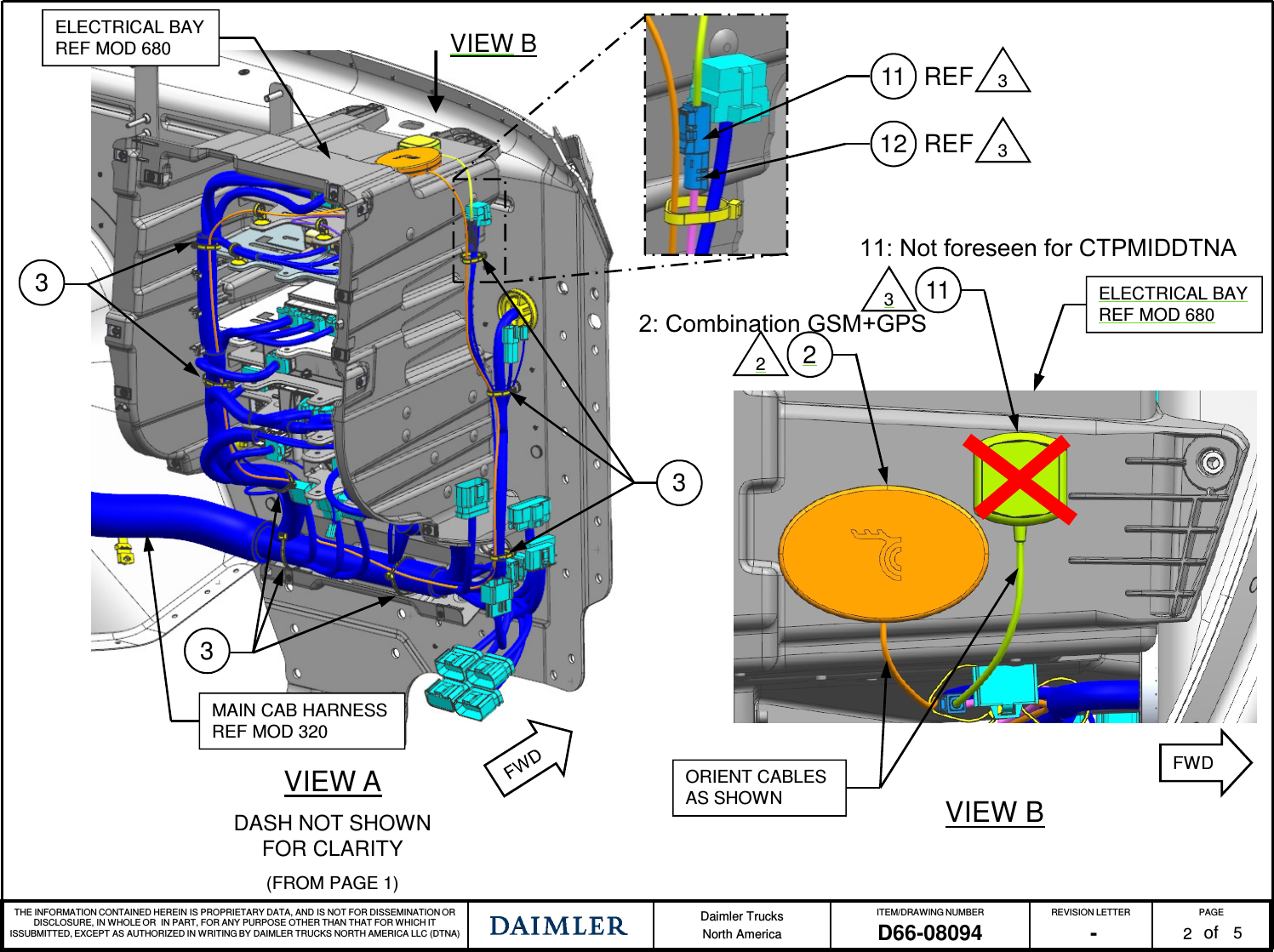

THE INFORMATION CONTAINED HEREIN IS PROPRIETARY DATA, AND IS NOT FOR DISSEMINATION OR DISCLOSURE, IN WHOLE OR IN PART, FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT ISSUBMITTED, EXCEPT AS AUTHORIZED IN WRITING BY DAIMLER TRUCKS NORTH AMERICA LLC (DTNA) Daimler TrucksNorth AmericaITEM/DRAWING NUMBER REVISION LETTER PAGEofD66-08094 - 2VIEW ADASH NOT SHOWN FOR CLARITY(FROM PAGE 1)335MAIN CAB HARNESSREF MOD 320ORIENT CABLES AS SHOWN VIEW B311322ELECTRICAL BAYREF MOD 680VIEW BELECTRICAL BAYREF MOD 680FWD11 3REF12 REF 311: Not foreseen for CTPMIDDTNA2: Combination GSM+GPS

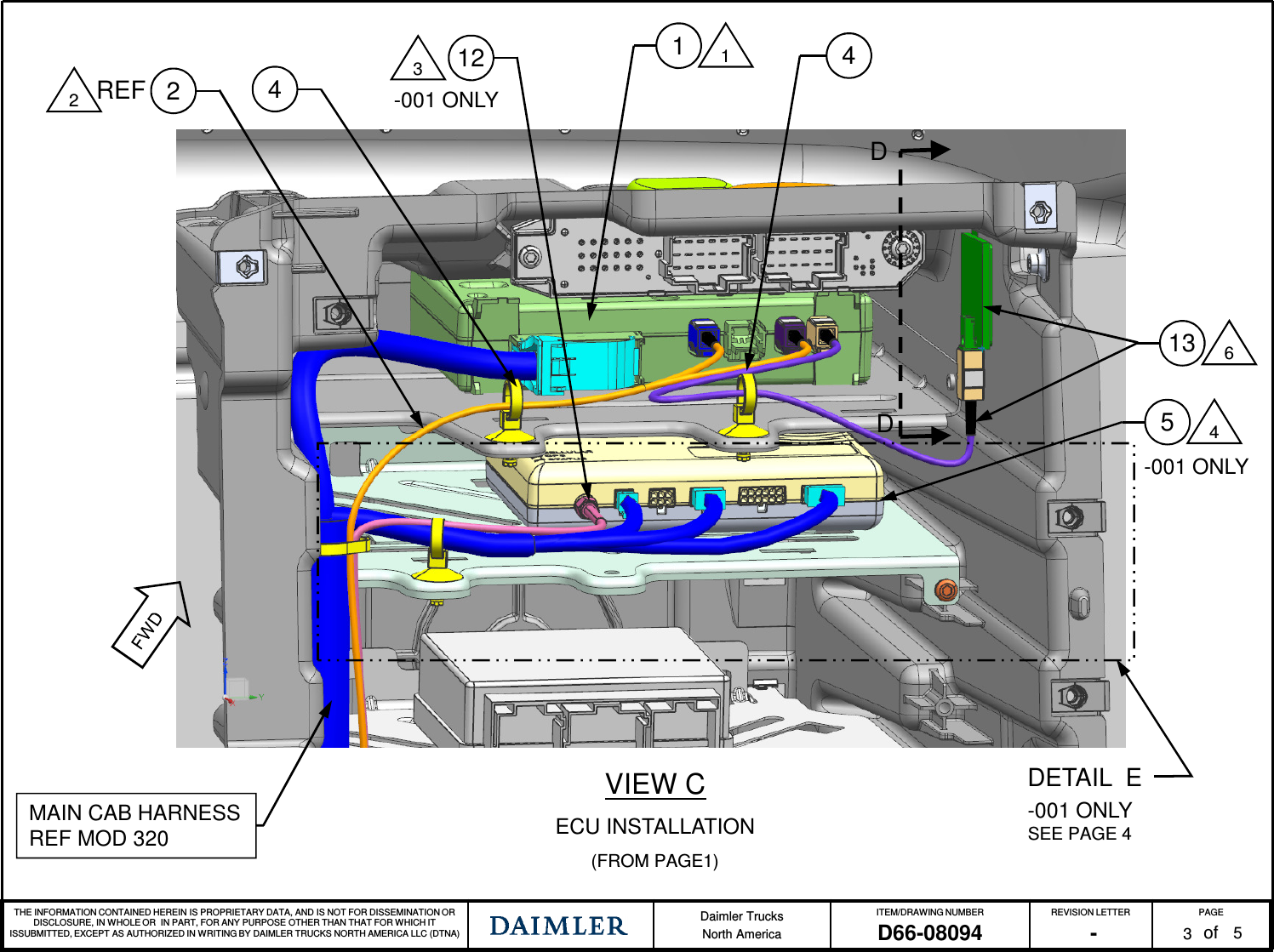

THE INFORMATION CONTAINED HEREIN IS PROPRIETARY DATA, AND IS NOT FOR DISSEMINATION OR DISCLOSURE, IN WHOLE OR IN PART, FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT ISSUBMITTED, EXCEPT AS AUTHORIZED IN WRITING BY DAIMLER TRUCKS NORTH AMERICA LLC (DTNA) Daimler TrucksNorth AmericaITEM/DRAWING NUMBER REVISION LETTER PAGEofD66-08094 - 3511MAIN CAB HARNESSREF MOD 320VIEW CECU INSTALLATION(FROM PAGE1)22REF 4DETAIL E-001 ONLY SEE PAGE 412354-001 ONLY-001 ONLY413 6DD

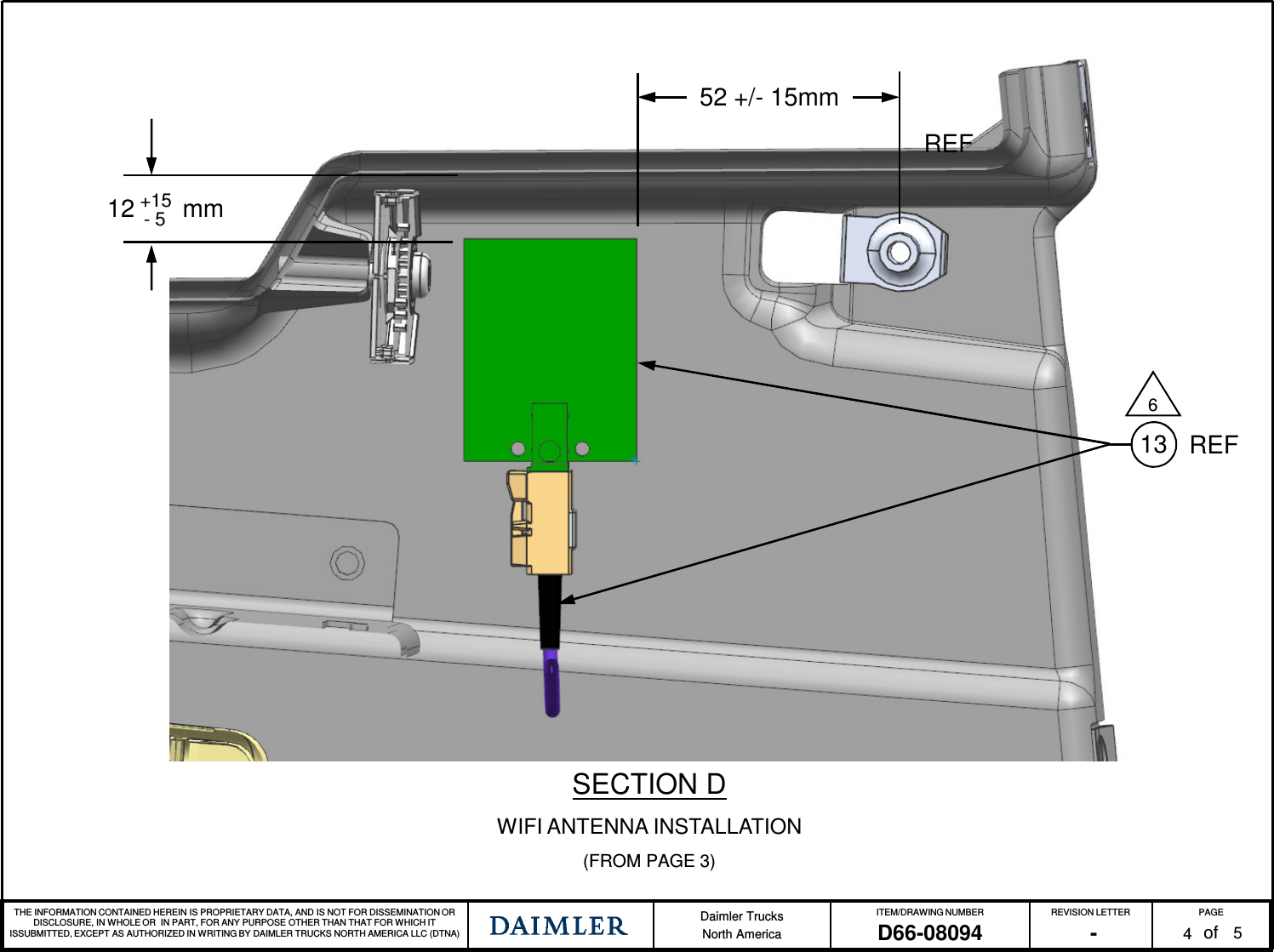

THE INFORMATION CONTAINED HEREIN IS PROPRIETARY DATA, AND IS NOT FOR DISSEMINATION OR DISCLOSURE, IN WHOLE OR IN PART, FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT ISSUBMITTED, EXCEPT AS AUTHORIZED IN WRITING BY DAIMLER TRUCKS NORTH AMERICA LLC (DTNA) Daimler TrucksNorth AmericaITEM/DRAWING NUMBER REVISION LETTER PAGEofD66-08094 - 4SECTION DWIFI ANTENNA INSTALLATION(FROM PAGE 3)52 +/- 15mm12 mm+15- 5136REFREF5

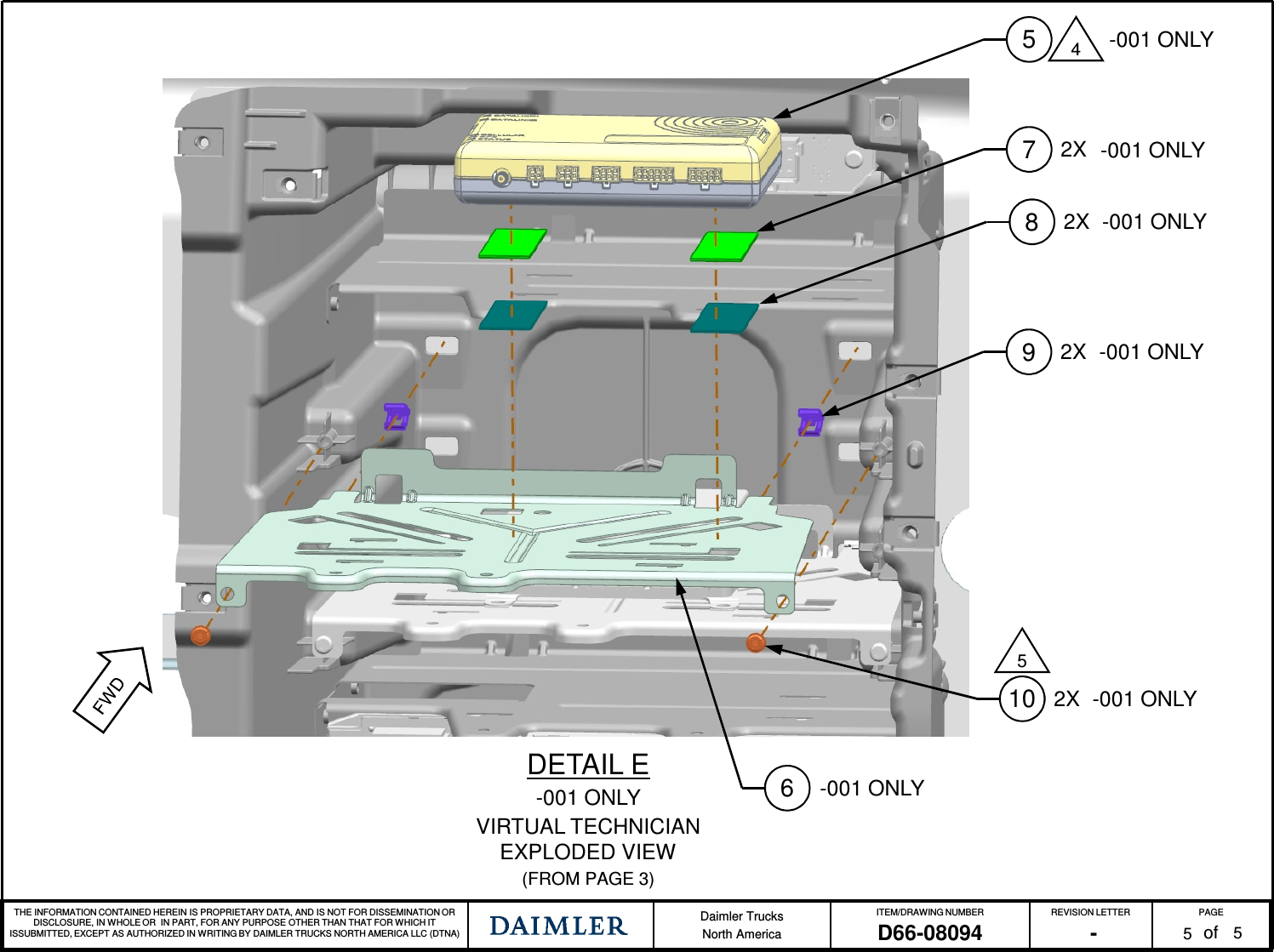

THE INFORMATION CONTAINED HEREIN IS PROPRIETARY DATA, AND IS NOT FOR DISSEMINATION OR DISCLOSURE, IN WHOLE OR IN PART, FOR ANY PURPOSE OTHER THAN THAT FOR WHICH IT ISSUBMITTED, EXCEPT AS AUTHORIZED IN WRITING BY DAIMLER TRUCKS NORTH AMERICA LLC (DTNA) Daimler TrucksNorth AmericaITEM/DRAWING NUMBER REVISION LETTER PAGEofD66-08094 - 5DETAIL E-001 ONLYVIRTUAL TECHNICIAN EXPLODED VIEW(FROM PAGE 3)5472X82X-001 ONLY-001 ONLY-001 ONLY92X -001 ONLY10 2X -001 ONLY56-001 ONLY5
