Dakota Alert DCMT-2500 Wireless Passive Infrared Detector User Manual User s Manual

Dakota Alert Wireless Passive Infrared Detector User s Manual

Users Manual

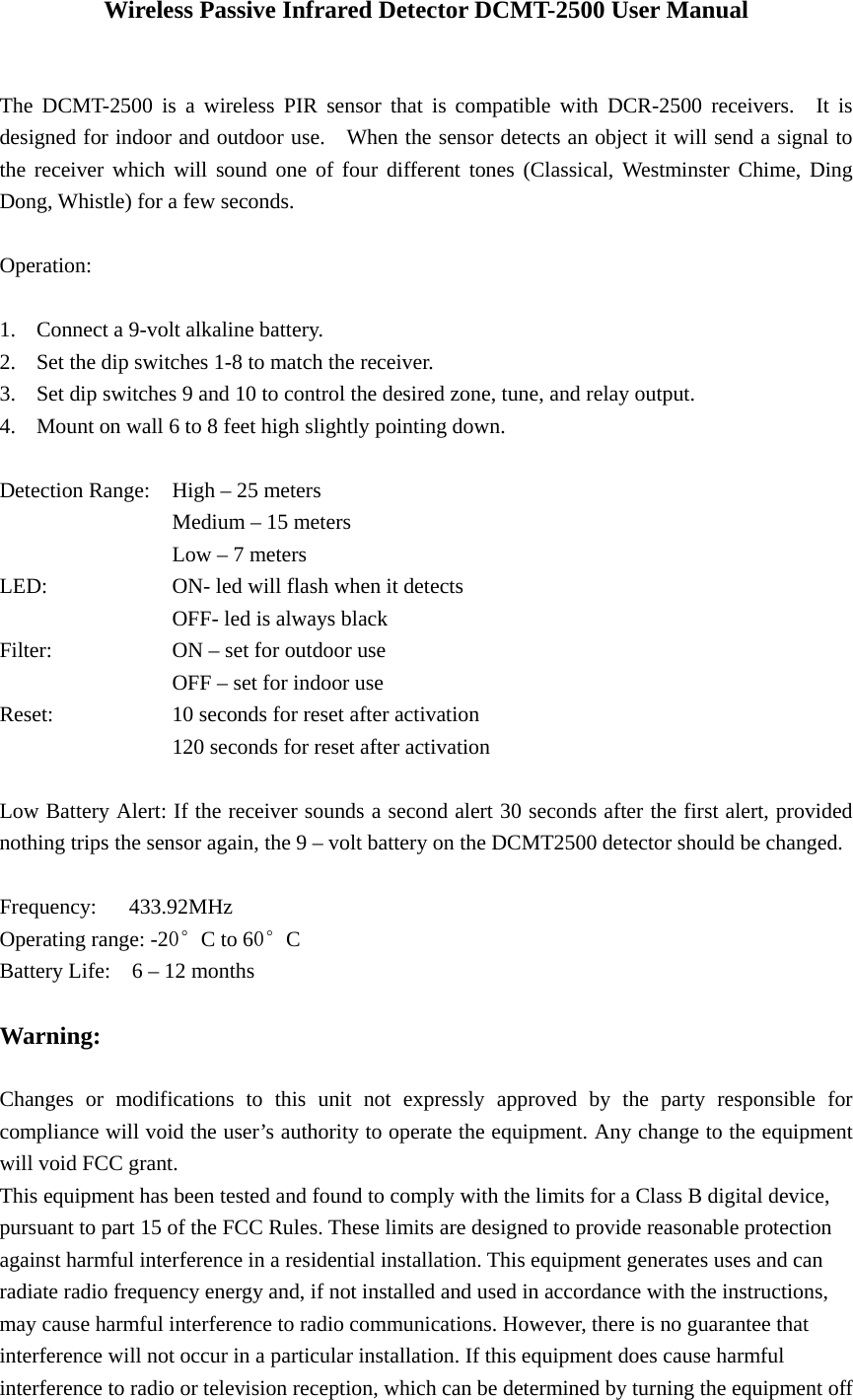

Wireless Passive Infrared Detector DCMT-2500 User Manual The DCMT-2500 is a wireless PIR sensor that is compatible with DCR-2500 receivers. It is designed for indoor and outdoor use. When the sensor detects an object it will send a signal to the receiver which will sound one of four different tones (Classical, Westminster Chime, Ding Dong, Whistle) for a few seconds. Operation: 1. Connect a 9-volt alkaline battery. 2. Set the dip switches 1-8 to match the receiver. 3. Set dip switches 9 and 10 to control the desired zone, tune, and relay output. 4. Mount on wall 6 to 8 feet high slightly pointing down. Detection Range: High – 25 meters Medium – 15 meters Low – 7 meters LED: ON- led will flash when it detects OFF- led is always black Filter: ON – set for outdoor use OFF – set for indoor use Reset: 10 seconds for reset after activation 120 seconds for reset after activation Low Battery Alert: If the receiver sounds a second alert 30 seconds after the first alert, provided nothing trips the sensor again, the 9 – volt battery on the DCMT2500 detector should be changed. Frequency: 433.92MHz Operating range: -20°C to 60°C Battery Life: 6 – 12 months Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.
