DareGlobal Technologies 6519A1A2 ADSL2+ 4 Port Router WIFI 802.11B/G/N 2X2 User Manual PRODUCT SPECIFICATIONS

Shanghai DareGlobal Technologies Co., Ltd. ADSL2+ 4 Port Router WIFI 802.11B/G/N 2X2 PRODUCT SPECIFICATIONS

Users Manual

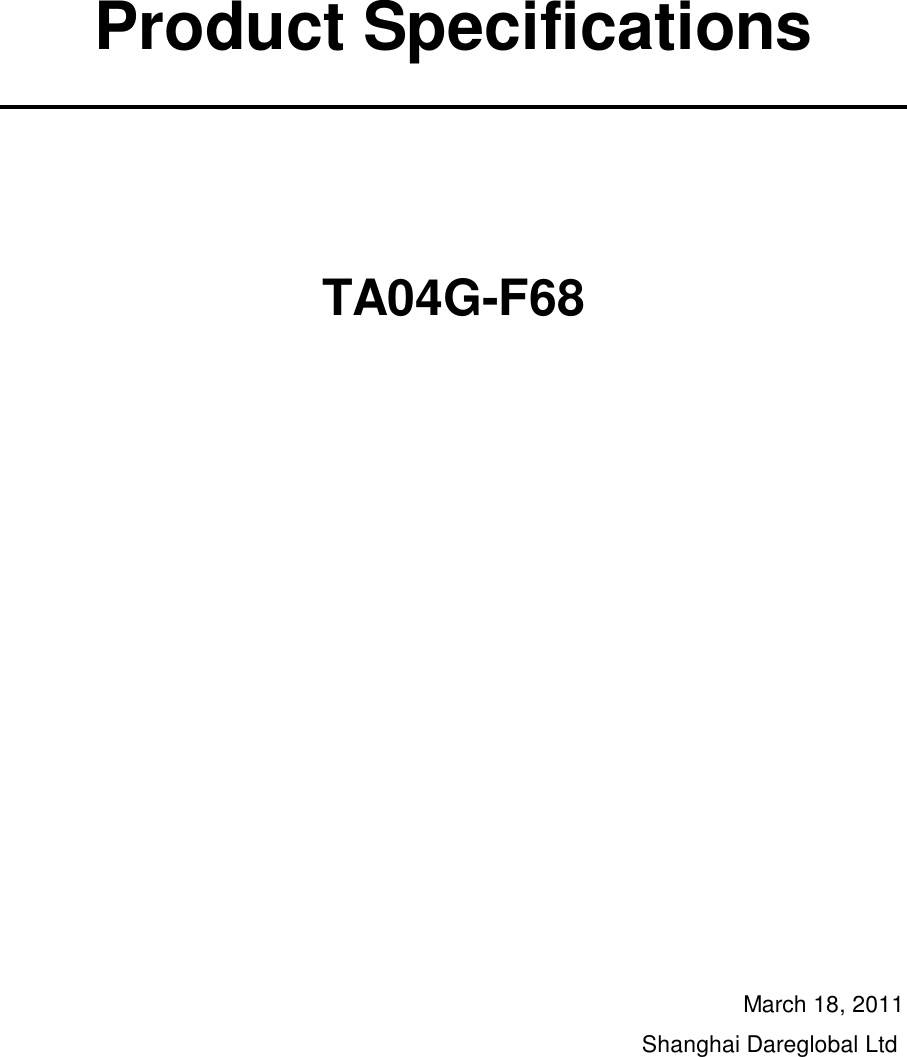

  Product Specifications     TA04G-F68                March 18, 2011 Shanghai Dareglobal Ltd

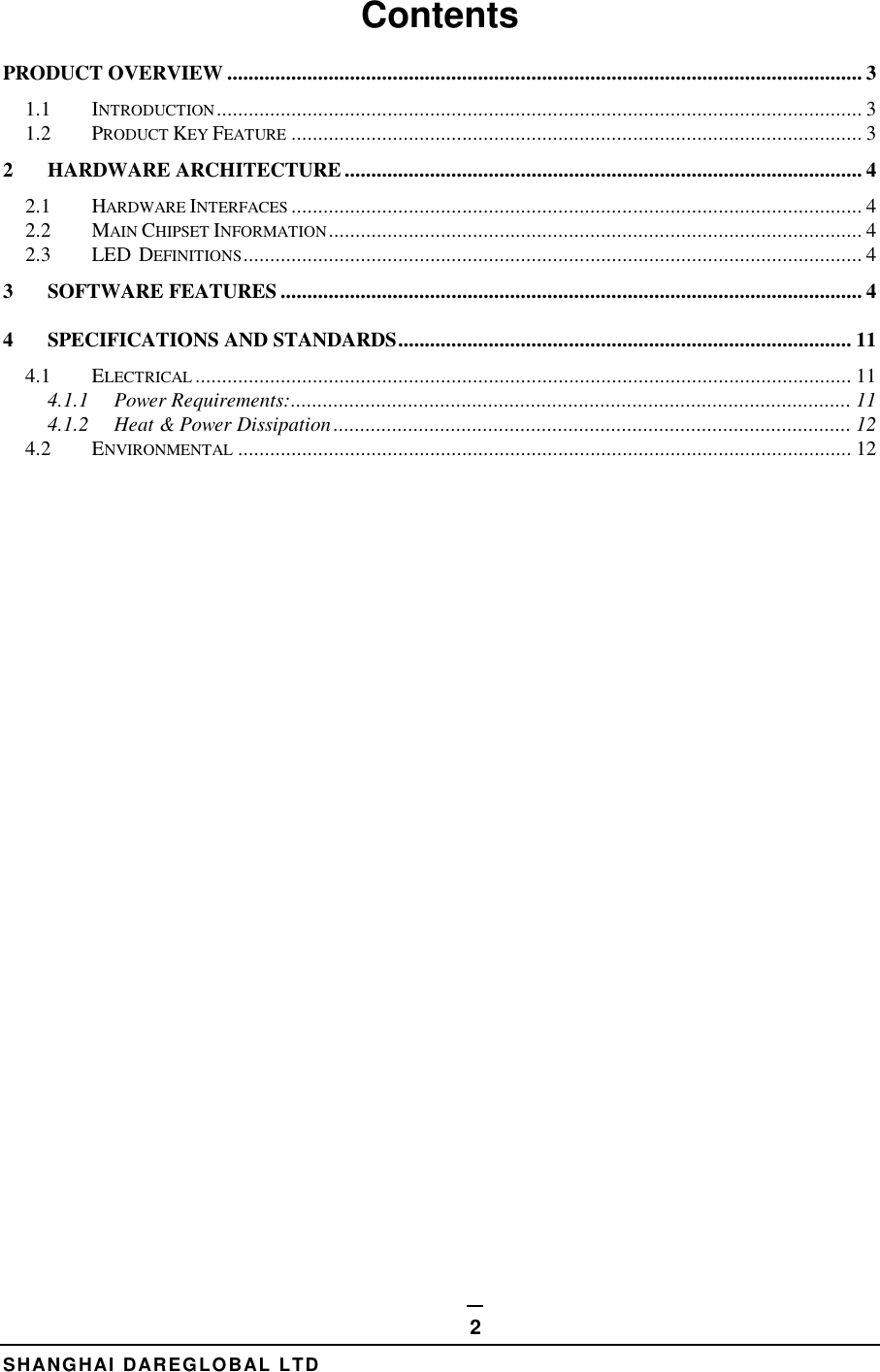

 SHANGHAI DAREGLOBAL LTD 2 Contents PRODUCT OVERVIEW ....................................................................................................................... 3 1.1 INTRODUCTION ......................................................................................................................... 3 1.2 PRODUCT KEY FEATURE ........................................................................................................... 3 2 HARDWARE ARCHITECTURE ................................................................................................. 4 2.1 HARDWARE INTERFACES ........................................................................................................... 4 2.2 MAIN CHIPSET INFORMATION .................................................................................................... 4 2.3 LED  DEFINITIONS .................................................................................................................... 4 3 SOFTWARE FEATURES ............................................................................................................. 4 4 SPECIFICATIONS AND STANDARDS ..................................................................................... 11 4.1 ELECTRICAL ........................................................................................................................... 11 4.1.1 Power Requirements: ......................................................................................................... 11 4.1.2 Heat & Power Dissipation ................................................................................................. 12 4.2 ENVIRONMENTAL ................................................................................................................... 12

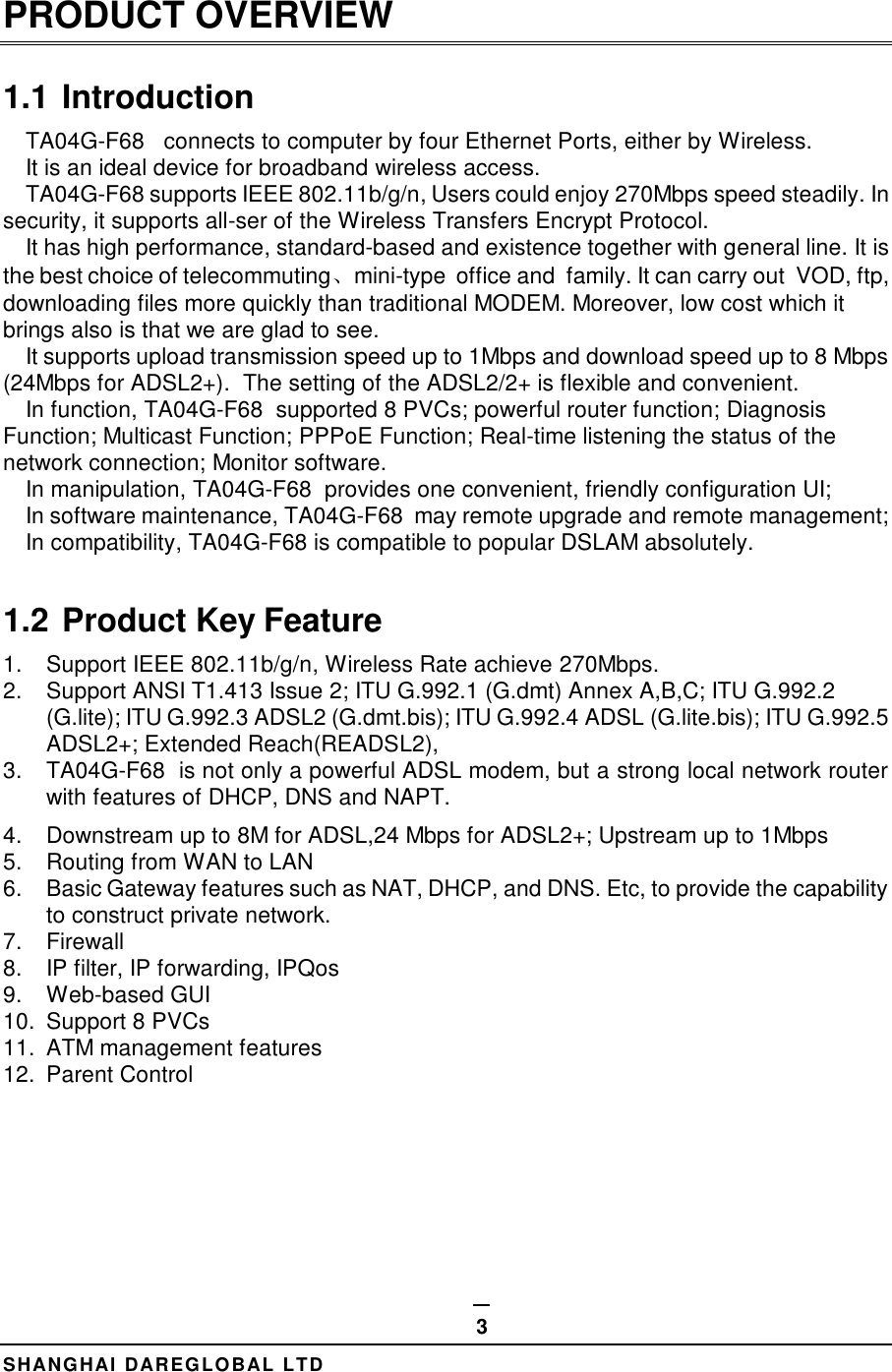

 SHANGHAI DAREGLOBAL LTD 3 PRODUCT OVERVIEW 1.1 Introduction TA04G-F68   connects to computer by four Ethernet Ports, either by Wireless. It is an ideal device for broadband wireless access.  TA04G-F68 supports IEEE 802.11b/g/n, Users could enjoy 270Mbps speed steadily. In security, it supports all-ser of the Wireless Transfers Encrypt Protocol. It has high performance, standard-based and existence together with general line. It is the best choice of telecommuting、mini-type  office and  family. It can carry out  VOD, ftp, downloading files more quickly than traditional MODEM. Moreover, low cost which it brings also is that we are glad to see. It supports upload transmission speed up to 1Mbps and download speed up to 8 Mbps (24Mbps for ADSL2+).  The setting of the ADSL2/2+ is flexible and convenient. In function, TA04G-F68  supported 8 PVCs; powerful router function; Diagnosis Function; Multicast Function; PPPoE Function; Real-time listening the status of the network connection; Monitor software. In manipulation, TA04G-F68  provides one convenient, friendly configuration UI; In software maintenance, TA04G-F68  may remote upgrade and remote management; In compatibility, TA04G-F68 is compatible to popular DSLAM absolutely.  1.2 Product Key Feature 1.  Support IEEE 802.11b/g/n, Wireless Rate achieve 270Mbps. 2.  Support ANSI T1.413 Issue 2; ITU G.992.1 (G.dmt) Annex A,B,C; ITU G.992.2 (G.lite); ITU G.992.3 ADSL2 (G.dmt.bis); ITU G.992.4 ADSL (G.lite.bis); ITU G.992.5 ADSL2+; Extended Reach(READSL2),  3.  TA04G-F68  is not only a powerful ADSL modem, but a strong local network router with features of DHCP, DNS and NAPT. 4.  Downstream up to 8M for ADSL,24 Mbps for ADSL2+; Upstream up to 1Mbps 5.  Routing from WAN to LAN 6.  Basic Gateway features such as NAT, DHCP, and DNS. Etc, to provide the capability to construct private network. 7.  Firewall 8.  IP filter, IP forwarding, IPQos 9.  Web-based GUI 10.  Support 8 PVCs 11.  ATM management features 12.  Parent Control

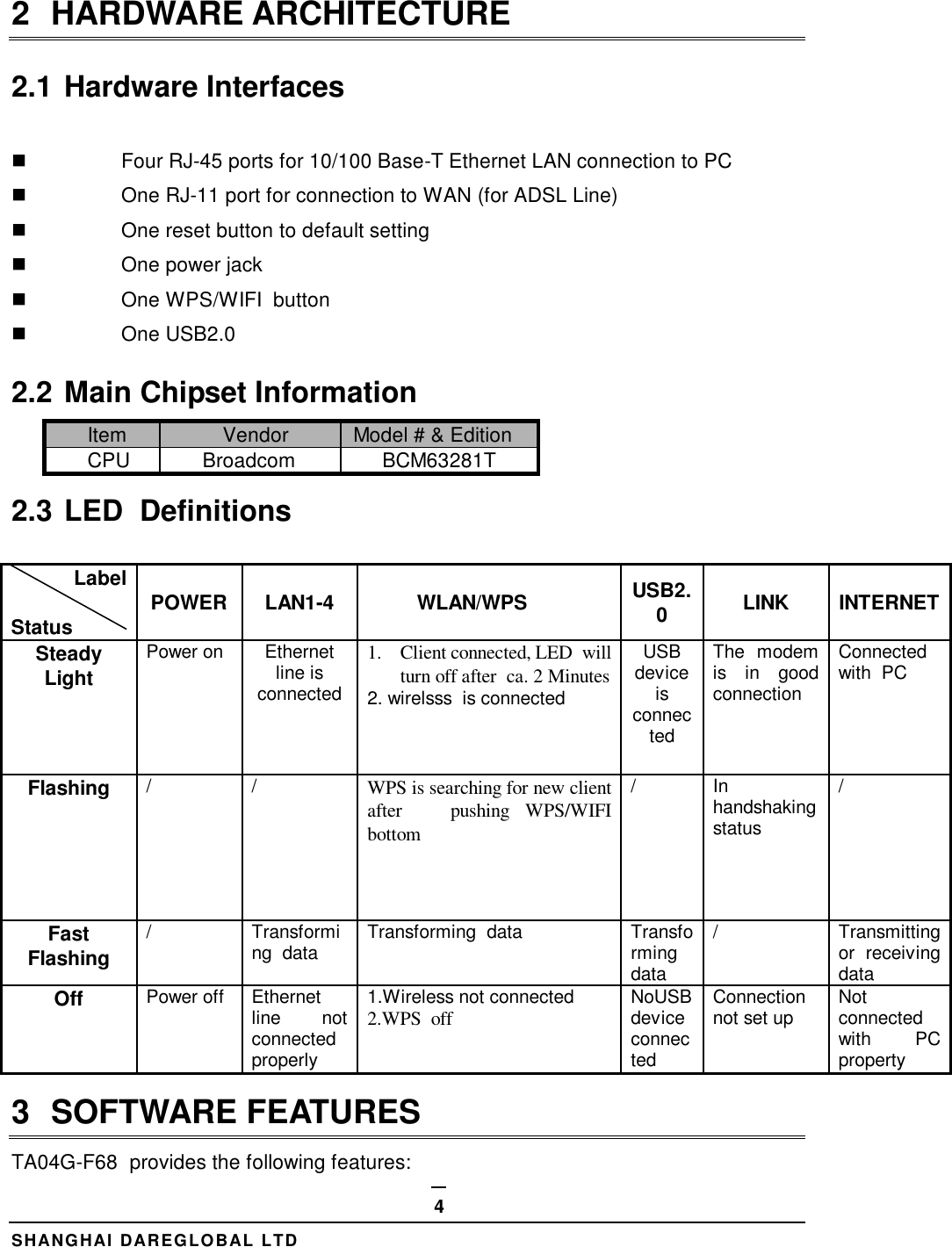

 SHANGHAI DAREGLOBAL LTD 4 2  HARDWARE ARCHITECTURE 2.1 Hardware Interfaces    Four RJ-45 ports for 10/100 Base-T Ethernet LAN connection to PC   One RJ-11 port for connection to WAN (for ADSL Line)   One reset button to default setting   One power jack   One WPS/WIFI  button   One USB2.0  2.2 Main Chipset Information Item Vendor Model # & Edition CPU Broadcom BCM63281T 2.3 LED  Definitions  Label  Status  POWER  LAN1-4 WLAN/WPS USB2.0  LINK   INTERNET  Steady Light Power on Ethernet line is connected 1. Client connected, LED  will turn off after  ca. 2 Minutes 2. wirelsss  is connected    USB device is connected The  modem is  in  good connection Connected with  PC Flashing / / WPS is searching for new client after      pushing  WPS/WIFI bottom  / In handshaking status / Fast Flashing / Transforming  data Transforming  data Transforming  data / Transmitting or  receiving data Off Power off Ethernet line  not connected properly 1.Wireless not connected  2.WPS  off   NoUSB device connected Connection not set up Not connected with  PC property 3  SOFTWARE FEATURES TA04G-F68  provides the following features:

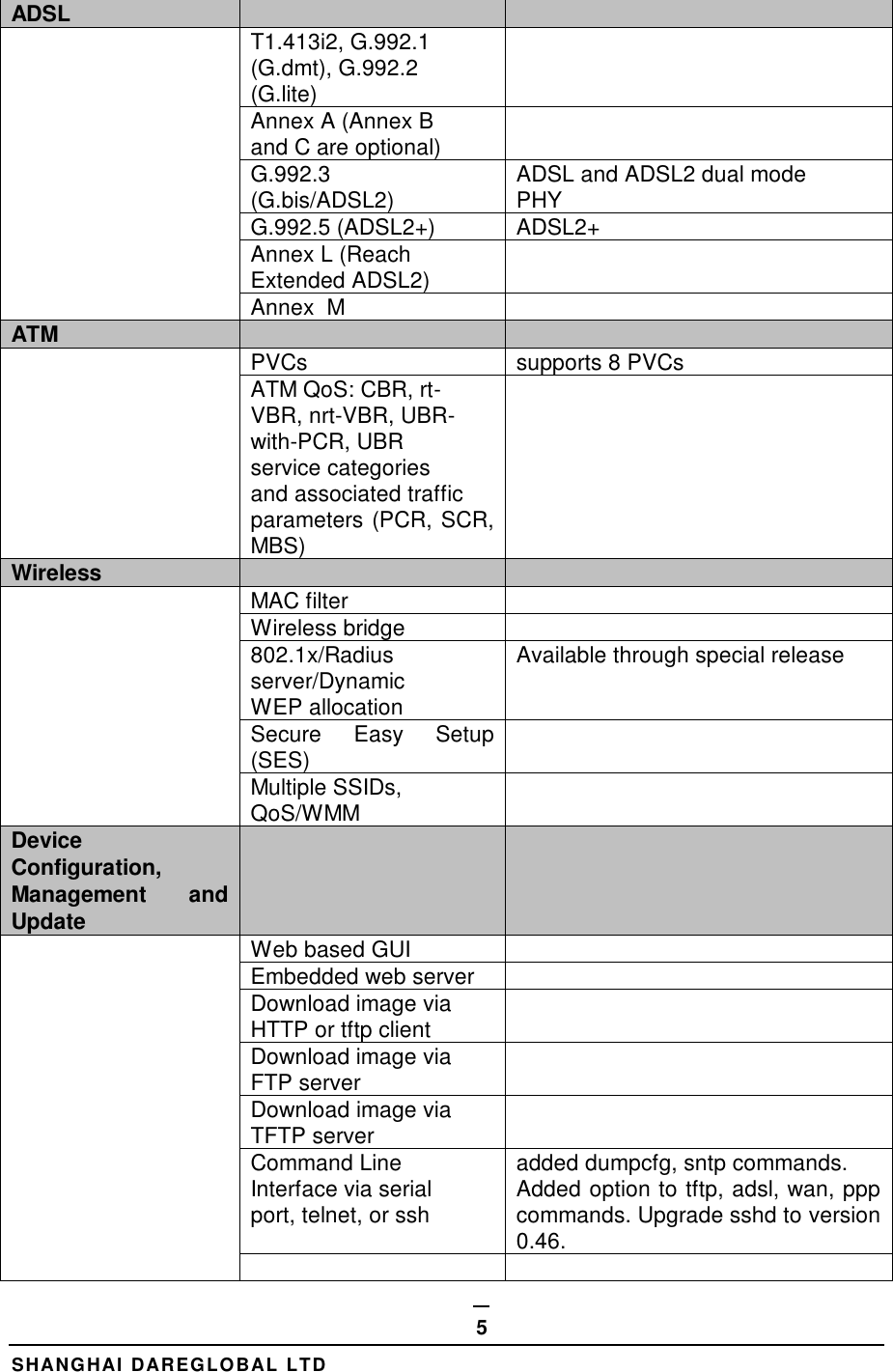

 SHANGHAI DAREGLOBAL LTD 5 ADSL    T1.413i2, G.992.1  (G.dmt), G.992.2  (G.lite)   Annex A (Annex B  and C are optional)  G.992.3  (G.bis/ADSL2) ADSL and ADSL2 dual mode  PHY  G.992.5 (ADSL2+) ADSL2+   Annex L (Reach  Extended ADSL2)  Annex  M  ATM    PVCs supports 8 PVCs ATM QoS: CBR, rt- VBR, nrt-VBR, UBR- with-PCR, UBR  service categories  and associated traffic parameters (PCR, SCR, MBS)  Wireless    MAC filter  Wireless bridge  802.1x/Radius server/Dynamic  WEP allocation Available through special release Secure  Easy  Setup (SES)  Multiple SSIDs,  QoS/WMM  Device Configuration,  Management  and Update      Web based GUI  Embedded web server  Download image via HTTP or tftp client  Download image via FTP server   Download image via  TFTP server  Command Line  Interface via serial  port, telnet, or ssh added dumpcfg, sntp commands.  Added option to tftp, adsl, wan, ppp commands. Upgrade sshd to version 0.46.

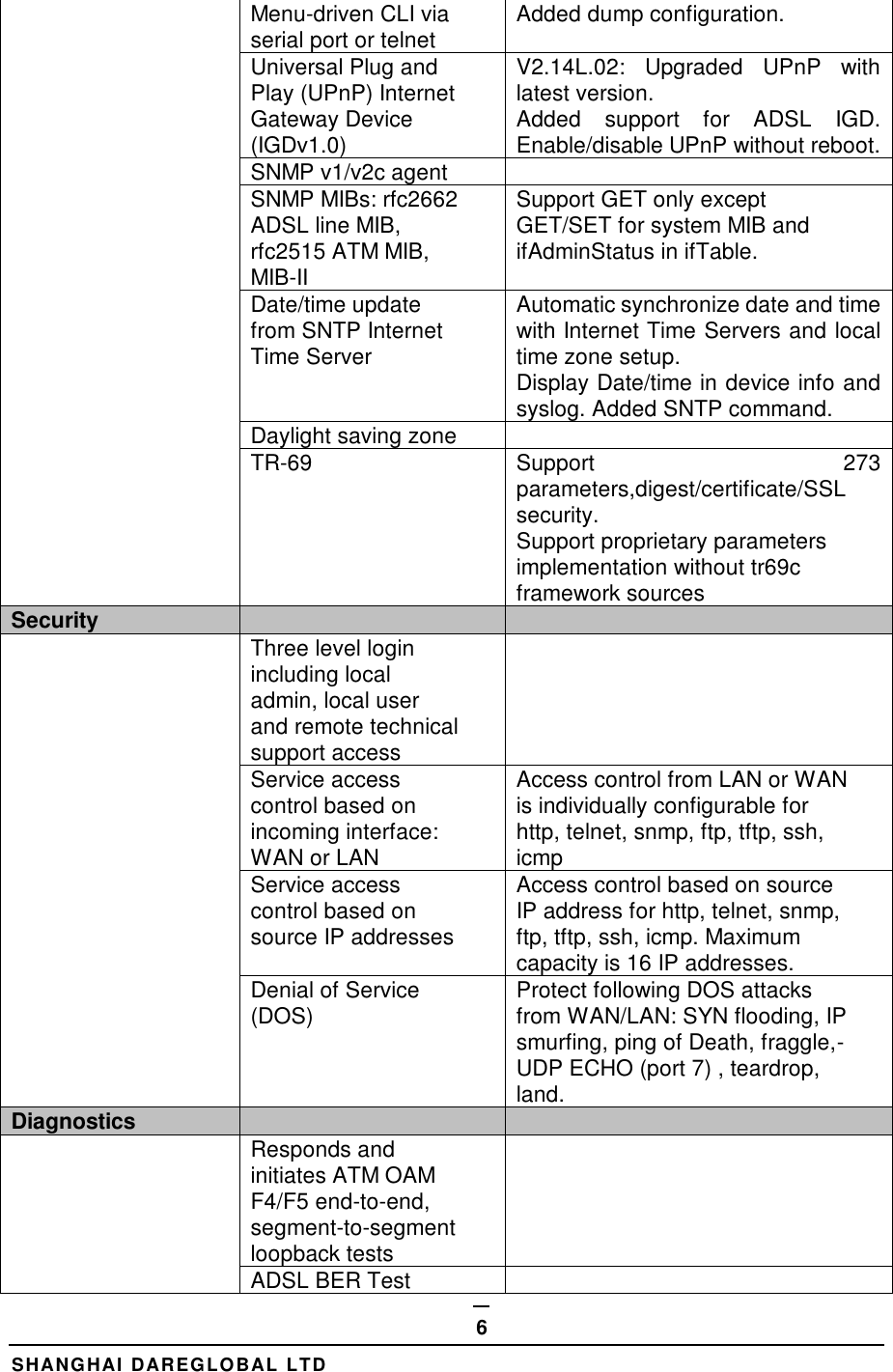

 SHANGHAI DAREGLOBAL LTD 6 Menu-driven CLI via  serial port or telnet Added dump configuration. Universal Plug and  Play (UPnP) Internet Gateway Device  (IGDv1.0) V2.14L.02:  Upgraded  UPnP  with latest version.  Added  support  for  ADSL  IGD. Enable/disable UPnP without reboot.  SNMP v1/v2c agent  SNMP MIBs: rfc2662  ADSL line MIB,  rfc2515 ATM MIB,  MIB-II Support GET only except  GET/SET for system MIB and  ifAdminStatus in ifTable. Date/time update  from SNTP Internet  Time Server Automatic synchronize date and time with Internet Time Servers and local time zone setup.  Display Date/time in device info and syslog. Added SNTP command.  Daylight saving zone  TR-69 Support  273 parameters,digest/certificate/SSL security.  Support proprietary parameters  implementation without tr69c  framework sources  Security    Three level login  including local  admin, local user  and remote technical  support access  Service access  control based on  incoming interface:  WAN or LAN   Access control from LAN or WAN  is individually configurable for  http, telnet, snmp, ftp, tftp, ssh,  icmp Service access  control based on  source IP addresses Access control based on source  IP address for http, telnet, snmp,  ftp, tftp, ssh, icmp. Maximum  capacity is 16 IP addresses.  Denial of Service  (DOS) Protect following DOS attacks  from WAN/LAN: SYN flooding, IP  smurfing, ping of Death, fraggle,-  UDP ECHO (port 7) , teardrop,  land.  Diagnostics    Responds and  initiates ATM OAM  F4/F5 end-to-end,  segment-to-segment  loopback tests  ADSL BER Test

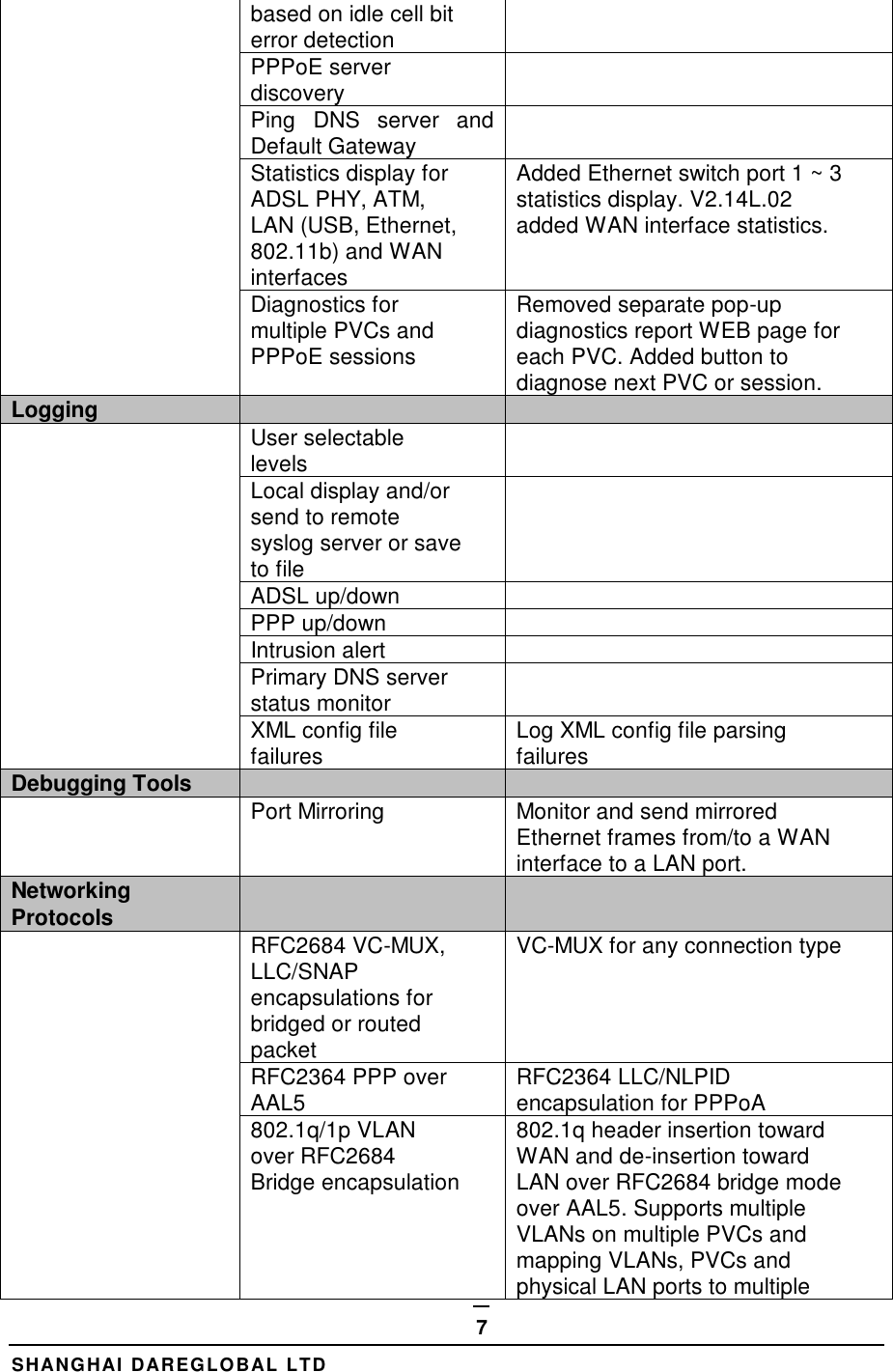

 SHANGHAI DAREGLOBAL LTD 7 based on idle cell bit  error detection PPPoE server  discovery  Ping  DNS  server  and Default Gateway  Statistics display for  ADSL PHY, ATM,  LAN (USB, Ethernet,  802.11b) and WAN  interfaces Added Ethernet switch port 1 ~ 3  statistics display. V2.14L.02  added WAN interface statistics.  Diagnostics for  multiple PVCs and  PPPoE sessions Removed separate pop-up  diagnostics report WEB page for  each PVC. Added button to  diagnose next PVC or session.  Logging    User selectable  levels  Local display and/or  send to remote  syslog server or save  to file  ADSL up/down  PPP up/down  Intrusion alert  Primary DNS server  status monitor  XML config file  failures Log XML config file parsing  failures  Debugging Tools    Port Mirroring Monitor and send mirrored  Ethernet frames from/to a WAN  interface to a LAN port.  Networking Protocols    RFC2684 VC-MUX,  LLC/SNAP  encapsulations for  bridged or routed  packet VC-MUX for any connection type RFC2364 PPP over  AAL5 RFC2364 LLC/NLPID  encapsulation for PPPoA 802.1q/1p VLAN  over RFC2684  Bridge encapsulation 802.1q header insertion toward  WAN and de-insertion toward  LAN over RFC2684 bridge mode  over AAL5. Supports multiple  VLANs on multiple PVCs and  mapping VLANs, PVCs and  physical LAN ports to multiple

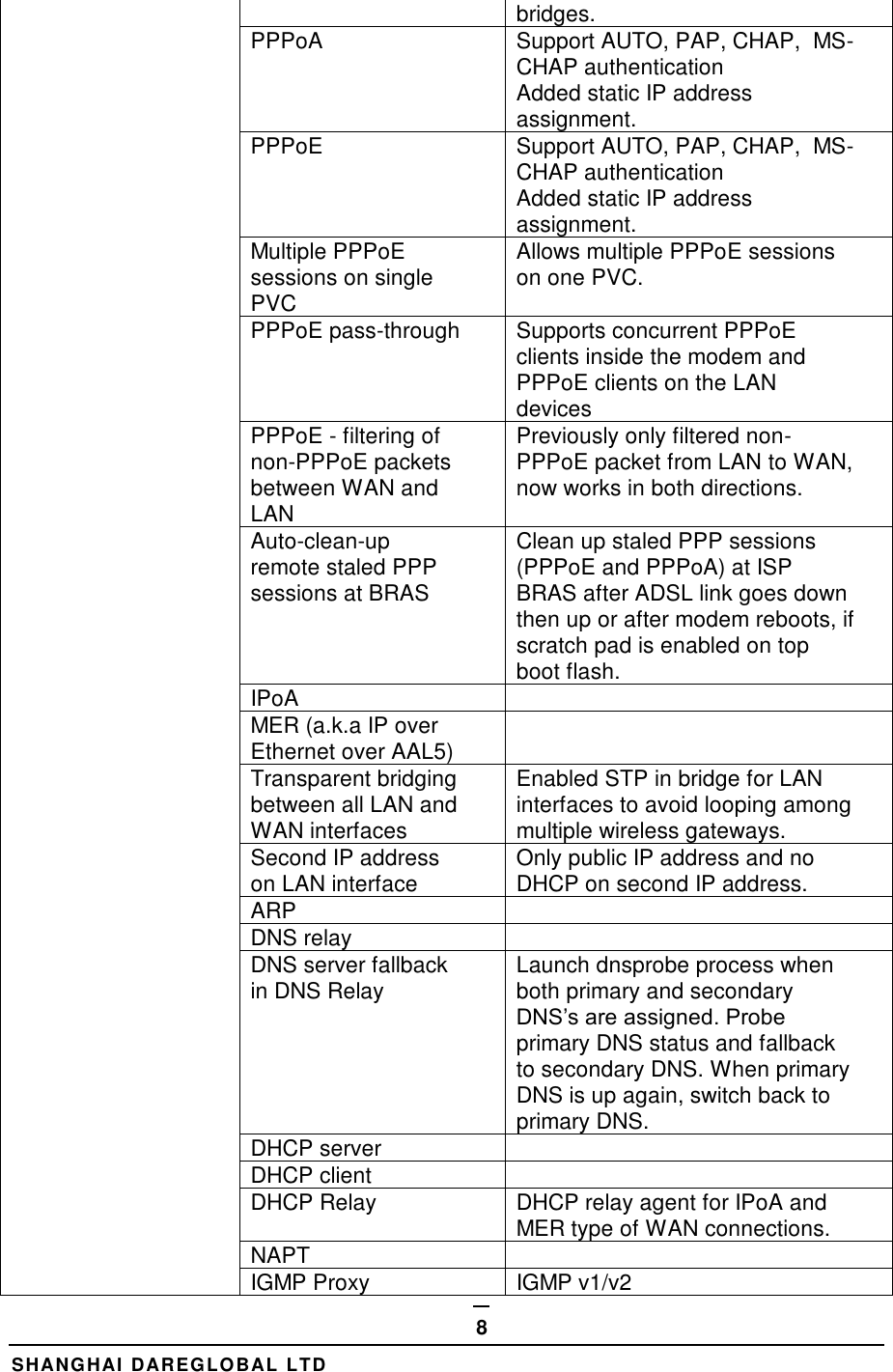

 SHANGHAI DAREGLOBAL LTD 8 bridges.  PPPoA Support AUTO, PAP, CHAP,  MS- CHAP authentication  Added static IP address  assignment.  PPPoE Support AUTO, PAP, CHAP,  MS- CHAP authentication  Added static IP address  assignment.   Multiple PPPoE  sessions on single  PVC Allows multiple PPPoE sessions  on one PVC.   PPPoE pass-through Supports concurrent PPPoE  clients inside the modem and  PPPoE clients on the LAN  devices PPPoE - filtering of  non-PPPoE packets  between WAN and  LAN   Previously only filtered non- PPPoE packet from LAN to WAN,  now works in both directions.  Auto-clean-up  remote staled PPP  sessions at BRAS Clean up staled PPP sessions  (PPPoE and PPPoA) at ISP  BRAS after ADSL link goes down  then up or after modem reboots, if  scratch pad is enabled on top  boot flash.  IPoA   MER (a.k.a IP over  Ethernet over AAL5)  Transparent bridging between all LAN and WAN interfaces Enabled STP in bridge for LAN  interfaces to avoid looping among  multiple wireless gateways.  Second IP address  on LAN interface Only public IP address and no  DHCP on second IP address.  ARP  DNS relay  DNS server fallback in DNS Relay Launch dnsprobe process when  both primary and secondary  DNS’s are assigned. Probe  primary DNS status and fallback  to secondary DNS. When primary  DNS is up again, switch back to  primary DNS.  DHCP server  DHCP client  DHCP Relay DHCP relay agent for IPoA and  MER type of WAN connections.  NAPT  IGMP Proxy IGMP v1/v2

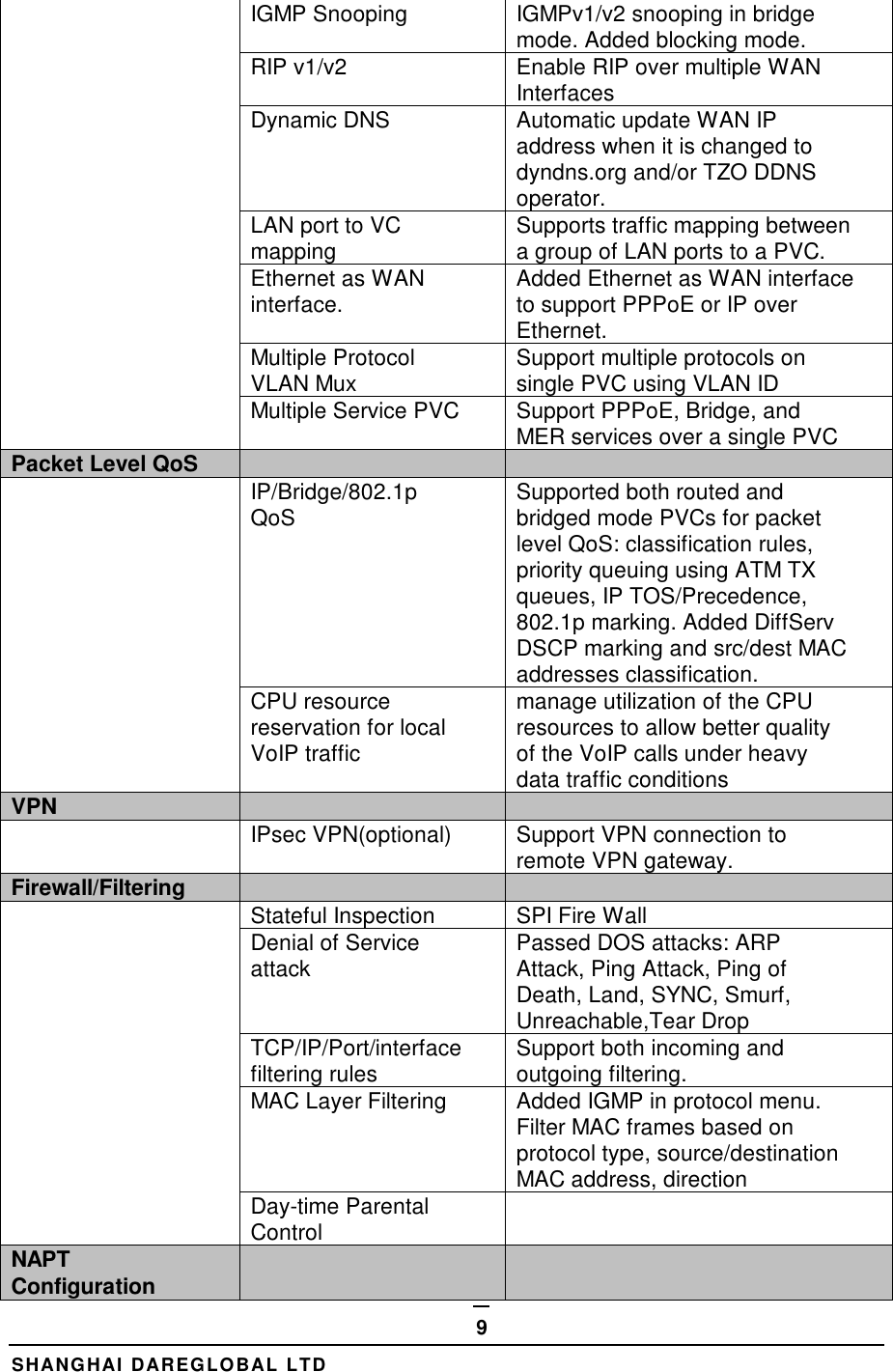

 SHANGHAI DAREGLOBAL LTD 9 IGMP Snooping IGMPv1/v2 snooping in bridge  mode. Added blocking mode.  RIP v1/v2 Enable RIP over multiple WAN  Interfaces  Dynamic DNS Automatic update WAN IP  address when it is changed to  dyndns.org and/or TZO DDNS  operator.  LAN port to VC mapping Supports traffic mapping between  a group of LAN ports to a PVC.  Ethernet as WAN interface. Added Ethernet as WAN interface  to support PPPoE or IP over  Ethernet.  Multiple Protocol VLAN Mux Support multiple protocols on  single PVC using VLAN ID  Multiple Service PVC Support PPPoE, Bridge, and  MER services over a single PVC Packet Level QoS    IP/Bridge/802.1p QoS Supported both routed and  bridged mode PVCs for packet  level QoS: classification rules,  priority queuing using ATM TX  queues, IP TOS/Precedence,  802.1p marking. Added DiffServ  DSCP marking and src/dest MAC  addresses classification.  CPU resource  reservation for local  VoIP traffic   manage utilization of the CPU  resources to allow better quality  of the VoIP calls under heavy  data traffic conditions VPN    IPsec VPN(optional) Support VPN connection to  remote VPN gateway. Firewall/Filtering    Stateful Inspection SPI Fire Wall Denial of Service attack Passed DOS attacks: ARP  Attack, Ping Attack, Ping of  Death, Land, SYNC, Smurf,  Unreachable,Tear Drop TCP/IP/Port/interface filtering rules Support both incoming and  outgoing filtering.  MAC Layer Filtering Added IGMP in protocol menu.  Filter MAC frames based on  protocol type, source/destination  MAC address, direction Day-time Parental  Control  NAPT   Configuration

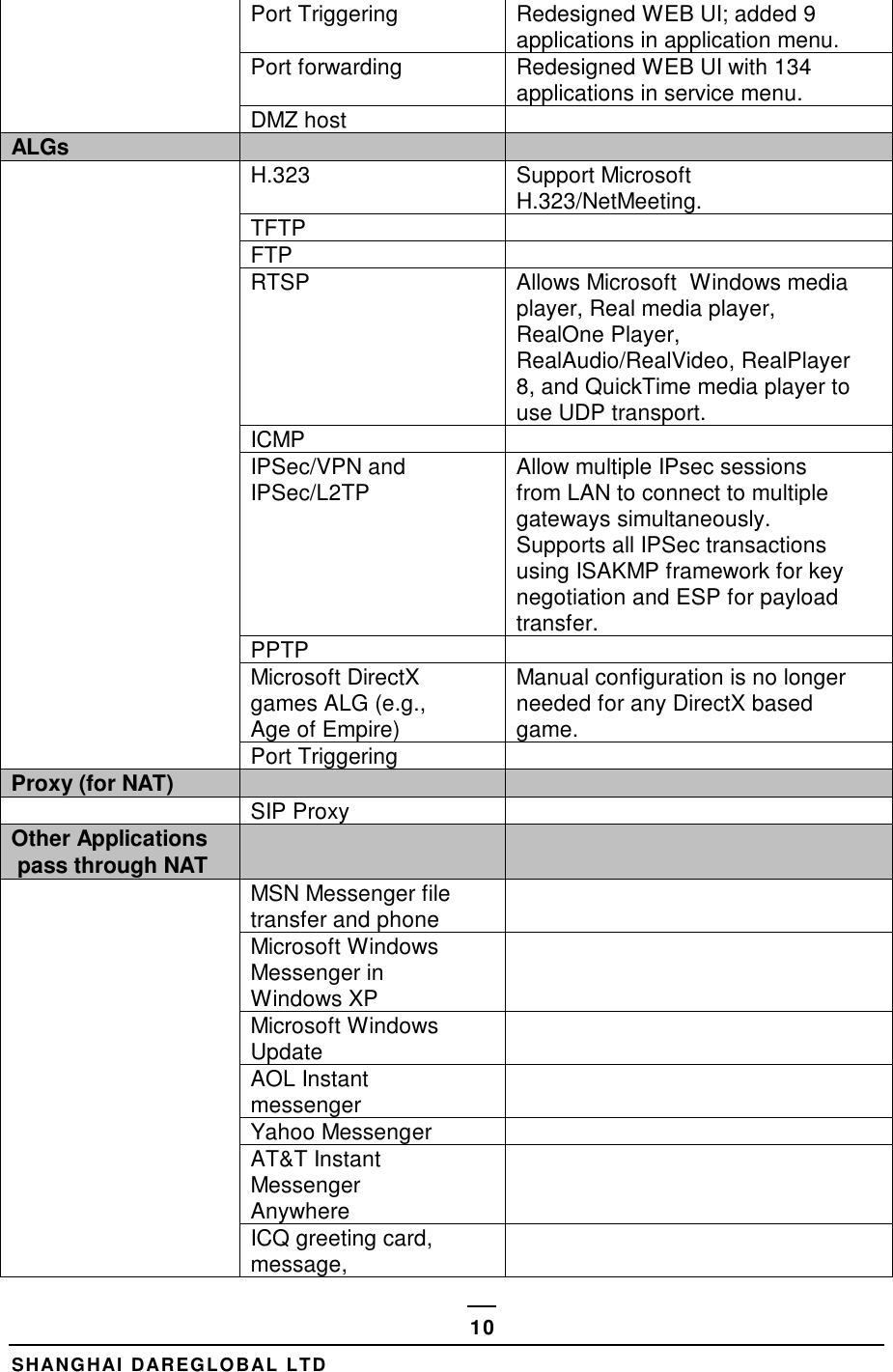

 SHANGHAI DAREGLOBAL LTD 10  Port Triggering Redesigned WEB UI; added 9  applications in application menu.  Port forwarding Redesigned WEB UI with 134  applications in service menu.  DMZ host  ALGs    H.323 Support Microsoft  H.323/NetMeeting.  TFTP  FTP  RTSP Allows Microsoft  Windows media  player, Real media player,  RealOne Player,  RealAudio/RealVideo, RealPlayer  8, and QuickTime media player to  use UDP transport.   ICMP  IPSec/VPN and IPSec/L2TP Allow multiple IPsec sessions  from LAN to connect to multiple  gateways simultaneously.  Supports all IPSec transactions  using ISAKMP framework for key  negotiation and ESP for payload  transfer.  PPTP  Microsoft DirectX  games ALG (e.g.,  Age of Empire) Manual configuration is no longer  needed for any DirectX based  game.  Port Triggering  Proxy (for NAT)    SIP Proxy  Other Applications   pass through NAT    MSN Messenger file  transfer and phone  Microsoft Windows  Messenger in  Windows XP  Microsoft Windows  Update  AOL Instant  messenger  Yahoo Messenger  AT&T Instant  Messenger  Anywhere  ICQ greeting card,  message,

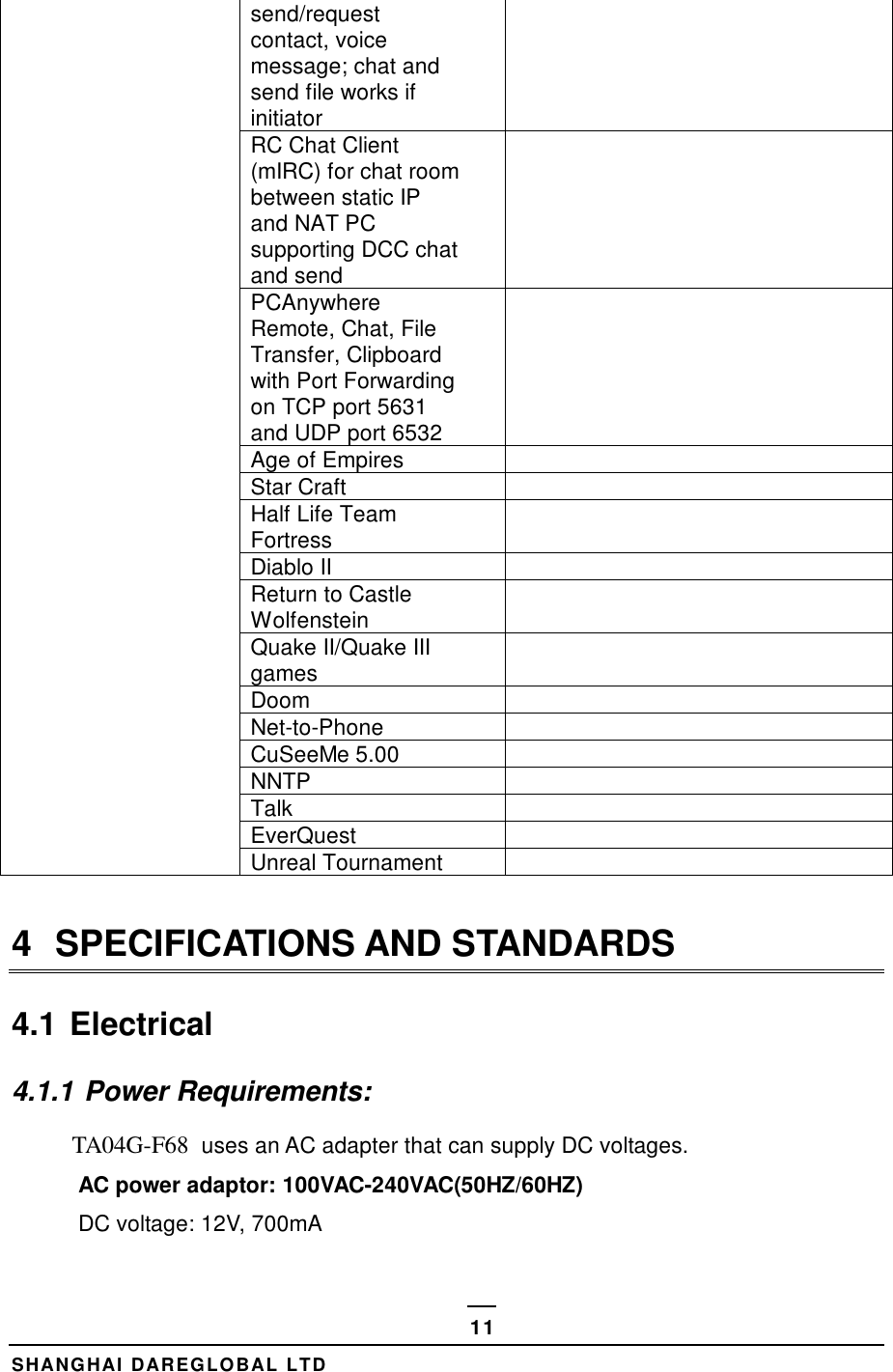

 SHANGHAI DAREGLOBAL LTD 11 send/request  contact, voice  message; chat and  send file works if  initiator RC Chat Client  (mIRC) for chat room between static IP  and NAT PC  supporting DCC chat  and send  PCAnywhere  Remote, Chat, File  Transfer, Clipboard  with Port Forwarding  on TCP port 5631  and UDP port 6532  Age of Empires  Star Craft  Half Life Team  Fortress  Diablo II  Return to Castle  Wolfenstein  Quake II/Quake III  games  Doom  Net-to-Phone  CuSeeMe 5.00  NNTP  Talk  EverQuest  Unreal Tournament   4  SPECIFICATIONS AND STANDARDS  4.1 Electrical 4.1.1 Power Requirements:  TA04G-F68  uses an AC adapter that can supply DC voltages.   AC power adaptor: 100VAC-240VAC(50HZ/60HZ) DC voltage: 12V, 700mA

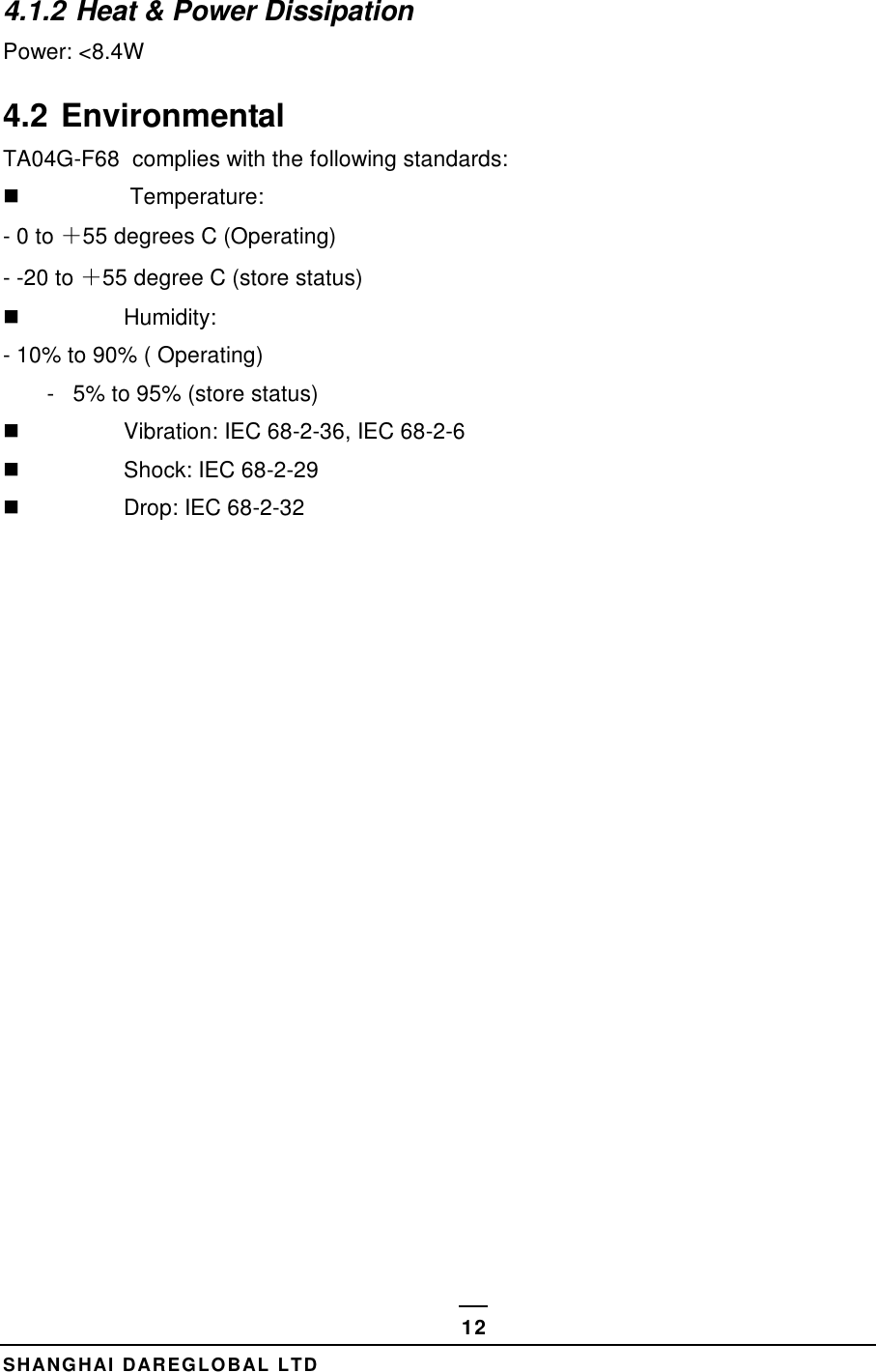

 SHANGHAI DAREGLOBAL LTD 12 4.1.2 Heat & Power Dissipation Power: <8.4W 4.2 Environmental  TA04G-F68  complies with the following standards:    Temperature:  - 0 to +55 degrees C (Operating) - -20 to +55 degree C (store status)   Humidity:  - 10% to 90% ( Operating)        -   5% to 95% (store status)   Vibration: IEC 68-2-36, IEC 68-2-6   Shock: IEC 68-2-29   Drop: IEC 68-2-32

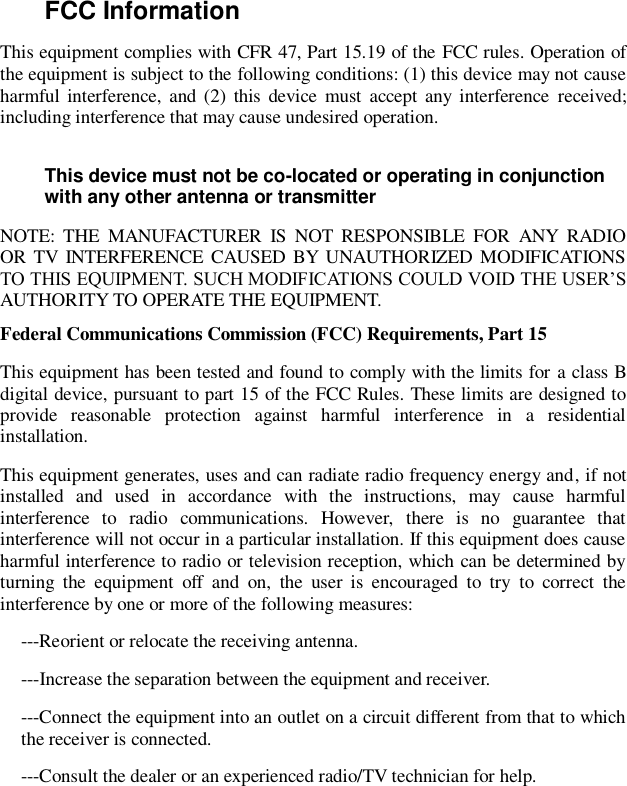

FCC Information   This equipment complies with CFR 47, Part 15.19 of the FCC rules. Operation of the equipment is subject to the following conditions: (1) this device may not cause harmful  interference,  and (2)  this  device  must  accept  any  interference  received; including interference that may cause undesired operation. This device must not be co-located or operating in conjunction with any other antenna or transmitter NOTE:  THE  MANUFACTURER  IS  NOT  RESPONSIBLE  FOR  ANY  RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Federal Communications Commission (FCC) Requirements, Part 15   This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide  reasonable  protection  against  harmful  interference  in  a  residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed  and  used  in  accordance  with  the  instructions,  may  cause  harmful interference  to  radio  communications.  However,  there  is  no  guarantee  that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning  the  equipment  off  and  on,  the  user  is  encouraged  to  try  to  correct  the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help.

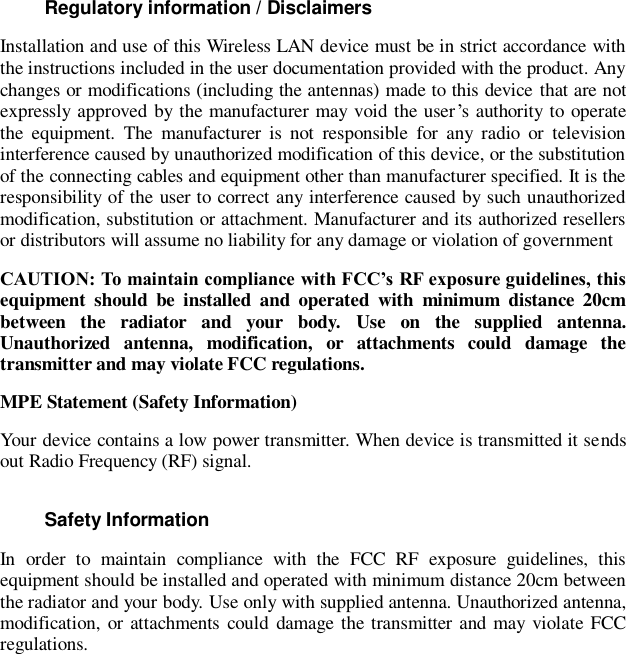

Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the  equipment.  The  manufacturer  is  not  responsible  for  any  radio  or  television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment  should  be  installed  and  operated  with  minimum  distance  20cm between  the  radiator  and  your  body.  Use  on  the  supplied  antenna. Unauthorized  antenna,  modification,  or  attachments  could  damage  the transmitter and may violate FCC regulations. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information In  order  to  maintain  compliance  with  the  FCC  RF  exposure  guidelines,  this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could  damage the transmitter  and  may  violate FCC regulations.

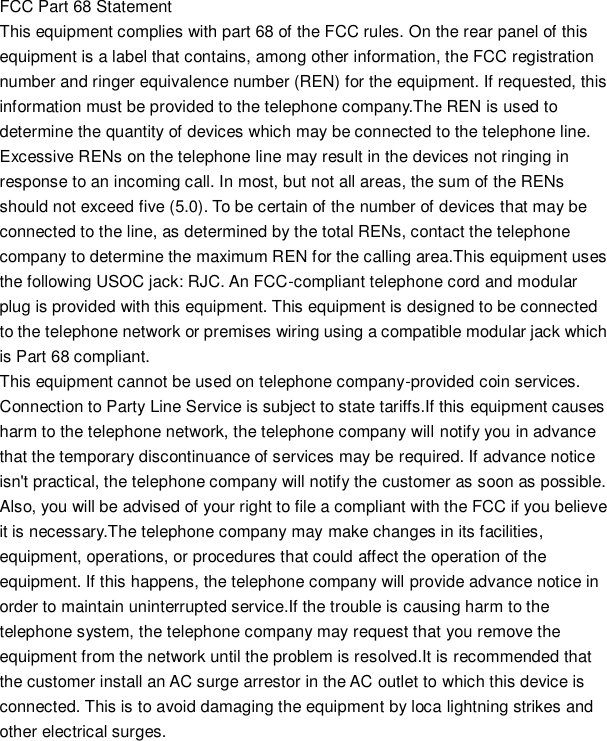

FCC Part 68 Statement This equipment complies with part 68 of the FCC rules. On the rear panel of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for the equipment. If requested, this information must be provided to the telephone company.The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area.This equipment uses the following USOC jack: RJC. An FCC-compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or premises wiring using a compatible modular jack which is Part 68 compliant.   This equipment cannot be used on telephone company-provided coin services. Connection to Party Line Service is subject to state tariffs.If this equipment causes harm to the telephone network, the telephone company will notify you in advance that the temporary discontinuance of services may be required. If advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a compliant with the FCC if you believe it is necessary.The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order to maintain uninterrupted service.If the trouble is causing harm to the telephone system, the telephone company may request that you remove the equipment from the network until the problem is resolved.It is recommended that the customer install an AC surge arrestor in the AC outlet to which this device is connected. This is to avoid damaging the equipment by loca lightning strikes and other electrical surges.
