DareGlobal Technologies 6718A1NA XDSL 4Port 802.11N Gateway User Manual ZXDSL 831AII

Shanghai DareGlobal Technologies Co., Ltd. XDSL 4Port 802.11N Gateway ZXDSL 831AII

User Manual

VDSL2 Modem 6718-A1-XX User Manual

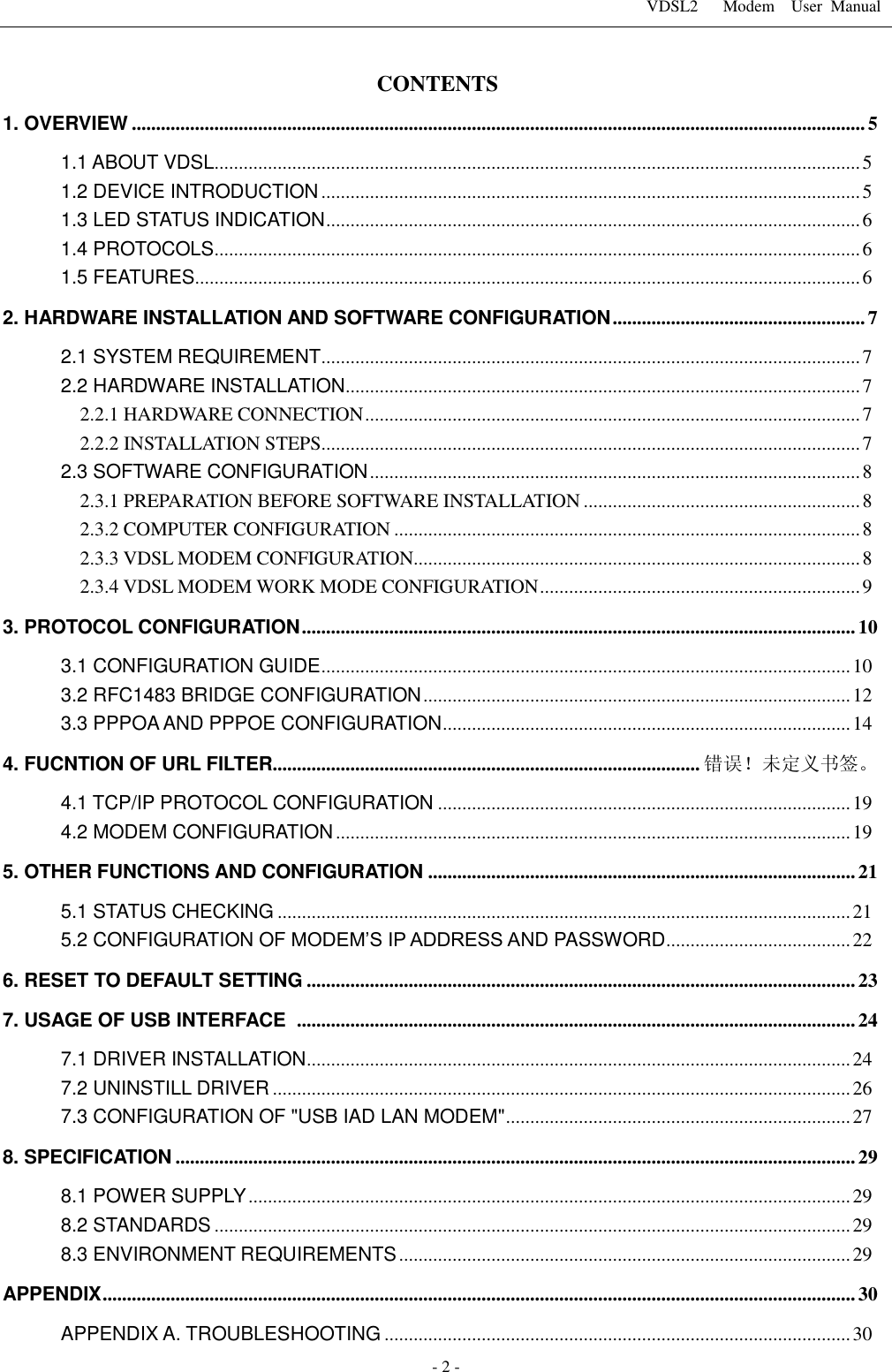

VDSL2 Modem User Manual - 2 - CONTENTS 1. OVERVIEW ....................................................................................................................................................... 5 1.1 ABOUT VDSL ..................................................................................................................................... 5 1.2 DEVICE INTRODUCTION ............................................................................................................... 5 1.3 LED STATUS INDICATION .............................................................................................................. 6 1.4 PROTOCOLS ..................................................................................................................................... 6 1.5 FEATURES ......................................................................................................................................... 6 2. HARDWARE INSTALLATION AND SOFTWARE CONFIGURATION .................................................... 7 2.1 SYSTEM REQUIREMENT ............................................................................................................... 7 2.2 HARDWARE INSTALLATION .......................................................................................................... 7 2.2.1 HARDWARE CONNECTION ...................................................................................................... 7 2.2.2 INSTALLATION STEPS ............................................................................................................... 7 2.3 SOFTWARE CONFIGURATION ..................................................................................................... 8 2.3.1 PREPARATION BEFORE SOFTWARE INSTALLATION ......................................................... 8 2.3.2 COMPUTER CONFIGURATION ................................................................................................ 8 2.3.3 VDSL MODEM CONFIGURATION............................................................................................ 8 2.3.4 VDSL MODEM WORK MODE CONFIGURATION .................................................................. 9 3. PROTOCOL CONFIGURATION .................................................................................................................. 10 3.1 CONFIGURATION GUIDE ............................................................................................................. 10 3.2 RFC1483 BRIDGE CONFIGURATION ........................................................................................ 12 3.3 PPPOA AND PPPOE CONFIGURATION .................................................................................... 14 4. FUCNTION OF URL FILTER........................................................................................ 错误！未定义书签。 4.1 TCP/IP PROTOCOL CONFIGURATION ..................................................................................... 19 4.2 MODEM CONFIGURATION .......................................................................................................... 19 5. OTHER FUNCTIONS AND CONFIGURATION ........................................................................................ 21 5.1 STATUS CHECKING ...................................................................................................................... 21 5.2 CONFIGURATION OF MODEM’S IP ADDRESS AND PASSWORD ...................................... 22 6. RESET TO DEFAULT SETTING ................................................................................................................. 23 7. USAGE OF USB INTERFACE ................................................................................................................... 24 7.1 DRIVER INSTALLATION ................................................................................................................ 24 7.2 UNINSTILL DRIVER ....................................................................................................................... 26 7.3 CONFIGURATION OF "USB IAD LAN MODEM" ....................................................................... 27 8. SPECIFICATION ............................................................................................................................................ 29 8.1 POWER SUPPLY ............................................................................................................................ 29 8.2 STANDARDS ................................................................................................................................... 29 8.3 ENVIRONMENT REQUIREMENTS ............................................................................................. 29 APPENDIX ........................................................................................................................................................... 30 APPENDIX A. TROUBLESHOOTING ................................................................................................ 30

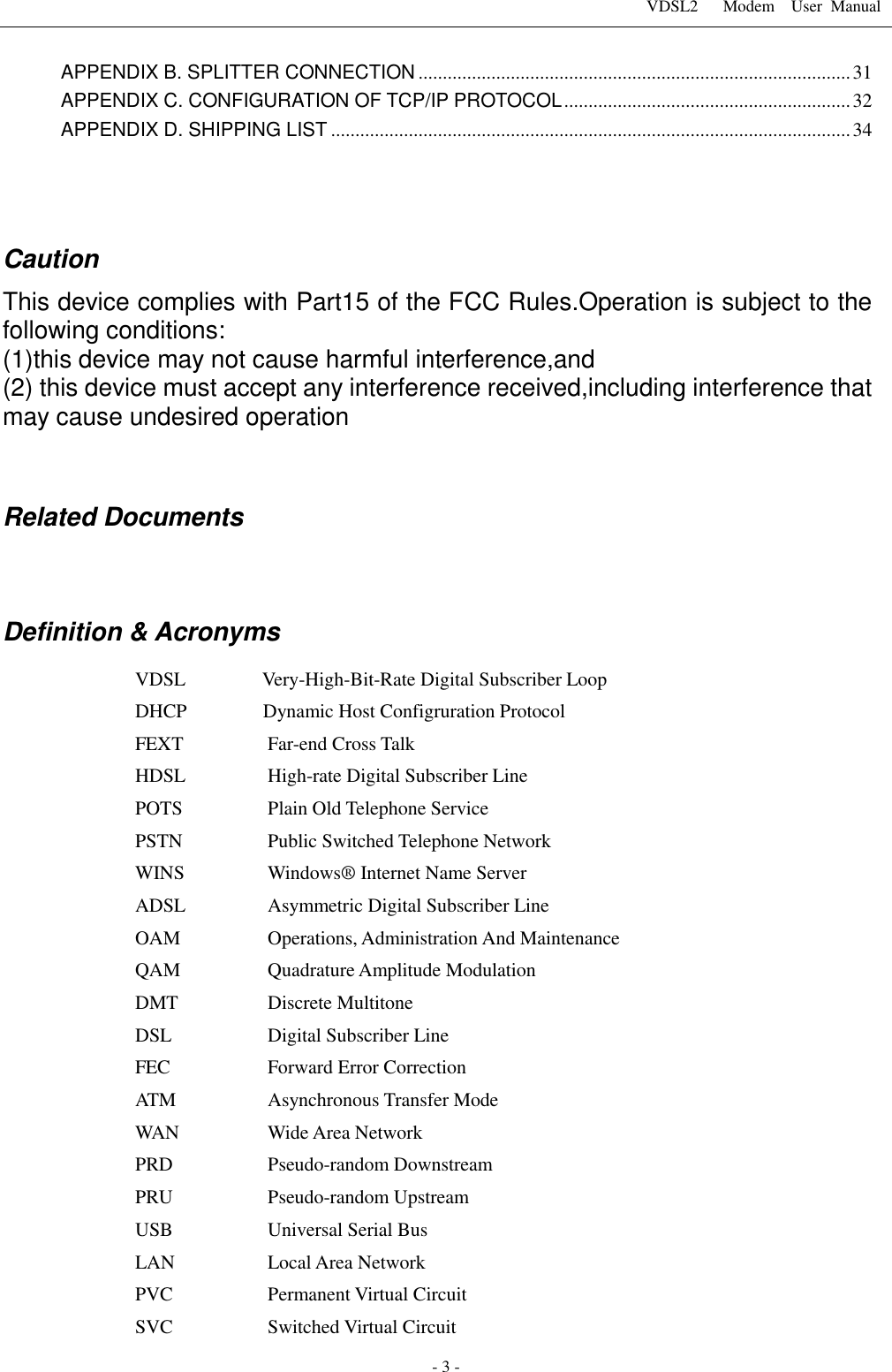

VDSL2 Modem User Manual - 3 - APPENDIX B. SPLITTER CONNECTION ......................................................................................... 31 APPENDIX C. CONFIGURATION OF TCP/IP PROTOCOL ........................................................... 32 APPENDIX D. SHIPPING LIST ........................................................................................................... 34 Caution This device complies with Part15 of the FCC Rules.Operation is subject to the following conditions: (1)this device may not cause harmful interference,and (2) this device must accept any interference received,including interference that may cause undesired operation Related Documents Definition & Acronyms VDSL Very-High-Bit-Rate Digital Subscriber Loop DHCP Dynamic Host Configruration Protocol FEXT Far-end Cross Talk HDSL High-rate Digital Subscriber Line POTS Plain Old Telephone Service PSTN Public Switched Telephone Network WINS Windows® Internet Name Server ADSL Asymmetric Digital Subscriber Line OAM Operations, Administration And Maintenance QAM Quadrature Amplitude Modulation DMT Discrete Multitone DSL Digital Subscriber Line FEC Forward Error Correction ATM Asynchronous Transfer Mode WAN Wide Area Network PRD Pseudo-random Downstream PRU Pseudo-random Upstream USB Universal Serial Bus LAN Local Area Network PVC Permanent Virtual Circuit SVC Switched Virtual Circuit

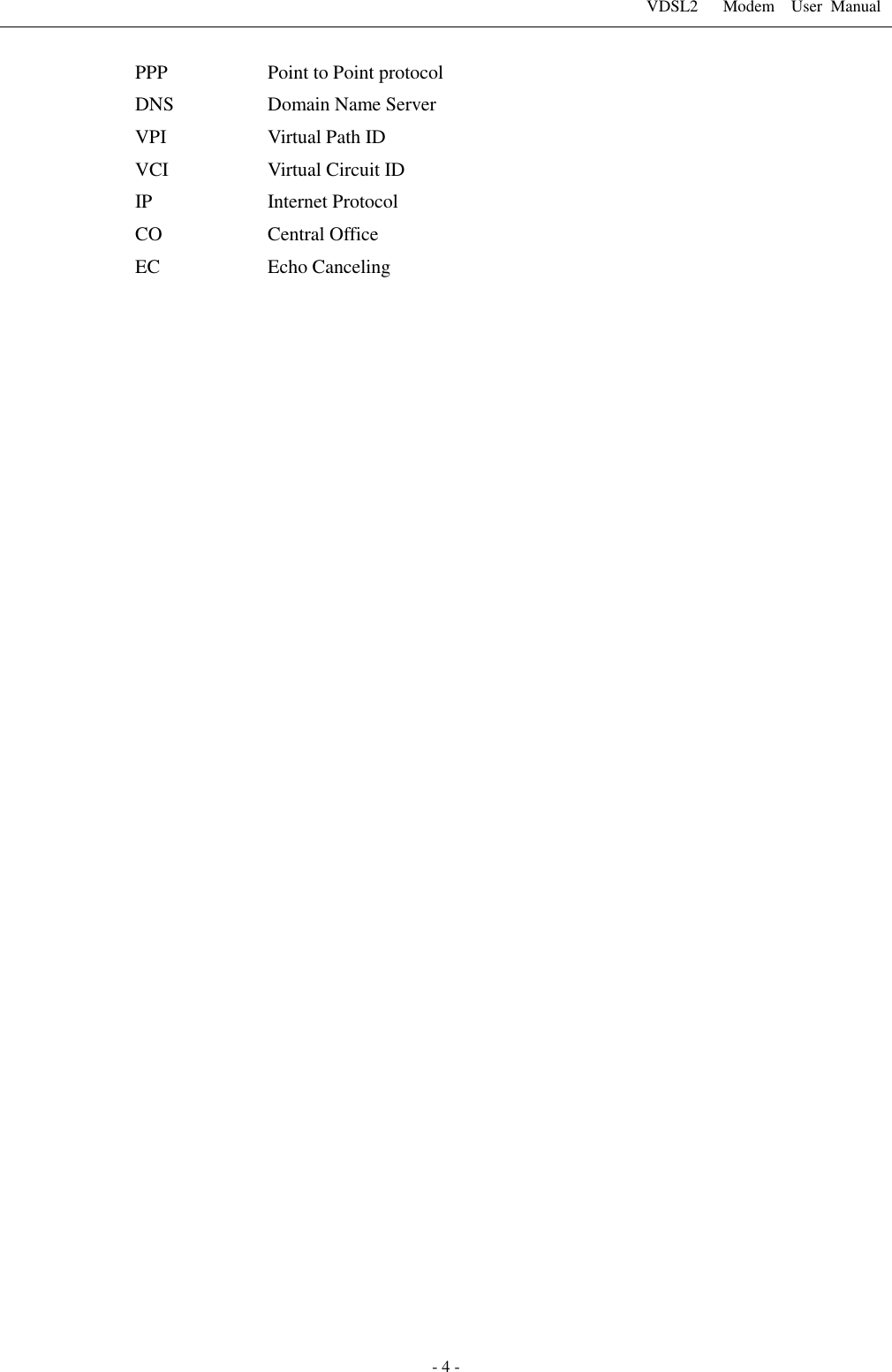

VDSL2 Modem User Manual - 4 - PPP Point to Point protocol DNS Domain Name Server VPI Virtual Path ID VCI Virtual Circuit ID IP Internet Protocol CO Central Office EC Echo Canceling

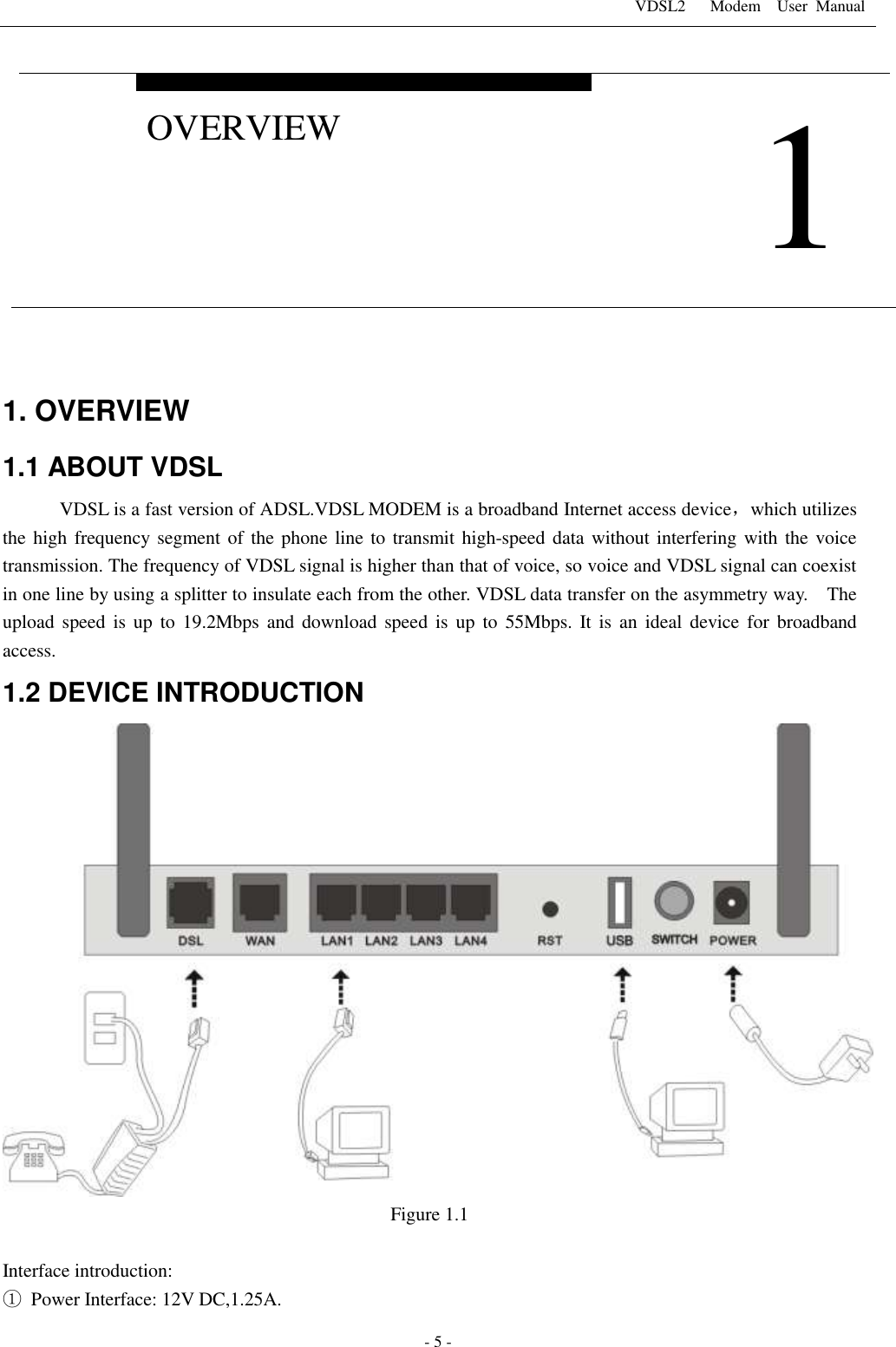

VDSL2 Modem User Manual - 5 - 1. OVERVIEW 1.1 ABOUT VDSL VDSL is a fast version of ADSL.VDSL MODEM is a broadband Internet access device，which utilizes the high frequency segment of the phone line to transmit high-speed data without interfering with the voice transmission. The frequency of VDSL signal is higher than that of voice, so voice and VDSL signal can coexist in one line by using a splitter to insulate each from the other. VDSL data transfer on the asymmetry way. The upload speed is up to 19.2Mbps and download speed is up to 55Mbps. It is an ideal device for broadband access. 1.2 DEVICE INTRODUCTION Figure 1.1 Interface introduction: ① Power Interface: 12V DC,1.25A. 1 OVERVIEW

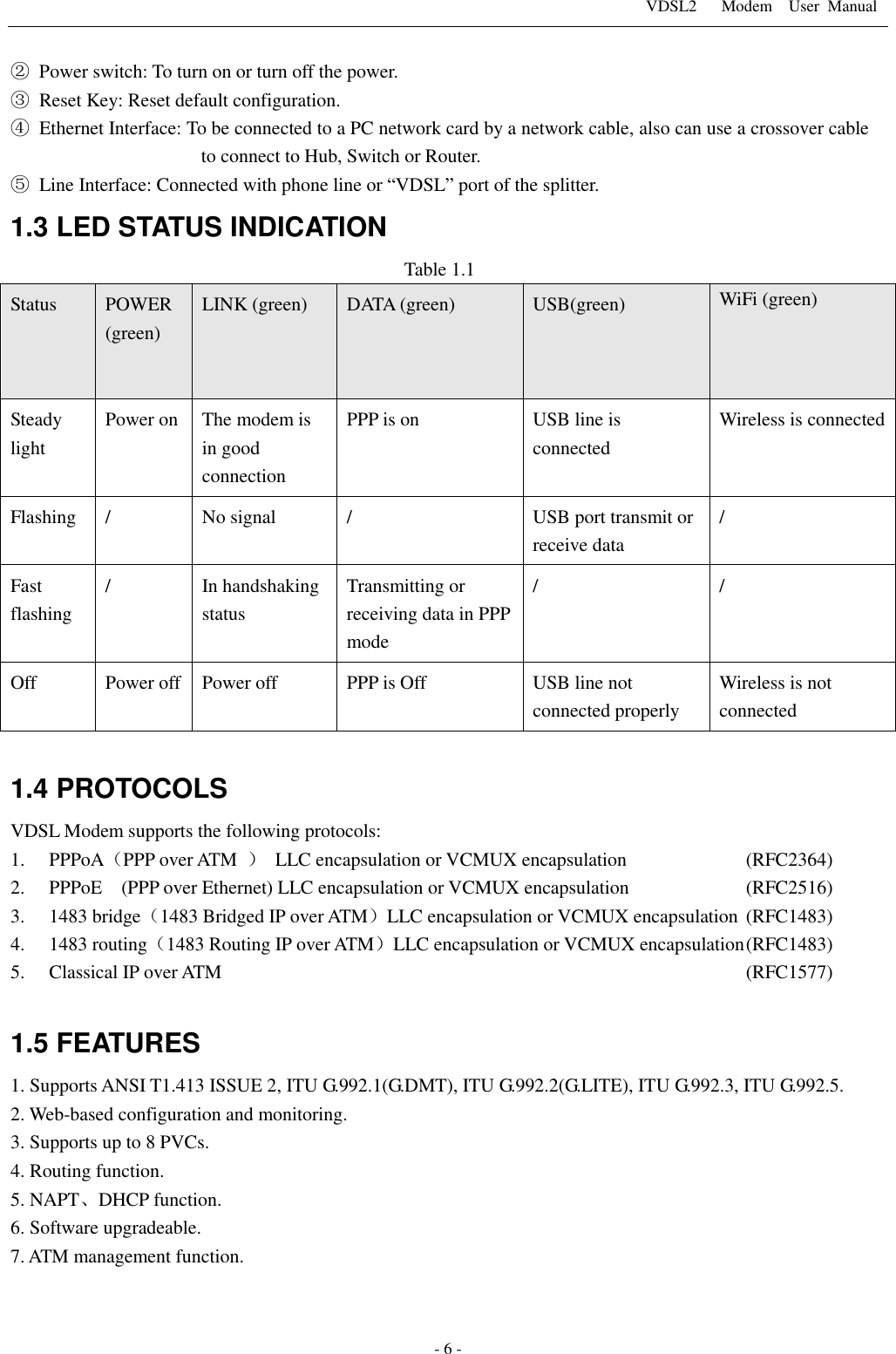

VDSL2 Modem User Manual - 6 - ② Power switch: To turn on or turn off the power. ③ Reset Key: Reset default configuration. ④ Ethernet Interface: To be connected to a PC network card by a network cable, also can use a crossover cable to connect to Hub, Switch or Router. ⑤ Line Interface: Connected with phone line or “VDSL” port of the splitter. 1.3 LED STATUS INDICATION Table 1.1 Status POWER (green) LINK (green) DATA (green) USB(green) WiFi (green) Steady light Power on The modem is in good connection PPP is on USB line is connected Wireless is connected Flashing / No signal / USB port transmit or receive data / Fast flashing / In handshaking status Transmitting or receiving data in PPP mode / / Off Power off Power off PPP is Off USB line not connected properly Wireless is not connected 1.4 PROTOCOLS VDSL Modem supports the following protocols: 1. PPPoA（PPP over ATM ） LLC encapsulation or VCMUX encapsulation (RFC2364) 2. PPPoE (PPP over Ethernet) LLC encapsulation or VCMUX encapsulation (RFC2516) 3. 1483 bridge（1483 Bridged IP over ATM）LLC encapsulation or VCMUX encapsulation (RFC1483) 4. 1483 routing（1483 Routing IP over ATM）LLC encapsulation or VCMUX encapsulation (RFC1483) 5. Classical IP over ATM (RFC1577) 1.5 FEATURES 1. Supports ANSI T1.413 ISSUE 2, ITU G.992.1(G.DMT), ITU G.992.2(G.LITE), ITU G.992.3, ITU G.992.5. 2. Web-based configuration and monitoring. 3. Supports up to 8 PVCs. 4. Routing function. 5. NAPT、DHCP function. 6. Software upgradeable. 7. ATM management function.

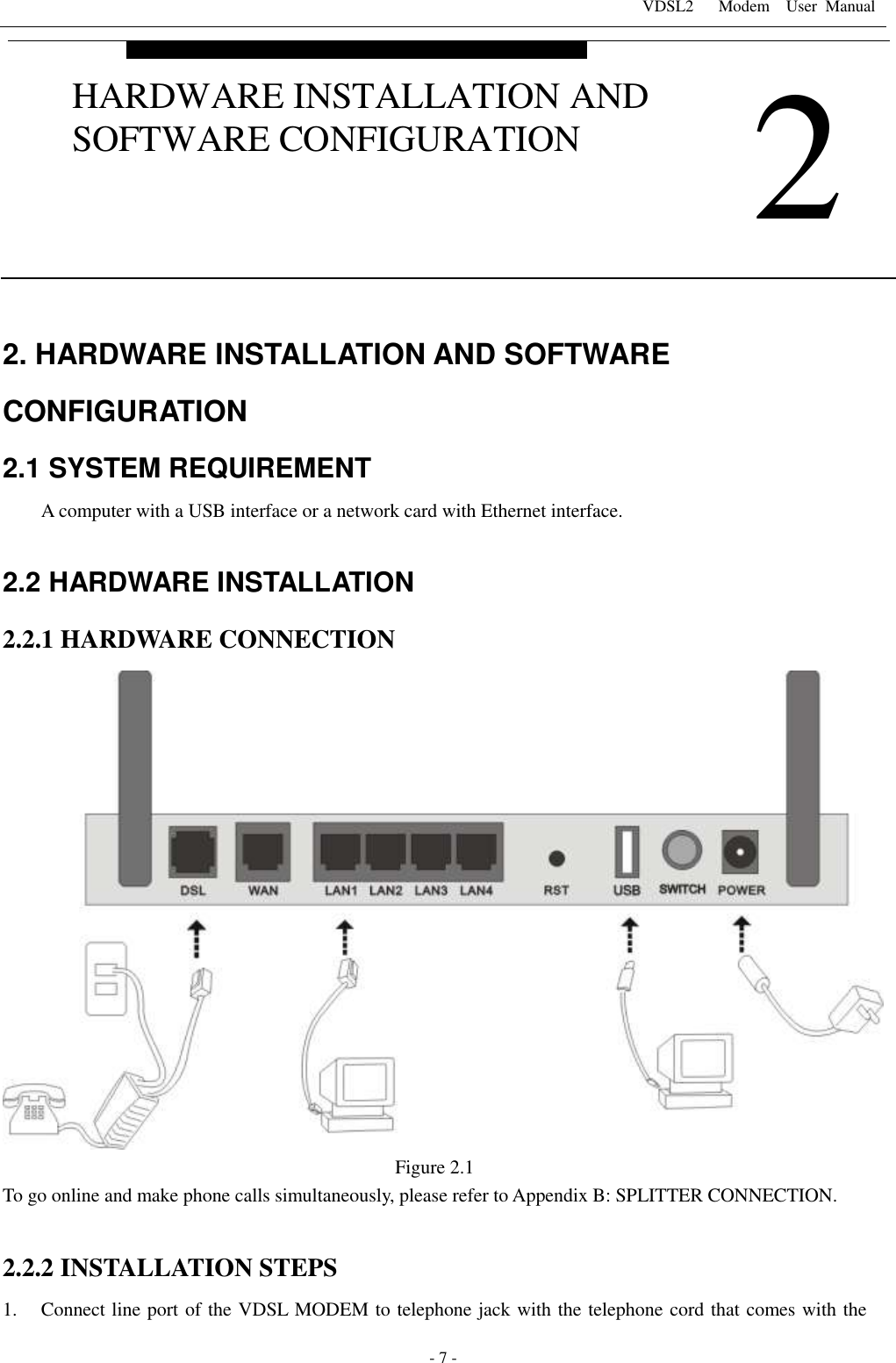

VDSL2 Modem User Manual - 7 - 2. HARDWARE INSTALLATION AND SOFTWARE CONFIGURATION 2.1 SYSTEM REQUIREMENT A computer with a USB interface or a network card with Ethernet interface. 2.2 HARDWARE INSTALLATION 2.2.1 HARDWARE CONNECTION Figure 2.1 To go online and make phone calls simultaneously, please refer to Appendix B: SPLITTER CONNECTION. 2.2.2 INSTALLATION STEPS 1. Connect line port of the VDSL MODEM to telephone jack with the telephone cord that comes with the 2 HARDWARE INSTALLATION AND SOFTWARE CONFIGURATION

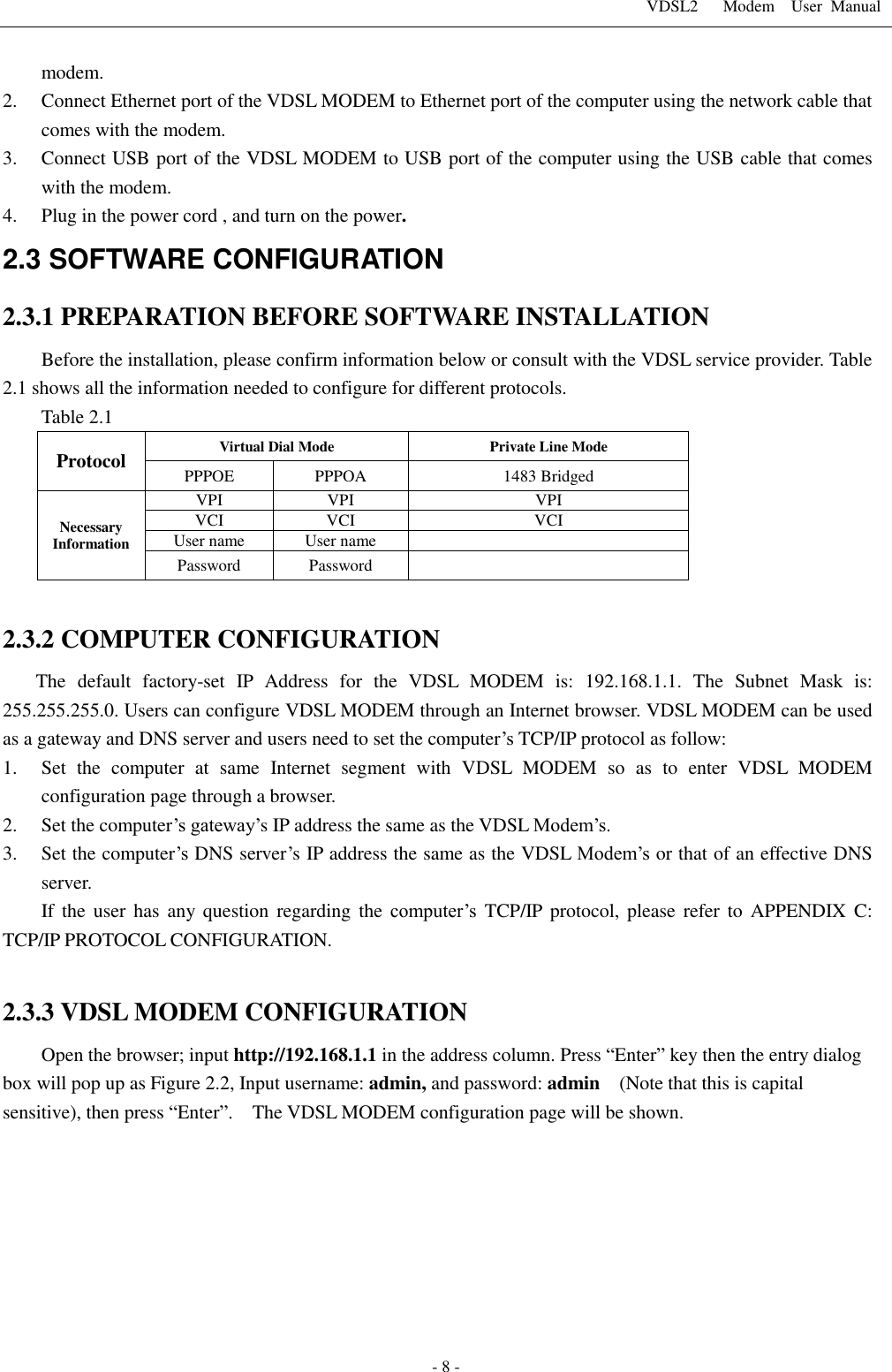

VDSL2 Modem User Manual - 8 - modem. 2. Connect Ethernet port of the VDSL MODEM to Ethernet port of the computer using the network cable that comes with the modem. 3. Connect USB port of the VDSL MODEM to USB port of the computer using the USB cable that comes with the modem. 4. Plug in the power cord , and turn on the power. 2.3 SOFTWARE CONFIGURATION 2.3.1 PREPARATION BEFORE SOFTWARE INSTALLATION Before the installation, please confirm information below or consult with the VDSL service provider. Table 2.1 shows all the information needed to configure for different protocols. Table 2.1 Protocol Virtual Dial Mode Private Line Mode PPPOE PPPOA 1483 Bridged Necessary Information VPI VPI VPI VCI VCI VCI User name User name Password Password 2.3.2 COMPUTER CONFIGURATION The default factory-set IP Address for the VDSL MODEM is: 192.168.1.1. The Subnet Mask is: 255.255.255.0. Users can configure VDSL MODEM through an Internet browser. VDSL MODEM can be used as a gateway and DNS server and users need to set the computer’s TCP/IP protocol as follow: 1. Set the computer at same Internet segment with VDSL MODEM so as to enter VDSL MODEM configuration page through a browser. 2. Set the computer’s gateway’s IP address the same as the VDSL Modem’s. 3. Set the computer’s DNS server’s IP address the same as the VDSL Modem’s or that of an effective DNS server. If the user has any question regarding the computer’s TCP/IP protocol, please refer to APPENDIX C: TCP/IP PROTOCOL CONFIGURATION. 2.3.3 VDSL MODEM CONFIGURATION Open the browser; input http://192.168.1.1 in the address column. Press “Enter” key then the entry dialog box will pop up as Figure 2.2, Input username: admin, and password: admin (Note that this is capital sensitive), then press “Enter”. The VDSL MODEM configuration page will be shown.

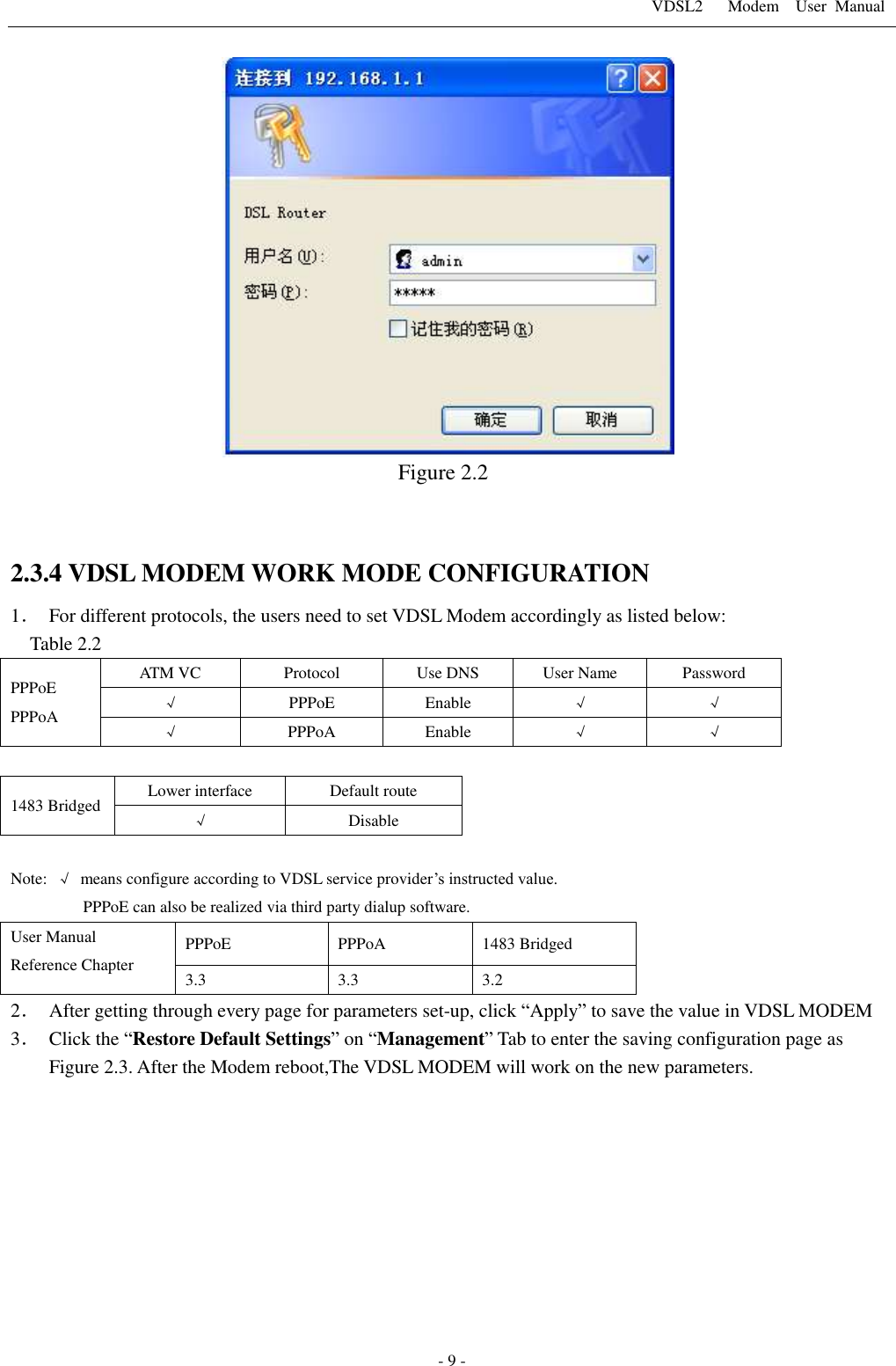

VDSL2 Modem User Manual - 9 - Figure 2.2 2.3.4 VDSL MODEM WORK MODE CONFIGURATION 1． For different protocols, the users need to set VDSL Modem accordingly as listed below: Table 2.2 PPPoE PPPoA ATM VC Protocol Use DNS User Name Password √ PPPoE Enable √ √ √ PPPoA Enable √ √ 1483 Bridged Lower interface Default route √ Disable Note: √ means configure according to VDSL service provider’s instructed value. PPPoE can also be realized via third party dialup software. User Manual Reference Chapter PPPoE PPPoA 1483 Bridged 3.3 3.3 3.2 2． After getting through every page for parameters set-up, click “Apply” to save the value in VDSL MODEM 3． Click the “Restore Default Settings” on “Management” Tab to enter the saving configuration page as Figure 2.3. After the Modem reboot,The VDSL MODEM will work on the new parameters.

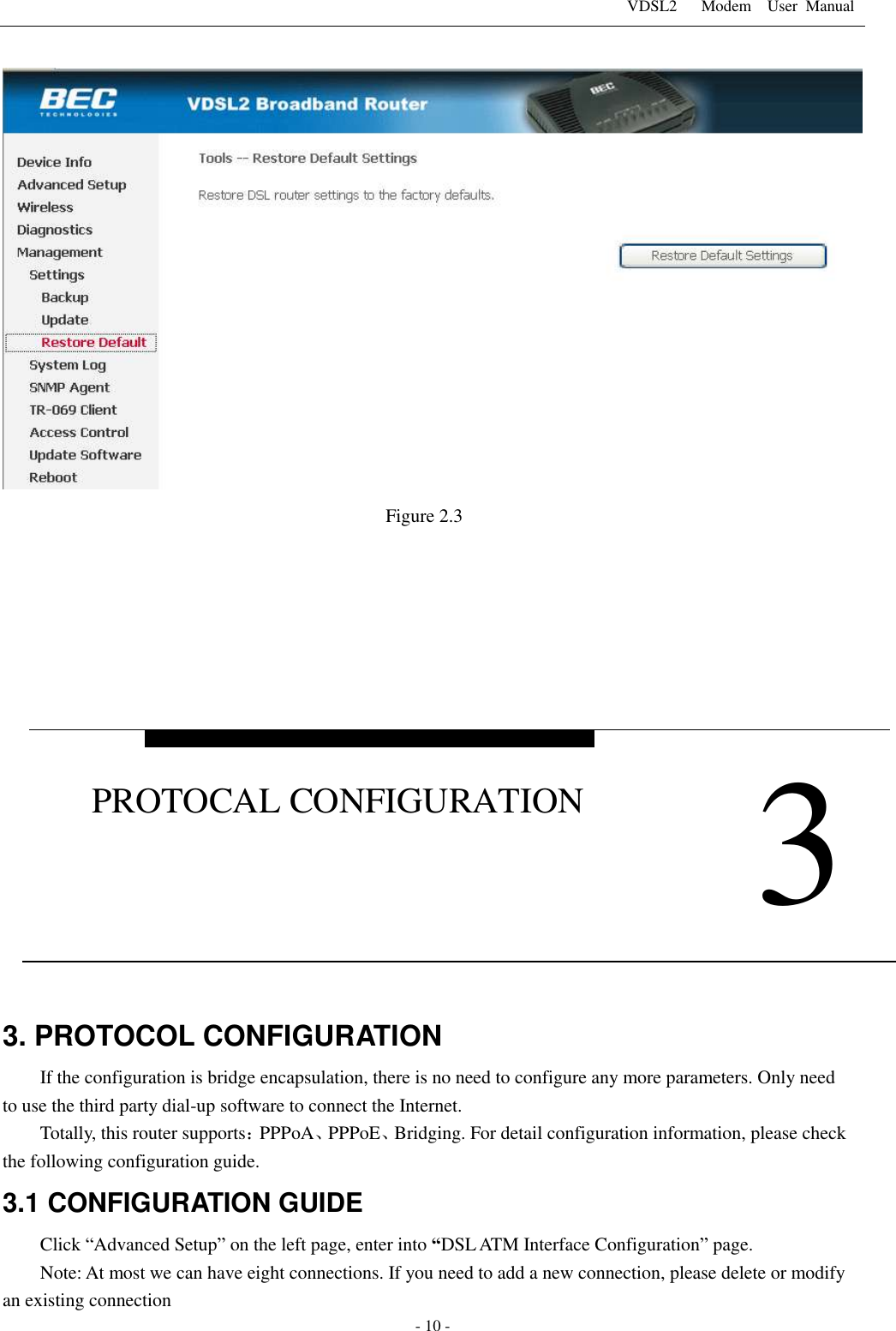

VDSL2 Modem User Manual - 10 - Figure 2.3 3. PROTOCOL CONFIGURATION If the configuration is bridge encapsulation, there is no need to configure any more parameters. Only need to use the third party dial-up software to connect the Internet. Totally, this router supports：PPPoA、PPPoE、Bridging. For detail configuration information, please check the following configuration guide. 3.1 CONFIGURATION GUIDE Click “Advanced Setup” on the left page, enter into “DSL ATM Interface Configuration” page. Note: At most we can have eight connections. If you need to add a new connection, please delete or modify an existing connection 3 PROTOCAL CONFIGURATION

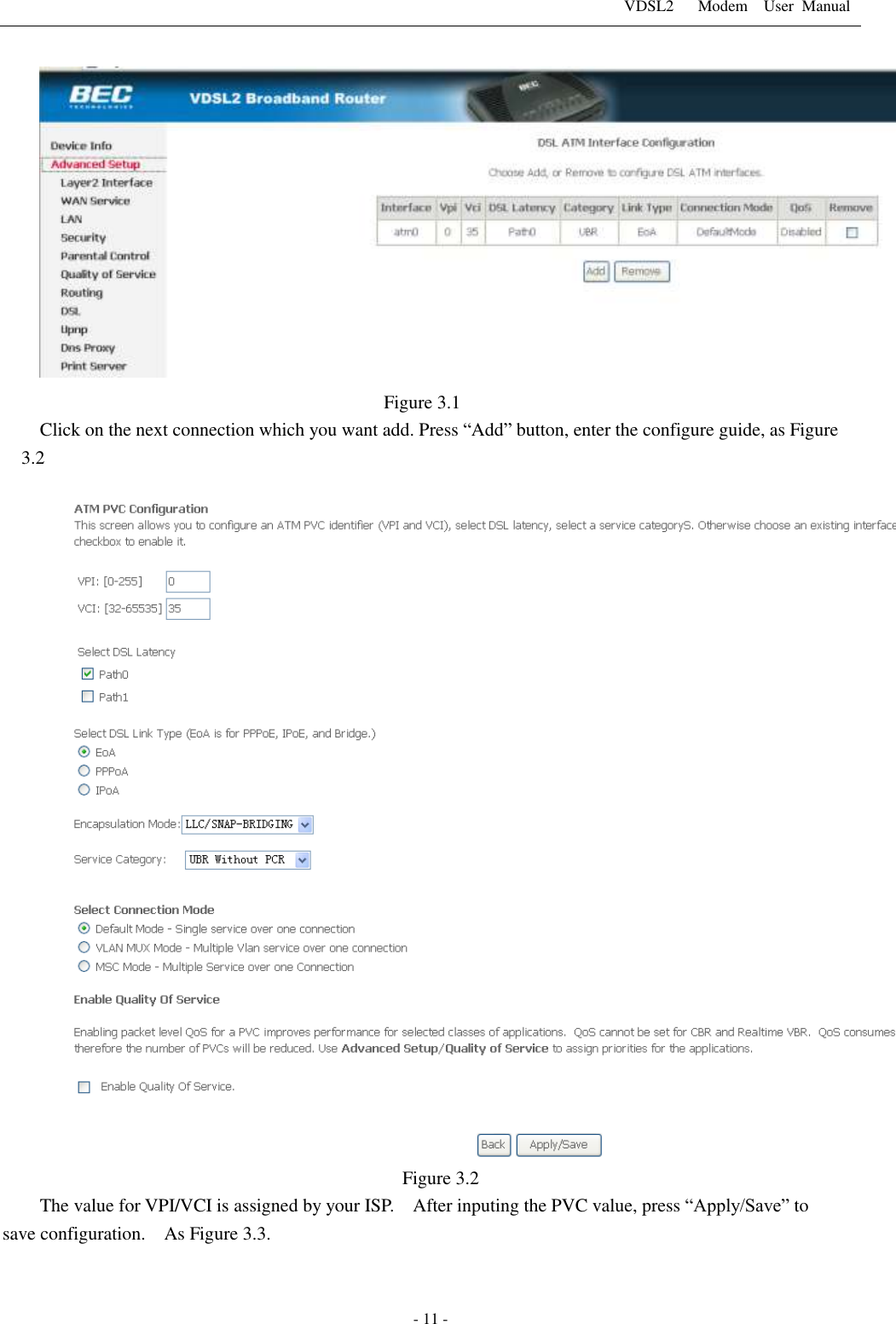

VDSL2 Modem User Manual - 11 - Figure 3.1 Click on the next connection which you want add. Press “Add” button, enter the configure guide, as Figure 3.2 Figure 3.2 The value for VPI/VCI is assigned by your ISP. After inputing the PVC value, press “Apply/Save” to save configuration. As Figure 3.3.

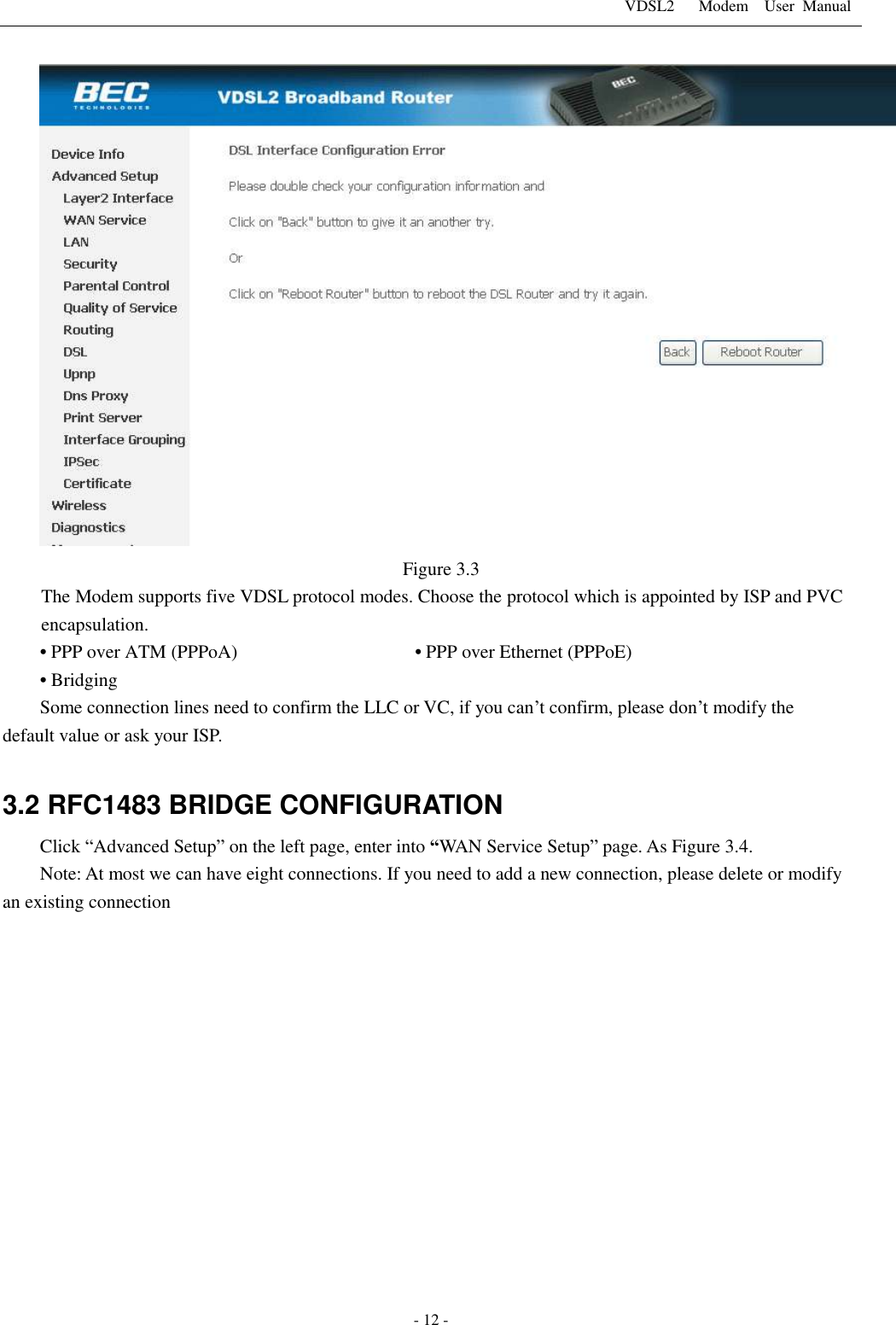

VDSL2 Modem User Manual - 12 - Figure 3.3 The Modem supports five VDSL protocol modes. Choose the protocol which is appointed by ISP and PVC encapsulation. • PPP over ATM (PPPoA) • PPP over Ethernet (PPPoE) • Bridging Some connection lines need to confirm the LLC or VC, if you can’t confirm, please don’t modify the default value or ask your ISP. 3.2 RFC1483 BRIDGE CONFIGURATION Click “Advanced Setup” on the left page, enter into “WAN Service Setup” page. As Figure 3.4. Note: At most we can have eight connections. If you need to add a new connection, please delete or modify an existing connection

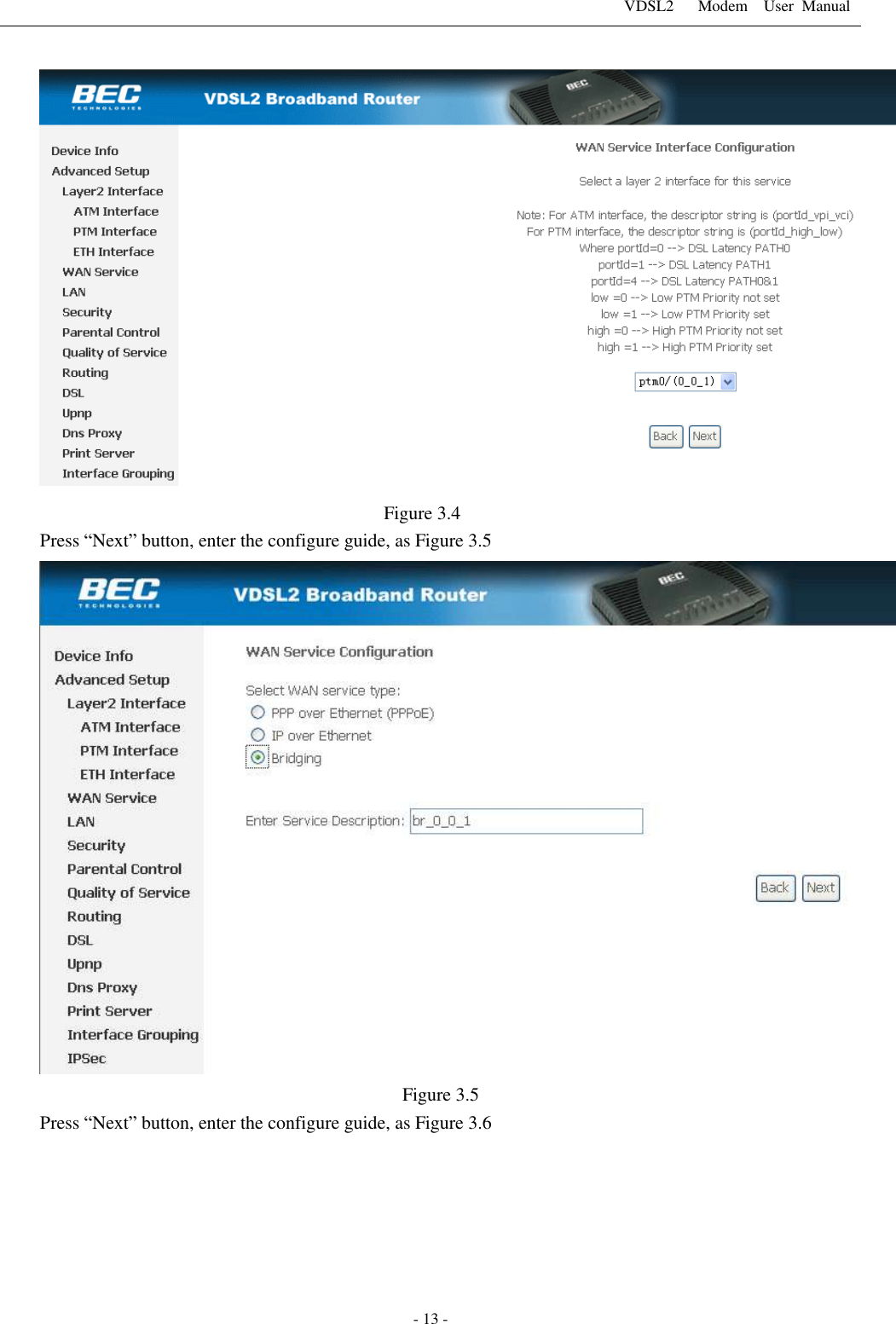

VDSL2 Modem User Manual - 13 - Figure 3.4 Press “Next” button, enter the configure guide, as Figure 3.5 Figure 3.5 Press “Next” button, enter the configure guide, as Figure 3.6

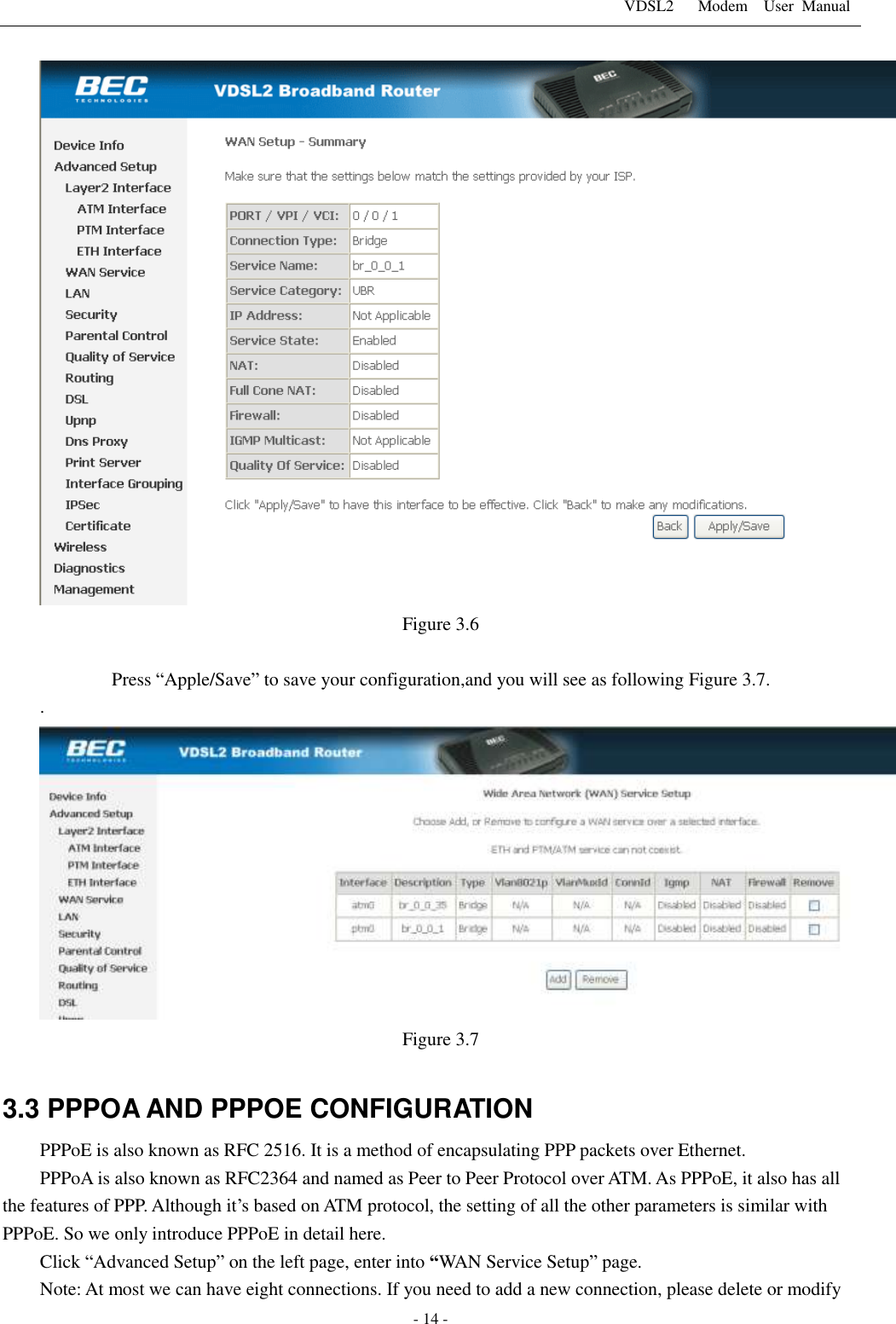

VDSL2 Modem User Manual - 14 - Figure 3.6 Press “Apple/Save” to save your configuration,and you will see as following Figure 3.7. . Figure 3.7 3.3 PPPOA AND PPPOE CONFIGURATION PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over Ethernet. PPPoA is also known as RFC2364 and named as Peer to Peer Protocol over ATM. As PPPoE, it also has all the features of PPP. Although it’s based on ATM protocol, the setting of all the other parameters is similar with PPPoE. So we only introduce PPPoE in detail here. Click “Advanced Setup” on the left page, enter into “WAN Service Setup” page. Note: At most we can have eight connections. If you need to add a new connection, please delete or modify

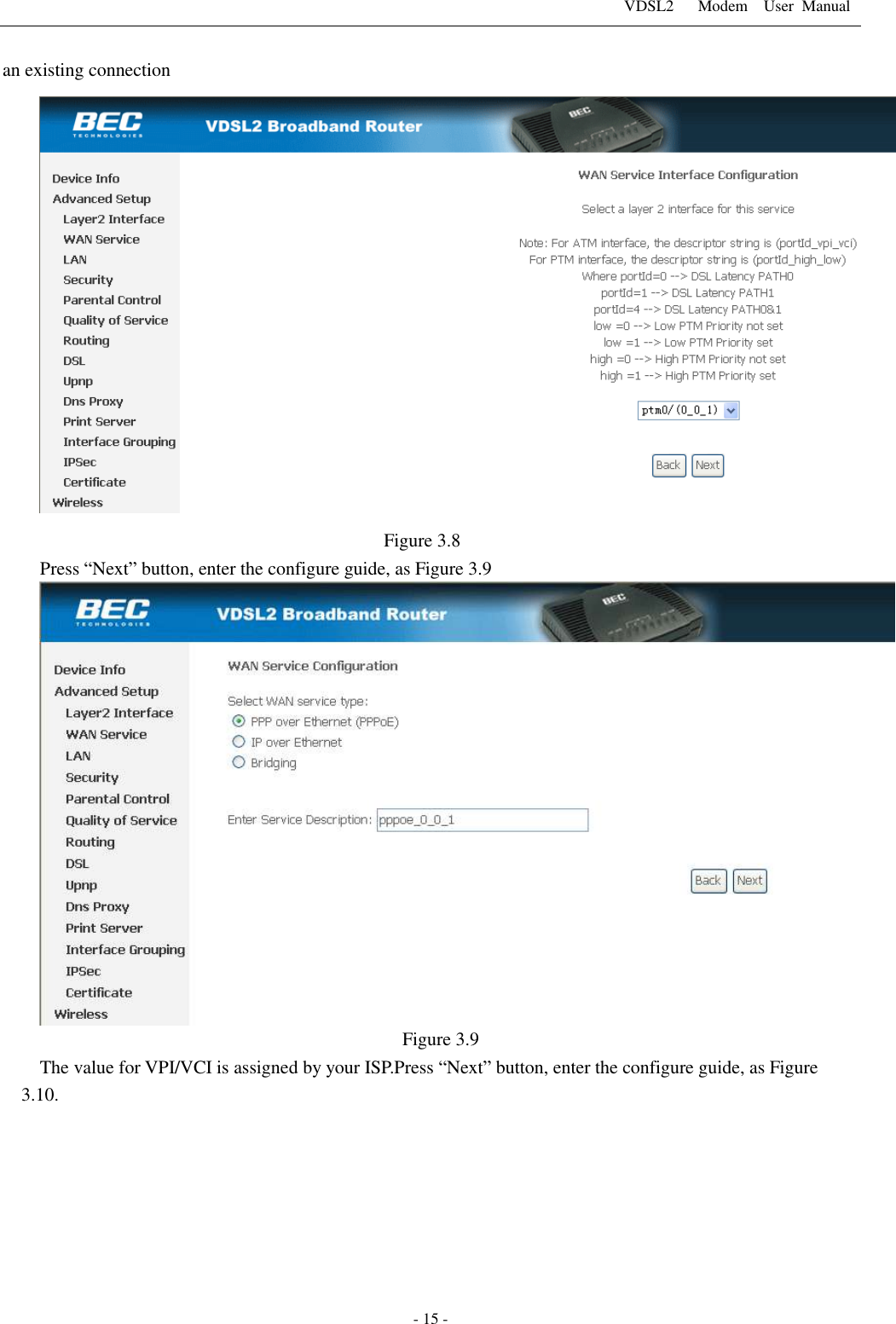

VDSL2 Modem User Manual - 15 - an existing connection Figure 3.8 Press “Next” button, enter the configure guide, as Figure 3.9 Figure 3.9 The value for VPI/VCI is assigned by your ISP.Press “Next” button, enter the configure guide, as Figure 3.10.

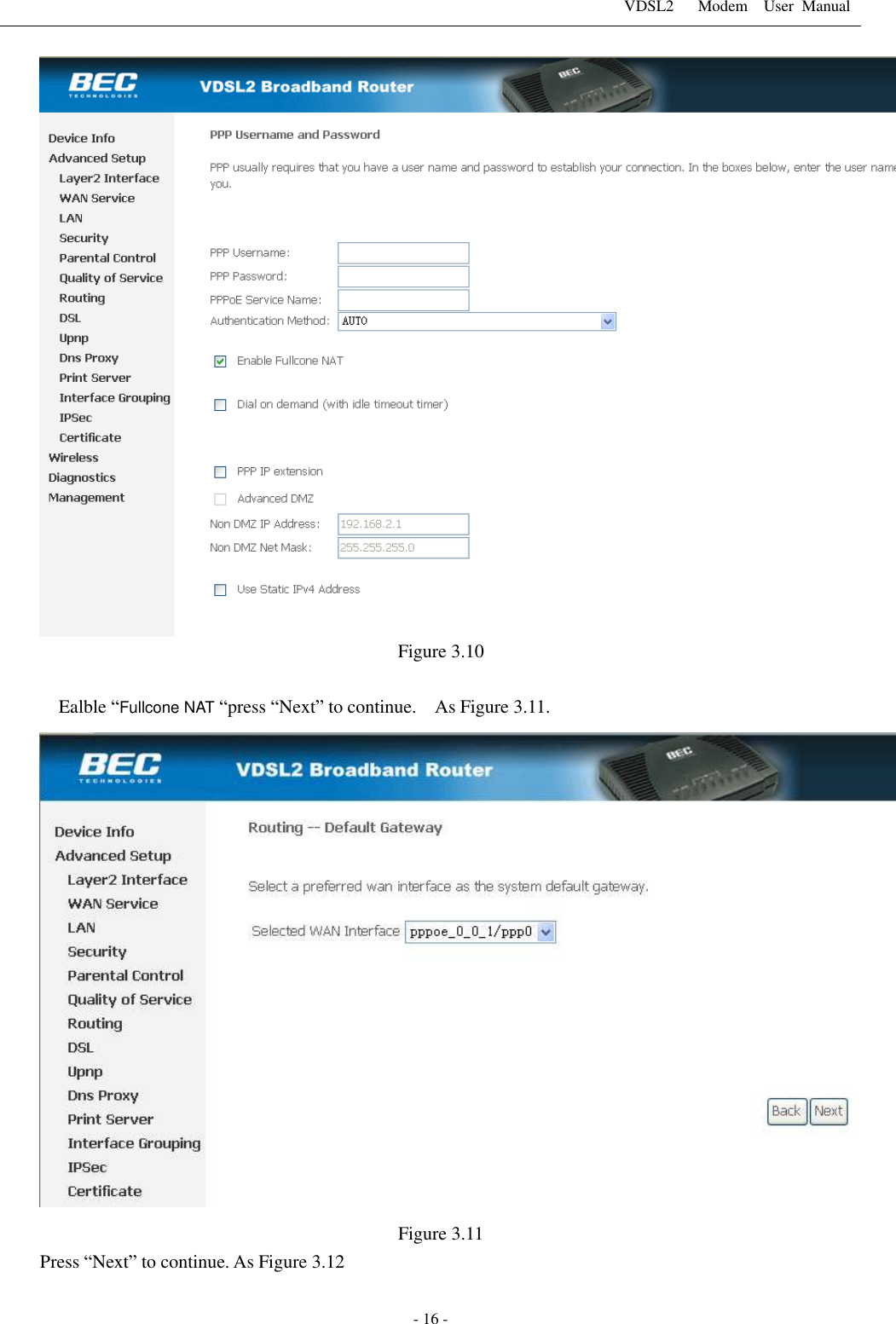

VDSL2 Modem User Manual - 16 - Figure 3.10 Ealble “Fullcone NAT “press “Next” to continue. As Figure 3.11. Figure 3.11 Press “Next” to continue. As Figure 3.12

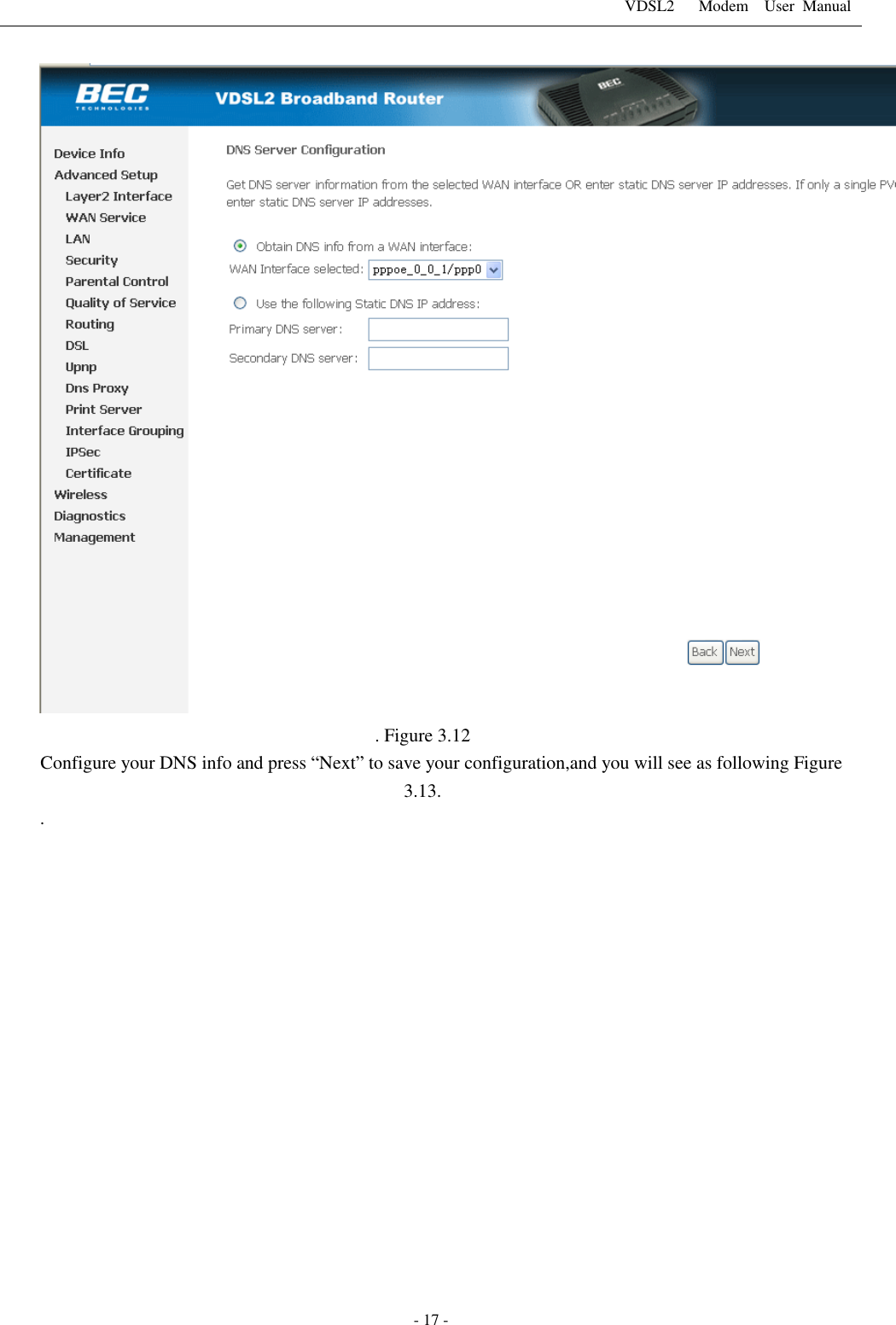

VDSL2 Modem User Manual - 17 - . Figure 3.12 Configure your DNS info and press “Next” to save your configuration,and you will see as following Figure 3.13. .

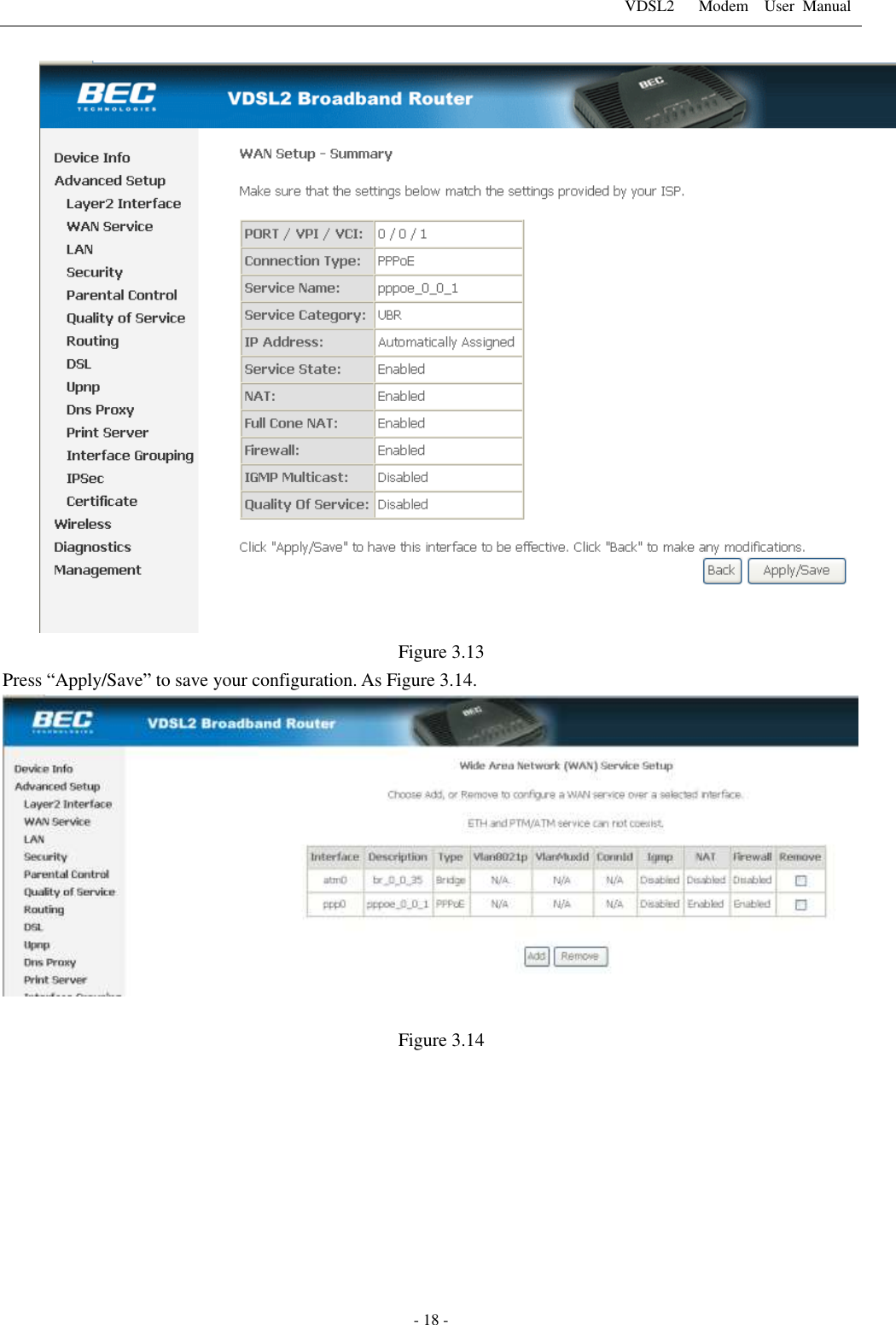

VDSL2 Modem User Manual - 18 - Figure 3.13 Press “Apply/Save” to save your configuration. As Figure 3.14. Figure 3.14

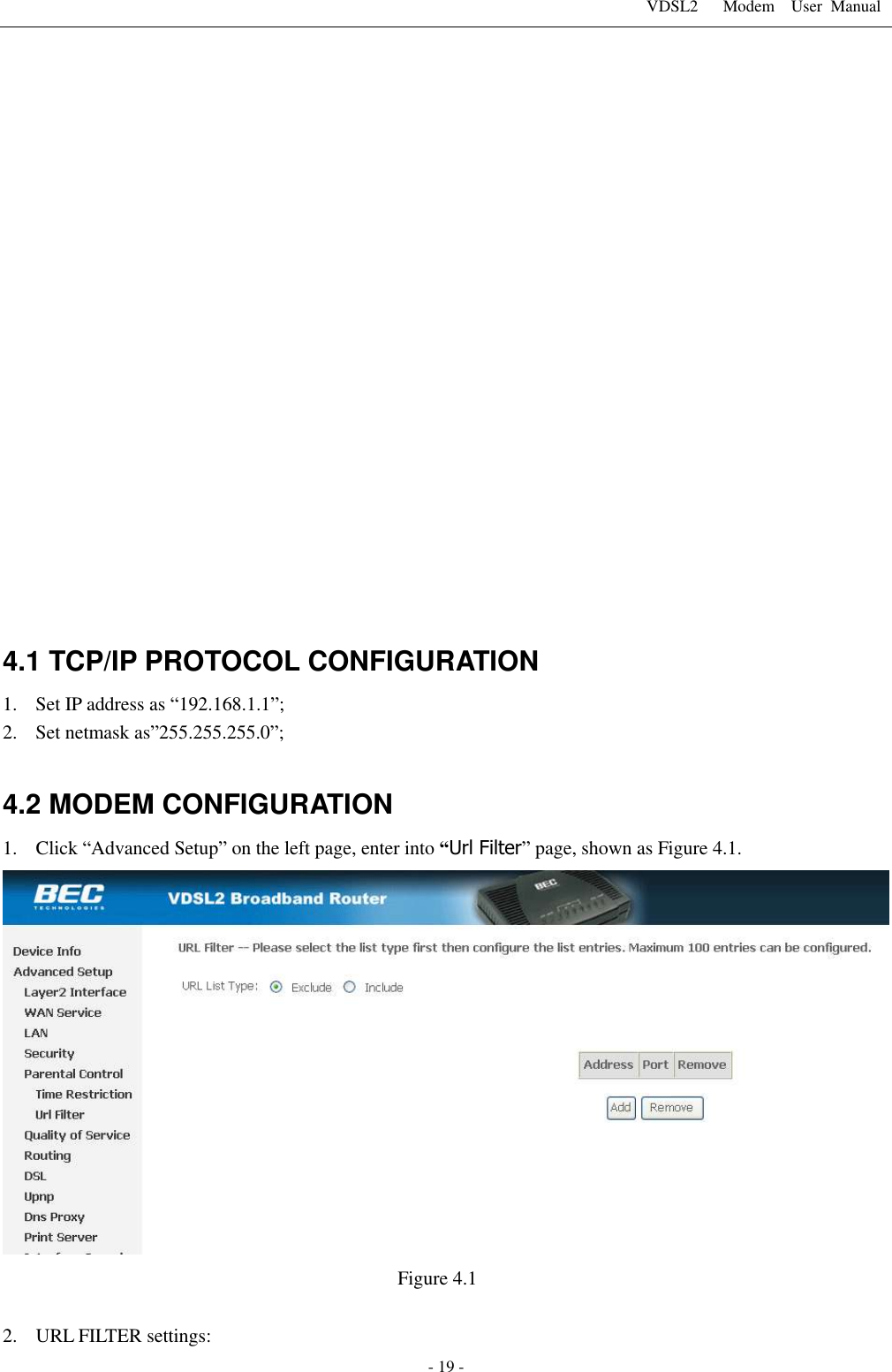

VDSL2 Modem User Manual - 19 - 4.1 TCP/IP PROTOCOL CONFIGURATION 1. Set IP address as “192.168.1.1”; 2. Set netmask as”255.255.255.0”; 4.2 MODEM CONFIGURATION 1. Click “Advanced Setup” on the left page, enter into “Url Filter” page, shown as Figure 4.1. Figure 4.1 2. URL FILTER settings:

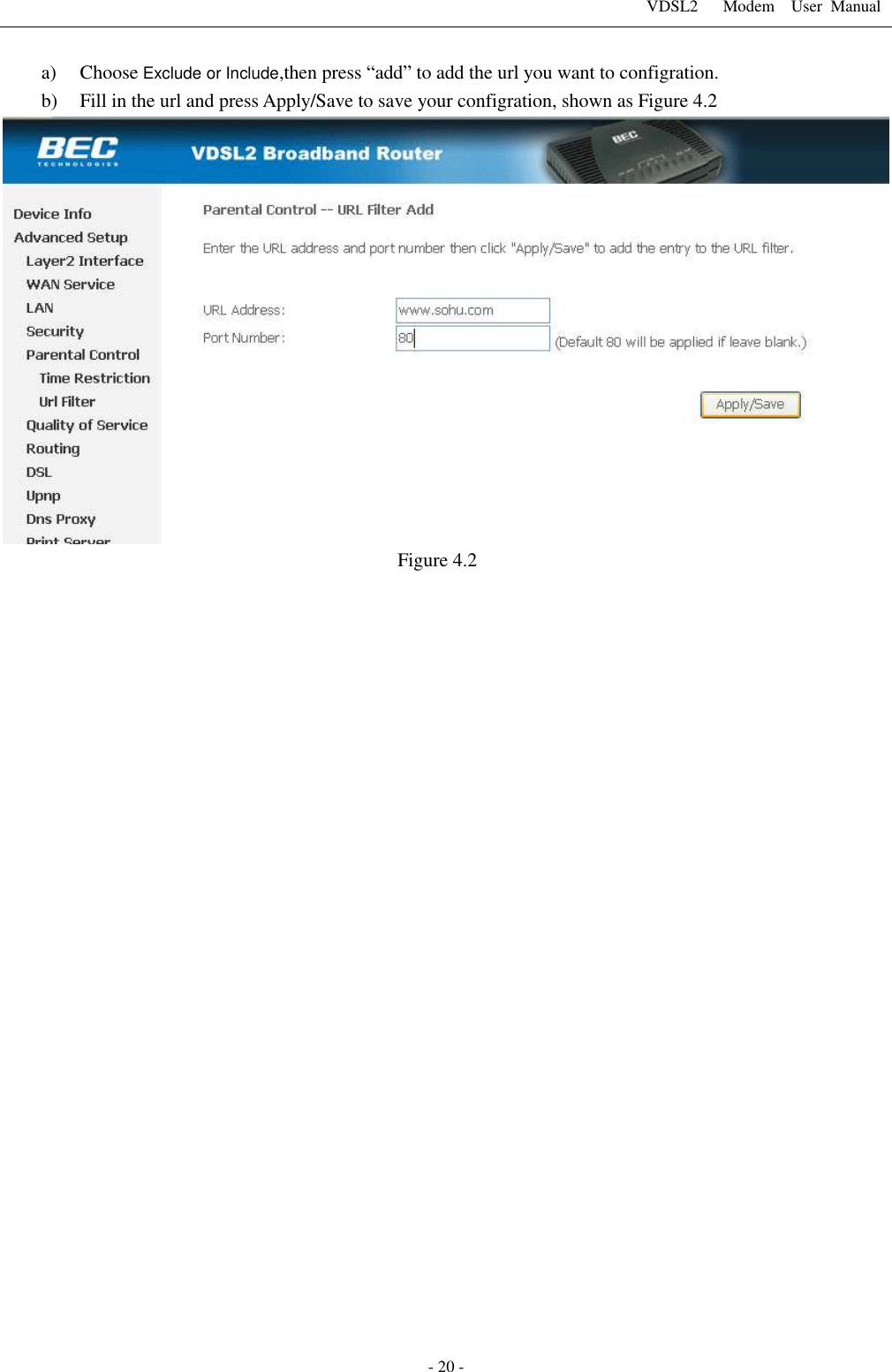

VDSL2 Modem User Manual - 20 - a) Choose Exclude or Include,then press “add” to add the url you want to configration. b) Fill in the url and press Apply/Save to save your configration, shown as Figure 4.2 Figure 4.2

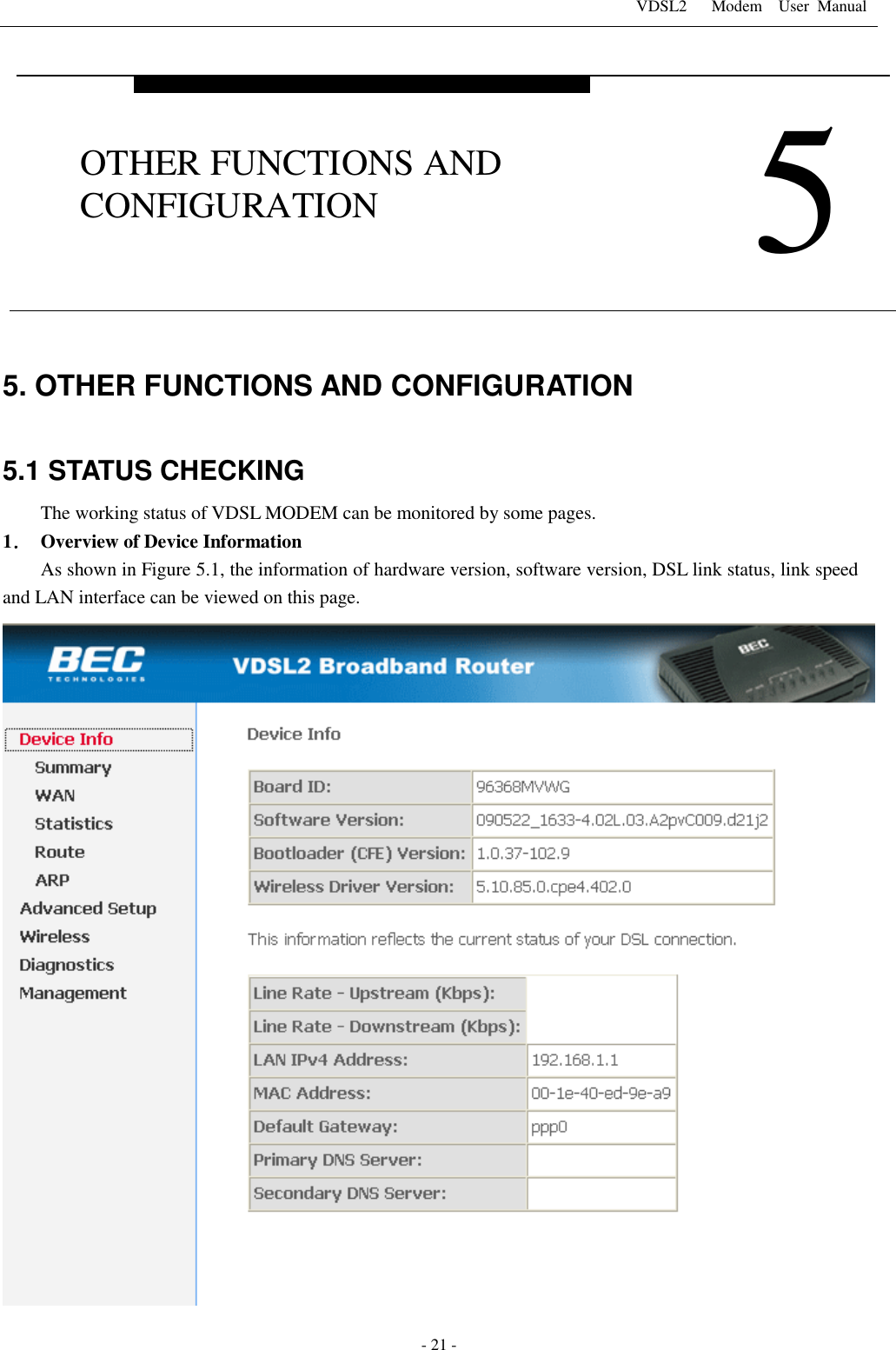

VDSL2 Modem User Manual - 21 - 5. OTHER FUNCTIONS AND CONFIGURATION 5.1 STATUS CHECKING The working status of VDSL MODEM can be monitored by some pages. 1． Overview of Device Information As shown in Figure 5.1, the information of hardware version, software version, DSL link status, link speed and LAN interface can be viewed on this page. 5 OTHER FUNCTIONS AND CONFIGURATION

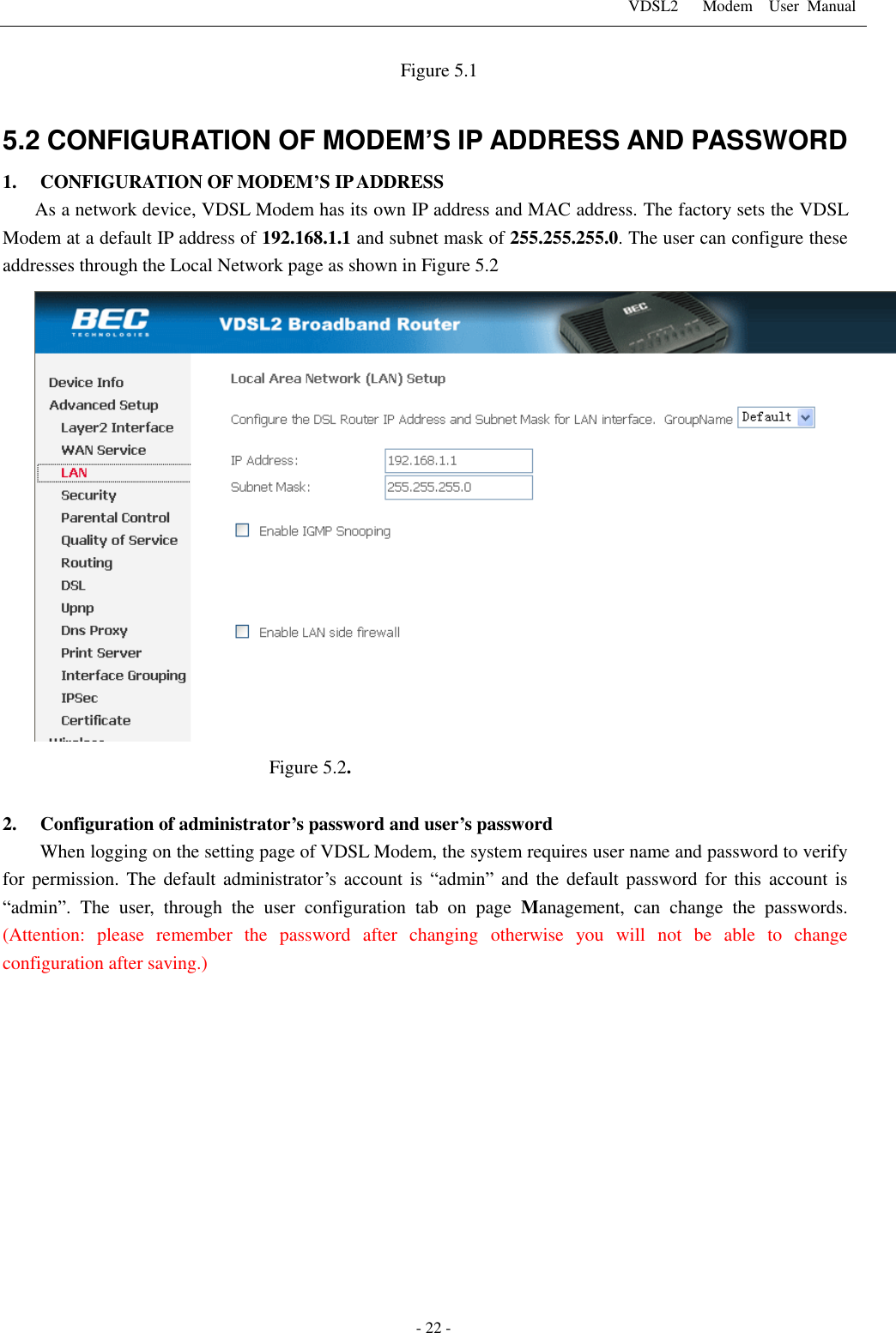

VDSL2 Modem User Manual - 22 - Figure 5.1 5.2 CONFIGURATION OF MODEM’S IP ADDRESS AND PASSWORD 1. CONFIGURATION OF MODEM’S IP ADDRESS As a network device, VDSL Modem has its own IP address and MAC address. The factory sets the VDSL Modem at a default IP address of 192.168.1.1 and subnet mask of 255.255.255.0. The user can configure these addresses through the Local Network page as shown in Figure 5.2 Figure 5.2. 2. Configuration of administrator’s password and user’s password When logging on the setting page of VDSL Modem, the system requires user name and password to verify for permission. The default administrator’s account is “admin” and the default password for this account is “admin”. The user, through the user configuration tab on page Management, can change the passwords. (Attention: please remember the password after changing otherwise you will not be able to change configuration after saving.)

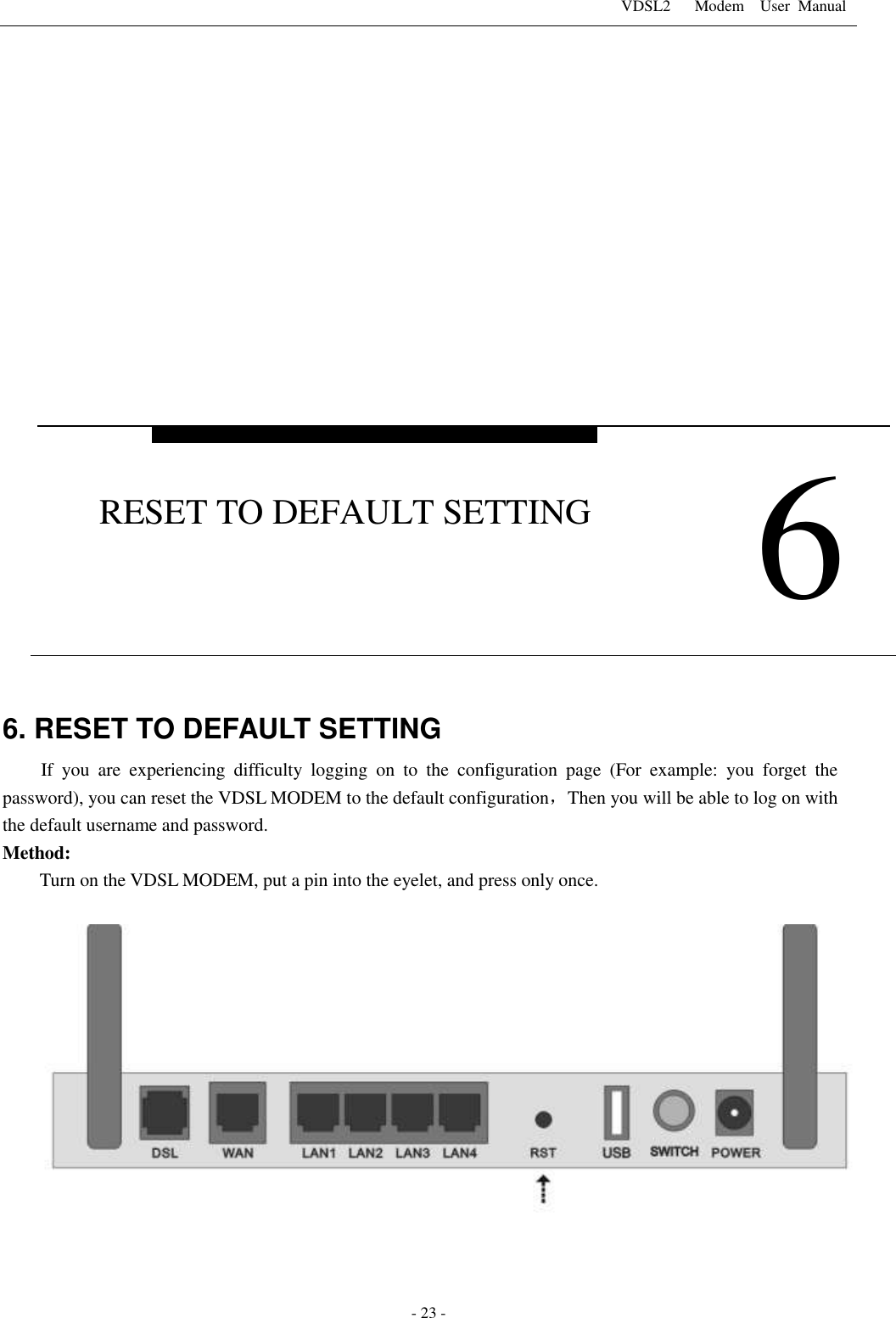

VDSL2 Modem User Manual - 23 - 6. RESET TO DEFAULT SETTING If you are experiencing difficulty logging on to the configuration page (For example: you forget the password), you can reset the VDSL MODEM to the default configuration，Then you will be able to log on with the default username and password. Method: Turn on the VDSL MODEM, put a pin into the eyelet, and press only once. 6 RESET TO DEFAULT SETTING

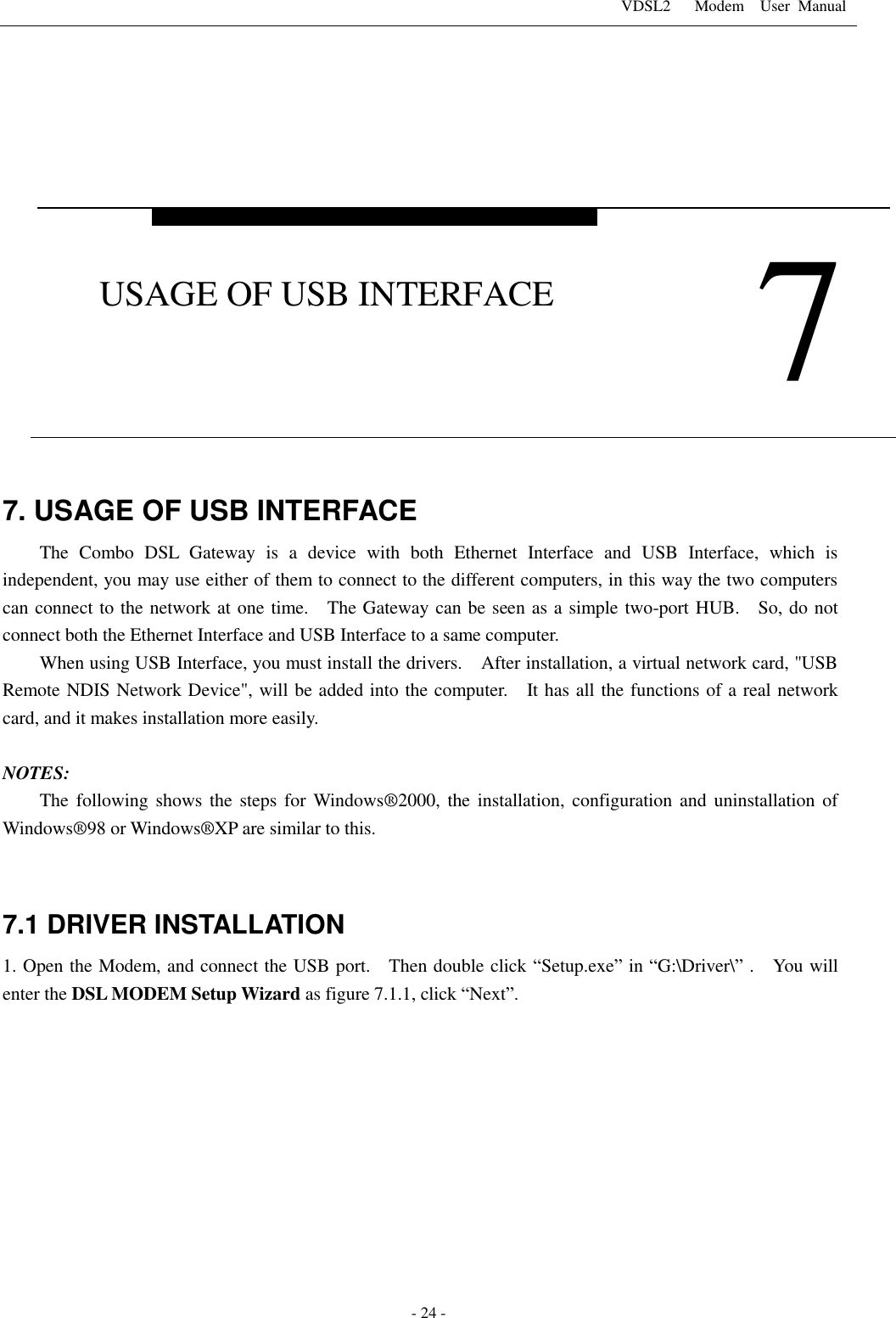

VDSL2 Modem User Manual - 24 - 7. USAGE OF USB INTERFACE The Combo DSL Gateway is a device with both Ethernet Interface and USB Interface, which is independent, you may use either of them to connect to the different computers, in this way the two computers can connect to the network at one time. The Gateway can be seen as a simple two-port HUB. So, do not connect both the Ethernet Interface and USB Interface to a same computer. When using USB Interface, you must install the drivers. After installation, a virtual network card, "USB Remote NDIS Network Device", will be added into the computer. It has all the functions of a real network card, and it makes installation more easily. NOTES: The following shows the steps for Windows®2000, the installation, configuration and uninstallation of Windows®98 or Windows®XP are similar to this. 7.1 DRIVER INSTALLATION 1. Open the Modem, and connect the USB port. Then double click “Setup.exe” in “G:\Driver\” . You will enter the DSL MODEM Setup Wizard as figure 7.1.1, click “Next”. 7 USAGE OF USB INTERFACE

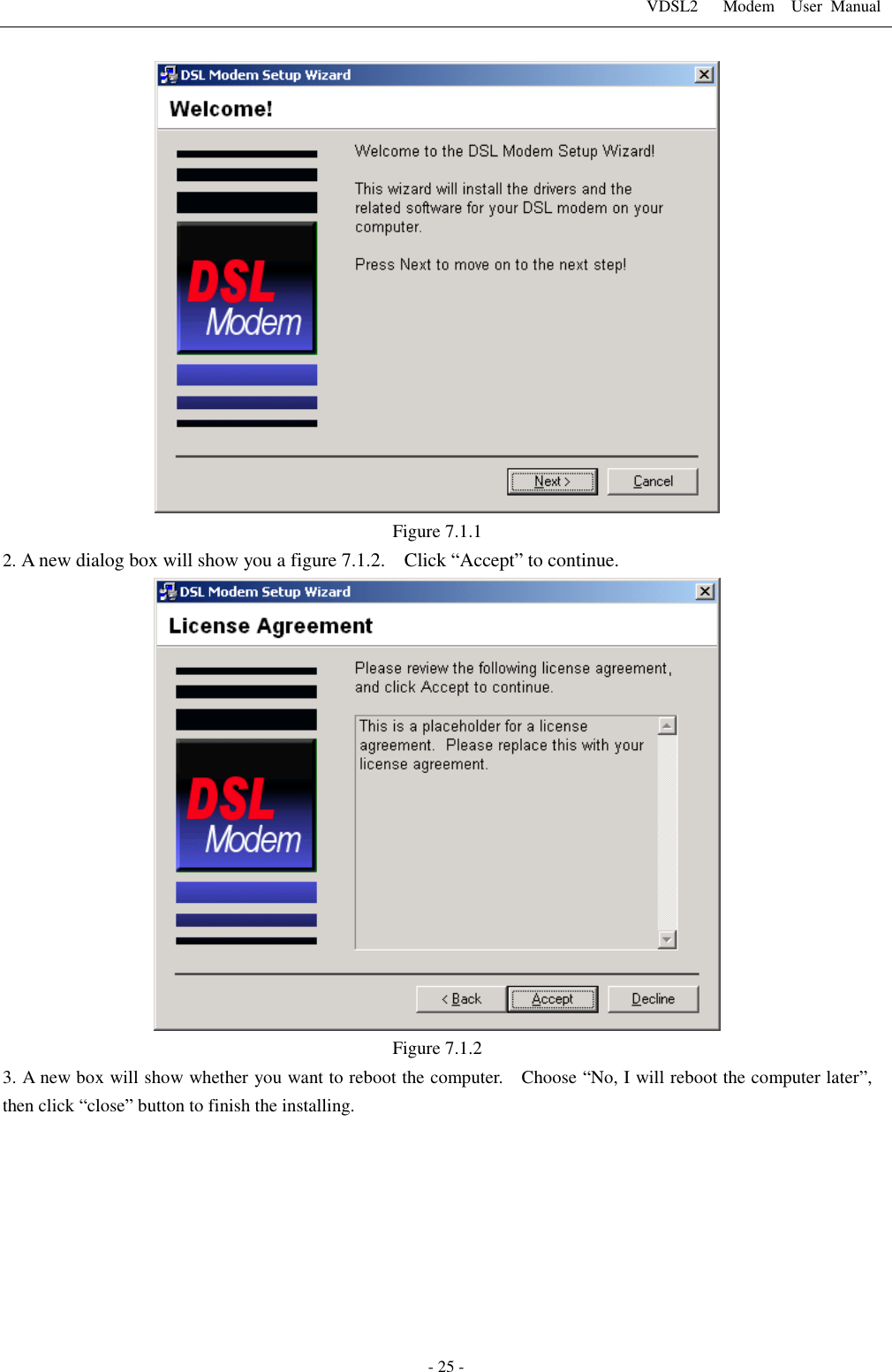

VDSL2 Modem User Manual - 25 - Figure 7.1.1 2. A new dialog box will show you a figure 7.1.2. Click “Accept” to continue. Figure 7.1.2 3. A new box will show whether you want to reboot the computer. Choose “No, I will reboot the computer later”, then click “close” button to finish the installing.

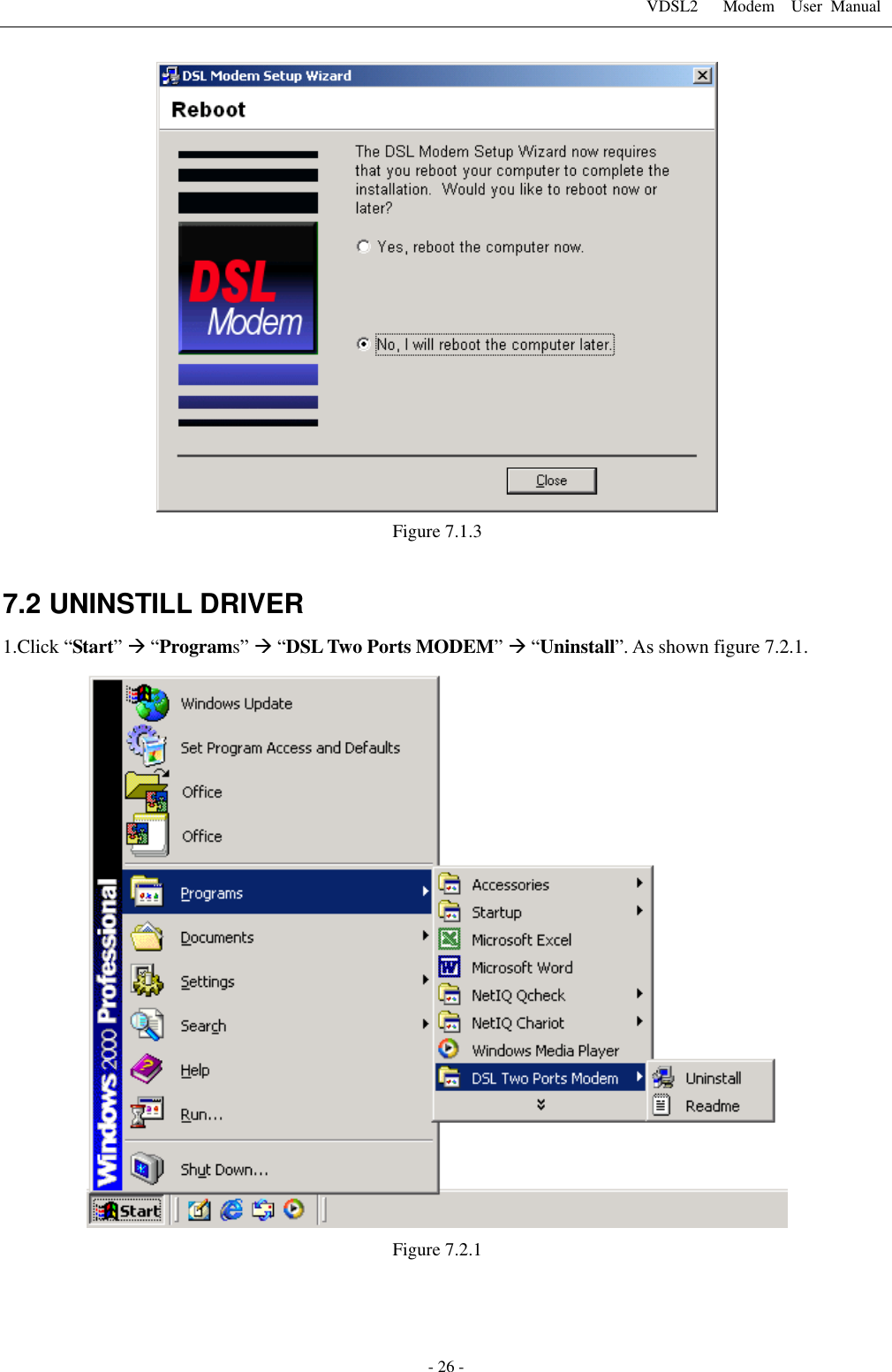

VDSL2 Modem User Manual - 26 - Figure 7.1.3 7.2 UNINSTILL DRIVER 1.Click “Start”  “Programs”  “DSL Two Ports MODEM”  “Uninstall”. As shown figure 7.2.1. Figure 7.2.1

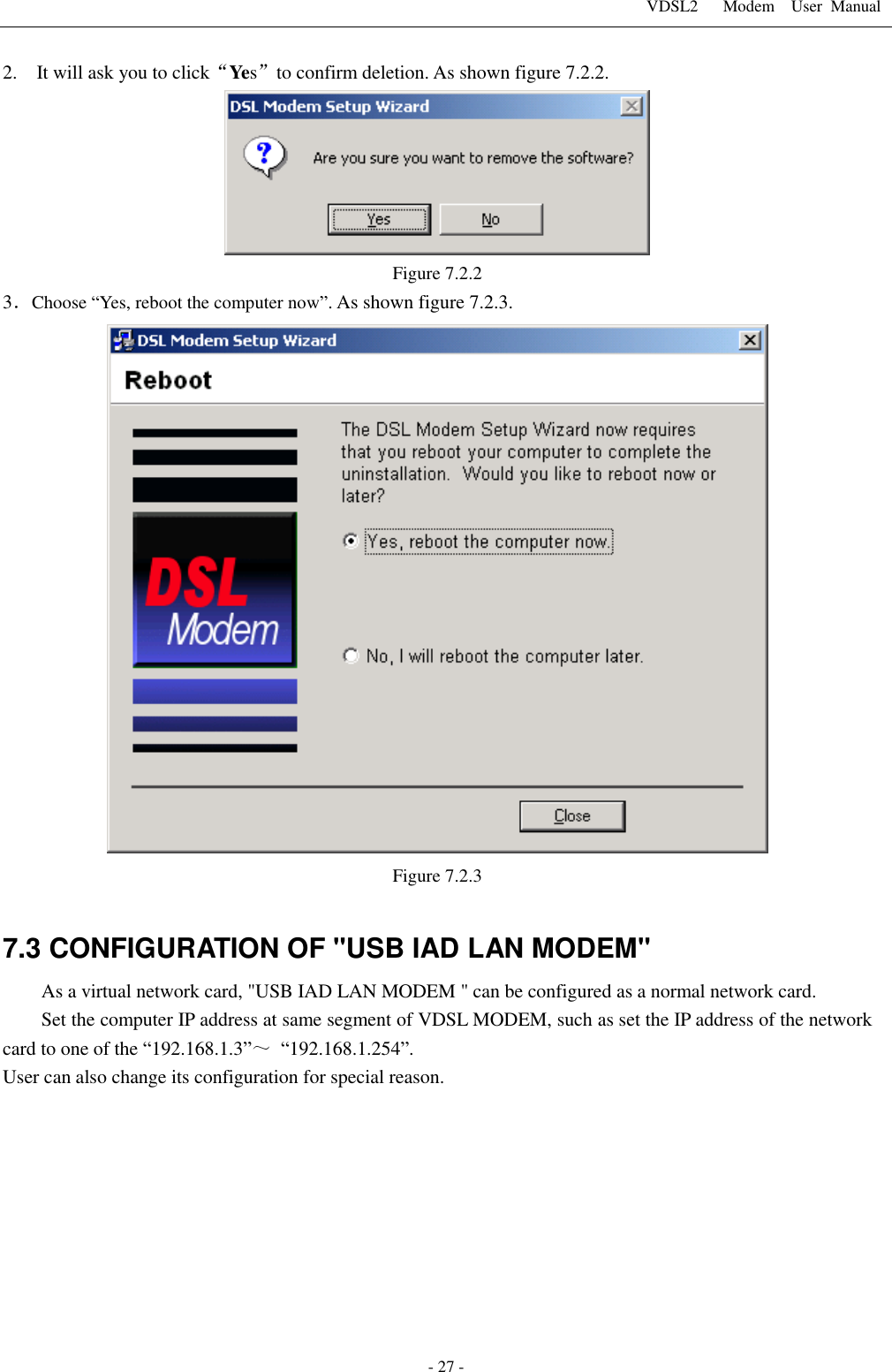

VDSL2 Modem User Manual - 27 - 2. It will ask you to click“Yes”to confirm deletion. As shown figure 7.2.2. Figure 7.2.2 3．Choose “Yes, reboot the computer now”. As shown figure 7.2.3. Figure 7.2.3 7.3 CONFIGURATION OF "USB IAD LAN MODEM" As a virtual network card, "USB IAD LAN MODEM " can be configured as a normal network card. Set the computer IP address at same segment of VDSL MODEM, such as set the IP address of the network card to one of the “192.168.1.3”～ “192.168.1.254”. User can also change its configuration for special reason.
VDSL2 Modem User Manual - 28 - Figure 7.3.1

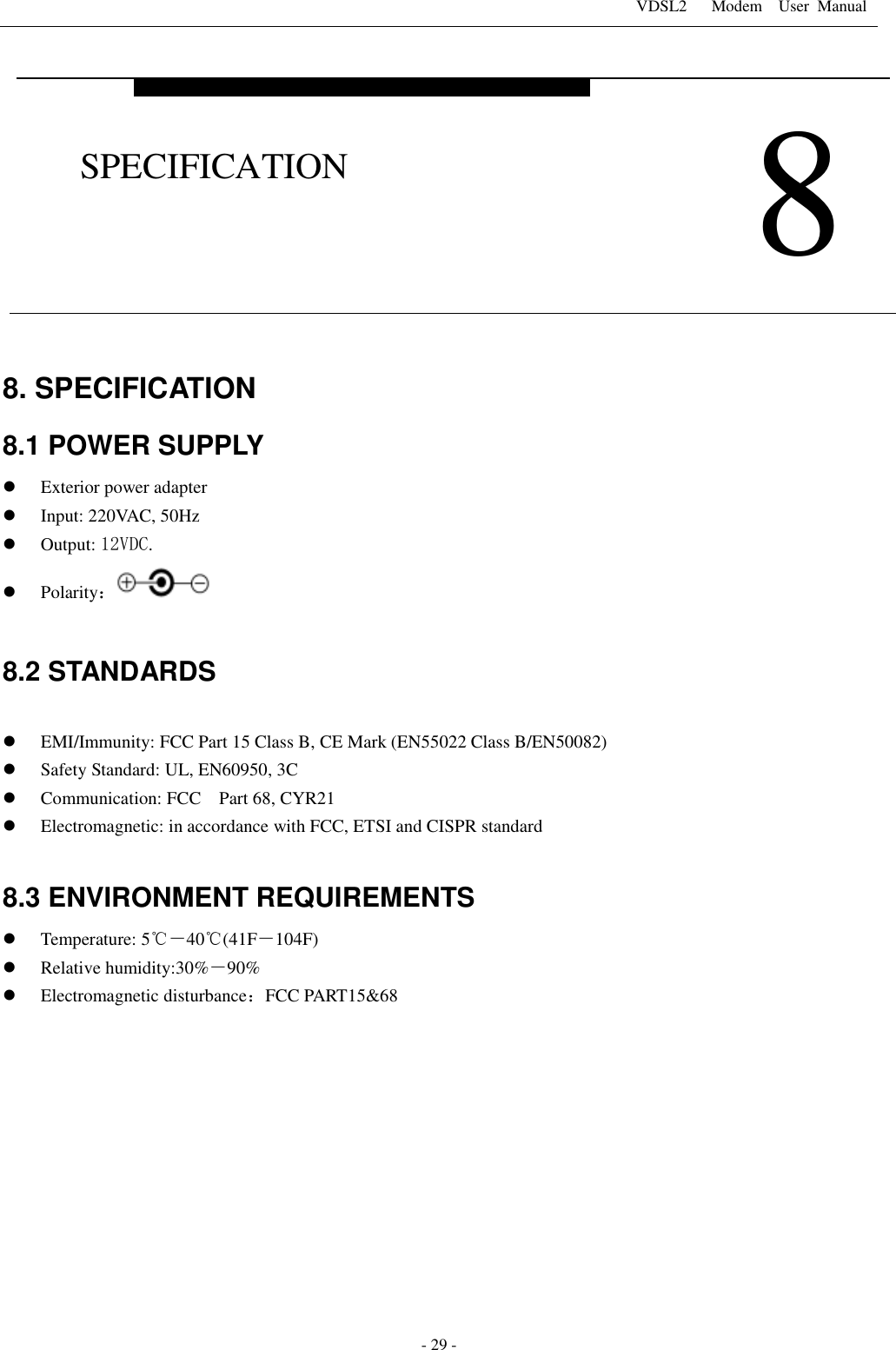

VDSL2 Modem User Manual - 29 - 8. SPECIFICATION 8.1 POWER SUPPLY  Exterior power adapter  Input: 220VAC, 50Hz  Output: 12VDC.  Polarity： 8.2 STANDARDS  EMI/Immunity: FCC Part 15 Class B, CE Mark (EN55022 Class B/EN50082)  Safety Standard: UL, EN60950, 3C  Communication: FCC Part 68, CYR21  Electromagnetic: in accordance with FCC, ETSI and CISPR standard 8.3 ENVIRONMENT REQUIREMENTS  Temperature: 5℃－40℃(41F－104F)  Relative humidity:30%－90%  Electromagnetic disturbance：FCC PART15&68 8 SPECIFICATION
VDSL2 Modem User Manual - 30 - APPENDIX APPENDIX A. TROUBLESHOOTING Phenomena Solution The indicator of power supply is not on 1. Make sure the connection of power supply is good. 2. Make sure the switch of power supply is turned on. 3. Make sure the output of power supply is correct. The indicator of PC is not on 1. Check the connection between the cable and the network card. 2. Make sure that the correct cable is used. 3. Make sure the cable works fine by pinging the host IP address. Can not access Internet or remote networks 1. Make sure the problems listed above are eliminated. 2. Make sure the software configuration of the VDSL Modem is correct. 3. Make sure you have restarted the VDSL Modem after configuration change. 4. Check IP connection using ping command. 5. Make sure the DNS of the computer is correct. Can’t access some web server 1. The MTU of operating system might be too large. 2. Some operating systems might need to be patched. Can not log on to the configuration page 1. Make sure the PC indicator is on. 2. Make sure the configuration of TCP/IP is correct. 3. Make sure the data indicator of Modem is on when using Ping command. 4. Make sure the user name and password is correct. 5. Reset the device. APPENDIX

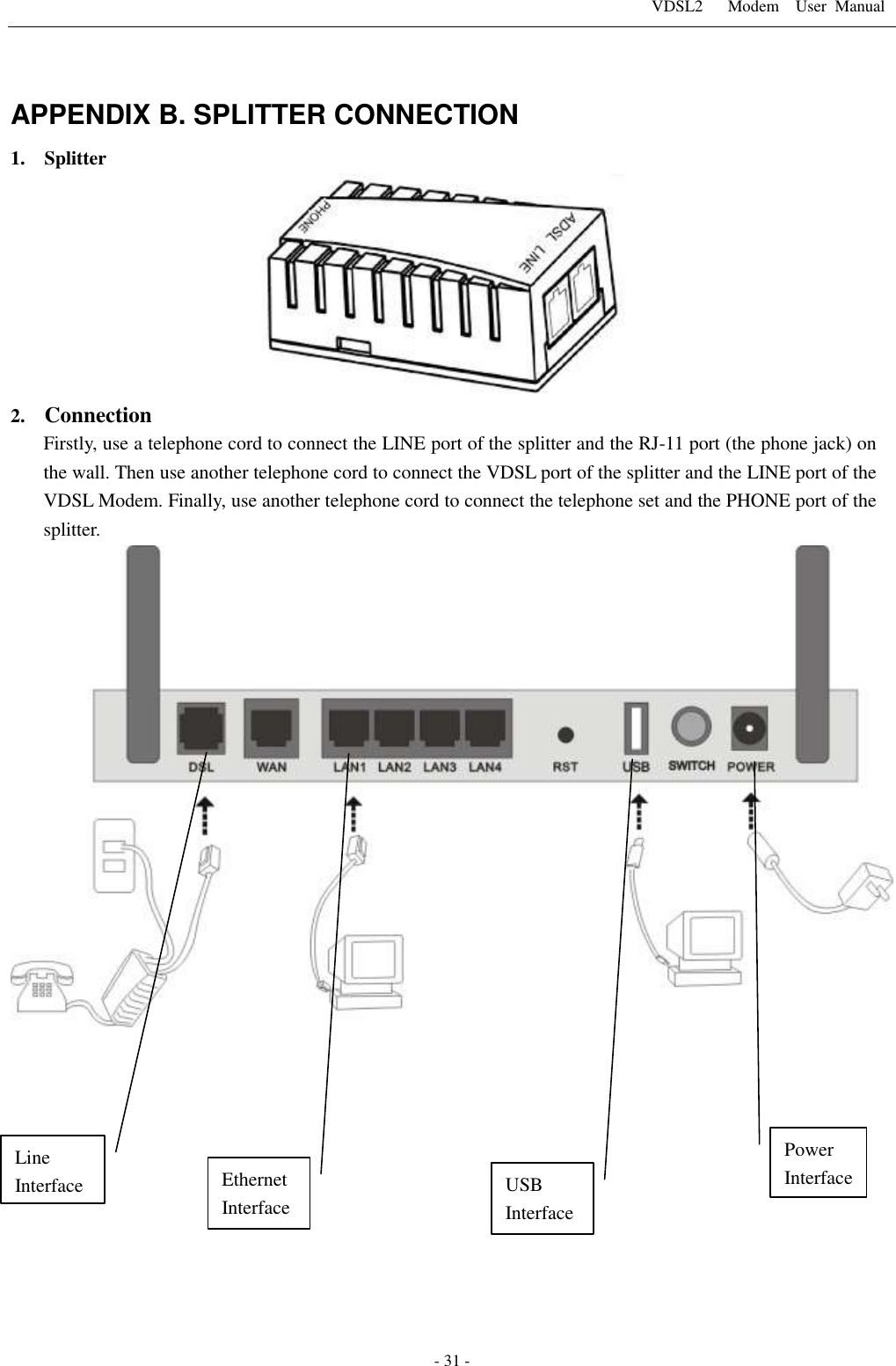

VDSL2 Modem User Manual - 31 - APPENDIX B. SPLITTER CONNECTION 1. Splitter 2. Connection Firstly, use a telephone cord to connect the LINE port of the splitter and the RJ-11 port (the phone jack) on the wall. Then use another telephone cord to connect the VDSL port of the splitter and the LINE port of the VDSL Modem. Finally, use another telephone cord to connect the telephone set and the PHONE port of the splitter. Power Interface Line Interface Ethernet Interface USB Interface

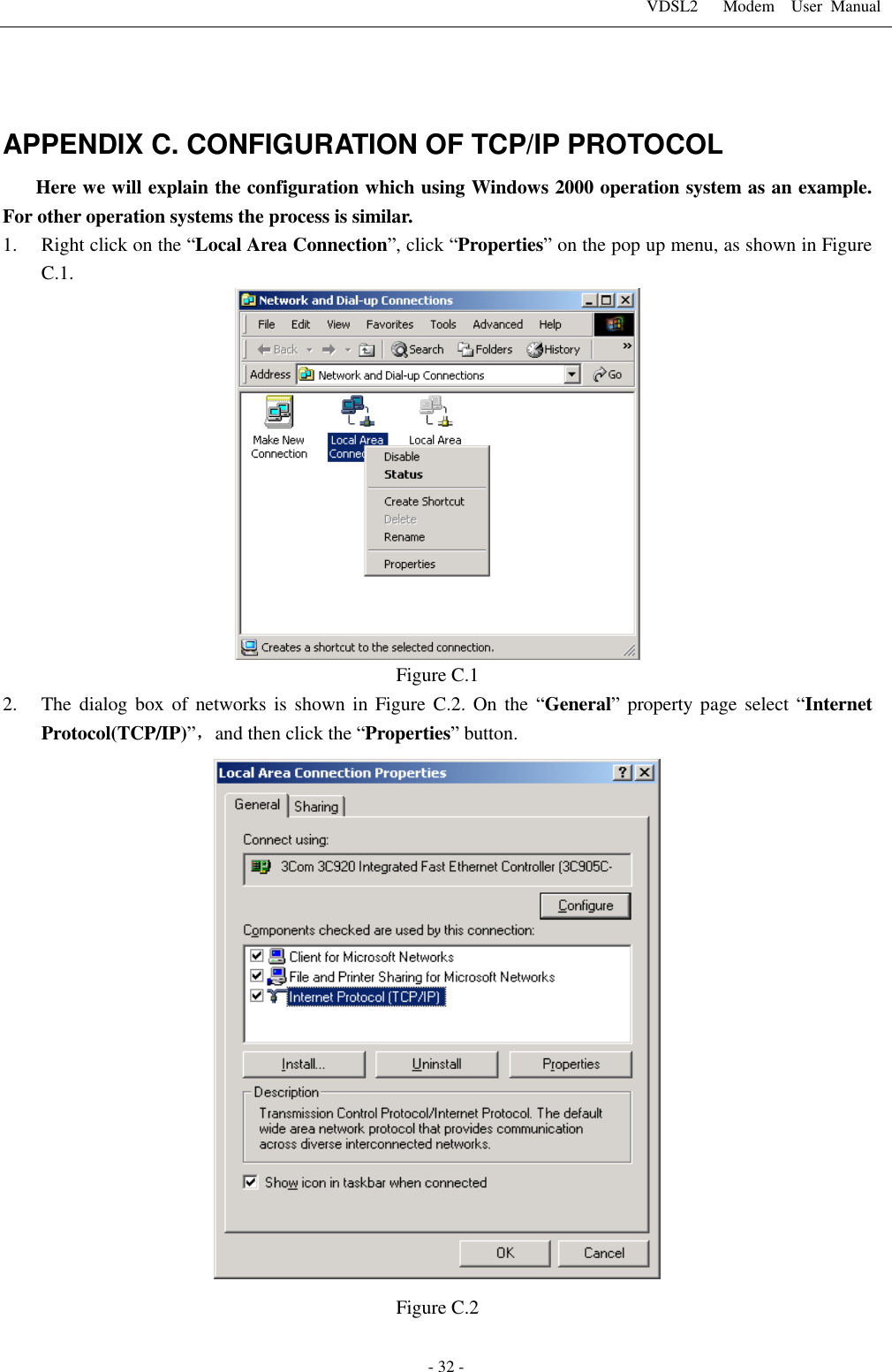

VDSL2 Modem User Manual - 32 - APPENDIX C. CONFIGURATION OF TCP/IP PROTOCOL Here we will explain the configuration which using Windows 2000 operation system as an example. For other operation systems the process is similar. 1. Right click on the “Local Area Connection”, click “Properties” on the pop up menu, as shown in Figure C.1. Figure C.1 2. The dialog box of networks is shown in Figure C.2. On the “General” property page select “Internet Protocol(TCP/IP)”，and then click the “Properties” button. Figure C.2

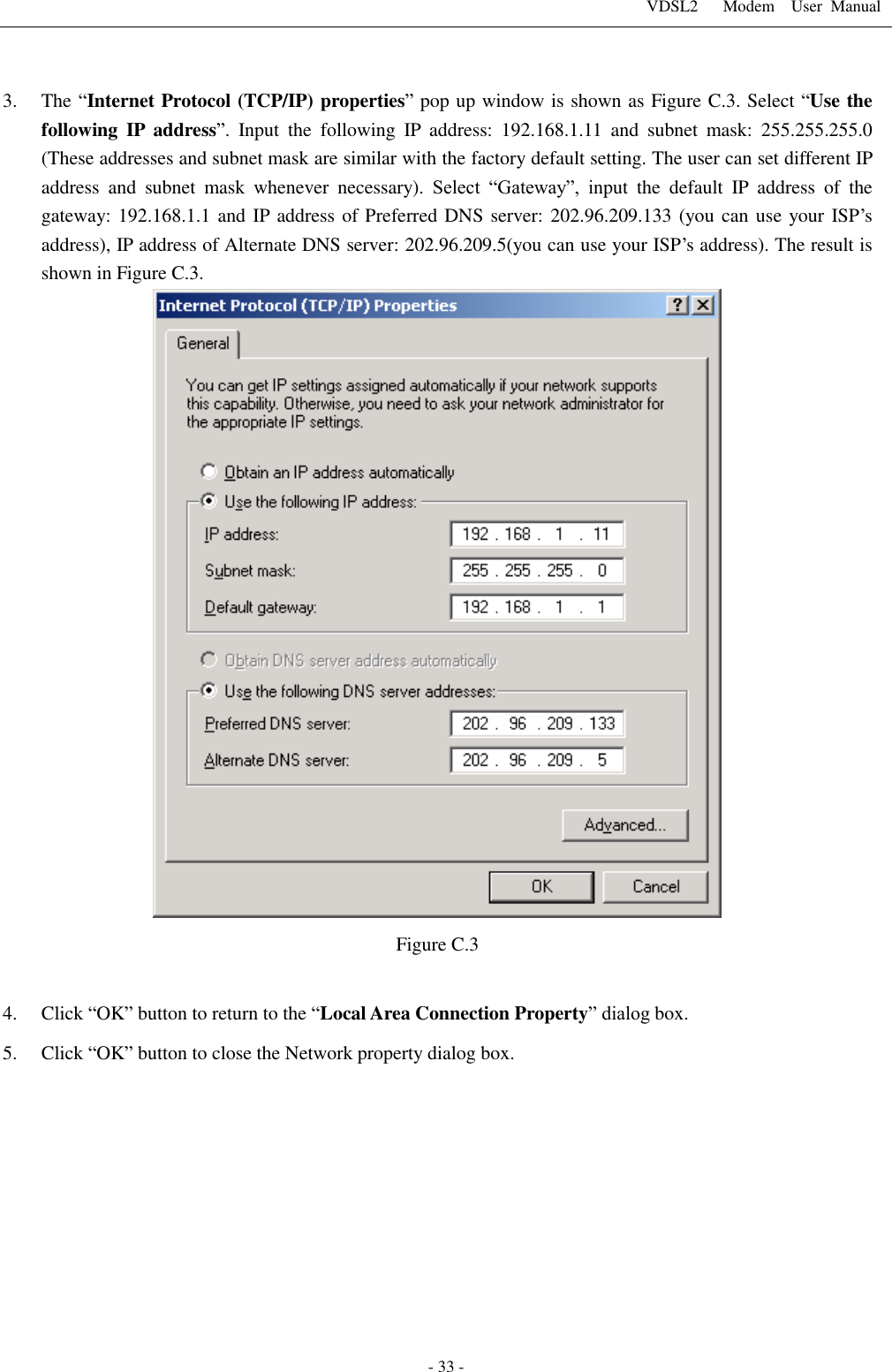

VDSL2 Modem User Manual - 33 - 3. The “Internet Protocol (TCP/IP) properties” pop up window is shown as Figure C.3. Select “Use the following IP address”. Input the following IP address: 192.168.1.11 and subnet mask: 255.255.255.0 (These addresses and subnet mask are similar with the factory default setting. The user can set different IP address and subnet mask whenever necessary). Select “Gateway”, input the default IP address of the gateway: 192.168.1.1 and IP address of Preferred DNS server: 202.96.209.133 (you can use your ISP’s address), IP address of Alternate DNS server: 202.96.209.5(you can use your ISP’s address). The result is shown in Figure C.3. Figure C.3 4. Click “OK” button to return to the “Local Area Connection Property” dialog box. 5. Click “OK” button to close the Network property dialog box.

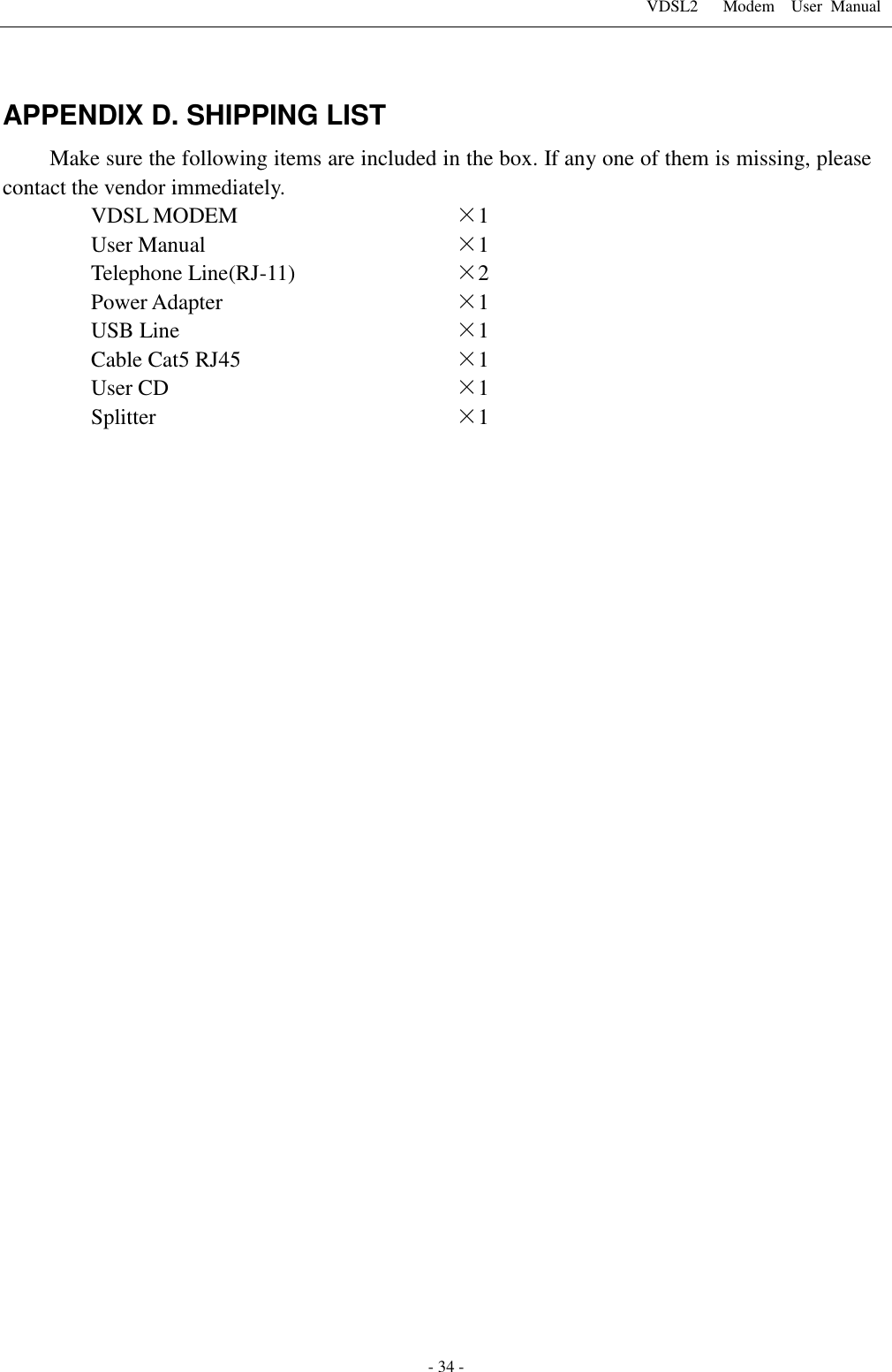

VDSL2 Modem User Manual - 34 - APPENDIX D. SHIPPING LIST Make sure the following items are included in the box. If any one of them is missing, please contact the vendor immediately. VDSL MODEM ×1 User Manual ×1 Telephone Line(RJ-11) ×2 Power Adapter ×1 USB Line ×1 Cable Cat5 RJ45 ×1 User CD ×1 Splitter ×1

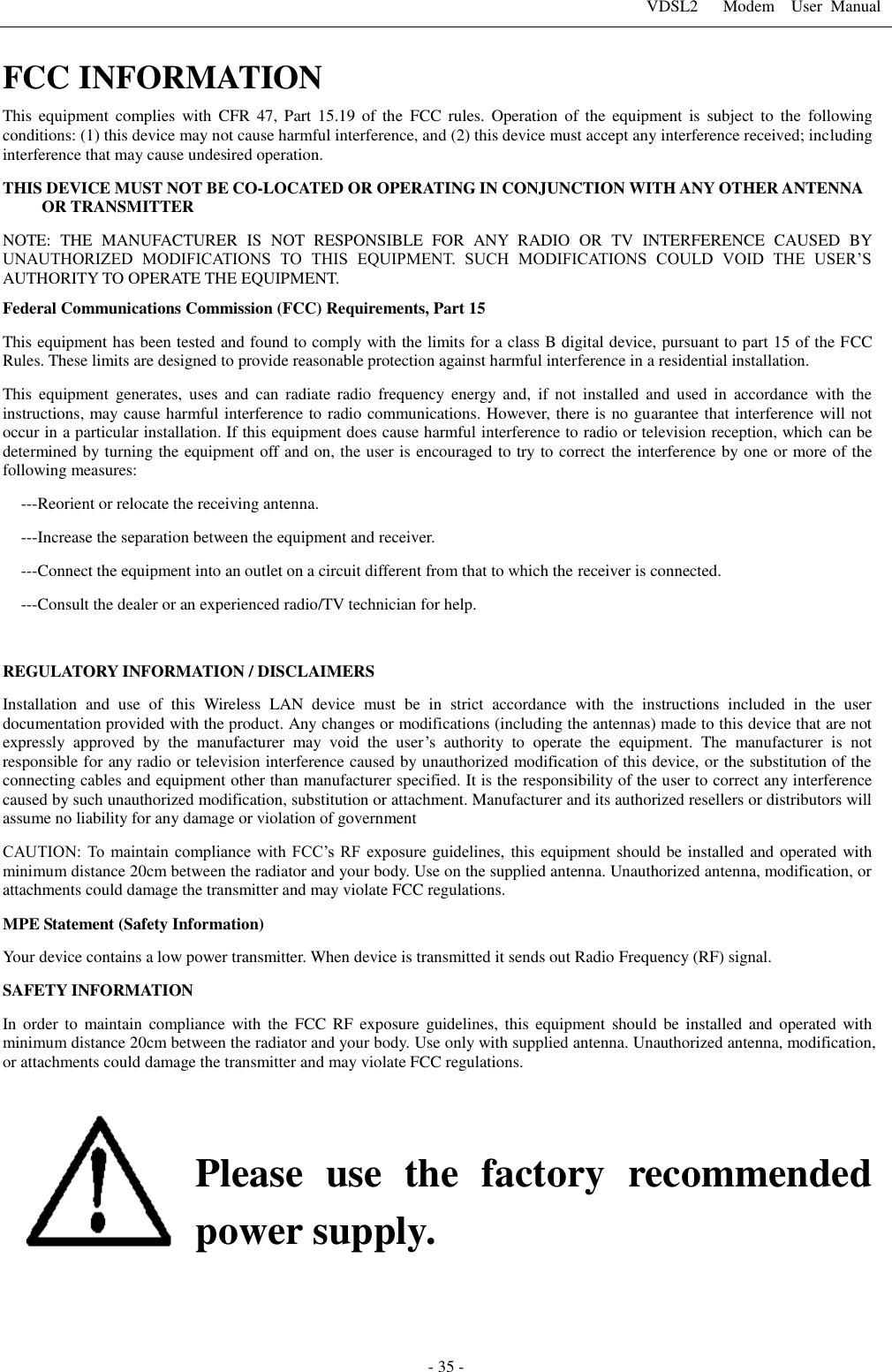

VDSL2 Modem User Manual - 35 - FCC INFORMATION This equipment complies with CFR 47, Part 15.19 of the FCC rules. Operation of the equipment is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. THIS DEVICE MUST NOT BE CO-LOCATED OR OPERATING IN CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. REGULATORY INFORMATION / DISCLAIMERS Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. SAFETY INFORMATION In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. Please use the factory recommended power supply.
