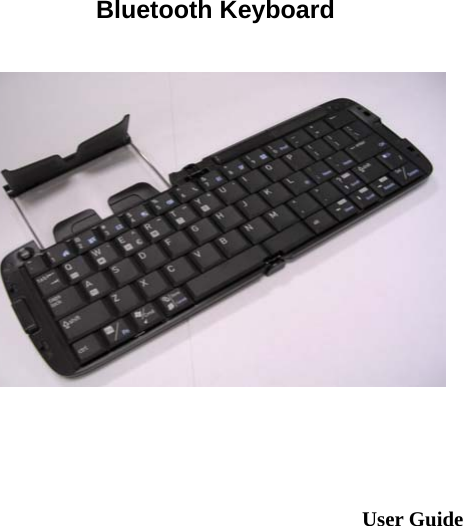

Bluetooth Keyboard User Guide

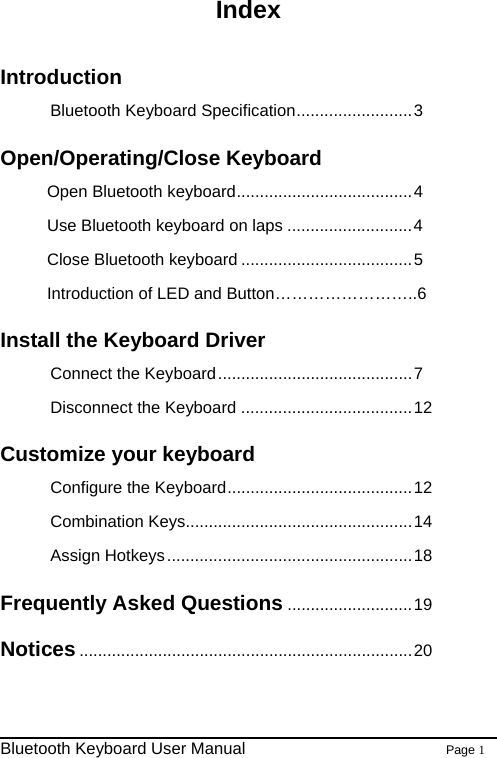

Bluetooth Keyboard User Manual Page 1 Index Introduction Bluetooth Keyboard Specification.........................3 Open/Operating/Close Keyboard Open Bluetooth keyboard......................................4 Use Bluetooth keyboard on laps ...........................4 Close Bluetooth keyboard .....................................5 Introduction of LED and Button……………………..6 Install the Keyboard Driver Connect the Keyboard..........................................7 Disconnect the Keyboard .....................................12 Customize your keyboard Configure the Keyboard........................................12 Combination Keys.................................................14 Assign Hotkeys.....................................................18 Frequently Asked Questions ...........................19 Notices ........................................................................20
Bluetooth Keyboard User Manual Page 2 Introduction Congratulations on your purchase of the Innovative Bluetooth Keyboard. Now, if you replace your Bluetooth handheld, you won’t have to replace your keyboard. Using Bluetooth HID Profile technology to communicate with your handheld, this innovation lets you input data to your handheld without physically attaching it to the Keyboard. It works with most popular Pocket PC Bluetooth handhelds. With the Bluetooth Keyboard, presents you with another long-term input solution. The connection distance is up to 7M. Hope it can bring you convenience of typing.

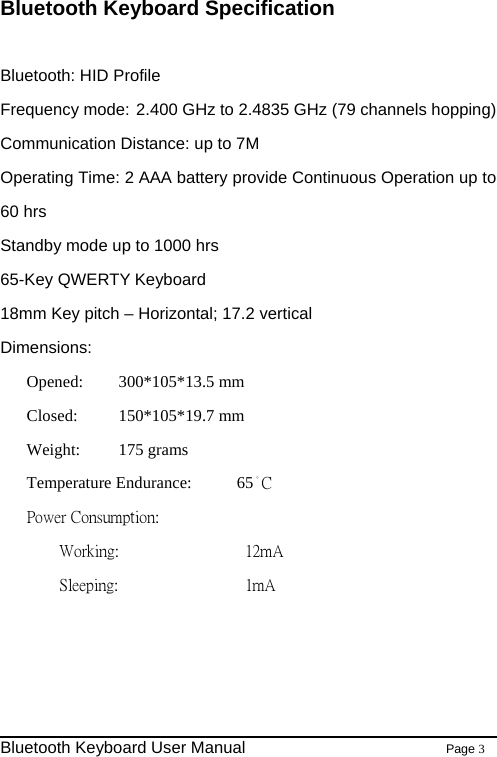

Bluetooth Keyboard User Manual Page 3 Bluetooth Keyboard Specification Bluetooth: HID Profile Frequency mode: 2.400 GHz to 2.4835 GHz (79 channels hopping) Communication Distance: up to 7M Operating Time: 2 AAA battery provide Continuous Operation up to 60 hrs Standby mode up to 1000 hrs 65-Key QWERTY Keyboard 18mm Key pitch – Horizontal; 17.2 vertical Dimensions: Opened: 300*105*13.5 mm Closed: 150*105*19.7 mm Weight: 175 grams Temperature Endurance: 65。C Power Consumption: Working: 12mA Sleeping: 1mA

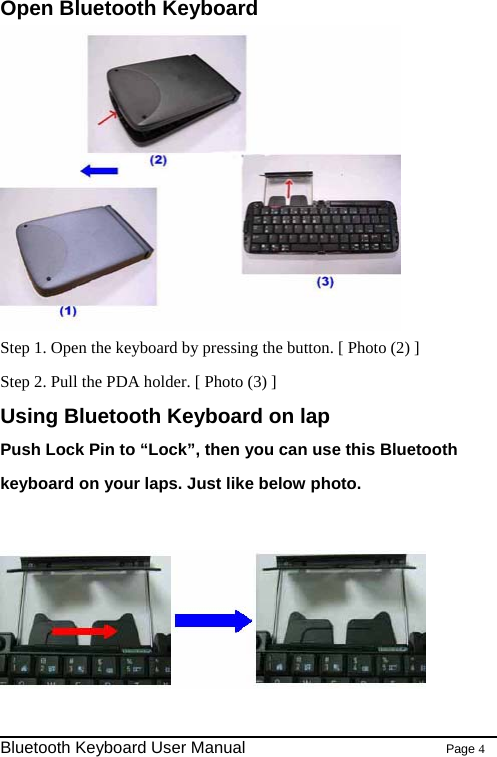

Open Bluetooth Keyboard Step 1. Open the keyboard by pressing the button. [ Photo (2) ] Step 2. Pull the PDA holder. [ Photo (3) ] Using Bluetooth Keyboard on lap Push Lock Pin to “Lock”, then you can use this Bluetooth keyboard on your laps. Just like below photo. Bluetooth Keyboard User Manual Page 4

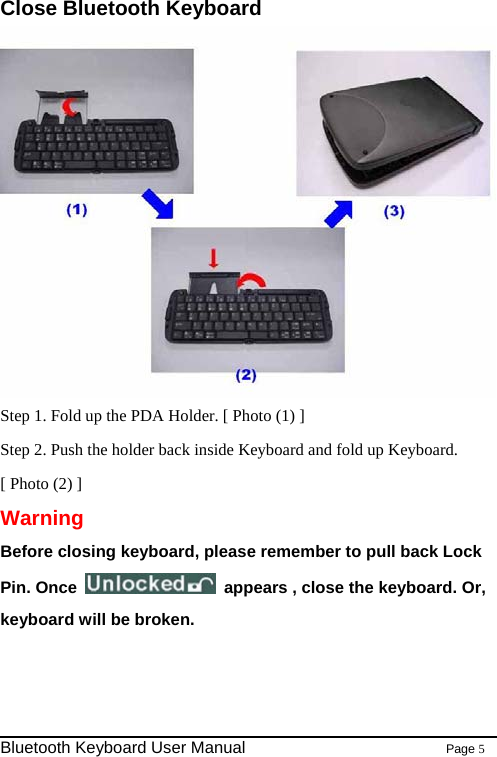

Close Bluetooth Keyboard Step 1. Fold up the PDA Holder. [ Photo (1) ] Step 2. Push the holder back inside Keyboard and fold up Keyboard. [ Photo (2) ] Warning Before closing keyboard, please remember to pull back Lock Pin. Once appears , close the keyboard. Or, keyboard will be broken. Bluetooth Keyboard User Manual Page 5

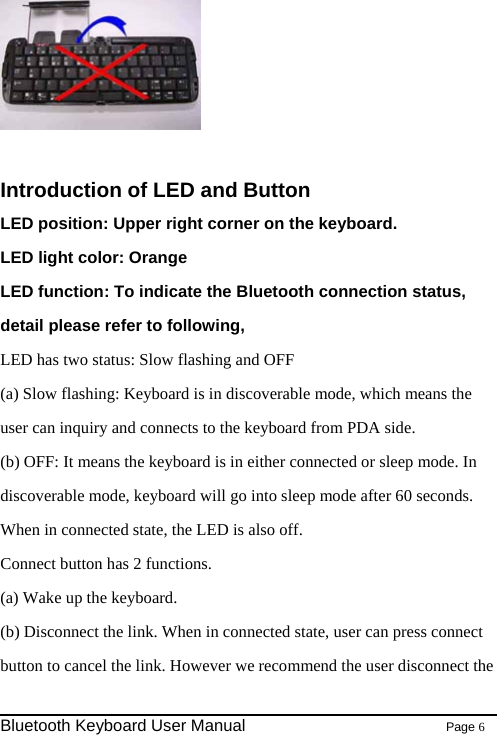

Introduction of LED and Button LED position: Upper right corner on the keyboard. LED light color: Orange LED function: To indicate the Bluetooth connection status, detail please refer to following, LED has two status: Slow flashing and OFF (a) Slow flashing: Keyboard is in discoverable mode, which means the user can inquiry and connects to the keyboard from PDA side. (b) OFF: It means the keyboard is in either connected or sleep mode. In discoverable mode, keyboard will go into sleep mode after 60 seconds. When in connected state, the LED is also off. Connect button has 2 functions. (a) Wake up the keyboard. (b) Disconnect the link. When in connected state, user can press connect button to cancel the link. However we recommend the user disconnect the Bluetooth Keyboard User Manual Page 6

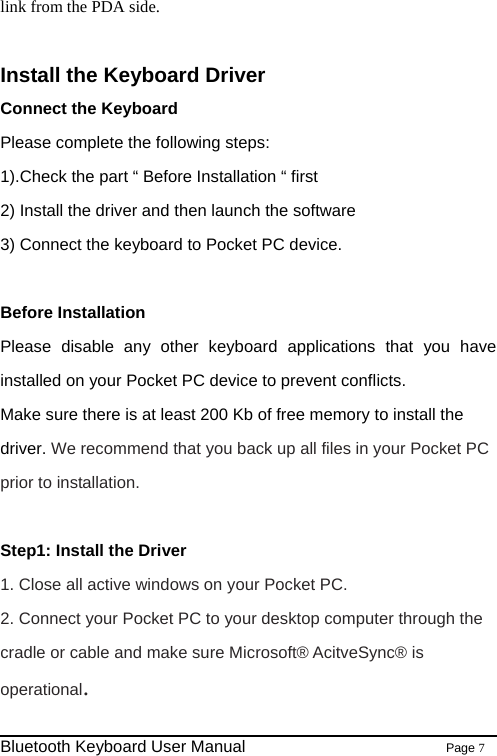

Bluetooth Keyboard User Manual Page 7 link from the PDA side. Install the Keyboard Driver Connect the Keyboard Please complete the following steps: 1).Check the part “ Before Installation “ first 2) Install the driver and then launch the software 3) Connect the keyboard to Pocket PC device. Before Installation Please disable any other keyboard applications that you have installed on your Pocket PC device to prevent conflicts. Make sure there is at least 200 Kb of free memory to install the driver. We recommend that you back up all files in your Pocket PC prior to installation. Step1: Install the Driver 1. Close all active windows on your Pocket PC. 2. Connect your Pocket PC to your desktop computer through the cradle or cable and make sure Microsoft® AcitveSync® is operational.

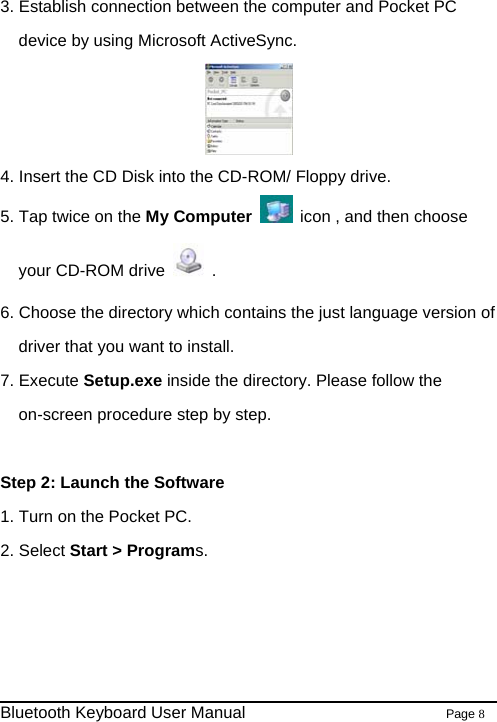

3. Establish connection between the computer and Pocket PC device by using Microsoft ActiveSync. 4. Insert the CD Disk into the CD-ROM/ Floppy drive. 5. Tap twice on the My Computer icon , and then choose your CD-ROM drive . 6. Choose the directory which contains the just language version of driver that you want to install. 7. Execute Setup.exe inside the directory. Please follow the on-screen procedure step by step. Step 2: Launch the Software 1. Turn on the Pocket PC. 2. Select Start > Programs. Bluetooth Keyboard User Manual Page 8

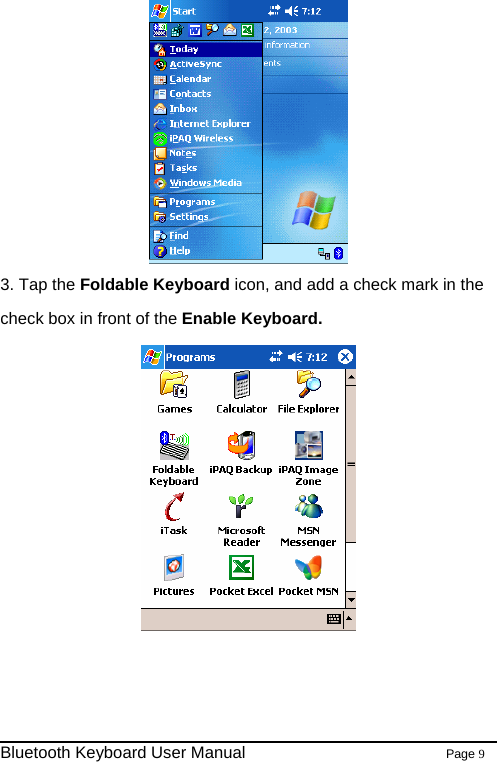

3. Tap the Foldable Keyboard icon, and add a check mark in the check box in front of the Enable Keyboard. Bluetooth Keyboard User Manual Page 9

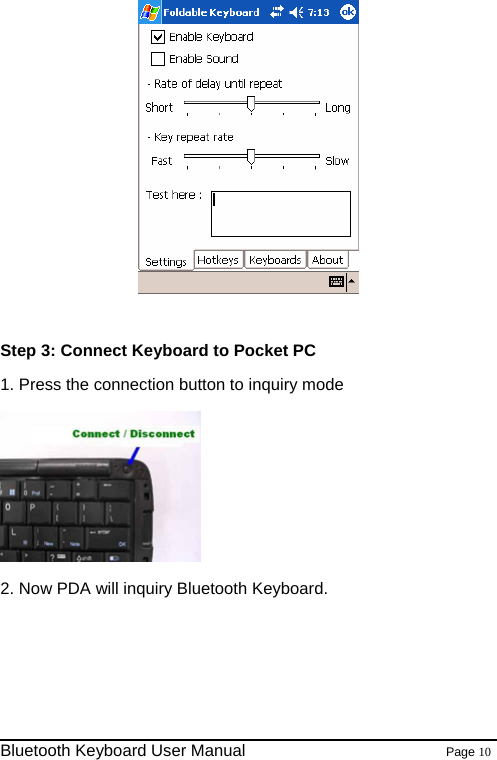

Step 3: Connect Keyboard to Pocket PC 1. Press the connection button to inquiry mode 2. Now PDA will inquiry Bluetooth Keyboard. Bluetooth Keyboard User Manual Page 10

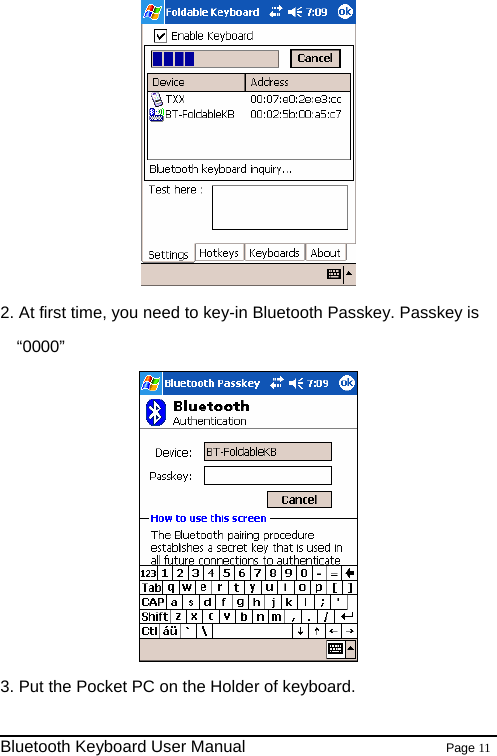

2. At first time, you need to key-in Bluetooth Passkey. Passkey is “0000” 3. Put the Pocket PC on the Holder of keyboard. Bluetooth Keyboard User Manual Page 11

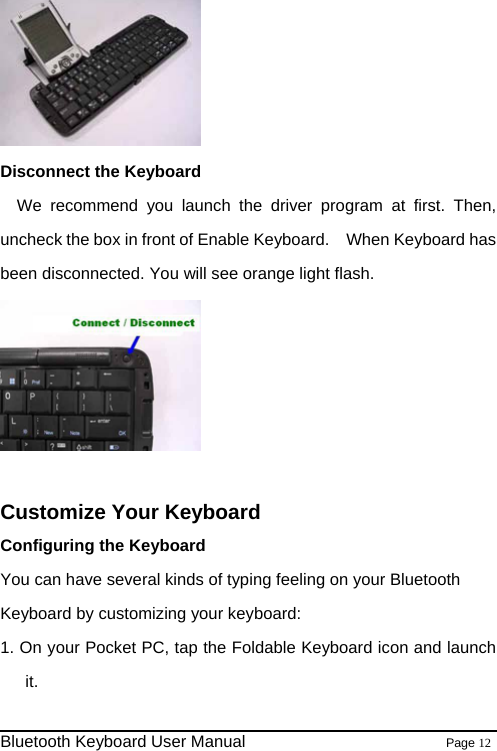

Disconnect the Keyboard We recommend you launch the driver program at first. Then, uncheck the box in front of Enable Keyboard. When Keyboard has been disconnected. You will see orange light flash. Customize Your Keyboard Configuring the Keyboard You can have several kinds of typing feeling on your Bluetooth Keyboard by customizing your keyboard: 1. On your Pocket PC, tap the Foldable Keyboard icon and launch it. Bluetooth Keyboard User Manual Page 12

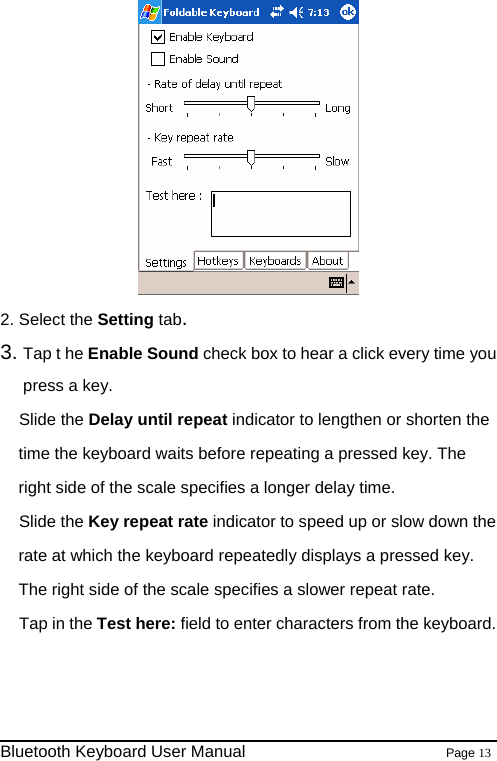

2. Select the Setting tab. 3. Tap t he Enable Sound check box to hear a click every time you press a key. Slide the Delay until repeat indicator to lengthen or shorten the time the keyboard waits before repeating a pressed key. The right side of the scale specifies a longer delay time. Slide the Key repeat rate indicator to speed up or slow down the rate at which the keyboard repeatedly displays a pressed key. The right side of the scale specifies a slower repeat rate. Tap in the Test here: field to enter characters from the keyboard. Bluetooth Keyboard User Manual Page 13

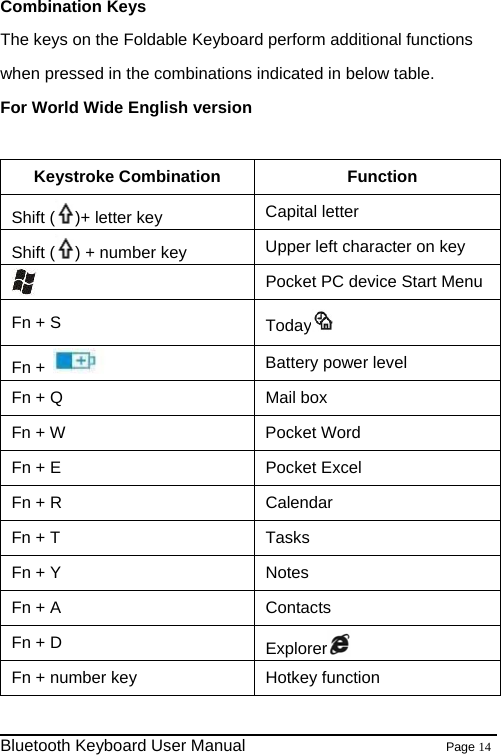

Combination Keys The keys on the Foldable Keyboard perform additional functions when pressed in the combinations indicated in below table. For World Wide English version Keystroke Combination Function Shift ( )+ letter key Capital letter Shift ( ) + number key Upper left character on key Pocket PC device Start MenuFn + S Today Fn + Battery power level Fn + Q Mail box Fn + W Pocket Word Fn + E Pocket Excel Fn + R Calendar Fn + T Tasks Fn + Y Notes Fn + A Contacts Fn + D ExplorerFn + number key Hotkey function Bluetooth Keyboard User Manual Page 14

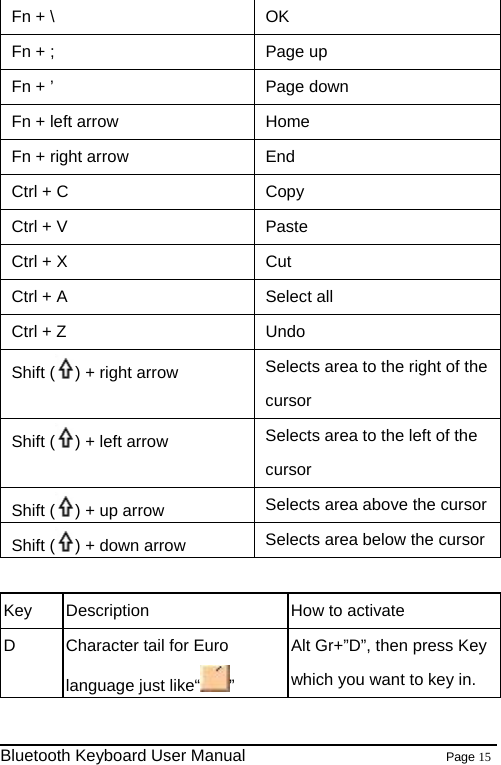

Fn + \ OK Fn + ; Page up Fn + ’ Page down Fn + left arrow Home Fn + right arrow End Ctrl + C Copy Ctrl + V Paste Ctrl + X Cut Ctrl + A Select all Ctrl + Z Undo Shift ( ) + right arrow Selects area to the right of the cursor Shift ( ) + left arrow Selects area to the left of the cursor Shift ( ) + up arrow Selects area above the cursorShift ( ) + down arrow Selects area below the cursor Key Description How to activate D Character tail for Euro language just like“ ” Alt Gr+”D”, then press Key which you want to key in. Bluetooth Keyboard User Manual Page 15

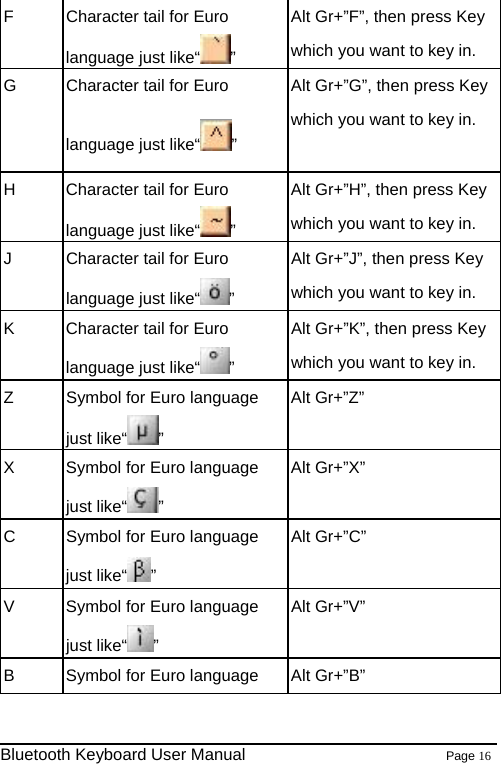

F Character tail for Euro language just like“ ” Alt Gr+”F”, then press Key which you want to key in. G Character tail for Euro language just like“ ” Alt Gr+”G”, then press Key which you want to key in. H Character tail for Euro language just like“ ” Alt Gr+”H”, then press Key which you want to key in. J Character tail for Euro language just like“ ” Alt Gr+”J”, then press Key which you want to key in. K Character tail for Euro language just like“ ” Alt Gr+”K”, then press Key which you want to key in. Z Symbol for Euro language just like“ ” Alt Gr+”Z” X Symbol for Euro language just like“ ” Alt Gr+”X” C Symbol for Euro language just like“ ” Alt Gr+”C” V Symbol for Euro language just like“ ” Alt Gr+”V” B Symbol for Euro language Alt Gr+”B” Bluetooth Keyboard User Manual Page 16

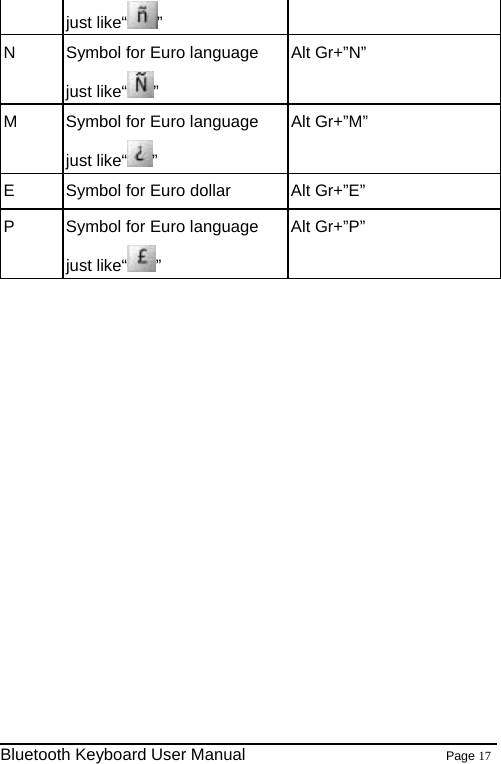

just like“ ” N Symbol for Euro language just like“ ” Alt Gr+”N” M Symbol for Euro language just like“ ” Alt Gr+”M” E Symbol for Euro dollar Alt Gr+”E” P Symbol for Euro language just like“ ” Alt Gr+”P” Bluetooth Keyboard User Manual Page 17

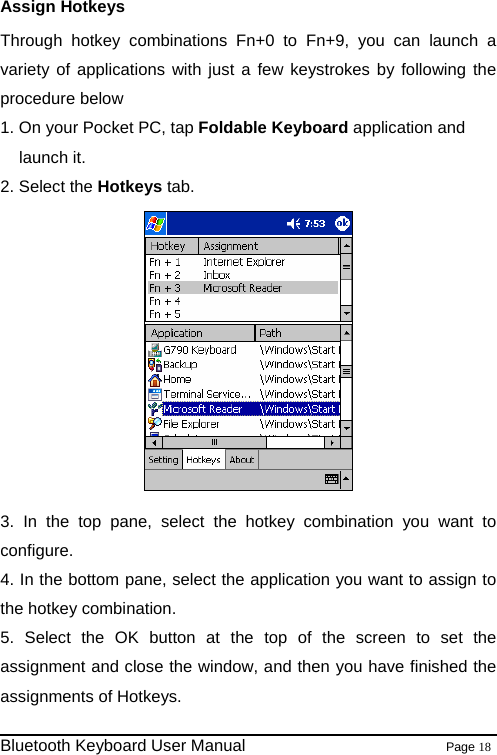

Assign Hotkeys Through hotkey combinations Fn+0 to Fn+9, you can launch a variety of applications with just a few keystrokes by following the procedure below 1. On your Pocket PC, tap Foldable Keyboard application and launch it. 2. Select the Hotkeys tab. 3. In the top pane, select the hotkey combination you want to configure. 4. In the bottom pane, select the application you want to assign to the hotkey combination. 5. Select the OK button at the top of the screen to set the assignment and close the window, and then you have finished the assignments of Hotkeys. Bluetooth Keyboard User Manual Page 18

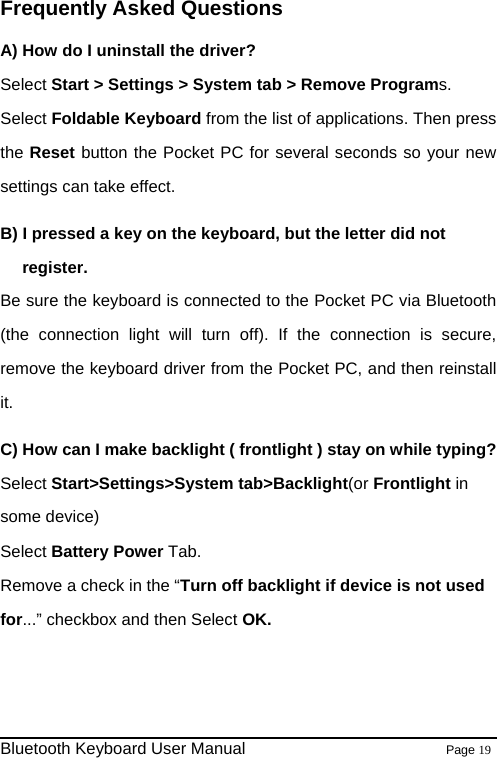

Bluetooth Keyboard User Manual Page 19 Frequently Asked Questions A) How do I uninstall the driver? Select Start > Settings > System tab > Remove Programs. Select Foldable Keyboard from the list of applications. Then press the Reset button the Pocket PC for several seconds so your new settings can take effect. B) I pressed a key on the keyboard, but the letter did not register. Be sure the keyboard is connected to the Pocket PC via Bluetooth (the connection light will turn off). If the connection is secure, remove the keyboard driver from the Pocket PC, and then reinstall it. C) How can I make backlight ( frontlight ) stay on while typing? Select Start>Settings>System tab>Backlight(or Frontlight in some device) Select Battery Power Tab. Remove a check in the “Turn off backlight if device is not used for...” checkbox and then Select OK.

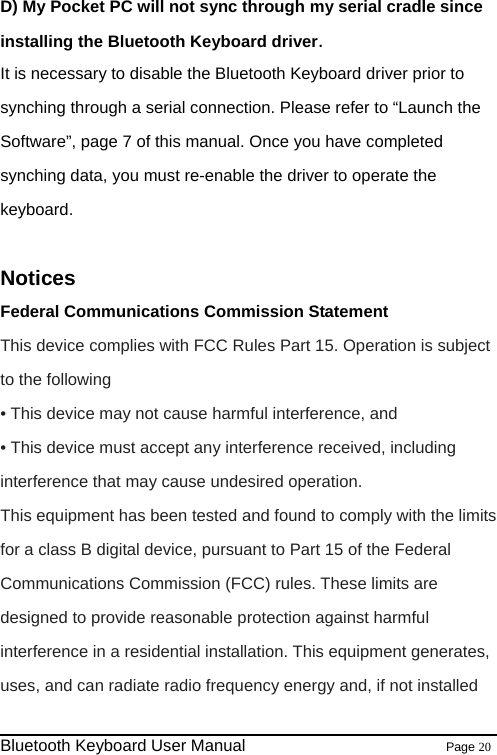

Bluetooth Keyboard User Manual Page 20 D) My Pocket PC will not sync through my serial cradle since installing the Bluetooth Keyboard driver. It is necessary to disable the Bluetooth Keyboard driver prior to synching through a serial connection. Please refer to “Launch the Software”, page 7 of this manual. Once you have completed synching data, you must re-enable the driver to operate the keyboard. Notices Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

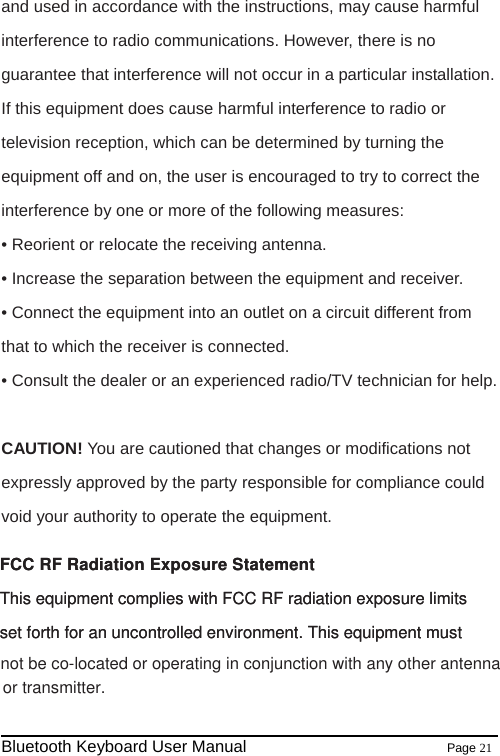

Bluetooth Keyboard User Manual Page 21 and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION! You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limitsset forth for an uncontrolled environment. This equipment must FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limitsset forth for an uncontrolled environment. This equipment must or transmitter. not be co-located or operating in conjunction with any other antenna
