Darfon Electronics H401 Bluetooth Audio Dongle User Manual

Darfon Electronics Corp Bluetooth Audio Dongle

User manual

HP Bluetooth Active Noise CancellationStereoHeadphonesUser GuideAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
© Copyright 2007 Hewlett-PackardDevelopment Company, L.P.Windows is a U.S. registered trademark ofMicrosoft Corporation. Bluetooth is atrademark owned by its proprietor and usedby Hewlett-Packard Company under license.The information contained herein is subjectto change without notice. The onlywarranties for HP products and services areset forth in the express warranty statementsaccompanying such products and services.Nothing herein should be construed asconstituting an additional warranty. HP shallnot be liable for technical or editorial errorsor omissions contained herein.First Edition: November 2007Document Part Number: 459160-001Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

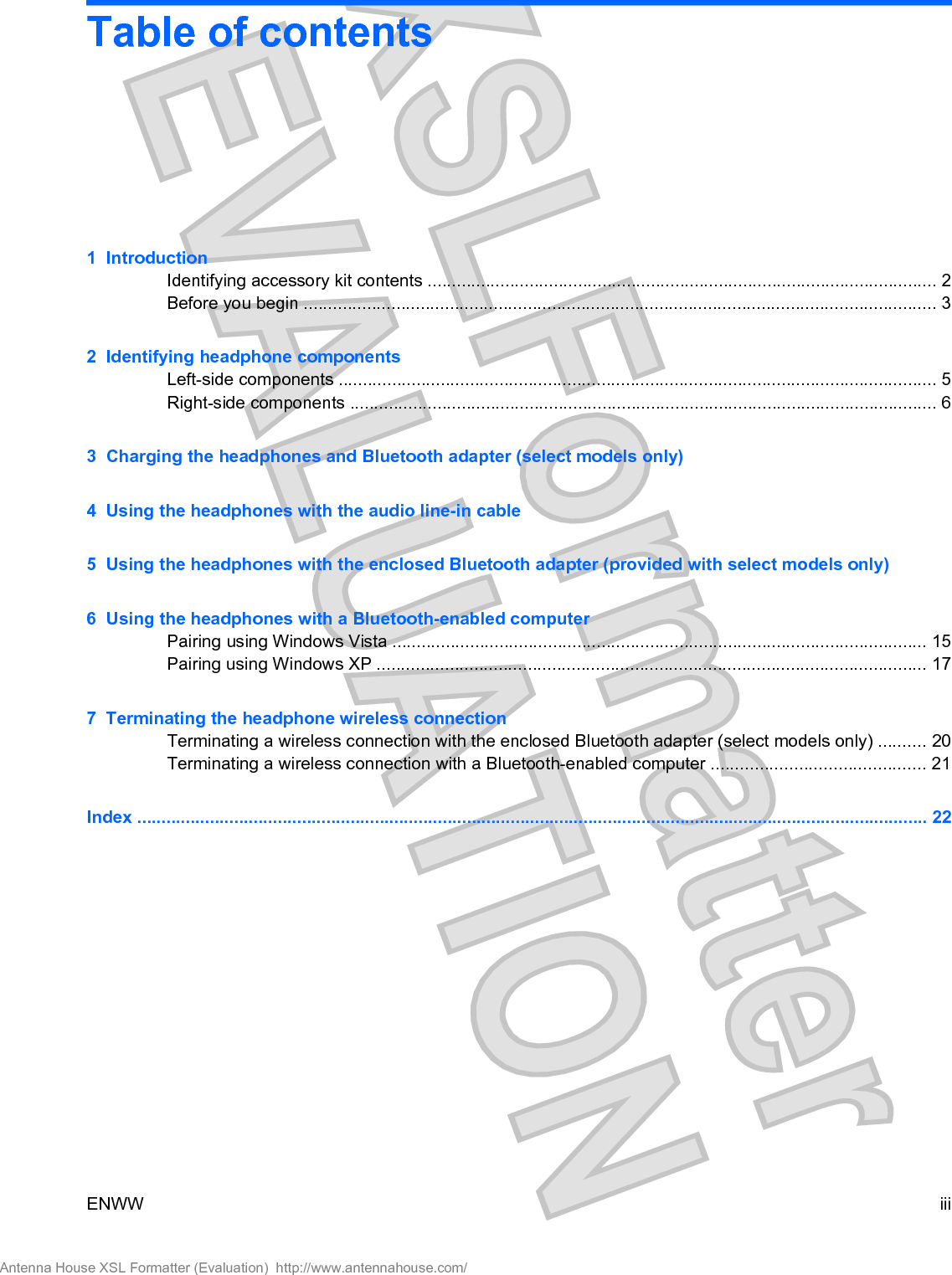

Table of contents1 IntroductionIdentifying accessory kit contents ......................................................................................................... 2Before you begin .................................................................................................................................. 32 Identifying headphone componentsLeft-side components ........................................................................................................................... 5Right-side components ......................................................................................................................... 63 Charging the headphones and Bluetooth adapter (select models only)4 Using the headphones with the audio line-in cable5 Using the headphones with the enclosed Bluetooth adapter (provided with select models only)6 Using the headphones with a Bluetooth-enabled computerPairing using Windows Vista .............................................................................................................. 15Pairing using Windows XP ................................................................................................................. 177 Terminating the headphone wireless connectionTerminating a wireless connection with the enclosed Bluetooth adapter (select models only) .......... 20Terminating a wireless connection with a Bluetooth-enabled computer ............................................ 21Index ................................................................................................................................................................... 22ENWW iiiAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
iv ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

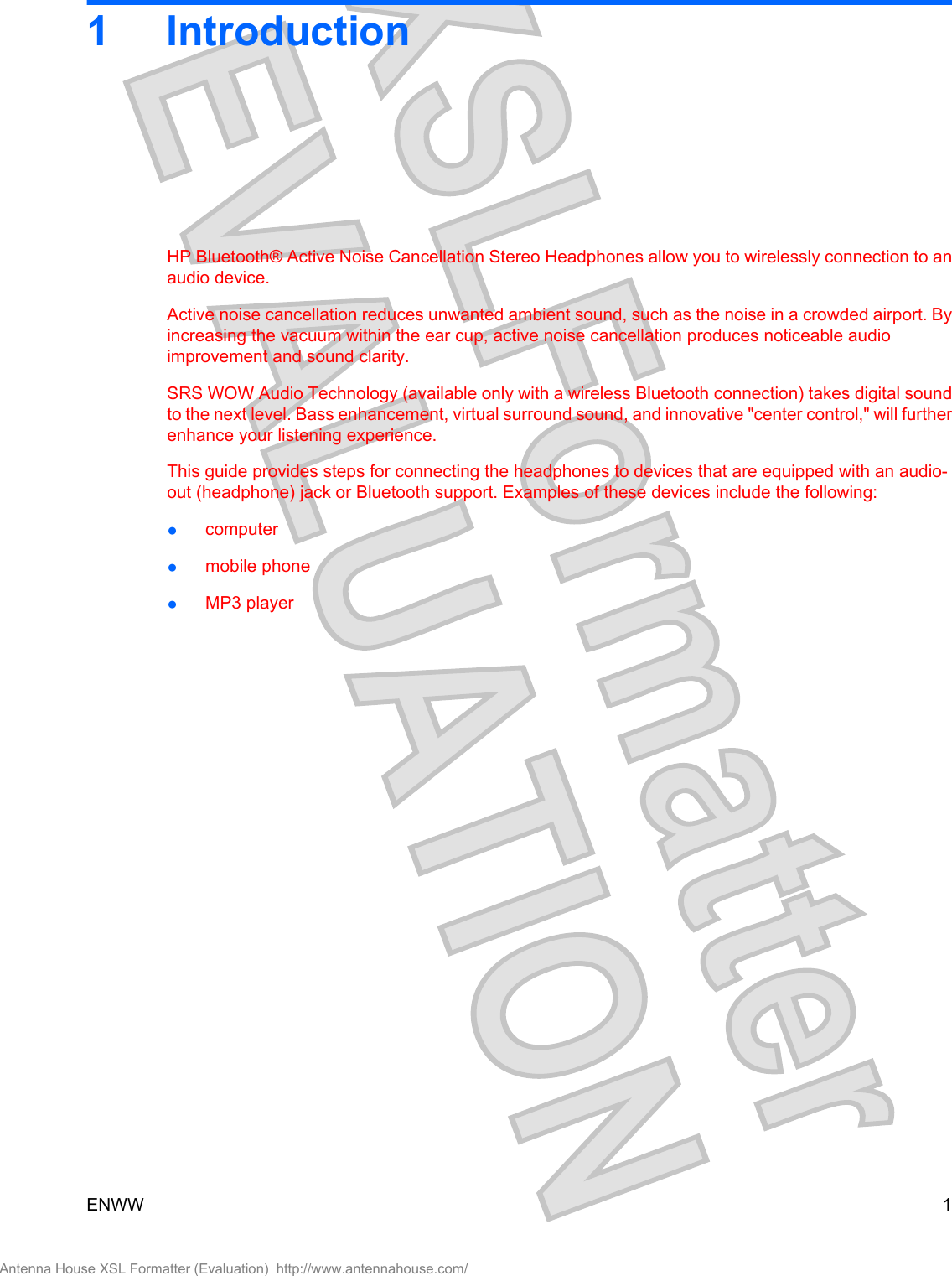

1 IntroductionHP Bluetooth® Active Noise Cancellation Stereo Headphones allow you to wirelessly connection to anaudio device.Active noise cancellation reduces unwanted ambient sound, such as the noise in a crowded airport. Byincreasing the vacuum within the ear cup, active noise cancellation produces noticeable audioimprovement and sound clarity.SRS WOW Audio Technology (available only with a wireless Bluetooth connection) takes digital soundto the next level. Bass enhancement, virtual surround sound, and innovative "center control," will furtherenhance your listening experience.This guide provides steps for connecting the headphones to devices that are equipped with an audio-out (headphone) jack or Bluetooth support. Examples of these devices include the following:●computer●mobile phone●MP3 playerENWW 1Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

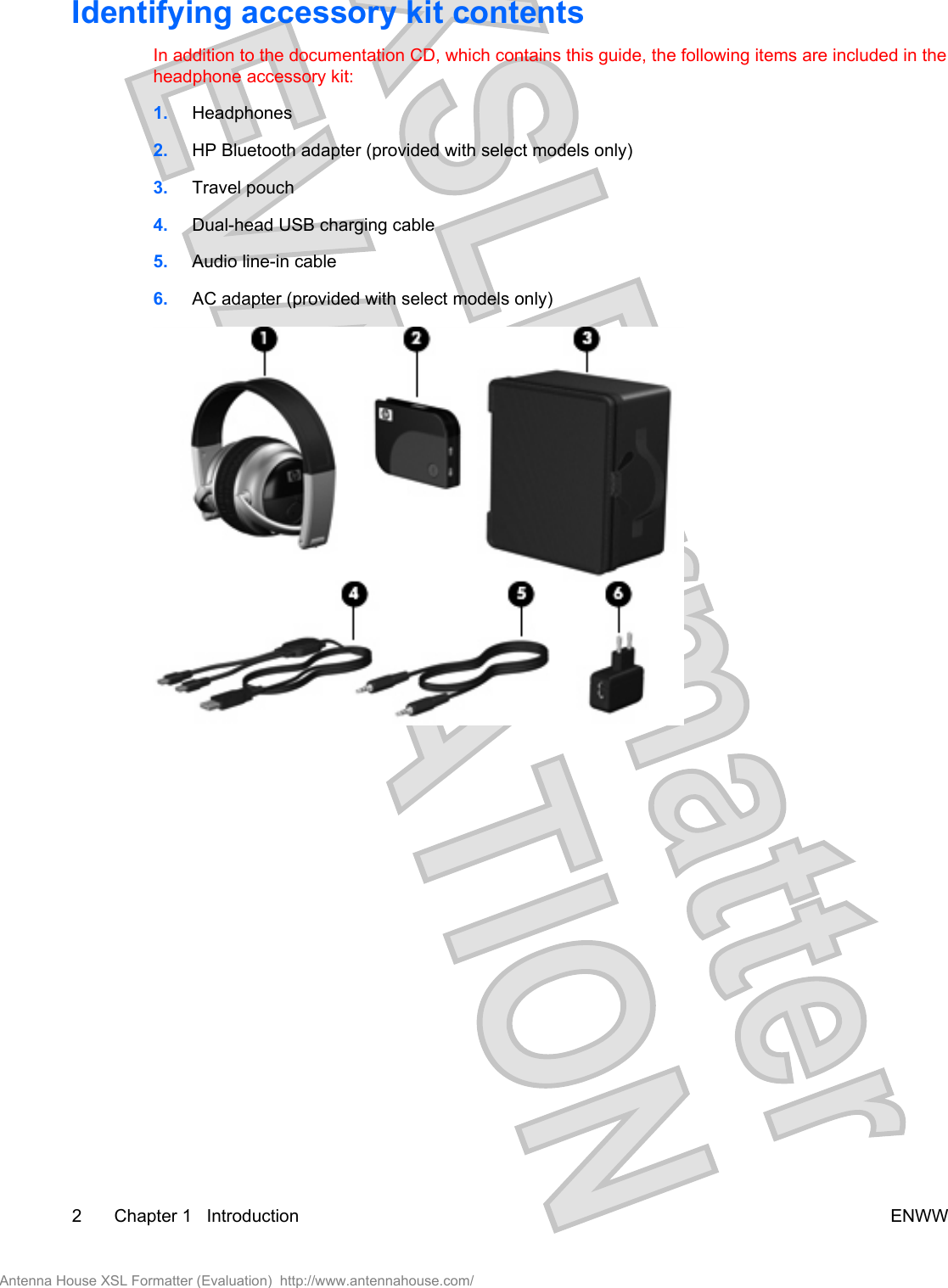

Identifying accessory kit contentsIn addition to the documentation CD, which contains this guide, the following items are included in theheadphone accessory kit:1. Headphones2. HP Bluetooth adapter (provided with select models only)3. Travel pouch4. Dual-head USB charging cable5. Audio line-in cable6. AC adapter (provided with select models only)2 Chapter 1 Introduction ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

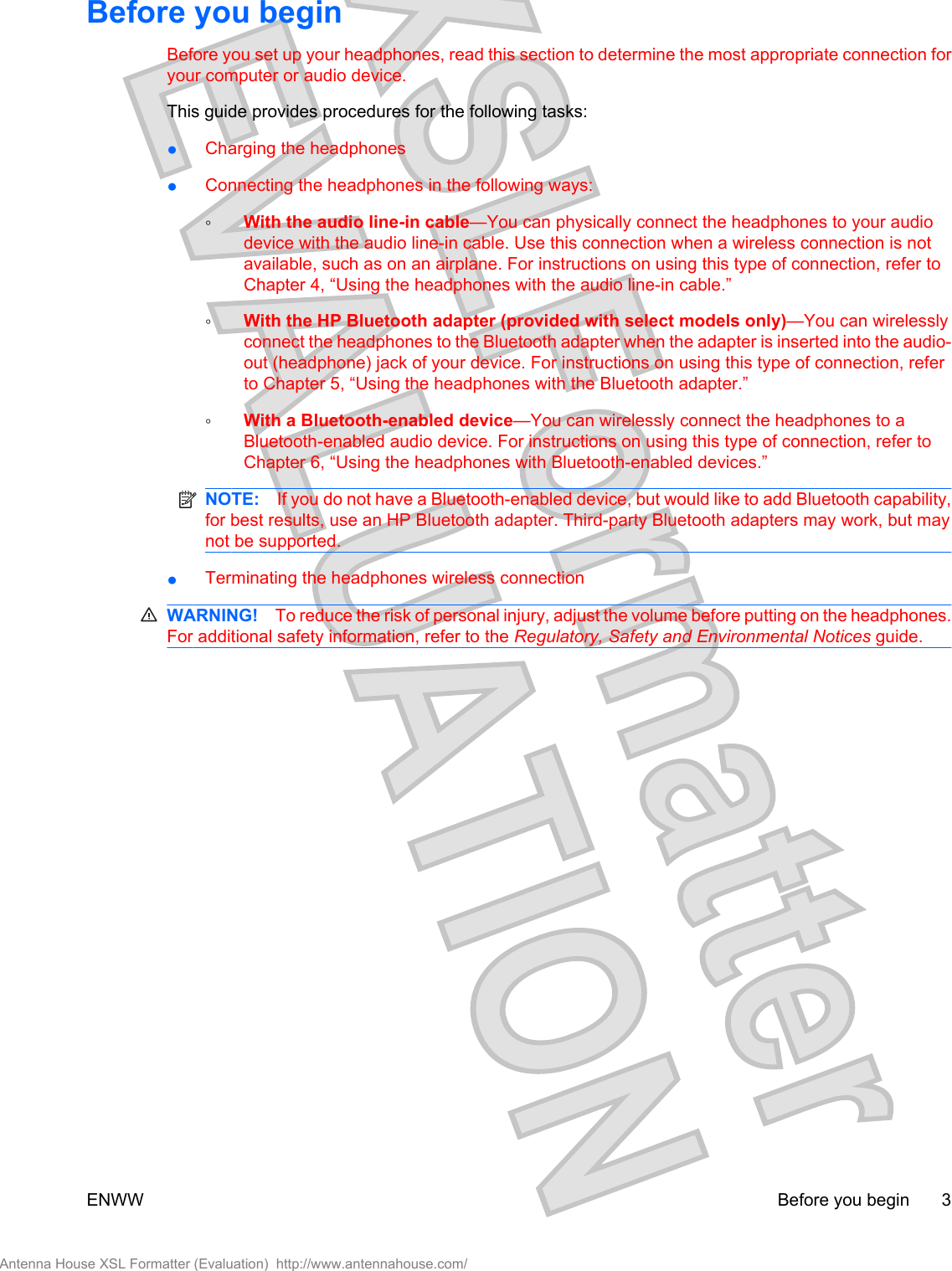

Before you beginBefore you set up your headphones, read this section to determine the most appropriate connection foryour computer or audio device.This guide provides procedures for the following tasks:●Charging the headphones●Connecting the headphones in the following ways:◦With the audio line-in cable—You can physically connect the headphones to your audiodevice with the audio line-in cable. Use this connection when a wireless connection is notavailable, such as on an airplane. For instructions on using this type of connection, refer toChapter 4, “Using the headphones with the audio line-in cable.”◦With the HP Bluetooth adapter (provided with select models only)—You can wirelesslyconnect the headphones to the Bluetooth adapter when the adapter is inserted into the audio-out (headphone) jack of your device. For instructions on using this type of connection, referto Chapter 5, “Using the headphones with the Bluetooth adapter.”◦With a Bluetooth-enabled device—You can wirelessly connect the headphones to aBluetooth-enabled audio device. For instructions on using this type of connection, refer toChapter 6, “Using the headphones with Bluetooth-enabled devices.”NOTE: If you do not have a Bluetooth-enabled device, but would like to add Bluetooth capability,for best results, use an HP Bluetooth adapter. Third-party Bluetooth adapters may work, but maynot be supported.●Terminating the headphones wireless connectionWARNING! To reduce the risk of personal injury, adjust the volume before putting on the headphones.For additional safety information, refer to the Regulatory, Safety and Environmental Notices guide.ENWW Before you begin 3Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

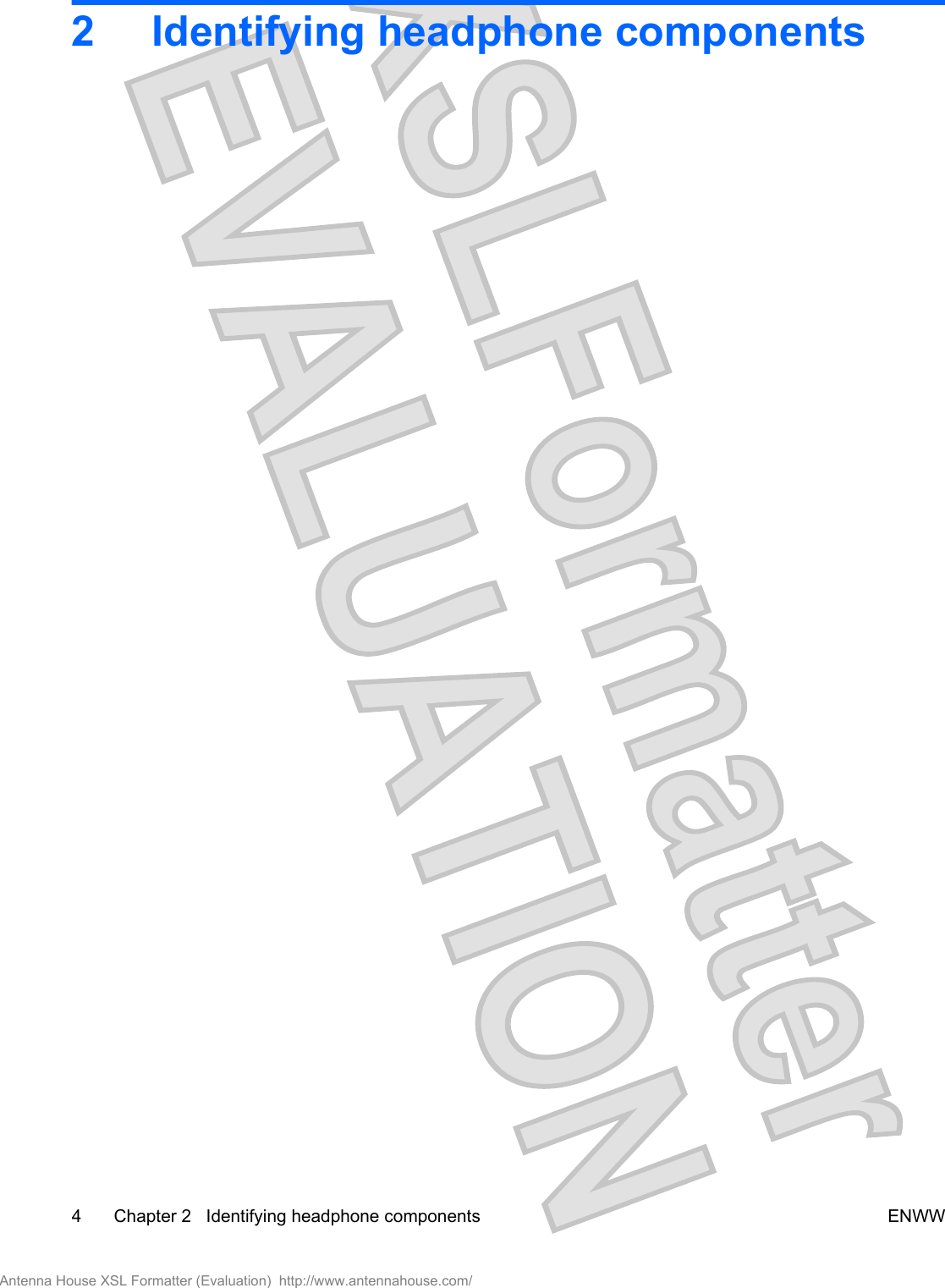

2 Identifying headphone components4 Chapter 2 Identifying headphone components ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

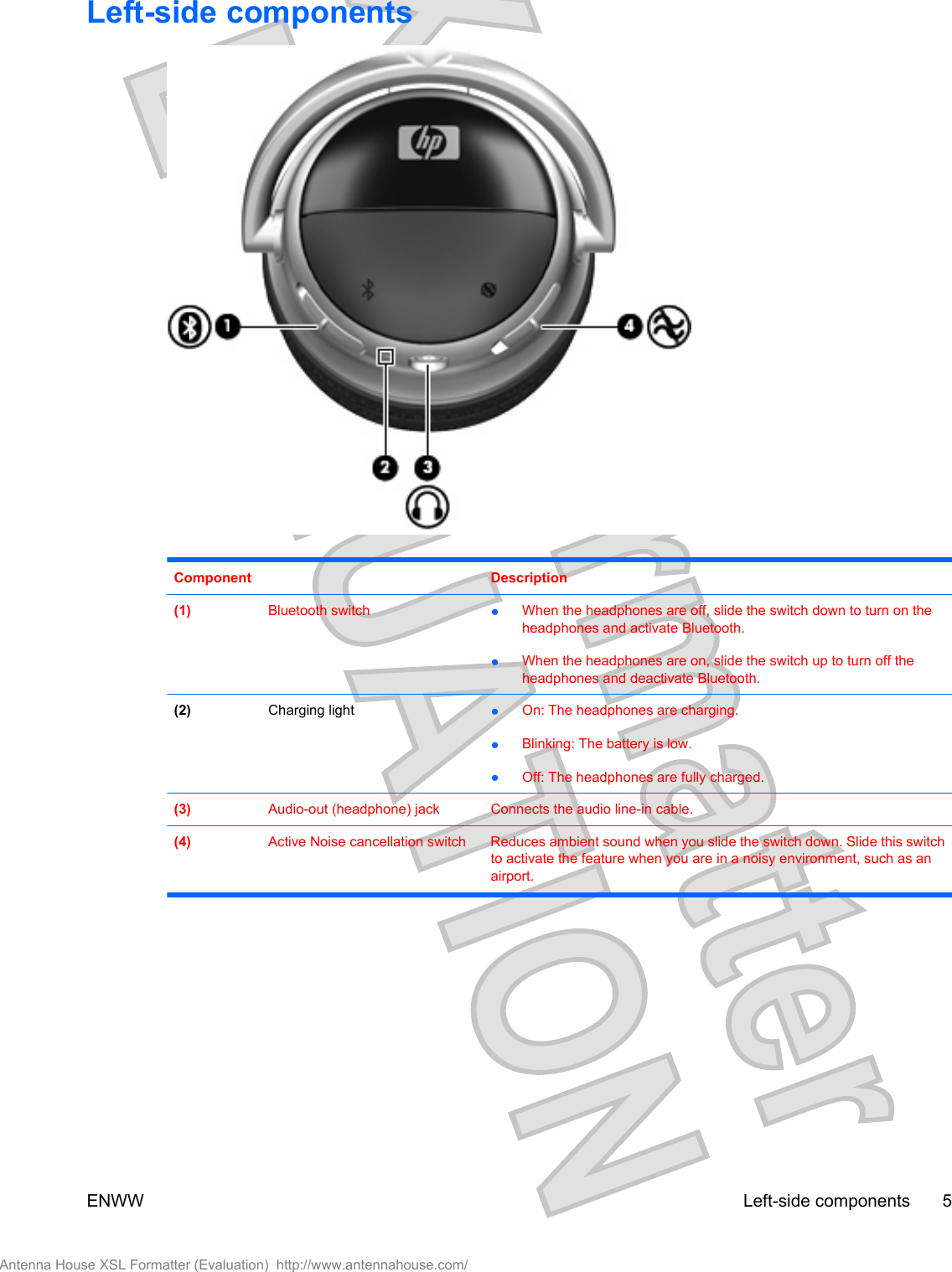

Left-side componentsComponent Description(1) Bluetooth switch ●When the headphones are off, slide the switch down to turn on theheadphones and activate Bluetooth.●When the headphones are on, slide the switch up to turn off theheadphones and deactivate Bluetooth.(2) Charging light ●On: The headphones are charging.●Blinking: The battery is low.●Off: The headphones are fully charged.(3) Audio-out (headphone) jack Connects the audio line-in cable.(4) Active Noise cancellation switch Reduces ambient sound when you slide the switch down. Slide this switchto activate the feature when you are in a noisy environment, such as anairport.ENWW Left-side components 5Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

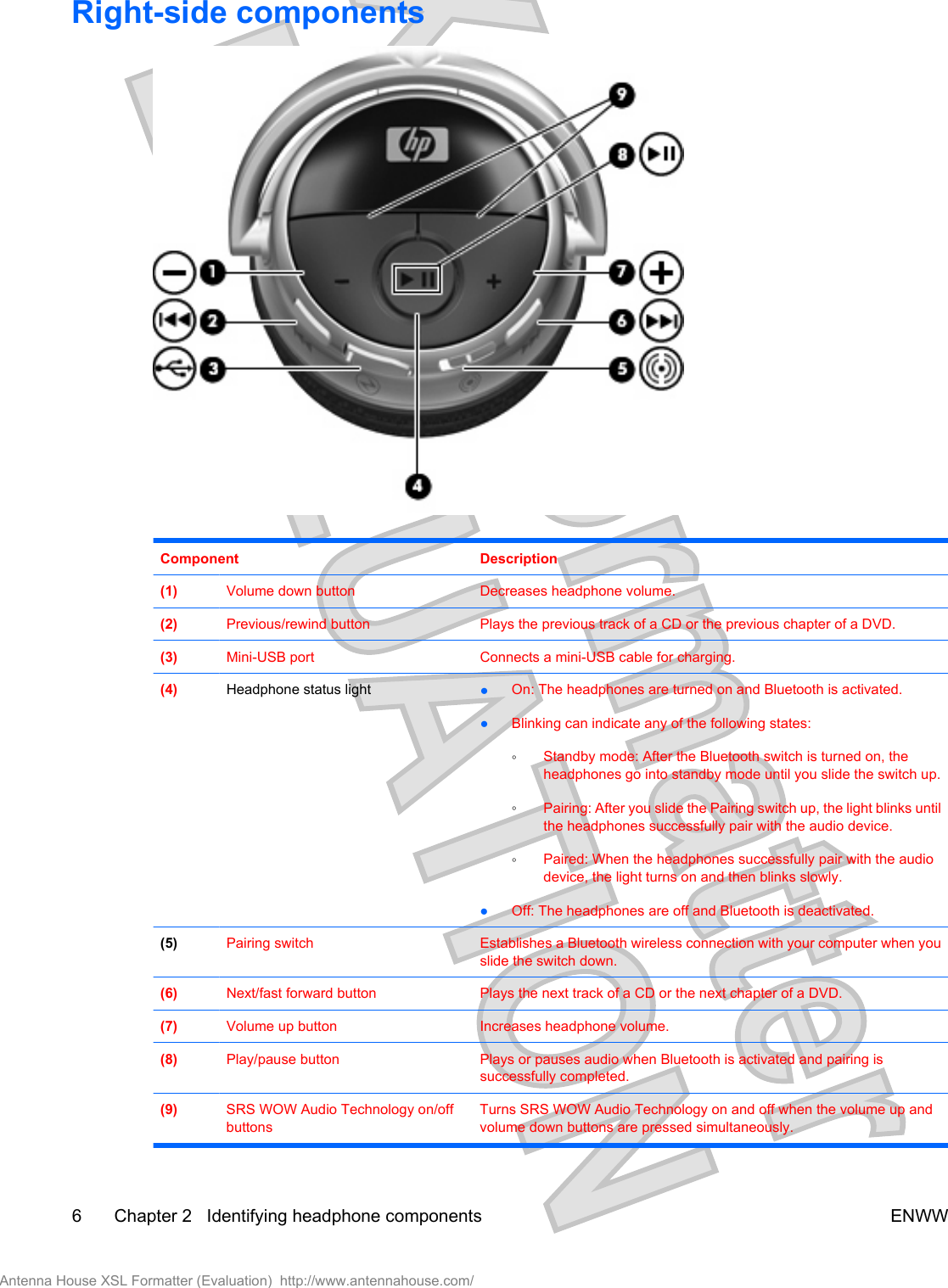

Right-side componentsComponent Description(1) Volume down button Decreases headphone volume.(2) Previous/rewind button Plays the previous track of a CD or the previous chapter of a DVD.(3) Mini-USB port Connects a mini-USB cable for charging.(4) Headphone status light ●On: The headphones are turned on and Bluetooth is activated.●Blinking can indicate any of the following states:◦Standby mode: After the Bluetooth switch is turned on, theheadphones go into standby mode until you slide the switch up.◦Pairing: After you slide the Pairing switch up, the light blinks untilthe headphones successfully pair with the audio device.◦Paired: When the headphones successfully pair with the audiodevice, the light turns on and then blinks slowly.●Off: The headphones are off and Bluetooth is deactivated.(5) Pairing switch Establishes a Bluetooth wireless connection with your computer when youslide the switch down.(6) Next/fast forward button Plays the next track of a CD or the next chapter of a DVD.(7) Volume up button Increases headphone volume.(8) Play/pause button Plays or pauses audio when Bluetooth is activated and pairing issuccessfully completed.(9) SRS WOW Audio Technology on/offbuttonsTurns SRS WOW Audio Technology on and off when the volume up andvolume down buttons are pressed simultaneously.6 Chapter 2 Identifying headphone components ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

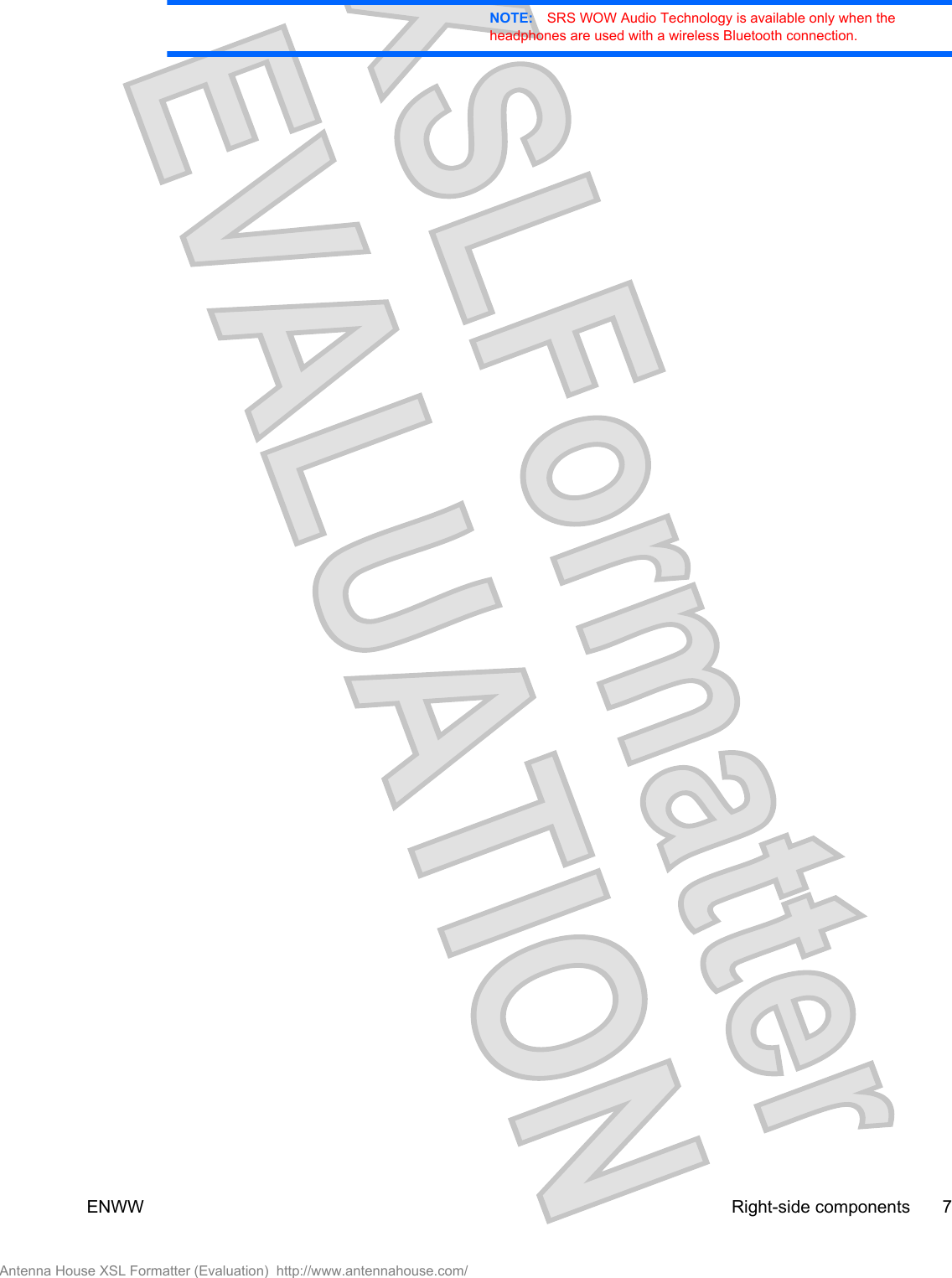

NOTE: SRS WOW Audio Technology is available only when theheadphones are used with a wireless Bluetooth connection.ENWW Right-side components 7Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/

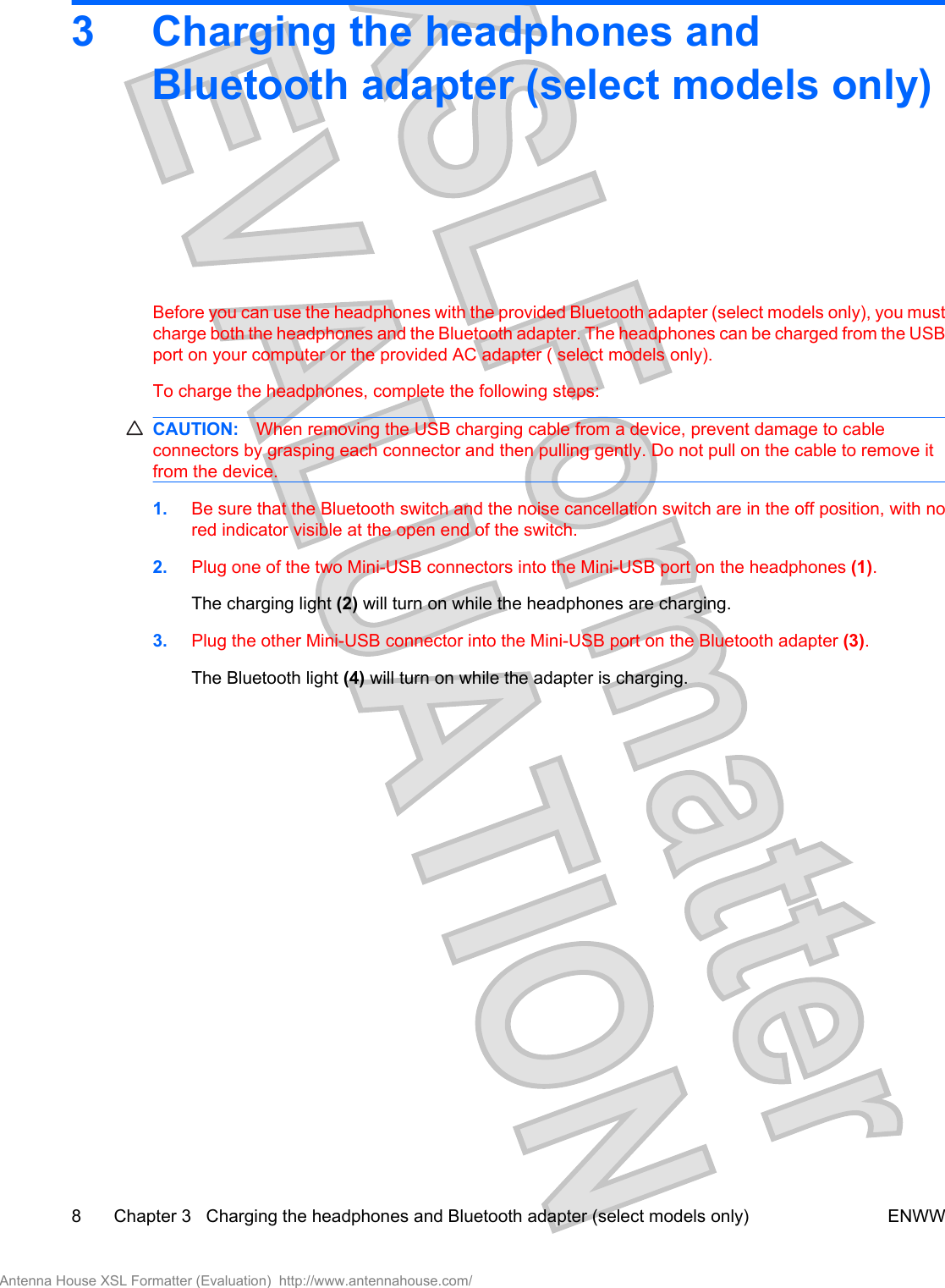

3 Charging the headphones andBluetooth adapter (select models only)Before you can use the headphones with the provided Bluetooth adapter (select models only), you mustcharge both the headphones and the Bluetooth adapter. The headphones can be charged from the USBport on your computer or the provided AC adapter ( select models only).To charge the headphones, complete the following steps:CAUTION: When removing the USB charging cable from a device, prevent damage to cableconnectors by grasping each connector and then pulling gently. Do not pull on the cable to remove itfrom the device.1. Be sure that the Bluetooth switch and the noise cancellation switch are in the off position, with nored indicator visible at the open end of the switch.2. Plug one of the two Mini-USB connectors into the Mini-USB port on the headphones (1).The charging light (2) will turn on while the headphones are charging.3. Plug the other Mini-USB connector into the Mini-USB port on the Bluetooth adapter (3).The Bluetooth light (4) will turn on while the adapter is charging.8 Chapter 3 Charging the headphones and Bluetooth adapter (select models only) ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4. Plug the USB connector into the USB port on the AC adapter or computer (5).5. If you are using the AC adapter, plug the AC adapter into an AC outlet.WARNING! To reduce the risk of electric shock or damage to the equipment, plug the AC adapterinto an AC outlet that is easily accessible at all times.The charging light on the left ear cup and on the Bluetooth adapter will turn on while the devices arecharging and will turn off upon full charge. After the charging lights turn off, the headphones andBluetooth adapter are fully charged and ready to use.ENWW 9Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
While the headphones and Bluetooth adapter are charging through the USB port on your computer, youcan use the audio line-in cable with the headphones to listen to computer audio.For instructions on using the headphones this way, see the Chapter 4, “Using the headphones with theaudio line-in cable.”NOTE: For safety and regulatory information, refer to the Regulatory, Safety and EnvironmentalNotices .10 Chapter 3 Charging the headphones and Bluetooth adapter (select models only) ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4 Using the headphones with the audioline-in cableTo use the headphones with the audio line-in cable, follow these steps:1. Make sure that the Bluetooth switch and the noise cancellation switch are in the off position, withno red indicator visible at the open end of the switch.2. Plug one end of the audio line-in cable into the audio-out (headphone) jack on the left ear cup.3. Plug the other end of the audio line-in cable into the audio-out (headphone) jack on your audiodevice, such as a computer, mobile phone, or MP3 player.4. Open your media player software, if necessary. You can begin listening to music or watching avideo.ENWW 11Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
5 Using the headphones with theenclosed Bluetooth adapter (providedwith select models only)Before using the headphones, be sure that the headphones and provided Bluetooth adapter (selectmodels only) are charged.To use the headphones with the Bluetooth adapter, follow these steps:1. Slide the Bluetooth switch located on the left ear cup (1) to turn on the headphones and activateBluetooth.A red indicator (2) is visible, indicating that the headphones are turned on.12 Chapter 5 Using the headphones with the enclosed Bluetooth adapter (provided with selectmodels only)ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
2. When the headphones and Bluetooth adapter are being used for the first time, slide the pairingswitch to turn on pairing. In subsequent uses, pairing does not need to be turned on.3. Plug the Bluetooth adapter into the audio-out (headphone) jack of your audio device, such as acomputer, mobile phone, or MP3 player (1).4. Slide the power switch to turn on the Bluetooth adapter (2).A red indicator is visible (3) when the Bluetooth adapter is turned on.5. Slide the Pairing switch (4) to make the adapter discoverable by your headphones.The Bluetooth light (5) turns on to indicate that the adapter is in Pairing mode.You are now ready to use the headphones. Open your media player software and begin listening tomusic, or watching a video.ENWW 13Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
6 Using the headphones with a Bluetooth-enabled computerNOTE: To determine whether your computer is Bluetooth-enabled, look for the Bluetooth icon in thenotification area at the far right of the taskbar on the computer screen.Before using the headphones, be sure that the following conditions are met:●The headphones are charged.●Your computer battery is fully charged.●Your computer is turned on.●Your computer is a Bluetooth-enabled device.Before you can use the headphones, you must establish a Bluetooth wireless connection with yourcomputer, a process called pairing. Choose one of the following two sections, depending on theoperating system on your computer, and follow the steps.14 Chapter 6 Using the headphones with a Bluetooth-enabled computer ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Pairing using Windows VistaNOTE: Be sure that the computer Bluetooth device is on and enabled. For more information, selectStart > Help and Support > User Guides.To pair the headphones using Windows Vista®, follow these steps:1. Slide the Bluetooth switch located on the left ear cup to turn on the headphones and activateBluetooth.A red indicator is visible (2) indicating that the headphones are on.2. Slide the pairing switch on the right ear cup of the headphones to make the headphonesdiscoverable by your computer.3. Select Start > Control Panel > Hardware and Sound > Bluetooth Devices.The Add Bluetooth Device Wizard opens.ENWW Pairing using Windows Vista 15Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
4. On the Devices tab, click Add.5. Click My device is set up and ready to be found, and then click Next.6. When the headphones icon is displayed on the screen, click HP Bluetooth Audio EnthusiastHeadphone, and then click Next.7. Click Don't use a passkey, and then click Next.8. When the Add Bluetooth Device Wizard completes connecting the headphones, click Finish toclose the wizard.The headphones are now ready for use.16 Chapter 6 Using the headphones with a Bluetooth-enabled computer ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Pairing using Windows XPNOTE: Be sure that the computer Bluetooth device is on and enabled. For more information, selectStart > Help and Support > User Guides.To pair the headphones using Windows® XP, follow these steps:1. Slide the Bluetooth switch located on the left ear cup to turn on the headphones and activateBluetooth.A red indicator is visible (2), indicating that the headphones are on.2. Slide the pairing switch on the right ear cup of the headphones to make the headphonesdiscoverable by your computer.ENWW Pairing using Windows XP 17Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
3. Open the Bluetooth Devices dialog box by completing either of the following steps:●Double-click the Bluetooth icon in the notification area, at the far right of the taskbar on thecomputer screen.–or–●Select Start > Control Panel > Bluetooth Devices.4. Under Bluetooth Places, click View Devices in Range in the Bluetooth Tasks section.5. Right-click the HP Bluetooth Audio Enthusiast Headphone icon.6. Click Pair to pair the device.7. Type 0000 as the code to pair the device.8. Right-click the HP Bluetooth Audio Enthusiast Headphone icon.9. Click Connect.You are now ready to use the headphones.18 Chapter 6 Using the headphones with a Bluetooth-enabled computer ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
7 Terminating the headphone wirelessconnectionWhen you finish using the headphones, you should terminate the wireless connection with yourcomputer or audio device.Choose one of the following two sections and follow the steps for terminating the connection with theBluetooth adapter or with a Bluetooth-enabled device.ENWW 19Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Terminating a wireless connection with the enclosedBluetooth adapter (select models only)To terminate the connection, complete the following steps:1. Slide the Bluetooth switch located on the left ear cup to turn off the headphones and deactivateBluetooth.2. If this was the first use of the headphones and Bluetooth adapter, and the pairing switch is in theon position, slide the pairing switch up to turn off pairing. In subsequent use, it is not necessary toturn on pairing to establish a wireless connection with the Bluetooth adapter.3. Slide the power switch to turn off the Bluetooth adapter (1).4. Unplug the Bluetooth adapter from the audio-out (headphone) jack (2) of your computer or audiodevice.20 Chapter 7 Terminating the headphone wireless connection ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Terminating a wireless connection with a Bluetooth-enabled computerTo terminate the connection, complete the following steps:1. Slide the Bluetooth switch located on the left ear cup to turn off the headphones and deactivateBluetooth.2. Open the Bluetooth Devices dialog box in one of the following ways:●Double-click the Bluetooth icon in the notification area, at the far right of the taskbar on thecomputer screen.●In Windows Vista, select Start > Control Panel > Hardware and Sound > BluetoothDevices.–or–●In Windows XP, select Start > Control Panel > Bluetooth Devices.3. Under Bluetooth Places, click View Devices in Range in the Bluetooth Tasks section.4. Right-click the HP Bluetooth Audio Enthusiast Headphone icon.5. Click Disconnect.6. Click Unpair.Your headphones can now be paired with another device.ENWW Terminating a wireless connection with a Bluetooth-enabled computer 21Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
IndexAaudio-out (headphone) jack,identifying 5BBluetooth switch, identifying 5buttonsnext/fast forward 6play/pause 6previous/rewind 6SRS 6volume down 6volume up 6CchargingBluetooth adapter 8headphones 8Jjackaudio-out (headphone) 5Nnext/fast forward button,identifying 6noise cancellation switch,identifying 5Ppairing switch, identifying 6play/pause button, identifying 6previous/rewind button,identifying 6SSRS buttons, identifying 6switchesBluetooth 5noise cancellation 5pairing 6Vvolume down button,identifying 6volume up button, identifying 622 Index ENWWAntenna House XSL Formatter (Evaluation) http://www.antennahouse.com/
Antenna House XSL Formatter (Evaluation) http://www.antennahouse.com/FCC Statement FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. " CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment."
