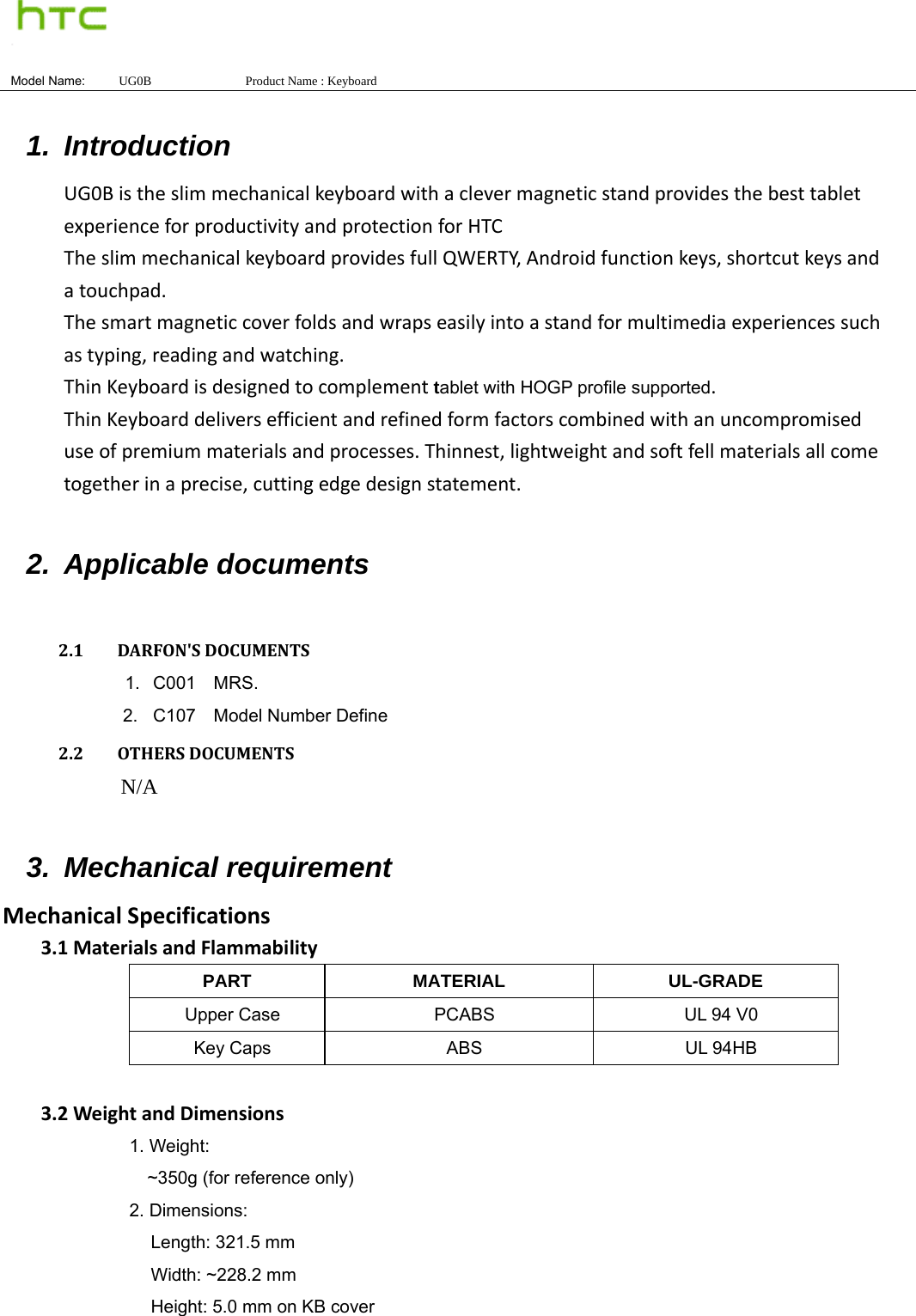

Model Name: UG0B Product Name : Keyboard 1. Introduction UG0BistheslimmechanicalkeyboardwithaclevermagneticstandprovidesthebesttabletexperienceforproductivityandprotectionforHTCTheslimmechanicalkeyboardprovidesfullQWERTY,Androidfunctionkeys,shortcutkeysandatouchpad.Thesmartmagneticcoverfoldsandwrapseasilyintoastandformultimediaexperiencessuchastyping,readingandwatching.ThinKeyboardisdesignedtocomplement tablet with HOGP profile supported.ThinKeyboarddeliversefficientandrefinedformfactorscombinedwithanuncompromiseduseofpremiummaterialsandprocesses.Thinnest,lightweightandsoftfellmaterialsallcometogetherinaprecise,cuttingedgedesignstatement. 2. Applicable documents 2.1 DARFON'SDOCUMENTS1. C001 MRS. 2. C107 Model Number Define 2.2 OTHERSDOCUMENTSN/A 3. Mechanical requirement MechanicalSpecifications3.1 MaterialsandFlammabilityPART MATERIAL UL-GRADE Upper Case PCABS UL 94 V0 Key Caps ABS UL 94HB 3.2 WeightandDimensions1. Weight: ~350g (for reference only) 2. Dimensions: Length: 321.5 mm Width: ~228.2 mm Height: 5.0 mm on KB cover

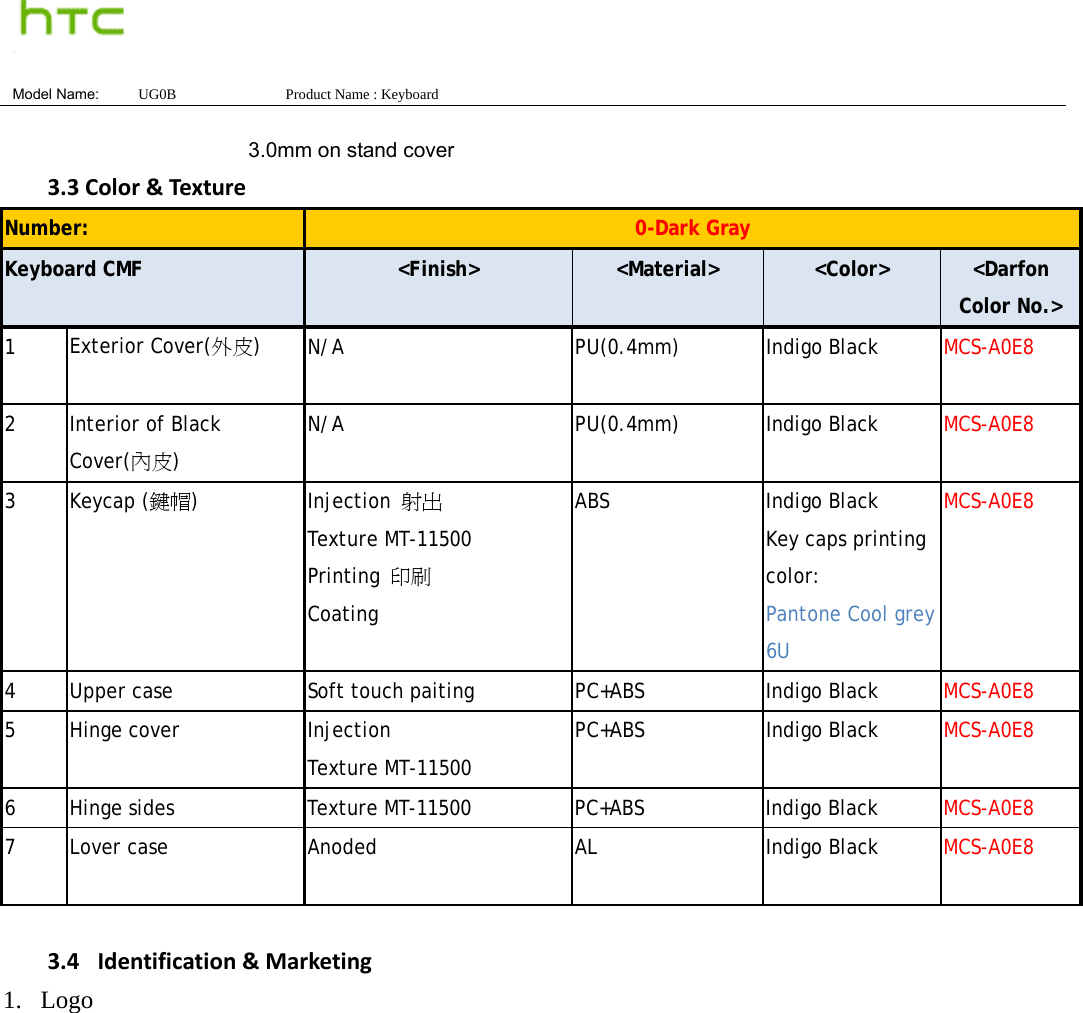

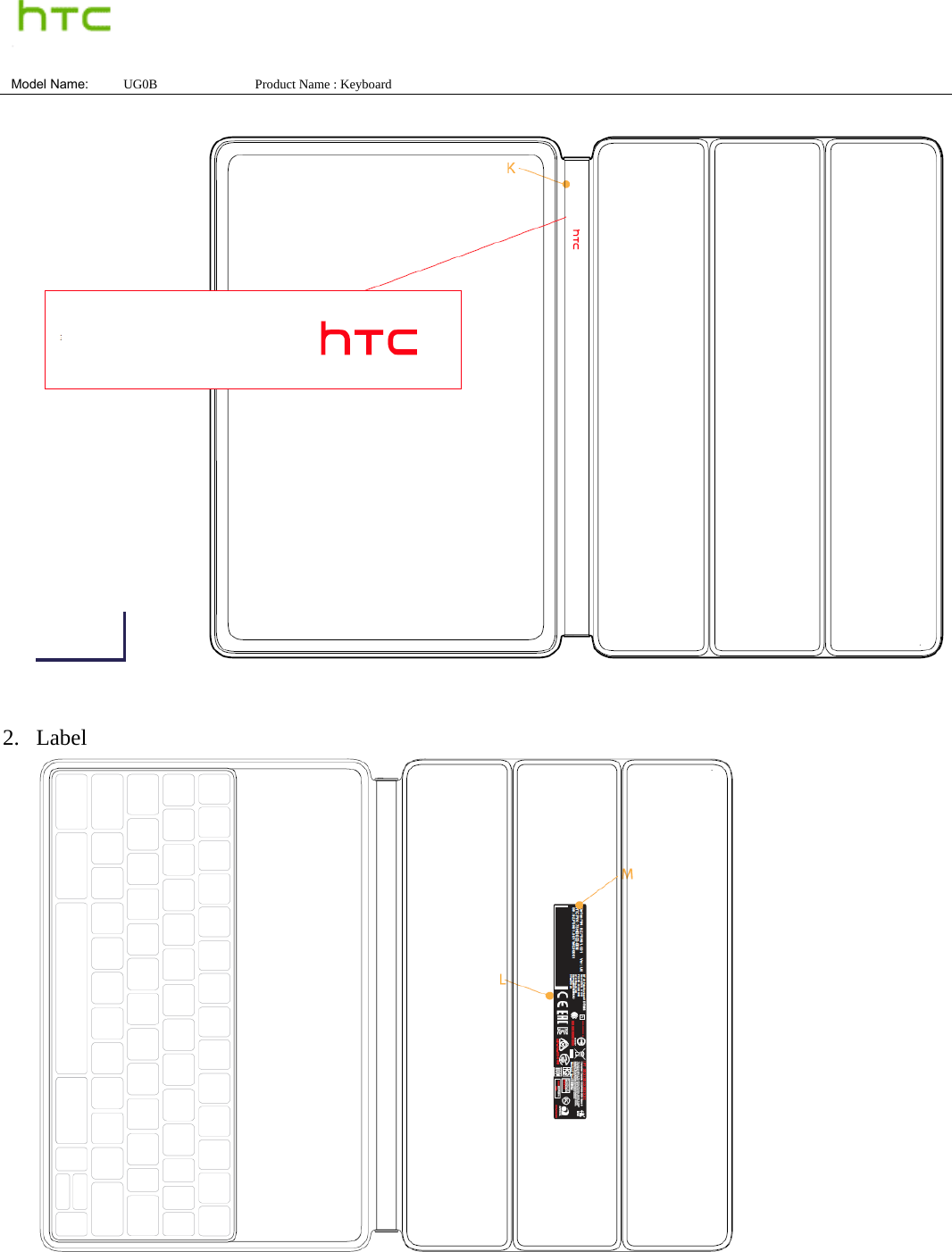

Model Name: UG0B Product Name : Keyboard 3.0mm on stand cover 3.3 Color&TextureNumber: 0-Dark Gray Keyboard CMF <Finish> <Material> <Color> <Darfon Color No.> 1 Exterior Cover(外皮) N/A PU(0.4mm) Indigo Black MCS-A0E8 2 Interior of Black Cover(內皮) N/A PU(0.4mm) Indigo Black MCS-A0E8 3 Keycap (鍵帽) Injection 射出 Texture MT-11500 Printing 印刷 Coating ABS Indigo Black Key caps printing color: Pantone Cool grey 6U MCS-A0E8 4 Upper case Soft touch paiting PC+ABS Indigo Black MCS-A0E8 5 Hinge cover Injection Texture MT-11500 PC+ABS Indigo Black MCS-A0E8 6 Hinge sides Texture MT-11500 PC+ABS Indigo Black MCS-A0E8 7 Lover case Anoded AL Indigo Black MCS-A0E8 3.4 Identification&Marketing1. Logo
Model Name: UG0B Product Name : Keyboard 2. Label

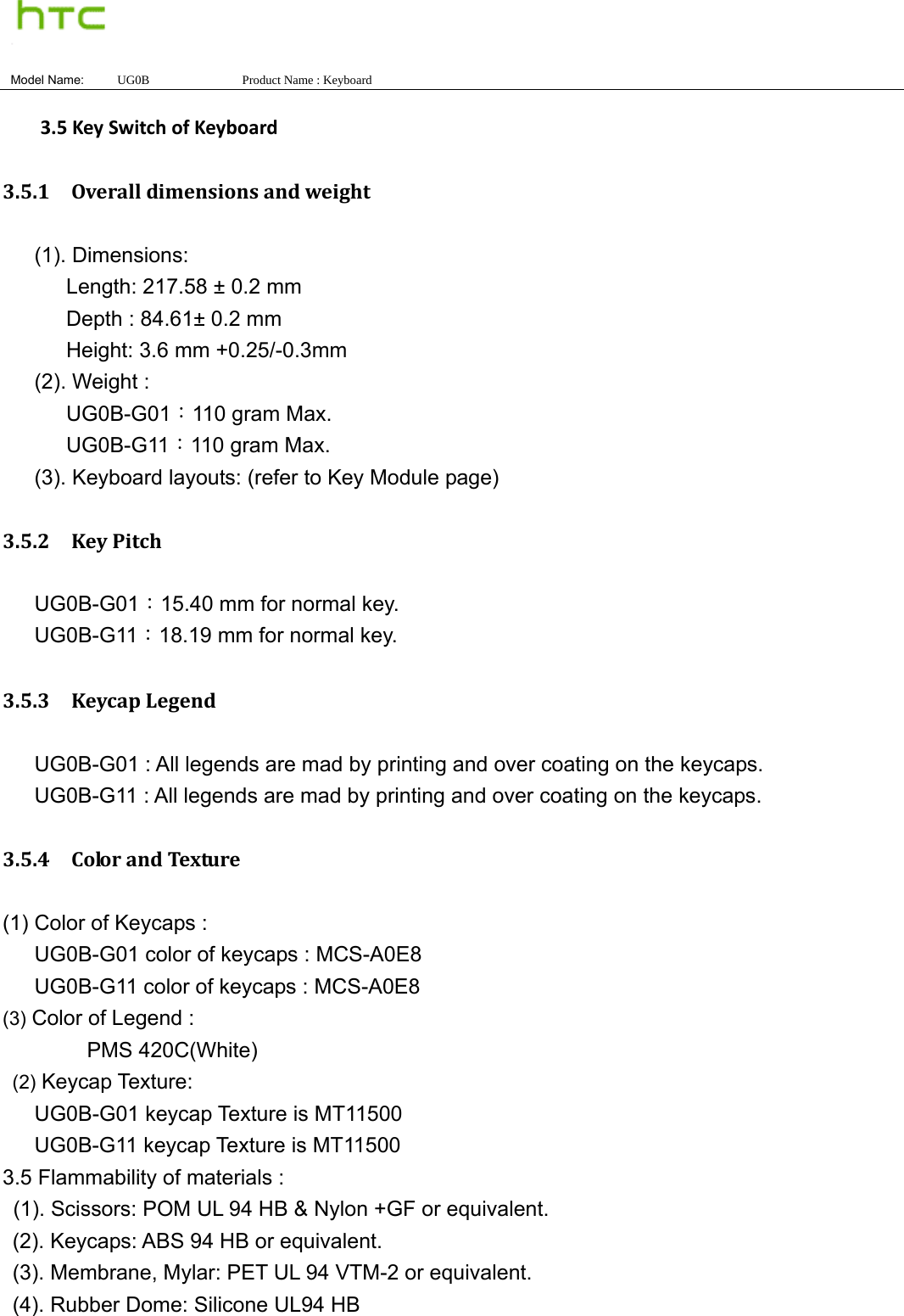

Model Name: UG0B Product Name : Keyboard 3.5 KeySwitchofKeyboard3.5.1Overalldimensionsandweight(1). Dimensions: Length: 217.58 ± 0.2 mm Depth : 84.61± 0.2 mm Height: 3.6 mm +0.25/-0.3mm (2). Weight : UG0B-G01：110 gram Max. UG0B-G11：110 gram Max. (3). Keyboard layouts: (refer to Key Module page) 3.5.2KeyPitchUG0B-G01：15.40 mm for normal key. UG0B-G11：18.19 mm for normal key. 3.5.3KeycapLegendUG0B-G01 : All legends are mad by printing and over coating on the keycaps. UG0B-G11 : All legends are mad by printing and over coating on the keycaps. 3.5.4ColorandTexture(1) Color of Keycaps : UG0B-G01 color of keycaps : MCS-A0E8 UG0B-G11 color of keycaps : MCS-A0E8 (3) Color of Legend : PMS 420C(White) (2) Keycap Texture: UG0B-G01 keycap Texture is MT11500 UG0B-G11 keycap Texture is MT11500 3.5 Flammability of materials : (1). Scissors: POM UL 94 HB & Nylon +GF or equivalent. (2). Keycaps: ABS 94 HB or equivalent. (3). Membrane, Mylar: PET UL 94 VTM-2 or equivalent. (4). Rubber Dome: Silicone UL94 HB

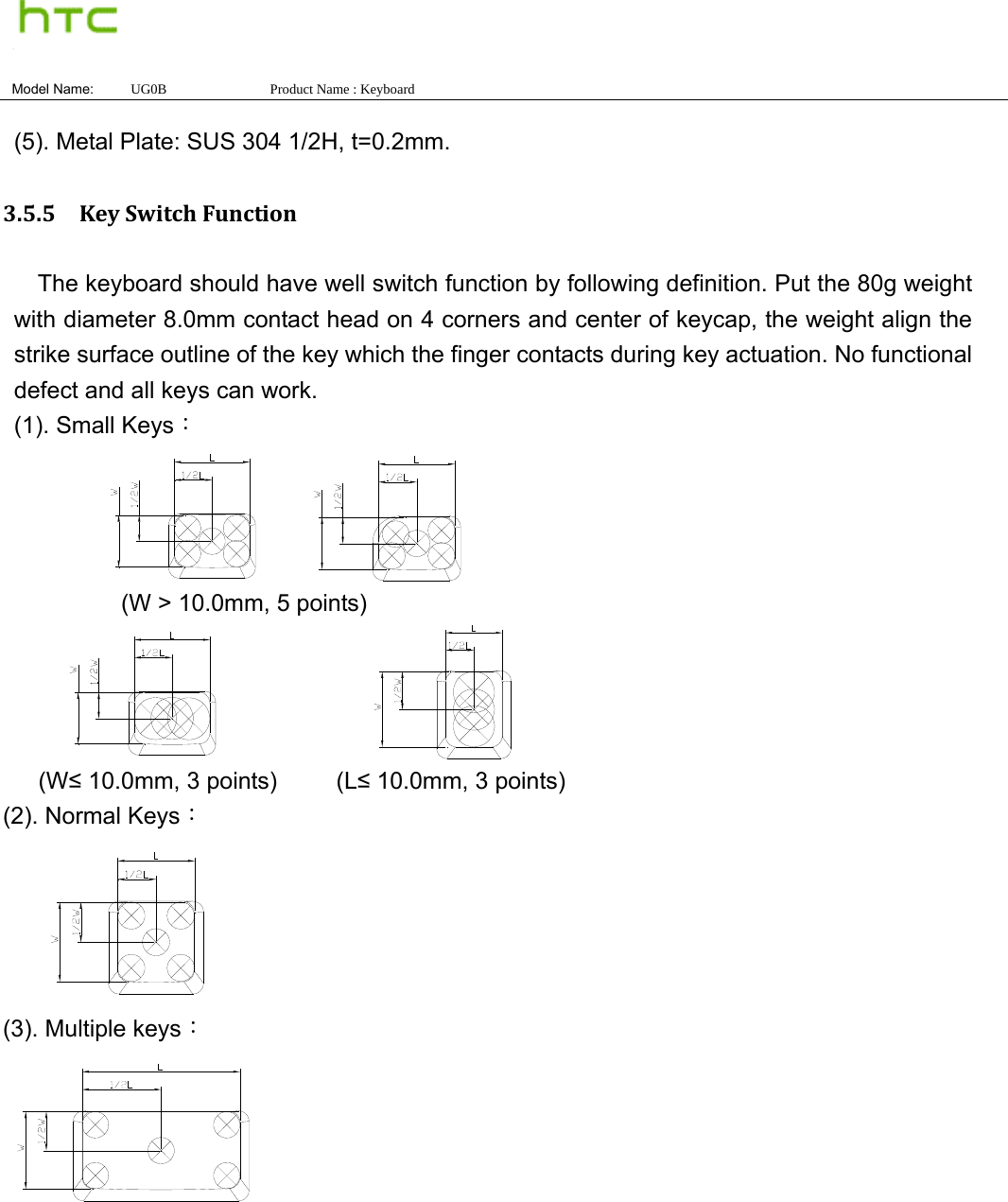

Model Name: UG0B Product Name : Keyboard (5). Metal Plate: SUS 304 1/2H, t=0.2mm. 3.5.5KeySwitchFunctionThe keyboard should have well switch function by following definition. Put the 80g weight with diameter 8.0mm contact head on 4 corners and center of keycap, the weight align the strike surface outline of the key which the finger contacts during key actuation. No functional defect and all keys can work. (1). Small Keys： (W > 10.0mm, 5 points) (W≤ 10.0mm, 3 points) (L≤ 10.0mm, 3 points) (2). Normal Keys： (3). Multiple keys：

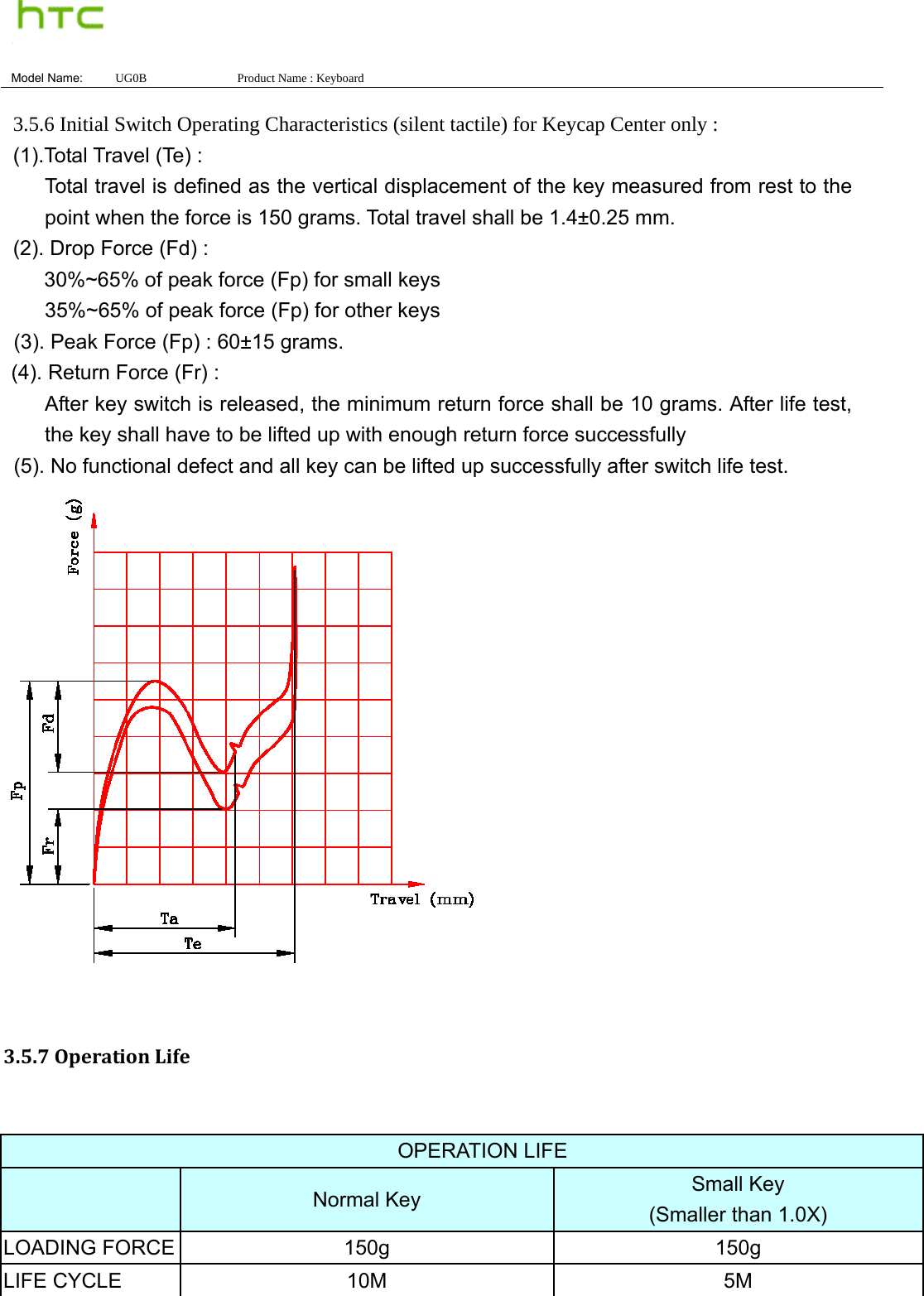

Model Name: UG0B Product Name : Keyboard 3.5.6 Initial Switch Operating Characteristics (silent tactile) for Keycap Center only : (1).Total Travel (Te) : Tota l travel is defined as the vertical displacement of the key measured from rest to the point when the force is 150 grams. Total travel shall be 1.4±0.25 mm. (2). Drop Force (Fd) : 30%~65% of peak force (Fp) for small keys 35%~65% of peak force (Fp) for other keys (3). Peak Force (Fp) : 60±15 grams. (4). Return Force (Fr) : After key switch is released, the minimum return force shall be 10 grams. After life test, the key shall have to be lifted up with enough return force successfully (5). No functional defect and all key can be lifted up successfully after switch life test. 3.5.7OperationLife OPERATION LIFE Normal Key Small Key (Smaller than 1.0X) LOADING FORCE 150g 150g LIFE CYCLE 10M 5M

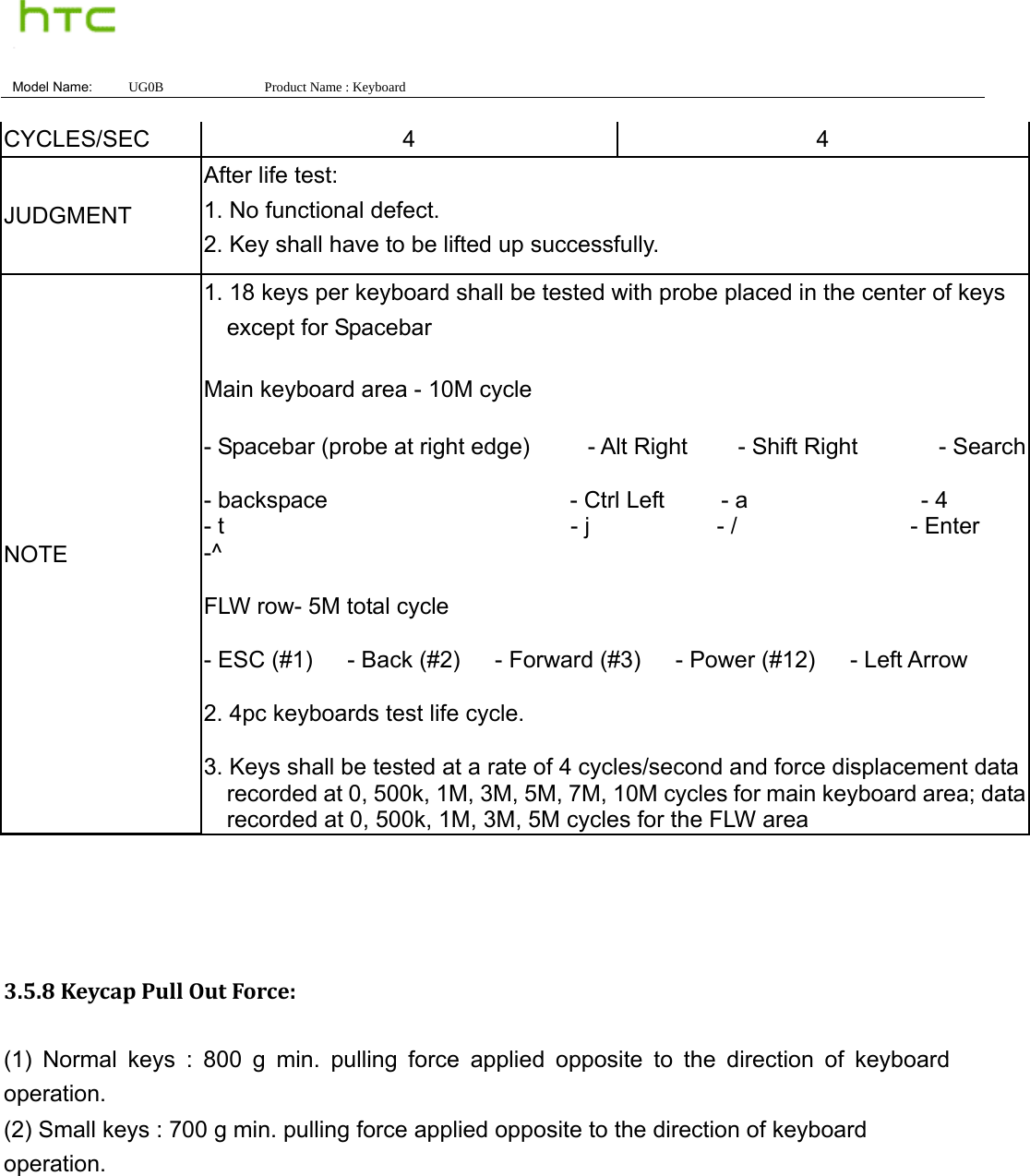

Model Name: UG0B Product Name : Keyboard CYCLES/SEC 4 4 JUDGMENT After life test: 1. No functional defect. 2. Key shall have to be lifted up successfully. NOTE 1. 18 keys per keyboard shall be tested with probe placed in the center of keys except for Spacebar Main keyboard area - 10M cycle - Spacebar (probe at right edge) - Alt Right - Shift Right - Search- backspace - Ctrl Left - a - 4 - t - j - / - Enter -^ FLW row- 5M total cycle - ESC (#1) - Back (#2) - Forward (#3) - Power (#12) - Left Arrow 2. 4pc keyboards test life cycle. 3. Keys shall be tested at a rate of 4 cycles/second and force displacement data recorded at 0, 500k, 1M, 3M, 5M, 7M, 10M cycles for main keyboard area; data recorded at 0, 500k, 1M, 3M, 5M cycles for the FLW area 3.5.8KeycapPullOutForce:(1) Normal keys : 800 g min. pulling force applied opposite to the direction of keyboard operation. (2) Small keys : 700 g min. pulling force applied opposite to the direction of keyboard operation.

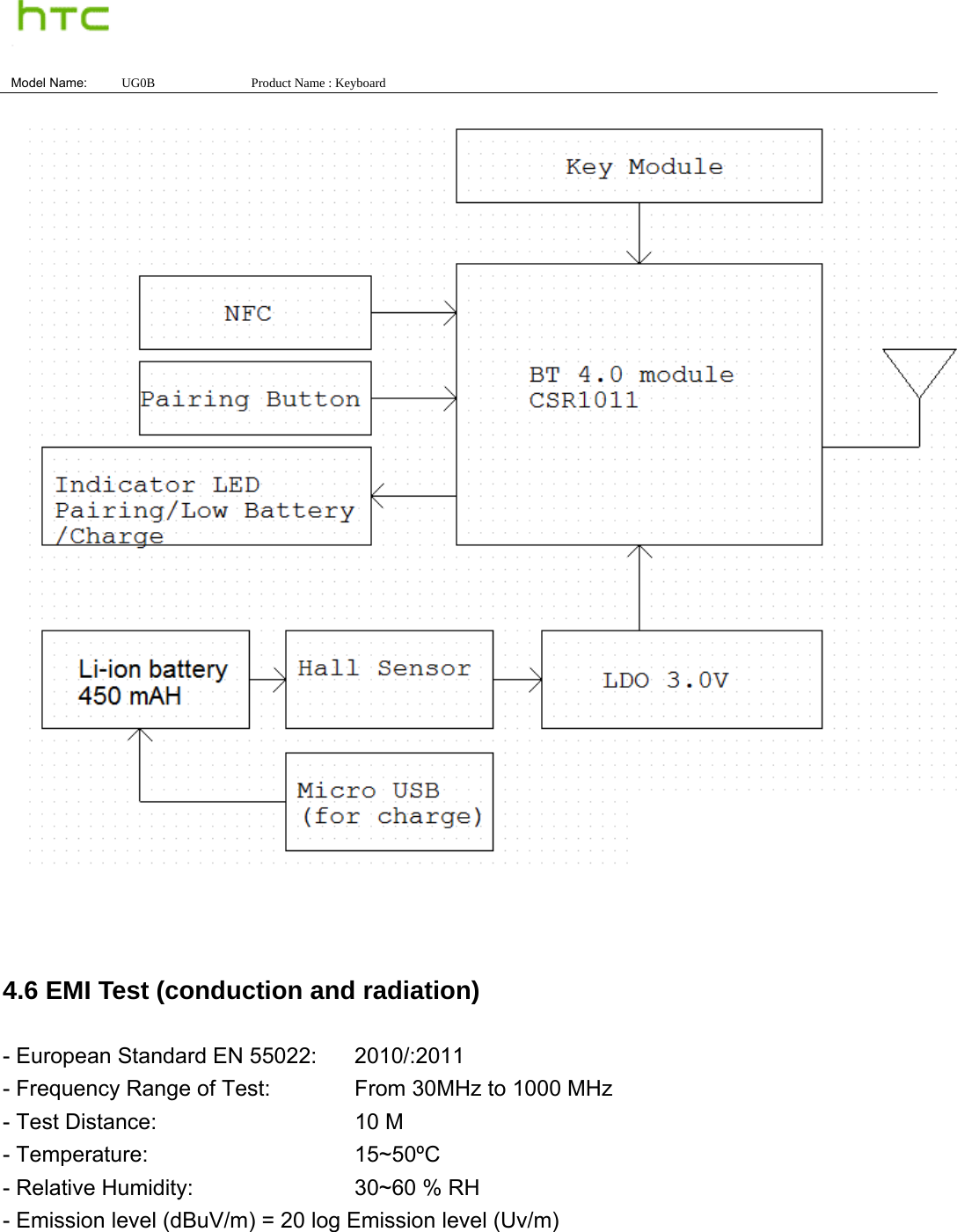

Model Name: UG0B Product Name : Keyboard 4. Electrical specifications 4.1 Interface The Thin Keyboard will support Bluetooth 4.0. Hinge with micro USB port for charge, pairing button for Bluetooth paring. Build-in NFC chip for easy and fast Bluetooth paring experience.4.2 Power rating The power rating of this device is 5v / 500 mA. 4.3 Battery Specifications Li-ion battery capacity is 450 mAH (98.5 * 42.5 * 1.98 mm). The keyboard is powered from Li-Polymer battery. Micro USB can be connected to the unit and can be charged for the Li-Polymer battery. 4.4 OS Support Android 4.4 4.5 Block diagram 4.6.1 Schematic block diagram
Model Name: UG0B Product Name : Keyboard  4.6 EMI Test (conduction and radiation) - European Standard EN 55022: 2010/:2011 - Frequency Range of Test: From 30MHz to 1000 MHz - Test Distance: 10 M - Temperature: 15~50ºC - Relative Humidity: 30~60 % RH - Emission level (dBuV/m) = 20 log Emission level (Uv/m)

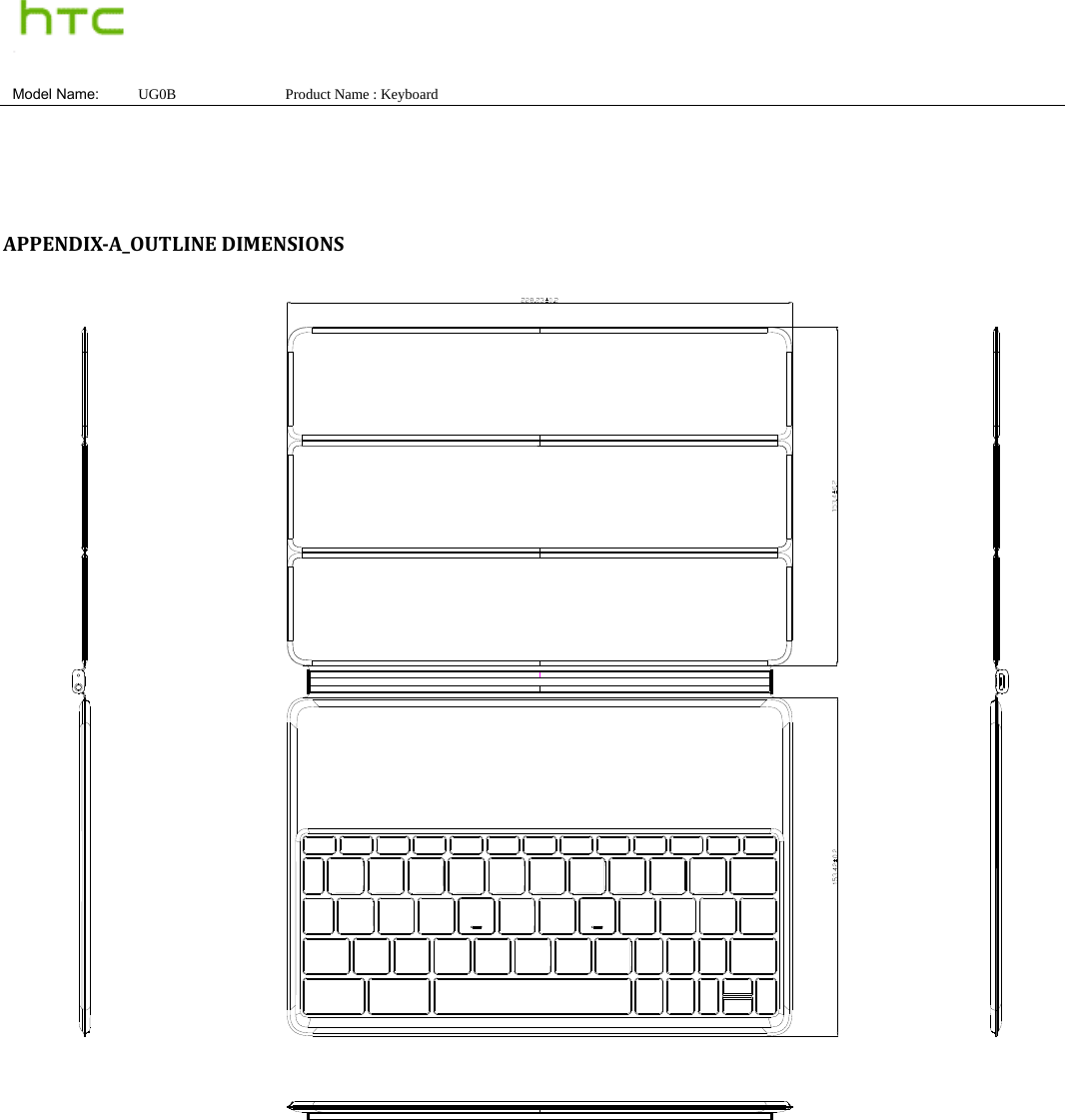

Model Name: UG0B Product Name : Keyboard APPENDIXA_OUTLINEDIMENSIONS

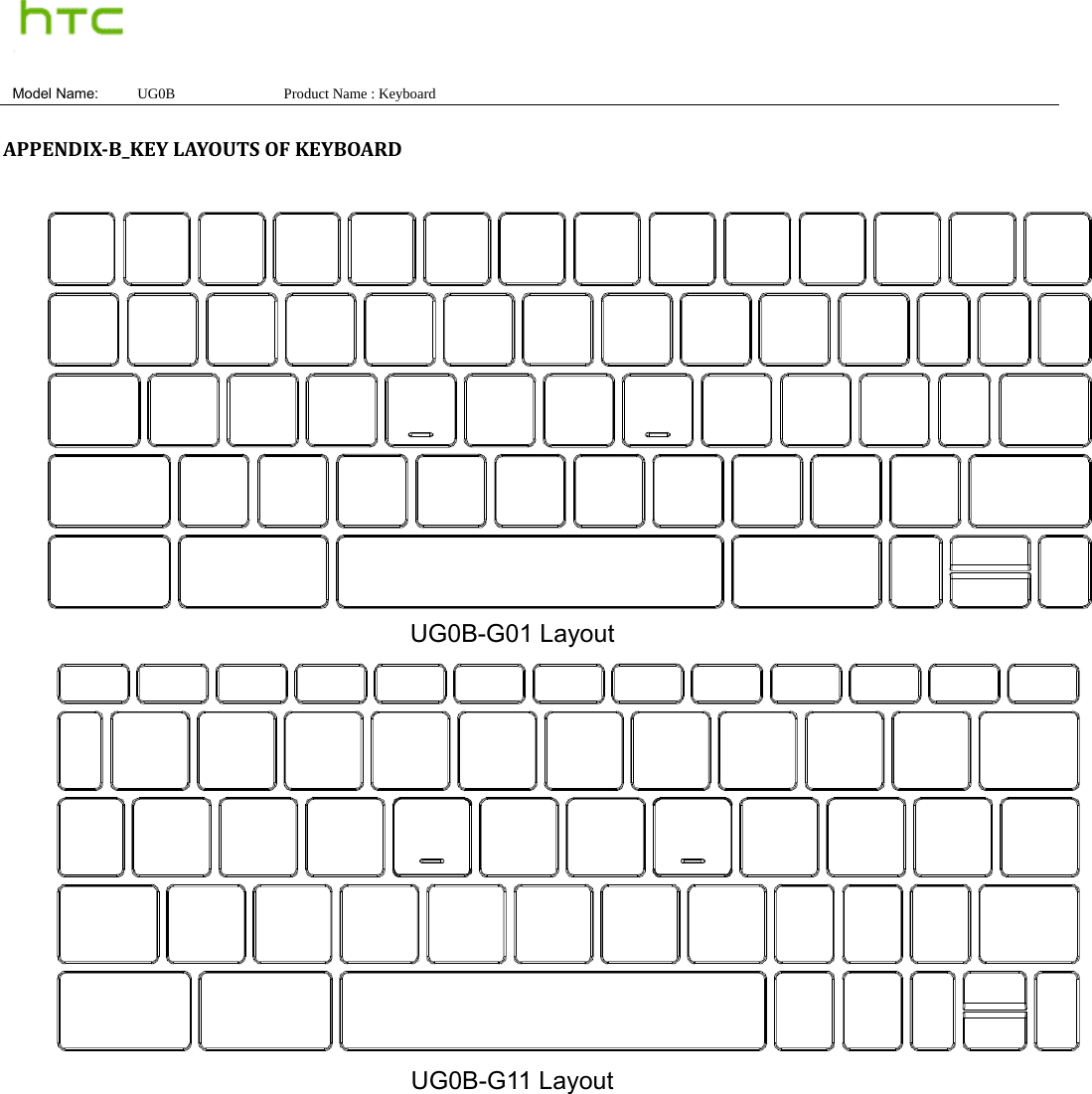

Model Name: UG0B Product Name : Keyboard APPENDIXB_KEYLAYOUTSOFKEYBOARD UG0B-G01 Layout UG0B-G11 Layout

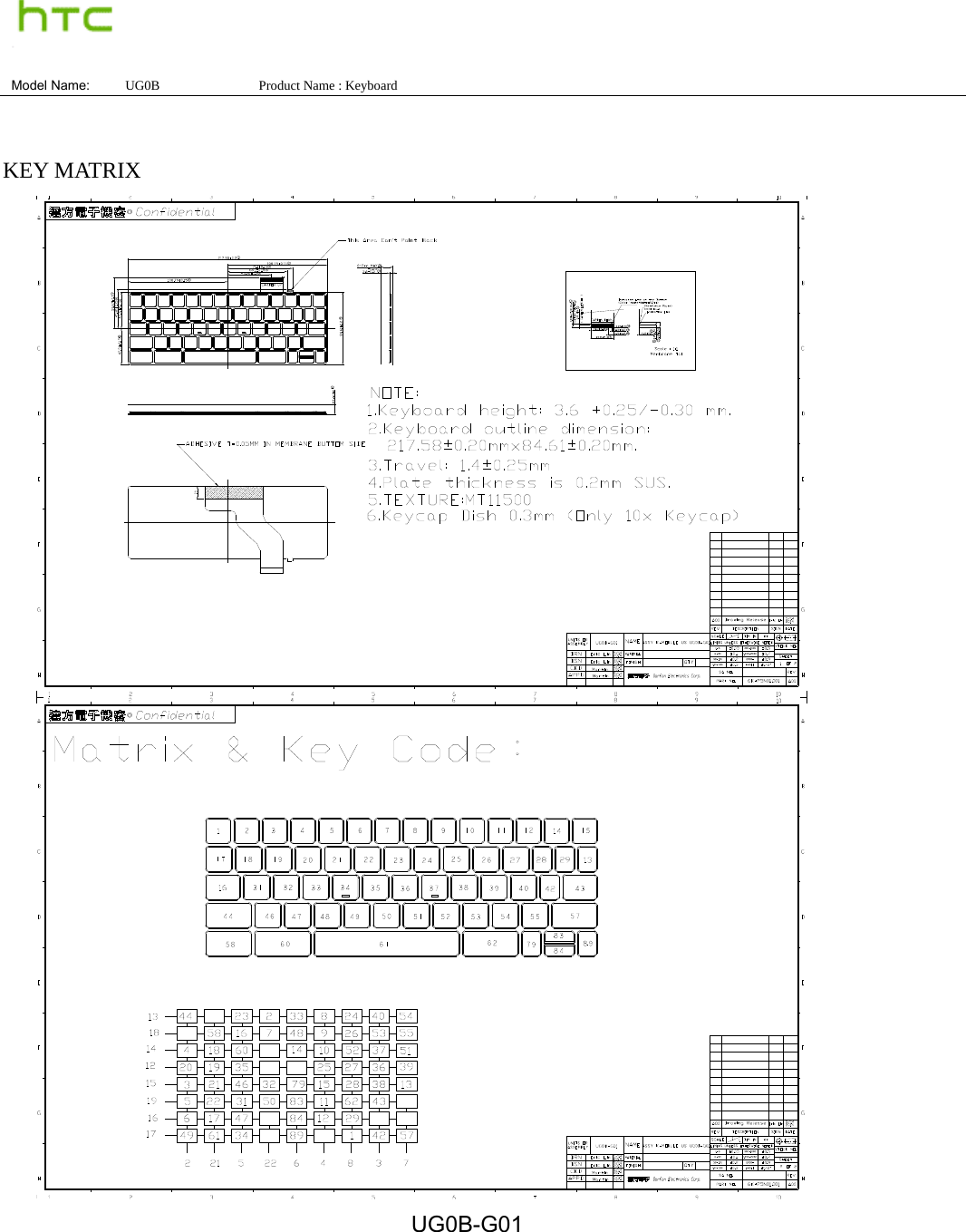

Model Name: UG0B Product Name : Keyboard KEY MATRIX ： UG0B-G01
Model Name: UG0B Product Name : Keyboard UG0B-G11

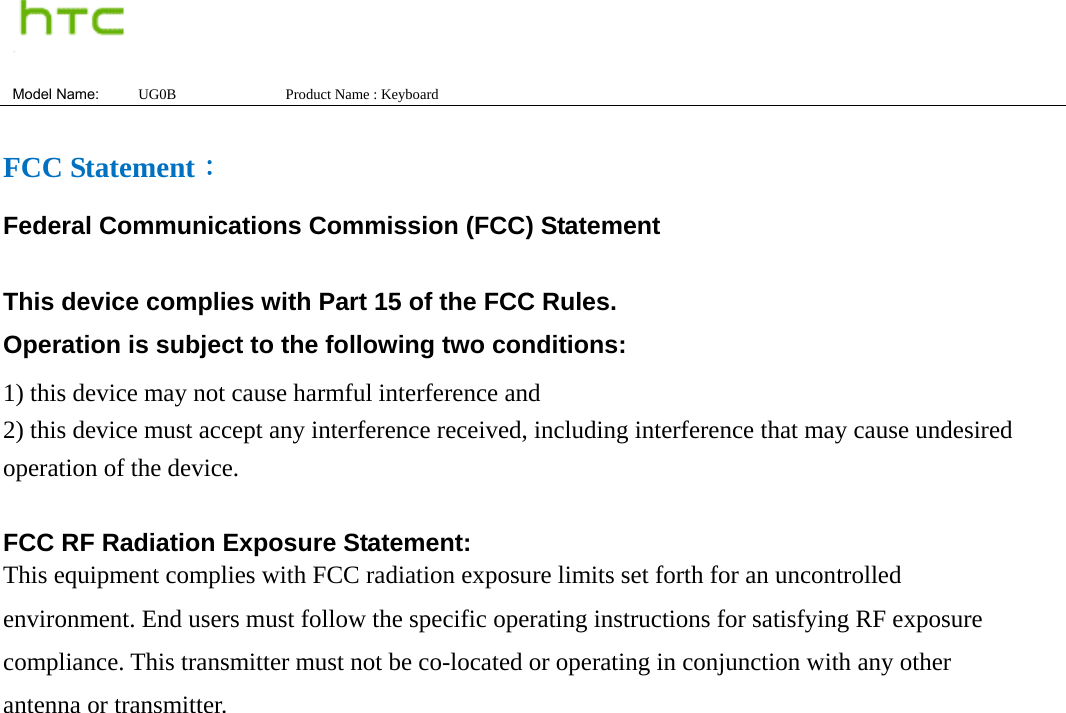

Model Name: UG0B Product Name : Keyboard FCC Statement： Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

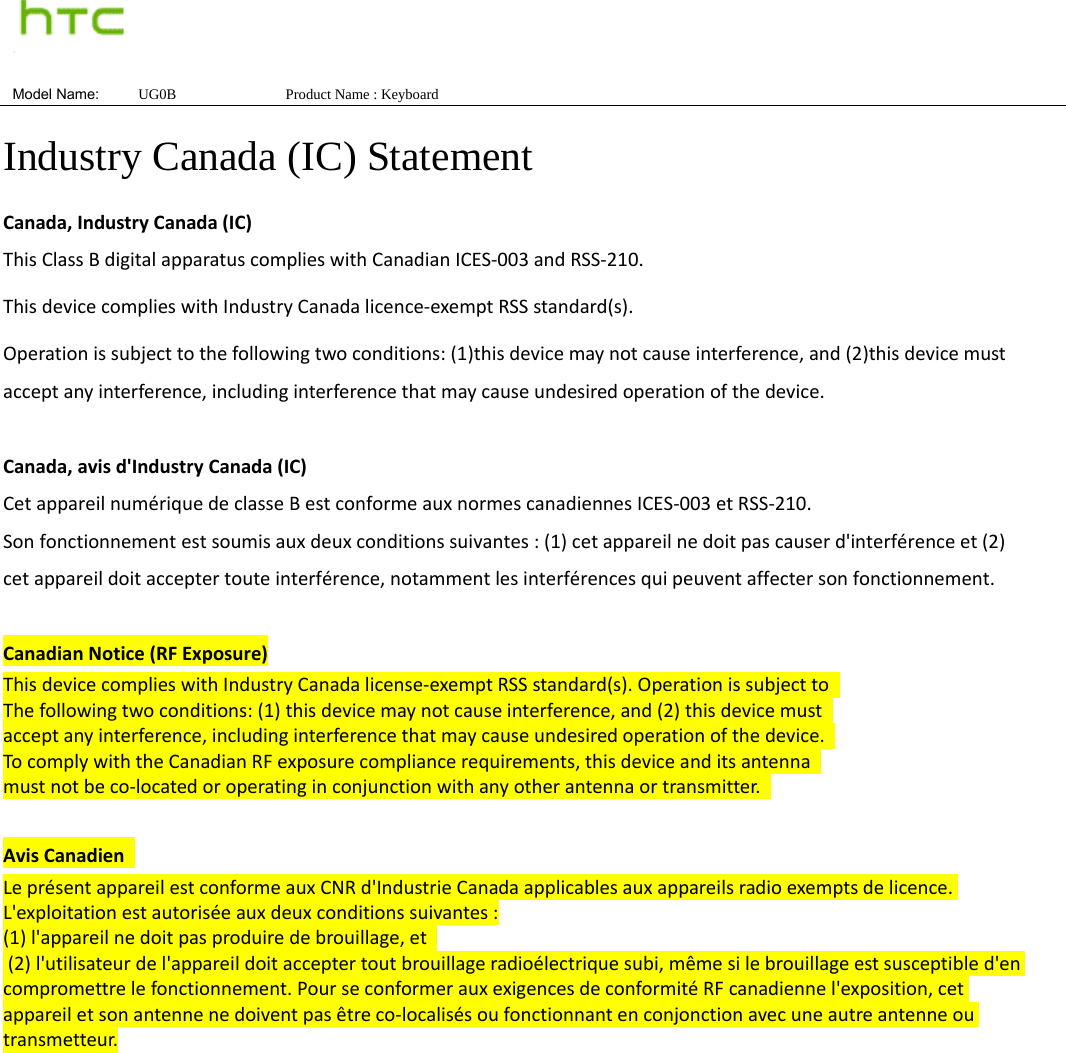

Model Name: UG0B Product Name : Keyboard Industry Canada (IC) Statement Canada,IndustryCanada(IC)ThisClassBdigitalapparatuscomplieswithCanadianICES‐003andRSS‐210.ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.Canada,avisd'IndustryCanada(IC)CetappareilnumériquedeclasseBestconformeauxnormescanadiennesICES‐003etRSS‐210.Sonfonctionnementestsoumisauxdeuxconditionssuivantes:(1)cetappareilnedoitpascauserd'interférenceet(2)cetappareildoitacceptertouteinterférence,notammentlesinterférencesquipeuventaffectersonfonctionnement.CanadianNotice(RFExposure)ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).OperationissubjecttoThefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.TocomplywiththeCanadianRFexposurecompliancerequirements,thisdeviceanditsantennamustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.AvisCanadienLeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.PourseconformerauxexigencesdeconformitéRFcanadiennel'exposition,cetappareiletsonantennenedoiventpasêtreco‐localisésoufonctionnantenconjonctionavecuneautreantenneoutransmetteur.

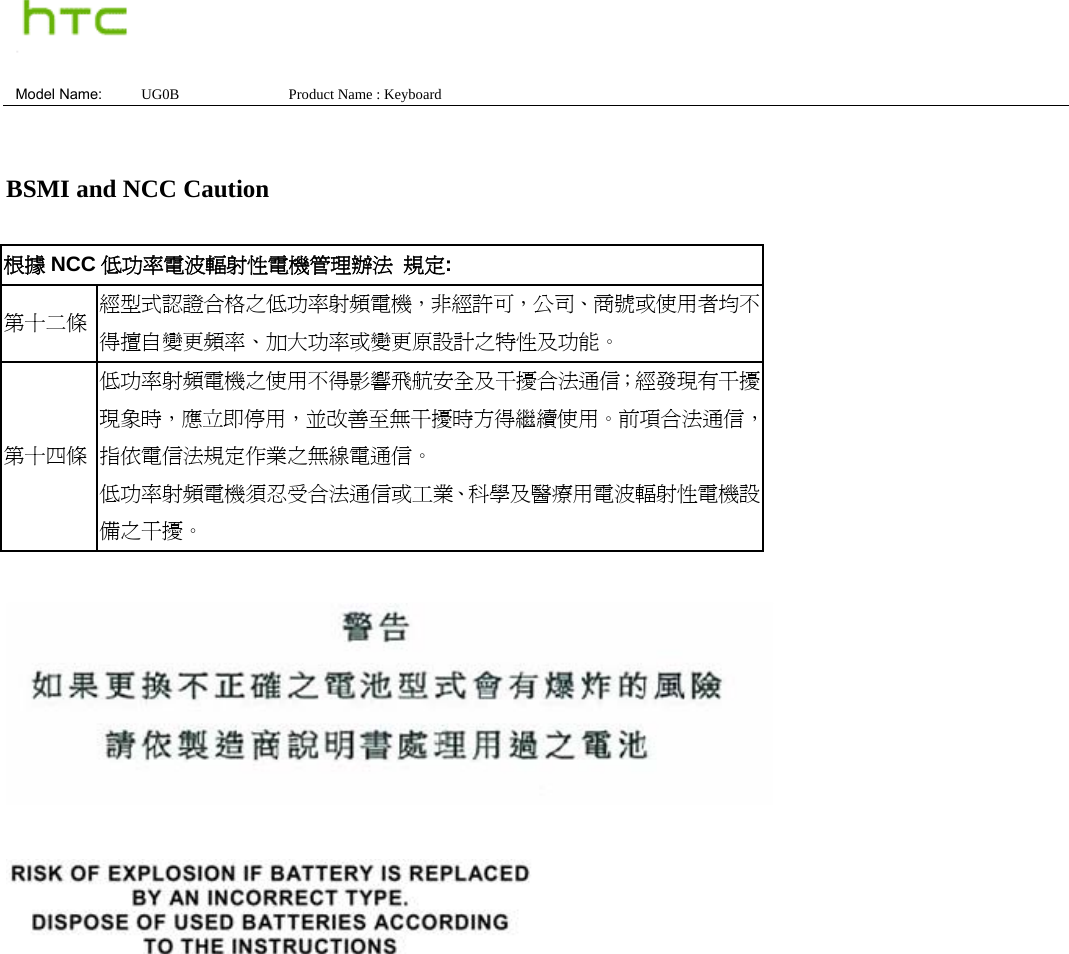

Model Name: UG0B Product Name : Keyboard BSMI and NCC Caution 根據 NCC 低功率電波輻射性電機管理辦法 規定: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

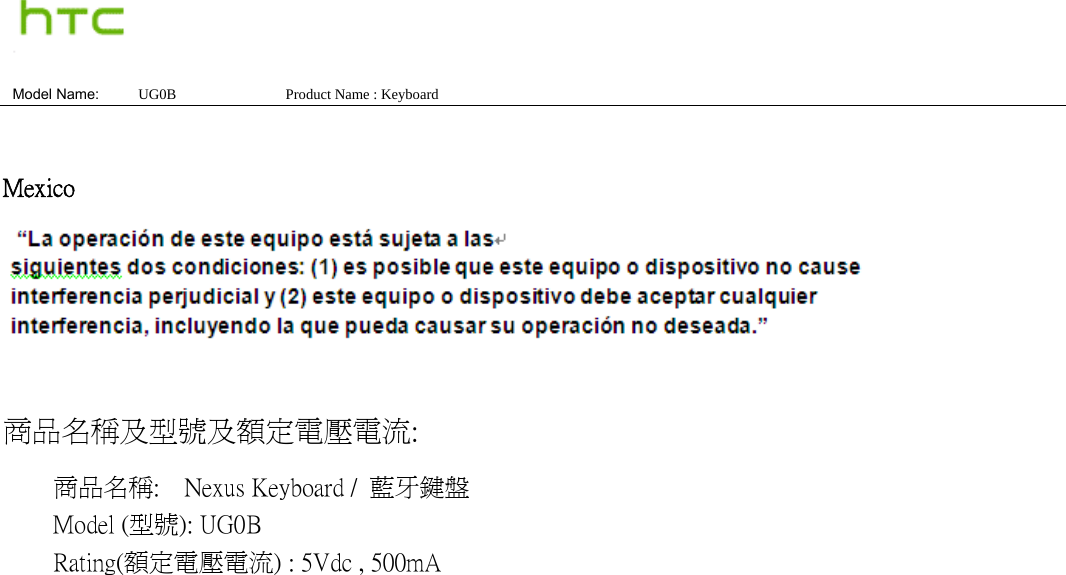

Model Name: UG0B Product Name : Keyboard Mexico 商品名稱及型號及額定電壓電流: 商品名稱: Nexus Keyboard / 藍牙鍵盤 Model (型號): UG0B Rating(額定電壓電流) : 5Vdc , 500mA

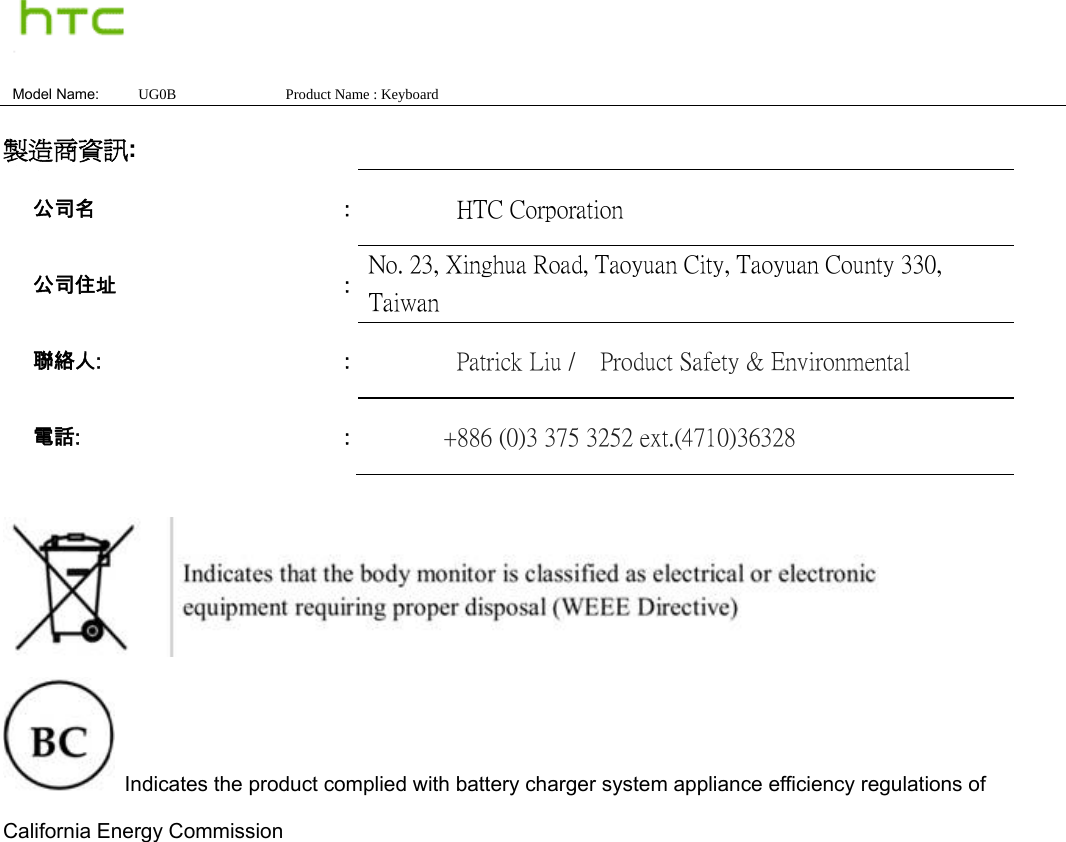

Model Name: UG0B Product Name : Keyboard 製造商資訊: Indicates the product complied with battery charger system appliance efficiency regulations of California Energy Commission 公司名 : HTC Corporation 公司住址 : No. 23, Xinghua Road, Taoyuan City, Taoyuan County 330, Taiwan 聯絡人: : Patrick Liu / Product Safety & Environmental 電話: : +886 (0)3 375 3252 ext.(4710)36328
