Darfon Electronics WTU-M03 Wireless Mouse User Manual Feature

Darfon Electronics Corp Wireless Mouse Feature

Manual

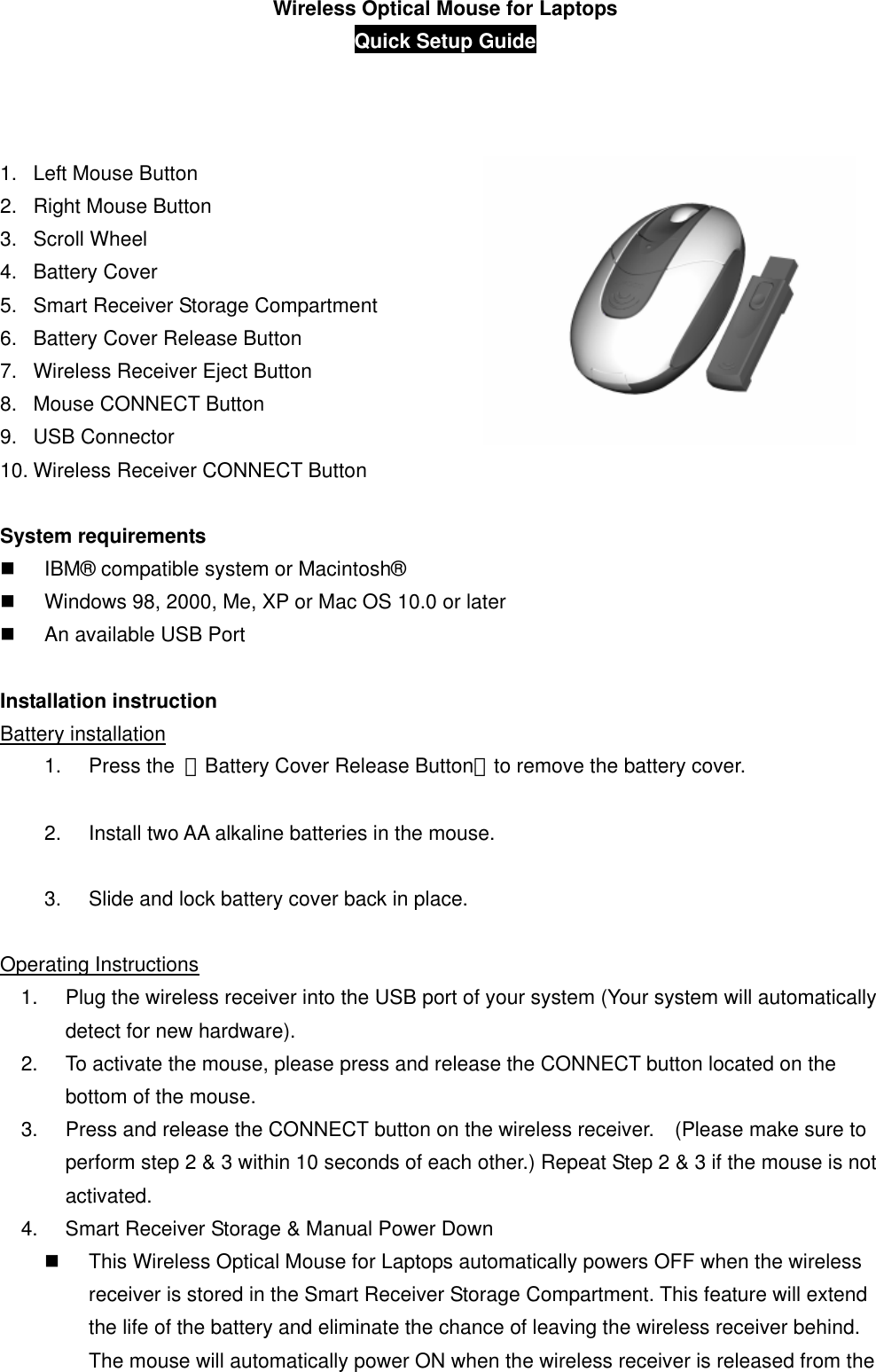

Wireless Optical Mouse for Laptops Quick Setup Guide 1. Left Mouse Button 2. Right Mouse Button 3. Scroll Wheel 4. Battery Cover 5. Smart Receiver Storage Compartment 6. Battery Cover Release Button 7. Wireless Receiver Eject Button 8. Mouse CONNECT Button 9. USB Connector 10. Wireless Receiver CONNECT Button System requirements  IBM® compatible system or Macintosh®  Windows 98, 2000, Me, XP or Mac OS 10.0 or later  An available USB Port Installation instruction Battery installation 1. Press the 「Battery Cover Release Button」to remove the battery cover. 2. Install two AA alkaline batteries in the mouse. 3. Slide and lock battery cover back in place. Operating Instructions 1. Plug the wireless receiver into the USB port of your system (Your system will automatically detect for new hardware). 2. To activate the mouse, please press and release the CONNECT button located on the bottom of the mouse. 3. Press and release the CONNECT button on the wireless receiver. (Please make sure to perform step 2 & 3 within 10 seconds of each other.) Repeat Step 2 & 3 if the mouse is not activated. 4. Smart Receiver Storage & Manual Power Down  This Wireless Optical Mouse for Laptops automatically powers OFF when the wireless receiver is stored in the Smart Receiver Storage Compartment. This feature will extend the life of the battery and eliminate the chance of leaving the wireless receiver behind. The mouse will automatically power ON when the wireless receiver is released from the

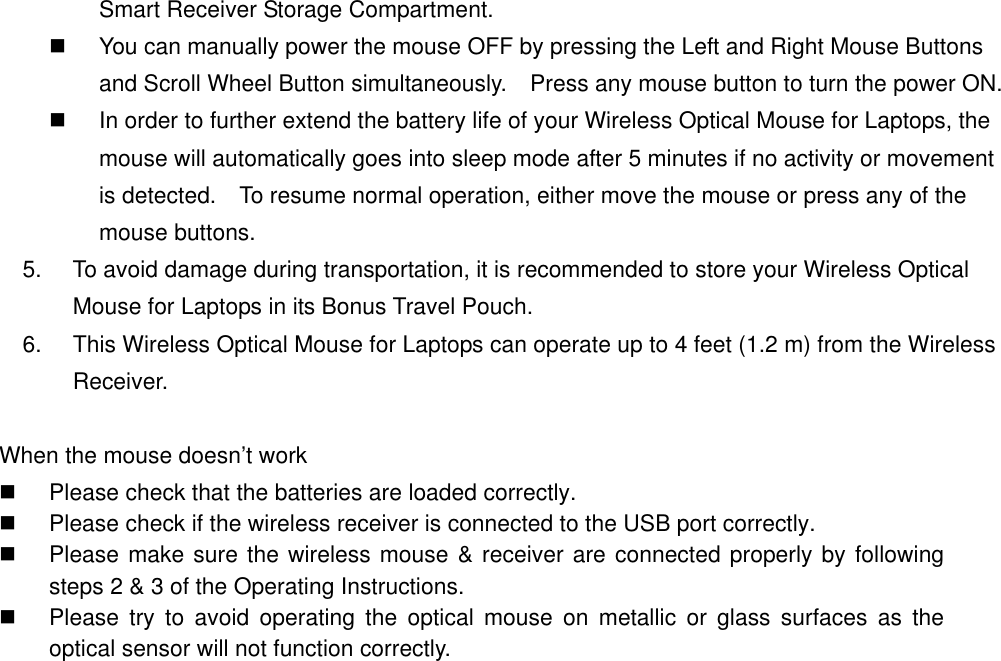

Smart Receiver Storage Compartment.  You can manually power the mouse OFF by pressing the Left and Right Mouse Buttons and Scroll Wheel Button simultaneously. Press any mouse button to turn the power ON.  In order to further extend the battery life of your Wireless Optical Mouse for Laptops, the mouse will automatically goes into sleep mode after 5 minutes if no activity or movement is detected. To resume normal operation, either move the mouse or press any of the mouse buttons. 5. To avoid damage during transportation, it is recommended to store your Wireless Optical Mouse for Laptops in its Bonus Travel Pouch. 6. This Wireless Optical Mouse for Laptops can operate up to 4 feet (1.2 m) from the Wireless Receiver. When the mouse doesn’t work  Please check that the batteries are loaded correctly.  Please check if the wireless receiver is connected to the USB port correctly.  Please make sure the wireless mouse & receiver are connected properly by following steps 2 & 3 of the Operating Instructions.  Please try to avoid operating the optical mouse on metallic or glass surfaces as the optical sensor will not function correctly.

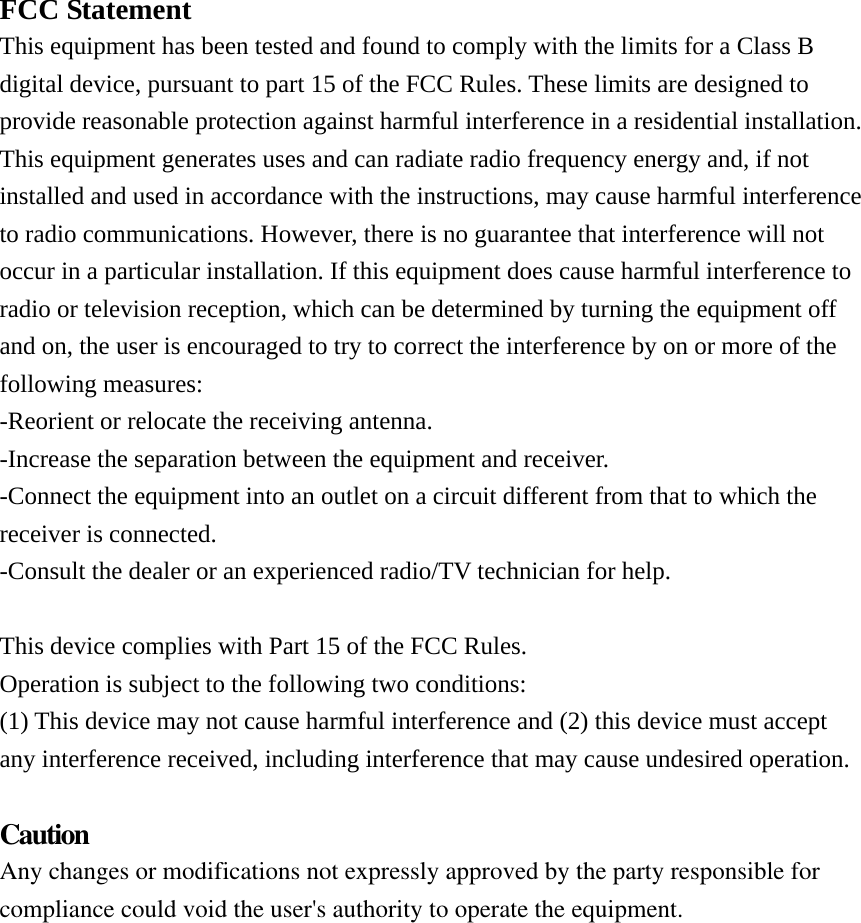

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by on or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CautionAny changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
