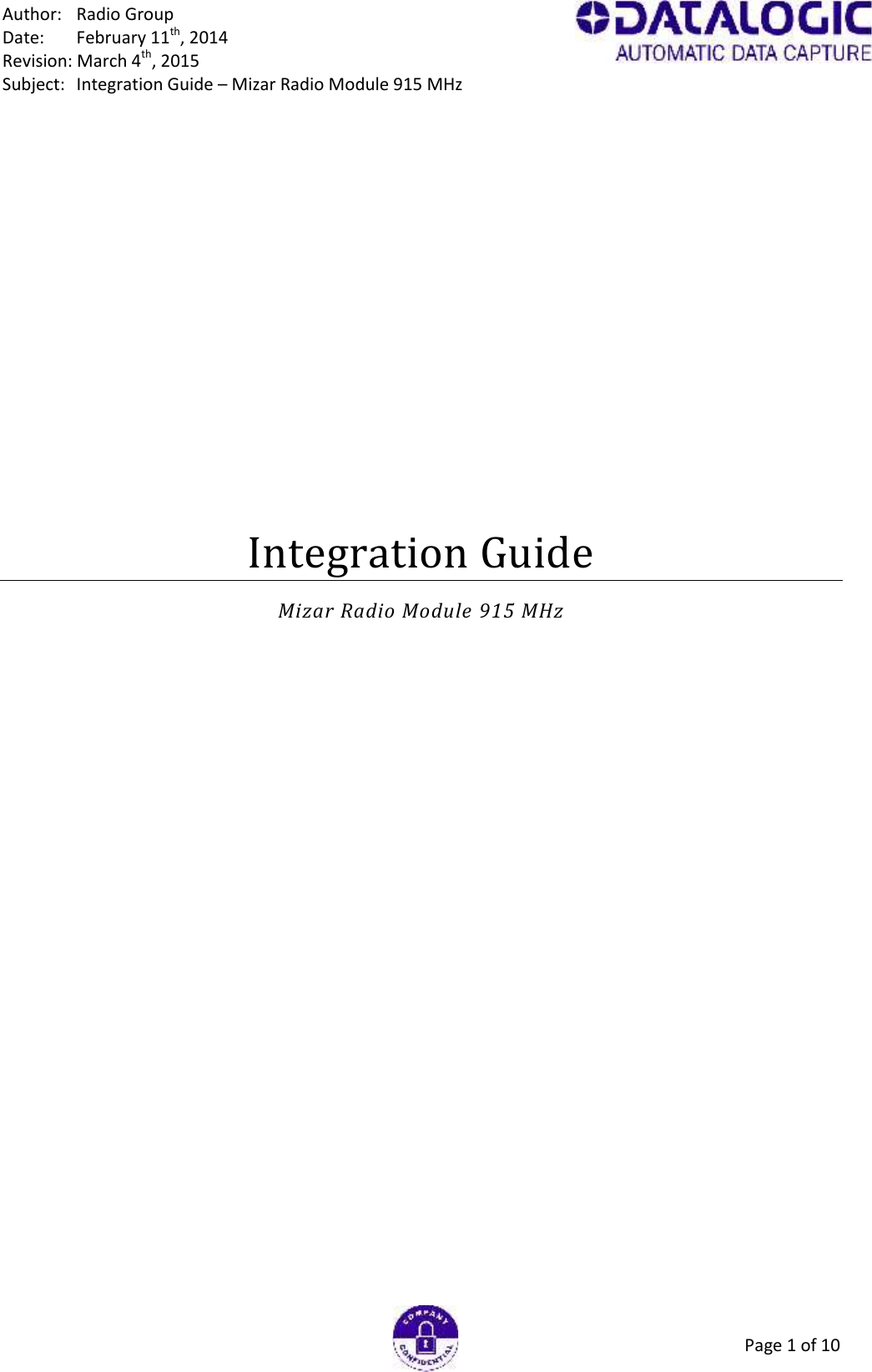

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 1 of 10Integration GuideMizar Radio Module 915 MHz

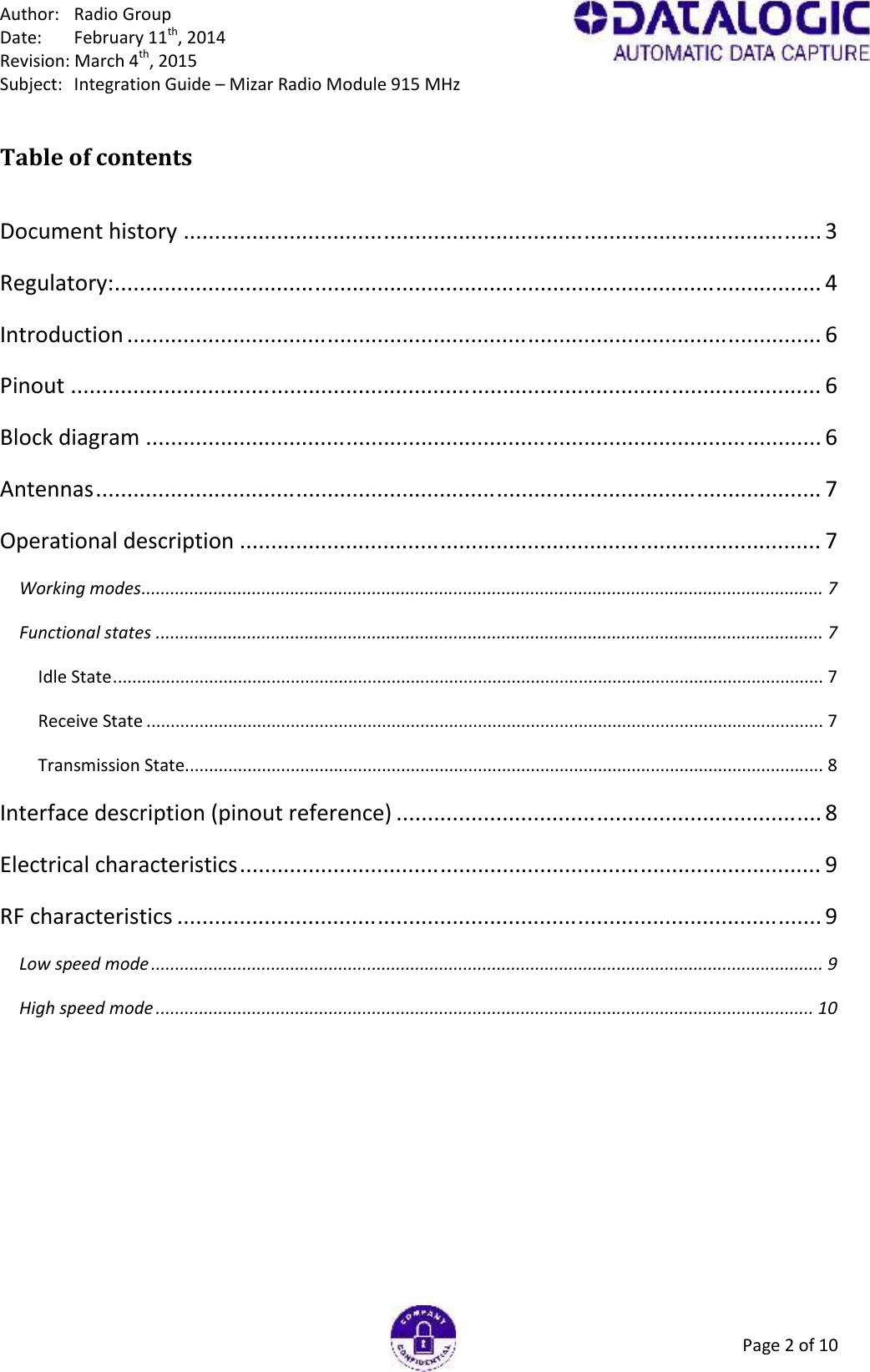

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 2 of 10Table of contentsDocument history ...................................................................................................... 3Regulatory:................................................................................................................. 4Introduction ............................................................................................................... 6Pinout ........................................................................................................................ 6Block diagram ............................................................................................................ 6Antennas.................................................................................................................... 7Operational description ............................................................................................. 7Working modes.............................................................................................................................................. 7Functional states ........................................................................................................................................... 7Idle State.................................................................................................................................................... 7Receive State ............................................................................................................................................. 7Transmission State..................................................................................................................................... 8Interface description (pinout reference) .................................................................... 8Electrical characteristics............................................................................................. 9RF characteristics ....................................................................................................... 9Low speed mode............................................................................................................................................ 9High speed mode ......................................................................................................................................... 10

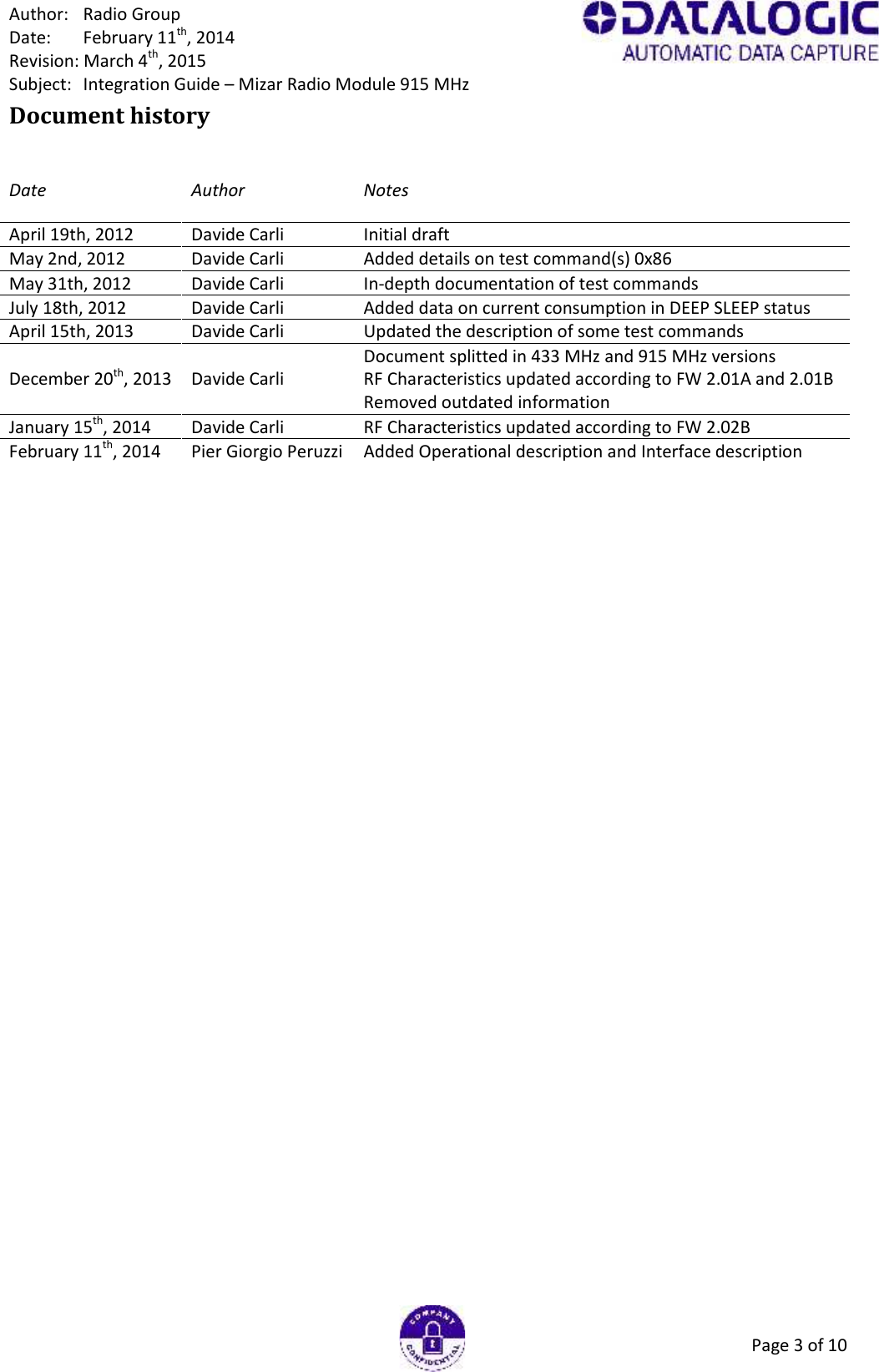

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 3 of 10Document historyDateAuthorNotesApril 19th, 2012Davide CarliInitial draftMay 2nd, 2012Davide CarliAdded details on test command(s) 0x86May 31th, 2012Davide CarliIn-depth documentation of test commandsJuly 18th, 2012Davide CarliAdded data on current consumption in DEEP SLEEP statusApril 15th, 2013Davide CarliUpdated the description of some test commandsDecember 20th, 2013Davide CarliDocument splitted in 433 MHz and 915 MHz versionsRF Characteristics updated according to FW 2.01A and 2.01BRemoved outdated informationJanuary 15th, 2014Davide CarliRF Characteristics updated according to FW 2.02BFebruary 11th, 2014Pier Giorgio PeruzziAdded Operational description and Interface description
Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 4 of 10RegulatoryFCC regulationInterference warningThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation.Any change or modification to the product not expressly approved by Datalogic ADC S.r.l. could void the user' sauthority to operate the device.FCC RF Radiation Exposure StatementTo comply with FCC RF exposure compliance requirements, for mobile configurations, a separation distance of at least20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located oroperating in conjunction with any other antenna or transmitterAntennasThis radio transmitter may only operate using the antennas certified as listed in this document at Clause “Antenna”.Industry Canada regulationUnder Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum(or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users,the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not morethan that necessary for successful communication.Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenned'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire lesrisques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain desorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissementd'une communication satisfaisanteand:This radio transmitter (identify the device by certification number, or model number if Category II) has been approvedby Industry Canada to operate with the antenna types listed below with the maximum permissible gain and requiredantenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater thanthe maximum gain indicated for that type, are strictly prohibited for use with this device.

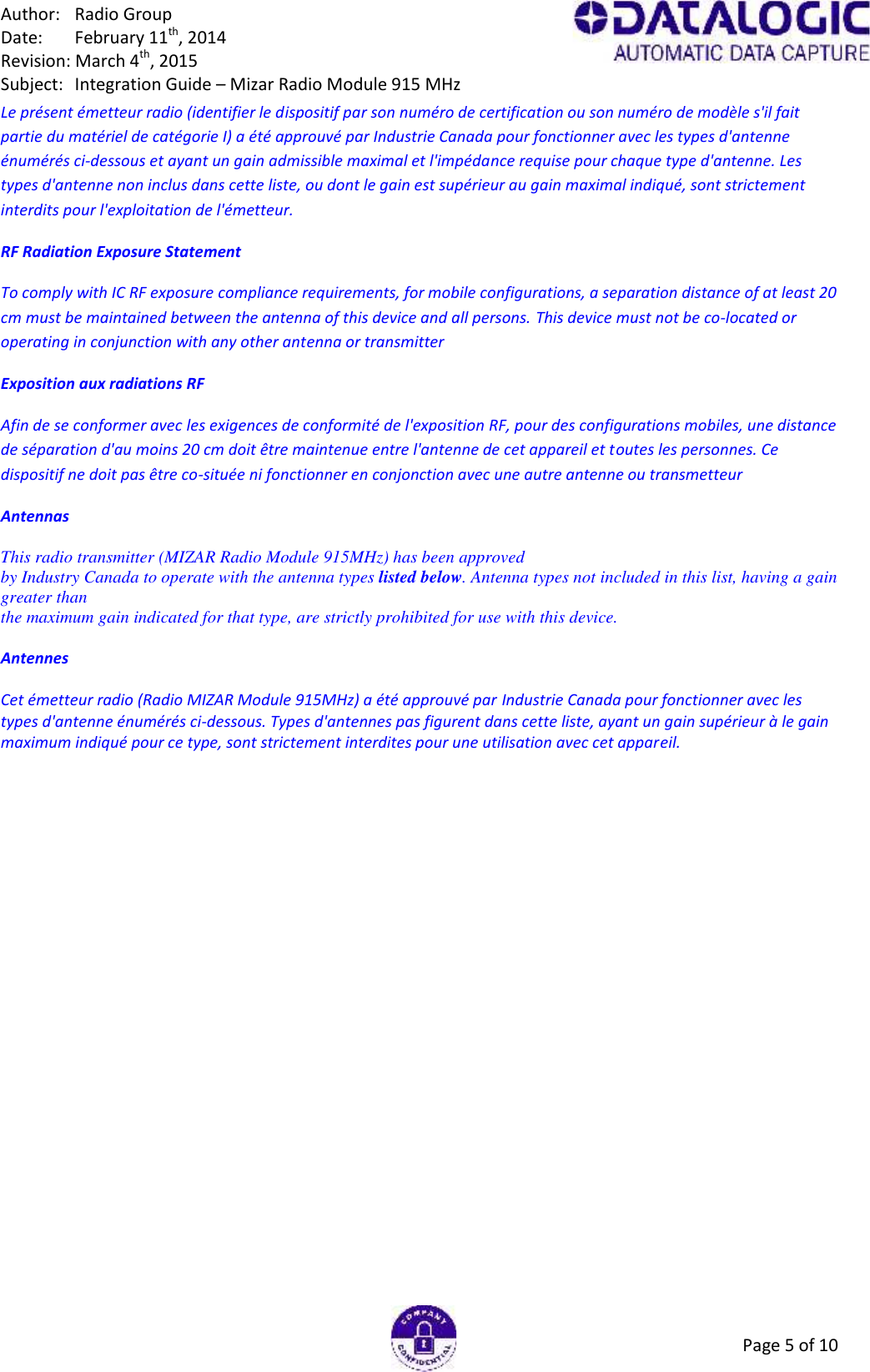

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 5 of 10Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il faitpartie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenneénumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Lestypes d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictementinterdits pour l'exploitation de l'émetteur.RF Radiation Exposure StatementTo comply with IC RF exposure compliance requirements, for mobile configurations, a separation distance of at least 20cm must be maintained between the antenna of this device and all persons. This device must not be co-located oroperating in conjunction with any other antenna or transmitterExposition aux radiations RFAfin de se conformer avec les exigences de conformité de l'exposition RF, pour des configurations mobiles, une distancede séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil et toutes les personnes. Cedispositif ne doit pas être co-située ni fonctionner en conjonction avec une autre antenne ou transmetteurAntennasThis radio transmitter (MIZAR Radio Module 915MHz) has been approvedby Industry Canada to operate with the antenna types listed below. Antenna types not included in this list, having a gaingreater thanthe maximum gain indicated for that type, are strictly prohibited for use with this device.AntennesCet émetteur radio (Radio MIZAR Module 915MHz) a été approuvé par Industrie Canada pour fonctionner avec lestypes d'antenne énumérés ci-dessous. Types d'antennes pas figurent dans cette liste, ayant un gain supérieur à le gainmaximum indiqué pour ce type, sont strictement interdites pour une utilisation avec cet appareil.

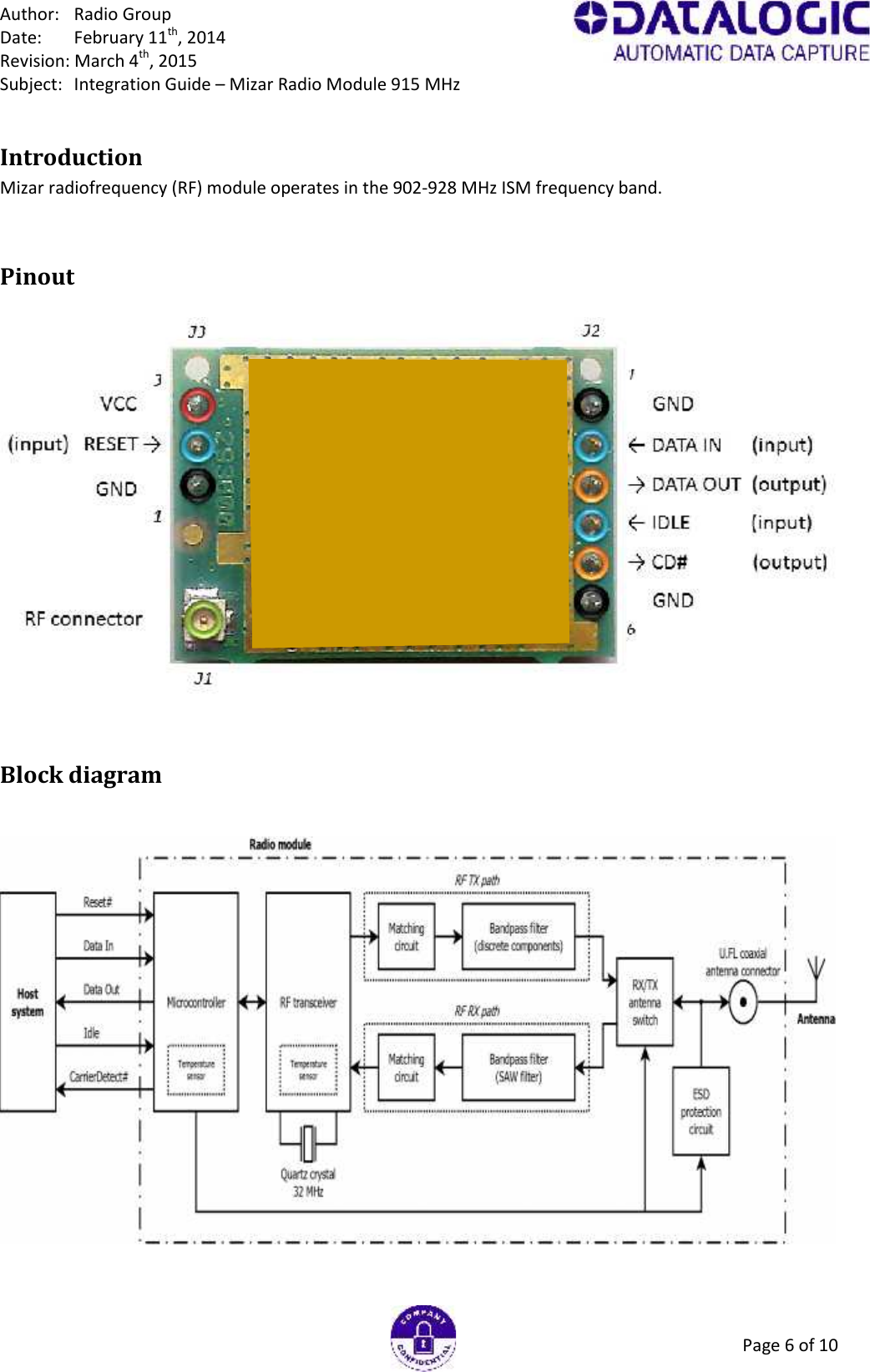

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 6 of 10IntroductionMizar radiofrequency (RF) module operates in the 902-928 MHz ISM frequency band.PinoutBlock diagram

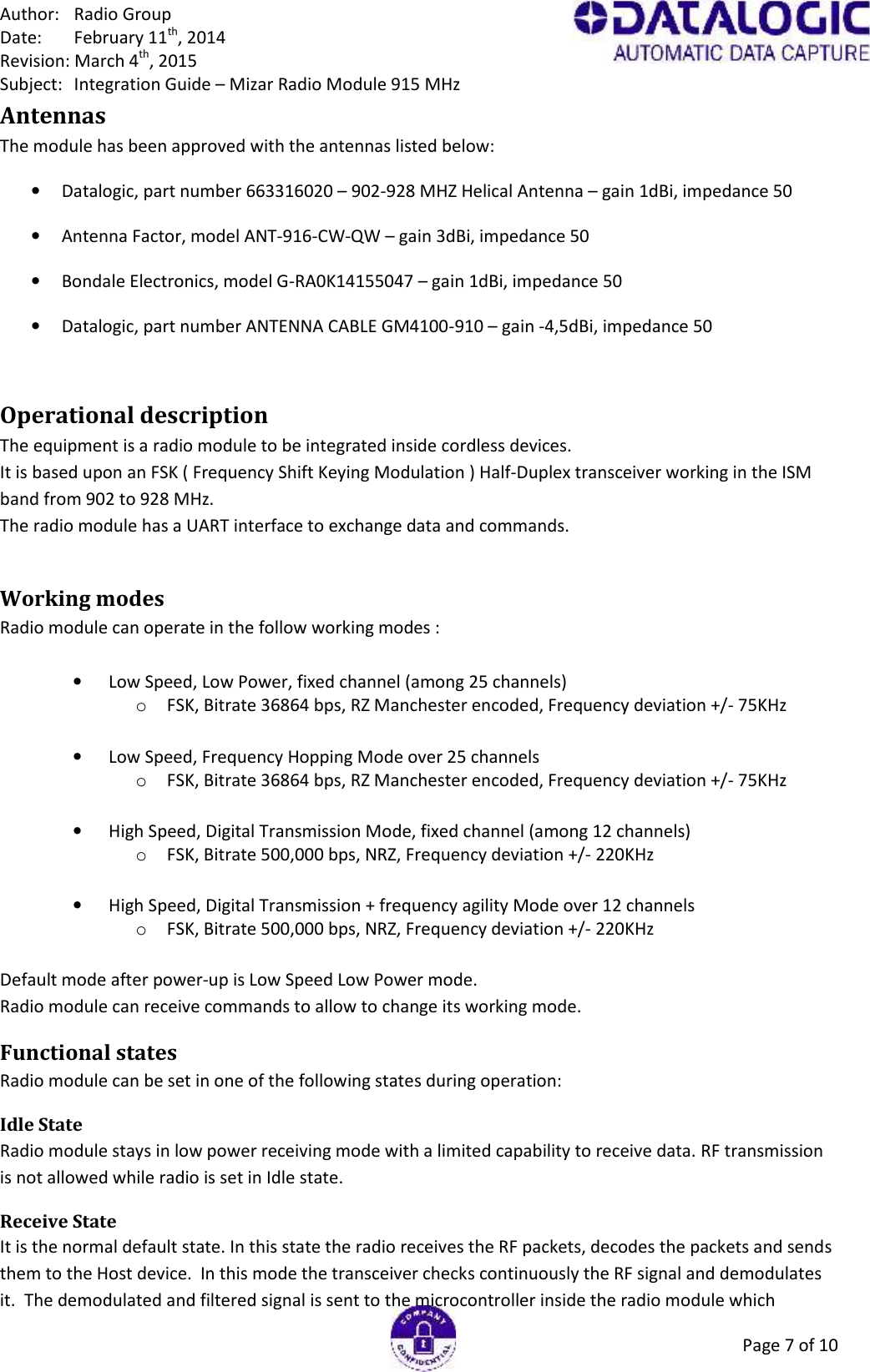

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 7 of 10AntennasThe module has been approved with the antennas listed below:Datalogic, part number 663316020 – 902-928 MHZ Helical Antenna – gain 1dBi, impedance 50ΩAntenna Factor, model ANT-916-CW-QW – gain 3dBi, impedance 50ΩBondale Electronics, model G-RA0K14155047 – gain 1dBi, impedance 50ΩDatalogic, part number ANTENNA CABLE GM4100-910 – gain -4,5dBi, impedance 50ΩOperational descriptionThe equipment is a radio module to be integrated inside cordless devices.It is based upon an FSK ( Frequency Shift Keying Modulation ) Half-Duplex transceiver working in the ISMband from 902 to 928 MHz.The radio module has a UART interface to exchange data and commands.Working modesRadio module can operate in the follow working modes :Low Speed, Low Power, fixed channel (among 25 channels)oFSK, Bitrate 36864 bps, RZ Manchester encoded, Frequency deviation +/- 75KHzLow Speed, Frequency Hopping Mode over 25 channelsoFSK, Bitrate 36864 bps, RZ Manchester encoded, Frequency deviation +/- 75KHzHigh Speed, Digital Transmission Mode, fixed channel (among 12 channels)oFSK, Bitrate 500,000 bps, NRZ, Frequency deviation +/- 220KHzHigh Speed, Digital Transmission + frequency agility Mode over 12 channelsoFSK, Bitrate 500,000 bps, NRZ, Frequency deviation +/- 220KHzDefault mode after power-up is Low Speed Low Power mode.Radio module can receive commands to allow to change its working mode.Functional statesRadio module can be set in one of the following states during operation:Idle StateRadio module stays in low power receiving mode with a limited capability to receive data. RF transmissionis not allowed while radio is set in Idle state.Receive StateIt is the normal default state. In this state the radio receives the RF packets, decodes the packets and sendsthem to the Host device. In this mode the transceiver checks continuously the RF signal and demodulatesit. The demodulated and filtered signal is sent to the microcontroller inside the radio module which

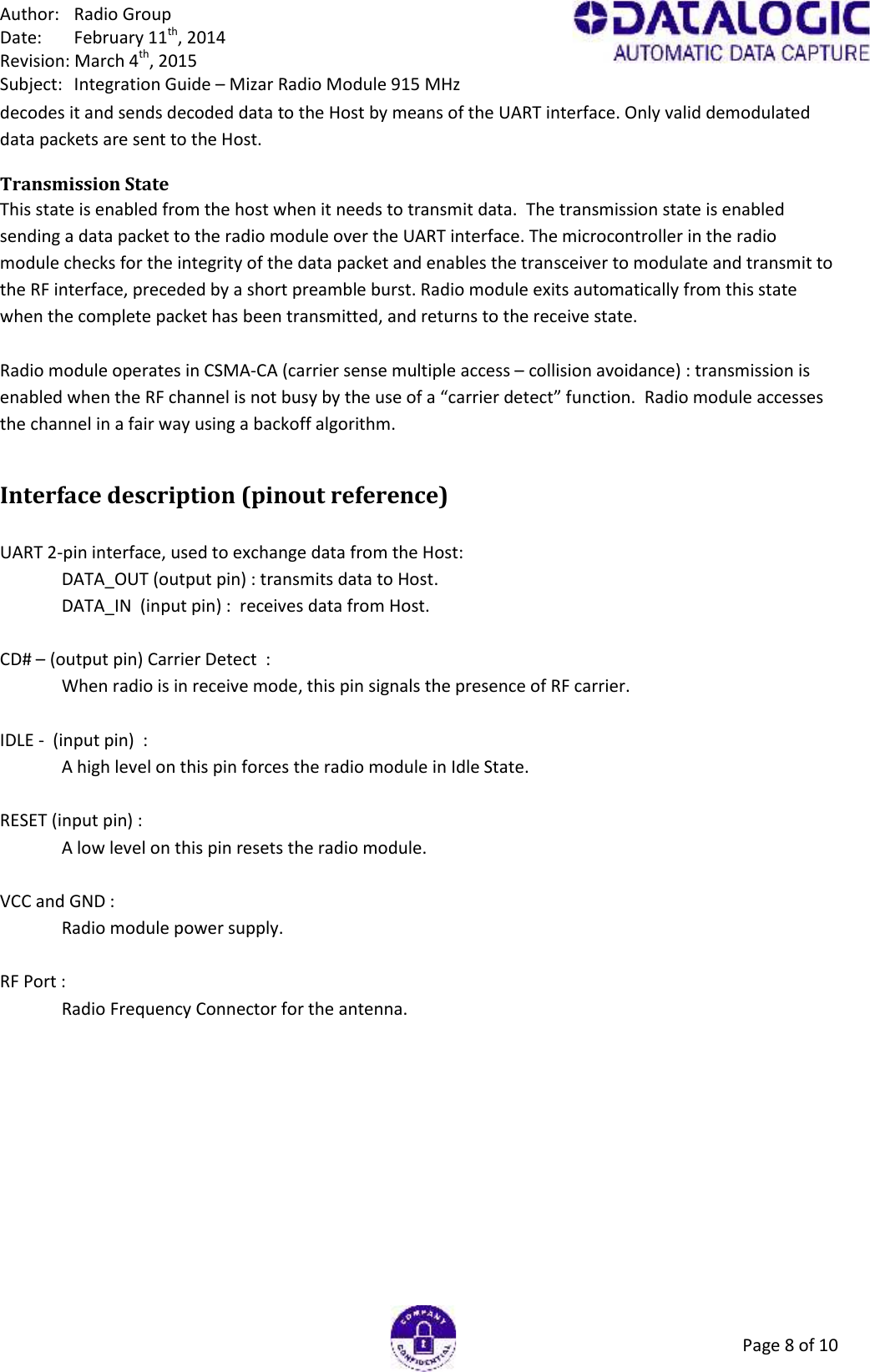

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 8 of 10decodes it and sends decoded data to the Host by means of the UART interface. Only valid demodulateddata packets are sent to the Host.Transmission StateThis state is enabled from the host when it needs to transmit data. The transmission state is enabledsending a data packet to the radio module over the UART interface. The microcontroller in the radiomodule checks for the integrity of the data packet and enables the transceiver to modulate and transmit tothe RF interface, preceded by a short preamble burst. Radio module exits automatically from this statewhen the complete packet has been transmitted, and returns to the receive state.Radio module operates in CSMA-CA (carrier sense multiple access – collision avoidance) : transmission isenabled when the RF channel is not busy by the use of a “carrier detect” function. Radio module accessesthe channel in a fair way using a backoff algorithm.Interface description (pinout reference)UART 2-pin interface, used to exchange data from the Host:DATA_OUT (output pin) : transmits data to Host.DATA_IN (input pin) : receives data from Host.CD# – (output pin) Carrier Detect :When radio is in receive mode, this pin signals the presence of RF carrier.IDLE - (input pin) :A high level on this pin forces the radio module in Idle State.RESET (input pin) :A low level on this pin resets the radio module.VCC and GND :Radio module power supply.RF Port :Radio Frequency Connector for the antenna.

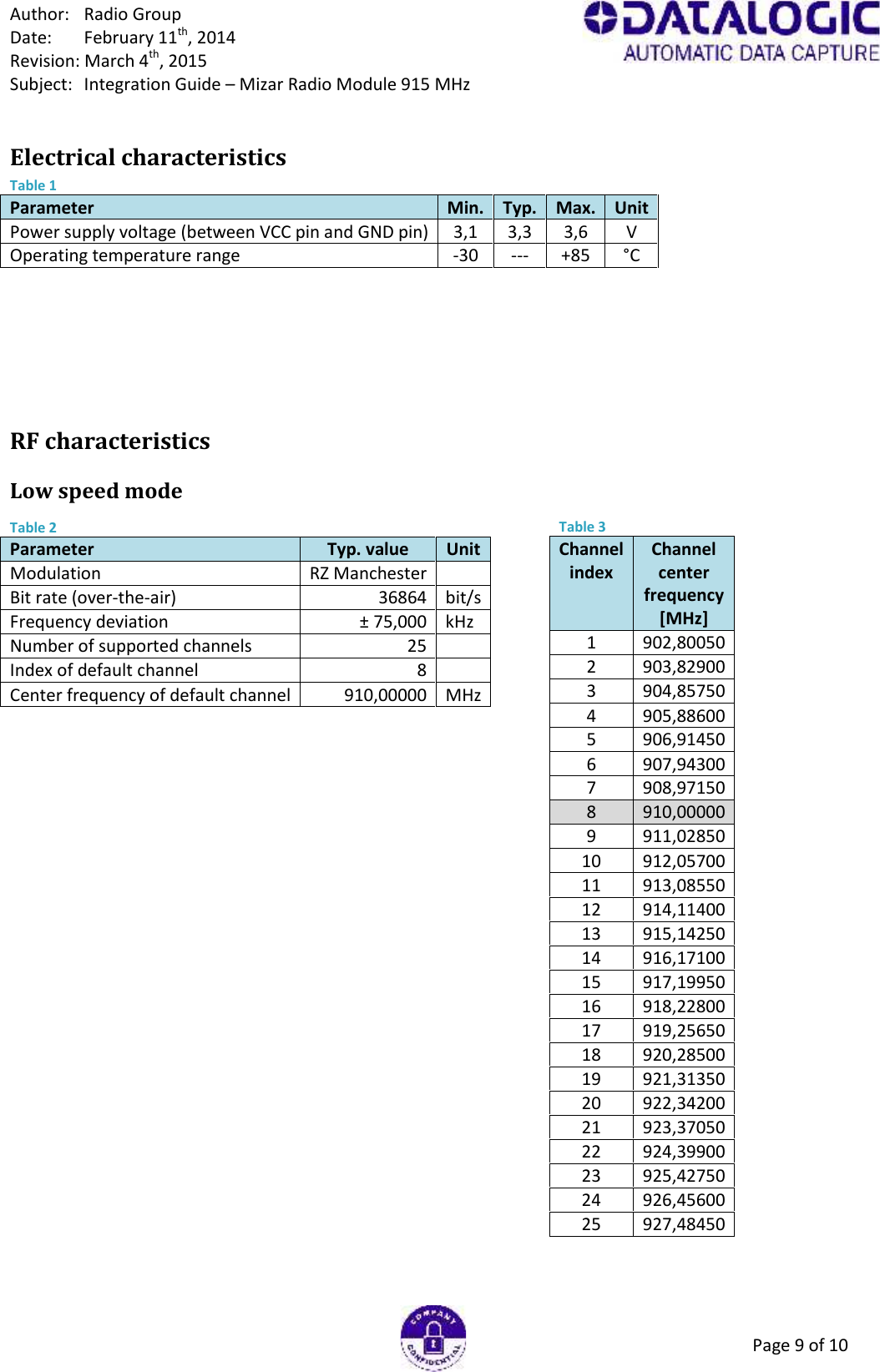

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 9 of 10Electrical characteristicsTable 1ParameterMin.Typ.Max.UnitPower supply voltage (between VCC pin and GND pin)3,13,33,6VOperating temperature range-30---+85°CRF characteristicsLow speed modeTable 2ParameterTyp. valueUnitModulationRZ ManchesterBit rate (over-the-air)36864bit/sFrequency deviation± 75,000kHzNumber of supported channels25Index of default channel8Center frequency of default channel910,00000MHzTable 3ChannelindexChannelcenterfrequency[MHz]1902,800502903,829003904,857504905,886005906,914506907,943007908,971508910,000009911,0285010912,0570011913,0855012914,1140013915,1425014916,1710015917,1995016918,2280017919,2565018920,2850019921,3135020922,3420021923,3705022924,3990023925,4275024926,4560025927,48450

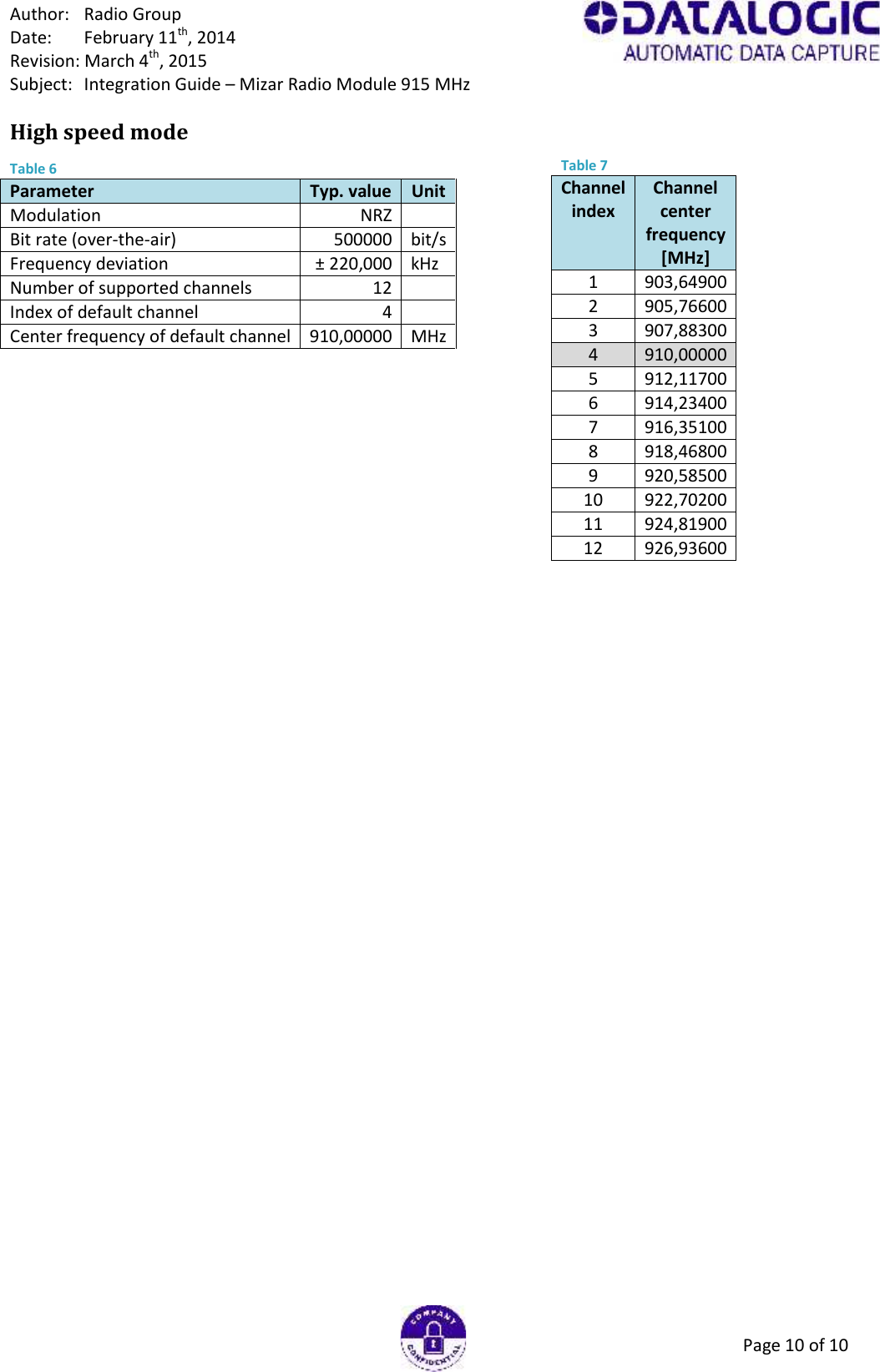

Author: Radio GroupDate: February 11th, 2014Revision: March 4th, 2015Subject: Integration Guide – Mizar Radio Module 915 MHzPage 10 of 10High speed modeTable 6ParameterTyp. valueUnitModulationNRZBit rate (over-the-air)500000bit/sFrequency deviation± 220,000kHzNumber of supported channels12Index of default channel4Center frequency of default channel910,00000MHzTable 7ChannelindexChannelcenterfrequency[MHz]1903,649002905,766003907,883004910,000005912,117006914,234007916,351008918,468009920,5850010922,7020011924,8190012926,93600
