Datalogic S r l DLNFCUR1 Personal Device Assistant User Manual 822001882

Datalogic S.r.l. Personal Device Assistant 822001882

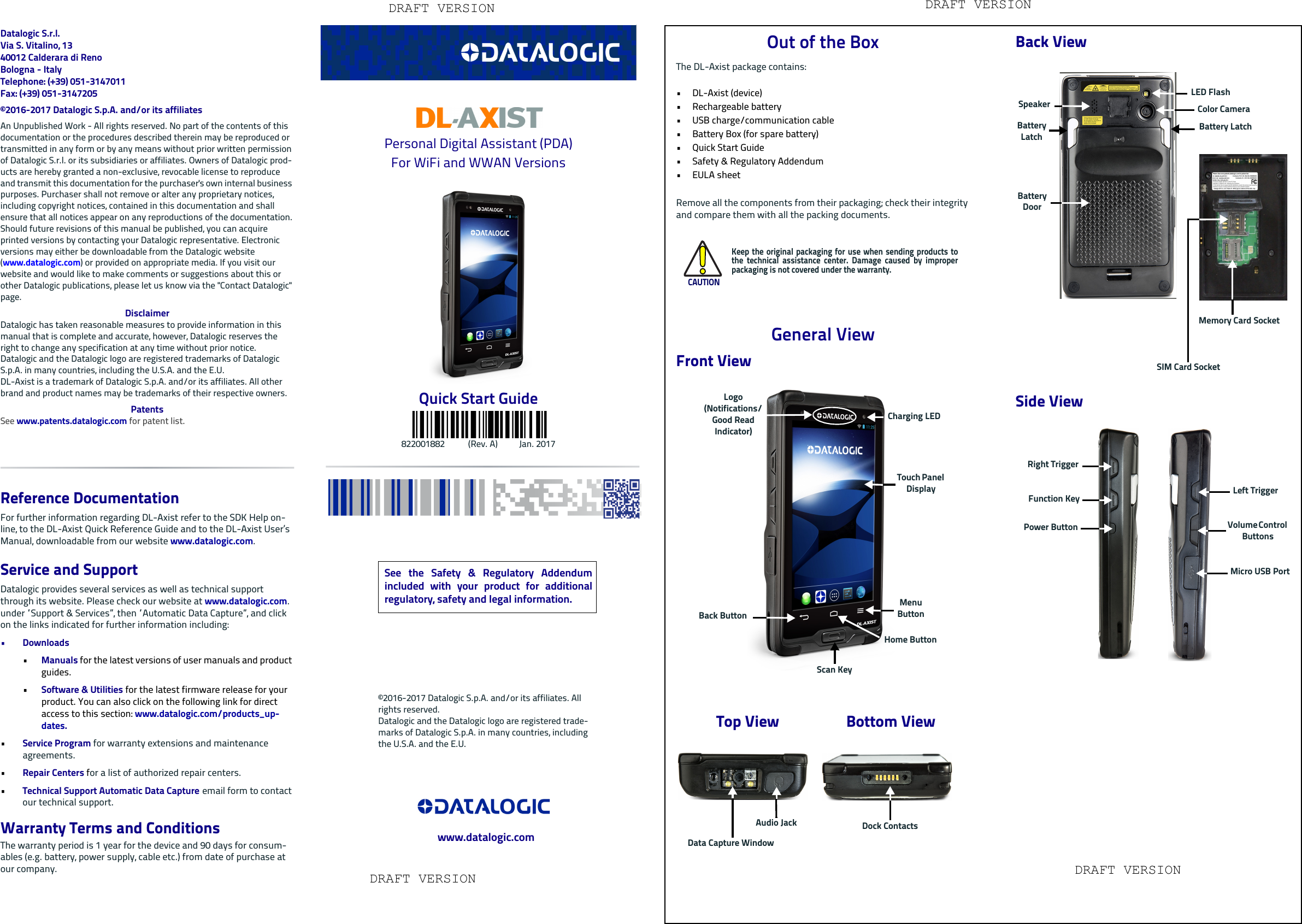

Quick Guide

Datalogic S.r.l.Via S. Vitalino, 1340012 Calderara di RenoBologna - ItalyTelephone: (+39) 051-3147011 Fax: (+39) 051-3147205©2016-2017 Datalogic S.p.A. and/or its affiliates An Unpublished Work - All rights reserved. No part of the contents of this documentation or the procedures described therein may be reproduced or transmitted in any form or by any means without prior written permission of Datalogic S.r.l. or its subsidiaries or affiliates. Owners of Datalogic prod-ucts are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for the purchaser's own internal business purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices, contained in this documentation and shall ensure that all notices appear on any reproductions of the documentation.Should future revisions of this manual be published, you can acquire printed versions by contacting your Datalogic representative. Electronic versions may either be downloadable from the Datalogic website (www.datalogic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.DisclaimerDatalogic has taken reasonable measures to provide information in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice.Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. DL-Axist is a trademark of Datalogic S.p.A. and/or its affiliates. All other brand and product names may be trademarks of their respective owners.PatentsSee www.patents.datalogic.com for patent list.Reference DocumentationFor further information regarding DL-Axist refer to the SDK Help on-line, to the DL-Axist Quick Reference Guide and to the DL-Axist User’s Manual, downloadable from our website www.datalogic.com.Service and SupportDatalogic provides several services as well as technical support through its website. Please check our website at www.datalogic.com. under “Support & Services”, then “Automatic Data Capture”, and click on the links indicated for further information including:•Downloads•Manuals for the latest versions of user manuals and product guides. •Software & Utilities for the latest firmware release for your product. You can also click on the following link for direct access to this section: www.datalogic.com/products_up-dates.•Service Program for warranty extensions and maintenance agreements.•Repair Centers for a list of authorized repair centers.•Technical Support Automatic Data Capture email form to contact our technical support.Warranty Terms and ConditionsThe warranty period is 1 year for the device and 90 days for consum-ables (e.g. battery, power supply, cable etc.) from date of purchase at our company.Personal Digital Assistant (PDA)For WiFi and WWAN VersionsQuick Start Guide822001882 (Rev. A) Jan. 2017Out of the BoxThe DL-Axist package contains: • DL-Axist (device)• Rechargeable battery• USB charge/communication cable• Battery Box (for spare battery)•Quick Start Guide•Safety & Regulatory Addendum• EULA sheetRemove all the components from their packaging; check their integrity and compare them with all the packing documents.General ViewFront ViewCAUTIONKeep the original packaging for use when sending products tothe technical assistance center. Damage caused by improperpackaging is not covered under the warranty.Top View Bottom ViewBack ButtonHome ButtonScan KeyMenu ButtonCharging LEDTouch Panel DisplayLogo (Notifications/ Good Read Indicator)Data Capture WindowAudio Jack Dock ContactsBack ViewSide ViewSpeakerLED FlashColor CameraBattery DoorSIM Card SocketMemory Card SocketBattery LatchBattery LatchPower ButtonLeft TriggerVolume Control ButtonsMicro USB PortRight TriggerFunction KeySee the Safety & Regulatory Addendumincluded with your product for additionalregulatory, safety and legal information.©2016-2017 Datalogic S.p.A. and/or its affiliates. All rights reserved.Datalogic and the Datalogic logo are registered trade-marks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.www.datalogic.comDRAFT VERSION DRAFT VERSIONDRAFT VERSIONDRAFT VERSION

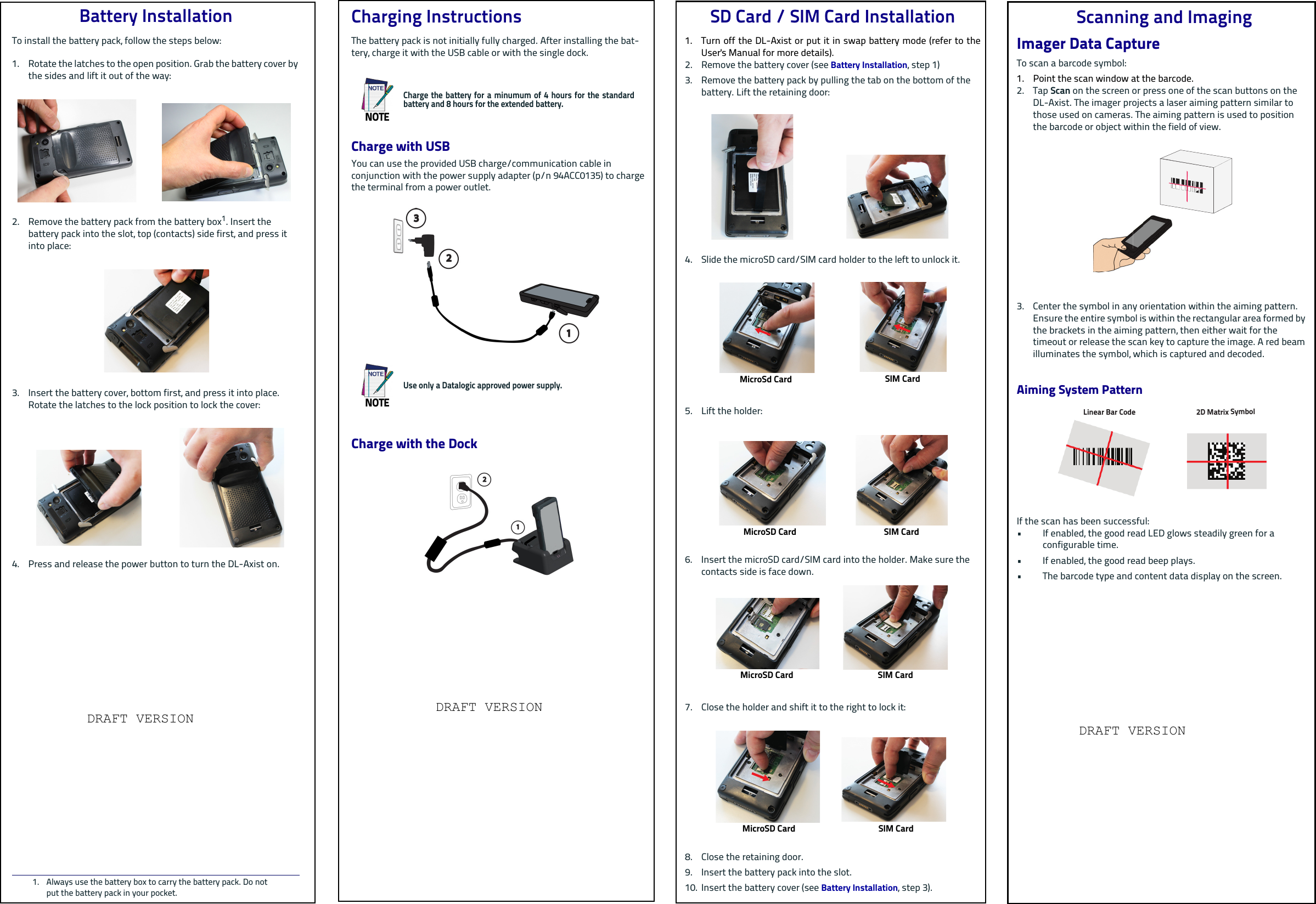

Battery InstallationTo install the battery pack, follow the steps below:1. Rotate the latches to the open position. Grab the battery cover by the sides and lift it out of the way:2. Remove the battery pack from the battery box1. Insert the battery pack into the slot, top (contacts) side first, and press it into place:3. Insert the battery cover, bottom first, and press it into place. Rotate the latches to the lock position to lock the cover:4. Press and release the power button to turn the DL-Axist on.1. Always use the battery box to carry the battery pack. Do not put the battery pack in your pocket.Charging InstructionsThe battery pack is not initially fully charged. After installing the bat-tery, charge it with the USB cable or with the single dock.Charge with USBYou can use the provided USB charge/communication cable in conjunction with the power supply adapter (p/n 94ACC0135) to charge the terminal from a power outlet. Charge with the DockNOTECharge the battery for a minumum of 4 hours for the standardbattery and 8 hours for the extended battery.NOTEUse only a Datalogic approved power supply. Scanning and ImagingImager Data CaptureTo scan a barcode symbol:1. Point the scan window at the barcode. 2. Tap Scan on the screen or press one of the scan buttons on the DL-Axist. The imager projects a laser aiming pattern similar to those used on cameras. The aiming pattern is used to position the barcode or object within the field of view. 3. Center the symbol in any orientation within the aiming pattern. Ensure the entire symbol is within the rectangular area formed by the brackets in the aiming pattern, then either wait for the timeout or release the scan key to capture the image. A red beam illuminates the symbol, which is captured and decoded.Aiming System PatternIf the scan has been successful:• If enabled, the good read LED glows steadily green for a configurable time.• If enabled, the good read beep plays.• The barcode type and content data display on the screen.Linear Bar Code2D Matrix SymbolSD Card / SIM Card Installation1. Turn off the DL-Axist or put it in swap battery mode (refer to theUser's Manual for more details).2. Remove the battery cover (see Battery Installation, step 1)3. Remove the battery pack by pulling the tab on the bottom of the battery. Lift the retaining door:4. Slide the microSD card/SIM card holder to the left to unlock it. 5. Lift the holder:6. Insert the microSD card/SIM card into the holder. Make sure the contacts side is face down. 7. Close the holder and shift it to the right to lock it:8. Close the retaining door.9. Insert the battery pack into the slot.10. Insert the battery cover (see Battery Installation, step 3).SIM CardMicroSd CardSIM CardMicroSD CardMicroSD Card SIM CardMicroSD Card SIM CardDRAFT VERSIONDRAFT VERSION DRAFT VERSION
