Datalogic S r l FX4WB Rugged Mobile Computer with 1D/2D Imager User Manual 822002580

Datalogic S.r.l. Rugged Mobile Computer with 1D/2D Imager 822002580

Contents

Users Manual - general

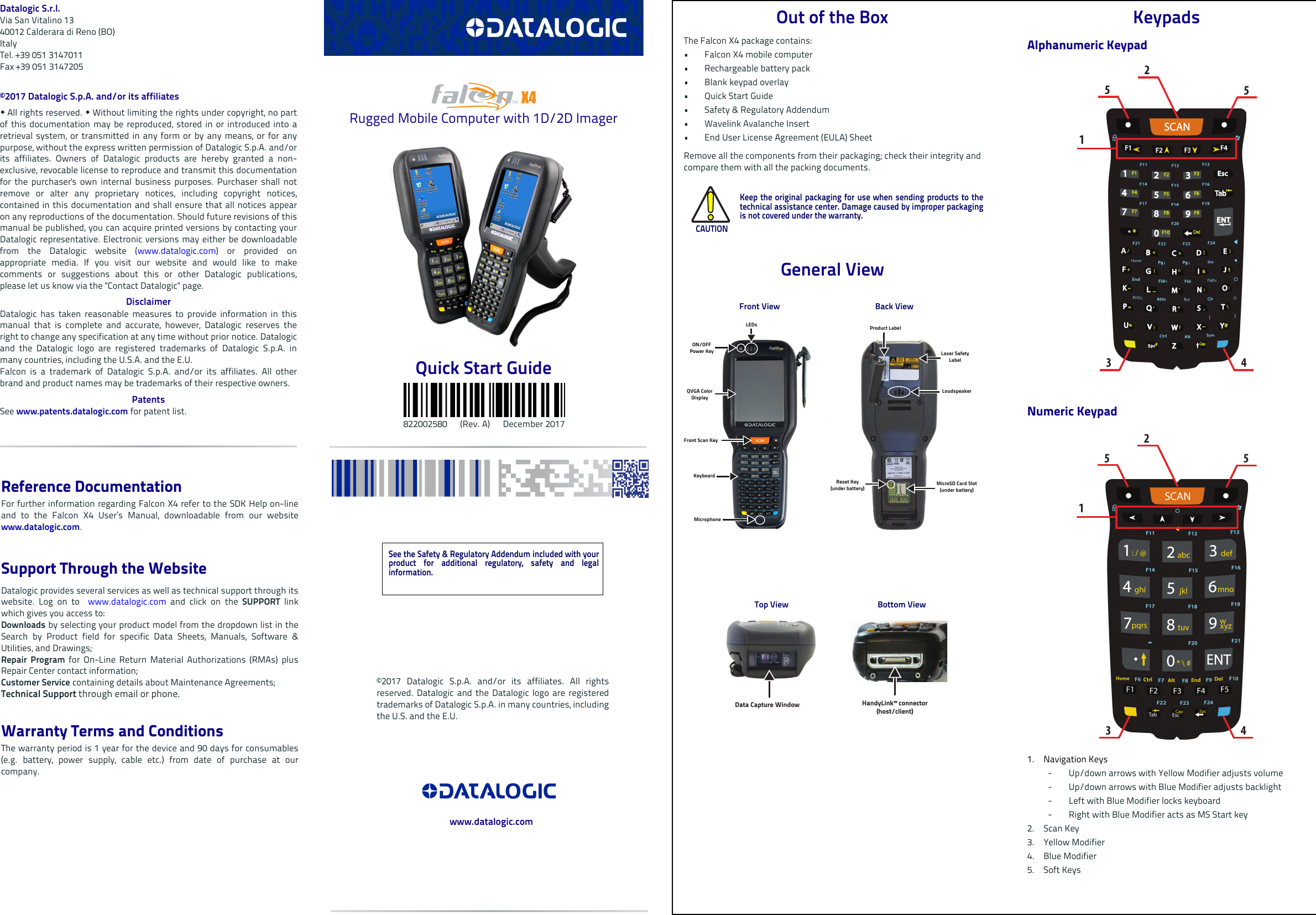

Datalogic S.r.l.Via San Vitalino 1340012 Calderara di Reno (BO) ItalyTel. +39 051 3147011Fax +39 051 3147205©2017 Datalogic S.p.A. and/or its affiliates  All rights reserved.  Without limiting the rights under copyright, no partof this documentation may be reproduced, stored in or introduced into aretrieval system, or transmitted in any form or by any means, or for anypurpose, without the express written permission of Datalogic S.p.A. and/orits affiliates. Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentationfor the purchaser's own internal business purposes. Purchaser shall notremove or alter any proprietary notices, including copyright notices,contained in this documentation and shall ensure that all notices appearon any reproductions of the documentation. Should future revisions of thismanual be published, you can acquire printed versions by contacting yourDatalogic representative. Electronic versions may either be downloadablefrom the Datalogic website (www.datalogic.com) or provided onappropriate media. If you visit our website and would like to makecomments or suggestions about this or other Datalogic publications,please let us know via the "Contact Datalogic" page.DisclaimerDatalogic has taken reasonable measures to provide information in thismanual that is complete and accurate, however, Datalogic reserves theright to change any specification at any time without prior notice. Datalogicand the Datalogic logo are registered trademarks of Datalogic S.p.A. inmany countries, including the U.S.A. and the E.U. Falcon is a trademark of Datalogic S.p.A. and/or its affiliates. All otherbrand and product names may be trademarks of their respective owners.PatentsSee www.patents.datalogic.com for patent list.Rugged Mobile Computer with 1D/2D ImagerQuick Start Guide 822002580 (Rev. A) December 2017Out of the BoxThe Falcon X4 package contains: • Falcon X4 mobile computer• Rechargeable battery pack • Blank keypad overlay•Quick Start Guide• Safety & Regulatory Addendum• Wavelink Avalanche Insert • End User License Agreement (EULA) SheetRemove all the components from their packaging; check their integrity andcompare them with all the packing documents.General ViewCAUTIONKeep the original packaging for use when sending products to thetechnical assistance center. Damage caused by improper packagingis not covered under the warranty. Front View Back ViewTop View Bottom ViewON/OFF Power KeyLEDsQVGA Color DisplayFront Scan KeyKeyboardLaser Safety LabelLoudspeakerMicrophoneProduct LabelReset Key(under battery) MicroSD Card Slot (under battery)Data Capture Window HandyLink™ connector (host/client)KeypadsAlphanumeric Keypad Numeric Keypad 1. Navigation Keys- Up/down arrows with Yellow Modifier adjusts volume- Up/down arrows with Blue Modifier adjusts backlight- Left with Blue Modifier locks keyboard- Right with Blue Modifier acts as MS Start key2. Scan Key3. Yellow Modifier4. Blue Modifier5. Soft Keys123455123455See the Safety & Regulatory Addendum included with yourproduct for additional regulatory, safety and legalinformation.©2017 Datalogic S.p.A. and/or its affiliates. All rightsreserved. Datalogic and the Datalogic logo are registeredtrademarks of Datalogic S.p.A. in many countries, includingthe U.S. and the E.U.www.datalogic.comReference DocumentationFor further information regarding Falcon X4 refer to the SDK Help on-lineand to the Falcon X4 User’s Manual, downloadable from our websitewww.datalogic.com.Support Through the WebsiteDatalogic provides several services as well as technical support through itswebsite. Log on to www.datalogic.com and click on the SUPPORT linkwhich gives you access to:Downloads by selecting your product model from the dropdown list in theSearch by Product field for specific Data Sheets, Manuals, Software &Utilities, and Drawings;Repair Program for On-Line Return Material Authorizations (RMAs) plusRepair Center contact information;Customer Service containing details about Maintenance Agreements;Technical Support through email or phone.Warranty Terms and ConditionsThe warranty period is 1 year for the device and 90 days for consumables(e.g. battery, power supply, cable etc.) from date of purchase at ourcompany.

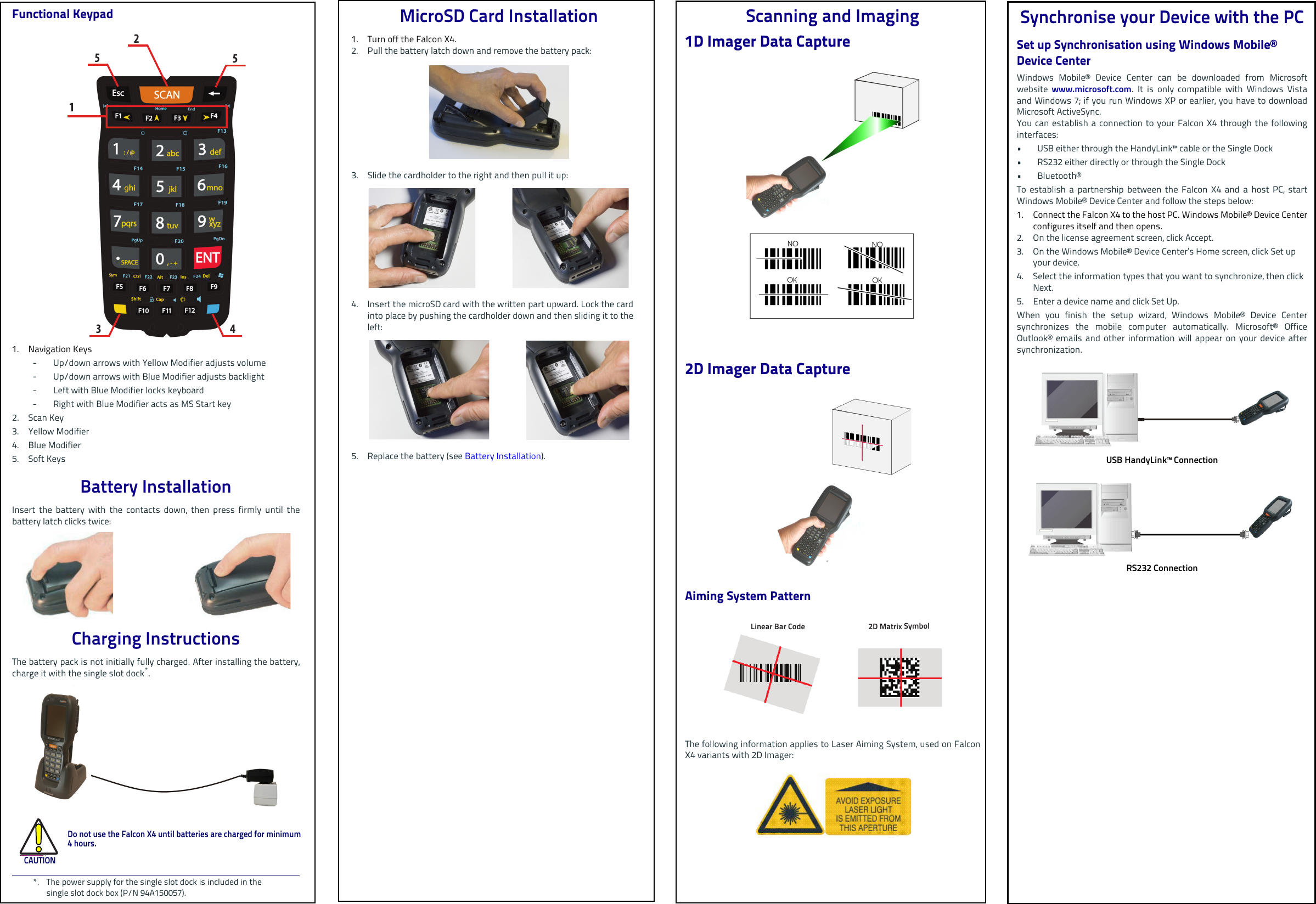

Functional Keypad 1. Navigation Keys- Up/down arrows with Yellow Modifier adjusts volume- Up/down arrows with Blue Modifier adjusts backlight- Left with Blue Modifier locks keyboard- Right with Blue Modifier acts as MS Start key2. Scan Key3. Yellow Modifier4. Blue Modifier5. Soft KeysBattery InstallationInsert the battery with the contacts down, then press firmly until thebattery latch clicks twice:Charging InstructionsThe battery pack is not initially fully charged. After installing the battery,charge it with the single slot dock*.*. The power supply for the single slot dock is included in the single slot dock box (P/N 94A150057).CAUTIONDo not use the Falcon X4 until batteries are charged for minimum4 hours.123455MicroSD Card Installation1. Turn off the Falcon X4.2. Pull the battery latch down and remove the battery pack:3. Slide the cardholder to the right and then pull it up:4. Insert the microSD card with the written part upward. Lock the card into place by pushing the cardholder down and then sliding it to the left: 5. Replace the battery (see Battery Installation).Synchronise your Device with the PCSet up Synchronisation using Windows Mobile® Device CenterWindows Mobile® Device Center can be downloaded from Microsoftwebsite www.microsoft.com. It is only compatible with Windows Vistaand Windows 7; if you run Windows XP or earlier, you have to downloadMicrosoft ActiveSync.You can establish a connection to your Falcon X4 through the followinginterfaces:• USB either through the HandyLink™ cable or the Single Dock• RS232 either directly or through the Single Dock• Bluetooth® To establish a partnership between the Falcon X4 and a host PC, startWindows Mobile® Device Center and follow the steps below:1. Connect the Falcon X4 to the host PC. Windows Mobile® Device Centerconfigures itself and then opens.2. On the license agreement screen, click Accept.3. On the Windows Mobile® Device Center’s Home screen, click Set up your device.4. Select the information types that you want to synchronize, then click Next.5. Enter a device name and click Set Up.When you finish the setup wizard, Windows Mobile® Device Centersynchronizes the mobile computer automatically. Microsoft® OfficeOutlook® emails and other information will appear on your device aftersynchronization.USB HandyLink™ ConnectionRS232 ConnectionScanning and Imaging1D Imager Data Capture2D Imager Data CaptureAiming System PatternThe following information applies to Laser Aiming System, used on FalconX4 variants with 2D Imager:Linear Bar Code2D Matrix Symbol
