Datalogic S r l JNG3SD JOYA TOUCH 3-SLOT CRADLE User Manual 822002151

Datalogic ADC S.r.l. JOYA TOUCH 3-SLOT CRADLE 822002151

User Manual

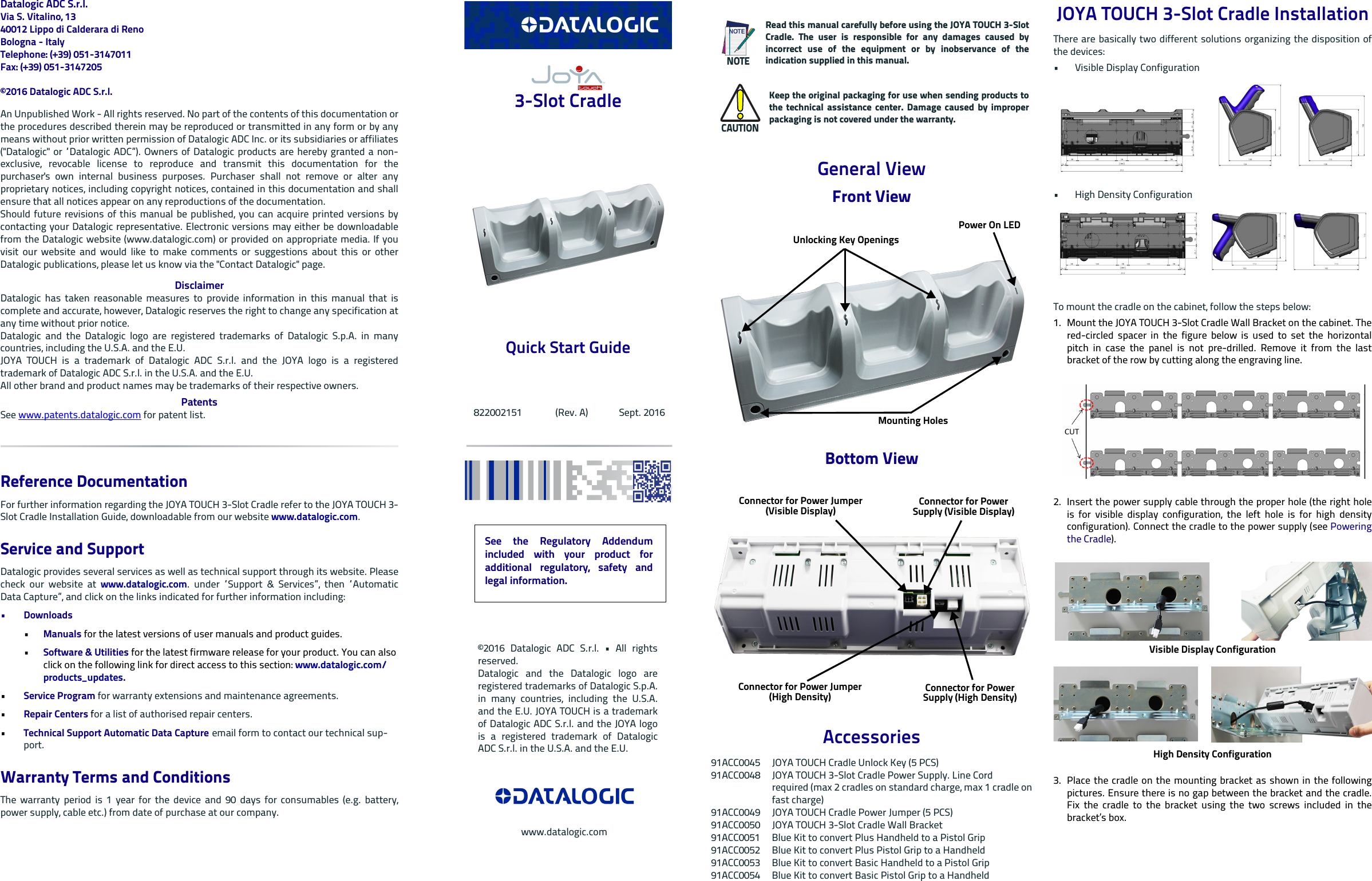

Datalogic ADC S.r.l.Via S. Vitalino, 1340012 Lippo di Calderara di RenoBologna - ItalyTelephone: (+39) 051-3147011 Fax: (+39) 051-3147205©2016 Datalogic ADC S.r.l.An Unpublished Work - All rights reserved. No part of the contents of this documentation orthe procedures described therein may be reproduced or transmitted in any form or by anymeans without prior written permission of Datalogic ADC Inc. or its subsidiaries or affiliates("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-exclusive, revocable license to reproduce and transmit this documentation for thepurchaser's own internal business purposes. Purchaser shall not remove or alter anyproprietary notices, including copyright notices, contained in this documentation and shallensure that all notices appear on any reproductions of the documentation.Should future revisions of this manual be published, you can acquire printed versions bycontacting your Datalogic representative. Electronic versions may either be downloadablefrom the Datalogic website (www.datalogic.com) or provided on appropriate media. If youvisit our website and would like to make comments or suggestions about this or otherDatalogic publications, please let us know via the "Contact Datalogic" page.DisclaimerDatalogic has taken reasonable measures to provide information in this manual that iscomplete and accurate, however, Datalogic reserves the right to change any specification atany time without prior notice.Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in manycountries, including the U.S.A. and the E.U. JOYA TOUCH is a trademark of Datalogic ADC S.r.l. and the JOYA logo is a registeredtrademark of Datalogic ADC S.r.l. in the U.S.A. and the E.U.All other brand and product names may be trademarks of their respective owners.PatentsSee www.patents.datalogic.com for patent list.Reference DocumentationFor further information regarding the JOYA TOUCH 3-Slot Cradle refer to the JOYA TOUCH 3-Slot Cradle Installation Guide, downloadable from our website www.datalogic.com.Service and SupportDatalogic provides several services as well as technical support through its website. Pleasecheck our website at www.datalogic.com. under “Support & Services”, then “AutomaticData Capture”, and click on the links indicated for further information including:• Downloads•Manuals for the latest versions of user manuals and product guides. •Software & Utilities for the latest firmware release for your product. You can also click on the following link for direct access to this section: www.datalogic.com/products_updates.•Service Program for warranty extensions and maintenance agreements.•Repair Centers for a list of authorised repair centers.•Technical Support Automatic Data Capture email form to contact our technical sup-port.Warranty Terms and ConditionsThe warranty period is 1 year for the device and 90 days for consumables (e.g. battery,power supply, cable etc.) from date of purchase at our company. 3-Slot Cradle Quick Start Guide 822002151 (Rev. A) Sept. 2016General ViewFront ViewBottom ViewAccessories91ACC0045 JOYA TOUCH Cradle Unlock Key (5 PCS) 91ACC0048 JOYA TOUCH 3-Slot Cradle Power Supply. Line Cordrequired (max 2 cradles on standard charge, max 1 cradle onfast charge)91ACC0049 JOYA TOUCH Cradle Power Jumper (5 PCS)91ACC0050 JOYA TOUCH 3-Slot Cradle Wall Bracket91ACC0051 Blue Kit to convert Plus Handheld to a Pistol Grip91ACC0052 Blue Kit to convert Plus Pistol Grip to a Handheld91ACC0053 Blue Kit to convert Basic Handheld to a Pistol Grip91ACC0054 Blue Kit to convert Basic Pistol Grip to a HandheldNOTERead this manual carefully before using the JOYA TOUCH 3-SlotCradle. The user is responsible for any damages caused byincorrect use of the equipment or by inobservance of theindication supplied in this manual.CAUTIONKeep the original packaging for use when sending products tothe technical assistance center. Damage caused by improperpackaging is not covered under the warranty.Unlocking Key OpeningsMounting HolesPower On LEDConnector for Power Supply (Visible Display)Connector for Power Jumper (Visible Display)Connector for Power Supply (High Density)Connector for Power Jumper (High Density)JOYA TOUCH 3-Slot Cradle InstallationThere are basically two different solutions organizing the disposition ofthe devices: • Visible Display Configuration• High Density Configuration To mount the cradle on the cabinet, follow the steps below:1. Mount the JOYA TOUCH 3-Slot Cradle Wall Bracket on the cabinet. Thered-circled spacer in the figure below is used to set the horizontalpitch in case the panel is not pre-drilled. Remove it from the lastbracket of the row by cutting along the engraving line.2. Insert the power supply cable through the proper hole (the right holeis for visible display configuration, the left hole is for high densityconfiguration). Connect the cradle to the power supply (see Poweringthe Cradle).Visible Display ConfigurationHigh Density Configuration3. Place the cradle on the mounting bracket as shown in the followingpictures. Ensure there is no gap between the bracket and the cradle.Fix the cradle to the bracket using the two screws included in thebracket’s box.See the Regulatory Addendumincluded with your product foradditional regulatory, safety andlegal information.©2016 Datalogic ADC S.r.l. • All rightsreserved. Datalogic and the Datalogic logo areregistered trademarks of Datalogic S.p.A.in many countries, including the U.S.A.and the E.U. JOYA TOUCH is a trademarkof Datalogic ADC S.r.l. and the JOYA logois a registered trademark of DatalogicADC S.r.l. in the U.S.A. and the E.U.www.datalogic.com

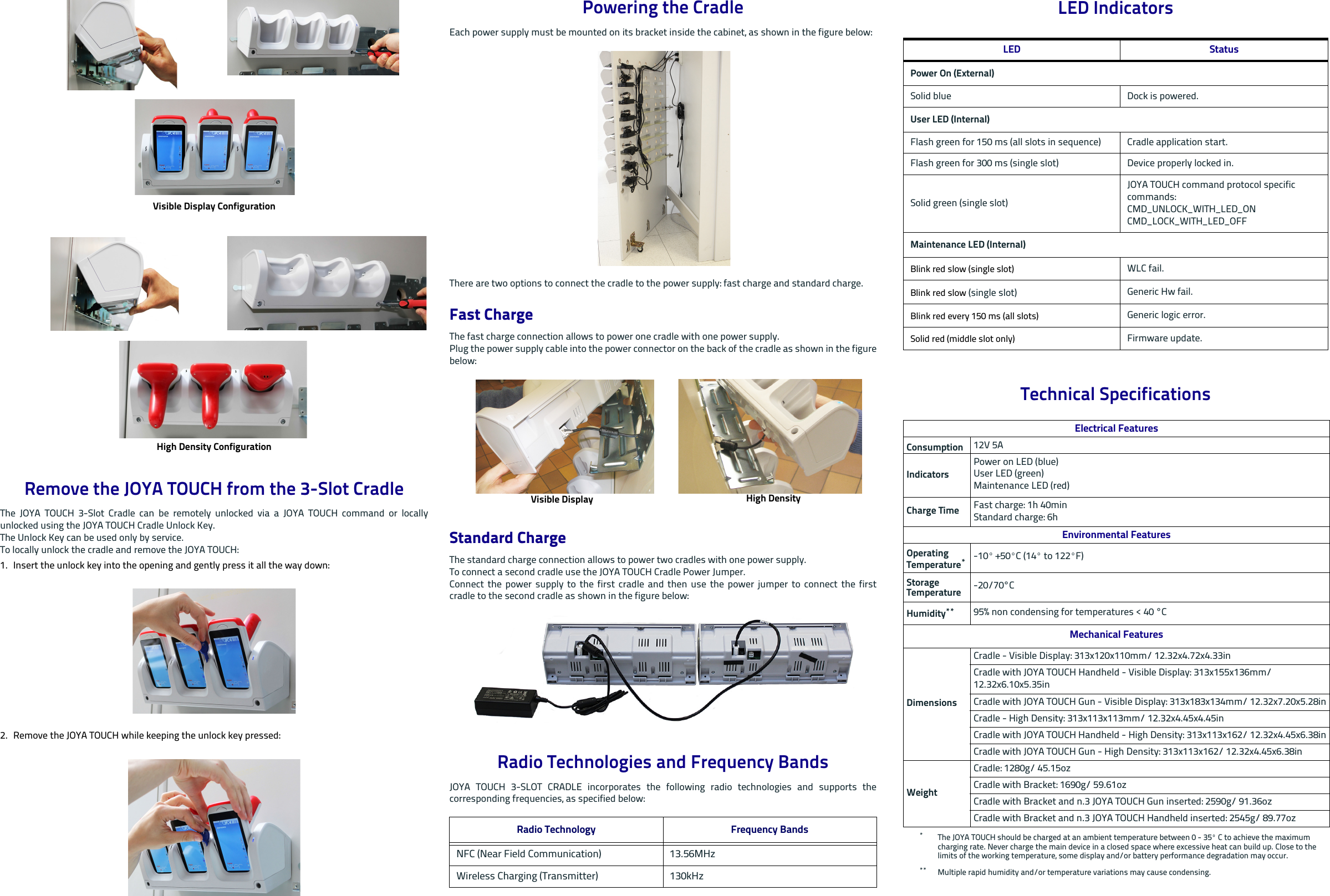

Visible Display ConfigurationHigh Density ConfigurationRemove the JOYA TOUCH from the 3-Slot CradleThe JOYA TOUCH 3-Slot Cradle can be remotely unlocked via a JOYA TOUCH command or locallyunlocked using the JOYA TOUCH Cradle Unlock Key.The Unlock Key can be used only by service.To locally unlock the cradle and remove the JOYA TOUCH:1. Insert the unlock key into the opening and gently press it all the way down:2. Remove the JOYA TOUCH while keeping the unlock key pressed: Powering the CradleEach power supply must be mounted on its bracket inside the cabinet, as shown in the figure below:There are two options to connect the cradle to the power supply: fast charge and standard charge.Fast ChargeThe fast charge connection allows to power one cradle with one power supply. Plug the power supply cable into the power connector on the back of the cradle as shown in the figurebelow:Standard ChargeThe standard charge connection allows to power two cradles with one power supply. To connect a second cradle use the JOYA TOUCH Cradle Power Jumper.Connect the power supply to the first cradle and then use the power jumper to connect the firstcradle to the second cradle as shown in the figure below:Radio Technologies and Frequency BandsJOYA TOUCH 3-SLOT CRADLE incorporates the following radio technologies and supports thecorresponding frequencies, as specified below:Radio Technology Frequency BandsNFC (Near Field Communication) 13.56MHzWireless Charging (Transmitter) 130kHzVisible Display High DensityLED IndicatorsTechnical SpecificationsLED StatusPower On (External)Solid blue Dock is powered.User LED (Internal)Flash green for 150 ms (all slots in sequence) Cradle application start.Flash green for 300 ms (single slot) Device properly locked in.Solid green (single slot)JOYA TOUCH command protocol specific commands:CMD_UNLOCK_WITH_LED_ONCMD_LOCK_WITH_LED_OFFMaintenance LED (Internal)Blink red slow (single slot) WLC fail.Blink red slow (single slot) Generic Hw fail.Blink red every 150 ms (all slots) Generic logic error.Solid red (middle slot only) Firmware update.Electrical FeaturesConsumption 12V 5AIndicatorsPower on LED (blue)User LED (green)Maintenance LED (red)Charge Time Fast charge: 1h 40minStandard charge: 6hEnvironmental FeaturesOperating Temperature**The JOYA TOUCH should be charged at an ambient temperature between 0 - 35º C to achieve the maximum charging rate. Never charge the main device in a closed space where excessive heat can build up. Close to the limits of the working temperature, some display and/or battery performance degradation may occur.-10º +50ºC (14º to 122ºF)Storage Temperature -20/70°CHumidity**** Multiple rapid humidity and/or temperature variations may cause condensing.95% non condensing for temperatures < 40 °CMechanical FeaturesDimensionsCradle - Visible Display: 313x120x110mm/ 12.32x4.72x4.33inCradle with JOYA TOUCH Handheld - Visible Display: 313x155x136mm/ 12.32x6.10x5.35inCradle with JOYA TOUCH Gun - Visible Display: 313x183x134mm/ 12.32x7.20x5.28inCradle - High Density: 313x113x113mm/ 12.32x4.45x4.45inCradle with JOYA TOUCH Handheld - High Density: 313x113x162/ 12.32x4.45x6.38inCradle with JOYA TOUCH Gun - High Density: 313x113x162/ 12.32x4.45x6.38inWeightCradle: 1280g/ 45.15ozCradle with Bracket: 1690g/ 59.61ozCradle with Bracket and n.3 JOYA TOUCH Gun inserted: 2590g/ 91.36ozCradle with Bracket and n.3 JOYA TOUCH Handheld inserted: 2545g/ 89.77oz
