Datalogic S r l JX2WB JOYA X2 Plus Mobile Computer User Manual Joya X2 Single Dock

Datalogic ADC S.r.l. JOYA X2 Plus Mobile Computer Joya X2 Single Dock

User Manual

X2 Single Slot DockThe Joya Single Slot Dock paired with one Joya X2 mobile computer builds a readingsystem for the collection, decoding and transmission of barcoded data.Figure 1 - Joya X2 Single Slot DockMOBILE COMPUTER INSERTION/ REMOVALFigure 2 - Joya X2 Battery ChargingA. LED IndicatorB. Mobile Computer ContactsC. Power Jack

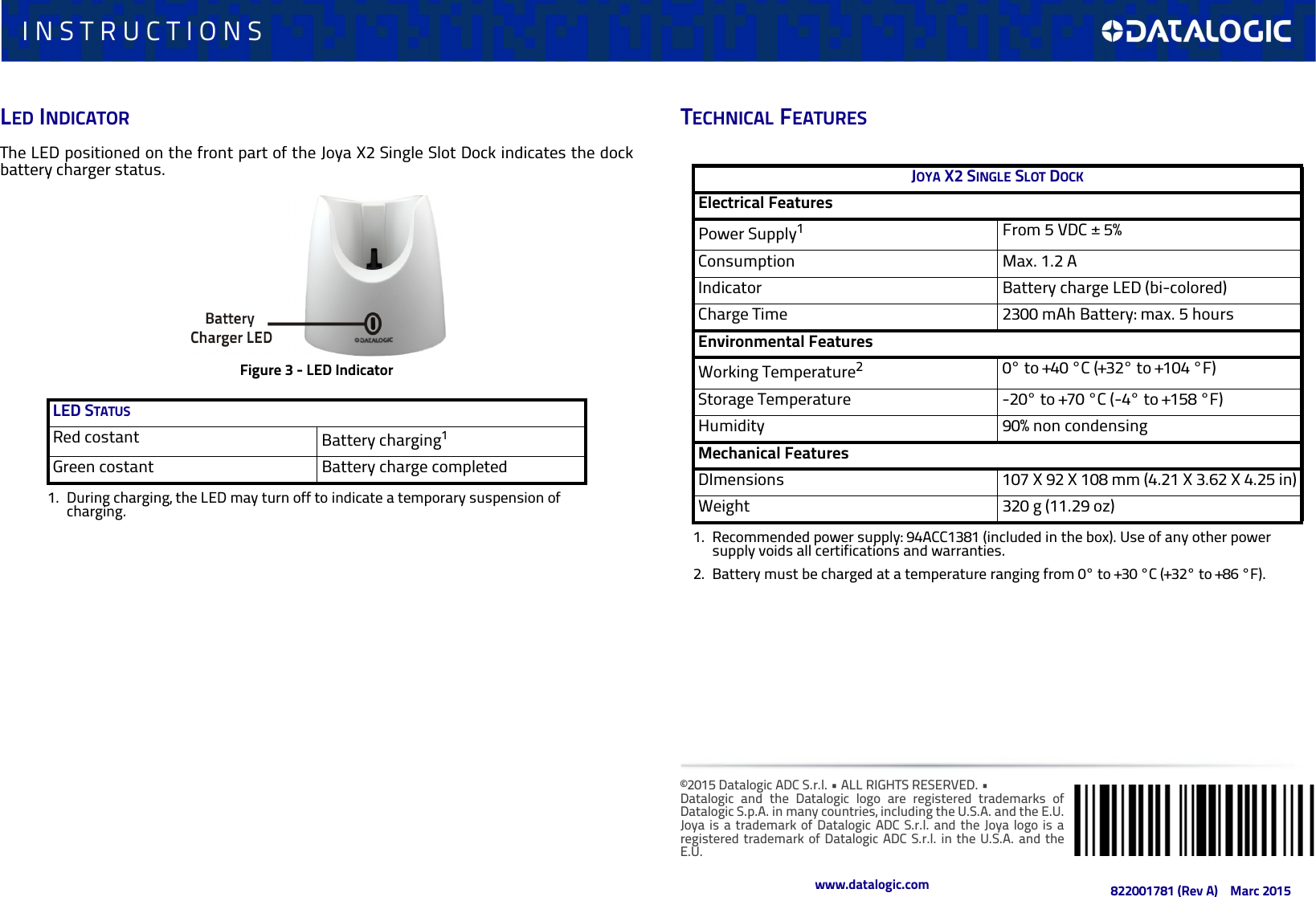

LED INDICATORThe LED positioned on the front part of the Joya X2 Single Slot Dock indicates the dockbattery charger status.Figure 3 - LED IndicatorTECHNICAL FEATURESLED STATUSRed costant Battery charging11. During charging, the LED may turn off to indicate a temporary suspension of charging.Green costant Battery charge completedJOYA X2 SINGLE SLOT DOCKElectrical FeaturesPower Supply11. Recommended power supply: 94ACC1381 (included in the box). Use of any other power supply voids all certifications and warranties.From 5 VDC ± 5%Consumption Max. 1.2 AIndicator Battery charge LED (bi-colored)Charge Time 2300 mAh Battery: max. 5 hours Environmental FeaturesWorking Temperature22. Battery must be charged at a temperature ranging from 0° to +30 °C (+32° to +86 °F).0° to +40 °C (+32° to +104 °F)Storage Temperature -20° to +70 °C (-4° to +158 °F)Humidity 90% non condensingMechanical FeaturesDImensions 107 X 92 X 108 mm (4.21 X 3.62 X 4.25 in)Weight 320 g (11.29 oz)©2015 Datalogic ADC S.r.l. • ALL RIGHTS RESERVED. • Datalogic and the Datalogic logo are registered trademarks ofDatalogic S.p.A. in many countries, including the U.S.A. and the E.U.Joya is a trademark of Datalogic ADC S.r.l. and the Joya logo is aregistered trademark of Datalogic ADC S.r.l. in the U.S.A. and theE.U.www.datalogic.com 822001781 (Rev A) Marc 2015
