Datalogic S r l SX4WB SKORPIO X4 - Rugged Mobile Computer with 1D/2D imager User Manual 822002270

Datalogic S.r.l. SKORPIO X4 - Rugged Mobile Computer with 1D/2D imager 822002270

Contents

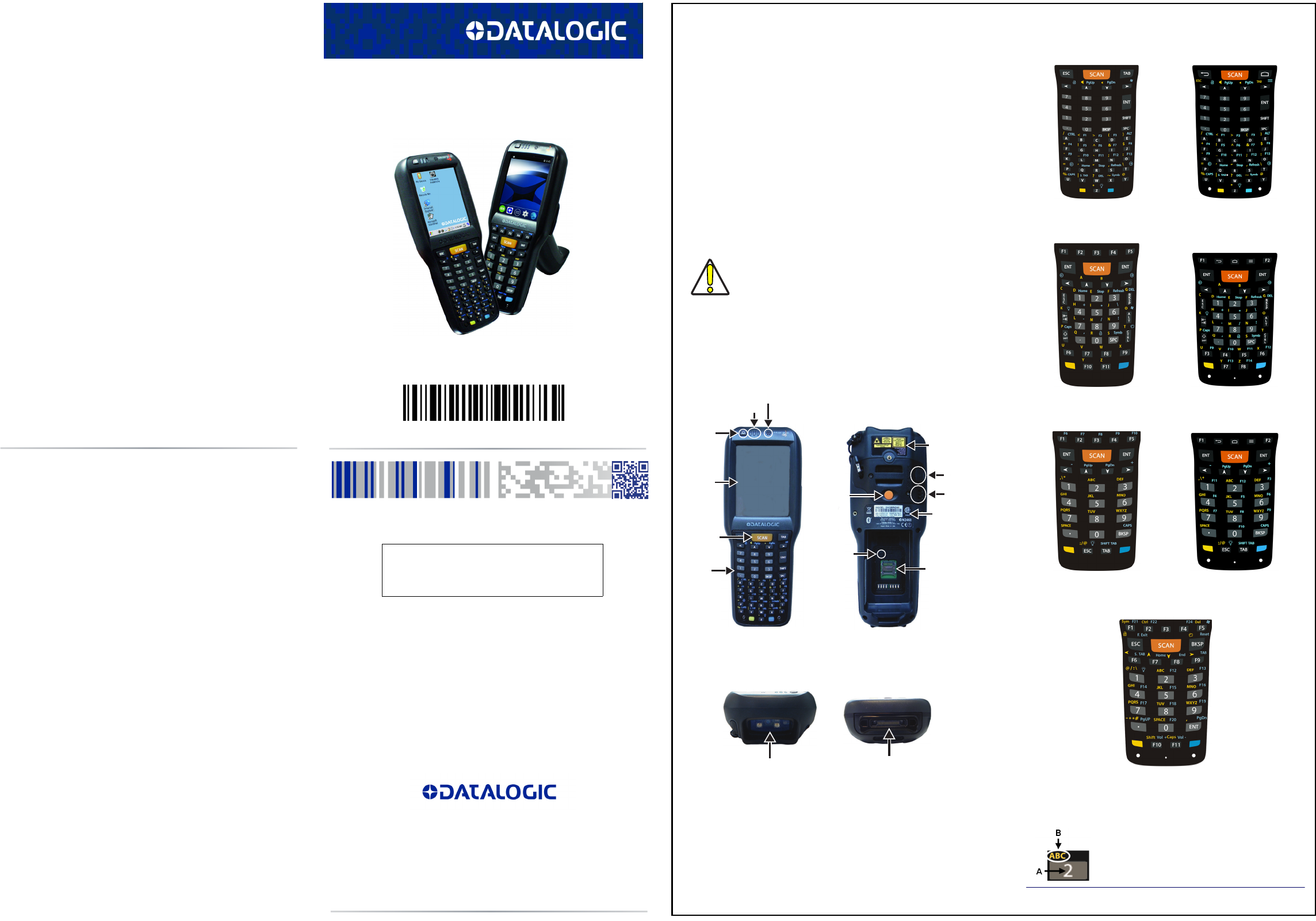

Users Manual

Datalogic S.r.l.Via San Vitalino 1340012 Calderara di Reno (BO) ItalyTel. +39 051 3147011Fax +39 051 3147205©2017 Datalogic S.p.A. and/or its affiliates An Unpublished Work - All rights reserved. No part of the contents of thisdocumentation or the procedures described therein may be reproduced ortransmitted in any form or by any means without prior written permissionof Datalogic S.p.A. and/or its affiliates. Owners of Datalogic products arehereby granted a non-exclusive, revocable license to reproduce andtransmit this documentation for the purchaser's own internal businesspurposes. Purchaser shall not remove or alter any proprietary notices,including copyright notices, contained in this documentation and shallensure that all notices appear on any reproductions of the documentation.Should future revisions of this manual be published, you can acquireprinted versions by contacting your Datalogic representative. Electronicversions may either be downloadable from the Datalogic website(www.datalogic.com) or provided on appropriate media. If you visit ourwebsite and would like to make comments or suggestions about this orother Datalogic publications, please let us know via the "Contact Datalogic"page.DisclaimerDatalogic has taken reasonable measures to provide information in thismanual that is complete and accurate, however, Datalogic reserves theright to change any specification at any time without prior notice. Datalogicand the Datalogic logo are registered trademarks of Datalogic S.p.A. inmany countries, including the U.S.A. and the E.U. Skorpio is a trademark of Datalogic S.p.A. and/or its affiliates. All otherbrand and product names may be trademarks of their respective owners.PatentsSee www.patents.datalogic.com for patent list.Skorpio™ X4Rugged Mobile Computer with 1D/2D ImagerQuick Start Guide 822002270 (Rev. A) June 2017Out of the BoxThe Skorpio X4 package contains: • Skorpio X4 mobile computer• Rechargeable battery pack • Terminal emulation overlay• Belt clip (handheld models only)• Belt clip pivot (handheld models only)•Hand-strap• Lanyard (for pistol grip models only)•Quick Start Guide• Safety & Regulatory Addendum• Wavelink Avalanche Insert (WEC7 radio models only)• Wavelink Terminal Emulation insert (WEC7 pistol grip models only)• End User License Agreement (EULA) SheetRemove all the components from their packaging; check their integrity andcompare them with all the packing documents.General ViewCAUTIONKeep the original packaging for use when sending products to thetechnical assistance center. Damage caused by improper packagingis not covered under the warranty.Front View Back ViewTop View Bottom ViewON/OFF Power KeyLEDsReceiver SpeakerColor DisplayFront Scan KeyKeyboardLaser Safety LabelMicro USB ConnectorLoudspeakerTrigger Button (for use with the optional pistol trigger) Product LabelReset KeyMicroSD Card Slot Data Capture Window HandyLink™ connector (host/device)KeypadsFull-alphanumeric Keypad (50 Keys)Alphanumeric Keypad (38 Keys)Numeric Keypad (28 Keys)Functional Keypad (28 Keys)*Multitap FunctionIn the numeric keypad the number keys (key 0 excluded) and the ESCkey share the following behavior scheme:Windows Embedded Compact 7 AndroidWindows Embedded Compact 7 AndroidWindows Embedded Compact 7 Android*. Only available on Windows Embedded Compact 7 special configurations.A. Function of the key when directly pressed.B. Modified by the Yellow key, repeated presses cycle through the letters shown on the keyboard overlay for each key. The letter is entered if you wait for a short timeout.See the Safety & Regulatory Addendum included with yourproduct for additional regulatory, safety and legalinformation.©2017 Datalogic S.p.A. and/or its affiliates. All rightsreserved. Datalogic and the Datalogic logo are registeredtrademarks of Datalogic S.p.A. in many countries, includingthe U.S. and the E.U.www.datalogic.comReference DocumentationFor further information regarding Skorpio X4 refer to the SDK Help on-lineand to the Skorpio User’s Manual, downloadable from our websitewww.datalogic.com.Support Through the WebsiteDatalogic provides several services as well as technical support through itswebsite. Log on to www.datalogic.com and click on the SUPPORT > MOBILECOMPUTERS category link. From this page you can select your productmodel from the dropdown list which gives you access to:Downloads including Data Sheets, Manuals, Software & Utilities, andDrawings;Repair Program for On-Line Return Material Authorizations (RMAs) plusRepair Center contact information;Service Program containing details about Maintenance Agreements;Technical Support through email or phone.Warranty Terms and ConditionsThe warranty period is 1 year for the device and 90 days for consumables(e.g. battery, power supply, cable etc.) from date of purchase at ourcompany.PRELIMINARY

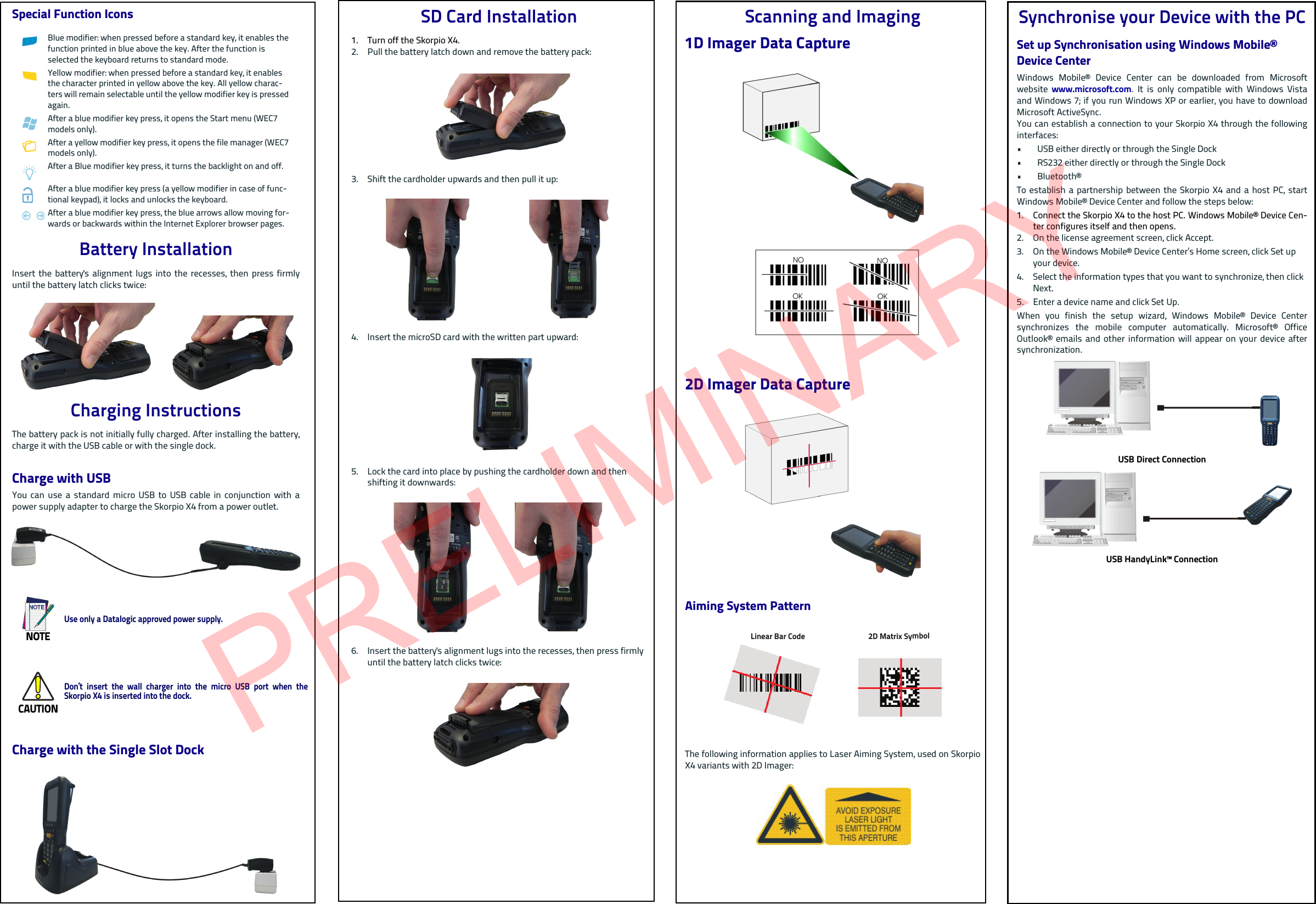

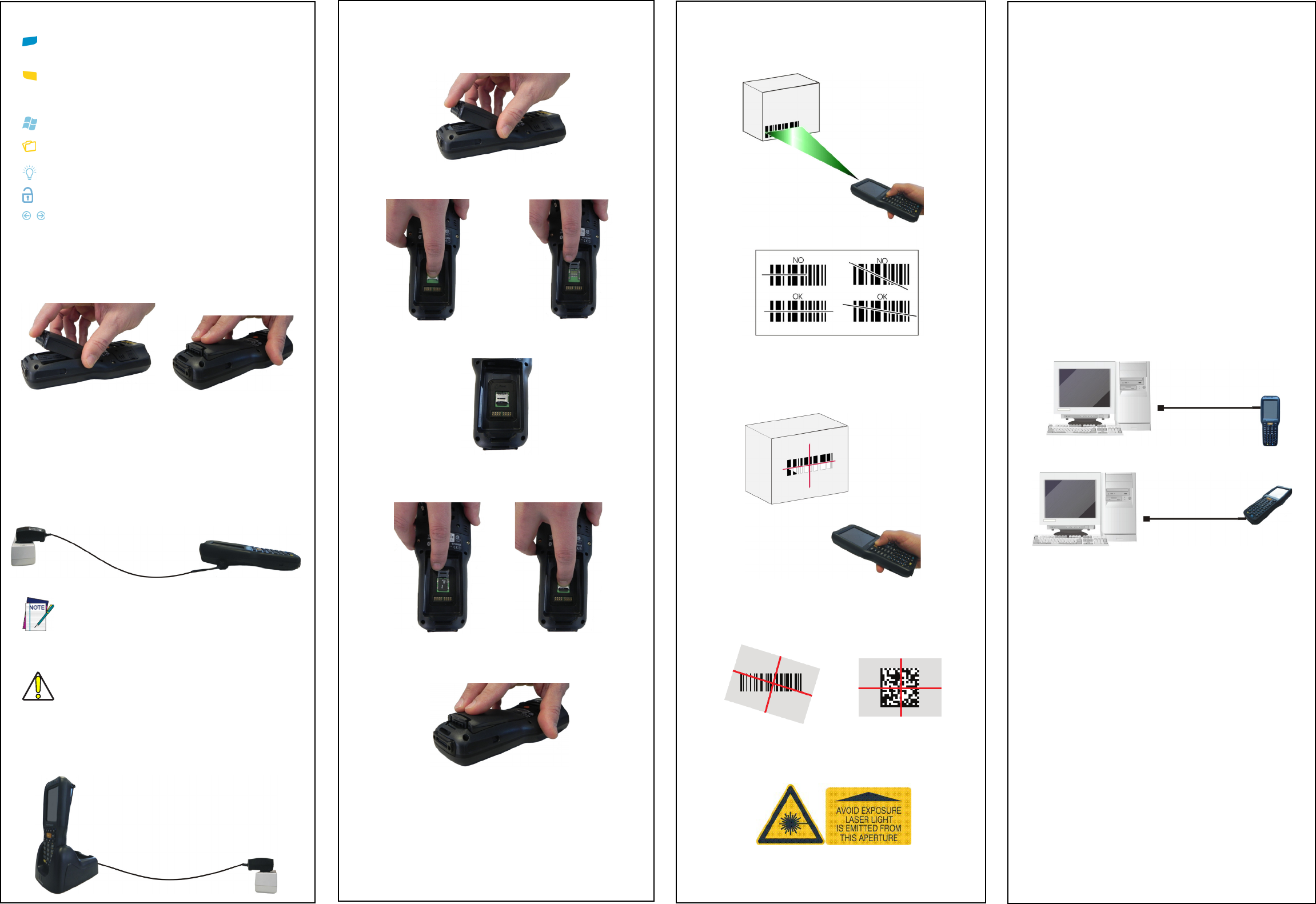

Special Function IconsBattery InstallationInsert the battery's alignment lugs into the recesses, then press firmlyuntil the battery latch clicks twice:Charging InstructionsThe battery pack is not initially fully charged. After installing the battery,charge it with the USB cable or with the single dock.Charge with USBYou can use a standard micro USB to USB cable in conjunction with apower supply adapter to charge the Skorpio X4 from a power outlet.Charge with the Single Slot DockBlue modifier: when pressed before a standard key, it enables the function printed in blue above the key. After the function is selected the keyboard returns to standard mode.Yellow modifier: when pressed before a standard key, it enables the character printed in yellow above the key. All yellow charac-ters will remain selectable until the yellow modifier key is pressed again.After a blue modifier key press, it opens the Start menu (WEC7 models only).After a yellow modifier key press, it opens the file manager (WEC7 models only).After a Blue modifier key press, it turns the backlight on and off.After a blue modifier key press (a yellow modifier in case of func-tional keypad), it locks and unlocks the keyboard.After a blue modifier key press, the blue arrows allow moving for-wards or backwards within the Internet Explorer browser pages.NOTEUse only a Datalogic approved power supply.CAUTIONDon’t insert the wall charger into the micro USB port when theSkorpio X4 is inserted into the dock.SD Card Installation1. Turn off the Skorpio X4.2. Pull the battery latch down and remove the battery pack:3. Shift the cardholder upwards and then pull it up:4. Insert the microSD card with the written part upward:5. Lock the card into place by pushing the cardholder down and then shifting it downwards:6. Insert the battery's alignment lugs into the recesses, then press firmly until the battery latch clicks twice:Synchronise your Device with the PCSet up Synchronisation using Windows Mobile® Device CenterWindows Mobile® Device Center can be downloaded from Microsoftwebsite www.microsoft.com. It is only compatible with Windows Vistaand Windows 7; if you run Windows XP or earlier, you have to downloadMicrosoft ActiveSync.You can establish a connection to your Skorpio X4 through the followinginterfaces:• USB either directly or through the Single Dock• RS232 either directly or through the Single Dock• Bluetooth® To establish a partnership between the Skorpio X4 and a host PC, startWindows Mobile® Device Center and follow the steps below:1. Connect the Skorpio X4 to the host PC. Windows Mobile® Device Cen-ter configures itself and then opens.2. On the license agreement screen, click Accept.3. On the Windows Mobile® Device Center’s Home screen, click Set up your device.4. Select the information types that you want to synchronize, then click Next.5. Enter a device name and click Set Up.When you finish the setup wizard, Windows Mobile® Device Centersynchronizes the mobile computer automatically. Microsoft® OfficeOutlook® emails and other information will appear on your device aftersynchronization.USB Direct ConnectionUSB HandyLink™ ConnectionScanning and Imaging1D Imager Data Capture2D Imager Data CaptureAiming System PatternThe following information applies to Laser Aiming System, used on SkorpioX4 variants with 2D Imager:Linear Bar Code2D Matrix SymbolPRELIMINARY
