iSR3500 Series GSM / GPRS Module Pre-Release Rev 0.3 2008. 03. 28 Sirius Mobility 31 International Business Park #02-05 Creative Resource Bldg, Singapore 609921 www.sirius-mobility.com email: sales@i-sirius.com.sg

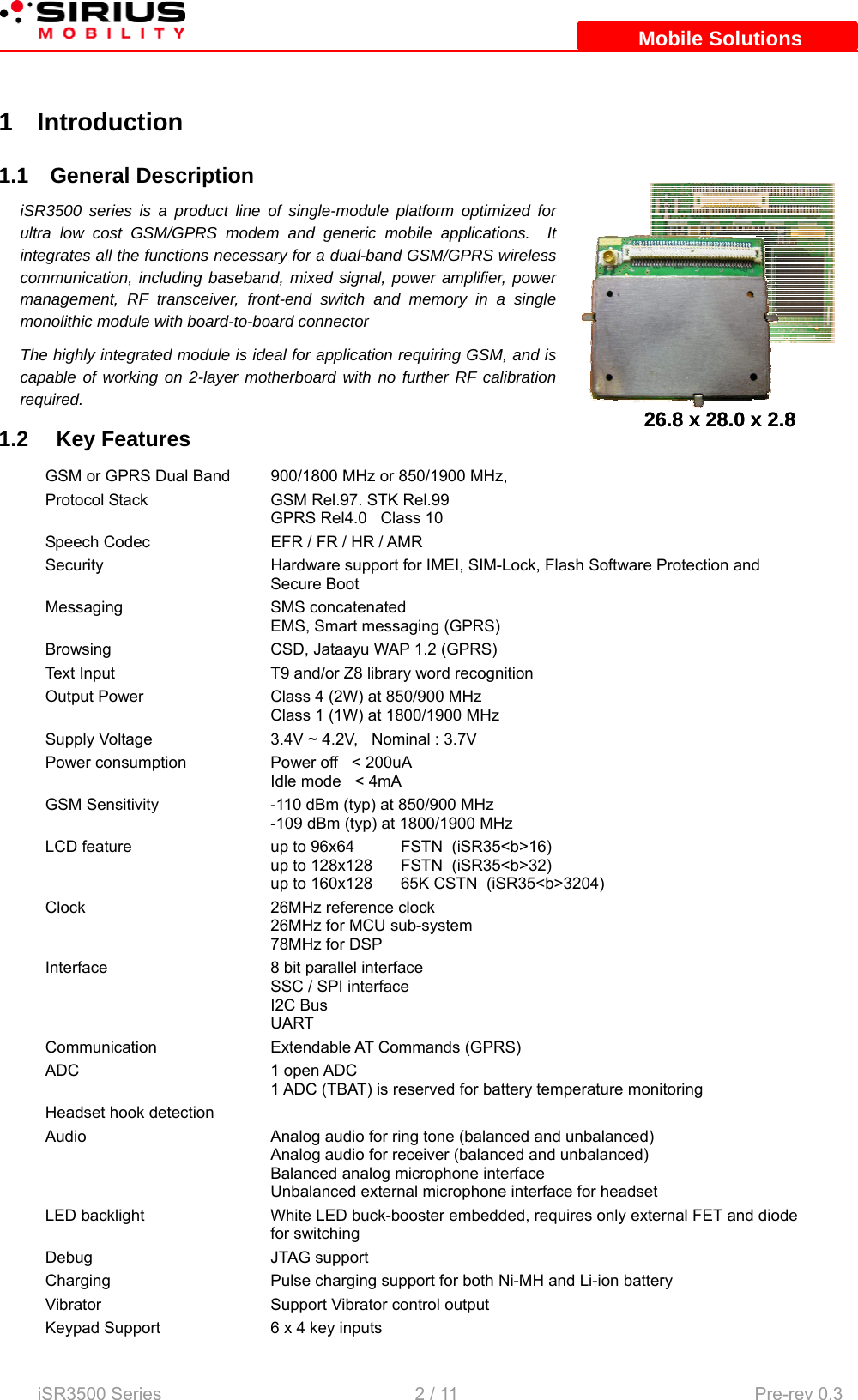

iSR3500 Series 2 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions 1 Introduction 1.1 General Description iSR3500 series is a product line of single-module platform optimized for ultra low cost GSM/GPRS modem and generic mobile applications. It integrates all the functions necessary for a dual-band GSM/GPRS wireless communication, including baseband, mixed signal, power amplifier, power management, RF transceiver, front-end switch and memory in a single monolithic module with board-to-board connector The highly integrated module is ideal for application requiring GSM, and is capable of working on 2-layer motherboard with no further RF calibration required. 1.2 Key Features GSM or GPRS Dual Band 900/1800 MHz or 850/1900 MHz, Protocol Stack GSM Rel.97. STK Rel.99 GPRS Rel4.0 Class 10 Speech Codec EFR / FR / HR / AMR Security Hardware support for IMEI, SIM-Lock, Flash Software Protection and Secure Boot Messaging SMS concatenated EMS, Smart messaging (GPRS) Browsing CSD, Jataayu WAP 1.2 (GPRS) Text Input T9 and/or Z8 library word recognition Output Power Class 4 (2W) at 850/900 MHz Class 1 (1W) at 1800/1900 MHz Supply Voltage 3.4V ~ 4.2V, Nominal : 3.7V Power consumption Power off < 200uA Idle mode < 4mA GSM Sensitivity -110 dBm (typ) at 850/900 MHz -109 dBm (typ) at 1800/1900 MHz LCD feature up to 96x64 FSTN (iSR35<b>16) up to 128x128 FSTN (iSR35<b>32) up to 160x128 65K CSTN (iSR35<b>3204) Clock 26MHz reference clock 26MHz for MCU sub-system 78MHz for DSP Interface 8 bit parallel interface SSC / SPI interface I2C Bus UART Communication Extendable AT Commands (GPRS) ADC 1 open ADC 1 ADC (TBAT) is reserved for battery temperature monitoring Headset hook detection Audio Analog audio for ring tone (balanced and unbalanced) Analog audio for receiver (balanced and unbalanced) Balanced analog microphone interface Unbalanced external microphone interface for headset LED backlight White LED buck-booster embedded, requires only external FET and diode for switching Debug JTAG support Charging Pulse charging support for both Ni-MH and Li-ion battery Vibrator Support Vibrator control output Keypad Support 6 x 4 key inputs 26.8 x 28.0 x 2.826.8 x 28.0 x 2.8

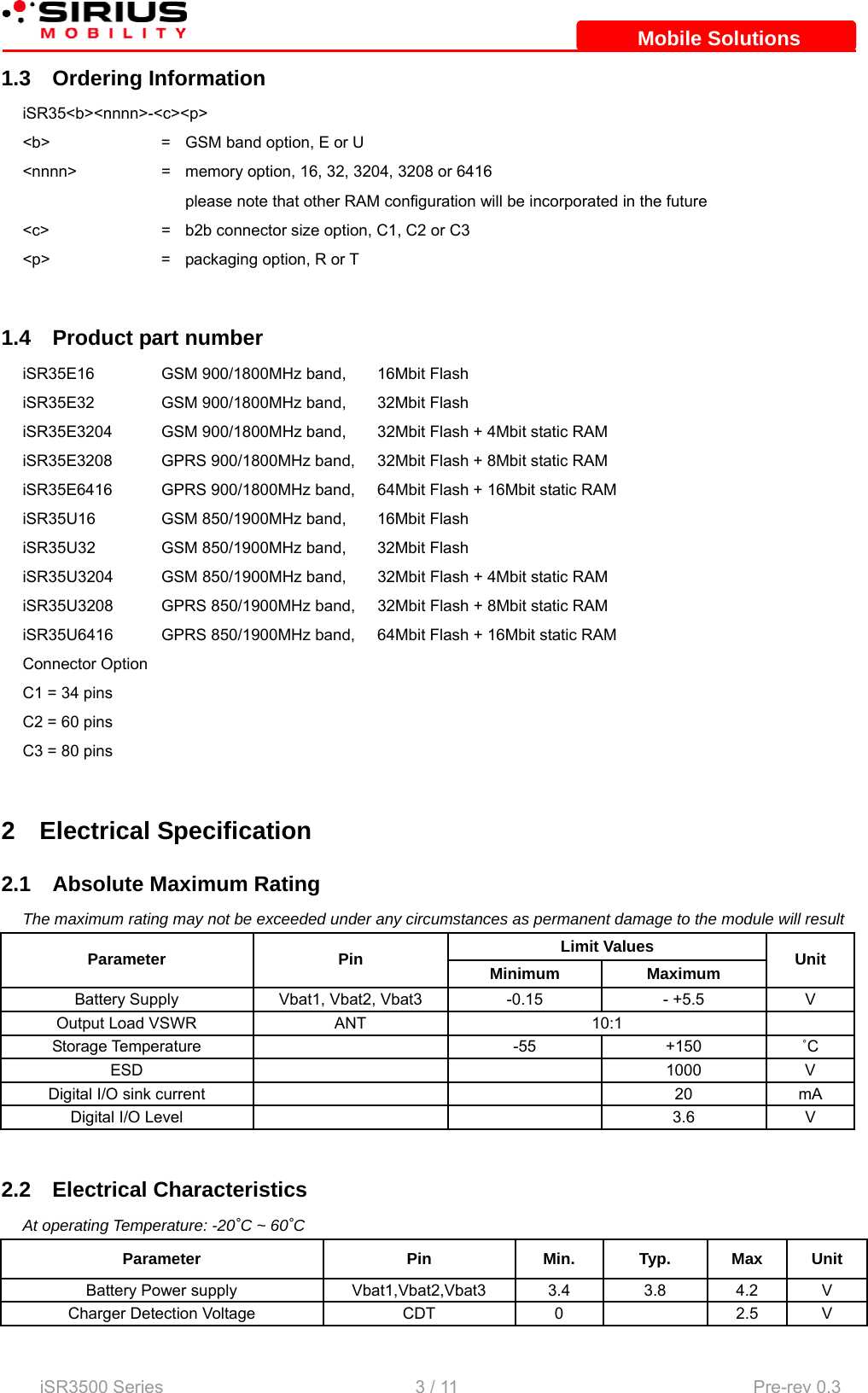

iSR3500 Series 3 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions1.3 Ordering Information iSR35<b><nnnn>-<c><p> <b> = GSM band option, E or U <nnnn> = memory option, 16, 32, 3204, 3208 or 6416 please note that other RAM configuration will be incorporated in the future <c> = b2b connector size option, C1, C2 or C3 <p> = packaging option, R or T 1.4 Product part number iSR35E16 GSM 900/1800MHz band, 16Mbit Flash iSR35E32 GSM 900/1800MHz band, 32Mbit Flash iSR35E3204 GSM 900/1800MHz band, 32Mbit Flash + 4Mbit static RAM iSR35E3208 GPRS 900/1800MHz band, 32Mbit Flash + 8Mbit static RAM iSR35E6416 GPRS 900/1800MHz band, 64Mbit Flash + 16Mbit static RAM iSR35U16 GSM 850/1900MHz band, 16Mbit Flash iSR35U32 GSM 850/1900MHz band, 32Mbit Flash iSR35U3204 GSM 850/1900MHz band, 32Mbit Flash + 4Mbit static RAM iSR35U3208 GPRS 850/1900MHz band, 32Mbit Flash + 8Mbit static RAM iSR35U6416 GPRS 850/1900MHz band, 64Mbit Flash + 16Mbit static RAM Connector Option C1 = 34 pins C2 = 60 pins C3 = 80 pins 2 Electrical Specification 2.1 Absolute Maximum Rating The maximum rating may not be exceeded under any circumstances as permanent damage to the module will result Limit Values Parameter Pin Minimum Maximum Unit Battery Supply Vbat1, Vbat2, Vbat3 -0.15 - +5.5 V Output Load VSWR ANT 10:1 Storage Temperature -55 +150 ˚C ESD 1000 V Digital I/O sink current 20 mA Digital I/O Level 3.6 V 2.2 Electrical Characteristics At operating Temperature: -20˚C ~ 60˚C Parameter Pin Min. Typ. Max Unit Battery Power supply Vbat1,Vbat2,Vbat3 3.4 3.8 4.2 V Charger Detection Voltage CDT 0 2.5 V

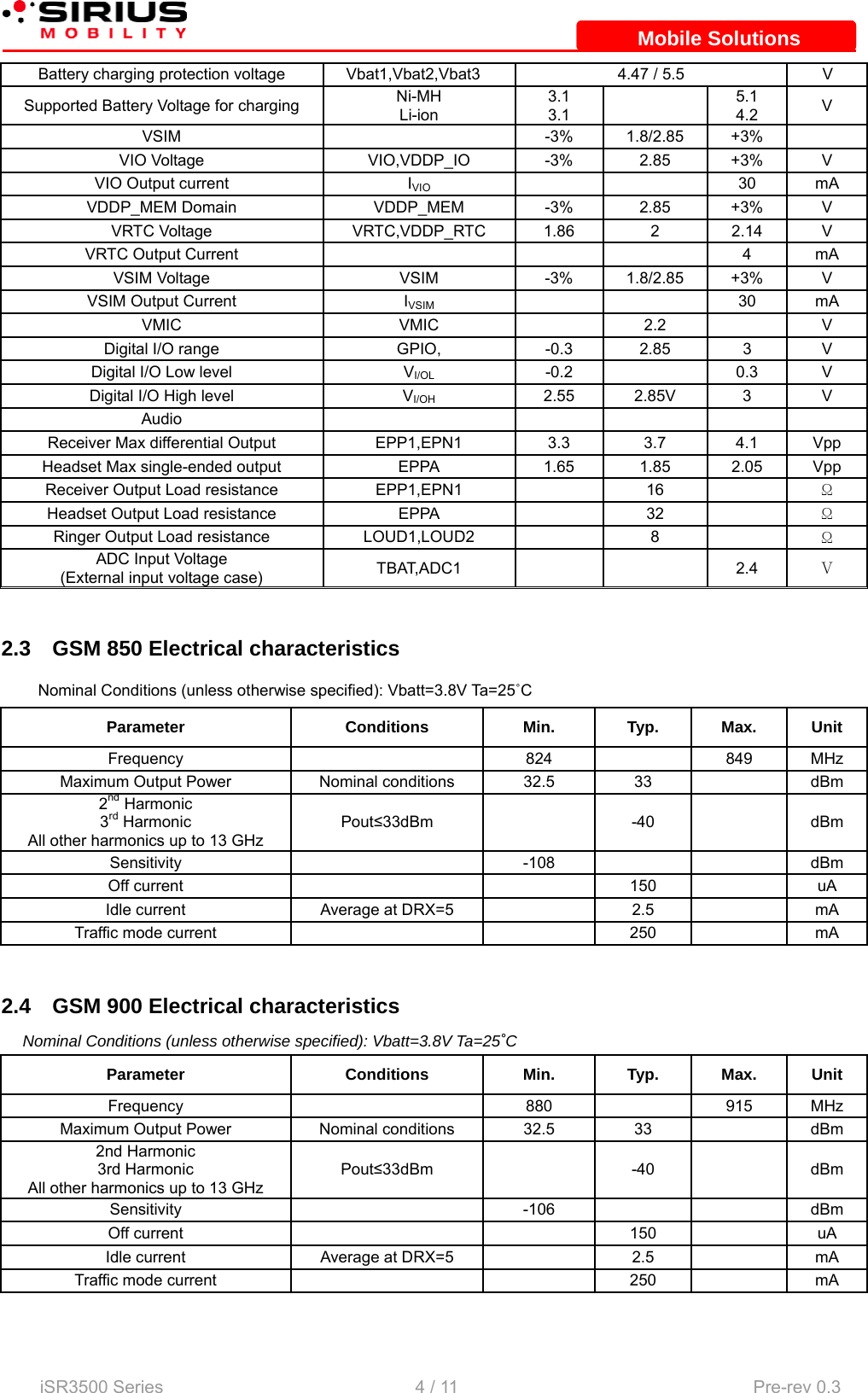

iSR3500 Series 4 / 11 Pre-rev 0.3 Mobile SolutionsMobile SolutionsBattery charging protection voltage Vbat1,Vbat2,Vbat3 4.47 / 5.5 V Supported Battery Voltage for charging Ni-MH Li-ion 3.1 3.1 5.1 4.2 V VSIM -3% 1.8/2.85 +3% VIO Voltage VIO,VDDP_IO -3% 2.85 +3% V VIO Output current IVIO 30 mA VDDP_MEM Domain VDDP_MEM -3% 2.85 +3% V VRTC Voltage VRTC,VDDP_RTC 1.86 2 2.14 V VRTC Output Current 4 mA VSIM Voltage VSIM -3% 1.8/2.85 +3% V VSIM Output Current IVSIM 30 mA VMIC VMIC 2.2 V Digital I/O range GPIO, -0.3 2.85 3 V Digital I/O Low level VI/OL -0.2 0.3 V Digital I/O High level VI/OH 2.55 2.85V 3 V Audio Receiver Max differential Output EPP1,EPN1 3.3 3.7 4.1 Vpp Headset Max single-ended output EPPA 1.65 1.85 2.05 Vpp Receiver Output Load resistance EPP1,EPN1 16 Ω Headset Output Load resistance EPPA 32 Ω Ringer Output Load resistance LOUD1,LOUD2 8 Ω ADC Input Voltage (External input voltage case) TBAT,ADC1 2.4 V 2.3 GSM 850 Electrical characteristics Nominal Conditions (unless otherwise specified): Vbatt=3.8V Ta=25˚C Parameter Conditions Min. Typ. Max. Unit Frequency 824 849 MHz Maximum Output Power Nominal conditions 32.5 33 dBm 2nd Harmonic 3rd Harmonic All other harmonics up to 13 GHz Pout≤33dBm -40 dBm Sensitivity -108 dBm Off current 150 uA Idle current Average at DRX=5 2.5 mA Traffic mode current 250 mA 2.4 GSM 900 Electrical characteristics Nominal Conditions (unless otherwise specified): Vbatt=3.8V Ta=25˚C Parameter Conditions Min. Typ. Max. Unit Frequency 880 915 MHz Maximum Output Power Nominal conditions 32.5 33 dBm 2nd Harmonic 3rd Harmonic All other harmonics up to 13 GHz Pout≤33dBm -40 dBm Sensitivity -106 dBm Off current 150 uA Idle current Average at DRX=5 2.5 mA Traffic mode current 250 mA

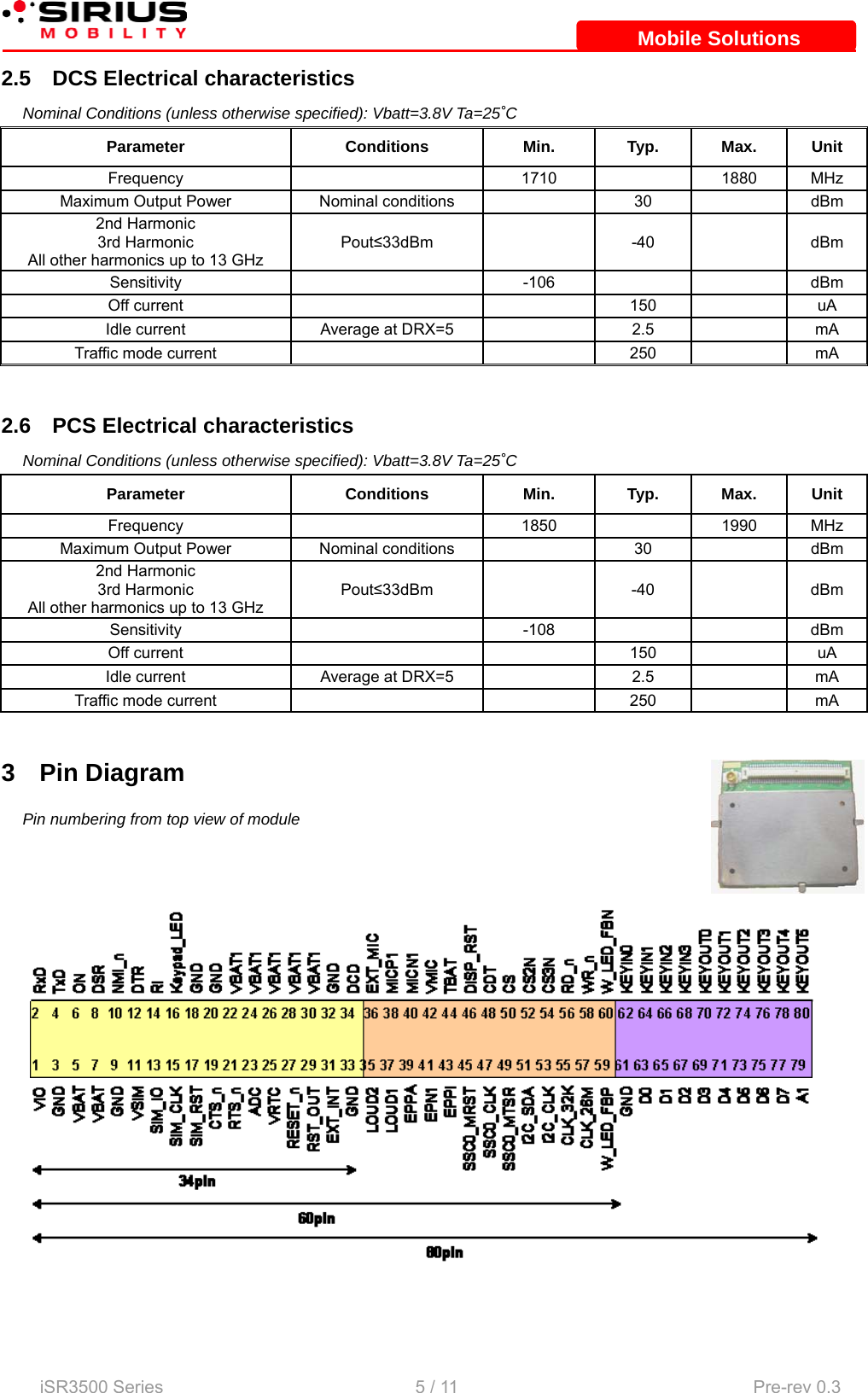

iSR3500 Series 5 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions2.5 DCS Electrical characteristics Nominal Conditions (unless otherwise specified): Vbatt=3.8V Ta=25˚C Parameter Conditions Min. Typ. Max. Unit Frequency 1710 1880 MHz Maximum Output Power Nominal conditions 30 dBm 2nd Harmonic 3rd Harmonic All other harmonics up to 13 GHz Pout≤33dBm -40 dBm Sensitivity -106 dBm Off current 150 uA Idle current Average at DRX=5 2.5 mA Traffic mode current 250 mA 2.6 PCS Electrical characteristics Nominal Conditions (unless otherwise specified): Vbatt=3.8V Ta=25˚C Parameter Conditions Min. Typ. Max. Unit Frequency 1850 1990 MHz Maximum Output Power Nominal conditions 30 dBm 2nd Harmonic 3rd Harmonic All other harmonics up to 13 GHz Pout≤33dBm -40 dBm Sensitivity -108 dBm Off current 150 uA Idle current Average at DRX=5 2.5 mA Traffic mode current 250 mA 3 Pin Diagram Pin numbering from top view of module

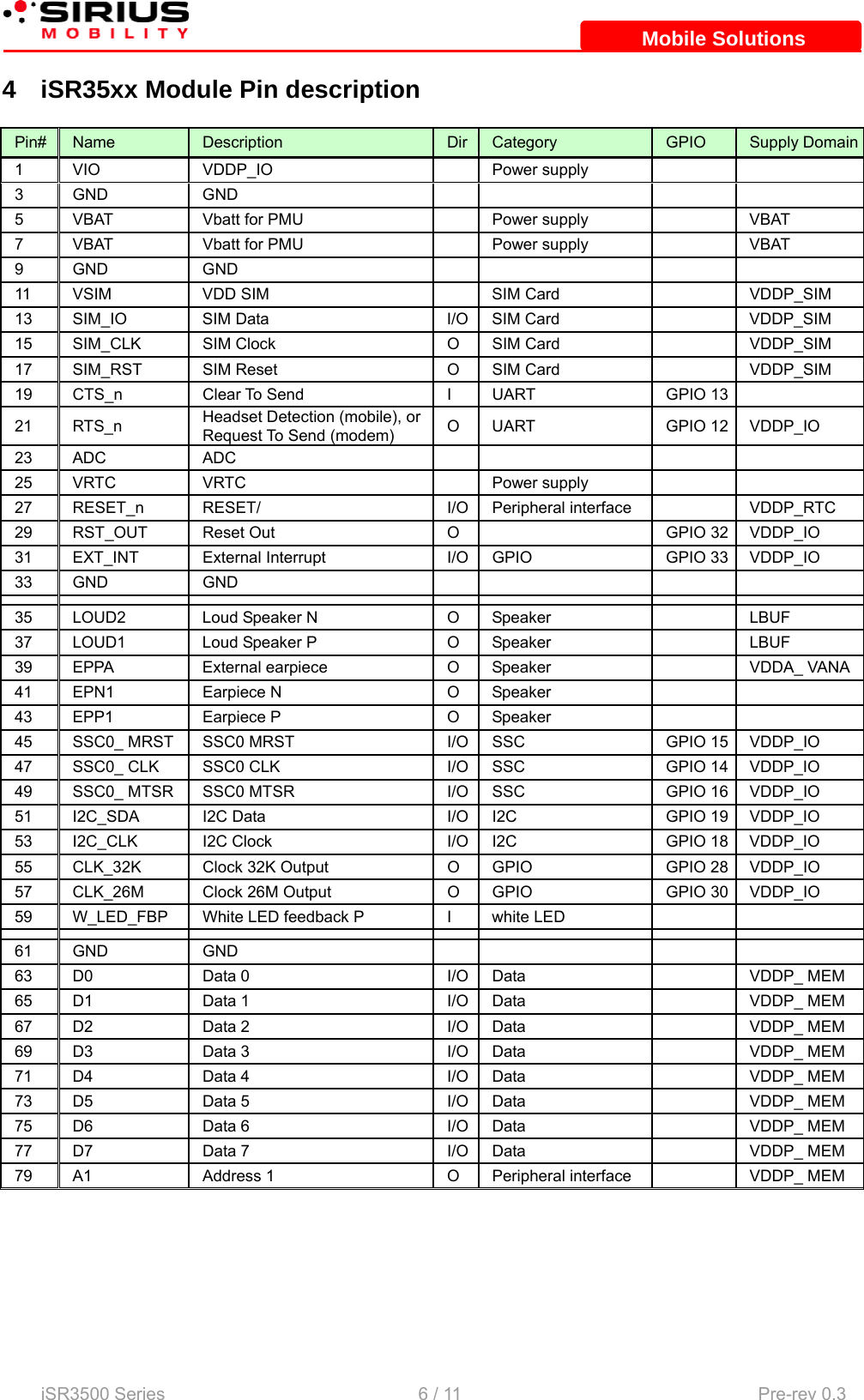

iSR3500 Series 6 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions4 iSR35xx Module Pin description Pin# Name Description Dir Category GPIO Supply Domain1 VIO VDDP_IO Power supply 3 GND GND 5 VBAT Vbatt for PMU Power supply VBAT 7 VBAT Vbatt for PMU Power supply VBAT 9 GND GND 11 VSIM VDD SIM SIM Card VDDP_SIM 13 SIM_IO SIM Data I/O SIM Card VDDP_SIM 15 SIM_CLK SIM Clock O SIM Card VDDP_SIM 17 SIM_RST SIM Reset O SIM Card VDDP_SIM 19 CTS_n Clear To Send I UART GPIO 13 21 RTS_n Headset Detection (mobile), or Request To Send (modem) O UART GPIO 12 VDDP_IO 23 ADC ADC 25 VRTC VRTC Power supply 27 RESET_n RESET/ I/O Peripheral interface VDDP_RTC 29 RST_OUT Reset Out O GPIO 32 VDDP_IO 31 EXT_INT External Interrupt I/O GPIO GPIO 33 VDDP_IO 33 GND GND 35 LOUD2 Loud Speaker N O Speaker LBUF 37 LOUD1 Loud Speaker P O Speaker LBUF 39 EPPA External earpiece O Speaker VDDA_ VANA41 EPN1 Earpiece N O Speaker 43 EPP1 Earpiece P O Speaker 45 SSC0_ MRST SSC0 MRST I/O SSC GPIO 15 VDDP_IO 47 SSC0_ CLK SSC0 CLK I/O SSC GPIO 14 VDDP_IO 49 SSC0_ MTSR SSC0 MTSR I/O SSC GPIO 16 VDDP_IO 51 I2C_SDA I2C Data I/O I2C GPIO 19 VDDP_IO 53 I2C_CLK I2C Clock I/O I2C GPIO 18 VDDP_IO 55 CLK_32K Clock 32K Output O GPIO GPIO 28 VDDP_IO 57 CLK_26M Clock 26M Output O GPIO GPIO 30 VDDP_IO 59 W_LED_FBP White LED feedback P I white LED 61 GND GND 63 D0 Data 0 I/O Data VDDP_ MEM 65 D1 Data 1 I/O Data VDDP_ MEM 67 D2 Data 2 I/O Data VDDP_ MEM 69 D3 Data 3 I/O Data VDDP_ MEM 71 D4 Data 4 I/O Data VDDP_ MEM 73 D5 Data 5 I/O Data VDDP_ MEM 75 D6 Data 6 I/O Data VDDP_ MEM 77 D7 Data 7 I/O Data VDDP_ MEM 79 A1 Address 1 O Peripheral interface VDDP_ MEM

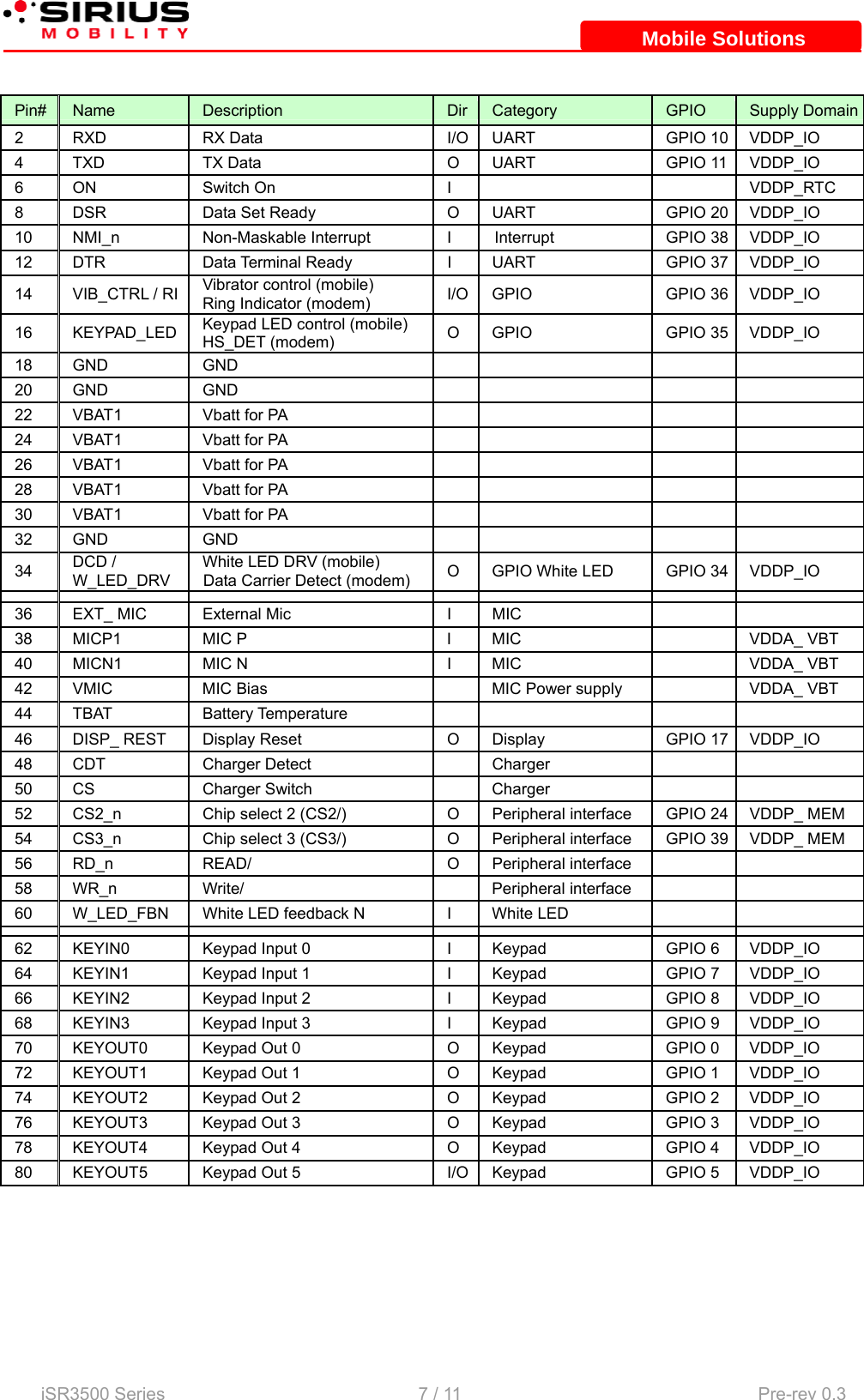

iSR3500 Series 7 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions Pin# Name Description Dir Category GPIO Supply Domain2 RXD RX Data I/O UART GPIO 10 VDDP_IO 4 TXD TX Data O UART GPIO 11 VDDP_IO 6 ON Switch On I VDDP_RTC 8 DSR Data Set Ready O UART GPIO 20 VDDP_IO 10 NMI_n Non-Maskable Interrupt I Interrupt GPIO 38 VDDP_IO 12 DTR Data Terminal Ready I UART GPIO 37 VDDP_IO 14 VIB_CTRL / RI Vibrator control (mobile) Ring Indicator (modem) I/O GPIO GPIO 36 VDDP_IO 16 KEYPAD_LED Keypad LED control (mobile) HS_DET (modem) O GPIO GPIO 35 VDDP_IO 18 GND GND 20 GND GND 22 VBAT1 Vbatt for PA 24 VBAT1 Vbatt for PA 26 VBAT1 Vbatt for PA 28 VBAT1 Vbatt for PA 30 VBAT1 Vbatt for PA 32 GND GND 34 DCD / W_LED_DRV White LED DRV (mobile) Data Carrier Detect (modem) O GPIO White LED GPIO 34 VDDP_IO 36 EXT_ MIC External Mic I MIC 38 MICP1 MIC P I MIC VDDA_ VBT 40 MICN1 MIC N I MIC VDDA_ VBT 42 VMIC MIC Bias MIC Power supply VDDA_ VBT 44 TBAT Battery Temperature 46 DISP_ REST Display Reset O Display GPIO 17 VDDP_IO 48 CDT Charger Detect Charger 50 CS Charger Switch Charger 52 CS2_n Chip select 2 (CS2/) O Peripheral interface GPIO 24 VDDP_ MEM 54 CS3_n Chip select 3 (CS3/) O Peripheral interface GPIO 39 VDDP_ MEM 56 RD_n READ/ O Peripheral interface 58 WR_n Write/ Peripheral interface 60 W_LED_FBN White LED feedback N I White LED 62 KEYIN0 Keypad Input 0 I Keypad GPIO 6 VDDP_IO 64 KEYIN1 Keypad Input 1 I Keypad GPIO 7 VDDP_IO 66 KEYIN2 Keypad Input 2 I Keypad GPIO 8 VDDP_IO 68 KEYIN3 Keypad Input 3 I Keypad GPIO 9 VDDP_IO 70 KEYOUT0 Keypad Out 0 O Keypad GPIO 0 VDDP_IO 72 KEYOUT1 Keypad Out 1 O Keypad GPIO 1 VDDP_IO 74 KEYOUT2 Keypad Out 2 O Keypad GPIO 2 VDDP_IO 76 KEYOUT3 Keypad Out 3 O Keypad GPIO 3 VDDP_IO 78 KEYOUT4 Keypad Out 4 O Keypad GPIO 4 VDDP_IO 80 KEYOUT5 Keypad Out 5 I/O Keypad GPIO 5 VDDP_IO

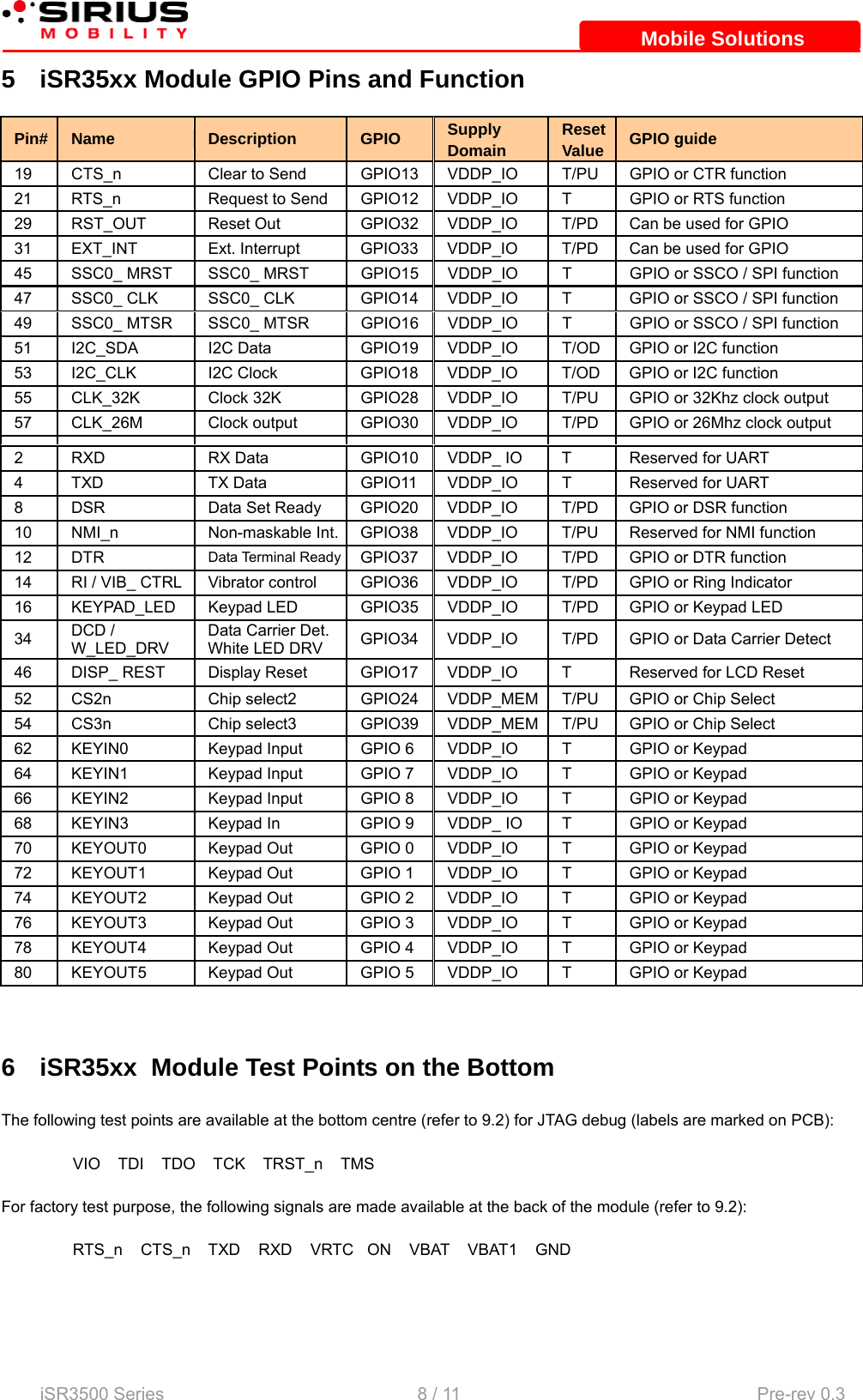

iSR3500 Series 8 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions5 iSR35xx Module GPIO Pins and Function Pin# Name Description GPIO Supply Domain Reset Value GPIO guide 19 CTS_n Clear to Send GPIO13 VDDP_IO T/PU GPIO or CTR function 21 RTS_n Request to Send GPIO12 VDDP_IO T GPIO or RTS function 29 RST_OUT Reset Out GPIO32 VDDP_IO T/PD Can be used for GPIO 31 EXT_INT Ext. Interrupt GPIO33 VDDP_IO T/PD Can be used for GPIO 45 SSC0_ MRST SSC0_ MRST GPIO15 VDDP_IO T GPIO or SSCO / SPI function 47 SSC0_ CLK SSC0_ CLK GPIO14 VDDP_IO T GPIO or SSCO / SPI function 49 SSC0_ MTSR SSC0_ MTSR GPIO16 VDDP_IO T GPIO or SSCO / SPI function 51 I2C_SDA I2C Data GPIO19 VDDP_IO T/OD GPIO or I2C function 53 I2C_CLK I2C Clock GPIO18 VDDP_IO T/OD GPIO or I2C function 55 CLK_32K Clock 32K GPIO28 VDDP_IO T/PU GPIO or 32Khz clock output 57 CLK_26M Clock output GPIO30 VDDP_IO T/PD GPIO or 26Mhz clock output 2 RXD RX Data GPIO10 VDDP_ IO T Reserved for UART 4 TXD TX Data GPIO11 VDDP_IO T Reserved for UART 8 DSR Data Set Ready GPIO20 VDDP_IO T/PD GPIO or DSR function 10 NMI_n Non-maskable Int. GPIO38 VDDP_IO T/PU Reserved for NMI function 12 DTR Data Terminal Ready GPIO37 VDDP_IO T/PD GPIO or DTR function 14 RI / VIB_ CTRL Vibrator control GPIO36 VDDP_IO T/PD GPIO or Ring Indicator 16 KEYPAD_LED Keypad LED GPIO35 VDDP_IO T/PD GPIO or Keypad LED 34 DCD / W_LED_DRV Data Carrier Det. White LED DRV GPIO34 VDDP_IO T/PD GPIO or Data Carrier Detect 46 DISP_ REST Display Reset GPIO17 VDDP_IO T Reserved for LCD Reset 52 CS2n Chip select2 GPIO24 VDDP_MEM T/PU GPIO or Chip Select 54 CS3n Chip select3 GPIO39 VDDP_MEM T/PU GPIO or Chip Select 62 KEYIN0 Keypad Input GPIO 6 VDDP_IO T GPIO or Keypad 64 KEYIN1 Keypad Input GPIO 7 VDDP_IO T GPIO or Keypad 66 KEYIN2 Keypad Input GPIO 8 VDDP_IO T GPIO or Keypad 68 KEYIN3 Keypad In GPIO 9 VDDP_ IO T GPIO or Keypad 70 KEYOUT0 Keypad Out GPIO 0 VDDP_IO T GPIO or Keypad 72 KEYOUT1 Keypad Out GPIO 1 VDDP_IO T GPIO or Keypad 74 KEYOUT2 Keypad Out GPIO 2 VDDP_IO T GPIO or Keypad 76 KEYOUT3 Keypad Out GPIO 3 VDDP_IO T GPIO or Keypad 78 KEYOUT4 Keypad Out GPIO 4 VDDP_IO T GPIO or Keypad 80 KEYOUT5 Keypad Out GPIO 5 VDDP_IO T GPIO or Keypad 6 iSR35xx Module Test Points on the Bottom The following test points are available at the bottom centre (refer to 9.2) for JTAG debug (labels are marked on PCB): VIO TDI TDO TCK TRST_n TMS For factory test purpose, the following signals are made available at the back of the module (refer to 9.2): RTS_n CTS_n TXD RXD VRTC ON VBAT VBAT1 GND

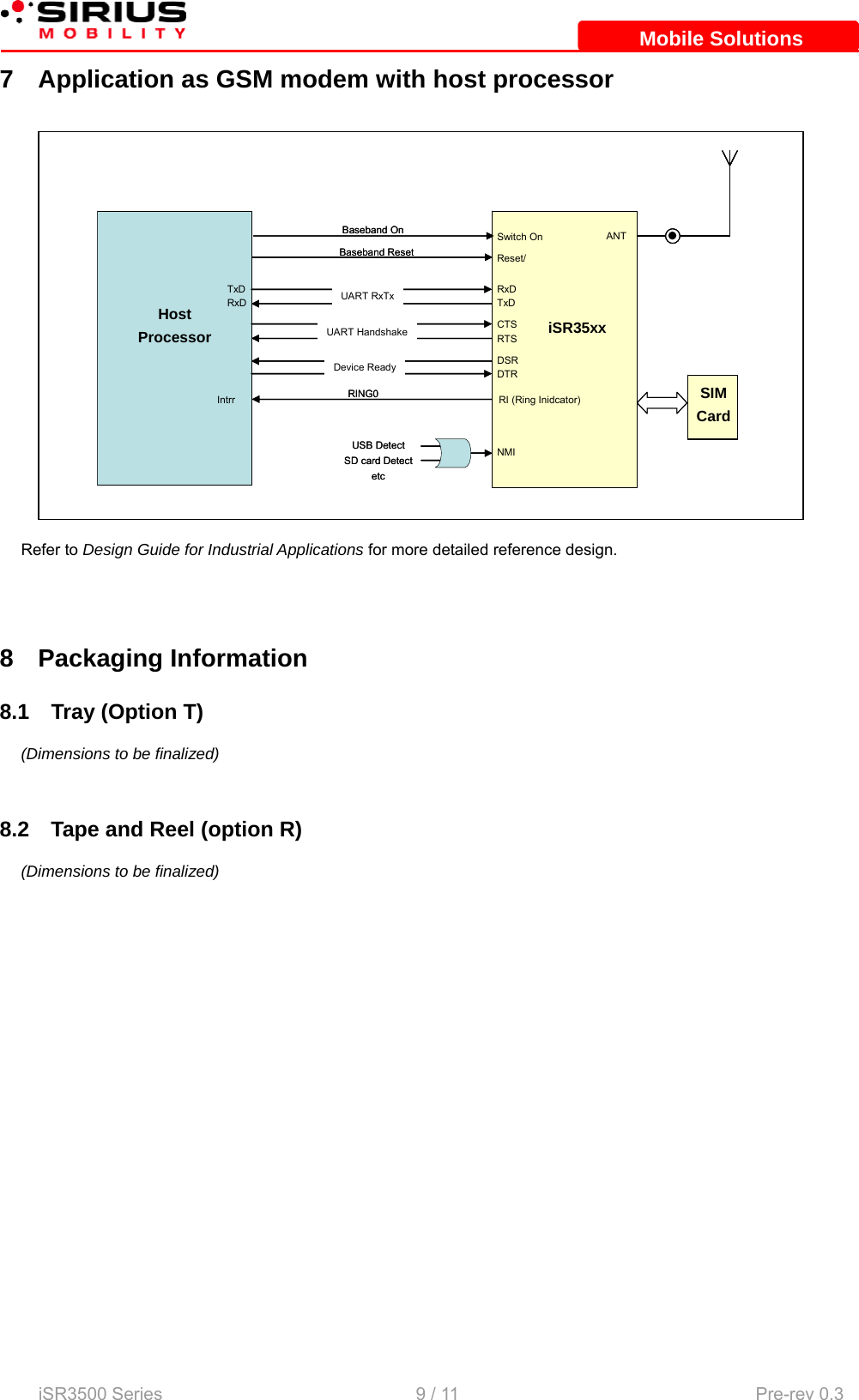

iSR3500 Series 9 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions7 Application as GSM modem with host processor Refer to Design Guide for Industrial Applications for more detailed reference design. 8 Packaging Information 8.1 Tray (Option T) (Dimensions to be finalized) 8.2 Tape and Reel (option R) (Dimensions to be finalized) Host ProcessorTxDRxDRING0iSR35xxDSRRxDDTRRI (Ring Inidcator)IntrrUART RxTxReset/Baseband ResetBaseband On Switch OnNMIUSB DetectSD card DetectetcTxDRTSCTSUART HandshakeDevice ReadyANTSIMCardHost ProcessorTxDRxDRING0iSR35xxDSRRxDDTRRI (Ring Inidcator)IntrrUART RxTxReset/Baseband ResetBaseband On Switch OnNMIUSB DetectSD card DetectetcTxDRTSCTSUART HandshakeDevice ReadyANTSIMCardSIMCard

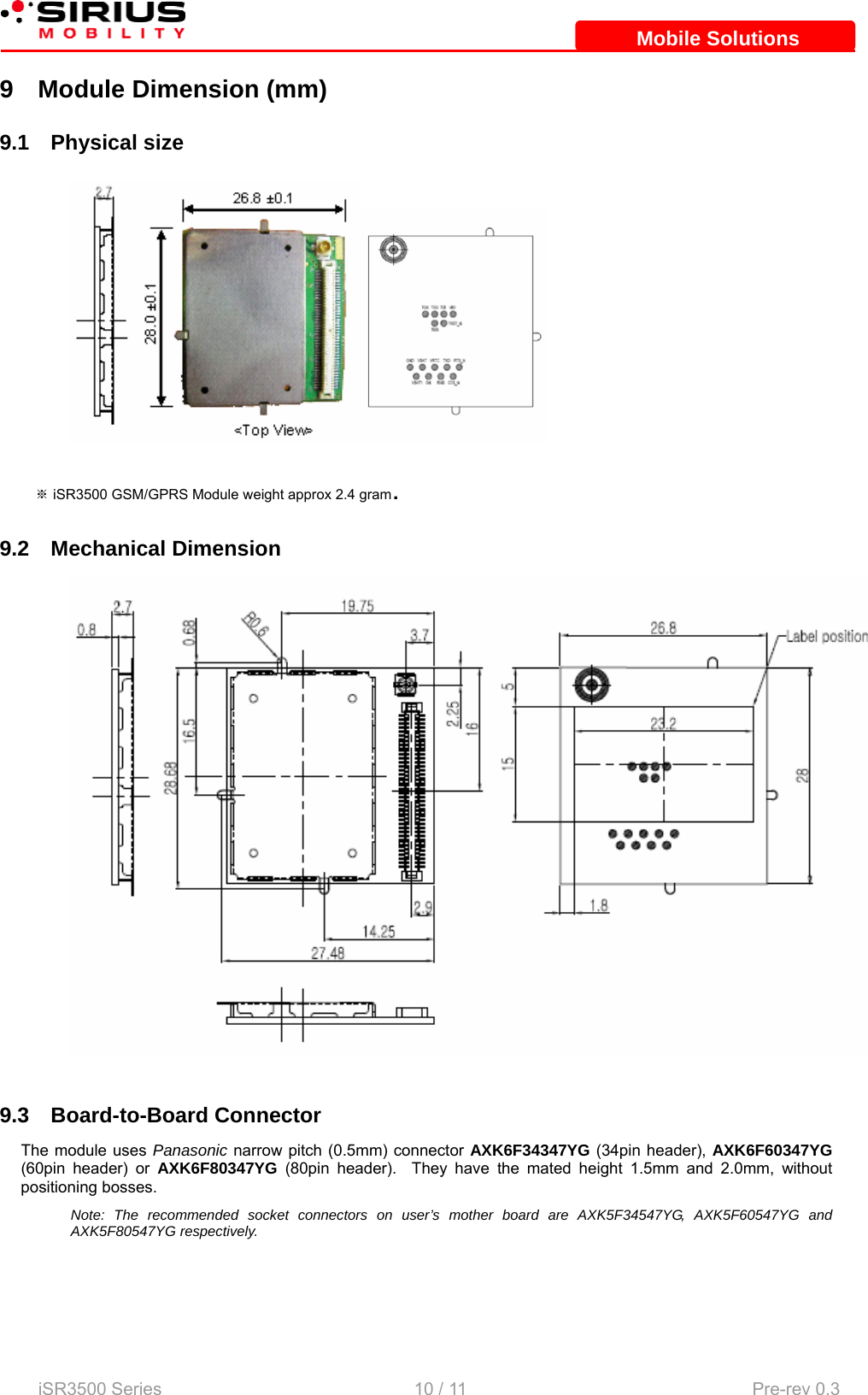

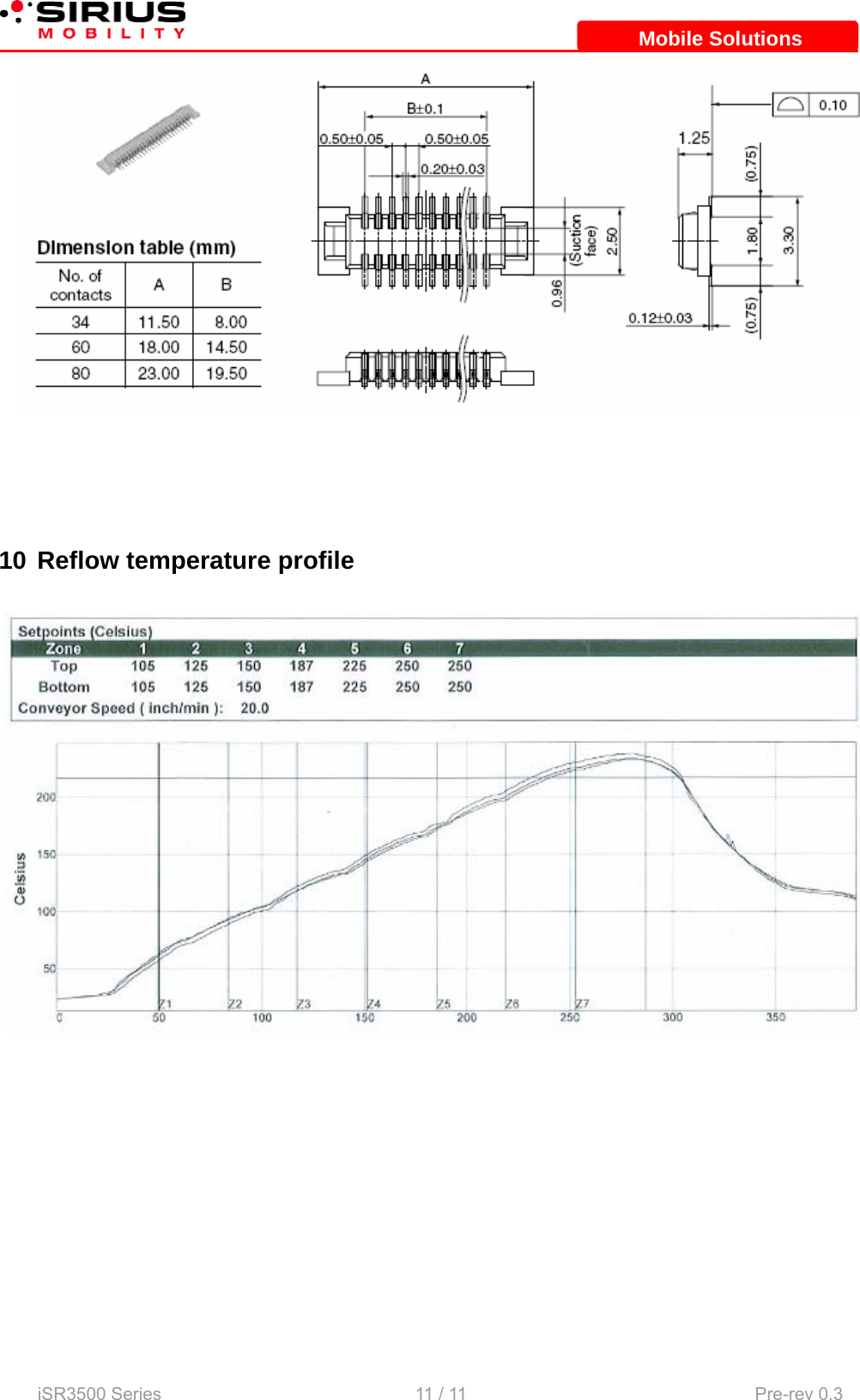

iSR3500 Series 10 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions9 Module Dimension (mm) 9.1 Physical size ※ iSR3500 GSM/GPRS Module weight approx 2.4 gram. 9.2 Mechanical Dimension 9.3 Board-to-Board Connector The module uses Panasonic narrow pitch (0.5mm) connector AXK6F34347YG (34pin header), AXK6F60347YG (60pin header) or AXK6F80347YG (80pin header). They have the mated height 1.5mm and 2.0mm, without positioning bosses. Note: The recommended socket connectors on user’s mother board are AXK5F34547YG, AXK5F60547YG and AXK5F80547YG respectively.
iSR3500 Series 11 / 11 Pre-rev 0.3 Mobile SolutionsMobile Solutions 10 Reflow temperature profile

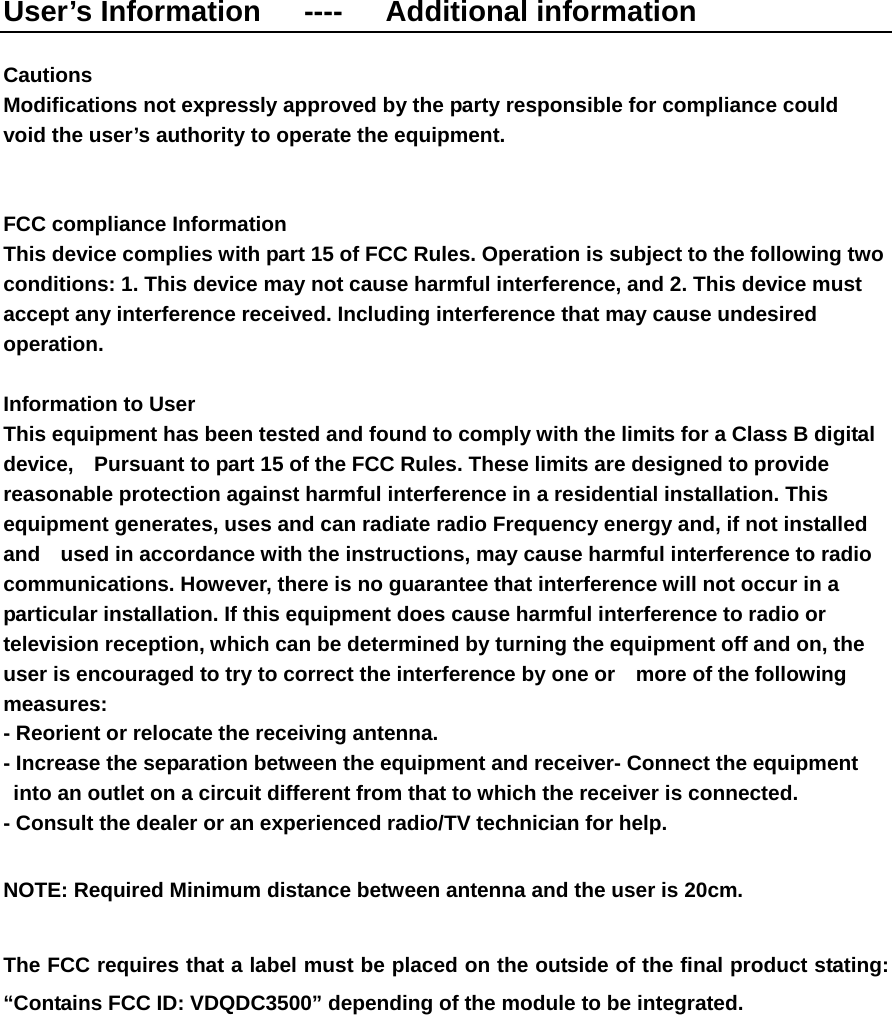

User’s Information ---- Additional information Cautions Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received. Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio Frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: Required Minimum distance between antenna and the user is 20cm. The FCC requires that a label must be placed on the outside of the final product stating: “Contains FCC ID: VDQDC3500” depending of the module to be integrated.
