DongZheng Electronics and Plastic LY100 Bluetooth button User Manual

DongZheng Electronics & Plastic Products (Shenzhen) Ltd. Bluetooth button

User Manual

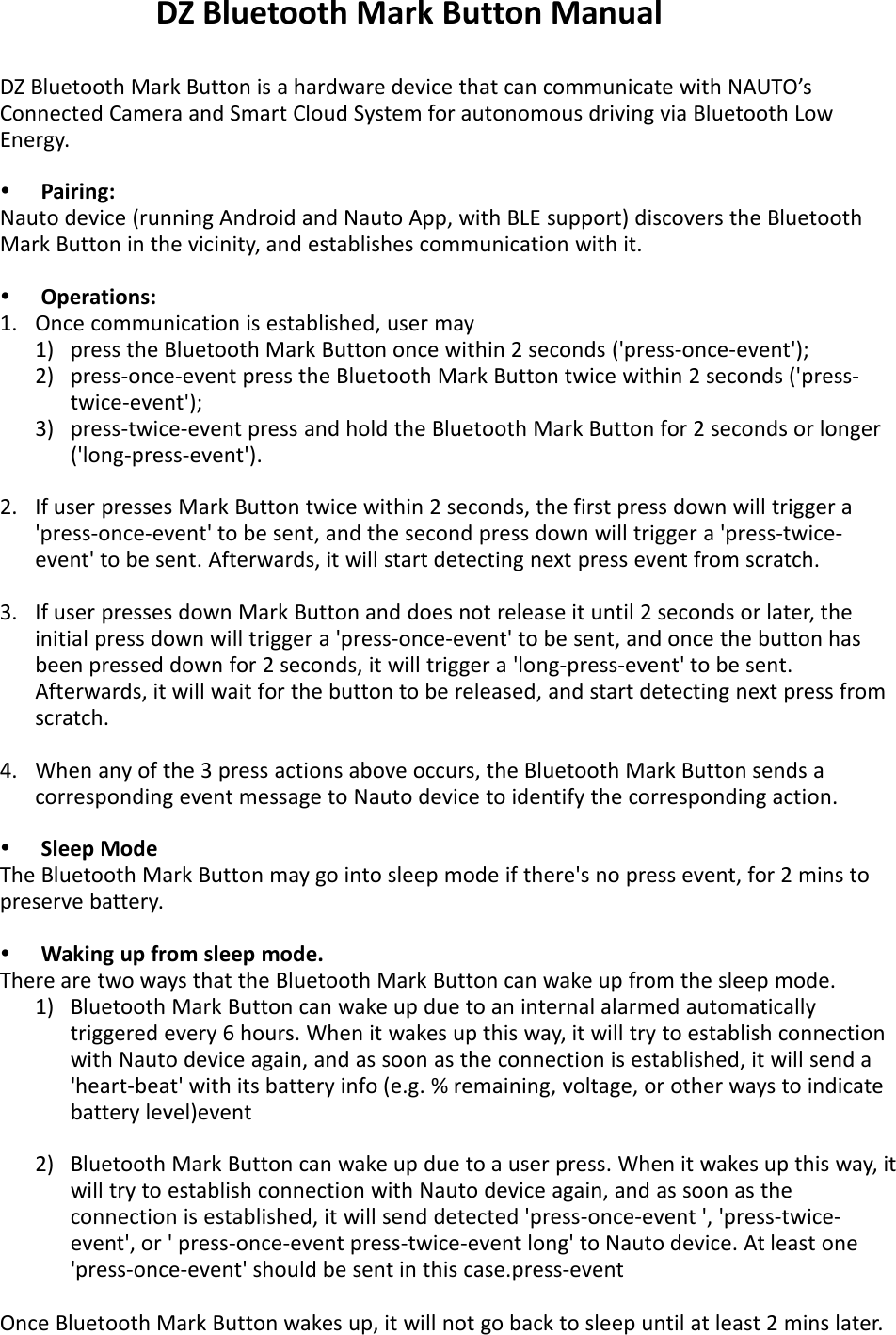

DZ Bluetooth Mark Button is a hardware device that can communicate with NAUTO’sConnected Camera and Smart Cloud System for autonomous driving via Bluetooth LowEnergy.Pairing:Nauto device (running Android and Nauto App, with BLE support) discovers the BluetoothMark Button in the vicinity, and establishes communication with it.Operations:1. Once communication is established, user may1) press the Bluetooth Mark Button once within 2 seconds ('press-once-event');2) press-once-event press the Bluetooth Mark Button twice within 2 seconds ('press-twice-event');3) press-twice-event press and hold the Bluetooth Mark Button for 2 seconds or longer('long-press-event').2. If user presses Mark Button twice within 2 seconds, the first press down will trigger a'press-once-event' to be sent, and the second press down will trigger a 'press-twice-event' to be sent. Afterwards, it will start detecting next press event from scratch.3. If user presses down Mark Button and does not release it until 2 seconds or later, theinitial press down will trigger a 'press-once-event' to be sent, and once the button hasbeen pressed down for 2 seconds, it will trigger a 'long-press-event' to be sent.Afterwards, it will wait for the button to be released, and start detecting next press fromscratch.4. When any of the 3 press actions above occurs, the Bluetooth Mark Button sends acorresponding event message to Nauto device to identify the corresponding action.Sleep ModeThe Bluetooth Mark Button may go into sleep mode if there's no press event, for 2 mins topreserve battery.Waking up from sleep mode.There are two ways that the Bluetooth Mark Button can wake up from the sleep mode.1) Bluetooth Mark Button can wake up due to an internal alarmed automaticallytriggered every 6 hours. When it wakes up this way, it will try to establish connectionwith Nauto device again, and as soon as the connection is established, it will send a'heart-beat' with its battery info (e.g. % remaining, voltage, or other ways to indicatebattery level)event2) Bluetooth Mark Button can wake up due to a user press. When it wakes up this way, itwill try to establish connection with Nauto device again, and as soon as theconnection is established, it will send detected 'press-once-event ', 'press-twice-event', or ' press-once-event press-twice-event long' to Nauto device. At least one'press-once-event' should be sent in this case.press-eventOnce Bluetooth Mark Button wakes up, it will not go back to sleep until at least 2 mins later.5.DZ Bluetooth Mark Button Manual

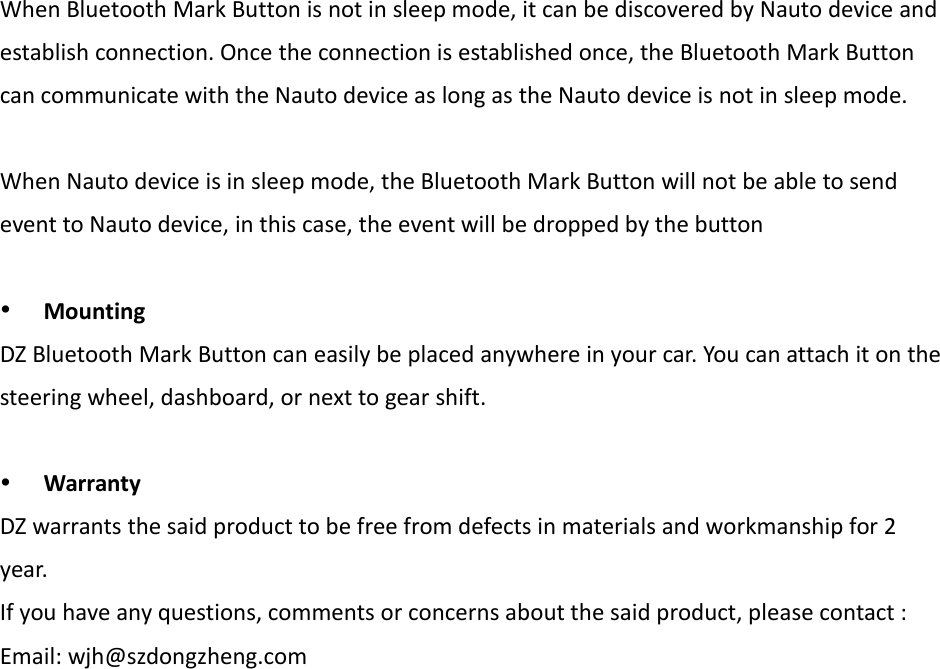

When Bluetooth Mark Button is not in sleep mode, it can be discovered by Nauto device andestablish connection. Once the connection is established once, the Bluetooth Mark Buttoncan communicate with the Nauto device as long as the Nauto device is not in sleep mode.When Nauto device is in sleep mode, the Bluetooth Mark Button will not be able to sendevent to Nauto device, in this case, the event will be dropped by the buttonMountingDZ Bluetooth Mark Button can easily be placed anywhere in your car. You can attach it on thesteering wheel, dashboard, or next to gear shift.WarrantyDZ warrants the said product to be free from defects in materials and workmanship for 2year.If you have any questions, comments or concerns about the said product, please contact :Email: wjh@szdongzheng.com

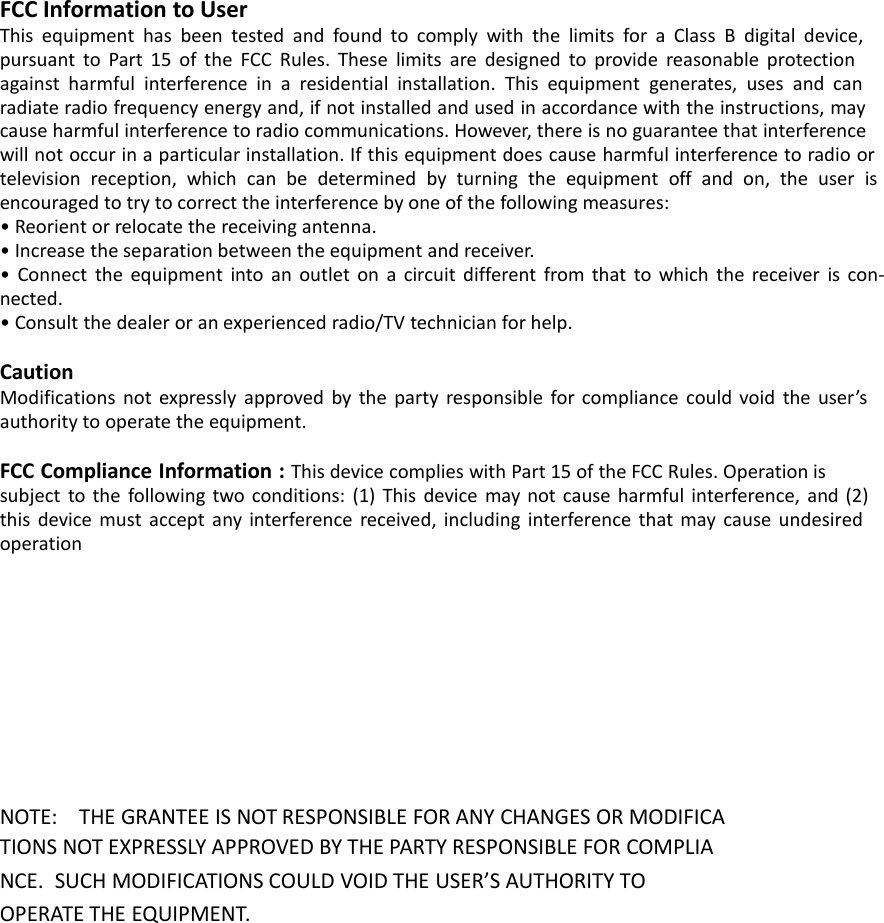

FCC Information to UserThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-nected.• Consult the dealer or an experienced radio/TV technician for help.CautionModifications not expressly approved by the party responsible for compliance could void the user’sauthority to operate the equipment.FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesiredoperationNOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TOOPERATE THE EQUIPMENT.
