Dongguan Harmony Electronic Technology H1010 Bluetooth headset User Manual 15 H1010 UserMan

DONGGUAN HARMONY ELECTRONIC TECHNOLOGY CO.,LTD Bluetooth headset 15 H1010 UserMan

15_H1010 UserMan

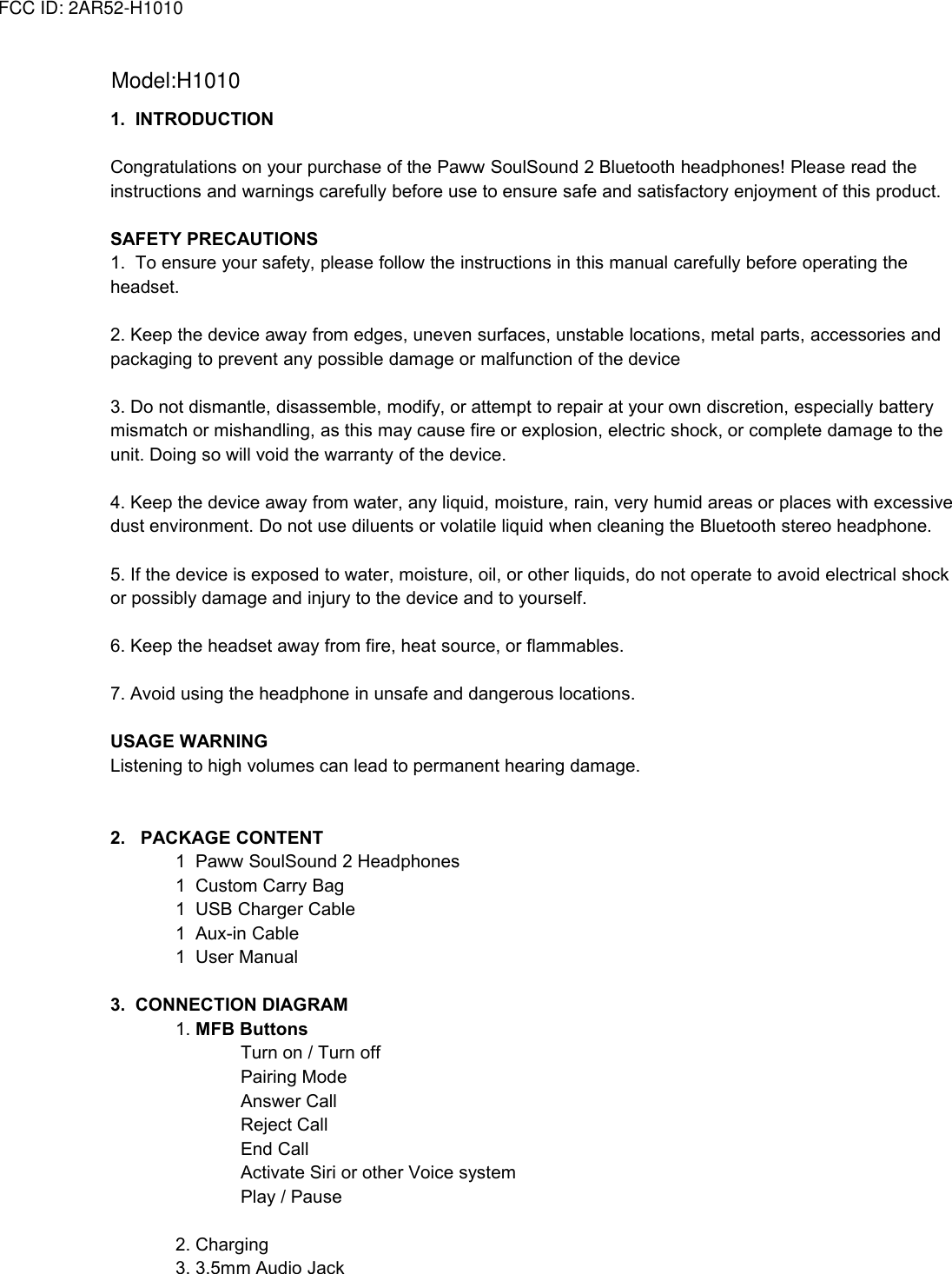

1. INTRODUCTIONCongratulations on your purchase of the Paww SoulSound 2 Bluetooth headphones! Please read theinstructions and warnings carefully before use to ensure safe and satisfactory enjoyment of this product.SAFETY PRECAUTIONS1. To ensure your safety, please follow the instructions in this manual carefully before operating theheadset.2. Keep the device away from edges, uneven surfaces, unstable locations, metal parts, accessories andpackaging to prevent any possible damage or malfunction of the device3. Do not dismantle, disassemble, modify, or attempt to repair at your own discretion, especially batterymismatch or mishandling, as this may cause fire or explosion, electric shock, or complete damage to theunit. Doing so will void the warranty of the device.4. Keep the device away from water, any liquid, moisture, rain, very humid areas or places with excessivedust environment. Do not use diluents or volatile liquid when cleaning the Bluetooth stereo headphone.5. If the device is exposed to water, moisture, oil, or other liquids, do not operate to avoid electrical shockor possibly damage and injury to the device and to yourself.6. Keep the headset away from fire, heat source, or flammables.7. Avoid using the headphone in unsafe and dangerous locations.USAGE WARNINGListening to high volumes can lead to permanent hearing damage.2. PACKAGE CONTENT1 Paww SoulSound 2 Headphones1 Custom Carry Bag1 USB Charger Cable1 Aux-in Cable1 User Manual3. CONNECTION DIAGRAM1. MFB ButtonsTurn on / Turn offPairing ModeAnswer CallReject CallEnd CallActivate Siri or other Voice systemPlay / Pause2. Charging3. 3.5mm Audio JackModel:H1010FCC ID: 2AR52-H1010

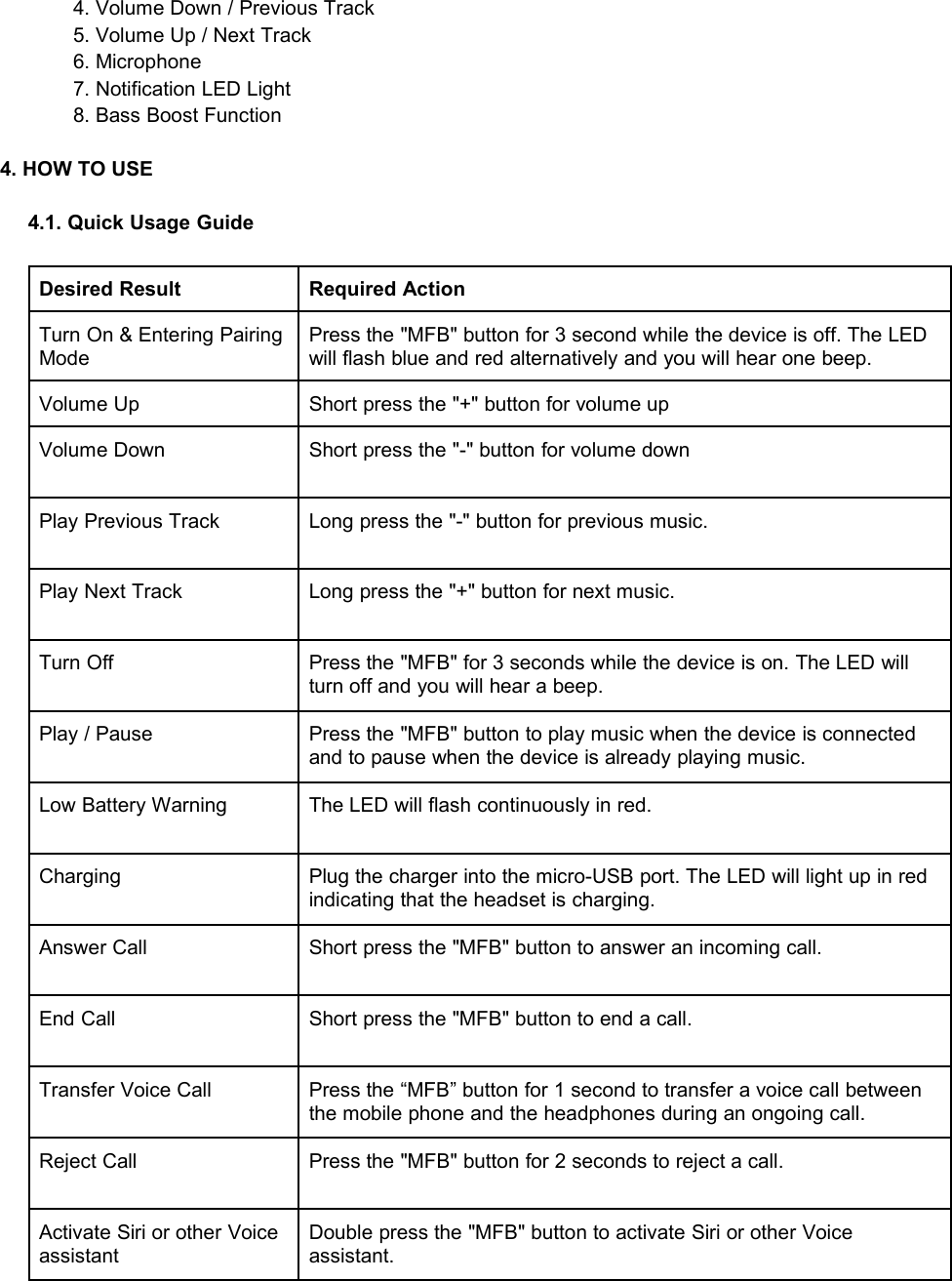

4. Volume Down / Previous Track5. Volume Up / Next Track6. Microphone7. Notification LED Light8. Bass Boost Function4. HOW TO USE4.1. Quick Usage GuideDesired ResultRequired ActionTurn On & Entering PairingModePress the "MFB" button for 3 second while the device is off. The LEDwill flash blue and red alternatively and you will hear one beep.Volume UpShort press the "+" button for volume upVolume DownShort press the "-" button for volume downPlay Previous TrackLong press the "-" button for previous music.Play Next TrackLong press the "+" button for next music.Turn OffPress the "MFB" for 3 seconds while the device is on. The LED willturn off and you will hear a beep.Play / PausePress the "MFB" button to play music when the device is connectedand to pause when the device is already playing music.Low Battery WarningThe LED will flash continuously in red.ChargingPlug the charger into the micro-USB port. The LED will light up in redindicating that the headset is charging.Answer CallShort press the "MFB" button to answer an incoming call.End CallShort press the "MFB" button to end a call.Transfer Voice CallPress the “MFB” button for 1 second to transfer a voice call betweenthe mobile phone and the headphones during an ongoing call.Reject CallPress the "MFB" button for 2 seconds to reject a call.Activate Siri or other VoiceassistantDouble press the "MFB" button to activate Siri or other Voiceassistant.

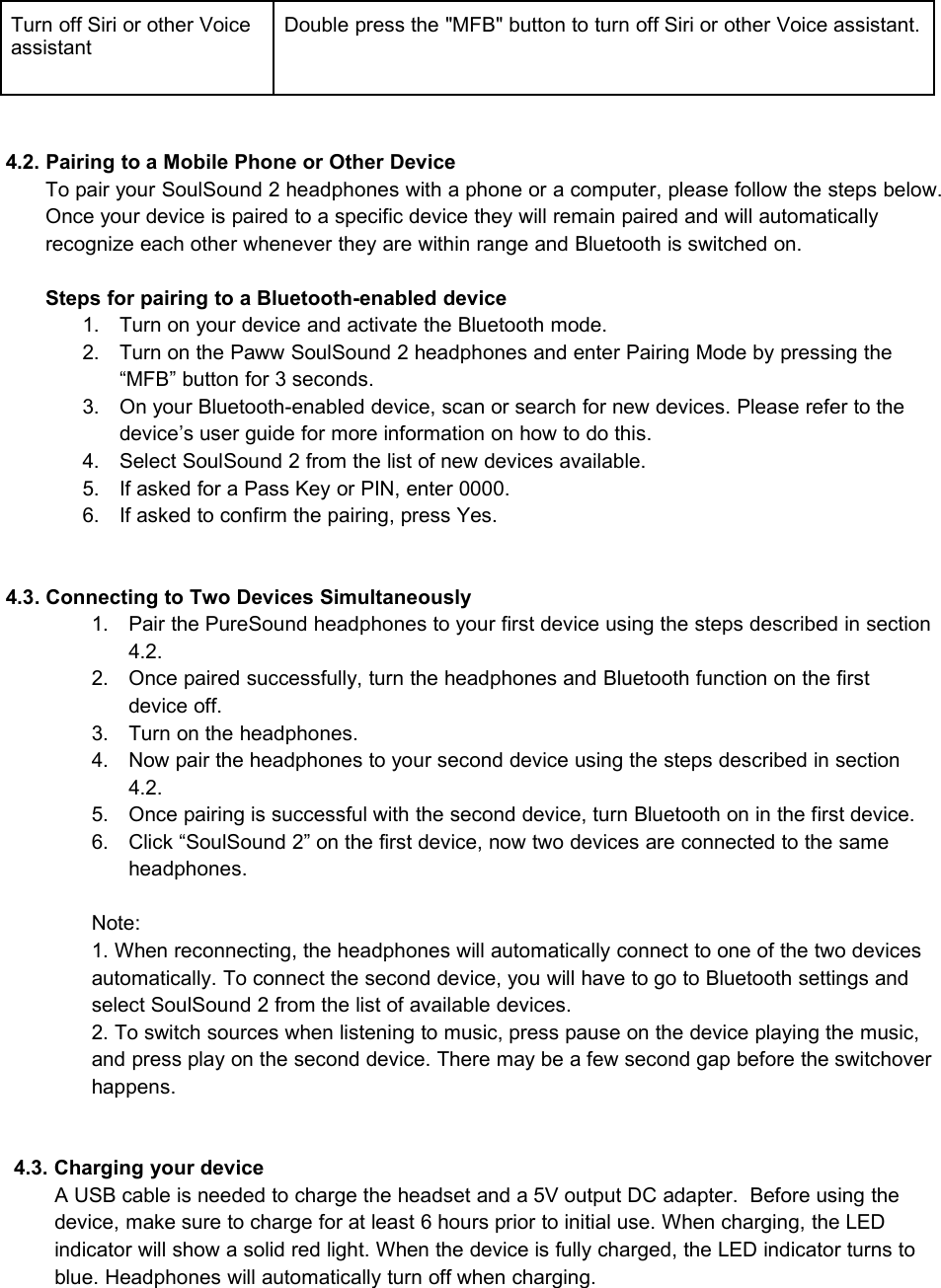

Turn off Siri or other VoiceassistantDouble press the "MFB" button to turn off Siri or other Voice assistant.4.2. Pairing to a Mobile Phone or Other DeviceTo pair your SoulSound 2 headphones with a phone or a computer, please follow the steps below.Once your device is paired to a specific device they will remain paired and will automaticallyrecognize each other whenever they are within range and Bluetooth is switched on.Steps for pairing to a Bluetooth-enabled device1. Turn on your device and activate the Bluetooth mode.2. Turn on the Paww SoulSound 2 headphones and enter Pairing Mode by pressing the“MFB” button for 3 seconds.3. On your Bluetooth-enabled device, scan or search for new devices. Please refer to thedevice’s user guide for more information on how to do this.4. Select SoulSound 2 from the list of new devices available.5. If asked for a Pass Key or PIN, enter 0000.6. If asked to confirm the pairing, press Yes.4.3. Connecting to Two Devices Simultaneously1. Pair the PureSound headphones to your first device using the steps described in section4.2.2. Once paired successfully, turn the headphones and Bluetooth function on the firstdevice off.3. Turn on the headphones.4. Now pair the headphones to your second device using the steps described in section4.2.5. Once pairing is successful with the second device, turn Bluetooth on in the first device.6. Click “SoulSound 2” on the first device, now two devices are connected to the sameheadphones.Note:1. When reconnecting, the headphones will automatically connect to one of the two devicesautomatically. To connect the second device, you will have to go to Bluetooth settings andselect SoulSound 2 from the list of available devices.2. To switch sources when listening to music, press pause on the device playing the music,and press play on the second device. There may be a few second gap before the switchoverhappens.4.3. Charging your deviceA USB cable is needed to charge the headset and a 5V output DC adapter. Before using thedevice, make sure to charge for at least 6 hours prior to initial use. When charging, the LEDindicator will show a solid red light. When the device is fully charged, the LED indicator turns toblue. Headphones will automatically turn off when charging.
5. Technical SpecificationsParameterValueBluetooth SpecificationBluetooth 4.1Supported Bluetooth ProfilesA2DP1.2/ AVRCP1.4/ HSP1.2 /HFP1.6Battery Capacity500 mAhOperating Distance10 mFrequency Response20Hz-20KHzImpedance32Ω±15%(at 1KHz)Sensitivity112dB ±3Speaker Dimension40mmPlayback Timeabout 17 hoursCharging Timeabout 2.5 hoursDimension (L×W×H)203×170×94mmWeight270g6. WarrantyThe Paww SoulSound 2 headphones ship with a 1-year warranty. If you do encounter anyissues during this time, you can initiate a warranty claim by contacting us via email onsupport@mypaww.com or through the Contact Us page on our website(https://www.mypaww.com/pages/contact-us).

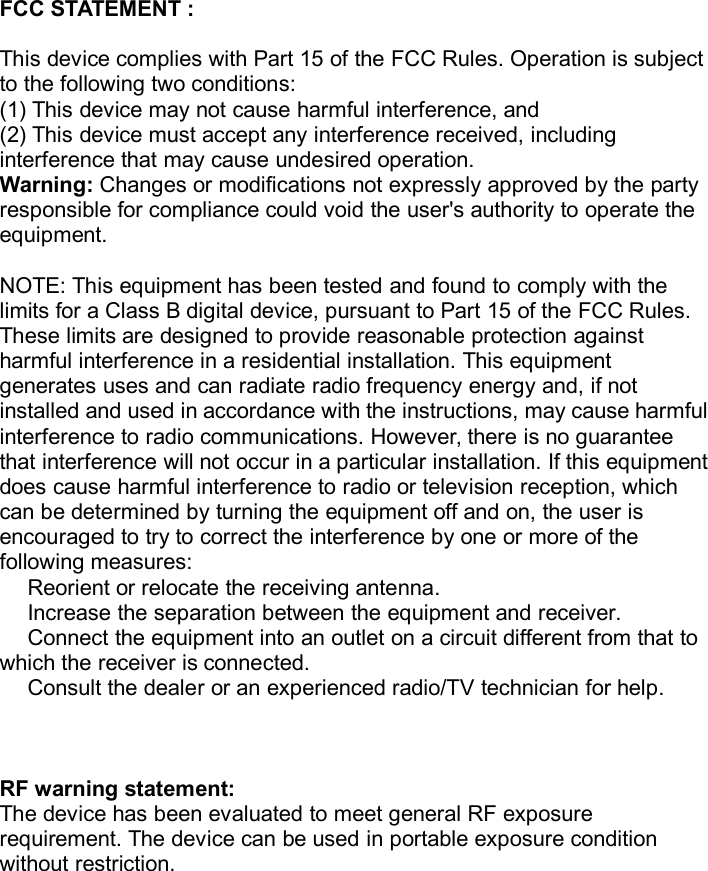

FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, includinginterference that may cause undesired operation.Warning: Changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority to operate theequipment.NOTE: This equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of thefollowing measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposurerequirement. The device can be used in portable exposure conditionwithout restriction.
