Donut System LSI A1525 FAT ANALYZER User Manual

Donut System LSI FAT ANALYZER

User Manual

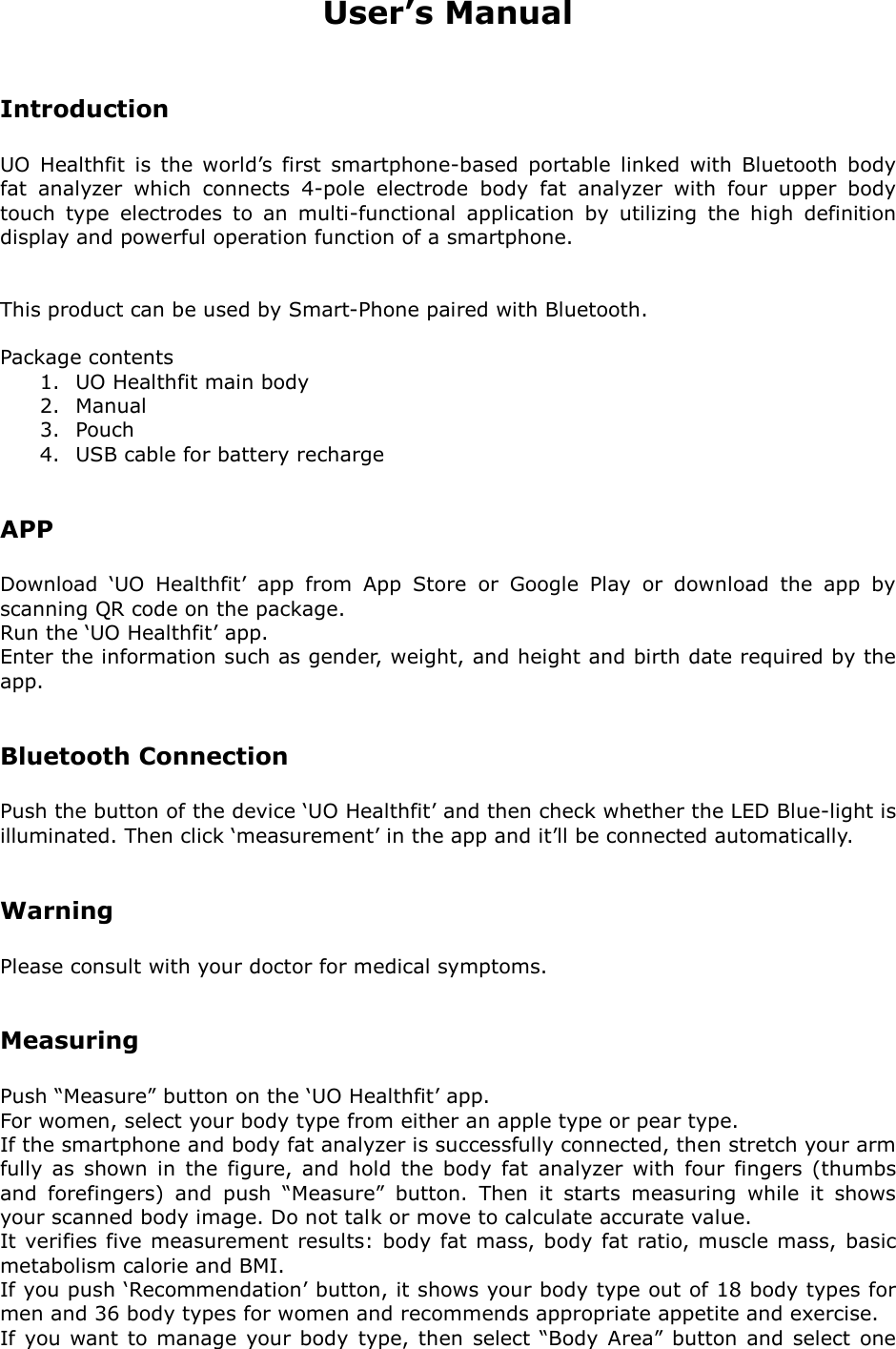

User’s Manual   Introduction  UO  Healthfit  is  the  world’s first  smartphone-based  portable  linked  with  Bluetooth  body fat  analyzer  which  connects  4-pole  electrode  body  fat  analyzer  with  four  upper  body touch  type  electrodes  to  an  multi-functional  application  by  utilizing  the  high  definition display and powerful operation function of a smartphone.   This product can be used by Smart-Phone paired with Bluetooth.  Package contents 1. UO Healthfit main body 2. Manual 3. Pouch 4. USB cable for battery recharge   APP  Download  ‘UO  Healthfit’  app  from  App  Store  or  Google  Play  or  download  the  app  by scanning QR code on the package. Run the ‘UO Healthfit’ app. Enter the information such as gender, weight, and height and birth date required by the app.   Bluetooth Connection  Push the button of the device ‘UO Healthfit’ and then check whether the LED Blue-light is illuminated. Then click ‘measurement’ in the app and it’ll be connected automatically.   Warning  Please consult with your doctor for medical symptoms.   Measuring  Push “Measure” button on the ‘UO Healthfit’ app. For women, select your body type from either an apple type or pear type. If the smartphone and body fat analyzer is successfully connected, then stretch your arm fully  as  shown  in  the  figure,  and  hold  the  body  fat  analyzer  with  four  fingers  (thumbs and  forefingers)  and  push  “Measure”  button.  Then  it  starts  measuring  while  it  shows your scanned body image. Do not talk or move to calculate accurate value.   It verifies five measurement results: body fat  mass, body fat ratio, muscle mass,  basic metabolism calorie and BMI. If you push ‘Recommendation’ button, it shows your body type out of 18 body types for men and 36 body types for women and recommends appropriate appetite and exercise.   If you want to manage your body  type, then  select “Body  Area”  button and  select  one

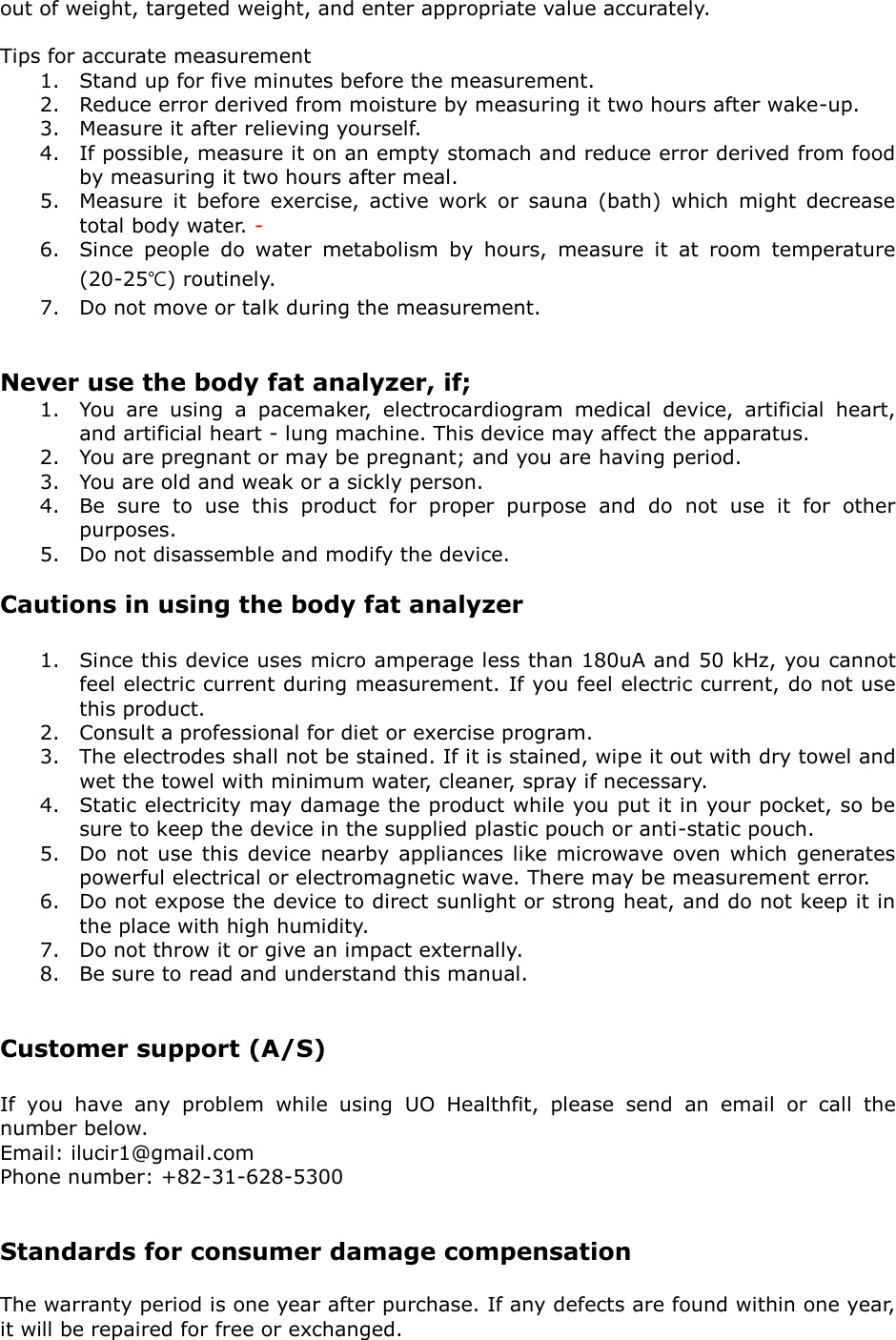

out of weight, targeted weight, and enter appropriate value accurately.    Tips for accurate measurement 1. Stand up for five minutes before the measurement.   2. Reduce error derived from moisture by measuring it two hours after wake-up.   3. Measure it after relieving yourself.   4. If possible, measure it on an empty stomach and reduce error derived from food by measuring it two hours after meal. 5. Measure  it  before  exercise,  active  work  or  sauna  (bath)  which  might  decrease total body water. - 6. Since  people  do  water  metabolism  by  hours,  measure  it  at  room  temperature (20-25℃) routinely. 7. Do not move or talk during the measurement.   Never use the body fat analyzer, if; 1. You  are  using  a  pacemaker,  electrocardiogram  medical  device,  artificial  heart, and artificial heart - lung machine. This device may affect the apparatus. 2. You are pregnant or may be pregnant; and you are having period. 3. You are old and weak or a sickly person. 4. Be  sure  to  use  this  product  for  proper  purpose  and  do  not  use  it  for  other purposes. 5. Do not disassemble and modify the device.  Cautions in using the body fat analyzer  1. Since this device uses micro amperage less than 180uA and 50 kHz, you cannot feel electric current during measurement. If you feel electric current, do not use this product. 2. Consult a professional for diet or exercise program. 3. The electrodes shall not be stained. If it is stained, wipe it out with dry towel and wet the towel with minimum water, cleaner, spray if necessary. 4. Static electricity may damage the product while you put it in your pocket, so be sure to keep the device in the supplied plastic pouch or anti-static pouch. 5. Do not  use this device  nearby appliances like  microwave  oven which  generates powerful electrical or electromagnetic wave. There may be measurement error.   6. Do not expose the device to direct sunlight or strong heat, and do not keep it in the place with high humidity. 7. Do not throw it or give an impact externally. 8. Be sure to read and understand this manual.   Customer support (A/S)  If  you  have  any  problem  while  using  UO  Healthfit,  please  send  an  email  or  call  the number below. Email: ilucir1@gmail.com Phone number: +82-31-628-5300   Standards for consumer damage compensation  The warranty period is one year after purchase. If any defects are found within one year, it will be repaired for free or exchanged.

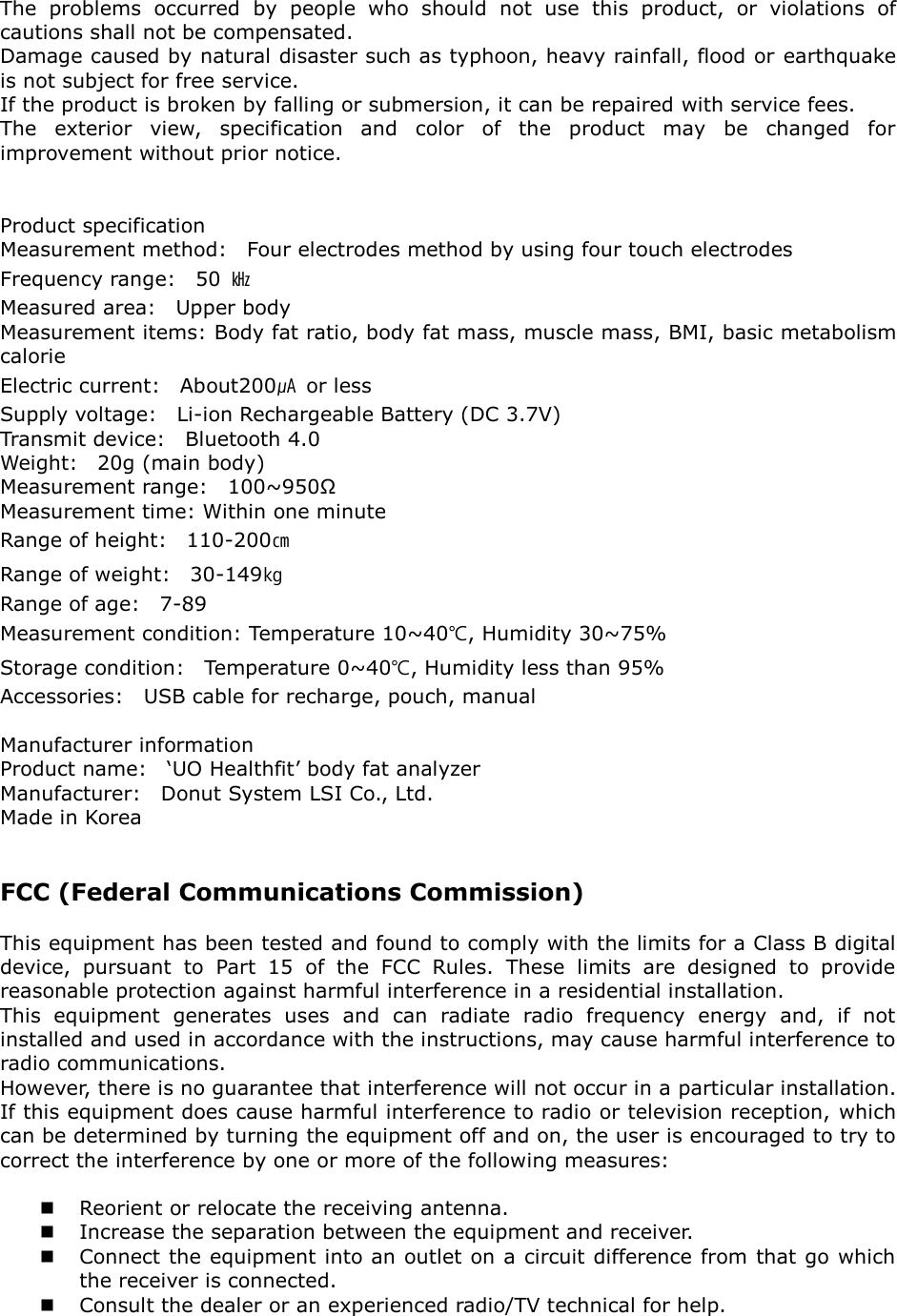

The  problems  occurred  by  people  who  should  not  use  this  product,  or  violations  of cautions shall not be compensated. Damage caused by natural disaster such as typhoon, heavy rainfall, flood or earthquake is not subject for free service. If the product is broken by falling or submersion, it can be repaired with service fees. The  exterior  view,  specification  and  color  of  the  product  may  be  changed  for improvement without prior notice.   Product specification Measurement method:    Four electrodes method by using four touch electrodes Frequency range:    50  ㎑ Measured area:    Upper body Measurement items: Body fat ratio, body fat mass, muscle mass, BMI, basic metabolism calorie Electric current:    About200㎂  or less Supply voltage:    Li-ion Rechargeable Battery (DC 3.7V) Transmit device:    Bluetooth 4.0 Weight:    20g (main body) Measurement range:    100~950Ω Measurement time: Within one minute Range of height:    110-200㎝ Range of weight:    30-149㎏ Range of age:    7-89 Measurement condition: Temperature 10~40℃, Humidity 30~75% Storage condition:    Temperature 0~40℃, Humidity less than 95% Accessories:    USB cable for recharge, pouch, manual  Manufacturer information Product name:    ‘UO Healthfit’ body fat analyzer Manufacturer:    Donut System LSI Co., Ltd. Made in Korea   FCC (Federal Communications Commission)  This equipment has been tested and found to comply with the limits for a Class B digital device,  pursuant  to  Part  15  of  the  FCC  Rules.  These  limits  are  designed  to  provide reasonable protection against harmful interference in a residential installation. This  equipment  generates  uses  and  can  radiate  radio  frequency  energy  and,  if  not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit difference from that go which the receiver is connected.  Consult the dealer or an experienced radio/TV technical for help.

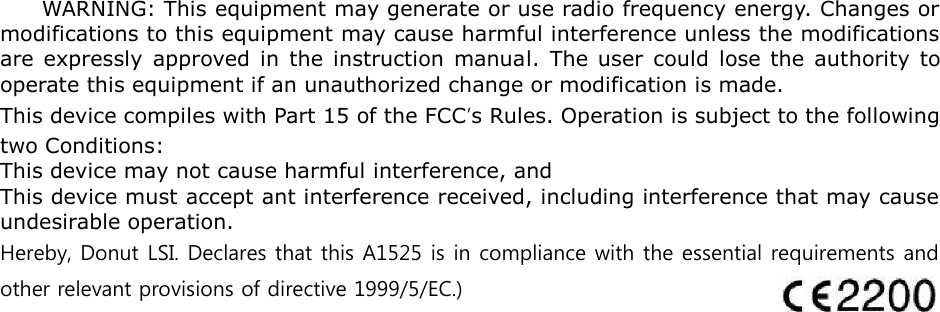

WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This device compiles with Part 15 of the FCC’s Rules. Operation is subject to the following two Conditions: This device may not cause harmful interference, and This device must accept ant interference received, including interference that may cause undesirable operation. Hereby, Donut LSI. Declares that this A1525 is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC.)
