Dyzle Services 0101701 Y-Gate 3.0 Base Station User Manual 1

Dyzle Services B.V. Y-Gate 3.0 Base Station Users Manual 1

Contents

Users Manual-1

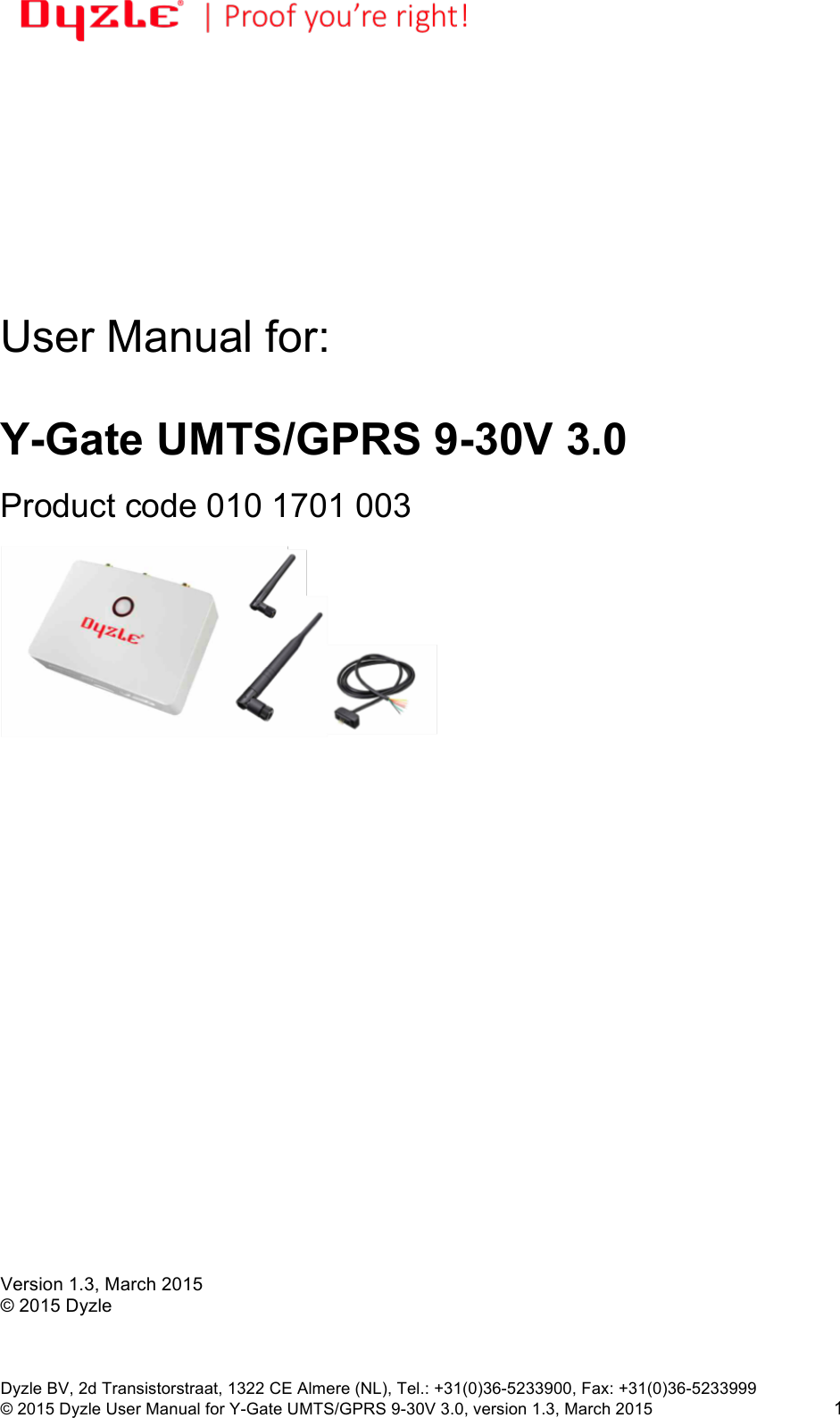

!!Dyzle BV, 2d Transistorstraat, 1322 CE Almere (NL), Tel.: +31(0)36-5233900, Fax: +31(0)36-5233999 © 2015 Dyzle User Manual for Y-Gate UMTS/GPRS 9-30V 3.0, version 1.3, March 2015!1 User Manual for: Y-Gate UMTS/GPRS 9-30V 3.0 Product code 010 1701 003 Version 1.3, March 2015 © 2015 Dyzle

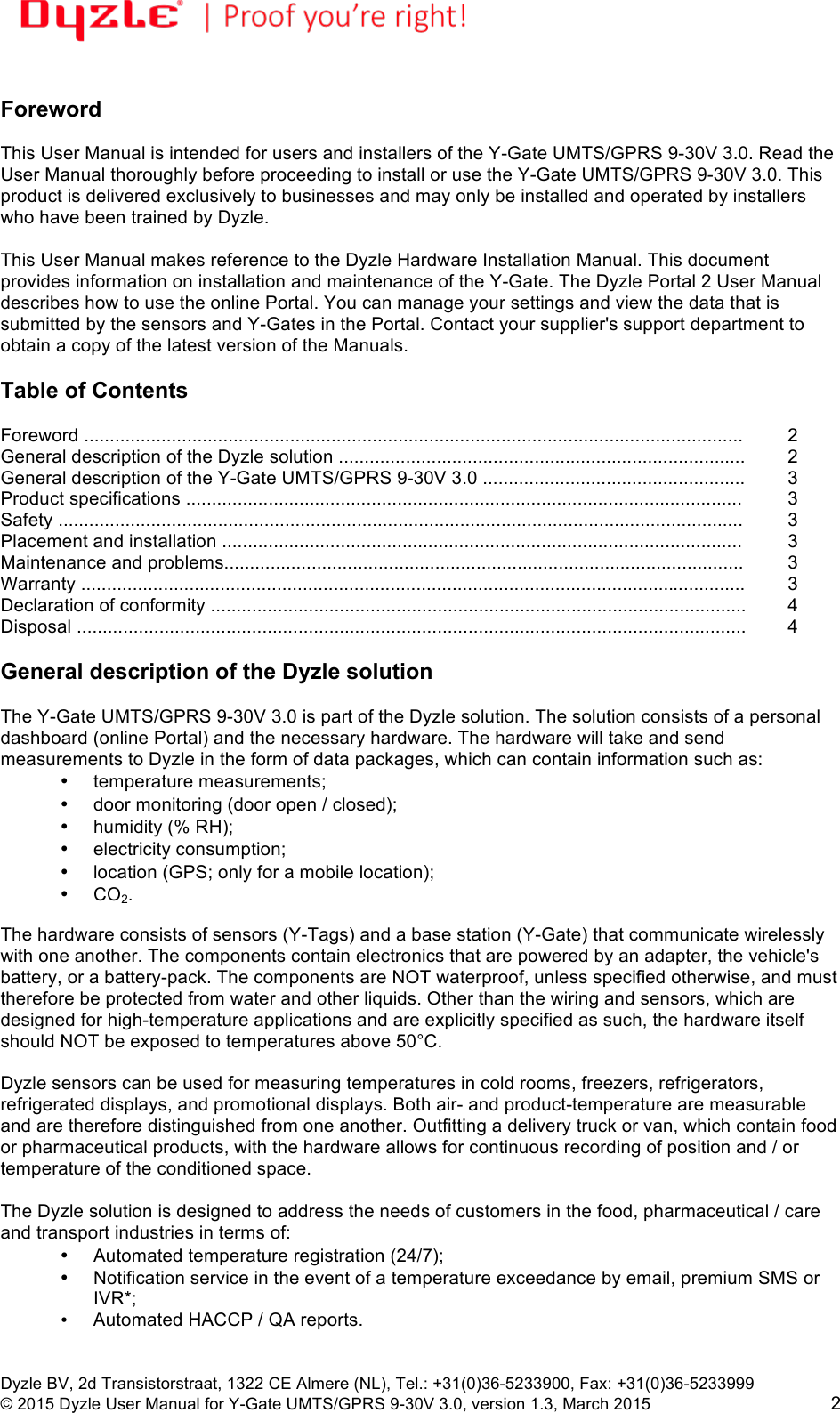

!!Dyzle BV, 2d Transistorstraat, 1322 CE Almere (NL), Tel.: +31(0)36-5233900, Fax: +31(0)36-5233999 © 2015 Dyzle User Manual for Y-Gate UMTS/GPRS 9-30V 3.0, version 1.3, March 2015!2 Foreword This User Manual is intended for users and installers of the Y-Gate UMTS/GPRS 9-30V 3.0. Read the User Manual thoroughly before proceeding to install or use the Y-Gate UMTS/GPRS 9-30V 3.0. This product is delivered exclusively to businesses and may only be installed and operated by installers who have been trained by Dyzle. This User Manual makes reference to the Dyzle Hardware Installation Manual. This document provides information on installation and maintenance of the Y-Gate. The Dyzle Portal 2 User Manual describes how to use the online Portal. You can manage your settings and view the data that is submitted by the sensors and Y-Gates in the Portal. Contact your supplier's support department to obtain a copy of the latest version of the Manuals. Table of Contents Foreword ................................................................................................................................!2 General description of the Dyzle solution ...............................................................................!2 General description of the Y-Gate UMTS/GPRS 9-30V 3.0 ...................................................!3 Product specifications ............................................................................................................!3 Safety .....................................................................................................................................!3 Placement and installation .....................................................................................................!3 Maintenance and problems.....................................................................................................!3 Warranty .................................................................................................................................!3 Declaration of conformity ........................................................................................................ 4 Disposal ..................................................................................................................................!4 General description of the Dyzle solution The Y-Gate UMTS/GPRS 9-30V 3.0 is part of the Dyzle solution. The solution consists of a personal dashboard (online Portal) and the necessary hardware. The hardware will take and send measurements to Dyzle in the form of data packages, which can contain information such as: • temperature measurements; • door monitoring (door open / closed); • humidity (% RH); • electricity consumption; • location (GPS; only for a mobile location); • CO2. The hardware consists of sensors (Y-Tags) and a base station (Y-Gate) that communicate wirelessly with one another. The components contain electronics that are powered by an adapter, the vehicle's battery, or a battery-pack. The components are NOT waterproof, unless specified otherwise, and must therefore be protected from water and other liquids. Other than the wiring and sensors, which are designed for high-temperature applications and are explicitly specified as such, the hardware itself should NOT be exposed to temperatures above 50°C. Dyzle sensors can be used for measuring temperatures in cold rooms, freezers, refrigerators, refrigerated displays, and promotional displays. Both air- and product-temperature are measurable and are therefore distinguished from one another. Outfitting a delivery truck or van, which contain food or pharmaceutical products, with the hardware allows for continuous recording of position and / or temperature of the conditioned space. The Dyzle solution is designed to address the needs of customers in the food, pharmaceutical / care and transport industries in terms of: • Automated temperature registration (24/7); • Notification service in the event of a temperature exceedance by email, premium SMS or IVR*; • Automated HACCP / QA reports.

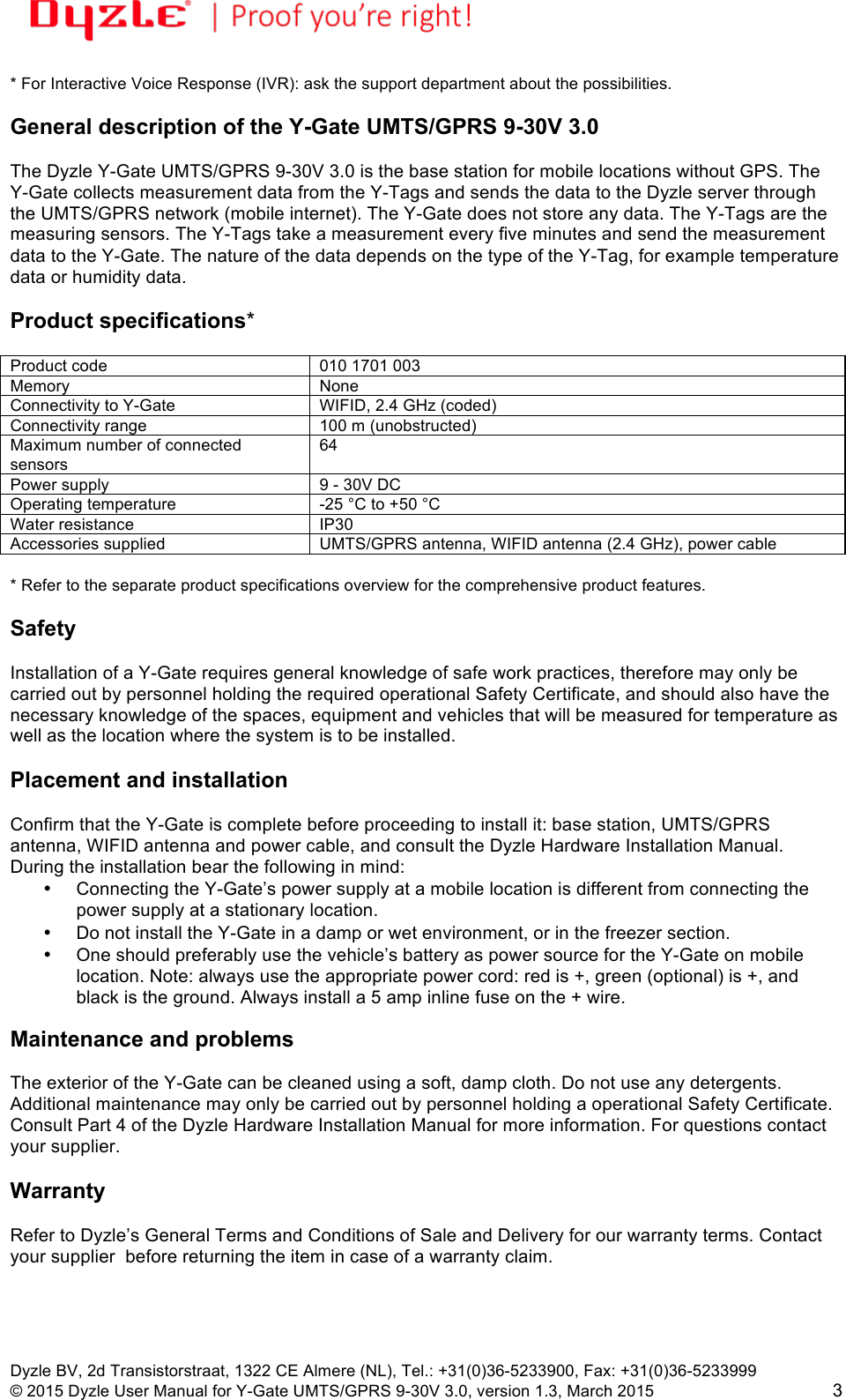

!!Dyzle BV, 2d Transistorstraat, 1322 CE Almere (NL), Tel.: +31(0)36-5233900, Fax: +31(0)36-5233999 © 2015 Dyzle User Manual for Y-Gate UMTS/GPRS 9-30V 3.0, version 1.3, March 2015!3 * For Interactive Voice Response (IVR): ask the support department about the possibilities. General description of the Y-Gate UMTS/GPRS 9-30V 3.0 The Dyzle Y-Gate UMTS/GPRS 9-30V 3.0 is the base station for mobile locations without GPS. The Y-Gate collects measurement data from the Y-Tags and sends the data to the Dyzle server through the UMTS/GPRS network (mobile internet). The Y-Gate does not store any data. The Y-Tags are the measuring sensors. The Y-Tags take a measurement every five minutes and send the measurement data to the Y-Gate. The nature of the data depends on the type of the Y-Tag, for example temperature data or humidity data. Product specifications* Product code 010 1701 003 Memory None Connectivity to Y-Gate WIFID, 2.4 GHz (coded) Connectivity range 100 m (unobstructed) Maximum number of connected sensors 64 Power supply 9 - 30V DC Operating temperature -25 °C to +50 °C Water resistance IP30 Accessories supplied UMTS/GPRS antenna, WIFID antenna (2.4 GHz), power cable * Refer to the separate product specifications overview for the comprehensive product features. Safety Installation of a Y-Gate requires general knowledge of safe work practices, therefore may only be carried out by personnel holding the required operational Safety Certificate, and should also have the necessary knowledge of the spaces, equipment and vehicles that will be measured for temperature as well as the location where the system is to be installed. Placement and installation Confirm that the Y-Gate is complete before proceeding to install it: base station, UMTS/GPRS antenna, WIFID antenna and power cable, and consult the Dyzle Hardware Installation Manual. During the installation bear the following in mind: • Connecting the Y-Gate’s power supply at a mobile location is different from connecting the power supply at a stationary location. • Do not install the Y-Gate in a damp or wet environment, or in the freezer section. • One should preferably use the vehicle’s battery as power source for the Y-Gate on mobile location. Note: always use the appropriate power cord: red is +, green (optional) is +, and black is the ground. Always install a 5 amp inline fuse on the + wire. Maintenance and problems The exterior of the Y-Gate can be cleaned using a soft, damp cloth. Do not use any detergents. Additional maintenance may only be carried out by personnel holding a operational Safety Certificate. Consult Part 4 of the Dyzle Hardware Installation Manual for more information. For questions contact your supplier. Warranty Refer to Dyzle’s General Terms and Conditions of Sale and Delivery for our warranty terms. Contact your supplier before returning the item in case of a warranty claim.

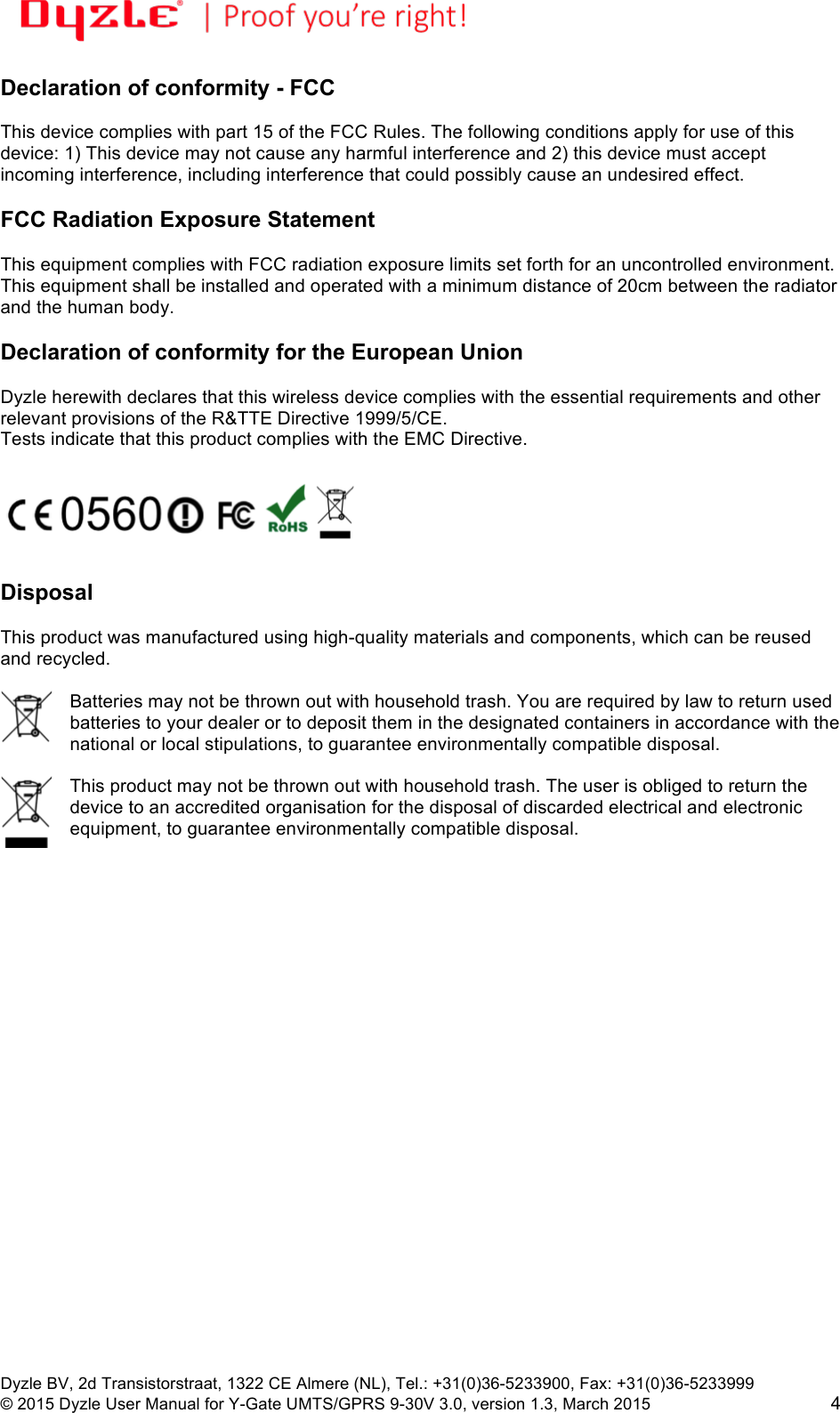

!!Dyzle BV, 2d Transistorstraat, 1322 CE Almere (NL), Tel.: +31(0)36-5233900, Fax: +31(0)36-5233999 © 2015 Dyzle User Manual for Y-Gate UMTS/GPRS 9-30V 3.0, version 1.3, March 2015!4 Declaration of conformity - FCC This device complies with part 15 of the FCC Rules. The following conditions apply for use of this device: 1) This device may not cause any harmful interference and 2) this device must accept incoming interference, including interference that could possibly cause an undesired effect. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment shall be installed and operated with a minimum distance of 20cm between the radiator and the human body. Declaration of conformity for the European Union Dyzle herewith declares that this wireless device complies with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/CE. Tests indicate that this product complies with the EMC Directive. Disposal This product was manufactured using high-quality materials and components, which can be reused and recycled. Batteries may not be thrown out with household trash. You are required by law to return used batteries to your dealer or to deposit them in the designated containers in accordance with the national or local stipulations, to guarantee environmentally compatible disposal. This product may not be thrown out with household trash. The user is obliged to return the device to an accredited organisation for the disposal of discarded electrical and electronic equipment, to guarantee environmentally compatible disposal.
