Wireless SystemWireless System2.4GHz2.4GHz2.4 GHz Wireless Audio/Video System1. INTRODUCTION1. INTRODUCTION2. PACKAGE CONTENTS2. PACKAGE CONTENTS3. CONTROLS3. CONTROLS4. SYSTEM INSTALLATION4. SYSTEM INSTALLATION133456. TROUBLE SHOOTING6. TROUBLE SHOOTING 75. OPERATION5. OPERATIONBuilt-in Color CMOS Camera

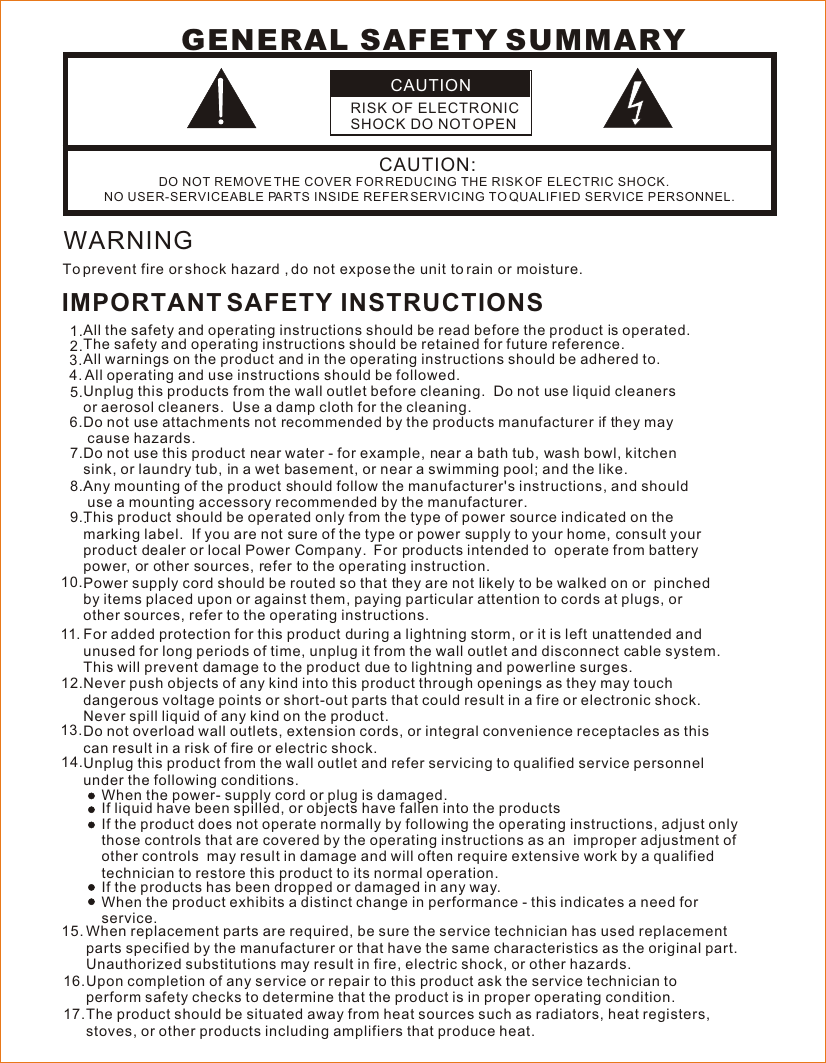

CAUTIONRISK OF ELECTRONIC SHOCK DO NOT OPENCAUTION:DO NOT REMOVE THE COVER FOR REDUCING THE RISK OF ELECTRIC SHOCK.NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. GENERAL SAFETY SUMMARYWARNINGTo prevent fire or shock hazard , do not expose the unit to rain or moisture. IMPORTANT SAFETY INSTRUCTIONSAll the safety and operating instructions should be read before the product is operated. The safety and operating instructions should be retained for future reference. All warnings on the product and in the operating instructions should be adhered to. All operating and use instructions should be followed.Unplug this products from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for the cleaning. Do not use attachments not recommended by the products manufacturer if they may cause hazards. Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool; and the like. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type or power supply to your home, consult your product dealer or local Power Company. For products intended to operate from batterypower, or other sources, refer to the operating instruction. . Power supply cord should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, or other sources, refer to the operating instructions. 1.2.5.3.4.6.7.8.9.10.Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions.When the power- supply cord or plug is damaged.If liquid have been spilled, or objects have fallen into the productsNever push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electronic shock. Never spill liquid of any kind on the product. 12.13.14.When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.Upon completion of any service or repair to this product ask the service technician to perform safety checks to determine that the product is in proper operating condition.The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers that produce heat. 15.16.17.If the product does not operate normally by following the operating instructions, adjust onlythose controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore this product to its normal operation. When the product exhibits a distinct change in performance - this indicates a need for service. If the products has been dropped or damaged in any way. For added protection for this product during a lightning storm, or it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect cable system. This will prevent damage to the product due to lightning and powerline surges.11.

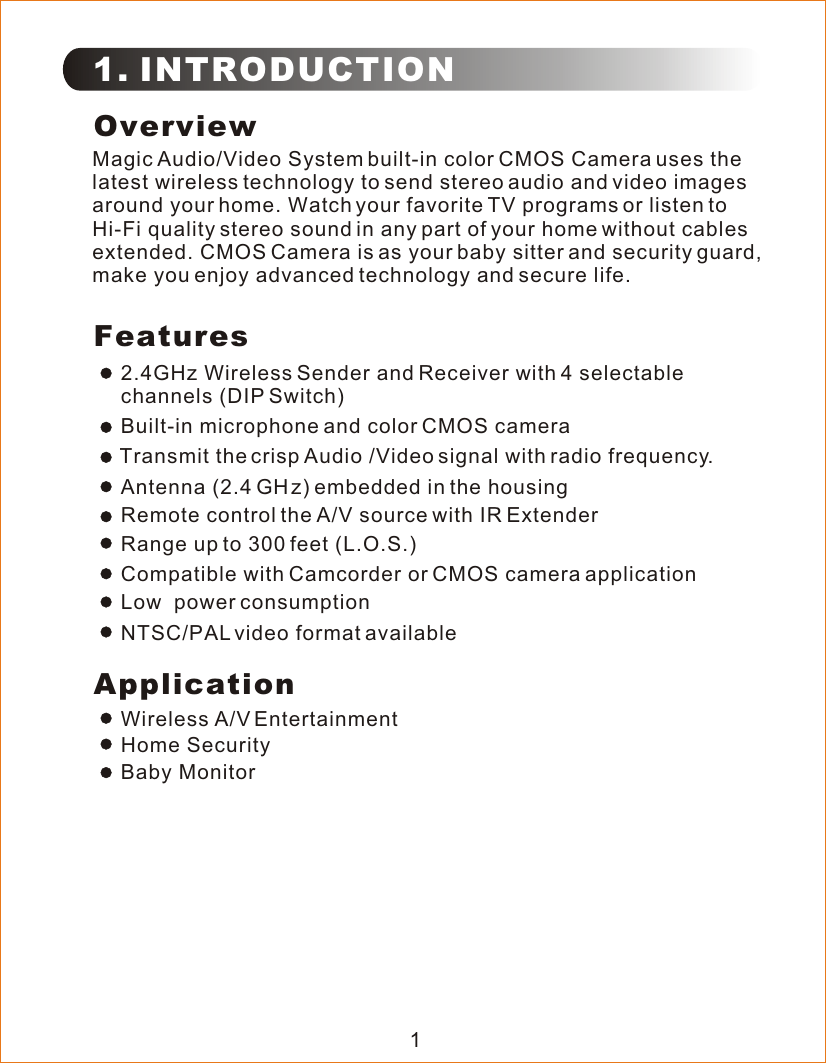

1. INTRODUCTIONOverviewMagic Audio/Video System built-in color CMOS Camera uses the latest wireless technology to send stereo audio and video images around your home. Watch your favorite TV programs or listen to Hi-Fi quality stereo sound in any part of your home without cables extended. CMOS Camera is as your baby sitter and security guard, make you enjoy advanced technology and secure life. Features2.4GHz Wireless Sender and Receiver with 4 selectable channels (DIP Switch)Transmit the crisp Audio /Video signal with radio frequency.Built-in microphone and color CMOS cameraRemote control the A/V source with IR ExtenderCompatible with Camcorder or CMOS camera applicationLow power consumptionNTSC/PAL video format availableRange up to 300 feet (L.O.S.)ApplicationHome SecurityBaby MonitorWireless A/V Entertainment1Antenna (2.4 G z) embedded in the housingH

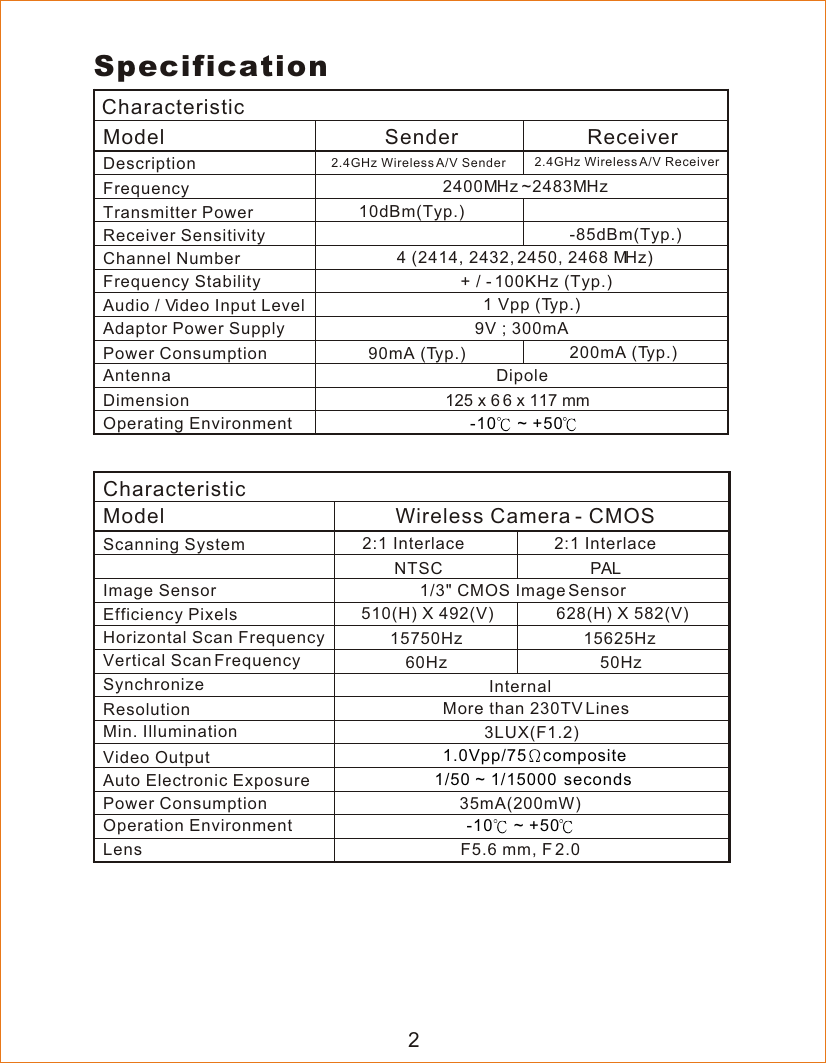

2SpecificationCharacteristicModelScanning SystemImage SensorEfficiency PixelsHorizontal Scan FrequencyVertical Scan FrequencySynchronizeResolutionMin. IlluminationVideo OutputAuto Electronic ExposurePower ConsumptionOperation EnvironmentLens 2:1 Interlace 2:1 InterlaceNTSC PAL1/3" CMOS Image SensorWireless Camera - CMOS510(H) X 492(V) 628(H) X 582(V)15625Hz15750Hz60Hz 50HzInternalMore than 230TV Lines3LUX(F1.2)1.0Vpp/75 composite1/50 ~ 1/15000 seconds35mA(200mW)-10 ~ +50F5.6 mm, F 2.0DescriptionFrequencyTransmitter PowerReceiver SensitivityChannel NumberFrequency StabilityAudio / Video Input LevelAdaptor Power Supply Power ConsumptionAntennaDimensionOperating EnvironmentCharacteristicModel Sender Receiver2.4GHz Wireless A/V Sender 2.4GHz Wireless A/V Receiver10dBm(Typ.)-85dBm(Typ.)+ / - 100KHz (Typ.)1 Vpp (Typ.)9V ; 300mA90mA (Typ.) 200mA (Typ.)Dipole-10 ~ +50125 x 6 6 x 117 mm4 (2414, 2432, 2450, 2468 MHz)2400MHz ~2483MHz
32. PACKAGE CONTENTSCheck all of the components shown as below are included in box before using.Sender x 1Receiver x 1Infrared Extender x 1Audio / Video Cable x 29V DC Power Adaptor x 21.2.3.4.5.3. CONTROLSInfrared ExtenderPower AdaptorRCA to RCAORRCA to SCARTSender ReceiverThe Sender The Receiver1.2.3.4.Power On/Off ButtonLED Power IndicatorMicrophone5.6.7.IR Extender JackAudio/Video JackAdaptor JackChannel SelectorFront & Side PanelRear & Bottom PanelFront & Side PanelRear & Bottom PanelIR Window8.9.Slide switch for camera angleCamera Lens10.Users Manual x 16.2811325647910 11910 11Camera/AV sender switch11.

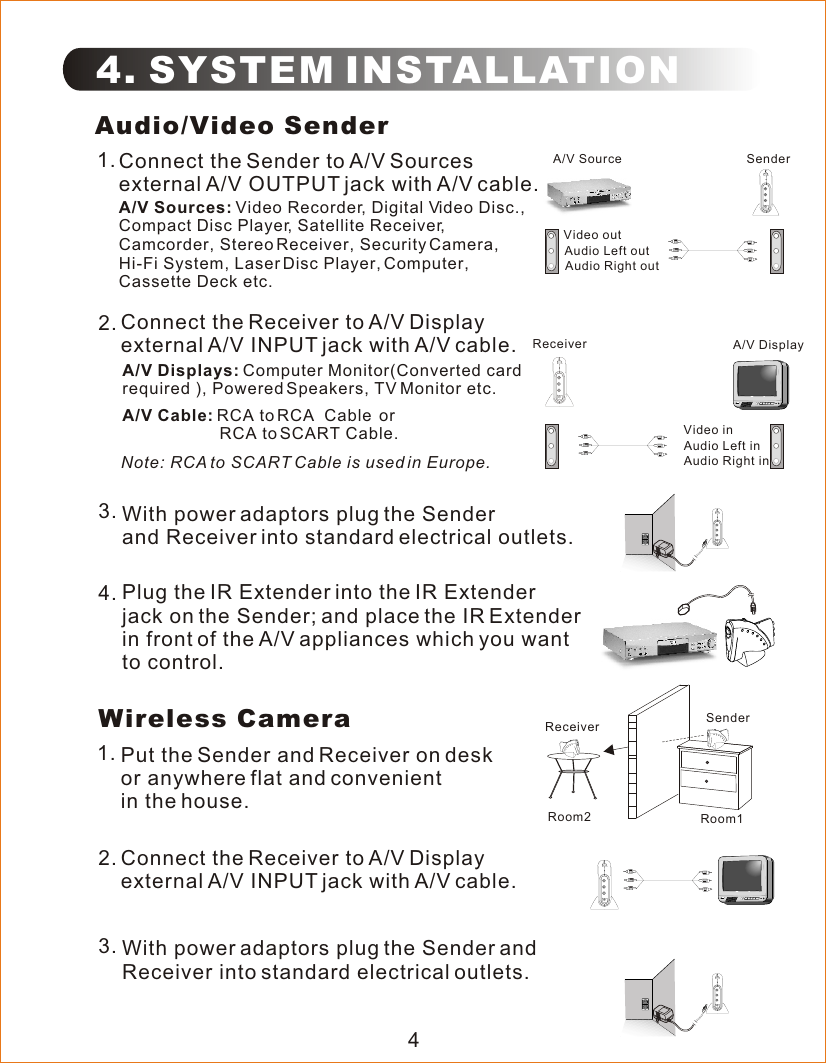

44. SYSTEM INSTALLATIONConnect the Sender to A/V Sources external A/V OUTPUT jack with A/V cable.Connect the Receiver to A/V Display external A/V INPUT jack with A/V cable.With power adaptors plug the Senderand Receiver into standard electrical outlets.Plug the IR Extender into the IR Extender jack on the Sender; and place the IR Extender in front of the A/V appliances which you want to control.1.2.3.4.Audio/Video SenderWireless CameraConnect the Receiver to A/V Displayexternal A/V INPUT jack with A/V cable.With power adaptors plug the Sender and Receiver into standard electrical outlets.1.2.3.Put the Sender and Receiver on desk or anywhere flat and convenientin the house.A/V Sources: Video Recorder, Digital Video Disc., Compact Disc Player, Satellite Receiver, Camcorder, Stereo Receiver, Security Camera, Hi-Fi System, Laser Disc Player, Computer, Cassette Deck etc.A/V Displays: Computer Monitor(Converted card required ), Powered Speakers, TV Monitor etc.Note: RCA to SCART Cable is used in Europe.A/V Cable: RCA to RCA Cable or RCA to SCART Cable.Receiver A/V DisplayVideo inAudio Left in Audio Right inSenderA/V SourceVideo outAudio Left outAudio Right outRoom1Room2SenderReceiver
55. OPERATIONSTurn on the Sender and Receiver. Turn on A/V sources and A/V display.Adjust Channel Selectors on bottom of the Sender and Receiver to the same channel.Enjoy the wireless A/V entertainment. Make sure the LED power indicators of Sender and Receiver rightly light up.1.2.3.4.5.Audio/Video SenderVideo outAudio Left outAudio Right outA/V DisplayVideo inAudio Left inAudio Right inA/V Source Sender Receiver2.4GHz Radio Frequency A/V Signal433MHz Radio FrequencyRemote ControllerIRIR ExtenderA/V Signal A/V SignalFor IR Control Please note each Sender is set in channel one and Audio/Video Sender mode when it is leaving factory.Sender ReceiverON DIP1 2 3 4ON DIP1 2 3 4ON DIP1 2 3 4ON DIP1 2 3 4ON DIP1 2 3 4Ch1 Ch2 Ch3 Ch4

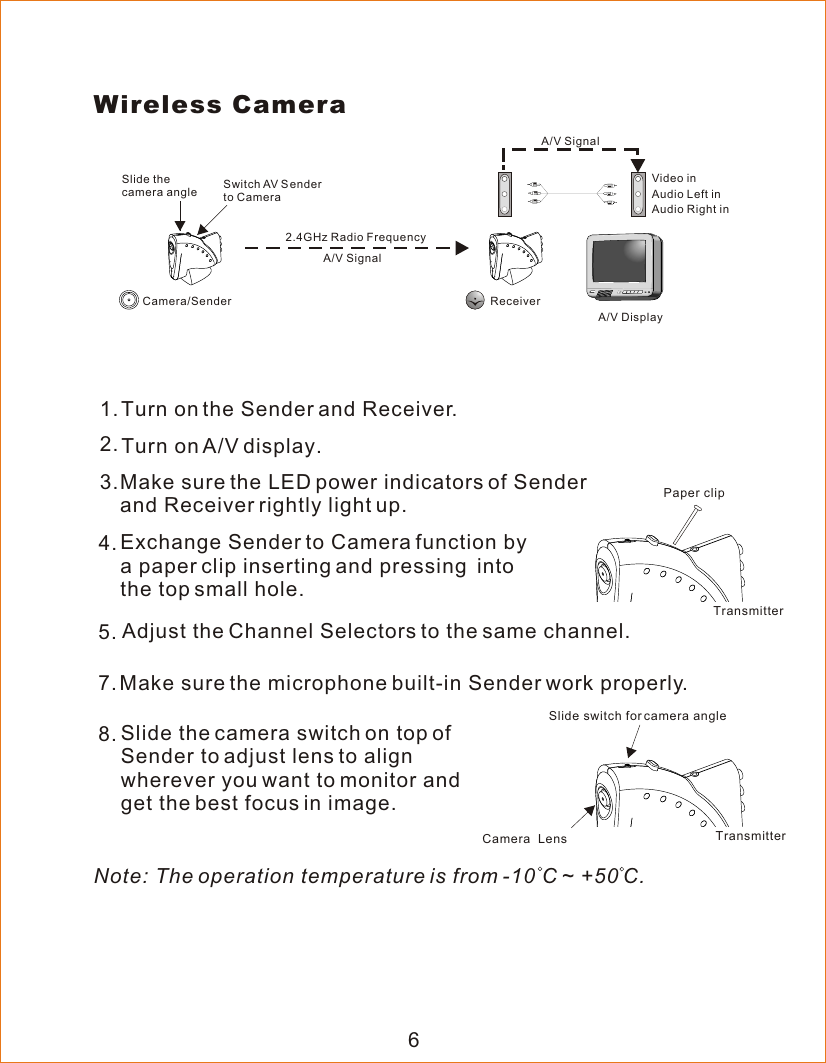

Slide switch for camera angleCamera Lens TransmitterPaper clipTransmitterWireless CameraTurn on the Sender and Receiver. Make sure the LED power indicators of Senderand Receiver rightly light up.1.2.Slide the camera switch on top of Sender to adjust lens to alignwherever you want to monitor and get the best focus in image.3.Turn on A/V display.4.Adjust the Channel Selectors to the same channel.7.Make sure the microphone built-in Sender work properly.8.Note: The operation temperature is from -10 C ~ +50 C.Exchange Sender to Camera function by a paper clip inserting and pressing into the top small hole.5.A/V DisplayVideo inAudio Left inAudio Right inReceiverA/V Signal2.4GHz Radio Frequency A/V SignalCamera/SenderSlide the camera angle Switch AV Senderto Camera6
76. TROUBLE SHOOTINGPlease read this user manual carefully before using the WirelessAudio/Video System. If you still have difficulties to use the system, consult the following syndrome, which will guide you to solve most common problems.No Pictures or SoundInterference in the image and soundRemote Control does not work properlyCheck the adaptor rightly connected.Power On/Off switch is in right position.Check the A/V cable is inserted into the OUTPUT or INPUT A/V jack accurately. (See page 4) Move Sender or Receiver slowly to find a best reception position for your A/V system.Shorten the distance between Sender and Receiver.Check if there is any interference radio frequency source near the Receiver source, such as microwave oven.If there is any interference radio frequency source near Receiver, try to switch the channel to get a best performance.Check Sender and Receiver at the same channel.Check if the Remote Control is out of battery.Make sure Remote Control align the Receiver IR window.Make sure a proper distance between Remote Control and Receiver IR window. 1.2.3.Check all the cables well and rightly connected.Check Sender and Receiver at the same channel.Check A/V Sender and Camera switch completely.Sender ReceiverEX: Switch Channel Selector to Ch1ON DIP1 2 3 4

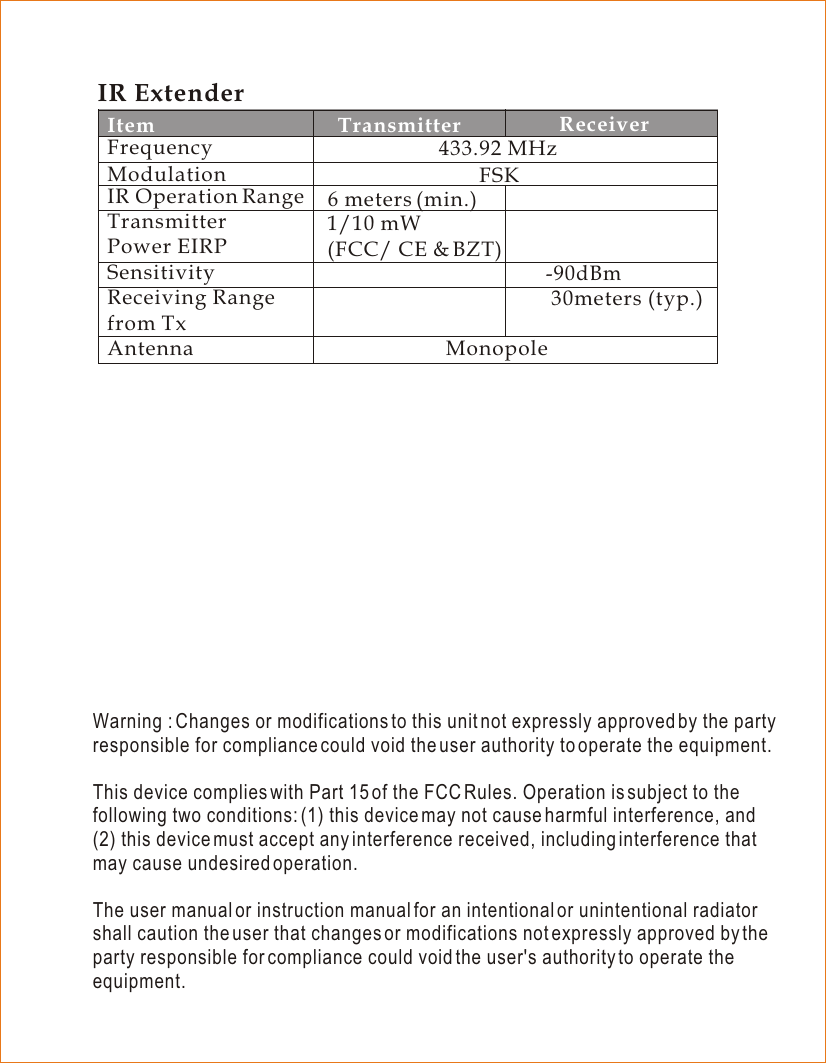

Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The user manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.IR ExtenderItem Transmitter ReceiverFrequencyModulation6 meters (min.)-90dBm30meters (typ.)IR Operation RangeTransmitter Power EIRPSensitivityReceiving Range from TxFSK1/10 mW (FCC/ CE & BZT)433.92 MHzMonopoleAntenna
Version 1.0Audio/Video2.4 GHz2.4 GHzWIRELESSCamera+
