ENERNET 12400 Wireless Thermostat User Manual

ENERNET Corporation Wireless Thermostat

user manual

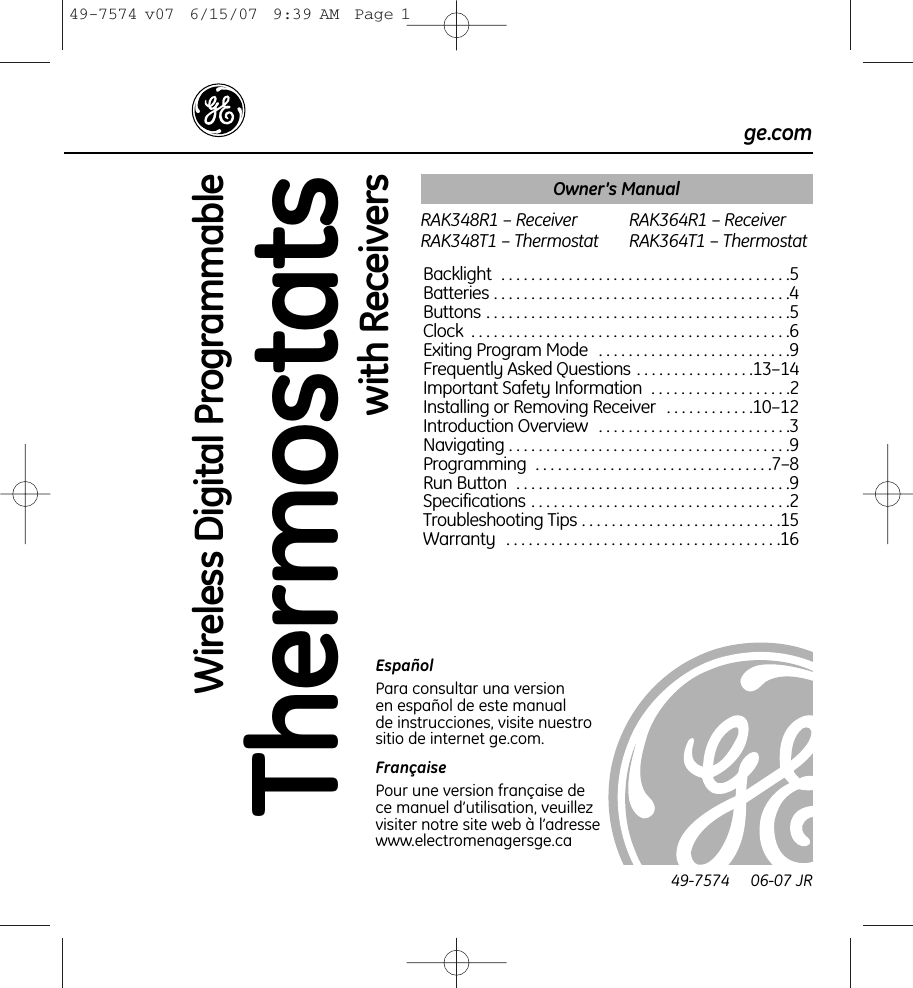

ThermostatsWireless Digital Programmablege.comBacklight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6Exiting Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . .9Frequently Asked Questions . . . . . . . . . . . . . . . .13–14Important Safety Information . . . . . . . . . . . . . . . . . . .2Installing or Removing Receiver . . . . . . . . . . . .10–12Introduction Overview . . . . . . . . . . . . . . . . . . . . . . . . . .3Navigating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7–8Run Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . .15Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16RAK348R1 – ReceiverRAK348T1 – ThermostatRAK364R1 – ReceiverRAK364T1 – ThermostatOwner’s Manual49-7574 06-07 JREspañolPara consultar una version en español de este manual de instrucciones, visite nuestro sitio de internet ge.com.FrançaisePour une version française dece manuel d’utilisation, veuillezvisiter notre site web à l’adressewww.electromenagersge.cawith Receivers49-7574 v07 6/15/07 9:39 AM Page 1

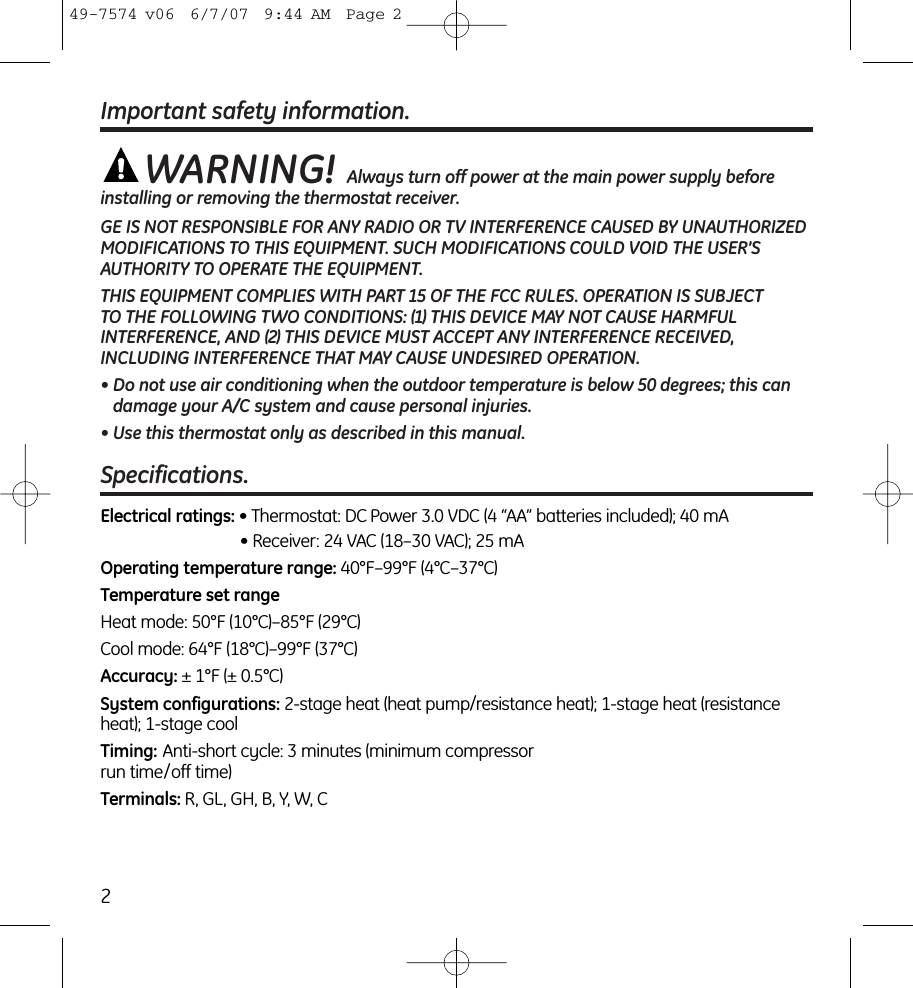

Important safety information.Specifications.WARNING! Always turn off power at the main power supply beforeinstalling or removing the thermostat receiver.GE IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZEDMODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’SAUTHORITY TO OPERATE THE EQUIPMENT.THIS EQUIPMENT COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.• Do not use air conditioning when the outdoor temperature is below 50 degrees; this candamage your A/C system and cause personal injuries.• Use this thermostat only as described in this manual.Electrical ratings: • Thermostat: DC Power 3.0 VDC (4 “AA” batteries included); 40 mA• Receiver: 24 VAC (18–30 VAC); 25 mAOperating temperature range: 40°F–99°F (4°C–37°C)Temperature set rangeHeat mode: 50°F (10°C)–85°F (29°C) Cool mode: 64°F (18°C)–99°F (37°C) Accuracy: ± 1°F (± 0.5°C)System configurations: 2-stage heat (heat pump/resistance heat); 1-stage heat (resistanceheat); 1-stage coolTiming: Anti-short cycle: 3 minutes (minimum compressor run time/off time)Terminals: R, GL, GH, B, Y, W, C249-7574 v06 6/7/07 9:44 AM Page 2

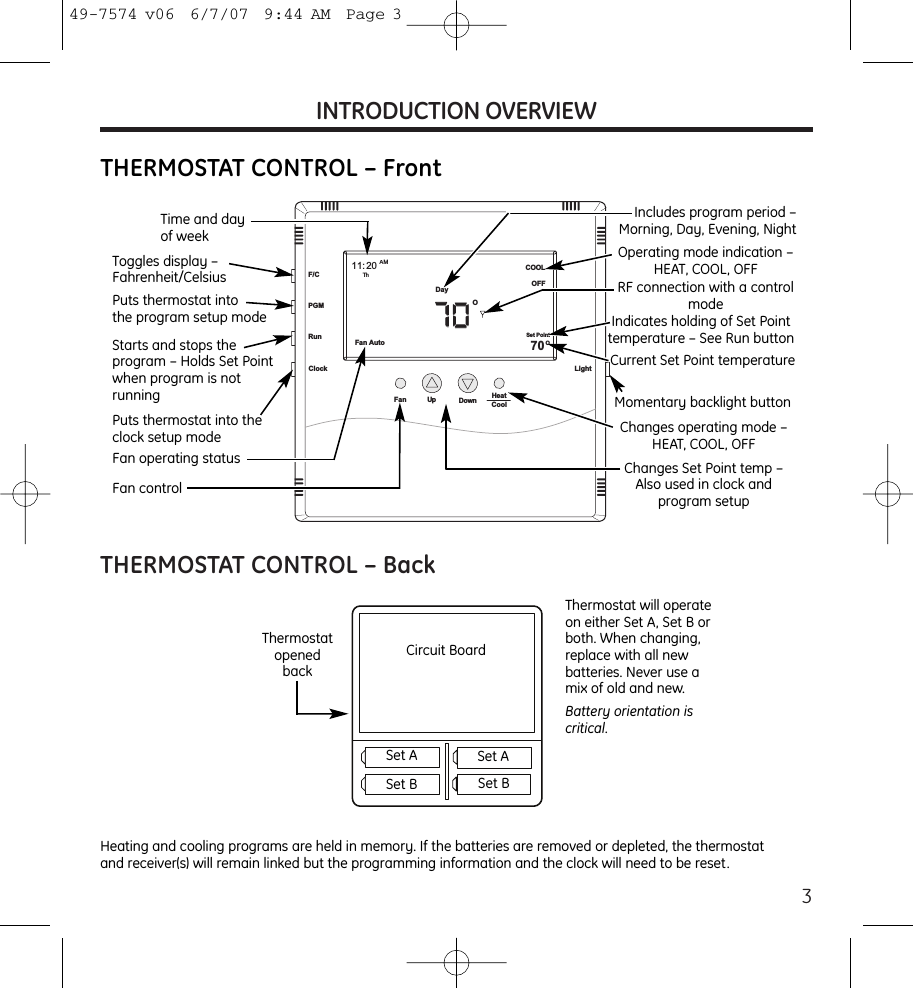

3INTRODUCTION OVERVIEWTHERMOSTAT CONTROL – BackFan Hea tCoolUp DownThFan AutoCOOLOFF70OO11: 20AMDaySet PointF/CPGMRunClock LightTime and day of weekIncludes program period –Morning, Day, Evening, NightStarts and stops the program – Holds Set Pointwhen program is not runningToggles display –Fahrenheit/CelsiusPuts thermostat into theclock setup modeThermostat will operateon either Set A, Set B orboth. When changing,replace with all newbatteries. Never use amix of old and new.Battery orientation iscritical.Heating and cooling programs are held in memory. If the batteries are removed or depleted, the thermostatand receiver(s) will remain linked but the programming information and the clock will need to be reset.ThermostatopenedbackPuts thermostat into the program setup modeFan operating statusFan controlOperating mode indication –HEAT, COOL, OFFRF connection with a controlmodeIndicates holding of Set Pointtemperature – See Run buttonCurrent Set Point temperatureMomentary backlight buttonChanges operating mode –HEAT, COOL, OFFChanges Set Point temp –Also used in clock and program setupCircuit BoardSet A Set ASet B Set BTHERMOSTAT CONTROL – Front49-7574 v06 6/7/07 9:44 AM Page 3

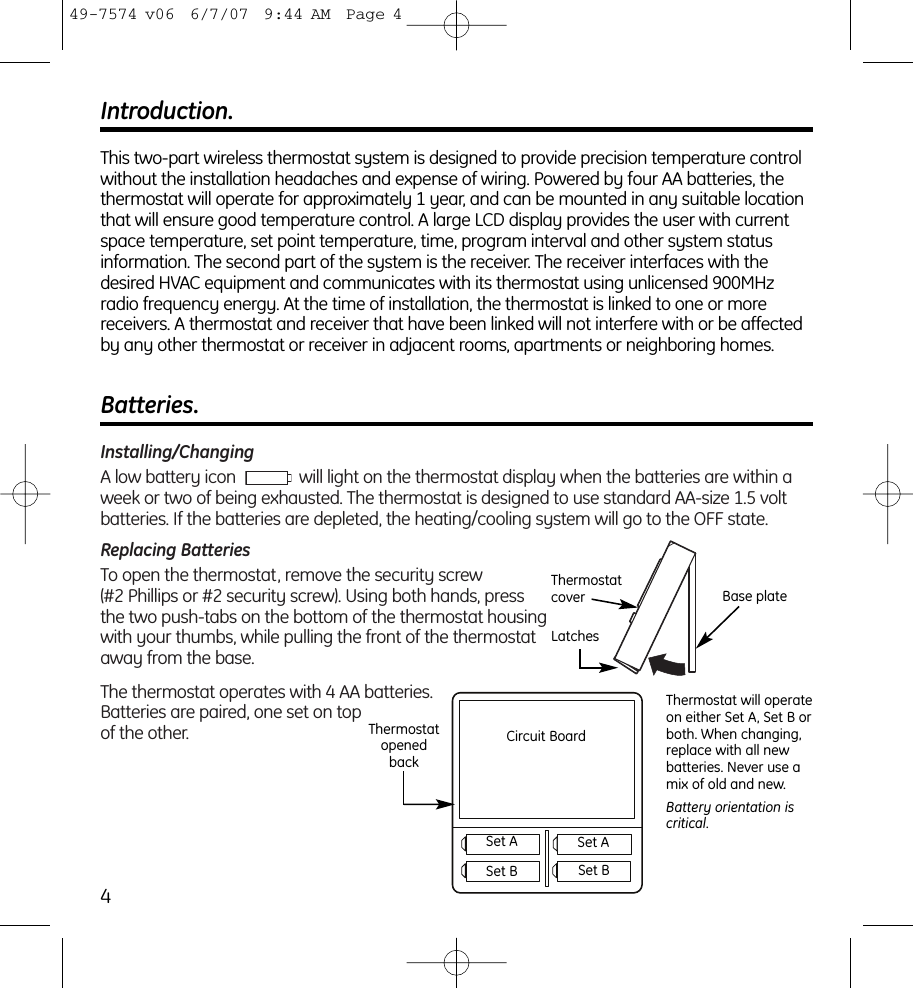

Installing/ChangingA low battery icon will light on the thermostat display when the batteries are within aweek or two of being exhausted. The thermostat is designed to use standard AA-size 1.5 voltbatteries. If the batteries are depleted, the heating/cooling system will go to the OFF state.Replacing BatteriesTo open the thermostat, remove the security screw (#2 Phillips or #2 security screw). Using both hands, pressthe two push-tabs on the bottom of the thermostat housingwith your thumbs, while pulling the front of the thermostataway from the base.The thermostat operates with 4 AA batteries.Batteries are paired, one set on topof the other.4Introduction.This two-part wireless thermostat system is designed to provide precision temperature controlwithout the installation headaches and expense of wiring. Powered by four AA batteries, thethermostat will operate for approximately 1 year, and can be mounted in any suitable locationthat will ensure good temperature control. A large LCD display provides the user with currentspace temperature, set point temperature, time, program interval and other system statusinformation. The second part of the system is the receiver. The receiver interfaces with thedesired HVAC equipment and communicates with its thermostat using unlicensed 900MHzradio frequency energy. At the time of installation, the thermostat is linked to one or morereceivers. A thermostat and receiver that have been linked will not interfere with or be affectedby any other thermostat or receiver in adjacent rooms, apartments or neighboring homes.Batteries.ThermostatcoverLatchesBase plateThermostat will operateon either Set A, Set B orboth. When changing,replace with all newbatteries. Never use amix of old and new.Battery orientation iscritical.Circuit BoardSet A Set ASet B Set BThermostatopenedback49-7574 v06 6/7/07 9:44 AM Page 4

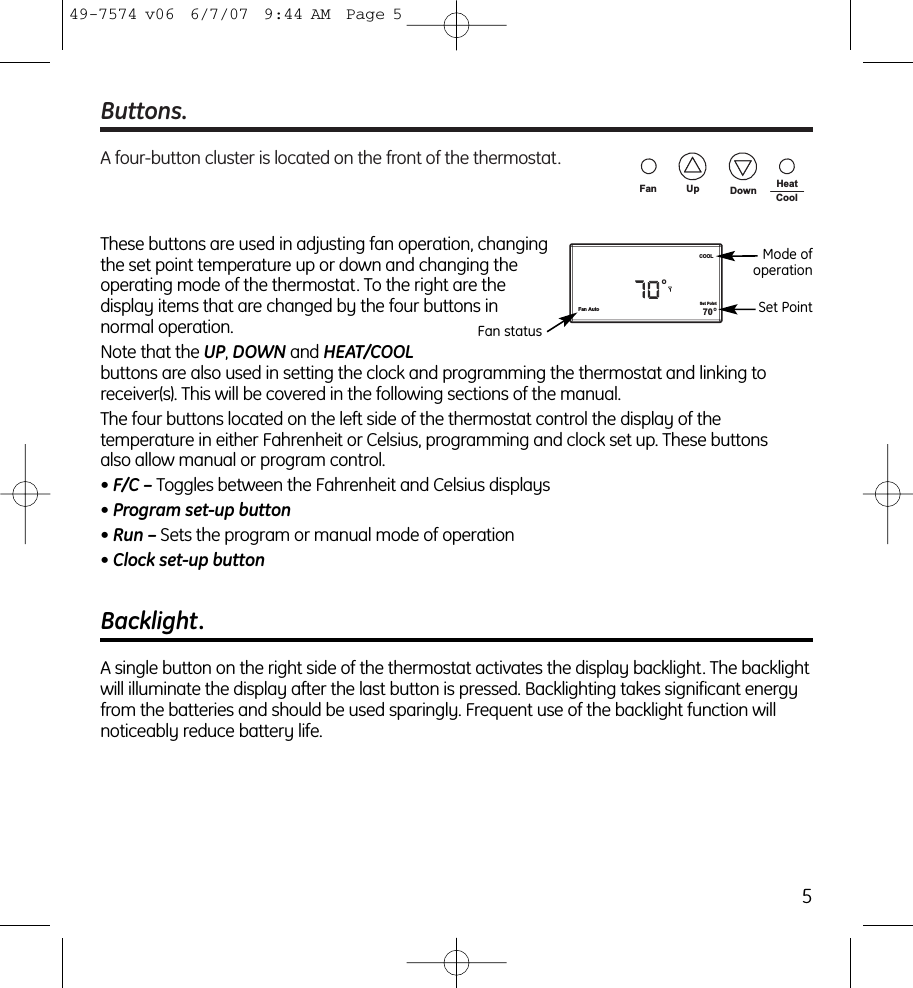

Buttons.A four-button cluster is located on the front of the thermostat.Fan HeatCoolUp DownThese buttons are used in adjusting fan operation, changingthe set point temperature up or down and changing the operating mode of the thermostat. To the right are the display items that are changed by the four buttons in normal operation.Note that the UP, DOWN and HEAT/COOLbuttons are also used in setting the clock and programming the thermostat and linking toreceiver(s). This will be covered in the following sections of the manual.The four buttons located on the left side of the thermostat control the display of the temperature in either Fahrenheit or Celsius, programming and clock set up. These buttons also allow manual or program control.• F/C – Toggles between the Fahrenheit and Celsius displays• Program set-up button• Run – Sets the program or manual mode of operation• Clock set-up buttonFan AutoCOOL70OOSet PointMode of operationSet PointBacklight.A single button on the right side of the thermostat activates the display backlight. The backlightwill illuminate the display after the last button is pressed. Backlighting takes significant energyfrom the batteries and should be used sparingly. Frequent use of the backlight function willnoticeably reduce battery life.5Fan status49-7574 v06 6/7/07 9:44 AM Page 5

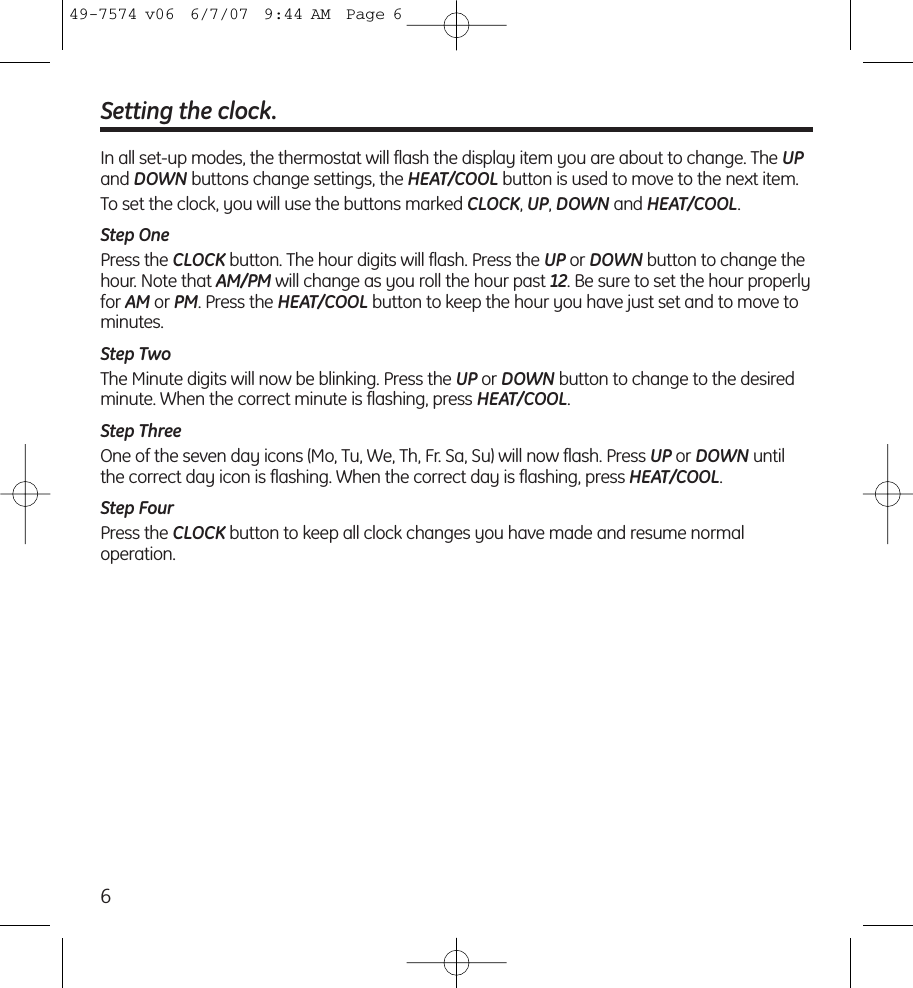

6Setting the clock.In all set-up modes, the thermostat will flash the display item you are about to change. The UPand DOWN buttons change settings, the HEAT/COOL button is used to move to the next item.To set the clock, you will use the buttons marked CLOCK, UP, DOWN and HEAT/COOL.Step OnePress the CLOCK button. The hour digits will flash. Press the UP or DOWN button to change thehour. Note that AM/PM will change as you roll the hour past 12. Be sure to set the hour properlyfor AM or PM. Press the HEAT/COOL button to keep the hour you have just set and to move tominutes.Step TwoThe Minute digits will now be blinking. Press the UP or DOWN button to change to the desiredminute. When the correct minute is flashing, press HEAT/COOL.Step ThreeOne of the seven day icons (Mo, Tu, We, Th, Fr. Sa, Su) will now flash. Press UP or DOWN untilthe correct day icon is flashing. When the correct day is flashing, press HEAT/COOL.Step FourPress the CLOCK button to keep all clock changes you have made and resume normal operation.49-7574 v06 6/7/07 9:44 AM Page 6

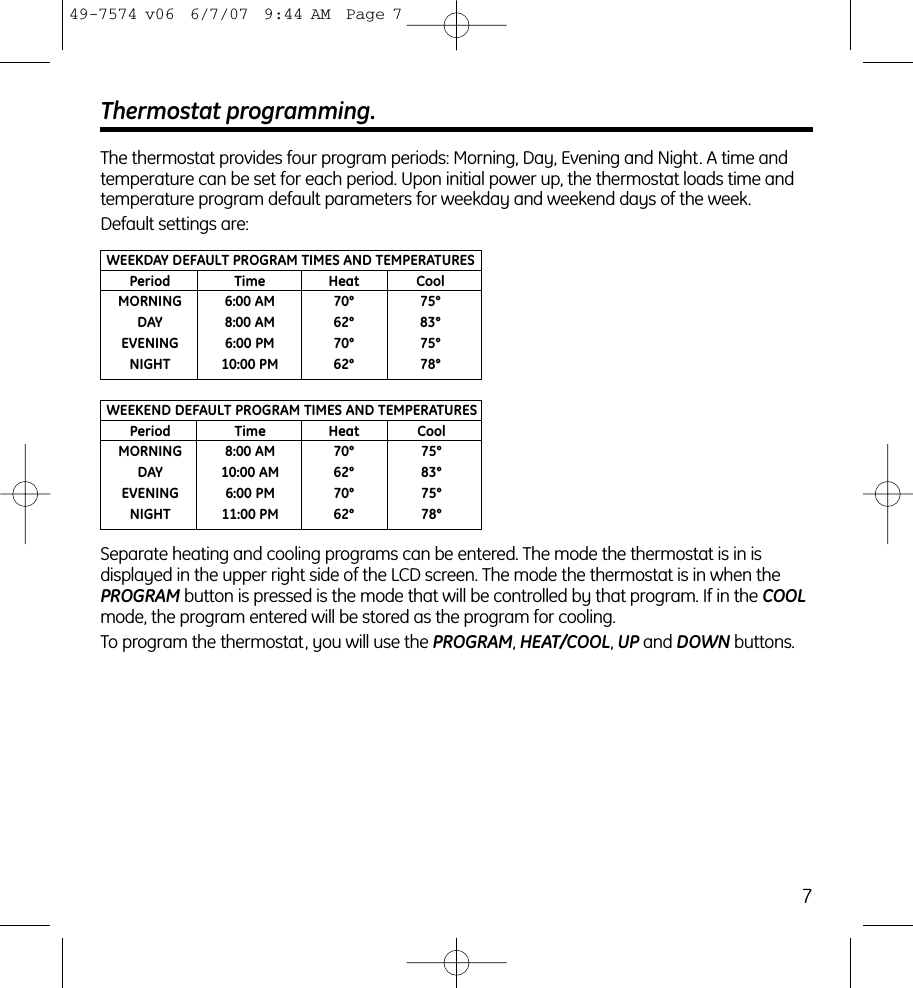

7Thermostat programming.The thermostat provides four program periods: Morning, Day, Evening and Night. A time and temperature can be set for each period. Upon initial power up, the thermostat loads time and temperature program default parameters for weekday and weekend days of the week.Default settings are:WEEKDAY DEFAULT PROGRAM TIMES AND TEMPERATURESPeriod Time Heat CoolMORNING 6:00 AM 70° 75°DAY 8:00 AM 62° 83°EVENING 6:00 PM 70° 75°NIGHT 10:00 PM 62° 78°WEEKEND DEFAULT PROGRAM TIMES AND TEMPERATURESPeriod Time Heat CoolMORNING 8:00 AM 70° 75°DAY 10:00 AM 62° 83°EVENING 6:00 PM 70° 75°NIGHT 11:00 PM 62° 78°Separate heating and cooling programs can be entered. The mode the thermostat is in is displayed in the upper right side of the LCD screen. The mode the thermostat is in when thePROGRAM button is pressed is the mode that will be controlled by that program. If in the COOLmode, the program entered will be stored as the program for cooling.To program the thermostat, you will use the PROGRAM, HEAT/COOL, UP and DOWN buttons.49-7574 v06 6/7/07 9:44 AM Page 7

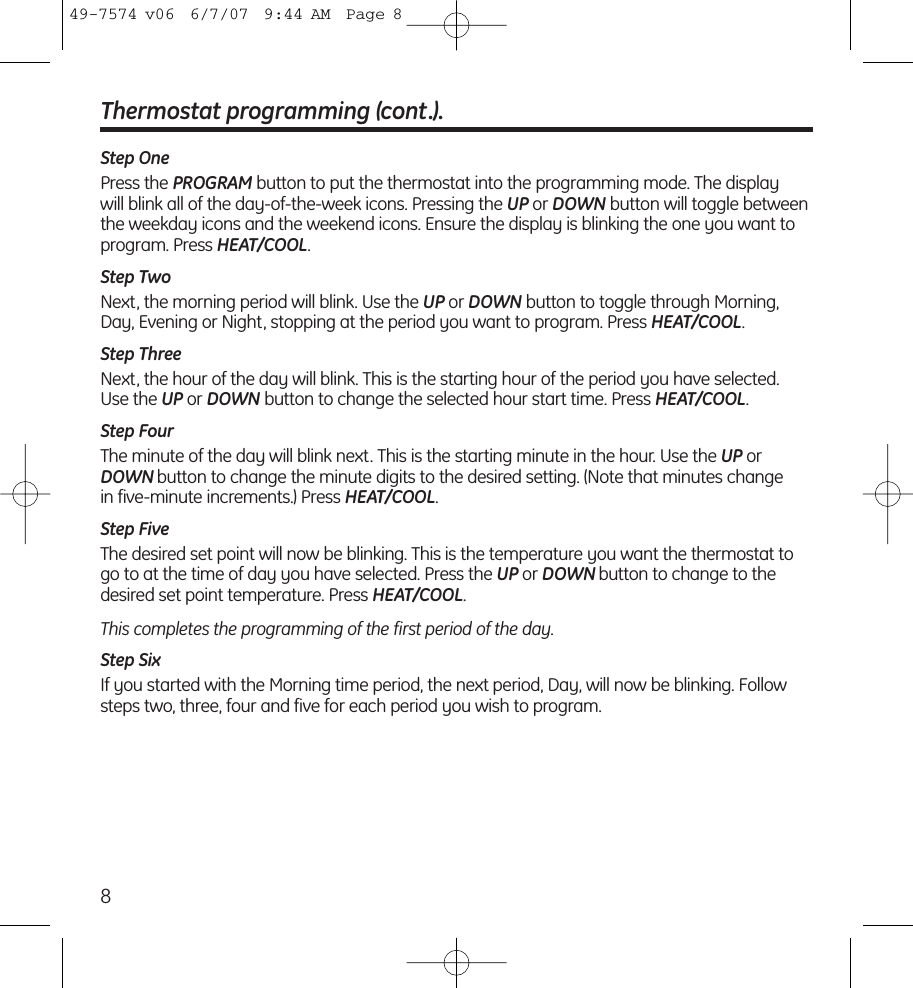

8Thermostat programming (cont.).Step OnePress the PROGRAM button to put the thermostat into the programming mode. The display will blink all of the day-of-the-week icons. Pressing the UP or DOWN button will toggle betweenthe weekday icons and the weekend icons. Ensure the display is blinking the one you want toprogram. Press HEAT/COOL.Step TwoNext, the morning period will blink. Use the UP or DOWN button to toggle through Morning,Day, Evening or Night, stopping at the period you want to program. Press HEAT/COOL.Step ThreeNext, the hour of the day will blink. This is the starting hour of the period you have selected. Use the UP or DOWN button to change the selected hour start time. Press HEAT/COOL.Step FourThe minute of the day will blink next. This is the starting minute in the hour. Use the UP orDOWN button to change the minute digits to the desired setting. (Note that minutes change in five-minute increments.) Press HEAT/COOL.Step FiveThe desired set point will now be blinking. This is the temperature you want the thermostat togo to at the time of day you have selected. Press the UP or DOWN button to change to thedesired set point temperature. Press HEAT/COOL.This completes the programming of the first period of the day.Step SixIf you started with the Morning time period, the next period, Day, will now be blinking. Followsteps two, three, four and five for each period you wish to program.49-7574 v06 6/7/07 9:44 AM Page 8

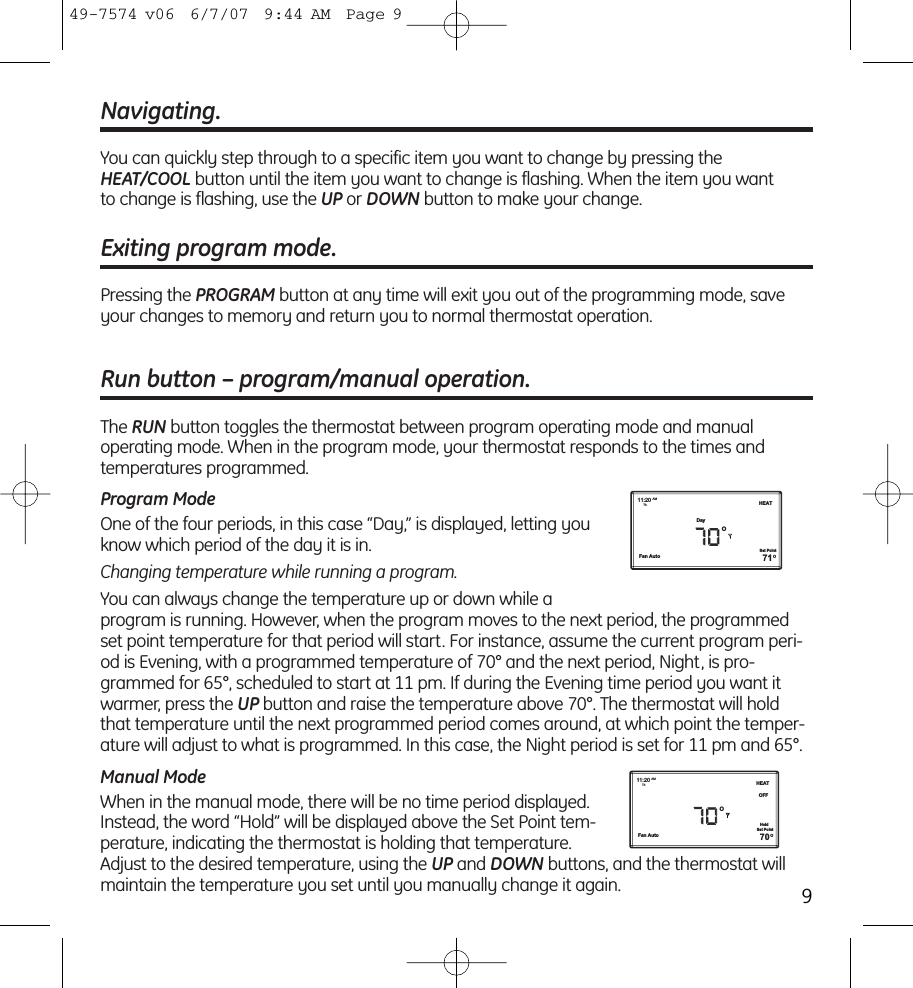

Navigating.You can quickly step through to a specific item you want to change by pressing theHEAT/COOL button until the item you want to change is flashing. When the item you want to change is flashing, use the UP or DOWN button to make your change.Exiting program mode.Pressing the PROGRAM button at any time will exit you out of the programming mode, saveyour changes to memory and return you to normal thermostat operation.Run button – program/manual operation.The RUN button toggles the thermostat between program operating mode and manual operating mode. When in the program mode, your thermostat responds to the times and temperatures programmed. Program ModeOne of the four periods, in this case “Day,” is displayed, letting youknow which period of the day it is in.Changing temperature while running a program.You can always change the temperature up or down while a program is running. However, when the program moves to the next period, the programmedset point temperature for that period will start. For instance, assume the current program peri-od is Evening, with a programmed temperature of 70° and the next period, Night, is pro-grammed for 65°, scheduled to start at 11 pm. If during the Evening time period you want itwarmer, press the UP button and raise the temperature above 70°. The thermostat will holdthat temperature until the next programmed period comes around, at which point the temper-ature will adjust to what is programmed. In this case, the Night period is set for 11 pm and 65°.Manual ModeWhen in the manual mode, there will be no time period displayed.Instead, the word “Hold” will be displayed above the Set Point tem-perature, indicating the thermostat is holding that temperature.Adjust to the desired temperature, using the UP and DOWN buttons, and the thermostat willmaintain the temperature you set until you manually change it again.Fan AutoDay11:20 AMTh HEAT71OOSet PointFan Auto11:20 AMTh HEATOFF70OOSet PointHold949-7574 v06 6/7/07 9:44 AM Page 9

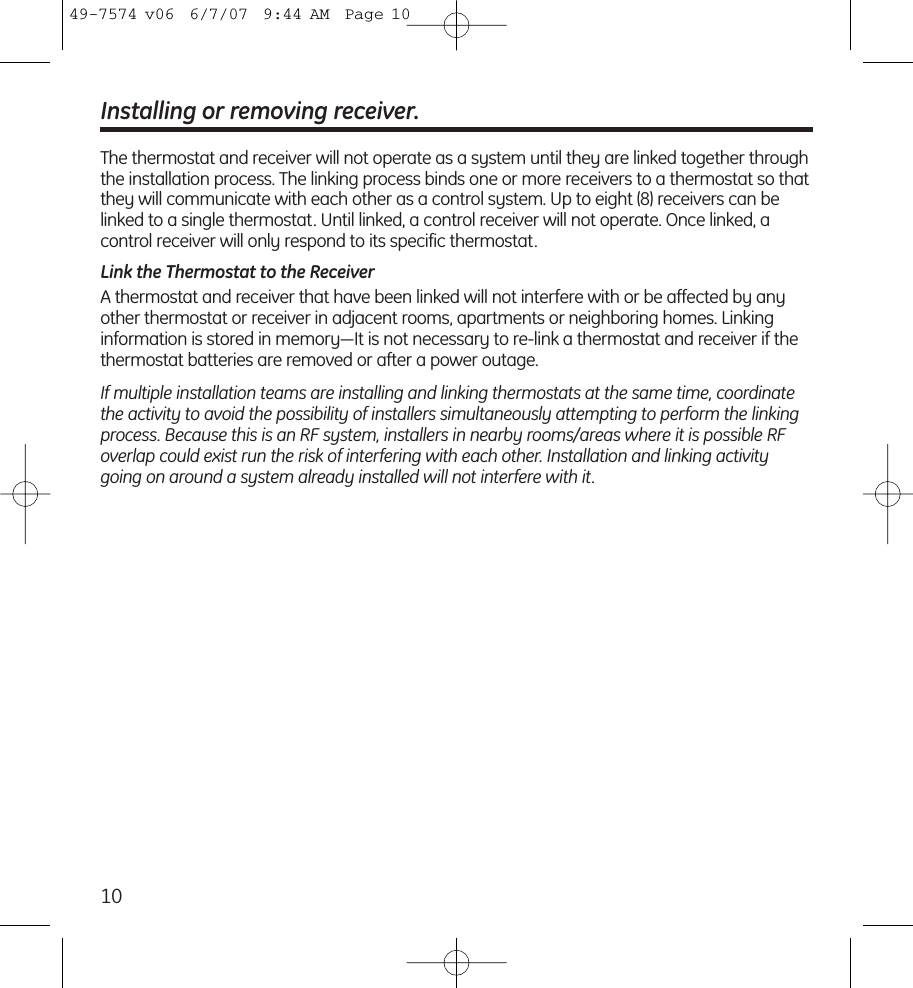

10Installing or removing receiver.The thermostat and receiver will not operate as a system until they are linked together throughthe installation process. The linking process binds one or more receivers to a thermostat so thatthey will communicate with each other as a control system. Up to eight (8) receivers can belinked to a single thermostat. Until linked, a control receiver will not operate. Once linked, a control receiver will only respond to its specific thermostat.Link the Thermostat to the ReceiverA thermostat and receiver that have been linked will not interfere with or be affected by anyother thermostat or receiver in adjacent rooms, apartments or neighboring homes. Linkinginformation is stored in memory—It is not necessary to re-link a thermostat and receiver if thethermostat batteries are removed or after a power outage.If multiple installation teams are installing and linking thermostats at the same time, coordinatethe activity to avoid the possibility of installers simultaneously attempting to perform the linkingprocess. Because this is an RF system, installers in nearby rooms/areas where it is possible RFoverlap could exist run the risk of interfering with each other. Installation and linking activitygoing on around a system already installed will not interfere with it.49-7574 v06 6/7/07 9:44 AM Page 10

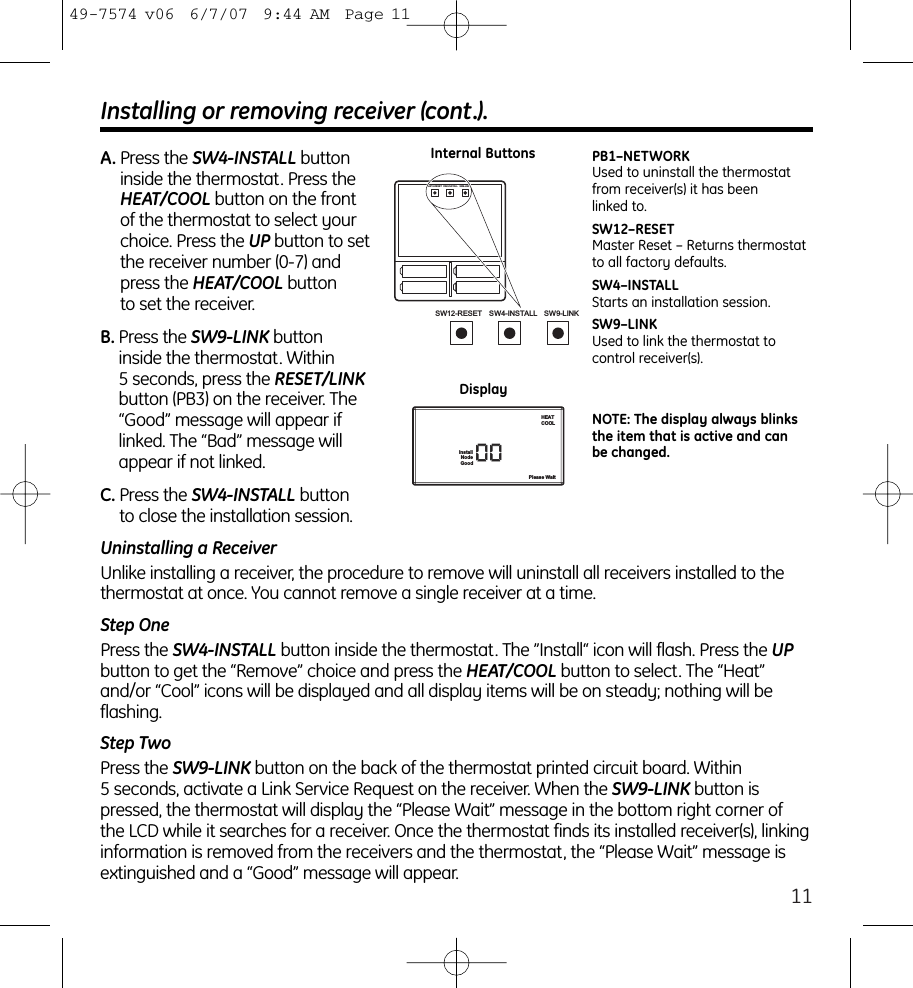

11SW12-RESET SW4-INSTALL SW9-LINKSW12-RESET SW4-INSTALL SW9-LINKPB1–NETWORKUsed to uninstall the thermostatfrom receiver(s) it has been linked to.SW12–RESETMaster Reset – Returns thermostatto all factory defaults.SW4–INSTALLStarts an installation session.SW9–LINKUsed to link the thermostat to control receiver(s).NodeGoodPlease WaitInstallHEATCOOLNOTE: The display always blinksthe item that is active and canbe changed.Installing or removing receiver (cont.).A. Press the SW4-INSTALL buttoninside the thermostat. Press theHEAT/COOL button on the frontof the thermostat to select yourchoice. Press the UP button to setthe receiver number (0-7) andpress the HEAT/COOL button to set the receiver.B. Press the SW9-LINK button inside the thermostat. Within 5 seconds, press the RESET/LINKbutton (PB3) on the receiver. The“Good” message will appear iflinked. The “Bad” message willappear if not linked.C. Press the SW4-INSTALL button to close the installation session. Internal ButtonsDisplayUninstalling a ReceiverUnlike installing a receiver, the procedure to remove will uninstall all receivers installed to thethermostat at once. You cannot remove a single receiver at a time.Step OnePress the SW4-INSTALL button inside the thermostat. The ”Install“ icon will flash. Press the UPbutton to get the “Remove” choice and press the HEAT/COOL button to select. The “Heat”and/or “Cool” icons will be displayed and all display items will be on steady; nothing will beflashing.Step TwoPress the SW9-LINK button on the back of the thermostat printed circuit board. Within 5 seconds, activate a Link Service Request on the receiver. When the SW9-LINK button ispressed, the thermostat will display the “Please Wait” message in the bottom right corner of the LCD while it searches for a receiver. Once the thermostat finds its installed receiver(s), linkinginformation is removed from the receivers and the thermostat, the “Please Wait” message isextinguished and a “Good” message will appear.49-7574 v06 6/7/07 9:44 AM Page 11

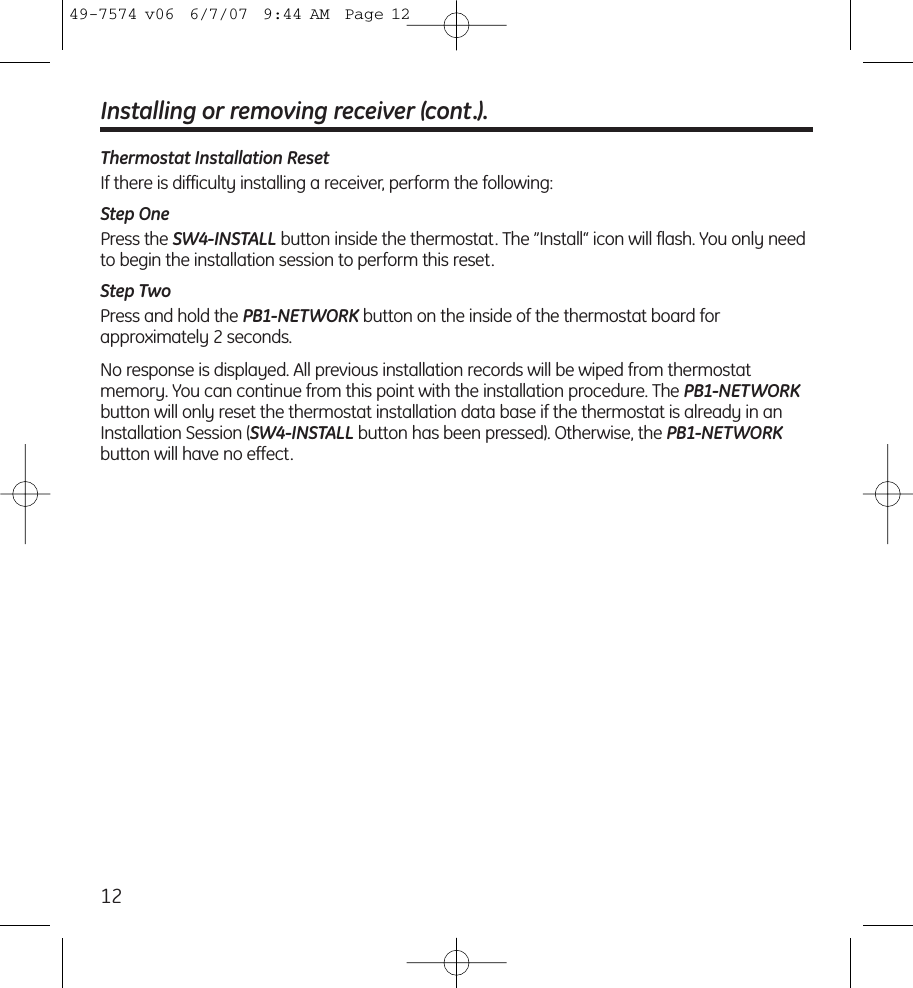

Installing or removing receiver (cont.).12Thermostat Installation ResetIf there is difficulty installing a receiver, perform the following:Step OnePress the SW4-INSTALL button inside the thermostat. The ”Install“ icon will flash. You only needto begin the installation session to perform this reset.Step TwoPress and hold the PB1-NETWORK button on the inside of the thermostat board for approximately 2 seconds.No response is displayed. All previous installation records will be wiped from thermostat memory. You can continue from this point with the installation procedure. The PB1-NETWORKbutton will only reset the thermostat installation data base if the thermostat is already in anInstallation Session (SW4-INSTALL button has been pressed). Otherwise, the PB1-NETWORKbutton will have no effect.49-7574 v06 6/7/07 9:44 AM Page 12

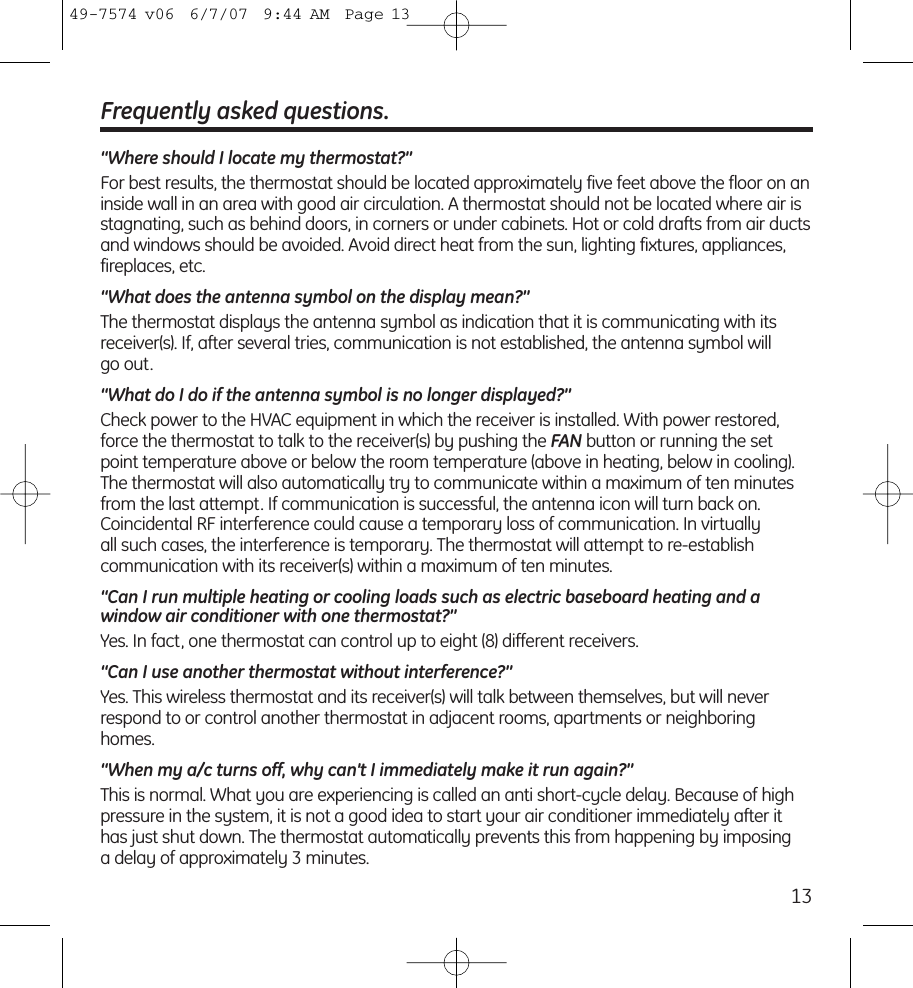

13Frequently asked questions.“Where should I locate my thermostat?”For best results, the thermostat should be located approximately five feet above the floor on aninside wall in an area with good air circulation. A thermostat should not be located where air isstagnating, such as behind doors, in corners or under cabinets. Hot or cold drafts from air ductsand windows should be avoided. Avoid direct heat from the sun, lighting fixtures, appliances,fireplaces, etc.“What does the antenna symbol on the display mean?”The thermostat displays the antenna symbol as indication that it is communicating with itsreceiver(s). If, after several tries, communication is not established, the antenna symbol will go out.“What do I do if the antenna symbol is no longer displayed?”Check power to the HVAC equipment in which the receiver is installed. With power restored,force the thermostat to talk to the receiver(s) by pushing the FAN button or running the setpoint temperature above or below the room temperature (above in heating, below in cooling). The thermostat will also automatically try to communicate within a maximum of ten minutesfrom the last attempt. If communication is successful, the antenna icon will turn back on.Coincidental RF interference could cause a temporary loss of communication. In virtually all such cases, the interference is temporary. The thermostat will attempt to re-establish communication with its receiver(s) within a maximum of ten minutes.“Can I run multiple heating or cooling loads such as electric baseboard heating and a window air conditioner with one thermostat?”Yes. In fact, one thermostat can control up to eight (8) different receivers.“Can I use another thermostat without interference?”Yes. This wireless thermostat and its receiver(s) will talk between themselves, but will neverrespond to or control another thermostat in adjacent rooms, apartments or neighboringhomes.“When my a/c turns off, why can’t I immediately make it run again?”This is normal. What you are experiencing is called an anti short-cycle delay. Because of highpressure in the system, it is not a good idea to start your air conditioner immediately after ithas just shut down. The thermostat automatically prevents this from happening by imposing a delay of approximately 3 minutes.49-7574 v06 6/7/07 9:44 AM Page 13

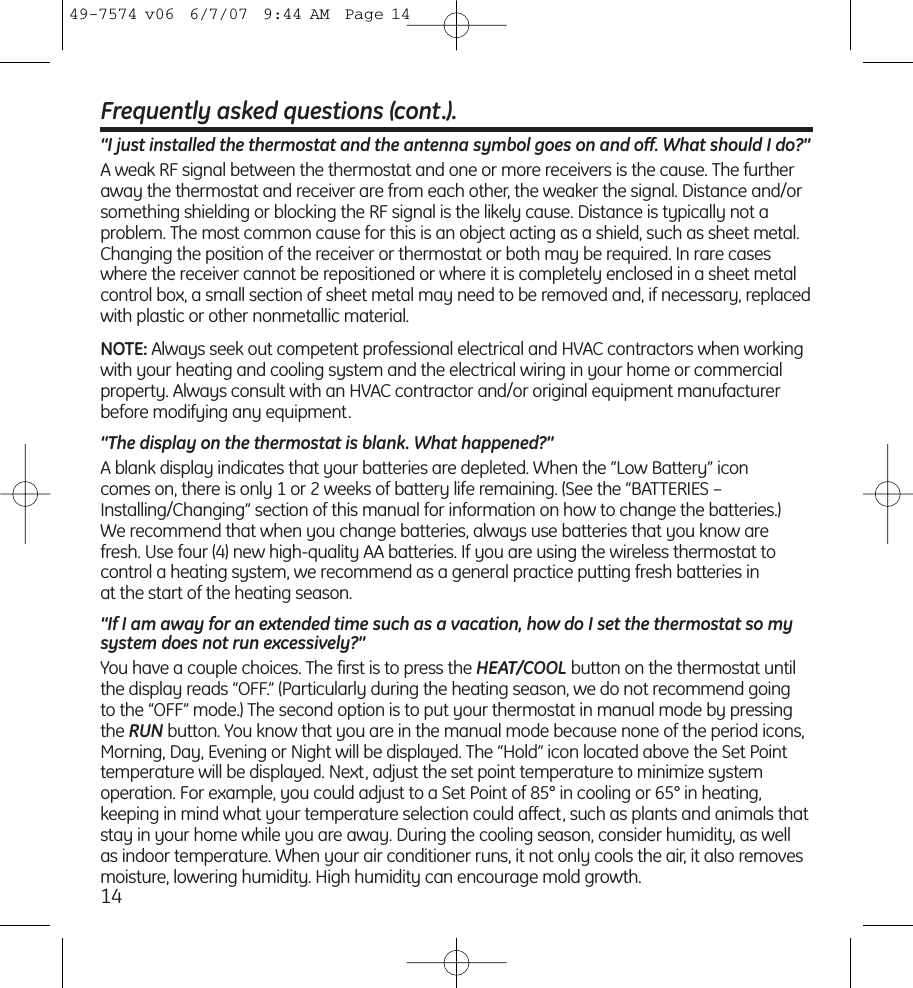

Frequently asked questions (cont.).“I just installed the thermostat and the antenna symbol goes on and off. What should I do?”A weak RF signal between the thermostat and one or more receivers is the cause. The furtheraway the thermostat and receiver are from each other, the weaker the signal. Distance and/orsomething shielding or blocking the RF signal is the likely cause. Distance is typically not aproblem. The most common cause for this is an object acting as a shield, such as sheet metal.Changing the position of the receiver or thermostat or both may be required. In rare caseswhere the receiver cannot be repositioned or where it is completely enclosed in a sheet metalcontrol box, a small section of sheet metal may need to be removed and, if necessary, replacedwith plastic or other nonmetallic material.NOTE: Always seek out competent professional electrical and HVAC contractors when workingwith your heating and cooling system and the electrical wiring in your home or commercialproperty. Always consult with an HVAC contractor and/or original equipment manufacturerbefore modifying any equipment.“The display on the thermostat is blank. What happened?”A blank display indicates that your batteries are depleted. When the “Low Battery” icon comes on, there is only 1 or 2 weeks of battery life remaining. (See the “BATTERIES –Installing/Changing” section of this manual for information on how to change the batteries.) We recommend that when you change batteries, always use batteries that you know arefresh. Use four (4) new high-quality AA batteries. If you are using the wireless thermostat tocontrol a heating system, we recommend as a general practice putting fresh batteries in at the start of the heating season.“If I am away for an extended time such as a vacation, how do I set the thermostat so mysystem does not run excessively?”You have a couple choices. The first is to press the HEAT/COOL button on the thermostat untilthe display reads “OFF.” (Particularly during the heating season, we do not recommend going to the “OFF” mode.) The second option is to put your thermostat in manual mode by pressingthe RUN button. You know that you are in the manual mode because none of the period icons,Morning, Day, Evening or Night will be displayed. The “Hold” icon located above the Set Pointtemperature will be displayed. Next, adjust the set point temperature to minimize system operation. For example, you could adjust to a Set Point of 85° in cooling or 65° in heating, keeping in mind what your temperature selection could affect, such as plants and animals thatstay in your home while you are away. During the cooling season, consider humidity, as wellas indoor temperature. When your air conditioner runs, it not only cools the air, it also removesmoisture, lowering humidity. High humidity can encourage mold growth.1449-7574 v06 6/7/07 9:44 AM Page 14

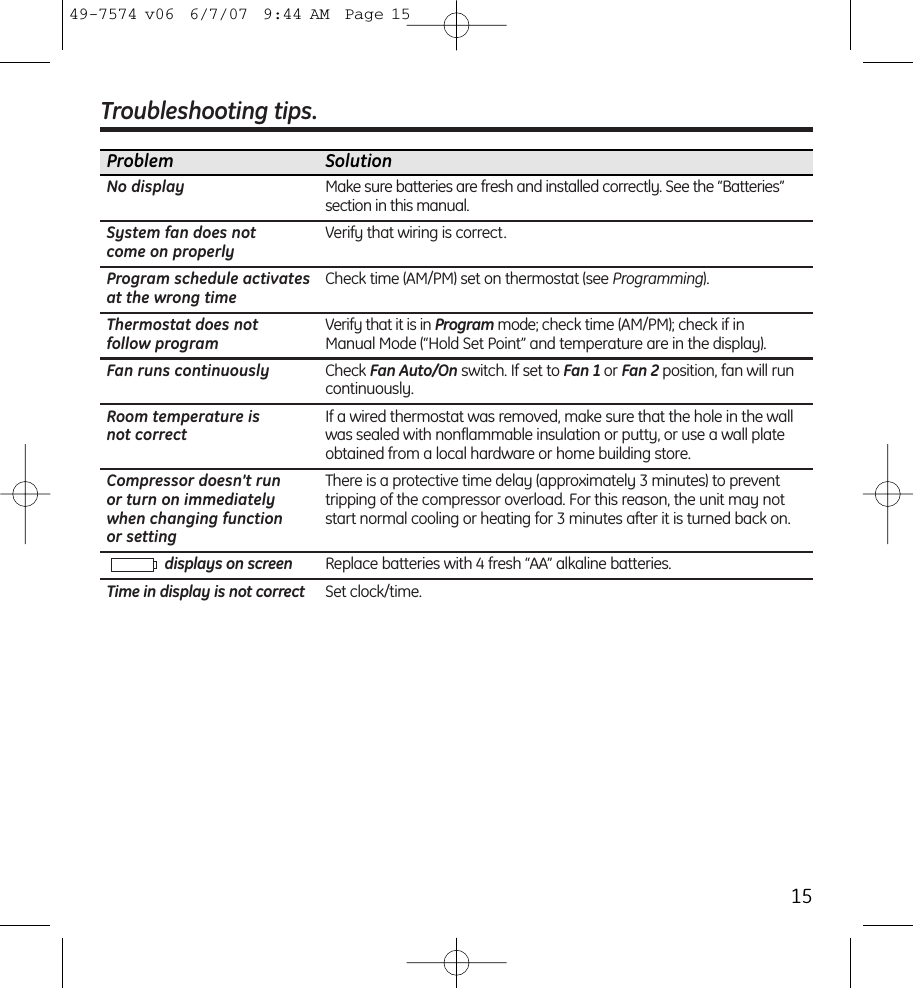

Troubleshooting tips.No display Make sure batteries are fresh and installed correctly. See the “Batteries” section in this manual. System fan does not Verify that wiring is correct.come on properlyProgram schedule activates Check time (AM/PM) set on thermostat (see Programming).at the wrong timeThermostat does not Verify that it is in Program mode; check time (AM/PM); check if in follow program Manual Mode (“Hold Set Point” and temperature are in the display).Fan runs continuously Check Fan Auto/On switch. If set to Fan 1 or Fan 2 position, fan will run continuously.Room temperature is If a wired thermostat was removed, make sure that the hole in the wall not correct was sealed with nonflammable insulation or putty, or use a wall plate obtained from a local hardware or home building store.Compressor doesn’t run There is a protective time delay (approximately 3 minutes) to prevent or turn on immediately tripping of the compressor overload. For this reason, the unit may not when changing function start normal cooling or heating for 3 minutes after it is turned back on.or settingdisplays on screen Replace batteries with 4 fresh “AA” alkaline batteries.Time in display is not correct Set clock/time.Problem Solution1549-7574 v06 6/7/07 9:44 AM Page 15

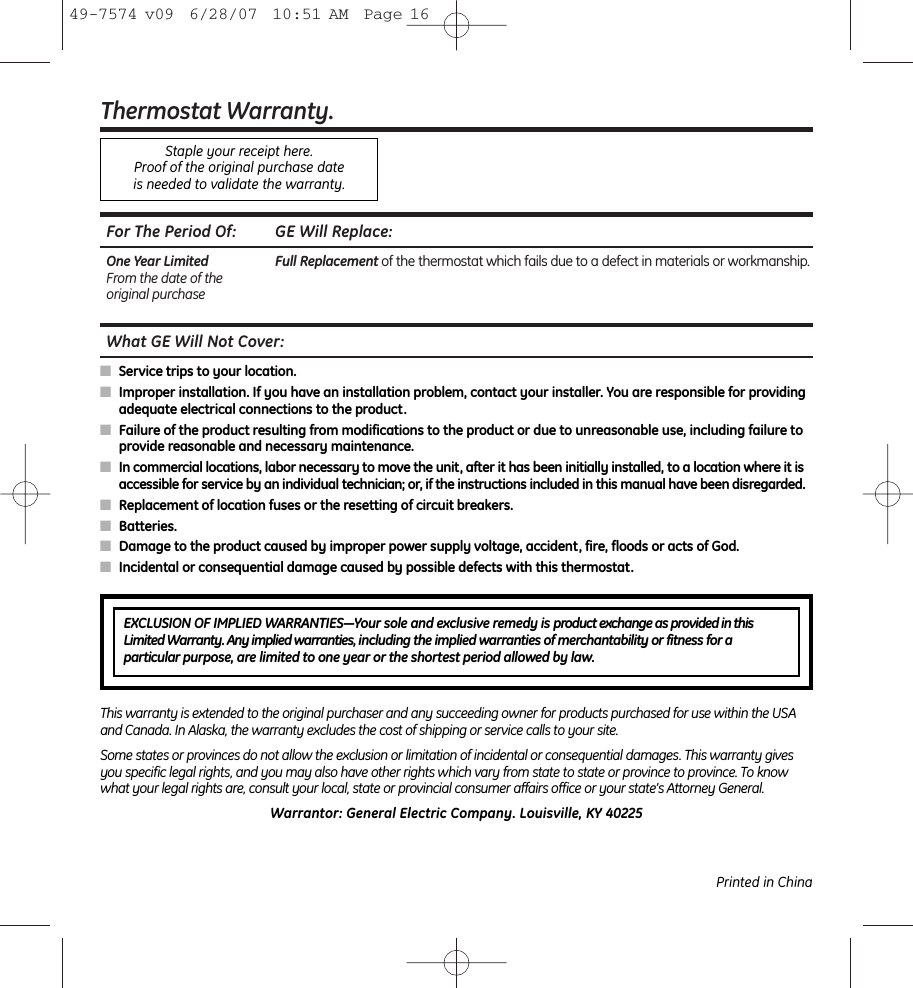

Thermostat Warranty.For The Period Of: GE Will Replace:One Year Limited Full Replacement of the thermostat which fails due to a defect in materials or workmanship. From the date of theoriginal purchaseWhat GE Will Not Cover:■Service trips to your location.■Improper installation. If you have an installation problem, contact your installer. You are responsible for providingadequate electrical connections to the product. ■Failure of the product resulting from modifications to the product or due to unreasonable use, including failure toprovide reasonable and necessary maintenance.■In commercial locations, labor necessary to move the unit, after it has been initially installed, to a location where it isaccessible for service by an individual technician; or, if the instructions included in this manual have been disregarded.■Replacement of location fuses or the resetting of circuit breakers.■Batteries.■Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.■Incidental or consequential damage caused by possible defects with this thermostat.Staple your receipt here. Proof of the original purchase date is needed to validate the warranty.This warranty is extended to the original purchaser and any succeeding owner for products purchased for use within the USAand Canada. In Alaska, the warranty excludes the cost of shipping or service calls to your site.Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages. This warranty givesyou specific legal rights, and you may also have other rights which vary from state to state or province to province. To knowwhat your legal rights are, consult your local, state or provincial consumer affairs office or your state’s Attorney General.Warrantor: General Electric Company. Louisville, KY 40225EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product exchange as provided in thisLimited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.Printed in China49-7574 v09 6/28/07 10:51 AM Page 16
