ENUSTECH EUSBDHSN0005 BLUETOOTH DONGLE User Manual

ENUSTECH BLUETOOTH DONGLE Users Manual

Users Manual

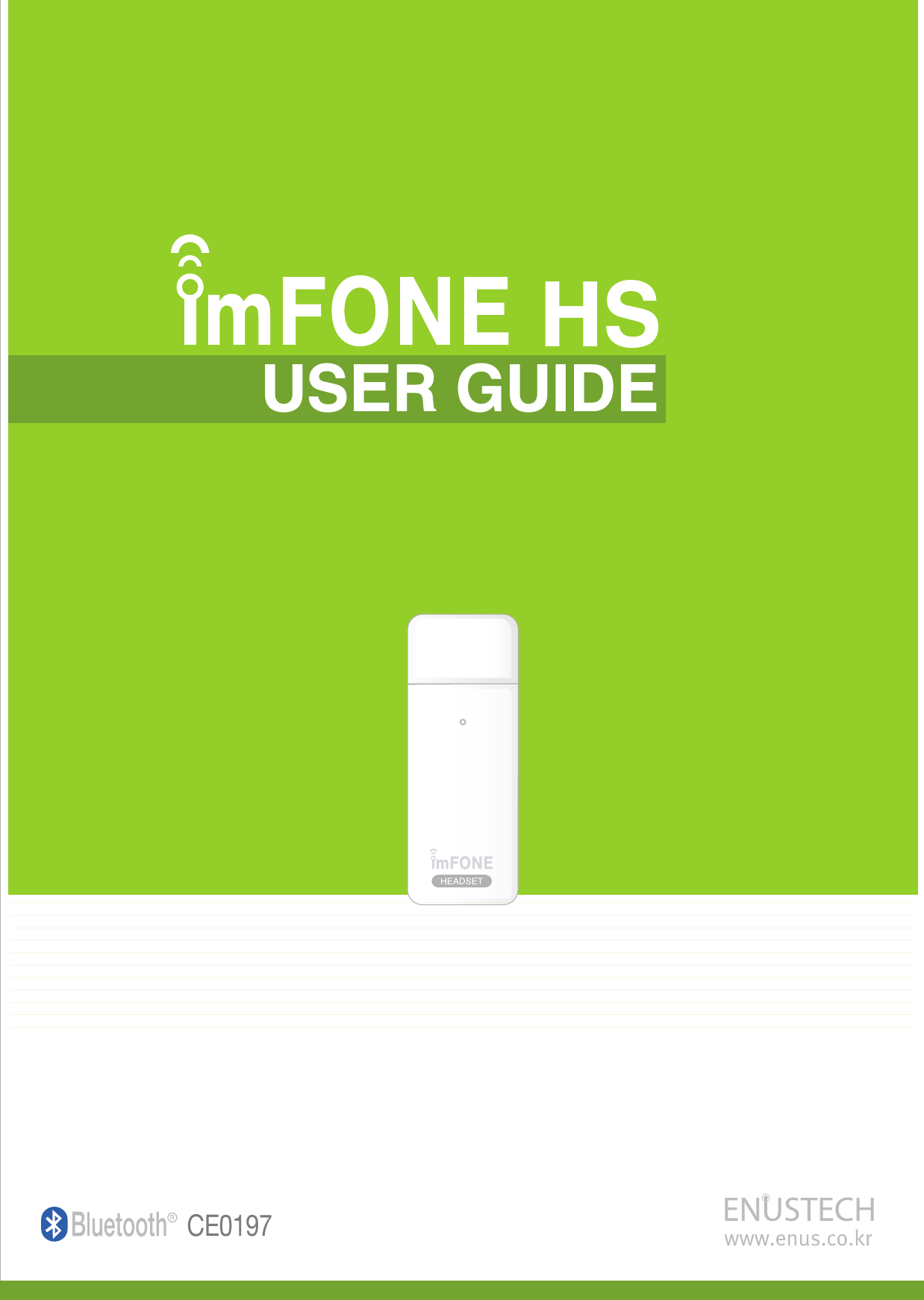

USER GUIDE HSCE0197

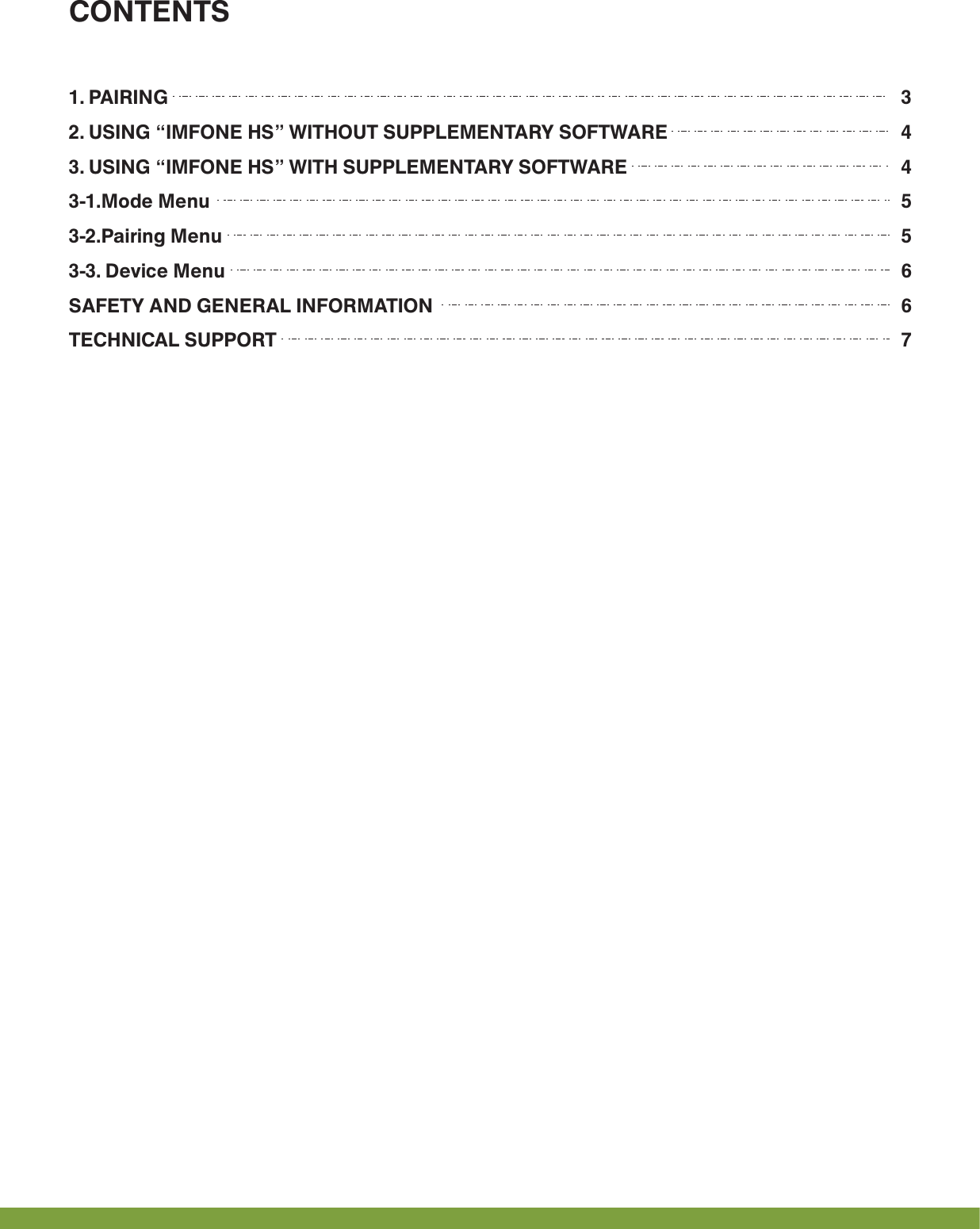

CONTENTS1. PAIRING 2. USING “IMFONE HS” WITHOUT SUPPLEMENTARY SOFTWARE 3. USING “IMFONE HS” WITH SUPPLEMENTARY SOFTWARE 3-1.Mode Menu3-2.Pairing Menu3-3. Device Menu SAFETY AND GENERAL INFORMATION TECHNICAL SUPPORT 34455667

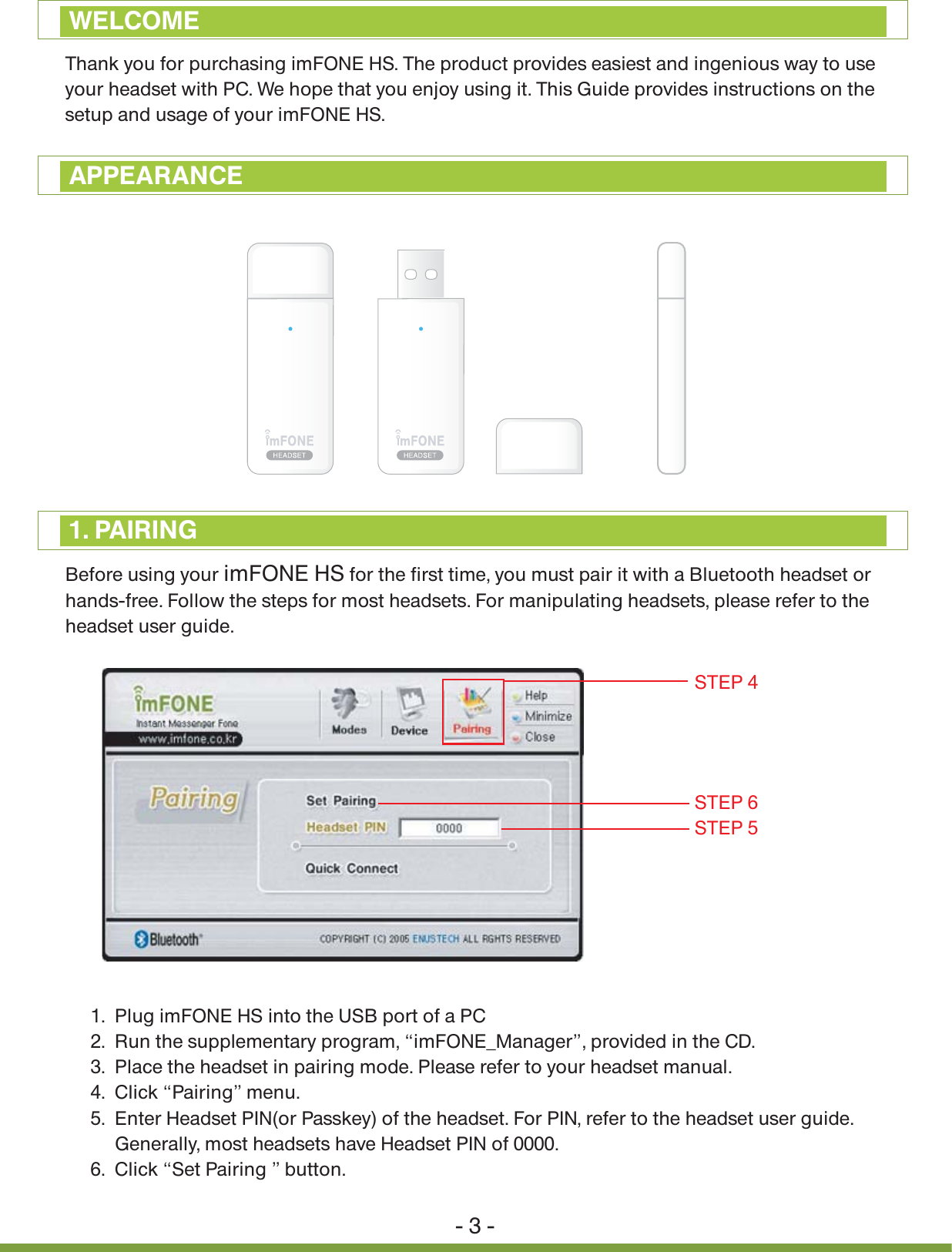

Thank you for purchasing imFONE HS. The product provides easiest and ingenious way to use your headset with PC. We hope that you enjoy using it. This Guide provides instructions on the setup and usage of your imFONE HS. 1. Plug imFONE HS into the USB port of a PC2. Run the supplementary program, “imFONE_Manager”, provided in the CD. 3. Place the headset in pairing mode. Please refer to your headset manual.4. Click “Pairing” menu.5. Enter Headset PIN(or Passkey) of the headset. For PIN, refer to the headset user guide. Generally, most headsets have Headset PIN of 0000.6. Click “Set Pairing ” button.- 3 -WELCOMEAPPEARANCEBefore using your imFONE HS for the first time, you must pair it with a Bluetooth headset or hands-free. Follow the steps for most headsets. For manipulating headsets, please refer to the headset user guide. 1. PAIRINGSTEP 6STEP 4STEP 5

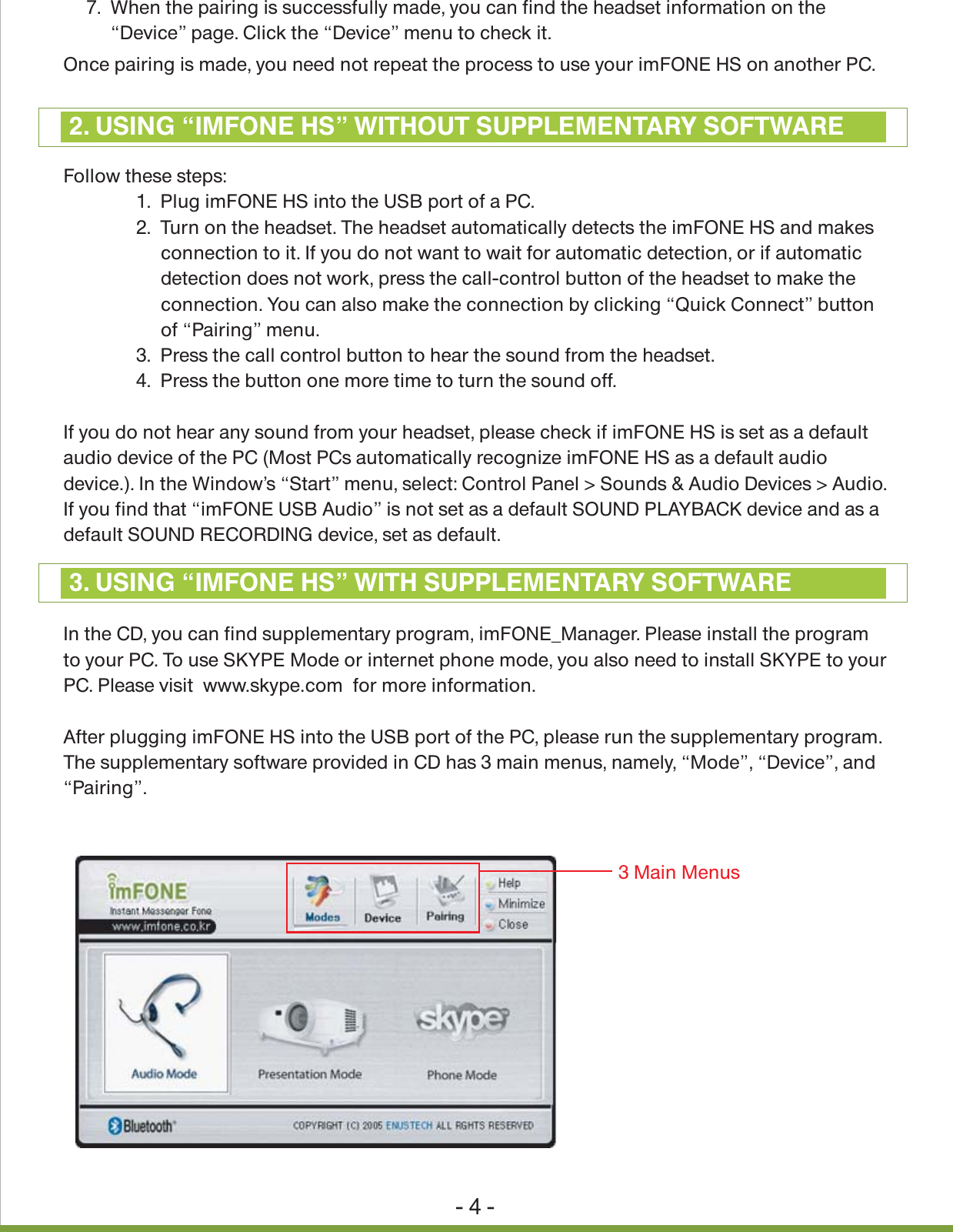

- 4 -Once pairing is made, you need not repeat the process to use your imFONE HS on another PC.Follow these steps: 1. Plug imFONE HS into the USB port of a PC. 2. Turn on the headset. The headset automatically detects the imFONE HS and makes connection to it. If you do not want to wait for automatic detection, or if automatic detection does not work, press the call-control button of the headset to make the connection. You can also make the connection by clicking “Quick Connect” button of “Pairing” menu. 3. Press the call control button to hear the sound from the headset. 4. Press the button one more time to turn the sound off.If you do not hear any sound from your headset, please check if imFONE HS is set as a default audio device of the PC (Most PCs automatically recognize imFONE HS as a default audio device.). In the Window’s “Start” menu, select: Control Panel > Sounds & Audio Devices > Audio. If you find that “imFONE USB Audio” is not set as a default SOUND PLAYBACK device and as a default SOUND RECORDING device, set as default.In the CD, you can find supplementary program, imFONE_Manager. Please install the programto your PC. To use SKYPE Mode or internet phone mode, you also need to install SKYPE to your PC. Please visit www.skype.com for more information.After plugging imFONE HS into the USB port of the PC, please run the supplementary program. The supplementary software provided in CD has 3 main menus, namely, “Mode”, “Device”, and “Pairing”.2. USING “IMFONE HS” WITHOUT SUPPLEMENTARY SOFTWARE3. USING “IMFONE HS” WITH SUPPLEMENTARY SOFTWARE7. When the pairing is successfully made, you can find the headset information on the “Device” page. Click the “Device” menu to check it.3 Main Menus

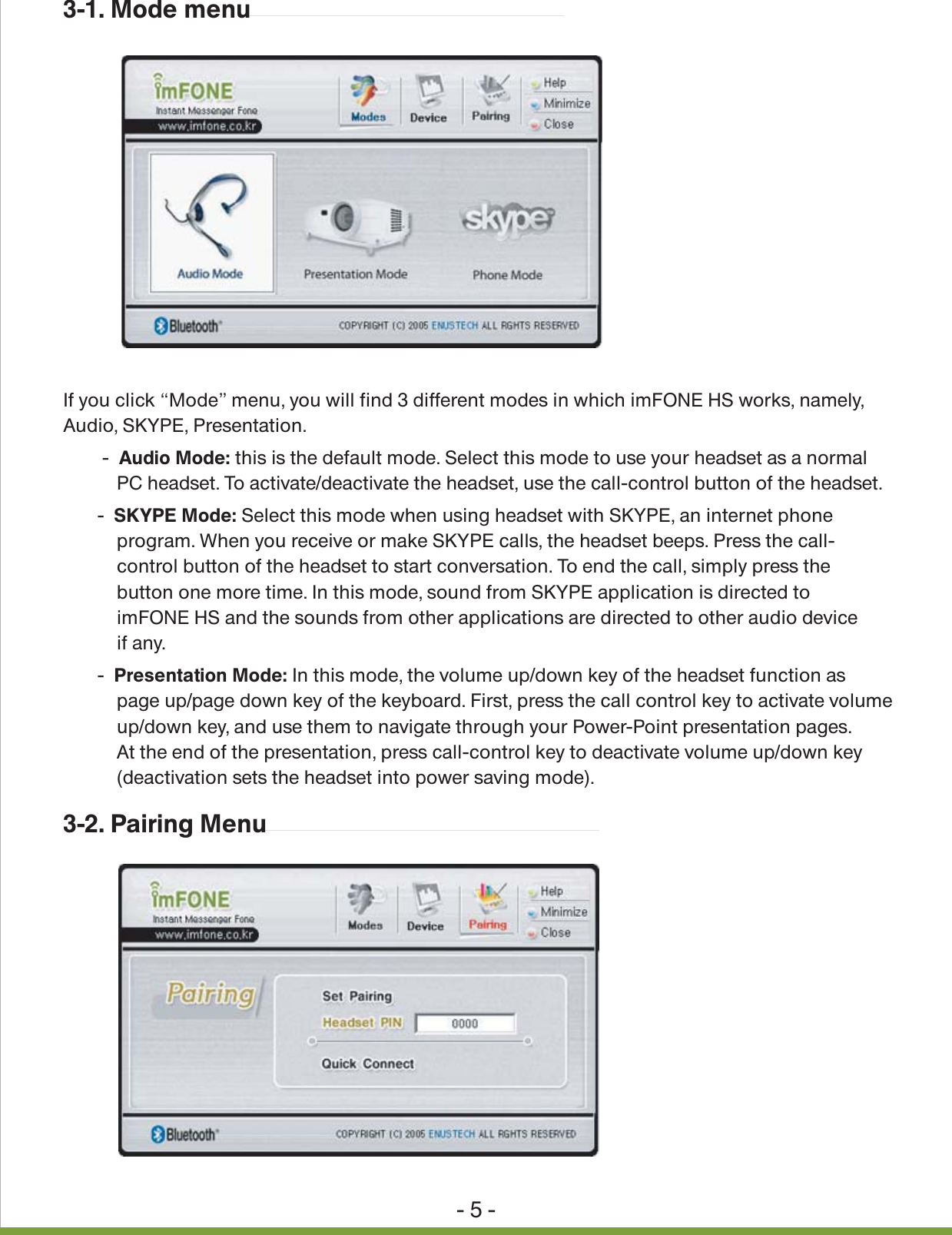

- 5 -3-1. Mode menu3-2. Pairing MenuIf you click “Mode” menu, you will find 3 different modes in which imFONE HS works, namely, Audio, SKYPE, Presentation. - Audio Mode: this is the default mode. Select this mode to use your headset as a normal PC headset. To activate/deactivate the headset, use the call-control button of the headset. - SKYPE Mode: Select this mode when using headset with SKYPE, an internet phone program. When you receive or make SKYPE calls, the headset beeps. Press the call- control button of the headset to start conversation. To end the call, simply press the button one more time. In this mode, sound from SKYPE application is directed to imFONE HS and the sounds from other applications are directed to other audio device if any. - Presentation Mode: In this mode, the volume up/down key of the headset function as page up/page down key of the keyboard. First, press the call control key to activate volume up/down key, and use them to navigate through your Power-Point presentation pages. At the end of the presentation, press call-control key to deactivate volume up/down key (deactivation sets the headset into power saving mode).

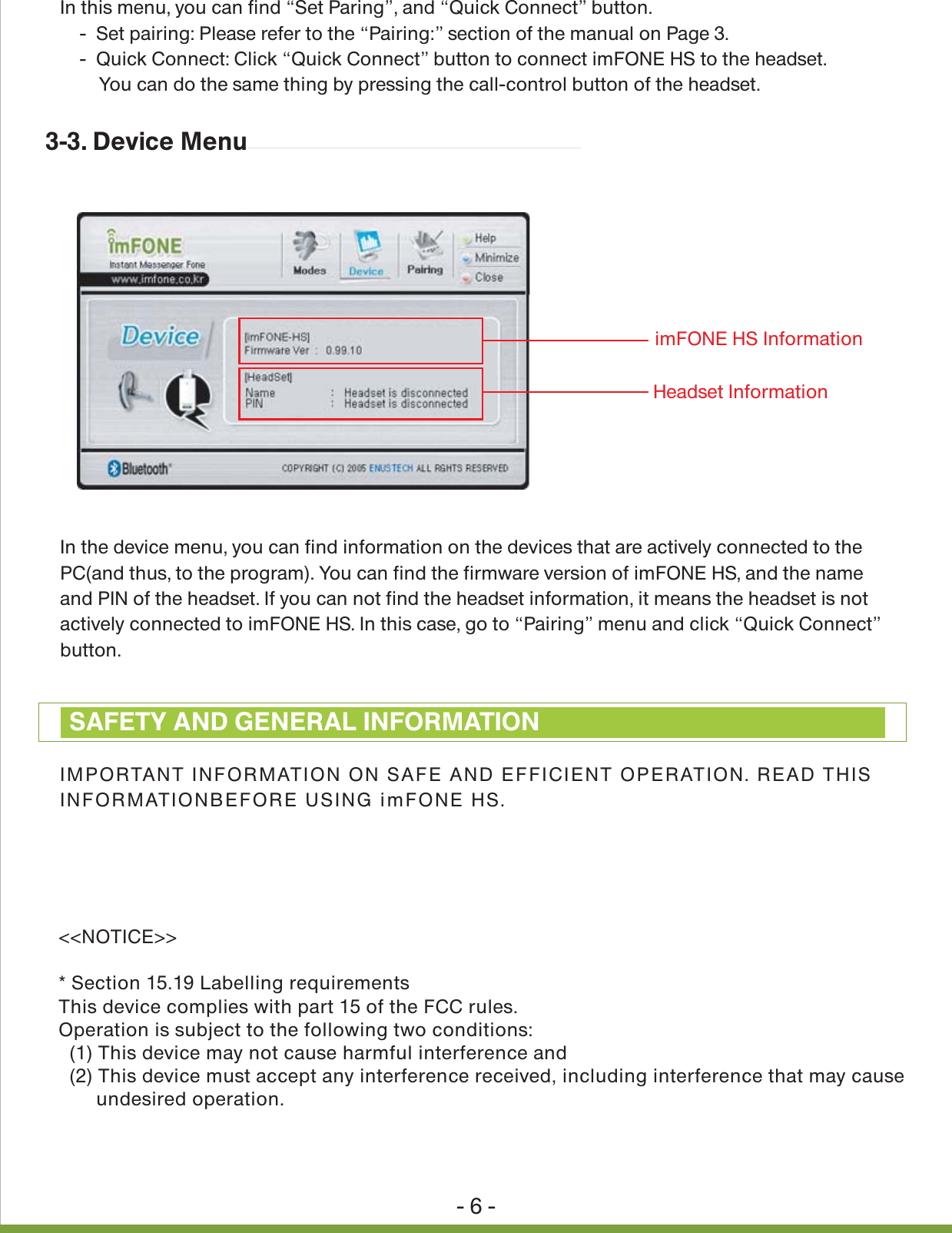

- 6 -In this menu, you can find “Set Paring”, and “Quick Connect” button. - Set pairing: Please refer to the “Pairing:” section of the manual on Page 3. - Quick Connect: Click “Quick Connect” button to connect imFONE HS to the headset. You can do the same thing by pressing the call-control button of the headset.In the device menu, you can find information on the devices that are actively connected to the PC(and thus, to the program). You can find the firmware version of imFONE HS, and the name and PIN of the headset. If you can not find the headset information, it means the headset is not actively connected to imFONE HS. In this case, go to “Pairing” menu and click “Quick Connect”button.IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATIONBEFORE USING imFONE HS.Users are not permitted to make changes or modify the device in anyway. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 3-3. Device MenuSAFETY AND GENERAL INFORMATIONimFONE HS InformationHeadset Information<<NOTICE>>* Section 15.19 Labelling requirementsThis device complies with part 15 of the FCC rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.

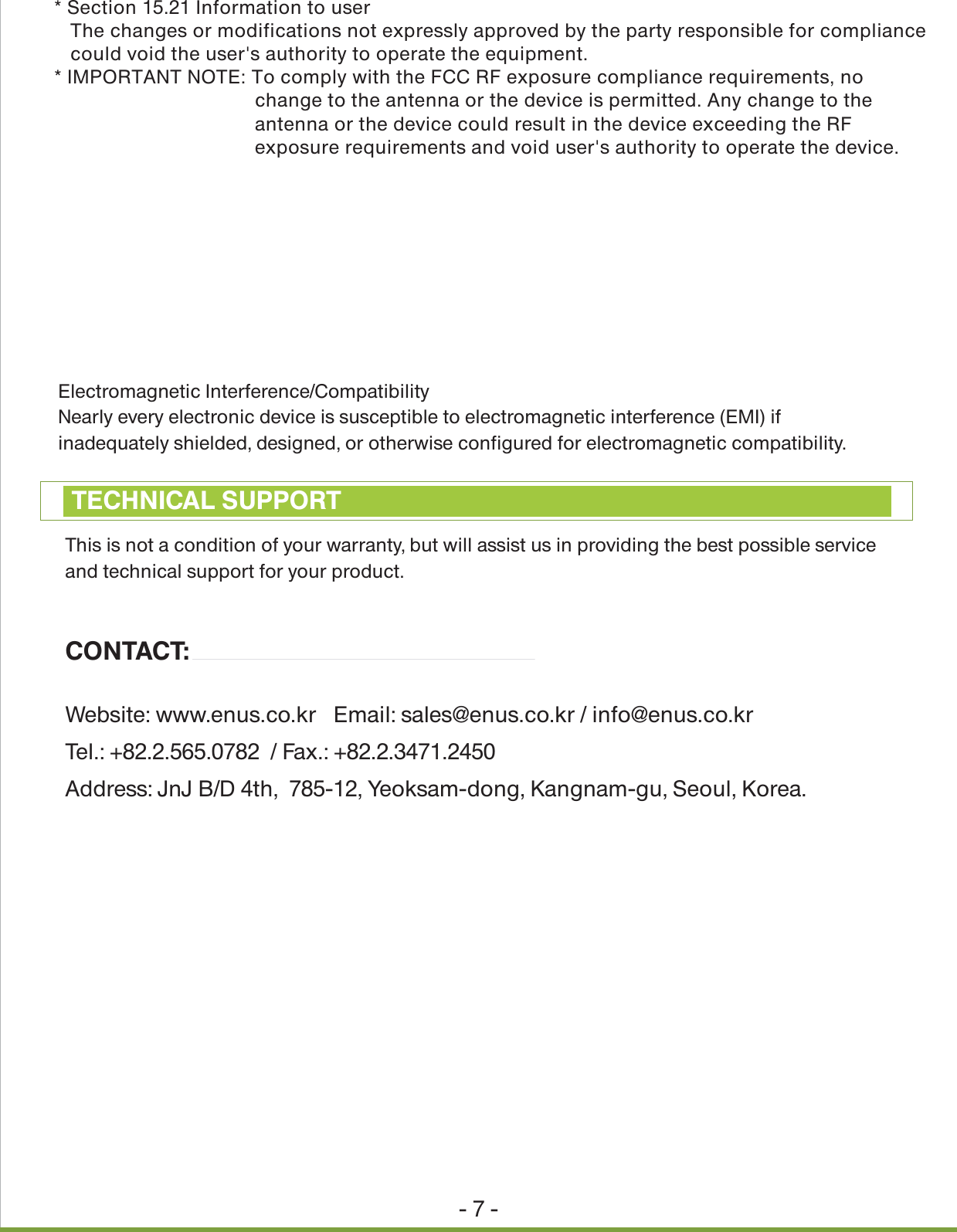

Electromagnetic Interference/CompatibilityNearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility.- 7 -This is not a condition of your warranty, but will assist us in providing the best possible service and technical support for your product.CONTACT:Website: www.enus.co.kr Email: sales@enus.co.kr / info@enus.co.kr Tel.: +82.2.565.0782 / Fax.: +82.2.3471.2450Address: JnJ B/D 4th, 785-12, Yeoksam-dong, Kangnam-gu, Seoul, Korea.TECHNICAL SUPPORT* Section 15.21 Information to user The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.* IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device.<<NOTICE>>THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THEFOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION.
